Variable Fan Controller

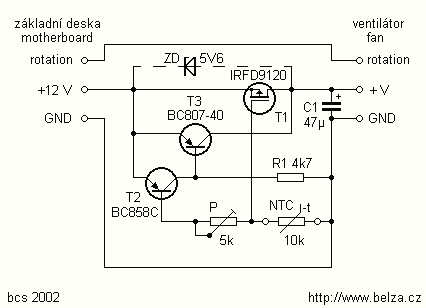

When the fan seized up in my source and I changed it to a type with much less noise, turned on my computer, the largest source of noise CPU cooler fan. The computer I have a boxed Pentium III processor in slot 1, which is practically dismountable and fan replacement would be difficult. `Boxing` is a type of fan with ball bearings and replacement of the type of plain bearing to reduce noise, while cooling, but not reliability. Another option was to reduce the fan speed. I tried the program Speedfan. This enabled to set the fan speed, but I was unable to convince him to regulate the speed according to CPU temperature. The PSU I have the controller in [1] , which I witnessed in earlier computers. I wanted to use it for the CPU fan, I used to but your friend "discovered" the regulator is used in battery charger for model. Involvement of the regulator in Figure 1 is ingeniously simple. The whole controller has only three components: sensors - NTC Thermistor, Trimmer for temperature control and MOSFET. The transistor is the best "standard" type with a threshold voltage around 4 V. For use in PC controller had to be adjusted. It should be that the fan is grounded, otherwise it does not capture special fan outlet "rotation". For proper function of the controller under quite simply figure A transistor to produce the opposite type of conductivity and change the polarity and the fan. The resulting involvement of the figure 2 is not accompanied by a protection circuit. The thermistor is connected to the controller a short cable. The frequent handling inside the PC could happen that turn leads somewhere. The regulator according to Figure 1 , the fan has stopped rotating, which could have fatal consequences especially for AMD. The regulator according to Figure 2 , in which case the current flow stops and the thermistor trimmer, transistor T2 is closed and the transistor T3 is connected in parallel to T1, opens. The fan is powered by the almost full supply voltage. The opening of T2 requires very little current, the transistor is open and current, passing through the thermistor at 40 ° C. The recovery is only in the trimmer and the overall control function. The controller can revive "the table" when powered from a laboratory source, the more I worked this way but only to check the function and set the slider to the PC. The program Speedfan or another utility to leave the screen listing the CPU temperature and run a program that loaded the CPU to 100%. Suitable programs are for DOS or Windows 3.1, or compression schemes for audio or video. Starting and stopping the program can be CPU heat as needed. Trimmer, then set the temperature at which the fan spins. The difference between the temperature at which the fan is still standing, and the temperature at which rotates the "content" is only a few ° C. In my computer I set the regulator at 38 ° C. This temperature might be too low. Component placement is to figure 5 . MOSFET and trimmer are equipped with the "component side" transistors T2, T3 and resistor from the circuit. K2 connector for connecting a standard ventilator, his counterpart, who need to connect to the MB, is sold only in the "cable" design. The flexible contacts must be soldered pieces of thicker wire (see Figure 6 ), for which the solder plug into the controller board. When soldering is necessary to ensure that the tin was only in places where it is pressed with pliers crimp the cable and the flexible nezatekl contacts. R1 10 kOhm, SMD1206 P 5 kOhm, Trimmer PT6V (PT6H) C1 In 1947 ?F/16 T1 IRFD9120 T2 BC858C SMD T3 BC807-40 SMD NTC 10 kOhm thermistor ZD Zener diode 5.6 V (If necessary / if Needed ) connectors "lock up" PSH02-03W PFH02-03P PCB bcs39 visit page.
