Audio Booster


Posted on Feb 5, 2014

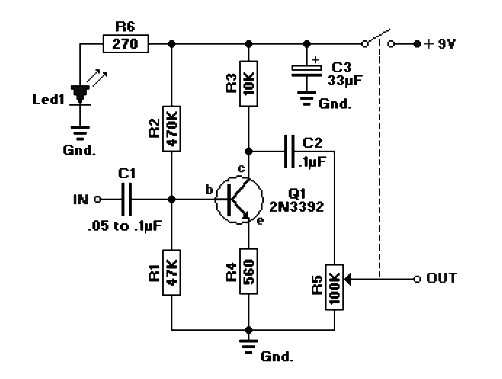

Booster for audio circuit diagram. Potentiometer R5 of 100K is a linear type with an on/off switch attached. The value of C1 may need to be between 0. 05 µF and 0. 1 µF (47nF/100nF). Experiment with the value for best performance. This is a20 watts audio amplifieris suppliedwith a voltage14. 4volts, givinga total power of20wattsinto twodifferent chann


Audio Booster
Click here to download the full size of the above Circuit.

els, each of whichis connectedto thetweeteranda woofer. This amplifier isthereforeequipped with an active CROSSOVERfilterwithacrossoverfrequencyof 2KHz. Eachloudspeakermust supporta power of 10wattsandhaveanimpedanceof 4 ohms. The supply voltagecan bebetween12and up.
