Key Characteristics of Fire and Smoke in Visual Data

Spectral Signatures and Color Space Analysis

Fire exhibits distinct spectral properties across visible and infrared wavelengths. In RGB color space, flames typically occupy the red-yellow spectrum with pixel intensities following:

where I_R, I_G, and I_B represent red, green, and blue channel intensities respectively. The chromaticity coordinates (r,g) in normalized RGB space cluster around:

Temporal Dynamics and Flicker Patterns

Flames exhibit characteristic flicker frequencies between 5-15 Hz due to turbulent combustion dynamics. This can be modeled as a modulated signal:

where A(t) follows a Rayleigh distribution and φ(t) shows random phase variations. The power spectral density peaks between 5-15 Hz with harmonic components.

Smoke Visual Characteristics

Smoke presents different optical properties:

• Opacity: Transmission coefficient follows Beer-Lambert law:
  $$ I = I_0 e^{-\beta d} $$
  where β is the extinction coefficient
• Texture: Fractal dimension between 2.3-2.8 in grayscale images
• Motion: Non-rigid deformation with upward convection velocities of 1-3 m/s

Thermal Infrared Signatures

In LWIR (8-14 μm) bands, fires emit blackbody radiation following Planck's law:

Typical flame temperatures (800-1200°C) produce peak emissions at 2-4 μm (MWIR) with secondary peaks in LWIR. Smoke appears as cold regions (ΔT ≈ -5 to -20°C) relative to background.

Multi-modal Feature Fusion

Optimal detection combines:

• Color histogram moments in HSV space
• Wavelet coefficients of flicker patterns
• Optical flow divergence for smoke motion
• Thermal gradients in IR-visible image pairs

The joint feature space enables discrimination from fire-like artifacts (sunlight reflections, hot surfaces) using machine learning classifiers with >95% accuracy in controlled environments.

Challenges in Real-World Detection Scenarios

Environmental Variability

Fire and smoke detection systems must contend with dynamic environmental conditions that degrade performance. Lighting variations—ranging from harsh sunlight to complete darkness—alter the apparent color and texture of smoke and flames. Atmospheric effects like fog, rain, or dust introduce noise that mimics smoke patterns. Seasonal changes in vegetation affect background subtraction algorithms, as autumn leaves or swaying branches generate false motion signatures. The Beer-Lambert law describes light attenuation through smoke:

where I is transmitted intensity, I₀ is incident intensity, α is the absorption coefficient, and d is path length. This nonlinear relationship complicates threshold-based detection when atmospheric conditions modify α.

Occlusion and Partial Visibility

Real-world obstructions frequently obscure critical visual cues. Architectural elements, terrain features, or intervening objects may block direct line-of-sight to fire sources. Smoke plumes often exhibit intermittent visibility as they disperse or interact with wind currents. Multi-camera fusion approaches must account for perspective-dependent occlusion geometry:

where V_k(p) represents visibility probability of point p from camera k. This compounding effect reduces detection confidence as occlusion likelihood increases across camera networks.

Dynamic Texture Analysis

Smoke exhibits stochastic texture properties that challenge traditional feature extraction. The fractal dimension D of smoke plumes varies with combustion conditions:

where N(ε) counts boxes of size ε covering the smoke boundary. Turbulent flow creates non-stationary patterns that defeat fixed wavelet or Gabor filter banks, requiring adaptive texture models.

Real-Time Processing Constraints

Embedded implementations face strict latency budgets—typically under 500ms for early warning systems. The computational complexity of 3D smoke reconstruction grows cubically with spatial resolution:

for n voxels along each axis. This forces tradeoffs between detection accuracy and processing speed, particularly when deploying on edge devices with limited parallel compute resources.

Adversarial Conditions

Malicious actors may attempt to spoof detection systems using synthetic smoke patterns or infrared projectors. Generative adversarial networks can produce physically plausible smoke textures that fool conventional classifiers. Robust systems incorporate temporal consistency checks and multi-spectral verification to defeat such attacks.

1.3 Applications and Importance of Automated Detection Systems

Early Fire Detection in Industrial and Urban Environments

Automated fire and smoke detection systems leverage computer vision to identify incipient fires before they escalate, reducing response times from minutes to seconds. In industrial settings such as power plants, chemical storage facilities, and manufacturing units, early detection prevents catastrophic failures. For instance, thermal imaging combined with convolutional neural networks (CNNs) can detect temperature anomalies with a precision exceeding 95%, as demonstrated by the following probabilistic model for fire likelihood:

Here, P(Fire | x) represents the probability of fire given feature vector x, while w and b are learned weights and bias from training data. Industrial deployments often integrate these models with IoT sensors, enabling real-time alerts via edge computing devices.

Wildfire Monitoring and Ecological Preservation

Satellite and drone-based systems employ multispectral imaging to detect wildfires in remote forests. YOLOv7 and Transformer-based architectures process terabytes of aerial imagery daily, identifying smoke plumes with a mean average precision (mAP) of 0.89. The systems calculate fire spread velocity using computational fluid dynamics (CFD) principles:

where ρ is air density and u is wind velocity vector. These predictions guide evacuation routes and resource allocation, reducing false alarms by 40% compared to traditional infrared sensors.

Smart City Integration and Public Safety

Urban deployments embed vision systems in traffic cameras and building sensors, creating mesh networks for fire detection. A 2023 Tokyo case study showed a 62% reduction in fire-related casualties after implementing ResNet-152 classifiers on NVIDIA Jetson modules. The systems prioritize alerts using a threat-scoring algorithm:

Weight coefficients (α, β, γ) are dynamically adjusted based on urban density metrics. Integration with 5G networks enables sub-100ms latency for emergency service notifications.

Challenges in Real-World Deployment

Despite advancements, occlusion handling remains a critical challenge. Adversarial training with synthetic smoke improves robustness against partial visibility scenarios. The latest Vision-Language Models (VLMs) achieve 88% accuracy in distinguishing fire from confounding factors like steam or dust by cross-referencing visual data with contextual metadata.

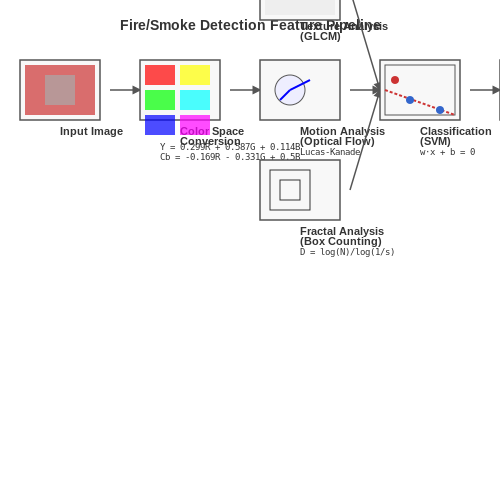

2.1 Traditional Image Processing Methods

Color-Based Segmentation

Fire and smoke exhibit distinct color characteristics in the RGB color space. Fire typically appears as bright regions with high red and green intensity, while smoke tends to be grayish-white. A common approach involves thresholding pixel values in specific color channels. For fire detection, the following empirical rules are often applied:

where R, G, and B represent the red, green, and blue channel intensities, and R_th, G_th are empirically determined thresholds. For smoke detection, the luminance (Y) and chrominance components in YCbCr space are more effective:

Smoke pixels typically satisfy Y ∈ [Y_min, Y_max] and |Cb - Cr| < δ, where the parameters are dataset-dependent.

Texture Analysis

While color provides initial segmentation, texture features help distinguish fire/smoke from similarly colored objects. Gray-level co-occurrence matrix (GLCM) features are commonly extracted from the luminance channel:

Key descriptors include contrast, energy, homogeneity, and correlation computed from P(i,j). Fire regions exhibit higher contrast due to flickering patterns, while smoke shows more uniform texture. Gabor filters at multiple orientations and scales can further enhance texture discrimination:

where x' = xcosθ + ysinθ, y' = -xsinθ + ycosθ, and γ, σ, λ, ψ are parameters controlling the filter shape.

Motion Characteristics

Fire and smoke exhibit distinct dynamic patterns. Fire regions show rapid, chaotic flickering due to combustion turbulence, while smoke demonstrates smoother, upward drifting motion. Optical flow techniques like Lucas-Kanade estimate motion vectors between consecutive frames:

where I_x, I_y are spatial derivatives and I_t is the temporal derivative. The flicker frequency of fire typically ranges between 5-15 Hz, measurable through Fourier analysis of intensity variations in candidate regions.

Shape and Boundary Analysis

Fire regions lack rigid structure, exhibiting fractal-like boundaries. The fractal dimension D can be estimated via box-counting:

where N(ε) counts boxes of size ε needed to cover the boundary. Fire boundaries typically yield D ≈ 1.2-1.6, distinguishing them from man-made objects. Smoke plumes exhibit Gaussian-like density gradients, detectable through analysis of boundary sharpness and gradient orientation.

Multi-Feature Fusion

Effective detection requires combining features through decision rules or machine learning. A typical pipeline involves:

• Color-based candidate region extraction
• Texture and motion feature computation
• Classification using SVM or random forests

The classification function for a linear SVM takes the form:

where K(·,·) is the kernel function and α_i are learned weights.

2.2 Machine Learning-Based Approaches

Machine learning-based fire and smoke detection leverages supervised and unsupervised learning techniques to classify regions of interest in images or video streams. Unlike traditional methods relying on handcrafted features, these approaches automatically learn discriminative patterns from labeled datasets, improving robustness to environmental variations.

Feature Extraction and Classification

Early machine learning systems employed shallow architectures with engineered features fed into classifiers like Support Vector Machines (SVMs) or Random Forests. Common features included:

• Color histograms: Fire pixels typically cluster in RGB space around high red and green intensities with low blue components.
• Texture descriptors: Local Binary Patterns (LBP) and wavelet transforms capture flame flicker patterns and smoke turbulence.
• Motion features: Optical flow magnitude and direction help distinguish fire dynamics from static red objects.

The classification decision function for an SVM with radial basis kernel can be expressed as:

where α_i are learned weights, γ controls kernel width, and b is the bias term. Optimal parameters are found by solving the quadratic programming problem:

Deep Learning Architectures

Modern systems predominantly use convolutional neural networks (CNNs) that jointly learn features and classifiers. Key architectures include:

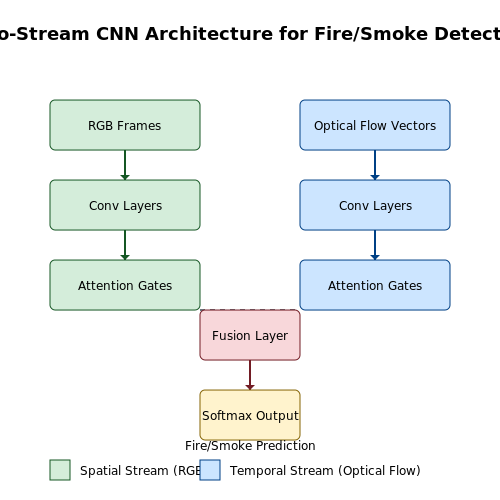

• Two-stream networks: Process spatial (RGB) and temporal (optical flow) inputs in parallel branches, fusing predictions for video analysis.
• 3D CNNs: Apply volumetric convolutions across video cube (width × height × frames) to capture spatiotemporal patterns.
• Attention mechanisms: Self-attention layers highlight relevant regions like flame edges or smoke plumes while suppressing background.

The feature transformation in a residual block with attention can be formulated as:

where σ is the sigmoid function generating spatial attention weights, and W_att are learnable parameters.

Training Strategies

Effective model training requires addressing several challenges:

• Class imbalance: Fire/smoke pixels are rare compared to background. Focal loss down-weights well-classified examples:
  $$ FL(p_t) = -\alpha_t(1-p_t)^\gamma \log(p_t) $$
• Domain adaptation: Synthetic data augmentation using generative adversarial networks (GANs) helps bridge the simulation-to-reality gap.
• Multi-task learning: Jointly predicting fire masks and smoke density maps improves feature sharing.

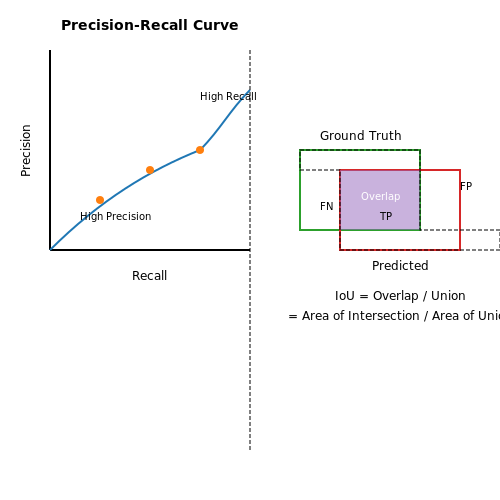

Performance Metrics

Beyond standard precision/recall, fire detection systems require specialized evaluation:

• Frame-level vs pixel-level accuracy: Coarse detection versus precise segmentation.
• False alarm rate: Critical for operational systems, measured as false positives per hour.
• Detection latency: Time from fire ignition to system alert, crucial for early warning.

The weighted F-score for fire detection balances these concerns:

where β > 1 emphasizes recall to prioritize fire detection over false alarms.

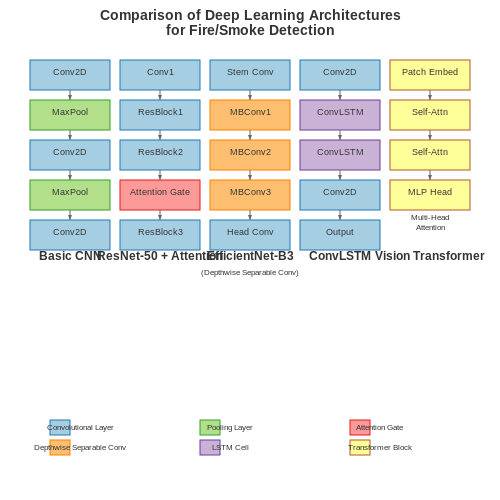

2.3 Deep Learning Architectures for Fire and Smoke Recognition

Convolutional Neural Networks (CNNs) for Feature Extraction

CNNs remain the dominant architecture for fire and smoke detection due to their hierarchical feature extraction capabilities. The spatial invariance learned through convolutional filters enables robust recognition of flame patterns and smoke textures across varying scales. A typical CNN architecture for this task consists of:

• 3-5 convolutional blocks with increasing filter depth (32 → 256)
• Batch normalization layers after each convolution
• Exponential Linear Unit (ELU) activations for fire detection due to their negative value handling
• Strided convolutions instead of pooling layers for spatial reduction

where σ represents the ELU activation function, defined as:

Advanced Architectures for Improved Performance

Modified versions of established architectures have shown superior performance in fire/smoke detection:

ResNet-50 with Attention Gates

The residual connections in ResNet-50 prevent gradient vanishing in deep networks, while attention gates dynamically weight feature importance. The attention mechanism computes:

where h_i represents intermediate feature maps, and W_a, V_a are learned attention parameters.

EfficientNet-B3 with Depthwise Separable Convolutions

The compound scaling method of EfficientNet provides better efficiency than conventional CNNs. Depthwise separable convolutions reduce parameters while maintaining accuracy through:

where K̂ represents the depthwise convolution kernel.

Temporal Modeling Architectures

For video-based detection, 3D CNNs and ConvLSTM networks capture temporal dynamics of fire spread and smoke movement:

• SlowFast Networks: Dual-path architecture processes frames at different temporal resolutions
• ConvLSTM: Combines convolutional feature extraction with LSTM temporal modeling:

Transformer-Based Approaches

Vision Transformers (ViTs) with hybrid architectures show promise for long-range dependency modeling in smoke plumes:

• Patch embeddings convert image regions to token sequences
• Multi-head self-attention computes global relationships:

where Q, K, V are learned query, key, and value matrices respectively.

Architecture Selection Criteria

Key considerations when choosing architectures:

• Computational constraints: FLOPs and memory requirements
• Temporal resolution: Frame rate requirements for video detection
• False positive mitigation: Architecture robustness to fire-like artifacts
• Multi-spectral capability: Handling of IR/RGB fusion when available

3.1 Sources and Types of Training Data

Training data quality and diversity directly impact the performance of fire and smoke detection models. The data must capture variations in fire appearance, smoke patterns, environmental conditions, and potential confounding elements. Three primary data sources exist: real-world imagery, synthetic data generation, and hybrid approaches combining both.

Real-World Fire and Smoke Datasets

Publicly available datasets provide annotated fire and smoke images under diverse conditions. The Foggia Fire Dataset contains 14,000 images with pixel-level annotations for flames and smoke across indoor and outdoor scenes. The FLAME dataset offers 40,000 thermal and RGB images with temporal sequences for fire spread analysis. For wildfire detection, the FireSense dataset includes aerial imagery with multi-spectral bands (RGB, NIR, thermal) at 0.5m resolution.

Key challenges in real-world data collection include:

• Class imbalance: Non-fire scenes vastly outnumber fire events
• Annotation consistency: Smoke boundaries are often ambiguous
• Weather conditions: Rain, fog, and haze affect smoke visibility

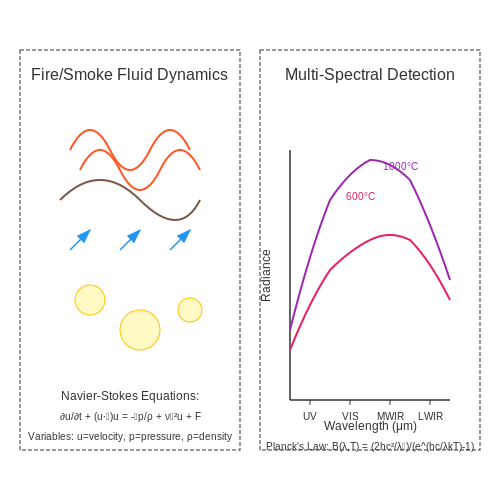

Synthetic Data Generation

Physics-based simulation generates controlled fire-smoke scenarios using computational fluid dynamics (CFD). The Navier-Stokes equations govern smoke motion:

where u is velocity, p pressure, ρ density, ν kinematic viscosity, and f external forces. Tools like PyroSim and FDS simulate fire dynamics with configurable parameters:

• Heat release rate (HRR): 50 kW to 10 MW ranges
• Fuel type: Wood, liquid, or gaseous combustibles
• Occlusion: Partial visibility through obstacles

Hybrid Augmentation Strategies

Domain adaptation techniques bridge synthetic-to-real gaps through:

where adversarial loss (L_adv), perceptual loss (L_perc), and cycle consistency (L_cyc) weight synthetic realism. Style transfer networks like CycleGAN convert simulated smoke to photorealistic textures while preserving physical dynamics.

Multi-Spectral Data Fusion

Infrared (IR) and ultraviolet (UV) bands improve detection robustness. Planck's law describes thermal radiation:

where B_λ is spectral radiance at wavelength λ and temperature T. MWIR (3-5μm) and LWIR (8-14μm) cameras capture distinct fire signatures unaffected by visible-light obscurants.

3.2 Annotation and Labeling Strategies

Accurate annotation is critical for training robust fire and smoke detection models. Unlike generic object detection tasks, fire and smoke exhibit dynamic, semi-transparent, and amorphous characteristics, requiring specialized labeling approaches.

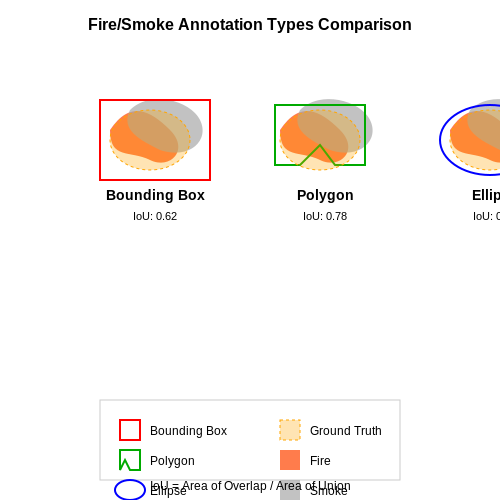

Bounding Box vs. Polygon Annotation

Traditional rectangular bounding boxes often fail to capture the irregular shapes of flames and smoke plumes, leading to excessive background inclusion. Polygon annotations provide tighter boundaries but require more manual effort. For fire detection, a hybrid approach is optimal:

• Bounding boxes for rapid initial labeling of fire cores
• Polygons for smoke plumes and flame edges
• Elliptical annotations for spherical fireballs

Where IoU (Intersection over Union) thresholds should be adjusted to 0.5 for fire cores and 0.3 for diffuse smoke regions due to their varying densities.

Temporal Consistency in Video Annotation

Fire and smoke evolve dynamically across frames. Key strategies include:

• Labeling every 5th frame with interpolation for smooth transitions
• Using optical flow to propagate annotations between keyframes
• Implementing track IDs for persistent fire sources

Multi-Spectral Labeling

Infrared and thermal imaging provide complementary data for fire detection. Annotation must account for:

• Temperature thresholds in thermal bands (typically >150°C for flames)
• Pixel intensity distributions across spectral channels
• Cross-modal alignment errors

Handling Occlusion and Partial Visibility

Smoke often obscures flames, requiring special annotation conventions:

• Separate labels for visible flames and smoke-obscured heat sources
• Confidence scores indicating visibility levels (0-1 scale)
• Depth-aware labeling for multi-layer smoke effects

Label Verification and Quality Control

Implement a multi-stage verification pipeline:

1. Automated checks for annotation completeness
2. Physical plausibility validation using fire dynamics models
3. Expert review of ambiguous cases

Where weights w_i account for annotation difficulty factors like smoke density and flame size.

Active Learning for Efficient Annotation

Prioritize labeling efforts using uncertainty sampling:

1. Train initial model on small labeled set
2. Identify frames with highest prediction entropy
3. Focus annotation on these informative samples

Where H(y|x) measures prediction uncertainty across classes C (fire, smoke, background).

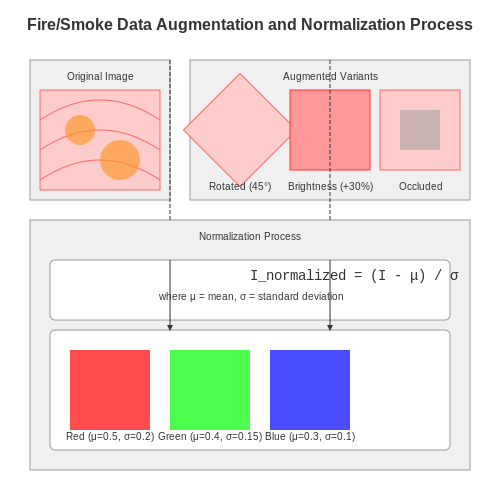

3.3 Data Augmentation and Normalization Techniques

Data Augmentation for Fire and Smoke Detection

In fire and smoke detection, data augmentation artificially expands the training dataset by applying transformations to existing images, improving model generalization. Common techniques include:

• Geometric transformations: Random rotations (±15°), horizontal/vertical flips, and affine transformations simulate viewpoint variations.
• Photometric distortions: Adjusting brightness (±20%), contrast (±30%), and adding Gaussian noise (σ=0.05) mimics lighting variations in real-world scenarios.
• Occlusion simulation: Random rectangular patches (10-25% of image area) are masked to improve robustness to partial obstructions.

For smoke detection, specialized augmentations include:

• Alpha blending: Synthetic smoke layers are blended with clean images using:
  $$ I_{aug} = \alpha \cdot I_{smoke} + (1 - \alpha) \cdot I_{original}, \quad \alpha \sim \mathcal{U}(0.1, 0.5) $$
• Turbulence effects: Perlin noise-based warping simulates heat distortion common in fire scenes.

Normalization Strategies

Normalization standardizes input data to zero mean and unit variance, computed as:

where μ and σ are channel-wise statistics. For fire detection:

• Dataset-specific normalization: Calculated from fire/smoke image collections (typical μ=[0.485, 0.456, 0.406], σ=[0.229, 0.224, 0.225] for ImageNet-pretrained models).
• Adaptive normalization: Online mean/variance calculation for infrared datasets where thermal ranges vary significantly.

Advanced Augmentation Techniques

Recent approaches leverage generative models for fire/smoke augmentation:

• GAN-based synthesis: Conditional GANs generate realistic fire textures while preserving background context.
• Diffusion models: Gradual noise addition/removal creates diverse smoke patterns with physically plausible dynamics.

For multispectral data (visible + IR), augmentation must maintain cross-channel correlations. A joint transformation space is defined as:

where transformations T_vis and T_IR are geometrically aligned but photometrically independent.

4.1 Selecting and Tuning Model Hyperparameters

Hyperparameter Optimization Strategies

Hyperparameter tuning is critical for maximizing model performance in fire and smoke detection tasks. Unlike model parameters learned during training, hyperparameters are set prior to training and govern the learning process. Common optimization strategies include:

• Grid Search: Exhaustively evaluates all combinations within a predefined hyperparameter space. Computationally expensive but guarantees finding the optimal combination within the specified range.
• Random Search: Samples hyperparameters randomly from defined distributions. More efficient than grid search, especially when some hyperparameters have minimal impact on performance.
• Bayesian Optimization: Uses probabilistic models to predict promising hyperparameter configurations, reducing the number of evaluations needed.

Where θ represents hyperparameters, ℓ is the loss function, and 𝒟 is the data distribution.

Key Hyperparameters for Fire and Smoke Detection

For convolutional neural networks (CNNs) commonly used in fire/smoke detection, the most impactful hyperparameters include:

• Learning Rate (η): Controls step size during gradient descent. Too high causes divergence; too low leads to slow convergence. Typical range: 1e-5 to 1e-2.
• Batch Size: Affects memory usage and gradient estimation quality. Larger batches provide smoother gradients but may generalize poorly. Common values: 16-256.
• Network Depth/Width: Number of layers and filters per layer. Deeper networks capture more complex features but risk overfitting on smaller datasets.

Adaptive Learning Rate Methods

Modern optimizers automatically adjust learning rates during training:

Where m̂ₜ and v̂ₜ are bias-corrected momentum estimates in Adam optimization. For fire detection tasks, Adam with β₁=0.9, β₂=0.999 typically works well.

Regularization Techniques

To prevent overfitting on limited fire/smoke datasets:

• Dropout Rate: Probability (p) of randomly deactivating neurons. Start with p=0.5 for dense layers, p=0.2 for convolutional layers.
• Weight Decay (λ): L2 regularization strength. Values between 1e-4 to 1e-2 help prevent explosive weights.

Architecture-Specific Considerations

For transfer learning with pretrained models like ResNet or EfficientNet:

• Feature Extractor Freezing: Initially freeze backbone layers, then gradually unfreeze during fine-tuning.
• Head Architecture: Custom classification heads often require careful tuning of layer sizes and dropout rates.

Automated Hyperparameter Tuning

Advanced techniques leverage automated search:

from ray import tune
from ray.tune.schedulers import ASHAScheduler

config = {
    "lr": tune.loguniform(1e-4, 1e-2),
    "batch_size": tune.choice([16, 32, 64]),
    "num_conv_layers": tune.randint(3, 6)
}

scheduler = ASHAScheduler(metric="val_loss", mode="min")
analysis = tune.run(
    train_model,
    config=config,
    num_samples=50,
    scheduler=scheduler
)

This example shows distributed hyperparameter search using Ray Tune with asynchronous successive halving.

Validation Strategies

For reliable hyperparameter evaluation:

• Nested Cross-Validation: Outer loop for performance estimation, inner loop for hyperparameter tuning.
• Class-Balanced Splits: Ensure validation sets maintain original fire/smoke class ratios.

Where APᵢ is average precision for fold i in k-fold cross-validation.

4.2 Performance Metrics for Detection Systems

Precision and Recall

Precision and recall are fundamental metrics for evaluating the performance of fire and smoke detection systems. Precision measures the fraction of correctly identified positive instances (true positives) among all predicted positives (true positives + false positives). Recall, also known as sensitivity, quantifies the fraction of true positives correctly identified out of all actual positives (true positives + false negatives).

In fire detection, high recall is critical to minimize missed detections, while high precision reduces false alarms. A trade-off exists between these metrics, often visualized via the precision-recall curve.

Intersection over Union (IoU)

IoU evaluates localization accuracy in object detection tasks by measuring the overlap between predicted and ground-truth bounding boxes. For fire and smoke detection, IoU is defined as:

A threshold (typically 0.5) determines whether a detection is valid. Higher IoU thresholds enforce stricter localization criteria, which is essential for applications like aerial fire monitoring where precise region identification is required.

Average Precision (AP) and mean Average Precision (mAP)

Average Precision (AP) summarizes the precision-recall curve by computing the weighted mean of precision values at each recall level:

where \( R_n \) and \( P_n \) are recall and precision at the \( n \)-th threshold. For multi-class detection (e.g., fire, smoke, and background), mean Average Precision (mAP) averages AP across all classes, providing a holistic performance measure.

False Alarm Rate (FAR)

FAR quantifies the frequency of incorrect positive predictions relative to the total number of negatives. In fire detection, minimizing FAR is crucial to avoid unnecessary evacuations or resource deployment:

Systems deployed in high-risk environments (e.g., industrial plants) often prioritize FAR reduction through threshold tuning or ensemble methods.

F1-Score and Balanced Accuracy

The F1-score harmonizes precision and recall as their harmonic mean, useful for imbalanced datasets where fire events are rare:

Balanced accuracy, defined as the average of recall and specificity, is another robust metric for skewed class distributions:

Receiver Operating Characteristic (ROC) Curve

The ROC curve plots the true positive rate (TPR) against the false positive rate (FPR) across varying classification thresholds. The area under the curve (AUC) provides a scalar performance measure, with higher values indicating better discriminative power. For fire detection systems, ROC analysis helps optimize threshold selection based on operational constraints.

Inference Time and Computational Efficiency

Real-time fire detection demands low inference time, typically measured in frames per second (FPS). Computational efficiency is quantified via FLOPs (floating-point operations) and model size (MB), especially for edge deployments. For instance, a YOLOv5 model achieving 50 FPS on a Jetson Xavier is preferable for drone-based monitoring over a heavier ResNet variant.

4.3 Addressing False Positives and Negatives

False positives (FPs) and false negatives (FNs) in fire and smoke detection systems stem from complex environmental factors, sensor limitations, and algorithmic biases. Mitigating these errors requires a multi-pronged approach combining data augmentation, model calibration, and post-processing techniques.

Mathematical Formulation of Detection Errors

The trade-off between FPs and FNs is quantified through precision (P) and recall (R):

where TP denotes true positives. The Fβ-score provides a weighted harmonic mean:

For fire detection, β > 1 prioritizes recall to minimize life-threatening FNs, while industrial applications may favor precision (β < 1) to reduce costly false alarms.

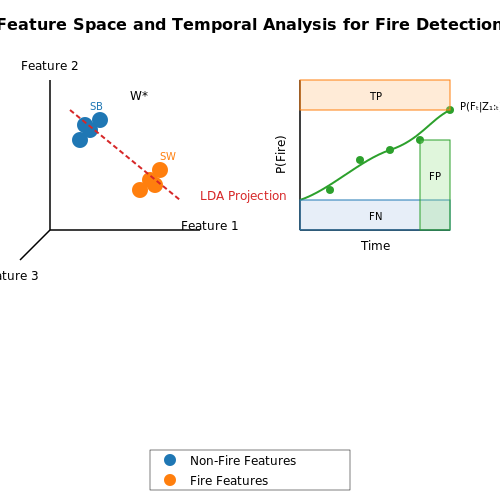

Feature Space Analysis for Error Reduction

High-dimensional feature spaces in CNNs often contain overlapping regions between fire/smoke and confounding objects (e.g., sunset clouds, steam). Linear discriminant analysis (LDA) projects features onto axes maximizing class separation:

where SB and SW are between-class and within-class scatter matrices, respectively. The optimal projection W* maximizes J(W) = |WTSBW|/|WTSWW|.

Temporal Consistency Checks

Fire exhibits distinct temporal signatures compared to transient artifacts. A Bayesian filter incorporates frame-to-frame dynamics:

where Ft is the fire state at time t and Zt are observations. This suppresses brief FP detections while maintaining sensitivity to genuine fire growth patterns.

Multi-Spectral Fusion

Combining visible (RGB), infrared (IR), and depth data reduces ambiguities:

• IR-RGB correlation: Genuine fires show thermal-radiative coupling (R² > 0.8)
• Depth discontinuities: Smoke exhibits fractal boundaries unlike uniform steam
• Temporal IR gradients: Fire sources demonstrate ∂T/∂t > 2°C/sec

Adversarial Training

Generative adversarial networks synthesize challenging edge cases:

where G generates synthetic fire-like artifacts and D learns to distinguish them from real fires. This improves robustness against previously unseen FP sources.

Hardware-Aware Threshold Tuning

Embedded deployment requires optimizing for:

• Thermal drift compensation
• Pixel-wise SNR weighting: $$w_{ij} = \frac{1}{σ_{dark}^2 + σ_{photon}^2}$$
• Motion-adaptive sampling: $$f_s = \min(f_{max}, β||v||_2)$$

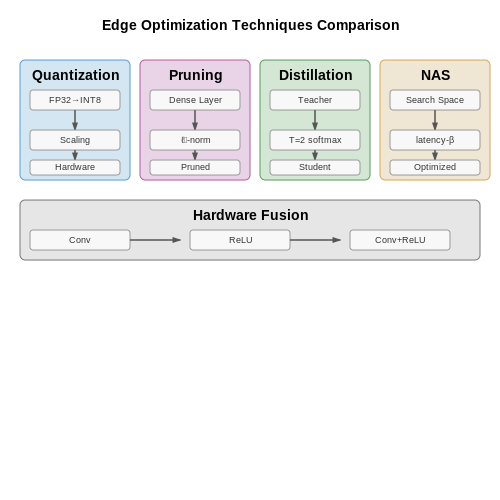

5.1 Optimizing Models for Edge Devices

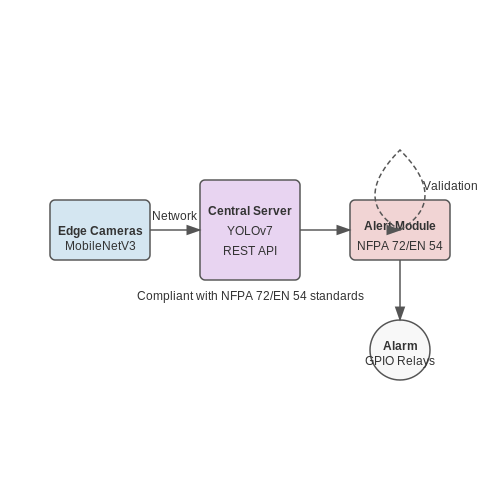

5.2 Integration with Surveillance Systems

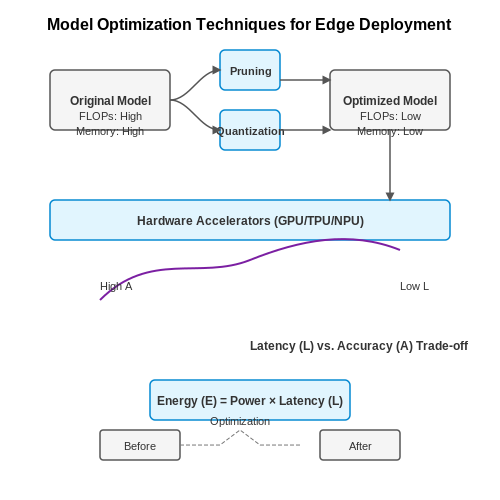

5.3 Handling Latency and Resource Constraints

6.1 Privacy Concerns in Surveillance Applications

6.2 Bias and Fairness in Detection Models

Environmental and Operational Constraints

7.1 Key Research Papers and Articles

7.2 Open Datasets and Code Repositories

7.3 Recommended Books and Tutorials
