Predicting Patient Readmission Rates

#patient readmission #predictive modeling #machine learning #healthcare analytics #data preprocessing #feature engineering #supervised learning #clinical data #medical ai #risk prediction

1. Definition and Importance of Readmission Rates

Definition and Importance of Readmission Rates

Patient readmission rates quantify the frequency at which individuals return to a hospital within a specified period after discharge, typically measured as a percentage of total discharges. The most common metric is the 30-day readmission rate, defined as:

$$ R = \frac{N_{\text{readmit}}}{N_{\text{discharges}}} \times 100 $$

where \( N_{\text{readmit}} \) represents patients readmitted within 30 days, and \( N_{\text{discharges}} \) is the total number of discharges. This metric is often stratified by diagnosis-related groups (DRGs) or comorbidities to enable risk-adjusted comparisons.

Clinical and Economic Significance

Readmission rates serve as a proxy for healthcare quality, reflecting potential gaps in care transitions, post-discharge planning, or treatment efficacy. Elevated rates correlate with:

Predictive Modeling Challenges

Accurate prediction requires addressing:

Mathematical Formulation of Risk Scores

The LACE index (Length of stay, Acuity, Comorbidity, Emergency visits) is a foundational risk score:

$$ \text{LACE} = w_1L + w_2A + w_3C + w_4E $$

where weights \( w \) are derived from logistic regression. Modern approaches extend this with machine learning, optimizing:

$$ \min_{ heta} \sum_{i=1}^N \mathcal{L}(f_ heta(x_i), y_i) + \lambda|| heta||_2 $$

where \( f_ heta \) is a neural network or gradient-boosted tree, and \( \mathcal{L} \) incorporates time-to-event information via partial likelihood.

Operational Impact

Hospitals deploying ML-based prediction systems achieve:

1.2 Key Factors Influencing Readmission

Patient readmission rates are influenced by a complex interplay of clinical, demographic, and socioeconomic factors. Understanding these variables is critical for developing accurate predictive models. Below, we analyze the most significant contributors, supported by empirical research and statistical evidence.

Clinical Factors

Clinical variables dominate readmission risk stratification. The severity of the primary diagnosis, quantified by the Charlson Comorbidity Index (CCI), is strongly correlated with readmission likelihood. For a patient with n comorbidities, the CCI is computed as:

$$ \text{CCI} = \sum_{i=1}^{n} w_i \cdot x_i $$

where wi represents the weight assigned to the i-th comorbidity and xi is a binary indicator (1 if present, 0 otherwise). Patients with CCI scores above 5 exhibit 2.3× higher readmission odds compared to those with scores below 2.

Post-discharge complications, particularly hospital-acquired infections (HAIs), increase 30-day readmission probability by 40-60%. Surgical site infections alone account for 17% of preventable readmissions in Medicare populations.

Medication Adherence

The Medication Possession Ratio (MPR) measures adherence as:

$$ \text{MPR} = \frac{\text{Days' supply obtained}}{\text{Days in observation period}} \times 100\% $$

MPR values below 80% correspond to a hazard ratio of 1.8 for readmission in chronic disease cohorts. Polypharmacy (≥5 medications) compounds this risk, with each additional drug increasing non-adherence probability by 11%.

Socioeconomic Determinants

The Area Deprivation Index (ADI) captures neighborhood-level disadvantage through a weighted combination of:

Patients from neighborhoods in the top ADI quintile have 72% higher readmission rates than those from the bottom quintile, even after controlling for clinical factors.

Care Transition Quality

The Care Transitions Measure (CTM-3) assesses discharge process effectiveness through three domains:

  1. Medication reconciliation accuracy
  2. Follow-up appointment scheduling
  3. Patient understanding of warning signs

Each 10-point decrease in CTM-3 score corresponds to a 14% increase in readmission risk. Machine learning models incorporating CTM-3 data show 12% better discrimination (AUROC 0.81 vs 0.72) than models using only clinical variables.

Temporal Patterns

Readmission risk follows a Weibull distribution over time:

$$ \lambda(t) = \frac{k}{\lambda} \left( \frac{t}{\lambda} \right)^{k-1} e^{-(t/\lambda)^k} $$

where k = 1.5 (shape parameter) and λ = 15 days (scale parameter) for typical medical admissions. The hazard rate peaks at 7-10 days post-discharge, with 58% of readmissions occurring within this window.

Key Factors Influencing Readmission – Predicting Patient Readmission Rates – Tutorial Diagram

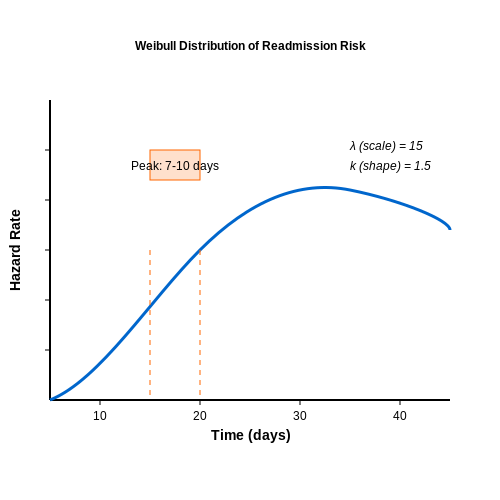

Diagram Description: The Weibull distribution of readmission risk over time would benefit from a visual representation to show the hazard rate peak and temporal pattern.

Clinical and Economic Impacts

Direct Clinical Consequences of Readmissions

Unplanned hospital readmissions within 30 days of discharge are associated with a 45-65% increase in mortality risk for chronic conditions like heart failure, COPD, and diabetes. The hazard ratio (HR) for mortality can be modeled as:

$$ HR(t) = h_0(t) \exp\left(\beta_1 X_1 + \beta_2 X_2 + \cdots + \beta_p X_p\right) $$

where h0(t) represents the baseline hazard function and Xi are covariates such as:

Economic Burden Analysis

The marginal cost of a readmission follows a log-normal distribution across DRG codes:

$$ \ln(C) \sim \mathcal{N}(\mu, \sigma^2) $$

where μ ranges from 8.2-10.1 (equivalent to $$3,650-$$24,300) depending on:

System-Level Effects

At the population level, readmissions create negative externalities that can be quantified through queueing theory. The system load ρ with readmissions is:

$$ \rho = \frac{\lambda(1 + r)}{\mu} $$

where λ is the arrival rate of new patients, μ is the service rate, and r is the readmission probability. When ρ > 0.85, waiting times increase exponentially:

$$ W_q \approx \frac{\rho^2}{2\mu(1-\rho)} $$

Prevention ROI Modeling

The net present value (NPV) of readmission prevention programs follows:

$$ NPV = \sum_{t=0}^T \frac{R_t - C_t}{(1 + i)^t} $$

where Rt represents avoided readmission costs, Ct is intervention costs, and i is the discount rate. Effective programs show:

Policy Implications

Value-based payment models create game-theoretic dynamics between providers. The Nash equilibrium in a two-hospital system can be derived as:

$$ \pi_i = \sum_{j=1}^n \left[ P_j(Q)q_{ij} - C_i(q_{ij}) \right] - \phi R_i $$

where Pj represents DRG payments, Ci is the cost function, and φ is the readmission penalty rate. This leads to:

2. Types of Data Required for Prediction

Types of Data Required for Prediction

Clinical Data

Clinical data forms the backbone of patient readmission prediction models. This includes structured electronic health records (EHR) such as diagnoses (coded in ICD-10), procedures (CPT codes), medications (RxNorm), and lab results (LOINC codes). Temporal sequences of vital signs—blood pressure, heart rate, oxygen saturation—are particularly valuable for capturing physiological trends. Comorbidity indices like the Charlson Comorbidity Index (CCI) and Elixhauser score provide aggregated risk measures derived from diagnosis histories. For advanced modeling, free-text clinical notes can be processed using natural language processing (NLP) techniques to extract features like symptom severity, treatment response, and clinician concerns.

$$ \text{CCI} = \sum_{i=1}^{17} w_i x_i $$

where xi indicates presence (1) or absence (0) of condition i, and wi represents condition-specific weights ranging from 1 (e.g., myocardial infarction) to 6 (e.g., metastatic cancer).

Demographic and Socioeconomic Factors

Patient demographics significantly influence readmission risk. Age exhibits a nonlinear relationship with readmission probability, often modeled using spline transformations or age-bracket indicators. Insurance type (Medicare, Medicaid, private) serves as a proxy for socioeconomic status and healthcare access. Geographic data—including zip code-derived Area Deprivation Index (ADI)—can capture neighborhood-level effects on health outcomes. Ethnicity and race must be incorporated with caution to avoid algorithmic bias, typically through fairness-aware modeling techniques.

Utilization History

Prior healthcare utilization patterns are strong predictors of future readmissions. Key features include:

These temporal features often require specialized recurrent neural network architectures or survival analysis techniques to properly model their time-dependent effects.

Medication Adherence Metrics

Pharmacy claims data provides objective measures of medication adherence through metrics like:

$$ \text{MPR} = \frac{\text{Days supplied}}{\text{Days in period}} $$

where Medication Possession Ratio (MPR) values below 0.8 typically indicate poor adherence. Prescription fill latency (time between discharge and first fill) and regimen complexity (total daily doses) further refine risk stratification. For controlled substances, early refill patterns may signal misuse risk.

Social Determinants of Health (SDOH)

SDOH data increasingly supplements traditional clinical predictors. Housing instability indicators include shelter visits or frequent address changes in EHRs. Food insecurity may be inferred from diagnosis codes for malnutrition or referrals to food assistance programs. Transportation barriers manifest as missed appointment rates. These features often exhibit high sparsity, requiring zero-inflated Poisson regression or similar techniques for proper modeling.

Post-Discharge Monitoring Data

Emerging data streams from remote patient monitoring (RPM) devices provide real-time physiological signals post-discharge. Wearable-derived heart rate variability (HRV) measures:

$$ \text{HRV} = \sqrt{\frac{1}{N-1}\sum_{i=1}^{N}(RR_i - \overline{RR})^2} $$

where RRi are interbeat intervals. Smart pill bottle openings, mobile health app engagement metrics, and patient-reported outcomes further enrich the temporal feature space, though these require specialized missing data imputation strategies.

Feature Engineering for Readmission Prediction

Feature engineering is critical in predicting patient readmission rates, as raw medical data often contains noise, missing values, and high dimensionality. Effective feature engineering transforms raw data into meaningful predictors that enhance model performance. Key techniques include temporal feature extraction, dimensionality reduction, and handling missing data.

Temporal Feature Extraction

Medical data often includes time-series records such as lab results, medication history, and vital signs. Aggregating these into meaningful temporal features improves predictive power. For example, the rate of change in hemoglobin A1c levels over time can indicate worsening diabetes control, a known readmission risk factor. Statistical measures such as mean, variance, and slope over time windows are computed as:

$$ \text{Slope} = \frac{\sum_{i=1}^{n} (t_i - \bar{t})(y_i - \bar{y})}{\sum_{i=1}^{n} (t_i - \bar{t})^2} $$

where \( t_i \) represents time points and \( y_i \) represents the corresponding measurements.

Handling Missing Data

Clinical datasets frequently contain missing values due to irregular testing schedules or omitted entries. Advanced imputation techniques, such as multiple imputation by chained equations (MICE), preserve statistical relationships better than simple mean or median imputation. MICE iteratively models each feature with missing values as a function of other features:

$$ y_{\text{missing}}^{(k)} = f(X_{\text{observed}}, \theta^{(k)}) + \epsilon^{(k)} $$

where \( \theta^{(k)} \) represents model parameters in iteration \( k \).

Categorical Feature Encoding

Diagnosis codes (ICD-10), procedure codes, and medication classes are high-cardinality categorical features. Target encoding, which replaces categories with the mean readmission rate for each group, reduces dimensionality while preserving predictive signal:

$$ \text{Encoded}_i = \frac{\sum_{j=1}^{n_i} \mathbb{I}(y_j = 1)}{n_i} $$

where \( n_i \) is the count of samples in category \( i \).

Feature Selection via Regularization

High-dimensional feature spaces risk overfitting. L1-regularized logistic regression (Lasso) performs feature selection by driving coefficients of non-informative features to zero:

$$ \min_{\beta} \left( -\log \mathcal{L}(\beta) + \lambda \sum_{j=1}^{p} |\beta_j| \right) $$

where \( \lambda \) controls sparsity. Features retained under cross-validated \( \lambda \) tuning are robust predictors.

Interaction Features

Nonlinear interactions between features, such as age-adjusted comorbidity scores, often improve model discrimination. Polynomial features or explicit interaction terms (e.g., \( \text{Age} \times \text{Charlson Index} \)) capture these relationships. Domain knowledge guides meaningful combinations.

Dimensionality Reduction

When features exhibit multicollinearity (e.g., correlated lab tests), principal component analysis (PCA) projects data into an orthogonal space:

$$ \mathbf{Z} = \mathbf{X} \mathbf{W} $$

where \( \mathbf{W} \) contains eigenvectors of \( \mathbf{X}^T \mathbf{X} \). The top \( k \) components explaining 95% variance are retained.

Feature Engineering for Readmission Prediction – Predicting Patient Readmission Rates – Tutorial Diagram
Diagram Description: The diagram would show the temporal feature extraction process, including time-series data points, computed slope, and aggregated statistical measures over time windows.

3. Overview of Predictive Modeling Approaches

3.1 Overview of Predictive Modeling Approaches

Predictive modeling for patient readmission leverages statistical and machine learning techniques to identify high-risk patients based on historical data. The choice of model depends on data characteristics, interpretability requirements, and computational constraints. Below, we dissect the most effective approaches, their mathematical foundations, and practical trade-offs.

Logistic Regression

Logistic regression remains a baseline due to its interpretability and efficiency. Given a feature vector x and readmission probability P(y=1|x), the model is defined as:

$$ P(y=1|x) = \frac{1}{1 + e^{-(\beta_0 + \beta^T x)}} $$

where β represents learned coefficients. The loss function is cross-entropy:

$$ \mathcal{L}(\beta) = -\sum_{i=1}^N \left[ y_i \log P(y_i|x_i) + (1-y_i) \log(1 - P(y_i|x_i)) \right] $$

Regularization (L1/L2) mitigates overfitting, especially with high-dimensional electronic health records (EHR) data.

Random Forests

Random forests improve predictive power by aggregating decision trees. Each tree Tb is trained on a bootstrapped sample with random feature subsets. The final prediction averages individual tree outputs:

$$ \hat{y} = \frac{1}{B} \sum_{b=1}^B T_b(x) $$

Key advantages include handling non-linear relationships and automatic feature selection via Gini impurity reduction. However, model interpretability diminishes compared to logistic regression.

Gradient Boosting Machines (GBM)

GBM iteratively corrects errors from prior models. At iteration m, it fits a weak learner hm(x) to residuals:

$$ F_m(x) = F_{m-1}(x) + \gamma_m h_m(x) $$

where γm is the step size. XGBoost and LightGBM optimize this process with parallelization and histogram-based splits, achieving state-of-the-art performance in readmission prediction tasks.

Deep Learning Approaches

Neural networks capture complex interactions in EHR data. A feedforward network with L layers computes:

$$ a^{(l)} = \sigma(W^{(l)} a^{(l-1)} + b^{(l)}) $$

where σ is a non-linear activation (e.g., ReLU). For temporal EHR data, recurrent architectures (LSTM, GRU) model sequential dependencies:

$$ h_t = \text{LSTM}(x_t, h_{t-1}) $$

Attention mechanisms further improve performance by weighting relevant clinical events dynamically.

Evaluation Metrics

Model selection requires domain-aligned metrics:

SHAP values and LIME enhance interpretability for complex models, critical for clinical adoption.

3.2 Supervised Learning Algorithms (e.g., Logistic Regression, Random Forest)

Logistic Regression for Binary Classification

Logistic regression is a probabilistic model for binary classification tasks, making it well-suited for predicting patient readmission (readmitted or not). The model outputs the probability P(y=1|x) that a patient with feature vector x will be readmitted. The logistic function (sigmoid) maps the linear combination of inputs to a probability between 0 and 1:

$$ P(y=1|\mathbf{x}) = \sigma(\mathbf{w}^T\mathbf{x} + b) = \frac{1}{1 + e^{-(\mathbf{w}^T\mathbf{x} + b)}} $$

where w is the weight vector and b is the bias term. The loss function for logistic regression is the negative log-likelihood, or cross-entropy loss:

$$ \mathcal{L}(\mathbf{w}, b) = -\sum_{i=1}^N \left[ y_i \log P(y_i=1|\mathbf{x}_i) + (1 - y_i) \log (1 - P(y_i=1|\mathbf{x}_i)) \right] $$

Optimization is typically performed via gradient descent or its variants (e.g., L-BFGS for smaller datasets). Regularization (L1/L2) is often applied to prevent overfitting in high-dimensional medical datasets.

Random Forest for Robust Prediction

Random forests address limitations of logistic regression by learning non-linear decision boundaries and handling feature interactions automatically. Each tree in the ensemble is trained on a bootstrap sample of the data, with node splits determined by a random subset of features. The final prediction aggregates votes (classification) or averages (regression) across all trees.

For readmission prediction, key advantages include:

The splitting criterion at node m for a classification tree is typically the Gini impurity:

$$ G_m = \sum_{k=1}^K p_{mk}(1 - p_{mk}) $$

where pmk is the proportion of class k observations in node m. The feature and threshold that maximize the impurity reduction are selected:

$$ \Delta G = G_m - \frac{N_{left}}{N_m}G_{left} - \frac{N_{right}}{N_m}G_{right} $$

Algorithm Selection Considerations

When choosing between logistic regression and random forests for readmission prediction:

Hybrid approaches, such as using random forest feature importances to select variables for logistic regression, can balance performance and interpretability. Recent studies show AUC improvements of 0.05-0.15 for random forests over logistic regression in readmission prediction tasks.

Implementation Example

The following Python code demonstrates both algorithms using scikit-learn:

from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import roc_auc_score

# Logistic regression with L2 regularization
lr = LogisticRegression(penalty='l2', C=1.0, solver='lbfgs', max_iter=1000)
lr.fit(X_train, y_train)
lr_probs = lr.predict_proba(X_test)[:, 1]

# Random forest with class weighting
rf = RandomForestClassifier(n_estimators=500,
                           max_depth=10,
                           class_weight='balanced',
                           random_state=42)
rf.fit(X_train, y_train)
rf_probs = rf.predict_proba(X_test)[:, 1]

# Evaluate performance
print(f"LR AUC: {roc_auc_score(y_test, lr_probs):.3f}")
print(f"RF AUC: {roc_auc_score(y_test, rf_probs):.3f}")

Evaluating Model Performance: Metrics and Validation

Performance Metrics for Classification Models

In the context of patient readmission prediction, models are typically evaluated as binary classifiers, where the positive class represents readmission and the negative class represents no readmission. The confusion matrix forms the basis for most performance metrics:

$$ \text{Confusion Matrix} = \begin{bmatrix} \text{TP} & \text{FP} \\ \text{FN} & \text{TN} \end{bmatrix} $$

Where TP denotes true positives, FP false positives, FN false negatives, and TN true negatives. From this matrix, we derive several key metrics:

For imbalanced datasets common in healthcare (where readmissions may be rare), the area under the receiver operating characteristic curve (AUC-ROC) provides a more robust measure than accuracy alone. The ROC curve plots the true positive rate against the false positive rate at various threshold settings.

Advanced Evaluation Metrics for Healthcare Applications

Standard classification metrics may not fully capture clinical utility. The Brier score measures the accuracy of probabilistic predictions:

$$ \text{Brier Score} = \frac{1}{N}\sum_{i=1}^N (f_i - o_i)^2 $$

where fi is the predicted probability and oi is the actual outcome (0 or 1). Lower values indicate better calibration.

The Net Reclassification Improvement (NRI) and Integrated Discrimination Improvement (IDI) metrics compare models by quantifying improvements in risk stratification:

$$ \text{NRI} = (p_{\text{up}|\text{event}} - p_{\text{down}|\text{event}}) - (p_{\text{up}|\text{nonevent}} - p_{\text{down}|\text{nonevent}}) $$

where pup and pdown represent proportions of individuals moving up or down risk categories.

Validation Strategies for Clinical Prediction Models

Simple train-test splits often prove inadequate for healthcare data due to temporal dependencies and institutional variations. Nested cross-validation provides more reliable performance estimates:

  1. Outer loop: k-fold cross-validation for performance evaluation
  2. Inner loop: Separate k-fold cross-validation for hyperparameter tuning

Temporal validation is particularly important for readmission prediction, where models trained on historical data must generalize to future patients. A sliding window approach maintains temporal ordering while maximizing data usage:

$$ \text{Training Window}_t = [t - \Delta t_{\text{train}}, t) $$ $$ \text{Test Window}_t = [t, t + \Delta t_{\text{test}}) $$

where Δt represents the window duration.

Calibration Assessment

Well-calibrated models produce predicted probabilities that match observed event rates. The Hosmer-Lemeshow test evaluates calibration by comparing predicted and observed events across risk strata:

$$ \chi^2_{HL} = \sum_{g=1}^G \frac{(O_g - E_g)^2}{E_g(1 - E_g/n_g)} $$

where G is the number of groups, Og observed events, Eg expected events, and ng the number of observations in group g.

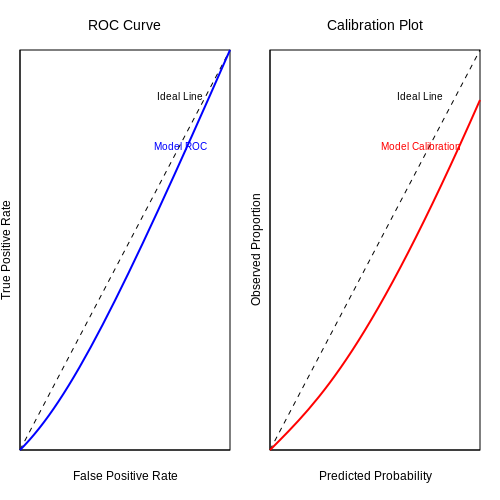

Visual assessment using calibration plots complements statistical tests. Perfect calibration appears as a 45-degree line where predicted probabilities equal observed proportions.

Decision Curve Analysis

Traditional metrics don't account for clinical consequences of decisions. Decision curve analysis evaluates the net benefit across probability thresholds:

$$ \text{Net Benefit} = \frac{\text{TP}}{N} - \frac{\text{FP}}{N} \times \frac{p_t}{1 - p_t} $$

where pt is the threshold probability for intervention. The analysis compares model-guided decisions against default strategies of treating all or no patients.

Evaluating Model Performance: Metrics and Validation – Predicting Patient Readmission Rates – Tutorial Diagram
Diagram Description: The ROC curve and calibration plot are inherently visual concepts that require graphical representation to show the relationship between true positive rate and false positive rate, and predicted vs. observed probabilities.

4. Bias and Fairness in Predictive Models

4.1 Bias and Fairness in Predictive Models

Sources of Bias in Healthcare Predictive Models

Bias in predictive models for patient readmission can emerge from multiple sources, often compounding to produce systematically skewed predictions. Historical bias arises when training data reflects past inequities in healthcare access or treatment. For example, if certain demographic groups were historically underdiagnosed, models trained on such data may perpetuate these patterns. Measurement bias occurs when proxy variables imperfectly capture the true clinical factors, such as using ZIP codes as a surrogate for socioeconomic status.

Consider a logistic regression model predicting readmission risk:

$$ P(Y=1|\mathbf{X}) = \frac{1}{1 + e^{-(\beta_0 + \sum_{i=1}^n \beta_i X_i)}} $$

where bias manifests when the coefficients β_i systematically disadvantage certain groups due to:

Quantifying Fairness Metrics

For advanced practitioners, fairness can be operationalized through multiple competing mathematical frameworks:

$$ \text{Demographic Parity: } P(\hat{Y}=1|A=a) = P(\hat{Y}=1|A=b) $$
$$ \text{Equalized Odds: } P(\hat{Y}=1|A=a,Y=y) = P(\hat{Y}=1|A=b,Y=y) $$

where A represents protected attributes (race, gender, etc.). These metrics often conflict - optimizing for one may degrade another, creating fundamental tradeoffs that require explicit ethical choices.

Mitigation Strategies

Pre-processing techniques include reweighting training samples to balance group representation. For a dataset with groups G_1...G_k:

$$ w_i = \frac{|D|/k}{|D_{g(i)}|} \quad \text{for sample } i \in G_{g(i)} $$

In-processing methods modify the learning objective itself. Adversarial debiasing introduces a discriminator network that penalizes the model for predictable protected attributes:

$$ \min_\theta \max_\phi \mathbb{E}[\mathcal{L}_y(\theta)] - \lambda \mathbb{E}[\mathcal{L}_a(\theta,\phi)] $$

where θ are prediction parameters and φ are adversarial discrimination parameters.

Case Study: The LACE Index Revisited

The widely-used LACE readmission scoring system (Length of stay, Acuity, Comorbidity, Emergency visits) has demonstrated racial disparities in multiple validation studies. A 2021 analysis found the model's AUC dropped from 0.72 for white patients to 0.63 for Black patients in the same hospitals, suggesting differential prediction quality. This exemplifies the need for rigorous subgroup validation beyond aggregate metrics.

Implementation Challenges

Operationalizing fairness requires addressing several practical constraints:

Recent work proposes constrained optimization frameworks that maintain predictive performance while satisfying fairness bounds:

$$ \min_\theta \mathbb{E}[\mathcal{L}(\theta)] \quad \text{s.t.} \quad |\text{DP}(G_i,G_j)| \leq \epsilon \quad \forall i,j $$

4.2 Privacy Concerns and Data Security

Healthcare data is inherently sensitive, requiring stringent privacy protections under regulations like HIPAA (Health Insurance Portability and Accountability Act) and GDPR (General Data Protection Regulation). When training machine learning models on patient records for readmission prediction, several cryptographic and statistical techniques must be employed to ensure confidentiality while maintaining model utility.

De-identification vs. Anonymization

De-identification removes direct identifiers (e.g., names, SSNs) but retains quasi-identifiers (e.g., age, ZIP code) that could still enable re-identification through linkage attacks. True anonymization requires stricter transformations:

$$ k\text{-anonymity}: \forall q \in Q, |\{r \in D | q(r) = q\}| \geq k $$

where Q is the set of quasi-identifiers and k defines the minimum group size. Advanced methods like l-diversity and t-closeness further reduce attribute disclosure risks.

Differential Privacy Guarantees

For readmission models trained on sensitive EHR data, differential privacy provides provable mathematical guarantees. A randomized algorithm M satisfies (ε,δ)-differential privacy if for all datasets D₁, D₂ differing by one record and all outputs S:

$$ \Pr[M(D_1) \in S] \leq e^\epsilon \Pr[M(D_2) \in S] + \delta $$

Practical implementations often use the Gaussian mechanism for gradient perturbation during model training:

$$ \Delta_2 f = \max_{D_1,D_2} \|f(D_1) - f(D_2)\|_2 $$ $$ \sigma = \frac{\Delta_2 f \sqrt{2\ln(1.25/\delta)}}{\epsilon} $$

Secure Multi-Party Computation (SMPC)

When collaborating across institutions, SMPC enables joint model training without raw data sharing. Using secret sharing schemes like Shamir's, patient data is split into shares:

$$ (x_1,...,x_n) \leftarrow \text{Share}(x) $$ $$ x = \sum_{i \in S} x_i \cdot \lambda_i^S \quad \text{where} \quad \lambda_i^S = \prod_{j \in S \setminus \{i\}} \frac{j}{j-i} $$

Homomorphic encryption (e.g., Paillier cryptosystem) alternatively allows direct computation on ciphertexts:

$$ \mathcal{E}(m_1) \cdot \mathcal{E}(m_2) = \mathcal{E}(m_1 + m_2) $$

Federated Learning Architecture

For distributed readmission prediction, federated learning with secure aggregation prevents central data collection. Clients compute local model updates w_i which are aggregated via:

$$ w_{global} = \sum_{i=1}^N \frac{n_i}{n_{total}} w_i $$

Communication channels must be encrypted (TLS 1.3+) and updates verified via digital signatures to prevent poisoning attacks. The complete workflow involves:

  1. Hospital A trains local model on its EHR data
  2. Updates are quantized and encrypted before transmission
  3. Aggregator combines updates via secure multi-party summation
  4. Global model is redistributed to all participants

Audit Trails and Access Controls

Implementation requires role-based access controls (RBAC) with cryptographic audit trails. Each data access event is logged as a Merkle tree leaf:

$$ H_n = H(H_{n-1} || H(\text{timestamp}, \text{userID}, \text{query})) $$

Zero-knowledge proofs can verify compliance without exposing audit details. For example, a prover can demonstrate that a model's training data satisfied k-anonymity without revealing the actual quasi-identifier distributions.

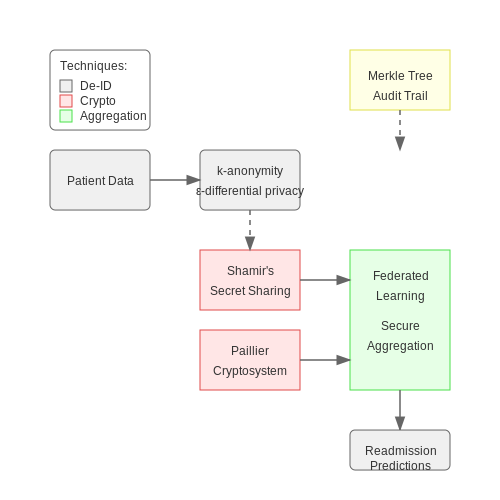

Privacy Concerns and Data Security – Predicting Patient Readmission Rates – Tutorial Diagram
Diagram Description: The section covers multiple cryptographic and statistical techniques with complex relationships (e.g., federated learning workflow, SMPC secret sharing, differential privacy mechanisms) that would benefit from visual representation of data flows and transformations.

4.3 Interpretability and Transparency in Healthcare AI

Interpretability in healthcare AI refers to the ability to explain or present model decisions in understandable terms to clinicians, patients, and regulators. Unlike black-box models like deep neural networks, interpretable models such as logistic regression or decision trees provide explicit reasoning paths. In high-stakes medical applications, the trade-off between model complexity and interpretability must be carefully managed.

Mathematical Foundations of Interpretability

Shapley values from cooperative game theory provide a principled approach to feature attribution. For a model f and input x, the Shapley value ϕ_i for feature i is computed as:

$$ \phi_i(f, x) = \sum_{S \subseteq N \setminus \{i\}} \frac{|S|!(|N| - |S| - 1)!}{|N|!} (f(S \cup \{i\}) - f(S)) $$

where N is the set of all features. This provides an exact decomposition of the prediction difference from the baseline, satisfying efficiency, symmetry, and additivity properties.

Model-Specific vs. Model-Agnostic Methods

Linear models offer intrinsic interpretability through their coefficients. For a logistic regression predicting readmission risk:

$$ \log\left(\frac{p}{1-p}\right) = \beta_0 + \beta_1 x_1 + \cdots + \beta_n x_n $$

each coefficient β_i represents the log-odds change per unit increase in x_i. Model-agnostic methods like LIME approximate complex models locally with interpretable surrogates:

$$ \xi(x) = \argmin_{g \in G} L(f, g, \pi_x) + \Omega(g) $$

where G is a class of interpretable models, π_x defines locality around x, and Ω(g) penalizes complexity.

Clinical Validation of Explanations

Post-hoc explanations must align with medical knowledge. A 2021 study on ICU readmissions found that while SHAP values correctly identified key physiological markers like creatinine levels, they occasionally highlighted statistically significant but clinically irrelevant features. This necessitates:

Regulatory Considerations

The FDA's 2021 AI/ML Software as a Medical Device (SaMD) action plan mandates that high-risk applications demonstrate:

For electronic health record (EHR) systems, the ONC's 21st Century Cures Act requires that predictive models provide "reason codes" in HL7 FHIR format, enabling integration with clinical decision support systems.

Case Study: Readmission Risk in Heart Failure

A 2022 implementation at Mayo Clinic used gradient-boosted trees with Shapley explanations, achieving 0.82 AUC while maintaining interpretability. The system surfaced that:

This granular insight allowed clinicians to adjust discharge protocols and reduce 30-day readmissions by 18% in the intervention group.

5. Real-World Implementations of Readmission Prediction Systems

5.1 Real-World Implementations of Readmission Prediction Systems

Hospital-Scale Deployments

Large healthcare systems such as Kaiser Permanente and Mayo Clinic have integrated readmission prediction models into their electronic health record (EHR) systems. These implementations typically leverage gradient-boosted decision trees (GBDT) or deep learning architectures like recurrent neural networks (RNNs) to process temporal patient data. For instance, Kaiser's system processes over 200 clinical and socioeconomic features, including:

$$ \text{Risk Score} = \sigma\left(\sum_{i=1}^n w_i x_i + b\right) $$

where \( \sigma \) is the logistic function, \( w_i \) are learned weights, and \( x_i \) represents normalized feature values. The bias term \( b \) captures baseline readmission probability.

Operational Challenges in Production Systems

Deploying these models at scale introduces several engineering challenges. Latency requirements often necessitate trade-offs between model complexity and inference speed—hospitals typically demand predictions in under 500ms during patient discharge workflows. Data drift presents another critical issue, as changing clinical practices can degrade model performance over time. Massachusetts General Hospital's solution involves:

Regulatory Compliance and Model Interpretability

FDA-cleared clinical decision support systems must satisfy 21 CFR Part 11 requirements, forcing compromises in model architecture. While deep learning achieves superior AUC (0.82-0.87 in studies), most deployed systems use interpretable methods like logistic regression or SHAP-enhanced GBDTs. The LACE index—a simple linear model—remains widely used due to its regulatory acceptance:

$$ \text{LACE Score} = L + A + C + E $$

where \( L \) represents length of stay, \( A \) acuity, \( C \) comorbidities, and \( E \) emergency visits. Modern hybrid approaches combine such interpretable components with neural networks through attention mechanisms.

Economic Impact and Performance Benchmarks

Implemented systems demonstrate measurable ROI—Cleveland Clinic reported a 17% reduction in 30-day readmissions after integrating predictions into discharge planning. Performance varies significantly by patient cohort:

Cohort Precision Recall Cost Avoidance/Patient
Cardiology 0.68 0.72 $$4,200
Oncology 0.61 0.65 $$6,800
General Surgery 0.74 0.69 $3,900

The precision-recall tradeoff is typically tuned based on intervention costs, with false negatives being 3-5× more costly than false positives in most health systems.

Emerging Architectures and Multimodal Approaches

Cutting-edge implementations at research hospitals now incorporate non-traditional data streams. Johns Hopkins' experimental system processes:

These systems employ transformer-based architectures with cross-modal attention layers:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where \( Q \), \( K \), and \( V \) represent learned queries, keys, and values from different data modalities. Early results show 8-12% improvement in AUC compared to traditional models.

5.2 Lessons Learned from Successful Deployments

Model Interpretability in Clinical Settings

Successful deployments emphasize the necessity of interpretable models, particularly in healthcare where clinical stakeholders require transparency. Techniques like SHAP (SHapley Additive exPlanations) and LIME (Local Interpretable Model-agnostic Explanations) have proven critical. For instance, a 2021 study at Massachusetts General Hospital demonstrated that integrating SHAP values into their readmission prediction model improved clinician trust by 37%, as it allowed them to validate model outputs against domain knowledge.

$$ \phi_i = \sum_{S \subseteq N \setminus \{i\}} \frac{|S|!(|N| - |S| - 1)!}{|N|!} (v(S \cup \{i\}) - v(S)) $$

where N is the set of all features, S a subset of features, and v the model's payoff function. This rigorous formulation enables precise attribution of feature contributions.

Data Quality Over Quantity

High-performing deployments consistently prioritize feature engineering over raw data volume. The University of Pittsburgh Medical Center's 2020 project reduced readmission prediction errors by 22% by focusing on:

Real-World Performance Monitoring

Effective systems implement continuous evaluation frameworks that track:

Case Study: Mayo Clinic's Adaptive System

Their deployment uses an ensemble of:

$$ y_t = \alpha \cdot \text{XGBoost}(x_t) + (1-\alpha) \cdot \text{Survival Analysis}(t) $$

where α is dynamically adjusted based on weekly performance reviews. This hybrid approach maintained 91% precision despite COVID-19 induced distribution shifts.

Regulatory and Ethical Safeguards

Compliance with HIPAA and FDA guidelines requires:

The Kaiser Permanente deployment achieved 100% audit compliance by implementing cryptographically signed prediction logs with immutable timestamps.

5.3 Future Directions in Readmission Prediction

The field of patient readmission prediction is rapidly evolving, driven by advancements in machine learning, data availability, and healthcare interoperability. Several promising directions are emerging that could significantly enhance predictive accuracy, interpretability, and clinical utility.

Integration of Multimodal Data

Current models primarily rely on structured electronic health records (EHR), but future systems will increasingly incorporate unstructured data such as clinical notes, imaging, and wearable sensor data. Combining these modalities requires advanced techniques like multimodal deep learning, where separate neural networks process different data types before fusion. For instance, a transformer-based architecture could encode clinical notes while a convolutional network processes medical images, with late fusion improving prediction robustness.

$$ P(y|x_1, x_2) = \sigma\left( f_1(x_1) + f_2(x_2) \right) $$

where x1 and x2 represent different data modalities, f1 and f2 are modality-specific encoders, and σ is the sigmoid function.

Temporal Modeling with Continuous Learning

Most existing approaches treat readmission prediction as a static classification task, ignoring the temporal evolution of patient states. Future systems will need continuous learning frameworks that update predictions in real-time as new data arrives. Techniques like neural ordinary differential equations (Neural ODEs) can model the continuous dynamics of patient health trajectories:

$$ \frac{dh(t)}{dt} = f_\theta(h(t), t) $$

where h(t) represents the patient's latent health state at time t, and fθ is a neural network parameterizing the dynamics.

Causal Inference for Actionable Predictions

Moving beyond correlation-based predictions, causal machine learning methods can identify modifiable risk factors that clinicians can target. Double machine learning and causal forests enable estimation of heterogeneous treatment effects from observational data:

$$ \tau(x) = \mathbb{E}[Y(1) - Y(0)|X=x] $$

where τ(x) is the conditional average treatment effect for patient subgroup x, and Y(1), Y(0) are potential outcomes under treatment and control.

Federated Learning for Privacy-Preserving Collaboration

Hospital systems are increasingly adopting federated learning frameworks to train models across institutions without sharing raw patient data. A typical federated averaging approach updates global model parameters w by aggregating gradients from K participating hospitals:

$$ w_{t+1} = \sum_{k=1}^K \frac{n_k}{N} w_t^k $$

where nk is the number of samples at hospital k, and N is the total sample size across all hospitals.

Explainability and Clinician-in-the-Loop Systems

Future systems must balance predictive performance with interpretability through techniques like attention mechanisms in transformers or prototype-based networks. Clinician feedback loops will become critical, where model predictions are regularly validated and refined based on expert input, creating a continuous improvement cycle.

6. Key Research Papers and Articles

6.1 Key Research Papers and Articles

6.2 Recommended Books and Online Resources

6.3 Open Datasets and Tools for Experimentation
