AI-Powered E-commerce Search Engines

#e-commerce #search engines #nlp #machine learning #personalization #semantic search #data collection #query understanding #deep learning

1. Core Components of E-commerce Search Engines

Core Components of E-commerce Search Engines

Query Processing and Understanding

Modern e-commerce search engines employ natural language processing (NLP) techniques to interpret user queries beyond simple keyword matching. The query processing pipeline typically involves:

$$ \text{Edit Distance} = \min\begin{cases} D[i-1,j] + 1 \\ D[i,j-1] + 1 \\ D[i-1,j-1] + \mathbb{I}(s_i \neq t_j) \end{cases} $$

Indexing and Retrieval Architecture

High-performance search systems utilize inverted indices optimized for product attributes. The indexing process involves:

Product Catalog Document Processor Inverted Index

Distributed Index Sharding

For large-scale deployments, indices are partitioned using consistent hashing:

$$ h(key) = (a \times key + b) \mod p \mod m $$

where p is a large prime, and m is the number of shards.

Relevance Ranking Models

State-of-the-art systems employ learning-to-rank (LTR) algorithms combining multiple signals:

$$ \text{BM25}(D,Q) = \sum_{i=1}^{n} \text{IDF}(q_i) \cdot \frac{f(q_i,D) \cdot (k_1 + 1)}{f(q_i,D) + k_1 \cdot (1 - b + b \cdot \frac{|D|}{\text{avgdl}})} $$

Real-time Query Processing

Modern architectures achieve sub-100ms latency through:

# Approximate nearest neighbor search
import faiss

index = faiss.IndexFlatL2(dimension)  # L2 distance metric
index.add(product_embeddings)
D, I = index.search(query_embedding, k=10)  # Retrieve top 10

Faceted Navigation and Filtering

Efficient facet computation requires specialized data structures like:

$$ \text{Facet Count} = \sum_{d \in D} \mathbb{I}(f_d = v) \cdot \mathbb{I}(d \in R) $$

Role of AI in Enhancing Search Relevance

Semantic Understanding via Embeddings

Traditional search engines rely on lexical matching, which fails to capture semantic relationships between queries and documents. Modern AI-powered systems leverage dense vector embeddings, such as those generated by transformer models like BERT or Sentence-BERT, to map queries and products into a shared latent space. The relevance score R(q, d) between a query q and document d is computed using cosine similarity:

$$ R(q, d) = \frac{\mathbf{v}_q \cdot \mathbf{v}_d}{\|\mathbf{v}_q\| \|\mathbf{v}_d\|} $$

where vq and vd are the embeddings of the query and document, respectively. This approach enables zero-shot generalization to unseen queries by leveraging the semantic properties encoded in the embedding space.

Personalization with Multi-Armed Bandits

Search relevance is further optimized through contextual bandit algorithms that balance exploration-exploitation trade-offs. For a user u with historical interactions Hu, the system learns a policy π(a|u, Hu) that selects ranking actions a to maximize cumulative reward:

$$ \max_\pi \mathbb{E}\left[\sum_{t=1}^T r_t(a_t) \right] $$

Neural bandit architectures like DeepFM combine factorization machines with deep networks to model both low- and high-order feature interactions, adapting rankings in real-time based on user behavior.

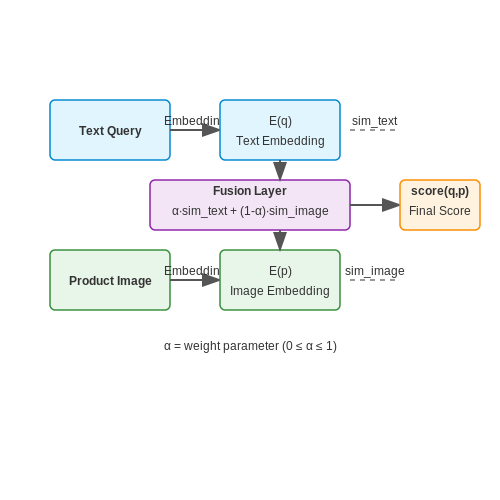

Cross-Modal Retrieval for Visual Search

For product searches involving images, cross-modal encoders such as CLIP align visual and textual representations. Given an image I and text T, the model learns a joint embedding space where:

$$ \text{sim}(I, T) = \text{softmax}(\mathbf{E}_I \mathbf{E}_T^T / \tau) $$

Here, EI and ET are the image and text encoders, while τ is a temperature parameter. This enables accurate retrieval of products using either textual queries or visual inputs.

Dynamic Re-Ranking with Learning-to-Rank

Initial retrieval results are refined using LambdaMART, a pairwise learning-to-rank algorithm that optimizes the Normalized Discounted Cumulative Gain (NDCG) metric. The gradient for document pair (i, j) is computed as:

$$ \lambda_{ij} = \frac{\Delta \text{NDCG}}{\partial s_i - \partial s_j} \cdot \frac{1}{1 + e^{s_i - s_j}} $$

where si and sj are the model scores for documents i and j. This approach directly optimizes for ranking quality rather than pointwise relevance.

Real-World Deployment Challenges

Production systems must address latency constraints through techniques like approximate nearest neighbor search (e.g., HNSW graphs) and model distillation. For example, a heavy teacher model like BERT-Large can be distilled into a lightweight student model (e.g., TinyBERT) with minimal accuracy drop:

$$ \mathcal{L}_{\text{distill}} = \alpha \mathcal{L}_{\text{task}} + (1-\alpha) \text{KL}(p_{\text{teacher}}\|p_{\text{student}}) $$

where α balances task-specific and distillation losses. This enables sub-50ms inference times while preserving 95%+ of the original model's accuracy.

Role of AI in Enhancing Search Relevance – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The diagram would show the vector embedding space with query and document vectors, illustrating cosine similarity and semantic relationships.

1.3 Key Metrics for Evaluating Search Performance

Precision and Recall

Precision measures the fraction of retrieved documents that are relevant, while recall quantifies the fraction of relevant documents successfully retrieved. For an e-commerce search engine, these metrics are defined as:

$$ \text{Precision} = \frac{|\{\text{Relevant items}\} \cap \{\text{Retrieved items}\}|}{|\{\text{Retrieved items}\}|} $$
$$ \text{Recall} = \frac{|\{\text{Relevant items}\} \cap \{\text{Retrieved items}\}|}{|\{\text{Relevant items}\}|} $$

In practice, optimizing for precision reduces irrelevant results (e.g., showing shoes when the user searches for "running sneakers"), whereas high recall ensures comprehensive coverage of relevant products. Trade-offs between the two are visualized via precision-recall curves.

Mean Average Precision (MAP)

MAP extends precision by averaging precision values at each relevant item’s rank position. For a query q with R relevant items:

$$ \text{AP}(q) = \frac{1}{R} \sum_{k=1}^n P(k) \cdot \text{rel}(k) $$

where P(k) is precision at rank k, and rel(k) is 1 if the item at rank k is relevant. MAP is the mean of AP across all queries.

Normalized Discounted Cumulative Gain (nDCG)

nDCG evaluates ranking quality by accounting for graded relevance (e.g., user clicks, purchase likelihood). The discounted cumulative gain (DCG) is computed as:

$$ \text{DCG} = \sum_{i=1}^p \frac{2^{\text{rel}_i} - 1}{\log_2(i + 1)} $$

where reli is the relevance score of the item at position i. nDCG normalizes DCG by the ideal DCG (IDCG), yielding a score between 0 and 1:

$$ \text{nDCG} = \frac{\text{DCG}}{\text{IDCG}} $$

Click-Through Rate (CTR) and Conversion Rate

CTR measures the fraction of searches where users click on a result, while conversion rate tracks purchases or desired actions. These metrics are critical for business impact but require A/B testing to isolate search engine performance from external factors (e.g., UI changes).

Mean Reciprocal Rank (MRR)

MRR evaluates the rank of the first relevant item for each query. For a set of queries Q:

$$ \text{MRR} = \frac{1}{|Q|} \sum_{i=1}^{|Q|} \frac{1}{\text{rank}_i} $$

where ranki is the position of the first relevant item for query i. MRR is particularly useful for transactional queries (e.g., exact product matches).

Latency and Throughput

Operational metrics include latency (time to return results) and throughput (queries processed per second). For large-scale e-commerce platforms, sub-100ms latency and 10k+ QPS are typical benchmarks.

Query Abandonment Rate

This metric tracks the percentage of searches where users refine or abandon their query without clicking any results. High abandonment rates may indicate poor relevance or insufficient inventory coverage.

2. Natural Language Processing (NLP) for Query Understanding

Natural Language Processing (NLP) for Query Understanding

Semantic Parsing of User Queries

Modern e-commerce search engines employ deep semantic parsing to transform unstructured user queries into structured representations. The process begins with dependency parsing to extract grammatical relationships between words, followed by named entity recognition (NER) to identify product attributes. For example, the query "red running shoes under $100" decomposes into:

Transformer-based models like BERT encode these relationships through self-attention mechanisms:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent query, key, and value matrices respectively, and dk is the dimension of key vectors.

Query Expansion and Reformulation

Latent semantic indexing (LSI) and word embeddings address vocabulary mismatch problems by projecting queries and documents into a shared vector space. The cosine similarity between query q and document d vectors determines relevance:

$$ \text{sim}(q,d) = \frac{q \cdot d}{\|q\| \|d\|} $$

BERT-based cross-encoders further refine this by computing attention across query-document pairs:

$$ \text{Score}(q,d) = \text{MLP}(\text{BERT}([q;d])) $$

Personalization Through Contextual Signals

Session-aware models incorporate temporal context using recurrent architectures:

$$ h_t = \text{GRU}(x_t, h_{t-1}) $$

where ht represents the hidden state at time t, capturing browsing history and previous interactions. Multi-task learning frameworks jointly optimize for:

Error Handling and Fallback Mechanisms

When confidence scores fall below threshold τ, systems activate cascading fallback strategies:

$$ \text{Strategy}(q) = \begin{cases} \text{Spell correction} & \text{if } p_{\text{spell}} > 0.9 \\ \text{Query relaxation} & \text{if } 0.7 < p_{\text{spell}} ≤ 0.9 \\ \text{Popular results} & \text{otherwise} \end{cases} $$

Dual-encoder architectures maintain separate index and query encoders for efficient approximate nearest neighbor search during fallback scenarios.

Natural Language Processing (NLP) for Query Understanding – AI-Powered E-commerce Search Engines – Tutorial Diagram

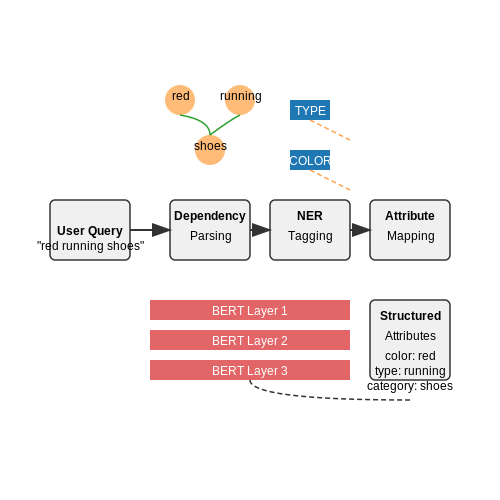

Diagram Description: The diagram would show the transformation pipeline from raw user query to structured semantic representation, including dependency parsing, NER, and attribute mapping stages.

2.2 Machine Learning for Personalization

Personalization in e-commerce search engines relies on machine learning models that dynamically adapt to user behavior, preferences, and contextual signals. At its core, this involves learning a mapping from user interactions to a latent representation space where similar users and items are positioned closer together. Collaborative filtering, matrix factorization, and deep learning-based approaches dominate this domain.

Latent Factor Models for Personalization

Matrix factorization decomposes the user-item interaction matrix R into lower-dimensional latent factors representing users and items. Given a sparse matrix R ∈ ℝm×n, where m is the number of users and n is the number of items, the objective is to approximate R as the product of two matrices:

$$ R \approx U V^T $$

where U ∈ ℝm×k and V ∈ ℝn×k are the user and item latent factor matrices, respectively, and k ≪ min(m, n) is the latent dimension. The optimization problem minimizes the Frobenius norm with regularization:

$$ \min_{U,V} \sum_{(i,j) \in \Omega} (R_{ij} - U_i V_j^T)^2 + \lambda (\|U\|_F^2 + \|V\|_F^2) $$

where Ω denotes the set of observed interactions, and λ controls the L2 regularization strength. Stochastic gradient descent (SGD) or alternating least squares (ALS) are commonly used for optimization.

Neural Collaborative Filtering

Traditional matrix factorization assumes linear interactions between user and item factors. Neural collaborative filtering (NCF) replaces the dot product UiVjT with a neural network that learns non-linear relationships. The generalized matrix factorization (GMF) layer and multi-layer perceptron (MLP) are combined:

$$ \hat{y}_{ij} = \sigma(h^T \phi(U_i \odot V_j)) $$

where ⊙ denotes element-wise multiplication, ϕ is the MLP transformation, and σ is the sigmoid activation. The model is trained using binary cross-entropy loss for implicit feedback:

$$ \mathcal{L} = -\sum_{(i,j) \in \Omega} \log \hat{y}_{ij} + \sum_{(i,j) \in \Omega^-} \log (1 - \hat{y}_{ij}) $$

where Ω− represents sampled negative interactions.

Session-Based Personalization with Transformers

For real-time personalization, transformer architectures capture sequential user behavior within sessions. Given a sequence of item interactions X = (x1, ..., xt), the model computes attention-weighted representations:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned linear transformations of the input sequence. Multi-head attention allows the model to jointly attend to different behavioral patterns. The final ranking score for candidate item v is computed as:

$$ s(v) = f_\theta(\text{CLS}, v) $$

where CLS is the aggregated session representation, and fθ is a scoring function.

Practical Implementation Considerations

Machine Learning for Personalization – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The diagram would show the matrix factorization process with user and item latent factors, and the neural collaborative filtering architecture with GMF and MLP components.

2.3 Deep Learning for Semantic Search

Traditional keyword-based search engines in e-commerce struggle with synonymy, polysemy, and contextual understanding. Deep learning models, particularly those leveraging transformer architectures, have revolutionized semantic search by encoding queries and documents into dense vector spaces where relevance is measured by proximity rather than lexical overlap.

Transformer-Based Embeddings

Modern semantic search systems rely on transformer models like BERT, RoBERTa, or T5 to generate contextual embeddings. Given an input sequence x, a transformer encoder produces a high-dimensional vector h that captures semantic meaning:

$$ h = \text{TransformerEncoder}(x) $$

For bidirectional context, models like BERT use masked language modeling (MLM) and next sentence prediction (NSP) during pretraining. The resulting embeddings exhibit strong transfer learning capabilities when fine-tuned on domain-specific e-commerce data.

Dense Retrieval Architectures

Dual-encoder architectures separately encode queries and documents, enabling efficient approximate nearest neighbor search. Given query embedding q and document embedding d, relevance is computed using:

$$ \text{score}(q, d) = q^T d $$

State-of-the-art systems employ contrastive learning with hard negative mining to improve discrimination. The loss function for a batch of N query-document pairs is:

$$ \mathcal{L} = -\frac{1}{N} \sum_{i=1}^N \log \frac{e^{q_i^T d_i^+}}{e^{q_i^T d_i^+} + \sum_{j=1}^K e^{q_i^T d_{i,j}^-}} $$

where d+ denotes positive documents and d- represents K hard negatives sampled for each query.

Cross-Attention Mechanisms

For higher accuracy at increased computational cost, cross-encoder architectures process query-document pairs jointly through attention layers. The relevance score becomes:

$$ \text{score}(q, d) = \text{FFN}(\text{CrossAttention}(q, d)) $$

where FFN denotes a feedforward network. While more accurate, these models are typically deployed in reranking stages due to their quadratic complexity relative to sequence length.

Practical Deployment Considerations

Production systems often employ hybrid approaches:

Latency constraints typically limit transformer-based semantic search to queries per second (QPS) below 1000 on standard hardware, necessitating careful model distillation and serving optimization.

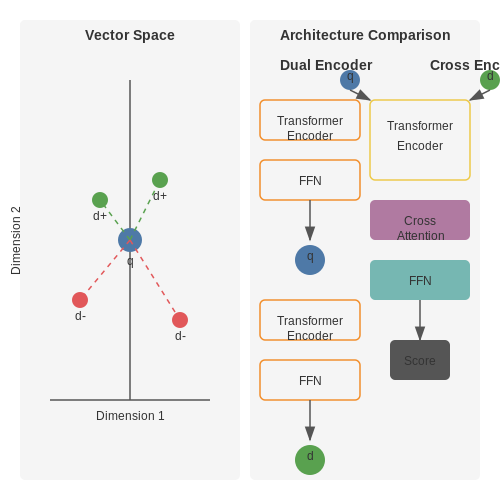

Deep Learning for Semantic Search – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The section describes complex relationships between query and document embeddings in vector space and the architecture of dual-encoder vs. cross-encoder systems, which are inherently spatial concepts.

3. Data Collection and Preprocessing

3.1 Data Collection and Preprocessing

Effective AI-powered e-commerce search engines rely on high-quality, structured, and semantically rich datasets. The data collection and preprocessing pipeline must address heterogeneous sources, noise, and sparsity while preserving contextual relevance for downstream tasks like query understanding, product ranking, and personalization.

Data Sources and Ingestion

Primary data sources include structured product catalogs, user interaction logs, and unstructured text:

$$ S_i = \{ e_1, e_2, ..., e_n \} \quad \text{where} \quad \Delta t(e_j, e_{j+1}) < 30 \text{ minutes} $$

Unstructured data from reviews and queries demands NLP preprocessing—tokenization, lemmatization, and named entity recognition (NER) using models like spaCy or BERT-based taggers.

Feature Engineering

Key feature types include:

$$ \text{Relevance}(q, d) = \sigma(W^T \cdot \text{BERT}([q; d])) $$
$$ \text{CTR}_{\text{smoothed}} = \frac{C + \alpha}{I + \alpha + \beta} $$

where C is clicks, I is impressions, and (α, β) are Beta distribution priors.

Data Quality and Augmentation

Address label sparsity via:

$$ \mathcal{L} = \max(0, \|f(a) - f(p)\|^2 - \|f(a) - f(n)\|^2 + \alpha) $$

where a is an anchor product, p a positive match, and n a negative sample.

Data Collection and Preprocessing – AI-Powered E-commerce Search Engines – Tutorial Diagram

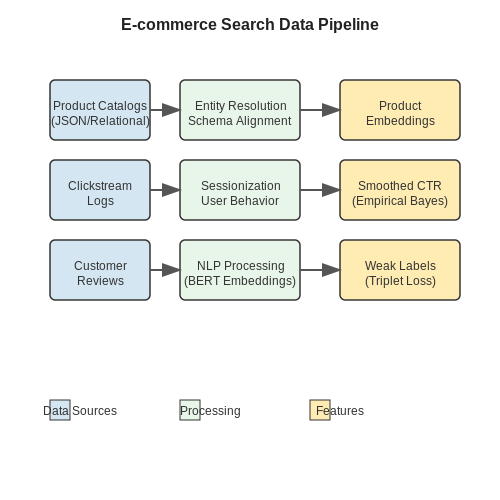

Diagram Description: The diagram would show the end-to-end data pipeline from raw sources (catalogs, logs, text) to processed features (embeddings, CTR, labels), highlighting transformation steps like schema alignment, sessionization, and embedding generation.

3.2 Building and Training Search Models

Neural Information Retrieval Architectures

Modern e-commerce search engines leverage neural information retrieval (Neural IR) architectures, which outperform traditional term-frequency approaches by learning semantic representations of queries and products. The dominant paradigm involves dual-encoder models, where query and document embeddings are learned separately and then compared via a similarity metric. Given a query q and product description d, the relevance score s(q, d) is computed as:

$$ s(q, d) = f_\theta(q)^T g_\phi(d) $$

where fθ and gφ are deep neural networks with parameters θ and φ, typically implemented as transformer-based encoders. The dot product measures cosine similarity in the latent space.

Training Objectives for Product Search

Contrastive learning is the standard approach, where the model learns to maximize the similarity between relevant query-document pairs while minimizing it for irrelevant ones. Given a batch of N query-product pairs, the loss function is:

$$ \mathcal{L} = -\frac{1}{N} \sum_{i=1}^N \log \frac{e^{s(q_i, d_i^+)/\tau}}{\sum_{j=1}^N e^{s(q_i, d_j)/\tau}} $$

where τ is a temperature hyperparameter controlling the sharpness of the distribution, and di+ denotes the positive (relevant) product for query qi. This softmax formulation is known as InfoNCE loss in the literature.

Handling Multi-Modal Product Data

E-commerce products require joint modeling of text (titles, descriptions), images, and structured attributes (price, brand). A common approach concatenates modality-specific embeddings:

$$ h_d = [h_{text}; h_{image}; h_{attributes}]W $$

where W is a learned projection matrix. Vision transformers (ViTs) process product images, while attribute embeddings can be learned via entity embedding layers for categorical variables.

Hard Negative Mining Strategies

Random negative sampling performs poorly for e-commerce due to the long-tail distribution of products. Effective strategies include:

Deployment Considerations

Real-world constraints require:

Evaluation Metrics

Beyond standard IR metrics like nDCG@k, e-commerce systems require business-aware measures:

Building and Training Search Models – AI-Powered E-commerce Search Engines – Tutorial Diagram

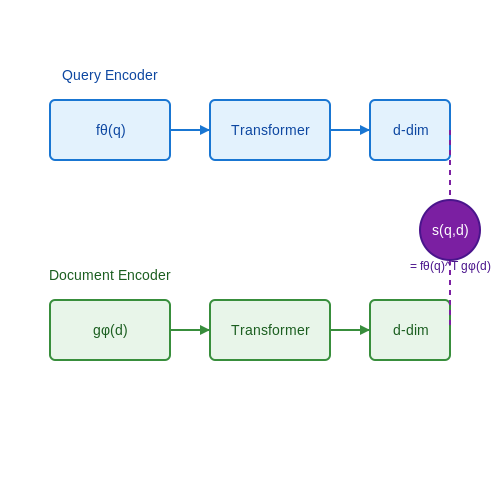

Diagram Description: The diagram would show the dual-encoder architecture with query and document embedding paths, their transformer-based encoders, and the similarity computation flow.

Integrating Search with E-commerce Platforms

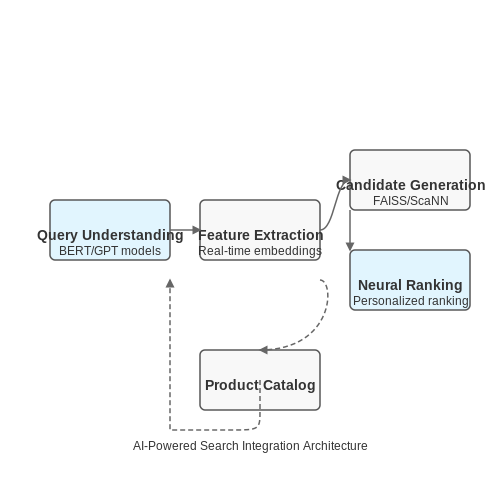

Architecture of AI-Powered Search Integration

The integration of AI-powered search into e-commerce platforms requires a distributed architecture that balances low-latency query processing with high relevance scoring. The core components include:

$$ \text{RelevanceScore}(q,p) = \sigma(\mathbf{W}_2 \text{ReLU}(\mathbf{W}_1[\mathbf{E}_q(q); \mathbf{E}_p(p)] + \mathbf{b}_1) + \mathbf{b}_2) $$

Where σ is the sigmoid function, Eq and Ep are query and product encoders, and Wi, bi are learned parameters.

Real-Time Indexing Challenges

Maintaining search indices for dynamic inventory requires solving the online-to-offline consistency problem in distributed systems. The solution involves:

The indexing throughput I must satisfy:

$$ I \geq \lambda_{update} \times \frac{V}{C} $$

where λupdate is the update rate, V is average product vector size, and C is cluster capacity.

Personalization Through Multi-Armed Bandits

Search ranking adapts to user behavior via contextual bandit algorithms that optimize for long-term engagement. The reward function combines:

The Thompson Sampling policy selects ranking weights θ from posterior distributions:

$$ \theta_t \sim \mathcal{N}(\hat{\mu}, \hat{\Sigma}) $$

where μ̂ and Σ̂ are updated via Bayesian regression on user interactions.

A/B Testing Framework

Measuring search effectiveness requires controlled experiments with:

The minimum detectable effect δ for 80% power is:

$$ \delta = 2.5\sigma\sqrt{\frac{2}{n}} $$

where σ is metric variance and n is samples per variant.

Query Understanding with Knowledge Graphs

E-commerce platforms enhance semantic search by grounding queries in product ontologies. The knowledge graph embedding:

$$ \mathcal{L} = \sum_{(h,r,t)\in\mathcal{G}} \max(0, \gamma + f(h,r,t) - f(h',r,t')) $$

learns representations that preserve hierarchical relationships (e.g., "iPhone 15 Pro" → "Smartphones" → "Electronics").

Integrating Search with E-commerce Platforms – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The diagram would show the distributed architecture of AI-powered search integration, illustrating how components like the Query Understanding Layer, Feature Extraction Pipeline, Candidate Generation, and Neural Ranking Model interact in sequence.

4. Handling Ambiguous Queries

4.1 Handling Ambiguous Queries

Ambiguous queries in e-commerce search engines present a significant challenge due to the polysemous nature of natural language. A query like "apple" could refer to the fruit or the technology brand, while "notebook" might denote either a paper product or a laptop. Advanced AI techniques must disambiguate such queries to ensure relevant results.

Query Disambiguation via Contextual Embeddings

Modern approaches leverage transformer-based models like BERT or GPT to generate contextual embeddings that capture semantic nuances. Given a query q, the model computes a high-dimensional vector E(q) that encodes its meaning within the search context. The similarity between E(q) and product embeddings E(p) is measured using cosine similarity:

$$ \text{sim}(q, p) = \frac{E(q) \cdot E(p)}{\|E(q)\| \|E(p)\|} $$

For ambiguous queries, the system retrieves multiple candidate interpretations and ranks them based on user session data, such as browsing history or past purchases. A Bayesian framework can refine this ranking by incorporating prior probabilities:

$$ P(I|q) = \frac{P(q|I) P(I)}{\sum_{j} P(q|I_j) P(I_j)} $$

where I represents an interpretation (e.g., "apple" as fruit) and P(I) is its prior probability derived from historical data.

Multi-Modal Fusion for Enhanced Disambiguation

Ambiguity resolution benefits from multi-modal signals, such as product images or categorical metadata. A hybrid model fuses textual embeddings with visual features extracted via CNNs. For instance, a query for "jaguar" could be disambiguated by comparing text embeddings against image embeddings of cars versus animals. The fusion is often implemented as a weighted sum:

$$ \text{score}(q, p) = \alpha \text{sim}_{\text{text}}(q, p) + (1 - \alpha) \text{sim}_{\text{image}}(q, p) $$

where α is learned via gradient descent on a labeled dataset.

Real-Time Feedback Loops

To handle dynamic ambiguity (e.g., trending products altering query semantics), search engines employ real-time feedback mechanisms. Click-through rates (CTR) and dwell time on results are logged to adjust rankings incrementally. A reinforcement learning agent can optimize this process by framing query resolution as a Markov Decision Process (MDP), where the state s represents the user context, and actions a correspond to ranking strategies.

The reward function R(s, a) might combine CTR, conversion rate, and session length. Policy gradients or Q-learning can then refine the disambiguation policy:

$$ \nabla_{\theta} J(\theta) = \mathbb{E}_{\pi_{\theta}}[\nabla_{\theta} \log \pi_{\theta}(a|s) R(s, a)] $$

where θ parameterizes the ranking policy πθ.

Handling Ambiguous Queries – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The diagram would show the multi-modal fusion process, illustrating how textual and visual embeddings are combined to disambiguate queries.

4.2 Scalability and Latency Issues

Distributed Indexing Challenges

Modern e-commerce platforms index billions of products across multiple regions and languages. Traditional monolithic search architectures fail to scale horizontally, creating bottlenecks during peak traffic. Distributed inverted indices must maintain consistency while allowing real-time updates. The probability of index inconsistency Pinc grows exponentially with cluster size N:

$$ P_{inc} = 1 - (1 - p_{fail})^{N(N-1)/2} $$

where pfail is the per-node failure probability. This quadratic relationship explains why Amazon's search infrastructure employs a sharded architecture with consensus protocols like Raft for index synchronization.

Query Processing Latency

Neural search models introduce computational overhead from dense retrieval and cross-attention mechanisms. End-to-end latency L for a transformer-based ranker follows:

$$ L = t_{token} + \frac{n_{layers} \cdot n_{heads} \cdot d_{model}^2}{f_{GPU}} + t_{IO} $$

where ttoken is tokenization time, nlayers is transformer depth, and fGPU is floating-point throughput. Alibaba reduced latency by 40% through hybrid retrieval - combining approximate nearest neighbor (ANN) search with learned sparse retrieval.

Caching Strategies

Multi-level caching architectures must balance hit rates against staleness. The optimal cache size C* for product embeddings follows a power-law distribution:

$$ C^* = \arg\min_C \sum_{i=1}^{|V|} p_i \cdot \mathbb{I}(rank(i) \leq C) \cdot \Delta_{staleness} $$

where pi is query probability for item i and Δstaleness is the revenue loss from serving stale inventory. Shopify implements this using Redis with time-decayed popularity scores.

Load Testing Requirements

Production systems must sustain >50k queries/second during flash sales. The required replica count R scales with:

$$ R = \lceil \frac{\lambda_{peak}}{\mu \cdot (1 - \rho)} \rceil $$

where λpeak is peak request rate, μ is service rate per node, and ρ is target utilization (typically 0.7). Best practices include:

Hardware Considerations

Modern search pipelines leverage GPU/TPU acceleration for neural components while keeping term-based retrieval on CPUs. The cost-performance tradeoff follows:

$$ \text{TCO} = \sum_{t=1}^{T} \frac{N_{GPU} \cdot P_{GPU} + N_{CPU} \cdot P_{CPU}}{(1 + r)^t} $$

where P denotes hardware costs and r is the discount rate. Walmart's search stack uses heterogeneous computing with FPGA-based pre-filtering to optimize this equation.

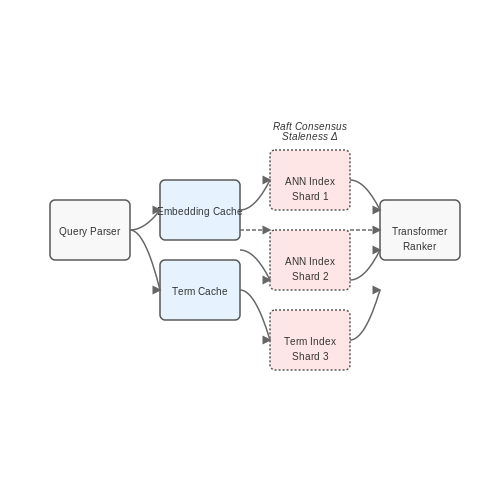

Scalability and Latency Issues – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The section involves complex mathematical relationships and distributed system architectures that would benefit from visual representation of sharded indexing, hybrid retrieval pipelines, and multi-level caching hierarchies.

4.3 Ethical Considerations and Bias Mitigation

Sources of Bias in E-commerce Search

AI-powered search engines in e-commerce inherit biases from multiple sources, primarily training data and algorithmic design. Historical purchase data often reflects societal biases—for instance, certain demographics may be overrepresented in luxury goods purchases due to socioeconomic factors. Click-through rates can reinforce popularity biases, where already popular items receive disproportionate visibility. The embedding space used for product similarity calculations may encode latent biases; for example, gender-stereotypical associations between products can emerge from word2vec or BERT-based embeddings.

$$ \text{Bias}(q, p) = \frac{1}{N} \sum_{i=1}^{N} \left( \mathbb{E}[R(p_i)|A=1] - \mathbb{E}[R(p_i)|A=0] \right)^2 $$

Where q represents the query, p the product, R the ranking score, and A the protected attribute (e.g., gender, race). This measures the average squared difference in ranking scores across demographic groups.

Algorithmic Fairness Metrics

Three principal fairness metrics apply to e-commerce search:

The tension between these metrics becomes apparent when optimizing for both fairness and business objectives. For example, demographic parity may reduce conversion rates by promoting less relevant items, while meritocratic fairness may perpetuate existing biases.

Bias Mitigation Techniques

Pre-processing Methods

Data augmentation techniques can rebalance training datasets. For image-based search, generative adversarial networks (GANs) can synthesize product images across diverse demographics. For text data, counterfactual augmentation modifies product descriptions to remove stereotypical associations:

$$ \text{augment}(x) = x + \gamma \cdot (x_{cf} - x) $$

Where x is the original feature vector, xcf the counterfactual version, and γ controls augmentation strength.

In-processing Methods

Adversarial debiasing modifies the loss function to simultaneously optimize for accuracy and fairness:

$$ \mathcal{L} = \mathcal{L}_{task} - \lambda \mathcal{L}_{adv} $$

The adversarial loss ℒadv trains a discriminator to predict protected attributes from embeddings, while the main model learns to fool it. This results in representations invariant to sensitive attributes.

Post-processing Methods

Calibrated fairness-aware re-ranking adjusts initial rankings using linear programming:

$$ \text{maximize} \sum_{i} w_i r_i \quad \text{subject to} \quad \left| \sum_{i \in G_j} r_i - \frac{|G_j|}{N} \right| \leq \epsilon $$

Where wi are relevance scores, ri the final ranking probabilities, and Gj represent protected groups.

Operational Challenges

Implementing these techniques in production systems introduces latency-complexity tradeoffs. Adversarial training may increase model training time by 30-50%, while post-processing re-ranking adds 10-15ms latency per query. Continuous monitoring requires careful metric selection—common pitfalls include:

A/B testing frameworks must incorporate fairness metrics alongside traditional business KPIs, requiring careful experiment design to avoid Simpson's paradox where improvements at the group level mask worsening performance for subgroups.

5. Amazon&#039;s AI-Driven Search Engine

5.1 Amazon's AI-Driven Search Engine

Architecture and Core Components

Amazon's AI-driven search engine leverages a multi-layered architecture combining deep learning, natural language processing (NLP), and real-time data processing. The system is built on three core components:

Mathematical Foundations

The ranking function f(q, p) for a query q and product p is a weighted ensemble of:

$$ f(q, p) = \alpha \cdot \text{sim}(E(q), E(p)) + \beta \cdot \text{CTR}(p) + \gamma \cdot \text{conversion}(p) $$

where E(·) denotes embedding lookup, α, β, γ are learnable parameters, and CTR/conversion are normalized historical metrics. The similarity function sim is derived from a contrastive loss objective:

$$ \mathcal{L} = -\log \frac{e^{\text{sim}(E(q), E(p^+))/ au}}{\sum_{p^-} e^{\text{sim}(E(q), E(p^-))/ au}} $$

where p+ denotes positive (clicked) products and p- negatives sampled from impression logs.

Real-Time Inference Pipeline

Amazon's search operates at sub-100ms latency via:

A/B Testing and Optimization

The system employs multi-armed bandit algorithms to balance exploration-exploitation tradeoffs. Thompson sampling is used to dynamically adjust ranking weights:

$$ \theta_i \sim \mathcal{N}(\mu_i, \sigma_i^2), \quad \text{select } i = \arg\max_i \theta_i $$

where θi represents the estimated reward (e.g., conversion rate) for ranking variant i. Variance estimates σi2 are updated via Bayesian inference on streaming data.

Failure Modes and Mitigations

Key challenges include:

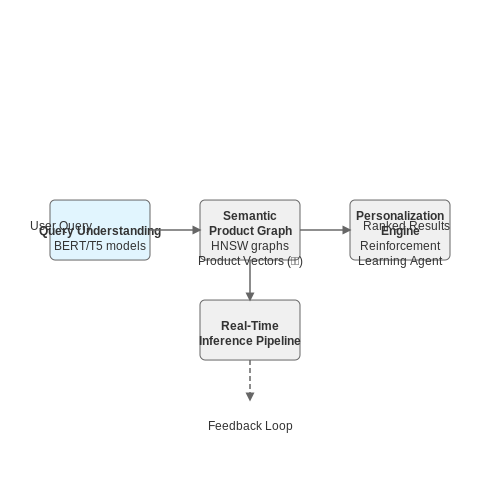

Amazon&#039;s AI-Driven Search Engine – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The diagram would show the multi-layered architecture of Amazon's AI-driven search engine, including the flow from query understanding to semantic product graph and personalization engine.

5.2 Alibaba's Personalized Search Recommendations

Alibaba's e-commerce platform leverages deep learning models to deliver highly personalized search results, dynamically adapting to user behavior, preferences, and contextual signals. The system integrates multi-modal data—including click-through rates, dwell time, purchase history, and real-time session interactions—to optimize ranking and relevance. At its core, the architecture employs a hybrid of collaborative filtering, transformer-based natural language processing, and reinforcement learning.

Ranking Model Architecture

The ranking model is built upon a multi-task learning framework, where the primary objective function combines:

$$ \text{Score}(u, i) = \alpha \cdot \text{CTR}(u, i) + \beta \cdot \text{CVR}(u, i) + \gamma \cdot \text{Personalization}(u, i) $$

Here, α, β, and γ are dynamically adjusted weights optimized via online A/B testing.

Real-Time Adaptation with Reinforcement Learning

Alibaba employs a contextual bandit framework to refine recommendations in real-time. The system treats each user interaction as a state st, with possible actions at corresponding to ranked items. The reward function rt is defined as:

$$ r_t = \begin{cases} 1 & \text{if click occurs} \\ 2 & \text{if purchase occurs} \\ -0.1 & \text{if impression yields no engagement} \end{cases} $$

A Deep Q-Network (DQN) is trained to maximize cumulative reward over a session, with exploration handled via Thompson sampling.

Multi-Modal Feature Fusion

Visual and textual data are processed through parallel pipelines:

These embeddings are concatenated and passed through a cross-modal attention layer before fusion with behavioral features.

Scalability Optimizations

To handle over 500 million daily active users, Alibaba's system implements:

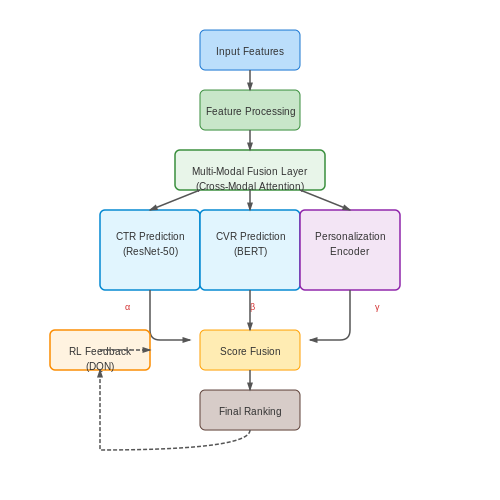

Alibaba&#039;s Personalized Search Recommendations – AI-Powered E-commerce Search Engines – Tutorial Diagram
Diagram Description: The diagram would show the multi-task learning framework architecture with CTR, CVR, and Personalization Score components, their interactions, and the reinforcement learning feedback loop.

5.3 Emerging Trends in AI-Powered E-commerce Search

Neural Retrieval and Transformer-Based Architectures

The shift from traditional lexical search (e.g., TF-IDF, BM25) to neural retrieval models has redefined relevance scoring in e-commerce. Transformer-based architectures like BERT, T5, and more recently, proprietary models such as Amazon's BERT-Siamese and Alibaba's Multi-Interest Network, leverage dense vector embeddings to capture semantic relationships between queries and products. The relevance score s(q, d) for a query q and document d is computed using a dot product in the embedding space:

$$ s(q, d) = \mathbf{E}_q(q)^T \mathbf{E}_d(d) $$

where Eq and Ed are query and document encoders, respectively. Advanced implementations now employ asymmetric architectures, where the query encoder is lightweight (for low-latency inference) while the document encoder is deeper for offline indexing.

Multi-Modal Search Integration

Modern e-commerce platforms integrate visual, textual, and behavioral signals into a unified search framework. CLIP (Contrastive Language-Image Pretraining) and its variants enable cross-modal retrieval, where a user's image upload can return semantically related products. The training objective for such models minimizes the contrastive loss:

$$ \mathcal{L} = -\log \frac{\exp(\text{sim}(v_i, t_i)/ au)}{\sum_{j=1}^N \exp(\text{sim}(v_i, t_j)/ au)} $$

where vi and ti are paired image-text embeddings, and τ is a temperature parameter. Real-world deployments, like Pinterest's Visual Search, achieve sub-100ms latency by pre-computing product embeddings using efficient ViT variants.

Personalization via Reinforcement Learning

Static ranking functions are being replaced by RL-driven policies that optimize for long-term user engagement. Platforms like eBay use contextual bandits to dynamically adjust search rankings based on real-time feedback (clicks, purchases). The policy gradient update for a bandit model with parameters θ is:

$$ abla_ heta \mathbb{E}[r] = \mathbb{E}\left[r(a) abla_ heta \log \pi_ heta(a|x)\right] $$

where a is the ranked list of products, x the user context, and r(a) the reward signal. Shopify's GrokNet further incorporates meta-learning to adapt to new user segments with limited data.

Conversational and Voice-Activated Search

Voice queries, which are inherently ambiguous (e.g., "Show me that red dress from last week"), require dialogue state tracking and entity resolution. Systems like Amazon's Alexa Shopping use a combination of named-entity recognition (NER) and graph neural networks to resolve references to past interactions. The entity linking problem is formalized as:

$$ P(e|q, H) = \text{softmax}(\text{GNN}(f(q), g(H))) $$

where H is the conversation history and f, g are encoders for the query and history, respectively.

Federated Learning for Privacy-Preserving Search

To address privacy concerns, federated learning (FL) enables model training across decentralized user devices without raw data leaving the device. The global model aggregation step in FL for search personalization is:

$$ heta_{t+1} = \sum_{k=1}^K \frac{n_k}{N} heta_t^k $$

where θtk is the local model of client k, and nk is the number of samples. Alibaba's Federated Search implementation reduces communication overhead by 60% using gradient quantization and selective updates.

Real-Time Dynamic Pricing Integration

Search rankings now incorporate real-time pricing signals via deep reinforcement learning. The policy π optimizes a composite reward balancing revenue and conversion rate:

$$ r_t = \alpha \cdot \text{revenue}(a_t) + (1-\alpha) \cdot \text{CR}(a_t) $$

Walmart's Price Search system uses double Q-learning to decouple price estimation from ranking, avoiding overestimation biases inherent in standard Q-learning.

Neural Retrieval & Multi-Modal Search Architectures Block diagram illustrating query/document processing, embedding spaces with vector math, and parallel multi-modal pipelines in AI-powered e-commerce search engines. Neural Retrieval & Multi-Modal Search Architectures Query Encoder Eq(q) Document Encoder Ed(d) (Deep Encoder) (Lightweight Encoder) Embedding Space vi ti sim(vi, ti) = vi·ti / (||vi|| ||ti||) τ = temperature Image Encoder Text Encoder Multi-Modal Embedding Space Contrastive Loss
Diagram Description: The section involves complex vector relationships (dense embeddings, contrastive loss) and architectural comparisons (asymmetric encoders), which are inherently spatial and benefit from visual representation.

6. Key Research Papers and Articles

6.1 Key Research Papers and Articles

6.2 Recommended Books and Online Courses

6.3 Open-Source Tools and Libraries
