The quantization error is minimized through end-to-end training with straight-through gradient estimation:

where sg[·] denotes the stop-gradient operation and β controls the commitment loss weight.

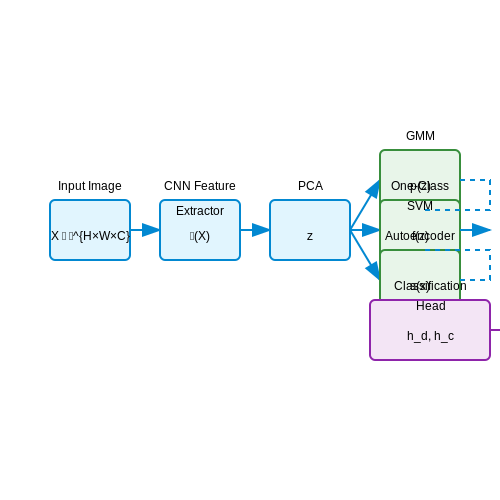

Vision-based debugging assistants rely on robust anomaly detection and classification to identify deviations from expected behavior in visual data streams. At the core of this process lies the mathematical formulation of anomaly scoring, where a function f(x) maps input features x to an anomaly likelihood score s. For high-dimensional visual data, this typically involves dimensionality reduction followed by density estimation.

Feature Extraction and Dimensionality Reduction

Given an input image tensor X ∈ ℝ^{H×W×C}, we first extract lower-dimensional features using a pre-trained convolutional neural network (CNN) backbone:

where d ≪ H×W×C. Principal Component Analysis (PCA) further reduces dimensionality while preserving variance:

with W_{PCA} containing the top-k eigenvectors of the feature covariance matrix and μ being the mean feature vector.

Density Estimation Methods

Three principal approaches dominate anomaly scoring in reduced feature space:

• Gaussian Mixture Models (GMM): Fit a weighted sum of K Gaussian distributions to training data:

• One-Class SVM: Learns a decision boundary that encompasses normal samples in a high-dimensional kernel space:

• Autoencoder Reconstruction: Measures deviation between input and reconstructed output:

Classification of Anomaly Types

Once detected, anomalies require classification into meaningful categories. A multi-head architecture proves effective:

1. Shared feature extractor E(x)
2. Anomaly detection head h_d
3. Classification head h_c with softmax output

The joint loss function combines both objectives:

where λ balances detection sensitivity versus classification accuracy. In practice, temperature scaling on the softmax outputs improves separation between known anomaly classes and novel outliers.

Implementation Considerations

Key practical challenges include:

• Class imbalance: Anomalies are rare by definition. Focal loss variants help mitigate this.
• Feature drift: Online updating of the PCA subspace prevents degradation over time.
• Explainability: Gradient-weighted class activation maps (Grad-CAM) localize anomalies within images.

For real-time systems, the computational graph can be optimized by:

# TensorFlow Lite optimized anomaly classifier
interpreter = tf.lite.Interpreter(model_path="anomaly_detector.tflite")
interpreter.allocate_tensors()

def classify_anomaly(image):
    input_details = interpreter.get_input_details()
    interpreter.set_tensor(input_details[0]['index'], preprocess(image))
    interpreter.invoke()
    return interpreter.get_tensor(output_details[0]['index'])

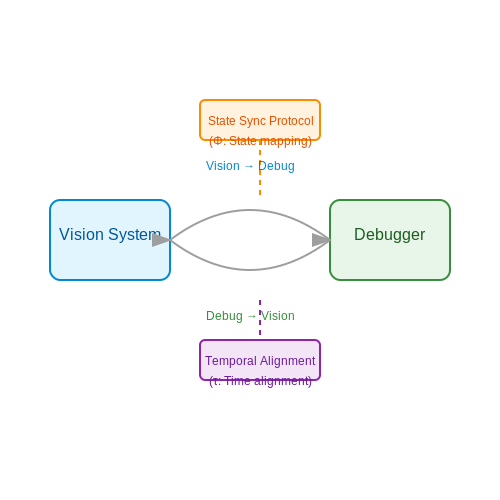

Vision-based debugging assistants must interoperate with existing debugging ecosystems to maximize utility. The primary challenge lies in bidirectional communication between visual analysis pipelines and symbolic debuggers (e.g., GDB, LLDB, WinDbg). This requires solving three technical problems:

1. State Synchronization Protocol

Traditional debuggers expose execution state through breakpoints and watchpoints, while vision systems observe pixel-level outputs. Bridging these domains requires establishing a mapping between:

• Symbolic memory addresses in debuggers
• Rendered graphical outputs in framebuffers
• Intermediate representations in shader pipelines

Where V represents visual features (textures, geometries) and S denotes symbolic program state. For OpenGL/DirectX applications, this involves intercepting API calls through hooking techniques:

// Example: OpenGL call interception
typedef void (*glDrawElementsFunc)(GLenum, GLsizei, GLenum, const void*);
glDrawElementsFunc original_glDrawElements;

void hooked_glDrawElements(GLenum mode, GLsizei count, GLenum type, const void* indices) {
  // Capture draw call parameters
  DebugStateTracker::LogDrawCall(mode, count, type);
  original_glDrawElements(mode, count, type, indices);
}

2. Temporal Alignment

Visual rendering occurs at frame intervals (16-33ms), while debuggers operate at instruction-level granularity. The alignment problem is formalized as:

Where F_t is frame buffer state at time t and D represents debugger state. Practical implementations use:

• Hardware performance counters for precise timestamping
• Vulkan/D3D12 timeline semaphores
• Approximate string matching for shader source correlation

3. Bidirectional Control Flow

Effective integration requires debuggers to respond to visual anomalies and vice versa. This is achieved through:

The control flow architecture typically employs a publish-subscribe pattern with nanomsg/ZeroMQ for low-latency messaging between processes.

Case Study: Unity Editor Integration

Unity's Frame Debugger demonstrates practical implementation by:

• Mapping draw calls to C# script lines
• Syncing material properties with shader debuggers
• Visualizing GPU command buffer execution

// Unity Editor extension example
[InitializeOnLoad]
public class VisionDebuggerIntegration {
  static VisionDebuggerIntegration() {
    EditorApplication.playModeStateChanged += (state) => {
      if (state == PlayModeStateChange.EnteredPlayMode) {
        GL.IssuePluginEvent(VisionDebugger.GetRenderEventFunc(), 0);
      }
    };
  }
}

Performance considerations demand careful optimization of the vision-debug bridge. Typical overhead measurements show:

Core Considerations for Vision-Based Debugging

Building a vision-based debugging assistant requires selecting frameworks that balance performance, flexibility, and integration capabilities. The choice depends on three primary factors:

• Real-time processing requirements - Determines whether to prioritize GPU-accelerated libraries
• Debugging context complexity - Influences the need for specialized computer vision algorithms
• Integration with existing toolchains - Dictates API compatibility needs

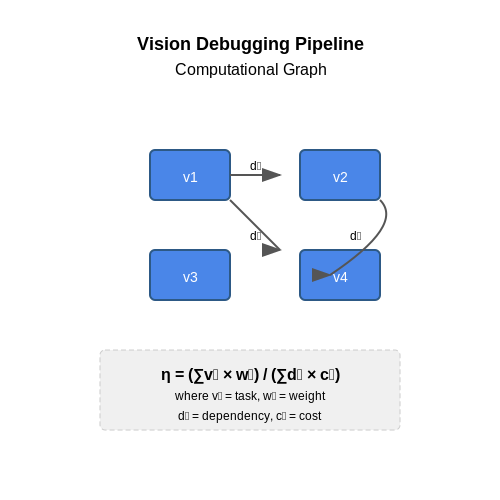

The computational graph for a typical vision debugging pipeline can be represented as:

Computer Vision Foundation Libraries

OpenCV remains the foundational choice for low-level image processing, offering optimized implementations of over 2500 algorithms. For debugging scenarios requiring real-time performance, the CUDA-accelerated version provides 5-20× speedups on NVIDIA hardware.

When higher-level abstraction is needed, consider:

• Scikit-image - For algorithm prototyping and quantitative analysis
• DALI - NVIDIA's Data Loading Library for GPU-accelerated pipelines
• BoofCV - Real-time computer vision in Java environments

Deep Learning Frameworks

For neural network-based debugging assistants, the framework choice impacts both development velocity and deployment performance. PyTorch dominates research contexts with its dynamic computation graphs, while TensorFlow's SavedModel format provides better production deployment options.

The tradeoff between framework choices can be quantified through the lens of computational efficiency:

Where η represents the framework efficiency ratio, T is time, and M is memory usage.

Specialized Debugging Components

Vision-based debugging often requires specialized libraries for:

• Attention visualization - Captum or tf-explain for model interpretability
• Anomaly detection - PyOD or Alibi Detect for outlier identification
• Metric learning - OpenMetric for embedding space analysis

For hardware-accelerated geometric vision tasks, the NVIDIA Vision Programming Interface (VPI) provides optimized primitives for stereo matching, optical flow, and image warping with sub-millisecond latency on Jetson platforms.

Integration Architecture

The optimal framework combination depends on the debugging pipeline architecture. A typical microservices approach might use:

  # Vision debugging pipeline architecture
  class DebugPipeline:
      def __init__(self):
          self.cv_processor = OpenCVAccelerated()  # Low-level processing
          self.dl_model = TorchScriptModel()       # Neural components
          self.analyzer = AlibiDetect()            # Anomaly analysis

      def process_frame(self, frame):
          features = self.cv_processor.extract(frame)
          predictions = self.dl_model(features)
          anomalies = self.analyzer.detect(predictions)
          return anomalies


This architecture demonstrates how different frameworks can be composed to create a complete vision-based debugging system, with each component selected based on its specific strengths.

Data Collection Strategies

Creating a high-quality dataset for vision-based debugging requires capturing real-world debugging scenarios with sufficient variability. The most effective approach involves:

• Screen recording of actual debugging sessions in IDEs (e.g., VSCode, PyCharm) with developer consent
• Logging IDE events (breakpoints, variable inspections, stack traces) synchronized with screen recordings
• Augmenting with synthetic data by programmatically generating error scenarios in controlled environments

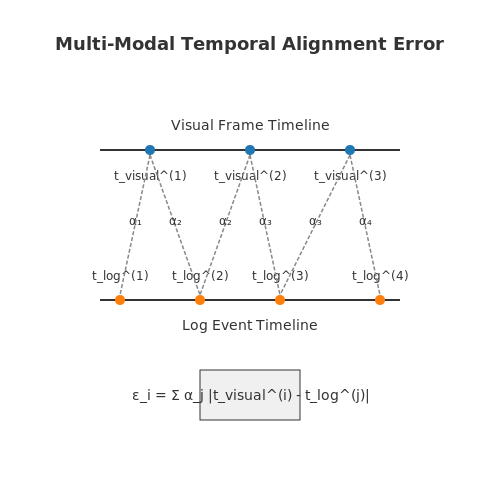

The temporal alignment between visual data and debugging actions is critical. Each frame should be timestamp-matched with corresponding debugger state using:

where ε is typically under 100ms for usable synchronization.

Annotation Pipeline

Manual labeling of debugging scenarios requires domain expertise. A multi-stage annotation process works best:

1. Initial segmentation of recordings into distinct debugging episodes
2. Fine-grained labeling of:
   • Code regions under inspection
   • Variable value transitions
   • Breakpoint hit patterns
3. Cross-validation by multiple annotators with inter-rater reliability scoring

For visual annotations, use polygon masks for code regions and bounding boxes for UI elements. The annotation schema should capture:

where (x,y) are coordinates, (w,h) dimensions, and c the class (e.g., 'variable watch', 'call stack').

Dataset Augmentation

To handle the long-tail distribution of debugging scenarios, apply both conventional and domain-specific augmentations:

For synthetic data generation, use rule-based systems that simulate common debugging patterns:

def generate_debug_scenario(error_type):
    base_code = load_template(error_type)
    variables = inject_faults(base_code)
    debug_steps = simulate_debugger_interaction(base_code, variables)
    return render_ide_screens(debug_steps)


Quality Control Metrics

Establish quantitative measures for dataset quality:

where:

• C = Coverage of common debugging patterns (0-1 scale)
• V = Visual variability score (based on feature space distribution)
• R = Temporal resolution (frames per debugging action)

Maintain a minimum Q_d threshold of 0.7 across all dataset segments. For edge cases, use active learning to identify and prioritize underrepresented scenarios.

Architecture Selection and Pre-Training

Vision-based debugging assistants typically employ convolutional neural networks (CNNs) or vision transformers (ViTs) as backbone architectures. For debugging tasks requiring fine-grained spatial understanding, hybrid architectures like ResNet-50 or EfficientNet often outperform pure transformers due to their localized feature extraction capabilities. When temporal context is critical (e.g., for video-based debugging), 3D CNNs or transformer-based models like TimeSformer become necessary.

where λ_i are task-weighting hyperparameters, L_cls is classification loss, L_reg is regression loss for bounding boxes, and L_attn is attention consistency loss.

Data Augmentation Strategies

Effective augmentation pipelines must preserve semantic meaning while increasing diversity:

• Synthetic defect injection: Programmatically add realistic artifacts (blur, noise, missing components) to clean screenshots
• Perspective warping: Simulate varying camera angles for physical device debugging
• Style transfer: Adapt models to different IDE themes or UI styles

Transfer Learning Protocols

For debugging tasks with limited labeled data:

1. Initialize with weights pre-trained on ImageNet or WebLI
2. Progressively unfreeze layers starting from the head
3. Apply discriminative learning rates (lower for early layers)

where η_l is the learning rate for layer l, L is total layers, and γ is the decay factor (typically 0.9-0.95).

Multi-Task Optimization

Debugging assistants often require simultaneous prediction of:

• Error type classification
• Code region localization
• Severity estimation

The gradient normalization technique balances task-specific losses:

where g^(k) is the gradient for task k, ḡ is the average gradient norm across tasks, and α controls the balancing strength.

Human-in-the-Loop Fine-Tuning

Active learning strategies improve model performance efficiently:

The uncertainty sampling criterion selects instances for human review:

where H is predictive entropy and β controls the exploration-exploitation tradeoff.

Performance Validation

Beyond standard metrics (precision/recall), debugging-specific evaluations include:

• Mean Time to Detection (MTTD): Latency in identifying errors
• False Positive Impact Score: Weighted by developer interruption cost
• Explanation Consistency: Alignment between visual attention and error root cause

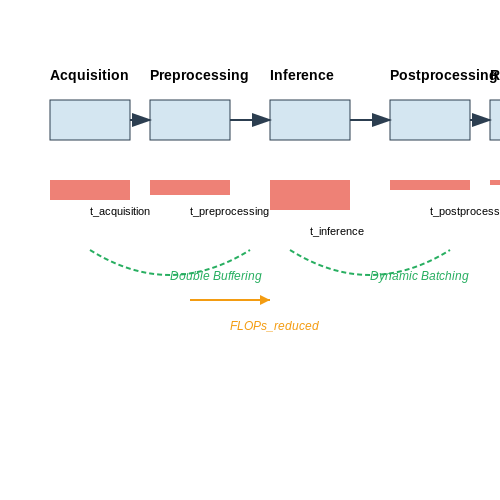

Latency Constraints in Vision-Based Debugging

Real-time vision systems impose strict latency constraints, typically requiring end-to-end processing within 16–33 ms (30–60 FPS) for interactive applications. The total latency L of a vision-based debugging pipeline can be decomposed as:

Where t_acquisition includes sensor readout and synchronization delays, and t_inference dominates for deep learning models. For a ResNet-50 backbone processing 224×224 images on an NVIDIA V100, t_inference ≈ 7 ms with TensorRT optimizations, while MobileNetV3 achieves ≈3 ms at the cost of 5–8% lower accuracy.

Architectural Optimizations

Model compression techniques trade off accuracy for speed:

• Pruning: Iteratively remove low-weight filters using magnitude-based criteria or reinforcement learning.
• Quantization: 8-bit integer (INT8) quantization reduces memory bandwidth by 4× versus FP32, with < 1% accuracy drop using QAT (Quantization-Aware Training).
• Neural Architecture Search (NAS): Automatically design efficient backbones like FBNet or Once-For-All networks.

Where p_l is the pruning ratio for layer l.

Hardware-Software Co-Design

Optimized compute backends leverage:

• Tensor Cores: NVIDIA’s mixed-precision (FP16/FP32) matrix multiply-accumulate units.
• Winograd Convolutions: Reduce FLOPS by 2.25× for 3×3 kernels via polynomial transformations.
• Memory Hierarchy: Cache-aware tiling and fused kernels minimize DRAM accesses.

For edge deployment, TVM or Apache MXNet enable hardware-specific optimizations:

# TVM example for NVIDIA GPU
import tvm
from tvm import relay

# Convert PyTorch model to Relay IR
mod, params = relay.frontend.from_pytorch(model, input_shape)

# Build with TensorRT target
target = tvm.target.Target("nvidia/tesla-v100")
with tvm.transform.PassContext(opt_level=3):
   lib = relay.build(mod, target=target, params=params)

Pipeline Parallelism

For multi-stage systems (e.g., object detection → segmentation → analysis), pipelining exploits parallelism:

• Double Buffering: Overlap GPU compute with host-device transfers.
• Dynamic Batching: Group variable-sized inputs to maximize GPU utilization.

The throughput T of an N-stage pipeline with batch size B is bounded by:

Vision-based debugging assistants leverage computer vision and machine learning to identify and diagnose UI/UX issues in applications. These systems analyze visual elements such as layout misalignments, inconsistent color schemes, and non-responsive components by processing screenshots or real-time screen captures. The core challenge lies in distinguishing between intentional design choices and genuine defects, which requires a combination of heuristic rules and learned patterns.

Computer Vision Pipeline for UI Analysis

The pipeline begins with image preprocessing to normalize input data. For a given screenshot I, we apply:

where μ and σ are the mean and standard deviation of the pixel intensities. Next, edge detection using the Canny algorithm isolates UI components:

where G_x and G_y are Sobel kernels for horizontal and vertical edges. Connected components analysis then groups these edges into candidate UI elements.

Semantic Segmentation of UI Components

A convolutional neural network (CNN) trained on annotated UI datasets performs pixel-wise classification to label regions as buttons, text fields, images, etc. The network minimizes a cross-entropy loss:

where M is the number of classes, y is the binary indicator for class c, and p is the predicted probability. State-of-the-art architectures like U-Net or Mask R-CNN achieve over 95% mAP on standard UI test sets.

Layout Consistency Verification

The system compares detected element positions against design specifications using spatial relationships. For a grid layout with n columns, the horizontal alignment error ε for element i is:

where x₀ is the leftmost position, k_i is the column index, and Δx is the column width. Thresholding ε at 2-5 pixels typically catches misalignments while allowing for anti-aliasing artifacts.

Color and Typography Analysis

For accessibility checking, the assistant verifies contrast ratios between foreground and background colors. The relative luminance L of a color (R,G,B) is:

The contrast ratio C between colors with luminances L₁ and L₂ (L₁ > L₂) must exceed 4.5:1 for normal text:

Font consistency checks compare detected typefaces against a style guide using OCR and feature matching in the Fourier domain.

Interactive Debugging Interface

The system presents findings through an overlay interface that highlights issues directly on the application screen. Each annotation includes:

• Precise bounding boxes around problematic elements
• Color-coded severity indicators (red for errors, yellow for warnings)
• Contextual suggestions pulled from a knowledge base of design patterns

For dynamic applications, the assistant tracks UI state changes using optical flow to correlate issues with specific user interactions. The flow vector V at pixel (x,y) between frames t and t+1 is estimated by minimizing:

This allows the system to distinguish between transient rendering glitches and persistent design flaws.

Detecting visual anomalies in video games requires a combination of computer vision techniques and domain-specific knowledge of rendering artifacts. Unlike generic image defect detection, game glitches often manifest as temporal inconsistencies, rendering errors, or physics-based anomalies that violate expected visual coherence. Advanced approaches leverage deep learning, but traditional methods remain relevant for real-time applications.

Feature Extraction for Glitch Detection

Effective glitch detection begins with extracting discriminative features that capture rendering artifacts. Common approaches include:

• Edge Discontinuity Analysis: Detects abrupt changes in edge continuity using Sobel operators combined with morphological processing.
• Texture Anomaly Scoring: Computes local binary pattern (LBP) variance across frames to identify regions deviating from expected texture patterns.
• Color Histogram Divergence: Measures KL-divergence between expected and observed color distributions in predefined regions.

where P represents the reference color distribution and Q the observed frame histogram.

Temporal Consistency Verification

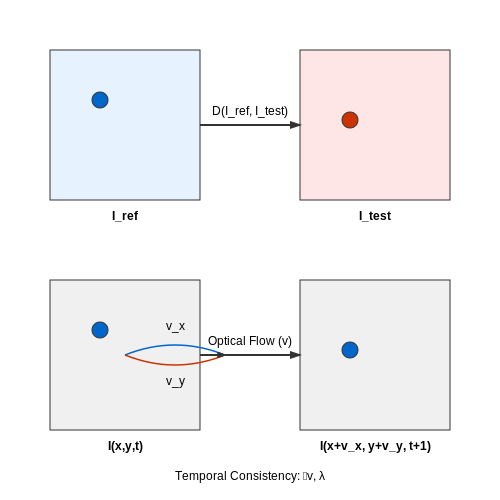

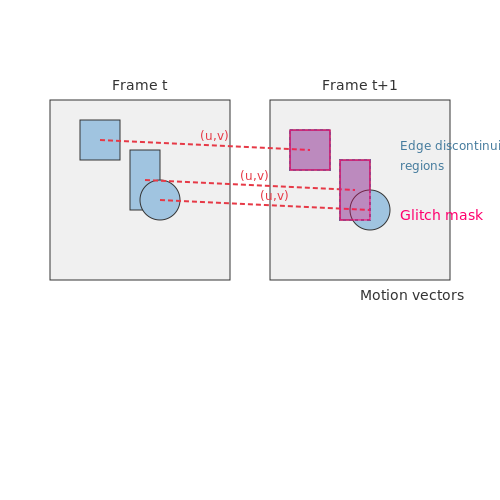

Video game glitches often appear as temporal discontinuities. Optical flow analysis between consecutive frames identifies violations of motion coherence:

where w(x,y) denotes a window function and (u,v) the displacement vector. Abrupt flow field discontinuities indicate potential rendering errors.

Deep Learning Approaches

Convolutional neural networks trained on synthetic glitch datasets achieve state-of-the-art performance. A typical architecture combines:

• 3D Convolutional Layers: Capture spatiotemporal features across frame sequences
• Attention Mechanisms: Focus computation on regions with high anomaly likelihood
• Siamese Networks: Compare current frames against reference renders

The training objective minimizes:

where reconstruction loss enforces pixel fidelity, temporal loss maintains consistency, and adversarial loss improves realism discrimination.

Implementation Considerations

Real-time deployment requires optimization techniques:

• Region-of-Interest Processing: Focus computation on dynamic screen regions
• Hardware-Accelerated Rendering Analysis: Leverage GPU command buffer inspection
• Multi-Resolution Analysis: Pyramid processing balances accuracy and speed

import cv2
import numpy as np

def detect_glitches(frame_sequence, threshold=0.25):
    """Detects visual glitches using optical flow consistency"""
    prev_frame = cv2.cvtColor(frame_sequence[0], cv2.COLOR_BGR2GRAY)
    glitch_mask = np.zeros_like(prev_frame)

    for frame in frame_sequence[1:]:
        curr_frame = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
        flow = cv2.calcOpticalFlowFarneback(
            prev_frame, curr_frame, None, 0.5, 3, 15, 3, 5, 1.2, 0
        )
        magnitude = np.sqrt(flow[...,0]2 + flow[...,1]2)
        glitch_mask[magnitude > threshold * np.max(magnitude)] = 255
        prev_frame = curr_frame

    return glitch_mask


Vision-based debugging assistants have become indispensable in modern manufacturing quality assurance (QA), where defect detection accuracy directly impacts production yield and cost efficiency. These systems leverage deep learning architectures like convolutional neural networks (CNNs) and transformer-based models to identify microscopic defects, surface anomalies, and assembly errors with sub-millimeter precision.

Defect Detection Architectures

Industrial QA systems typically employ a multi-stage pipeline combining semantic segmentation and object detection. For high-resolution inspection of manufactured parts, a U-Net variant with residual connections achieves pixel-wise defect localization:

where λ coefficients balance the Dice loss for region overlap, focal loss for class imbalance, and edge-aware loss for boundary refinement. The network processes 4K resolution images at 30 FPS through a space-to-depth encoder and transposed convolution decoder.

Real-Time Anomaly Detection

For production lines requiring <100ms latency, lightweight EfficientNet-b3 backbones paired with knowledge distillation enable real-time anomaly classification. The system computes a deviation score D between test images and golden references using a learned similarity metric:

where φ represents the normalized feature embedding from the penultimate network layer. Thresholds adapt dynamically based on statistical process control limits.

Case Study: Automotive Panel Inspection

BMW's Regensburg plant deployed a vision assistant reducing false negatives by 83% compared to human inspectors. The system combines:

• Structured light 3D scanning for dent detection
• Multispectral imaging for paint quality assessment
• Attention-guided transformers for scratch classification

During thermal stress testing, the model identified micro-fractures in weld joints undetectable by ultrasonic probes, preventing field failures in 0.7% of vehicles.

Adaptive Learning for Drift Compensation

Manufacturing environments exhibit gradual concept drift due to tool wear and material variations. An online learning module continuously updates the model using:

where η is the learning rate, β controls elastic weight consolidation, and pseudo-labels y_pseudo are generated via temporal ensembling of past predictions. This approach maintains >99% accuracy despite seasonal supplier variations.

Integration with Digital Twins

Leading semiconductor fabs correlate vision inspection results with equipment sensor data in physics-informed digital twins. A Gaussian process models the relationship between plasma etcher parameters and defect patterns:

where σ_f, l, and σ_n represent signal variance, length scale, and noise variance respectively. The covariance kernel enables root cause analysis by identifying parameter combinations that maximize defect probability.

Vision-based debugging assistants inherently require processing sensitive visual data, raising critical privacy challenges that must be addressed at both algorithmic and system levels. The primary risk vectors include unauthorized identification of individuals, extraction of confidential information from screens or environments, and potential misuse of collected training data.

Differential Privacy in Image Datasets

Formal privacy guarantees can be achieved through differential privacy mechanisms applied to visual data. For an image dataset D, a randomized algorithm M satisfies (ε,δ)-differential privacy if for all subsets S of possible outputs and all neighboring datasets D and D' differing by at most one element:

In computer vision applications, this typically involves adding calibrated noise to image features or gradients during model training. The privacy budget ε controls the trade-off between utility and privacy, with smaller values providing stronger guarantees.

Secure Multi-Party Computation for Visual Data

When debugging assistants process distributed visual data sources, secure multi-party computation (MPC) protocols enable privacy-preserving analytics. For n parties holding private inputs x₁,...,xₙ, MPC computes function f(x₁,...,xₙ) while revealing nothing beyond the output. In vision applications, this allows operations like:

• Privacy-preserving object detection across multiple camera feeds
• Secure aggregation of visual debugging statistics
• Confidential comparison of runtime screenshots with reference images

The computational overhead is non-trivial - evaluating a single secure ReLU activation in a neural network requires several rounds of communication and cryptographic operations.

Federated Learning Architectures

For vision models that learn from distributed debugging sessions, federated learning minimizes data exposure by keeping raw images on client devices. The global model θ is updated through aggregation of local gradients ∇ℓ(θ;xᵢ) computed on private data xᵢ:

Practical implementations must address challenges unique to visual data:

• Non-IID distribution of images across clients
• High communication costs for transmitting vision model updates
• Potential leakage from gradient updates

Legal and Ethical Considerations

The GDPR Article 17 "Right to Erasure" and CCPA Section 1798.105 impose strict requirements for vision systems processing personal data. Technical implementations must support:

• Provable deletion of individual training images
• Audit trails for all visual data processing
• Explicit consent mechanisms for data collection

Recent court cases (e.g., Clearview AI vs Privacy International) demonstrate the legal risks of improper visual data handling, with potential fines reaching 4% of global revenue.

Vision-based debugging assistants rely on machine learning models trained on datasets that may inadvertently encode biases, leading to skewed or unfair outcomes. These biases can manifest in various forms, including dataset imbalance, label bias, and feature selection bias. For instance, if a debugging model is trained predominantly on code from a specific demographic or programming style, it may underperform when applied to code written by underrepresented groups.

Sources of Bias in Vision-Based Debugging

Bias can originate from multiple stages of the model development pipeline:

• Data Collection: Datasets may overrepresent certain programming languages, coding styles, or error types, leading to a model that generalizes poorly to underrepresented cases.
• Annotation: Human annotators may introduce subjective biases when labeling training data, such as favoring certain coding conventions over others.
• Feature Extraction: Vision-based models may prioritize certain visual patterns (e.g., indentation styles) over others, reinforcing existing biases in the training data.

Quantifying Bias in Debugging Models

To measure bias, we can use fairness metrics such as demographic parity, equalized odds, and predictive rate parity. For a binary classification task where the model predicts whether a code snippet contains a bug, demographic parity can be expressed as:

where Ĝ is the predicted label, and G represents the protected attribute (e.g., programming language or developer demographic). Disparities in these probabilities indicate potential bias.

Mitigation Strategies

Several techniques can reduce bias in vision-based debugging models:

• Reweighting: Adjust sample weights during training to balance underrepresented groups.
• Adversarial Debiasing: Train the model to minimize prediction accuracy while simultaneously reducing correlation with protected attributes.
• Fair Data Augmentation: Synthetically generate training examples for underrepresented groups to improve generalization.

Case Study: Bias in Code Review Assistants

A 2022 study found that vision-based code review tools were 15% more likely to flag code written by non-native English speakers as "bug-prone," even when the code was functionally equivalent. This bias stemmed from differences in variable naming conventions and comment styles, which the model incorrectly associated with lower code quality.

Ethical Considerations

Beyond technical mitigations, developers must consider the ethical implications of biased debugging tools. Unfair error detection can disproportionately affect marginalized groups, reinforcing existing inequalities in software development. Transparent documentation of model limitations and continuous bias monitoring are essential for responsible deployment.

Vision-based debugging assistants must incorporate mechanisms for transparency and accountability to ensure their decisions are interpretable, auditable, and free from unintended biases. This is particularly critical in high-stakes applications such as medical imaging diagnostics, autonomous vehicle failure analysis, or industrial quality control.

Explainable AI for Debugging Decisions

Traditional black-box deep learning models lack interpretability, making it difficult to trust their debugging suggestions. Integrating explainability techniques allows users to understand the reasoning behind the assistant's outputs. Key methods include:

• Attention mechanisms: Visualizing which regions of the input image the model focuses on when making debugging decisions.
• Gradient-based attribution: Using techniques like Grad-CAM to highlight influential pixels in the input space.
• Concept activation vectors: Mapping model decisions to human-understandable concepts in the latent space.

Where \( A_{ij}^c \) represents the importance of spatial location \( (i,j) \) for class \( c \), \( S_c \) is the score for class \( c \), and \( F_{ij} \) are the activations at location \( (i,j) \) in the final convolutional layer.

Audit Trails for Debugging Processes

Maintaining comprehensive audit trails enables retrospective analysis of the debugging assistant's performance and decision-making patterns. This requires:

• Logging all input images and corresponding model outputs with timestamps
• Recording confidence scores and alternative hypotheses considered
• Tracking user feedback and corrections to improve future performance

The audit system should implement cryptographic hashing to ensure log integrity:

Bias Detection and Mitigation

Vision models can inherit biases from training data, leading to skewed debugging suggestions. Implement bias detection through:

• Statistical parity testing across demographic groups
• Counterfactual fairness analysis
• Adversarial debiasing during model training

The bias metric \( \beta \) for a debugging decision \( D \) can be quantified as:

Where \( x_i^{CF} \) represents counterfactual versions of input \( x_i \) with protected attributes modified.

Human-in-the-Loop Verification

Critical debugging decisions should require human verification before implementation. This can be achieved through:

• Confidence thresholding - automatically flagging low-confidence predictions
• Uncertainty quantification - using Bayesian neural networks or ensemble methods
• Interactive interfaces allowing users to query model reasoning

Epistemic uncertainty \( u_e \) can be estimated using Monte Carlo dropout:

Where \( T \) is the number of dropout samples and \( \bar{f}(x^*) \) is the mean prediction.

Performance Monitoring and Drift Detection

Continuous monitoring ensures the debugging assistant maintains performance over time as data distributions evolve. Implement:

• Statistical process control charts for key metrics
• KL divergence tests between training and production data distributions
• Automated retraining triggers based on performance degradation

Concept drift can be detected using the following test statistic:

• PDF Developing Resources for Debugging Education using Block-based Languages — Chapter 4: A Proposed Framework for Teaching Debugging 14 4.1 Overview 14 4.2 Teacher Feedback 17 4.3 Future Work 18 Chapter 5: Debugging Tools 18 5.1 Background 18 5.2 Design Considerations 20 5.2.1 Scratch is a block-based, not text-based, programminglanguage 20 5.2.2 Scratch (and our tools) are more strongly targetedtowards younger, beginner
• Research on Debugging Interaction of IoT Devices Based on ... - Springer — Research on Debugging Interaction of IoT Devices Based on Visible Light Communication Jiefan Qiu1(B), Chenglin Li1, Yuanchu Yin1, and Mingsheng Cao2 1 Zhejiang University of Technology, Hangzhou 310023, China [email protected] 2 University of Electronic Science and Technology of China, Chengdu 610054, China Abstract. Wireless sensors normally deployed in inaccessible areas.
• PDF Are Automated Debugging Techniques Actually Helping Programmers? — noted [6], for instance, only 3 out of 111 papers on slic-ing based debugging techniques have considered issues with the use of the techniques in practice. Similar considerations could be made today about spectra-based debugging tech-niques (e.g., [11,17]). The overall goal of this research is to address this gap in
• (PDF) Computer vision-based analysis of buildings and built ... — Analysing 88 sources published from 2011 to 2021, this paper presents a first systematic review of the computer vision-based analysis of buildings and the built environments to assess its value to ...
• Automated Debugging and Bug Fixing Solutions: A ... - ResearchGate — The main focus of that research was on m odel-based debugging using constraints to resolve . ... results presented in this paper a re on small problems, ... 3.1.6.1 Inclusion and Exclusion Criteria .
• PDF Coverage based debugging visualization - University of São Paulo — MUTTI, Danilo. Coverage based debugging visualization. 2014. 137 p. Disser-tation (Master of Science) { School of Arts, Sciences and Humanities, University of S~ao Paulo, S~ao Paulo, 2014. Fault localization is a costly task in the debugging process. Usually, developers analyze failing test cases to search for faults in the program's code.
• Computer vision-based analysis of buildings and built environments: A ... — cities or inferring neighbourhood statistics. Past research demonstrates the value of computer vision-based methods of analysis in the architectural domain, such as a correlation of visual and statistical or demographic data. This paper discusses how new questions about urban gentrification, real-estate values or specific characteristics of the ...
• Computer Vision Analysis of 3D Scanned Circuit Boards for Functional ... — Secondly, research approaches aiming to overcome deficits and to exploit automation potential through analysis and processing of optically acquired 3D data sets of PCBs are presented. These research approaches comprise a PCB optimised principle for 3D digitization with computer tomography and 3D scanning, 2013 The Authors.
• Automated vision-based construction progress monitoring in built ... — The remainder of the paper is organized as follows. First, the closed-loop construction control concept is introduced. Next, the workflow for improved CPM through DTC is presented. The following two sections discuss the evolution of vision-based CPM research and its application areas in the built environment sector.
• (PDF) Debugging: A review of the literature from an ... - ResearchGate — This paper reviews the literature related to the learning and teaching of debugging computer programs. Debugging is an important skill that continues to be both difficult for novice programmers to ...

• The Best New Computer Vision Books To Read In 2025 — The best new computer vision books you should read in 2025, such as Computer Vision, 3D Computer Vision and Transformers for Computer Vision.
• PDF Military Handbook Electronic Reliability Design Handbook — MIL-HDBK-338B FOREWORD i FOREWORD 1. This handbook is approved for use by all Departments and Agencies of the Department of Defense (DoD). It was developed by the DoD with the assistance of the military departments, federal agencies, and industry and replaces in its entirety MIL-HDBK-338A. The handbook is written for reliability managers and engineers and provides guidance in developing and ...
• PDF THE ART OF DEBUGGING - zhjwpku.com — 1.4 Text-Based vs. GUI-Based Debugging Tools, and a Com-promise Between Them to other debuggers. While the GUIs have eye appeal and can be more convenient than the text-based GDB, our point of view in this book will be that text-based and GUI-based debuggers (including IDEs) are all useful, i
• PDF ECE244 Programming Fundamentals Fall 2022 Introduction to Debugging 1 ... — 1 Introduction Software virtually never works correctly the first time it is run, and the process of finding and fixing bugs often takes much longer than actually writing the program. In fact, the debugging process can be so lengthy and time-consuming that most processor manufacturers include significant hardware features to help programmers by allowing them to pause the program and transfer ...
• PDF HDevelop User's Manual - MVTec — HDevelop is a tool box for building machine vision applications. It facilitates rapid prototyping by offering a highly interactive programming environment for developing and testing machine vision appli-cations. Based on the HALCON library, it is a sophisticated machine vision package suitable for product development, research, and education.
• NI Vision Builder for Automated Inspection 2020 Readme — Vision Builder for Automated Inspection Tutorial —Describes Vision Builder for Automated Inspection and provides step-by-step instructions for solving common visual inspection tasks, such as inspection, gauging, part presence, guidance, and counting.
• PDF NI Vision Builder for Automated Inspection ... - National Instruments — Tutorials that describe how to create and modify custom steps to process an image, perform pass/fail analysis, and use measurements from previous steps in the inspection Note The Vision Builder AI Development Toolkit is designed for advanced LabVIEW users who have experience developing LabVIEW applications with the NI Vision Development Module.
• PDF C O N T E N T S I N D E T A I L - No Starch Press — 1.4 Text-Based vs. GUI-Based Debugging Tools, and a Compromise Between Them. . . 5
• User Manual - Code::Blocks — User Manual There's an on-going effort to write a user manual for Code::Blocks. This is a community-driven project and contributions/criticism/suggestions are ...

• Top 23 debugging-tool Open-Source Projects - LibHunt — Which are the best open-source debugging-tool projects? This list will help you: icecream, Proxyman, ProjectVisBug, reqable-app, XCGLogger, webgrind, and HyperDbg. ... Debug in-production Electron based app ... android library for debugging what we care about directly in app. (by whataa) grpc-tools. 18 1 1,226 3.3 Go A suite of gRPC debugging ...
• x64dbg download | SourceForge.net — An open-source x64/x32 debugger for windows. An open-source x64/x32 debugger for windows. ... Dotnet IL Editor (DILE) allows disassembling and debugging .NET 1.0/1.1/2.0/3.0/3.5 applications without source code or .pdb files. It can debug even itself or the assemblies of the .NET Framework on IL level. ... Create a Project; Open Source Software ...
• Computer Vision Libraries and Tools for Developers in 2024 — 1.1. The Importance of Open-Source Tools in Computer Vision. Open-source tools play a crucial role in the advancement of computer vision technologies. They offer several benefits: Accessibility: Open-source libraries are freely available, allowing developers from diverse backgrounds to access and utilize powerful tools without financial barriers.
• (PDF) Tools and Methods for Analysis, Debugging, and Performance ... — Tools and Methods for Analysis, Debugging, and Performance Improvement of Equation-Based Models ... 6.3.3.2 Type Design and Implementations.. 121. ... "An Open Source Mo delica Graphic Editor.
• Debugging Tools for Windows - Windows drivers | Microsoft Learn — For a complete list of the tools, see Tools Included in Debugging Tools for Windows. For directions on how to download and install just the Windows debugger, see Download and install the WinDbg Windows debugger. Install Debugging Tools for Windows. You can get Debugging Tools for Windows as part of a development kit or as a standalone toolset ...
• PDF Developing Resources for Debugging Education using Block-based Languages — Chapter 4: A Proposed Framework for Teaching Debugging 14 4.1 Overview 14 4.2 Teacher Feedback 17 4.3 Future Work 18 Chapter 5: Debugging Tools 18 5.1 Background 18 5.2 Design Considerations 20 5.2.1 Scratch is a block-based, not text-based, programminglanguage 20 5.2.2 Scratch (and our tools) are more strongly targetedtowards younger, beginner
• PDF STM32 microcontroller debug toolbox - Application note - STMicroelectronics — common debug techniques and their application to popular recommended IDEs for STM32 32-bit Arm ® Cortex® MCUs. It contains detailed information for getting started as well as hints and tips to make the best use of STM32 Software Development Tools in STM32 ecosystem. This application note applies to the microcontrollers listed in Table 1. Table 1.
• Stochastic debugging based reliability growth models for Open Source ... — Open Source Software (OSS) is one of the most trusted technologies for implementing industry 4.0 solutions. The study aims to assist a community of OSS developers in quantifying the product's reliability. This research proposes reliability growth models for OSS by incorporating dynamicity in the debugging process. For this, stochastic differential equation-based analytical models are ...
• The Visual Studio MI Debug Engine ("MIEngine") provides an open-source ... — MIEngine is a Visual Studio Debug Engine that understands Machine Interface ("MI"). A Debug Engine is an implementation of the Visual Studio Core Debug Interfaces (IDebug* interfaces), enabling the VS UI to drive debugging.Machine Interface is a text-based protocol developed by GDB that allows a debugger to be used as a separate component of a larger system.
