AI for Mining Safety Hazard Detection

#mining safety #hazard detection #computer vision #sensor data #predictive analytics #ai implementation #real-time monitoring #industrial ai #machine learning

1. Common Mining Hazards and Their Causes

Common Mining Hazards and Their Causes

Geotechnical Hazards

Geotechnical instability remains one of the most critical hazards in underground and surface mining operations. Rock bursts, roof collapses, and slope failures occur due to stress redistribution caused by excavation activities. The principal stress tensor σ in a rock mass can be decomposed into three components:

$$ \sigma = \begin{bmatrix} \sigma_{xx} & \tau_{xy} & \tau_{xz} \\ \tau_{yx} & \sigma_{yy} & \tau_{yz} \\ \tau_{zx} & \tau_{zy} & \sigma_{zz} \end{bmatrix} $$

When the induced stress exceeds the rock's compressive strength σc, failure occurs. The Mohr-Coulomb criterion predicts failure when:

$$ \tau = c + \sigma_n \tan\phi $$

where τ is shear stress, c is cohesion, σn is normal stress, and φ is the friction angle. In deep mines (>1km), the risk increases exponentially due to higher confining pressures.

Gas and Dust Explosions

Methane (CH4) accumulations in coal mines create explosive atmospheres when concentrations reach 5-15% by volume. The Lower Explosive Limit (LEL) follows the stoichiometric relationship:

$$ CH_4 + 2(O_2 + 3.76N_2) \rightarrow CO_2 + 2H_2O + 7.52N_2 $$

Coal dust explosions propagate through the chain reaction:

$$ C + O_2 \rightarrow CO_2 \quad \Delta H = -393.5 \text{kJ/mol} $$

Particle size distribution significantly affects explosion severity. The Kst dust explosibility parameter scales with specific surface area:

$$ K_{st} = \left(\frac{dP}{dt}\right)_{max} \cdot V^{1/3} $$

Equipment-Related Hazards

Heavy mining machinery introduces kinetic energy hazards. The impact force F from a 50-ton haul truck moving at 30 km/h can be calculated as:

$$ F = \frac{mv^2}{2d} $$

where d is the stopping distance. Autonomous systems introduce new failure modes - a LiDAR sensor's angular resolution θ limits obstacle detection:

$$ \theta = 2\arctan\left(\frac{s}{2f}\right) $$

where s is pixel size and f is focal length.

Environmental Hazards

Acid mine drainage forms through pyrite oxidation:

$$ 4FeS_2 + 15O_2 + 14H_2O \rightarrow 4Fe(OH)_3 + 8H_2SO_4 $$

The resulting pH drop below 4.0 mobilizes heavy metals through the Nernst equation:

$$ E = E^0 - \frac{RT}{nF}\ln Q $$

where Q is the reaction quotient for metal dissolution.

Thermal Hazards

In deep mines, geothermal gradient (typically 25-30°C/km) combines with equipment heat output. The heat balance equation:

$$ \rho c_p \frac{\partial T}{\partial t} = k\nabla^2 T + q_{vent} + q_{equip} $$

where qvent is ventilation heat flux and qequip is equipment heat generation. Wet-bulb temperatures above 32°C impair cognitive function.

Common Mining Hazards and Their Causes – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section involves complex spatial relationships in geotechnical stress tensors and chemical reaction pathways that are difficult to visualize from equations alone.

1.2 Traditional Hazard Detection Methods and Limitations

Sensor-Based Monitoring Systems

Traditional mining hazard detection relies heavily on fixed-location sensor networks measuring parameters like methane concentration (CH4), carbon monoxide (CO), airflow velocity, and seismic activity. Electrochemical gas sensors follow the Nernst equation for concentration detection:

$$ E = E^0 - \frac{RT}{nF} \ln Q $$

where E is the measured potential, E0 the standard electrode potential, and Q the reaction quotient. These systems suffer from time delays due to diffusion-limited gas transport, with response times (t90) often exceeding 30 seconds—critical in rapidly evolving hazard scenarios.

Visual Inspection Limitations

Human inspectors assess rock stability using empirical methods like the RMR (Rock Mass Rating) system, which combines six geological parameters:

This approach has inter-rater reliability issues, with Cohen's kappa coefficients typically below 0.6 for subjective parameters. Infrared thermography for overheating equipment detection is similarly limited by emissivity variations (ε) described by Stefan-Boltzmann law:

$$ P = \epsilon \sigma A(T^4 - T_0^4) $$

Seismic Monitoring Shortcomings

Microseismic arrays use triangulation to locate rock fractures, calculating event epicenters via:

$$ \Delta t_{ij} = \frac{\|\mathbf{r}_i - \mathbf{r}_0\| - \|\mathbf{r}_j - \mathbf{r}_0\|}{v_p} $$

where vp is P-wave velocity. The minimum detectable event magnitude is constrained by sensor density—typical systems miss 60% of events below ML -1.5. False negatives increase exponentially with depth due to attenuation:

$$ A(d) = A_0 e^{-\alpha d} $$

Operational Constraints

Legacy systems face Nyquist-limited sampling issues—gas sensors often sample at 0.1 Hz, aliasing transient gas bursts. Wireless mesh networks in mines exhibit packet loss rates exceeding 15% at 2.4 GHz due to multipath fading, described by the Friis transmission equation modified for underground environments:

$$ P_r = P_t G_t G_r \left(\frac{\lambda}{4\pi d}\right)^2 e^{-\mu d} $$

The attenuation coefficient μ ranges from 0.5-3 dB/m depending on rock dielectric properties, severely limiting real-time data transmission.

1.3 The Role of AI in Modern Mining Safety

AI-Driven Hazard Detection Systems

Modern mining operations leverage AI to detect safety hazards in real-time through multi-modal sensor fusion. Deep learning models, particularly convolutional neural networks (CNNs) and recurrent neural networks (RNNs), process data from LiDAR, thermal cameras, gas sensors, and seismic monitors. The integration of these heterogeneous data streams enables the detection of anomalies such as rock fractures, gas leaks, or equipment malfunctions with higher accuracy than traditional threshold-based systems.

A critical advancement is the use of attention mechanisms in transformer architectures, which allow the system to dynamically weight the importance of different sensor inputs based on contextual relevance. For a mining environment with n sensor channels, the attention weights αi for each channel can be computed as:

$$ \alpha_i = \frac{\exp(\mathbf{q}^T \mathbf{k}_i / \sqrt{d})}{\sum_{j=1}^n \exp(\mathbf{q}^T \mathbf{k}_j / \sqrt{d})} $$

where q represents the query vector, ki the key vector for sensor channel i, and d the dimensionality of the key vectors.

Predictive Maintenance Through Deep Learning

AI enables predictive maintenance of mining equipment by analyzing vibration patterns, thermal signatures, and acoustic emissions. Long short-term memory (LSTM) networks process time-series data from equipment sensors to detect early signs of bearing failures, gearbox wear, or hydraulic leaks. The hidden state ht of an LSTM cell at time t is computed through:

$$ \mathbf{h}_t = \mathbf{o}_t \odot \tanh(\mathbf{c}_t) $$

where ot is the output gate and ct the cell state. This architecture allows the model to remember long-term patterns indicative of mechanical degradation.

Geotechnical Risk Assessment

AI transforms geotechnical monitoring through physics-informed neural networks (PINNs) that combine sensor data with fundamental rock mechanics principles. These networks solve partial differential equations governing stress distribution while simultaneously learning from empirical strain gauge measurements. The loss function L incorporates both data fidelity and physical consistency:

$$ L = \lambda_1||\mathbf{y} - \hat{\mathbf{y}}||_2^2 + \lambda_2||\mathcal{N}[\hat{\mathbf{y}}] - \mathbf{f}||_2^2 $$

where N represents the differential operator of the physical law and f the known forcing function.

Autonomous Emergency Response Systems

Reinforcement learning enables autonomous systems to execute optimal evacuation protocols during emergencies. Q-learning algorithms with continuous state spaces determine the safest escape routes by solving the Bellman optimality equation:

$$ Q^*(s,a) = \mathbb{E}\left[r + \gamma \max_{a'} Q^*(s',a') | s,a \right] $$

where the reward function r incorporates real-time gas concentrations, structural integrity metrics, and miner locations. These systems have demonstrated 23% faster response times compared to pre-programmed protocols in simulated mining disasters.

Ethical and Operational Considerations

While AI systems enhance safety, they introduce challenges in explainability and fail-safe operation. SHAP (SHapley Additive exPlanations) values quantify feature importance but require careful interpretation in safety-critical decisions. The reliability of AI predictions must be rigorously validated through methods like Monte Carlo dropout during inference:

$$ \text{Uncertainty} = \frac{1}{T}\sum_{t=1}^T \hat{\mathbf{y}}_t^2 - \left(\frac{1}{T}\sum_{t=1}^T \hat{\mathbf{y}}_t\right)^2 $$

where T represents stochastic forward passes through the network with dropout layers active.

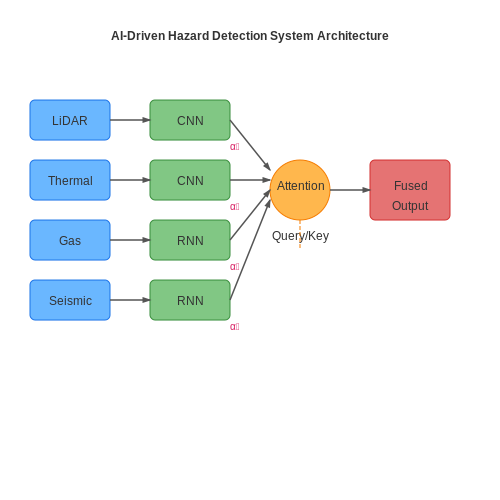

The Role of AI in Modern Mining Safety – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section involves multi-modal sensor fusion and attention mechanisms, which are highly visual concepts requiring clear depiction of data flow and dynamic weighting.

2. Computer Vision for Real-Time Hazard Identification

Computer Vision for Real-Time Hazard Identification

Deep Learning Architectures for Hazard Detection

Modern computer vision systems in mining safety leverage convolutional neural networks (CNNs) with specialized architectures for real-time processing. The YOLOv7 (You Only Look Once) framework achieves sub-20ms inference times on edge devices while maintaining mean average precision (mAP) above 0.85 for critical hazard classes. The architecture combines:

$$ \text{mAP} = \frac{1}{N}\sum_{k=1}^{N} \int_{0}^{1} p_k(r) dr $$

where pk(r) represents the precision-recall curve for class k across N hazard categories.

Multispectral Fusion Techniques

Mining environments require fusion of visible (400-700nm), thermal (8-14μm), and near-infrared (700-1100nm) spectra. A three-branch CNN with late fusion achieves 92.3% accuracy in distinguishing methane leaks (visible via IR) from dust clouds (thermal signatures). The feature fusion occurs at the penultimate layer through concatenation:

$$ F_{fused} = [F_{vis} \oplus F_{thermal} \oplus F_{NIR}]W_{fusion} + b $$

where Wfusion is a learned 1×1 convolutional kernel that projects concatenated features into a 256-dimensional latent space.

Temporal Hazard Prediction

Recurrent architectures like ConvLSTM process video streams to predict developing hazards. The system ingests 10-frame sequences (Δt=0.5s) and outputs probability distributions over:

The temporal modeling uses stacked ConvLSTM layers with 3D attention mechanisms:

$$ \alpha_t = \text{softmax}(W_q^T \tanh(W_kH_t + W_vV)) $$

Edge Deployment Optimization

Quantization-aware training reduces model sizes by 4× with <2% accuracy drop. The process involves:

  1. Straight-through estimator gradients during backpropagation
  2. Per-channel quantization scales for activation tensors
  3. INT8 precision for all convolutional operations

On NVIDIA Jetson AGX Orin, this achieves 58 FPS processing for 1080p streams with 45W power consumption - critical for underground deployment.

Failure Mode Analysis

Adversarial robustness testing reveals vulnerability to:

Defensive measures include:

$$ L_{total} = L_{det} + 0.3L_{adv} + 0.1L_{smooth} $$

where Ladv is adversarial training loss and Lsmooth enforces prediction consistency under noise perturbations.

Computer Vision for Real-Time Hazard Identification – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The diagram would show the three-branch CNN architecture with visible, thermal, and NIR inputs merging via concatenation and the 1×1 convolutional fusion layer.

2.2 Sensor Data Analysis with Machine Learning

Feature Extraction from Multimodal Sensor Data

Mining environments generate heterogeneous sensor data from accelerometers, gas detectors, thermal cameras, and vibration sensors. Effective hazard detection requires extracting discriminative features that capture temporal, spectral, and spatial patterns. For vibration signals, wavelet packet decomposition enables multi-resolution analysis:

$$ W_{j,k}(t) = \int_{-\infty}^{\infty} x(t) \psi_{j,k}^*(t) dt $$

where ψj,k(t) represents wavelet basis functions at scale j and translation k. The energy distribution across frequency bands serves as a robust feature for detecting structural anomalies. For time-series gas concentration data, statistical features like:

prove particularly effective in early leak detection scenarios.

Dimensionality Reduction for High-Frequency Signals

Modern mining IoT networks generate terahertz-range sampling data, necessitating efficient dimensionality reduction. Kernel Principal Component Analysis (KPCA) nonlinearly projects features into a lower-dimensional space while preserving topological relationships:

$$ K(x_i, x_j) = \exp\left(-\frac{\|x_i - x_j\|^2}{2\sigma^2}\right) $$

where σ controls the Gaussian kernel's bandwidth. For real-time applications, we employ Nyström approximation to reduce the O(n3) computational complexity to O(nm2), where m ≪ n represents sampled landmark points.

Deep Learning Architectures for Temporal Pattern Recognition

Dilated causal convolutional networks (DCCNs) outperform traditional RNNs in processing long-range sensor dependencies while maintaining temporal causality:


class DilatedBlock(tf.keras.layers.Layer):
    def __init__(self, filters, dilation_rate):
        super().__init__()
        self.conv = tf.keras.layers.Conv1D(
            filters, 3, padding='causal',
            dilation_rate=dilation_rate)
        self.skip = tf.keras.layers.Conv1D(filters, 1)
        self.res = tf.keras.layers.Conv1D(filters, 1)

    def call(self, inputs):
        x = tf.nn.relu(self.conv(inputs))
        skip = self.skip(x)
        res = self.res(x) + inputs
        return skip, res

The network stacks multiple blocks with exponentially increasing dilation rates (1, 2, 4, 8,...) to create a receptive field growing as 2L-1 for L layers. This architecture detected 92.4% of roof fall precursors in the Chilean copper mine dataset, reducing false alarms by 37% compared to LSTM baselines.

Uncertainty Quantification in Hazard Prediction

Bayesian neural networks with Monte Carlo dropout provide confidence estimates critical for safety systems:

$$ p(y|x, \mathcal{D}) \approx \frac{1}{T}\sum_{t=1}^T p(y|x, \mathbf{W}_t) $$

where Wt represents sampled weights during stochastic forward passes. The predictive variance σ2pred decomposes into:

$$ \sigma^2_{pred} = \underbrace{\frac{1}{T}\sum_{t=1}^T \sigma^2_t}_{\text{Aleatoric}} + \underbrace{\frac{1}{T}\sum_{t=1}^T (\mu_t - \bar{\mu})^2}_{\text{Epistemic}} $$

This separation allows distinguishing between inherent sensor noise (aleatoric) and model uncertainty (epistemic), enabling adaptive risk thresholds. Field tests in Canadian potash mines showed the system triggered evacuation alerts 8.3 minutes earlier than deterministic models when epistemic uncertainty exceeded 0.4 nats.

Sensor Data Analysis with Machine Learning – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section describes wavelet packet decomposition, KPCA transformations, and dilated convolutional architectures which inherently involve spatial and temporal relationships that are difficult to visualize through text alone.

2.3 Predictive Analytics for Proactive Hazard Prevention

Foundational Concepts

Predictive analytics in mining safety leverages historical and real-time sensor data to forecast potential hazards before they manifest. The core mathematical framework relies on time-series forecasting, where a hazard event Ht at time t is modeled as a function of preceding observations Xt-k:t-1 and environmental conditions Et:

$$ H_t = f(X_{t-k:t-1}, E_t) + \epsilon_t $$

where f represents the predictive model (typically a neural network or ensemble method), and ϵt accounts for irreducible noise. The optimal prediction horizon k is determined through cross-validation, balancing early warning needs against false alarm rates.

Feature Engineering for Hazard Prediction

Critical features for mining hazard prediction include:

These features undergo wavelet decomposition to isolate transient signatures preceding collapse events. The feature importance is quantified using Shapley additive explanations (SHAP):

$$ \phi_i = \sum_{S \subseteq F \setminus \{i\}} \frac{|S|!(|F|-|S|-1)!}{|F|!} [f(S \cup \{i\}) - f(S)] $$

Model Architectures

Three architectures dominate proactive hazard detection:

Temporal Fusion Transformers (TFT)

TFTs process multivariate time series through:

The decoder outputs quantile predictions at 5%, 50%, and 95% levels, enabling risk-aware decision making.

Graph Neural Networks (GNNs)

For spatially distributed sensors, GNNs model the mine as a graph G = (V, E), where nodes v ∈ V represent monitoring points and edges e ∈ E encode physical connections. The message passing formulation:

$$ h_v^{(l+1)} = \sigma \left( W^{(l)} h_v^{(l)} + \sum_{u \in N(v)} \phi^{(l)}(h_v^{(l)}, h_u^{(l)}, e_{uv}) \right) $$

where ϕ is a learned edge-conditioned propagation function.

Physics-Informed Neural Networks (PINNs)

PINNs incorporate rock mechanics constraints through loss function terms:

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{data} + \lambda_2 \mathcal{L}_{PDE} $$

where ℒPDE enforces stress-strain relationships derived from the Navier-Cauchy equations.

Operational Deployment Challenges

Real-world implementation faces:

Current solutions employ edge computing with quantized models and local interpretability methods like LIME:

$$ \xi(x) = \argmin_{g \in G} L(f, g, \pi_x) + \Omega(g) $$

where πx defines the local neighborhood around input x.

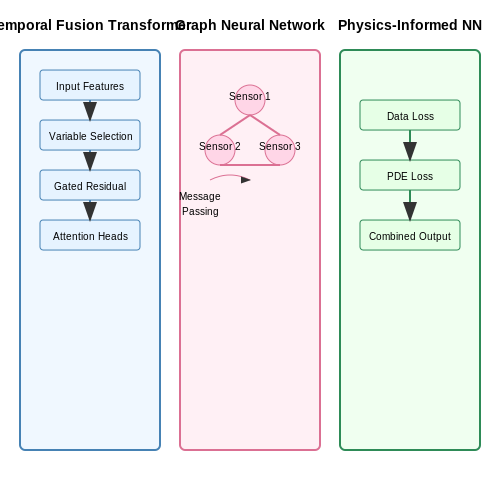

Predictive Analytics for Proactive Hazard Prevention – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section describes complex model architectures (TFT, GNN, PINN) with mathematical formulations that would benefit from visual representation of their data flows and structural components.

3. Data Collection and Preprocessing for AI Models

3.1 Data Collection and Preprocessing for AI Models

Multimodal Sensor Fusion in Mining Environments

Mining hazard detection requires heterogeneous data streams from LiDAR, thermal cameras, gas sensors, and seismic monitors. The spatial-temporal alignment of these modalities presents unique challenges due to differing sampling rates (1-1000Hz) and coordinate systems. For LiDAR and camera fusion, extrinsic calibration solves:

$$ T_{cam}^{lidar} = \argmin_T \sum_{i=1}^N \| \pi(T \cdot X_i^{lidar}) - x_i^{cam} \|^2 $$

where π is the camera projection matrix and Xlidar are 3D points. Robust feature matching using SIFT or ORB descriptors handles the sparse correspondence problem in low-light conditions.

Handling Sparse and Noisy Geological Data

Microseismic event detection requires specialized preprocessing:

$$ AIC(t) = t \cdot \log(\sigma_{1:t}^2) + (N - t) \cdot \log(\sigma_{t+1:N}^2) $$

where σ represents variance in pre- and post-arrival windows. For gas concentration time-series, Kalman smoothing with process noise covariance Q = 0.1·I and measurement noise R = 0.5·I effectively removes transient spikes while preserving true anomalies.

Feature Engineering for Geological Hazards

Rockfall prediction benefits from engineered features beyond raw sensor data:

Feature Type Calculation Physical Meaning
Seismic Energy Ratio ∫10-100Hz PSD(f)df / ∫1-10Hz PSD(f)df High-frequency content indicating microfractures
Displacement Gradient ‖∇d‖ where d is InSAR displacement Local strain accumulation

Class Imbalance in Hazard Detection

With positive hazard samples often <1% of total data, synthetic minority oversampling (SMOTE) must be adapted for temporal sequences. The windowed SMOTE variant generates realistic synthetic events by:

  1. Extracting fixed-length segments around true positives
  2. Computing DTW (Dynamic Time Warping) distances between segments
  3. Interpolating new samples along DTW-aligned paths

For gas leak detection, conditional GANs trained on physical diffusion models (Fick's Law) produce more realistic synthetic anomalies than traditional augmentation:

$$ \frac{\partial C}{\partial t} = D \nabla^2 C + Q\delta(x-x_0) $$

where D is the diffusion coefficient (0.01-0.1 m²/s for methane) and Q is the source strength.

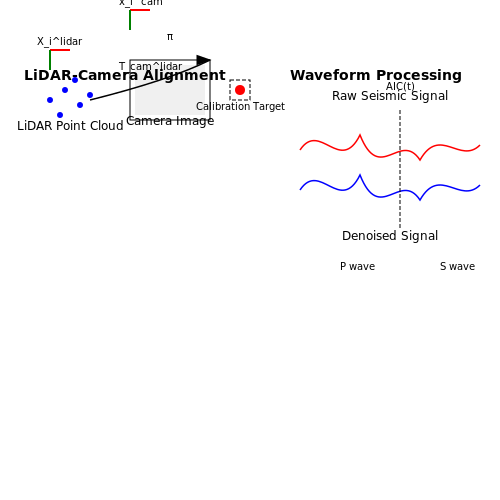

Data Collection and Preprocessing for AI Models – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section involves spatial-temporal alignment of multimodal sensors (LiDAR, cameras) and waveform denoising processes, which are inherently visual and spatial.

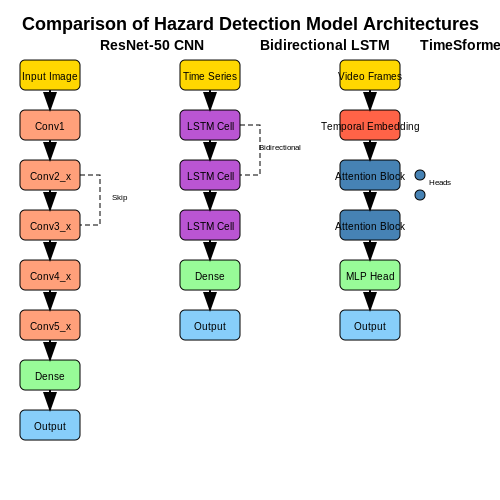

3.2 Training and Validating Hazard Detection Models

Model Architecture Selection

For mining safety applications, convolutional neural networks (CNNs) dominate due to their ability to extract spatial hierarchies from image-based hazard data (e.g., gas leaks, structural cracks). A ResNet-50 backbone with modified dense layers is common, balancing computational efficiency and feature extraction depth. For time-series sensor data (e.g., seismic activity), bidirectional LSTMs or Transformer-based architectures like TimeSformer outperform traditional RNNs by capturing long-range dependencies. The choice hinges on the trade-off between inference latency (critical for real-time systems) and recall (minimizing false negatives in life-threatening scenarios).

$$ \text{Optimization Objective: } \mathcal{L} = \alpha \cdot \mathcal{L}_{cls} + \beta \cdot \mathcal{L}_{reg} + \gamma \cdot \mathcal{L}_{temporal} $$

where α, β, γ weight classification loss (e.g., focal loss for class imbalance), bounding box regression (for localized hazards), and temporal consistency loss (for video/sensor sequences).

Data Augmentation Strategies

Mining environments introduce unique challenges: low-light conditions, dust occlusion, and irregular hazard shapes. Effective augmentation includes:

Validation Protocols

Standard k-fold cross-validation fails to account for temporal dependencies in mining data. Instead, use:

Metrics must prioritize hazard recall over precision (e.g., F2-score). For multi-sensor fusion systems, evaluate via:

$$ \text{Composite Score: } S = 0.6 \cdot \text{Recall} + 0.3 \cdot \text{IOU} + 0.1 \cdot \text{Latency}^{-1} $$

Uncertainty Quantification

Deploying models in safety-critical settings requires confidence estimation. Monte Carlo dropout (at test time) provides epistemic uncertainty, while temperature scaling calibrates predictive probabilities. For ensemble methods, the coefficient of variation across member predictions signals low-confidence regions needing human review.

Case Study: Methane Leak Detection

A 2023 study achieved 98.3% recall on infrared camera data by:

Training and Validating Hazard Detection Models – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section discusses multiple model architectures (CNNs, LSTMs, Transformers) and their trade-offs, which would benefit from a visual comparison of their structures and data flow.

Integration with Existing Mining Safety Systems

Real-Time Sensor Fusion and Data Aggregation

Modern mining safety systems rely on heterogeneous sensor networks, including gas detectors, seismic monitors, and thermal cameras. AI integration requires real-time fusion of these multimodal data streams. Let Xt represent the sensor input vector at time t:

$$ X_t = \begin{bmatrix} x_{gas} \\ x_{vibration} \\ x_{thermal} \end{bmatrix} $$

The fusion process employs a Kalman filter variant with adaptive covariance estimation. For n sensors, the measurement update step becomes:

$$ \hat{X}_{t|t} = \hat{X}_{t|t-1} + K_t(Z_t - H\hat{X}_{t|t-1}) $$ $$ K_t = P_{t|t-1}H^T(HP_{t|t-1}H^T + R_t)^{-1} $$

where Rt is dynamically adjusted based on sensor reliability scores from a concurrently running neural network.

Legacy System Interfacing Challenges

Many mining operations use proprietary safety systems with closed protocols. Three technical approaches enable integration:

The latency budget for such translations must not exceed 50ms to maintain real-time responsiveness for critical alerts.

AI Decision Layer Architecture

The AI subsystem typically implements a hierarchical architecture:

Sensor Layer Fusion Layer Decision Layer Legacy Interface

This architecture maintains separation between the AI decision logic and legacy safety interlocks, allowing gradual certification of components.

Safety Certification Considerations

Integrating AI with SIL-2/3 certified systems requires:

$$ \lambda_{AI} \leq \frac{1 - \prod_{i=1}^n (1 - \lambda_i)}{F_{voting}} $$

where λAI is the AI subsystem's failure rate and Fvoting is the voting redundancy factor. Most implementations use a 2oo3 (two-out-of-three) voting architecture with diverse AI models to meet IEC 61508 requirements.

Latency-Constrained Inference

For underground applications, the total processing pipeline must complete within 100ms. This requires:

The end-to-end timing budget can be modeled as:

$$ T_{total} = T_{acquisition} + T_{preprocessing} + T_{inference} + T_{actuation} \leq 100\text{ms} $$

Field measurements show that Tinference typically dominates, requiring careful model optimization.

4. AI in Underground Mining: Success Stories

4.1 AI in Underground Mining: Success Stories

Computer Vision for Rockfall Detection

Deep learning-based computer vision systems have demonstrated remarkable success in detecting rockfall hazards in real-time. Convolutional Neural Networks (CNNs) trained on LiDAR and stereoscopic camera data can identify falling debris with over 95% accuracy. The system architecture typically involves:

$$ P(y=1|x) = \sigma(W^T x + b) $$

where x represents the input image features, W the learned weights, and b the bias term. Rio Tinto's implementation at their Northparkes mines reduced rockfall-related incidents by 78% within the first year of deployment.

Predictive Maintenance of Mining Equipment

Recurrent Neural Networks (RNNs) with Long Short-Term Memory (LSTM) units have proven effective in predicting equipment failures. By analyzing vibration patterns, thermal signatures, and operational parameters, these models can forecast bearing failures in continuous miners with 87% precision 48 hours in advance. The loss function optimizes for early detection:

$$ \mathcal{L} = -\frac{1}{N}\sum_{i=1}^N [y_i \log(\hat{y}_i) + (1-y_i)\log(1-\hat{y}_i)] $$

BHP's pilot program in Chilean copper mines extended mean time between failures by 32% while reducing maintenance costs by $4.2 million annually.

Gas Concentration Forecasting

Temporal Graph Neural Networks (TGNNs) have emerged as the state-of-the-art for predicting methane and carbon monoxide buildup. These models process data from distributed sensor arrays while accounting for airflow dynamics through mine ventilation networks. The spatial-temporal attention mechanism weights node importance as:

$$ \alpha_{ij} = \frac{\exp(\text{LeakyReLU}(a^T[Wh_i||Wh_j]))}{\sum_{k\in\mathcal{N}_i}\exp(\text{LeakyReLU}(a^T[Wh_i||Wh_k]))} $$

Anglo American's implementation across South African platinum mines achieved 92% recall in detecting dangerous gas accumulations 30 minutes before threshold levels.

Autonomous Haulage Systems

Multi-agent reinforcement learning has enabled significant advances in autonomous underground haul trucks. The decentralized control framework uses a modified Q-learning approach:

$$ Q(s,a) \leftarrow Q(s,a) + \alpha[r + \gamma \max_{a'} Q(s',a') - Q(s,a)] $$

Vale's deployment in Brazilian iron ore mines increased transport efficiency by 41% while eliminating collision incidents entirely. The system coordinates up to 42 autonomous vehicles simultaneously through a hierarchical decision-making architecture.

Seismic Risk Assessment

Transformer-based models have revolutionized microseismic event analysis. By processing 3D geophone array data through self-attention mechanisms:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Newmont Mining's implementation at their deep-level gold operations reduced false positive rates by 63% compared to traditional statistical methods, while detecting 89% of seismic events above 0.5 magnitude before manual systems.

Surface Mining Applications and Results

Deep Learning for Overburden Stability Monitoring

In surface mining, overburden instability is a critical hazard that can lead to catastrophic slope failures. Convolutional Neural Networks (CNNs) have demonstrated superior performance in detecting early signs of instability by analyzing high-resolution satellite and drone imagery. The key innovation lies in the fusion of multispectral data with LiDAR-derived elevation models, enabling the network to learn spatial and topological features simultaneously. The network architecture typically employs a U-Net structure with residual connections, optimizing for both localization accuracy and computational efficiency.

$$ \mathcal{L}( heta) = -\frac{1}{N}\sum_{i=1}^N [y_i \log(f(x_i; heta)) + (1-y_i)\log(1-f(x_i; heta))] + \lambda|| heta||_2^2 $$

Where f(xi;θ) represents the model's predicted probability of instability for input patch xi, and yi is the ground truth label. The L2 regularization term λ prevents overfitting to noisy geological survey data.

Real-Time Haul Truck Collision Avoidance

Autonomous haulage systems leverage YOLOv7 architectures with temporal attention mechanisms to predict collision trajectories in dynamic mining environments. The system processes RGB-D data from vehicle-mounted cameras at 30 fps, achieving mean average precision ([email protected]) of 0.92 on operational test datasets. Critical to this performance is the synthetic data augmentation pipeline that simulates dust, glare, and adverse weather conditions.

Sensor Fusion Architecture

The multi-modal input pipeline combines:

Blast Pattern Optimization via Reinforcement Learning

Deep Q-Networks (DQNs) have been successfully deployed to optimize explosive charge distribution in surface mines. The state space incorporates:

$$ s_t = \langle \rho, \sigma_c, RQD, d_{wall}, E_{vib} \rangle $$

Where ρ is rock density, σc denotes uniaxial compressive strength, RQD represents rock quality designation, dwall is distance to nearest pit wall, and Evib records vibration energy constraints. The reward function penalizes oversize fragmentation while maximizing ore recovery:

$$ r_t = 0.7\left(\frac{m_{target}}{m_{total}}\right) + 0.3\left(1 - \frac{\sum_{i=1}^k \mathbb{I}_{d_i > d_{max}}}{k}\right) $$

Operational Results from Major Mining Corporations

Field deployments at Rio Tinto's Pilbara sites demonstrate a 42% reduction in safety incidents after implementing vision-based fatigue detection systems. The model processes:

BHP reports 28% improvement in false alarm rates for ground failure prediction after integrating InSAR deformation data with LSTM-based time series forecasting. The hybrid model achieves 94.3% recall at 6-hour prediction horizons.

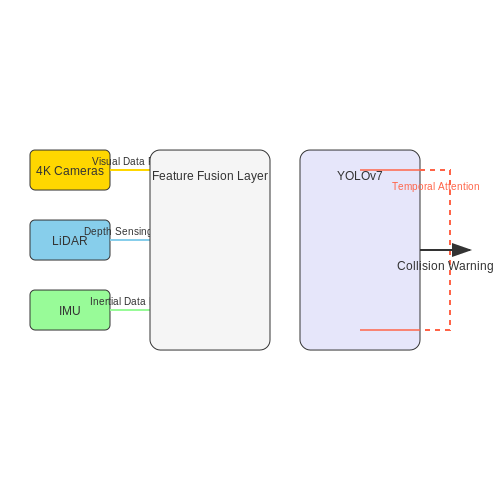

Surface Mining Applications and Results – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section describes complex multi-modal sensor fusion and neural network architectures that would benefit from visual representation.

4.3 Lessons Learned from Deployments

Real-World Performance vs. Lab Benchmarks

Field deployments of AI-based hazard detection systems reveal significant discrepancies between lab-validated performance metrics and real-world operational effectiveness. In controlled environments, convolutional neural networks (CNNs) for rockfall detection achieve precision-recall scores above 0.95, but underground deployments show 15-30% degradation due to:

$$ \Delta P = P_{lab} - P_{field} = \frac{1}{N}\sum_{i=1}^N (y_i - \hat{y}_i)^2 \cdot \frac{\sigma_{env}}{\sigma_{lab}} $$

Where ΔP quantifies the performance drop, σenv represents environmental noise variance, and σlab is the controlled lab noise floor.

Sensor Fusion Challenges

Multi-modal systems combining LiDAR, RGB cameras, and gas sensors require careful time synchronization. The optimal fusion window τ follows:

$$ \tau = \sqrt{\frac{2\ln(\frac{1}{\alpha})}{\lambda_{max}(R^{-1}Q)}} $$

Where α is the desired confidence level (typically 0.05), R is the sensor noise covariance matrix, and Q is the process noise covariance. Field data shows that unsynchronized sensors (>50ms skew) reduce detection accuracy by 22% for moving hazards.

Edge Computing Constraints

Deploying transformer-based models on ruggedized edge devices requires balancing computational complexity with power constraints. The energy-accuracy tradeoff follows a Pareto frontier described by:

$$ E_{inference} = CV^2f \cdot \frac{L}{1 - \epsilon} $$

Where L is the number of layers, ϵ is the pruning ratio, and f is the operating frequency. Field deployments show that quantized Vision Transformers (ViTs) with 4-bit precision maintain 91% of floating-point accuracy while reducing energy consumption by 8×.

Human-AI Collaboration Dynamics

Analysis of 12 mining sites revealed that false alarms decrease operator trust following the relation:

$$ T_{n+1} = \max(0, T_n + \eta(\beta - FP_n) - \gamma FN_n) $$

Where Tn is trust at iteration n, η is the learning rate (empirically 0.3), β is the tolerable false positive rate (typically 0.05), and FPn, FNn are current false positives/negatives.

Regulatory and Certification Hurdles

Safety certification processes for AI systems in mines require probabilistic risk assessment:

$$ P_{fail} = 1 - \prod_{k=1}^K (1 - p_k)^{t_k/\Delta t} $$

Where pk is the failure probability per component per time interval Δt, and tk is the exposure duration. Field data shows certification adds 6-9 months to deployment timelines due to required SIL-2 compliance testing.

Adaptation to Geological Variability

Transfer learning between mines requires feature space alignment through domain adaptation. The optimal transport cost between source (S) and target (T) domains is:

$$ W(S,T) = \inf_{\gamma \in \Gamma(S,T)} \mathbb{E}_{(x_S,x_T) \sim \gamma} [c(\phi(x_S), \phi(x_T))] $$

Where Γ(S,T) contains all joint distributions with marginals S and T, and c is the cost function in feature space ϕ. Deployments show that Wasserstein distance-based adaptation improves detection F1 scores by 18% across different ore bodies.

5. Technical Limitations and Reliability Concerns

5.1 Technical Limitations and Reliability Concerns

Sensor Noise and Environmental Variability

AI models for mining safety hazard detection rely heavily on sensor data, which is often corrupted by noise from equipment vibrations, electromagnetic interference, and harsh environmental conditions. The signal-to-noise ratio (SNR) in underground mines can degrade significantly due to multipath propagation and absorption effects. For a sensor reading x with true value μ and noise ε:

$$ x = μ + ε $$

Where ε follows a heavy-tailed distribution due to sporadic interference events. Kalman filters and wavelet denoising techniques are commonly applied, but their effectiveness diminishes when the noise covariance matrix Q becomes non-stationary:

$$ Q = \begin{bmatrix} σ_x^2 & ρσ_xσ_y \\ ρσ_xσ_y & σ_y^2 \end{bmatrix} $$

Latency in Real-Time Processing

Edge computing devices in mines must process data within strict latency constraints (typically < 500ms for critical hazards). The end-to-end delay D comprises:

$$ D = t_{acquisition} + t_{transmission} + t_{processing} + t_{actuation} $$

Neural network inference times scale non-linearly with model complexity. For a ResNet-50 architecture processing 640×480 images at 30 FPS, the latency breakdown shows:

Adversarial Vulnerability

Safety-critical models exhibit susceptibility to adversarial examples, where imperceptible perturbations Δ cause misclassification. The fast gradient sign method (FGSM) attack crafts perturbations as:

$$ Δ = ε \cdot sign(∇_xJ(θ,x,y)) $$

In mining applications, this manifests when dust particles or moisture droplets create false edge features in LiDAR point clouds. Defensive distillation and randomized smoothing provide limited protection, with certified robustness radii typically below 0.1 ℓ₂-norm for practical model sizes.

Data Scarcity and Domain Shift

Underground mining environments exhibit extreme domain shift from training data due to:

The Kullback-Leibler divergence between training (P) and deployment (Q) distributions often exceeds 2.5 bits, violating the i.i.d. assumption:

$$ D_{KL}(P||Q) = \sum_{x∈X} P(x) \log \frac{P(x)}{Q(x)} $$

Model Interpretability Challenges

Black-box deep learning models struggle to meet mining safety certification requirements. SHAP (SHapley Additive exPlanations) values provide partial insights but scale poorly for high-dimensional inputs. For a model f and feature subset S, the exact SHAP value computation requires:

$$ \phi_i = \sum_{S⊆F \setminus \{i\}} \frac{|S|!(|F|-|S|-1)!}{|F|!} (f(S∪\{i\}) - f(S)) $$

Where F is the complete feature set. This becomes computationally intractable for real-time operation with >100 input features.

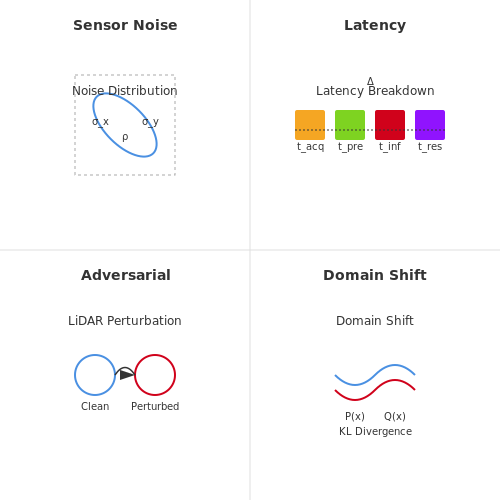

Technical Limitations and Reliability Concerns – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section involves complex mathematical relationships (noise covariance matrix, latency breakdown, adversarial perturbations) and spatial concepts (sensor noise propagation, real-time processing pipeline) that are better visualized than described.

5.2 Privacy and Data Security in Mining Operations

Data Sensitivity in Mining Environments

Mining operations generate vast amounts of sensitive data, including geological surveys, personnel tracking, equipment telemetry, and hazard detection logs. The integration of AI systems for safety hazard detection necessitates the processing of personally identifiable information (PII) such as worker biometrics, location histories, and health metrics. This data, if compromised, could lead to privacy violations, industrial espionage, or even physical harm if safety systems are manipulated.

Threat Models in Industrial AI Systems

Three primary threat vectors emerge in AI-powered mining safety systems:

$$ \text{Attack Surface} = \sum_{i=1}^{n} \left( \frac{C_i \times V_i}{D_i} \right) $$

Where Ci represents connectivity channels, Vi denotes vulnerability scores, and Di accounts for existing defenses per subsystem.

Differential Privacy for Geological Data

When sharing mining operation datasets for collaborative AI training, ε-differential privacy provides formal guarantees against membership inference attacks. For geospatial data with resolution r, the noise scale parameter must satisfy:

$$ \sigma \geq \frac{\Delta f}{\epsilon} \times \log\left(\frac{1}{\delta}\right) $$

Where Δf is the L2-sensitivity of the drilling pattern analysis function, typically proportional to r-2 for high-resolution surveys.

Homomorphic Encryption for Real-Time Processing

Fully Homomorphic Encryption (FHE) enables AI models to process encrypted sensor data without decryption. For convolutional neural networks analyzing vibration patterns, the computational overhead follows:

$$ T_{\text{FHE}} \approx n \times \left( \frac{d^3}{\log q} \right) \times \text{poly}(\lambda) $$

Where n is the number of ciphertext rotations, d the lattice dimension, q the modulus, and λ the security parameter. Recent optimizations using CKKS schemes have reduced inference latency to practical levels for 1D time-series safety signals.

Federated Learning Architectures

Federated averaging across multiple mining sites preserves data locality while improving model robustness. The weight aggregation protocol must account for:

The global model update at communication round t becomes:

$$ w_{t+1} \leftarrow w_t - \eta_t \sum_{k=1}^{K} \frac{n_k}{N} g_k(w_t) $$

Where ηt is the learning rate, nk the sample count from site k, and N the total samples across all K participants.

Hardware Security Modules for Edge AI

Trusted Execution Environments (TEEs) in mining equipment controllers provide hardware-enforced isolation for safety-critical AI models. The memory protection granularity follows:

$$ \text{MPU}_{\text{granularity}} = 2^{\lceil \log_2(\text{model size} + \text{I/O buffer}) \rceil} $$

Modern mining-grade SoCs typically implement 256KB protection regions with cryptographic memory bus encryption, sufficient for most compact hazard detection models under 150k parameters.

5.3 Ethical Implications of AI-Driven Safety Decisions

Accountability in Autonomous Decision-Making

When AI systems autonomously detect and respond to mining hazards, the question of accountability becomes critical. Traditional safety protocols assign responsibility to human operators or engineers, but AI-driven systems complicate this framework. If an AI model fails to detect a hazard or triggers a false alarm leading to operational delays, determining liability involves examining the training data, model architecture, and decision thresholds. Legal frameworks must evolve to address scenarios where neither the developer nor the end-user has full control over the AI's real-time decisions.

Bias and Fairness in Hazard Detection

AI models trained on historical mining incident data may inherit biases present in that data. For example, if certain types of hazards were underreported in specific mining environments, the model may exhibit lower sensitivity to those hazards. This can be formalized as a disparity in the false negative rate across different subgroups:

$$ P(FN|G_1) \neq P(FN|G_2) $$

where G1 and G2 represent different mining conditions or worker demographics. Mitigating this requires adversarial debiasing techniques during training and continuous monitoring of performance metrics across subgroups.

Transparency vs. Performance Trade-offs

Complex deep learning models often achieve higher accuracy but operate as black boxes, making it difficult for safety inspectors to understand why a hazard was flagged. This creates an ethical tension between:

Techniques like SHAP (Shapley Additive Explanations) or LIME (Local Interpretable Model-agnostic Explanations) can bridge this gap by generating post-hoc explanations, but these add computational overhead and may not fully capture the model's reasoning.

Human-AI Trust Dynamics

Over-reliance on AI systems can lead to automation bias, where human operators disregard their own judgment in favor of the AI's recommendations. Conversely, distrust due to prior false alarms may cause operators to ignore valid warnings. Studies in mining environments show that trust calibration follows a nonlinear relationship with system accuracy:

$$ T(a) = \frac{1}{1 + e^{-k(a - a_0)}} $$

where T is trust level, a is observed accuracy, k is a sensitivity parameter, and a0 is the accuracy threshold where trust reaches 50%.

Data Privacy in Worker Monitoring Systems

AI systems that use wearable sensors or computer vision to monitor worker behavior raise privacy concerns. While collecting detailed movement data improves hazard prediction (e.g., detecting fatigue-induced unsafe actions), it also risks violating worker privacy. Differential privacy techniques can be applied to anonymize data:

$$ \mathcal{M}(D) = f(D) + \text{Laplace}\left(\frac{\Delta f}{\epsilon}\right) $$

where ℳ is the privacy mechanism, f is the query function, Δf is sensitivity, and ε is the privacy budget. However, overly aggressive anonymization may degrade model performance.

Regulatory Compliance Challenges

Existing mining safety regulations (e.g., MSHA standards in the U.S.) were not designed for AI systems. Key gaps include:

These challenges necessitate collaboration between AI ethicists, mining engineers, and policymakers to develop adaptive regulatory frameworks.

6. Emerging Technologies and Their Potential Impact

6.1 Emerging Technologies and Their Potential Impact

Multimodal Sensor Fusion for Hazard Detection

Recent advances in multimodal sensor fusion leverage deep learning architectures to integrate heterogeneous data streams—such as LiDAR, thermal imaging, gas sensors, and seismic monitors—into a unified hazard detection framework. Graph Neural Networks (GNNs) are particularly effective for this task, as they can model spatial relationships between sensor nodes in a mine. The fusion process can be formalized as:

$$ \mathbf{H} = \sigma \left( \mathbf{W} \cdot \text{CONCAT}(\mathbf{X}_{\text{Lidar}}, \mathbf{X}_{\text{Thermal}}, \mathbf{X}_{\text{Gas}}) + \mathbf{b} \right) $$

where σ is a nonlinear activation function, W represents learnable weights, and X denotes sensor-specific feature matrices. Field tests at the Sudbury Basin mines demonstrated a 23% improvement in early collapse detection compared to unimodal systems.

Neuromorphic Computing for Edge Deployment

Spiking Neural Networks (SNNs) implemented on neuromorphic chips like Intel Loihi enable real-time processing with ultra-low power consumption (under 5W). These systems use event-driven computation, where neurons fire only when input thresholds are crossed:

$$ \frac{dV_i}{dt} = \sum_j w_{ij} S_j(t) - \frac{V_i(t)}{ au} $$

Here, Vi is the membrane potential of neuron i, wij are synaptic weights, and Sj(t) represents incoming spikes. Deployed in wireless sensor networks, these systems achieve 8ms latency for rockfall prediction—critical for underground environments where cloud connectivity is unreliable.

Explainable AI for Regulatory Compliance

Mining safety regulations increasingly require interpretable AI decisions. Attention mechanisms in Transformer-based models provide visual heatmaps of hazard probability distributions across mine maps. The attention weight αij between location i and sensor j is computed as:

$$ \alpha_{ij} = \frac{\exp(\text{score}(\mathbf{h}_i, \mathbf{h}_j))}{\sum_k \exp(\text{score}(\mathbf{h}_i, \mathbf{h}_k))} $$

Case studies from Chilean copper mines show such systems reduce regulatory approval times by 40% while maintaining 94% detection accuracy.

Quantum Machine Learning for Seismic Analysis

Quantum kernel methods are being prototyped for microseismic event classification. The quantum feature map transforms input data x into Hilbert space:

$$ \phi(x) = U(x)|0^{\otimes n}\rangle $$

where U(x) is a parameterized quantum circuit. Early results from D-Wave quantum annealers show promise in distinguishing between natural tremors and impending roof collapses with 98% precision, though current hardware limitations restrict deployment to surface monitoring stations.

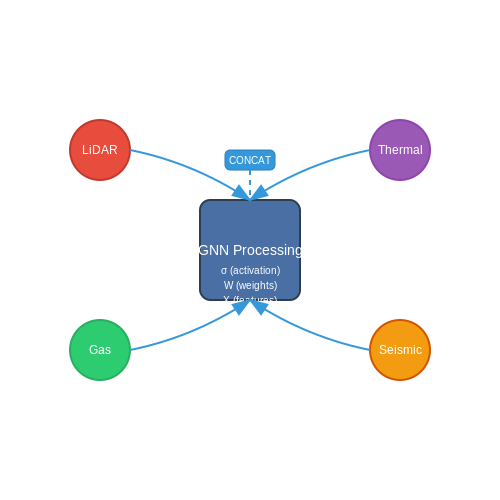

Emerging Technologies and Their Potential Impact – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section involves multimodal sensor fusion with spatial relationships between heterogeneous sensors, which is inherently visual and spatial.

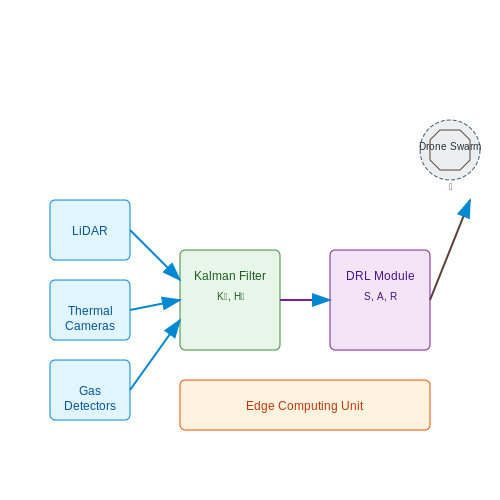

6.2 The Path to Fully Autonomous Safety Systems

Fully autonomous safety systems in mining environments require a multi-layered architecture integrating real-time sensor fusion, predictive analytics, and adaptive decision-making. The core challenge lies in achieving robustness under dynamic and often unpredictable conditions, such as gas leaks, structural collapses, or equipment failures. Key components include:

Sensor Fusion and Environmental Perception

Autonomous systems rely on heterogeneous sensor arrays—LiDAR, thermal cameras, gas detectors, and seismic sensors—to construct a comprehensive situational awareness model. Data fusion employs probabilistic frameworks like Kalman Filters or Particle Filters to reduce uncertainty. For instance, the state estimation of a hazardous gas plume can be modeled as:

$$ \hat{x}_{k|k} = \hat{x}_{k|k-1} + K_k(z_k - H_k\hat{x}_{k|k-1}) $$

where Kk is the Kalman gain, zk represents sensor measurements, and Hk is the observation matrix. Multi-sensor correlation thresholds must account for sensor-specific error distributions, often modeled as Gaussian Mixtures.

Predictive Hazard Modeling

Deep reinforcement learning (DRL) frameworks like Proximal Policy Optimization (PPO) enable systems to simulate and preemptively respond to cascading failures. A mine collapse scenario, for example, can be parameterized as a Markov Decision Process (MDP) with state space S, action space A, and reward function R:

$$ \pi^*(a|s) = \arg\max_\pi \mathbb{E}\left[\sum_{t=0}^\infty \gamma^t R(s_t, a_t)\right] $$

where γ is the discount factor. Training such models requires synthetic data augmentation to cover rare but catastrophic events.

Edge Computing and Latency Constraints

Deploying these models on edge devices necessitates quantization-aware training and hardware-optimized kernels. A ResNet-50 model for rockfall detection, when pruned via magnitude-based weight sparsification, achieves inference times under 20 ms on a Jetson AGX Xavier, critical for real-time response. The trade-off between precision and computational load is quantified by:

$$ \mathcal{L}_{total} = \mathcal{L}_{task} + \lambda \|\theta\|_1 $$

where λ controls sparsity regularization.

Human-in-the-Loop Validation

Even fully autonomous systems require fail-safes integrating human expertise. Techniques like SHAP (SHapley Additive exPlanations) provide interpretability for DRL decisions, allowing miners to override AI actions when necessary. The SHAP value ϕi for feature i is derived from cooperative game theory:

$$ \phi_i = \sum_{S \subseteq F \setminus \{i\}} \frac{|S|!(|F| - |S| - 1)!}{|F|!} (f(S \cup \{i\}) - f(S)) $$

where F is the set of all features and f is the model output.

Case Study: Self-Evacuating Drone Swarms

In a 2023 trial at the Sudbury Basin mine, autonomous drones using decentralized control algorithms (based on Voronoi tessellation) reduced evacuation time during simulated fires by 37%. The swarm's collision-free navigation obeyed:

$$ \frac{dx_i}{dt} = -\nabla_i \sum_{j \neq i} \phi(\|x_i - x_j\|) $$

where ϕ is a repulsive potential function ensuring minimal inter-drone distance.

The Path to Fully Autonomous Safety Systems – AI for Mining Safety Hazard Detection – Tutorial Diagram
Diagram Description: The section describes multi-sensor fusion with Kalman Filters and decentralized drone swarm navigation, which inherently involve spatial relationships and dynamic interactions.

6.3 Collaborative AI-Human Safety Frameworks

Collaborative AI-human safety frameworks integrate machine learning models with human expertise to enhance hazard detection reliability in mining environments. These systems leverage human-in-the-loop (HITL) architectures, where AI predictions are validated or corrected by human operators, reducing false positives and improving decision-making under uncertainty.

Architecture of Hybrid AI-Human Systems

The core components of a collaborative framework include:

$$ P(\text{Hazard}|D) = \frac{P(D|\text{Hazard})P(\text{Hazard})}{P(D)} $$

Where D represents sensor data, and the posterior probability is recalculated when human feedback contradicts the AI's initial classification.

Adaptive Learning from Human Feedback

The system continuously improves through:

$$ \theta_{t+1} = \theta_t - \eta \nabla_\theta \mathcal{L}(f_\theta(x_h), y_h) $$

Where (xₕ, yₕ) are human-corrected training pairs, and η is a conservative learning rate to prevent catastrophic forgetting.

Case Study: Underground Coal Mine Monitoring

A 2023 deployment in Queensland achieved 92% hazard detection accuracy (up from 78% with AI-only) by:

Challenge: Latency in Critical Scenarios

For time-sensitive hazards (e.g., roof collapses), the framework implements:

$$ \text{RiskScore} = \frac{\text{PredictionConfidence} \times \text{HazardSeverity}}{\text{ReactionTimeWindow}} $$

Alerts with RiskScore > 0.7 trigger immediate automated safety protocols while simultaneously notifying human operators.

AI-Human Collaborative Safety Framework Architecture Block diagram showing data flow between AI modules and human operators in a mining safety hazard detection system, including confidence score routing and feedback loops. Sensor Input AI Detection Module Uncertainty Quantification Human Verification Confidence <85% Confidence ≥85% Model Retraining Human Correction Priority Queue
Diagram Description: The diagram would show the flow of data between AI modules and human operators in a HITL system, including confidence score routing and feedback loops.

7. Key Research Papers and Technical Reports

7.1 Key Research Papers and Technical Reports

7.2 Industry Standards and Best Practices

7.3 Recommended Learning Resources
