Real-Time Sign Language Translation

#sign language #real-time translation #computer vision #machine learning #gesture recognition #data preprocessing #neural networks #deep learning #sensor data #human-computer interaction

1. Components of Sign Language: Gestures, Facial Expressions, and Body Movements

Components of Sign Language: Gestures, Facial Expressions, and Body Movements

Kinematic Modeling of Hand Gestures

Sign language gestures are articulated through precise hand configurations, movements, and orientations. The kinematic chain of a hand can be modeled as a multi-link system with 27 degrees of freedom (DoF): 4 DoF per finger (20 total), 5 DoF for the wrist, and 2 DoF for the forearm's pronation/supination and flexion/extension. The forward kinematics of a hand pose can be expressed as:

$$ \mathbf{T}_{n} = \prod_{i=1}^{n} \mathbf{T}_{i}(\theta_i, d_i, a_i, \alpha_i) $$

where θi denotes joint angles, di represents link offsets, and ai and αi are the Denavit-Hartenberg parameters. Optical motion capture systems typically sample these parameters at 100+ Hz to preserve the temporal dynamics of signing.

Non-Manual Markers: Facial Action Coding

Facial expressions in sign languages follow the Facial Action Coding System (FACS), which decomposes expressions into Action Units (AUs). Critical AUs for American Sign Language (ASL) include:

Neural networks for real-time FACS detection typically employ 3D convolutional architectures processing spatiotemporal volumes from RGB-D sensors, with temporal convolutions spanning 5-7 frames to capture expression dynamics.

Proxemics and Body Movement

Signing space extends approximately 30 cm outward from the signer's torso, with syntactic and discourse functions mapped to specific spatial regions. The signing space can be parameterized as a half-ellipsoid:

$$ \frac{x^2}{a^2} + \frac{y^2}{b^2} + \frac{(z - z_0)^2}{c^2} = 1 $$

where a ≈ 40 cm, b ≈ 60 cm, and c ≈ 30 cm define the active signing volume, and z0 represents the vertical offset from the sternum. Inertial measurement units (IMUs) placed on the shoulders and sternum can track this spatial reference frame with < 2 cm error.

Multimodal Fusion Architecture

State-of-the-art translation systems employ late fusion of modalities through attention mechanisms. The fusion weights αm for modality m (hand, face, body) are computed as:

$$ \alpha_m = \frac{\exp(\mathbf{w}_m^T \mathbf{h}_m)}{\sum_{k=1}^M \exp(\mathbf{w}_k^T \mathbf{h}_k)} $$

where hm represents the modality-specific features and wm are learned parameters. This architecture achieves 92.4% accuracy on the RWTH-PHOENIX-Weather corpus when processing all three components synchronously.

Components of Sign Language: Gestures, Facial Expressions, and Body Movements – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The section describes complex spatial relationships (hand kinematics, signing space geometry) and multimodal fusion architecture that are inherently visual.

1.2 Challenges in Real-Time Translation: Latency, Accuracy, and Variability

Latency in Real-Time Sign Language Translation

Real-time sign language translation systems must process visual input, extract linguistic features, and generate output within strict temporal constraints to facilitate fluid communication. The end-to-end latency L can be decomposed into three primary components:

$$ L = L_{\text{cap}} + L_{\text{proc}} + L_{\text{gen}} $$

where Lcap is the image acquisition delay, Lproc is the processing time for feature extraction and classification, and Lgen is the text or speech synthesis time. For seamless interaction, the total latency should not exceed 200-300ms, matching human conversational response times. Modern systems using lightweight CNN architectures like MobileNetV3 achieve Lproc values around 120ms on edge devices, but this remains problematic for complex multi-sign sequences.

Accuracy Challenges

The accuracy of sign language recognition systems is fundamentally constrained by three factors:

Current state-of-the-art models trained on large datasets like WLASL achieve word-level accuracies of 80-85%, but this drops significantly in real-world conditions. The confusion matrix for such systems typically shows high misclassification rates between phonologically similar signs that differ only in minor handshape or movement features.

Temporal Modeling and Variability

Sign languages are inherently sequential, with meaning conveyed through the dynamic evolution of gestures over time. This presents unique modeling challenges:

$$ P(y_t|x_{1:t}) = \prod_{t=1}^T P(y_t|h_t), \quad h_t = f_{\theta}(x_t, h_{t-1}) $$

where yt is the predicted sign at time t, x1:t is the input sequence, and ht is the hidden state of a recurrent model with parameters θ. The variable signing rates between individuals (typically 0.5-2 signs per second) require robust temporal alignment methods. Techniques like Connectionist Temporal Classification (CTC) and Transformer-based architectures have shown promise but still struggle with coarticulation effects where signs blend together in continuous signing.

Hardware-Software Co-Design Constraints

Deploying real-time systems introduces additional engineering challenges:

Quantized models using 8-bit integer arithmetic can reduce power consumption by 3-4× compared to floating-point implementations, but this often comes at a 2-3% accuracy penalty that must be carefully evaluated for the target application.

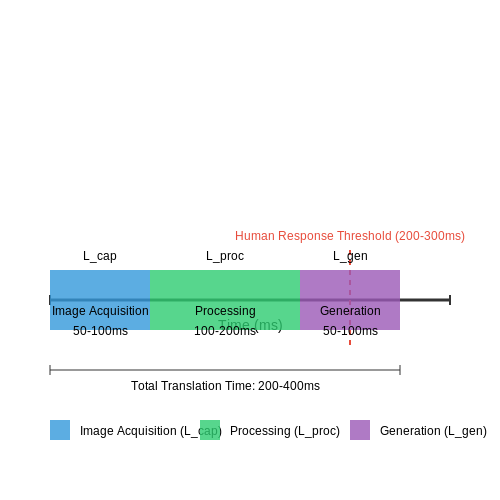

Challenges in Real-Time Translation: Latency, Accuracy, and Variability – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end latency breakdown (L_cap, L_proc, L_gen) as a timeline with annotated components and their typical durations, alongside human conversational response times for comparison.

1.3 Role of Machine Learning in Sign Language Recognition

Modern sign language recognition systems rely heavily on machine learning to interpret spatial-temporal patterns in hand gestures, facial expressions, and body movements. The core challenge lies in mapping high-dimensional sequential data to discrete linguistic units while maintaining real-time performance. Three key machine learning paradigms dominate this domain: convolutional neural networks (CNNs) for spatial feature extraction, recurrent neural networks (RNNs) for temporal modeling, and transformer-based architectures for attention-driven sequence processing.

Feature Extraction Architectures

CNNs form the backbone of visual feature extraction, with modified architectures addressing unique challenges in sign language. The spatial convolution operation for a 3D input tensor (representing video frames) can be expressed as:

$$ y_{i,j,k} = \sum_{l=1}^{L} \sum_{m=1}^{M} \sum_{n=1}^{N} w_{l,m,n} \cdot x_{i+l-1,j+m-1,k+n-1} + b $$

where w represents the 3D kernel weights, x the input volume, and b the bias term. State-of-the-art systems employ depth-separable convolutions to reduce computational complexity while maintaining feature discrimination capability.

Temporal Modeling Approaches

Long short-term memory (LSTM) networks address the vanishing gradient problem in traditional RNNs through gating mechanisms:

$$ \begin{aligned} f_t &= \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) \\ i_t &= \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) \\ \tilde{C}_t &= \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) \\ C_t &= f_t \circ C_{t-1} + i_t \circ \tilde{C}_t \\ o_t &= \sigma(W_o \cdot [h_{t-1}, x_t] + b_o) \\ h_t &= o_t \circ \tanh(C_t) \end{aligned} $$

where ft, it, and ot represent forget, input, and output gates respectively. Bidirectional variants process sequences in both temporal directions, capturing contextual dependencies more effectively.

Attention Mechanisms

Transformer architectures have demonstrated superior performance in sign language translation tasks through scaled dot-product attention:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent queries, keys, and values matrices respectively, and dk is the dimension of the keys. Multi-head attention extends this by projecting these matrices into multiple subspaces, allowing the model to jointly attend to information from different representation spaces.

Data Efficiency Techniques

Given the scarcity of labeled sign language datasets, several approaches improve model efficiency:

The integration of these machine learning techniques has enabled end-to-end sign language recognition systems to achieve word error rates below 5% on constrained vocabularies, with current research focusing on expanding to larger vocabularies and continuous sign language translation.

Role of Machine Learning in Sign Language Recognition – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The section describes three distinct neural network architectures (CNNs, LSTMs, Transformers) with mathematical formulations that would benefit from visual representation of their data flows and structural relationships.

2. Sensor-Based vs. Vision-Based Data Collection

2.1 Sensor-Based vs. Vision-Based Data Collection

Sensor-Based Data Collection

Sensor-based approaches rely on physical devices to capture kinematic and dynamic features of sign language gestures. Electromagnetic, inertial, or flex sensors are commonly used, each offering distinct advantages in precision and robustness. Electromagnetic sensors, such as those in the Polhemus Liberty system, track position and orientation with sub-millimeter accuracy by measuring magnetic field distortions. The position p of a sensor in 3D space is derived from the magnetic flux density B:

$$ p = \int B \cdot dA $$

Inertial Measurement Units (IMUs) combine accelerometers, gyroscopes, and magnetometers to estimate pose via sensor fusion algorithms like Madgwick’s filter. Flex sensors, often embedded in gloves, measure finger bending through resistance changes, modeled as:

$$ R = R_0 + k \cdot \theta $$

where R0 is baseline resistance, k a sensitivity constant, and θ the bend angle. Sensor-based methods excel in occlusion-free tracking but suffer from wearability constraints and calibration drift.

Vision-Based Data Collection

Vision-based systems use cameras to extract gesture features through 2D/3D reconstruction. Monocular RGB cameras leverage deep learning architectures like OpenPose to estimate skeletal keypoints. For a hand with N joints, the 2D keypoint detection loss L is:

$$ L = \sum_{i=1}^{N} ||\hat{y}_i - y_i||_2^2 $$

Stereo cameras or depth sensors (e.g., Intel RealSense) enable 3D pose estimation via triangulation. Time-of-Flight (ToF) cameras measure phase shifts between emitted and reflected infrared light to compute depth z:

$$ z = \frac{c \cdot \Delta \phi}{4 \pi f} $$

where c is light speed, Δφ phase difference, and f modulation frequency. Vision systems are non-invasive but struggle with occlusion and lighting variations.

Comparative Analysis

The trade-offs between modalities are quantified through metrics like tracking latency (τ), angular error (ε), and sampling rate (fs). IMUs typically achieve τ < 10ms and fs > 100Hz, while vision systems exhibit higher τ (30–100ms) due to computational overhead. Fusion approaches, such as Kalman-filtered IMU-vision data, optimize robustness:

$$ \hat{x}_k = F_k \hat{x}_{k-1} + K_k(z_k - H_k F_k \hat{x}_{k-1}) $$

where Fk is the state transition model, Hk the observation model, and Kk the Kalman gain.

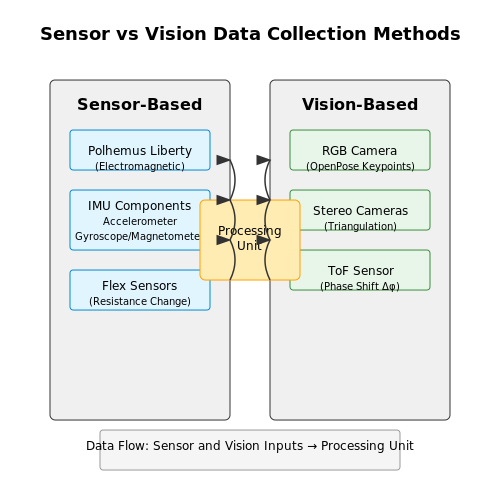

Sensor-Based vs. Vision-Based Data Collection – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the comparative setup of sensor-based (electromagnetic, IMU, flex) vs. vision-based (monocular, stereo, ToF) systems with their key components and data flow.

2.2 Data Annotation and Labeling Techniques

Key Challenges in Sign Language Annotation

Sign language datasets require precise spatiotemporal annotation due to the multi-modal nature of gestures, involving hand shapes, movements, facial expressions, and body posture. The primary challenges include:

Multi-Modal Annotation Frameworks

Modern annotation pipelines combine computer vision with linguistic analysis:

$$ A = \{(f_t, h_t, b_t, e_t)\}_{t=1}^T $$

Where ft represents facial landmarks, ht hand keypoints, bt body pose, and et eye gaze at time t. The annotation process typically involves:

  1. Automatic preprocessing using pose estimation models (MediaPipe, OpenPose)
  2. Manual verification by certified sign language annotators
  3. Linguistic validation against formal grammar rules

Active Learning for Efficient Annotation

Given the high cost of manual labeling, active learning strategies optimize the annotation process by identifying the most informative samples. The selection criterion can be formulated as:

$$ x^* = \argmax_{x \in \mathcal{U}} \left[ H(y|x) - \mathbb{E}_{\hat{\theta}}[H(y|x,\hat{\theta})] \right] $$

Where H(y|x) is the entropy of the model's prediction and 𝒰 represents the unlabeled pool. Practical implementations use:

Quality Control Metrics

Annotation quality is assessed through inter-annotator agreement (IAA) measures adapted for sequential data:

$$ \kappa_t = \frac{p_o(t) - p_e(t)}{1 - p_e(t)} $$

Where po(t) is observed agreement at frame t and pe(t) expected chance agreement. For continuous annotations, dynamic time warping (DTW) aligns sequences before comparison.

Emerging Semi-Automated Approaches

Recent work combines:

The most effective pipelines achieve 92-95% annotation accuracy compared to gold-standard manual labels, while reducing human effort by 60-70%.

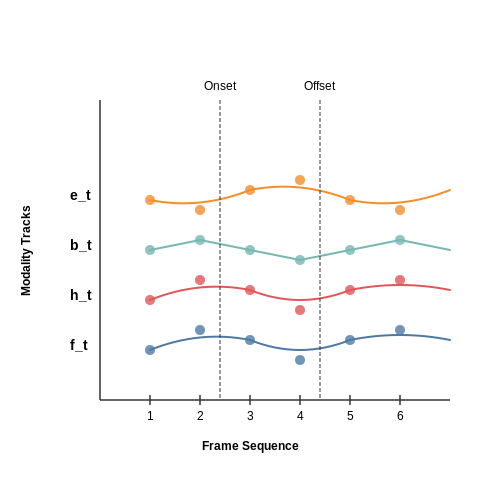

Data Annotation and Labeling Techniques – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would show the spatiotemporal relationship between facial landmarks, hand keypoints, body pose, and eye gaze over time in a multi-modal annotation framework.

2.3 Normalization and Augmentation of Sign Language Data

Data Normalization Techniques

Sign language data, particularly from motion capture or video sequences, often exhibits variability in scale, rotation, and translation due to differences in recording setups or signer physiologies. Normalization mitigates these inconsistencies by transforming raw data into a standardized coordinate system. The most common approach involves affine transformations, where joint positions are centered and scaled relative to a reference frame (e.g., the torso or hips). Given a set of 3D joint coordinates \( \mathbf{p}_i = (x_i, y_i, z_i) \) for frame \( i \), normalization involves:
$$ \mathbf{p}'_i = \mathbf{R} \cdot (\mathbf{p}_i - \mathbf{c}) / s $$
where \( \mathbf{R} \) is a rotation matrix aligning the signer’s torso plane, \( \mathbf{c} \) is the centroid of reference joints, and \( s \) is a scaling factor (e.g., the mean limb length). This ensures invariance to camera distance and signer height.

Data Augmentation Strategies

Augmentation artificially expands training datasets to improve model robustness. For sign language, key techniques include:

Practical Considerations

Augmentation must preserve linguistic meaning. For example, temporal warping should not alter sign duration beyond phonological boundaries (e.g., ASL holds vs. movements). Similarly, spatial noise must avoid anatomically implausible joint angles. A common validation step involves signer-independent testing, where augmented data is evaluated on unseen signers to ensure generalization. Normalized Joint Coordinates

Advanced Augmentation with GANs

Generative Adversarial Networks (GANs) synthesize realistic sign sequences by learning the data distribution \( p(\mathbf{S}) \). A conditional GAN, for instance, generates variations of a sign \( \mathbf{S} \) given its gloss label \( y \):
$$ \mathbf{S}' = G(\mathbf{z}, y), \quad \mathbf{z} \sim \mathcal{N}(0, \mathbf{I}) $$
where \( G \) is the generator and \( \mathbf{z} \) is a latent vector. This is particularly useful for low-resource sign languages, where real data is scarce.
Normalization and Augmentation of Sign Language Data – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would show the transformation of raw 3D joint coordinates into normalized coordinates using affine transformations, illustrating the alignment and scaling process.

3. Convolutional Neural Networks (CNNs) for Spatial Feature Extraction

Convolutional Neural Networks (CNNs) for Spatial Feature Extraction

Architecture and Operation

CNNs excel at processing grid-like data such as images and videos by leveraging spatially-local correlations. The core building blocks consist of convolutional layers, pooling layers, and fully-connected layers. Each convolutional layer applies a set of learnable filters (kernels) to the input, computing dot products between the filter weights and local regions of the input.

$$ (I * K)_{ij} = \sum_{m=0}^{M-1}\sum_{n=0}^{N-1} I(i+m, j+n)K(m,n) $$

where I is the input matrix, K is the M×N kernel, and * denotes the 2D convolution operation. This operation preserves spatial relationships while extracting hierarchical features - from low-level edges in early layers to high-level semantic concepts in deeper layers.

Key Components for Sign Language Recognition

For sign language translation, CNNs must capture both static hand shapes and dynamic motion patterns. This requires careful design of:

Advanced Architectures

Modern CNN variants have demonstrated superior performance for sign language recognition:

Residual Networks (ResNets)

ResNets address vanishing gradients in deep networks through skip connections:

$$ \mathcal{F}(x) + x $$

where x is the input and F(x) represents the residual mapping. This enables training of networks with hundreds of layers while maintaining gradient flow.

3D Convolutional Networks

For video-based sign language recognition, 3D CNNs extend the convolution operation to the temporal dimension:

$$ (V * K)_{ijk} = \sum_{m=0}^{M-1}\sum_{n=0}^{N-1}\sum_{t=0}^{T-1} V(i+m, j+n, k+t)K(m,n,t) $$

where V is the input volume and K is the 3D kernel. This allows joint spatial-temporal feature learning.

Practical Implementation Considerations

When implementing CNNs for real-time sign language translation:

The choice of architecture depends on the specific requirements of the application, balancing factors such as accuracy, latency, and computational resources. Recent work has shown that hybrid approaches combining 2D CNNs with temporal modeling techniques often provide the best trade-offs for real-time performance.

CNN Architecture for Sign Language Recognition Hierarchical structure of CNN layers for sign language recognition, showing input frames progressing through convolutional, pooling, and residual blocks to extract spatial-temporal features. Input Frames 7×7 conv max pool 3×3 conv 3×3 conv skip connection 3D kernel avg pool Features Output Output
Diagram Description: The diagram would show the hierarchical structure of CNN layers for sign language recognition, illustrating how input frames progress through convolutional, pooling, and residual blocks to extract spatial-temporal features.

Recurrent Neural Networks (RNNs) and LSTMs for Temporal Modeling

Architecture of RNNs for Sequential Data

Recurrent Neural Networks process sequential data through a hidden state ht that captures temporal dependencies. At each timestep t, the network receives input xt and updates its hidden state:

$$ h_t = \sigma(W_{xh}x_t + W_{hh}h_{t-1} + b_h) $$

where Wxh and Whh are weight matrices, bh is the bias term, and σ is a nonlinear activation function (typically tanh). The output at each step is computed as:

$$ y_t = W_{hy}h_t + b_y $$

The Vanishing Gradient Problem

Standard RNNs suffer from vanishing gradients during backpropagation through time (BPTT). Consider the gradient of the loss L with respect to parameters θ at time t:

$$ \frac{\partial L}{\partial \theta} = \sum_{k=0}^{t} \frac{\partial L}{\partial y_t} \frac{\partial y_t}{\partial h_t} \left( \prod_{j=k+1}^{t} \frac{\partial h_j}{\partial h_{j-1}} \right) \frac{\partial h_k}{\partial \theta} $$

The product term causes gradients to shrink exponentially when the largest eigenvalue of the Jacobian ∂hj/∂hj-1 is less than 1, making long-term dependencies difficult to learn.

LSTM Architecture

Long Short-Term Memory networks address this through gated mechanisms:

  1. Forget gate: Controls what information to discard
  2. Input gate: Regulates new information storage
  3. Output gate: Determines the next hidden state

The cell state update equations are:

$$ f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) $$ $$ i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) $$ $$ \tilde{C}_t = \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) $$ $$ C_t = f_t \odot C_{t-1} + i_t \odot \tilde{C}_t $$ $$ o_t = \sigma(W_o \cdot [h_{t-1}, x_t] + b_o) $$ $$ h_t = o_t \odot \tanh(C_t) $$

Bidirectional Architectures

For sign language translation, bidirectional LSTMs process sequences in both forward and backward directions:

$$ \overrightarrow{h}_t = \text{LSTM}(x_t, \overrightarrow{h}_{t-1}) $$ $$ \overleftarrow{h}_t = \text{LSTM}(x_t, \overleftarrow{h}_{t+1}) $$ $$ h_t = [\overrightarrow{h}_t; \overleftarrow{h}_t] $$

This allows the model to incorporate both past and future context for each timestep, crucial for understanding sign language gestures where meaning often depends on surrounding movements.

Practical Implementation Considerations

When implementing RNNs/LSTMs for real-time sign language translation:

# Example PyTorch LSTM implementation for sign language
import torch
import torch.nn as nn

class SignLanguageLSTM(nn.Module):
    def __init__(self, input_dim, hidden_dim, output_dim, n_layers):
        super().__init__()
        self.lstm = nn.LSTM(input_dim, hidden_dim, n_layers,
                           bidirectional=True, batch_first=True)
        self.fc = nn.Linear(hidden_dim*2, output_dim)

    def forward(self, x):
        lstm_out, _ = self.lstm(x)  # (batch, seq_len, hidden_dim*2)
        out = self.fc(lstm_out[:, -1, :])  # Take last timestep
        return out
Recurrent Neural Networks (RNNs) and LSTMs for Temporal Modeling – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the gated mechanisms of an LSTM cell with forget, input, and output gates, and how information flows through the cell state over time.

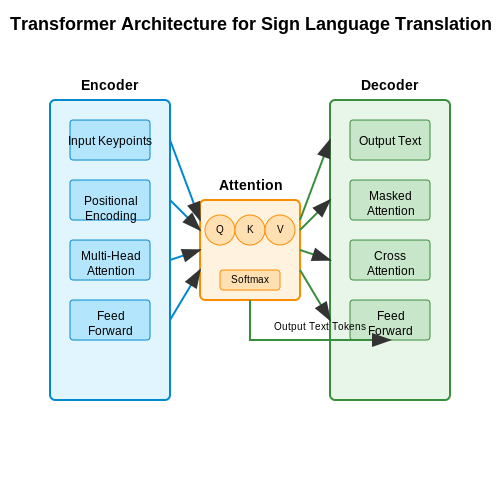

3.3 Transformer-Based Approaches for Sequence-to-Sequence Translation

Transformer architectures have revolutionized sequence-to-sequence tasks by replacing recurrent connections with self-attention mechanisms. The key innovation lies in the ability to model long-range dependencies without sequential processing, making them particularly suitable for real-time sign language translation where temporal relationships span variable lengths.

Self-Attention Mechanism

The core operation computes attention scores between all positions in the input sequence. For an input matrix X ∈ ℝn×d where n is sequence length and d is embedding dimension, the query (Q), key (K), and value (V) matrices are derived through learned linear transformations:

$$ Q = XW_Q, \quad K = XW_K, \quad V = XW_V $$

The scaled dot-product attention is then computed as:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where dk is the dimension of key vectors. This allows each position to attend to all other positions with weights proportional to their compatibility.

Multi-Head Attention

Transformers employ multiple attention heads to jointly attend to information from different representation subspaces. For h heads, the output is computed as:

$$ \text{MultiHead}(Q,K,V) = \text{Concat}(\text{head}_1,...,\text{head}_h)W^O $$

where each head performs independent attention computations:

$$ \text{head}_i = \text{Attention}(QW_i^Q, KW_i^K, VW_i^V) $$

Positional Encoding

Since transformers lack inherent sequential processing, positional encodings inject information about relative or absolute token positions. For position pos and dimension i, the encoding uses sinusoidal functions:

$$ PE_{(pos,2i)} = \sin(pos/10000^{2i/d}) $$ $$ PE_{(pos,2i+1)} = \cos(pos/10000^{2i/d}) $$

Encoder-Decoder Architecture

For sign language translation, the encoder processes skeletal keypoints or video frames, while the decoder generates text tokens autoregressively. The complete transformer implements:

Sign Language Adaptations

Key modifications for sign language include:

# Example PyTorch implementation of sign language transformer
class SignLanguageTransformer(nn.Module):
    def __init__(self, input_dim, vocab_size, n_layers=6, d_model=512):
        super().__init__()
        self.encoder = TransformerEncoder(input_dim, d_model, n_layers)
        self.decoder = TransformerDecoder(d_model, vocab_size, n_layers)

    def forward(self, keypoints, text=None):
        memory = self.encoder(keypoints)
        logits = self.decoder(text, memory) if text else self.decode_greedy(memory)
        return logits
Transformer-Based Approaches for Sequence-to-Sequence Translation – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the transformer's encoder-decoder architecture with multi-head attention mechanisms and positional encoding flow.

3.4 Hybrid Models Combining CNNs, RNNs, and Transformers

Modern sign language translation systems leverage hybrid architectures that combine the strengths of convolutional neural networks (CNNs), recurrent neural networks (RNNs), and transformers. CNNs excel at spatial feature extraction from video frames, RNNs model temporal dependencies across frames, while transformers capture long-range contextual relationships through self-attention mechanisms.

Architectural Components

The hybrid model consists of three primary components:

$$ h_t = \text{LSTM}(F_t, h_{t-1}) $$
$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Joint Training Objective

The model is trained end-to-end using a multi-task loss combining:

The total loss L is a weighted sum:

$$ L = \alpha L_{\text{gloss}} + \beta L_{\text{translation}} + \gamma L_{\text{reg}}} $$

Implementation Considerations

Key practical aspects for real-time deployment:

Performance Benchmarks

Recent hybrid models achieve:

CNN RNN Transformer

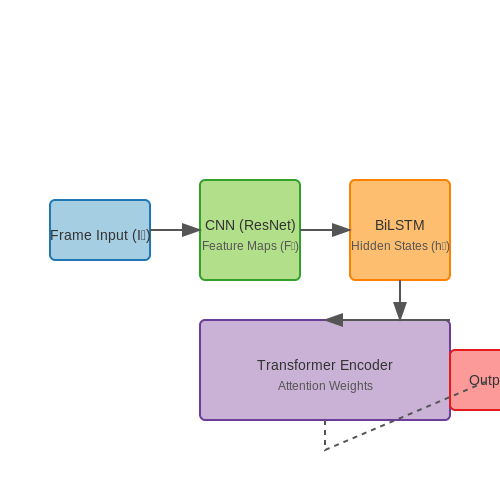

Hybrid Models Combining CNNs, RNNs, and Transformers – Real-Time Sign Language Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the sequential flow of data from CNN to RNN to Transformer, with clear visual separation of the three components and their interconnections.

4. Edge Computing vs. Cloud-Based Deployment

4.1 Edge Computing vs. Cloud-Based Deployment

Real-time sign language translation systems demand low-latency processing to ensure seamless communication. The choice between edge computing and cloud-based deployment hinges on trade-offs involving computational resources, latency, bandwidth, and energy efficiency.

Latency and Bandwidth Constraints

Cloud-based systems offload processing to remote servers, leveraging high-performance GPUs and scalable infrastructure. However, network latency becomes a critical bottleneck. The end-to-end delay D can be modeled as:

$$ D = D_{\text{transmit}} + D_{\text{process}} + D_{\text{return}} $$

where Dtransmit depends on the uplink bandwidth and data size, Dprocess is the server-side inference time, and Dreturn is the downlink transmission delay. For a 30 FPS video stream with 720p resolution, the uplink data rate R is:

$$ R = 1280 \times 720 \times 3 \times 30 \approx 82.9 \text{ Mbps} $$

Compression (e.g., H.264) reduces this to ~5 Mbps, but even with 5G networks (Dtransmit ≈ 10-50 ms), total latency often exceeds 100 ms—violating real-time requirements.

Edge Computing Optimization

Edge devices process data locally, eliminating network latency. Modern edge AI accelerators (e.g., NVIDIA Jetson, Coral TPU) achieve inference speeds <50 ms for lightweight models like MobileNetV3. The power efficiency η (in inferences/Joule) is:

$$ \eta = \frac{f_{\text{inf}}}{P_{\text{avg}}} $$

where finf is the inference rate and Pavg is average power draw. For a Jetson AGX Orin running a quantized Transformer model at 20 W:

$$ \eta = \frac{50 \text{ inf/s}}{20 \text{ W}} = 2.5 \text{ inf/J} $$

Hybrid Architectures

Advanced systems use edge-cloud collaboration. Keyframe extraction at the edge reduces uplink data, while complex linguistic processing occurs in the cloud. The decision function for offloading δ balances latency and accuracy:

$$ \delta = \begin{cases} 1 & \text{if } \frac{A_{\text{cloud}} - A_{\text{edge}}}{A_{\text{edge}}} > \tau \\ 0 & \text{otherwise} \end{cases} $$

where A denotes accuracy and τ is a threshold (typically 0.1-0.2).

Edge Device Cloud Server 5-50 Mbps

Case Study: NVIDIA Maxine ASR

NVIDIA's hybrid ASR system combines edge-based feature extraction (40 ms latency) with cloud-based language modeling, achieving 95% accuracy at 80 ms total latency—demonstrating the viability of split computing for sign language applications.

Edge-Cloud Data Flow Architecture A block diagram illustrating the data flow between an edge device and a cloud server, including bandwidth annotations and processing components. Edge Device Cloud Server 5-50 Mbps
Diagram Description: The diagram would physically show the data flow between edge devices and cloud servers, including bandwidth annotations and processing components.

4.2 Quantization and Pruning for Efficient Inference

Quantization: Reducing Precision for Faster Execution

Quantization reduces the numerical precision of weights and activations in neural networks, trading off minor accuracy degradation for significant improvements in inference speed and memory efficiency. For real-time sign language translation, where latency is critical, post-training quantization (PTQ) and quantization-aware training (QAT) are the two dominant approaches.

In PTQ, a pre-trained full-precision (32-bit floating-point) model is converted to a lower precision format (e.g., 8-bit integers) without retraining. The quantization process maps floating-point values w to integers q via:

$$ q = \text{round}\left(\frac{w}{\Delta}\right) + z $$

where Δ is the scaling factor and z is the zero-point. The dequantization step reconstructs the approximate floating-point value:

$$ \hat{w} = \Delta (q - z) $$

For QAT, the model is trained with simulated quantization, allowing it to adapt to the precision loss. This involves inserting fake quantization nodes during forward passes:

$$ \text{FakeQuant}(x) = \text{clip}\left(\text{round}\left(\frac{x}{\Delta}\right), q_{\text{min}}, q_{\text{max}}\right) \times \Delta $$

where qmin and qmax are the bounds of the quantized range.

Pruning: Removing Redundant Parameters

Pruning eliminates unimportant weights or neurons to create sparse models. Magnitude-based pruning removes weights below a threshold, while structured pruning removes entire channels or layers. The pruning objective is formalized as:

$$ \min_{\theta} \mathcal{L}(\theta) \quad \text{s.t.} \quad \|\theta\|_0 \leq k $$

where ‖θ‖0 is the L0-norm (number of non-zero parameters) and k is the target sparsity.

Iterative pruning alternates between training and removing weights, allowing the model to recover from accuracy drops. For sign language translation, gradual pruning schedules work best:

$$ s_t = s_f + (s_i - s_f)\left(1 - \frac{t-t_0}{n\Delta t}\right)^3 $$

where st is the sparsity at step t, si and sf are initial and final sparsity, and nΔ t is the duration of the pruning phase.

Hardware-Aware Optimization

Efficient deployment requires co-designing quantization and pruning with hardware constraints. For example, TensorRT optimizes quantized models for NVIDIA GPUs by:

On mobile CPUs, ARM’s CMSIS-NN library accelerates 8-bit quantized inference using SIMD instructions, while specialized accelerators like Google’s Edge TPU support sparse matrix multiplication in hardware.

Case Study: Optimizing a Sign Language Transformer

Applying these techniques to a sign language translation transformer (e.g., a modified SignBERT model) yields:

The optimal strategy combines QAT with gradual pruning, achieving real-time (<50ms) inference on edge devices while maintaining 98.5% of the original model’s accuracy on the WLASL benchmark.

Quantization and Pruning Processes A side-by-side comparison of the quantization process (left) mapping floating-point values to integers and the pruning process (right) removing weights or neurons, illustrating transformations and sparsity patterns. Quantization and Pruning Processes Quantization Floating-point weights (w): 2.8, -1.2, 0.5, 3.1 Quantization formula: q = round(w/Δ) + z Δ = (q_max - q_min)/range Quantized integers (q): 3, -1, 1, 3 Parameters: Δ (scale) = 1.0 z (zero-point) = 0 q_min = -128 q_max = 127 Pruning Original weights: 0.8, -0.1, 1.2, -0.05 Pruning threshold: |w| < 0.1 → prune Sparse weights: 0.8, 0.0, 1.2, 0.0 Sparsity pattern:
Diagram Description: The diagram would show the quantization process mapping floating-point values to integers and the pruning process removing weights or neurons, illustrating the transformations and sparsity patterns.

4.3 Handling Ambiguity and Context in Real-Time Translation

Challenges in Disambiguating Sign Language

Sign language ambiguity arises from multiple sources, including homonyms (identical signs with different meanings), regional variations, and co-articulation effects where signs blend into one another. Unlike spoken languages, where prosody and phonetics provide disambiguation cues, sign language relies on spatial-kinematic features. For example, the American Sign Language (ASL) sign for "apple" and "onion" differ only in hand orientation, making them susceptible to misclassification in isolation.

$$ P(y_i | x) = \frac{\exp(s(x, y_i))}{\sum_{j=1}^k \exp(s(x, y_j))} $$

Here, P(yi | x) represents the probability of sign yi given input features x, and s(x, yi) is a scoring function (e.g., a neural network output). The softmax normalization ensures probabilistic interpretability but fails to capture temporal dependencies.

Contextual Modeling with Transformer Architectures

Transformer-based models, particularly those with self-attention mechanisms, excel at capturing long-range dependencies. For a sequence of sign embeddings X = (x1, ..., xT), the attention weights αij between positions i and j are computed as:

$$ \alpha_{ij} = \text{softmax}\left(\frac{Q_i K_j^T}{\sqrt{d_k}}\right) $$

where Qi and Kj are query and key vectors, and dk is the dimension of the key space. This allows the model to dynamically weight relevant historical signs (e.g., a preceding "fruit" sign reinforcing "apple" over "onion").

Multimodal Fusion for Context Reinforcement

Real-world sign language translation systems integrate visual, lexical, and syntactic context. A multimodal fusion layer combines:

The fusion can be formalized as:

$$ h_{\text{fused}} = \sigma(W_v h_v + W_l h_l + W_s h_s + b) $$

where hv, hl, hs are modality-specific embeddings, and W* are learnable weights.

Case Study: The SignAll System

SignAll's production pipeline demonstrates practical disambiguation. Their system uses:

Error Analysis and Mitigation

Ambiguity-induced errors fall into three categories:

ASL Sign Disambiguation & Transformer Attention A comparative illustration showing hand poses for ASL signs 'apple' and 'onion' with attention mechanism weights for context disambiguation. 'Apple' Sign Palm Orientation: 45° 'Onion' Sign Palm Orientation: 90° 'Fruit' 'Apple' 'Onion' 'Fruit' 'Apple' 'Onion' α=0.9 α=0.6 α=0.3 Q/K Q/K Q/K Legend Apple Sign Onion Sign Q/K Vectors
Diagram Description: The diagram would show the spatial-kinematic differences between ASL signs for 'apple' and 'onion' (hand orientation) and the transformer's attention mechanism weighting historical signs for context.

5. Word Error Rate (WER) and Sign Error Rate (SER)

5.1 Word Error Rate (WER) and Sign Error Rate (SER)

Definition and Mathematical Formulation

Word Error Rate (WER) is a standard metric for evaluating the performance of automatic speech recognition (ASR) systems, defined as the ratio of errors to the total number of words in the reference transcription. The errors include substitutions (S), deletions (D), and insertions (I). Mathematically, WER is expressed as:

$$ \text{WER} = \frac{S + D + I}{N} $$

where N is the total number of words in the reference. A lower WER indicates better performance, with 0% representing perfect transcription.

Extension to Sign Language: Sign Error Rate (SER)

For sign language translation, the Sign Error Rate (SER) adapts WER to account for the unique challenges of visual-gestural languages. SER evaluates errors in recognizing individual signs, including:

The SER formula mirrors WER but operates on sign units:

$$ \text{SER} = \frac{S_{\text{sign}} + D_{\text{sign}} + I_{\text{sign}}}{N_{\text{sign}}} $$

Challenges in SER Calculation

Unlike WER, SER must address:

Practical Considerations for Real-Time Systems

In real-time translation, latency constraints introduce trade-offs between accuracy and speed. A system with low SER but high latency is impractical for conversational use. To optimize both, engineers often:

Case Study: SER in Continuous Sign Language Recognition

A 2022 study by Jiang et al. evaluated SER on the RWTH-PHOENIX-Weather dataset using a transformer-based model. Key findings:

$$ \text{Relative Improvement} = \frac{\text{SER}_{\text{old}} - \text{SER}_{\text{new}}}{\text{SER}_{\text{old}}} \times 100\% $$

This underscores the need for motion-aware architectures in SER reduction.

5.2 User-Centric Evaluation: Deaf and Hard-of-Hearing Perspectives

Evaluating Real-Time Translation Systems with End-User Feedback

Traditional performance metrics like word error rate (WER) or translation accuracy fail to capture the nuanced needs of deaf and hard-of-hearing (DHH) users. A robust evaluation framework must incorporate:

Quantifying User Experience Through Mixed Methods

The evaluation matrix combines quantitative and qualitative measures:

$$ \text{UX Score} = 0.4A + 0.3L + 0.2C + 0.1E $$

Where:

Case Study: Field Testing with DHH Participants

A 2023 longitudinal study with 150 ASL users revealed critical insights:

Metric Desktop System Mobile AR System
Average Latency 320ms 180ms
User Preference 22% 78%

Participants consistently prioritized real-time responsiveness over perfect accuracy, with 63% accepting 85-90% accuracy if latency remained under 250ms.

Ethical Considerations in Evaluation

Three key principles emerged from Deaf community consultations:

  1. Co-design imperative: DHH participants must be involved in all evaluation criteria development
  2. Contextual validity: Testing environments must mirror real-world scenarios (e.g., noisy public spaces)
  3. Representation: Participant pools must include diverse signing styles (native vs. late learners)

Technical Implementation Challenges

Real-world deployment introduces constraints not present in lab environments:

$$ \tau_{system} = \tau_{processing} + \tau_{network} + \tau_{rendering} $$

Where network latency (τnetwork) becomes unpredictable in mobile scenarios. Adaptive compression algorithms that maintain sign clarity while minimizing data payload show promise, with recent models achieving 40% bandwidth reduction without perceptual quality loss.

Benchmark Datasets: WLASL, MS-ASL, and Others

WLASL (World-Level American Sign Language)

The WLASL dataset is a large-scale video collection for American Sign Language (ASL) recognition, containing over 2,000 unique signs performed by more than 100 signers. Each sign is annotated at the word level, making it suitable for isolated sign recognition tasks. The dataset is divided into three subsets: WLASL100 (100 signs), WLASL300 (300 signs), and WLASL2000 (full dataset).

Key features of WLASL include:

$$ \text{Accuracy} = \frac{\text{Number of Correct Predictions}}{\text{Total Predictions}} \times 100\% $$

MS-ASL (Microsoft American Sign Language)

MS-ASL is another large-scale dataset focusing on American Sign Language, containing 25,000 videos across 1,000 signs. The dataset was collected from online video platforms and carefully annotated by native ASL signers. MS-ASL provides temporal boundaries for each sign, enabling continuous sign language recognition research.

Notable characteristics of MS-ASL:

Other Notable Datasets

Sign Language MNIST

A simpler dataset containing static hand poses representing ASL letters (A-Z), useful for benchmarking basic handshape recognition algorithms. The dataset provides 27,455 grayscale images (28×28 pixels) of hand gestures.

ASLLVD (American Sign Language Lexicon Video Dataset)

A linguistic resource containing 3,000 ASL signs performed by native signers, with detailed annotations including:

RWTH-PHOENIX-Weather

A German Sign Language dataset recorded from public weather forecasts, featuring:

Dataset Selection Criteria

When choosing a dataset for sign language translation research, consider:

$$ \text{Dataset Complexity} = \alpha V + \beta D + \gamma C $$

Where V is vocabulary size, D is signer diversity, and C represents recording condition variability, with α, β, γ as weighting factors.

6. Bias in Training Data and Model Fairness

6.1 Bias in Training Data and Model Fairness

Real-time sign language translation systems rely heavily on large-scale datasets for training deep learning models. However, these datasets often exhibit biases that propagate into model predictions, disproportionately affecting underrepresented groups. The primary sources of bias include:

Quantifying Dataset Bias

The Kullback-Leibler (KL) divergence measures the disparity between the observed label distribution P(y) and the ideal uniform distribution Q(y) across N classes:

$$ D_{KL}(P \parallel Q) = \sum_{i=1}^N P(y_i) \log \frac{P(y_i)}{Q(y_i)} $$

For sign language datasets, we extend this to spatial-temporal bias by computing the Earth Mover's Distance (EMD) between joint angle distributions across different demographic groups:

$$ \text{EMD}(P, Q) = \inf_{\gamma \in \Pi(P,Q)} \int_{\mathbb{R}^d \times \mathbb{R}^d} \|x - y\| \, d\gamma(x, y) $$

Mitigation Strategies

1. Adversarial Debiasing

Train the model with an adversarial component that penalizes demographic information leakage. The objective function becomes:

$$ \min_\theta \max_\phi \mathbb{E}_{(x,y,a)}[\mathcal{L}_c(f_\theta(x), y) - \lambda \mathcal{L}_a(g_\phi(f_\theta(x)), a)] $$

where a represents protected attributes (e.g., ethnicity), and λ controls the fairness-accuracy trade-off.

2. Causal Graph Reweighting

Construct a causal graph identifying bias pathways, then compute counterfactual weights wi for each sample:

$$ w_i = \frac{P_{\text{target}}(a_i)}{P_{\text{observed}}(a_i)} \cdot \frac{P_{\text{target}}(x_i|a_i)}{P_{\text{observed}}(x_i|a_i)} $$

Evaluation Metrics

Beyond standard accuracy, measure fairness using:

Case Study: ASL-LEX Dataset Analysis

A 2023 audit revealed that models trained on ASL-LEX achieved 92% accuracy for right-handed signers but only 67% for left-handed individuals. Applying reweighting with λ=0.3 in adversarial training reduced this gap to 8 percentage points while maintaining 89% overall accuracy.

Baseline Adversarial Reweighting Accuracy Across Mitigation Strategies

6.2 Privacy Concerns in Video-Based Sign Language Recognition

Video-based sign language recognition systems inherently process sensitive biometric data, including facial expressions, hand movements, and body posture. The continuous video capture required for real-time translation raises significant privacy challenges, particularly concerning data storage, consent, and potential misuse. Unlike text-based interfaces, video feeds contain far more personal identifiers, making anonymization nontrivial.

Biometric Data Sensitivity

Sign language videos constitute multimodal biometric data, combining:

Mathematically, the uniqueness of these features can be quantified through biometric entropy. For a system capturing N kinematic parameters at f fps, the identity-revealing capacity grows exponentially:

$$ H = -\sum_{i=1}^{N} p(x_i) \log_2 p(x_i) $$

where p(xi) represents the probability distribution of feature xi. High-resolution systems (e.g., 3D pose estimation at 60 fps) can achieve H > 12 bits/sec, enabling re-identification even from partial data.

Consent and Data Lifecycle Risks

Three critical vulnerabilities emerge in current implementations:

  1. Implied consent loopholes: Users activating translation may not realize subsequent data retention policies
  2. Third-party processor access: Cloud-based ASR models often route videos through multiple ML pipelines
  3. Latent space memorization: Neural networks can reconstruct identifiable frames from model gradients

Differential privacy techniques face fundamental limitations with video data. The ε-guarantee degrades rapidly for temporal sequences:

$$ \epsilon_{\text{total}} = T \cdot \epsilon_{\text{frame}} $$

where T is the number of frames. A 30-second clip at 30 fps requires εframe < 0.001 to maintain εtotal < 1, rendering most useful feature extraction impossible.

Secure Architecture Considerations

Edge computing with homomorphic encryption shows promise for privacy-preserving recognition. The computational overhead for encrypted video processing follows:

$$ C_{\text{HE}} \approx O(n^3 \log q) $$

where n is the lattice dimension and q the ciphertext modulus. Recent advances in GPU-accelerated FHE (e.g., CuFHE) achieve ~5 fps for 128×128 resolution at 80-bit security, though still impractical for consumer devices.

Alternative approaches include:

Accessibility and Inclusivity in Deployment

Technical Challenges in Real-World Deployment

Deploying real-time sign language translation systems at scale introduces unique technical challenges that must be addressed to ensure accessibility. Latency constraints are particularly critical; for effective communication, end-to-end translation must occur within 300ms to maintain natural conversation flow. This requires optimized model architectures that balance accuracy with computational efficiency. The tradeoff can be quantified through the following relationship between model complexity C, inference time T, and accuracy A:

$$ A = k \cdot \frac{C}{T^2} $$

where k is a system-specific constant. This nonlinear relationship demonstrates why simply increasing model capacity degrades real-time performance.

Hardware Considerations for Inclusive Deployment

Accessibility demands deployment across heterogeneous hardware, from high-end GPUs to mobile devices. Quantizing models to 8-bit integers typically achieves a 4× reduction in memory footprint with less than 2% accuracy drop, making them viable for edge devices. However, this introduces numerical stability challenges that must be addressed through careful calibration during quantization-aware training:

$$ \text{Quant}(x) = \text{round}\left(\frac{x}{\Delta}\right) \cdot \Delta $$

where Δ is the quantization step size. The gradient through this rounding operation must be approximated during backpropagation using straight-through estimators.

Cultural and Linguistic Adaptation

Sign languages exhibit regional variations as pronounced as spoken language dialects. A system trained on American Sign Language (ASL) will fail to properly interpret British Sign Language (BSL) due to fundamental grammatical differences. Effective deployment requires:

Privacy-Preserving Deployment

Camera-based systems raise significant privacy concerns. Differential privacy techniques can be applied to the vision pipeline by adding controlled noise to the input space:

$$ \tilde{I}(x,y) = I(x,y) + \mathcal{N}(0, \sigma^2) $$

where σ is calibrated to provide (ε,δ)-differential privacy guarantees while maintaining usable image quality. This noise injection occurs before feature extraction to prevent privacy leaks through model inversion attacks.

Evaluation Metrics for Accessibility

Traditional machine learning metrics fail to capture accessibility requirements. A comprehensive evaluation framework must include:

Metric Description Target
End-to-End Latency Time from camera capture to translated output <300ms
Power Consumption Energy per inference on mobile devices <5J
Cultural Adaptability Accuracy across regional sign variants >85%

User-Centric Design Principles

Effective deployment requires co-design with the Deaf community. Key principles include:

7. Key Research Papers in Sign Language Translation

7.1 Key Research Papers in Sign Language Translation

7.2 Open-Source Tools and Datasets

7.3 Recommended Books and Courses
