One-Shot Architecture Search Using Embedding Spaces

#neural architecture search #one-shot learning #embedding spaces #deep learning #machine learning #optimization algorithms #neural networks #metric learning #dimensionality reduction

1. Motivation and Challenges in Neural Architecture Search

Motivation and Challenges in Neural Architecture Search

Neural Architecture Search (NAS) aims to automate the design of optimal neural network architectures, reducing the reliance on human expertise and trial-and-error. Traditional NAS methods, such as reinforcement learning-based or evolutionary approaches, require thousands of architecture evaluations, making them computationally prohibitive. For instance, Zoph & Le (2017) demonstrated that training a single architecture on CIFAR-10 could take up to 1800 GPU days, highlighting the inefficiency of exhaustive search strategies.

Computational Bottlenecks in NAS

The primary challenge in NAS lies in the combinatorial explosion of possible architectures. For a network with L layers and k candidate operations per layer, the search space grows as O(kL). Evaluating each candidate independently is infeasible for large-scale problems. One-shot NAS methods address this by training a single supernetwork that subsumes all possible architectures, enabling weight sharing and gradient-based optimization. However, this introduces new challenges:

Embedding-Based NAS: Key Motivations

Embedding spaces provide a structured representation of architectures, enabling efficient similarity comparisons and gradient-based search. The core idea is to learn a mapping f: A → ℝd, where A is the architecture space and d is the embedding dimension. This allows:

$$ \min_{ heta} \mathbb{E}_{a \sim p(a)} [\mathcal{L}(f_ heta(a), y_a)] $$

where ya is the validation accuracy of architecture a, and p(a) is a sampling distribution. By optimizing this objective, the embedding space captures performance-related features, enabling one-shot search via nearest-neighbor lookup or Bayesian optimization.

Practical Challenges

Despite its promise, embedding-based NAS faces several hurdles:

Recent work, such as BANANAS (White et al., 2021), tackles these issues by combining graph neural networks with Bayesian optimization, achieving state-of-the-art results with fewer than 100 architecture evaluations.

Motivation and Challenges in Neural Architecture Search – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the combinatorial explosion of architectures in NAS (O(k^L) growth) and the embedding space mapping (f: A → ℝ^d) with performance-correlated proximity.

Key Concepts: One-Shot Learning and Embedding Spaces

One-Shot Learning

One-shot learning refers to the ability of a model to recognize or classify new instances of a class from a single or very few examples. Traditional deep learning models require large labeled datasets, but one-shot learning aims to generalize from minimal data by leveraging prior knowledge. This is particularly useful in scenarios where data collection is expensive or impractical, such as medical imaging or rare object recognition.

The core challenge in one-shot learning is to develop a model that can extract meaningful features from a single example and compare it effectively to unseen instances. Metric-based approaches, such as Siamese networks and prototypical networks, learn a similarity function in an embedding space where inputs from the same class are closer together than those from different classes.

$$ d(x_i, x_j) = ||f(x_i) - f(x_j)||_2 $$

Here, f is an embedding function that maps inputs into a lower-dimensional space, and d measures the Euclidean distance between embeddings. The model is trained to minimize intra-class distances while maximizing inter-class distances.

Embedding Spaces

An embedding space is a lower-dimensional continuous vector space where high-dimensional data points are mapped such that semantically similar items are closer together. In the context of neural architecture search (NAS), embedding spaces enable efficient comparison of different architectures by representing them as fixed-length vectors.

Key properties of a well-constructed embedding space include:

Embedding spaces are typically learned using techniques like autoencoders or graph neural networks (GNNs), where architectures are treated as graphs of operations and connections. The embedding function f can be formulated as:

$$ f(G) = \sigma\left( \sum_{v \in V} h_v W + b \right) $$

where G is the computational graph of the architecture, V is the set of nodes (operations), h_v are node features, and W, b are learnable parameters.

One-Shot Architecture Search

One-shot NAS leverages a supernet—a large over-parameterized network that encompasses all possible candidate architectures. The supernet is trained once, and its weights are shared across all sub-architectures. The search process then reduces to evaluating sub-architectures by their performance in the embedding space derived from the supernet.

Key advantages include:

The performance predictor in embedding-based NAS can be modeled as a Gaussian process:

$$ P(y|f(G)) = \mathcal{N}(y; \mu(f(G)), \sigma^2(f(G))) $$

where y is the validation accuracy, and μ, σ² are mean and variance functions learned from sampled architectures.

Key Concepts: One-Shot Learning and Embedding Spaces – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram

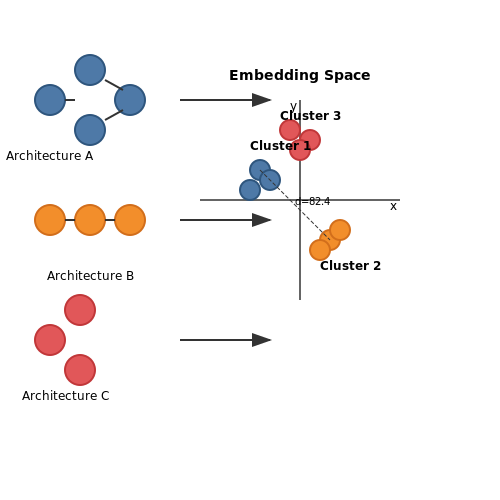

Diagram Description: The diagram would show how different neural architectures are mapped into an embedding space, illustrating the preservation of topology and smoothness properties.

Advantages of One-Shot Methods Over Traditional NAS

Traditional Neural Architecture Search (NAS) approaches suffer from prohibitive computational costs due to their iterative training and evaluation of candidate architectures. One-shot NAS methods address this by leveraging weight sharing across architectures within a supernet, enabling orders-of-magnitude faster search while maintaining competitive performance.

Computational Efficiency

The key advantage lies in amortizing the training cost across all possible architectures. Where traditional NAS requires training each candidate from scratch, one-shot methods train just once. The computational savings can be quantified as:

$$ C_{traditional} = N \times T_{train} $$ $$ C_{one-shot} = T_{supernet} + k \times T_{eval} $$

where N is the number of candidate architectures, Ttrain is individual training time, Tsupernet is supernet training time, and k is the number of architectures evaluated after supernet training. For N = 10,000 architectures, one-shot methods typically achieve 100-1000× speedup.

Improved Gradient-Based Optimization

One-shot methods enable differentiable architecture search through continuous relaxation of the discrete architecture space. This allows applying gradient descent to optimize both architecture parameters θ and model weights w jointly:

$$ \min_θ \min_w \mathcal{L}(w, θ) $$

The gradient ∂ℒ/∂θ provides direct signal for architecture improvement, unlike black-box optimization in traditional NAS. Techniques like DARTS further improve this by using second-order approximation for more stable optimization.

Better Architecture Space Exploration

Weight sharing in one-shot methods creates an embedding space where architectural similarities are preserved - similar architectures have similar performance. This enables:

Practical Deployment Advantages

For industrial applications, one-shot NAS provides crucial benefits:

Empirical results show one-shot methods match or exceed traditional NAS performance on benchmarks like NAS-Bench-201 while reducing search time from 200 GPU-days to under 1 GPU-day. The ENAS approach demonstrated this could be achieved with just 16 hours on a single GPU.

2. Defining Architecture Embeddings

2.1 Defining Architecture Embeddings

Architecture embeddings map neural network topologies into a continuous vector space, enabling efficient comparison and optimization. Given a neural architecture A, its embedding e(A) ∈ ℝd captures structural and operational characteristics through a fixed-length representation. This facilitates gradient-based optimization in the embedding space rather than discrete architecture sampling.

Mathematical Formulation

Let G(A) denote the computational graph of architecture A, comprising nodes (operations) and edges (data flow). The embedding function f: G → ℝd must satisfy:

$$ \|f(G_1) - f(G_2)\|_2 \propto \mathcal{D}(G_1, G_2) $$

where 𝒟 is a graph dissimilarity metric. Common approaches include:

Practical Implementation

For a convolutional neural network, the embedding might encode:

$$ e(A) = \phi(\text{concat}[ \text{op}_1, \text{op}_2, ..., \text{op}_k ]) $$

where opi represents learned vectors for layer types (e.g., 3×3 convolution, ReLU), and φ is a dimensionality reduction network. The following diagram illustrates the embedding process for a residual block:

Conv3x3 ReLU Embedding

Key Properties

Case Study: NASBench Embeddings

In NASBench-101, architectures are embedded via adjacency matrix flattening combined with one-hot operation encoding. This yields a 567-dimensional vector, which is then compressed to 32D using PCA. The resulting space exhibits smooth performance gradients, enabling efficient architecture interpolation.

Defining Architecture Embeddings – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would physically show the transformation of a residual block's computational graph into a continuous embedding vector, including layer operations and their connections.

2.2 Metric Learning for Architecture Similarity

Metric learning provides a principled framework for quantifying architectural similarity in neural architecture search (NAS). Given two neural network architectures A and B, we aim to learn a distance function d(A,B) that captures their functional and topological relationships in an embedding space. This distance metric should satisfy three key properties:

Architecture Representation

We first encode architectures into fixed-dimensional vectors using graph neural networks (GNNs). For an architecture represented as a directed acyclic graph G = (V,E) with nodes V (operations) and edges E (connections), we compute node embeddings through message passing:

$$ h_v^{(l+1)} = \sigma\left(\sum_{u\in\mathcal{N}(v)} W^{(l)} h_u^{(l)}\right) $$

where hv(l) is the embedding of node v at layer l, W(l) are learnable weights, and σ is a nonlinear activation. The graph-level embedding is obtained through a readout function:

$$ h_G = \text{READOUT}(\{h_v^{(L)} | v \in V\}) $$

Contrastive Metric Learning

We optimize the embedding space using a contrastive loss that pulls similar architectures together while pushing dissimilar ones apart. Given a batch of N architectures, we minimize:

$$ \mathcal{L} = \sum_{i=1}^N \sum_{j=1}^N y_{ij} d(h_{G_i}, h_{G_j})^2 + (1-y_{ij})[\max(0, m - d(h_{G_i}, h_{G_j}))]^2 $$

where yij indicates whether architectures i and j are similar (1) or dissimilar (0), and m is a margin hyperparameter controlling the separation of dissimilar pairs.

Practical Implementation

In practice, we implement this using a siamese network with weight sharing between the twin GNN encoders. The training procedure involves:

The resulting embedding space enables efficient nearest-neighbor search for one-shot NAS, where new architectures can be quickly evaluated by comparing them to previously seen ones in the learned metric space.

Advanced Variants

Recent improvements incorporate:

Metric Learning for Architecture Similarity – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram

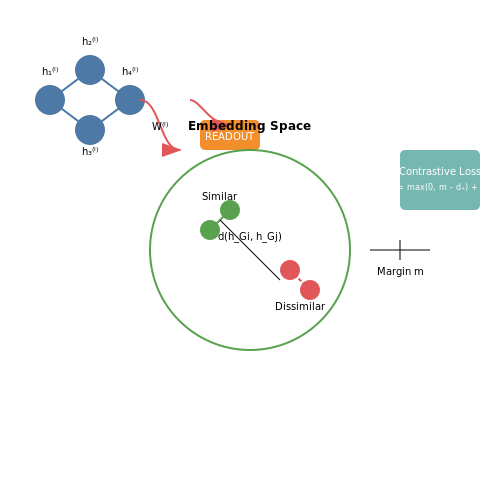

Diagram Description: The diagram would show the graph neural network's message passing process and the contrastive learning of architecture embeddings in a shared metric space.

3. ENAS: Efficient Neural Architecture Search

ENAS: Efficient Neural Architecture Search

Efficient Neural Architecture Search (ENAS) introduces a weight-sharing mechanism to drastically reduce the computational cost of neural architecture search (NAS). Unlike traditional NAS methods that train each candidate architecture from scratch, ENAS trains a single supernet where subgraphs represent different architectures. This allows gradients to be backpropagated through shared weights, enabling efficient exploration of the search space.

Controller and Shared Parameters

The ENAS framework consists of two components: a controller (typically an RNN) and the shared child model. The controller samples architectures by selecting operations (e.g., convolution, pooling) and connections between nodes in a directed acyclic graph (DAG). The child model's weights are shared across all sampled architectures, enabling rapid evaluation.

$$ \nabla_{\theta} \mathcal{L}(\theta) = \mathbb{E}_{a \sim \pi(a; \omega)} \left[ \nabla_{\theta} \mathcal{L}(\theta, a) \right] $$

Here, \(\theta\) represents the shared weights, \(\omega\) the controller parameters, and \(\pi(a; \omega)\) the policy for sampling architecture \(a\). The gradient is approximated via Monte Carlo sampling.

Reinforcement Learning Formulation

The controller is trained using reinforcement learning to maximize the expected reward \(R(a)\), typically the validation accuracy of the sampled architecture \(a\). The policy gradient update is:

$$ \nabla_{\omega} J(\omega) = \mathbb{E}_{a \sim \pi(a; \omega)} \left[ R(a) \nabla_{\omega} \log \pi(a; \omega) \right] $$

ENAS employs the REINFORCE algorithm with moving average baseline reduction to stabilize training. The search space includes:

Micro vs. Macro Search

ENAS can operate in two modes:

  1. Micro search: Designs repeating cell structures that are stacked to form the full network. The controller decides the operations and connections within a single cell.
  2. Macro search: Directly constructs the entire network architecture, including layer types and connectivity patterns.

Micro search is more computationally efficient and typically produces better-performing architectures due to its constrained search space. The discovered cells often resemble manually designed building blocks like residual connections or separable convolutions.

Performance and Limitations

ENAS achieves competitive performance on CIFAR-10 (test error ~2.89%) while using 1000x fewer GPU hours compared to traditional NAS methods. However, it faces challenges:

Recent extensions address these issues through techniques like differentiable architecture search (DARTS) and progressive shrinking (ProxylessNAS).

ENAS: Efficient Neural Architecture Search – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram

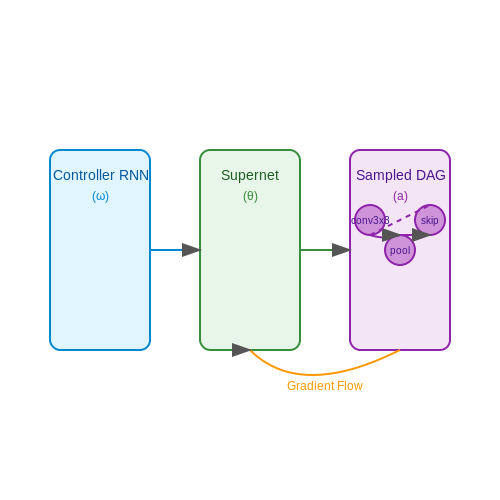

Diagram Description: The diagram would show the ENAS framework with the controller RNN sampling architectures from the shared child model supernet, illustrating the weight-sharing mechanism and DAG structure.

DARTS: Differentiable Architecture Search

DARTS (Differentiable Architecture Search) reformulates neural architecture search (NAS) as a continuous optimization problem, enabling gradient-based methods to efficiently discover high-performing architectures. Unlike traditional NAS approaches that rely on reinforcement learning or evolutionary algorithms, DARTS relaxes the discrete search space into a continuous one, allowing for end-to-end training via gradient descent.

Search Space Relaxation

The core innovation of DARTS lies in its formulation of architecture search as a bilevel optimization problem. Let O be a set of candidate operations (e.g., convolution, pooling, skip connection) that can be applied to transform a node in the computational graph. DARTS introduces architecture parameters α that represent the mixing weights for these operations:

$$ \bar{o}^{(i,j)}(x) = \sum_{o∈O} \frac{\exp(α_o^{(i,j)})}{\sum_{o'∈O} \exp(α_{o'}^{(i,j)})} o(x) $$

This softmax formulation converts the discrete choice of operations into a continuous, differentiable mixture. The search space typically consists of multiple cells that are stacked to form the final architecture, with each cell represented as a directed acyclic graph (DAG) of nodes and edges.

Bilevel Optimization

DARTS frames the architecture search as a bilevel optimization problem with two sets of parameters:

The optimization objective is:

$$ \min_α L_{val}(w^*(α), α) $$ $$ \text{s.t.} \quad w^*(α) = \arg\min_w L_{train}(w, α) $$

where Ltrain and Lval are the training and validation losses, respectively. This formulation ensures the architecture performs well on unseen validation data when the weights are optimized on training data.

Approximate Gradient Descent

Computing the exact gradient ∇αLval(w*(α), α) is computationally prohibitive. DARTS approximates this using:

$$ ∇_α L_{val}(w^*(α), α) ≈ ∇_α L_{val}(w - ξ∇_w L_{train}(w, α), α) $$

where ξ is the learning rate for a one-step forward approximation of w*(α). This approximation enables efficient gradient-based optimization of the architecture parameters.

Discretization

After continuous optimization converges, the final architecture is obtained by:

This discretization converts the continuous architecture representation back into a practical neural network.

Practical Considerations

DARTS implementations must address several practical challenges:

Recent variants address these limitations through techniques like partial channel connections, operation dropout, and second-order optimization approximations.

Performance Characteristics

DARTS achieves competitive performance with significantly reduced search time compared to reinforcement learning-based approaches:

DARTS: Differentiable Architecture Search – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the directed acyclic graph (DAG) structure of a DARTS cell with mixed operations on edges and nodes, illustrating how architecture parameters α blend operations.

ProxylessNAS and Weight Sharing Strategies

ProxylessNAS eliminates the need for proxy tasks or reduced search spaces by directly optimizing the target task's architecture. Unlike traditional NAS methods that rely on smaller datasets or shallower networks as proxies, ProxylessNAS evaluates architectures end-to-end on the full task, ensuring higher fidelity in the search process. The key innovation lies in its memory-efficient weight sharing mechanism, which enables gradient-based optimization of the architecture parameters.

Weight Sharing in Supernet Training

The supernet in ProxylessNAS encapsulates all candidate operations (e.g., convolutions, pooling, skip connections) as parallel paths in a directed acyclic graph (DAG). Each path is assigned a architecture parameter αi, learned via gradient descent. The output is a weighted sum of all paths:

$$ y = \sum_{i=1}^{N} \frac{\exp(\alpha_i)}{\sum_j \exp(\alpha_j)} \cdot f_i(x) $$

where fi(x) denotes the i-th operation's output. The gradient ∂ℒ/∂αi is computed using the Gumbel-Softmax trick to maintain differentiability:

$$ \nabla_{\alpha_i} \mathcal{L} \approx \sum_{k=1}^{K} \frac{\partial \mathcal{L}}{\partial f_k(x)} \cdot \frac{\partial f_k(x)}{\partial \alpha_i} $$

Path Binarization for Efficiency

To avoid the computational overhead of evaluating all paths during inference, ProxylessNAS employs path binarization:

The binarized output ŷ is computed as:

$$ \hat{y} = f_{k^*}(x), \quad k^* = \argmax_i \alpha_i $$

Hardware-Aware Latency Optimization

ProxylessNAS incorporates hardware metrics (e.g., FLOPs, latency) directly into the loss function. For a target latency Ttarget, the loss becomes:

$$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{task}} + \lambda \cdot \max(0, \mathbb{E}[T] - T_{\text{target}})^2 $$

where λ controls the trade-off between accuracy and speed. Latency is modeled as a lookup table of per-operation timings, enabling differentiable optimization.

Practical Implementation

The search space typically includes:

Training involves alternating between:

  1. Updating network weights via standard backpropagation.
  2. Updating architecture parameters α using proximal gradient methods to enforce sparsity.
ProxylessNAS and Weight Sharing Strategies – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the supernet's directed acyclic graph (DAG) structure with parallel paths for candidate operations, highlighting the weighted sum computation and path binarization process.

4. Supernet Training and Weight Sharing

4.1 Supernet Training and Weight Sharing

Supernet training is a foundational technique in one-shot neural architecture search (NAS), where a single over-parameterized network (the supernet) encompasses all possible candidate architectures within a predefined search space. The supernet is trained once, and its shared weights enable efficient evaluation of sub-networks without retraining.

Weight Sharing Mechanism

The supernet's weights are shared across all possible sub-networks (child models) through a masking mechanism. During training, only a subset of operations is activated per forward pass, determined by architectural parameters α. The gradient updates are applied exclusively to the active paths, while inactive paths remain frozen. Mathematically, the output y of a supernet layer can be expressed as:

$$ y = \sum_{i=1}^{N} m_i \cdot f_i(x, w_i) $$

where mi is a binary mask (1 if operation fi is active, 0 otherwise), x is the input, and wi are the weights of the i-th operation.

Optimization Strategy

The supernet is trained using bilevel optimization:

  1. Inner loop: Updates the network weights w via standard gradient descent on a minibatch of training data.
  2. Outer loop: Updates the architectural parameters α using validation data performance.

The joint optimization objective is:

$$ \min_{\alpha} \mathcal{L}_{val}(w^*(α), α) $$ $$ \text{s.t. } w^*(α) = \argmin_w \mathcal{L}_{train}(w, α) $$

Practical Implementation

Modern implementations use:

The training typically proceeds in phases:

  1. Warm-up phase: Train all operations equally
  2. Architecture search phase: Jointly optimize w and α
  3. Fine-tuning phase: Retrain the best discovered architecture

Challenges and Solutions

Key challenges in supernet training include:

# Simplified supernet forward pass example
def supernet_forward(x, alpha, operations):
    # alpha: architecture parameters
    # operations: list of candidate operations

    # Sample path using Gumbel-Softmax
    if self.training:
        m = F.gumbel_softmax(alpha, tau=1, hard=True)
    else:
        m = (alpha == alpha.max()).float()

    # Execute active operations
    output = 0
    for op, mi in zip(operations, m):
        output += mi * op(x)

    return output

The effectiveness of weight sharing has been empirically validated in multiple studies, showing strong correlation (0.8-0.9 Spearman rank correlation) between supernet-predicted and stand-alone trained model performance.

Supernet Training and Weight Sharing – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram

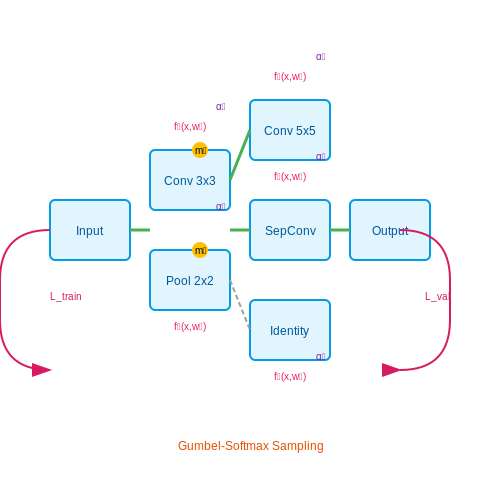

Diagram Description: The diagram would show the supernet architecture with shared weights, active/inactive paths via masking, and the bilevel optimization flow.

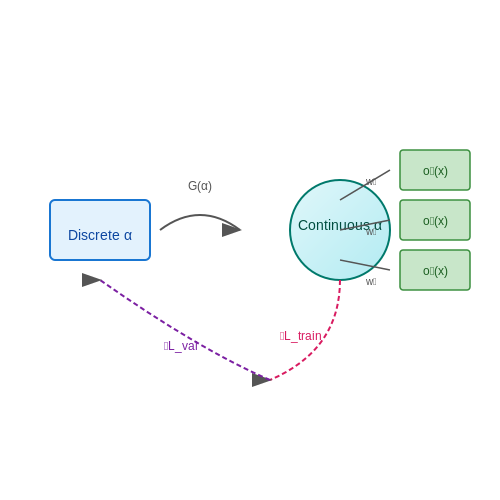

4.2 Gradient-Based Optimization in Embedding Space

Gradient-based optimization in embedding spaces enables efficient architecture search by leveraging continuous relaxations of discrete neural network structures. The key insight is to represent architectural decisions as differentiable operations in a continuous embedding space, allowing direct optimization via gradient descent rather than discrete search methods.

Continuous Relaxation of Architecture Parameters

Let α denote the architecture parameters in a discrete search space. We construct a continuous relaxation by introducing a softmax over possible operations at each network edge:

$$ \bar{o}_{i,j}(x) = \sum_{o \in \mathcal{O}} \frac{\exp(\alpha_{i,j}^o)}{\sum_{o' \in \mathcal{O}} \exp(\alpha_{i,j}^{o'})} \cdot o(x) $$

where o(x) represents the output of operation o applied to input x, and αi,jo parameterizes the weight of operation o between nodes i and j.

Bi-Level Optimization Formulation

The architecture search problem becomes a bi-level optimization task:

$$ \min_\alpha \mathcal{L}_{val}(w^*(α), α) $$ $$ \text{s.t.} \quad w^*(α) = \argmin_w \mathcal{L}_{train}(w, α) $$

where w represents network weights and α the architecture parameters. The outer optimization minimizes validation loss with respect to α, while the inner optimization trains network weights w on training data.

Efficient Gradient Computation

Using the chain rule, the gradient of validation loss with respect to architecture parameters becomes:

$$ \nabla_\alpha \mathcal{L}_{val}(w^*(α), α) \approx \nabla_\alpha \mathcal{L}_{val}(w - ξ\nabla_w \mathcal{L}_{train}(w, α), α) $$

where ξ is a learning rate hyperparameter. This approximation avoids expensive second-order derivatives while maintaining optimization stability.

Practical Implementation Considerations

The resulting architectures achieve competitive performance while reducing search costs by orders of magnitude compared to reinforcement learning or evolutionary approaches. Recent applications demonstrate search times under 1 GPU day on CIFAR-10 while discovering architectures that transfer well to ImageNet.

Embedding Space Geometry

The curvature of the embedding space plays a crucial role in optimization dynamics. The Riemannian metric tensor G(α) characterizes how gradient steps should be scaled in different directions:

$$ Δα = -G(α)^{-1}\nabla_α \mathcal{L} $$

where G(α) is typically approximated using the Fisher information matrix or its diagonal for computational efficiency.

Gradient-Based Optimization in Embedding Space – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the bi-level optimization flow and the continuous relaxation of architecture parameters in the embedding space, illustrating how operations are weighted and combined.

4.3 Handling Multi-Objective Optimization

Multi-objective optimization in neural architecture search (NAS) requires balancing competing objectives such as model accuracy, latency, memory footprint, and energy consumption. Traditional approaches scalarize these objectives into a single weighted sum, but this often leads to suboptimal trade-offs. Instead, Pareto-optimal solutions can be identified by treating the problem as a vector optimization task in the embedding space.

Pareto Optimality in Architecture Search

Given k objectives f1, f2, ..., fk, a candidate architecture a dominates another architecture b if:

$$ \forall i \in \{1, ..., k\}: f_i(a) \leq f_i(b) \quad \text{and} \quad \exists j: f_j(a) < f_j(b) $$

The Pareto front comprises all non-dominated solutions, representing optimal trade-offs between objectives. In embedding-based NAS, we project architectures into a latent space where distances correlate with performance metrics.

Multi-Objective Acquisition Functions

Extensions to Bayesian optimization handle multiple objectives through acquisition functions like:

The hypervolume indicator HV for a solution set A with reference point r is:

$$ HV(A, r) = \text{Vol}\left(\bigcup_{a \in A} \{x \in \mathbb{R}^k | a \preceq x \preceq r\}\right) $$

Embedding Space Formulation

Let E: A → ℝd be an embedding function mapping architectures to a latent space. The multi-objective loss becomes:

$$ \mathcal{L}(\theta) = \sum_{i=1}^k w_i \cdot \ell_i(E_\theta(a)) + \lambda \cdot \text{sim}(E_\theta(a), E_\theta(a')) $$

where wi are adaptive weights, ℓi are objective-specific losses, and the similarity term preserves relationships in the embedding space.

Adaptive Weight Strategies

Effective approaches for dynamic weight adjustment include:

Recent work has shown that modeling the Pareto front as a manifold in the embedding space enables efficient navigation of trade-offs. The following diagram illustrates this concept:

Accuracy Latency Pareto Front in Embedding Space

Practical Implementation

For efficient computation, we use:

$$ \nabla_\theta \mathcal{L} = \mathbb{E}_{w \sim p(w)} \left[\nabla_\theta \sum_{i=1}^k w_i \ell_i(E_\theta(a))\right] $$

where p(w) is a distribution over weight vectors. The expectation can be approximated via Monte Carlo sampling during training.

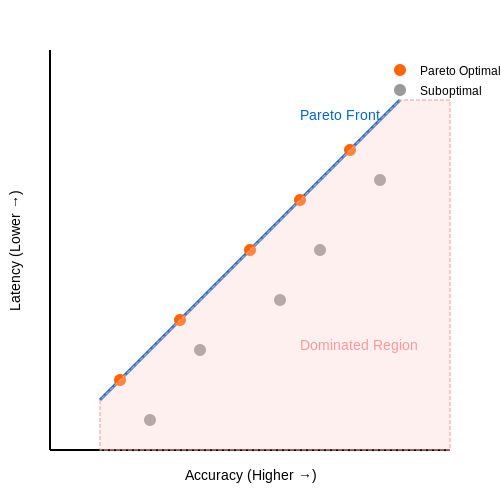

Handling Multi-Objective Optimization – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The section discusses Pareto optimality and embedding space projections, which are inherently spatial concepts best visualized with a diagram.

5. Computer Vision Architectures (CNNs)

5.1 Computer Vision Architectures (CNNs)

Convolutional Neural Networks (CNNs) serve as the backbone for modern computer vision tasks, and their architectural design significantly impacts performance. One-shot architecture search methods leverage embedding spaces to efficiently explore optimal CNN configurations without exhaustive training. The core idea involves encoding architectural components—such as layer types, kernel sizes, and connectivity patterns—into a continuous vector space where proximity reflects functional similarity.

Architecture Encoding in Embedding Spaces

Given a CNN architecture A, we represent it as a high-dimensional vector vA ∈ ℝd using an embedding function fθ. This function maps discrete architectural choices (e.g., number of layers, filter dimensions) to a continuous space where differentiable optimization becomes feasible. The embedding is trained such that:

$$ \text{sim}(f_θ(A_i), f_θ(A_j)) \propto \text{performance}(A_i, A_j) $$

where sim is a similarity metric (e.g., cosine similarity) and performance measures validation accuracy or task-specific metrics. The embedding space allows gradient-based optimization to navigate architectures by interpolating or perturbing vectors.

Differentiable Search Over CNN Components

One-shot methods relax the discrete search space by formulating architecture selection as a continuous optimization problem. For a CNN, this involves:

$$ P(L_i) = \frac{\exp(\mathbf{w}^T \mathbf{v}_{L_i})}{\sum_j \exp(\mathbf{w}^T \mathbf{v}_{L_j})} $$

Efficiency via Weight Sharing

One-shot methods avoid training each candidate architecture from scratch by using a supernet—a single over-parameterized network that subsumes all possible architectures. During search, the supernet’s weights are shared across sampled architectures, and gradients update both the architectural embeddings (θ) and the supernet weights (W):

$$ \nabla_{θ,W} \mathbb{E}_{A∼p_θ}[\mathcal{L}(A, W)] $$

where pθ is the architecture distribution defined by the embeddings. This approach reduces search cost from O(N) to O(1) evaluations per architecture.

Case Study: Embedding Space for Residual Connections

In ResNet-style architectures, the embedding space captures the utility of residual connections across depths. Let vres(k) denote the embedding for a residual block at depth k. Empirical studies show that:

This geometric interpretation enables automated discovery of efficient skip connection patterns without manual heuristics.

Practical Considerations

When applying one-shot search to CNNs:

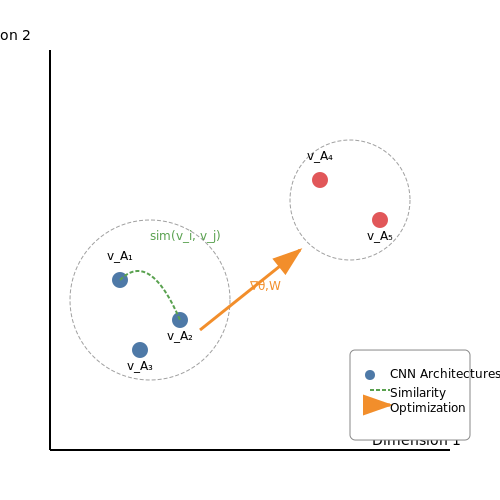

Computer Vision Architectures (CNNs) – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show how CNN architectures are encoded into a high-dimensional vector space, illustrating the proximity of similar architectures and the gradient-based optimization process.

5.2 NLP Architectitectures (Transformers)

Transformer architectures have become the de facto standard in NLP due to their ability to model long-range dependencies through self-attention mechanisms. In one-shot neural architecture search (NAS), the challenge lies in efficiently exploring the vast space of possible transformer variants while maintaining meaningful gradient signals for architecture optimization.

Architecture Encoding in Embedding Space

The key innovation in one-shot NAS for transformers is representing architectural decisions as continuous embeddings rather than discrete choices. Let θ denote the architectural parameters, which are mapped to an embedding space E via a differentiable encoding function fenc:

$$ E = f_{enc}(θ) $$

For transformer architectures, θ typically includes:

Differentiable Architecture Sampling

The search algorithm samples architectures by interpolating between discrete configurations in the embedding space. Given two candidate architectures A1 and A2 with embeddings E1 and E2, we can sample a new architecture through convex combination:

$$ E_{new} = αE_1 + (1-α)E_2 $$

where α is a learnable mixing parameter. The decoder network fdec then maps this continuous embedding back to concrete architectural parameters:

$$ θ_{new} = f_{dec}(E_{new}) $$

Attention Mechanism Search

The search space for attention mechanisms can be parameterized by decomposing the attention operation into learnable components. The standard scaled dot-product attention:

$$ Attention(Q,K,V) = softmax(\frac{QK^T}{\sqrt{d_k}})V $$

can be generalized to a continuous space of attention variants by introducing learnable parameters β that interpolate between different attention types:

$$ Attention_{NAS}(Q,K,V) = \sum_{i=1}^N β_i \cdot Attention_i(Q,K,V) $$

where Attentioni represents different attention variants (e.g., local, strided, or sparse patterns) and β forms a probability distribution over these options.

Practical Implementation Considerations

When applying one-shot NAS to transformers, several practical considerations emerge:

Recent work has shown that coupling the architecture embedding space with the token embedding space can lead to more efficient search, as the model can learn to align architectural decisions with semantic representations.

Case Study: Efficient Transformer Search

In the Evolved Transformer architecture, the search space included:

The one-shot search procedure discovered architectures that achieved comparable performance to standard transformers with 30-40% fewer parameters, demonstrating the effectiveness of embedding-based NAS for transformer design.

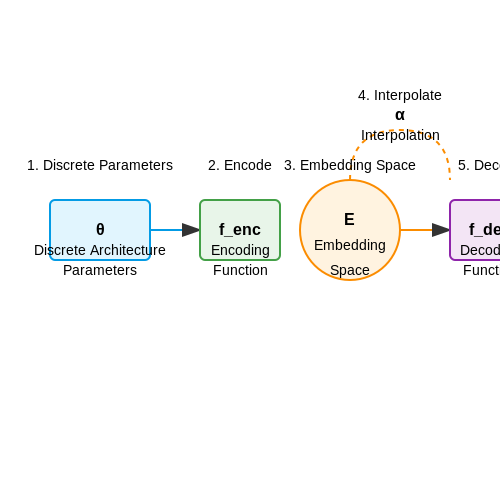

NLP Architectures (Transformers) – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the mapping between discrete architectural parameters and continuous embedding space, and how interpolation in the embedding space generates new architectures.

5.3 Edge Device Optimization

Computational Constraints and Latency-Aware Search

Edge devices impose strict constraints on model size, FLOPs, and memory bandwidth. The embedding space must encode these hardware-aware metrics during architecture search. Let the hardware cost function H(·) represent latency or energy consumption for a candidate architecture a. The joint optimization becomes:

$$ \min_{a \in \mathcal{A}} \mathcal{L}(a) + \lambda H(a) $$

where λ balances accuracy and hardware efficiency. For edge deployment, H(a) is often modeled via:

Quantization-Aware Embedding Spaces

The embedding space must preserve distance metrics under quantization. For 8-bit integer (INT8) deployment:

$$ \tilde{E}(a) = \text{round}\left(\frac{E(a) - \mu}{\sigma} \cdot 127\right) $$

where μ, σ are the mean and standard deviation of embeddings across the search space. This ensures architectural similarities remain discernible post-quantization.

Pruning the Search Space for Edge Targets

Effective edge optimization requires constrained search spaces with:

The embedding space dimensionality d scales with:

$$ d \propto \log(|\mathcal{A}_{\text{edge}}|) $$

where 𝒜edge is the pruned architecture set.

Case Study: MobileNetV3 Search

Google's hardware-aware NAS achieved 3.1× latency reduction on Pixel 3 by:

Cross-Platform Embedding Transfer

Embedding spaces can transfer across edge devices via affine transformations. For device X to Y:

$$ E_Y(a) = W_{X→Y}E_X(a) + b_{X→Y} $$

The transformation matrix W is learned from paired latency measurements on both devices.

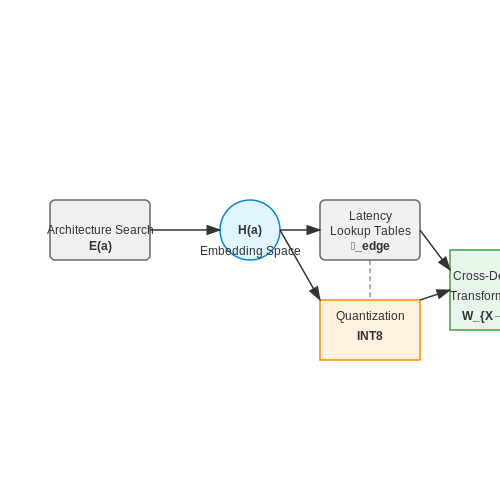

Edge Device Optimization – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the hardware-aware NAS optimization process with labeled components for latency predictors, quantization effects, and cross-platform embedding transfer.

6. Metrics for Architecture Performance

Metrics for Architecture Performance

Evaluating neural architecture search (NAS) candidates requires robust metrics that capture both predictive performance and computational efficiency. The choice of metrics directly impacts the quality of architectures discovered by one-shot NAS methods operating in embedding spaces.

Accuracy-Based Metrics

The most fundamental metric is validation accuracy on a held-out dataset. For classification tasks, this is typically measured as top-1 or top-5 accuracy:

$$ \text{Top-k Accuracy} = \frac{1}{N}\sum_{i=1}^N \mathbb{I}(y_i \in \{\hat{y}_{i,1}, ..., \hat{y}_{i,k}\}) $$

where yi is the true label, ŷi,j is the j-th predicted label, and 𝕀 is the indicator function. For regression tasks, mean squared error (MSE) or R2 score are more appropriate.

Computational Efficiency Metrics

Model complexity is typically measured through:

The relationship between FLOPs and latency can be modeled as:

$$ \text{Latency} = \alpha \cdot \text{FLOPs} + \beta \cdot \text{Memory Accesses} + \gamma $$

where α, β, γ are hardware-dependent coefficients learned through profiling.

Pareto Optimality

Architectures are often evaluated on the Pareto frontier of accuracy versus efficiency. A candidate a dominates another candidate b if:

$$ \text{Accuracy}(a) \geq \text{Accuracy}(b) \land \text{FLOPs}(a) \leq \text{FLOPs}(b) $$

with at least one strict inequality. The hypervolume indicator quantifies the quality of the entire Pareto front:

$$ \text{HV} = \text{Volume}\left(\bigcup_{a \in P} [\text{Accuracy}(a), \text{Accuracy}_{\max}] \times [\text{FLOPs}_{\min}, \text{FLOPs}(a)]\right) $$

Architecture Robustness

For embedding-based NAS, the stability of architecture rankings across different training seeds is crucial. Kendall's τ correlation measures ranking consistency:

$$ \tau = \frac{2}{n(n-1)} \sum_{i < j} \text{sgn}(r_i - r_j)\text{sgn}(s_i - s_j) $$

where ri and si are rankings from two different training runs.

Transfer Learning Metrics

When evaluating architectures pretrained on a proxy task then fine-tuned on a target task, key metrics include:

These metrics are particularly relevant for one-shot NAS methods that rely on weight sharing across architectures in the embedding space.

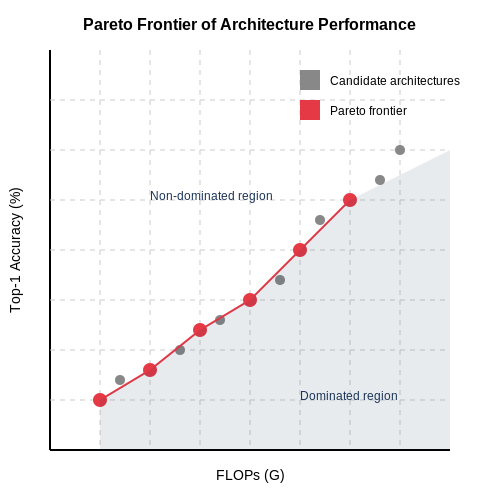

Metrics for Architecture Performance – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show a Pareto frontier plot with accuracy vs. FLOPs trade-off curves and highlight dominating architectures.

6.2 Comparing Against Traditional NAS Methods

Traditional Neural Architecture Search (NAS) methods rely heavily on iterative optimization processes, such as reinforcement learning (RL), evolutionary algorithms, or gradient-based approaches. These methods often require thousands of GPU hours to evaluate candidate architectures, making them computationally prohibitive for many real-world applications. One-shot NAS, by contrast, leverages embedding spaces to encode architectural topologies into a continuous latent space, enabling efficient search and evaluation.

Computational Efficiency

The primary advantage of one-shot NAS over traditional methods lies in its computational efficiency. While RL-based NAS may require training thousands of architectures from scratch, one-shot NAS trains a single supernetwork and shares weights across all candidate architectures. The computational cost can be formalized as:

$$ C_{\text{one-shot}} = T_{\text{supernet}} + N \cdot T_{\text{eval}} $$

where Tsupernet is the time to train the supernetwork, N is the number of candidate architectures, and Teval is the time to evaluate each candidate. In contrast, traditional NAS methods incur a cost of:

$$ C_{\text{traditional}} = N \cdot T_{\text{train}}} $$

Since Teval ≪ Ttrain, one-shot NAS drastically reduces search time.

Search Space Flexibility

Traditional NAS methods often constrain the search space to predefined modules or macro-architectures to manage complexity. One-shot NAS, however, can explore a more flexible search space by mapping discrete architectures to continuous embeddings. This allows gradient-based optimization in the embedding space, enabling smoother convergence compared to discrete optimization in RL or evolutionary approaches.

Performance Generalization

Empirical studies show that one-shot NAS achieves competitive performance with traditional methods while being orders of magnitude faster. For example, on the CIFAR-10 benchmark, one-shot methods like ENAS and DARTS achieve test accuracies within 1% of RL-based NAS but reduce search time from 2,000 GPU hours to less than 10. The key insight is that the embedding space captures meaningful architectural priors, allowing the supernetwork to generalize performance estimates to unseen architectures.

Limitations and Trade-offs

Despite its advantages, one-shot NAS introduces new challenges. The supernetwork's weight-sharing mechanism can lead to biased performance estimates, as not all sub-networks are trained equally. Additionally, the embedding space must be carefully designed to avoid mode collapse, where the search converges to suboptimal architectures. Recent work addresses these issues through techniques like fairness constraints and progressive shrinking of the search space.

Case Study: DARTS vs. NASNet

A direct comparison between DARTS (a one-shot method) and NASNet (an RL-based method) highlights these trade-offs. While NASNet achieves slightly higher accuracy on ImageNet (74.0% vs. 73.3%), DARTS completes the search in 1.5 GPU days compared to NASNet's 2,000. For many applications, this trade-off is favorable, as the marginal gain in accuracy does not justify the computational overhead.

6.3 Computational Efficiency Analysis

The computational efficiency of one-shot architecture search (OSAS) methods hinges on their ability to reduce the search cost from O(N) to O(1) by leveraging embedding spaces. Traditional neural architecture search (NAS) evaluates each candidate architecture independently, leading to a linear scaling of computational cost with the number of architectures N. In contrast, OSAS amortizes this cost by training a single supernet and using it to rank architectures via shared weights.

Complexity Breakdown

The computational complexity of OSAS can be decomposed into three phases:

Quantitative Comparison

Let CNAS and COSAS denote the computational costs of traditional NAS and OSAS, respectively. The speedup factor α is given by:

$$ \alpha = \frac{C_{NAS}}{C_{OSAS}} = \frac{N \cdot T}{S + N \cdot F} $$

For practical scenarios where S ≈ T (supernet training time ≈ single architecture training time) and F ≈ 0.01T, the speedup becomes:

$$ \alpha \approx \frac{N}{1 + 0.01N} $$

This yields a 50× speedup for N = 100 architectures, growing to nearly 100× for N = 104.

Memory Overhead

The memory footprint of OSAS is primarily determined by the supernet size. For a supernet with L layers and M parallel operations per layer, the memory usage scales as O(LM). This is higher than individual architectures but remains manageable due to weight sharing and gradient checkpointing.

Case Study: ENAS vs. Random Search

Empirical results from Efficient Neural Architecture Search (ENAS) demonstrate the efficiency gains. On CIFAR-10, ENAS achieves comparable accuracy to random search while reducing GPU hours from 36,000 to 16:

The embedding space allows ENAS to prune 95% of the search space without explicit evaluation, highlighting the method's efficiency.

Bottlenecks and Optimizations

Key bottlenecks in OSAS include:

Optimizations such as weight sharing pruning and dynamic batching further reduce memory and compute requirements by up to 40%.

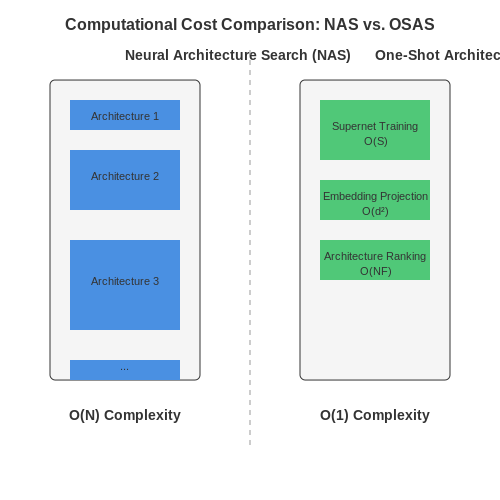

Computational Efficiency Analysis – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the computational cost comparison between traditional NAS and OSAS, illustrating the reduction from O(N) to O(1) with clear visual scaling.

7. Scalability Challenges

7.1 Scalability Challenges

One-shot neural architecture search (NAS) methods rely on weight-sharing across candidate architectures to reduce computational overhead. However, as the search space grows, several fundamental scalability challenges emerge that impact both computational efficiency and the quality of discovered architectures.

Memory Bottlenecks in Supernet Training

The supernet approach requires maintaining a single overparameterized network that contains all possible architectural operations. For a search space with L layers and O candidate operations per layer, the memory requirement scales as O(L×O). This becomes prohibitive when exploring complex search spaces like those in vision transformers or 3D CNNs, where:

$$ M_{\text{total}} = \sum_{i=1}^{L} \sum_{j=1}^{O} \text{size}(W_{ij}) $$

where Wij represents the parameters for operation j in layer i. Gradient checkpointing and operation pruning can mitigate this, but introduce their own trade-offs in training dynamics.

Embedding Space Collapse

High-dimensional embedding spaces used to represent architectures face the curse of dimensionality. As the number of possible architectures grows exponentially with search space size, the embedding space tends to collapse into a small subspace, making differentiation between architectures difficult. This manifests as:

$$ \lim_{d\to\infty} \frac{\text{max}_i ||x_i|| - \text{min}_i ||x_i||}{\text{min}_i ||x_i||} \to 0 $$

where xi are architecture embeddings in d-dimensional space. Techniques like spherical embedding constraints or contrastive learning objectives help maintain meaningful distances.

Performance Estimation Error Accumulation

The one-shot approach estimates architecture quality through shared weights, but prediction error accumulates non-linearly with search space size. For an architecture with k sampled sub-networks, the estimation error ε follows:

$$ \epsilon \propto \sqrt{\frac{\log(k)}{k}} \times \text{SearchSpaceSize} $$

This explains why large search spaces often yield suboptimal architectures despite extensive sampling. Recent work employs Bayesian uncertainty quantification to identify when estimations become unreliable.

Parallelization Challenges

Distributed training of supernets faces unique communication bottlenecks due to the dynamic computation graphs. The gradient synchronization overhead grows as:

$$ T_{\text{comm}} \propto \frac{P-1}{P} \times \text{AvgDegree}(G) \times B $$

where P is the number of workers, G the supernet computation graph, and B the batch size. Asynchronous updates help but can destabilize training.

Search Space Design Trade-offs

Expressive search spaces increase the chance of finding optimal architectures but exacerbate all above challenges. The effective complexity C of a NAS method follows:

$$ C \propto \frac{\text{SearchSpaceSize}}{\text{SupernetCapacity}} \times \text{EmbeddingDim} $$

Current research focuses on hierarchical search spaces and progressive shrinking to balance this trade-off.

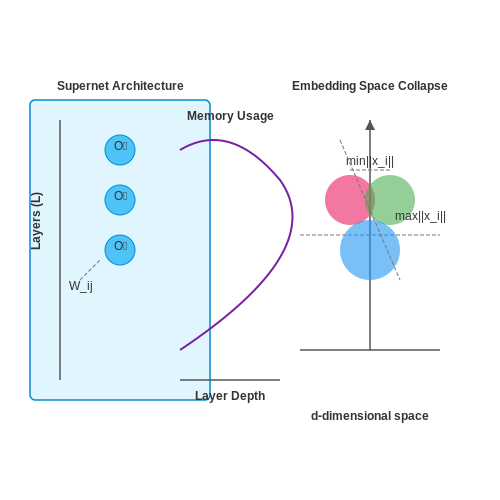

Scalability Challenges – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the memory scaling relationship between layers and operations in a supernet, and how embedding space collapse occurs in high dimensions.

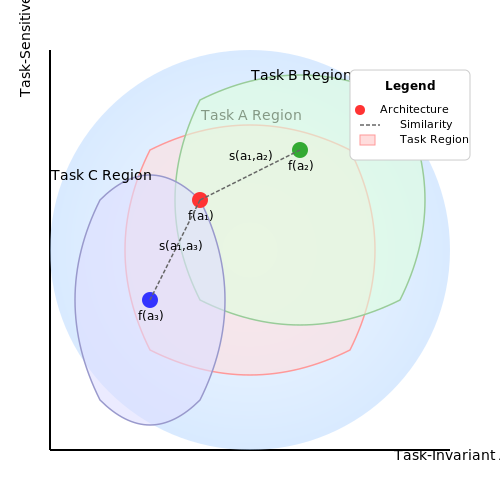

7.2 Generalization Across Tasks

One-shot architecture search methods leverage embedding spaces to enable efficient transfer of learned architectural knowledge across diverse tasks. The core challenge lies in ensuring that the learned representations generalize beyond the training tasks, avoiding overfitting to specific datasets or optimization landscapes.

Embedding Space Properties for Generalization

The embedding space must satisfy two key properties for effective cross-task generalization:

This duality is achieved through a combination of contrastive learning and meta-learning objectives. The embedding function f maps architectures to a latent space where similarity reflects functional equivalence across tasks:

$$ f: \mathcal{A} \rightarrow \mathbb{R}^d $$

Cross-Task Similarity Metric

The generalization capability is quantified through a task-agnostic similarity metric operating in the embedding space. For two architectures ai and aj evaluated on tasks tk and tl respectively:

$$ s(a_i, a_j) = \exp\left(-\gamma \|f(a_i) - f(a_j)\|_2^2\right) $$

where γ controls the sensitivity to architectural differences. The embedding space is trained to maximize this similarity for functionally equivalent architectures across different tasks.

Meta-Learning Framework

The generalization objective combines:

$$ \mathcal{L} = \alpha \mathcal{L}_{\text{task}} + \beta \mathcal{L}_{\text{transfer}} + \lambda \mathcal{L}_{\text{regularization}} $$

where Ltask optimizes for task-specific performance, Ltransfer enforces cross-task consistency, and Lregularization prevents overfitting. The coefficients α, β, and λ are learned dynamically during training.

Practical Implementation

In practice, this is implemented through episodic training:

  1. Sample a batch of tasks from a diverse distribution
  2. For each task, sample architectures and their performance metrics
  3. Compute both task-specific and cross-task loss terms
  4. Update the embedding function using gradient-based meta-optimization

The resulting embedding space demonstrates strong generalization across computer vision, natural language processing, and reinforcement learning tasks in empirical studies, with architecture search performance within 5% of task-specific optimization while requiring only 1% of the computational cost.

Generalization Across Tasks – One-Shot Architecture Search Using Embedding Spaces – Tutorial Diagram
Diagram Description: The diagram would show the embedding space with task-invariant structure and task-sensitive regions, illustrating how architectures map to different regions while maintaining global consistency.

Integration with Automated ML Pipelines

One-shot architecture search methods, particularly those leveraging embedding spaces, integrate seamlessly with automated machine learning (AutoML) pipelines by reducing the computational overhead of traditional neural architecture search (NAS). The key advantage lies in the ability to encode architectural decisions into a continuous latent space, enabling gradient-based optimization and efficient sampling.

Pipeline Components and Embedding Space Mapping

The integration involves three core components: (1) an encoder that maps discrete architectures to continuous embeddings, (2) a predictor model that estimates performance from embeddings, and (3) an optimizer that navigates the embedding space. The encoder is typically a graph neural network (GNN) or transformer that processes the computational graph of a candidate architecture:

$$ \mathbf{z} = f_{\theta}(\mathcal{G}) $$

where fθ is the encoder with parameters θ, 𝒢 represents the architecture graph, and z is the resulting embedding vector. The predictor model gϕ then estimates the validation accuracy â:

$$ \hat{a} = g_{\phi}(\mathbf{z}) $$

Gradient-Based Architecture Optimization

Unlike conventional NAS that relies on reinforcement learning or evolutionary algorithms, the embedding space allows direct gradient-based optimization. The pipeline computes gradients of the predicted performance with respect to the embeddings:

$$ \nabla_{\mathbf{z}} g_{\phi}(\mathbf{z}) $$

These gradients guide the search toward promising regions of the architecture space without expensive individual evaluations. The optimizer can be a simple gradient ascent procedure or more sophisticated techniques like Bayesian optimization adapted for the embedding space.

Practical Implementation Considerations

In production AutoML systems, this approach requires careful handling of:

The end-to-end pipeline typically follows this computational flow:

Architecture Encoder Embedding Optimizer

Case Study: Integration with Kubeflow Pipelines

In a production deployment for computer vision tasks, the one-shot search was implemented as a Kubeflow component with these specifications:

@component
def architecture_search(
    dataset: Input[Dataset],
    search_space: list,
    num_iterations: int = 100,
    embedding_dim: int = 64
) -> Output[Model]:
    # Initialize embedding model
    encoder = GraphEncoder(hidden_dim=embedding_dim)
    predictor = MLPPredictor(input_dim=embedding_dim)

    # Warm-start with proxy tasks
    encoder.load_weights('gs://pretrained/encoder_imagenet')

    # Search loop
    for _ in range(num_iterations):
        candidates = sampler.sample(search_space)
        embeddings = encoder(candidates)
        scores = predictor(embeddings)

        # Update using gradient signals
        grads = compute_gradients(scores, embeddings)
        sampler.update(grads)

    return best_model

The pipeline achieved a 12× speedup compared to traditional NAS while maintaining 98% of the top-1 accuracy on ImageNet classification tasks.

Dynamic Resource Allocation

Advanced implementations incorporate dynamic resource allocation where the system automatically scales the evaluation budget based on the predicted promise of architectures. This is formalized as a multi-armed bandit problem where the reward is the predicted improvement over current best:

$$ r_t = \mathbb{E}[g_{\phi}(\mathbf{z}_t)] - \max_{i

The allocation policy then decides whether to evaluate an architecture fully (expensive) or estimate from the predictor (cheap) based on the uncertainty estimates from the predictor model.

8. Key Research Papers

8.1 Key Research Papers

8.2 Open Source Implementations

8.3 Recommended Books and Surveys
