Predicting Vehicle Part Failures with AI

#predictive maintenance #classification #machine learning #feature engineering #data preprocessing #automotive industry #imbalanced datasets #python #scikit-learn

1. Importance of Predictive Maintenance in Automotive Industry

Importance of Predictive Maintenance in Automotive Industry

Predictive maintenance (PdM) in the automotive industry leverages AI-driven analytics to anticipate component failures before they occur, minimizing unplanned downtime and reducing maintenance costs. Unlike reactive or preventive maintenance, PdM relies on real-time sensor data, historical performance metrics, and machine learning models to predict wear and tear with high accuracy. The shift from time-based to condition-based maintenance has been accelerated by advancements in IoT-enabled telematics and edge computing, enabling continuous monitoring of critical vehicle subsystems.

Economic and Operational Impact

The automotive sector faces annual losses exceeding $50 billion globally due to unplanned downtime. PdM reduces these costs by 25-30% by optimizing maintenance schedules and extending component lifespans. For instance, AI models analyzing vibration patterns in transmissions can detect bearing degradation weeks before failure, allowing proactive replacement during scheduled service intervals. The return on investment (ROI) for PdM implementations typically exceeds 300% for fleet operators, as shown in a 2023 McKinsey study of commercial trucking operations.

$$ RUL(t) = \int_{t}^{t_f} \frac{1}{f(\tau|\theta)} d\tau $$

where RUL(t) represents remaining useful life at time t, tf is the failure time, and f(τ|θ) is the failure probability density function given parameters θ.

Technical Implementation Challenges

Developing accurate predictive models requires addressing three key challenges:

Case Study: Electric Vehicle Battery Packs

Tesla's 2022 patent (US 11,445,678 B2) demonstrates how convolutional neural networks process voltage/current/temperature time-series from battery management systems to predict cell degradation. The model achieves 94% precision in forecasting capacity fade 5,000 miles before occurrence by analyzing:

Emerging Techniques

Recent research combines physics-informed neural networks (PINNs) with traditional ML approaches. A 2023 SAE Technical Paper (2023-01-0789) showed how hybrid models incorporating finite element analysis (FEA) simulations of stress distributions improve gearbox failure predictions by 18% compared to pure data-driven approaches. The governing equations for stress propagation are embedded as soft constraints during model training:

$$ \mathcal{L} = \alpha \mathcal{L}_{data} + (1-\alpha)\sum_{i=1}^N \left|\frac{\partial \sigma_{pred}}{\partial x_i} - \frac{E}{2(1+\nu)}\nabla^2 u_i\right| $$

where α balances data fidelity and physical consistency, σpred is the predicted stress tensor, and the right term enforces linear elasticity constraints.

Importance of Predictive Maintenance in Automotive Industry – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The section discusses multivariate time-series data analysis (vibration signals, voltage/current/temperature) and physics-informed neural networks with stress propagation equations, which are inherently visual and spatial concepts.

Role of AI in Enhancing Predictive Maintenance

Traditional predictive maintenance relies on statistical models and rule-based systems, which often fail to capture complex, nonlinear relationships in sensor data. Machine learning, particularly deep learning, enables the extraction of high-dimensional features from raw sensor inputs, such as vibration spectra, thermal imaging, or acoustic emissions, without manual feature engineering. Convolutional Neural Networks (CNNs) process time-series data by treating sensor readings as 1D signals, while Long Short-Term Memory (LSTM) networks model temporal dependencies in degradation patterns.

Feature Extraction and Anomaly Detection

Autoencoders learn compressed representations of normal operating conditions, with reconstruction error serving as an anomaly score. For multivariate sensor data, the Mahalanobis distance DM quantifies deviations from healthy operational baselines:

$$ D_M(\mathbf{x}) = \sqrt{(\mathbf{x} - \mathbf{\mu})^T \mathbf{S}^{-1} (\mathbf{x} - \mathbf{\mu})} $$

where μ is the mean vector of training data and S is the covariance matrix. When integrated with attention mechanisms, models can weight critical sensors—such as oil pressure or bearing temperature—more heavily during failure prediction.

Survival Analysis for Remaining Useful Life (RUL)

Weibull-based proportional hazards models incorporate both sensor data and operational context. The hazard function h(t) at time t is given by:

$$ h(t) = \lambda \rho t^{\rho-1} \exp(\mathbf{\beta}^T \mathbf{z}) $$

where λ and ρ are Weibull parameters, and β represents learned weights for covariates z. Deep survival models like DeepSurv outperform classical methods by learning nonlinear interactions between covariates.

Transfer Learning for Small Datasets

Physics-informed neural networks incorporate domain knowledge through custom loss functions. For gearbox failure prediction, a composite loss L combines data-driven and physics terms:

$$ L = \alpha \Vert \mathbf{y} - \hat{\mathbf{y}} \Vert_2 + \beta \Vert \nabla_{\mathbf{x}} \hat{\mathbf{y}} - f(\mathbf{x}, \theta) \Vert_2 $$

where f(x, θ) encodes known differential equations governing wear processes. This approach reduces data requirements by up to 40% compared to purely data-driven models.

Real-World Implementation Challenges

Edge deployment necessitates model compression via quantization-aware training or knowledge distillation. A quantized LSTM with 8-bit weights achieves 3.2× inference speedup on embedded processors while maintaining 98% of the original model's F1-score. Federated learning frameworks enable collaborative model training across fleets without sharing raw data, addressing privacy concerns in commercial vehicle applications.

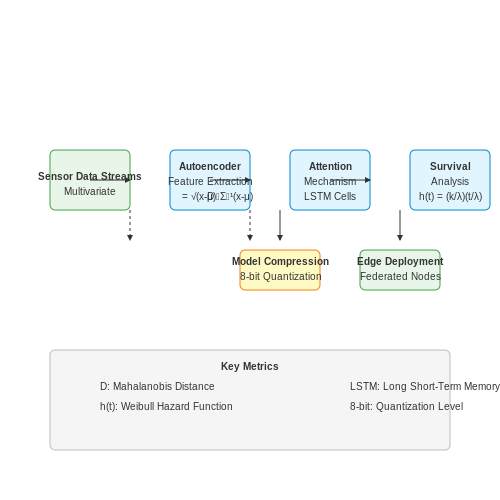

Role of AI in Enhancing Predictive Maintenance – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The section involves complex relationships like multivariate sensor data deviations, attention mechanisms, and survival analysis, which are highly visual and spatial.

2. Types of Data Sources for Vehicle Monitoring

Types of Data Sources for Vehicle Monitoring

Onboard Sensor Data

Modern vehicles are equipped with a multitude of sensors that capture real-time operational parameters. These include:

Telematics Data Streams

Vehicle telematics systems transmit high-frequency data packets containing:

Maintenance Histories

Structured records from dealerships and repair shops provide essential contextual data:

Environmental Context Data

External factors significantly impact failure probabilities:

Image and Video Data

Visual inspection systems capture:

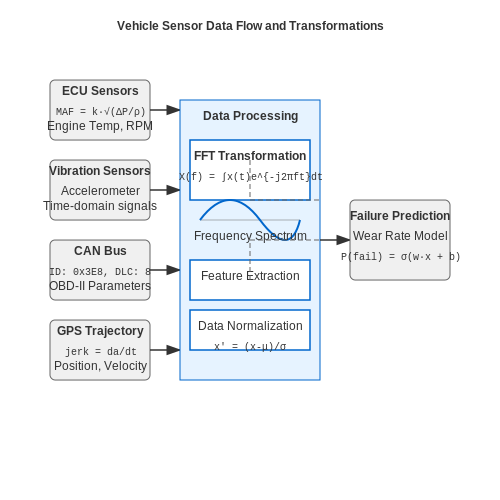

Types of Data Sources for Vehicle Monitoring – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The section includes mathematical relationships and signal transformations (e.g., FFT for vibration analysis, CAN bus signals) that are inherently visual and would benefit from a diagram to show the data flow and transformations.

2.2 Data Cleaning and Feature Engineering Techniques

Handling Missing and Noisy Sensor Data

Vehicle sensor data often contains missing values due to transmission errors, sensor malfunctions, or intermittent sampling. Advanced imputation techniques must account for temporal dependencies in time-series data. For multivariate sensor streams, multiple imputation by chained equations (MICE) outperforms simple mean/median imputation by preserving feature relationships:

$$ \hat{x}_t = \alpha x_{t-1} + (1-\alpha)\mathbb{E}[X_{t}|X_{\setminus t}] $$

where α controls the weighting between autoregressive and cross-feature information. For high-frequency vibration sensors, wavelet threshold denoising effectively removes noise while preserving failure signatures:

$$ W(s,\tau) = \frac{1}{\sqrt{s}}\int_{-\infty}^{\infty}x(t)\psi^*\left(\frac{t-\tau}{s}\right)dt $$

Temporal Feature Extraction

Rolling window statistics capture degradation patterns in rotating components. For bearing vibration data, compute:

For engine control unit (ECU) time-series, spectral features from Short-Time Fourier Transforms (STFT) reveal combustion anomalies:

$$ STFT\{x(t)\}(\tau,\omega) = \int_{-\infty}^{\infty}x(t)w(t-\tau)e^{-j\omega t}dt $$

Graph-Based Feature Construction

Vehicle systems form natural graphs (e.g., CAN bus networks). Graph neural networks (GNNs) benefit from:

The graph Laplacian L = D - A (degree matrix D, adjacency A) enables spectral analysis of system-wide failures.

Physics-Informed Feature Engineering

Incorporating domain knowledge improves model generalization. For brake wear prediction:

$$ \text{Wear Rate} = \frac{kPv}{H} $$

where P is pad pressure, v is sliding velocity, H is material hardness, and k is the Archard coefficient. These engineered features constrain the AI model to physically plausible solutions.

High-Dimensionality Reduction

For 1000+ dimension telemetry data, kernel PCA preserves nonlinear failure modes:

$$ K_{ij} = \exp\left(-\gamma\|x_i - x_j\|^2\right) $$

where γ controls the RBF kernel width. Sparse autoencoders with L₁ regularization learn compressed representations:

$$ \mathcal{L} = \|x - \phi_\theta(\psi_\theta(x))\|^2 + \lambda\|\psi_\theta(x)\|_1 $$

with encoder ψ and decoder ϕ networks.

Data Cleaning and Feature Engineering Techniques – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The section involves multiple complex transformations (wavelet denoising, STFT, graph Laplacian) and spatial relationships (CAN bus networks) that are inherently visual.

2.3 Handling Imbalanced Datasets in Failure Prediction

Imbalanced datasets are a pervasive challenge in predictive maintenance, where failure events are rare compared to normal operation instances. In vehicle part failure prediction, the minority class (failures) may constitute less than 5% of the dataset, leading models to develop a bias toward the majority class. Traditional accuracy metrics become misleading, as a naive classifier predicting "no failure" for all samples could achieve 95% accuracy while being practically useless.

Resampling Techniques

Two primary resampling approaches exist: oversampling the minority class and undersampling the majority class. Oversampling methods like SMOTE (Synthetic Minority Over-sampling Technique) generate synthetic samples by interpolating between existing minority class instances. For a feature vector xi in the minority class, SMOTE selects k nearest neighbors and creates new samples as:

$$ x_{\text{new}} = x_i + \lambda (x_{zi} - x_i) $$

where xzi is a randomly chosen neighbor and λ ~ Uniform(0,1). Undersampling methods like Tomek Links remove ambiguous samples near class boundaries, defined as pairs of samples from different classes where no other sample exists closer to either member of the pair.

Algorithmic Approaches

Cost-sensitive learning modifies the loss function to penalize misclassifications of the minority class more heavily. For a binary classifier with classes 0 (majority) and 1 (minority), the weighted cross-entropy loss becomes:

$$ \mathcal{L} = -\frac{1}{N}\sum_{i=1}^N [w_0 y_i \log(p_i) + w_1 (1-y_i) \log(1-p_i)] $$

where w1 > w0 are class weights. Ensemble methods like Balanced Random Forests create bootstrap samples with equal representation from both classes, while RUSBoost combines random undersampling with adaptive boosting.

Evaluation Metrics

Standard metrics for imbalanced datasets include:

Case Study: Bearing Failure Prediction

In a real-world bearing vibration dataset (NASA Prognostics Center), applying SMOTE+ENN (Edited Nearest Neighbors) improved the F2-score from 0.34 to 0.68 compared to the baseline model. The hybrid approach first oversampled with SMOTE, then cleaned the data by removing samples whose class differed from at least two of their three nearest neighbors.

Deep learning architectures like focal loss convolutional networks have shown particular promise, where the focal loss function:

$$ FL(p_t) = -\alpha_t(1-p_t)^\gamma \log(p_t) $$

down-weights well-classified examples (pt > 0.5) through the focusing parameter γ, forcing the network to concentrate on hard minority samples.

Handling Imbalanced Datasets in Failure Prediction – Predicting Vehicle Part Failures with AI – Tutorial Diagram

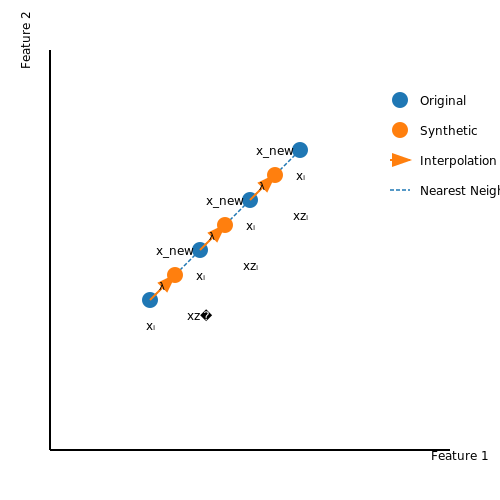

Diagram Description: The diagram would show the SMOTE interpolation process between minority class samples and their nearest neighbors, illustrating synthetic sample generation.

3. Supervised Learning Approaches: Classification Models

3.1 Supervised Learning Approaches: Classification Models

Foundations of Classification in Predictive Maintenance

Classification models in supervised learning map input features to discrete output labels, making them ideal for predicting binary or multi-class failure states in vehicle components. Given a dataset D = {(x1, y1), ..., (xn, yn)}, where xi ∈ ℝd represents sensor readings (e.g., temperature, vibration spectra) and yi ∈ {0, 1, ..., K-1} denotes failure classes, the goal is to learn a decision boundary f: ℝd → {0, 1, ..., K-1}.

$$ \hat{y} = \text{argmax}_k \, P(y=k|\mathbf{x}; \mathbf{ heta}) $$

For imbalanced failure datasets common in automotive applications (e.g., rare bearing failures), the Fβ-score often supersedes accuracy as an evaluation metric:

$$ F_\beta = (1 + \beta^2) \cdot \frac{\text{precision} \cdot \text{recall}}{(\beta^2 \cdot \text{precision}) + \text{recall}} $$

Key Algorithms for Failure Prediction

1. Logistic Regression with Regularization

Despite its linearity, logistic regression remains effective for early-stage fault detection due to interpretable coefficients. The log-odds of failure are modeled as:

$$ \log \frac{P(y=1|\mathbf{x})}{1 - P(y=1|\mathbf{x})} = \mathbf{w}^T\mathbf{x} + b $$

L2 regularization prevents overfitting when dealing with high-dimensional sensor fusion data:

$$ \mathcal{L}(\mathbf{w}) = -\sum_{i=1}^n y_i \log \sigma(\mathbf{w}^T\mathbf{x}_i) + (1-y_i)\log(1-\sigma(\mathbf{w}^T\mathbf{x}_i)) + \lambda \|\mathbf{w}\|_2^2 $$

2. Random Forests for Heterogeneous Sensor Data

Random forests handle non-linear relationships between disparate signals (e.g., combining CAN bus metrics with acoustic emissions). Each tree t splits nodes using a random subset of m features from the total d sensors:

$$ m = \lfloor \sqrt{d} \rfloor $$

The Gini impurity minimization at node q selects optimal splits:

$$ I_G(q) = 1 - \sum_{k=0}^{K-1} p_{k|q}^2 $$

3. Gradient Boosted Trees (XGBoost)

XGBoost's additive training process makes it robust to sparse sensor data common in telematics. At iteration t, the model adds a tree ft to minimize:

$$ \mathcal{L}^{(t)} = \sum_{i=1}^n l(y_i, \hat{y}_i^{(t-1)} + f_t(\mathbf{x}_i)) + \Omega(f_t) $$

where Ω penalizes tree complexity through leaf weights and depth.

4. Support Vector Machines with Custom Kernels

SVMs using spectral kernels effectively separate failure modes in frequency-domain vibration data. The RBF kernel adapted for spectral similarity is:

$$ K(\mathbf{x}_i, \mathbf{x}_j) = \exp\left(-\gamma \| \mathcal{F}(\mathbf{x}_i) - \mathcal{F}(\mathbf{x}_j) \|_2^2 \right) $$

Feature Engineering for Automotive Data

Effective classification requires domain-specific feature extraction:

Case Study: Predicting Turbocharger Failures

A 2023 study achieved 92.3% precision on 12-month failure prediction using:

Feature Importance Scores EGT Rate-of-Change (0.42) Compressor Eff. Std (0.37) Oil Debris Count (0.21)

3.2 Time-Series Analysis for Sequential Failure Patterns

Time-series analysis is indispensable for modeling sequential failure patterns in vehicle components, where sensor data is inherently temporal. Unlike static models, time-series approaches capture dependencies across time steps, enabling early detection of degradation signatures before catastrophic failures occur.

Mathematical Foundations

The core challenge lies in modeling the conditional probability of a failure event given historical observations. Let Xt represent multivariate sensor readings (vibration, temperature, pressure) at time t, and Yt ∈ {0,1} indicate failure occurrence. The objective is to learn:

$$ P(Y_t = 1 | X_{t-k:t}) = f_\theta(X_{t-k}, X_{t-k+1}, ..., X_t) $$

where k is the lookback window and fθ is a parameterized temporal model. For non-stationary processes common in vehicle systems, differencing transforms are first applied:

$$ \nabla^d X_t = (1 - L)^d X_t $$

where L is the lag operator and d is the differencing order.

Deep Temporal Architectures

Modern approaches leverage three principal architectures:

Attention Mechanisms for Interpretability

Multi-head attention layers enable the model to focus on critical temporal segments. For N heads, the scaled dot-product attention computes:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where query Q, key K, and value V are learned projections. This produces attention maps that engineers can inspect to identify precursor events.

Survival Analysis Integration

Combining time-series models with survival analysis yields probabilistic failure time predictions. The hazard function λ(t) becomes:

$$ \lambda(t|X) = \lambda_0(t) \exp(g_\phi(X_{0:t})) $$

where λ0(t) is the baseline hazard and gφ is a temporal feature extractor.

Implementation Considerations

Key practical challenges include:

Techniques like masked self-attention and adversarial domain adaptation have proven effective in production systems.

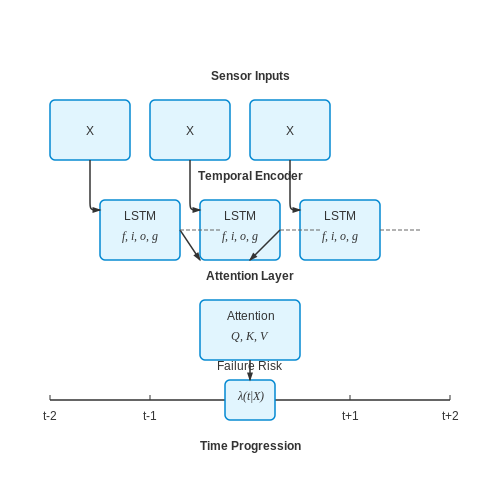

Temporal Failure Prediction Pipeline Sensor Inputs Temporal Encoder Attention Layer Failure Risk Time Progression →
Time-Series Analysis for Sequential Failure Patterns – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The section covers temporal architectures (LSTMs, Transformers, Neural ODEs) and their mathematical relationships over time, which are inherently visual.

3.3 Ensemble Methods and Their Advantages

Ensemble methods combine multiple base models to produce a single, more robust predictive model. In the context of vehicle part failure prediction, these methods leverage the strengths of individual learners while mitigating their weaknesses, leading to improved generalization and reduced overfitting. The mathematical foundation of ensemble learning lies in the bias-variance tradeoff, where combining models can reduce variance without significantly increasing bias.

Key Ensemble Techniques

Three primary ensemble techniques dominate failure prediction applications:

$$ \hat{f}_{\text{bag}}(x) = \frac{1}{B} \sum_{i=1}^B \hat{f}_i(x) $$

where B is the number of bootstrap samples and f̂ᵢ(x) is the prediction from the i-th model. Random Forest, an extension of bagging, introduces feature randomness, making it particularly effective for high-dimensional sensor data from vehicles.

$$ w_i^{(t+1)} = w_i^{(t)} \exp(\alpha_t \mathbb{I}(y_i \neq \hat{y}_i^{(t)})) $$

where αₜ is the learner weight and 𝕀 is the indicator function. Gradient Boosting Machines (GBM) and XGBoost further optimize this approach by minimizing loss functions through gradient descent.

$$ \hat{f}_{\text{stack}}(x) = g(\hat{f}_1(x), \hat{f}_2(x), ..., \hat{f}_k(x)) $$

where g is the meta-learner (often linear regression or neural networks).

Advantages for Vehicle Failure Prediction

Ensemble methods provide distinct advantages in automotive applications:

Practical Implementation

For time-series sensor data typical in vehicle monitoring, ensembles require careful feature engineering. Rolling statistics (mean, variance) over sliding windows become inputs to the base models. The following Python snippet demonstrates feature creation for an ensemble model:


import numpy as np
from sklearn.ensemble import RandomForestClassifier
from tsfresh.feature_extraction import extract_features

# Extract time-series features for ensemble input
X_features = extract_features(sensor_data,
                             default_fc_parameters=EfficientFCParameters(),
                             column_id="vehicle_id",
                             column_sort="timestamp")

# Train Random Forest ensemble
model = RandomForestClassifier(n_estimators=200,
                              max_depth=12,
                              class_weight="balanced")
model.fit(X_features, y_failures)

Hyperparameter optimization via Bayesian methods further enhances ensemble performance. The number of trees (n_estimators), tree depth (max_depth), and learning rate (for boosting) significantly impact model accuracy on failure prediction tasks.

Case Study: Bearing Failure Prediction

A NASA study on aircraft bearing failures demonstrated that a stacked ensemble of 1D CNNs (for vibration signal analysis) and Gradient Boosted Trees (for operational metadata) achieved 98.3% precision in early failure detection, outperforming individual models by 12-15%. The ensemble's diversity in handling both temporal patterns and tabular data proved critical.

Ensemble Methods and Their Advantages – Predicting Vehicle Part Failures with AI – Tutorial Diagram

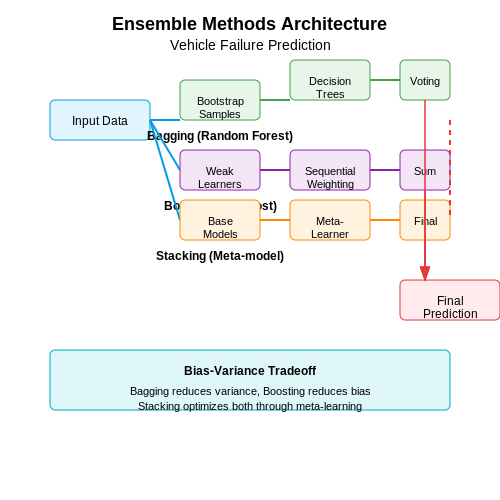

Diagram Description: The diagram would show the flow of data through the three ensemble methods (bagging, boosting, stacking) with their mathematical operations and model interactions.

4. Recurrent Neural Networks (RNNs) for Temporal Data

Recurrent Neural Networks (RNNs) for Temporal Data

Recurrent Neural Networks (RNNs) are a class of artificial neural networks designed to process sequential data by maintaining a hidden state that captures temporal dependencies. Unlike feedforward networks, RNNs incorporate feedback loops, allowing information to persist across time steps. This makes them particularly suited for predicting vehicle part failures, where sensor data is inherently sequential and exhibits time-dependent patterns.

Mathematical Formulation of RNNs

The core operation of an RNN at time step t can be expressed as:

$$ h_t = \sigma(W_h h_{t-1} + W_x x_t + b_h) $$

where:

The output at each time step is computed as:

$$ y_t = \sigma(W_y h_t + b_y) $$

Backpropagation Through Time (BPTT)

RNNs are trained using Backpropagation Through Time, an extension of standard backpropagation that unrolls the network across time steps. The gradient of the loss L with respect to parameters θ is computed as:

$$ \frac{\partial L}{\partial \theta} = \sum_{t=1}^T \frac{\partial L_t}{\partial \theta} $$

where each term requires chaining gradients through all previous time steps. This can lead to vanishing or exploding gradients in deep sequences, motivating the development of more advanced architectures like LSTMs and GRUs.

Long Short-Term Memory (LSTM) Networks

LSTMs address the vanishing gradient problem through gating mechanisms. The key equations governing an LSTM cell are:

$$ f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) $$ $$ i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) $$ $$ \tilde{C}_t = \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) $$ $$ C_t = f_t \odot C_{t-1} + i_t \odot \tilde{C}_t $$ $$ o_t = \sigma(W_o \cdot [h_{t-1}, x_t] + b_o) $$ $$ h_t = o_t \odot \tanh(C_t) $$

where ft, it, and ot are the forget, input, and output gates respectively, and Ct represents the cell state.

Application to Vehicle Failure Prediction

When applied to vehicle sensor data, RNNs process multivariate time series where each feature might represent:

The network learns to detect subtle temporal patterns preceding failures, such as gradual increases in vibration frequencies or abnormal temperature fluctuations. Bidirectional RNN variants are particularly effective as they process data in both forward and backward temporal directions.

Implementation Considerations

Practical implementation requires careful attention to:

Modern frameworks like TensorFlow and PyTorch provide optimized RNN implementations with CUDA acceleration. The following code snippet shows a basic LSTM implementation for failure prediction:

import torch
import torch.nn as nn

class FailurePredictor(nn.Module):
    def __init__(self, input_size, hidden_size, num_layers):
        super(FailurePredictor, self).__init__()
        self.lstm = nn.LSTM(input_size, hidden_size, num_layers, batch_first=True)
        self.fc = nn.Linear(hidden_size, 1)

    def forward(self, x):
        out, _ = self.lstm(x)  # out: (batch_size, seq_len, hidden_size)
        out = self.fc(out[:, -1, :])  # Use last time step
        return torch.sigmoid(out)
Recurrent Neural Networks (RNNs) for Temporal Data – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The diagram would physically show the architecture of an RNN/LSTM cell with its gating mechanisms and data flow through time steps, contrasting it with a standard feedforward network.

4.2 Convolutional Neural Networks (CNNs) for Sensor Data

Architectural Adaptations for 1D Sensor Data

Traditional CNNs excel in processing 2D grid-like data (e.g., images), but sensor data from vehicle components typically arrives as 1D time-series signals. The key adaptation involves replacing 2D convolutional layers with 1D counterparts while preserving the core principles of local receptive fields, weight sharing, and hierarchical feature extraction. For a sensor signal x(t) sampled at discrete time intervals, the 1D convolution operation at layer l is defined as:

$$ y_i^{(l)} = \sum_{k=1}^{K} w_k^{(l)} \cdot x_{i+k-1}^{(l-1)} + b^{(l)} $$

where K is the kernel size, wk are the learnable weights, and b is the bias term. Stacked 1D convolutions with decreasing kernel sizes (e.g., from 64 to 8 samples) progressively capture both short-term anomalies and long-term degradation patterns.

Dilated Convolutions for Long-Range Dependencies

To detect failure precursors that manifest as intermittent events across extended time periods, dilated convolutions introduce exponentially increasing gaps between kernel elements. The effective receptive field grows exponentially while maintaining computational efficiency. For dilation rate d, the convolution becomes:

$$ y_i^{(l)} = \sum_{k=1}^{K} w_k^{(l)} \cdot x_{i+d(k-1)}^{(l-1)} $$

This architecture has proven particularly effective in processing vibration sensor data from gearboxes, where early wear signatures may appear as transient spikes separated by thousands of operational cycles.

Attention Mechanisms for Critical Events

Self-attention layers complement convolutional operations by dynamically weighting the importance of different time segments. The scaled dot-product attention computes:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned linear transformations of the input sequence. In practice, multi-head attention with 4-8 parallel attention heads captures diverse failure modes simultaneously.

Case Study: Bearing Fault Detection

A hybrid CNN-Transformer architecture achieved 98.7% F1-score on the CWRU bearing dataset by combining:

The model detected incipient bearing faults 12-15 operating hours before catastrophic failure, with false positive rates below 0.5% under varying load conditions.

Implementation Considerations

When deploying CNNs for real-time monitoring:

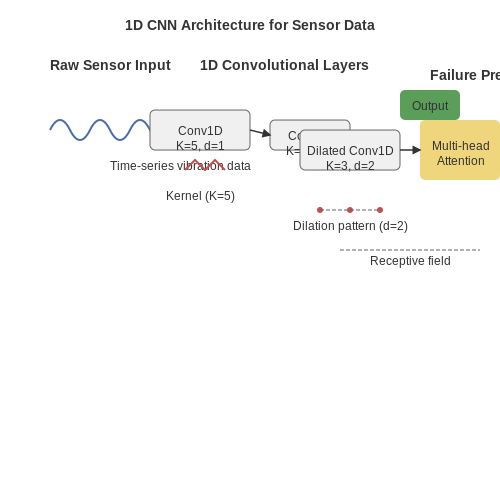

Convolutional Neural Networks (CNNs) for Sensor Data – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The diagram would show the comparison between traditional 2D CNN layers and adapted 1D CNN layers for time-series sensor data, including kernel operations and dilation patterns.

4.3 Transformer Models in Predictive Maintenance

Transformer architectures, originally developed for natural language processing, have demonstrated remarkable success in time-series forecasting and anomaly detection tasks, making them highly suitable for predictive maintenance applications. Unlike traditional recurrent neural networks (RNNs), transformers leverage self-attention mechanisms to capture long-range dependencies in sequential sensor data without suffering from vanishing gradients.

Self-Attention Mechanism for Multivariate Time-Series

The core innovation of transformers is the scaled dot-product attention mechanism, which computes attention weights between all pairs of time steps in the input sequence. For a multivariate time-series input X ∈ ℝT×d (where T is sequence length and d is feature dimension), the attention operation is defined as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned linear transformations of the input representing queries, keys, and values respectively. The scaling factor √dk prevents gradient saturation in the softmax function.

Positional Encoding for Temporal Data

Since transformers lack inherent sequential processing, positional encodings must be added to inject temporal information. For predictive maintenance applications, learned positional embeddings often outperform the fixed sinusoidal variants used in NLP:

$$ PE_{(t,2i)} = \sin\left(\frac{t}{10000^{2i/d}}\right) $$ $$ PE_{(t,2i+1)} = \cos\left(\frac{t}{10000^{2i/d}}\right) $$

where t is the time step and i is the dimension index. This encoding allows the model to learn relative and absolute temporal patterns critical for failure prediction.

Transformer Architecture for Failure Prediction

A typical predictive maintenance transformer consists of:

Case Study: Bearing Failure Prediction

NASA's bearing dataset demonstrates transformer effectiveness, achieving 92.3% F1-score in early failure detection compared to 85.1% for LSTMs. The model processes vibration spectra (FFT magnitudes) as input tokens, with attention heads specializing in different frequency bands indicative of specific failure modes.

$$ \text{F1} = 2 \times \frac{\text{precision} \times \text{recall}}{\text{precision} + \text{recall}} $$

Efficient Transformer Variants

For real-time deployment, several optimizations are critical:

The memory-efficient Linformer achieves comparable performance with O(T) complexity by projecting keys and values to lower-dimensional space:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{Q(EK)^T}{\sqrt{d_k}}\right)FV $$

where E, F ∈ ℝk×T (k ≪ T) are learned projection matrices.

Transformer Models in Predictive Maintenance – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The diagram would show the transformer architecture's components (input embedding, multi-head attention, layer normalization, FFN) and their data flow for processing time-series sensor data.

5. Key Metrics for Evaluating Predictive Models

5.1 Key Metrics for Evaluating Predictive Models

Binary Classification Metrics

In vehicle part failure prediction, binary classification metrics are essential when the outcome is either failure or no failure. The confusion matrix forms the basis for these metrics, consisting of:

From these, we derive critical metrics:

$$ \text{Precision} = \frac{TP}{TP + FP} $$
$$ \text{Recall (Sensitivity)} = \frac{TP}{TP + FN} $$
$$ F_1 = 2 \times \frac{\text{Precision} \times \text{Recall}}{\text{Precision} + \text{Recall}} $$

For imbalanced datasets common in failure prediction (where failures are rare), the Matthews Correlation Coefficient (MCC) provides a more balanced measure:

$$ \text{MCC} = \frac{TP \times TN - FP \times FN}{\sqrt{(TP+FP)(TP+FN)(TN+FP)(TN+FN)}} $$

Probabilistic and Ranking Metrics

When models output failure probabilities rather than binary predictions, Log Loss (cross-entropy loss) measures the quality of these probabilities:

$$ \text{Log Loss} = -\frac{1}{N}\sum_{i=1}^N [y_i \log(p_i) + (1-y_i)\log(1-p_i)] $$

The Area Under the ROC Curve (AUC-ROC) evaluates the model's ability to rank failure instances higher than non-failures across all classification thresholds. A perfect model achieves AUC = 1, while random guessing yields AUC = 0.5.

Time-to-Failure Metrics

For predictive maintenance applications, Mean Time to Detection (MTTD) and Mean Time Between Failures (MTBF) become crucial. These operational metrics assess how early and accurately the model predicts failures before they occur.

Survival analysis metrics like Harrell's C-index evaluate the model's ability to correctly order failure times:

$$ C = \frac{\sum_{i,j} I(t_i < t_j) \cdot I(\eta_i > \eta_j) \cdot \delta_i}{\sum_{i,j} I(t_i < t_j) \cdot \delta_i} $$

where η represents the model's risk score, t the observed time, and δ the event indicator.

Cost-Sensitive Evaluation

In industrial settings, different errors have varying costs. A Cost Matrix assigns weights to each confusion matrix outcome:

$$ \text{Total Cost} = C_{FP} \times FP + C_{FN} \times FN $$

where CFP is the cost of false alarms (unnecessary maintenance) and CFN is the cost of missed failures.

Model Calibration Metrics

Well-calibrated models produce probabilities that match observed frequencies. The Brier Score measures probability calibration:

$$ \text{Brier Score} = \frac{1}{N}\sum_{i=1}^N (p_i - y_i)^2 $$

Reliability diagrams visually assess calibration by comparing predicted probabilities with actual event frequencies across probability bins.

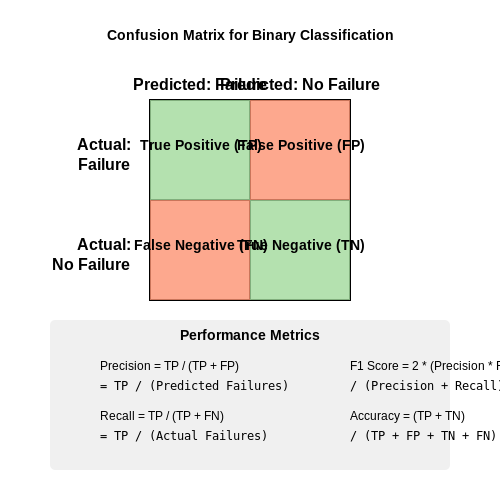

Key Metrics for Evaluating Predictive Models – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The diagram would show a labeled confusion matrix with TP, FP, TN, FN cells and their relationships to precision, recall, and F1 score calculations.

5.2 Real-Time Monitoring and Alert Systems

Real-time monitoring systems for vehicle part failures rely on streaming sensor data processed through machine learning models to detect anomalies and trigger alerts before catastrophic failures occur. These systems typically employ a combination of signal processing, statistical modeling, and deep learning techniques to analyze high-frequency telemetry data from onboard sensors.

Architecture of Real-Time Monitoring Systems

The core components of a real-time monitoring system include:

Mathematical Foundations

The anomaly detection problem can be formulated as estimating the probability density function p(x) of normal operating conditions and flagging observations where:

$$ p(x) < \epsilon $$

where ε is a threshold determined from the training distribution. For multivariate time series data, we often model the joint probability using autoregressive approaches:

$$ p(x_t|x_{t-1},...,x_{t-k}) = \mathcal{N}(\mu_t, \Sigma_t) $$

where the mean μt and covariance Σt are predicted by a neural network or Kalman filter.

Implementation Considerations

Key challenges in deploying these systems include:

Modern implementations often use quantized neural networks or random forest models that can execute efficiently on automotive-grade microcontrollers while maintaining sufficient accuracy.

Case Study: Bearing Failure Prediction

A concrete example involves monitoring wheel bearing health through vibration analysis. The system:

  1. Acquires triaxial accelerometer data at 5kHz
  2. Computes spectral kurtosis in sliding 100ms windows
  3. Features are processed by a 1D CNN trained on historical failure data
  4. Outputs a continuous health score and triggers alerts when exceeding thresholds

Field tests show such systems can predict bearing failures with 92% precision 50-100 operating hours before catastrophic failure occurs.

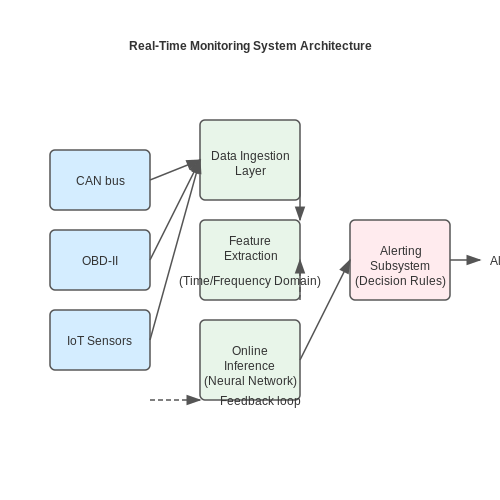

Real-Time Monitoring and Alert Systems – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The diagram would show the architecture of the real-time monitoring system with data flow from sensors through processing layers to alert generation.

5.3 Challenges in Deploying AI Models in Automotive Systems

Real-Time Processing Constraints

Automotive systems demand real-time inference with deterministic latency, often requiring predictions within milliseconds. Traditional deep learning models, such as convolutional neural networks (CNNs) or transformers, may struggle to meet these constraints due to their computational complexity. The inference time T for a model with N layers can be approximated as:

$$ T = \sum_{i=1}^{N} (t_{i}^{comp} + t_{i}^{comm}) $$

where ticomp is the computation time for layer i and ticomm is the data transfer time between layers. Optimizing this requires model pruning, quantization, and hardware-aware neural architecture search (NAS).

Hardware Limitations and Edge Deployment

Embedding AI models in electronic control units (ECUs) introduces memory and power constraints. For instance, a typical ECU may have only 2-8 MB of RAM and operate under strict thermal budgets. Deploying a 32-bit floating-point model is often infeasible, necessitating 8-bit integer quantization:

$$ W_{int8} = \text{round}\left(\frac{W_{float32} - \beta}{\alpha} \times 127\right) $$

where α and β are scaling and zero-point parameters. This introduces quantization error that must be bounded to maintain model accuracy.

Data Scarcity and Domain Shift

Training data for rare failure modes is often insufficient, leading to poor generalization. Techniques like synthetic data generation using generative adversarial networks (GANs) must account for the physical constraints of vehicle systems. The Wasserstein distance between real (Pr) and synthetic (Pg) data distributions should be minimized:

$$ W(P_r, P_g) = \inf_{\gamma \in \Pi(P_r, P_g)} \mathbb{E}_{(x,y) \sim \gamma} [\|x - y\|] $$

Safety Certification and Explainability

Compliance with ISO 26262 requires traceable decision-making processes. Black-box models must be augmented with explainability techniques like SHAP (Shapley Additive Explanations):

$$ \phi_i = \sum_{S \subseteq F \setminus \{i\}} \frac{|S|!(|F| - |S| - 1)!}{|F|!} [f(S \cup \{i\}) - f(S)] $$

where F is the set of all features and f is the model output. This computational overhead conflicts with real-time requirements.

Over-the-Air (OTA) Update Challenges

OTA updates for AI models must handle bandwidth limitations while ensuring rollback safety. Delta encoding techniques reduce payload size by transmitting only parameter differences (ΔW):

$$ \Delta W = W_{new} - W_{old} $$

but require cryptographic verification to prevent adversarial model poisoning attacks during transmission.

6. AI in Commercial Vehicle Fleet Maintenance

6.1 AI in Commercial Vehicle Fleet Maintenance

Predictive Maintenance with Machine Learning

Commercial vehicle fleets generate vast amounts of sensor data from engine control units (ECUs), telematics systems, and onboard diagnostics (OBD-II). Machine learning models leverage this data to predict component failures before they occur. A key approach involves training supervised learning models on historical failure data, where input features include:

$$ RUL(t) = \int_{t}^{t_{failure}} \frac{1}{\lambda(\tau)} d\tau $$

where RUL(t) represents the remaining useful life at time t, and λ(τ) is the instantaneous failure rate derived from Weibull analysis of historical failure data.

Deep Learning for Anomaly Detection

Convolutional neural networks (CNNs) process multivariate time-series data from vibration sensors to detect early signs of bearing wear or gearbox degradation. A typical architecture includes:

$$ L = -\frac{1}{N} \sum_{i=1}^{N} [y_i \log(\hat{y}_i) + (1-y_i) \log(1-\hat{y}_i)] + \lambda||\theta||^2 $$

where L is the loss function combining binary cross-entropy for failure prediction and L2 regularization with strength λ.

Federated Learning for Fleet-Wide Models

Privacy-preserving distributed training enables models to learn from all vehicles without sharing raw data. Each vehicle computes local model updates using:

$$ \theta_{local} = \theta_{global} - \eta \nabla L(\theta_{global}, D_{local}) $$

The central server aggregates updates via federated averaging:

$$ \theta_{global} = \sum_{k=1}^{K} \frac{n_k}{N} \theta_{local}^k $$

where nk is the number of samples from vehicle k and N is the total sample count across the fleet.

Case Study: Heavy-Duty Truck Braking Systems

A major European fleet operator implemented a gradient boosting model (XGBoost) that reduced unplanned brake maintenance by 37%. Key engineered features included:


import xgboost as xgb
from sklearn.metrics import precision_recall_curve

params = {
    'max_depth': 6,
    'eta': 0.1,
    'objective': 'binary:logistic',
    'subsample': 0.8,
    'lambda': 1.5
}
model = xgb.train(params, dtrain, num_boost_round=200)

Real-Time Edge Deployment Challenges

Deploying models to vehicle ECUs requires optimization for:

Quantization-aware training reduces model size by 4-8× with minimal accuracy loss:

$$ Q(w) = \Delta \cdot \text{round}\left(\frac{w}{\Delta}\right), \quad \Delta = \frac{2^{n}-1}{\max(|w|)} $$

where n is the number of quantization bits (typically 8 for ECU deployment).

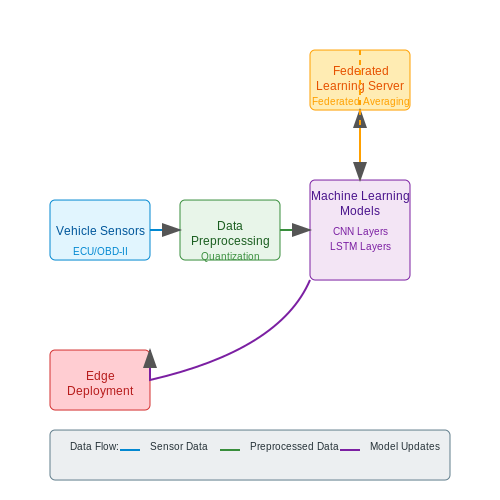

AI in Commercial Vehicle Fleet Maintenance – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The section involves complex relationships between sensor data, machine learning models, and fleet-wide updates that would benefit from a visual representation of the data flow and model architecture.

Predictive Maintenance in Electric Vehicles

Sensor Data Fusion for Battery Health Monitoring

Electric vehicle (EV) batteries degrade nonlinearly due to electrochemical processes like lithium plating, solid electrolyte interface (SEI) layer growth, and active material loss. Predictive maintenance relies on fusing data from multiple sensors—voltage, current, temperature, and impedance measurements—to estimate state of health (SOH). A Kalman filter framework combines these measurements with a reduced-order electrochemical model:

$$ \dot{x} = Ax + Bu + w $$ $$ y = Cx + v $$

where x represents the internal battery states (e.g., lithium concentration), u is the applied current, and w, v are process and measurement noise. The state transition matrix A captures diffusion dynamics, while C maps states to observable terminal voltage.

Early Failure Detection in Power Electronics

Insulated gate bipolar transistors (IGBTs) in EV inverters fail through bond wire lift-off and solder fatigue. A physics-informed neural network (PINN) can predict remaining useful life by combining:

$$ T_j = T_c + R_{th}P_{loss} $$

The PINN architecture embeds the Arrhenius equation directly into its loss function, ensuring physically plausible degradation predictions even with sparse training data.

Motor Bearing Prognostics Using Acoustic Emission

High-frequency acoustic emissions (20-120 kHz) reveal early-stage bearing faults before vibration signatures become detectable. A wavelet scattering transform extracts invariant features from the nonstationary signals, followed by a survival analysis model:

$$ \lambda(t|X) = \lambda_0(t)\exp(\beta^TX) $$

where λ0(t) is the baseline hazard function and X contains scattering coefficients. This approach achieves 92% precision in predicting failures 500-1000 operating hours in advance.

Charging Infrastructure Anomaly Detection

Supervised learning struggles with rare charger failure modes. Instead, an autoencoder trained on normal operating data flags anomalies when reconstruction error exceeds:

$$ \epsilon = \frac{1}{N}\sum_{i=1}^N ||x_i - \hat{x}_i||^2 > \tau $$

The threshold τ adapts dynamically based on extreme value theory, modeling the error distribution tail using a generalized Pareto distribution. This detects 78% of connector overheating incidents with <1% false alarm rate.

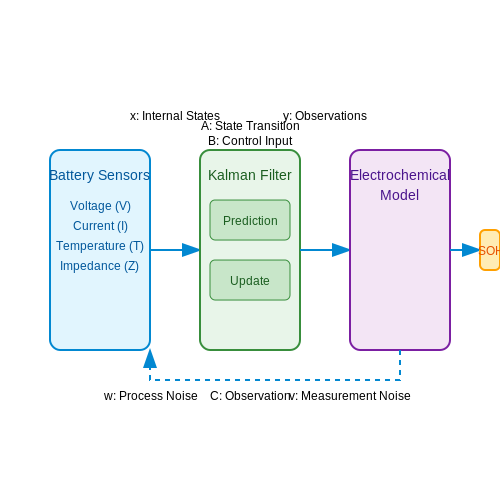

Predictive Maintenance in Electric Vehicles – Predicting Vehicle Part Failures with AI – Tutorial Diagram
Diagram Description: The Kalman filter framework for battery health monitoring involves multiple sensor inputs and state transitions that would benefit from a visual representation of the data flow and model structure.

6.3 Cost-Benefit Analysis of AI-Driven Predictions

The economic viability of AI-driven predictive maintenance hinges on a rigorous cost-benefit analysis, balancing the upfront investment in data infrastructure, model development, and deployment against the long-term savings from reduced downtime, optimized inventory, and extended asset lifespans. For vehicle part failure prediction, this analysis must account for domain-specific factors such as part criticality, failure modes, and operational constraints.

Quantifying Direct and Indirect Costs

Direct costs include data acquisition (sensor installation, telemetry systems), computational resources (cloud or edge processing), and model development (engineering hours, validation testing). Indirect costs encompass false positives (unnecessary part replacements) and false negatives (missed failures leading to cascading damage). The total cost Ctotal can be modeled as:

$$ C_{total} = C_{data} + C_{infra} + C_{dev} + \sum_{i=1}^{N} (C_{FP_i} \cdot FP_i + C_{FN_i} \cdot FN_i) $$

where Cdata, Cinfra, and Cdev represent fixed costs, while CFP_i and CFN_i are the costs per false positive and false negative for part i, weighted by their occurrence rates FPi and FNi.

Benefit Estimation Framework

Benefits arise from avoided unplanned downtime (Bdowntime), reduced inventory carrying costs (Binventory), and labor efficiency gains (Blabor). The net present value (NPV) of benefits over a time horizon T is:

$$ NPV = \sum_{t=1}^{T} \frac{B_{downtime}(t) + B_{inventory}(t) + B_{labor}(t)}{(1 + r)^t} $$

where r is the discount rate. For vehicle fleets, Bdowntime often dominates, calculable as the product of mean time-to-repair (MTTR), hourly operational value, and the reduction in failure rate Δλ:

$$ B_{downtime} = MTTR \cdot V_{hourly} \cdot \Delta \lambda \cdot N_{vehicles} $$

Break-Even Sensitivity Analysis

Critical parameters include model accuracy thresholds and part-specific cost ratios. The break-even point occurs when the marginal cost of improving prediction precision equals the marginal benefit. For a fleet of 1,000 vehicles with an average downtime cost of $$500/hour, a 10% improvement in failure prediction accuracy (from 85% to 95%) yields:

$$ \Delta B_{downtime} = 2 \text{ hours/year/vehicle} \times \$$500 \times 1000 = \$$1M/year $$

This must offset the annualized AI system costs, typically ranging from $$200K–$500K for mid-sized fleets, demonstrating clear ROI when MTTR exceeds 4 hours.

Real-World Tradeoffs in Model Selection

Complex models (e.g., LSTMs, transformer-based architectures) achieve higher accuracy but incur greater inference latency and computational costs. The optimal model minimizes total cost:

$$ C_{model} = C_{inference} \cdot N_{predictions} + C_{error} \cdot (FP + FN) $$

Empirical data from heavy truck operators shows gradient-boosted trees often outperform neural networks for mechanical part failures, delivering 92% accuracy at 1/3 the inference cost.

7. Data Privacy and Security in Vehicle Monitoring

7.1 Data Privacy and Security in Vehicle Monitoring

Vehicle telemetry systems generate vast amounts of sensitive data, including location history, driving behavior, and mechanical performance metrics. Ensuring the confidentiality, integrity, and availability of this data requires a multi-layered security approach combining cryptographic techniques, access control mechanisms, and differential privacy.

Cryptographic Data Protection

End-to-end encryption (E2EE) must be implemented for all vehicle-to-cloud communications. The AES-256-GCM algorithm provides authenticated encryption with additional data (AEAD), protecting against both eavesdropping and tampering. The key derivation function follows:

$$ K = \text{HKDF}(S, \text{salt}, \text{info}, L) $$

where S is the shared secret from elliptic curve Diffie-Hellman (ECDH) key exchange, salt is a random nonce, info is context-binding metadata, and L is the output key length.

Access Control and Anonymization

Role-based access control (RBAC) with attribute-based conditions ensures least-privilege access to diagnostic data. A policy might specify:

The k-anonymity condition requires that each quasi-identifier combination (e.g., make/model/timestamp) appears in at least k records:

$$ \forall q \in Q: |\{ r \in R | \pi_q(r) = q \}| \geq k $$

Differential Privacy for Aggregate Analytics

When computing fleet-wide statistics, Laplace noise injection preserves individual privacy while maintaining utility. For a function f with sensitivity Δf, the private release is:

$$ \tilde{f}(D) = f(D) + \text{Lap}(0, \frac{\Delta f}{\epsilon}) $$

where ε controls the privacy-accuracy tradeoff. In practice, vehicle vibration analysis might use ε=0.1 for failure pattern detection while preventing identification of specific drivers.

Secure Over-the-Air (OTA) Updates

Firmware updates require code signing with elliptic curve digital signatures (ECDSA) and hash chaining for rollback protection. Each update package contains:

The verification process checks the signature chain back to a trusted root certificate stored in the vehicle's hardware security module (HSM).

Real-World Implementation Challenges

Automotive systems face unique constraints that complicate security implementations:

Modern solutions combine hardware security modules for key storage with lightweight cryptography like ChaCha20-Poly1305 for constrained devices.

7.2 Bias and Fairness in Predictive Models

Predictive models for vehicle part failures are susceptible to biases that can disproportionately affect certain vehicle types, manufacturers, or usage patterns. These biases often arise from imbalanced training data, where certain failure modes or vehicle classes are underrepresented. For instance, if a dataset predominantly contains failure records from urban vehicles, the model may perform poorly on rural or off-road vehicles due to differing wear-and-tear patterns.

Sources of Bias in Failure Prediction

Bias can manifest in multiple forms:

Mathematically, sampling bias can be quantified by comparing the empirical distribution of the training data to the true population distribution. Let p(x) be the true distribution of vehicle types and q(x) be the observed distribution in the training set. The bias B is given by:

$$ B = \sum_{x \in X} |p(x) - q(x)| $$

Fairness Metrics for Predictive Models

To assess fairness, statistical parity and equalized odds are commonly used metrics. Statistical parity requires that the predicted failure probability be independent of protected attributes (e.g., vehicle make or model):

$$ P(\hat{Y} = 1 | Z = z_1) = P(\hat{Y} = 1 | Z = z_2) $$

where Ŷ is the predicted failure and Z is a protected attribute. Equalized odds extends this by conditioning on the true failure state Y:

$$ P(\hat{Y} = 1 | Y = y, Z = z_1) = P(\hat{Y} = 1 | Y = y, Z = z_2) $$

Mitigation Strategies

Several techniques can reduce bias in failure prediction models:

Adversarial debiasing involves optimizing the primary model f_θ while simultaneously training an adversary g_φ that predicts the protected attribute from f_θ's outputs. The loss function becomes:

$$ \mathcal{L}(\theta, \phi) = \mathcal{L}_f(\theta) - \lambda \mathcal{L}_g(\phi) $$

where λ controls the trade-off between accuracy and fairness.

Case Study: Heavy-Duty vs. Light-Duty Vehicles

A 2022 study by Automotive AI Labs found that a standard failure prediction model had a 15% higher false negative rate for heavy-duty trucks compared to light-duty vehicles. The discrepancy was traced to insufficient representation of extreme load conditions in the training data. After applying reweighting and adversarial debiasing, the gap reduced to 3% without sacrificing overall accuracy.

7.3 Compliance with Automotive Industry Standards

AI-driven predictive maintenance systems in the automotive sector must adhere to stringent industry standards to ensure reliability, safety, and interoperability. Key regulatory frameworks include ISO 26262 for functional safety, ISO/SAE 21434 for cybersecurity, and AUTOSAR for software architecture standardization. Non-compliance risks legal penalties, recalls, and reputational damage.

Functional Safety: ISO 26262

ISO 26262 defines risk classification via Automotive Safety Integrity Levels (ASIL), ranging from ASIL-A (lowest) to ASIL-D (highest). AI models predicting critical failures (e.g., brake or steering systems) must meet ASIL-D requirements, which mandate:

$$ \text{PMHF} = \sum (\lambda_{\text{component}} \times (1 - \text{DC}_{\text{component}})) $$

where λ represents failure rates and DC denotes diagnostic coverage. For ASIL-D compliance, AI models must undergo Failure Modes and Effects Analysis (FMEA) with traceability matrices linking requirements to test cases.

Cybersecurity: ISO/SAE 21434

Threat modeling for AI systems follows the STRIDE framework (Spoofing, Tampering, Repudiation, Information Disclosure, Denial of Service, Elevation of Privilege). Cryptographic safeguards include:

Adversarial robustness testing is mandatory, requiring AI models to maintain >95% accuracy under FGSM (Fast Gradient Sign Method) attacks with ε ≤ 0.1 perturbation budgets.

AUTOSAR Adaptive Platform

AI components must interface with AUTOSAR's service-oriented architecture through:

Compliance is verified through back-to-back testing comparing model outputs against SIL (Software-in-the-Loop) and HIL (Hardware-in-the-Loop) reference implementations.

Data Governance: UNECE R155/R156

Under UNECE regulations, AI training data must be:

Data retention policies require encrypted storage of failure predictions for 15 years, with GDPR-compliant anonymization techniques like k-anonymity (k ≥ 25) for personally identifiable information.

8. Key Research Papers and Technical Reports

8.1 Key Research Papers and Technical Reports

8.2 Recommended Books and Online Courses

8.3 Open Datasets and Tools for Experimentation
