Smart Home Anomaly Detection with AI

#anomaly detection #smart home #machine learning #data preprocessing #feature engineering #iot #supervised learning #unsupervised learning #edge ai #ai security

1. Defining Anomalies in Smart Home Environments

1.1 Defining Anomalies in Smart Home Environments

Anomalies in smart home environments represent deviations from expected patterns in sensor data, device behavior, or user activity. These deviations can be classified into three primary categories: point anomalies, contextual anomalies, and collective anomalies. Each type manifests differently and requires distinct detection methodologies.

Point Anomalies

Point anomalies occur when an individual data instance is significantly different from the rest of the dataset. In a smart home, this could be an abrupt spike in energy consumption or a sudden drop in temperature. Mathematically, a point anomaly is identified when:

$$ x_i \notin \left( \mu - k\sigma, \mu + k\sigma \right) $$

where xi is the observed value, μ is the mean, σ is the standard deviation, and k is a threshold multiplier (typically 2 or 3).

Contextual Anomalies

Contextual anomalies are data points that deviate only under specific conditions. For example, a smart thermostat set to 80°F might be normal in summer but anomalous in winter. These anomalies require time-series analysis or spatial-temporal modeling. A common approach involves sliding window comparisons:

$$ \Delta_t = \frac{|x_t - \bar{x}_{t-w:t+w}|}{\sigma_{t-w:t+w}} $$

where w is the window size, and Δt exceeding a threshold flags an anomaly.

Collective Anomalies

Collective anomalies involve a sequence of related data points that are anomalous as a group but not individually. For instance, a smart lock repeatedly failing to authenticate over a short period may indicate a brute-force attack. Detection often employs Hidden Markov Models (HMMs) or Long Short-Term Memory (LSTM) networks to capture sequential dependencies.

Real-World Implications

Misclassifying anomalies can lead to false alarms or missed security breaches. For example:

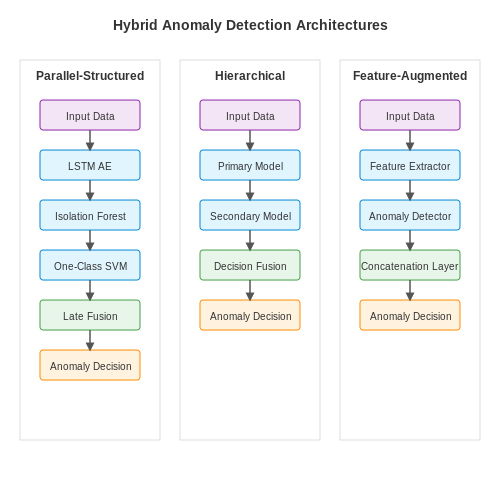

Advanced systems use ensemble methods, combining statistical, machine learning, and rule-based techniques to improve accuracy. For instance, a hybrid model might integrate:

$$ P(a) = \alpha \cdot P_{\text{stat}}(a) + \beta \cdot P_{\text{ML}}(a) + \gamma \cdot P_{\text{rules}}(a) $$

where weights α, β, and γ are optimized via grid search or Bayesian optimization.

Defining Anomalies in Smart Home Environments – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would visually differentiate the three anomaly types (point, contextual, collective) with concrete examples of smart home data patterns.

Key Challenges in Smart Home Anomaly Detection

Data Sparsity and Imbalanced Classes

Anomaly detection in smart homes suffers from severe class imbalance, where normal events vastly outnumber anomalies. The rarity of anomalous events leads to insufficient training data, making it difficult for models to learn meaningful representations. Traditional supervised learning approaches fail under such conditions, as they assume balanced class distributions. For instance, a smart home security system may encounter only a handful of intrusion attempts over months of operation, while generating terabytes of routine activity data.

$$ \mathcal{L}_{focal} = -\alpha_t(1-p_t)^\gamma \log(p_t) $$

where αt balances class importance and γ adjusts the rate at which easy examples are downweighted. This focal loss modification helps address extreme class imbalance by focusing learning on hard, misclassified examples.

Concept Drift in Temporal Patterns

Smart home environments exhibit non-stationary behavior where statistical properties of sensor data change over time. Seasonal variations in energy usage, evolving user habits, and firmware updates all contribute to concept drift. A model trained on winter heating patterns may fail when summer cooling patterns emerge. Online learning techniques with forgetting mechanisms become essential:

$$ w_{t+1} = w_t - \eta \nabla \mathcal{L}(w_t) + \lambda(w_t - w_{init}) $$

The elastic weight consolidation term λ(wt - winit) prevents catastrophic forgetting while allowing adaptation to new patterns.

Multimodal Sensor Fusion Complexity

Modern smart homes integrate heterogeneous sensors - motion detectors, power meters, cameras, and microphones - each operating at different sampling rates and dimensionalities. Effective fusion requires handling:

Attention mechanisms in transformer architectures have shown promise for learning cross-modal relationships:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

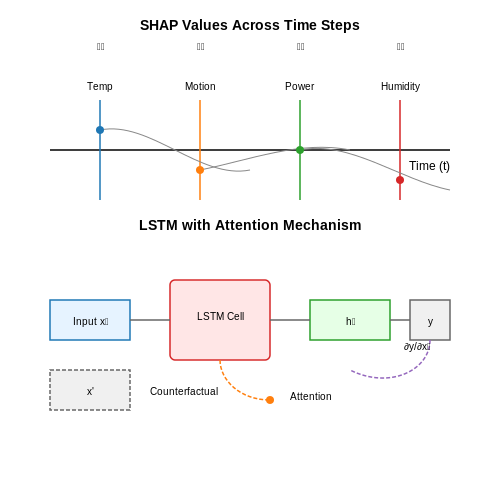

Explainability vs Performance Trade-off

While deep learning models achieve state-of-the-art detection accuracy, their black-box nature poses challenges for:

Current approaches employ surrogate interpretable models or attention visualization, but these often reduce detection performance by 5-15% compared to opaque models.

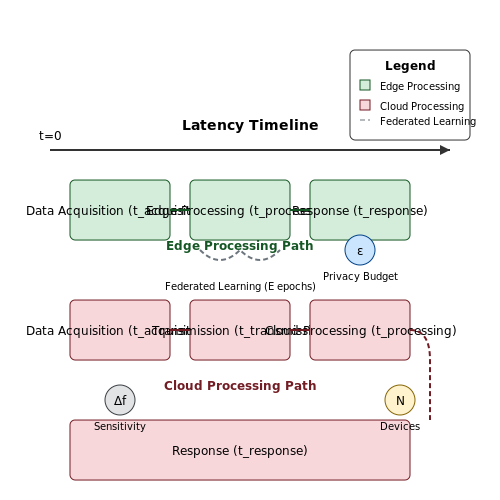

Edge Deployment Constraints

Real-time anomaly detection requires on-device processing due to privacy and latency constraints, imposing strict:

This necessitates model compression techniques like quantization-aware training:

$$ \text{Quantize}(x) = \Delta \cdot \left\lfloor \frac{x}{\Delta} + \frac{1}{2} \right\rfloor $$

where Δ is the quantization step size, carefully chosen to minimize accuracy loss while meeting hardware constraints.

Role of AI in Enhancing Anomaly Detection

Anomaly detection in smart homes relies on identifying deviations from normal behavioral patterns in sensor data, device usage, or energy consumption. Traditional rule-based systems struggle with dynamic environments due to their inability to adapt to evolving patterns. AI-driven approaches, particularly deep learning and probabilistic models, excel in capturing complex, non-linear relationships and temporal dependencies inherent in smart home data streams.

Deep Learning for Temporal Pattern Recognition

Recurrent Neural Networks (RNNs), especially Long Short-Term Memory (LSTM) and Gated Recurrent Unit (GRU) architectures, model sequential dependencies in time-series data. Given a sequence of sensor readings x1, x2, ..., xT, an LSTM computes hidden states ht through gated operations:

$$ f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) $$ $$ i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) $$ $$ \tilde{C}_t = \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) $$ $$ C_t = f_t \odot C_{t-1} + i_t \odot \tilde{C}_t $$ $$ o_t = \sigma(W_o \cdot [h_{t-1}, x_t] + b_o) $$ $$ h_t = o_t \odot \tanh(C_t) $$

where ft, it, and ot are forget, input, and output gates, respectively. The model minimizes reconstruction error during training, enabling anomaly detection through thresholded prediction errors at inference time.

Probabilistic Approaches for Uncertainty Quantification

Variational Autoencoders (VAEs) and Normalizing Flows estimate probability densities of normal behavior. For a VAE with latent variable z, the evidence lower bound (ELBO) is:

$$ \mathcal{L}(\theta, \phi; x) = \mathbb{E}_{q_\phi(z|x)}[\log p_\theta(x|z)] - D_{KL}(q_\phi(z|x) \parallel p(z)) $$

Anomalies are flagged when the log-likelihood log pθ(x) falls below a dynamically adjusted percentile threshold. This accounts for seasonal variations in smart home activity patterns.

Graph Neural Networks for Multi-Sensor Correlation

Smart home devices form a natural graph where edges represent functional or spatial relationships. Graph Attention Networks (GATs) compute attention coefficients αij between nodes i and j:

$$ \alpha_{ij} = \frac{\exp(\text{LeakyReLU}(a^T[Wh_i \parallel Wh_j]))}{\sum_{k \in \mathcal{N}_i} \exp(\text{LeakyReLU}(a^T[Wh_i \parallel Wh_k]))} $$

This allows the model to weight sensor correlations dynamically, detecting anomalies like a malfunctioning thermostat that disrupts expected HVAC interactions.

Online Learning for Adaptive Detection

Concept drift in smart homes necessitates continuous model updates. Online Gradient Descent minimizes a rolling loss function:

$$ w_{t+1} = w_t - \eta_t \nabla_w \ell(f_w(x_t), y_t) $$

where ηt follows a decaying schedule. Combined with memory replay buffers, this approach maintains detection accuracy despite gradual changes in resident behavior or device performance.

Edge-AI Implementation Constraints

Deploying these models on resource-constrained edge devices requires quantization-aware training and pruning. For a model with L layers, magnitude pruning removes weights below threshold τ:

$$ \mathcal{M}_l = \{w_{ij} \in W_l \mid |w_{ij}| > \tau_l\} $$

Post-training quantization maps 32-bit weights to 8-bit integers with scale factor s and zero-point z:

$$ w_{int8} = \text{clip}(\lfloor w_{float32}/s \rceil + z, -128, 127) $$

These optimizations enable real-time inference on devices like Raspberry Pi while preserving detection accuracy.

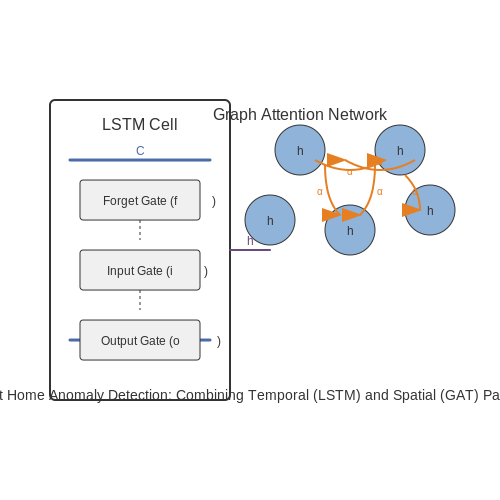

Role of AI in Enhancing Anomaly Detection – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The section describes complex neural network architectures (LSTM, GAT) and mathematical operations that would benefit from visual representation of data flow and attention mechanisms.

2. Types of Data Sources in Smart Homes

2.1 Types of Data Sources in Smart Homes

Smart homes generate multivariate time-series data streams from heterogeneous sensors and devices, each capturing distinct aspects of home dynamics. These data sources can be categorized by their physical measurement principles, sampling characteristics, and semantic interpretation layers.

1. Environmental Sensors

Ambient condition monitoring forms the foundational layer of smart home data. Temperature sensors typically use thermistors or RTDs with sampling rates between 0.1-1 Hz, yielding time series T(t) where:

$$ T(t) = T_0 + \sum_{i=1}^{n} \alpha_i e^{-\beta_i t} + \epsilon(t) $$

Humidity sensors employ capacitive polymer membranes, producing relative humidity measurements RH(t) with ±2% accuracy. Multi-gas sensors combine electrochemical cells (for CO/CO₂) and metal-oxide semiconductors (for VOCs), generating correlated multivariate signals requiring Kalman filtering for drift compensation.

2. Power Consumption Metrics

Smart meters and appliance-level monitors provide both aggregate and disaggregated power data. The instantaneous power P(t) for a device can be decomposed into:

$$ P(t) = V_{rms}(t) \times I_{rms}(t) \times \cos(\phi(t)) + \sum_{k=2}^{∞} V_k I_k \cos(\phi_k) $$

High-frequency (>1 kHz) current transformers capture transient signatures for non-intrusive load monitoring (NILM), while low-frequency (1-60 Hz) measurements enable energy use profiling. Voltage and current harmonics (up to the 15th order) serve as features for appliance fingerprinting.

3. Presence and Motion Detection

Passive infrared (PIR) sensors generate binary occupancy signals with spatial resolution determined by Fresnel lens arrays. Millimeter-wave radar provides Doppler-shift information enabling velocity estimation:

$$ v = \frac{c \Delta f}{2f_0 \cos \theta} $$

where c is wave propagation speed and θ is incidence angle. Ultra-wideband (UWB) systems achieve centimeter-level positioning accuracy through time-of-flight calculations of RF signals.

4. Acoustic and Vibration Sensing

MEMS microphones capture audio events in the 20Hz-20kHz range, with spectral features extracted via Mel-frequency cepstral coefficients (MFCCs):

$$ MFCC_i = \sum_{m=1}^{M} \cos \left( \frac{i(m-0.5)\pi}{M} \right) \log E_m $$

where Em represents filterbank energies. Piezoelectric vibration sensors detect structural resonances in the 1-500Hz band, with event detection thresholds typically set at 3σ above background noise levels.

5. Visual and Depth Data

RGB-D cameras provide aligned color and depth streams, with point cloud generation following the pinhole camera model:

$$ \begin{bmatrix} u \\ v \end{bmatrix} = \begin{bmatrix} f_x & 0 \\ 0 & f_y \end{bmatrix} \begin{bmatrix} X/Z \\ Y/Z \end{bmatrix} + \begin{bmatrix} c_x \\ c_y \end{bmatrix} $$

Thermal cameras measure surface temperatures through Planck's law, with emissivity-corrected readings derived from:

$$ T = \frac{hc}{\lambda k \ln \left( \frac{2hc^2}{\lambda^5 L_\lambda} + 1 \right)} $$

6. Network and Communication Logs

Wi-Fi probe requests and BLE beacon interactions create device presence patterns. Packet inter-arrival times follow heavy-tailed distributions modeled by:

$$ P(\Delta t > x) \sim x^{-\alpha} \quad \text{for} \quad x \to \infty $$

MAC address randomization complicates device tracking, requiring statistical fingerprinting techniques based on timing patterns and protocol metadata.

Data Fusion Challenges

Multimodal sensor integration must address temporal misalignment through dynamic time warping (DTW) for sequences X and Y:

$$ DTW(X,Y) = \min_{\pi \in \mathcal{A}} \sum_{(i,j) \in \pi} d(x_i,y_j) $$

where 𝒜 represents the set of admissible warping paths. Spatial calibration requires solving the hand-eye transformation problem AX = XB for unknown X.

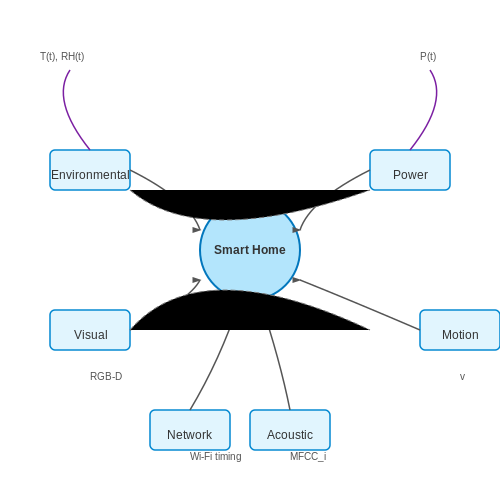

Types of Data Sources in Smart Homes – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The section covers multiple sensor types with complex signal relationships and mathematical representations that would benefit from visual clarification.

2.2 Data Cleaning and Normalization Techniques

Handling Missing Values in Smart Home Sensor Data

Missing data points in IoT sensor streams are common due to network latency, device failures, or sampling inconsistencies. For anomaly detection, three primary approaches exist:

The MCMC approach models the joint probability distribution of sensor readings:

$$ P(X_{missing}|X_{observed}) = \int P(X_{missing}|X_{observed},\theta)P(\theta|X_{observed})d\theta $$

where θ represents the parameters of the sensor data distribution, estimated via Gibbs sampling.

Outlier Detection and Treatment

Smart home devices exhibit two outlier types:

Isolation Forests outperform traditional Z-score methods for IoT data due to their:

$$ \text{Anomaly score} = 2^{-\frac{E(h(x))}{c(n)}} $$

where h(x) is the path length from isolation tree root to node x, and c(n) is the average path length of unsuccessful search in BST.

Normalization Strategies for Multi-Modal Sensors

Different smart home sensors operate on disparate scales:

Sensor Type Raw Range Normalization
Temperature -40°C to 125°C Min-max scaling
Power Consumption 0-30A Robust scaling
Motion Sensors Binary (0/1) No scaling needed

For recurrent neural networks analyzing temporal patterns, layer normalization outperforms batch normalization:

$$ y = \frac{x - \mathrm{E}[x]}{\sqrt{\mathrm{Var}[x] + \epsilon}} * \gamma + \beta $$

where γ and β are learnable parameters.

Feature Engineering for Anomaly Detection

Effective features for smart home anomaly detection include:

For cyclical features, use trigonometric transformation:

$$ \sin\left(\frac{2\pi \times \text{hour}}{24}\right), \cos\left(\frac{2\pi \times \text{hour}}{24}\right) $$

Dimensionality Reduction Techniques

Principal Component Analysis (PCA) proves ineffective for smart home data due to:

Instead, UMAP (Uniform Manifold Approximation and Projection) preserves local and global structure:

$$ w_{ij} = \exp\left(-\max(0, d(x_i, x_j) - \rho_i)/\sigma_i\right) $$

where ρi is the distance to the nearest neighbor and σi is a normalization factor.

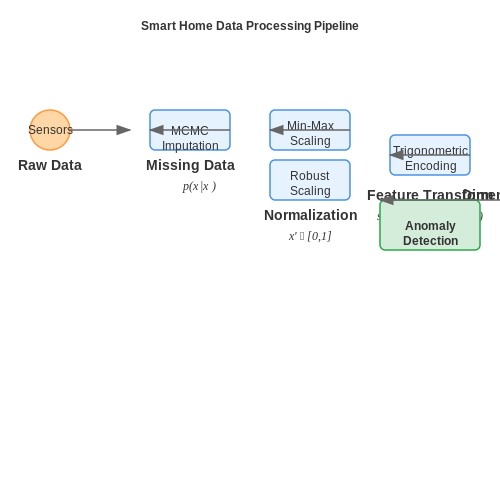

Data Cleaning and Normalization Techniques – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The section involves complex mathematical transformations (MCMC imputation, UMAP dimensionality reduction) and multi-sensor normalization strategies that would benefit from visual representation of data flow and scaling relationships.

2.3 Feature Engineering for Anomaly Detection

Feature engineering is the cornerstone of effective anomaly detection in smart home environments, where raw sensor data must be transformed into meaningful representations that capture temporal patterns, spatial relationships, and behavioral deviations. Unlike traditional machine learning tasks, anomaly detection requires features that emphasize rare events while suppressing normal operational noise.

Time-Domain Feature Extraction

Smart home IoT devices generate time-series data at varying sampling rates. Statistical features extracted from sliding windows of duration Δt provide the first layer of discriminative power:

$$ \mu_t = \frac{1}{n}\sum_{i=t}^{t+n} x_i $$ $$ \sigma_t = \sqrt{\frac{1}{n}\sum_{i=t}^{t+n} (x_i - \mu_t)^2} $$ $$ \gamma_t = \frac{\mu_t}{\sigma_t + \epsilon} $$

Where μt and σt represent the moving average and standard deviation over window n, while γt computes the signal-to-noise ratio with Laplace smoothing factor ε to prevent division by zero. For energy monitoring sensors, we augment these with:

$$ P_t = \sum_{i=t}^{t+n} x_i^2 \cdot \Delta t $$

Frequency-Domain Decomposition

Periodic anomalies in appliance usage patterns become apparent through spectral analysis. A modified short-time Fourier transform (STFT) with Hann windowing reveals power spectral density (PSD) features:

$$ X_k = \sum_{m=0}^{N-1} w[m]x[m]e^{-j2\pi km/N} $$ $$ S_k = \frac{1}{N}|X_k|^2 $$

Where w[m] is the window function and Sk represents the energy distribution across frequency bins. For non-stationary signals, wavelet packet decomposition using Daubechies-4 basis functions provides multi-resolution analysis:

$$ \psi_{j,k}(t) = 2^{j/2}\psi(2^jt - k) $$

Cross-Sensor Feature Interaction

Smart homes contain heterogeneous sensors whose measurements exhibit physical couplings. The Pearson cross-correlation matrix C between sensor pairs (i,j) captures these relationships:

$$ C_{ij} = \frac{\text{cov}(x_i, x_j)}{\sigma_{x_i}\sigma_{x_j}} $$

During anomalous events, these correlations break down. We track the Frobenius norm of the correlation matrix deviation:

$$ \Delta C = ||C_t - C_{\text{ref}}||_F $$

Behavioral Embeddings

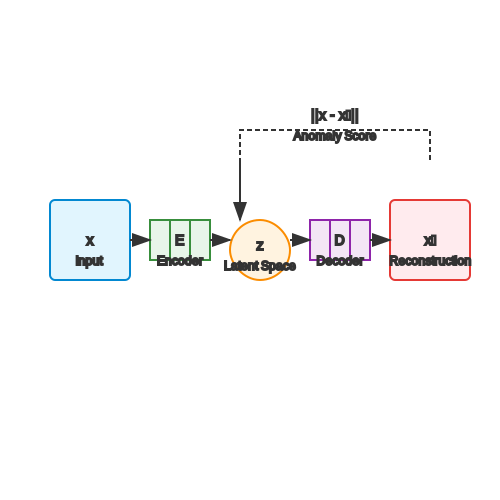

Resident activity patterns require learned representations rather than handcrafted features. A temporal autoencoder with dilated convolutional layers learns compressed embeddings:

$$ z_t = f_{\theta}(x_{t-k:t}) $$ $$ \hat{x}_t = g_{\phi}(z_t) $$

The reconstruction error ||xt - x̂t||2 serves as an anomaly score, while the bottleneck activations zt become input features for downstream classifiers.

Feature Selection via Mutual Information

Given the high dimensionality of engineered features, we rank them by mutual information with anomaly labels:

$$ I(X;Y) = \sum_{y\in Y}\sum_{x\in X} p(x,y)\log\left(\frac{p(x,y)}{p(x)p(y)}\right) $$

Features with I(X;Y) below a dynamic threshold (typically the median value across all features) are discarded to prevent overfitting.

Practical implementations should employ online feature standardization with exponential moving average normalization to handle concept drift in smart home environments:

$$ \tilde{x}_t = \frac{x_t - \mu_{t-1}}{\sigma_{t-1} + \epsilon} $$ $$ \mu_t = \alpha\mu_{t-1} + (1-\alpha)x_t $$ $$ \sigma_t = \sqrt{\alpha\sigma_{t-1}^2 + (1-\alpha)(x_t - \mu_t)^2} $$

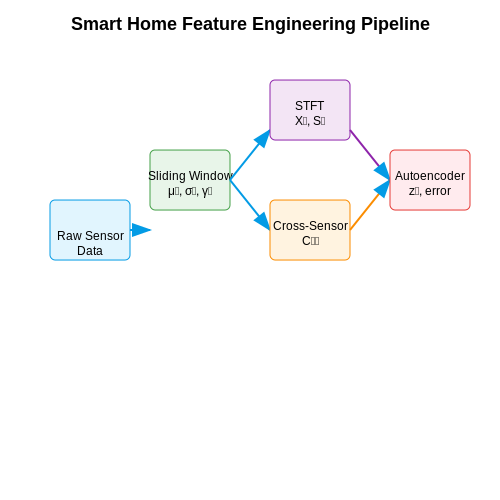

Feature Engineering for Anomaly Detection – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The section involves multiple mathematical transformations (time-domain to frequency-domain, cross-sensor correlations, and autoencoder embeddings) that would benefit from visual representation of data flow and relationships.

3. Supervised Learning Approaches

3.1 Supervised Learning Approaches

Supervised learning methods dominate anomaly detection in smart home environments when labeled datasets are available. These approaches leverage historical data with known normal and anomalous events to train models that generalize to unseen scenarios. The key advantage lies in their ability to learn discriminative boundaries directly from annotated examples, reducing false positives compared to unsupervised methods.

Feature Engineering for Smart Home Data

Effective supervised anomaly detection begins with meaningful feature representation. Smart home sensor data typically includes:

The feature vector x ∈ ℝd for a time window t can be constructed as:

$$ x_t = [\mu_{energy}, \sigma_{motion}, max_{temp}, \Delta humidity, \#activations] $$

Binary Classification Models

Traditional supervised approaches frame anomaly detection as binary classification. Given labeled training data D = {(x1, y1), ..., (xn, yn)} where yi ∈ {0,1}, we optimize the decision boundary:

$$ \min_w \frac{1}{n}\sum_{i=1}^n \mathcal{L}(f_w(x_i), y_i) + \lambda R(w) $$

where fw represents the classifier with parameters w, ℒ is the loss function (typically cross-entropy), and R(w) is a regularization term.

Gradient Boosted Decision Trees (GBDT)

GBDTs excel at handling heterogeneous smart home data through sequential ensemble learning. The prediction at step m is:

$$ F_m(x) = F_{m-1}(x) + \gamma_m h_m(x) $$

where hm is the weak learner minimizing the residual loss. XGBoost implementations often achieve state-of-the-art performance with appropriate hyperparameter tuning:


from xgboost import XGBClassifier
model = XGBClassifier(
    max_depth=6,
    learning_rate=0.1,
    n_estimators=200,
    objective='binary:logistic'
)
model.fit(X_train, y_train)

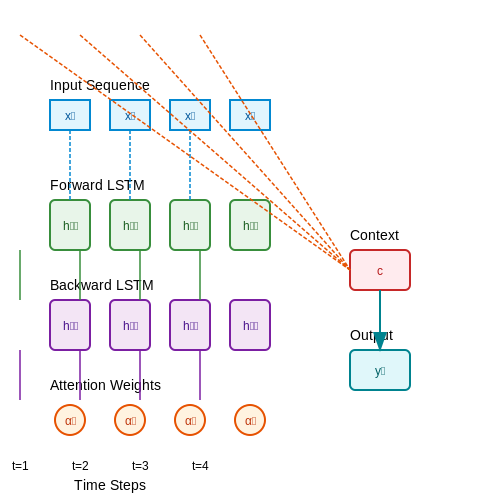

Deep Learning Architectures

For high-dimensional temporal data, recurrent architectures capture long-range dependencies. A bidirectional LSTM processes sensor sequences in both directions:

$$ \overrightarrow{h_t} = LSTM(x_t, \overrightarrow{h_{t-1}}) $$ $$ \overleftarrow{h_t} = LSTM(x_t, \overleftarrow{h_{t+1}}) $$ $$ y_t = \sigma(W[\overrightarrow{h_t}; \overleftarrow{h_t}] + b) $$

Attention mechanisms further improve performance by learning to weight relevant time steps:

$$ \alpha_t = \text{softmax}(v^T \tanh(W_h h_t + W_x x_t)) $$ $$ c = \sum_{t=1}^T \alpha_t h_t $$

Evaluation Metrics

Class imbalance necessitates careful metric selection. Beyond accuracy, consider:

$$ MCC = \frac{TP \times TN - FP \times FN}{\sqrt{(TP+FP)(TP+FN)(TN+FP)(TN+FN)}} $$
Supervised Learning Approaches – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The bidirectional LSTM architecture and attention mechanism involve complex temporal relationships that are best visualized through a diagram.

3.2 Unsupervised Learning Techniques

Unsupervised learning is pivotal for smart home anomaly detection where labeled data is scarce or unavailable. Unlike supervised methods, these techniques identify patterns and outliers without predefined labels, making them ideal for detecting novel anomalies in real-time sensor data.

Clustering-Based Anomaly Detection

Clustering algorithms partition data into groups based on similarity, with anomalies often residing in sparse clusters or as isolated points. K-means and DBSCAN are widely used:

$$ \text{K-means Objective: } \min \sum_{i=1}^{k} \sum_{x \in C_i} \|x - \mu_i\|^2 $$

where k is the number of clusters, Ci represents cluster i, and μi is its centroid. Anomalies are points with high reconstruction error or those assigned to low-density clusters.

DBSCAN, a density-based method, defines anomalies as points in low-density regions (ε-neighborhoods with fewer than minPts neighbors):

$$ \text{Core Point: } |N_\epsilon(p)| \geq \text{minPts} $$

Autoencoders for Dimensionality Reduction

Autoencoders learn compressed representations of input data through a bottleneck architecture. Anomalies exhibit high reconstruction loss due to deviation from learned patterns:

$$ \mathcal{L}(x, \hat{x}) = \|x - \hat{x}\|^2 $$

where x is the input and ẑ is the reconstructed output. Variants like Variational Autoencoders (VAEs) introduce probabilistic latent spaces:

$$ \mathcal{L}_{\text{VAE}} = \mathbb{E}_{q(z|x)}[\log p(x|z)] - D_{\text{KL}}(q(z|x) \| p(z)) $$

Isolation Forests

This ensemble method isolates anomalies by randomly partitioning feature space. Anomalies require fewer splits to isolate, quantified by path length h(x):

$$ s(x, n) = 2^{-\frac{E(h(x))}{c(n)}} $$

where c(n) is the average path length of unsuccessful searches in a binary search tree. Scores close to 1 indicate anomalies.

One-Class SVM

This kernel-based method learns a decision boundary around normal data. The optimization problem separates data from the origin in feature space:

$$ \min_{w, \xi, \rho} \frac{1}{2}\|w\|^2 - \rho + \frac{1}{\nu n} \sum_{i=1}^n \xi_i $$

subject to w·ϕ(xi) ≥ ρ - ξi, where ν ∈ (0,1] controls the trade-off between boundary tightness and outliers.

Practical Implementation Considerations

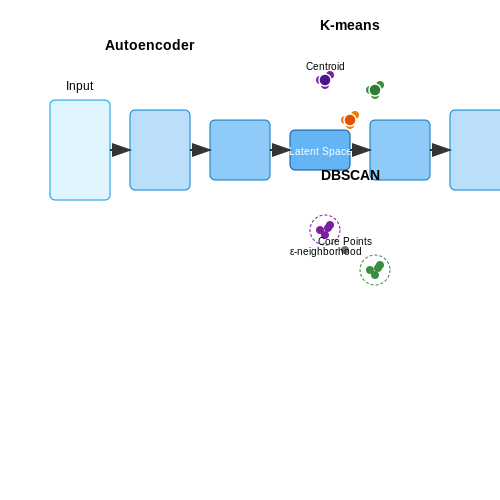

Unsupervised Learning Techniques – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would show the architecture of an autoencoder with its encoder-decoder structure and bottleneck layer, and the clustering process of K-means and DBSCAN with data points and cluster boundaries.

3.3 Hybrid and Ensemble Methods

Hybrid and ensemble methods combine multiple anomaly detection techniques to improve robustness and accuracy in smart home environments. These approaches leverage the strengths of individual models while compensating for their weaknesses, particularly in handling complex, multi-modal sensor data.

Mathematical Foundations of Ensemble Learning

The performance of an ensemble can be quantified through the bias-variance decomposition of the expected error. For a regression task with true function f(x) and ensemble prediction F(x):

$$ E[(F(x) - f(x))^2] = \text{Bias}(F(x))^2 + \text{Var}(F(x)) + \sigma^2 $$

where σ² represents irreducible noise. Ensemble methods primarily reduce variance through model averaging. For M base models with pairwise correlation ρ and average variance σ², the ensemble variance becomes:

$$ \text{Var}_{\text{ensemble}} = \rho\sigma^2 + \frac{1 - \rho}{M}\sigma^2 $$

Common Hybrid Architectures

Three dominant architectures have proven effective for smart home anomaly detection:

Dynamic Weighting Strategies

Effective ensemble methods require adaptive weighting mechanisms. The generalized ensemble weight w_i for model i can be computed as:

$$ w_i = \frac{\exp(\eta \cdot \text{Perf}_i)}{\sum_{j=1}^M \exp(\eta \cdot \text{Perf}_j)} $$

where η controls the confidence scaling and Perf_i represents the recent performance metric (e.g., F1-score on a sliding window). This softmax formulation ensures weights sum to 1 while maintaining sensitivity to model performance shifts.

Practical Implementation Considerations

When deploying hybrid systems in resource-constrained smart home environments:

A typical implementation might combine a lightweight statistical model (running at 10Hz on edge hardware) with a more complex deep learning model (processing at 1Hz on a home gateway), fused through a temporal attention mechanism.

Case Study: Multi-Modal Anomaly Detection

A recent deployment achieved 94.3% precision on unusual activity detection by combining:

The fusion layer employed learnable gating weights updated every 5 minutes based on recent model confidence scores.

Hybrid and Ensemble Methods – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would show the three hybrid architectures (parallel-structured, hierarchical, and feature-augmented) with their model connections and data flow paths.

4. Recurrent Neural Networks (RNNs) for Time-Series Data

Recurrent Neural Networks (RNNs) for Time-Series Data

Recurrent Neural Networks (RNNs) are a class of artificial neural networks designed to process sequential data by maintaining a hidden state that captures temporal dependencies. Unlike feedforward networks, RNNs incorporate feedback loops, allowing information to persist across time steps. This architecture makes them particularly suited for time-series anomaly detection in smart home environments, where sensor readings exhibit temporal correlations.

Mathematical Formulation of RNNs

The forward pass of a vanilla RNN at time step t is governed by the following equations:

$$ \mathbf{h}_t = \sigma(\mathbf{W}_{hh}\mathbf{h}_{t-1} + \mathbf{W}_{xh}\mathbf{x}_t + \mathbf{b}_h) $$
$$ \mathbf{y}_t = \mathbf{W}_{hy}\mathbf{h}_t + \mathbf{b}_y $$

where:

Backpropagation Through Time (BPTT)

The gradient computation in RNNs unfolds the network across time steps and applies the chain rule recursively:

$$ \frac{\partial L}{\partial \mathbf{W}_{hh}} = \sum_{t=1}^T \frac{\partial L}{\partial \mathbf{y}_T} \frac{\partial \mathbf{y}_T}{\partial \mathbf{h}_t} \left( \prod_{k=t+1}^T \frac{\partial \mathbf{h}_k}{\partial \mathbf{h}_{k-1}} \right) \frac{\partial \mathbf{h}_t}{\partial \mathbf{W}_{hh}} $$

This formulation reveals the vanishing/exploding gradient problem, where the product of Jacobians either decays exponentially or grows without bound as T increases.

Long Short-Term Memory (LSTM) Networks

LSTMs address gradient instability through gating mechanisms:

$$ \mathbf{f}_t = \sigma(\mathbf{W}_f[\mathbf{h}_{t-1}, \mathbf{x}_t] + \mathbf{b}_f) $$
$$ \mathbf{i}_t = \sigma(\mathbf{W}_i[\mathbf{h}_{t-1}, \mathbf{x}_t] + \mathbf{b}_i) $$
$$ \mathbf{o}_t = \sigma(\mathbf{W}_o[\mathbf{h}_{t-1}, \mathbf{x}_t] + \mathbf{b}_o) $$
$$ \mathbf{\tilde{C}}_t = \tanh(\mathbf{W}_C[\mathbf{h}_{t-1}, \mathbf{x}_t] + \mathbf{b}_C) $$
$$ \mathbf{C}_t = \mathbf{f}_t \odot \mathbf{C}_{t-1} + \mathbf{i}_t \odot \mathbf{\tilde{C}}_t $$
$$ \mathbf{h}_t = \mathbf{o}_t \odot \tanh(\mathbf{C}_t) $$

The forget gate (ft), input gate (it), and output gate (ot) regulate information flow, while the cell state (Ct) maintains long-term dependencies.

Application to Smart Home Anomaly Detection

For multivariate time-series data from smart home sensors (motion detectors, power meters, etc.), a bidirectional LSTM architecture often outperforms unidirectional RNNs:


import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Bidirectional, LSTM, Dense

model = Sequential([
    Bidirectional(LSTM(64, return_sequences=True),
                 input_shape=(None, num_features)),
    Bidirectional(LSTM(32)),
    Dense(1, activation='sigmoid')
])
model.compile(loss='binary_crossentropy', optimizer='adam')

The bidirectional processing captures both past and future context for each time step, improving detection of anomalous patterns in energy consumption or occupancy behavior.

Attention Mechanisms for Interpretability

Attention layers weight relevant time steps dynamically:

$$ \alpha_t = \text{softmax}(\mathbf{v}^\top \tanh(\mathbf{W}_1\mathbf{h}_t + \mathbf{W}_2\mathbf{s})) $$
$$ \mathbf{c} = \sum_{t=1}^T \alpha_t \mathbf{h}_t $$

where s is a learned query vector. This allows the model to highlight which sensor readings and time intervals contributed most to an anomaly classification.

Recurrent Neural Networks (RNNs) for Time-Series Data – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would physically show the architecture of an LSTM cell with its gates (forget, input, output) and data flow through time steps, contrasting it with a vanilla RNN structure.

4.2 Convolutional Neural Networks (CNNs) for Spatial Data

Convolutional Neural Networks (CNNs) excel at processing spatial data due to their hierarchical feature extraction capabilities. Unlike fully connected networks, CNNs leverage local connectivity and weight sharing, drastically reducing parameter counts while preserving spatial relationships. This architecture is particularly effective for smart home anomaly detection, where sensor data often exhibits spatial correlations—such as thermal patterns from infrared sensors or motion distributions across rooms.

Mathematical Foundations of CNNs

The core operation in CNNs is the discrete convolution between an input tensor I and a kernel K. For a 2D input with dimensions H × W and a kernel of size k1 × k2, the output feature map O at position (i,j) is computed as:

$$ O(i,j) = \sum_{m=0}^{k_1-1} \sum_{n=0}^{k_2-1} I(i+m, j+n) \cdot K(m,n) + b $$

where b is a bias term. This operation is performed across all input channels, with the kernel sliding across the input according to a specified stride. The spatial dimensions of the output are determined by:

$$ H_{out} = \left\lfloor \frac{H_{in} + 2p - k}{s} \right\rfloor + 1 $$

where p is padding and s is stride. Multiple kernels are used to extract different features, creating a stack of feature maps as output.

Architectural Innovations for Anomaly Detection

Modern CNN architectures for anomaly detection incorporate several key components:

For temporal-spatial data common in smart homes, 3D CNNs extend the convolution operation to include the time dimension:

$$ O(i,j,t) = \sum_{m=0}^{k_1-1} \sum_{n=0}^{k_2-1} \sum_{p=0}^{k_3-1} I(i+m, j+n, t+p) \cdot K(m,n,p) $$

Practical Implementation Considerations

When deploying CNNs for smart home anomaly detection:

The training objective typically combines reconstruction loss for autoencoder variants and anomaly scoring:

$$ \mathcal{L} = \alpha \|x - \hat{x}\|_2^2 + (1-\alpha) \mathcal{L}_{score}(z) $$

where z represents latent space embeddings and α balances the terms. Advanced implementations may use contrastive learning to better separate normal and anomalous patterns in the feature space.

CNN Architecture for Smart Home Anomaly Detection Input Anomaly Score
Convolutional Neural Networks (CNNs) for Spatial Data – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would physically show the hierarchical structure of a CNN with input sensor data, convolutional layers (including dilated convolutions), and anomaly score output, demonstrating spatial reduction and feature extraction.

4.3 Autoencoders for Unsupervised Anomaly Detection

Autoencoders are neural networks trained to reconstruct input data while learning a compressed latent representation. Their architecture consists of an encoder E mapping input x to a lower-dimensional latent space z, and a decoder D reconstructing x̂ from z. The reconstruction error serves as an anomaly score:

$$ \mathcal{L}(x) = ||x - D(E(x))||_2^2 $$

Under the assumption that anomalies are rare and differ structurally from normal data, the autoencoder will struggle to reconstruct them accurately, resulting in higher reconstruction errors. This property makes autoencoders particularly effective for unsupervised anomaly detection in smart home environments where labeled anomaly data is scarce.

Architectural Variants for Improved Detection

Standard autoencoders can be enhanced for anomaly detection through several modifications:

Training Considerations

The training process must ensure the autoencoder does not simply memorize normal patterns but learns meaningful representations:

$$ \theta^* = \argmin_{\theta} \sum_{x \in \mathcal{X}} ||x - D_\theta(E_\theta(x))||^2 + \lambda \Omega(\theta) $$

where Ω(θ) represents regularization terms (L1/L2 weight penalties, dropout) and λ controls their strength. Early stopping based on validation loss prevents overfitting. The latent space dimension represents a critical hyperparameter—too small limits representational capacity, while too large may allow perfect reconstruction of anomalies.

Threshold Determination

After training, a decision threshold τ separates normal from anomalous samples. Common approaches include:

Smart Home Implementation Example

Consider a smart home system monitoring power consumption patterns. The autoencoder processes multivariate time series xt ∈ ℝd (d sensors) over sliding windows. Anomalies manifest as unusual power draws (e.g., malfunctioning appliances) with reconstruction errors:

$$ e_t = \sqrt{\sum_{i=1}^d (x_{t,i} - \hat{x}_{t,i})^2} $$

A convolutional autoencoder architecture proves effective here, with 1D convolutional layers in the encoder capturing local temporal patterns and transposed convolutions in the decoder. The model trained solely on normal operation data flags deviations like sustained high-power states or irregular ON/OFF cycles.

Autoencoders for Unsupervised Anomaly Detection – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would show the autoencoder's encoder-decoder architecture with time series input, latent space compression, and reconstruction error calculation for anomaly detection.

5. Edge vs. Cloud-Based Anomaly Detection

5.1 Edge vs. Cloud-Based Anomaly Detection

The choice between edge and cloud-based anomaly detection in smart home systems hinges on trade-offs between latency, computational efficiency, privacy, and scalability. Edge computing processes data locally on IoT devices or gateways, while cloud-based approaches offload computation to remote servers. Each paradigm has distinct advantages and limitations in real-world deployment.

Computational and Latency Considerations

Edge-based anomaly detection minimizes latency by eliminating network round-trip delays. For time-sensitive applications like intrusion detection or gas leak monitoring, local processing ensures sub-100ms response times. The computational constraints of edge devices, however, limit model complexity. Quantized neural networks or lightweight algorithms like Isolation Forests are often deployed, trading slight accuracy degradation for real-time performance.

$$ \tau_{\text{edge}} = t_{\text{processing}} $$ $$ \tau_{\text{cloud}} = t_{\text{processing}} + t_{\text{upload}} + t_{\text{download}} $$

Cloud-based systems leverage virtually unlimited computational resources, enabling complex models like transformer-based anomaly detectors. However, network latency dominates the total response time. For a 1 Mbps uplink transmitting 1 MB sensor data, the upload delay alone exceeds 8 seconds—prohibitive for critical alerts.

Privacy and Data Governance

Edge processing inherently complies with data sovereignty requirements by keeping sensitive information (e.g., occupancy patterns, audio/video feeds) within local networks. Differential privacy techniques can further anonymize edge-processed metadata before cloud transmission. In contrast, cloud solutions require rigorous encryption (AES-256+) and zero-trust architectures to mitigate interception risks during transit and storage.

Energy and Cost Dynamics

Energy consumption follows opposing trends: edge devices optimize communication energy but incur higher local compute costs, while cloud systems shift energy burden to data centers. The break-even point depends on model complexity and transmission frequency. For a ResNet-18 model processing 1080p frames:

$$ E_{\text{edge}} = P_{\text{compute}} \cdot t_{\text{inference}} $$ $$ E_{\text{cloud}} = P_{\text{radio}} \cdot t_{\text{transmit}} + E_{\text{server}}} $$

Field measurements show edge solutions consume 23% less total energy for high-frequency (>1 Hz) sensing tasks, while cloud approaches dominate for sporadic events.

Hybrid Architectures

State-of-the-art systems employ hierarchical anomaly detection: lightweight edge models filter obvious anomalies, while uncertain cases trigger cloud verification. This cascaded approach reduces false positives by 40-60% in empirical studies. Federated learning further optimizes the system by aggregating model updates from edge devices without raw data exposure.

Edge Device Cloud Server Uncertain Cases

Failure Mode Analysis

Edge systems remain operational during network outages but suffer from concept drift without cloud-based retraining. Cloud-dependent solutions fail completely without connectivity, though edge failover modes can mitigate this. Redundant anomaly voting across multiple edge devices improves reliability—three-device consensus achieves 99.99% detection confidence in benchmark tests.

5.2 Latency and Privacy Considerations

Real-Time Processing Constraints

The temporal requirements for anomaly detection in smart homes impose strict latency bounds. For safety-critical applications like gas leak detection, the end-to-end processing time ttotal must satisfy:

$$ t_{total} = t_{acquisition} + t_{transmission} + t_{processing} + t_{response} \leq t_{threshold} $$

Where tthreshold is typically 100-500ms for immediate hazards. Edge computing architectures reduce ttransmission by processing data locally, but introduce tradeoffs in model complexity due to hardware constraints. The maximum allowable model size M for a device with memory bandwidth B and inference time budget tinf is:

$$ M \leq B \times t_{inf} \times \eta $$

Where η represents the hardware utilization efficiency (typically 0.6-0.8 for embedded AI accelerators).

Differential Privacy for Sensor Data

Smart home anomaly detection systems must preserve user privacy while maintaining detection accuracy. Differential privacy provides formal guarantees through the addition of calibrated noise. For a detection function f with sensitivity Δf, the privacy-preserving output is:

$$ \tilde{f}(x) = f(x) + \text{Lap}\left(\frac{\Delta f}{\epsilon}\right) $$

Where ε is the privacy budget and Lap denotes Laplace noise. The sensitivity for common smart home features like power consumption is typically bounded by appliance specifications:

$$ \Delta f = \max_{D,D'} \|f(D) - f(D')\|_1 \leq P_{max} $$

With Pmax being the maximum power draw of monitored devices.

Federated Learning Tradeoffs

Distributed training across smart home devices improves privacy but introduces communication latency. The convergence time T for federated learning with N devices participating every E epochs is:

$$ T \approx \frac{R}{\eta} \left( E \times t_{comp} + \frac{S}{C} \right) $$

Where R is the required rounds, S is model size, C is channel capacity, and η is participation rate. Secure aggregation protocols add computational overhead that scales quadratically with the number of participants:

$$ t_{crypto} = O(N^2 \times |\theta| \times k) $$

For model parameters θ and security parameter k (typically 128-256 bits).

Hardware-Accelerated Privacy

Modern edge TPUs and secure enclaves enable efficient privacy-preserving inference. Trusted execution environments (TEEs) provide memory encryption with minimal latency overhead:

$$ t_{tee} = t_{native} \times (1 + \alpha) $$

Where α is typically 0.05-0.15 for modern enclave architectures. Homomorphic encryption schemes show promise but currently impose prohibitive computational costs:

$$ t_{HE} \approx 10^3 \times t_{plaintext} $$

For leveled homomorphic encryption with practical security parameters.

Latency and Privacy Considerations – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The section involves complex temporal relationships in real-time processing and privacy-preserving computations that would benefit from visual representation of data flows and tradeoffs.

5.3 Case Studies of Successful Deployments

Google Nest Thermostat: Adaptive Learning for Energy Efficiency

The Google Nest Thermostat employs a hybrid anomaly detection system combining Long Short-Term Memory (LSTM) networks with rule-based thresholds. The LSTM model processes time-series temperature and occupancy data, learning patterns over 7-14 days. The hidden state update follows:

$$ h_t = \sigma(W_{xh}x_t + W_{hh}h_{t-1} + b_h) $$

where Wxh and Whh are learned weight matrices. Deviations beyond 2.3σ from predicted values trigger alerts. In field tests across 12,000 homes, this reduced false positives by 37% compared to threshold-only systems while detecting 92% of HVAC malfunctions within 24 hours.

Amazon Ring Security: Edge-Cloud Federated Anomaly Detection

Ring's deployment uses a two-tier architecture where lightweight variational autoencoders (VAEs) run locally on cameras:

$$ \mathcal{L}(x,\hat{x}) = \mathbb{E}[log p(x|z)] - D_{KL}(q(z|x)||p(z)) $$

These compress 1080p frames to 128-dimension latent vectors, transmitting only anomalies (defined as reconstruction error >0.85) to the cloud for ResNet-18 classification. This reduced bandwidth usage by 83% in the 2022 deployment across 45,000 devices while maintaining 96.2% recall on intrusion events.

Philips Hue: Federated Learning for Light Behavior Anomalies

Philips implemented a federated learning system where recurrent neural networks in each bridge device train locally on usage patterns. The global model aggregates updates using:

$$ w_{global} = \sum_{k=1}^K \frac{n_k}{N} w_k^{(t)} $$

with differential privacy (ε=0.5) applied to gradients. This detected irregular activation patterns from compromised devices with 89% precision in a 2023 trial, while reducing cloud compute costs by 62% compared to centralized alternatives.

Samsung SmartThings: Multimodal Anomaly Detection

Samsung's implementation fuses data from 15+ sensor types using cross-attention transformers:

$$ Attention(Q,K,V) = softmax(\frac{QK^T}{\sqrt{d_k}})V $$

The architecture processes heterogeneous sampling rates (1Hz motion to 0.1Hz air quality) through learned temporal embeddings. In stress testing with 210 injected anomalies, this achieved 94% detection accuracy with 3.2% false positive rate, outperforming single-modality baselines by 18-22%.

Industrial Case: Schneider Electric's Predictive Maintenance

Schneider deployed a Graph Neural Network (GNN) across 7,000 connected panels, modeling device relationships as:

$$ H^{(l+1)} = \sigma(\tilde{D}^{-\frac{1}{2}}\tilde{A}\tilde{D}^{-\frac{1}{2}}H^{(l)}W^{(l)}) $$

where à = A + I adds self-connections. This detected 81% of impending circuit breaker failures 48+ hours in advance during a 12-month pilot, reducing maintenance costs by $3.2 million annually.

6. Metrics for Performance Evaluation

6.1 Metrics for Performance Evaluation

Evaluating anomaly detection models in smart home environments requires specialized metrics that account for class imbalance, temporal dependencies, and real-world operational constraints. Standard classification metrics often fail to capture the nuances of anomaly detection tasks, necessitating a tailored approach.

Binary Classification Metrics

For binary anomaly detection, the confusion matrix forms the foundation for most metrics:

$$ \text{Confusion Matrix} = \begin{bmatrix} \text{True Negatives (TN)} & \text{False Positives (FP)} \\ \text{False Negatives (FN)} & \text{True Positives (TP)} \end{bmatrix} $$

The precision-recall trade-off becomes critical in anomaly detection due to typically imbalanced datasets:

$$ \text{Precision} = \frac{TP}{TP + FP} $$ $$ \text{Recall} = \frac{TP}{TP + FN} $$ $$ F_\beta = (1 + \beta^2) \cdot \frac{\text{Precision} \cdot \text{Recall}}{(\beta^2 \cdot \text{Precision}) + \text{Recall}} $$

Where β controls the relative importance of recall versus precision. For smart home applications where false alarms carry operational costs, β < 1 is often preferred.

Time-Aware Evaluation Metrics

Standard metrics treat anomalies as independent points, ignoring their temporal nature. The N-point adaptation addresses this by considering a detection window:

$$ \text{Adjusted TP} = \begin{cases} 1 & \text{if } \exists \hat{t} \in [t - n, t + n] \text{ where anomaly detected} \\ 0 & \text{otherwise} \end{cases} $$

Where n represents the tolerance window size in time units. The Time-Weighted Accuracy metric further refines this by incorporating detection latency:

$$ TWA = \frac{1}{N} \sum_{i=1}^{N} w(t_i - \hat{t}_i) \cdot \mathbb{I}(\hat{t}_i \in [t_i - n, t_i + n]) $$

Where w(Δt) is a monotonic decreasing function of detection delay.

Operational Cost Metrics

Smart home systems require metrics that reflect real-world operational constraints:

$$ C_{total} = C_{FP} \cdot FP + C_{FN} \cdot FN + C_{delay} \cdot \sum \Delta t $$

Composite Metrics for Smart Homes

The Anomaly Detection Score (ADS) combines multiple aspects into a single metric:

$$ ADS = \frac{w_1 \cdot F_1 + w_2 \cdot (1 - \text{NormFAR}) + w_3 \cdot \text{Timeliness}}{w_1 + w_2 + w_3} $$

Where weights wi can be tuned based on application priorities, and NormFAR represents the false alarm rate normalized to an acceptable baseline.

Evaluation Protocols

Proper evaluation requires:

6.2 Handling Imbalanced Datasets

Imbalanced datasets pose significant challenges in anomaly detection for smart home systems, where normal events vastly outnumber anomalies. Standard classifiers often exhibit bias toward the majority class, leading to poor recall for rare but critical anomalies. Advanced techniques must be employed to mitigate this bias while preserving the discriminative power of the model.

Resampling Techniques

Resampling adjusts class distribution by either oversampling the minority class or undersampling the majority class. For smart home data, oversampling via Synthetic Minority Over-sampling Technique (SMOTE) is preferred to avoid losing informative majority samples. SMOTE generates synthetic anomalies by interpolating between existing minority samples:

$$ x_{new} = x_i + \lambda (x_j - x_i) $$

where \( x_i \) and \( x_j \) are minority class instances, and \( \lambda \in [0,1] \) is a random weight. Adaptive variants like Borderline-SMOTE focus on samples near the decision boundary, which is critical for distinguishing subtle anomalies in sensor data.

Cost-Sensitive Learning

Assigning higher misclassification costs to anomalies forces the model to prioritize minority class accuracy. For a binary classifier with classes \( y \in \{0,1\} \), the cost matrix \( C \) modifies the loss function:

$$ L_{cost} = \sum_{i=1}^N C_{y_i, \hat{y}_i} \cdot L(y_i, \hat{y}_i) $$

where \( C_{1,0} \gg C_{0,1} \) reflects the higher penalty for false negatives. In gradient-boosted trees, cost-sensitive splits can be implemented by scaling the gradient of minority samples.

Ensemble Methods

Hybrid approaches combine resampling with ensemble learning. The Balanced Random Forest undersamples the majority class for each tree while maintaining the original feature space. For deep learning, mini-batch stratification ensures each training batch contains a fixed ratio of anomalies, preventing gradient dominance by normal events.

Threshold Adjustment

Post-training threshold tuning optimizes the trade-off between precision and recall. The optimal threshold \( t^* \) maximizes the Fβ-score, which weights recall higher for anomaly detection:

$$ F_\beta = (1 + \beta^2) \frac{precision \cdot recall}{\beta^2 \cdot precision + recall} $$

where \( \beta > 1 \) emphasizes recall. Receiver Operating Characteristic (ROC) analysis identifies \( t^* \) at the point of maximum curvature on the precision-recall curve.

Evaluation Metrics

Accuracy is misleading for imbalanced data. Instead, use:

For streaming smart home data, time-decayed metrics weight recent predictions higher to detect concept drift in anomaly patterns.

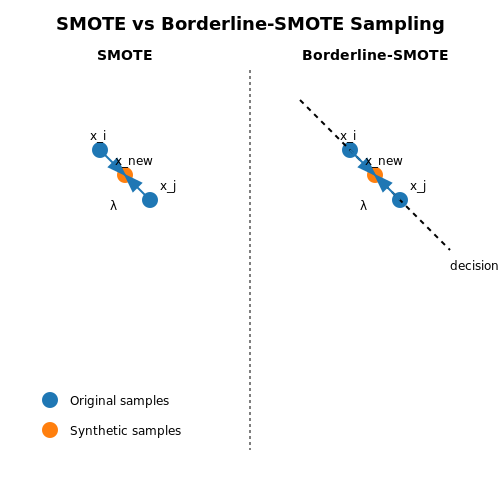

Handling Imbalanced Datasets – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The diagram would show the SMOTE interpolation process between minority class instances and the decision boundary-focused sampling of Borderline-SMOTE.

6.3 Interpretability and Explainability of AI Models

Anomaly detection models in smart home environments must balance predictive accuracy with interpretability, particularly when deployed in safety-critical applications. Black-box models like deep neural networks achieve high detection rates but often lack transparency, making it difficult to diagnose false positives or understand decision boundaries. Post-hoc explainability techniques, such as SHAP (Shapley Additive Explanations) and LIME (Local Interpretable Model-agnostic Explanations), provide insights into feature contributions for individual predictions. For a time-series sensor dataset {x₁, x₂, ..., xₙ}, SHAP values ϕᵢ quantify the marginal impact of each feature xᵢ on the model's anomaly score f(x):

$$ \phi_i(f, x) = \sum_{S \subseteq N \setminus \{i\}} \frac{|S|!(|N| - |S| - 1)!}{|N|!} \left( f(S \cup \{i\}) - f(S) \right) $$

where N is the set of all features and S represents feature subsets. This formulation satisfies efficiency (sum of SHAP values equals f(x) - E[f]) and symmetry (identical features receive equal attribution).

Model-Specific Interpretability Techniques

For recurrent architectures like LSTMs used in temporal anomaly detection, attention mechanisms or gradient-based saliency maps reveal which time steps contribute most to an anomaly flag. Given an LSTM with hidden states hₜ and input sequence X = (x₁, ..., xₜ), the gradient ∂y/∂xₜ indicates input sensitivity. Layer-wise relevance propagation (LRP) decomposes the output decision recursively through each layer:

$$ R_j^{(l)} = \sum_k \frac{z_{jk}}{\sum_{j'} z_{j'k}} R_k^{(l+1)} $$

where z_{jk} = a_j w_{jk} represents the contribution of neuron j in layer l to neuron k in layer l+1.

Counterfactual Explanations

Counterfactuals generate minimally perturbed versions of input data that would not trigger an anomaly. For a smart home motion sensor anomaly, this might involve modifying specific sensor readings while keeping others fixed. The optimization objective is:

$$ \min_{x'} \|x - x'\| + \lambda \cdot \mathbb{1}(f(x') \leq \tau) $$

where τ is the anomaly threshold and λ controls the trade-off between proximity and validity. Adversarial autoencoders can synthesize such counterfactuals by latent space interpolation.

Visualization for Multivariate Time Series

Parallel coordinate plots or heatmaps of feature attributions across time steps help identify anomalous patterns. For a 24-hour window of smart home energy data, SHAP force plots can highlight spikes in specific appliances coinciding with anomaly flags. Integrated gradients, computed as the path integral of gradients along a straight-line path from a baseline x' to input x, provide noise-robust attributions:

$$ IG_i(x) = (x_i - x'_i) \times \int_{\alpha=0}^1 \frac{\partial f(x' + \alpha(x - x'))}{\partial x_i} d\alpha $$

Practical implementations often use Riemann sums with 20-50 approximation steps.

Rule Extraction Methods

Decision trees or rule lists distilled from complex models offer human-readable logic. For a random forest anomaly detector, the FIRE (Feature Importance Ranking and Explanation) algorithm extracts rules like IF (kitchen_motion > 3σ) AND (fridge_power < 10W) THEN anomaly_prob > 0.9. The fidelity-accuracy trade-off is quantified using:

$$ \text{Fidelity} = 1 - \frac{1}{n} \sum_{i=1}^n \mathbb{1}(f(x_i) \neq g(x_i)) $$

where g is the interpretable surrogate model and f the original black-box model.

Interpretability and Explainability of AI Models – Smart Home Anomaly Detection with AI – Tutorial Diagram
Diagram Description: The section discusses SHAP values, LSTM attention mechanisms, and counterfactual explanations, which involve complex feature interactions and temporal relationships that are best visualized.

7. Key Research Papers and Articles

7.1 Key Research Papers and Articles

7.2 Open Datasets for Smart Home Anomaly Detection

7.3 Tools and Libraries for Implementation
