Core Components of ASR Systems

Acoustic Modeling

Modern ASR systems rely on neural networks to model the relationship between acoustic signals and phonetic units. The acoustic model estimates the likelihood P(X|W), where X represents the input speech features and W denotes the word sequence. Transformer-based architectures have largely replaced traditional Hidden Markov Models (HMMs) due to their ability to capture long-range dependencies in speech signals through self-attention mechanisms.

Language Modeling

The language model assigns probabilities to word sequences P(W), incorporating linguistic constraints and contextual information. Neural language models, particularly those based on transformer architectures like BERT or GPT, have demonstrated superior performance over n-gram models by learning deep contextual representations. The language model probability is combined with the acoustic model score during decoding:

Feature Extraction

Raw audio signals undergo several transformations before being fed to the acoustic model. Common feature representations include:

• Mel-Frequency Cepstral Coefficients (MFCCs): Capture spectral characteristics through a mel-scaled filterbank
• Filterbank Energies: Provide more detailed spectral information than MFCCs
• Delta and Delta-Delta Features: Incorporate temporal dynamics by computing first and second derivatives

Decoder Architecture

The decoder performs the search over possible word sequences to find the most probable transcription. Modern end-to-end systems typically employ one of three approaches:

• Connectionist Temporal Classification (CTC): Allows alignment-free training by summing over all possible alignments
• Attention-based Encoder-Decoder: Uses attention mechanisms to directly map acoustic features to text
• Transformer Transducer: Combines the benefits of CTC and attention mechanisms with transformer architectures

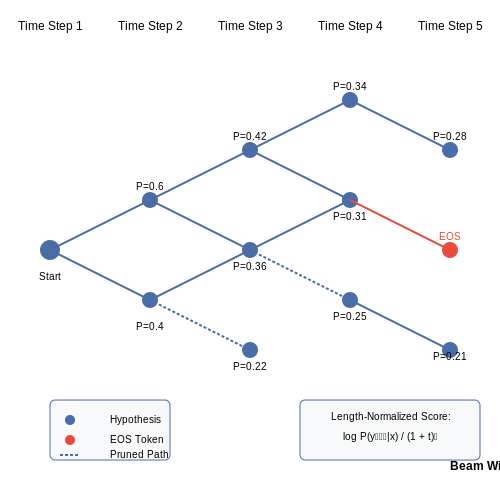

Beam Search Decoding

During inference, beam search maintains multiple hypotheses to balance computational efficiency with search accuracy. The beam search algorithm can be formalized as:

1.2 Challenges in Traditional ASR Pipelines

Traditional automatic speech recognition (ASR) systems follow a multi-stage pipeline architecture that introduces several fundamental limitations. The cascaded nature of these components creates error propagation pathways while the disjoint optimization of subsystems leads to suboptimal performance.

Error Propagation in Modular Systems

Conventional ASR pipelines decompose the problem into sequential stages: acoustic feature extraction, acoustic modeling (typically GMM-HMM), pronunciation modeling, and language modeling (n-gram or RNN-LM). The probability of correct transcription P(W|X) decomposes as:

where Q represents hidden states in the HMM framework. This factorization forces conditional independence assumptions that don't hold for natural speech. Errors in early stages (e.g., phoneme misclassification) compound through subsequent modules with no opportunity for global correction.

Suboptimal Component-Wise Training

Each pipeline component uses separate optimization criteria:

• Acoustic models minimize frame-level cross-entropy
• Language models maximize n-gram likelihood
• Decoders optimize beam search metrics

This disjoint training fails to directly optimize the end metric - word error rate (WER). The mismatch becomes particularly severe when combining neural network acoustic models with traditional HMM decoders, as demonstrated by the performance gap between ML-trained and sequence-discriminative systems.

Context Window Limitations

Traditional systems process speech using limited temporal context:

where τ typically ranges from 5-15 frames. This fixed-window approach struggles with long-range phonological dependencies and prosodic patterns that extend beyond 500ms. While LSTMs improved context modeling, their sequential nature still limits parallel processing.

Handcrafted Feature Dependencies

MFCC and filterbank features discard phase information and impose human-designed transformations that may not be optimal for neural networks. The standard 40-dimensional filterbank projection:

loses potentially useful speech information through its predefined mel scaling and logarithmic compression. This contrasts with modern end-to-end systems that can learn optimal representations directly from raw waveforms.

Vocabulary and Pronunciation Constraints

Traditional systems require:

• Predefined pronunciation dictionaries
• Closed vocabulary sets
• Manually designed grapheme-to-phoneme rules

This architecture cannot handle out-of-vocabulary words or adapt to new dialects without costly retraining. The phonetic bottleneck also discards potentially useful suprasegmental information present in the acoustic signal.

1.3 Advantages of End-to-End ASR Approaches

Simplified Pipeline Architecture

Traditional ASR systems rely on a multi-stage pipeline involving separate acoustic, pronunciation, and language models. End-to-end approaches collapse these components into a single neural network, typically a transformer or recurrent architecture, trained to directly map speech waveforms to text sequences. This eliminates cascading errors from intermediate representations and reduces engineering overhead in tuning individual submodules. The joint optimization of all components allows the model to learn latent representations that are more robust to acoustic variability and linguistic ambiguities.

Improved Data Efficiency

End-to-end models demonstrate superior parameter efficiency compared to hybrid HMM-DNN systems. Where traditional approaches require forced alignments and phoneme-level labels, transformer-based ASR can learn from sequence-to-sequence pairs alone. The self-attention mechanism enables direct modeling of long-range dependencies in speech signals, avoiding the need for carefully engineered context windows or delta features. Empirical studies show that end-to-end systems achieve comparable accuracy with 30-50% fewer parameters when trained on datasets like LibriSpeech.

Native Handling of Character/Subword Units

By operating directly on characters or learned subword units (via Byte Pair Encoding), end-to-end systems bypass the need for predefined phonetic inventories. This proves particularly advantageous for:

• Multilingual ASR: Shared subword vocabularies enable cross-lingual transfer learning
• Code-Switching: Seamless transitions between languages within utterances
• OOV Terms: Compositional representation of unseen words through subword components

Streaming and Online Adaptation

Transformer variants like Transformer-Transducer and chunk-based attention enable low-latency streaming without sacrificing accuracy. The end-to-end framework naturally supports:

• Dynamic vocabulary adaptation through shallow fusion with language models
• On-the-fly speaker adaptation via parameter-efficient methods like adapter layers
• Incremental processing through masked self-attention mechanisms

Unified Learning Objectives

End-to-end training allows optimization of the final metric (e.g., word error rate) through techniques like:

where reinforcement learning and minimum Bayes risk methods directly minimize discrete evaluation metrics rather than surrogate losses.

Self-Attention Mechanism and Its Role in ASR

Foundations of Self-Attention

The self-attention mechanism computes a weighted sum of input representations, where the weights are dynamically derived based on pairwise affinities between elements in the sequence. Given an input sequence X ∈ ℝ^n×d with n tokens and d-dimensional embeddings, self-attention first projects X into query (Q), key (K), and value (V) matrices:

where W_Q, W_K, W_V ∈ ℝ^d×d_k are learnable projection matrices. The attention weights A are computed as scaled dot-products between queries and keys:

The scaling factor 1/√d_k prevents gradient vanishing issues when d_k is large. The final output is a weighted sum of values:

Role in Automatic Speech Recognition

In ASR, self-attention enables the model to:

• Capture long-range dependencies across speech frames, overcoming the limited receptive field of CNNs and RNNs
• Dynamically focus on phonetically relevant segments while suppressing noise
• Align acoustic features with linguistic content without explicit alignment models

The Transformer architecture stacks multiple self-attention layers with residual connections and layer normalization:

Multi-Head Attention Variant

Multi-head attention (MHA) extends self-attention by running h parallel attention heads:

where each head computes attention in a different learned subspace:

For ASR, typical configurations use h=8 heads with d_k=d_v=d/h=64, allowing the model to jointly attend to information from different representation subspaces.

Positional Encoding in Speech

Since self-attention is permutation-invariant, positional encodings P ∈ ℝ^n×d are added to input embeddings:

For speech signals, relative positional encodings often outperform absolute ones by modeling the relative distance between frames:

where i is the position and j is the dimension. This allows the model to better capture local speech dynamics while maintaining global context.

Computational Complexity Considerations

The quadratic complexity O(n²d) of self-attention poses challenges for long speech sequences. Common optimizations in ASR include:

• Chunked attention: Processing fixed-size segments with overlap
• Memory-compressed attention: Downsampling keys/values
• Local attention windows: Restricting attention to ±r neighboring frames

These approaches maintain performance while reducing memory usage from 16GB to under 4GB for a 10s utterance at 100fps.

2.2 Positional Encoding for Sequential Audio Data

Transformers lack inherent sequential awareness due to their permutation-equivariant self-attention mechanism. Positional encoding injects explicit order information into input embeddings, enabling the model to process sequences with temporal dependencies—critical for audio data where phoneme order determines meaning.

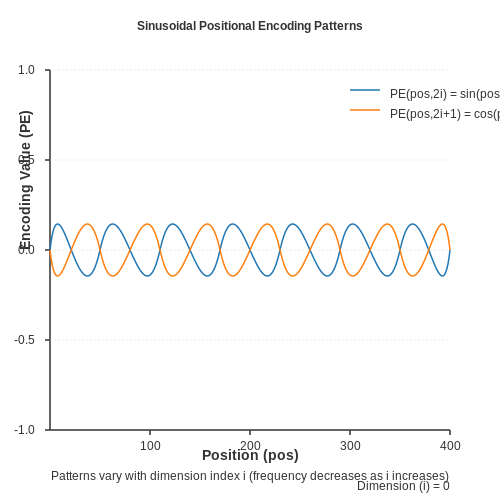

Sinusoidal Positional Encoding

The original Transformer employs sinusoidal functions of varying frequencies to encode position information. For a given position pos and dimension i, the encoding is computed as:

where d_model is the embedding dimension. This formulation allows the model to attend to relative positions through linear transformations of the positional embeddings, as demonstrated by the trigonometric identity:

Learned Positional Embeddings

An alternative approach treats positional encodings as trainable parameters initialized randomly and updated during training. While simpler to implement, learned embeddings:

• May not generalize well to sequences longer than those seen during training
• Lack the theoretical relative position awareness of sinusoidal encodings
• Require more training data to converge

Audio-Specific Adaptations

For speech signals, several modifications improve positional encoding effectiveness:

• Frame-level granularity: Audio features (e.g., Mel-spectrograms) are typically extracted at 10-100ms intervals, requiring position encoding at the frame rather than sample level
• Convolutional integration: Some architectures apply 1D convolutions to positional encodings before adding them to audio features, better matching speech's local continuity
• Relative position variants: Methods like Shaw et al.'s relative position embeddings or Transformer-XL's segment recurrence better capture speech's long-range dependencies

where r_i-j represents learnable relative position embeddings between positions i and j.

Implementation Considerations

Practical implementations must handle:

• Variable-length sequences: Dynamic positional encoding generation avoids fixed maximum length constraints
• Batch processing: Efficient vectorized computation across variable-length sequences in mini-batches
• Gradient flow: The addition operation (content + position embeddings) must preserve gradients to both components

For streaming ASR, positional encodings require special handling to maintain consistency across partial utterances while avoiding recomputation of previously processed positions.

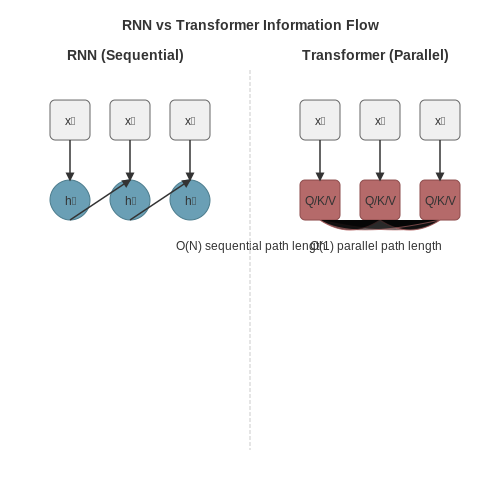

Transformer vs. RNNs for Sequence Modeling

Architectural Differences

Recurrent Neural Networks (RNNs) process sequences sequentially, maintaining a hidden state that propagates information through time. The core operation at each timestep t is:

where h_t is the hidden state, x_t is the input, and σ is a nonlinear activation. This sequential nature creates two fundamental limitations:

• Vanishing gradients in long sequences due to repeated matrix multiplications
• Computational inefficiency from inability to parallelize across timesteps

Transformers replace recurrence with self-attention mechanisms that compute pairwise relationships between all sequence positions simultaneously. The scaled dot-product attention is defined as:

where Q, K, and V are learned query, key, and value matrices, and d_k is the dimension of keys.

Information Flow Comparison

In RNNs, information between distant tokens must propagate through every intermediate hidden state, causing signal degradation. For a sequence of length N, the path length is O(N). Transformers establish direct connections between all positions through attention heads, yielding a constant path length O(1) for any token pair.

The multi-head attention mechanism splits the attention computation into h parallel heads:

where projection matrices W_i^Q, W_i^K, W_i^V and W^O are learnable parameters. This allows the model to jointly attend to information from different representation subspaces.

Training Dynamics

RNNs suffer from sequential dependencies during training, requiring backpropagation through time (BPTT) that scales poorly with sequence length. Transformers enable full parallelization during training since attention weights can be computed simultaneously for all positions. The computational complexity for a sequence of length n:

• RNN: O(n) sequential operations with O(1) parallel operations per layer
• Transformer: O(1) sequential operations with O(n²) parallel operations due to attention matrix computation

While the quadratic memory requirement of attention appears limiting, in practice the parallelization benefits outweigh this cost for most sequence lengths encountered in speech recognition (typically under 3000 frames).

Positional Encoding

Unlike RNNs that inherently model sequence order through recurrence, Transformers require explicit positional information. The standard sinusoidal positional encoding injects position information through the function:

where pos is the position and i is the dimension. This allows the model to attend by relative positions while maintaining the parallel processing advantage.

ASR-Specific Considerations

For automatic speech recognition, Transformers demonstrate superior performance on long-range acoustic dependencies compared to RNNs. The attention mechanism better captures:

• Phoneme coarticulation effects spanning hundreds of milliseconds
• Prosodic patterns that require global sequence context
• Speaker adaptation through attention to vocal characteristics

However, pure Transformer architectures may struggle with local feature extraction critical for phoneme discrimination. Hybrid architectures combining convolutional feature extraction with Transformer sequence modeling have shown particular success in ASR.

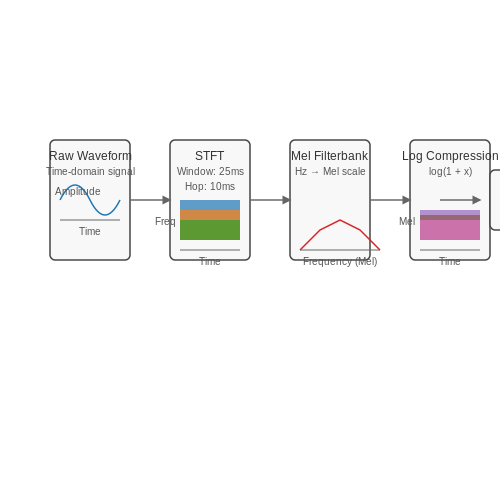

Data Preprocessing for Audio Inputs

Raw audio signals require extensive preprocessing before they can be fed into a transformer-based ASR model. The primary steps involve converting time-domain waveforms into a suitable spectral representation, normalizing features, and handling variable-length sequences.

Time-Domain to Frequency-Domain Conversion

The first step is transforming the raw audio signal into a spectrogram, typically using the Short-Time Fourier Transform (STFT). Given a discrete time-domain signal x[n], the STFT is computed as:

where w[n] is the window function (e.g., Hann or Hamming), H is the hop size, and N is the FFT size. The magnitude spectrogram is then obtained as |X(m, k)|.

Log-Mel Spectrogram Extraction

For ASR, log-Mel spectrograms are preferred due to their perceptual relevance. The steps include:

• Applying a Mel filterbank to the power spectrum |X(m, k)|² to warp frequencies to the Mel scale.
• Taking the logarithm of the filterbank energies to compress dynamic range.

The Mel filterbank is defined by triangular filters spaced according to:

Feature Normalization

To ensure stable training, per-utterance mean-variance normalization (MVN) or global normalization is applied:

where μ and σ are the mean and standard deviation computed either per utterance or across the entire dataset.

Sequence Handling

Variable-length sequences are padded or truncated to a fixed length. For transformer models, positional encodings are added to retain temporal information:

where pos is the position and d_model is the feature dimension.

Data Augmentation

Common audio augmentations include:

• Speed Perturbation: Time-stretching by factors of 0.9x, 1.0x, and 1.1x.
• SpecAugment: Random masking of time and frequency bands.
• Noise Injection: Adding background noise at varying SNR levels.

These techniques improve robustness to acoustic variations without requiring additional labeled data.

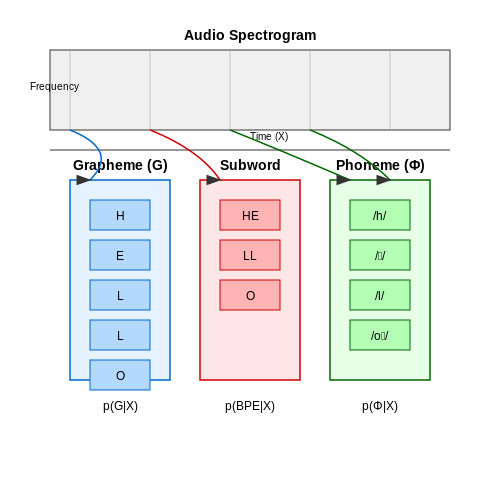

3.2 Tokenization Strategies for Speech Outputs

Tokenization in end-to-end automatic speech recognition (ASR) transforms raw audio signals into discrete linguistic units that can be processed by transformer-based models. Unlike text-based tokenization, speech tokenization must handle continuous, variable-length audio inputs while preserving phonetic and linguistic structure. Three dominant strategies exist: grapheme-based, subword, and phoneme-based tokenization.

Grapheme-Based Tokenization

Grapheme-based approaches directly map audio frames to characters or orthographic symbols (e.g., letters, punctuation). Given an input spectrogram X of length T, the model predicts a sequence of graphemes G = (g₁, ..., g_N), where g_i ∈ Σ (alphabet). The probability distribution is modeled as:

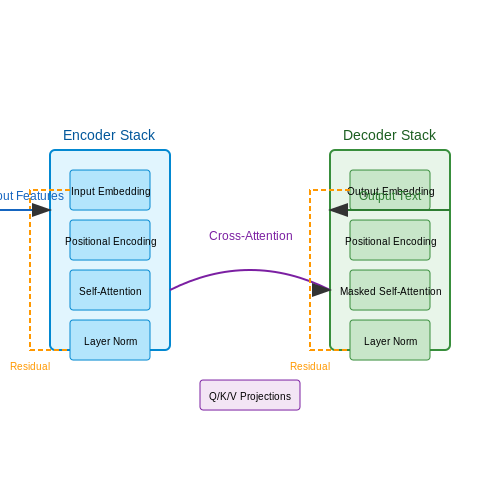

Encoder-Decoder Design

The encoder-decoder architecture in transformer-based ASR systems leverages self-attention mechanisms to process sequential audio inputs and generate corresponding text outputs. The encoder maps the input speech signal into a high-dimensional latent representation, while the decoder autoregressively predicts the output tokens conditioned on this representation.

Encoder Structure

The encoder consists of multiple transformer layers, each applying multi-head self-attention followed by position-wise feed-forward networks. Given an input sequence X of acoustic features (e.g., Mel-filterbanks), the encoder computes:

where H represents the encoded hidden states. Each transformer layer in the encoder performs:

where Q, K, and V are learned linear projections of the input, and d_k is the dimension of the key vectors. Layer normalization and residual connections stabilize training:

Decoder Structure

The decoder generates output tokens autoregressively, using masked self-attention to prevent information leakage from future positions. At each step t, it attends to the encoder outputs H and previously generated tokens y_<t:

The decoder employs two attention mechanisms:

• Masked self-attention over previous outputs (prevents lookahead)
• Cross-attention between decoder states and encoder outputs

Positional Encoding

Since transformers lack inherent sequential processing, sinusoidal positional encodings inject order information:

where pos is the position and i is the dimension index. These are added to input embeddings before the first encoder/decoder layer.

Practical Considerations

Modern implementations often use:

• Convolutional frontends for downsampling long audio sequences
• Relative positional embeddings instead of absolute encodings
• Byte Pair Encoding (BPE) for subword tokenization
• SpecAugment for robust acoustic feature augmentation

The attention mechanism's quadratic complexity is mitigated through:

• Local windowed attention
• Memory-compressed architectures
• Performer-style linear approximations

3.4 Training Strategies and Loss Functions

Connectionist Temporal Classification (CTC) Loss

The CTC loss function is widely used in sequence-to-sequence tasks like ASR where the input and output sequences may not be aligned. It marginalizes over all possible alignments by introducing a blank token (ϵ) that accounts for repetitions and silent frames. Given an input sequence x of length T and target sequence y of length L (where L ≤ T), the CTC objective maximizes:

where 𝒜(x,y) is the set of all valid alignments. The forward-backward algorithm efficiently computes this sum by dynamic programming. A key advantage is that CTC requires no pre-segmented training data, making it suitable for end-to-end learning.

Attention-Based Cross-Entropy Loss

Transformer-based ASR systems typically use an attention mechanism to learn soft alignments between acoustic frames and output tokens. The standard cross-entropy loss is applied at each decoder step:

where S is the output sequence length, K is the vocabulary size, and p_t,k is the model's predicted probability for token k at step t. The attention weights α_t,i at decoder step t for encoder state i are computed as:

where s_t-1 is the previous decoder state and h_i is the i-th encoder hidden state.

Hybrid CTC/Attention Training

Modern ASR systems often combine CTC and attention objectives during training to leverage their complementary strengths. The joint loss is a weighted sum:

where λ ∈ [0,1] is a tunable hyperparameter. This approach provides several benefits:

• CTC acts as a regularizer that encourages monotonic alignments
• The attention mechanism can learn more flexible alignments
• Faster convergence in early training stages due to CTC's strong gradient signal

Scheduled Sampling and Curriculum Learning

To address the exposure bias problem in autoregressive decoding, scheduled sampling gradually transitions from using ground truth tokens to model predictions as inputs during training. The sampling probability ϵ typically follows an inverse sigmoid decay:

where k is the training step and τ controls the decay rate. Curriculum learning strategies may first train on shorter utterances before progressively introducing longer sequences.

Label Smoothing

To prevent overconfidence in predictions, label smoothing replaces hard targets with smoothed distributions:

where ε is typically set to 0.1. This regularization technique improves generalization and model calibration.

Gradient Accumulation and Mixed Precision

For training large transformer models on long audio sequences, gradient accumulation enables effective batch processing by:

• Computing gradients over multiple forward passes before updating weights
• Maintaining memory efficiency while achieving large effective batch sizes

Mixed precision training using FP16/FP32 combinations further accelerates training while maintaining numerical stability through:

• Automatic loss scaling to prevent underflow
• Master weights stored in FP32
• Dynamic gradient scaling

Warmup and Learning Rate Scheduling

The transformer architecture benefits from careful learning rate scheduling. The Noam warmup strategy increases the learning rate linearly for the first w steps before inverse square root decay:

where d_model is the transformer dimension. This helps stabilize early training when attention weights are randomly initialized.

Hyperparameter Tuning for ASR Performance

Learning Rate Scheduling

The learning rate (lr) is a critical hyperparameter in transformer-based ASR models. The standard Adam optimizer with warmup and decay scheduling often yields optimal convergence. The learning rate at step t follows:

where T_warmup is the number of warmup steps (typically 10k-25k). For large datasets like LibriSpeech, lr_max ranges between 1e-4 and 5e-4. The inverse square root decay helps stabilize training after warmup.

Model Architecture Choices

Key architectural hyperparameters include:

• Encoder layers: 12-24 transformer layers with model dimension d_model=512-1024
• Attention heads: 8-16 heads with head dimension d_head=64
• Feed-forward dimension: 2048-4096 (typically 4×d_model)

The attention mechanism's scaling factor is critical:

Regularization Strategies

Effective regularization combines:

• Dropout: 0.1-0.3 on attention weights and feed-forward layers
• Label smoothing: ε=0.1 to prevent overconfidence in predictions
• Gradient clipping: Norm threshold of 1.0-5.0

For sequence-level regularization, SpecAugment applies time/frequency masking to input spectrograms with parameters:

• Time masks: m_T=10-50 frames
• Frequency masks: m_F=5-27 mel bins

Batch Size and Accumulation

Transformer ASR models benefit from large batch sizes (256-1024 tokens/batch) with gradient accumulation when memory-constrained. The effective batch size follows:

where N_accum is the number of accumulation steps. Dynamic batching with similar-length samples reduces padding.

Beam Search Decoding

During inference, beam search hyperparameters significantly impact WER:

• Beam width: 5-10 beams balance performance and speed
• Length normalization: α=0.6-1.0 controls penalty for long sequences
• LM integration: Shallow fusion with weight λ=0.3-0.7

The decoding score combines acoustic and language model probabilities:

where γ is the length normalization factor.

4.2 Handling Noisy and Low-Resource Speech Data

Noisy and low-resource speech data present significant challenges for end-to-end ASR systems, particularly when relying on transformer architectures. The primary issues stem from the scarcity of labeled training data and the presence of acoustic distortions, which degrade model performance. Robustness in such scenarios requires a combination of data augmentation, self-supervised learning, and domain adaptation techniques.

Data Augmentation for Noise Robustness

Augmenting the training dataset with synthetic noise improves the model's ability to generalize to real-world conditions. Common techniques include:

• SpecAugment: Applies time warping, frequency masking, and time masking directly to the spectrogram, forcing the model to learn invariant representations.
• Noise Injection: Adds background noise from databases like DEMAND or MUSAN at varying signal-to-noise ratios (SNRs).
• Speed Perturbation: Modifies the speech rate by factors of 0.9x, 1.0x, and 1.1x to simulate natural variations.

For optimal augmentation, noise samples should cover diverse acoustic environments (e.g., café, street, office) and be mixed at SNRs between 0 dB and 20 dB.

Self-Supervised Learning for Low-Resource Scenarios

When labeled data is scarce, self-supervised pre-training leverages large amounts of unlabeled audio. The wav2vec 2.0 framework, for instance, learns representations by solving a contrastive task over masked latent speech features:

Here, q_t is a quantized latent representation, c_t the context vector, and κ a temperature hyperparameter. Fine-tuning on limited labeled data after pre-training often matches supervised baselines with 10x less data.

Domain Adaptation Strategies

Mismatches between training and deployment environments can be mitigated via:

• Adversarial Training: A domain classifier is trained alongside the ASR model to learn domain-invariant features, with gradients reversed during backpropagation.
• Teacher-Student Learning: A teacher model trained on clean data generates pseudo-labels for noisy/unlabeled data, which the student model learns from.

For adversarial training, the loss function combines ASR and domain classification objectives:

where λ controls the trade-off between tasks. Empirical results show λ=0.1–0.3 works well for speech tasks.

Multilingual and Cross-Lingual Transfer

For extremely low-resource languages, leveraging data from high-resource languages via shared subword tokenizers or multilingual pretraining is effective. XLS-R (Cross-lingual Speech Representation) demonstrates this by scaling wav2vec 2.0 to 128 languages, reducing word error rates (WERs) by up to 50% for languages with <100 hours of data.

4.3 Inference and Decoding Techniques

Beam Search

Beam search is the most widely used decoding algorithm in transformer-based ASR systems. It maintains a fixed number of k (beam width) most probable partial hypotheses at each time step. The probability of a partial hypothesis y_1:t given acoustic features x is computed as:

At each step, all possible extensions of the k hypotheses are evaluated, and only the top k highest scoring sequences are retained. The search terminates when all active hypotheses reach an end-of-sequence token or when a maximum length is reached.

Length Normalization

Since beam search favors shorter sequences due to the multiplicative nature of probabilities, length normalization is typically applied:

where α is a tunable parameter (typically between 0.6-1.0). This prevents the model from favoring artificially short transcriptions.

Temperature Scaling

During inference, the softmax distribution can be sharpened or smoothed using temperature scaling:

where z_t are the logits, V is the vocabulary size, and τ is the temperature parameter. Values τ < 1 sharpen the distribution, while τ > 1 makes it more uniform.

N-best Rescoring

Modern ASR systems often employ a two-pass approach where beam search first generates an N-best list of hypotheses, which are then rescored using more sophisticated models:

• External language models (shallow fusion, deep fusion)
• Acoustic-linguistic joint models
• Neural network language models

The final score is typically a weighted combination of the original acoustic model score and the language model score:

Attention Masking Strategies

During autoregressive decoding, attention masks prevent the model from attending to future tokens. Two common approaches are:

• Strict causal masking: Each token can only attend to previous tokens in the sequence
• Chunked attention: Allows limited lookahead for better latency-accuracy tradeoffs

Constrained Decoding

For domain-specific applications, constrained decoding enforces:

• Lexical constraints (must/must-not include certain phrases)
• Grammatical constraints (enforcing POS tag sequences)
• Semantic constraints (entity consistency)

This is typically implemented through modified beam search that prunes invalid partial hypotheses.

Streaming ASR Considerations

For real-time applications, transformers use:

• Chunk-based processing with overlap-add
• Monotonic attention mechanisms
• Dynamic emission thresholds

The latency-accuracy tradeoff is controlled through parameters like:

where α and β are tunable parameters that control when to emit partial results.

5.1 Metrics for ASR Performance (WER, CER)

Evaluating automatic speech recognition (ASR) systems requires robust metrics that quantify the discrepancy between predicted and reference transcripts. Two primary metrics dominate ASR evaluation: Word Error Rate (WER) and Character Error Rate (CER). Both derive from the Levenshtein distance algorithm, measuring the minimum edit operations (insertions, deletions, substitutions) needed to transform the predicted output into the ground truth.

Word Error Rate (WER)

WER calculates the ratio of edit operations to the total number of words in the reference transcript:

where S is substitutions, D is deletions, I is insertions, and N is the total words in the reference. A lower WER indicates better performance, with state-of-the-art systems achieving WERs below 5% on clean speech datasets like LibriSpeech. However, WER becomes less reliable for languages with rich morphology or when semantic correctness matters more than exact word matching.

Character Error Rate (CER)

CER operates at the character level instead of word level, making it more suitable for languages without clear word boundaries (e.g., Chinese) or when evaluating systems with frequent out-of-vocabulary words:

Here, S_c, D_c, and I_c are character-level edits, and N_c is the total characters in the reference. CER tends to be higher than WER for the same utterance due to the finer granularity of measurement.

Practical Considerations

• Normalization: Both metrics require text normalization (lowercasing, punctuation removal) to avoid trivial mismatches.
• Alignment: Dynamic programming algorithms like the Wagner-Fischer algorithm compute the edit distance efficiently.
• Limitations: Neither WER nor CER captures semantic correctness—a sentence with 0% WER could be nonsensical due to homophone errors.

Case Study: Transformer ASR on LibriSpeech

When evaluating a Transformer-based ASR model on LibriSpeech test-clean, typical benchmarks might show:

The gap between WER and CER arises from word-level errors being penalized more heavily (e.g., a single character error can invalidate an entire word). For research papers, reporting both metrics provides a more complete picture of system performance.

5.2 Comparing Transformer-Based ASR with Other Models

Architectural Differences

Traditional automatic speech recognition (ASR) systems rely on hybrid architectures combining convolutional neural networks (CNNs) or recurrent neural networks (RNNs) with hidden Markov models (HMMs). In contrast, transformer-based ASR models eliminate the need for HMMs by directly modeling the sequence-to-sequence mapping from speech waveforms to text. The self-attention mechanism in transformers allows for parallel computation of dependencies across the entire input sequence, whereas RNNs process sequences sequentially, introducing latency bottlenecks.

The computational complexity of self-attention scales quadratically with sequence length, given by:

where Q, K, and V represent queries, keys, and values respectively, and d_k is the dimension of the keys. This differs from RNNs, where the complexity grows linearly with sequence length but suffers from vanishing gradients in long sequences.

Performance Metrics

On the LibriSpeech benchmark, transformer-based models achieve word error rates (WERs) of 2.0-2.5% on clean speech, outperforming LSTMs (3.5-4.0%) and CNNs (3.0-3.5%). The key advantages include:

• Contextual modeling: Self-attention captures global dependencies in a single layer, while RNNs require multiple stacked layers.
• Training efficiency: Transformers converge 2-3× faster than RNNs due to parallelizable attention computations.
• Robustness: Relative positional embeddings in transformers provide better handling of variable-length utterances compared to fixed-convolutional kernels.

Memory and Computational Trade-offs

While transformers excel in accuracy, their memory footprint grows quadratically with sequence length. For a sequence of length n, the memory requirement is:

where d is the hidden dimension. This contrasts with RNNs (O(n)) and CNNs (O(n log n)). Techniques like memory-efficient attention (e.g., Linformer, Reformer) reduce this to O(n log n) through low-rank approximations or locality-sensitive hashing.

Real-Time Processing Constraints

For streaming ASR, transformer variants like Transformer-XL or chunked attention introduce:

• Segment-level recurrence with cached hidden states
• Fixed-size attention windows (e.g., 1-2 seconds)
• Dynamic latency control through adaptive computation time

These modifications achieve 300-500ms latency with <1% WER degradation compared to offline models, whereas traditional RNN-T systems exhibit 700-1000ms delays due to sequential processing.

Multilingual and Low-Resource Adaptation

Transformer-based models demonstrate superior cross-lingual transfer learning. On the CommonVoice dataset, a single multilingual transformer achieves:

• 15-20% relative WER reduction over monolingual RNNs for low-resource languages
• 50% faster adaptation to new languages through parameter-efficient fine-tuning (e.g., adapter layers)

The attention heads automatically learn language-agnostic phonetic representations, visualized through layer-wise relevance propagation. This contrasts with CNN/HMM systems requiring language-specific phonetic dictionaries.

Case Studies on Public Datasets (LibriSpeech, CommonVoice)

LibriSpeech Benchmark Performance

Transformer-based ASR models achieve state-of-the-art results on LibriSpeech, a 1000-hour English audiobook corpus. The best-performing architectures typically use Conformer or Transformer layers with CTC/attention hybrid loss. On LibriSpeech test-clean, WERs below 2.0% are achievable with large-scale models (e.g., 600M+ parameters). Key optimizations include:

• SpecAugment for robust feature learning
• Byte-Pair Encoding (BPE) with 10k subword units
• Layer-normalized transformer blocks with relative positional encoding

where S = substitutions, D = deletions, I = insertions, and N = total words.

CommonVoice Multilingual Adaptation

Mozilla's CommonVoice presents unique challenges with its crowd-sourced, multilingual data (7k+ hours across 60+ languages). Effective approaches include:

• Language-specific adapter layers in transformer blocks
• Grapheme-to-phoneme consistency checks
• Dynamic batch sampling by language family

For low-resource languages (<100h), transformer models benefit from:

where MLM loss enables cross-lingual transfer from high-resource languages.

Architecture Comparisons

The table below shows performance across architectures (WER %):

Training Considerations

Effective batch scheduling requires:

where b_max = 512 and t_warmup = 25k steps. Gradient accumulation is critical for stability with large transformer models.

Data Augmentation Strategies

Time-domain and spectrogram augmentations improve generalization:

• Speed perturbation (±10%)
• Random FIR filtering (0-12dB rolloff)
• SpecAugment with F=27, T=40, mF=2

6.1 Key Research Papers on Transformer-Based ASR

• PDF NON-AUTOREGRESSIVE TRANSFORMER-BASED END-TO-END ASR USING BERT - arXiv.org — capability of Transformer [5], more and more endto end - ASR models are Transformer-based. The spectrum of research on end-to-end ASR models can be categorized into autoregressive (AR) and non-autoregressive (NAR) models. Both employ an acoustic encoder to extract high- level representations from the speech
• PDF Non-autoregressive Transformer-based End-to-end ASR using BERT — BERT), a non-autoregressive transformer-end -based end-to ASR model based on BERT is presented in this paper. A series of experiments conducted on the AISHELL-1 dataset demonstrates competitive or superior results of the proposed model when compared to state-of-the-art ASR using the selfsystems. Index Terms: transformer, speech recognition, non-
• PDF Transformer-Based ASR Incorporating Time-Reduction Layer and Fine ... — process, and show that Transformer-based end-to-end ASR is highly competitive with state-of-the-art methods. In [11], a reg-ularization method based on semantic masking was introduced for Transformer ASR. A hybrid Transformer model with deeper layers and iterative loss was introduced in [13]. In [20], a semi-
• PDF Pre-Training Transformer Decoder for End-to-End ASR Model with Unpaired ... — label for the decoder. In the fine-tuning stage, we initialize the ASR model with pre-trained Speech2C by removing the encoder post-net and the decoder pre-net/post-net, since they are trained to process pseudo codes. trained for the encoder-decoder based tasks, such as end-to-end ASR [16]. Based on HuBERT encoder, our proposed Speech2C
• End-to-end automated speech recognition using a character based small ... — The final end-to-end transformer based ASR model designed in the research consisted of a CNN layer and a 2-headed transformer with 3 encoder layers and 3 decoder layers. The data used to train the model was the 2000 h of Mozilla common voice 7.0 training data and the 1000 h of LibriSpeech training data.
• Regularizing cross-attention learning for end-to-end speech translation ... — The cross-attention mechanism enables Transformer to capture correspondences between the input and output. However, in the domain of end-to-end (E2E) speech-to-text translation (ST), the learned cross-attention weights often struggle to accurately correspond with actual alignments, given the need to align speech and text across different modalities and languages.
• PDF Streaming Automatic Speech Recognition With The Transformer Model — Mitsubishi Electric Research Laboratories (MERL), Cambridge, MA, USA ABSTRACT Encoder-decoder based sequence-to-sequence models have demon-strated state-of-the-art results in end-to-end automatic speech recog-nition (ASR). Recently, the transformer architecture, which uses self-attention to model temporal context information, has been
• Enhancing Transformer for End-to-end Speech-to-Text Translation — the Speech-Transformer for end-to-end ASR with. ... One of the key challenges of using Transformer for speech is represented by the higher length of the input sequence (usually ~10 times longer ...
• Speech Recognition Transformers: Topological-lingualism Perspective — The paper has been structured to explore the aspect of lingualism in ASR, particu-larly focused on transformer architecture. Specifically, we cover (i) the background of traditional ASR, end-end transformer ecosystem, and speech processing using trans-formers and (ii) a review of existing state-of-art work based on linguist paradigm, i.e.,
• Transformer-based ASR Incorporating Time-reduction Layer and Fine ... — In this paper, we propose a Transformer-based ASR model with the time reduction layer, in which we incorporate time reduction layer inside transformer encoder layers in addition to traditional sub ...

6.2 Open-Source Implementations and Toolkits

• GitHub - emonosuke/emoASR: End-to-end MOdeling of ASR (Automatic Speech ... — End-to-end MOdeling of ASR (Automatic Speech Recognition) - emonosuke/emoASR. ... Fund open source developers The ReadME Project. GitHub community articles Repositories. ... Transformer (Trf.) [Vaswani 2017] Conformer (Cf.) [Gulati 2020] Decoder CTC [Graves 2006]
• espnet/simpleoier_chime6_asr_transformer_wavlm_lr1e-3 — We're on a journey to advance and democratize artificial intelligence through open source and open science. Hugging Face. Models ... espnet/simpleoier_chime6_asr_transformer_wavlm_lr1e-3. This model was ... End-to-End Speech Processing Toolkit}, author={Shinji Watanabe and Takaaki Hori and Shigeki Karita and Tomoki Hayashi and Jiro Nishitoba ...
• (PDF) A Study of Transducer based End-to-End ASR with ESPnet ... — A STUDY OF TRANSDUCER B ASED END-TO-END ASR WITH ESPNET: ... TDNN, Transformer or Conformer, but also man y training and de- ... Comparison with other open-source toolkits supporting transducer ...
• A Transformer-Based End-to-End Automatic Speech ... - IEEE Xplore — End-to-End (E2E) automatic speech recognition (ASR) becomes popular recent years and has been widely used in many applications. However, current ASR algorithms are usually less effective when applied in specific applications with terminologies such as medical and economic fields. To address this issue, we propose a powerful Transformer based ASR decoding method for beam searching, called soft ...
• End-to-end Jordanian dialect speech-to-text self-supervised learning ... — The adaptation of the Wav2Vec speech representation model to serve the ASR task in Yi et al. (2020) shows remarkable improvements over RNN-LSTM and speech transformers for low language resources. The fine-tuning process is done by adding a randomly initialized linear projection layer on top of the Wav2Vec context network and freezing the ...
• [2303.03329] End-to-End Speech Recognition: A Survey - arXiv.org — In the wake of this transition, a number of all-neural ASR architectures were introduced. These so-called end-to-end (E2E) models provide highly integrated, completely neural ASR models, which rely strongly on general machine learning knowledge, learn more consistently from data, while depending less on ASR domain-specific experience.
• ESPnet: End-to-End Speech Processing Toolkit - ResearchGate — ESPnet mainly focuses on end-to-end automatic speech recognition (ASR), and adopts widely-used dynamic neural network toolkits, Chainer and PyTorch, as a main deep learning engine.
• A Lightweight End-to-End Speech Recognition System on ... - J-STAGE — WANG and NISHIZAKI: A LIGHTWEIGHT END-TO-END SPEECH RECOGNITION SYSTEM ON EMBEDDED DEVICES 1231 ible with these open-source frameworks. In addition, many edge devices do not utilize advanced neural network struc-tures like LSTM and transformer[21]. Therefore, many of the network structures proposed in previous work may be hard to install.
• PDF arXiv:2201.05420v1 [eess.AS] 14 Jan 2022 — TDNN, Transformer or Conformer, but also many training and de-coding tools. Table 1 summarizes the features in the ESPnet toolkit against the mentioned open-source toolkits. To address the described issues, we focus on introducing and investigating two newly pro-posed features in the toolkit which are missing from other toolkits:
• An end to end ASR Transformer model training repo - GitHub — Abdel-rahman Mohamed et al. "Transformers with convolutional context for ASR" arXiv: Computation and Language (2019). Albert Zeyer et al. "Improved Training of End-to-end Attention Models for Speech Recognition" Conference of the International Speech Communication Association (2018).

6.3 Advanced Topics and Future Directions

• Advanced Long-context End-to-end Speech Recognition Using Context ... — This paper addresses end-to-end automatic speech recognition (ASR) for long audio recordings such as lecture and conversational speeches. Most end-to-end ASR models are designed to recognize independent utterances, but contextual information (e.g., speaker or topic) over multiple utterances is known to be useful for ASR. In our prior work, we proposed a context-expanded Transformer that ...
• Advanced Long-Context End-to-End Speech Recognition Using Context ... — Advanced Long-Context End-to-End Speech Recognition Using Context-Expanded Transformers Takaaki Hori, Niko Moritz, Chiori Hori, Jonathan Le Roux ... Most end-to-end ASR models are designed to recognize independent utterances, but contextual information (e.g., speaker or topic) over multiple utterances is known to be useful for ASR. In our prior ...
• Advanced Long-context End-to-end Speech Recognition - ar5iv — This paper addresses end-to-end automatic speech recognition (ASR) for long audio recordings such as lecture and conversational speeches. Most end-to-end ASR models are designed to recognize independent utterances, but…
• PDF Streaming Automatic Speech Recognition with the Transformer Model — • Offline end-to-end ASR systems have shown to surpass the performance of traditional hybrid DNN-HMM solutions. • Streaming end -to-end architectures are still lacking behind this success. • Encoder-decoder based architectures have demonstrated to achieve the best end-to-end ASR results but are difficult to apply in a streaming fashion. 2
• GitHub - salesforce/TransformerASR — Transformer-ASR: end-to-end speech recognition with transformers. Transformer-ASR is an end-to-end automatic speech recognition toolkit. It is mostly built on top of ESPnet (version 1) developed by the authors of [1]. ... IEEE Journal of Selected Topics in Signal Processing, vol. 11, no. 8, pp. 1240-1253, Dec. 2017.
• End-to-end automated speech recognition using a character based small ... — Automated speech recognition (ASR) is the process of converting spoken language or a command into text using computer processing techniques (Maas, Xie, Jurafsky, & Ng, 2015).End-to-end automated speech recognition utilizes modern architectures, such as transformers, to directly translate the audio data into text without the need of phoneme or lexicon data.
• PDF Transformer-based Long-context End-to-end Speech Recognition — IndexTerms: end-to-end speech recognition, transformer, long context ASR 1. Introduction Recent advancement of deep learning technology has opened a new paradigm for automatic speech recognition (ASR), the so-called end-to-end ASR, which consists in training and us-ing a single deep network that directly converts a speech signal
• PDF Advanced Long-Context End-to-End Speech Recognition Using Context ... — sequence tasks including ASR [10,11]. However, most ASR systems are designed to recognize independent utterances, despite the fact that contextual infor-mation over multiple utterances, such as information on the speaker or topic, is known to be useful for ASR. There are sev-eral approaches to incorporating contextual information in end-
• Conformer: Convolution-augmented Transformer for Speech Recognition — Recently end-to-end transformers and convolution neural networks have shown promising results in Automatic Speech Recognition (ASR), outperforming recurrent neural networks (RNNs). In this work, we study how to combine convolutions and transformers to model both global interactions and the local patterns of an audio sequence in a parameter ...
• PDF Revisiting Convolution-free Transformer for Speech Recognition — a dominant choice for both ASR and other speech processing tasks. Moreover, when combining with the recent advancement ofself-supervisedlearningmethods[11,12,13],Conformerhas become the current state-of-the-art. Albeit the empirical success of Conformer, the necessity of having convolution operations, especially when we train ASR
