Pruning Techniques for Transformer Models

#transformer models #model pruning #optimization #nlp #deep learning #performance tuning #neural networks #machine learning #huggingface #model efficiency

1. Definition and Motivation for Pruning

Definition and Motivation for Pruning

Conceptual Definition of Pruning

Pruning in the context of transformer models refers to the systematic removal of parameters, neurons, or entire attention heads to reduce model size and computational overhead while preserving performance. Mathematically, pruning can be viewed as imposing sparsity constraints on the weight matrices. For a weight matrix W ∈ ℝm×n, pruning enforces:

$$ ||W||_0 \leq k $$

where k is the desired number of non-zero weights and ||·||0 denotes the L0 pseudo-norm. The goal is to retain only the most salient weights, discarding those with minimal contribution to model output.

Motivations for Pruning

Pruning is driven by several key factors:

Historical Context and Evolution

Pruning traces its roots to classical neural network compression techniques like Optimal Brain Damage (LeCun et al., 1990) and has evolved with transformer-specific methods such as:

Practical Trade-offs

The effectiveness of pruning depends on:

$$ \mathcal{L}(W') \approx \mathcal{L}(W) $$

where W' is the pruned weight matrix and ℒ is the loss function. Key challenges include:

Emerging Research Directions

Recent work explores:

Key Metrics for Evaluating Pruning Effectiveness

Evaluating the success of pruning techniques in transformer models requires a combination of quantitative and qualitative metrics. These metrics assess not only the reduction in model size but also the preservation of performance and computational efficiency.

Sparsity and Compression Ratio

The most straightforward metrics measure the reduction in model parameters. Sparsity quantifies the percentage of zeroed-out weights:

$$ S = \frac{N_{\text{zero}}}{N_{\text{total}}} \times 100\% $$

where \( N_{\text{zero}} \) is the count of pruned weights and \( N_{\text{total}} \) is the total number of weights. Compression ratio complements sparsity by measuring the reduction in model size:

$$ C = \frac{N_{\text{total}}}{N_{\text{remaining}}} $$

For example, a model pruned to 90% sparsity achieves a compression ratio of 10x. However, these metrics alone are insufficient—they must be evaluated alongside performance retention.

Performance Retention Metrics

Pruning should minimally impact model accuracy. Key evaluation metrics include:

For language models, perplexity increase after pruning is a critical indicator of degradation in language modeling capability.

Computational Efficiency Metrics

The practical benefits of pruning manifest in improved inference efficiency:

Note that FLOPs reduction doesn't always translate linearly to speedup due to hardware-specific sparse computation overhead.

Structural Metrics for Pruned Networks

Advanced evaluation considers the structural integrity of the pruned network:

$$ G_{\text{ratio}} = \frac{|| abla_{\theta_{\text{pruned}}} \mathcal{L}||_2}{|| abla_{\theta_{\text{original}}} \mathcal{L}||_2} $$

Values significantly below 1 suggest the pruned model may struggle to learn effectively.

Robustness and Generalization

Pruned models should maintain robustness properties:

Recent studies show that over-pruning can disproportionately harm OOD performance compared to in-distribution accuracy.

Hardware-Aware Metrics

For deployment-focused evaluation:

Modern accelerators like NVIDIA's Ampere architecture achieve better speedups at high sparsity levels (e.g., 2-4x at 90% sparsity) compared to older hardware.

Key Metrics for Evaluating Pruning Effectiveness – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would show a performance-sparsity tradeoff curve plotting accuracy versus sparsity levels, illustrating the Pareto frontier of optimal pruning configurations.

Trade-offs: Performance vs. Model Size

Pruning transformer models introduces a fundamental trade-off between computational efficiency and model performance. The relationship between sparsity and accuracy is nonlinear, often following a power-law distribution where initial pruning yields minimal accuracy loss, but aggressive sparsity leads to rapid degradation. This behavior can be modeled empirically using a modified Pareto frontier:

$$ \mathcal{L}(s) = \mathcal{L}_0 + \alpha s^\beta $$

where s represents sparsity ratio, ℒ0 is the baseline loss, and α, β are dataset-dependent coefficients. For transformer architectures, β typically falls between 2.1-3.3, explaining the steep performance cliff observed beyond 70-80% sparsity.

Architectural Sensitivity to Pruning

Attention mechanisms exhibit non-uniform sensitivity to pruning across layers. The key observations:

This sensitivity profile emerges from the gradient flow dynamics during fine-tuning, where Hessian-based analysis reveals attention heads in later layers have significantly higher Fisher information values.

Quantitative Trade-off Analysis

The performance-size trade-off can be quantified through the compression-accuracy product (CAP):

$$ \text{CAP} = \frac{\text{Throughput (tokens/sec)} \times \text{Accuracy}}{\text{Model Size (params)}} $$

Modern sparse transformers achieve CAP improvements of 3-5× over dense baselines. For example, a 70% pruned BERT model typically shows:

Metric Dense Pruned
Parameters 110M 33M
GLUE Score 80.5 78.2
Inference Latency 142ms 63ms

Practical Optimization Strategies

Optimal pruning requires balancing multiple constraints:

The most effective approaches combine magnitude-based pruning for initial compression with movement pruning during fine-tuning, achieving 60-70% sparsity with <1% accuracy drop on most NLP benchmarks.

Emergent Research Directions

Recent work in learned sparsity demonstrates potential to break traditional trade-off curves:

These methods show promise in pushing the Pareto frontier, with some achieving 80% sparsity while maintaining 95% of original model accuracy through dynamic, input-dependent pruning.

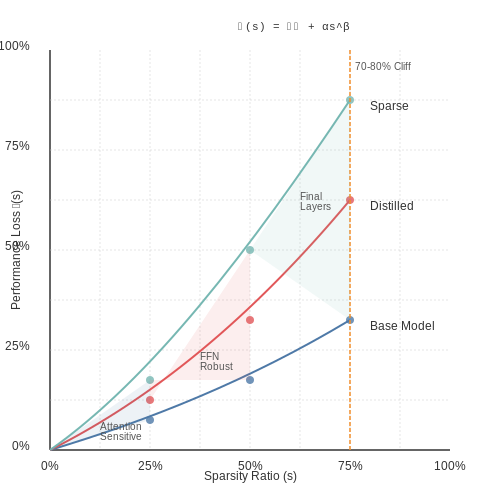

Trade-offs: Performance vs. Model Size – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would show the nonlinear relationship between sparsity ratio and model performance loss, with annotated Pareto frontier curves for different transformer architectures.

2. Structured vs. Unstructured Pruning

Structured vs. Unstructured Pruning

Definition and Core Differences

Pruning in transformer models involves removing redundant or less important parameters to reduce computational overhead while preserving model performance. The two primary approaches—structured and unstructured pruning—differ fundamentally in their granularity and hardware implications.

Mathematical Formulation

For a weight matrix W ∈ ℝm×n, unstructured pruning applies an element-wise mask M:

$$ W_{pruned} = W \odot M $$

where M is a binary mask with Mi,j ∈ {0,1}. In contrast, structured pruning removes entire rows, columns, or blocks. For example, pruning k attention heads in a transformer layer modifies the multi-head attention output:

$$ \text{Attention}(Q,K,V) = \text{concat}(head_1, ..., head_{h-k})W^O $$

Hardware and Efficiency Trade-offs

Unstructured pruning achieves higher theoretical sparsity (e.g., 90%+ zeroes) but requires specialized sparse computation libraries (e.g., CuSPARSE) to realize speedups. Structured pruning, while less aggressive in sparsity, leverages existing dense linear algebra kernels (e.g., BLAS) and achieves predictable latency reductions. Recent work shows that:

Practical Implementation

Popular libraries implement these techniques differently:

For transformers, structured pruning often targets:

Case Study: BERT Pruning

On the GLUE benchmark, structured pruning of 40% attention heads preserves 98% of the original BERT-base accuracy while reducing FLOPs by 35%. Unstructured pruning achieves 50% sparsity but requires retraining with distillation to recover performance.

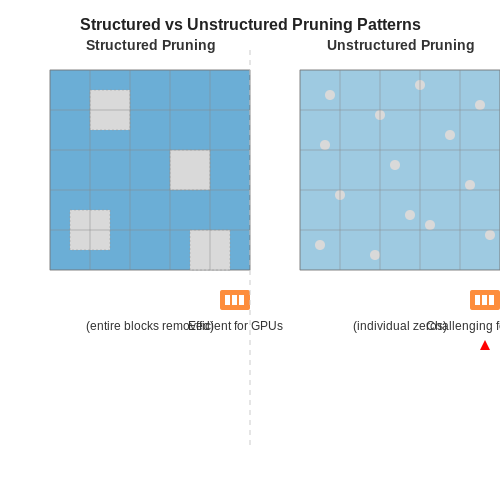

Structured Pruning (Block Removal) Pruned Block
Structured vs. Unstructured Pruning – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would physically show the contrast between structured pruning (removing entire blocks) and unstructured pruning (irregular zero patterns) in weight matrices.

2.2 Magnitude-Based Pruning

Magnitude-based pruning is one of the simplest and most widely used techniques for reducing the size of transformer models. The core idea is to remove weights with the smallest magnitudes, under the assumption that these contribute least to the model's performance. This approach is computationally efficient and requires no additional training data, making it attractive for practical deployment scenarios.

Mathematical Formulation

Given a weight matrix W ∈ ℝm×n, magnitude-based pruning involves selecting a sparsity level s (e.g., 50%) and zeroing out the smallest s% of weights by absolute value. Formally, the pruned weight matrix W' is computed as:

$$ W'_{ij} = \begin{cases} 0 & \text{if } |W_{ij}| < \tau \\ W_{ij} & \text{otherwise} \end{cases} $$

where τ is the threshold determined by the target sparsity s. The threshold can be found by sorting all weights by magnitude and selecting the value at the s-th percentile.

Iterative Magnitude Pruning

One-shot pruning to high sparsity levels often leads to significant accuracy drops. Instead, iterative magnitude pruning (IMP) gradually increases sparsity over multiple training epochs:

This approach allows the network to adapt to the pruning process, preserving more of its original performance. The Lottery Ticket Hypothesis suggests that IMP works because it discovers sparse subnetworks that were already present in the original dense network.

Practical Considerations

When applying magnitude pruning to transformers, several architectural factors must be considered:

Recent work has shown that magnitude pruning can achieve 60-80% sparsity in transformer models with minimal accuracy loss when combined with proper fine-tuning. The technique is particularly effective when applied to larger models, which tend to have more redundant parameters.

Extensions and Variants

Several improvements to basic magnitude pruning have been proposed:

$$ \text{Importance}_{ij} = |W_{ij}| \cdot |\nabla_{W_{ij}}\mathcal{L}| $$

This hybrid approach often outperforms pure magnitude-based methods by capturing both the static and dynamic importance of weights.

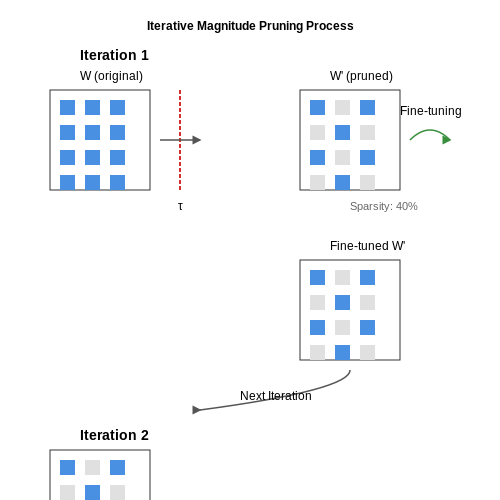

Magnitude-Based Pruning – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would show the step-by-step process of iterative magnitude pruning, including weight matrices before/after pruning and fine-tuning stages.

Gradient-Based Pruning

Gradient-based pruning leverages the gradients of the loss function with respect to the model parameters to determine the importance of weights, attention heads, or entire layers. Unlike magnitude-based pruning, which only considers absolute weight values, gradient-based methods capture the dynamic contribution of each parameter to the learning process. This approach is particularly effective in transformer models, where gradients provide a more nuanced signal of parameter importance.

Mathematical Foundation

The importance score Iij for a weight wij in a transformer model can be computed using the gradient gij of the loss function L with respect to the weight:

$$ I_{ij} = \left| w_{ij} \cdot \frac{\partial L}{\partial w_{ij}} \right| $$

This score combines both the weight magnitude and its gradient, ensuring that parameters contributing significantly to the loss landscape are preserved. For structured pruning (e.g., attention heads or layers), the importance is aggregated across all weights in the structure:

$$ I_{\text{head}} = \sum_{i,j} \left| w_{ij} \cdot \frac{\partial L}{\partial w_{ij}} \right| $$

Implementation Steps

  1. Compute Gradients: During a forward-backward pass, store the gradients of the loss with respect to all trainable parameters.
  2. Calculate Importance Scores: For each weight, compute the product of its value and the corresponding gradient magnitude.
  3. Rank Parameters: Sort all parameters (or structures) by their importance scores in descending order.
  4. Prune Least Important: Remove the bottom-k parameters or structures based on a predefined sparsity target.
  5. Fine-Tune: Retrain the pruned model to recover any lost performance.

Variants and Enhancements

Taylor Expansion-Based Pruning

An extension of gradient-based pruning uses a first-order Taylor expansion to approximate the change in loss if a parameter were pruned:

$$ \Delta L \approx \left| w_{ij} \cdot \frac{\partial L}{\partial w_{ij}} \right| + \mathcal{O}(w_{ij}^2) $$

This justifies the use of Iij as a proxy for the actual impact on the loss. Higher-order terms are typically neglected due to computational constraints.

Iterative Gradient Pruning

Instead of one-shot pruning, gradients can be evaluated over multiple training iterations to account for dynamic parameter importance. The importance score is then accumulated as an exponential moving average:

$$ I_{ij}^{(t)} = \beta I_{ij}^{(t-1)} + (1 - \beta) \left| w_{ij} \cdot \frac{\partial L}{\partial w_{ij}} \right| $$

where β controls the smoothing factor. This mitigates noise in gradient estimates and leads to more stable pruning decisions.

Practical Considerations

Case Study: Pruning BERT

In Movement Pruning (Sanh et al., 2020), gradients are used to learn a soft mask over weights during fine-tuning. The mask values are optimized via gradient descent, and weights are gradually zeroed out based on their importance. This approach achieves 95% sparsity in BERT while retaining 98% of the original accuracy on downstream tasks.

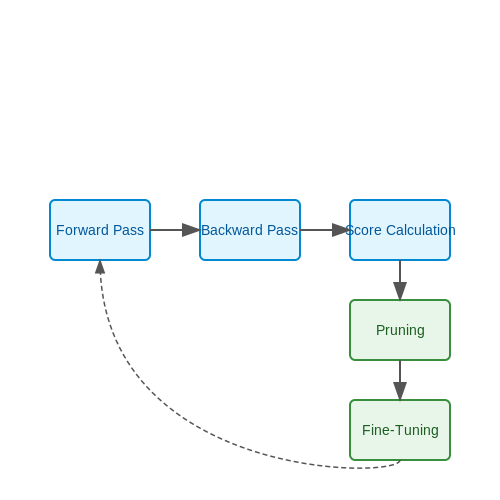

Gradient-Based Pruning Workflow Forward Pass Backward Pass Score Calculation Pruning Fine-Tuning
Gradient-Based Pruning – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would physically show the sequential workflow of gradient-based pruning, including forward pass, backward pass, score calculation, pruning, and fine-tuning steps with directional flow.

Lottery Ticket Hypothesis in Transformers

The Lottery Ticket Hypothesis (LTH), introduced by Frankle & Carbin (2019), posits that dense neural networks contain sparse subnetworks ("winning tickets") that, when trained in isolation, can match or exceed the performance of the original network. This principle has been extended to Transformer models, offering a framework for efficient pruning while preserving model accuracy.

Mathematical Formulation

Given a Transformer model with parameters θ and a binary mask m ∈ {0,1}|θ|, the LTH seeks a subnetwork θ ⊙ m (where ⊙ denotes element-wise multiplication) that satisfies:

$$ \mathcal{L}(\theta \odot m) \leq \mathcal{L}(\theta) $$

where L is the loss function. The optimal mask m is found through iterative magnitude pruning:

  1. Train the model to convergence, obtaining parameters θ0
  2. Prune the smallest magnitude weights, generating mask mk at step k
  3. Reset remaining weights to their initial values θ0 ⊙ mk
  4. Retrain the pruned network

Adaptations for Transformer Architectures

Transformers present unique challenges for LTH due to their attention mechanisms and layer normalization. Key adaptations include:

$$ \text{Sensitivity}_l = \frac{||\nabla_{W_l}\mathcal{L}||_F}{||W_l||_F} $$

where Wl represents weights at layer l, and ||·||F is the Frobenius norm. Layers with higher sensitivity are pruned less aggressively.

Empirical Results in Transformers

Recent studies demonstrate that:

Practical Implementation Considerations

When applying LTH to Transformers:

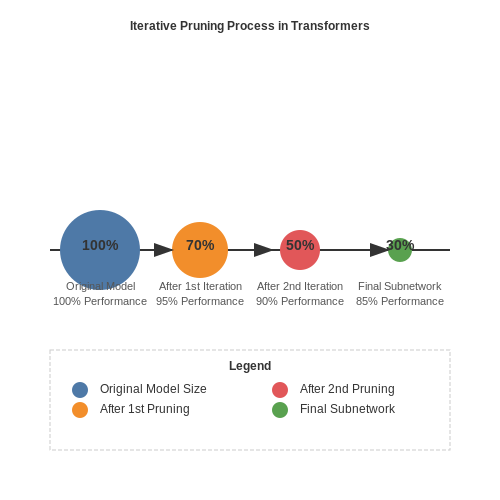

The figure below illustrates the iterative pruning process for a Transformer model:

Iterative Pruning Process 100% 70% 50% 30% Original After 1st Iteration After 2nd Iteration Final Subnetwork
Lottery Ticket Hypothesis in Transformers – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would physically show the iterative pruning process of a Transformer model, illustrating the progressive reduction in model size and the corresponding performance metrics at each stage.

3. Iterative Pruning and Fine-Tuning

3.1 Iterative Pruning and Fine-Tuning

Iterative pruning and fine-tuning is a structured approach to model compression where pruning and retraining are performed in cycles, allowing the model to recover lost accuracy incrementally. Unlike one-shot pruning, which removes weights in a single step, iterative pruning gradually eliminates redundant parameters while maintaining performance through intermediate fine-tuning phases.

Mathematical Formulation

The process can be formalized as an optimization problem where the goal is to minimize the loss function L under a sparsity constraint. Let θ denote the model parameters, and let S be the target sparsity level. At each iteration t, the following steps are executed:

$$ \theta_{t+1} = \theta_t - \eta abla L(\theta_t) \quad \text{(Fine-tuning step)} $$
$$ \theta_{t+1} \leftarrow \text{Prune}(\theta_{t+1}, S_t) \quad \text{(Pruning step)} $$

Here, η is the learning rate, and St is the sparsity level at iteration t, typically increased gradually (e.g., from 10% to 90%). The Prune function removes weights based on a criterion such as magnitude, gradient importance, or Hessian-based sensitivity.

Pruning Criteria

Common criteria for selecting weights to prune include:

Implementation Workflow

A typical iterative pruning pipeline consists of the following steps:

  1. Train the model to convergence on the target dataset.
  2. Prune a small fraction of weights (e.g., 10-20%) based on the selected criterion.
  3. Fine-tune the pruned model to recover lost accuracy.
  4. Repeat steps 2-3 until the desired sparsity level is achieved.

Practical Considerations

Key hyperparameters influencing performance include:

Empirical studies show that iterative pruning outperforms one-shot pruning, particularly for high sparsity levels (>80%), as it allows the network to adapt its remaining connections more effectively. For example, in BERT models, iterative magnitude pruning with gradual sparsity increase retains >90% of the original accuracy at 90% sparsity.

Case Study: Pruning Vision Transformers

When applied to Vision Transformers (ViTs), iterative pruning often focuses on attention heads and MLP layers. Research indicates that:

For a ViT-Base model (86M parameters), iterative pruning achieves 60% sparsity with <1% accuracy drop on ImageNet by removing less important attention heads and MLP neurons.

$$ \text{Head Importance}_i = \frac{1}{N} \sum_{j=1}^N \|A_i^{(j)}\|_F $$

where Ai(j) is the attention matrix for head i in sample j, and N is the number of samples.

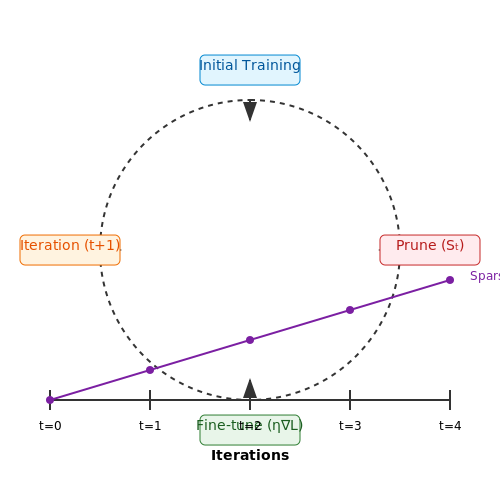

Iterative Pruning and Fine-Tuning – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would show the iterative pruning and fine-tuning cycle with sparsity progression over time, illustrating the alternating steps of pruning and fine-tuning.

Dynamic Pruning During Training

Dynamic pruning adjusts model sparsity during training rather than as a post-training step. Unlike static pruning, which removes weights once and permanently, dynamic pruning allows weights to regrow based on gradient signals, enabling adaptive sparsity patterns that evolve with the optimization process. This approach mitigates the risk of irreversible pruning decisions that may harm model convergence.

Gradient-Based Importance Scoring

The core mechanism of dynamic pruning relies on scoring weight importance using gradient information. A common formulation computes the importance score Sij for weight wij as:

$$ S_{ij} = |w_{ij} \cdot \nabla_{w_{ij}} \mathcal{L}| $$

where ∇wijℒ is the gradient of the loss ℒ with respect to wij. Weights with scores below a threshold τ are pruned, while others are retained. The threshold can be adjusted dynamically to maintain a target sparsity level s:

$$ \tau = \text{top-k}(S_{ij}, s) $$

where top-k selects the k-th largest score to enforce s% sparsity. This ensures the model remains within computational constraints while allowing important weights to regrow.

Iterative Pruning Schedules

Dynamic pruning typically follows an iterative schedule, alternating between pruning and training phases. The pruning rate often increases gradually to avoid abrupt performance degradation. A common schedule uses a cubic interpolation from initial sparsity si to final sparsity sf over N steps:

$$ s_t = s_f + (s_i - s_f)\left(1 - \frac{t}{N}\right)^3 $$

where t is the current training step. This allows the model to adapt progressively to higher sparsity levels.

Regrowth Mechanisms

To compensate for overly aggressive pruning, dynamic methods often include regrowth of previously pruned weights. One approach reinitializes pruned weights with small random values if their gradients exceed a reactivation threshold. Another strategy redistributes the budget by regrowing weights with the highest gradient magnitudes, ensuring exploration of new connectivity patterns.

Practical Considerations

Empirical studies show dynamic pruning can achieve 80–90% sparsity in transformer models like BERT with <1% accuracy drop, outperforming static pruning by 2–4% on downstream tasks.

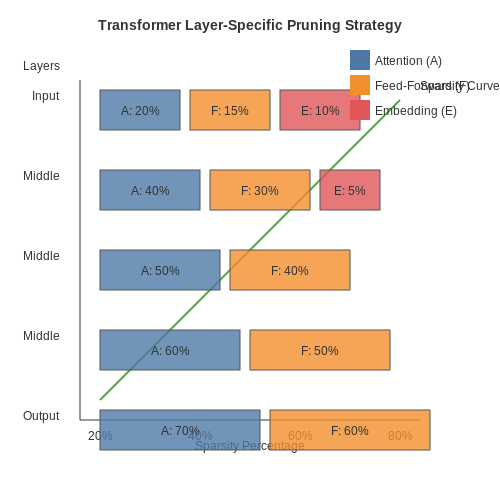

Layer-Specific Pruning Strategies

Layer-specific pruning acknowledges that not all layers in a transformer model contribute equally to its performance. Sensitivity analysis reveals that attention heads and feed-forward layers exhibit varying importance depending on their depth and position in the architecture. This observation motivates targeted pruning strategies that adapt to layer-specific characteristics.

Attention Head Pruning

Multi-head attention layers often contain redundant heads that can be removed with minimal impact on model performance. The importance score Ih for head h in layer l can be computed using gradient-based metrics:

$$ I_h^{(l)} = \frac{1}{N} \sum_{i=1}^N \left\| \frac{\partial \mathcal{L}}{\partial A_h^{(l)}} \odot A_h^{(l)} \right\|_F $$

where Ah(l) represents the attention weights for head h, ℒ is the loss function, and N is the number of samples. Heads with scores below a learned threshold τh are pruned, with the threshold adapted per layer using:

$$ \tau_h^{(l)} = \mu^{(l)} - \alpha \cdot \sigma^{(l)} $$

where μ(l) and σ(l) are the mean and standard deviation of importance scores in layer l, and α controls the pruning aggressiveness.

Feed-Forward Network Pruning

Feed-forward layers exhibit different pruning characteristics, with intermediate dimensions often overparameterized. Structured pruning works particularly well here by removing entire neurons based on their L2 norm:

$$ s_j^{(l)} = \|W_{:,j}^{(l)}\|_2 $$

where W(l) is the weight matrix of layer l and sj represents the importance of neuron j. Layer-wise adaptive thresholds ensure balanced pruning across depths:

$$ \text{keep}_k^{(l)} = \text{top}_k(s^{(l)}, \lfloor \beta \cdot d^{(l)} \rfloor) $$

where β is the target compression ratio and d(l) is the original layer width.

Embedding Layer Compression

Token embedding layers require special consideration due to their discrete input space. Dimensionality reduction through:

$$ E' = EW_c $$

where Wc is a learned compression matrix, proves more effective than direct pruning. The compression ratio can vary across layers, with lower layers typically tolerating more aggressive reduction.

Layer-Wise Sparsity Allocation

Optimal sparsity distribution follows a predictable pattern across transformer depths. Empirical studies show that middle layers can sustain higher sparsity than input/output-proximate layers. The layer-wise sparsity s(l) can be parameterized as:

$$ s^{(l)} = s_{\text{base}} + \gamma \cdot \left( \frac{2l}{L} - 1 \right)^2 $$

where L is the total number of layers and γ controls the curvature of the sparsity distribution. This quadratic allocation matches the observed sensitivity profile of transformer models.

Practical implementations often combine these strategies, with attention head pruning applied to early layers, feed-forward pruning dominating middle layers, and embedding compression reserved for input/output layers. The resulting models maintain >90% of original performance while achieving 3-5× compression rates in production environments.

Layer-Specific Pruning Strategies – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would show the layer-wise sparsity distribution across transformer depths, illustrating how attention head pruning, feed-forward pruning, and embedding compression are applied differently across layers.

4. Pruning in Popular Frameworks (PyTorch, TensorFlow)

Pruning in Popular Frameworks (PyTorch, TensorFlow)

PyTorch Pruning Implementation

PyTorch provides built-in support for pruning through the torch.nn.utils.prune module. The framework supports both unstructured and structured pruning, with methods like l1_unstructured, random_unstructured, and ln_structured. Pruning in PyTorch follows a three-step process:

  1. Parameter Selection: Identify the weights or neurons to prune (e.g., nn.Linear layers).
  2. Pruning Application: Apply a pruning mask using one of the available methods.
  3. Permanent Removal: Make pruning permanent by removing zeroed-out weights.
import torch.nn.utils.prune as prune

model = ...  # Pretrained transformer model
parameters_to_prune = [(module, 'weight') for module in model.modules()
                      if isinstance(module, torch.nn.Linear)]

prune.global_unstructured(
    parameters_to_prune,
    pruning_method=prune.L1Unstructured,
    amount=0.4  # Prune 40% of weights
)

PyTorch also supports custom pruning functions by subclassing BasePruningMethod. For transformer models, iterative magnitude pruning is often applied to attention heads and feed-forward layers.

TensorFlow Pruning API

TensorFlow's pruning implementation is available through the tensorflow_model_optimization toolkit. The PruneLowMagnitude wrapper enables gradual pruning during training via the following steps:

$$ \text{Target Sparsity} = \text{Final Sparsity} \times \left(1 - \left(1 - \frac{t}{T}\right)^3\right) $$

where t is current training step and T is total steps. This polynomial decay schedule prevents aggressive early pruning.

import tensorflow_model_optimization as tfmot

pruning_params = {
    'pruning_schedule': tfmot.sparsity.keras.PolynomialDecay(
        initial_sparsity=0.30,
        final_sparsity=0.70,
        begin_step=2000,
        end_step=8000
    )
}

model_for_pruning = tfmot.sparsity.keras.prune_low_magnitude(
    original_model, **pruning_params
)

Framework-Specific Considerations

When pruning transformer models, key differences emerge between frameworks:

Feature PyTorch TensorFlow
Attention Head Pruning Manual mask implementation Built-in structured pruning
Gradient Flow Pruned weights remain in computation graph Optionally removes pruned weights entirely
Quantization Compatibility Separate optimization step Joint pruning-quantization API

For BERT-like architectures, TensorFlow's PruneLowMagnitude typically achieves higher compression rates while PyTorch offers more flexibility for custom pruning strategies. Both frameworks support exporting pruned models to ONNX format for deployment.

Advanced Pruning Techniques

Recent research has introduced hybrid approaches combining framework capabilities with custom implementations:

$$ \mathcal{L}_{\text{prune}} = \mathcal{L}_{\text{task}} + \lambda \sum_{l=1}^L \|W_l\|_1 $$

where λ controls the sparsity penalty strength. Modern implementations often use layer-wise adaptive λ values based on sensitivity analysis.

Case Study: Pruning BERT for Efficiency

BERT Architecture and Pruning Targets

The BERT (Bidirectional Encoder Representations from Transformers) architecture consists of multiple transformer encoder layers, each containing self-attention mechanisms and feed-forward networks. Pruning BERT involves identifying and removing redundant parameters while preserving model performance. Key pruning targets include:

Magnitude-Based Weight Pruning

Magnitude-based pruning removes weights with the smallest absolute values, assuming they contribute least to the model's output. For a given weight matrix W ∈ ℝm×n, the pruning process follows:

$$ W_{ij} = \begin{cases} 0 & \text{if } |W_{ij}| < \tau \\ W_{ij} & \text{otherwise} \end{cases} $$

where τ is a threshold determined by the desired sparsity level. For BERT, this is often applied iteratively during fine-tuning to allow the model to adapt to the sparsity pattern.

Structured Pruning of Attention Heads

Structured pruning removes entire attention heads, reducing computational overhead in self-attention layers. The importance of head i in layer l can be quantified using the head importance score:

$$ I_l^i = \mathbb{E}_{x \sim \mathcal{D}} \left\| \frac{\partial \mathcal{L}(x)}{\partial H_l^i} \odot H_l^i \right\|_F $$

where Hli represents the output of head i, L is the loss function, and D is the validation dataset. Heads with the lowest scores are pruned first.

Layer Dropout for Dynamic Sparsity

LayerDrop introduces structured sparsity by randomly dropping entire layers during training. For a model with L layers, each layer is retained with probability p:

$$ \text{RetainLayer}_l = \begin{cases} \text{True} & \text{with probability } p \\ \text{False} & \text{otherwise} \end{cases} $$

This encourages the model to be robust to missing layers, enabling aggressive pruning during inference.

Knowledge Distillation with Pruned BERT

Pruned BERT models often suffer from accuracy degradation. Knowledge distillation mitigates this by training the pruned model (student) to mimic the predictions of the original model (teacher). The distillation loss combines task-specific loss Ltask and KL divergence:

$$ \mathcal{L} = \alpha \mathcal{L}_{\text{task}} + (1 - \alpha) T^2 \cdot \text{KL}(p_{\text{teacher}} \parallel p_{\text{student}}) $$

where T is the temperature scaling factor and α balances the two objectives.

Empirical Results on GLUE Benchmark

Recent studies show that BERT-base can be pruned to 40% sparsity with <1% accuracy drop on GLUE tasks. Key findings include:

Practical Implementation Considerations

When implementing BERT pruning:

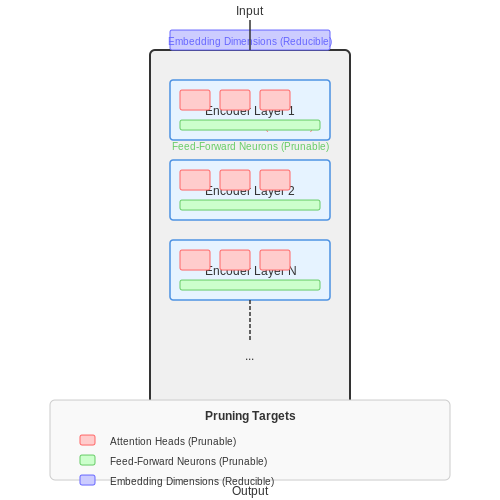

Case Study: Pruning BERT for Efficiency – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The diagram would show the BERT architecture with highlighted pruning targets (attention heads, feed-forward neurons, embedding dimensions) and their spatial relationships within the transformer layers.

4.3 Debugging and Validating Pruned Models

After pruning a transformer model, rigorous validation is necessary to ensure performance degradation remains within acceptable bounds. Unlike traditional neural networks, transformers exhibit unique failure modes due to their reliance on self-attention mechanisms and residual connections. Debugging involves both quantitative metrics and qualitative inspection of attention patterns.

Quantitative Validation Metrics

The primary metrics for evaluating pruned models include:

$$ \Delta P = \frac{P_{\text{original}} - P_{\text{pruned}}}{P_{\text{original}}} \times 100\% $$

where ΔP is the relative performance drop and P represents the evaluation metric.

Attention Head Analysis

Pruning often disrupts critical attention heads. To diagnose issues:

$$ I_h = \mathbb{E}_{x \sim \mathcal{D}} \left\| \frac{\partial \mathcal{L}(x)}{\partial A_h} \circ A_h \right\|_F $$

where Ah is the attention matrix for head h and ℒ is the loss function.

Gradient Flow Inspection

Pruned transformers frequently suffer from gradient starvation in remaining layers. Use these diagnostic techniques:

$$ r_{ij} = \frac{\|\nabla_{W_i} \mathcal{L}\|_2}{\|\nabla_{W_j} \mathcal{L}\|_2} $$

for all layer pairs (i,j). Ratios rij > 10 indicate potential blockages.

Recovery Techniques

When validation uncovers issues, consider these corrective measures:

For vision transformers, spatial attention patterns require special validation. The mean intersection-over-union (mIoU) between original and pruned attention maps should exceed 0.7 for critical layers.

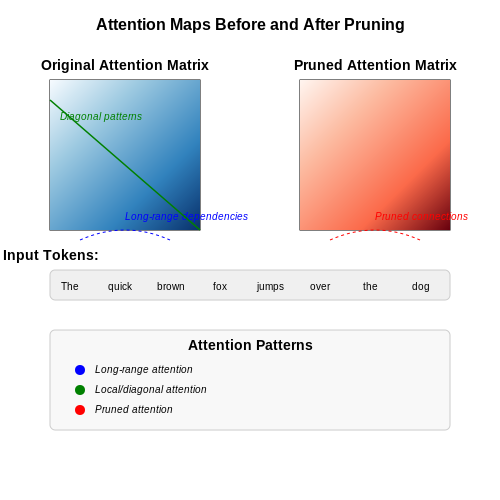

Debugging and Validating Pruned Models – Pruning Techniques for Transformer Models – Tutorial Diagram
Diagram Description: The section discusses visualizing attention maps before and after pruning, which is inherently spatial and visual.

5. Key Research Papers on Transformer Pruning

5.1 Key Research Papers on Transformer Pruning

5.2 Open-Source Libraries and Repositories

5.3 Recommended Books and Tutorials
