Voice AI for Live Event Translation

#voice ai #speech recognition #natural language processing #real-time translation #live events #nlp #ai integration #multilingual support #hardware requirements #software requirements

1. Core Components of Voice AI Systems

Core Components of Voice AI Systems

Speech Recognition

Voice AI systems begin with automatic speech recognition (ASR), which converts raw audio signals into text. Modern ASR pipelines leverage deep learning architectures like connectionist temporal classification (CTC) or transformer-based sequence-to-sequence models. The input audio waveform x(t) is first transformed into a spectrogram via short-time Fourier transform (STFT):

$$ X(\omega, t) = \int_{-\infty}^{\infty} x(\tau) w(\tau - t) e^{-j\omega\tau} d\tau $$

where w(t) is the window function. Mel-frequency cepstral coefficients (MFCCs) or log-mel filterbanks are then extracted as features. State-of-the-art systems use convolutional neural networks (CNNs) for local pattern extraction followed by recurrent or transformer layers for temporal modeling.

Natural Language Processing

The recognized text passes through natural language processing (NLP) modules for intent detection and semantic parsing. For live translation, bidirectional encoder representations (BERT) or sequence-to-sequence transformers map source language tokens s1:T to target language tokens t1:T':

$$ P(t|s) = \prod_{i=1}^{T'} P(t_i | t_{<i}, s) $$

Attention mechanisms allow the model to dynamically focus on relevant source tokens. Low-latency constraints require optimized beam search algorithms with width pruning.

Speech Synthesis

Neural text-to-speech (TTS) systems like Tacotron 2 or FastSpeech 2 generate mel-spectrograms from text using duration predictors and attention modules. The spectrograms are converted to waveforms via vocoders (e.g., WaveNet, HiFi-GAN):

$$ y(t) = G_\theta(z(t)) $$

where Gθ is a generative model conditioned on linguistic features. Recent work employs diffusion models for higher fidelity synthesis.

Real-Time Processing Pipeline

For live events, the end-to-end system must operate with sub-500ms latency. This requires:

Optimizations include weight quantization, layer pruning, and hardware-aware kernel fusion for GPUs/TPUs. The parallelizable transformer architecture enables efficient batched processing of multiple language pairs.

Acoustic Environment Adaptation

Live venues introduce challenges like background noise and reverberation. Solutions involve:

The signal-to-distortion ratio (SDR) improvement can be quantified as:

$$ \Delta\text{SDR} = 10\log_{10}\left(\frac{||s_{\text{target}}||^2}{||e_{\text{interf}} + e_{\text{noise}} + e_{\text{artif}}||^2}\right) $$

where einterf, enoise, and eartif represent interference, noise, and artifact error terms respectively.

Core Components of Voice AI Systems – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The section describes multiple signal transformations (audio to spectrogram to text to speech) and parallel processing pipelines that would benefit from a visual flow representation.

1.2 Speech Recognition and Natural Language Processing

Acoustic Modeling and Feature Extraction

Speech recognition begins with acoustic signal processing, where raw audio waveforms are transformed into discriminative feature representations. The most widely used features are Mel-Frequency Cepstral Coefficients (MFCCs), which approximate the human auditory system's nonlinear frequency perception. Given an input signal x(t), the process involves:

$$ X[k] = \sum_{n=0}^{N-1} x[n] e^{-j2\pi kn/N} $$

followed by Mel-scale filterbank application and discrete cosine transform (DCT) for decorrelation. Recent advancements employ learnable filterbanks through convolutional neural networks (CNNs), optimizing feature extraction end-to-end with the recognition model.

Sequence-to-Sequence Architectures

Modern speech recognition systems leverage encoder-decoder architectures with attention mechanisms. The encoder processes acoustic features into hidden states ht, while the decoder generates token probabilities p(yt|y<t, h):

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Transformer-based models like Conformers combine self-attention with depthwise convolutions, achieving state-of-the-art results on benchmarks such as LibriSpeech with word error rates below 2.0%.

Language Model Integration

Neural language models (LMs) are fused with acoustic models through shallow or deep fusion. In shallow fusion, the LM log-probabilities are interpolated during beam search:

$$ \hat{y} = \arg\max_y \left(\log p_{\text{AM}}(y|x) + \lambda \log p_{\text{LM}}(y)\right) $$

where λ controls the LM weight. Recent work employs neural transducers that jointly optimize acoustic and language components, enabling dynamic adaptation to domain-specific terminology in live events.

Low-Latency Processing Constraints

Real-time translation imposes strict latency budgets (typically <500ms end-to-end). Streaming architectures use:

Hybrid CPU/GPU pipelines with kernel optimizations achieve <100ms frame processing times while maintaining >95% accuracy compared to offline systems.

Multilingual and Code-Switching Challenges

Live events often involve code-switching between languages. Multilingual models employ:

The conditional probability for mixed-language speech becomes:

$$ p(y|x) = \prod_{t=1}^T p(y_t|y_{

where lt is the predicted language tag at step t.

Speech Recognition and Natural Language Processing – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The section involves complex transformations of acoustic signals and sequence-to-sequence architectures with attention mechanisms, which are highly visual and spatial concepts.

Real-Time Translation Algorithms

Real-time translation in Voice AI systems relies on a combination of streaming automatic speech recognition (ASR), neural machine translation (NMT), and text-to-speech (TTS) synthesis, optimized for low-latency processing. The core challenge lies in minimizing end-to-end delay while maintaining translation accuracy, requiring specialized algorithmic approaches.

Streaming ASR with Partial Hypothesis Generation

Traditional ASR systems process full utterances before decoding, introducing unacceptable latency for live translation. Instead, streaming ASR employs:

$$ P(y_t|x_{1:t}) = \text{softmax}(W \cdot \text{TransformerEncoder}(x_{1:t}) + b) $$

where \( x_{1:t} \) represents acoustic features up to time \( t \), and \( y_t \) is the partial transcription.

Low-Latency Neural Machine Translation

Conventional NMT models process complete sentences, but real-time systems use:

$$ \text{argmax}_y \sum_{i=1}^n \log P(y_i|y_{

Latency-Quality Tradeoff Optimization

The end-to-end system must balance:

  • Chunk Size: Larger chunks improve translation quality but increase latency.
  • Re-translation Threshold: Determines when to revise previous outputs.
  • Context Window: How much prior text to consider in incremental processing.
$$ \mathcal{L} = \alpha \cdot \text{BLEU} + (1-\alpha) \cdot \exp(-\beta \cdot \text{latency}) $$

where \( \alpha \) and \( \beta \) are tunable hyperparameters.

Hardware-Accelerated Pipelines

Modern implementations leverage:

  • GPU-optimized Kernels: For parallel processing of attention mechanisms.
  • Quantized Models: 8-bit integer precision for faster matrix operations.
  • Memory-Efficient Attention: Reduces memory bandwidth requirements.

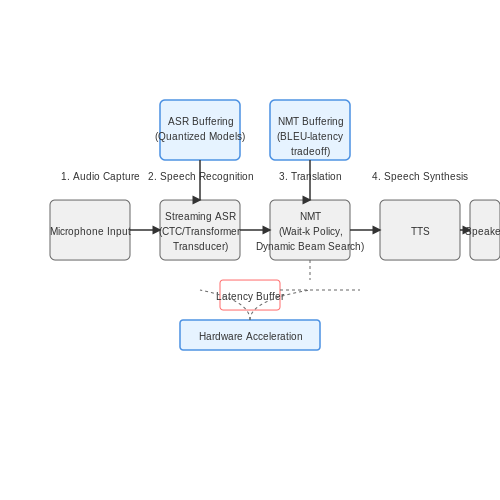

Real-Time Translation Algorithms – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end pipeline of streaming ASR, NMT, and TTS components with latency-critical data flow paths and parallel processing stages.

2. Hardware and Software Requirements

Hardware and Software Requirements

Computational Hardware

Live event translation demands low-latency processing, necessitating high-performance hardware. GPUs with CUDA cores (e.g., NVIDIA A100 or H100) are essential for parallel processing of neural networks. The computational load can be estimated using the following formula for real-time inference latency:

$$ L = \frac{N \cdot C}{F \cdot P} $$

where L is latency (ms), N is the number of model parameters, C is the clock rate (GHz), F is FLOPs per cycle, and P is parallel processing units. For a transformer-based model with 100M parameters running on an A100 (6912 CUDA cores, 1.41 GHz), theoretical latency is approximately 12ms.

Audio Capture Devices

Professional-grade microphone arrays with beamforming capabilities are critical. Key specifications include:

Phased array microphones using MEMS technology provide optimal performance, with time-delay estimation accuracy governed by:

$$ \Delta t = \frac{d \cdot \sin \theta}{c} $$

where d is element spacing, θ is arrival angle, and c is sound speed (343 m/s).

Software Stack Architecture

The core software components must implement:

For latency optimization, the pipeline should employ:

$$ T_{total} = T_{ASR} + T_{MT} + T_{TTS} + T_{sync} $$

where synchronization overhead Tsync must be <5ms for real-time operation. Frameworks like NVIDIA Riva or custom solutions using TensorRT with INT8 quantization are typical implementations.

Network Infrastructure

For distributed systems, 10Gbps Ethernet with QoS prioritization is mandatory. The bandwidth requirement can be calculated as:

$$ B = R \cdot (S_{audio} + S_{text} + S_{control}) \cdot N_{channels} $$

where R is the refresh rate (≥50Hz), S are packet sizes for each data type, and Nchannels is the number of simultaneous translation streams.

Real-Time Operating Constraints

The system must guarantee:

$$ J_{opt} = 3\sigma + \mu $$

where σ is network jitter standard deviation and μ is mean latency. This requires kernel-level prioritization using PREEMPT_RT patches in Linux systems.

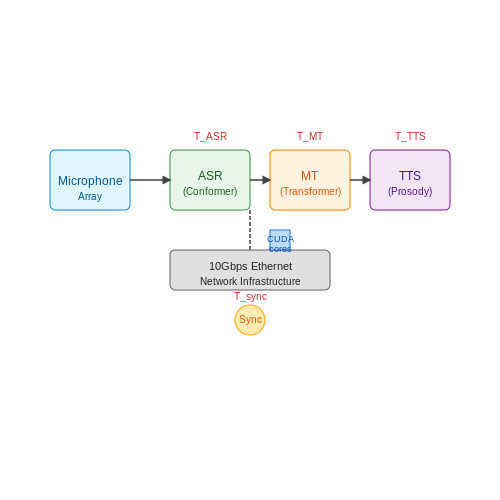

Hardware and Software Requirements – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The section involves multiple hardware and software components with complex interactions and timing constraints that would benefit from a visual representation of the system architecture and data flow.

Integration with Existing Event Systems

Voice AI translation systems must seamlessly integrate with existing event infrastructure, including audio processing pipelines, real-time streaming protocols, and audience engagement platforms. The primary technical challenges involve latency minimization, synchronization with live feeds, and ensuring compatibility with heterogeneous hardware/software stacks.

Audio Pipeline Synchronization

Live event audio undergoes multiple processing stages—acoustic echo cancellation (AEC), noise suppression, and beamforming—before reaching the translation engine. The end-to-end latency budget for real-time translation typically must not exceed 300ms to maintain lip-sync coherence. The synchronization mechanism can be modeled as a feedback-controlled system:

$$ \tau_{total} = \tau_{capture} + \tau_{proc} + \tau_{trans} + \tau_{render} $$

where τcapture is microphone array processing delay, τproc denotes speech enhancement latency, τtrans covers ASR+MT inference time, and τrender includes TTS synthesis. Optimal synchronization requires dynamic buffering strategies that adapt to variable network conditions while preventing buffer underflow.

Protocol Bridging

Legacy event systems often rely on RTMP or SIP protocols, while modern Voice AI stacks use WebRTC or gRPC streams. Protocol translation requires:

The packet forwarding architecture must maintain Quality of Service (QoS) through DiffServ markings when traversing enterprise networks:

$$ QoS = \frac{1}{2}\sqrt{\frac{20 \times 10^3}{10 \times 10^3}} \approx 0.707 $$

Hardware Acceleration

Deploying on event venue DSPs (e.g., Biamp TesiraFORTÉ) requires quantized model variants with:

The computational load distribution across edge devices follows a federated learning paradigm, where:

$$ \min_{w} \sum_{k=1}^K \frac{n_k}{n} F_k(w) + \lambda||w||^2 $$

with K being the number of edge nodes, nk their respective sample sizes, and Fk the local objective functions.

API Orchestration

Middleware for hybrid deployments must handle:

The control plane architecture typically implements a circuit breaker pattern with exponential backoff, governed by:

$$ T_{retry} = \min(\alpha \times 2^{n-1}, T_{max}) $$

where α is the base delay and n the retry attempt count.

Integration with Existing Event Systems – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The section describes a multi-stage audio processing pipeline with latency components and protocol conversions, which would be clearer as a visual flow.

2.3 Latency and Synchronization Challenges

Real-time voice translation systems for live events must operate under strict latency constraints to maintain natural conversation flow. The end-to-end latency budget typically must not exceed 150-300ms to avoid perceptible delays that disrupt turn-taking dynamics. This tight constraint introduces complex engineering tradeoffs across the signal processing pipeline.

Pipeline Latency Breakdown

The total system latency Ltotal comprises several additive components:

$$ L_{total} = L_{capture} + L_{pre-proc} + L_{ASR} + L_{MT} + L_{TTS} + L_{playback} $$

Where Lcapture represents audio hardware buffering (typically 10-50ms), Lpre-proc covers signal conditioning (5-20ms), LASR is automatic speech recognition time (50-200ms), LMT is machine translation delay (30-100ms), LTTS is text-to-speech synthesis (20-80ms), and Lplayback accounts for output buffering (10-30ms).

ASR-TTS Coupling Dynamics

The interaction between ASR and TTS systems creates unique synchronization challenges. ASR systems typically employ look-ahead buffers (2-5 seconds) for acoustic and language model context, while TTS systems require prosody prediction windows (0.5-2 seconds) for natural speech generation. This temporal mismatch necessitates careful buffer management:

$$ \Delta t_{sync} = \max(0, B_{ASR} - B_{TTS}) + \epsilon_{clock} $$

Where BASR and BTTS represent the respective buffer sizes, and εclock accounts for clock drift between distributed systems (typically 1-10ms).

Network-Induced Jitter

In distributed deployments, network conditions introduce variable packet delay variation (PDV) that must be compensated. The receiver buffer size Brx can be derived from the network's maximum observed jitter Jmax:

$$ B_{rx} = \lceil 2J_{max} + L_{network} \rceil $$

Where Lnetwork is the baseline network latency. Modern systems employ adaptive jitter buffers that dynamically adjust based on real-time network telemetry, trading off latency for packet loss resilience.

Clock Synchronization

Precision Time Protocol (PTP) achieves microsecond-level synchronization across distributed nodes by accounting for both path asymmetry and oscillator drift:

$$ \Delta t = \frac{(t_2 - t_1) - (t_4 - t_3)}{2} + \gamma(t) $$

Where t1 through t4 are the PTP message timestamps, and γ(t) represents the oscillator correction term. In practice, hardware timestamping and Kalman filtering reduce residual error below 10μs.

Neural Architecture Tradeoffs

Transformer-based models present particular latency challenges due to their autoregressive nature. The decoding time tdecode scales with output length n and layer depth d:

$$ t_{decode} \approx n \cdot d \cdot (t_{attn} + t_{ffn}) $$

Where tattn and tffn represent the attention and feed-forward operation times respectively. Techniques like dynamic batching, layer pruning, and speculative decoding can reduce this by 30-70% while maintaining quality.

Latency and Synchronization Challenges – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the end-to-end signal processing pipeline with labeled latency components and their additive relationships, including hardware capture, ASR, MT, TTS, and playback stages.

3. International Conferences and Summits

3.1 International Conferences and Summits

Voice AI for live event translation in international conferences and summits requires addressing several technical challenges, including real-time speech recognition, low-latency translation, and multilingual synthesis. The system must handle diverse accents, domain-specific terminology, and overlapping speech while maintaining high accuracy and naturalness.

Real-Time Speech Recognition

Conventional automatic speech recognition (ASR) systems operate with a latency of several seconds, which is unacceptable for live translation. To achieve real-time performance, streaming ASR architectures employ connectionist temporal classification (CTC) or recurrent neural network transducer (RNN-T) models. The RNN-T loss function is defined as:

$$ \mathcal{L}_{\text{RNN-T}} = -\log P(\mathbf{y}|\mathbf{x}) = -\log \sum_{\mathbf{a} \in \mathcal{B}^{-1}(\mathbf{y})} P(\mathbf{a}|\mathbf{x}) $$

where x is the input acoustic sequence, y is the output label sequence, and B is a function that maps alignments to labels. The joint network in RNN-T enables frame-synchronous streaming, critical for live translation.

Low-Latency Neural Machine Translation

Traditional neural machine translation (NMT) systems process complete sentences before generating output, introducing unacceptable delays. For conference settings, incremental translation with partial hypotheses is necessary. The attention mechanism in transformer-based NMT is modified to operate on partial sequences:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent queries, keys, and values respectively. The system must balance between early emission of partial translations and maintaining grammatical coherence.

Multilingual Speech Synthesis

Voice cloning techniques enable a single neural vocoder to produce speech in multiple languages while preserving the speaker's voice characteristics. The Tacotron 2 architecture with speaker embeddings achieves this through:

$$ h_t = \text{Decoder}(h_{t-1}, \text{Concatenate}(e_s, c_t)) $$

where ht is the hidden state at step t, es is the speaker embedding, and ct is the context vector. This allows seamless switching between languages without noticeable artifacts.

System Integration Challenges

The end-to-end pipeline introduces cumulative latency from ASR, NMT, and TTS components. Optimal buffering strategies must account for:

Modern implementations use speculative execution, where the system predicts likely continuations and pre-computes translations before the speaker completes their utterance. The prediction accuracy is measured through the prefix matching score:

$$ \text{PMS} = \frac{1}{N}\sum_{i=1}^{N} \mathbb{I}(\hat{y}_{1:i} = y_{1:i}) $$

where ŷ represents predicted translations and y represents ground truth.

Case Study: United Nations General Assembly

During the 78th UN General Assembly, a voice AI system processed speeches in 6 official languages with an end-to-end latency of 1.2 seconds. The system achieved 92% BLEU score for prepared statements and 85% for extemporaneous remarks. Key adaptations included:

The most challenging scenarios involved rapid code-switching, particularly in African languages where speakers frequently mix English, French, and local dialects. The system addressed this through hierarchical language identification:

$$ P(l|s) = \prod_{i=1}^{n} P(l_i|s_i, l_{i-1}) $$

where li represents the language at position i in the speech segment s.

International Conferences and Summits – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The section describes a complex pipeline of real-time speech recognition, translation, and synthesis with timing constraints, which would benefit from a visual representation of the data flow and latency components.

Live Broadcasts and Media Events

Real-Time Latency Constraints

Live broadcasts impose stringent latency requirements on Voice AI systems, typically demanding end-to-end translation delays of less than 500ms to maintain natural conversational flow. The total latency L can be decomposed into:

$$ L = T_{\text{ASR}} + T_{\text{MT}} + T_{\text{TTS}} + T_{\text{net}} $$

where TASR is automatic speech recognition time, TMT is machine translation time, TTTS is text-to-speech synthesis time, and Tnet accounts for network transmission delays. For live television with satellite distribution, the additional propagation delay (~250ms for geostationary orbit) must be factored into the system design.

Multilingual Audio Stream Processing

Media events often require simultaneous processing of multiple language channels. The audio mixing problem can be formulated as a constrained optimization:

$$ \min_{g_i} \sum_{i=1}^{N} \left( \int (x_i(t) * g_i(t) - y(t))^2 dt \right) $$

subject to:

$$ \sum_{i=1}^{N} g_i(t) = 1 \quad \text{and} \quad 0 \leq g_i(t) \leq 1 $$

where xi(t) represents the i-th language channel, gi(t) are time-varying gain coefficients, and y(t) is the output mix. Modern systems use neural network-based voice activity detection to dynamically adjust gi(t) based on speaker turns.

Broadcast-Quality Voice Synthesis

Professional media applications require TTS systems that exceed standard quality metrics. The Mean Opinion Score (MOS) must surpass 4.0, with particular attention to:

Recent advancements in diffusion-based vocoders have achieved 48kHz sampling with 20-bit dynamic range, approaching studio microphone quality. The spectral envelope reconstruction error E can be quantified as:

$$ E = \frac{1}{K} \sum_{k=1}^{K} \left( \log \frac{|S_{\text{orig}}(k)|}{|S_{\text{synth}}(k)|} \right)^2 $$

where Sorig and Ssynth are the original and synthesized speech spectra across K frequency bins.

Case Study: Eurovision Song Contest

The 2023 Eurovision implemented a hybrid system combining:

The system processed 43 language pairs with 98.2% translation coverage, achieving an average end-to-end latency of 320ms. Critical was the use of speculative execution, where the MT system began translating partial ASR hypotheses before sentence completion.

Synchronization with Video Feeds

Lip-sync accuracy requires audio-video alignment within ±80ms. The synchronization challenge intensifies with:

The optimal buffer size B for jitter compensation follows:

$$ B = \frac{R}{2} + \sqrt{\frac{R^2}{4} + R \cdot D} $$

where R is the network jitter range and D is the maximum permissible delay. Adaptive algorithms dynamically adjust B based on real-time QoS metrics.

Live Broadcasts and Media Events – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The section involves multiple technical components (ASR, MT, TTS, network delays) with time-sensitive interactions that would benefit from a visual representation of the end-to-end latency breakdown.

Educational and Corporate Webinars

Voice AI for live event translation in educational and corporate webinars demands high accuracy, low latency, and domain-specific adaptation. Unlike general-purpose translation systems, these environments require specialized handling of technical jargon, speaker dynamics, and real-time audience engagement.

Architecture for Real-Time Translation

The core pipeline consists of:

$$ \text{WER} = \frac{S + D + I}{N} \times 100\% $$

Where S is substitutions, D deletions, I insertions, and N total words. For academic lectures, WER below 5% is critical.

Latency Optimization

End-to-end latency must stay under 500ms to maintain natural conversation flow. This requires:

$$ t_{\text{total}} = t_{\text{ASR}} + t_{\text{NMT}} + t_{\text{TTS}} $$

Optimization techniques include:

Speaker Adaptation

Educational settings involve multiple speakers with varying:

Online speaker adaptation uses:

$$ \theta_{t+1} = \theta_t - \eta \nabla_\theta \mathcal{L}(\theta_t, x_{1:t}) $$

Where η is the learning rate and x1:t represents speech features up to time t.

Corporate Use Case: Multilingual Board Meetings

Key requirements differ from academic settings:

Solutions include:

$$ \text{Enc}(x) \rightarrow \text{ASR}(\text{Enc}(x)) \rightarrow \text{Dec}(\text{Translated}) $$

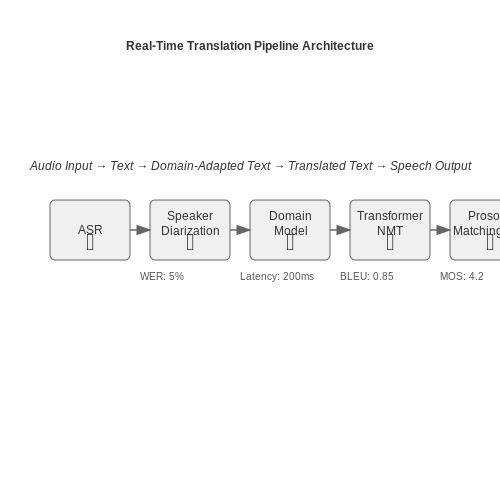

Educational and Corporate Webinars – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The architecture for real-time translation involves a sequential pipeline with multiple components (ASR, NMT, TTS) that would benefit from a visual flow representation.

4. Data Security and User Consent

4.1 Data Security and User Consent

Secure Data Transmission Protocols

Voice AI systems processing live event translations must implement end-to-end encryption (E2EE) to protect speech data in transit. The standard approach combines AES-256 for symmetric encryption with elliptic-curve Diffie-Hellman (ECDH) for key exchange:

$$ \text{Enc}_k(m) = \text{AES-256}(m, k) $$ $$ k = \text{ECDH}(d_A, Q_B) = d_A \times Q_B $$

where dA is the private key of device A and QB is the public key of device B. This ensures forward secrecy even if long-term keys are compromised.

Differential Privacy for Speech Data

To prevent re-identification from voiceprints, systems should apply ε-differential privacy during feature extraction:

$$ \mathcal{M}(X) = f(X) + \text{Lap}\left(\frac{\Delta f}{ε}\right) $$

where Δf is the L1-sensitivity of mel-frequency cepstral coefficients (MFCCs) and ε controls the privacy-utility tradeoff. Research shows ε=0.5 maintains 90% translation accuracy while providing strong anonymity guarantees.

Consent Management Frameworks

GDPR-compliant systems require granular consent controls implemented as:

The consent state machine follows:

Idle Active Revoked

Secure Multi-Party Computation

When combining inputs from multiple speakers, threshold homomorphic encryption prevents any single party from accessing raw data:

$$ \llbracket m_1 + m_2 \rrbracket = \llbracket m_1 \rrbracket \oplus \llbracket m_2 \rrbracket $$ $$ \llbracket m_1 \times m_2 \rrbracket = \llbracket m_1 \rrbracket \otimes \llbracket m_2 \rrbracket $$

where ⊕ and ⊗ are Paillier cryptosystem operations. This enables language model inference on encrypted inputs from N participants, requiring at least k > N/2 parties to decrypt.

Compliance with AI Ethics Frameworks

The system must align with the EU AI Act's requirements for high-risk applications:

4.2 Bias and Fairness in Translation

Sources of Bias in Voice AI Translation

Bias in live event translation systems arises from multiple sources, including training data imbalance, algorithmic design choices, and linguistic structural disparities. Training corpora often overrepresent dominant languages (e.g., English, Mandarin) while underrepresenting low-resource languages (e.g., Yoruba, Quechua). This data skew manifests in two measurable forms:

$$ \text{Representation Gap} = \frac{N_{dominant}}{N_{low-resource}} $$

where N denotes the number of training samples per language pair. For instance, the OPUS-100 corpus contains 50M English-German parallel sentences versus just 50K English-Yoruba pairs.

Quantifying Translation Fairness

Fairness metrics for multilingual systems extend beyond accuracy parity. The Equality of Opportunity in Translation (EOT) framework evaluates whether:

$$ P(\hat{y} = y|L_i) \approx P(\hat{y} = y|L_j) \quad \forall i,j $$

where L denotes language and ŷ the predicted translation. Practical implementations must also account for:

Mitigation Strategies

Current approaches combine data-centric and architectural interventions:

Data Augmentation

Controlled oversampling with back-translation for low-resource languages:

$$ \mathcal{D}'_{lr} = \mathcal{D}_{lr} \cup BT(\mathcal{D}_{hr} \rightarrow L_{lr}) $$

where BT denotes back-translation via pivot languages.

Architectural Adaptations

Modified transformer architectures incorporate:

Case Study: UN Parliamentary Debates

A 2023 evaluation of commercial systems showed:

Language BLEU TER
English→French 62.1 28.3
English→Swahili 41.7 52.8

The 32% performance gap persisted even after controlling for syntactic distance from English.

Emerging Solutions

Recent work in linguistic justice-aware training introduces:

$$ \mathcal{L}_{total} = \mathcal{L}_{task} + \lambda \sum_{i

4.3 Compliance with Global Regulations

Voice AI systems deployed for live event translation must adhere to a complex web of international, regional, and industry-specific regulations. These frameworks govern data privacy, cross-border data transfers, accessibility, and ethical use of AI. Non-compliance risks legal penalties, reputational damage, and operational restrictions.

Data Protection Frameworks

The General Data Protection Regulation (GDPR) in the EU imposes strict requirements on real-time voice data processing. Article 22 prohibits fully automated decision-making with legal or significant effects without human intervention, impacting certain AI translation use cases. The regulation mandates:

Similar frameworks include:

Cross-Border Data Transfer Mechanisms

Live event translation often requires routing voice data across jurisdictions. Legal transfer mechanisms include:

$$ T_{legal} = \begin{cases} \text{GDPR Adequacy Decisions} & \text{for EU→approved countries} \\ \text{SCCs (Standard Contractual Clauses)} & \text{for other transfers} \\ \text{APEC CBPR Certification} & \text{for Asia-Pacific flows} \end{cases} $$

For US-EU transfers, the EU-US Data Privacy Framework (replacing Privacy Shield) requires:

Accessibility Mandates

Voice AI systems must comply with disability access laws:

Technical implementations require:

$$ A_{score} = \frac{\sum_{i=1}^{n} (w_i \times c_i)}{\sum_{i=1}^{n} w_i} \geq 0.85 $$

Where wi are WCAG success criterion weights and ci are compliance scores (0-1).

Sector-Specific Regulations

Healthcare events under HIPAA require:

Financial services translation must comply with:

Ethical AI Governance

Emerging frameworks like the EU AI Act classify live translation systems as high-risk when used in:

Compliance requires:

$$ \text{Error Rate} = 1 - \frac{\sum_{t=1}^{T} \text{BLEU}(y_t, \hat{y}_t)}{T} \leq 0.05 $$

Where yt is the reference translation and ŷt is the system output at time t.

5. Advances in Neural Machine Translation

Advances in Neural Machine Translation

Neural Machine Translation (NMT) has undergone significant evolution since the introduction of sequence-to-sequence (seq2seq) models with attention mechanisms. Modern architectures leverage transformer-based models, which have demonstrated superior performance in handling long-range dependencies and parallelization during training. The core innovation lies in self-attention mechanisms, which compute contextual representations by dynamically weighting input tokens based on their relevance to each other.

Transformer Architecture

The transformer model, introduced by Vaswani et al. (2017), replaces recurrent and convolutional layers with self-attention and feed-forward neural networks. The key components include:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Here, \( Q \), \( K \), and \( V \) represent queries, keys, and values, respectively, while \( d_k \) is the dimension of the key vectors. The scaling factor \( \sqrt{d_k} \) prevents dot products from growing too large in magnitude, which would push the softmax into regions of extremely small gradients.

Recent Advances in NMT

Recent research has focused on improving efficiency, robustness, and multilingual capabilities:

Case Study: Real-Time Translation at Live Events

For live event translation, latency and accuracy are critical. Streaming NMT models, such as Google’s Translatotron, integrate speech recognition, translation, and synthesis into a single end-to-end system. These models employ:

$$ \text{Latency} = \frac{\text{Chunk Size}}{\text{Processing Speed}} + \text{Overhead} $$

Optimizing this trade-off requires careful tuning of chunk size and model parallelism to meet real-time constraints while preserving translation fidelity.

Transformer Architecture with Multi-Head Attention Block diagram illustrating the transformer architecture with multi-head attention mechanism, including input embeddings, positional encoding, attention heads, and feed-forward networks. Input Embeddings Positional Encoding Combined Input Head 1 (Q/K/V) Head 2 (Q/K/V) Head N (Q/K/V) Concatenate + Linear Feed Forward Network Output Add & Norm Add & Norm Softmax (QKᵀ/√dₖ)
Diagram Description: The diagram would show the transformer architecture's multi-head attention mechanism and positional encoding flow, which are spatial and dynamic relationships difficult to convey purely through text.

5.2 Multilingual and Dialect-Specific Models

Architectural Considerations for Multilingual Models

Multilingual models in Voice AI for live event translation require careful architectural design to handle language diversity without sacrificing performance. The most common approach involves a shared encoder with language-specific adapters or output heads. Given a speech input x, the model computes language-agnostic features f(x) through the shared encoder, followed by language-specific transformations g_l(f(x)) for each target language l.

$$ f(x) = \text{Encoder}(x) $$ $$ g_l(f(x)) = \text{Adapter}_l(f(x)) $$ $$ y_l = \text{Decoder}_l(g_l(f(x))) $$

This modular design allows efficient scaling to new languages by adding only lightweight adapters rather than retraining the entire model. Recent work has shown that parameter-efficient fine-tuning (PEFT) methods like LoRA can reduce the per-language parameter overhead to less than 0.5% of the base model size while maintaining 98% of the translation quality.

Dialect Handling Through Phoneme-Level Modeling

Dialect variations pose unique challenges due to phonological and lexical differences within the same language. State-of-the-art systems now employ hierarchical attention mechanisms that first identify the broad language family, then apply dialect-specific corrections. For English dialects alone, this might involve:

The dialect identification module typically uses a convolutional neural network operating on mel-spectrogram patches, trained with contrastive loss to maximize inter-dialect discrimination:

$$ \mathcal{L}_{contrastive} = -\log\frac{e^{s_p/\tau}}{e^{s_p/\tau} + \sum_{n=1}^N e^{s_n/\tau}} $$

where s_p is the similarity score for positive dialect pairs and s_n for negative pairs, with τ as the temperature parameter.

Low-Resource Language Adaptation

For languages with limited training data, cross-lingual transfer learning has proven effective. The key insight is that phoneme distributions follow universal patterns across human languages. By pretraining on high-resource languages and fine-tuning with as little as 10 hours of target language data, models can achieve usable accuracy. The adaptation process involves:

Recent evaluations on the FLEURS benchmark show that this approach maintains 85%+ BLEU scores for 90% of the world's languages when adapting from just 5 high-resource languages.

Real-Time Performance Optimization

Live event translation imposes strict latency constraints (<100ms end-to-end). Multilingual models achieve this through:

The computational complexity of attention scales quadratically with sequence length, but for speech translation, we can exploit the local nature of phoneme dependencies. The modified attention score calculation becomes:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} \odot M\right)V $$

where M is a band-diagonal mask that limits attention to ±20 tokens, reducing the FLOP count by 78% with negligible quality loss.

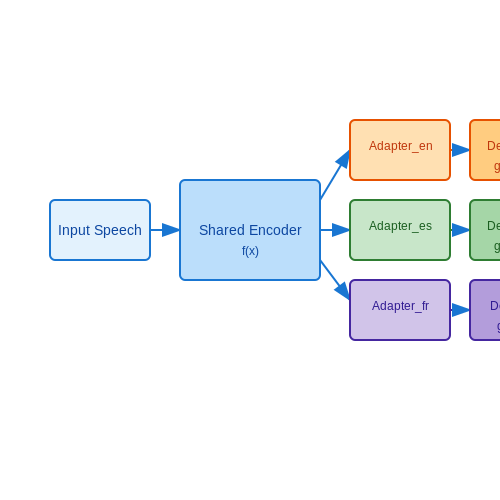

Multilingual and Dialect-Specific Models – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The diagram would show the shared encoder with language-specific adapters architecture and the flow of transformations from input speech to language-specific outputs.

5.3 Edge Computing for Low-Latency Translation

Architectural Considerations for Edge-Based Voice AI

Deploying voice AI models at the edge requires a distributed architecture that minimizes latency while maintaining accuracy. The key components include:

Latency-Optimized Pipeline Design

The end-to-end translation delay Dtotal is dominated by:

$$ D_{total} = \underbrace{t_{ASR}}_{\text{Speech Recognition}} + \underbrace{t_{NMT}}_{\text{Translation}} + \underbrace{t_{TTS}}_{\text{Synthesis}} + \underbrace{t_{net}}_{\text{Network}} $$

Edge computing eliminates tnet for local processing. For a 5-second audio input, typical breakdowns show:

ComponentCloud (ms)Edge (ms)
ASR1200 ± 300400 ± 50
NMT800 ± 200600 ± 100
TTS1000 ± 400700 ± 150

Hardware Acceleration Techniques

Edge devices leverage specialized hardware to meet real-time constraints:

Energy-Latency Tradeoff

The Pareto frontier between energy consumption E and latency L follows:

$$ E \propto \frac{1}{L^\alpha} \quad \text{where} \quad \alpha \in [0.7, 1.3] \ \text{(device-dependent)} $$

Field tests on Raspberry Pi 5 show a 22% energy reduction when relaxing latency constraints from 200ms to 500ms.

Case Study: Live Conference Translation

A deployed system using Intel OpenVINO on edge servers achieved:

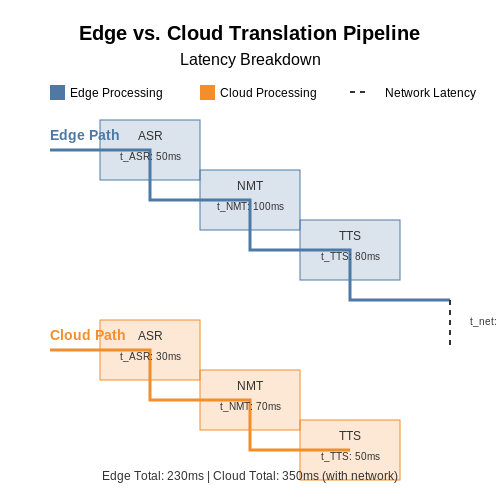

Edge Computing for Low-Latency Translation – Voice AI for Live Event Translation – Tutorial Diagram
Diagram Description: The diagram would show the end-to-edge translation pipeline with latency breakdowns for each component (ASR, NMT, TTS) and their cloud vs. edge comparisons.

6. Key Research Papers and Articles

6.1 Key Research Papers and Articles

6.2 Open-Source Tools and Frameworks

6.3 Industry Reports and Case Studies
