Adversarial Examples in Deep Learning

#adversarial examples #deep learning #model vulnerabilities #adversarial attacks #defenses #FGSM #PGD #Carlini & Wagner #adversarial training #defensive distillation

1. Definition and Key Characteristics

Definition and Key Characteristics

Adversarial examples are carefully perturbed inputs designed to deceive machine learning models, particularly deep neural networks, into making incorrect predictions with high confidence. These perturbations are often imperceptible to human observers but can cause catastrophic misclassifications. Formally, given a classifier f and an input x with true label y, an adversarial example x' satisfies:

$$ f(x') \neq y \quad \text{while} \quad \|x' - x\|_p \leq \epsilon $$

where ‖·‖p denotes the Lp-norm (commonly L∞, L2, or L1) and ε is a small perturbation budget.

Key Characteristics

Adversarial examples exhibit several defining properties:

Mathematical Formulation

The generation of adversarial examples can be framed as an optimization problem. For a non-targeted attack, the objective is:

$$ \max_{\delta} \mathcal{L}(f(x + \delta), y) \quad \text{subject to} \quad \|\delta\|_p \leq \epsilon $$

where ℒ is the loss function (e.g., cross-entropy). For targeted attacks, the goal becomes minimizing ℒ(f(x + δ), ytarget). Common methods to solve this include:

Real-World Implications

Adversarial examples pose significant risks in safety-critical applications like autonomous driving (e.g., misleading traffic sign recognition) and medical diagnostics (e.g., misclassified X-rays). Their existence underscores the need for robust models and formal verification techniques.

Original Image (Label: "Panda") + Adversarial Perturbation → Misclassified as "Gibbon" Human perception remains unchanged
Definition and Key Characteristics – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would physically show an original image, the adversarial perturbation, and the resulting misclassification, illustrating the imperceptible change to humans but significant impact on the model.

1.2 How Adversarial Examples Exploit Model Vulnerabilities

Adversarial examples exploit the high-dimensional linearity and non-robust features learned by deep neural networks. While these models achieve high accuracy on clean data, their decision boundaries are often highly sensitive to small perturbations in input space. This sensitivity arises from the models' reliance on features that are highly predictive but non-robust—features that are strongly correlated with labels in the training distribution but easily perturbed.

High-Dimensional Linear Perturbations

The vulnerability stems from the dot product operation in neural networks. Consider an input x and a small perturbation η with ||η||∞ ≤ ε. The change in logits wT(x + η) can be written as:

$$ w^T(x + η) = w^Tx + w^Tη $$

Even when ε is small, the perturbation term wTη can become significant in high dimensions because the number of perturbation directions grows with dimensionality. This effect is amplified when the weight vector w has large norms, which is common in trained neural networks.

Non-Robust Feature Exploitation

Neural networks tend to rely on any available predictive features, including those that are highly sensitive to adversarial perturbations. These non-robust features arise because:

Adversarial examples are constructed by finding perturbations that maximize the model's reliance on these non-robust features. The Fast Gradient Sign Method (FGSM) demonstrates this by computing:

$$ η = ε \cdot sign(∇_xJ(θ, x, y)) $$

where the perturbation is aligned with the gradient of the loss function J with respect to the input.

Transferability Across Models

Adversarial examples often transfer between different architectures because diverse models tend to learn similar non-robust features. This occurs because:

Transferability makes adversarial examples particularly dangerous in real-world scenarios, as attackers can generate examples on surrogate models that will likely fool unknown target models.

Decision Boundary Geometry

The vulnerability is further explained by the geometry of decision boundaries in high-dimensional space. Neural networks typically create complex, highly nonlinear boundaries that are nevertheless linear at small scales. This local linearity means that:

This geometric perspective explains why adversarial examples are ubiquitous and why simple linear attacks remain effective against nonlinear neural networks.

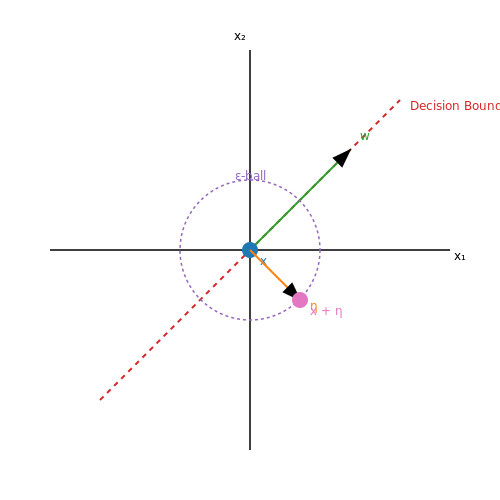

How Adversarial Examples Exploit Model Vulnerabilities – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would show the geometric relationship between an input vector, its perturbation, and the decision boundary in high-dimensional space, illustrating how small perturbations can cross boundaries.

1.3 Common Types of Adversarial Attacks

Fast Gradient Sign Method (FGSM)

The Fast Gradient Sign Method (FGSM) is a single-step attack that generates adversarial examples by perturbing the input in the direction of the gradient of the loss function with respect to the input. The perturbation is bounded by a small ε to ensure imperceptibility. Mathematically, the adversarial example x' is computed as:

$$ x' = x + \epsilon \cdot \text{sign}(\nabla_x J(\theta, x, y)) $$

where J is the loss function, θ represents the model parameters, and y is the true label. FGSM is computationally efficient but often less robust compared to iterative methods.

Projected Gradient Descent (PGD)

Projected Gradient Descent (PGD) extends FGSM by applying multiple iterative steps with projection to ensure the adversarial example remains within the feasible perturbation space. At each step t, the perturbation is updated as:

$$ x_{t+1} = \Pi_{x + \mathcal{S}}(x_t + \alpha \cdot \text{sign}(\nabla_x J(\theta, x_t, y))) $$

where Π denotes projection onto the ℓp-ball around x, and α is the step size. PGD is widely regarded as one of the strongest first-order attacks due to its iterative refinement.

Carlini & Wagner (C&W) Attack

The Carlini & Wagner attack formulates adversarial example generation as an optimization problem, minimizing perturbation while ensuring misclassification. The objective function is:

$$ \min_{\delta} \|\delta\|_p + c \cdot f(x + \delta) $$

where f is a hinge-like loss ensuring misclassification, and c is a trade-off parameter. The C&W attack is highly effective against defenses like defensive distillation due to its optimization-based approach.

Jacobian-Based Saliency Map Attack (JSMA)

The JSMA attack exploits the model's Jacobian matrix to identify input features most influential on the output. It constructs a saliency map to select pixels for perturbation, iteratively modifying the input to cause misclassification. The saliency score for feature i is:

$$ S(x, t)_i = \left( \frac{\partial F_t(x)}{\partial x_i} \right) \cdot \sum_{j \neq t} \left| \frac{\partial F_j(x)}{\partial x_i} \right| $$

where Ft is the model's output for the target class. JSMA is particularly effective in sparse perturbation settings.

Universal Adversarial Perturbations

Universal perturbations are input-agnostic perturbations that cause misclassification across a wide range of inputs. They are computed by solving:

$$ \min_{\delta} \|\delta\|_p \quad \text{s.t.} \quad \mathbb{P}_{x \sim \mathcal{D}}(f(x + \delta) \neq f(x)) \geq 1 - \gamma $$

where 𝒟 is the data distribution and γ controls the success rate. These perturbations reveal inherent vulnerabilities in model decision boundaries.

Black-Box Attacks

Black-box attacks, such as ZOO (Zeroth Order Optimization) or transfer-based attacks, do not require access to model gradients. Instead, they estimate gradients via finite differences or leverage adversarial examples crafted on surrogate models. The ZOO attack updates perturbations as:

$$ \delta_{t+1} = \delta_t - \eta \cdot \hat{g}_t $$

where ĝt is a gradient estimate from query outputs. Black-box attacks are highly relevant in real-world scenarios where model internals are inaccessible.

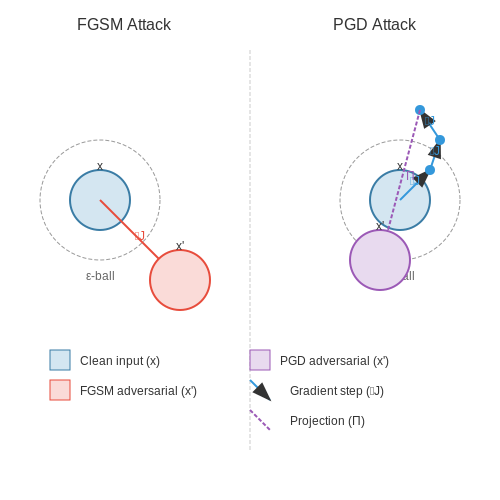

Common Types of Adversarial Attacks – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: A diagram would show the iterative perturbation process of PGD and the gradient direction in FGSM, contrasting single-step vs. multi-step attacks visually.

2. Fast Gradient Sign Method (FGSM)

Fast Gradient Sign Method (FGSM)

The Fast Gradient Sign Method (FGSM) is a one-step attack that generates adversarial examples by perturbing the input data in the direction of the gradient of the loss function with respect to the input. This method exploits the linearity of high-dimensional spaces to create imperceptible perturbations that cause misclassification.

Mathematical Formulation

Given a neural network with parameters θ, input x, true label y, and loss function J(θ, x, y), the adversarial example x' is generated as:

$$ x' = x + \epsilon \cdot \text{sign}(\nabla_x J(\theta, x, y)) $$

where ϵ is a small scalar controlling the perturbation magnitude, and sign(·) denotes the element-wise sign function. The perturbation direction is determined by the gradient of the loss with respect to the input.

Step-by-Step Derivation

  1. Compute the gradient of the loss function with respect to the input:
    $$ g = \nabla_x J(\theta, x, y) $$
  2. Extract the sign of each gradient component:
    $$ s = \text{sign}(g) $$
  3. Scale the signed gradient by the perturbation bound ϵ:
    $$ \delta = \epsilon \cdot s $$
  4. Add the perturbation to the original input:
    $$ x' = x + \delta $$

Practical Implementation

FGSM is computationally efficient as it requires only one forward and backward pass through the network. The perturbation is constrained by the L∞ norm to ensure visual similarity to the original input:

$$ ||x' - x||_\infty \leq \epsilon $$

This constraint makes the perturbation imperceptible to human observers while still causing misclassification.

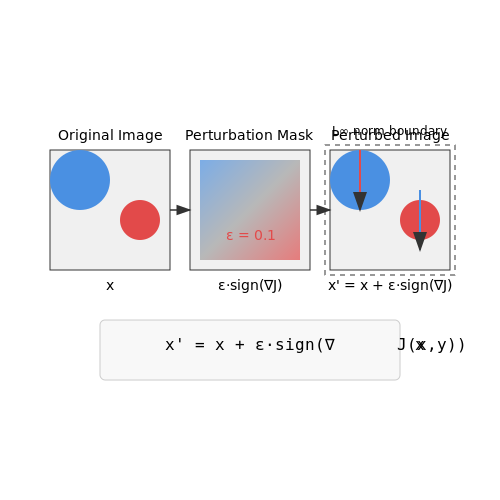

Visualization of FGSM Perturbations

The adversarial perturbation appears as low-amplitude noise when viewed in isolation, but when added to the original image, it causes significant changes in the model's output. The perturbation pattern often resembles high-frequency components aligned with the gradient direction.

Limitations and Extensions

While FGSM is simple and fast, it has several limitations:

These limitations led to the development of iterative variants like Basic Iterative Method (BIM) and Projected Gradient Descent (PGD), which apply FGSM multiple times with smaller step sizes.

Defensive Applications

FGSM plays a crucial role in adversarial training, where models are trained on both clean and adversarially perturbed examples. This process improves model robustness by exposing it to worst-case perturbations during training:

$$ \min_\theta \mathbb{E}_{(x,y)} [J(\theta, x, y) + \lambda J(\theta, x', y)] $$

where λ controls the trade-off between clean and adversarial performance.

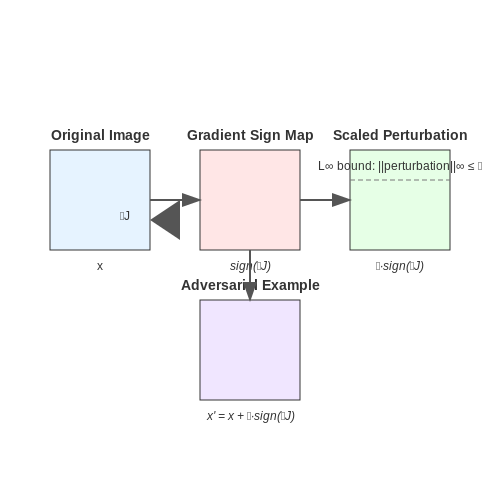

Fast Gradient Sign Method (FGSM) – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would show the transformation from original input to adversarial example, highlighting the perturbation pattern and its effect on classification.

Projected Gradient Descent (PGD)

Projected Gradient Descent (PGD) is an iterative first-order optimization method for generating adversarial examples, extending the Fast Gradient Sign Method (FGSM) by applying it multiple times with small step sizes. Unlike FGSM's single-step attack, PGD performs k steps of gradient ascent while projecting the perturbation back to the feasible region after each step, making it one of the strongest white-box attacks.

Mathematical Formulation

Given an input x with true label y, a model f with loss function L, and perturbation budget ε under L∞ norm, PGD iteratively computes:

$$ x^{t+1} = \Pi_{x + \mathcal{S}} \left( x^t + \alpha \cdot \text{sign}(\nabla_x L(f(x^t), y)) \right) $$

where:

Algorithm Steps

The complete PGD algorithm proceeds as follows:

  1. Initialize x0 randomly within the ε-ball around the original input
  2. For t = 0 to k-1:
    • Compute gradient ∇xL(f(xt), y)
    • Update xt+1 = xt + α·sign(∇xL)
    • Project back to ε-ball: xt+1 = clip(xt+1, x - ε, x + ε)

Key Properties

PGD exhibits several important characteristics:

Practical Implementation

In practice, PGD requires careful tuning of:


def pgd_attack(model, x, y, epsilon, alpha, num_iter):
    x_adv = x.clone().detach() + torch.empty_like(x).uniform_(-epsilon, epsilon)
    x_adv = torch.clamp(x_adv, 0, 1)

    for _ in range(num_iter):
        x_adv.requires_grad = True
        loss = F.cross_entropy(model(x_adv), y)
        grad = torch.autograd.grad(loss, x_adv)[0]

        x_adv = x_adv.detach() + alpha * grad.sign()
        x_adv = torch.min(torch.max(x_adv, x - epsilon), x + epsilon)
        x_adv = torch.clamp(x_adv, 0, 1)

    return x_adv

Defensive Applications

PGD serves as the primary method for adversarial training, where models are trained on PGD-generated examples to improve robustness. The minimax formulation:

$$ \min_\theta \max_{||\delta||_\infty \leq \epsilon} L(f_\theta(x + \delta), y) $$

provides a principled approach for training models resistant to first-order attacks.

Projected Gradient Descent (PGD) – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would show the iterative projection steps of PGD on an input space, illustrating how perturbations evolve within the ε-ball constraint.

Carlini & Wagner (C&W) Attack

The Carlini & Wagner (C&W) attack is one of the most potent and widely studied adversarial attacks in deep learning, designed to generate adversarial examples that are both highly effective and minimally perturbed. Unlike simpler attacks like FGSM or PGD, the C&W attack formulates the adversarial example generation as an optimization problem, explicitly minimizing perturbation while ensuring misclassification.

Mathematical Formulation

The C&W attack solves the following optimization problem:

$$ \min_{\delta} \|\delta\|_p + c \cdot f(x + \delta) $$

subject to:

$$ x + \delta \in [0, 1]^n $$

where:

Objective Function Design

The function f is carefully designed to satisfy:

$$ f(x') \leq 0 \iff \text{model misclassifies } x' $$

For a target class t, the C&W paper proposes:

$$ f(x') = \max(Z(x')_i - Z(x')_t, -\kappa) $$

where:

Optimization Techniques

The C&W attack employs several key optimizations:

$$ \delta = \frac{1}{2}(\tanh(w) + 1) - x $$

Practical Implementation

Below is a PyTorch implementation of the C&W L2 attack:

import torch
import torch.nn as nn
from torch.optim import Adam

def cw_l2_attack(model, x, target, c=1e-4, kappa=0, max_iter=1000, lr=0.01):
    """Carlini & Wagner L2 attack."""
    x_adv = x.clone().detach().requires_grad_(True)
    optimizer = Adam([x_adv], lr=lr)

    for _ in range(max_iter):
        logits = model(x_adv)
        loss = torch.max(logits[:, target] - logits[:, :].max(dim=1)[0], -kappa)
        loss = torch.norm(x_adv - x, p=2) + c * loss

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        x_adv.data = torch.clamp(x_adv, 0, 1)

    return x_adv.detach()

Strengths and Limitations

Strengths:

Limitations:

3. Adversarial Training

3.1 Adversarial Training

Adversarial training is a defense mechanism designed to improve the robustness of deep learning models against adversarial examples. The core idea involves augmenting the training dataset with adversarially perturbed samples, forcing the model to learn features that are invariant to small, malicious perturbations. This process can be formalized as a min-max optimization problem:

$$ \min_{\theta} \mathbb{E}_{(x,y) \sim \mathcal{D}} \left[ \max_{\delta \in \Delta} \mathcal{L}(f_{\theta}(x + \delta), y) \right] $$

Here, θ represents the model parameters, D is the data distribution, Δ defines the perturbation constraint set (e.g., Lp-norm bounded perturbations), and L is the loss function. The inner maximization generates the worst-case perturbation δ for each input x, while the outer minimization updates the model to minimize the adversarial loss.

Generating Adversarial Examples for Training

The effectiveness of adversarial training hinges on the quality of the generated adversarial examples. Common methods include:

Practical Implementation

In practice, adversarial training involves alternating between generating adversarial examples and updating model parameters. For a mini-batch {(xi, yi)}i=1B, the steps are:

  1. For each xi, compute the adversarial perturbation δi using PGD or FGSM.
  2. Construct adversarial examples xiadv = xi + δi.
  3. Update model parameters via gradient descent on the combined loss:
$$ \theta \leftarrow \theta - \eta \nabla_{\theta} \left[ \frac{1}{B} \sum_{i=1}^B \mathcal{L}(f_{\theta}(x_i^{adv}), y_i) \right] $$

where η is the learning rate. Modern implementations often mix clean and adversarial examples in each batch to balance robustness and standard accuracy.

Trade-offs and Challenges

While adversarial training improves robustness, it introduces several challenges:

Advanced Variants

Recent research has proposed enhancements to standard adversarial training:

Empirical studies show that adversarial training remains one of the most effective defenses against gradient-based attacks, though it is not foolproof. The method forms the foundation for more sophisticated approaches like randomized smoothing and certified defenses.

Adversarial Training – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would show the min-max optimization process of adversarial training, illustrating the interplay between perturbation generation and model parameter updates.

Defensive Distillation

Defensive distillation is a technique designed to improve the robustness of deep neural networks against adversarial attacks by leveraging knowledge distillation. The method involves training a secondary model (the distilled model) using softened probability outputs from an initial model (the teacher model), rather than hard labels. This process reduces the model's sensitivity to small perturbations in the input space, making it more resistant to adversarial examples.

Mathematical Formulation

The core idea relies on modifying the softmax output of the teacher model by introducing a temperature parameter T:

$$ p_i = \frac{\exp(z_i / T)}{\sum_{j=1}^N \exp(z_j / T)} $$

where zi represents the logits for class i, and N is the number of classes. Higher values of T produce softer probability distributions, which smooth the decision boundaries of the model. During training, the distilled model learns from these softened probabilities, effectively reducing the gradients that adversarial attacks exploit.

Training Process

The defensive distillation procedure consists of two main phases:

At inference time, the temperature is reset to T = 1. The distilled model exhibits flatter gradients around input samples, making it harder for gradient-based attacks to craft effective adversarial perturbations.

Effectiveness and Limitations

Defensive distillation demonstrates strong resistance against attacks like the Fast Gradient Sign Method (FGSM) and Jacobian-based Saliency Map Attack (JSMA). However, it is not universally robust—adaptive attacks, such as those that account for the distillation process, can still bypass its defenses. Additionally, the technique may slightly reduce the model's accuracy on clean data due to the softened training objective.

Empirical studies show that defensive distillation increases the average perturbation magnitude required for successful attacks by an order of magnitude, forcing adversaries to introduce more noticeable distortions to the input. This trade-off between robustness and clean-data performance must be carefully evaluated based on the application's threat model.

Gradient Masking and Randomization

Gradient masking occurs when a model's gradients become uninformative or misleading, often as a side effect of defensive techniques designed to obscure the model's decision boundaries. This phenomenon complicates adversarial example generation since most attack algorithms rely on gradient-based optimization. A model exhibiting gradient masking may appear robust under white-box attacks, but its vulnerability often persists under black-box or transfer-based attacks.

Mechanisms of Gradient Masking

Common causes of gradient masking include:

For example, consider a neural network with a highly non-linear activation function f(x). The gradient ∇ₓf(x) may become numerically unstable or zero in large regions of the input space, rendering gradient-based attacks ineffective:

$$ \nabla_x f(x) = \begin{cases} 0 & \text{if } x \leq 0 \\ e^{-x} & \text{if } x > 0 \end{cases} $$

Randomization as a Defense Strategy

Randomization defenses inject stochasticity into the model's predictions or inputs to obscure adversarial gradients. Common approaches include:

The effectiveness of randomization can be quantified via the expected gradient variance under input perturbations δ ~ 𝒩(0, σ²I):

$$ \mathbb{E}_{\delta}[\|\nabla_x f(x + \delta)\|_2^2] \approx \|\nabla_x f(x)\|_2^2 + \sigma^2 \text{Tr}(\nabla_x^2 f(x)) $$

where the second term captures the gradient's sensitivity to input noise. High variance indicates strong gradient masking.

Limitations and Countermeasures

While gradient masking and randomization can impede white-box attacks, they often fail against adaptive adversaries. Attackers may:

For instance, the EOT attack optimizes adversarial examples by averaging gradients over multiple random transformations T₁, ..., Tₙ:

$$ \nabla_x \mathbb{E}[f(T(x))] \approx \frac{1}{n} \sum_{i=1}^n \nabla_x f(T_i(x)) $$

This approach mitigates the obfuscation effect of input randomization by sampling the model's stochastic behavior.

4. Adversarial Examples in Computer Vision

4.1 Adversarial Examples in Computer Vision

Adversarial examples in computer vision are carefully perturbed inputs designed to deceive deep neural networks (DNNs) into producing incorrect outputs while remaining visually indistinguishable from the original input to a human observer. These perturbations are typically constrained by an Lp-norm to ensure imperceptibility, with L∞ and L2 being the most common choices.

Mathematical Formulation

Given a classifier f and an input x with true label y, an adversarial example x' satisfies:

$$ f(x') \neq y $$ $$ \text{subject to } \|x' - x\|_p \leq \epsilon $$

where ε is the perturbation budget. The Fast Gradient Sign Method (FGSM) is one of the earliest and most widely studied attack algorithms, which generates adversarial examples via:

$$ x' = x + \epsilon \cdot \text{sign}(\nabla_x J(f(x), y)) $$

Here, J is the loss function used to train the model, and ∇xJ is the gradient of the loss with respect to the input.

Types of Adversarial Attacks

Adversarial attacks in computer vision can be categorized based on the attacker's knowledge and goals:

Defenses Against Adversarial Examples

Several defense strategies have been proposed to mitigate adversarial vulnerabilities:

$$ \min_\theta \mathbb{E}_{(x,y)} \left[ \max_{\|\delta\| \leq \epsilon} J(f_\theta(x + \delta), y) \right] $$

Case Study: Adversarial Attacks on ImageNet Models

Research has demonstrated that state-of-the-art ImageNet classifiers, such as ResNet and Vision Transformers (ViTs), remain vulnerable to adversarial perturbations. For instance, a PGD attack with ε = 8/255 under L∞ can reduce the accuracy of a ResNet-50 model from 76% to near 0%. Interestingly, ViTs exhibit different failure modes compared to CNNs, often due to their patch-based attention mechanisms.

Practical Implications

Adversarial examples pose significant risks in real-world applications such as autonomous driving, facial recognition, and medical imaging. For example, subtle perturbations to stop signs can cause misclassification by an autonomous vehicle's vision system, leading to dangerous outcomes. Understanding and defending against these vulnerabilities is critical for deploying robust vision systems in safety-critical domains.

Adversarial Examples in Computer Vision – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would show a visual comparison between an original image and its adversarially perturbed version, highlighting the imperceptible perturbations and the resulting misclassification.

4.2 Attacks on Natural Language Processing Models

Adversarial attacks on NLP models exploit vulnerabilities in text-based machine learning systems, where imperceptible perturbations to input text can lead to incorrect predictions. Unlike computer vision, where perturbations are often pixel-level, NLP attacks manipulate discrete tokens, words, or characters while preserving semantic meaning.

Types of NLP Adversarial Attacks

NLP adversarial attacks can be broadly categorized into three main types:

Notable Attack Methods

HotFlip (Ebrahimi et al., 2018)

HotFlip is a gradient-based attack that treats text inputs as continuous embeddings and computes adversarial perturbations via a beam search over character or word substitutions. The objective function maximizes the loss with respect to the target label:

$$ \max_{\delta} \mathcal{L}(f(x + \delta), y_{\text{target}}) $$

where δ represents the perturbation constrained to valid character or word substitutions.

TextFooler (Jin et al., 2020)

TextFooler employs a combination of word importance ranking and synonym substitution to generate adversarial examples. The attack follows these steps:

  1. Identify the most influential words in the input text using gradient-based saliency scores.
  2. Replace these words with semantically similar counterparts from a pre-defined vocabulary or embedding space.
  3. Verify that the perturbed text preserves semantic meaning and fools the target model.

Defenses Against NLP Adversarial Attacks

Several defense mechanisms have been proposed to mitigate NLP adversarial attacks:

Case Study: BERT Attack (Li et al., 2020)

An adversarial attack on BERT demonstrated that inserting carefully crafted trigger phrases could manipulate the model's predictions. For example, adding the phrase "the movie is a masterpiece" to a negative review caused BERT to misclassify it as positive with high confidence.

$$ P(y_{\text{positive}} | x + t) \gg P(y_{\text{negative}} | x) $$

where t is the adversarial trigger phrase.

Challenges in NLP Adversarial Attacks

Generating effective adversarial examples in NLP poses unique challenges:

Recent work has explored black-box attacks using genetic algorithms and reinforcement learning to overcome these limitations.

4.3 Security Risks in Autonomous Systems

Autonomous systems, such as self-driving cars and drones, rely heavily on deep learning models for perception, decision-making, and control. These models are vulnerable to adversarial examples—carefully crafted perturbations that cause misclassification while remaining imperceptible to humans. The consequences of such attacks in safety-critical systems can be catastrophic, leading to collisions, navigation failures, or unauthorized access.

Attack Surfaces in Autonomous Systems

Adversarial attacks can target multiple components of an autonomous system:

Case Study: Adversarial Attacks on Self-Driving Cars

Researchers have demonstrated that subtle perturbations to stop signs can cause them to be misclassified as speed limit signs by state-of-the-art object detectors. The adversarial perturbation δ can be formulated as an optimization problem:

$$ \min_{\delta} \| \delta \|_p \quad \text{s.t.} \quad f(x + \delta) \neq f(x), \quad x + \delta \in [0, 1]^n $$

where f is the target model, x is the input image, and ‖·‖p measures perturbation magnitude (typically p = ∞ for imperceptibility).

Defensive Strategies

Mitigating adversarial risks requires a multi-layered approach:

Real-World Constraints and Challenges

Physical-world attacks must account for environmental variables like lighting, viewpoint changes, and sensor noise. The effective perturbation δphysical often requires:

$$ \delta_{physical} = T(\delta_{digital}; \theta_{env}) $$

where T models the transformation from digital to physical domain with parameters θenv (e.g., brightness, rotation). Recent work shows that expectation over transformations (EOT) during attack generation improves physical realizability.

System-Level Vulnerabilities

Beyond individual models, system architecture introduces additional risks:

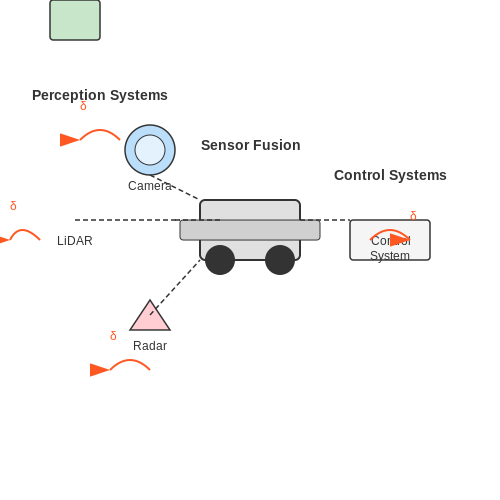

Security Risks in Autonomous Systems – Adversarial Examples in Deep Learning – Tutorial Diagram
Diagram Description: The diagram would show the attack surfaces in an autonomous system, including perception, control, and sensor fusion components, with adversarial perturbations affecting each.

5. Malicious Use of Adversarial Examples

5.1 Malicious Use of Adversarial Examples

Adversarial examples, initially studied as a curiosity in deep learning robustness, have evolved into potent tools for malicious exploitation. These perturbations, often imperceptible to humans, can force machine learning models to produce incorrect outputs with high confidence. The implications extend beyond academic interest, posing tangible threats to real-world systems.

Attack Vectors in Practical Systems

Adversarial attacks manifest in multiple forms depending on the attacker's capabilities and objectives. White-box attacks assume full knowledge of the target model's architecture and parameters, enabling precise gradient-based optimization. The Fast Gradient Sign Method (FGSM) exemplifies this approach:

$$ \delta = \epsilon \cdot \text{sign}(\nabla_x J(\theta, x, y)) $$

where δ represents the adversarial perturbation, ε controls perturbation magnitude, and J denotes the loss function. In contrast, black-box attacks operate without model internals, typically using transferability properties or query-based approaches to estimate gradients.

Real-World Exploitation Scenarios

Malicious applications span critical domains:

The 2017 evasion of commercial facial recognition by researchers using patterned eyeglass frames demonstrated practical feasibility, achieving over 90% misclassification rates against state-of-the-art models.

Advanced Attack Methodologies

Recent developments show increasing sophistication in adversarial techniques. Universal adversarial perturbations work across multiple inputs and models, computed via:

$$ \min_\delta \mathbb{E}_{x \sim \mathcal{D}} [J(f_\theta(x + \delta), y_{target})] $$

where 𝒟 represents the input distribution. Physical-world attacks account for environmental variables like lighting and viewpoint changes, often using expectation over transformation techniques during perturbation generation.

Defensive Limitations and Countermeasures

While adversarial training remains the most robust defense, it suffers from diminishing returns against adaptive attackers. The fundamental trade-off between standard accuracy and adversarial robustness persists, as formalized by the robustness-accuracy pareto frontier. Detection-based defenses often fall prey to adaptive attacks that specifically evade the detector's decision boundaries.

Physical Adversarial Attack Examples Comparative illustration of physical adversarial attacks on road signs and facial images, showing original vs. perturbed versions with misclassification results. Original STOP Adversarial SPEED LIMIT Perturbation Original Person A Adversarial Person B Perturbation Road Sign Example Facial Recognition Example
Diagram Description: The diagram would show the physical manifestation of adversarial attacks on real-world objects like road signs and eyeglasses, contrasting original vs. perturbed versions.

5.2 Responsible AI Development and Mitigation Strategies

Adversarial Robustness as an Ethical Imperative

The susceptibility of deep learning models to adversarial examples is not merely a technical challenge but an ethical concern. Models deployed in safety-critical applications—such as medical diagnostics, autonomous vehicles, or financial systems—must exhibit robustness against adversarial perturbations. The consequences of adversarial attacks in these domains can range from misdiagnosis to physical harm, making mitigation strategies a core component of responsible AI development.

Formalizing Adversarial Robustness

Given a classifier f and input x with true label y, adversarial robustness can be formalized as the requirement that:

$$ \forall \delta \in \Delta: f(x + \delta) = y $$

where Δ represents the set of permissible perturbations, typically bounded by an Lp-norm constraint such as ||δ||∞ ≤ ε. This formulation leads to the min-max optimization problem:

$$ \min_{\theta} \mathbb{E}_{(x,y)\sim\mathcal{D}} \left[ \max_{\delta \in \Delta} \mathcal{L}(f_\theta(x + \delta), y) \right] $$

where θ represents the model parameters and ℒ is the loss function.

Primary Mitigation Strategies

1. Adversarial Training

Adversarial training augments the training dataset with adversarial examples generated on-the-fly. The most common approach, proposed by Madry et al., solves the inner maximization problem via projected gradient descent (PGD):

$$ \delta_{t+1} = \Pi_{||\delta||_\infty \leq \epsilon} \left( \delta_t + \alpha \cdot \text{sign}(\nabla_\delta \mathcal{L}(f_\theta(x + \delta_t), y)) \right) $$

where Π denotes projection onto the L∞ ball and α is the step size. This method provides empirical robustness but incurs significant computational overhead.

2. Defensive Distillation

Defensive distillation trains a secondary model using softened probabilities from the first model. Given logits z(x), the softened output is:

$$ p_i(x) = \frac{\exp(z_i(x)/T)}{\sum_j \exp(z_j(x)/T)} $$

where T is the temperature parameter. This reduces the model's gradient magnitude, making it harder to construct effective adversarial examples. However, recent work has shown limitations against adaptive attacks.

3. Certified Defenses

Certified methods provide mathematical guarantees of robustness within a specified perturbation bound. Interval bound propagation (IBP) and randomized smoothing are two prominent approaches:

System-Level Considerations

Beyond algorithmic defenses, robust AI systems require:

Emerging Research Directions

Current frontiers in adversarial robustness include:

The field continues to evolve as new attack methods reveal vulnerabilities in existing defenses, underscoring the need for ongoing research and rigorous evaluation protocols.

6. Key Research Papers

6.1 Key Research Papers

6.2 Books and Comprehensive Surveys

6.3 Online Resources and Tools
