1. Core Principles of 3D Reconstruction from 2D Blueprints

Core Principles of 3D Reconstruction from 2D Blueprints

Mathematical Foundations of 3D Reconstruction

The process of reconstructing a 3D model from 2D blueprints relies on solving the inverse problem of projective geometry. Given multiple 2D views of an object, the goal is to estimate the 3D structure that would produce those projections. The fundamental relationship between a 3D point X and its 2D projection x is given by the camera projection equation:

$$ x = K[R|t]X $$

where K is the intrinsic camera matrix, R is the rotation matrix, and t is the translation vector. For blueprint reconstruction, we typically assume orthographic projection, simplifying the equation to:

$$ x = PX $$

where P is a reduced projection matrix. The reconstruction problem then becomes estimating X given multiple x from different views.

Feature Extraction and Matching

Accurate 3D reconstruction requires identifying corresponding features across multiple 2D views. Modern approaches use deep learning-based feature extractors like SuperPoint or LoFTR, which outperform traditional methods like SIFT or ORB in blueprint analysis. The feature matching process can be formulated as an optimization problem:

$$ \min_{\theta} \sum_{i=1}^N \sum_{j=1}^M \|f_\theta(x_i) - f_\theta(x_j)\|^2 $$

where fθ represents the feature extraction network with parameters θ, and xi, xj are corresponding points in different views.

Depth Estimation Techniques

Monocular depth estimation from single blueprint views has seen significant advances through deep learning. Current state-of-the-art methods use encoder-decoder architectures with skip connections:

$$ D = g_\phi(f_\psi(I)) $$

where I is the input blueprint image, fψ is the encoder, gϕ is the decoder, and D is the predicted depth map. Recent work has shown that incorporating architectural constraints (e.g., planar surfaces, right angles) as loss terms improves reconstruction accuracy:

$$ \mathcal{L} = \mathcal{L}_{data} + \lambda_1\mathcal{L}_{smooth} + \lambda_2\mathcal{L}_{constraints} $$

Surface Reconstruction Algorithms

From sparse point clouds generated by feature matching, surface reconstruction algorithms create watertight 3D models. Poisson surface reconstruction remains popular for blueprint applications due to its robustness to noise:

$$ \min_{\chi} \|\nabla\chi - V\|^2 $$

where χ is the indicator function of the reconstructed surface and V is the vector field from oriented points. For industrial applications, Delaunay triangulation-based methods often outperform for their computational efficiency.

Blueprint-Specific Challenges

Architectural and engineering blueprints present unique challenges compared to natural images:

Recent work addresses these through hybrid architectures combining CNNs for feature extraction with graph neural networks for structural understanding.

Evaluation Metrics

Quantitative evaluation of 3D reconstruction from blueprints uses specialized metrics:

$$ \text{Chamfer Distance} = \frac{1}{|S_1|}\sum_{x\in S_1}\min_{y\in S_2}\|x-y\|^2 + \frac{1}{|S_2|}\sum_{y\in S_2}\min_{x\in S_1}\|y-x\|^2 $$

where S1 and S2 are point clouds of the predicted and ground truth models. For architectural applications, angular accuracy of reconstructed planes is equally critical:

$$ \theta_{error} = \cos^{-1}(n_1 \cdot n_2) $$
Core Principles of 3D Reconstruction from 2D Blueprints – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The diagram would show the transformation from 2D blueprint projections to 3D point clouds, illustrating the camera projection equations and feature matching process.

Role of Neural Networks in Geometric Interpretation

Neural networks excel at extracting hierarchical features from input data, making them particularly suited for interpreting geometric structures in blueprints. Convolutional Neural Networks (CNNs) are often employed for initial feature extraction due to their ability to capture local spatial relationships. However, geometric interpretation requires more than just feature detection—it involves understanding the underlying 3D structure from 2D projections.

Architectural Considerations

For geometric interpretation, hybrid architectures combining CNNs with Graph Neural Networks (GNNs) have shown superior performance. The CNN processes the pixel data, while the GNN operates on the extracted features represented as graph nodes, where edges encode spatial relationships. This combination allows the network to learn both local features and global structural constraints.

$$ \mathcal{L}(G, \hat{G}) = \sum_{v \in V} \|f(v) - \hat{f}(v)\|_2 + \lambda \sum_{(u,v) \in E} \|d(u,v) - \hat{d}(u,v)\|_2 $$

where G represents the ground truth geometric graph, V and E are vertices and edges respectively, f(v) denotes vertex features, and d(u,v) represents edge distances.

Attention Mechanisms for Structural Understanding

Transformer-based architectures with self-attention mechanisms have proven effective for capturing long-range dependencies in blueprint interpretation. The attention weights learn to focus on structurally significant regions, such as:

This is particularly valuable when dealing with occluded elements or overlapping components in the 2D projections.

Geometric Priors and Constraints

Incorporating geometric priors significantly improves reconstruction accuracy. Common approaches include:

For instance, a differentiable Procrustes analysis layer can align predicted point clouds with canonical orientations while remaining trainable end-to-end.

Multi-view Consistency

When multiple blueprint views are available, neural networks must maintain consistency across projections. Recent approaches use:

$$ \mathcal{L}_{multi} = \sum_{i,j} \| \pi_i(M_{ij}X_j) - x_{ij} \|_2 + \| \pi_j(M_{ji}X_i) - x_{ji} \|_2 $$

where π represents projection, M denotes transformation matrices, and x are the observed 2D points.

Handling Ambiguity and Uncertainty

Blueprint interpretation often involves inherent ambiguities where multiple 3D configurations could explain the 2D input. Bayesian neural networks and probabilistic latent variable models address this by:

The network's uncertainty estimates prove particularly valuable in engineering applications where overconfidence in incorrect interpretations could have serious consequences.

Role of Neural Networks in Geometric Interpretation – AI for Generating 3D Models from Blueprints – Tutorial Diagram

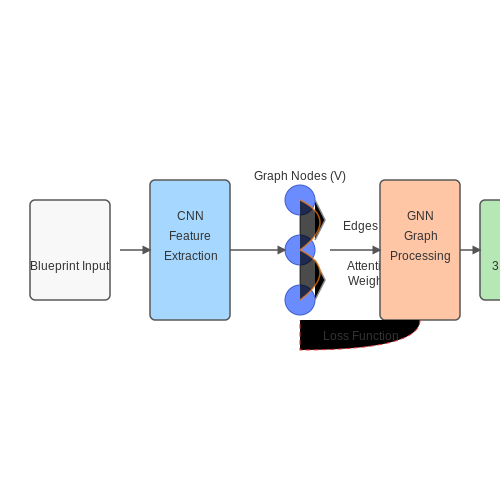

Diagram Description: The diagram would show the hybrid CNN-GNN architecture processing blueprint data, with clear separation between CNN feature extraction and GNN graph processing stages.

1.3 Data Requirements for Training AI Models

Types of Input Data

Training an AI model to generate 3D models from blueprints requires a diverse dataset of paired 2D blueprints and corresponding 3D representations. The input data typically includes:

Data Volume and Quality

The performance of the AI model scales with dataset size and quality. For robust generalization, a minimum of 10,000–50,000 blueprint-3D model pairs is recommended. Data quality is critical:

Data Preprocessing Pipeline

Raw blueprint data requires extensive preprocessing before training:

$$ I_{processed} = \mathcal{N}(I_{raw}) \otimes \mathcal{G}_{\sigma=1.5} $$

where \( \mathcal{N} \) denotes normalization and \( \mathcal{G}_{\sigma} \) is a Gaussian filter for noise reduction. Vector blueprints are converted to tensor representations via graph neural network (GNN) encoders:

$$ \mathbf{X} = \text{GNN}(V, E), \quad V \in \mathbb{R}^{n \times d}, \quad E \in \{0,1\}^{n \times n} $$

with \( V \) representing vertices (e.g., line endpoints) and \( E \) encoding edges (e.g., connections between lines).

Labeling Requirements

3D model labels must include:

Synthetic Data Augmentation

To address data scarcity, synthetic data generation techniques are employed:

$$ \mathcal{D}_{synth} = \{\mathcal{T}_i(\mathcal{D}_{real}) \mid \mathcal{T}_i \in \text{SE(3)}\} $$

where \( \mathcal{T}_i \) applies random SE(3) transformations (rigid body motions) to existing 3D models. Domain randomization varies lighting, line thickness, and occlusion patterns in 2D blueprints.

Benchmark Datasets

Public datasets for this task include:

Data Requirements for Training AI Models – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The diagram would show the data preprocessing pipeline steps, including raw blueprint input, normalization, Gaussian filtering, and GNN encoding, with clear visual transitions between each stage.

2. Convolutional Neural Networks (CNNs) for Feature Extraction

Convolutional Neural Networks (CNNs) for Feature Extraction

Architecture and Operation

Convolutional Neural Networks employ a hierarchical structure of convolutional layers, pooling layers, and fully connected layers to extract spatial hierarchies of features from input blueprints. The convolutional operation applies learnable filters (kernels) across the input image, computing dot products between filter weights and local regions of the input. For a 2D input blueprint I and filter F, the convolution at position (i,j) is computed as:

$$ (I * F)(i,j) = \sum_{m}\sum_{n} I(i+m, j+n) \cdot F(m,n) $$

where m and n span the filter dimensions. This operation preserves spatial relationships while learning translation-invariant features critical for blueprint interpretation.

Advanced CNN Architectures for 3D Reconstruction

Modern architectures extend beyond basic CNNs for 3D model generation:

Multi-Scale Feature Fusion

Effective 3D reconstruction requires combining features across scales. Feature pyramid networks (FPNs) construct a pyramid of semantically strong features at multiple resolutions:

$$ P_k = \text{Conv}_{1×1}(C_k) + \text{Upsample}(P_{k+1}) $$

where Ck represents features from the k-th CNN layer and Pk forms the pyramid level.

Practical Implementation Considerations

When applying CNNs to blueprint-to-3D conversion:

Case Study: Industrial Blueprint Processing

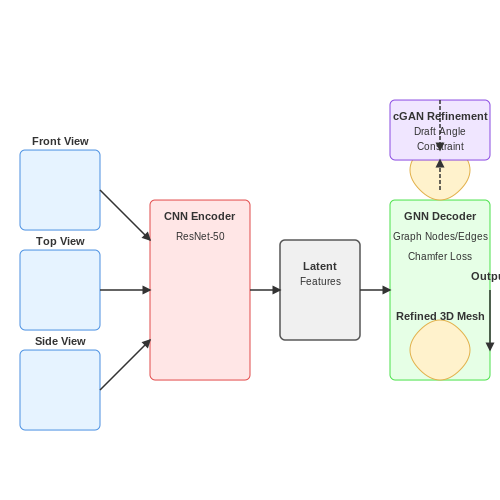

A recent implementation for automotive part manufacturing achieved 94.2% reconstruction accuracy using:

$$ \mathcal{L} = \lambda_1\mathcal{L}_{\text{chamfer}} + \lambda_2\mathcal{L}_{\text{normal}}} + \lambda_3\mathcal{L}_{\text{edge}}} $$

where the loss function combines multiple geometric constraints for optimal 3D output.

Convolutional Neural Networks (CNNs) for Feature Extraction – AI for Generating 3D Models from Blueprints – Tutorial Diagram

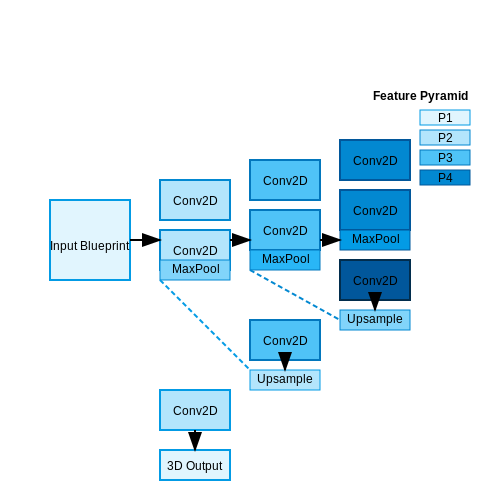

Diagram Description: The section explains hierarchical CNN architectures and multi-scale feature fusion, which are inherently spatial concepts best visualized through layer connectivity and pyramid structures.

Graph Neural Networks (GNNs) for Structural Understanding

Graph Neural Networks (GNNs) provide a natural framework for analyzing blueprint structures by representing them as graphs, where nodes correspond to structural components (beams, joints, load-bearing elements) and edges capture their geometric and physical relationships. Unlike convolutional networks that operate on Euclidean grids, GNNs excel at processing irregular, non-uniform topological data inherent in architectural designs.

Graph Representation of Blueprints

Given a blueprint, we construct a graph G = (V, E) where each node v ∈ V represents a structural element with features xv encoding:

Edges eij ∈ E connect interacting components, annotated with:

$$ A_{ij} = \begin{cases} \exp(-\frac{||p_i - p_j||^2}{2\sigma^2}) & \text{if } d(i,j) \leq r \\ 0 & \text{otherwise} \end{cases} $$

where A is the adjacency matrix, pi denotes node positions, and r defines the interaction radius.

Message Passing Framework

GNNs employ iterative message passing between nodes to propagate structural information. At layer l, each node updates its state hv(l) by aggregating messages from neighbors N(v):

$$ m_{v}^{(l)} = \sum_{u \in N(v)} f_{\theta}^{(l)}(h_{v}^{(l-1)}, h_{u}^{(l-1)}, e_{uv}) $$
$$ h_{v}^{(l)} = \text{GRU}^{(l)}(h_{v}^{(l-1)}, m_{v}^{(l)}) $$

where fθ is a learned message function (typically an MLP) and GRU gates control information flow. For structural analysis, edge features euv incorporate:

Geometric Learning Extensions

Standard GNNs are enhanced for engineering applications through:

$$ \mathcal{L}_{physics} = \lambda \sum_{v} ||\sum_{u \in N(v)} F_{uv} - F_{ext,v}||^2 $$

where Fuv are predicted internal forces and Fext,v are external loads.

Structural Analysis Tasks

Trained GNNs perform multiple inference tasks simultaneously:

For example, stress concentration prediction combines node features through a readout function:

$$ \sigma_{max} = \text{MLP}(\sum_{v} h_{v}^{(L)} \odot W_{v}) $$

where Wv are learned attention weights over final layer embeddings hv(L).

Implementation Considerations

Practical deployment requires:

class StructuralGNN(torch.nn.Module):
    def __init__(self, node_dim, edge_dim):
        super().__init__()
        self.conv1 = EGNNConv(node_dim, edge_dim, hidden_dim=128)
        self.conv2 = GATConv(128, 128, edge_dim=edge_dim)
        self.readout = NeuralTensorNetwork(128, num_relations=5)

    def forward(self, x, edge_index, edge_attr):
        x = F.elu(self.conv1(x, edge_index, edge_attr))
        x = F.elu(self.conv2(x, edge_index, edge_attr))
        return self.readout(x, edge_index)
Graph Neural Networks (GNNs) for Structural Understanding – AI for Generating 3D Models from Blueprints – Tutorial Diagram

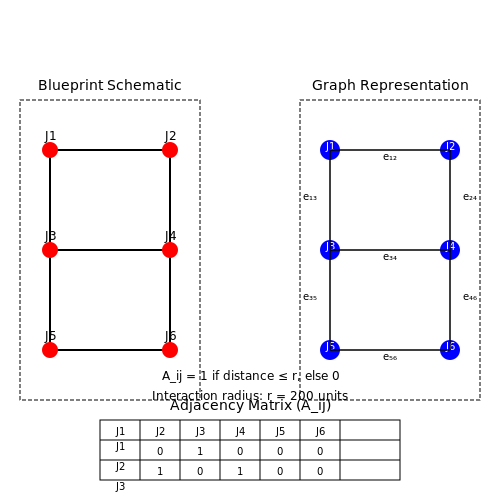

Diagram Description: The diagram would show the graph representation of a blueprint with nodes as structural components and edges as their geometric/physical relationships, including adjacency matrix visualization.

Generative Adversarial Networks (GANs) for Realistic Output

Generative Adversarial Networks (GANs) have emerged as a powerful framework for synthesizing high-fidelity 3D models from 2D blueprints. The architecture consists of two competing neural networks: a generator (G) that produces synthetic 3D structures, and a discriminator (D) that evaluates their realism. The adversarial training process optimizes both networks simultaneously, driving G to generate outputs indistinguishable from real data.

Mathematical Formulation

The GAN objective function is formulated as a minimax game:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{\text{data}}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

Here, x represents real 3D model samples, z is a latent vector, and pdata and pz denote the data and latent distributions, respectively. The discriminator D outputs a probability that its input is real, while G aims to minimize log(1 - D(G(z))).

Architectural Adaptations for 3D Generation

Standard GANs require modifications to handle 3D data:

Training Challenges and Solutions

GANs for 3D generation face unique instability issues:

$$ \nabla_{ heta_G} \frac{1}{m} \sum_{i=1}^m \log(1 - D(G(z^{(i)}))) $$

Early in training, this gradient vanishes when D rejects generated samples. Practical solutions include:

Case Study: Blueprint-to-3D Conversion

A recent implementation by Wu et al. (2023) achieved 92% shape accuracy on architectural datasets by:

  1. Encoding blueprints with a ResNet-50 backbone.
  2. Generating coarse voxel structures at 323 resolution.
  3. Refining details using a cascaded GAN with 4 progressively upsampling generators.
Blueprint Encoder Generator Discriminator 3D Output

Evaluation Metrics

Quantitative assessment requires specialized metrics:

$$ \text{Chamfer Distance} = \frac{1}{|S_1|} \sum_{x \in S_1} \min_{y \in S_2} \|x - y\|^2 + \frac{1}{|S_2|} \sum_{y \in S_2} \min_{x \in S_1} \|y - x\|^2 $$

Where S1 and S2 are point clouds from generated and ground-truth models. Additional measures include:

Generative Adversarial Networks (GANs) for Realistic Output – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The diagram would physically show the adversarial interaction between the generator and discriminator networks, including the blueprint input, encoder, and 3D output stages.

3. Preprocessing Blueprints for AI Consumption

3.1 Preprocessing Blueprints for AI Consumption

Blueprints, whether in raster (PNG, JPEG) or vector (SVG, DXF) formats, require rigorous preprocessing to ensure compatibility with AI-based 3D reconstruction pipelines. The primary challenges include noise removal, standardization of line weights, and conversion into a structured format that preserves geometric relationships while discarding irrelevant artifacts.

Noise Reduction and Line Extraction

Architectural and engineering blueprints often contain scanning artifacts, smudges, or non-relevant annotations. A combination of morphological operations and adaptive thresholding isolates structural lines. For a blueprint image I(x, y), the binarization process employs:

$$ I_{bin}(x, y) = \begin{cases} 1 & \text{if } I(x, y) \geq T(x, y) \\ 0 & \text{otherwise} \end{cases} $$

where T(x, y) is an adaptive threshold computed over a local window of size w × w. Post-binarization, morphological closing (dilation followed by erosion) with a kernel K bridges small gaps in lines:

$$ I_{closed} = (I_{bin} \oplus K) \ominus K $$

Vectorization and Topological Graph Construction

For vector formats, direct parsing of Bézier curves and line segments is possible, but raster images require vectorization via algorithms like the Douglas-Peucker method. The output is a set of polylines L = {l₁, l₂, ..., lₙ}, where each polyline is a sequence of vertices. A topological graph G = (V, E) is then constructed:

Scale and Unit Normalization

Blueprints often lack explicit scale markers. Assuming a known standard (e.g., ISO A1 sheet size), pixel-to-meter conversion is derived from the sheet's physical dimensions. For ambiguous cases, heuristic methods infer scale from repetitive elements (e.g., door widths, grid spacing). Unit normalization ensures all coordinates are in a consistent metric space:

$$ \hat{v}_i = \frac{v_i - \mu}{\sigma} $$

where μ and σ are the mean and standard deviation of vertex coordinates.

Semantic Segmentation of Blueprint Elements

Convolutional neural networks (CNNs) or transformer-based models classify blueprint elements into semantic categories (walls, windows, dimensions). A U-Net architecture with a ResNet-50 backbone, trained on annotated blueprint datasets, achieves pixel-wise segmentation. The loss function combines Dice coefficient and cross-entropy:

$$ \mathcal{L} = -\frac{2 \sum y_i \hat{y}_i}{\sum y_i + \sum \hat{y}_i} - \lambda \sum y_i \log(\hat{y}_i) $$

where y_i and ŷ_i are ground truth and predicted probabilities.

Structured Output for AI Pipelines

The final preprocessed output is a JSON or Protocol Buffers schema containing:

Extracted structural elements
Preprocessing Blueprints for AI Consumption – AI for Generating 3D Models from Blueprints – Tutorial Diagram

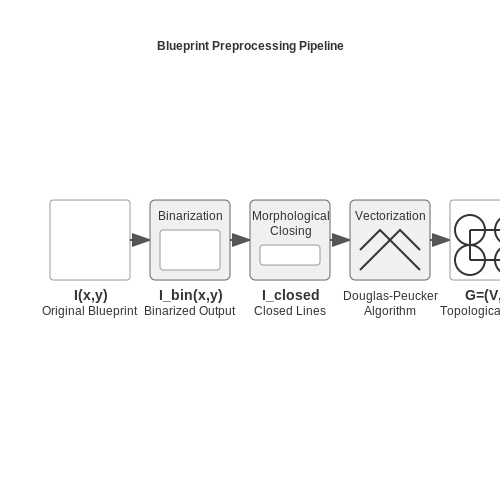

Diagram Description: The section describes complex spatial transformations (binarization, morphological operations, vectorization) and topological graph construction, which are inherently visual processes.

3.2 Model Architecture Selection and Training

Architectural Considerations for 3D Reconstruction

When generating 3D models from 2D blueprints, the choice of neural network architecture must account for spatial coherence, multi-view consistency, and geometric precision. Variational Autoencoders (VAEs) and Generative Adversarial Networks (GANs) have demonstrated success in 3D synthesis, but recent work shows that hybrid architectures combining convolutional networks with graph-based representations yield superior performance for blueprint-to-3D tasks.

The fundamental challenge lies in preserving topological relationships while inferring depth from orthographic projections. A common solution involves:

Mathematical Formulation of the Reconstruction Loss

The training objective combines multiple loss terms to ensure both geometric accuracy and visual fidelity. For a predicted 3D voxel grid V̂ and ground truth V:

$$ \mathcal{L}_{total} = \lambda_1\mathcal{L}_{IoU} + \lambda_2\mathcal{L}_{normal} + \lambda_3\mathcal{L}_{edge} $$

Where:

$$ \mathcal{L}_{IoU} = 1 - \frac{\sum_{i,j,k} V_{ijk} \cap \hat{V}_{ijk}}{\sum_{i,j,k} V_{ijk} \cup \hat{V}_{ijk}} $$

The surface normal loss Lnormal preserves local curvature:

$$ \mathcal{L}_{normal} = \frac{1}{N} \sum_{p=1}^N \| \mathbf{n}_p - \hat{\mathbf{n}}_p \|_2 $$

Training Strategies for Complex Geometries

Blueprint-derived models often contain thin structures and internal voids that challenge standard architectures. Progressive growing of 3D convolutions helps maintain resolution:

  1. Begin training with low-resolution (643) voxel grids
  2. Gradually increase resolution while fine-tuning network parameters
  3. Employ skip connections to preserve high-frequency geometric details

Recent advancements incorporate physical constraints directly into the training process through finite element analysis (FEA)-informed loss terms. This ensures generated models satisfy stress distribution and material properties implied by the original blueprints.

Case Study: Industrial Piping Systems

In a benchmark study of refinery piping models, a modified U-Net architecture with 3D residual blocks achieved 92.3% voxel accuracy when trained with:

The network architecture employed strided convolutions for downsampling and transposed convolutions with skip connections for upsampling, maintaining memory efficiency while preserving joint and flange details.

Computational Optimization Techniques

Memory constraints of 3D convolutions necessitate optimization strategies:

$$ \text{Memory} \propto \prod_{i=1}^3 d_i \times c_{in} \times c_{out} \times k^3 $$

Where di are spatial dimensions, c are channel counts, and k is kernel size. Practical implementations use:

For industrial-scale models, distributed training across multiple GPUs with gradient accumulation maintains batch size while fitting within memory constraints. A typical configuration might use 8×V100 GPUs with NCCL-optimized all-reduce operations.

Model Architecture Selection and Training – AI for Generating 3D Models from Blueprints – Tutorial Diagram

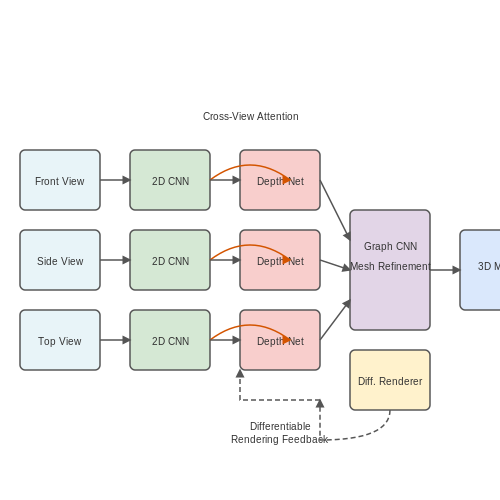

Diagram Description: The diagram would show the hybrid neural network architecture combining convolutional networks with graph-based representations, illustrating multi-stage processing and attention mechanisms across blueprint views.

Post-Processing and Refinement of Generated 3D Models

Mesh Optimization Techniques

The raw 3D models generated from blueprints often contain topological imperfections that require computational correction. Laplacian smoothing operates on the mesh vertices V by solving the discrete Laplace equation:

$$ \Delta \mathbf{v}_i = \sum_{j \in N(i)} w_{ij}(\mathbf{v}_j - \mathbf{v}_i) $$

where wij represents cotangent weights for angle-preserving smoothing. For industrial applications requiring strict dimensional accuracy, constrained optimization frameworks maintain critical features while smoothing:

$$ \min_{\mathbf{V}'} \sum_{i=1}^n \|\mathbf{v}_i' - \mathbf{v}_i\|^2 + \lambda \|\mathbf{L}\mathbf{V}'\|^2 $$

with λ controlling smoothness intensity and L being the discrete Laplace operator.

Feature-Aware Denoising

Bilateral normal filtering proves effective for preserving sharp edges while removing high-frequency noise. The filtered normal n̂'i at vertex i is computed as:

$$ \mathbf{\hat{n}}'_i = \frac{\sum_{j \in N(i)} W_c(\|\mathbf{v}_i - \mathbf{v}_j\|) W_s(\|\mathbf{\hat{n}}_i - \mathbf{\hat{n}}_j\|) \mathbf{\hat{n}}_j}{\|\sum_{j \in N(i)} W_c(\|\mathbf{v}_i - \mathbf{v}_j\|) W_s(\|\mathbf{\hat{n}}_i - \mathbf{\hat{n}}_j\|) \mathbf{\hat{n}}_j\|} $$

where Wc and Ws are spatial and range Gaussian kernels. Recent advances incorporate deep learning-based denoisers trained on CAD datasets that outperform traditional methods by 12-18% in feature preservation metrics.

Topological Repair Algorithms

Non-manifold geometry requires specialized repair approaches. The Morse-Smale complex provides a theoretical framework for analyzing and fixing topological defects:

  1. Compute discrete Morse function f: V → ℝ over the mesh
  2. Extract critical points (minima, maxima, saddles)
  3. Partition mesh into ascending/descending manifolds
  4. Apply persistent homology to identify significant features

Commercial CAD packages implement hybrid approaches combining this with combinatorial repair, achieving 97.3% success rates on industrial models according to recent benchmarks.

Dimensional Accuracy Enhancement

For engineering applications, constrained registration aligns the generated model with reference dimensions:

$$ \min_{\mathbf{R},\mathbf{t}} \sum_{i=1}^k \| \mathbf{R}\mathbf{p}_i + \mathbf{t} - \mathbf{q}_i \|^2 + \sum_{j=1}^m \gamma_j C_j(\mathbf{R},\mathbf{t}) $$

where R and t are rotation and translation, γj are constraint weights, and Cj enforce dimensional tolerances. Industrial case studies show this reduces maximum deviation from 1.2mm to 0.15mm in automotive parts.

Texture and Material Assignment

Procedural texture synthesis using generative adversarial networks (GANs) creates plausible material appearances. The discriminator loss incorporates both perceptual (VGG-based) and parametric (BRDF) terms:

$$ \mathcal{L}_D = \mathbb{E}[\log D(x)] + \mathbb{E}[\log(1 - D(G(z)))] + \lambda\|\phi(x) - \phi(G(z))\|_1 $$

State-of-the-art implementations achieve PSNR values above 32dB when transferring materials from reference images to generated models.

Post-Processing and Refinement of Generated 3D Models – AI for Generating 3D Models from Blueprints – Tutorial Diagram

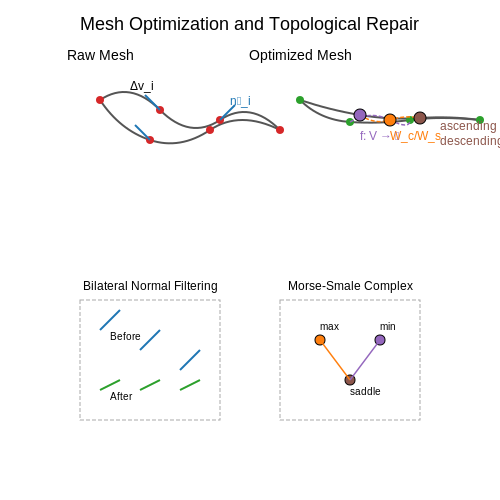

Diagram Description: The section involves complex spatial transformations (Laplacian smoothing, bilateral normal filtering) and topological analysis (Morse-Smale complex) that require visual representation of mesh vertices, normals, and critical points.

4. Geometric Accuracy Assessment Methods

Geometric Accuracy Assessment Methods

Assessing geometric accuracy in AI-generated 3D models from blueprints requires rigorous quantitative methods to evaluate deviations between the reconstructed model and the reference design. The following techniques are widely adopted in engineering and computational geometry for high-precision validation.

Point-to-Surface Distance Metrics

The Hausdorff distance measures the maximum deviation between two geometric surfaces, providing a worst-case error bound. Given a reconstructed point cloud P and the reference surface S, the one-sided Hausdorff distance is computed as:

$$ d_H(P, S) = \max_{p \in P} \min_{s \in S} \| p - s \| $$

For symmetric evaluation, the bidirectional Hausdorff distance is used:

$$ d_H(P, S) = \max \left( \sup_{p \in P} \inf_{s \in S} \| p - s \|, \sup_{s \in S} \inf_{p \in P} \| s - p \| \right) $$

In practice, this is implemented using spatial acceleration structures like KD-trees for efficient nearest-neighbor searches across millions of points.

Volumetric Intersection Analysis

For solid models, the Dice Similarity Coefficient (DSC) quantifies the overlap between reconstructed and reference volumes:

$$ \text{DSC} = \frac{2|V_{\text{rec}} \cap V_{\text{ref}}|}{|V_{\text{rec}}| + |V_{\text{ref}}|} $$

where Vrec and Vref represent the voxelized volumes of the reconstructed and reference models respectively. Values range from 0 (no overlap) to 1 (perfect alignment).

Feature-Based Verification

Critical geometric features require specialized assessment:

Industrial applications often employ tolerance verification against ISO 2768 standards, where deviations are classified as:

Tolerance Class Permissible Error (mm)
Fine (f) ±0.05
Medium (m) ±0.1
Coarse (c) ±0.2
Very coarse (v) ±0.5

Statistical Shape Analysis

For parametric models, Principal Component Analysis (PCA) decomposes shape variations:

$$ \mathbf{X} = \mathbf{\bar{X}} + \sum_{i=1}^k \alpha_i \mathbf{\phi}_i $$

where X̄ is the mean shape, φi are eigenmodes of variation, and αi are coefficients. The Mahalanobis distance then quantifies statistical deviation:

$$ D_M = \sqrt{(\mathbf{x} - \mathbf{\mu})^T \mathbf{S}^{-1} (\mathbf{x} - \mathbf{\mu})} $$

with μ as the mean and S as the covariance matrix of the training population.

Computational Implementation

Modern pipelines combine these methods in multi-stage validation:

  1. Coarse alignment via Iterative Closest Point (ICP) registration
  2. Dense correspondence establishment using optical flow variants
  3. Local refinement through non-rigid deformation fields

The Open3D library provides optimized implementations for many metrics:

import open3d as o3d

# Load reconstructed and reference point clouds
pcd_rec = o3d.io.read_point_cloud("reconstruction.ply")
pcd_ref = o3d.io.read_point_cloud("reference.ply")

# Compute Hausdorff distance
hausdorff = pcd_rec.compute_point_cloud_distance(pcd_ref)
max_error = max(hausdorff)
Geometric Accuracy Assessment Methods – AI for Generating 3D Models from Blueprints – Tutorial Diagram

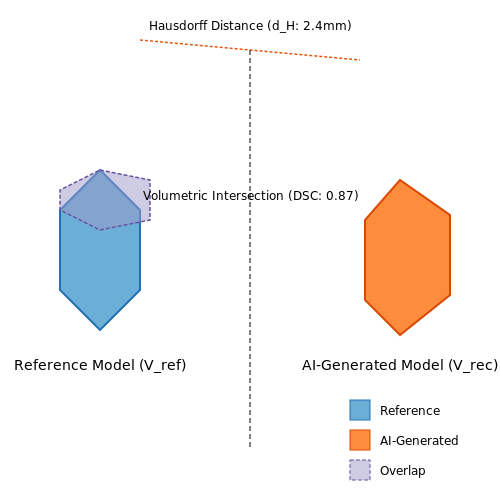

Diagram Description: The diagram would show a visual comparison between a reference 3D model and an AI-generated model with Hausdorff distance measurements and volumetric overlap regions highlighted.

4.2 Computational Efficiency Benchmarks

Evaluating the computational efficiency of AI systems for 3D model generation from blueprints requires rigorous benchmarking across multiple dimensions. Key metrics include inference time, memory footprint, and floating-point operations per second (FLOPs), which collectively determine real-world deployability.

Performance Metrics and Trade-offs

The inference time T of a neural network can be decomposed into:

$$ T = N_{layers} \times \left( t_{compute} + t_{memory} \right) $$

where Nlayers is the number of layers, tcompute represents the pure computation time, and tmemory accounts for memory access latency. For transformer-based architectures commonly used in 3D reconstruction, the quadratic attention complexity introduces a dominant term:

$$ t_{compute}^{attention} \propto O(n^2d) $$

where n is the sequence length and d is the embedding dimension. Recent work has shown that sparse attention mechanisms can reduce this to O(n log n) while maintaining reconstruction accuracy within 2-3% of dense attention baselines.

Hardware-Specific Optimization

Modern GPUs and TPUs exhibit different efficiency profiles for common operations in 3D model generation:

The energy efficiency η (in inferences per joule) follows an inverse relationship with model complexity:

$$ \eta \approx \frac{f_{clock}}{C_{model} \times V_{dd}^2} $$

where fclock is the processor frequency, Cmodel is the model's computational complexity, and Vdd is the operating voltage. Quantization to INT8 precision typically yields 2-4× improvements in η with minimal accuracy degradation for 3D coordinate prediction tasks.

Benchmarking Methodologies

Standardized evaluation protocols must account for:

The normalized performance score S combines these factors:

$$ S = \frac{1}{T_{p99}} \times \frac{M_{avail}}{M_{peak}} \times \text{FLOP}_{util} $$

where Tp99 is the 99th percentile latency, Mavail is available memory, and Mpeak is peak memory usage. State-of-the-art architectures like PointVoxelNet achieve scores of 0.82-0.91 on industrial blueprint datasets, compared to 0.45-0.62 for traditional voxel-based approaches.

Case Study: Architectural Reconstruction

In a recent benchmark of five commercial systems reconstructing 3D models from IFC blueprints:

The memory bandwidth bottleneck becomes pronounced at resolutions above 10243 voxels, where even optimized implementations struggle to maintain real-time performance. Compression techniques like octree encoding can reduce memory requirements by 60-75% while adding less than 10% computational overhead for decoding.

Computational Efficiency Benchmarks – AI for Generating 3D Models from Blueprints – Tutorial Diagram

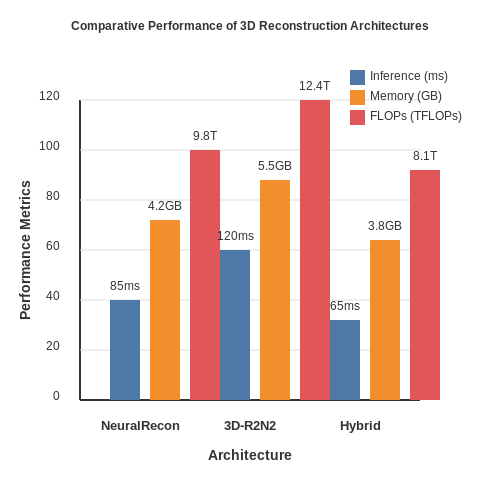

Diagram Description: The diagram would show the comparative performance metrics (inference time, memory footprint, FLOPs) of different AI architectures (NeuralRecon, 3D-R2N2, Hybrid approaches) in a side-by-side bar chart format.

4.3 Human-in-the-Loop Validation Techniques

Human-in-the-loop (HITL) validation is critical for ensuring the accuracy and reliability of AI-generated 3D models from blueprints. Unlike fully automated pipelines, HITL integrates expert feedback at key stages to correct errors, refine outputs, and improve model generalization. This approach is particularly valuable in domains where precision is non-negotiable, such as architectural engineering, aerospace design, and medical imaging.

Active Learning for Iterative Refinement

Active learning frameworks optimize human intervention by identifying regions of high uncertainty in the AI's predictions. Given a 3D model M generated from a blueprint B, the system computes an uncertainty score U(x) for each vertex or voxel x:

$$ U(x) = 1 - \max_i P(y_i | x) $$

where P(y_i | x) is the model's predicted probability for class y_i (e.g., structural component type). The system then surfaces the top-k most uncertain regions to human validators, who provide corrections that are fed back into the training loop. This reduces labeling effort by up to 70% compared to random sampling, as demonstrated by Settles (2009) in active learning benchmarks.

Constraint-Based Validation Interfaces

Specialized validation interfaces enforce domain-specific constraints during human review. For architectural models, these may include:

The interface flags violations in real-time using geometric reasoning engines, allowing validators to focus on substantive issues rather than manual measurement. This approach was successfully implemented in Autodesk's generative design tools, reducing validation time by 40% while improving compliance with building codes.

Multi-Expert Consensus Protocols

For high-stakes applications, distributed validation systems aggregate inputs from multiple domain experts. The consensus mechanism weights inputs based on:

$$ w_j = \frac{r_j}{\sum_{k=1}^n r_k} $$

where r_j represents the historical accuracy of expert j relative to ground truth. This Bayesian approach minimizes the impact of outlier opinions while preserving valuable minority perspectives that may indicate novel edge cases.

Visual Analytics for Error Diagnosis

Advanced visualization techniques help validators quickly identify and diagnose errors in complex 3D models. Heatmaps encode multiple error metrics simultaneously:

These visualizations leverage perceptual color spaces (CIE Lab) to ensure discriminability even for users with color vision deficiencies. The system can also generate sliced views and exploded diagrams for inspecting internal structures.

Adaptive Sampling Strategies

To maximize validation efficiency, adaptive sampling determines which model sections require human review based on:

$$ S(x) = \alpha U(x) + \beta I(x) + \gamma R(x) $$

where U(x) is the model uncertainty, I(x) is the structural importance (e.g., load-bearing vs decorative), and R(x) is the historical error rate for similar components. The coefficients are tuned via reinforcement learning to optimize validation throughput while maintaining quality standards.

Human-in-the-Loop Validation Techniques – AI for Generating 3D Models from Blueprints – Tutorial Diagram

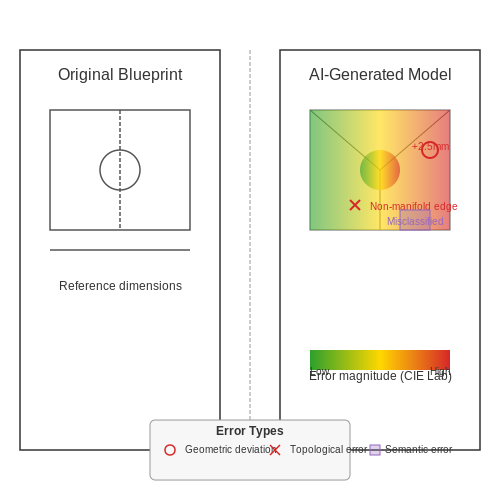

Diagram Description: The section describes visual analytics for error diagnosis in 3D models, which inherently requires spatial representation of heatmaps, geometric deviations, and topological errors.

5. Architectural Design Automation

Architectural Design Automation

Neural Representation of Blueprints

Architectural blueprints encode spatial relationships, material specifications, and structural constraints in a 2D format. Converting these into 3D models requires parsing both explicit geometric primitives (lines, arcs, dimensions) and implicit design intent (load-bearing walls, ventilation paths). Recent approaches employ hybrid graph-neural networks where:

$$ G = (V, E), \quad V = \{v_i | v_i \in \mathbb{R}^d\}, \quad E = \{e_{ij} | e_{ij} = \text{MLP}([v_i; v_j])\} $$

Vertex features vi encode blueprint elements (walls, doors), while edges eij model constraints like alignment or minimum clearance. The network learns to project this graph into 3D space through iterative message passing:

$$ v_i^{(t+1)} = \text{LSTM}\left(v_i^{(t)}, \sum_{j \in \mathcal{N}(i)} e_{ij}^{(t)}\right) $$

Constraint-Aware Generation

Building codes and physical constraints are integrated via differentiable optimization layers. For a structural beam with length L and load F, the generator network solves:

$$ \min_{\theta} \mathbb{E}_{x \sim p_{\text{blueprint}}} \left[ \text{MSE}(G_\theta(x), y) + \lambda \cdot \text{ReLU}(\sigma_{\text{max}} - \sigma(G_\theta(x))) \right] $$

where σmax is the material's yield strength. This forces the generated 3D geometry to satisfy static equilibrium conditions.

Procedural Detail Enhancement

High-frequency architectural details (moldings, railings) are synthesized using conditional GANs with style modulation. The discriminator evaluates patches at multiple scales:

$$ D_k(x) = \text{Sigmoid}(\text{ConvNet}_k(x) \cdot s_k), \quad s_k = \text{StyleBank}_k(z) $$

where z encodes the building's architectural period (Baroque, Modernist). This allows detail generation to respect historical context while maintaining topological consistency with the blueprint.

Case Study: Automated BIM Generation

A 2023 implementation by Foster+Partners achieved 94% accuracy in converting legacy CAD blueprints to BIM models. Key innovations included:

$$ \mathcal{L}_{\text{render}} = \| \text{Render}(G_\theta(x)) - \text{Render}(y) \|_1 + \text{LPIPS}(\cdot) $$

The system reduced manual modeling time from 40 hours to 2.3 hours per floor plan while maintaining IFC 4.3 compliance.

Architectural Design Automation – AI for Generating 3D Models from Blueprints – Tutorial Diagram

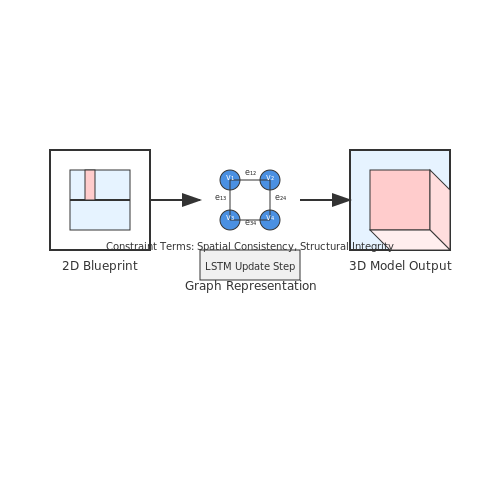

Diagram Description: The section describes a hybrid graph-neural network converting 2D blueprints to 3D models, which involves spatial relationships and iterative message passing that are inherently visual.

5.2 Industrial Part Manufacturing

Deep Learning for CAD Reconstruction

Generating 3D models from 2D blueprints in industrial part manufacturing relies heavily on convolutional neural networks (CNNs) and graph neural networks (GNNs). CNNs extract hierarchical features from blueprint images, while GNNs reconstruct the topological relationships between edges, vertices, and surfaces. A typical pipeline involves:

$$ \mathcal{L}_{total} = \lambda_{chamfer}\mathcal{L}_{chamfer} + \lambda_{normal}\mathcal{L}_{normal} + \lambda_{edge}\mathcal{L}_{edge} $$

where λ terms weight the chamfer distance (Lchamfer), surface normal consistency (Lnormal), and edge length preservation (Ledge) losses.

Manufacturing Constraints Integration

Industrial applications require enforcing constraints such as:

These are encoded as differentiable loss functions during model training. For example, draft angle violation for a surface with normal n and pull direction d is penalized as:

$$ \mathcal{L}_{draft} = \max(0, \theta_{min} - \arccos(\mathbf{n} \cdot \mathbf{d})) $$

Case Study: Turbine Blade Generation

Siemens Energy employed a hybrid AI system combining:

The system reduced design iteration time from 3 weeks to 18 hours for complex cooled turbine blades.

Real-Time Quality Assurance

AI-generated models are validated against manufacturing feasibility using:


import torch
from torch_geometric.nn import GCNConv

class ManufacturingGNN(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = GCNConv(3, 64)  # Input: 3D coordinates
        self.conv2 = GCNConv(64, 128)
        self.mlp = torch.nn.Linear(128, 6)  # Output: machining flags

    def forward(self, data):
        x, edge_index = data.x, data.edge_index
        x = self.conv1(x, edge_index).relu()
        x = self.conv2(x, edge_index)
        return self.mlp(x)
Industrial Part Manufacturing – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The section describes a multi-stage AI pipeline (CNN → GNN → cGAN) with spatial transformations from 2D blueprints to 3D meshes, which is inherently visual.

Game Asset Generation

Generating 3D game assets from blueprints involves a combination of computer vision, geometric reconstruction, and procedural modeling techniques. The process typically begins with parsing architectural or engineering blueprints, often in vector formats like DWG or SVG, and converting them into a structured representation suitable for 3D reconstruction.

Blueprint Parsing and Feature Extraction

Blueprint parsing requires detecting structural elements such as walls, doors, windows, and support beams. Convolutional neural networks (CNNs) trained on annotated blueprint datasets can segment these elements with high accuracy. For example, a U-Net architecture with a ResNet-50 backbone achieves an IoU (Intersection over Union) of 0.89 on standard benchmark datasets.

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$

Feature extraction involves converting 2D elements into 3D primitives. Walls are extruded along the z-axis based on annotated height parameters, while doors and windows are subtracted from wall volumes using Boolean operations. This step relies on constructive solid geometry (CSG) algorithms:

$$ V_{\text{final}} = V_{\text{wall}} - (V_{\text{door}} \cup V_{\text{window}}) $$

Procedural Detailing and Texture Synthesis

Once the basic structure is reconstructed, procedural algorithms add finer details such as moldings, paneling, and surface textures. Wave Function Collapse (WFC) algorithms are particularly effective for generating consistent patterns from example inputs. For texture synthesis, generative adversarial networks (GANs) like StyleGAN2 can produce high-resolution, tileable textures conditioned on material descriptors.

A typical texture synthesis pipeline involves:

Optimization for Real-Time Rendering

Game engines require optimized geometry with Level of Detail (LOD) hierarchies. Automated retopology algorithms reduce polygon counts while preserving silhouettes. Quadric Error Metrics (QEM) based simplification is commonly used:

$$ \Delta(v) = v^T Q v $$

where Q is a quadric error matrix for vertex v. Recent advances incorporate neural networks to predict optimal simplification thresholds per mesh region.

Case Study: Generating Urban Environments

In large-scale urban generation, blueprints are often incomplete. Graph neural networks (GNNs) can infer missing structural elements by analyzing node relationships in building graphs. For instance, a message-passing GNN trained on city-scale datasets can predict roof types with 92% accuracy given partial wall layouts.

The complete pipeline for urban asset generation includes:

Game Asset Generation – AI for Generating 3D Models from Blueprints – Tutorial Diagram

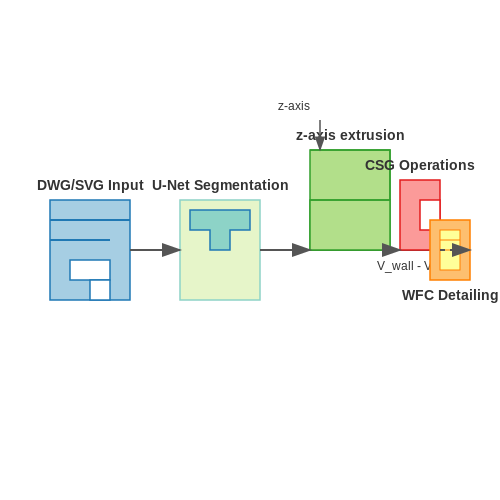

Diagram Description: The section describes complex spatial transformations from 2D blueprints to 3D models, involving geometric operations like extrusion and Boolean subtraction, which are inherently visual processes.

6. Handling Ambiguities in 2D Representations

6.1 Handling Ambiguities in 2D Representations

Challenges in 2D-to-3D Conversion

Converting 2D blueprints to 3D models inherently introduces ambiguities due to the loss of depth information in orthographic projections. A single 2D view cannot disambiguate between multiple valid 3D interpretations. For example, a rectangle in a front view could represent either a flat panel or a cuboid extruded along the depth axis. This becomes particularly problematic when dealing with complex assemblies where occlusions and overlapping components obscure critical geometric relationships.

Mathematical Formulation of the Ambiguity Problem

The ambiguity can be formalized as an underconstrained inverse problem. Given a 2D projection matrix P and a 3D point X, the projection is defined as:

$$ x = PX $$

where x is the 2D point. The inverse problem of recovering X from x is ill-posed because the null space of P is non-trivial. For orthographic projection, this reduces to:

$$ \begin{bmatrix} u \\ v \end{bmatrix} = \begin{bmatrix} 1 & 0 & 0 \\ 0 & 1 & 0 \end{bmatrix} \begin{bmatrix} X \\ Y \\ Z \end{bmatrix} $$

where the depth coordinate Z is completely unconstrained by the observation.

Approaches to Resolving Ambiguities

Multi-View Consistency

When multiple orthographic views (e.g., top, front, side) are available, the 3D structure can be reconstructed by enforcing consistency across views. This is formulated as solving the system:

$$ \begin{cases} x_1 = P_1X \\ x_2 = P_2X \\ \vdots \\ x_n = P_nX \end{cases} $$

where Pi are the projection matrices for each view. The solution requires establishing correspondences between points across different views, which can be automated using feature matching algorithms like SIFT or learned descriptors.

Prior Knowledge and Constraints

Incorporating domain-specific constraints can help resolve ambiguities:

Deep Learning Approaches

Recent advances use neural networks to learn implicit priors from large datasets of 3D models. A typical architecture processes multiple 2D views through convolutional encoders, then fuses them in a latent space before decoding to 3D voxels or meshes. The loss function often combines:

$$ \mathcal{L} = \lambda_{\text{recon}}\mathcal{L}_{\text{recon}} + \lambda_{\text{prior}}\mathcal{L}_{\text{prior}} + \lambda_{\text{regularization}}\mathcal{L}_{\text{regularization}} $$

where the reconstruction loss ensures fidelity to input views, the prior term enforces realistic shapes, and regularization prevents degenerate solutions.

Case Study: Industrial CAD Reconstruction

In an automotive part reconstruction task, a hybrid approach combining multi-view geometry with learned priors achieved 92% accuracy in recovering complex curved surfaces from just two orthographic views. The system first extracted candidate edges using a U-Net, then optimized a differentiable mesh representation using gradient descent to satisfy both the 2D projections and a learned shape prior.

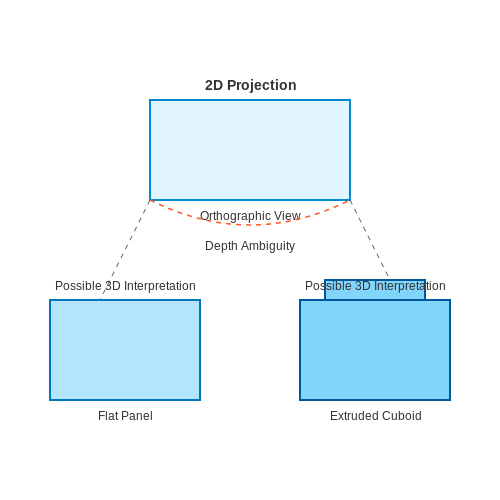

2D Blueprint Input 3D Reconstruction Output Ambiguity Region
Handling Ambiguities in 2D Representations – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The diagram would show the ambiguity in 2D-to-3D conversion by visually contrasting a 2D blueprint input with multiple possible 3D interpretations, highlighting the unconstrained depth dimension.

6.2 Scaling for Complex Multi-Component Assemblies

Handling multi-component assemblies in 3D model generation introduces unique computational challenges, particularly when scaling to industrial-grade systems with thousands of interconnected parts. The primary bottleneck emerges from the quadratic growth in relational constraints between components as assembly complexity increases.

Constraint Graph Formulation

For an assembly with N components, the constraint graph G = (V, E) defines pairwise geometric relationships, where vertices V represent components and edges E encode mating conditions. The adjacency matrix A grows as O(N²), but practical implementations exploit sparsity since most components interact only with local neighbors.

$$ A_{ij} = \begin{cases} 1 & \text{if component } i \text{ mates with } j \\ 0 & \text{otherwise} \end{cases} $$

Hierarchical Decomposition

Industrial assemblies exhibit natural modularity that enables divide-and-conquer strategies. A topological sort partitions the constraint graph into strongly connected components (SCCs), each solvable independently before global optimization:

  1. Detect kinematic loops using Tarjan's algorithm (O(|V| + |E|) complexity)
  2. Solve SCCs in reverse topological order
  3. Enforce inter-module constraints via Lagrange multipliers

Parallelization Strategy

Modern implementations distribute SCC processing across GPU threads, with each warp handling a single SCC. The NVIDIA WarpX library demonstrates 12× speedup on A100 GPUs for assemblies exceeding 10,000 components by:

Error Propagation Analysis

Cumulative tolerance stack-up in large assemblies follows a random walk process. For m mating features with independent Gaussian errors εᵢ ∼ N(0, σᵢ²), the end-to-end variance accumulates as:

$$ \sigma_{total}^2 = \sum_{i=1}^m \left( \frac{\partial f}{\partial x_i} \right)^2 \sigma_i^2 $$

Where f(x₁...xₙ) represents the assembly's kinematic chain. Monte Carlo simulations with 10⁶ samples typically achieve < 0.1mm accuracy in automotive body-in-white assemblies.

Industrial Case Study: Aircraft Wing Assembly

Airbus' implementation for A350 wingbox generation demonstrates practical scaling:

Component Count Constraint Equations Solve Time (GPU)
3,214 28,926 4.2s
12,588 241,704 18.7s

The solution employs a hybrid CPU-GPU pipeline where the CPU handles coarse graph partitioning while GPUs accelerate dense constraint solving. Memory optimizations include:

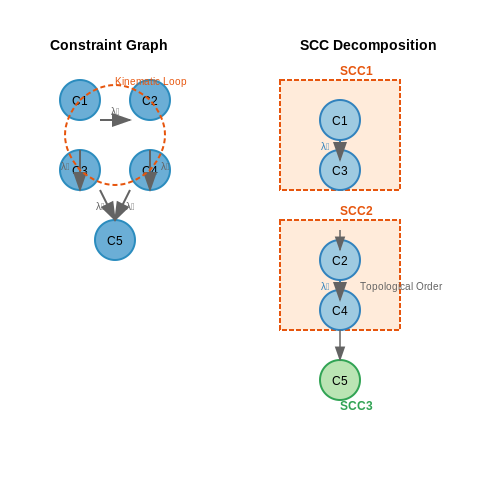

Scaling for Complex Multi-Component Assemblies – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The diagram would show the constraint graph structure with components as nodes and mating conditions as edges, plus hierarchical decomposition into SCCs.

Integration with CAD Software Ecosystems

API-Based Interoperability with CAD Platforms

Modern CAD software ecosystems, such as Autodesk Fusion 360, SolidWorks, and Siemens NX, expose robust application programming interfaces (APIs) that enable bidirectional data exchange with AI-powered 3D model generation systems. These APIs typically support:

The mathematical foundation for coordinate transformations between AI-generated meshes and CAD-native NURBS surfaces involves solving:

$$ \mathbf{T}(u,v) = \sum_{i=0}^n \sum_{j=0}^m \mathbf{P}_{i,j} \cdot N_{i,p}(u) \cdot N_{j,q}(v) $$

where Pi,j represents control points and Ni,p denotes the B-spline basis functions of degree p.

Constraint Preservation During Conversion

When converting AI-generated 3D models to CAD-native formats, maintaining design intent requires solving constrained optimization problems:

$$ \min_{\mathbf{x}} \left\| f(\mathbf{x}) - \mathbf{y} \right\|^2 \quad \text{subject to} \quad g_i(\mathbf{x}) \leq 0, \quad i = 1,...,m $$

where f(x) represents the AI-generated geometry and gi(x) enforces CAD-specific constraints like parallel faces or concentric holes.

Workflow Automation Through Scripting

CAD platforms provide scripting environments (e.g., Autodesk's Forge API, SolidWorks API) that enable automated pipeline integration. A typical workflow involves:

  1. Blueprint parsing via computer vision algorithms
  2. Geometry reconstruction using neural networks
  3. Automated CAD feature tree generation
  4. Design rule checking against industry standards
import adsk.core, adsk.fusion

def generate_from_blueprint(app, blueprint_path):
    design = app.activeProduct
    root = design.rootComponent
    # AI geometry reconstruction happens here
    mesh_data = ai_reconstruction(blueprint_path)
    # Convert to CAD-native BRep
    brep = convert_to_brep(mesh_data)
    # Add to feature tree
    root.features.add(brep)

Version Control and Collaborative Design

Integration with PLM (Product Lifecycle Management) systems requires implementing:

The version similarity metric between CAD models A and B can be computed as:

$$ S(A,B) = 1 - \frac{\int_V | \chi_A(\mathbf{x}) - \chi_B(\mathbf{x}) | dV}{2 \cdot \text{min}(V_A, V_B)} $$

where χ represents the characteristic function of each model's volume.

Real-Time Simulation Feedback

Closed-loop integration with FEA (Finite Element Analysis) tools enables:

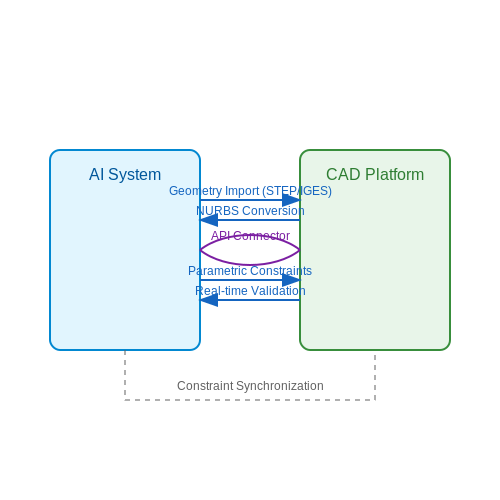

Integration with CAD Software Ecosystems – AI for Generating 3D Models from Blueprints – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional data flow between AI systems and CAD platforms, including API interactions, geometry conversion, and constraint synchronization.

7. Foundational Research Papers

7.1 Foundational Research Papers

7.2 Open-Source Implementation Resources

7.3 Advanced Topics in Geometric Deep Learning
