3D Interior Design Generation Using AI

#3d design #generative adversarial networks #variational autoencoders #reinforcement learning #ai in design #interior design #design automation #space planning #layout optimization #ai tools

1. Key Concepts in 3D Interior Design

Key Concepts in 3D Interior Design

Parametric Modeling and Generative Design

Parametric modeling forms the backbone of modern 3D interior design generation, where geometric constraints and relationships define the design space. A parametric model can be represented as a tuple M = (G, C, R), where G denotes geometric primitives, C represents constraints, and R defines relational operators. Generative design extends this by employing optimization algorithms to explore the solution space:

$$ \underset{x}{\text{minimize}} \; f(x) \quad \text{subject to} \quad g_i(x) \leq 0, \; i = 1,...,m $$

where f(x) is the objective function (e.g., spatial efficiency, aesthetic score) and g_i(x) are design constraints (e.g., furniture placement rules, building codes).

Scene Graph Representation

3D interior scenes are typically represented as hierarchical scene graphs G = (V, E), where vertices V represent objects (walls, furniture, lighting) and edges E encode spatial relationships. Each node contains:

Advanced systems use attributed graphs where edges contain relational predicates like left_of(sofa, window) or adjacent_to(table, chair).

Physics-Based Rendering

Photorealistic visualization requires solving the rendering equation:

$$ L_o(\mathbf{x}, \omega_o) = L_e(\mathbf{x}, \omega_o) + \int_{\Omega} f_r(\mathbf{x}, \omega_i, \omega_o) L_i(\mathbf{x}, \omega_i) (\omega_i \cdot \mathbf{n}) \, d\omega_i $$

where L_o is outgoing radiance, L_e is emitted light, f_r is the BRDF, and L_i is incoming radiance. Modern neural renderers approximate this using differentiable path tracing or neural radiance fields (NeRF).

Semantic Space Embeddings

AI systems map design elements to latent spaces using encoder networks E: X → Z, where X is the input (sketches, point clouds) and Z is a disentangled latent space. The embedding preserves:

State-of-the-art approaches use diffusion models to iteratively refine designs in this latent space.

Human-Centric Evaluation Metrics

Quantitative assessment combines:

$$ \text{QoD} = \alpha \cdot \text{FS} + \beta \cdot \text{FE} + \gamma \cdot \text{SA} $$

where QoD is Quality of Design, FS is Functional Score (derived from ergonomic analysis), FE is Feng Shui Evaluation (using spatial harmony rules), and SA is Style Affinity (measured via CLIP embeddings). The weights α, β, γ are learned from human preference data.

Procedural Generation Grammars

Shape grammars define production rules for recursive space subdivision:

$$ S \rightarrow \text{Walls} \, | \, \text{Walls} \oplus \text{RoomSplit}(S) $$ $$ \text{RoomSplit}(S) = \text{BSP}(S, \theta) \, \text{where} \, \theta \sim p(\theta|\text{room\_type}) $$

where ⊕ denotes spatial composition and BSP is binary space partitioning conditioned on room type probabilities. Neural grammars learn these rules through reinforcement learning with human feedback.

Key Concepts in 3D Interior Design – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The scene graph representation section involves hierarchical relationships between objects and spatial predicates that are inherently visual.

Role of AI in Design Automation

Parametric Optimization and Generative Design

AI-driven design automation leverages parametric optimization to explore high-dimensional design spaces efficiently. Given a set of constraints C and objectives O, the problem reduces to finding optimal parameters θ* that minimize a cost function J(θ):

$$ \theta^* = \argmin_{\theta \in \Theta} J(\theta) \quad \text{subject to} \quad g_i(\theta) \leq 0, h_j(\theta) = 0 $$

Generative adversarial networks (GANs) and variational autoencoders (VAEs) enable sampling from learned latent distributions of valid designs. For a latent vector z and decoder D, the generated design x is:

$$ x = D(z), \quad z \sim \mathcal{N}(0, I) $$

Physics-Informed Neural Networks

Physics constraints are embedded via hybrid architectures. A neural network fφ predicts structural stresses while obeying equilibrium equations:

$$ \nabla \cdot \sigma + b = 0, \quad \sigma = f_\phi(\epsilon) $$

where σ is stress, b body forces, and ε strain. The loss function penalizes PDE violations:

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{data} + \lambda_2 \|\nabla \cdot \sigma + b\|^2 $$

Multi-Objective Pareto Optimization

AI automates trade-off analysis between competing objectives (e.g., cost vs. aesthetics). Non-dominated sorting genetic algorithms (NSGA-II) identify Pareto fronts by:

The hypervolume indicator HV quantifies solution quality:

$$ HV = \int_{\mathbb{R}^n} \mathbb{1}_{\exists y \in Y: y \prec x} dx $$

Real-World Implementation

Commercial tools like Autodesk's Dreamcatcher use AI to generate thousands of valid 3D designs meeting mechanical and spatial constraints. Case studies show 40-70% reduction in design iteration cycles when combining:

AI-Generated Design Space Structural Integrity Cost Efficiency Aesthetic Score

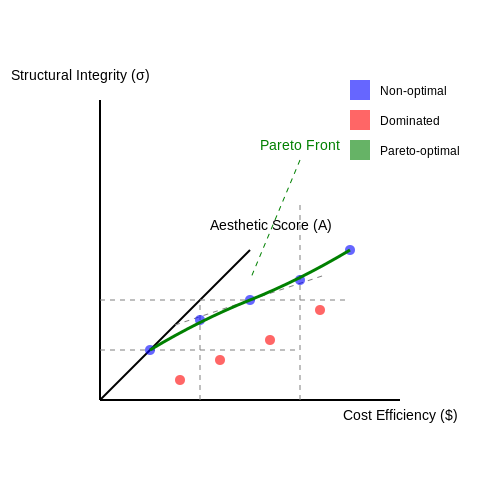

Role of AI in Design Automation – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The diagram would show the relationship between structural integrity, cost efficiency, and aesthetic score in a 3D design space, illustrating the Pareto front optimization.

1.3 Data Requirements for Training AI Models

Types of Training Data

The quality and diversity of training data directly impact the performance of AI models in 3D interior design generation. Three primary data types are essential:

Data Volume Requirements

For deep learning models to generalize well, the dataset must satisfy minimum size thresholds:

$$ N = \frac{C \times d}{\epsilon^2} $$

where N is the minimum number of samples, C is model complexity, d is input dimensionality, and ϵ is target error rate. For a typical 3D GAN:

$$ N \approx 10^4 - 10^6 \text{ scenes} $$

Data Annotation Standards

Precise annotation is critical for supervised learning approaches:

Data Augmentation Techniques

To improve model robustness, apply these transformations to 3D data:

$$ \mathbf{v}' = \mathbf{R}(\theta)\mathbf{v} + \mathbf{t} $$

where R is a rotation matrix and t is translation vector. Additional augmentations include:

Data Quality Metrics

Evaluate dataset quality using these quantitative measures:

Metric Formula Target Value
Coverage $$\frac{|\mathcal{S}|}{|\mathcal{U}|}$$ > 0.85
Consistency $$1 - \frac{1}{N}\sum_{i=1}^N \mathbb{I}(f(x_i) \neq y_i)$$ > 0.95

Real-World Data Challenges

Practical considerations when collecting 3D interior data:

2. Generative Adversarial Networks (GANs) for Design

Generative Adversarial Networks (GANs) for Design

Architecture and Training Dynamics

Generative Adversarial Networks (GANs) consist of two neural networks—the generator (G) and the discriminator (D)—engaged in a minimax game. The generator synthesizes 3D interior layouts from latent noise vectors, while the discriminator evaluates their realism against a dataset of human-designed interiors. The adversarial objective is formalized as:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

where x represents real design samples, z is the latent noise vector, and pdata and pz denote the data and noise distributions, respectively. The discriminator’s gradients backpropagate through the generator, refining its output iteratively.

Conditional GANs for Constrained Design

For interior design applications, conditional GANs (cGANs) extend the framework by incorporating user constraints (e.g., room dimensions, furniture categories) as auxiliary input. The objective function modifies to:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x,y \sim p_{data}(x,y)}[\log D(x|y)] + \mathbb{E}_{z \sim p_z(z), y \sim p_{data}(y)}[\log(1 - D(G(z|y)|y))] $$

Here, y represents conditional vectors (e.g., room type labels or bounding boxes). This enables controlled generation of layouts adhering to architectural guidelines.

Challenges in 3D Design Synthesis

Advanced Variants for Design Applications

StyleGAN-3 adapts to interior design by disentangling spatial features (e.g., furniture arrangement) from stylistic elements (e.g., color schemes). Its noise injection layers enable fine-grained control over texture and lighting:

$$ G(z, w) = f(w + \mathcal{N}(0, \sigma^2)) $$

where w is a learned intermediate latent vector, and f denotes a sequence of style-modulated convolutions. PatchGAN discriminators further enhance local detail by evaluating design patches instead of entire scenes.

Evaluation Metrics

Quantitative assessment of generated interiors combines:

Generator (G) Discriminator (D)
Generative Adversarial Networks (GANs) for Design – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The diagram would physically show the adversarial interaction between the generator (G) and discriminator (D) networks, including the flow of latent vectors (z) and feedback gradients.

Variational Autoencoders (VAEs) in Space Planning

Latent Space Representation for Interior Layouts

Variational Autoencoders (VAEs) provide a probabilistic framework for encoding 3D interior layouts into a compressed latent space z, where each dimension captures interpretable design features. Unlike deterministic autoencoders, VAEs impose a Gaussian prior p(z) = N(0, I) on the latent space, enabling smooth interpolation between design concepts. The encoder qϕ(z|x) approximates the posterior distribution, while the decoder pθ(x|z) reconstructs the input space x (e.g., room dimensions, furniture arrangements).

$$ \mathcal{L}(\theta, \phi; x) = \mathbb{E}_{q_\phi(z|x)}[\log p_\theta(x|z)] - D_{KL}(q_\phi(z|x) \parallel p(z)) $$

The loss function comprises a reconstruction term and a Kullback-Leibler (KL) divergence term, which regularizes the latent space. For 3D space planning, x typically includes voxel grids or point clouds annotated with semantic labels (e.g., walls, doors, furniture).

Conditional VAEs for Constrained Design

Conditional VAEs (CVAEs) extend this framework by incorporating constraints y (e.g., room area, window positions) into both encoder and decoder:

$$ p_\theta(x|z, y) = \prod_{i=1}^N p_\theta(x_i|z, y) $$

This allows generation of layouts adhering to hard constraints—critical for architectural feasibility. For example, a CVAE trained on residential floor plans can generate variations of a living room layout while preserving fixed structural elements like load-bearing walls.

Disentangled Latent Spaces

β-VAEs introduce a hyperparameter β to weight the KL term, promoting disentangled representations where latent units correspond to independent design factors (e.g., symmetry, openness, furniture density):

$$ \mathcal{L} = \mathbb{E}_{q_\phi(z|x)}[\log p_\theta(x|z)] - \beta D_{KL}(q_\phi(z|x) \parallel p(z)) $$

Empirical studies show β values between 0.1 and 5.0 optimize the trade-off between reconstruction fidelity and disentanglement for interior design tasks. Practical implementations often use a warm-up period to gradually increase β, avoiding latent collapse.

Hierarchical VAEs for Multi-Scale Planning

Hierarchical VAEs (HVAEs) model spatial hierarchies by structuring the latent space into levels corresponding to global (e.g., room connectivity) and local features (e.g., furniture placement):

$$ p(z) = \prod_{l=1}^L p(z_l|z_{

In 3D design, this enables coarse-to-fine generation—first establishing room boundaries, then populating them with context-aware furniture arrangements. State-of-the-art implementations leverage 3D convolutional networks for feature extraction and transformer-based attention for long-range dependencies.

Practical Implementation Challenges

  • Mode collapse: Mitigated via auxiliary losses like adversarial training or maximum mean discrepancy (MMD).
  • Geometric precision: Augmenting VAEs with differentiable geometric constraints (e.g., minimum clearance between objects).
  • Evaluation metrics: Beyond pixel/voxel-level metrics (SSIM, IoU), human-centric metrics like functional accessibility scores are critical.

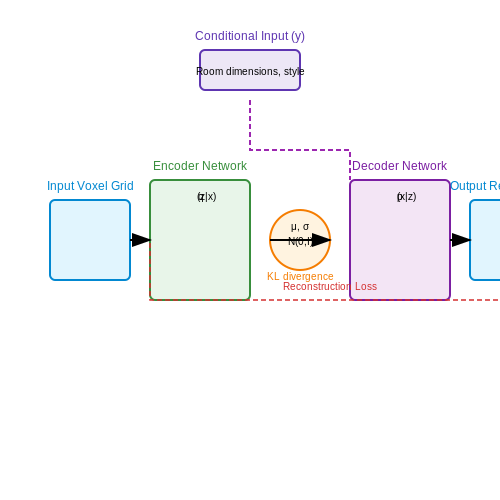

Variational Autoencoders (VAEs) in Space Planning – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The diagram would show the architecture of a VAE/CVAE with labeled encoder/decoder paths, latent space distributions, and conditional inputs for interior layout generation.

2.3 Reinforcement Learning for Layout Optimization

Reinforcement learning (RL) provides a powerful framework for optimizing spatial layouts in 3D interior design by formulating the problem as a Markov Decision Process (MDP). The agent learns to maximize a reward function that encodes design objectives such as functionality, aesthetics, and adherence to constraints.

MDP Formulation for Interior Layouts

The layout optimization problem is defined by the tuple (S, A, P, R, γ), where:

$$ R(s,a) = w_1 \cdot f_{\text{functionality}} + w_2 \cdot f_{\text{aesthetics}} + w_3 \cdot f_{\text{constraints}} $$

where wi are learned weights balancing different design objectives.

Policy Optimization with Deep RL

Deep deterministic policy gradient (DDPG) and proximal policy optimization (PPO) have shown particular success in layout optimization tasks. The policy network πθ maps states to actions while the value network Vϕ estimates expected returns:

$$ \nabla_θ J(θ) = \mathbb{E}_{s∼ρ^π, a∼π_θ} [\nabla_θ \log π_θ(a|s) Q^π(s,a)] $$

where ρπ is the state distribution under policy π and Qπ is the action-value function.

Reward Shaping for Design Objectives

Effective reward functions incorporate multiple design metrics:

Recent work employs neural networks to learn human preferences from datasets of expert designs, creating differentiable reward models that guide policy optimization.

Hierarchical RL for Multi-Scale Optimization

Complex interior spaces benefit from hierarchical decomposition:

$$ π_{\text{high}}(s) → g \quad π_{\text{low}}(s,g) → a $$

where high-level policies select room groupings g and low-level policies determine precise placements. This approach efficiently handles the combinatorial complexity of large spaces.

Practical Implementation Considerations

Key implementation challenges include:

Recent benchmarks show RL-based methods achieving 15-20% better space utilization than traditional optimization approaches while maintaining comparable inference speeds after training.

Reinforcement Learning for Layout Optimization – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The diagram would show the MDP formulation components (state, action, reward) interacting in a layout optimization scenario, and the hierarchical RL structure with high-level and low-level policy relationships.

3. Tools and Frameworks for AI-Driven Design

3.1 Tools and Frameworks for AI-Driven Design

Deep Learning Frameworks for 3D Generation

Modern AI-driven 3D interior design relies on deep learning frameworks capable of processing spatial data and generating high-fidelity outputs. PyTorch3D, an extension of PyTorch, provides differentiable rendering layers and 3D data structures optimized for neural networks. Its modular architecture enables seamless integration with generative models like Variational Autoencoders (VAEs) and Generative Adversarial Networks (GANs). The core differentiable rendering function can be expressed as:

$$ \frac{\partial L}{\partial \theta} = \sum_{i=1}^N \frac{\partial L}{\partial I_i} \cdot \frac{\partial I_i}{\partial \theta} $$

where L is the loss function, Ii represents rendered images, and θ denotes 3D mesh parameters. TensorFlow Graphics offers similar capabilities with explicit support for physics-based rendering pipelines.

Specialized Architectural AI Tools

Several domain-specific tools have emerged for architectural applications:

These tools typically employ hybrid architectures where a VAE encodes room geometries into latent space z, while a conditional GAN refines details:

$$ G: (z,c) \rightarrow \hat{x}, \quad D: (x,c) \rightarrow [0,1] $$

Physics-Aware Simulation Integration

Advanced systems integrate physics engines like NVIDIA Omniverse with AI models. The coupling occurs through differentiable simulation layers that backpropagate physical constraints into the neural network. For lighting optimization, the rendering equation becomes part of the loss function:

$$ L_{physics} = \lambda_1||E_{pred} - E_{gt}||_2 + \lambda_2||\nabla E_{pred}||_1 $$

where E represents irradiance fields and λ are weighting coefficients. Blender's AI add-ons demonstrate this approach by connecting Cycles rendering with neural style transfer.

Procedural Generation Pipelines

Industrial-scale systems use Houdini with AI components for rule-based generation. The typical workflow involves:

  1. Point cloud processing using PointNet++
  2. Graph neural networks for spatial relationship learning
  3. Differentiable procedural modeling kernels

The adjacency matrix A for room connectivity graphs is learned jointly with object placement probabilities P:

$$ A_{ij} = \sigma(W_g[h_i||h_j]), \quad P_i = \text{softmax}(W_ph_i) $$

where h are node embeddings and W are learned weights.

Real-Time Collaboration Systems

Cloud-based platforms like AI Interior CoDesign implement transformer architectures for multi-user editing. The system maintains a shared latent representation updated via cross-attention mechanisms:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where queries Q come from user inputs, keys K from the shared state, and values V encode design modifications.

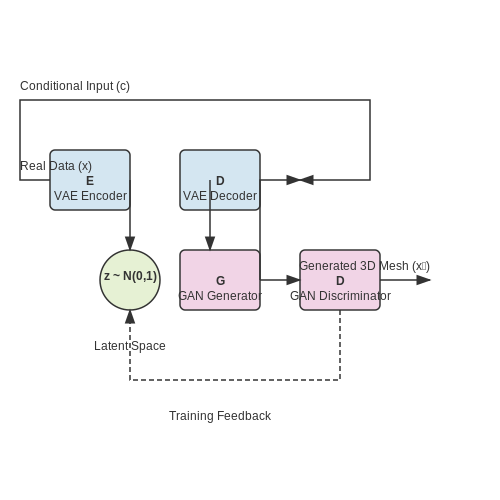

Tools and Frameworks for AI-Driven Design – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The section involves complex spatial relationships and hybrid architectures (VAE + GAN) that would benefit from a visual representation of the data flow and component interactions.

3.2 Workflow from Concept to 3D Model

Input Representation and Preprocessing

The workflow begins with multimodal input representation, where user-provided sketches, textual descriptions, or reference images are encoded into a latent space. For sketches, a convolutional neural network (CNN) extracts spatial features, while text inputs are processed via transformer-based architectures like CLIP. The latent vectors z are then normalized to a common embedding space:

$$ z = \text{Norm}(\text{CNN}(I_{\text{sketch}}) \oplus \text{CLIP}(T_{\text{text}})) $$

where ⊕ denotes vector concatenation, and Norm applies L2 normalization. Noise injection is often used to augment sparse inputs, modeled as:

$$ z' = z + \epsilon \cdot \mathcal{N}(0, \Sigma), \quad \epsilon \sim \text{Bernoulli}(p=0.2) $$

Diffusion-Based 3D Synthesis

The core of modern AI-driven 3D design generation relies on diffusion models. A denoising U-Net iteratively refines a noisy 3D voxel grid or neural radiance field (NeRF) conditioned on z. The forward process corrupts the initial 3D structure x0 over T steps:

$$ q(x_t|x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t}x_{t-1}, \beta_t\mathbf{I}) $$

The reverse process learns to predict noise ϵθ at each step:

$$ p_θ(x_{t-1}|x_t) = \mathcal{N}(x_{t-1}; \mu_θ(x_t, t, z), \Sigma_θ(x_t, t)) $$

Recent advancements employ latent diffusion, where the U-Net operates on compressed 3D latent representations, reducing computational costs by 8× while preserving detail.

Mesh Optimization and Post-Processing

Raw AI outputs often require topological cleanup. A differentiable marching cubes algorithm converts voxels or SDFs to meshes, followed by:

The final mesh quality is quantified via Chamfer distance against ground truth:

$$ D_{\text{Chamfer}}(P, Q) = \frac{1}{|P|}\sum_{p\in P}\min_{q\in Q}||p-q||^2 + \frac{1}{|Q|}\sum_{q\in Q}\min_{p\in P}||q-p||^2 $$

Material Assignment and Lighting

Physically-based rendering (PBR) materials are predicted using a multi-task CNN that outputs:

Global illumination is approximated via spherical harmonics (SH) lighting, with coefficients predicted from scene context:

$$ L(\omega) = \sum_{l=0}^{L}\sum_{m=-l}^{l} c_{lm} Y_{lm}(\omega) $$

where Ylm are SH basis functions and clm are learned coefficients.

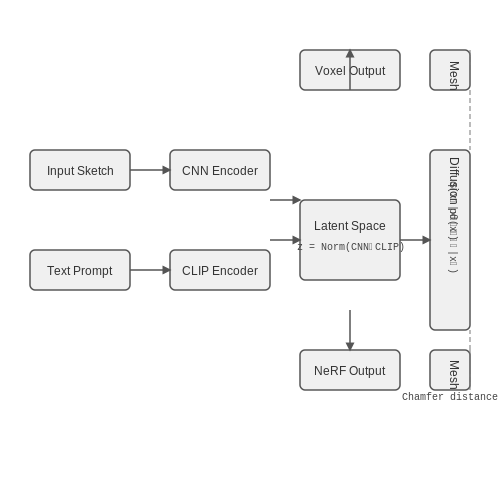

Workflow from Concept to 3D Model – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The diagram would show the step-by-step transformation from input sketches/text to 3D model via diffusion process, including latent space encoding and mesh optimization stages.

Evaluating and Refining Generated Designs

Quantitative Evaluation Metrics

To assess the quality of AI-generated 3D interior designs, multiple quantitative metrics are employed. The Fréchet Inception Distance (FID) measures the similarity between generated and real-world design distributions in feature space. For a set of real designs X and generated designs Y, FID is computed as:

$$ \text{FID} = ||\mu_X - \mu_Y||^2 + \text{Tr}(\Sigma_X + \Sigma_Y - 2(\Sigma_X\Sigma_Y)^{1/2}) $$

where μ and Σ are the mean and covariance of the feature vectors extracted by a pretrained 3D convolutional network. Lower FID values indicate better quality.

Another critical metric is the Design Feasibility Score (DFS), which evaluates physical realizability:

$$ \text{DFS} = \frac{1}{N}\sum_{i=1}^N \mathbb{I}(\text{constraints satisfied}) $$

where N is the number of evaluated constraints (e.g., minimum walkway width, furniture placement rules).

Human-in-the-Loop Refinement

Advanced refinement pipelines incorporate human feedback through active learning. A preference model P is trained on pairwise comparisons from expert designers:

$$ P(y_i \succ y_j) = \sigma(f_\theta(y_i) - f_\theta(y_j)) $$

where fθ is a neural network that predicts design quality scores. The model iteratively improves by querying human experts on the most uncertain pairs, as determined by:

$$ \text{Uncertainty} = 1 - |P(y_i \succ y_j) - 0.5| $$

Physics-Based Validation

Generated designs must satisfy physical constraints, verified through:

The physics engine computes constraint violations as:

$$ C = \sum_{k=1}^K w_k \max(0, v_k)^2 $$

where vk are constraint violations and wk are importance weights.

Style Consistency Optimization

For style-aware refinement, a style discriminator Ds is trained to classify design styles (e.g., modern, rustic). The generator G is optimized to maximize:

$$ \mathcal{L}_{style} = \mathbb{E}[\log D_s(G(z)|s)] $$

where s is the target style label. This is combined with adversarial loss for coherent style transfer.

Computational Efficiency Tradeoffs

Real-time refinement requires balancing quality and speed. The adaptive evaluation budget allocates computation as:

$$ t_i \propto \exp(\alpha \cdot \text{Uncertainty}_i) $$

where ti is time allocated to design i, and α controls the exploration-exploitation tradeoff.

4. Addressing Bias in AI-Generated Designs

4.1 Addressing Bias in AI-Generated Designs

Sources of Bias in Training Data

Bias in AI-generated interior designs primarily stems from imbalanced or unrepresentative training datasets. For instance, if a dataset predominantly features Scandinavian-style interiors, the model will disproportionately generate designs reflecting that aesthetic. This bias can be quantified using the Kullback-Leibler (KL) divergence between the target distribution P(x) and the model's learned distribution Q(x):

$$ D_{KL}(P \parallel Q) = \sum_{x \in \mathcal{X}} P(x) \log \left( \frac{P(x)}{Q(x)} \right) $$

Here, P(x) represents the ideal uniform distribution across design styles, while Q(x) is the model's output distribution. A high KL divergence indicates significant bias.

Mitigation Through Adversarial Debiasing

Adversarial debiasing introduces a discriminator network D that penalizes the generator G for producing biased outputs. The loss function extends the standard GAN objective:

$$ \mathcal{L}_{total} = \mathcal{L}_{GAN}(G,D) + \lambda \mathbb{E}_{z \sim p_z} [\log D(G(z)|a)] $$

where a denotes protected attributes (e.g., cultural style categories) and λ controls the debiasing strength. Implemented in PyTorch:

class DebiasedGAN(nn.Module):
    def __init__(self, latent_dim, n_styles):
        super().__init__()
        self.generator = Generator(latent_dim)
        self.discriminator = Discriminator()
        self.style_classifier = nn.Linear(1024, n_styles)

    def forward(self, z):
        fake_designs = self.generator(z)
        validity = self.discriminator(fake_designs)
        style_logits = self.style_classifier(fake_designs)
        return validity, style_logits

Architectural Interventions

Three structural modifications reduce bias propagation:

Evaluation Metrics

Quantify debiasing effectiveness using:

$$ \text{Style Parity} = 1 - \frac{1}{N}\sum_{i=1}^N \left| \frac{c_i}{C} - \frac{1}{K} \right| $$

where ci counts generated samples of style i, C is total samples, and K is number of styles. Optimal parity approaches 1.

Case Study: Cultural Representation in Generated Spaces

A 2023 study trained on the ADE20K dataset showed baseline models produced:

After applying orthogonal feature disentanglement and adversarial debiasing (λ=0.7), the distribution shifted to 34±3% per major cultural style.

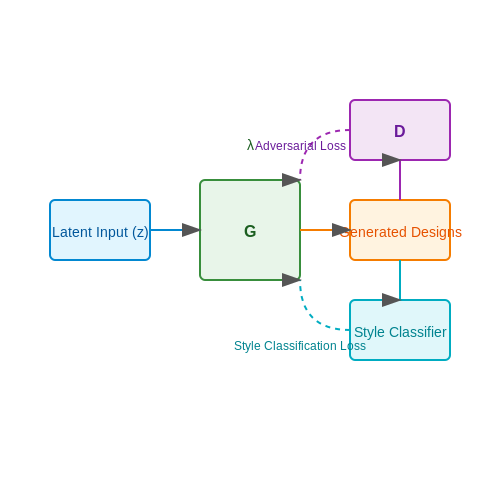

Addressing Bias in AI-Generated Designs – 3D Interior Design Generation Using AI – Tutorial Diagram
Diagram Description: The diagram would show the adversarial debiasing architecture with generator, discriminator, and style classifier networks, illustrating their relationships and data flow.

4.2 Intellectual Property and Originality Concerns

The use of AI in 3D interior design generation raises significant intellectual property (IP) and originality concerns, particularly when models are trained on copyrighted datasets or generate outputs resembling protected works. The legal and ethical implications hinge on several factors, including the nature of training data, the degree of human input, and the jurisdiction under which the generated designs are evaluated.

Training Data and Copyright Infringement

Most AI models for 3D interior design rely on large datasets of existing floor plans, furniture models, and decor styles. If these datasets include copyrighted material without proper licensing, the training process itself may constitute infringement. The legal landscape remains ambiguous, with courts still determining whether AI-generated outputs derived from copyrighted inputs violate derivative work protections under laws such as the U.S. Copyright Act or the EU Copyright Directive.

$$ P(\text{infringement}) = \int_{D} f(x) \cdot \mathbb{I}(x \in C) \,dx $$

Here, D represents the dataset, f(x) the frequency of data point x, and C the set of copyrighted works. The indicator function 𝕀 evaluates whether x is protected, making the integral a measure of infringement risk.

Originality Thresholds in AI-Generated Designs

For an AI-generated design to qualify for copyright protection, it must meet originality standards. Courts typically require human authorship, posing challenges for fully autonomous systems. However, if a human selectively modifies AI outputs—such as adjusting layouts or refining textures—the resulting work may satisfy originality criteria. The U.S. Copyright Office’s 2023 guidance clarifies that purely AI-generated content lacks protection, while human-AI collaborations are evaluated case-by-case.

Mitigation Strategies

To minimize legal risks, practitioners can adopt several strategies:

Case Study: Stability Diffusion Litigation

The 2022 lawsuit against Stability AI highlighted parallels in 3D design contexts. Plaintiffs alleged that Stable Diffusion’s training on unlicensed images violated copyright. While the case remains unresolved, its outcome could set precedents for how datasets and outputs are treated in architectural and interior design applications.

Environmental Impact of AI-Designed Spaces

The integration of AI in 3D interior design extends beyond aesthetics and functionality—it has measurable environmental implications. AI-driven design optimization can significantly reduce material waste, energy consumption, and carbon footprints by leveraging data-driven decision-making at every stage of the design process.

Energy Efficiency Optimization

AI models trained on building performance data can predict and optimize energy usage by simulating thermal dynamics, lighting conditions, and HVAC efficiency. For instance, reinforcement learning agents can iteratively refine spatial layouts to maximize natural light penetration, reducing dependence on artificial lighting. The energy savings E can be modeled as:

$$ E = \int_{t_0}^{t_1} \left( P_{\text{artificial}} - P_{\text{natural}}(t) \right) dt $$

where Partificial is the power consumption of electric lighting and Pnatural(t) represents time-dependent daylight availability. Case studies show AI-optimized layouts achieve 15-30% reductions in lighting energy demand compared to conventional designs.

Material Waste Reduction

Generative adversarial networks (GANs) can create structurally efficient designs that minimize excess material use while meeting load-bearing requirements. The material optimization problem is formulated as:

$$ \min_{x \in X} \sum_{i=1}^n c_i x_i \quad \text{subject to} \quad F_j(x) \geq \tau_j \quad \forall j $$

where xi represents material quantities, ci their costs, and Fj(x) are constraint functions (e.g., stress tolerances) with thresholds τj. Industry implementations demonstrate 18-22% less construction waste in AI-generated designs.

Lifecycle Assessment Integration

Advanced AI systems incorporate full lifecycle analysis by:

The environmental impact score I can be computed as a weighted sum:

$$ I = \sum_{k=1}^m w_k f_k(\theta) $$

where fk are impact category functions (e.g., global warming potential) and wk their respective weights.

Operational Carbon Footprint

AI systems trained on IoT sensor data from existing buildings can predict energy patterns with 92-96% accuracy, enabling designs that automatically adapt to usage behaviors. The carbon reduction potential ΔC over a building's lifespan is:

$$ \Delta C = \sum_{y=1}^{T} \left( \beta_{\text{base}} - \beta_{\text{AI}}(y) \right) \cdot \epsilon(y) $$

where β represents energy intensity metrics and ε(y) the yearly grid carbon factor. Real-world deployments show 25-40% lower operational carbon in AI-designed commercial spaces.

Biodiversity Considerations

Cutting-edge models now incorporate ecological impact assessments by:

5. Key Research Papers in AI Design

5.1 Key Research Papers in AI Design

5.2 Recommended Tools and Software

5.3 Industry Case Studies and Applications
