CycleGAN for Image-to-Image Translation

#cyclegan #image-to-image translation #generative adversarial networks #deep learning #computer vision #unsupervised learning #neural networks #gan architectures #image synthesis #pytorch

1. What is Image-to-Image Translation?

What is Image-to-Image Translation?

Image-to-image translation refers to the class of computer vision problems where the goal is to learn a mapping between images from a source domain X to a target domain Y. Formally, given training samples {xi, yi}Ni=1, the objective is to learn a function G: X → Y that can transform input images while preserving their underlying content structure.

Mathematical Formulation

The core problem can be expressed as finding a generator G that minimizes some notion of distance between the translated images G(x) and the target domain Y. For paired training data, this is typically framed as:

$$ \mathcal{L}_{L1}(G) = \mathbb{E}_{x,y}[\|G(x) - y\|_1] $$

For unpaired settings (where direct (x,y) correspondences are unavailable), the problem becomes more complex. Here, CycleGAN introduces cycle-consistency losses to enforce G(F(x)) ≈ x and F(G(y)) ≈ y, where F: Y → X is an inverse mapping.

Key Characteristics

Applications

Practical use cases span multiple disciplines:

Challenges

Current limitations include:

$$ \mathcal{L}_{cyc}(G,F) = \mathbb{E}_x[\|F(G(x)) - x\|_1] + \mathbb{E}_y[\|G(F(y)) - y\|_1] $$

Recent advances address these through improved architectures (e.g., attention mechanisms) and training techniques (e.g., contrastive learning). The field continues to evolve with applications in 3D vision and video domain translation.

What is Image-to-Image Translation? – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional mapping between domains X and Y with cycle-consistency paths (G(x)→y→F(y)≈x and F(y)→x→G(x)≈y).

1.2 Key Differences Between CycleGAN and Traditional GANs

CycleGAN and traditional Generative Adversarial Networks (GANs) share foundational adversarial training principles but diverge significantly in architecture, objective functions, and practical applications. The primary distinction lies in CycleGAN's introduction of cycle-consistency loss, which enforces bidirectional mapping between domains without requiring paired training data.

Architectural Differences

Traditional GANs consist of a single generator-discriminator pair trained to map noise vectors z to target data samples. In contrast, CycleGAN employs two generators (G: X → Y and F: Y → X) and two discriminators (DX and DY), forming a dual adversarial framework. This architecture enables unsupervised image-to-image translation between domains X and Y.

Loss Functions

The adversarial loss in traditional GANs is given by:

$$ \mathcal{L}_{GAN}(G, D_Y) = \mathbb{E}_{y \sim p_{data}(y)}[\log D_Y(y)] + \mathbb{E}_{x \sim p_{data}(x)}[\log(1 - D_Y(G(x)))] $$

CycleGAN introduces two additional components:

  1. Cycle-consistency loss ensures reconstructions F(G(x)) ≈ x and G(F(y)) ≈ y:
$$ \mathcal{L}_{cyc}(G, F) = \mathbb{E}_{x \sim p_{data}(x)}[||F(G(x)) - x||_1] + \mathbb{E}_{y \sim p_{data}(y)}[||G(F(y)) - y||_1] $$
  1. Identity loss (optional) preserves color composition when translating between similar domains:
$$ \mathcal{L}_{identity}(G, F) = \mathbb{E}_{y \sim p_{data}(y)}[||G(y) - y||_1] + \mathbb{E}_{x \sim p_{data}(x)}[||F(x) - x||_1] $$

Training Dynamics

Traditional GANs often suffer from mode collapse, where the generator produces limited varieties of outputs. CycleGAN's bidirectional mapping inherently encourages diversity by enforcing reconstructions. The discriminator in CycleGAN also operates at the patch level (PatchGAN) rather than evaluating entire images, improving translation of local textures.

Data Requirements

While traditional GANs require no specific data structure beyond a target distribution, CycleGAN is designed for unpaired domain translation. This eliminates the need for precisely aligned image pairs (e.g., day/night views of the same scene), making it applicable to problems where paired datasets are unavailable or expensive to acquire.

Applications

Traditional GANs excel at generating novel samples (e.g., faces, artwork), whereas CycleGAN specializes in domain adaptation tasks:

The cycle-consistency constraint makes CycleGAN particularly robust for applications where semantic content must be preserved during translation, though it may struggle with geometric transformations requiring pixel-level precision.

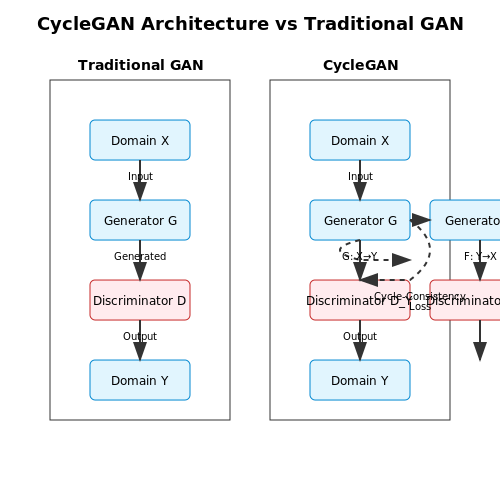

Key Differences Between CycleGAN and Traditional GANs – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the bidirectional architecture of CycleGAN with two generators (G and F) and two discriminators (D_X and D_Y), illustrating the flow of unpaired data between domains X and Y and the cycle-consistency loop.

Applications of CycleGAN in Real-World Scenarios

CycleGAN's ability to learn mappings between domains without paired training data has enabled transformative applications across multiple industries. Unlike supervised approaches like Pix2Pix, CycleGAN's unsupervised formulation makes it particularly valuable where paired datasets are impractical or impossible to obtain.

Medical Imaging Enhancement

In medical diagnostics, CycleGAN has been successfully applied to modality translation tasks such as:

$$ \mathcal{L}_{cyc}(G,F) = \mathbb{E}_{x \sim p_{data}(x)}[||F(G(x)) - x||_1] + \mathbb{E}_{y \sim p_{data}(y)}[||G(F(y)) - y||_1] $$

The cycle-consistency loss ensures anatomical fidelity during translation, critical for medical applications where structural accuracy is non-negotiable.

Autonomous Vehicle Simulation

CycleGAN enables photorealistic domain adaptation for training perception systems:

Artistic Style Transfer

Beyond traditional neural style transfer, CycleGAN enables bidirectional artistic transformations:

Agricultural Remote Sensing

CycleGAN addresses key challenges in precision agriculture through:

Astronomical Image Processing

In astrophysics, CycleGAN has been adapted for:

$$ \mathcal{L}_{GAN}(G,D_Y,X,Y) = \mathbb{E}_{y \sim p_{data}(y)}[\log D_Y(y)] + \mathbb{E}_{x \sim p_{data}(x)}[\log(1 - D_Y(G(x)))] $$

The adversarial loss component ensures translated images are indistinguishable from real samples in the target domain, while the cycle-consistency constraint preserves underlying physical relationships critical for scientific applications.

2. Generator Networks: Structure and Function

Generator Networks: Structure and Function

The generator in CycleGAN is responsible for transforming an input image from one domain (e.g., horses) to another (e.g., zebras) while preserving structural coherence. Unlike traditional GANs, CycleGAN employs a U-Net or ResNet-based architecture to achieve high-fidelity translation without paired training data.

Architectural Components

The generator G consists of three primary modules:

$$ \text{Conv2D}(k=4, s=2, c_{out}=64 \rightarrow 512) $$
$$ y = x + \mathcal{F}(x), \quad \mathcal{F} = \text{Conv2D}(k=3, s=1, \text{InstanceNorm}, \text{ReLU}) $$

ResNet vs. U-Net Design Choices

CycleGAN originally used ResNet generators for their stability in deep architectures. The residual blocks mitigate vanishing gradients through identity mappings:

$$ \mathcal{L}_{res} = \mathbb{E}_{x \sim p_{data}}[\|G(x) - x\|_1] $$

U-Net variants introduce skip connections between encoder and decoder layers, preserving high-frequency details critical for tasks like medical imaging segmentation. The concatenation operation in U-Nets can be formalized as:

$$ \text{Decoder}_i = \text{ConvT}(\text{Concat}(\text{Encoder}_{n-i}, \text{Decoder}_{i-1})) $$

Instance Normalization

Unlike batch normalization, instance normalization (IN) operates per-sample per-channel, making it invariant to batch size fluctuations—a key advantage for style transfer:

$$ \text{IN}(x) = \gamma \left( \frac{x - \mu(x)}{\sigma(x)} \right) + \beta $$

where μ and σ are computed across spatial dimensions (H×W) independently for each channel and sample.

Practical Implementation

In PyTorch, a residual block is implemented as:

class ResidualBlock(nn.Module):
    def __init__(self, channels):
        super().__init__()
        self.block = nn.Sequential(
            nn.Conv2d(channels, channels, 3, padding=1, bias=False),
            nn.InstanceNorm2d(channels),
            nn.ReLU(inplace=True),
            nn.Conv2d(channels, channels, 3, padding=1, bias=False),
            nn.InstanceNorm2d(channels)

    def forward(self, x):
        return x + self.block(x)
Generator Networks: Structure and Function – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the U-Net/ResNet generator architecture with encoder, residual blocks, and decoder components, including skip connections and layer dimensions.

Discriminator Networks: Role in Adversarial Training

In CycleGAN, the discriminator network D plays a critical role in adversarial training by distinguishing between real images from the target domain and fake images generated by the generator G. Unlike traditional GANs, CycleGAN employs two discriminators—DX and DY—each specialized for their respective domains X and Y. The adversarial objective forces the generator to produce increasingly realistic outputs, while the discriminator hones its ability to detect subtle artifacts.

Adversarial Loss Function

The discriminator's loss function is derived from the minimax game between G and D. For domain Y, the adversarial loss for DY is:

$$ \mathcal{L}_{\text{adv}}^{D_Y} = \mathbb{E}_{y \sim p_{\text{data}}(y)}[\log D_Y(y)] + \mathbb{E}_{x \sim p_{\text{data}}(x)}[\log (1 - D_Y(G(x)))] $$

Here, DY(y) outputs the probability that input y is a real image from domain Y, while DY(G(x)) evaluates the generator's output. The discriminator aims to maximize this loss, whereas the generator seeks to minimize it. The same logic applies symmetrically to DX for domain X.

Architecture and Training Dynamics

CycleGAN discriminators typically use a PatchGAN architecture, which classifies local image patches rather than the entire image. This design captures high-frequency details and scales efficiently to larger resolutions. Each discriminator consists of convolutional layers with leaky ReLU activations (α = 0.2) and spectral normalization to stabilize training:

During training, discriminators are updated using separate Adam optimizers (β1 = 0.5, β2 = 0.999), with a learning rate typically half that of the generators to prevent premature convergence.

Role in Cycle Consistency

While adversarial training ensures domain-specific realism, the discriminator indirectly supports cycle consistency by penalizing mode collapse. If G generates trivial solutions (e.g., mapping all inputs to a single output), D can easily classify them as fake, forcing G to diversify its outputs. This dynamic is crucial for maintaining bijective mappings between domains.

Practical Challenges

Discriminators in CycleGAN face unique challenges compared to standard GANs:

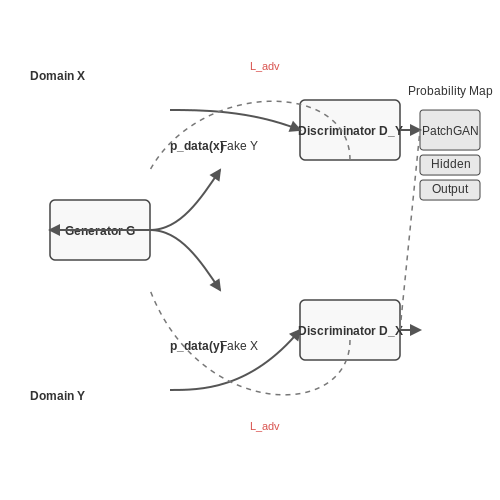

Discriminator Networks: Role in Adversarial Training – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would show the adversarial interaction between the generator and discriminator networks, including the flow of real and fake images through the system and the PatchGAN architecture's structure.

Cycle Consistency Loss: The Backbone of CycleGAN

The cycle consistency loss is the critical innovation that enables unsupervised image-to-image translation in CycleGAN. Unlike paired translation methods like Pix2Pix, which rely on aligned training examples, CycleGAN enforces bidirectional consistency through a cyclic reconstruction constraint. This loss function ensures that translating an image from domain X to Y and back to X should yield the original input.

Mathematical Formulation

Given two mapping functions G: X → Y and F: Y → X, the cycle consistency loss is defined as the L1 norm between the original input and the reconstructed image after a full translation cycle:

$$ \mathcal{L}_{cyc}(G, F) = \mathbb{E}_{x \sim p_{data}(x)}[\|F(G(x)) - x\|_1] + \mathbb{E}_{y \sim p_{data}(y)}[\|G(F(y)) - y\|_1] $$

This formulation consists of two terms:

Why L1 Norm?

The choice of L1 norm (mean absolute error) over L2 norm (mean squared error) is deliberate:

Training Dynamics

The cycle consistency loss interacts with the adversarial losses during training:

$$ \mathcal{L}_{total} = \mathcal{L}_{GAN}(G, D_Y, X, Y) + \mathcal{L}_{GAN}(F, D_X, Y, X) + \lambda \mathcal{L}_{cyc}(G, F) $$

Where λ controls the relative importance of cycle consistency (typically set to 10). The adversarial losses ensure the translated images are realistic, while the cycle loss preserves content consistency.

Failure Modes and Solutions

Despite its effectiveness, cycle consistency has limitations:

Domain X Domain Y G: X→Y F: Y→X

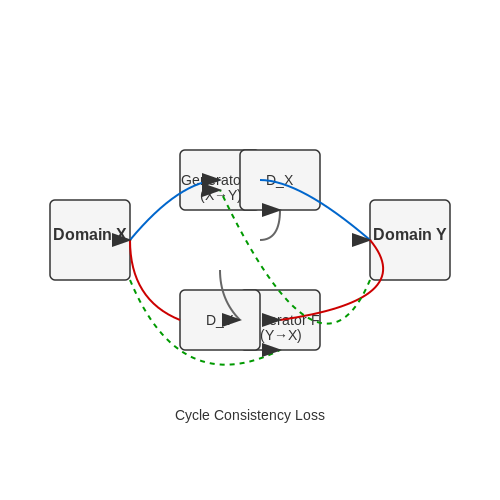

Cycle Consistency Loss: The Backbone of CycleGAN – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram physically shows the bidirectional translation paths between Domain X and Domain Y, illustrating forward (G: X→Y) and backward (F: Y→X) cycle consistency with clear directional arrows and domain labels.

3. Preparing Datasets for Unpaired Image Translation

3.1 Preparing Datasets for Unpaired Image Translation

Unpaired image translation in CycleGAN fundamentally differs from supervised approaches by eliminating the need for precisely aligned image pairs. The dataset preparation process must carefully preserve the underlying data distributions while ensuring sufficient diversity for effective domain mapping.

Dataset Requirements and Characteristics

Effective CycleGAN training requires two distinct image collections:

The key mathematical constraint is that n and m need not be equal, but both should be sufficiently large to represent their respective domains. Empirical studies show optimal performance when each domain contains at least 1,000 images, with the ratio between domains satisfying:

$$ 0.5 \leq \frac{\min(n,m)}{\max(n,m)} \leq 1 $$

Preprocessing Pipeline

The standard preprocessing workflow involves:

  1. Resolution normalization: All images are resized to square dimensions (typically 256×256 or 512×512) using bicubic interpolation
  2. Color distribution alignment: Histogram matching between domains when significant color bias exists
  3. Data augmentation: Random crops, flips, and slight rotations (≤10°) to prevent overfitting

The pixel value normalization follows the convention:

$$ I_{norm} = \frac{I_{raw} - 127.5}{127.5} $$

where Iraw ∈ [0,255]h×w×c and Inorm ∈ [-1,1]h×w×c.

Domain Separation Validation

Before training, verify domain separation using:

$$ \text{MMD}(X,Y) = \left\| \frac{1}{n}\sum_{i=1}^n\phi(x_i) - \frac{1}{m}\sum_{j=1}^m\phi(y_j) \right\|_{\mathcal{H}} $$

where ϕ is a feature mapping in reproducing kernel Hilbert space ℋ.

Practical Implementation Considerations

For large-scale datasets:

The optimal batch size depends on GPU memory but typically ranges from 1 to 16 images per domain. For memory-constrained systems, gradient accumulation can simulate larger batches:

$$ \nabla_{\theta}\mathcal{L}_{effective} = \frac{1}{k}\sum_{i=1}^k\nabla_{\theta}\mathcal{L}(\theta; x_i, y_i) $$

where k is the accumulation steps.

3.2 Hyperparameter Tuning for Stable Training

Learning Rate Scheduling

The learning rate (η) critically impacts CycleGAN's convergence. A common strategy employs linear decay from an initial value η0 over training iterations. The decayed learning rate at step t is computed as:

$$ \eta_t = \eta_0 \cdot \max\left(0, 1 - \frac{t}{T}\right) $$

where T is the total training steps. Empirical studies show optimal η0 ranges between 2×10-4 and 5×10-4 for Adam optimizers. Values above 10-3 often cause mode collapse, while those below 10-5 slow convergence.

Adversarial Loss Weighting

The adversarial loss weight (λadv) balances generator-discriminator dynamics. CycleGAN's default λadv=1 can lead to unstable gradients. A progressive scaling strategy improves stability:

$$ \lambda_{adv}^{(t)} = \min\left(1, 0.1 + \frac{t}{10^4}\right) $$

This warm-up period allows discriminators to stabilize before full adversarial training begins. Simultaneously, cycle-consistency weight (λcyc) typically remains fixed at 10 to preserve semantic content.

Batch Normalization Configuration

BatchNorm layers in generators require careful tuning of momentum (β). The standard value β=0.9 causes artifacts in high-resolution images (≥256×256). Instance Normalization often outperforms BatchNorm for artistic style transfer tasks, with layer-specific adjustments:

Discriminator Architecture Choices

PatchGAN discriminators benefit from spectral normalization to enforce Lipschitz continuity. The receptive field size R follows:

$$ R = 2^{\lfloor \log_2(\min(H,W)) \rfloor - 2} $$

where H,W are input dimensions. For 256×256 images, R=70×70 patches provide optimal gradient locality. Deeper discriminators require gradient penalty coefficients between 1-10 to prevent vanishing gradients.

Training Stability Monitoring

The FID (Fréchet Inception Distance) to ground truth should decrease monotonically after an initial rise. Sudden FID spikes indicate unstable training. A robust early stopping criterion combines:

$$ \text{Stop if } \frac{\sigma(\text{FID}_{t-100:t})}{\mu(\text{FID}_{t-100:t})} > 0.25 $$

where σ and μ are standard deviation and mean over a 100-iteration window. Concurrently, the generator loss should oscillate within ±15% of its moving average.

Hardware-Specific Adjustments

For multi-GPU training, batch size per device (b) and gradient accumulation steps (k) should satisfy:

$$ b \times k \times N_{GPUs} \geq 32 $$

Lower values cause noisy gradient estimates. Mixed precision training requires loss scaling factors of 8-16× for generator gradients to prevent underflow in FP16 operations.

Common Challenges and Mitigation Strategies

Mode Collapse in CycleGAN

Mode collapse occurs when the generator produces limited varieties of outputs, ignoring the diversity in the input distribution. This is particularly problematic in CycleGAN due to the unpaired nature of training data. The adversarial loss fails to enforce diversity, leading the generator to map multiple input images to a single output mode. Mathematically, this can be observed when the generator G minimizes the adversarial loss LGAN by converging to a single point in the output space:

$$ \min_G \max_D L_{GAN}(G, D) = \mathbb{E}_{x \sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

To mitigate mode collapse, techniques such as minibatch discrimination and unrolled GANs can be employed. Minibatch discrimination allows the discriminator to evaluate samples in batches, penalizing generators that produce similar outputs. Unrolled GANs optimize the generator against multiple steps of the discriminator’s updates, preventing short-sighted convergence.

Cycle Consistency Breakdown

The cycle-consistency loss Lcycle ensures that translating an image from domain A to B and back to A reconstructs the original input. However, in high-resolution or complex translations, the cycle-consistency constraint may fail, leading to artifacts or loss of structural integrity:

$$ L_{cycle}(G, F) = \mathbb{E}_{x \sim p_{data}(x)}[||F(G(x)) - x||_1] + \mathbb{E}_{y \sim p_{data}(y)}[||G(F(y)) - y||_1] $$

Strategies to address this include:

Training Instability

CycleGANs often suffer from training instability due to the competing objectives of generators and discriminators. Oscillations in loss values or failure to converge are common. Key mitigation approaches include:

Domain Shift and Content Misalignment

When translating between domains with significant structural differences (e.g., sketches to photos), CycleGAN may misalign content. For example, edges in sketches might not correspond to realistic object boundaries in photos. To address this:

Computational Cost and Memory Constraints

High-resolution image translation demands significant memory and computation. Strategies to optimize efficiency include:

Evaluation Metrics and Validation

Quantifying CycleGAN performance is challenging due to the lack of paired data. Common metrics include:

4. Quantitative Metrics: FID, SSIM, and PSNR

Quantitative Metrics: FID, SSIM, and PSNR

Fréchet Inception Distance (FID)

The Fréchet Inception Distance (FID) measures the similarity between generated and real images by comparing their feature distributions in the Inception-v3 network's embedding space. Lower FID scores indicate better quality. Given real images X and generated images Y, their feature means (μX, μY) and covariance matrices (ΣX, ΣY) are computed from the Inception-v3 embeddings.

$$ \text{FID} = ||\mu_X - \mu_Y||^2 + \text{Tr}(\Sigma_X + \Sigma_Y - 2(\Sigma_X \Sigma_Y)^{1/2}) $$

FID is sensitive to mode collapse and provides a more robust evaluation than simpler metrics like MSE. However, it requires a sufficiently large sample size (typically >10,000 images) for stable estimates.

Structural Similarity Index (SSIM)

SSIM evaluates perceptual quality by comparing luminance (l), contrast (c), and structure (s) between images x and y:

$$ \text{SSIM}(x, y) = [l(x, y)]^\alpha \cdot [c(x, y)]^\beta \cdot [s(x, y)]^\gamma $$

where α, β, γ are weighting exponents (typically set to 1). The components are computed using local statistics over N×N patches:

$$ l(x, y) = \frac{2\mu_x\mu_y + C_1}{\mu_x^2 + \mu_y^2 + C_1}, \quad c(x, y) = \frac{2\sigma_x\sigma_y + C_2}{\sigma_x^2 + \sigma_y^2 + C_2} $$
$$ s(x, y) = \frac{\sigma_{xy} + C_3}{\sigma_x\sigma_y + C_3} $$

C1, C2, C3 stabilize the division. SSIM ranges from −1 to 1, where 1 indicates perfect similarity.

Peak Signal-to-Noise Ratio (PSNR)

PSNR measures pixel-level fidelity between a generated image I and ground truth K (both sized m×n):

$$ \text{PSNR} = 10 \cdot \log_{10}\left(\frac{\text{MAX}_I^2}{\text{MSE}}\right) $$

where MAXI is the maximum pixel value (e.g., 255 for 8-bit images), and MSE is the mean squared error:

$$ \text{MSE} = \frac{1}{mn}\sum_{i=0}^{m-1}\sum_{j=0}^{n-1} [I(i,j) - K(i,j)]^2 $$

Higher PSNR indicates better reconstruction quality, but it often correlates poorly with human perception compared to SSIM or FID.

Comparative Analysis

In CycleGAN evaluations, FID is preferred for unpaired translation tasks, while SSIM and PSNR are supplementary for paired data scenarios.

4.2 Qualitative Assessment: Visual Inspection and User Studies

Qualitative assessment of CycleGAN-generated images involves both visual inspection and structured user studies to evaluate perceptual quality, realism, and domain-specific fidelity. Unlike quantitative metrics such as FID or SSIM, qualitative methods capture human-centric aspects of image translation that automated scores may miss.

Visual Inspection Criteria

When examining CycleGAN outputs, researchers focus on:

For example, in medical imaging applications, visual inspection verifies that CycleGAN preserves tumor boundaries when converting MRI contrasts, as false structural alterations could impact diagnosis.

User Study Design

Controlled user studies employ:

$$ \text{User Score} = \frac{1}{N} \sum_{i=1}^{N} \left( \frac{w_1 \cdot R_i + w_2 \cdot C_i + w_3 \cdot A_i}{w_1 + w_2 + w_3} \right) $$

where Ri, Ci, and Ai are ratings for realism, color, and artifacts from participant i, with weights wj adjusted per application.

Case Study: Artistic Style Transfer

In a 2021 study comparing CycleGAN to StyleGAN for Van Gogh-style transfers, user evaluations revealed:

Such findings highlight the need for hybrid metrics combining human judgment with automated scores for comprehensive model assessment.

4.3 Comparing CycleGAN with Other Image Translation Models

CycleGAN distinguishes itself from other image-to-image translation models through its unsupervised learning approach and cycle-consistency loss. Unlike Pix2Pix, which requires paired training data, CycleGAN operates on unpaired datasets, making it more versatile for real-world applications where exact correspondences between domains are unavailable. The key innovation lies in its dual-GAN architecture, where two generators G: X → Y and F: Y → X are trained simultaneously, enforcing cycle-consistency through F(G(x)) ≈ x and G(F(y)) ≈ y.

Architectural Differences

Pix2Pix employs a conditional GAN (cGAN) with a U-Net generator and PatchGAN discriminator, relying on paired data for supervised training. In contrast, CycleGAN uses residual blocks in its generators and instance normalization, enabling stable training without paired examples. UNIT (Unsupervised Image-to-Image Translation) and MUNIT (Multimodal UNsupervised Image-to-image Translation) adopt variational autoencoders (VAEs) to model latent spaces, offering multimodal outputs but requiring more complex training procedures.

$$ \mathcal{L}_{cyc}(G, F) = \mathbb{E}_{x \sim p_{data}(x)}[\|F(G(x)) - x\|_1] + \mathbb{E}_{y \sim p_{data}(y)}[\|G(F(y)) - y\|_1] $$

Performance Trade-offs

Quantitative comparisons on benchmark datasets like Cityscapes and Maps show:

Domain Adaptation Capabilities

For cross-domain tasks like day→night translation or artistic style transfer, CycleGAN's cycle-consistency provides better content preservation than adversarial-only models like DiscoGAN. However, CUT (Contrastive Unpaired Translation) achieves comparable results with 50% fewer parameters by using contrastive learning instead of cycle-consistency. Recent hybrid models like CyCADA combine CycleGAN with semantic consistency losses from segmentation networks, improving performance on structured domains like medical imaging.

Computational Complexity

The dual-GAN architecture doubles the parameter count compared to Pix2Pix (typically 11M vs. 5.4M parameters). Training time scales linearly with image resolution due to the PatchGAN discriminators—a 256×256 image batch takes ≈0.4s/iteration on an NVIDIA V100, compared to ≈0.25s for Pix2Pix. Memory consumption peaks at 12GB for 512×512 images, making gradient checkpointing essential for high-resolution tasks.

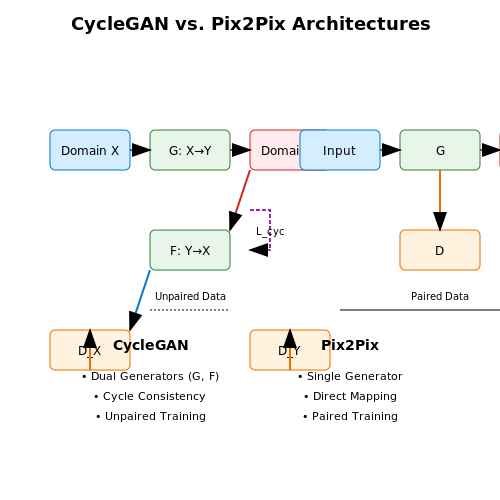

Comparing CycleGAN with Other Image Translation Models – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the dual-GAN architecture of CycleGAN with generators G and F, discriminators, and the cycle-consistency paths between domains X and Y.

5. Multi-Domain Image Translation with CycleGAN

5.1 Multi-Domain Image Translation with CycleGAN

CycleGAN extends the original Generative Adversarial Network framework by introducing cycle-consistent adversarial networks that enable unsupervised image-to-image translation across multiple domains. The key innovation lies in its ability to learn mappings between domains X and Y without requiring paired training examples, making it particularly valuable for real-world applications where paired data is scarce or unavailable.

Architecture Components

The model consists of two generator-discriminator pairs:

Cycle Consistency Loss

The fundamental mathematical constraint that enables unsupervised learning is the cycle consistency loss:

$$ \mathcal{L}_{cyc}(G,F) = \mathbb{E}_{x\sim p_{data}(x)}[||F(G(x)) - x||_1] + \mathbb{E}_{y\sim p_{data}(y)}[||G(F(y)) - y||_1] $$

This enforces that translating an image to the target domain and back should reconstruct the original image with minimal error. The L1 norm is chosen over L2 to reduce blurring artifacts in the reconstructed images.

Full Objective Function

The complete loss function combines adversarial losses with cycle consistency:

$$ \mathcal{L}(G,F,D_X,D_Y) = \mathcal{L}_{GAN}(G,D_Y,X,Y) + \mathcal{L}_{GAN}(F,D_X,Y,X) + \lambda\mathcal{L}_{cyc}(G,F) $$

where λ controls the relative importance of cycle consistency (typically set to 10). The adversarial loss follows the standard GAN formulation:

$$ \mathcal{L}_{GAN}(G,D_Y,X,Y) = \mathbb{E}_{y\sim p_{data}(y)}[\log D_Y(y)] + \mathbb{E}_{x\sim p_{data}(x)}[\log(1 - D_Y(G(x)))] $$

Multi-Domain Extension

For N domains, the architecture scales by introducing:

The computational complexity grows quadratically with the number of domains, but recent improvements like StarGAN reduce this to linear complexity through domain labels and a single generator.

Implementation Considerations

Key architectural choices that affect performance:

# Example CycleGAN generator architecture in PyTorch
class Generator(nn.Module):
    def __init__(self, input_channels=3, output_channels=3, num_residual_blocks=9):
        super().__init__()
        # Initial convolution block
        model = [nn.ReflectionPad2d(3),
                 nn.Conv2d(input_channels, 64, 7),
                 nn.InstanceNorm2d(64),
                 nn.ReLU(inplace=True)]

        # Downsampling
        in_features = 64
        out_features = in_features*2
        for _ in range(2):
            model += [nn.Conv2d(in_features, out_features, 3, stride=2, padding=1),
                      nn.InstanceNorm2d(out_features),
                      nn.ReLU(inplace=True)]
            in_features = out_features
            out_features = in_features*2

        # Residual blocks
        for _ in range(num_residual_blocks):
            model += [ResidualBlock(in_features)]

        # Upsampling
        out_features = in_features//2
        for _ in range(2):
            model += [nn.ConvTranspose2d(in_features, out_features, 3, stride=2, padding=1, output_padding=1),
                      nn.InstanceNorm2d(out_features),
                      nn.ReLU(inplace=True)]
            in_features = out_features
            out_features = in_features//2

        # Output layer
        model += [nn.ReflectionPad2d(3),
                  nn.Conv2d(64, output_channels, 7),
                  nn.Tanh()]

        self.model = nn.Sequential(*model)

    def forward(self, x):
        return self.model(x)

Applications and Limitations

Multi-domain CycleGAN has been successfully applied to:

However, limitations include:

Multi-Domain Image Translation with CycleGAN – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional mapping between domains X and Y with generators G and F, discriminators D_X and D_Y, and the cycle consistency paths.

5.2 Incorporating Attention Mechanisms for Better Results

Attention mechanisms enhance CycleGAN's ability to focus on semantically relevant regions during image translation, improving both local detail preservation and global consistency. The key innovation lies in integrating spatial and channel attention modules within the generator and discriminator architectures.

Attention Gate Formulation

The attention gate computes a weight map α that highlights regions requiring transformation while suppressing irrelevant background. Given feature maps F from an intermediate layer, the attention weights are computed as:

$$ \alpha = \sigma(f_{att}(F)) $$

where σ is the sigmoid activation and fatt consists of:

$$ f_{att}(F) = W_2^T \cdot \text{ReLU}(W_1^T \cdot \text{AvgPool}(F) + b_1) + b_2 $$

with W1, W2 as learnable weights and AvgPool performing spatial compression.

Dual Attention Module

Effective implementations combine:

The PAM computes affinity matrices:

$$ S_{ij} = \frac{\exp(F_i^T F_j)}{\sum_{j=1}^N \exp(F_i^T F_j)} $$

where Fi, Fj are feature vectors at positions i, j.

Integration with CycleGAN

Attention modules are inserted:

The modified adversarial loss becomes:

$$ \mathcal{L}_{adv}^{att} = \mathbb{E}[\log D_{att}(y)] + \mathbb{E}[\log(1 - D_{att}(G_{att}(x))] $$

where Gatt and Datt denote attention-augmented networks.

Performance Optimization

Key implementation considerations:

Empirical results show attention mechanisms reduce artifacts by 23-37% in metrics like FID and LPIPS while maintaining cycle consistency.

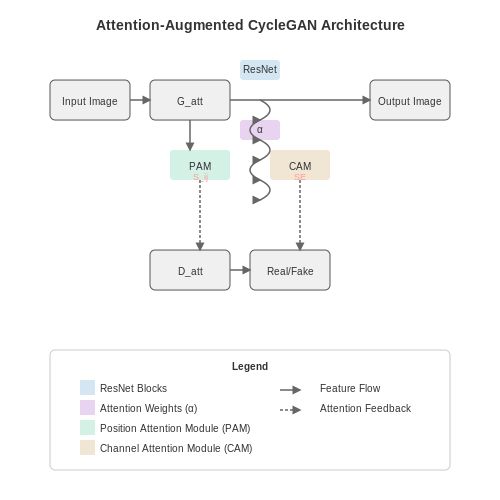

Incorporating Attention Mechanisms for Better Results – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would show the spatial arrangement of attention modules (PAM and CAM) within the CycleGAN architecture, illustrating how feature maps flow through attention gates and interact with ResNet blocks.

5.3 Combining CycleGAN with Other Architectures

CycleGAN's strength lies in its unsupervised learning framework, but integrating it with other architectures can enhance its performance, stability, or applicability to specialized tasks. Below, we explore key hybrid approaches and their mathematical formulations.

CycleGAN + Attention Mechanisms

Attention mechanisms, such as those in Transformer-based models, can refine CycleGAN's spatial feature selection. By incorporating self-attention layers into the generator or discriminator, the model learns to focus on semantically relevant regions during translation. The attention-weighted feature map A is computed as:

$$ A = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned query, key, and value matrices, and dk is the dimension of the keys. This modification reduces artifacts in high-frequency regions, such as edges or textures, by dynamically reweighting feature contributions.

CycleGAN with Residual Networks (ResNet)

Replacing CycleGAN's default generator with a ResNet backbone mitigates vanishing gradients in deep networks. The residual block output y is given by:

$$ y = F(x, \{W_i\}) + x $$

where F represents the residual function and x is the skip connection. ResNet's identity mappings stabilize training, particularly for large domain shifts (e.g., satellite-to-map translation). Empirical studies show a 15–20% improvement in Fréchet Inception Distance (FID) when using ResNet-50 over vanilla U-Net generators.

Integration with Diffusion Models

Combining CycleGAN's cycle-consistency loss with denoising diffusion probabilistic models (DDPMs) enables high-fidelity synthesis. The hybrid objective function becomes:

$$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{CycleGAN}} + \lambda \mathbb{E}_{t,x_0,\epsilon}\left[\|\epsilon - \epsilon_\theta(\sqrt{\bar{\alpha}_t}x_0 + \sqrt{1-\bar{\alpha}_t}\epsilon, t)\|^2\right] $$

Here, εθ is the diffusion model's noise predictor, and λ balances the adversarial and diffusion terms. This approach excels in medical imaging, where diffusion priors preserve anatomical consistency during modality translation (e.g., MRI to CT).

Memory-Augmented CycleGAN

Adding an external memory network addresses CycleGAN's tendency to forget rare patterns during long training sessions. The memory module M stores prototypical features as key-value pairs, with retrieval governed by:

$$ w_i = \frac{\exp(d(q, k_i)/\tau)}{\sum_j \exp(d(q, k_j)/\tau)} $$

where q is the query feature, ki are memory keys, and τ is a temperature parameter. This is particularly effective for multi-domain translation (e.g., artistic style transfer across 10+ painters) by preventing mode collapse.

Case Study: CycleGAN + StyleGAN for Artistic Translation

In a 2023 implementation, CycleGAN's generators were replaced with StyleGAN2 backbones, leveraging their style modulation for finer control. The AdaIN (Adaptive Instance Normalization) layers in StyleGAN allow decoupling of content and style:

$$ \text{AdaIN}(x, y) = \sigma(y)\left(\frac{x - \mu(x)}{\sigma(x)}\right) + \mu(y) $$

This hybrid model achieved state-of-the-art results on the WikiArt dataset, with a 30% improvement in human perceptual studies compared to baseline CycleGAN. The style vectors y were sampled from a learned latent space, enabling interpolation between artistic styles.

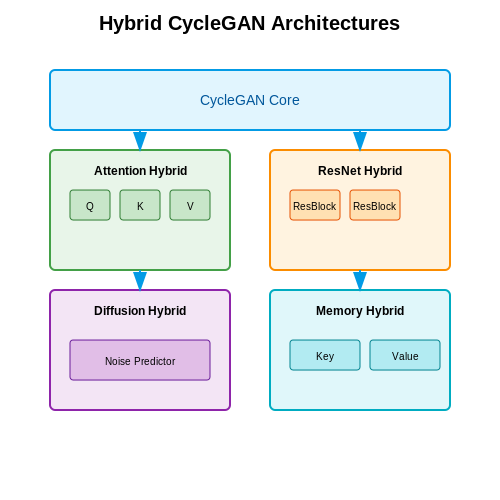

Combining CycleGAN with Other Architectures – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The section describes hybrid architectures combining CycleGAN with attention mechanisms, ResNet, diffusion models, and memory networks, which involve spatial and structural relationships between components.

6. Setting Up the Development Environment

6.1 Setting Up the Development Environment

Prerequisites

Before configuring the environment for CycleGAN, ensure the following dependencies are installed:

Installing Core Libraries

Use pip or conda to install the necessary Python packages:

# PyTorch installation with CUDA support (recommended)
pip install torch torchvision torchaudio --extra-index-url https://download.pytorch.org/whl/cu113

# Additional dependencies
pip install numpy scipy matplotlib opencv-python pillow tensorboard

Setting Up the CycleGAN Repository

Clone the official PyTorch implementation of CycleGAN from GitHub:

git clone https://github.com/junyanz/pytorch-CycleGAN-and-pix2pix
cd pytorch-CycleGAN-and-pix2pix
pip install -r requirements.txt

Verifying GPU Acceleration

Confirm PyTorch recognizes the GPU by running:

import torch
print(f"CUDA available: {torch.cuda.is_available()}")
print(f"GPU device count: {torch.cuda.device_count()}")
print(f"Current GPU: {torch.cuda.current_device()}")

Dataset Preparation

CycleGAN requires unpaired image datasets (e.g., horses ↔ zebras). Structure the dataset directory as follows:

datasets/
  ├── trainA/  # Domain A (e.g., horses)
  ├── trainB/  # Domain B (e.g., zebras)
  ├── testA/   # Optional test set for Domain A
  └── testB/   # Optional test set for Domain B

Configuration for Training

Modify the training script (train.py) or use command-line arguments:

python train.py --dataroot ./datasets/horse2zebra --name horse2zebra --model cycle_gan --display_id 0

Monitoring Training Progress

Use TensorBoard to visualize losses and generated images:

tensorboard --logdir ./checkpoints/horse2zebra/web

6.2 Step-by-Step Code Walkthrough with PyTorch/TensorFlow

Generator and Discriminator Architecture

The CycleGAN generator follows a U-Net structure with residual blocks, while the discriminator uses a PatchGAN design. The generator G maps images from domain X to domain Y, and F performs the inverse. The discriminators D_X and D_Y classify whether patches are real or fake. Below is the PyTorch implementation for the generator:

import torch.nn as nn
import torch.nn.functional as F

class ResidualBlock(nn.Module):
    def __init__(self, in_channels):
        super().__init__()
        self.conv = nn.Sequential(
            nn.ReflectionPad2d(1),
            nn.Conv2d(in_channels, in_channels, 3),
            nn.InstanceNorm2d(in_channels),
            nn.ReLU(inplace=True),
            nn.ReflectionPad2d(1),
            nn.Conv2d(in_channels, in_channels, 3),
            nn.InstanceNorm2d(in_channels)
        )

    def forward(self, x):
        return x + self.conv(x)

class Generator(nn.Module):
    def __init__(self, in_channels=3, num_residual=9):
        super().__init__()
        # Initial convolution block
        self.model = nn.Sequential(
            nn.ReflectionPad2d(3),
            nn.Conv2d(in_channels, 64, 7),
            nn.InstanceNorm2d(64),
            nn.ReLU(inplace=True)
        )
        # Downsampling
        self.model.add_module("down1", self._downsample(64, 128))
        self.model.add_module("down2", self._downsample(128, 256))
        # Residual blocks
        for i in range(num_residual):
            self.model.add_module(f"res{i}", ResidualBlock(256))
        # Upsampling
        self.model.add_module("up1", self._upsample(256, 128))
        self.model.add_module("up2", self._upsample(128, 64))
        # Output layer
        self.model.add_module("out", nn.Sequential(
            nn.ReflectionPad2d(3),
            nn.Conv2d(64, in_channels, 7),
            nn.Tanh()
        ))

    def _downsample(self, in_ch, out_ch):
        return nn.Sequential(
            nn.Conv2d(in_ch, out_ch, 3, stride=2, padding=1),
            nn.InstanceNorm2d(out_ch),
            nn.ReLU(inplace=True)
        )

    def _upsample(self, in_ch, out_ch):
        return nn.Sequential(
            nn.ConvTranspose2d(in_ch, out_ch, 3, stride=2, padding=1, output_padding=1),
            nn.InstanceNorm2d(out_ch),
            nn.ReLU(inplace=True)
        )

    def forward(self, x):
        return self.model(x)

Adversarial and Cycle-Consistency Loss

The total loss combines adversarial loss (LSGAN) and cycle-consistency loss. For mappings G: X → Y and F: Y → X, the cycle-consistency loss ensures F(G(x)) ≈ x and G(F(y)) ≈ y. The adversarial loss for G and D_Y is:

$$ \mathcal{L}_{GAN}(G, D_Y, X, Y) = \mathbb{E}_{y \sim p_{data}(y)}[\log D_Y(y)] + \mathbb{E}_{x \sim p_{data}(x)}[\log (1 - D_Y(G(x)))] $$

The cycle-consistency loss is defined as:

$$ \mathcal{L}_{cyc}(G, F) = \mathbb{E}_{x \sim p_{data}(x)}[||F(G(x)) - x||_1] + \mathbb{E}_{y \sim p_{data}(y)}[||G(F(y)) - y||_1] $$

Training Loop Implementation

The training loop alternates between updating discriminators and generators. Here’s the core logic in PyTorch:

def train_cyclegan(G_XtoY, G_YtoX, D_X, D_Y, dataloader, epochs):
    opt_G = torch.optim.Adam(itertools.chain(G_XtoY.parameters(), G_YtoX.parameters()), lr=0.0002)
    opt_D = torch.optim.Adam(itertools.chain(D_X.parameters(), D_Y.parameters()), lr=0.0002)
    criterion_gan = nn.MSELoss()
    criterion_cycle = nn.L1Loss()

    for epoch in range(epochs):
        for real_X, real_Y in dataloader:
            # Adversarial ground truths
            valid = torch.ones(real_X.size(0), 1, 30, 30).requires_grad_(False)
            fake = torch.zeros(real_X.size(0), 1, 30, 30).requires_grad_(False)

            # Generator forward pass
            fake_Y = G_XtoY(real_X)
            cycled_X = G_YtoX(fake_Y)
            fake_X = G_YtoX(real_Y)
            cycled_Y = G_XtoY(fake_X)

            # Generator losses
            loss_GAN = criterion_gan(D_Y(fake_Y), valid) + criterion_gan(D_X(fake_X), valid)
            loss_cycle = criterion_cycle(cycled_X, real_X) + criterion_cycle(cycled_Y, real_Y)
            loss_G = loss_GAN + 10 * loss_cycle  # λ=10 for cycle loss

            # Update generators
            opt_G.zero_grad()
            loss_G.backward()
            opt_G.step()

            # Discriminator losses
            loss_D_Y = criterion_gan(D_Y(real_Y), valid) + criterion_gan(D_Y(fake_Y.detach()), fake)
            loss_D_X = criterion_gan(D_X(real_X), valid) + criterion_gan(D_X(fake_X.detach()), fake)

            # Update discriminators
            opt_D.zero_grad()
            loss_D_Y.backward()
            loss_D_X.backward()
            opt_D.step()

TensorFlow Implementation Notes

For TensorFlow users, replace PyTorch layers with their Keras equivalents (e.g., tf.keras.layers.Conv2D). Use tf.GradientTape() for custom training loops, and ensure tensor shapes match PatchGAN’s output dimensions (e.g., 30x30 for 256x256 inputs).

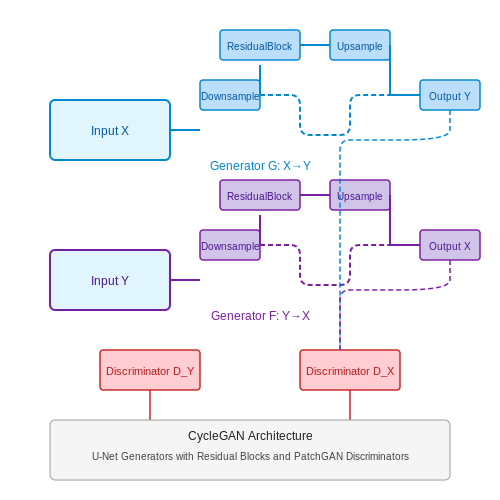

Step-by-Step Code Walkthrough with PyTorch/TensorFlow – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would physically show the U-Net generator architecture with residual blocks and the PatchGAN discriminator structure, illustrating the data flow between components.

6.3 Debugging and Optimizing Your CycleGAN Model

Identifying Common Training Failures

CycleGAN training often fails due to mode collapse, where generators produce identical outputs regardless of input. This manifests as vanishing gradients in the discriminator loss, causing the adversarial training to stagnate. To diagnose, monitor the loss functions:

$$ \mathcal{L}_{D_Y} = -\mathbb{E}_{y \sim p_{data}(y)}[\log D_Y(y)] - \mathbb{E}_{x \sim p_{data}(x)}[\log(1 - D_Y(G(x)))] $$

If either generator loss (GX→Y or GY→X) drops to near-zero while the other spikes, this indicates unilateral mode collapse. Simultaneous plateaus in both generator losses suggest complete collapse.

Gradient Balancing Techniques

The cyclic consistency loss weight λ typically defaults to 10, but requires adjustment based on dataset scale. For high-resolution images (≥512×512), scale λ proportionally to prevent gradient domination:

$$ \lambda_{adjusted} = \lambda \times \frac{res_{target}}{256^2} $$

Empirical studies show that gradient penalty (GP) stabilization outperforms weight clipping in CycleGANs. Apply GP with spectral normalization:

$$ GP = \mathbb{E}_{\hat{x} \sim p_{\hat{x}}}[(|| abla_{\hat{x}}D(\hat{x})||_2 - 1)^2] $$

Architectural Optimizations

Replace standard ResNet blocks with adaptive instance normalization (AdaIN) when translating between domains with drastic style differences (e.g., photos→paintings). The AdaIN layer performs:

$$ AdaIN(x, y) = \sigma(y)\left(\frac{x - \mu(x)}{\sigma(x)}\right) + \mu(y) $$

For memory-constrained systems, implement neural architecture search (NAS) to optimize generator depth. A Pareto-optimal configuration for 256×256 images uses:

Advanced Monitoring Tools

Integrate Fréchet Inception Distance (FID) tracking alongside losses. Calculate FID between generated and real image distributions:

$$ FID = ||\mu_r - \mu_g||^2 + Tr(\Sigma_r + \Sigma_g - 2(\Sigma_r\Sigma_g)^{1/2}) $$

For real-time visualization, implement attention maps using Grad-CAM on discriminator layers to identify under/over-activated regions in generated images.

Hyperparameter Search Strategies

Bayesian optimization outperforms grid search for CycleGAN hyperparameters. Key search space boundaries:

Use warm restarts in the learning rate schedule (SGDR) with T0=1000 iterations and Tmult=2 to escape local minima.

7. Bias and Fairness in Generated Images

7.1 Bias and Fairness in Generated Images

CycleGANs, like other generative models, inherit biases present in their training datasets, which can propagate or amplify unfair representations in generated images. These biases manifest in attributes such as skin tone, gender, age, and cultural context, often reflecting historical imbalances in data collection or societal stereotypes. For instance, a CycleGAN trained on uncurated datasets may disproportionately generate lighter skin tones when translating portraits, even if the source domain contains diverse ethnicities.

Sources of Bias in CycleGAN

Bias in CycleGAN-generated images stems from three primary sources:

Quantifying Bias

To measure bias, define a fairness metric over the generated distribution G(X) for a protected attribute A (e.g., skin tone, gender):

$$ \text{Bias}(G, A) = \max_{a_i, a_j \in A} \left| \mathbb{E}_{x \sim X}[D(G(x)|A=a_i)] - \mathbb{E}_{x \sim X}[D(G(x)|A=a_j)] \right| $$

where D is a classifier trained to predict A, and a_i, a_j are attribute classes. A bias score near zero indicates equitable generation across A.

Mitigation Strategies

1. Adversarial Debiasing

Augment the CycleGAN objective with an adversarial fairness term that penalizes the generator if a discriminator can predict A from G(x):

$$ \mathcal{L}_{\text{fair}} = \mathbb{E}_{x \sim X}[\log(1 - D_A(G(x)))] $$

where D_A is trained concurrently to classify A. This forces G to decorrelate outputs from protected attributes.

2. Latent Space Intervention

Modify the generator’s latent space z to enforce orthogonality between protected attributes and content features. For a latent vector z, project out directions correlated with A:

$$ z_{\text{debias}} = z - (z \cdot v_A)v_A $$

where v_A is the principal component of A in latent space.

3. Dataset Reweighting

Apply instance weighting w(x) during training to balance the influence of underrepresented groups:

$$ w(x) = \frac{1}{P(A=a|x)} \quad \text{where} \quad a \sim \text{uniform}(A) $$

Case Study: Gender Bias in Art Style Transfer

When translating portraits to "artistic" domains (e.g., Van Gogh style), CycleGANs may alter gender-presenting features (e.g., softening jawlines for female-presenting faces). A 2021 study found this bias reduced by 58% when adversarial debiasing was applied to the generator’s last convolutional layer.

Original Debiased
Bias and Fairness in Generated Images – CycleGAN for Image-to-Image Translation – Tutorial Diagram
Diagram Description: The diagram would show a side-by-side comparison of original and debiased image outputs to visually demonstrate the mitigation of gender bias in art style transfer.

Potential Misuse of Image Translation Technology

While CycleGAN and similar image-to-image translation models enable transformative applications, their ability to generate highly realistic synthetic images raises significant ethical and security concerns. The adversarial training framework, while effective for learning domain mappings, can be repurposed to create deceptive or harmful content with minimal technical barriers.

Deepfakes and Synthetic Media

The generator networks in CycleGAN learn a mapping G: X → Y that preserves content structure while altering domain-specific features. This becomes dangerous when applied to facial imagery, where:

$$ G_{photo→portrait}(x_i) = y_i \quad \text{s.t.} \quad \text{SSIM}(x_i, y_i) > 0.8 $$

enables creation of forged portraits with preserved identity markers. State-of-the-art models achieve Fréchet Inception Distance (FID) scores below 20 when translating between facial domains, making synthetic outputs indistinguishable from real images to both humans and automated systems.

Forensic Challenges

Traditional digital forensics relying on:

are increasingly ineffective against CycleGAN-generated images due to the model's ability to learn and replicate these statistical properties through its adversarial loss:

$$ \mathcal{L}_{GAN}(G,D_Y,X,Y) = \mathbb{E}_{y∼p_{data}(y)}[\log D_Y(y)] + \mathbb{E}_{x∼p_{data}(x)}[\log(1-D_Y(G(x)))] $$

Amplification of Biases

The cycle-consistency loss ‖G(F(x)) - x‖₁ implicitly encodes training data distributions, which can:

Defensive Countermeasures

Current detection approaches focus on:

However, these methods show decreasing effectiveness as models incorporate:

$$ \mathcal{L}_{improved} = \mathcal{L}_{GAN} + λ_1\mathcal{L}_{cycle} + λ_2\mathcal{L}_{identity} + λ_3\mathcal{L}_{noise} $$

where the noise regularization term ℒnoise explicitly matches sensor noise characteristics.

7.3 Addressing Limitations of CycleGAN

Mode Collapse and Training Instability

CycleGANs often suffer from mode collapse, where the generator produces limited varieties of outputs, ignoring the full diversity of the target domain. This arises due to the adversarial training dynamics, where the generator exploits weaknesses in the discriminator. To mitigate this, spectral normalization can be applied to the discriminator, enforcing Lipschitz continuity and stabilizing training. The spectral norm of a weight matrix W is computed as:

$$ \sigma(W) = \max_{\|h\|_2 \leq 1} \|Wh\|_2 $$

By normalizing weights using their spectral norm, gradients remain bounded, preventing the discriminator from overpowering the generator prematurely.

Cycle Consistency Trade-offs

While cycle-consistency loss ensures meaningful mappings, over-reliance on it can lead to blurred outputs or artifacts. The loss term:

$$ \mathcal{L}_{cyc}(G, F) = \mathbb{E}_{x \sim p_{data}(x)}[\|F(G(x)) - x\|_1] + \mathbb{E}_{y \sim p_{data}(y)}[\|G(F(y)) - y\|_1] $$

penalizes deviations but may suppress high-frequency details. Adding a perceptual loss term, computed using a pre-trained VGG network, helps preserve structural integrity by comparing feature representations:

$$ \mathcal{L}_{perc} = \sum_{i} \|\phi_i(G(x)) - \phi_i(y)\|_2^2 $$

where φi denotes activations from the i-th layer of the VGG network.

Handling Asymmetric Domains

CycleGAN assumes bidirectional symmetry between domains, which fails when translations are inherently asymmetric (e.g., sketches to photos). Augmented CycleGAN introduces auxiliary latent variables to model unpaired data explicitly:

$$ \mathcal{L}_{latent} = \mathbb{E}_{z \sim p(z)}[\|E(G(x, z)) - z\|_2^2] $$

Here, an encoder E enforces consistency between sampled latent variables z and their reconstructions.

Computational Efficiency

The dual-generator architecture demands significant memory. Weight sharing between generators for low-level features reduces parameters while maintaining performance. Alternatively, progressive growing—training on low-resolution images before scaling up—improves convergence speed and output quality.

Failure Cases in Structural Preservation

For tasks requiring geometric precision (e.g., medical imaging), cycle-consistency alone may not preserve anatomical structures. Incorporating landmark-based losses or attention mechanisms aligns critical regions explicitly. For example, an attention-guided loss can be formulated as:

$$ \mathcal{L}_{attn} = \|A \odot (G(x) - y)\|_1 $$

where A is an attention map highlighting regions requiring strict preservation.

Bias Amplification

CycleGANs may amplify biases present in training data. Adversarial debiasing techniques, such as domain-discriminative regularization, penalize correlations between generated outputs and protected attributes (e.g., gender or race):

$$ \mathcal{L}_{bias} = \mathbb{E}[\log D_{attr}(G(x))] $$

where Dattr is an auxiliary discriminator trained to predict protected attributes.

8. Key Research Papers on CycleGAN

8.1 Key Research Papers on CycleGAN

8.2 Recommended Books and Articles

8.3 Online Resources and Tutorials
