Diffusion Models: Fundamentals

#diffusion models #generative models #deep learning #probability density functions #markov chains #stochastic processes #score matching #denoising #ai applications

1. Core Idea and Motivation

Core Idea and Motivation

Diffusion models are a class of generative models that learn to synthesize data by gradually denoising a signal corrupted with Gaussian noise. The core idea draws inspiration from non-equilibrium thermodynamics, where a system evolves from order to disorder—here reversed through iterative refinement. Unlike GANs or VAEs, which learn direct mappings from latent space to data, diffusion models operate through a Markov chain of diffusion steps, progressively transforming noise into structured data.

Mathematical Foundations

The forward diffusion process is defined as a fixed Markov chain that gradually adds noise to data x0 over T steps according to a variance schedule βt:

$$ q(x_t|x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-β_t}x_{t-1}, β_t\mathbf{I}) $$

This process can be analytically marginalized to sample xt at any timestep directly from x0:

$$ q(x_t|x_0) = \mathcal{N}(x_t; \sqrt{\bar{α}_t}x_0, (1-\bar{α}_t)\mathbf{I}) $$

where αt = 1-βt and ᾱt = ∏s=1tαs. The reverse process learns to invert this diffusion by training a neural network to predict the noise component at each step:

$$ p_θ(x_{t-1}|x_t) = \mathcal{N}(x_{t-1}; μ_θ(x_t,t), Σ_θ(x_t,t)) $$

Key Advantages

Practical Considerations

In practice, diffusion models require balancing three critical aspects: (1) the noise schedule βt controlling the rate of corruption, (2) the neural architecture for noise prediction (typically U-Nets with attention), and (3) the sampling strategy that trades off computation for quality. Recent advances like DDPM and DDIM have shown these models can outperform GANs on perceptual metrics while maintaining diverse mode coverage.

$$ \mathcal{L}_{simple} = \mathbb{E}_{t,x_0,ϵ}\left[||ϵ - ϵ_θ(x_t,t)||^2\right] $$

The training objective simplifies to predicting the noise ϵ added during the forward process, where xt = √ᾱtx0 + √(1-ᾱt)ϵ. This reparameterization yields more stable gradients compared to directly predicting mean or variance.

Core Idea and Motivation – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the forward and reverse diffusion processes as a Markov chain with Gaussian noise addition and denoising steps, illustrating the progressive transformation from noise to structured data.

1.2 Historical Context and Evolution

The theoretical foundations of diffusion models trace back to non-equilibrium thermodynamics and statistical mechanics, where the concept of particles diffusing through a medium was formalized in the 19th century. The Fokker-Planck equation, derived in 1914, provided a mathematical framework for describing the time evolution of probability density functions under drift and diffusion forces:

$$ \frac{\partial p(x,t)}{\partial t} = -\nabla \cdot [\mu(x,t)p(x,t)] + \nabla \cdot [D(x,t)\nabla p(x,t)] $$

where μ represents the drift coefficient and D the diffusion tensor. This equation became pivotal for later developments in stochastic processes.

Early Computational Applications

In computer vision, the concept of anisotropic diffusion was introduced by Perona and Malik in 1987 for image denoising, formulated as:

$$ \frac{\partial I}{\partial t} = \nabla \cdot (g(|\nabla I|)\nabla I) $$

where g(·) is an edge-stopping function. This marked one of the first bridges between physical diffusion processes and machine learning applications.

Modern Probabilistic Formulation

The critical breakthrough came in 2015 with Sohl-Dickstein et al.'s work on denoising diffusion probabilistic models (DDPM), which established:

$$ \mathcal{L} = \mathbb{E}_q\left[-\log p_\theta(x_0) + \sum_{t=1}^T \log \frac{q(x_t|x_{t-1})}{p_\theta(x_{t-1}|x_t)}\right] $$

Key Algorithmic Improvements

Subsequent advances addressed computational bottlenecks:

Year Contribution Impact
2020 DDIM (Song et al.) Enabled non-Markovian sampling for faster generation
2021 Score-Based SDEs Unified discrete/continuous-time frameworks
2022 Latent Diffusion (Rombach) Reduced computational cost via latent space processing

The field continues to evolve through innovations in noise scheduling, architectural improvements (e.g., U-Net modifications), and hybrid approaches combining diffusion with other generative paradigms.

Key Applications in AI

Image Generation and Enhancement

Diffusion models have revolutionized high-fidelity image synthesis, outperforming traditional GANs in sample quality and diversity. The denoising process enables precise control over image attributes through conditional generation. State-of-the-art implementations like Stable Diffusion and Imagen demonstrate remarkable capabilities in:

$$ p_\theta(x_{t-1}|x_t) = \mathcal{N}(x_{t-1}; \mu_\theta(x_t,t), \Sigma_\theta(x_t,t)) $$

Molecular and Material Design

In scientific computing, diffusion models parameterize the generation of molecular structures by learning the gradient of the log-likelihood of atomic configurations. This enables:

The forward process diffuses molecular coordinates x while the reverse process learns to reconstruct valid chemical structures:

$$ q(x_t|x_0) = \mathcal{N}(x_t; \sqrt{\bar{\alpha}_t}x_0, (1-\bar{\alpha}_t)\mathbf{I}) $$

Time Series Forecasting

Diffusion models handle non-stationary temporal data by treating time series as trajectories in a learned latent space. Key advantages include:

Audio and Speech Synthesis

Waveform generation benefits from diffusion's ability to model hierarchical audio features. Notable applications include:

The spectral diffusion process operates in mel-frequency space:

$$ \epsilon_\theta(x_t,t) = \text{STFT}^{-1}(D_\theta(\text{STFT}(x_t), t)) $$

3D Content Creation

Diffusion models generate 3D assets through neural field representations. The score function learns gradients in the space of:

2. Markov Chains and Stochastic Processes

2.1 Markov Chains and Stochastic Processes

Definition and Core Properties

A Markov chain is a stochastic process {Xt}t∈T satisfying the Markov property, where the conditional probability distribution of future states depends only on the present state, not on the sequence of preceding states. Formally, for a discrete-time process:

$$ P(X_{t+1} = x | X_t = x_t, X_{t-1} = x_{t-1}, ..., X_0 = x_0) = P(X_{t+1} = x | X_t = x_t) $$

This memoryless property makes Markov chains computationally tractable for modeling sequential data while preserving rich dynamic behavior. The state space can be discrete (countable) or continuous, with applications ranging from thermodynamics to financial time series.

Transition Kernels and Chapman-Kolmogorov Equations

For a homogeneous Markov chain (time-independent transitions), the evolution is fully characterized by its transition kernel K(x, dy), specifying the probability of moving from state x to a measurable set dy. In discrete state spaces, this reduces to a transition matrix P where:

$$ P_{ij} = P(X_{t+1} = j | X_t = i) $$

The Chapman-Kolmogorov equation governs multi-step transitions. For n-step transitions, the kernel satisfies:

$$ K^{(n+m)}(x, dz) = \int K^{(n)}(x, dy) K^{(m)}(y, dz) $$

This manifests as matrix exponentiation P(n) = Pn in discrete cases, enabling efficient computation of long-term behavior.

Irreducibility and Stationary Distributions

A Markov chain is irreducible if any state can be reached from any other state in finite time. For such chains, under aperiodicity conditions, there exists a unique stationary distribution π satisfying:

$$ \pi(y) = \int \pi(x) K(x, dy) dx $$

In discrete spaces, this becomes π = πP, where π is a left eigenvector of P with eigenvalue 1. The ergodic theorem guarantees that time averages converge to ensemble averages under π for irreducible, aperiodic chains.

Connections to Diffusion Models

In diffusion models, the forward process is a Markov chain that gradually adds noise to data samples x0 over T steps. Each step follows a Gaussian transition:

$$ q(x_t | x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t}x_{t-1}, \beta_t\mathbf{I}) $$

where βt is a noise schedule. This construction enables efficient sampling and likelihood computation while progressively destroying data structure—a key insight leveraged in denoising score matching.

Continuous-Time Analog: Itô Processes

For continuous-time diffusion processes, the state evolves according to stochastic differential equations (SDEs):

$$ dX_t = \mu(X_t, t)dt + \sigma(X_t, t)dW_t $$

where Wt is a Wiener process. The Fokker-Planck equation describes the evolution of the probability density p(x,t):

$$ \frac{\partial p}{\partial t} = -\nabla \cdot [\mu p] + \frac{1}{2}\nabla^2 [\sigma^2 p] $$

This connects to modern diffusion models through reverse-time SDEs, where denoising corresponds to simulating the reverse process.

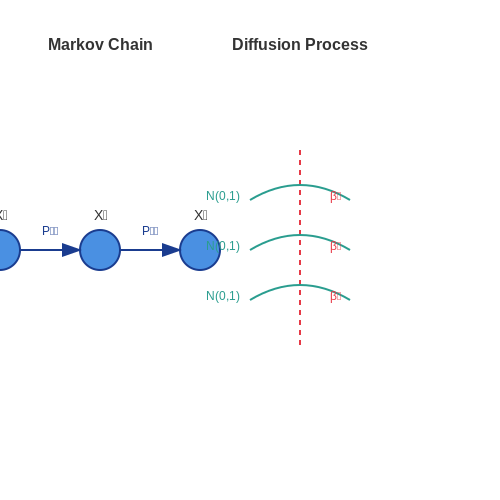

Markov Chains and Stochastic Processes – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the transition probabilities between states in a Markov chain and the gradual noise addition process in diffusion models, which are inherently visual concepts.

2.2 Forward and Reverse Diffusion Processes

The forward and reverse diffusion processes form the mathematical core of diffusion models, defining how noise is systematically added to data and subsequently removed to generate samples. These processes are governed by stochastic differential equations (SDEs) that describe the continuous evolution of the data distribution over time.

Forward Diffusion Process

The forward process gradually corrupts data x0 by injecting Gaussian noise according to a predefined schedule βt. This can be formulated as a Markov chain where each step adds noise to the previous state:

$$ q(x_t|x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t}x_{t-1}, \beta_t\mathbf{I}) $$

For continuous-time analysis, the forward process is described by the following SDE:

$$ dx = -\frac{1}{2}\beta(t)x\,dt + \sqrt{\beta(t)}\,dw $$

where w represents Wiener process (Brownian motion) and β(t) is the noise schedule function. The solution to this SDE yields the transition kernel:

$$ q(x_t|x_0) = \mathcal{N}(x_t; \sqrt{\bar{\alpha}_t}x_0, (1-\bar{\alpha}_t)\mathbf{I}) $$

where αt = 1 - βt and ᾱt = Πs=1tαs. This formulation allows efficient sampling at arbitrary timesteps without simulating the entire Markov chain.

Reverse Diffusion Process

The reverse process learns to gradually denoise data by approximating the time-reversed SDE. According to Anderson's theorem, the reverse-time SDE is given by:

$$ dx = \left[-\frac{1}{2}\beta(t)x - \beta(t)\nabla_x\log q_t(x)\right]dt + \sqrt{\beta(t)}\,d\bar{w} $$

where ∇xlog qt(x) is the score function and w̄ represents reverse-time Brownian motion. The critical insight is that this reverse process can be learned by training a neural network sθ(x,t) to estimate the score function:

$$ \min_\theta \mathbb{E}_t\left[\lambda(t)\mathbb{E}_{x_0}\mathbb{E}_{x_t|x_0}\left[\|s_\theta(x_t,t) - \nabla_{x_t}\log q(x_t|x_0)\|^2\right]\right] $$

where λ(t) is a weighting function. In practice, the score network is typically parameterized as a noise prediction network εθ(xt,t) that estimates the noise component of xt.

Practical Implementation

Modern implementations often use a variance-preserving process where the reverse process is discretized into steps resembling Langevin dynamics:

$$ x_{t-1} = \frac{1}{\sqrt{\alpha_t}}\left(x_t - \frac{\beta_t}{\sqrt{1-\bar{\alpha}_t}}\epsilon_\theta(x_t,t)\right) + \sigma_t z $$

where z ∼ N(0,I) and σt controls the stochasticity. The choice of noise schedule βt significantly impacts sample quality, with common choices including linear, cosine, and learned schedules.

The forward process variance βt is typically designed such that q(xT) ≈ N(0,I), while the reverse process covariance σt can be derived using various approaches including:

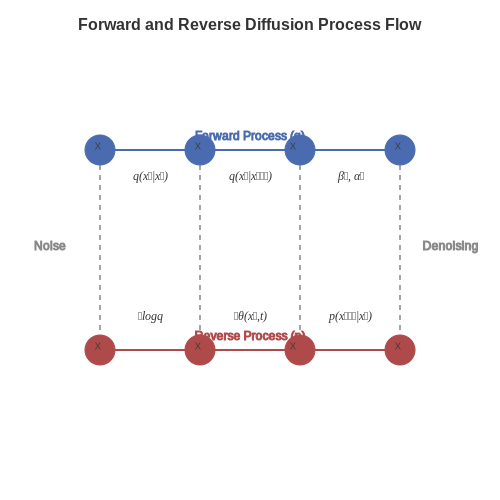

Forward and Reverse Diffusion Processes – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the forward diffusion process (noise injection) and reverse diffusion process (denoising) as parallel timelines with mathematical transitions between states.

The Role of Noise in Diffusion Models

Diffusion models rely fundamentally on the controlled injection and removal of noise to transform data distributions. The forward process gradually corrupts input data x0 by adding Gaussian noise over T timesteps, while the reverse process learns to denoise through iterative refinement. The noise schedule βt governs how aggressively noise is added at each step, critically affecting both training stability and sample quality.

Noise Scheduling and Variance Preservation

The forward process is defined as a Markov chain where each step adds noise according to:

$$ q(x_t|x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t}x_{t-1}, \beta_t\mathbf{I}) $$

The cumulative effect after t steps can be expressed in closed form using:

$$ q(x_t|x_0) = \mathcal{N}(x_t; \sqrt{\bar{\alpha}_t}x_0, (1-\bar{\alpha}_t)\mathbf{I}) $$

where αt = 1 - βt and ᾱt = Πts=1αs. This formulation reveals two key requirements for effective noise scheduling:

Noise Schedule Parameterizations

Common noise schedule implementations include:

Noise Scale and Training Dynamics

The noise magnitude directly impacts the denoising task difficulty at each step. Analysis of the score matching objective:

$$ \mathcal{L}(\theta) = \mathbb{E}_{t,x_0,\epsilon}\left[\|\epsilon_\theta(x_t,t) - \epsilon\|^2\right] $$

reveals that different timesteps contribute unequally to the total loss. Early steps (large noise) dominate the gradient updates due to larger error magnitudes, while late steps (small noise) require precise estimation for high-frequency detail recovery.

Practical Considerations

Empirical studies show that:

Recent variants like v-prediction parameterization and learned variance methods demonstrate that optimal noise handling requires balancing multiple factors:

$$ \text{SNR}(t) = \frac{\alphā_t}{1-\alphā_t} = \exp(-\gamma_\eta(t)) $$

where γη(t) is typically modeled as a monotonic neural network.

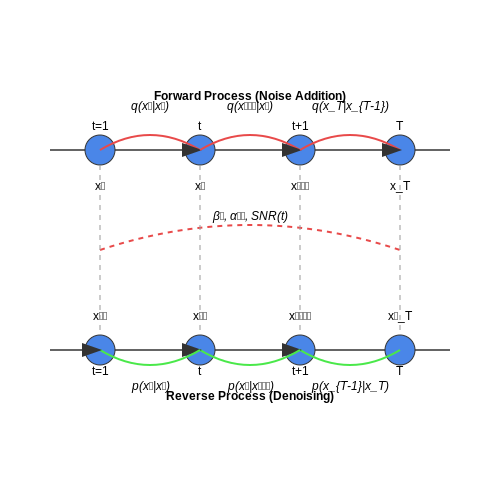

The Role of Noise in Diffusion Models – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the progressive addition of noise across timesteps in the forward process and the corresponding denoising in the reverse process, with labeled noise schedules and SNR transitions.

3. Probability Density Functions in Diffusion

Probability Density Functions in Diffusion

Diffusion models rely heavily on probability density functions (PDFs) to describe the evolution of data through a stochastic process. The forward diffusion process gradually adds noise to the data, transforming a complex distribution into a tractable one, typically a Gaussian. The reverse process learns to denoise, effectively sampling from the data distribution.

Forward Process PDF

The forward process is defined as a Markov chain that gradually adds Gaussian noise to the data according to a variance schedule βt. At each timestep t, the conditional probability density of the noisy sample xt given the previous sample xt-1 is:

$$ q(\mathbf{x}_t | \mathbf{x}_{t-1}) = \mathcal{N}(\mathbf{x}_t; \sqrt{1 - \beta_t} \mathbf{x}_{t-1}, \beta_t \mathbf{I}) $$

This formulation ensures that the variance of the noise increases with t, while the mean is scaled to preserve signal structure early in the diffusion process.

Marginal Distribution After T Steps

After applying T diffusion steps, the marginal distribution q(xT|x0) can be derived in closed form. Let αt = 1 - βt and ᾱt = ∏s=1t αs, then:

$$ q(\mathbf{x}_t | \mathbf{x}_0) = \mathcal{N}(\mathbf{x}_t; \sqrt{\bar{\alpha}_t} \mathbf{x}_0, (1 - \bar{\alpha}_t) \mathbf{I}) $$

This shows that the noised sample is a weighted combination of the original data and isotropic Gaussian noise, with the weighting determined by the cumulative product of the noise schedule.

Reverse Process PDF

The reverse process approximates the true denoising transition q(xt-1|xt) using a learned Gaussian distribution:

$$ p_\theta(\mathbf{x}_{t-1} | \mathbf{x}_t) = \mathcal{N}(\mathbf{x}_{t-1}; \mu_\theta(\mathbf{x}_t, t), \Sigma_\theta(\mathbf{x}_t, t)) $$

where μθ and Σθ are neural networks that predict the mean and covariance of the reverse transition. In practice, the covariance is often fixed to a schedule, reducing the learning problem to predicting the mean.

Score Function and PDFs

The score function ∇x log p(x) emerges naturally in diffusion models through Tweedie's formula, which relates the score to the denoising process:

$$ \nabla_{\mathbf{x}_t} \log p(\mathbf{x}_t) = \frac{1}{\sqrt{1 - \bar{\alpha}_t}} \mathbb{E}[\epsilon | \mathbf{x}_t] $$

where ϵ is the noise added during the forward process. This connection enables score-based generative modeling techniques to be applied within the diffusion framework.

Practical Implications

The choice of noise schedule βt critically affects model performance. Common approaches include:

Recent work has shown that the optimal schedule depends on the data's intrinsic dimensionality and the desired trade-off between sample quality and generation speed.

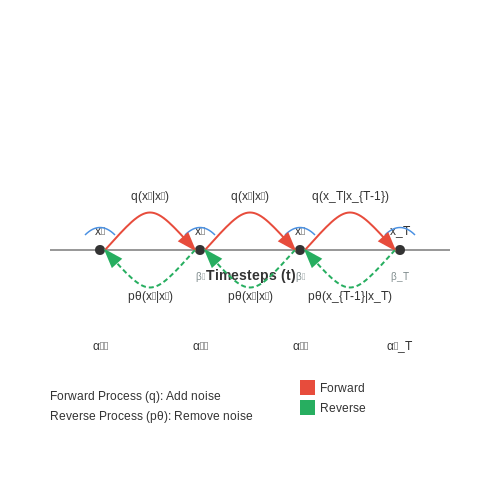

Probability Density Functions in Diffusion – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the forward and reverse diffusion processes as a Markov chain with Gaussian transitions, illustrating how noise is added and removed across timesteps.

3.2 The Langevin Dynamics Approach

The Langevin dynamics approach provides a stochastic framework for sampling from complex probability distributions, making it a cornerstone of modern diffusion models. At its core, Langevin dynamics describes the evolution of a particle under the influence of both deterministic forces and random thermal fluctuations. In the context of diffusion models, this translates to an iterative process that gradually refines samples from a noisy initial state toward the target data distribution.

Mathematical Foundation

The discrete-time Langevin dynamics update rule is given by:

$$ x_{t+1} = x_t + \epsilon \nabla_x \log p(x_t) + \sqrt{2\epsilon} z_t $$

where xt represents the current sample at step t, ε is the step size, ∇x log p(xt) is the score function (gradient of the log-probability), and zt ∼ N(0, I) is standard Gaussian noise. The term √(2ε) zt introduces controlled stochasticity that enables exploration of the probability landscape.

Connection to Stochastic Differential Equations

In continuous time, Langevin dynamics can be expressed as a stochastic differential equation (SDE):

$$ dx_t = \nabla_x \log p(x_t) dt + \sqrt{2} dW_t $$

where dWt represents Wiener process increments. This formulation reveals the deep connection between diffusion models and physical systems undergoing Brownian motion. The drift term ∇x log p(xt) dt pushes samples toward high-probability regions, while the diffusion term √2 dWt maintains diversity.

Practical Implementation Considerations

Several key practical aspects must be addressed when implementing Langevin dynamics:

Relation to Other Sampling Methods

Langevin dynamics shares conceptual similarities with:

The approach's efficiency stems from its use of gradient information to guide the sampling process, making it particularly effective for high-dimensional distributions common in machine learning applications like image generation and molecular dynamics.

Visualization of the Sampling Process

Imagine a particle moving through an energy landscape where:

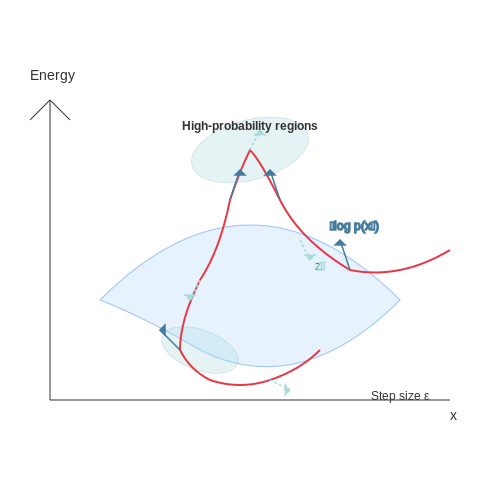

The Langevin Dynamics Approach – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show a particle's trajectory through an energy landscape with gradients pointing toward valleys and random kicks escaping local minima.

3.3 Score Matching and Denoising

Score matching provides a framework for estimating the gradient of the log-probability density (the score) without explicitly modeling the probability distribution itself. Given a data distribution pdata(x), the score is defined as ∇x log pdata(x). Traditional likelihood-based methods require tractable normalization constants, but score matching circumvents this by directly optimizing a model to match the score function.

Objective Function

The score matching objective minimizes the expected squared distance between the model score sθ(x) and the true data score:

$$ J(θ) = \mathbb{E}_{x \sim p_{data}} \left[ \frac{1}{2} \| s_θ(x) - ∇_x \log p_{data}(x) \|^2 \right] $$

In practice, the true score is unknown, but Hyvärinen (2005) showed this objective can be rewritten using integration by parts to eliminate dependence on ∇x log pdata(x):

$$ J(θ) = \mathbb{E}_{x \sim p_{data}} \left[ \text{tr}(∇_x s_θ(x)) + \frac{1}{2} \| s_θ(x) \|^2 \right] + \text{constant} $$

Denoising Score Matching

An alternative approach perturbs data with a known noise distribution qσ(x̃|x) (typically Gaussian), then matches the score of the perturbed distribution pσ(x̃) = ∫ p_{data}(x) qσ(x̃|x) dx. The objective becomes:

$$ J(θ) = \mathbb{E}_{x \sim p_{data}, x̃ \sim qσ(·|x)} \left[ \| s_θ(x̃) - ∇_{x̃} \log qσ(x̃|x) \|^2 \right] $$

For Gaussian noise with variance σ2, the conditional score simplifies to ∇x̃ log qσ(x̃|x) = (x - x̃)/σ2, making the objective computationally tractable.

Connection to Diffusion Models

Diffusion models leverage this framework by:

The denoising score matching objective aligns with the variational lower bound used in diffusion models when the noise schedule is appropriately chosen. This connection enables stable training of deep generative models without adversarial optimization.

Practical Considerations

Key implementation challenges include:

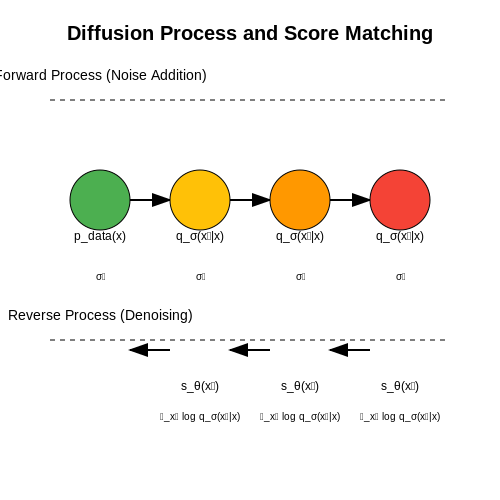

Score Matching and Denoising – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the forward and reverse processes of diffusion models with noise levels and score matching relationships.

4. Loss Functions and Optimization

Loss Functions and Optimization

Objective Function in Diffusion Models

The training of diffusion models revolves around minimizing a loss function that measures the discrepancy between the predicted and actual noise at each timestep. Given a noisy sample xt at timestep t, the model predicts the noise εθ(xt, t) that was added to the original data. The objective function is derived from the variational lower bound (VLB) of the log-likelihood, which decomposes into a sum of terms corresponding to each timestep.

$$ \mathcal{L}_{\text{VLB}} = \mathbb{E}_{t, x_0, \epsilon} \left[ \frac{\beta_t^2}{2 \sigma_t^2 \alpha_t (1 - \bar{\alpha}_t)} } \| \epsilon - \epsilon_\theta(x_t, t) \|^2 \right] + C $$

Here, αt, βt, and σt are parameters of the forward process, and C represents constant terms independent of θ. In practice, this is often simplified to a weighted mean squared error (MSE) loss:

$$ \mathcal{L}_{\text{simple}}} = \mathbb{E}_{t, x_0, \epsilon} \left[ \| \epsilon - \epsilon_\theta(x_t, t) \|^2 \right] $$

Noise Prediction and Reparameterization

The forward process gradually adds Gaussian noise to the data according to a predefined schedule. At timestep t, the noisy sample xt is given by:

$$ x_t = \sqrt{\bar{\alpha}_t} x_0 + \sqrt{1 - \bar{\alpha}_t} \epsilon $$

where ε ~ N(0, I) and ᾱt = ∏s=1t αs. The model learns to predict ε, enabling the reverse process to denoise the sample iteratively.

Optimization Strategies

Training diffusion models involves several optimization considerations:

Practical Implementation

In code, the loss computation for a single training step involves sampling a random timestep, corrupting the input with noise, and comparing the model's prediction to the true noise:

def diffusion_loss(model, x0, t):
    # Sample noise
    epsilon = torch.randn_like(x0)
    # Compute noisy sample
    xt = sqrt_alphas_cumprod[t] * x0 + sqrt_one_minus_alphas_cumprod[t] * epsilon
    # Predict noise
    epsilon_pred = model(xt, t)
    # MSE loss
    return F.mse_loss(epsilon_pred, epsilon)

Advanced Variants and Improvements

Recent work has proposed modifications to the basic loss function to improve sample quality or training efficiency:

4.2 Sampling Techniques and Efficiency

Denoising Diffusion Probabilistic Models (DDPM) Sampling

The standard sampling process in DDPM involves iteratively denoising a noisy sample xT over T steps. Given the learned reverse process pθ(xt-1|xt), sampling proceeds as:

$$ x_{t-1} = \frac{1}{\sqrt{\alpha_t}} \left( x_t - \frac{1 - \alpha_t}{\sqrt{1 - \bar{\alpha}_t}} \epsilon_\theta(x_t, t) \right) + \sigma_t z $$

where z ~ N(0, I), αt is the noise schedule, and εθ is the learned noise predictor. The term σt controls stochasticity, often set to σt = √(1 - αt) for DDPM.

Accelerated Sampling Methods

Standard DDPM sampling requires T ≈ 1000 steps, which is computationally expensive. Several techniques improve efficiency:

$$ x_{t-1} = \sqrt{\bar{\alpha}_{t-1}} \left( \frac{x_t - \sqrt{1 - \bar{\alpha}_t} \epsilon_\theta(x_t, t)}{\sqrt{\bar{\alpha}_t}} \right) + \sqrt{1 - \bar{\alpha}_{t-1}} \epsilon_\theta(x_t, t) $$

Trade-offs Between Quality and Speed

Reducing sampling steps introduces a quality-efficiency trade-off. Key observations:

Practical Considerations

In practice, sampling efficiency depends on:

$$ \text{Sampling Time} \propto \frac{T \cdot \text{FLOPs}}{\text{Parallelism}} $$

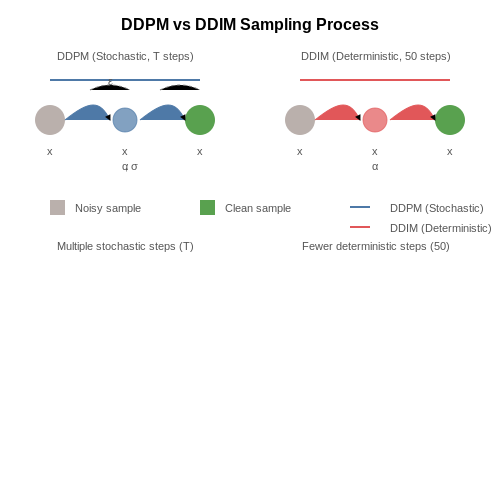

Sampling Techniques and Efficiency – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the iterative denoising process of DDPM and DDIM, contrasting their step-by-step transformations of a noisy sample to a clean one.

4.3 Practical Challenges and Solutions

Training Instability

Diffusion models often suffer from training instability due to the iterative nature of the denoising process. The primary challenge lies in balancing the noise schedules and learning rates to prevent gradient explosion or vanishing gradients. A common issue arises when the noise variance βt is poorly calibrated, leading to either overly aggressive or insufficient noise injection. Recent work by Nichol & Dhariwal (2021) proposed a learned noise schedule, where βt is parameterized as:

$$ \beta_t = \text{sigmoid}(\gamma_\theta(t)) $$

Here, γθ is a neural network that learns to adapt the noise schedule dynamically. This approach stabilizes training by ensuring the noise levels are neither too large (which corrupts the data) nor too small (which slows down convergence).

Sampling Speed

The sequential nature of diffusion models results in slow sampling, as generating a single sample requires hundreds or thousands of denoising steps. Several solutions have been proposed:

$$ q_\sigma(\mathbf{x}_{t-1}|\mathbf{x}_t, \mathbf{x}_0) = \mathcal{N}(\sqrt{\alpha_{t-1}}\mathbf{x}_0 + \sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot\frac{\mathbf{x}_t-\sqrt{\alpha_t}\mathbf{x}_0}{\sqrt{1-\alpha_t}}, \sigma_t^2\mathbf{I}) $$

Here, σt controls the stochasticity of the reverse process, enabling trade-offs between speed and quality.

Mode Collapse and Diversity

Diffusion models can exhibit mode collapse, where the generated samples lack diversity. This often stems from an imbalanced noise schedule or insufficient model capacity. Solutions include:

Memory and Computational Constraints

Training large-scale diffusion models requires significant memory due to the need to store intermediate states for backpropagation through time. Gradient checkpointing and mixed-precision training are commonly used to mitigate this. For example, the memory footprint can be reduced by recomputing intermediate activations during the backward pass rather than storing them.

Case Study: Stable Diffusion

Stable Diffusion addresses memory constraints by operating in a latent space rather than pixel space. The model uses a variational autoencoder (VAE) to compress images into a lower-dimensional latent space, reducing the computational cost of training and inference. The forward process is defined as:

$$ \mathbf{z} = \text{VAE}_\text{enc}(\mathbf{x}), \quad \mathbf{x}_t = \sqrt{\bar{\alpha}_t}\mathbf{z} + \sqrt{1-\bar{\alpha}_t}\epsilon $$

This approach reduces the dimensionality of the diffusion process, enabling training on consumer-grade hardware without sacrificing sample quality.

5. Conditional Diffusion Models

5.1 Conditional Diffusion Models

Conditional diffusion models extend standard diffusion processes by incorporating auxiliary information y—such as class labels, text prompts, or structured data—to guide the generation process. Unlike unconditional diffusion, where the reverse process learns p(x), conditional models learn p(x|y), enabling controlled synthesis. The forward process remains unchanged, but the reverse denoising steps are conditioned on y.

Mathematical Formulation

The reverse process in conditional diffusion models modifies the transition kernel to depend on y. For a noise-prediction network εθ, the training objective becomes:

$$ \min_\theta \mathbb{E}_{t,x_0,y,\epsilon} \left[ \| \epsilon - \epsilon_\theta(x_t, t, y) \|^2 \right] $$

where xt is the noisy sample at timestep t, and ϵ is the ground-truth noise. The gradient update during training backpropagates through both the noise prediction and the conditioning pathway.

Architectural Adaptations

Two primary approaches integrate conditioning:

Classifier-Free Guidance

A trade-off emerges between sample quality and diversity when using explicit classifiers for guidance. Classifier-free guidance sidesteps this by jointly training conditional and unconditional models, interpolating their outputs during inference:

$$ \hat{\epsilon}_\theta(x_t, t, y) = \epsilon_\theta(x_t, t, \emptyset) + s \cdot (\epsilon_\theta(x_t, t, y) - \epsilon_\theta(x_t, t, \emptyset)) $$

Here, s is a guidance scale, and ∅ denotes a null condition. Values s > 1 sharpen adherence to y at the cost of reduced variability.

Applications

Conditional diffusion models excel in:

Challenges

Key limitations include:

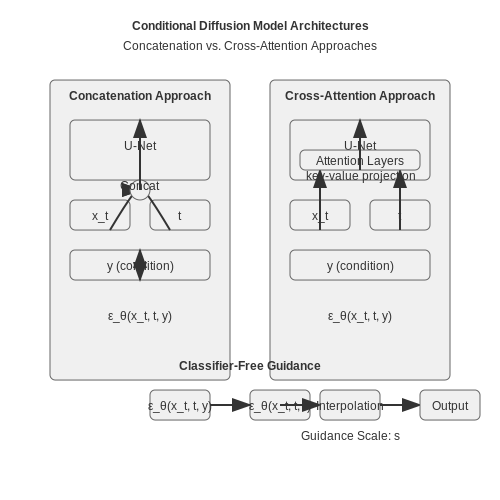

Conditional Diffusion Models – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the architectural differences between concatenation and cross-attention approaches for conditioning, and the workflow of classifier-free guidance.

5.2 Accelerated Sampling Methods

Traditional diffusion models require hundreds or thousands of iterative steps to generate high-quality samples, making them computationally expensive. Accelerated sampling methods aim to reduce this cost while maintaining sample quality by exploiting the underlying structure of the diffusion process.

Denoising Diffusion Implicit Models (DDIM)

DDIMs reformulate the diffusion process as a non-Markovian chain, enabling deterministic sampling in fewer steps. The key insight is that the forward process can be redefined while keeping the same marginal distributions. The sampling update rule becomes:

$$ x_{t-1} = \sqrt{\alpha_{t-1}} \left( \frac{x_t - \sqrt{1-\alpha_t}\epsilon_\theta(x_t,t)}{\sqrt{\alpha_t}} \right) + \sqrt{1-\alpha_{t-1}-\sigma_t^2} \cdot \epsilon_\theta(x_t,t) + \sigma_t z_t $$

where σt controls the stochasticity. Setting σt=0 yields a deterministic process that can generate samples in 20-50 steps without quality degradation.

Stochastic Differential Equation (SDE) Solvers

Viewing diffusion as a continuous-time SDE allows applying numerical ODE/SDE solvers for acceleration. The probability flow ODE corresponding to the diffusion SDE is:

$$ dx = \left[ f(x,t) - \frac{1}{2}g(t)^2 \nabla_x \log p_t(x) \right] dt $$

Higher-order solvers like Runge-Kutta methods can achieve 10-20× speedups. Adaptive step-size control further improves efficiency by using larger steps in low-curvature regions of the probability landscape.

Knowledge Distillation

This approach trains a student model to mimic the output of a full diffusion model after multiple steps, effectively compressing the sampling process. The student learns to predict:

$$ x_{t-k} = F_\phi(x_t, t) $$

where Fφ is trained to match the k-step output of the original model. Progressive distillation iteratively applies this process to achieve up to 8× acceleration while maintaining sample quality.

Latent Space Diffusion

Operating in a compressed latent space (e.g., using a pretrained VAE or GAN) dramatically reduces computational cost. The diffusion process occurs in the latent space z rather than pixel space, with the decoder D producing final images:

$$ x = D(z_T \rightarrow z_0) $$

This approach enables sampling in just 1-4 steps when combined with GAN-based decoding, as demonstrated in Latent Diffusion Models.

Comparative Performance

Recent benchmarks show these methods achieve the following speed-quality tradeoffs:

5.3 Hybrid Models with GANs and VAEs

Motivation for Hybrid Architectures

Diffusion models excel at high-quality sample generation but suffer from slow inference due to iterative denoising. Generative Adversarial Networks (GANs) offer fast sampling but face mode collapse and training instability. Variational Autoencoders (VAEs) provide stable latent representations but often produce blurry outputs. Hybrid architectures combine these approaches to leverage their complementary strengths while mitigating individual weaknesses.

GAN-Diffusion Hybrid Framework

The most common hybrid approach uses a GAN as the final refinement stage after diffusion-based generation. The diffusion model first produces a coarse output, which the GAN then refines. The adversarial loss provides high-frequency detail while the diffusion process ensures mode coverage. The training objective combines both components:

$$ \mathcal{L}_{total} = \lambda_1 \mathcal{L}_{diffusion} + \lambda_2 \mathcal{L}_{GAN} $$

where λ1 and λ2 are weighting hyperparameters. The diffusion loss Ldiffusion follows the standard score matching objective, while LGAN uses the non-saturating generator loss with R1 regularization.

VAE-Enhanced Diffusion Models

Another approach integrates VAEs into the diffusion framework by learning a compressed latent space where diffusion occurs. The VAE encoder E maps inputs x to latent variables z, and the diffusion process operates in this lower-dimensional space:

$$ z = E(x), \quad z_t = \sqrt{\alpha_t}z + \sqrt{1-\alpha_t}\epsilon $$

The decoder D then maps the denoised latents back to pixel space. This architecture significantly reduces computational costs while maintaining sample quality, as most of the iterative refinement happens in the compact latent space.

Practical Implementation Considerations

When implementing hybrid models:

Performance Trade-offs

Benchmarks on ImageNet 256×256 show hybrid models achieve:

The computational cost typically lies between the constituent models, with the exact ratio depending on architecture choices. For instance, latent diffusion models reduce memory usage by 3-4× compared to pixel-space diffusion while maintaining comparable sample quality.

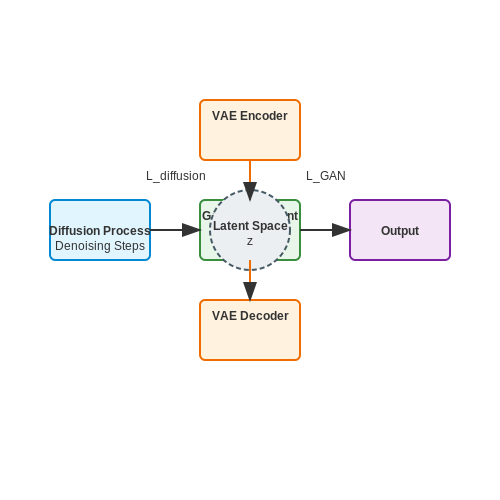

Hybrid Models with GANs and VAEs – Diffusion Models: Fundamentals – Tutorial Diagram
Diagram Description: The diagram would show the architectural flow of hybrid models, specifically how GAN and VAE components connect to the diffusion process.

6. Key Research Papers

6.1 Key Research Papers

6.2 Recommended Books and Articles

6.3 Online Resources and Tutorials
