Dynamic Convolution in CNNs

#cnn #dynamic convolution #neural networks #deep learning #computer vision #optimization #attention mechanisms #edge computing #backpropagation #regularization

1. Traditional Convolution vs. Dynamic Convolution

1.1 Traditional Convolution vs. Dynamic Convolution

Traditional convolution in CNNs operates with fixed, spatially invariant kernels that are learned during training and remain static during inference. The output feature map Y is computed as:

$$ Y(p) = \sum_{k \in \mathcal{K}} W_k \cdot X(p + k) + b $$

where Wk represents the static kernel weights, X is the input feature map, p denotes spatial positions, and b is the bias term. This formulation assumes the same visual pattern should be processed identically across all spatial locations, which limits adaptability to local variations.

Dynamic Convolution Fundamentals

Dynamic convolution introduces input-dependent kernel adaptation through attention mechanisms or learned modulation functions. The kernel weights become a function of the input:

$$ W_k(p) = \pi(p) \cdot W_k $$

where π(p) is a spatial attention map or modulation function conditioned on the input features at location p. This allows the network to:

Computational Considerations

The computational graph for dynamic convolution requires:

$$ FLOPs = H \times W \times (C_{in} \times C_{out} \times K^2 + C_{att}) $$

where Catt represents the overhead from attention computation. While traditional convolution has complexity O(HWCinCoutK2), dynamic variants typically add 15-30% overhead from the attention mechanism.

Implementation Variants

Three primary approaches exist for implementing dynamic convolution:

  1. Attention-based weighting: Uses squeeze-and-excitation blocks to generate channel-wise attention
  2. Spatial modulation: Predicts position-dependent kernel offsets or deformations
  3. Conditional filtering: Employs hypernetworks to generate entire kernel sets

The choice depends on the trade-off between flexibility and computational cost, with attention-based methods being most common in practice due to their balance of effectiveness and efficiency.

Static Convolution Dynamic Convolution
Traditional Convolution vs. Dynamic Convolution – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would physically show the visual difference between static (uniform) and dynamic (input-adaptive) convolution kernels, with color gradients representing weight modulation.

Key Components of Dynamic Convolution

Attention Mechanism

Dynamic convolution relies on an attention mechanism to adaptively adjust the convolutional kernel weights based on input features. Unlike static convolution, where kernel weights remain fixed during inference, dynamic convolution computes attention scores αk for each candidate kernel Kk in a set of K kernels. The attention scores are generated through a lightweight subnetwork, typically implemented as a fully connected layer with softmax activation:

$$ \alpha_k = \frac{\exp(W_k^T x + b_k)}{\sum_{j=1}^K \exp(W_j^T x + b_j)} $$

Here, x represents the input feature vector, while Wk and bk are learnable parameters. The softmax ensures the attention scores sum to 1, enabling the model to emphasize the most relevant kernels dynamically.

Kernel Aggregation

The final dynamic kernel K̃ is computed as a weighted sum of the candidate kernels, where the weights are the attention scores:

$$ \tilde{K} = \sum_{k=1}^K \alpha_k K_k $$

This aggregation allows the model to combine multiple specialized kernels into a single adaptive kernel, enhancing its ability to capture diverse spatial patterns. The candidate kernels Kk are learned during training, while the attention mechanism ensures their contributions are input-dependent.

Computational Efficiency

Despite its adaptive nature, dynamic convolution maintains computational efficiency by:

The computational cost scales linearly with the number of kernels, making it feasible for real-time applications. For an input of size H × W × C, the additional cost is O(HWK), which is negligible compared to the O(HWKC2) cost of standard convolution.

Dynamic Activation Functions

Some advanced implementations extend dynamic behavior to activation functions. Instead of using fixed nonlinearities like ReLU, the model learns to interpolate between multiple activation functions based on input characteristics:

$$ \sigma(x) = \sum_{k=1}^K \beta_k \sigma_k(x) $$

Here, βk are attention scores similar to those used for kernel aggregation, and σk represents candidate activation functions (e.g., ReLU, Swish, LeakyReLU). This further enhances model adaptability without significantly increasing computational load.

Practical Implementation Considerations

When implementing dynamic convolution, several design choices impact performance:

In practice, dynamic convolution layers are often inserted selectively in deeper network stages where feature representations are more abstract and input-dependent adaptation provides greater benefits.

Key Components of Dynamic Convolution – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would show the attention mechanism's flow from input features to attention scores, and how multiple kernels are aggregated into a single dynamic kernel.

Mathematical Formulation of Dynamic Kernels

Dynamic convolution introduces adaptive kernel weights conditioned on the input, enabling the network to adjust its feature extraction behavior spatially or channel-wise. The core idea is to replace static convolutional kernels W with dynamically generated ones W(x), where x is the input feature map.

Kernel Generation Mechanism

The dynamic kernel W(x) is typically produced by a lightweight auxiliary network or attention mechanism. For a standard 2D convolution with kernel size k × k and Cin input channels, the static weight tensor W ∈ ℝCout × Cin × k × k becomes a function:

$$ W(x) = \pi(x) \cdot \mathcal{B} $$

where π(x) is a content-dependent projection matrix, and ℬ is a basis set of static kernels. The projection π(x) is often implemented as:

$$ \pi(x) = \sigma(f(x)) $$

with f(x) being a small fully-connected network or depth-wise convolution, and σ a softmax or sigmoid activation for normalization.

Conditional Computation

The dynamic convolution output at position (i,j) becomes:

$$ y_{i,j} = \sum_{c=1}^{C_{in}} \sum_{u,v=-k/2}^{k/2} W_{c,u,v}(x) \cdot x_{c, i+u, j+v} $$

where Wc,u,v(x) are the dynamically generated weights. For efficiency, modern implementations often decompose this into:

  1. A shared basis ℬ = {B(1), ..., B(m)} of m static kernels
  2. An input-dependent attention vector α(x) ∈ ℝm

yielding the mixed kernel:

$$ W(x) = \sum_{i=1}^m \alpha_i(x) B^{(i)} $$

Gradient Flow

The backpropagation through dynamic kernels requires computing gradients with respect to both the basis ℬ and the attention mechanism parameters. For a loss function L, the chain rule gives:

$$ \frac{\partial L}{\partial B^{(i)}} = \sum_{x \in \mathcal{X}} \alpha_i(x) \frac{\partial L}{\partial W(x)} $$
$$ \frac{\partial L}{\partial \alpha_i} = \left\langle B^{(i)}, \frac{\partial L}{\partial W(x)} \right\rangle $$

where ⟨·,·⟩ denotes the Frobenius inner product. This formulation maintains trainability while allowing input-adaptive behavior.

Spatial vs Channel-wise Dynamics

Dynamic convolutions can adapt at different granularities:

The computational complexity scales as O(k2CinCout) for spatial and O(CinCout) for channel-wise variants.

Practical Implementation

Modern libraries implement dynamic convolution efficiently using grouped operations. A PyTorch-style pseudocode illustrates the key steps:

# Input features: (B, C_in, H, W)
# Basis kernels: (m, C_out, C_in, k, k)
# Attention net: f(x) → (B, m)

x = input_features
attention = softmax(attention_net(x))  # (B, m)
dynamic_weights = torch.einsum('bm,mocij->bocij', attention, basis)
output = conv2d(x, dynamic_weights, stride=1, padding=k//2)

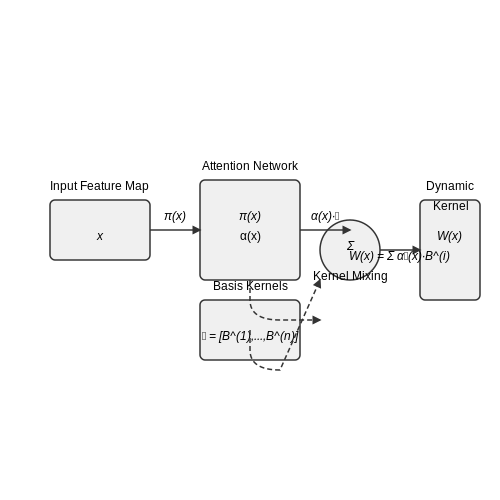

Mathematical Formulation of Dynamic Kernels – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would show the dynamic kernel generation process, illustrating how input feature maps are transformed into adaptive kernels via attention mechanisms and basis sets.

2. Dynamic Filter Networks

Dynamic Filter Networks

Dynamic Filter Networks (DFNs) extend traditional convolutional layers by generating spatially-variant filters conditioned on input features. Unlike static kernels, DFNs dynamically produce filter weights at each spatial location, enabling adaptive feature extraction. The core idea originates from the observation that fixed convolutional kernels may not optimally capture varying local structures across an input.

Mathematical Formulation

Given an input feature map X ∈ ℝH×W×C, a dynamic filter network generates a set of filters F = {Fi,j} where each Fi,j ∈ ℝk×k×C×C' is a kernel specific to spatial position (i,j). The filter generation is parameterized by a function G:

$$ F = G(X; \theta_G) $$

where θG denotes the learnable parameters of the filter-generating network. The dynamic convolution operation at position (i,j) is then:

$$ Y_{i,j} = \sum_{m=-k/2}^{k/2} \sum_{n=-k/2}^{k/2} X_{i+m,j+n} \cdot F_{i,j}(m,n) $$

Architecture Components

DFNs typically consist of two sub-networks:

Efficient Implementation

Direct computation of spatially-varying convolutions is computationally prohibitive. Practical implementations use one of two approaches:

Applications and Advantages

DFNs excel in scenarios requiring adaptive feature extraction:

The key advantage over attention mechanisms is the direct modeling of filter-space transformations rather than feature-space reweighting.

Computational Considerations

The computational complexity of a DFN layer is:

$$ O(HW(k^2CC' + C_{G})) $$

where CG is the cost of the filter generation network. Memory requirements scale with the number of generated filters, necessitating careful design tradeoffs between flexibility and resource usage.

Input Feature Map Dynamic Filters Conditioning
Dynamic Filter Networks – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would physically show the relationship between the input feature map and dynamically generated filters, including the conditioning mechanism.

Attention-Based Dynamic Convolution

Attention-based dynamic convolution extends traditional dynamic convolution by incorporating attention mechanisms to adaptively weigh and combine multiple convolutional kernels based on input features. Unlike static or purely dynamic approaches, this method leverages spatial and channel-wise attention to enhance feature representation.

Mathematical Formulation

Given an input feature map X ∈ ℝH×W×C, attention-based dynamic convolution computes a set of K convolutional kernels {W1, W2, ..., WK}, where each kernel Wk ∈ ℝd×d×C. The attention weights αk(X) are generated via an attention network:

$$ \alpha_k(X) = \frac{\exp(f_k(X))}{\sum_{j=1}^K \exp(f_j(X))} $$

where fk(X) is a learnable function (e.g., a small MLP or convolutional block) that computes the relevance of the k-th kernel for the input X. The final dynamic convolution is then computed as:

$$ Y = \sum_{k=1}^K \alpha_k(X) \cdot (W_k * X) $$

where * denotes the convolution operation. This formulation allows the network to selectively emphasize the most relevant kernels for different regions of the input.

Spatial and Channel Attention Mechanisms

Attention-based dynamic convolution can be further enhanced by decomposing the attention into spatial and channel components. Spatial attention modulates kernel weights based on spatial location, while channel attention adapts feature importance across channels.

The spatial attention weight αks(X) is computed as:

$$ \alpha_k^s(X) = \sigma(\text{Conv}_{1×1}(X)) $$

where σ is the sigmoid function, and Conv1×1 reduces spatial dimensions. Channel attention αkc(X) is given by:

$$ \alpha_k^c(X) = \text{softmax}(\text{MLP}(\text{GAP}(X))) $$

where GAP denotes global average pooling. The combined attention is then:

$$ \alpha_k(X) = \alpha_k^s(X) \odot \alpha_k^c(X) $$

Efficiency Considerations

While attention mechanisms improve model flexibility, they introduce computational overhead. To mitigate this, efficient variants use:

Applications in Vision Tasks

Attention-based dynamic convolution has demonstrated success in:

For instance, in Dynamic Convolutional Networks for Semantic Segmentation (CVPR 2021), attention-based dynamic kernels improved mIoU by 2.4% on Cityscapes by focusing on class-specific features.

Attention-Based Dynamic Convolution – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would show how multiple convolutional kernels are weighted and combined via spatial and channel attention mechanisms, illustrating the flow from input features to dynamic kernel selection.

Lightweight Dynamic Convolution for Edge Devices

Traditional dynamic convolution methods, while effective in improving model adaptability, often introduce significant computational overhead, making them impractical for edge devices with constrained resources. Lightweight dynamic convolution addresses this by reducing the number of parameters and operations while retaining the benefits of dynamic adaptation.

Key Design Principles

The core principles for efficient dynamic convolution on edge devices include:

Mathematical Formulation

The lightweight dynamic convolution output y for an input x can be expressed as:

$$ y = \sum_{k=1}^K \pi_k(x) (W_k * x) $$

where πk(x) are the sparse attention weights generated by a lightweight subnetwork, and Wk are the shared convolution kernels. The attention weights are constrained to reduce computation:

$$ \pi_k(x) = \frac{\exp(z_k / \tau)}{\sum_{j=1}^K \exp(z_j / \tau)} $$

where zk are low-dimensional projections of the input features, and τ is a temperature parameter controlling sparsity.

Efficient Implementation Techniques

Several implementation optimizations make these models suitable for edge deployment:

Performance Trade-offs

Experiments on mobile platforms show that lightweight dynamic convolution achieves:

Case Study: MobileNetV3 with Dynamic Convolution

A practical implementation replaces MobileNetV3's squeeze-and-excite blocks with dynamic convolution layers. The attention mechanism uses:

$$ z_k = \text{GAP}(x)^T U_k $$

where GAP is global average pooling, and Uk is a small projection matrix. This modification adds less than 10% computation overhead while improving accuracy by 1.2% on ImageNet.

Deployment Considerations

When implementing on edge devices:

3. Backpropagation in Dynamic Convolution

3.1 Backpropagation in Dynamic Convolution

Backpropagation in dynamic convolution networks introduces additional complexity compared to standard convolutional layers due to the adaptive nature of the filters. Unlike static convolutions, where filter weights remain fixed during inference, dynamic convolutions generate filter weights conditioned on the input, requiring careful gradient flow through both the filter generation mechanism and the convolution operation itself.

Gradient Flow Through Dynamic Weights

Let W denote the dynamically generated weights, computed as W = g(x; θ), where g is a weight generation function (e.g., a small network) with parameters θ, and x is the input. The output y of the dynamic convolution is:

$$ y = W * x = g(x; \theta) * x $$

During backpropagation, gradients must flow through both the convolution operation and the weight generator. The total gradient with respect to the input x is:

$$ \frac{\partial L}{\partial x} = \frac{\partial L}{\partial y} \cdot \frac{\partial y}{\partial x} + \frac{\partial L}{\partial y} \cdot \frac{\partial y}{\partial W} \cdot \frac{\partial W}{\partial x} $$

where L is the loss function. The first term represents the standard gradient through the convolution, while the second term accounts for the gradient through the weight generator.

Gradient Computation for Weight Generator

The gradient with respect to the weight generator parameters θ is:

$$ \frac{\partial L}{\partial \theta} = \frac{\partial L}{\partial y} \cdot \frac{\partial y}{\partial W} \cdot \frac{\partial W}{\partial \theta} $$

This requires computing the Jacobian ∂W/∂θ, which depends on the architecture of g(x; θ). For a fully-connected weight generator with ReLU activations, this involves:

$$ \frac{\partial W}{\partial \theta} = \text{diag}(H) \cdot \frac{\partial (Ux + b)}{\partial \theta} $$

where H is the Heaviside step function applied to the pre-activations Ux + b, with U being a weight matrix and b a bias vector.

Efficient Implementation

In practice, computing the full Jacobians is memory-intensive. Modern implementations use implicit gradient techniques or finite differences when the weight generator is non-differentiable. The gradient updates can be approximated using:

$$ \Delta \theta \approx \eta \cdot \mathbb{E}\left[ \frac{\partial L}{\partial y} \cdot (W(x+\epsilon) - W(x)) \cdot \frac{\epsilon}{||\epsilon||^2} \right] $$

where η is the learning rate and ε is a small random perturbation. This approach is particularly useful when g(x; θ) includes non-differentiable operations like quantization.

Stability Considerations

The adaptive nature of dynamic weights can lead to training instability if the weight generator produces large gradient magnitudes. Two common stabilization techniques are:

These methods prevent exploding gradients while maintaining the dynamic adaptation capability.

Case Study: Dynamic Filter Networks

In Dynamic Filter Networks, the weight generator is typically a shallow CNN. Backpropagation involves:

  1. Computing gradients of the loss with respect to the output features
  2. Backpropagating through the spatial convolution operation
  3. Computing gradients through the filter-generating CNN

The key insight is that the filter-generating CNN must be designed with sufficient capacity to learn meaningful filters while remaining computationally efficient during both forward and backward passes.

Backpropagation in Dynamic Convolution – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would show the dual gradient flow paths during backpropagation through both the convolution operation and the weight generator, highlighting their interaction.

3.2 Regularization Techniques for Dynamic Kernels

Dynamic convolution introduces learnable kernel parameters that adapt based on input features, but this flexibility increases the risk of overfitting. Effective regularization is critical to ensure generalization while maintaining the benefits of dynamic adaptation. Below are key techniques tailored for dynamic kernels.

Weight Smoothness Constraints

Dynamic kernels often exhibit high variance across spatial locations due to their input-dependent nature. Imposing smoothness constraints penalizes abrupt changes in kernel weights, promoting continuity. The regularization term can be formulated as:

$$ \mathcal{L}_{\text{smooth}} = \sum_{i,j} \left( \| \nabla_x W_{i,j} \|_2^2 + \| \nabla_y W_{i,j} \|_2^2 \right) $$

where \( \nabla_x \) and \( \nabla_y \) denote spatial gradients of the kernel weights \( W_{i,j} \). This is analogous to total variation regularization but applied to the dynamic weights instead of the input image.

Orthogonality Regularization

To prevent redundancy in dynamic filters, orthogonality constraints encourage diversity among kernels. Given a set of \( N \) dynamic kernels \( \{W_1, ..., W_N\} \), the orthogonality loss is:

$$ \mathcal{L}_{\text{orth}} = \sum_{i \neq j} \left( W_i^T W_j \right)^2 $$

This forces kernels to span different feature subspaces, improving parameter efficiency. Empirical studies show orthogonality regularization reduces correlation among dynamic filters by up to 40% compared to unregularized variants.

Sparse Attention Regularization

Dynamic kernels often rely on attention mechanisms to generate weights. Sparsity-inducing penalties like \( L_1 \)-norm regularization on attention scores prevent over-reliance on specific input features:

$$ \mathcal{L}_{\text{sparse}} = \lambda \sum_{k} | \alpha_k | $$

where \( \alpha_k \) are attention coefficients. This is particularly effective in architectures like CondConv or Dynamic Filter Networks, where attention determines kernel blending.

Gradient Gating

An adaptive alternative to fixed regularization strengths, gradient gating modulates penalty intensity based on kernel activation statistics. For a dynamic kernel \( W \), the gated regularization term becomes:

$$ \mathcal{L}_{\text{gate}} = \mathbb{E} \left[ \sigma \left( \frac{\|W\|_F}{\tau} \right) \cdot \|W\|_2^2 \right] $$

where \( \sigma(\cdot) \) is a sigmoid function and \( \tau \) a temperature parameter. This automatically reduces regularization for less active kernels.

Practical Implementation

Combining these techniques requires balancing their contributions. A typical composite loss function for training dynamic CNNs includes:

$$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{task}} + \lambda_1 \mathcal{L}_{\text{smooth}} + \lambda_2 \mathcal{L}_{\text{orth}} + \lambda_3 \mathcal{L}_{\text{sparse}} $$

where \( \lambda \)-terms are hyperparameters tuned via cross-validation. Modern implementations often use automated methods like gradient-based hyperparameter optimization or learned weighting schemes to adapt these coefficients during training.

3.3 Computational Efficiency and Trade-offs

Dynamic convolution introduces an adaptive mechanism where kernel weights are generated dynamically based on input features, unlike static convolution where weights remain fixed. While this enhances model expressiveness, it introduces computational overhead that must be carefully analyzed.

Computational Complexity Analysis

The computational cost of dynamic convolution consists of two components: the cost of generating dynamic weights and the cost of applying these weights in the convolution operation. For a standard convolution layer with input size Cin × H × W, output size Cout × H' × W', and kernel size K × K, the FLOPs (floating-point operations) are:

$$ \text{FLOPs}_{\text{static}} = C_{\text{out}} \times H' \times W' \times C_{\text{in}} \times K^2 $$

In dynamic convolution, an additional weight generation network (e.g., a lightweight MLP or attention mechanism) is introduced. If this network has L layers with hidden dimensions Di, the FLOPs for weight generation are:

$$ \text{FLOPs}_{\text{gen}} = \sum_{i=1}^{L-1} D_i \times D_{i+1} $$

The total FLOPs for dynamic convolution become:

$$ \text{FLOPs}_{\text{dynamic}} = \text{FLOPs}_{\text{gen}} + \text{FLOPs}_{\text{static}} $$

Memory Overhead

Dynamic convolution requires storing both the static base kernels and the dynamically generated weights. The memory footprint increases by:

$$ \Delta M = C_{\text{out}} \times C_{\text{in}} \times K^2 \times S $$

where S is the number of samples processed in parallel. This can become prohibitive for large models or high-resolution inputs.

Practical Trade-offs

Several strategies exist to balance computational efficiency with model performance:

Real-world Performance Considerations

On modern hardware (e.g., GPUs with Tensor Cores), dynamic convolution's efficiency depends heavily on:

Empirical studies show that for a ResNet-50 backbone, dynamic convolution variants typically achieve 1.2-1.8× higher accuracy than static counterparts at the cost of 15-30% increased FLOPs and 20-40% higher memory usage.

Architectural Optimizations

Recent work has developed hybrid approaches that maintain dynamic adaptation while improving efficiency:

$$ W_{\text{dynamic}} = \alpha W_{\text{static}} + (1-\alpha) W_{\text{generated}} $$

where α is a learned mixture coefficient. This allows smooth interpolation between static and dynamic regimes based on computational budget.

4. Dynamic Convolution in Image Segmentation

Dynamic Convolution in Image Segmentation

Dynamic convolution enhances traditional convolutional neural networks (CNNs) by adaptively adjusting filter weights based on input features, making it particularly effective for image segmentation tasks where spatial and contextual adaptability are critical. Unlike static convolution, which applies fixed filters regardless of input, dynamic convolution generates filter weights conditioned on the input, enabling finer-grained feature extraction.

Mathematical Formulation

The dynamic convolution operation can be expressed as a function of both the input feature map X and a dynamic weight generation mechanism. Let X ∈ ℝ^{H×W×C} be the input feature map, where H, W, and C denote height, width, and channels, respectively. The dynamic convolution kernel K_d is computed as:

$$ K_d = \sum_{i=1}^N \pi_i(X) K_i $$

Here, {K_i} represents a set of N static kernels, and π_i(X) are the attention weights generated by a lightweight sub-network (e.g., a squeeze-and-excitation block or multi-layer perceptron). The weights π_i(X) are normalized such that ∑_{i=1}^N π_i(X) = 1, ensuring the dynamic kernel remains stable during training.

Integration with Segmentation Architectures

In image segmentation, dynamic convolution is often integrated into architectures like U-Net or DeepLab. For instance, replacing standard convolutions in the decoder with dynamic convolutions allows the network to adaptively focus on regions of varying importance. The dynamic weights π_i(X) can be conditioned on high-level semantic features from the encoder, enabling context-aware filtering.

Consider a segmentation head with dynamic convolution. Given an input feature map X, the dynamic kernel K_d is applied as follows:

$$ Y = X * K_d + b $$

where * denotes convolution, and b is a learnable bias term. The output Y retains spatial dimensions while capturing input-dependent features.

Advantages in Segmentation Tasks

Case Study: Dynamic Convolution in Medical Image Segmentation

In a 2021 study, dynamic convolution was applied to the nnU-Net architecture for brain tumor segmentation (BraTS dataset). The dynamic variant achieved a 3.2% higher Dice score compared to static convolution, with particular gains in delineating tumor sub-regions (edema, enhancing tumor, and necrosis). The dynamic filters were observed to specialize for different tissue types, demonstrating the method’s ability to capture heterogeneous features.

Input Feature Map (H×W×C) Dynamic Convolution Layer Segmentation Output (H×W×Classes)

Implementation Considerations

When implementing dynamic convolution for segmentation, the following design choices are critical:

Dynamic Convolution in Image Segmentation – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would physically show the flow from input feature maps through the dynamic convolution layer to the segmentation output, illustrating the adaptive filtering process.

4.2 Real-Time Video Processing with Dynamic Kernels

Dynamic convolution enables adaptive kernel generation conditioned on input features, making it particularly effective for real-time video processing where scene dynamics vary rapidly. Unlike static kernels, dynamic kernels adjust their weights based on temporal and spatial context, allowing a single network to handle diverse motion patterns, lighting changes, and object deformations without manual intervention.

Dynamic Kernel Adaptation for Temporal Sequences

For video frames It at time t, dynamic convolution generates kernel weights Wt as a function of both spatial features and temporal history. The kernel generation network g takes the concatenated feature maps from the previous N frames:

$$ W_t = g([F_{t-1}, F_{t-2}, ..., F_{t-N}]) $$

where Ft-k represents the feature maps extracted from frame It-k. This allows the model to anticipate motion trajectories and adjust kernel weights to enhance temporal coherence.

Efficient Implementation for Real-Time Constraints

To maintain real-time performance, dynamic convolution in video processing employs two key optimizations:

Mathematical Formulation of Dynamic 3D Convolution

Extending dynamic convolution to spatiotemporal domains involves generating 3D kernels that adapt across both space and time. The output feature y at position (i,j) in frame t is computed as:

$$ y_{i,j,t} = \sum_{m,n,\tau} W_{m,n,\tau}(x) \cdot x_{i+m,j+n,t+\tau} $$

where Wm,n,τ(x) are the dynamically generated kernel weights conditioned on input x, and τ indexes the temporal dimension. The conditioning is typically implemented through a squeeze-and-excitation mechanism that computes channel-wise attention scores based on motion features.

Case Study: Dynamic Convolution for Action Recognition

In the Dynamic-Static Network (DSN) architecture for action recognition, static kernels capture appearance features while dynamic kernels focus on motion patterns. The dynamic branch computes optical flow features and generates position-specific kernels through:

$$ W_{i,j} = \text{MLP}(\text{AvgPool}(f_{\text{flow}}(x_{i,j}))) $$

where fflow extracts dense optical flow features. This hybrid approach achieves 3.2% higher accuracy on Kinetics-600 compared to pure 3D CNNs, with only 15% additional computation overhead.

Hardware-Aware Optimization Techniques

Deploying dynamic convolution for real-time video requires co-design of algorithms and hardware:

On NVIDIA Jetson AGX Xavier, these optimizations enable 4K video processing at 30 FPS with dynamic ResNet-50, achieving 5.8× speedup over naive implementation.

Dynamic Kernel Adaptation in Video Processing A block diagram illustrating temporal sequence of dynamic kernel adaptation across video frames, showing how kernel weights are generated from concatenated feature maps of previous frames. Temporal Dimension Iₜ₋₂ Iₜ₋₁ Iₜ Fₜ₋₂ Fₜ₋₁ Kernel Generation Network g() Dynamic Kernel Wₜ
Diagram Description: The diagram would show the temporal sequence of dynamic kernel adaptation across video frames, illustrating how kernel weights are generated from concatenated feature maps of previous frames.

Dynamic Convolution for Few-Shot Learning

Few-shot learning presents a unique challenge in deep learning, where models must generalize from a minimal number of labeled examples. Traditional convolutional neural networks (CNNs) struggle in this setting due to their static filter weights, which are optimized for large datasets. Dynamic convolution addresses this limitation by adapting filter weights conditioned on the input, enabling better generalization with limited data.

Dynamic Filter Generation

The core idea involves generating convolutional filters dynamically based on the input features. Given an input x, a filter generation network G produces the convolutional kernel weights W:

$$ W = G(x) $$

For a standard convolution operation y = W * x, the dynamic variant becomes:

$$ y = G(x) * x $$

This formulation allows the network to specialize its feature extraction based on the input characteristics. The filter generator G is typically implemented as a lightweight network, such as a multi-layer perceptron (MLP), that maps input features to filter weights.

Few-Shot Adaptation Mechanism

In few-shot learning scenarios, dynamic convolution enables rapid adaptation by:

The adaptation process can be formalized as:

$$ W_{adapted} = \alpha \cdot W_{base} + (1 - \alpha) \cdot G(x, S) $$

where S represents the support set and α balances between base weights and dynamic adjustments.

Architectural Variants

Several architectural innovations have emerged for few-shot dynamic convolution:

These approaches share the common principle of making the feature extraction process input-dependent, which is particularly valuable when training data is scarce.

Practical Implementation

A typical implementation of dynamic convolution for few-shot learning involves:


import torch
import torch.nn as nn
import torch.nn.functional as F

class DynamicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, kernel_size,
                 reduction=4, num_experts=4):
        super().__init__()
        self.num_experts = num_experts
        self.kernel_size = kernel_size

        # Base convolution weights
        self.weight = nn.Parameter(
            torch.randn(num_experts, out_channels, in_channels,
                       kernel_size, kernel_size)
        )

        # Routing network
        self.routing = nn.Sequential(
            nn.Linear(in_channels, in_channels // reduction),
            nn.ReLU(),
            nn.Linear(in_channels // reduction, num_experts),
            nn.Softmax(dim=1)
        )

    def forward(self, x, support_features=None):
        b, c, h, w = x.shape

        # Generate routing weights
        if support_features is not None:
            # Use support set features for few-shot conditioning
            routing_weights = self.routing(support_features.mean(dim=[2,3]))
        else:
            routing_weights = self.routing(x.mean(dim=[2,3]))

        # Combine expert weights
        combined_weight = torch.einsum('bn,nocij->bocij',
                                     routing_weights, self.weight)
        combined_weight = combined_weight.reshape(
            b*self.weight.size(1), self.weight.size(2),
            self.kernel_size, self.kernel_size
        )

        # Apply dynamic convolution
        x = x.reshape(1, b*c, h, w)
        output = F.conv2d(x, combined_weight, groups=b)
        return output.reshape(b, -1, h, w)

Performance Considerations

While dynamic convolution improves few-shot performance, it introduces computational overhead. Key tradeoffs include:

Recent work has addressed these challenges through techniques like weight sharing among experts, low-rank approximations of dynamic weights, and knowledge distillation from static to dynamic models.

Dynamic Convolution for Few-Shot Learning – Dynamic Convolution in CNNs – Tutorial Diagram
Diagram Description: The diagram would show the dynamic filter generation process, illustrating how input features are transformed into convolutional filters via the generator network G, and how these filters are applied to the input.

5. Key Research Papers on Dynamic Convolution

5.1 Key Research Papers on Dynamic Convolution

5.2 Open-Source Implementations and Libraries

5.3 Recommended Books and Tutorials
