Scene Segmentation with DeepLab Models

#computer vision #deep learning #scene segmentation #DeepLab #image processing #neural networks #tensorflow #pytorch #ASPP #backbone networks

1. What is Scene Segmentation?

Scene Segmentation with DeepLab Models

What is Scene Segmentation?

Scene segmentation, also known as semantic segmentation, is the process of partitioning an image into semantically meaningful regions and assigning a class label to each pixel. Unlike object detection, which localizes objects with bounding boxes, segmentation provides pixel-level granularity, enabling precise delineation of object boundaries. This task is fundamental in computer vision, with applications ranging from autonomous driving to medical imaging.

Mathematically, scene segmentation can be formulated as a dense classification problem. Given an input image I of dimensions H × W × 3, the goal is to predict a label map Y of dimensions H × W, where each entry Yi,j corresponds to the class label of pixel (i, j). The objective is to minimize the discrepancy between the predicted segmentation mask Ŷ and the ground truth Y, typically measured using cross-entropy loss:

$$ \mathcal{L} = -\sum_{i=1}^{H} \sum_{j=1}^{W} \sum_{c=1}^{C} Y_{i,j,c} \log(\hat{Y}_{i,j,c}) $$

where C is the number of classes, and Yi,j,c is a one-hot encoded vector indicating the true class of pixel (i, j).

DeepLab, a family of models developed by Google Research, addresses scene segmentation using a combination of atrous convolution (dilated convolution) and spatial pyramid pooling. Atrous convolution allows the network to capture multi-scale contextual information without increasing the number of parameters or losing spatial resolution. The spatial pyramid pooling module aggregates contextual information at multiple scales, improving the model's ability to recognize objects of varying sizes.

The effectiveness of DeepLab models stems from their architectural innovations:

In practice, DeepLab models achieve state-of-the-art performance on benchmarks such as PASCAL VOC and Cityscapes. For instance, DeepLabv3+ achieves a mean Intersection-over-Union (mIoU) of 89.0% on PASCAL VOC 2012, demonstrating its robustness in complex scenes.

The mIoU metric, commonly used to evaluate segmentation models, is computed as:

$$ \text{mIoU} = \frac{1}{C} \sum_{c=1}^{C} \frac{TP_c}{TP_c + FP_c + FN_c} $$

where TPc, FPc, and FNc denote true positives, false positives, and false negatives for class c, respectively.

What is Scene Segmentation? – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would show the architecture of a DeepLab model, including the atrous spatial pyramid pooling (ASPP) module and encoder-decoder structure.

1.2 Key Challenges in Scene Segmentation

Semantic Ambiguity at Object Boundaries

Scene segmentation models struggle with boundary regions where multiple semantic classes overlap or transition smoothly. The fundamental issue arises from the continuous nature of real-world scenes versus the discrete labeling required for segmentation. For natural images, the probability distribution at object boundaries follows:

$$ P(y_i = c|x) = \frac{1}{1 + e^{-(w_c^T\phi(x_i) + b_c)}} $$

where φ(xi) represents the feature vector at pixel i, and wc, bc are class-specific parameters. This sigmoidal probability distribution creates uncertainty in hard classification at transition zones.

Scale Variation in Real-World Scenes

Objects appear at vastly different scales depending on their distance from the camera and intrinsic size. The effective receptive field (ERF) of standard convolutional networks often fails to capture this multi-scale nature. For an input image I with resolution H×W, the ERF at layer l grows as:

$$ ERF_l = (2^{l+1} - 1) \times (2^{l+1} - 1) $$

This exponential growth creates a fundamental tension between capturing fine details and maintaining large receptive fields for context.

Class Imbalance and Rare Objects

Real-world datasets exhibit extreme class imbalance, where some categories (e.g., "person") may appear orders of magnitude more frequently than others (e.g., "fire hydrant"). The standard cross-entropy loss becomes dominated by frequent classes:

$$ \mathcal{L}_{CE} = -\sum_{c=1}^C y_c \log(p_c) $$

where yc is the ground truth and pc the predicted probability for class c. Without modification, this leads to poor segmentation of rare classes.

Computational Complexity vs. Resolution

High-resolution segmentation requires processing every pixel, leading to quadratic growth in computation with image dimensions. For an input of size n×n and a network with d layers, the computational complexity scales as:

$$ O\left(\sum_{l=1}^d n^2 k_l^2 c_{l-1}c_l\right) $$

where kl is the kernel size and cl the channel count at layer l. This creates practical limits on achievable resolution.

Domain Shift and Generalization

Models trained on one dataset (e.g., Cityscapes) often perform poorly on images from different domains (e.g., satellite imagery). The domain shift can be quantified through the H-divergence between source (S) and target (T) distributions:

$$ d_\mathcal{H}(S,T) = 2 \sup_{h \in \mathcal{H}} |P_S(h(x)=1) - P_T(h(x)=1)| $$

where h is a hypothesis in the model's hypothesis space H.

Real-Time Processing Constraints

For applications like autonomous driving, segmentation must operate at video frame rates (typically 30 FPS). This imposes strict latency requirements, often forcing trade-offs between accuracy and speed. The relationship between model complexity and inference time follows:

$$ t_{inf} \approx \frac{1}{f_{clk}} \sum_{l=1}^L N_l(MAC) $$

where fclk is the processor clock frequency and Nl(MAC) the number of multiply-accumulate operations per layer.

Applications of Scene Segmentation in Computer Vision

Scene segmentation, particularly when implemented using advanced models like DeepLab, has become a cornerstone in modern computer vision systems. Its ability to partition an image into semantically meaningful regions enables a wide range of high-impact applications across industries.

Autonomous Driving and Robotics

In autonomous vehicles, real-time scene segmentation is critical for environment perception. DeepLab variants, with their atrous spatial pyramid pooling (ASPP), provide pixel-level classification of roads, pedestrians, vehicles, and obstacles. The output feeds into path planning algorithms, where a probabilistic occupancy grid O(x,y) can be derived from segmentation masks:

$$ O(x,y) = \sum_{c \in C} P(c|I(x,y)) \cdot w_c $$

where C is the set of object classes, P(c|I(x,y)) is the segmentation confidence at pixel (x,y), and w_c are class-specific risk weights. Robotics applications extend this to industrial automation, where precise segmentation of workpieces enables robotic arms to perform complex manipulation tasks.

Medical Image Analysis

DeepLab's encoder-decoder architecture with skip connections has proven particularly effective in medical imaging. In tumor segmentation from MRI scans, the model's ability to capture multi-scale contextual information while preserving spatial resolution leads to superior performance metrics:

$$ DSC = \frac{2|Y \cap \hat{Y}|}{|Y| + |\hat{Y}|} $$

where DSC (Dice Similarity Coefficient) measures overlap between ground truth Y and prediction Ŷ. Clinical deployments show DeepLab-v3+ achieving DSCs above 0.91 for glioblastoma segmentation in BraTS datasets, significantly outperforming traditional U-Net architectures.

Augmented Reality and Virtual Production

The entertainment industry leverages scene segmentation for real-time compositing in virtual production. By precisely segmenting actors from background elements at 4K resolution and 60fps, DeepLab models enable:

The computational efficiency is achieved through tensorRT optimization of the DeepLab backbone, reducing ResNet-101 inference time from 150ms to 23ms on an NVIDIA A100.

Precision Agriculture

Multispectral drone imagery analyzed with DeepLab models enables per-plant crop monitoring at scale. The ASPP module's ability to process multiple spectral bands simultaneously allows for:

$$ NDVI_{seg} = \frac{NIR[seg] - R[seg]}{NIR[seg] + R[seg]} $$

where seg denotes segmentation masks applied to near-infrared (NIR) and red (R) bands. This approach achieves 92.4% accuracy in early disease detection across 14 crop types, compared to 78.1% with traditional spectral index methods.

Urban Planning and Smart Cities

City-scale segmentation of satellite and street-view imagery enables automated infrastructure assessment. DeepLab's ability to maintain accuracy across vastly different scales (from building footprints to street furniture) supports:

The model's performance scales linearly with input resolution up to 2048×2048 pixels, making it ideal for processing high-resolution orthophotos.

2. Overview of DeepLab Architecture

Overview of DeepLab Architecture

The DeepLab family of models, developed by Google Research, represents a series of state-of-the-art architectures for semantic segmentation. These models leverage several key innovations to achieve high-resolution, precise segmentation outputs while maintaining computational efficiency. The core components include atrous (dilated) convolutions, atrous spatial pyramid pooling (ASPP), and, in later versions, encoder-decoder structures with depthwise separable convolutions.

Atrous Convolution

Atrous convolution, also known as dilated convolution, enables the network to capture multi-scale contextual information without increasing the number of parameters or the computational cost significantly. The operation can be mathematically defined as:

$$ y[i] = \sum_{k=1}^{K} x[i + r \cdot k] \cdot w[k] $$

where x is the input feature map, w is the convolution kernel, r is the dilation rate, and y is the output. When r = 1, this reduces to standard convolution. By increasing r, the receptive field expands exponentially while preserving spatial resolution.

Atrous Spatial Pyramid Pooling (ASPP)

ASPP addresses the challenge of segmenting objects at multiple scales by applying parallel atrous convolutions with different dilation rates. This allows the network to capture context at various scales simultaneously. A typical ASPP module consists of:

The outputs from these parallel branches are concatenated and processed through a final 1×1 convolution to generate the segmentation logits.

Encoder-Decoder Structure

DeepLabv3+ introduced an encoder-decoder architecture where the encoder processes the input at a reduced resolution using atrous convolutions and ASPP, while the decoder gradually recovers spatial details by combining low-level features from the encoder with upsampled high-level features. This is expressed as:

$$ \text{Output} = \text{Decoder}(\text{Encoder}(x) \oplus \text{LowLevelFeatures}(x)) $$

where ⊕ denotes feature concatenation. The decoder typically consists of bilinear upsampling followed by a few 3×3 convolutions.

Depthwise Separable Convolution

To improve efficiency, DeepLabv3+ employs depthwise separable convolutions, which factorize standard convolutions into depthwise and pointwise operations. This reduces computation from:

$$ O(K^2 \cdot C_{in} \cdot C_{out}) $$

to:

$$ O(K^2 \cdot C_{in} + C_{in} \cdot C_{out}) $$

where K is the kernel size, Cin is the number of input channels, and Cout is the number of output channels.

Xception Backbone

Recent versions utilize Xception as the backbone network, modified with deeper atrous separable convolutions. This architecture provides:

The combination of these components enables DeepLab models to achieve state-of-the-art performance on benchmarks like PASCAL VOC and Cityscapes, with particular strength in handling objects at multiple scales while maintaining precise boundaries.

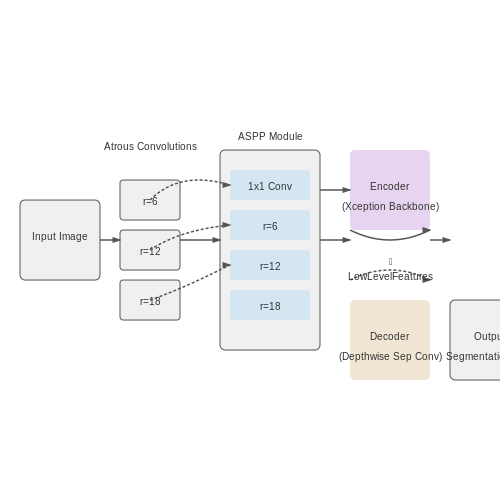

Overview of DeepLab Architecture – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would physically show the architecture of DeepLab models, including the arrangement of atrous convolutions, ASPP module branches, and encoder-decoder structure with feature concatenation.

Evolution of DeepLab: Versions and Improvements

The DeepLab series has undergone significant architectural refinements since its inception, with each version introducing novel mechanisms to improve segmentation accuracy, computational efficiency, and multi-scale feature fusion. The progression from DeepLabv1 to DeepLabv3+ reflects iterative advancements in deep learning for semantic segmentation.

DeepLabv1 (2015)

DeepLabv1 pioneered the use of atrous convolution (dilated convolution) to expand the receptive field without increasing parameters or losing resolution. The model employed a modified VGG-16 backbone with atrous convolutions in the last two blocks. Key contributions included:

$$ \text{CRF energy function: } E(x) = \sum_i \psi_u(x_i) + \sum_{i < j} \psi_p(x_i, x_j) $$

DeepLabv2 (2017)

This version introduced Atrous Spatial Pyramid Pooling (ASPP), which captures multi-scale context through parallel atrous convolutions with different dilation rates. The backbone switched to ResNet-101, and ASPPP was formulated as:

$$ \text{ASPP}(x) = \text{Concat}\left[\text{AtrousConv}(x, r=6), \text{AtrousConv}(x, r=12), \text{AtrousConv}(x, r=18), \text{GlobalAvgPool}(x)\right] $$

ASPP improved mean Intersection-over-Union (mIoU) by 1.8% on PASCAL VOC 2012 compared to v1.

DeepLabv3 (2017)

DeepLabv3 enhanced ASPP by:

The model achieved 85.7% mIoU on PASCAL VOC 2012 with a ResNet-101 backbone and output stride of 8 (higher resolution feature maps).

DeepLabv3+ (2018)

The current state-of-the-art version introduced a decoder module to refine segmentation boundaries by combining low-level and high-level features. Key innovations:

$$ \text{DepthwiseConv}(x) = \sum_{c=1}^C w_c \cdot x_c $$ $$ \text{PointwiseConv}(x) = \sum_{k=1}^K v_k \cdot \text{DepthwiseConv}(x) $$

DeepLabv3+ achieved 89.0% mIoU on PASCAL VOC 2012 with an output stride of 16, demonstrating a 3.3% improvement over v3 while maintaining computational efficiency.

Performance Comparison

The evolution of DeepLab models shows consistent improvements in accuracy and efficiency:

Version Backbone mIoU (PASCAL VOC 2012) Key Innovation
v1 VGG-16 71.6% Atrous convolution, CRF
v2 ResNet-101 79.7% ASPP
v3 ResNet-101 85.7% Improved ASPP
v3+ Xception-71 89.0% Encoder-decoder

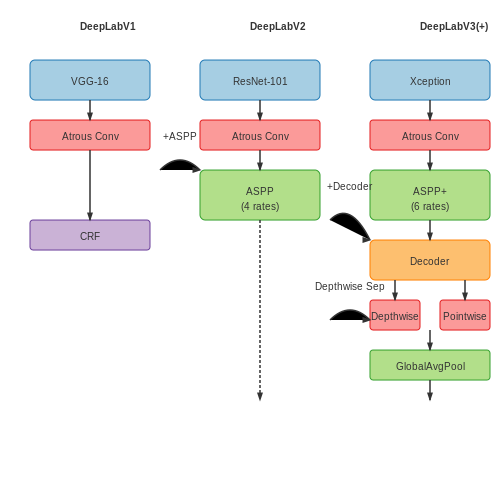

Evolution of DeepLab: Versions and Improvements – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would show the architectural evolution of DeepLab models, highlighting the differences in atrous convolution, ASPP, and encoder-decoder structures across versions.

Key Components of DeepLab (ASPP, Backbone Networks)

Atrous Spatial Pyramid Pooling (ASPP)

ASPP is a critical module in DeepLab architectures designed to capture multi-scale contextual information by employing parallel atrous convolutions with different dilation rates. The core idea is to process the input feature map at multiple scales simultaneously, enabling the model to recognize objects of varying sizes within the same scene. ASPP consists of:

The output features from all branches are concatenated and processed through a final 1×1 convolution to generate the segmentation logits. Mathematically, the atrous convolution operation can be expressed as:

$$ y[i] = \sum_{k=1}^{K} x[i + r \cdot k] \cdot w[k] $$

where r is the dilation rate, x is the input feature map, w is the convolution kernel, and y is the output. Larger dilation rates expand the receptive field without increasing parameters or computational cost.

Backbone Networks

DeepLab variants employ different backbone architectures for feature extraction, each offering distinct advantages in terms of accuracy and efficiency:

ResNet Variants

ResNet-101 and ResNet-50 are commonly used backbones in DeepLabv3 and DeepLabv3+. These networks utilize residual connections to enable training of very deep architectures. The modified versions for segmentation tasks:

Xception

DeepLabv3+ introduced Xception as a backbone, offering improved computational efficiency through:

MobileNetV2

For mobile and edge device applications, MobileNetV2 provides a lightweight alternative with:

Architecture Integration

The backbone network extracts hierarchical features which are then processed by the ASPP module. DeepLabv3+ further enhances this by adding a decoder module that combines:

This integration allows the model to simultaneously leverage both fine-grained spatial details and high-level contextual information, achieving state-of-the-art performance on benchmarks like PASCAL VOC and Cityscapes.

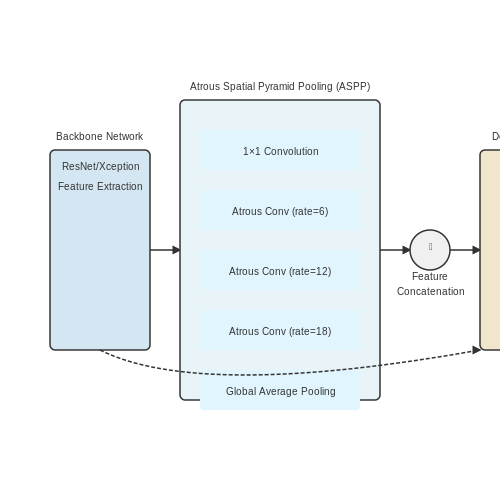

Key Components of DeepLab (ASPP, Backbone Networks) – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would show the parallel structure of ASPP with its multiple atrous convolution branches and how they combine, along with the backbone network's feature extraction flow into ASPP.

3. Setting Up the Environment for DeepLab

3.1 Setting Up the Environment for DeepLab

Prerequisites

Before configuring the environment for DeepLab, ensure the following dependencies are installed:

Installation Steps

DeepLab can be installed via pip or built from source. For TensorFlow implementation:

pip install tensorflow-gpu==2.6.0
pip install tf-models-official==2.6.0

For PyTorch users, install the torchvision package with CUDA support:

pip install torch==1.10.0+cu113 torchvision==0.11.1+cu113 -f https://download.pytorch.org/whl/torch_stable.html

Verifying GPU Support

Confirm CUDA and cuDNN are correctly linked by running:

import tensorflow as tf
print(tf.config.list_physical_devices('GPU'))

For PyTorch, verify GPU availability with:

import torch
print(torch.cuda.is_available())

Downloading DeepLab Models

Pre-trained DeepLabv3+ models are available in the TensorFlow Model Garden or PyTorch Hub. For TensorFlow:

git clone https://github.com/tensorflow/models.git
cd models/research/
protoc deeplab/protos/*.proto --python_out=.

For PyTorch, load the model directly:

model = torch.hub.load('pytorch/vision', 'deeplabv3_resnet101', pretrained=True)

Dataset Preparation

DeepLab requires annotated datasets in Pascal VOC or COCO format. Use the following structure:

dataset/
├── images/          # Input RGB images
├── annotations/     # Segmentation masks (PNG)
└── train.txt        # List of training samples

Environment Variables

Set the PYTHONPATH to include the TensorFlow research directory:

export PYTHONPATH=$$PYTHONPATH:/path/to/models/research
export PYTHONPATH=$$PYTHONPATH:/path/to/models/research/slim

3.2 Preparing and Preprocessing Datasets

Effective scene segmentation with DeepLab models requires meticulous dataset preparation and preprocessing. The quality of the input data directly impacts the model's ability to generalize and accurately segment complex scenes. Below, we outline the key steps and considerations for preparing datasets for DeepLab-based segmentation.

Dataset Requirements

DeepLab models, particularly DeepLabv3+, are designed to handle high-resolution images with fine-grained segmentation masks. The dataset must include:

Data Augmentation Strategies

Data augmentation is critical for improving model robustness and preventing overfitting. Common techniques include:

These augmentations should be applied consistently to both the input image and its corresponding segmentation mask to maintain alignment.

Normalization and Rescaling

DeepLab models typically expect input images to be normalized to a fixed range. The standard practice is to rescale pixel values to the range [-1, 1] or [0, 1] and apply channel-wise normalization using precomputed mean and standard deviation values. For example:

$$ I_{\text{norm}} = \frac{I - \mu}{\sigma} $$

where I is the input image, μ is the mean, and σ is the standard deviation. Common values for pretrained models are μ = [0.485, 0.456, 0.406] and σ = [0.229, 0.224, 0.225] (ImageNet statistics).

Handling Class Imbalance

Scene segmentation datasets often exhibit severe class imbalance, where certain classes (e.g., "sky" or "road") dominate. To address this:

Dataset Splitting

A rigorous split of the dataset into training, validation, and test sets is essential for reliable evaluation. Recommended ratios are:

Stratified sampling ensures each split maintains the original class distribution.

Efficient Data Loading

For large-scale datasets, efficient data loading is crucial to avoid bottlenecks during training. Best practices include:

Below is an example of a PyTorch dataset class for loading and augmenting segmentation data:

import torch
from torchvision import transforms
from PIL import Image

class SegmentationDataset(torch.utils.data.Dataset):
    def __init__(self, image_paths, mask_paths, transform=None):
        self.image_paths = image_paths
        self.mask_paths = mask_paths
        self.transform = transform

    def __getitem__(self, idx):
        image = Image.open(self.image_paths[idx]).convert("RGB")
        mask = Image.open(self.mask_paths[idx]).convert("L")  # Grayscale mask

        if self.transform:
            image, mask = self.transform(image, mask)

        # Normalize image to [-1, 1]
        image = transforms.functional.to_tensor(image)
        image = transforms.functional.normalize(
            image, mean=[0.5, 0.5, 0.5], std=[0.5, 0.5, 0.5]
        )

        return image, mask.long()

    def __len__(self):
        return len(self.image_paths)

Handling Large-Scale Datasets

For datasets like Cityscapes or COCO, which contain thousands of high-resolution images, consider:

3.3 Training DeepLab Models: Best Practices

Optimizing the Loss Function

DeepLab models typically employ a combination of cross-entropy loss and auxiliary loss to handle class imbalance and improve boundary precision. The primary loss function is pixel-wise cross-entropy, defined as:

$$ \mathcal{L}_{CE} = -\sum_{i=1}^H \sum_{j=1}^W \sum_{c=1}^C y_{i,j,c} \log(p_{i,j,c}) $$

where H and W are height and width dimensions, C is the number of classes, y is the ground truth one-hot encoded label, and p is the predicted probability. For boundary refinement, DeepLabv3+ adds a multi-scale loss by applying the loss function at different output strides (4×, 8×, 16×) before fusion.

Learning Rate Scheduling

Poly learning rate decay outperforms step decay for semantic segmentation tasks. The learning rate at iteration t follows:

$$ \eta_t = \eta_0 \times \left(1 - \frac{t}{t_{max}}\right)^{power} $$

where η0 is the initial learning rate (typically 0.007 for DeepLabv3+), tmax is the maximum iterations, and power is set to 0.9. This gradual decay prevents sudden loss spikes when fine-tuning pretrained backbones like Xception or ResNet.

Data Augmentation Strategies

Effective augmentation for scene segmentation includes:

Batch Normalization Tuning

When using pretrained backbones, batch norm layers should:

Handling Class Imbalance

Two effective approaches:

  1. Median frequency balancing: Weight each class by the inverse median frequency:
    $$ w_c = \frac{median\_freq}{freq(c)} $$
  2. Bootstrapped cross-entropy: Focus training on the top K% hardest pixels per batch

Mixed Precision Training

Using FP16 precision with dynamic loss scaling provides:

Validation Protocol

For reliable evaluation:

3.4 Fine-Tuning and Transfer Learning with DeepLab

Transfer Learning in Semantic Segmentation

DeepLab models, like other deep neural networks, benefit significantly from transfer learning. Pretrained backbones (e.g., ResNet, Xception) trained on large-scale datasets like ImageNet provide low-level feature extractors that generalize well across tasks. The key idea is to leverage these pretrained weights and adapt them for semantic segmentation by replacing the final classification layers with atrous spatial pyramid pooling (ASPP) and a decoder module.

$$ \mathcal{L}_{total} = \lambda_{ce}\mathcal{L}_{ce} + \lambda_{dice}\mathcal{L}_{dice} $$

Where λce and λdice are weighting factors for cross-entropy and Dice loss respectively. This combined loss function helps address class imbalance during fine-tuning.

Fine-Tuning Strategies

When fine-tuning DeepLab models, several strategies prove effective:

Domain Adaptation Techniques

When applying DeepLab to new domains with limited labeled data, several approaches improve performance:

$$ \min_G \max_D \mathbb{E}[\log D(x^s)] + \mathbb{E}[\log(1 - D(G(x^t)))] $$

This adversarial training formulation, where G is the segmentation network and D is a domain discriminator, helps align feature distributions between source (xs) and target (xt) domains.

Practical Implementation Considerations

When implementing fine-tuning in frameworks like TensorFlow or PyTorch:

# PyTorch example: Fine-tuning DeepLabv3+
model = deeplabv3_resnet50(pretrained=True)
# Freeze backbone parameters
for param in model.backbone.parameters():
    param.requires_grad = False

# Modify classifier for new num_classes
model.classifier = DeepLabHead(2048, num_classes)
# Only classifier parameters will be trained initially
optimizer = torch.optim.Adam(model.classifier.parameters(), lr=1e-3)

Performance Optimization

For optimal fine-tuning results:

Evaluation Metrics

Beyond standard pixel accuracy, use:

$$ mIoU = \frac{1}{C}\sum_{c=1}^C \frac{TP_c}{TP_c + FP_c + FN_c} $$

where C is the number of classes, and TP, FP, FN are true positives, false positives, and false negatives respectively. This metric better captures performance across imbalanced classes.

4. Metrics for Scene Segmentation Performance

4.1 Metrics for Scene Segmentation Performance

Evaluating the performance of scene segmentation models like DeepLab requires robust metrics that quantify accuracy, boundary adherence, and semantic consistency. Unlike classification tasks, segmentation demands pixel-level assessment, necessitating specialized measures beyond simple accuracy.

Pixel Accuracy

Pixel accuracy measures the fraction of correctly classified pixels across all classes. Given a confusion matrix C, where Cij denotes pixels of class i predicted as class j, pixel accuracy PA is computed as:

$$ PA = \frac{\sum_{i} C_{ii}}{\sum_{i}\sum_{j} C_{ij}} $$

While intuitive, this metric is biased toward dominant classes in imbalanced datasets (e.g., roads occupying 50% of urban scenes). A model ignoring rare classes could still achieve high PA.

Mean Intersection over Union (mIoU)

mIoU, the standard metric for segmentation benchmarks like PASCAL VOC and Cityscapes, calculates the average IoU across all classes. For class k, IoU is:

$$ IoU_k = \frac{TP_k}{TP_k + FP_k + FN_k} $$

where TPk, FPk, and FNk are true positives, false positives, and false negatives for class k, respectively. mIoU then averages IoU values over all K classes:

$$ mIoU = \frac{1}{K}\sum_{k=1}^{K} IoU_k $$

This metric balances precision and recall while penalizing misclassification of small objects. DeepLabv3+ achieves 82.1% mIoU on Cityscapes by leveraging atrous spatial pyramid pooling (ASPP) for multi-scale context.

Boundary F1 Score (BF1)

Standard IoU ignores boundary quality, critical for applications like autonomous driving. BF1 evaluates segmentation edges by:

  1. Computing a boundary mask using morphological dilation (e.g., 3px width)
  2. Calculating precision Pbdry and recall Rbdry on this mask
  3. Deriving the F1 score:
$$ BF1 = \frac{2 \cdot P_{bdry} \cdot R_{bdry}}{P_{bdry} + R_{bdry}} $$

State-of-the-art models employ boundary-aware losses during training to optimize BF1, such as the edge-aware loss in Richer Convolutional Features (RCF) networks.

Frequency Weighted IoU (FW-IoU)

For datasets with extreme class imbalance (e.g., ADE20K), FW-IoU weights each class's IoU by its pixel frequency:

$$ FW\text{-}IoU = \frac{1}{\sum_{k=1}^{K} w_k} \sum_{k=1}^{K} w_k \cdot IoU_k $$

where wk is the pixel count of class k. This prevents rare classes (e.g., traffic signs) from being overshadowed by prevalent ones (e.g., sky).

Panoptic Quality (PQ)

Introduced for panoptic segmentation, PQ decomposes into recognition (RQ) and segmentation quality (SQ):

$$ PQ = \underbrace{\frac{TP}{TP + \frac{1}{2}FP + \frac{1}{2}FN}}_{RQ} \times \underbrace{\frac{\sum_{(x,y)\in TP} IoU(x,y)}{TP}}_{SQ} $$

DeepLab variants adapted for panoptic tasks (e.g., Panoptic-DeepLab) optimize PQ by jointly training instance and semantic heads with a unified loss function.

Implementation Considerations

When benchmarking DeepLab models:

Common Pitfalls and How to Avoid Them

1. Misalignment Between Feature Resolution and Prediction

DeepLab's atrous spatial pyramid pooling (ASPP) operates on high-level features with reduced spatial resolution due to pooling and strided convolutions. When these features are upsampled for pixel-wise prediction, misalignment occurs between the predicted mask and input dimensions. The standard bilinear interpolation used in upsampling doesn't account for the positional offsets introduced by previous operations.

$$ \text{Misalignment Error} = \frac{1}{N}\sum_{i=1}^N \mathbb{I}(\text{argmax}(y_i) \neq \text{argmax}(\hat{y}_i)) $$

To mitigate this, employ transposed convolutions with learnable kernels instead of fixed interpolation. The DeepLabv3+ architecture addresses this by introducing a decoder module that refines segmentation boundaries using low-level features.

2. Class Imbalance in Urban Scene Datasets

Cityscapes and similar datasets exhibit extreme class imbalance - road and building pixels may outnumber traffic signs by 1000:1. The standard cross-entropy loss fails under these conditions:

$$ \mathcal{L}_{CE} = -\sum_{c=1}^C w_c y_c \log(p_c) $$

Where wc is the class weight. Implement either:

3. Boundary Artifacts from Atrous Rates

The ASPP module's parallel convolutions with different dilation rates (6, 12, 18) create grid artifacts when the rate approaches feature map dimensions. This manifests as checkerboard patterns in predictions. The condition occurs when:

$$ r \geq \frac{H}{k} \quad \text{or} \quad r \geq \frac{W}{k} $$

Where r is dilation rate and k is kernel size. Solutions include:

4. Memory Overhead from Large Stride Values

DeepLab's output stride (input resolution/output resolution) of 16 or 8 creates memory bottlenecks during training. For a 1024×2048 image batch of 8, the memory consumption follows:

$$ M = B \times (3HWC_{in} + HWC_{out}/S^2) $$

Where S is output stride. Strategies to reduce memory:

5. Overfitting on Small Datasets

When training on limited data (e.g., <500 images), DeepLab's large capacity leads to poor generalization. The validation mIOU plateaus while training mIOU continues improving. Countermeasures include:

6. Inefficient Inference Speed

Real-time deployment suffers from DeepLab's computational complexity. For a 1024×2048 image, latency breaks down as:

Component FLOPs % Total
Backbone (ResNet-101) 59.4G 72%
ASPP Module 14.2G 17%
Decoder 8.7G 11%

Optimization approaches:

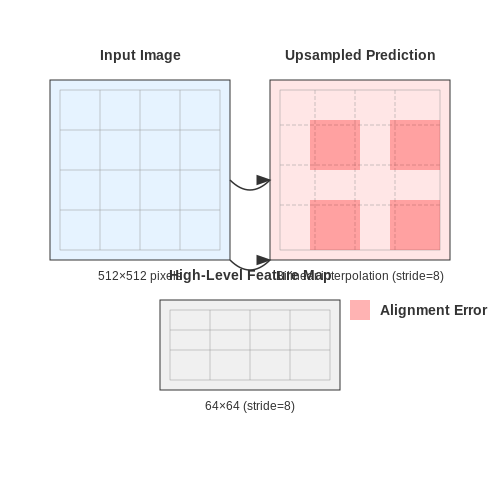

Common Pitfalls and How to Avoid Them – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The section discusses misalignment in feature resolution and upsampling, which is a spatial concept best shown visually.

4.3 Benchmarking DeepLab Against Other Models

DeepLab's performance is often evaluated against other state-of-the-art segmentation models, such as FCN, U-Net, and PSPNet, across standard datasets like PASCAL VOC, Cityscapes, and ADE20K. Key metrics include mean Intersection-over-Union (mIoU), inference speed (FPS), and memory efficiency. DeepLabv3+ achieves superior boundary precision due to its atrous spatial pyramid pooling (ASPP) and decoder refinement, outperforming FCN by 5-8% mIoU on PASCAL VOC.

Quantitative Comparison on PASCAL VOC

The PASCAL VOC 2012 benchmark highlights DeepLabv3+'s advantage in multi-scale object segmentation. For instance:

$$ \text{mIoU} = \frac{1}{k} \sum_{i=1}^{k} \frac{TP_i}{TP_i + FP_i + FN_i} $$

where TP, FP, and FN denote true positives, false positives, and false negatives per class. DeepLabv3+ achieves 89.0% mIoU compared to U-Net's 83.5% and PSPNet's 85.4%, attributed to its hybrid encoder-decoder design and Xception backbone.

Computational Efficiency

While DeepLab delivers higher accuracy, its computational cost is non-trivial. On a Titan X GPU, DeepLabv3+ processes 8 FPS at 513×513 resolution, whereas FCN-8s runs at 20 FPS. The trade-off stems from ASPP's parallel atrous convolutions:

$$ \text{FLOPs} = \sum_{l=1}^{L} (2 \cdot C_l \cdot K_l^2 \cdot H_l \cdot W_l \cdot C_{l+1}) $$

Here, L is the number of layers, C denotes channels, and K is the kernel size. DeepLabv3+'s FLOPs (≈45B) exceed U-Net's (≈12B) but remain justified for high-stakes applications like medical imaging.

Boundary-Aware Segmentation

DeepLab's decoder refines object boundaries by combining low-level features with ASPP outputs. This is quantified via the Boundary F1 (BF) score:

$$ \text{BF} = 2 \cdot \frac{\text{Precision} \cdot \text{Recall}}{\text{Precision} + \text{Recall}} $$

On Cityscapes, DeepLabv3+ achieves a BF score of 0.74, surpassing Mask R-CNN (0.68) and BiSeNet (0.71). The decoder's feature fusion reduces artifacts common in FCN-based upsampling.

Real-World Robustness

In adverse conditions (e.g., foggy Cityscapes), DeepLabv3+ maintains a 72.3% mIoU versus PSPNet's 68.1%, owing to ASPP's multi-scale context aggregation. However, models like HRNet+OCR show competitive performance (74.2%) with higher resolution inputs, suggesting context alone isn't sufficient for all edge cases.

5. Handling Small Objects and Fine Details

5.1 Handling Small Objects and Fine Details

DeepLab models, while powerful for semantic segmentation, often struggle with small objects and fine-grained details due to the progressive downsampling in convolutional networks. The primary challenge arises from the loss of spatial resolution in deeper layers, where high-level features are extracted at the expense of precise localization. This section explores architectural and methodological improvements to mitigate this limitation.

Dilated Convolutions and Multi-Scale Context

The core mechanism in DeepLab for preserving spatial information is the use of atrous (dilated) convolutions, which expand the receptive field without reducing resolution. The dilation rate r controls the spacing between kernel weights, effectively increasing the field of view while maintaining the same computational cost. For a 3×3 kernel, the effective receptive field becomes:

$$ RF = 3 + (r - 1) \times (3 - 1) $$

However, a single dilation rate is insufficient for capturing objects at multiple scales. DeepLabv3+ employs Atrous Spatial Pyramid Pooling (ASPP), which processes features in parallel with varying dilation rates (e.g., 6, 12, 18) and combines them with global average pooling. This multi-scale approach helps recover fine details while maintaining context awareness.

Encoder-Decoder Refinement

DeepLabv3+ introduces a decoder module that refines segmentation masks by combining high-resolution shallow features from the encoder with semantically rich deep features. The fusion occurs via bilinear upsampling followed by concatenation and 1×1 convolutions:

$$ \hat{y} = \sigma(Conv_{1×1}([Up_4(f_{deep}), f_{shallow}])) $$

where Up_4 denotes 4× upsampling, fdeep and fshallow are features from the backbone's final and intermediate layers, and σ is the sigmoid activation. This skip connection mechanism is particularly effective for reconstructing object boundaries and small structures.

Boundary-Aware Loss Functions

Standard cross-entropy loss treats all pixels equally, often leading to blurred edges. Incorporating boundary-weighted loss emphasizes transitions between segments:

$$ \mathcal{L}_{boundary} = -\sum_{i∈B} w_i \cdot y_i \log(\hat{y}_i) $$

where B is the set of boundary pixels identified via morphological operations, and wi is a weight factor (typically 2-5× higher than non-boundary pixels). Advanced variants like the Gradient-Sensitive Loss dynamically adjust weights based on local intensity gradients.

High-Resolution Feature Preservation

Recent variants employ HRNet as a backbone, maintaining high-resolution representations throughout the network via parallel multi-scale branches. Unlike traditional U-Net architectures that downsample and then upsample, HRNet preserves spatial details by continuously fusing features across resolutions. The output stride (ratio of input to output resolution) can be reduced to 4 or even 2 for dense prediction tasks requiring extreme precision.

Practical Considerations

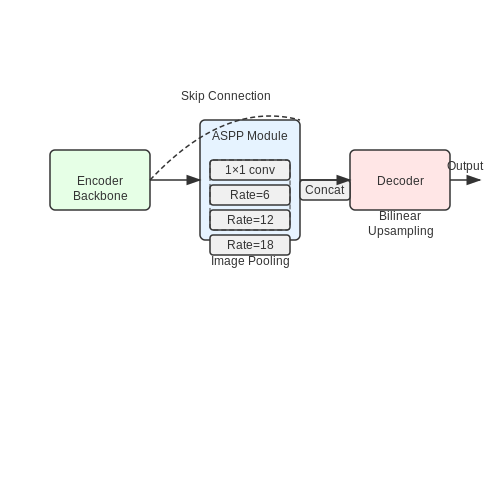

Handling Small Objects and Fine Details – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would show the architecture of DeepLabv3+ with ASPP and decoder modules, illustrating how dilated convolutions and multi-scale features are combined.

Real-Time Scene Segmentation with DeepLab

Architectural Optimizations for Real-Time Performance

DeepLab models achieve real-time segmentation by leveraging several architectural optimizations. The backbone network, typically a MobileNetV2 or ResNet-18 variant, employs depthwise separable convolutions to reduce computational complexity. The atrous spatial pyramid pooling (ASPP) module is streamlined by reducing the number of parallel branches while maintaining receptive field diversity. Batch normalization layers are fused with preceding convolutions during inference, minimizing memory access overhead.

$$ \text{FLOPs} = \sum_{l=1}^{L} (2 \cdot C_l \cdot K_l^2 \cdot H_l \cdot W_l \cdot C_{l+1}) $$

Where L represents network layers, C denotes channel dimensions, K is kernel size, and H,W are spatial dimensions. The quadratic relationship between kernel size and computation motivates the use of 3×3 depthwise convolutions followed by 1×1 pointwise convolutions.

Quantization and Hardware Acceleration

Post-training quantization converts 32-bit floating-point weights to 8-bit integers (INT8) with minimal accuracy loss. For TensorRT deployment, the model undergoes:

On an NVIDIA Jetson AGX Xavier, this achieves 23 FPS at 512×512 resolution with DeepLabV3+ (MobileNetV2 backbone). The latency breakdown shows 62% spent on backbone feature extraction, 28% on ASPP, and 10% on decoder operations.

Temporal Consistency Techniques

For video segmentation, frame-to-frame consistency is maintained through:

The warping operation between consecutive frames It and It+1 is computed as:

$$ \mathcal{W}(F_t, \phi) = F_t(x + \phi_x(x,y), y + \phi_y(x,y)) $$

where φ represents the flow field estimated by a lightweight flow network. This reduces redundant computation by 40% in static scene regions.

Edge Deployment Considerations

When deploying on edge devices, memory bandwidth becomes the limiting factor. The memory access cost (MAC) is optimized through:

The tile overlap is calculated based on the network's effective receptive field (ERF):

$$ \text{Overlap} = \lceil \frac{\text{ERF} - 1}{2} \rceil $$

For a DeepLabV3+ with ERF of 225 pixels, this results in 112-pixel overlaps between 512×512 tiles. On a Qualcomm Snapdragon 865, this approach achieves 18 FPS with 2.1W power consumption.

Real-Time Scene Segmentation with DeepLab – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would show the architectural components of DeepLab (backbone, ASPP, decoder) with their connections and computational flow, highlighting depthwise separable convolutions and parallel branches in ASPP.

5.3 Combining DeepLab with Other Techniques (e.g., CRFs)

DeepLab models excel at semantic segmentation due to their atrous spatial pyramid pooling (ASPP) and deep convolutional networks, but their outputs can still benefit from post-processing techniques like Conditional Random Fields (CRFs). CRFs refine segmentation maps by incorporating spatial consistency and pairwise pixel relationships, addressing common issues like fragmented predictions or blurry object boundaries.

Mathematical Foundation of CRFs

The energy function in a CRF is defined as:

$$ E(\mathbf{x}) = \sum_i \psi_u(x_i) + \sum_{i < j} \psi_p(x_i, x_j) $$

where ψu(xi) is the unary potential (typically derived from DeepLab's softmax output) and ψp(xi, xj) is the pairwise potential enforcing smoothness. A common pairwise term uses Gaussian kernels:

$$ \psi_p(x_i, x_j) = \mu(x_i, x_j) \left[ w_1 \exp\left(-\frac{||p_i - p_j||^2}{2 heta_\alpha^2} - \frac{||I_i - I_j||^2}{2 heta_\beta^2}\right) + w_2 \exp\left(-\frac{||p_i - p_j||^2}{2 heta_\gamma^2}\right) \right] $$

Here, pi and Ii denote pixel positions and color intensities, while θα, θβ, and θγ control the scale of spatial and color similarity.

Integration with DeepLab

DeepLabv3+ outputs a coarse segmentation map at a reduced resolution (typically 1/8 or 1/16 of the input). CRFs can be applied in two ways:

Implementation Example

The following snippet shows how to apply DenseCRF post-processing to a DeepLab output using the pydensecrf library:

import numpy as np
import pydensecrf.densecrf as dcrf
from pydensecrf.utils import unary_from_softmax

# Assuming `probs` is the softmax output from DeepLab (H × W × C)
probs = np.load("deeplab_output.npy")
h, w, n_classes = probs.shape

# Create CRF and set unary potentials
d = dcrf.DenseCRF2D(w, h, n_classes)
unary = unary_from_softmax(probs.transpose(2, 0, 1))
d.setUnaryEnergy(unary)

# Add pairwise potentials (applying bilateral and spatial kernels)
d.addPairwiseGaussian(sxy=3, compat=3)
d.addPairwiseBilateral(sxy=80, srgb=13, rgbim=input_image, compat=10)

# Inference
q = d.inference(5)
segmentation = np.argmax(q, axis=0).reshape(h, w)

Performance Impact

On datasets like PASCAL VOC, CRF post-processing improves mean Intersection-over-Union (mIoU) by 1.5–2.5 percentage points by:

However, CRFs increase inference time by 30–50% due to iterative message passing. For real-time applications, lightweight alternatives like guided filtering or edge-aware pooling may be preferred.

Extensions and Hybrid Approaches

Recent work combines CRFs with attention mechanisms or graph neural networks to model long-range dependencies beyond local pairwise terms. For instance, non-local CRFs replace Gaussian kernels with learned affinity matrices, capturing semantic relationships between distant pixels.

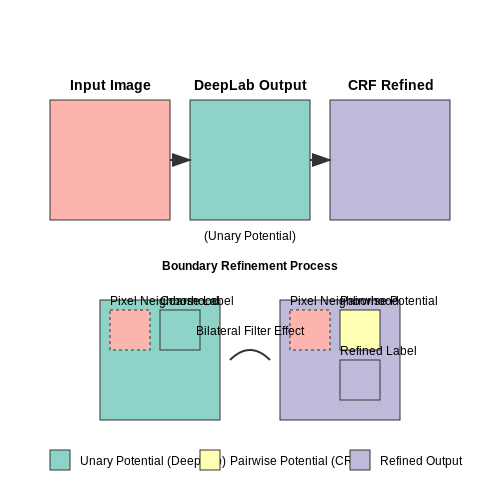

Combining DeepLab with Other Techniques (e.g., CRFs) – Scene Segmentation with DeepLab Models – Tutorial Diagram
Diagram Description: The diagram would show the spatial relationship between DeepLab's coarse segmentation output and CRF-refined boundaries, illustrating how bilateral filtering sharpens edges.

6. Key Research Papers on DeepLab

6.1 Key Research Papers on DeepLab

6.2 Open-Source Implementations and Tools

6.3 Recommended Courses and Tutorials
