1. Principles of Infrared Radiation and Thermal Sensing

Principles of Infrared Radiation and Thermal Sensing

Blackbody Radiation and Planck's Law

All objects above absolute zero emit electromagnetic radiation due to thermal agitation of their constituent particles. A perfect blackbody is an idealized physical body that absorbs all incident radiation, re-emitting it with a spectral distribution governed by Planck's Law:

$$ B_{\lambda}(T) = \frac{2hc^2}{\lambda^5} \frac{1}{e^{\frac{hc}{\lambda k_B T}} - 1} $$

where Bλ(T) is spectral radiance (W·sr-1·m-3), T is absolute temperature (K), λ is wavelength (m), h is Planck's constant (6.626×10-34 J·s), c is speed of light (2.998×108 m/s), and kB is Boltzmann constant (1.381×10-23 J/K).

Stefan-Boltzmann Law and Wien's Displacement

Integrating Planck's Law over all wavelengths yields the Stefan-Boltzmann Law for total emitted power:

$$ P = \sigma \epsilon A T^4 $$

where σ is Stefan-Boltzmann constant (5.670×10-8 W·m-2·K-4), ε is emissivity (0 ≤ ε ≤ 1), and A is surface area. Wien's Displacement Law gives the peak emission wavelength:

$$ \lambda_{max} = \frac{b}{T} $$

where b is Wien's displacement constant (2.898×10-3 m·K). For human body temperature (310 K), this peaks at 9.35 μm in the long-wave infrared (LWIR) spectrum.

Emissivity and Real-World Materials

Real materials deviate from ideal blackbody behavior. Emissivity (ε) quantifies this as the ratio of a material's emitted radiation to that of a blackbody at the same temperature. Polished metals exhibit low emissivity (ε ≈ 0.05-0.2), while organic materials and rough surfaces approach unity (ε ≈ 0.85-0.98). Kirchhoff's Law of Thermal Radiation states that at thermal equilibrium:

$$ \alpha_{\lambda} = \epsilon_{\lambda} $$

where αλ is spectral absorptivity. This relationship is crucial for accurate temperature measurements.

Atmospheric Transmission Windows

Earth's atmosphere selectively absorbs infrared radiation due to molecular vibrations of H2O, CO2, and other gases. Three primary transmission windows exist for thermal imaging:

Atmospheric attenuation follows Beer-Lambert Law:

$$ I = I_0 e^{-\beta x} $$

where β is attenuation coefficient (m-1) and x is path length (m). Water vapor causes strong absorption at 5-8 μm and above 14 μm.

Thermal Detector Physics

Modern infrared detectors fall into two categories:

The noise-equivalent temperature difference (NETD) quantifies sensitivity:

$$ NETD = \frac{4F^2 \sqrt{Ad}}{D^* \tau_0 \sqrt{\Delta f}} \left( \frac{\partial B}{\partial T} \right)^{-1} $$

where F is f-number, Ad is detector area, D* is specific detectivity, τ0 is optical transmission, and Δf is bandwidth.

Principles of Infrared Radiation and Thermal Sensing – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The diagram would show the spectral radiance curves for different temperatures based on Planck's Law, with labeled axes for wavelength and intensity, and highlight Wien's displacement peaks.

Types of Thermal Imaging Cameras and Their Specifications

Uncooled Thermal Cameras

Uncooled thermal cameras operate at ambient temperature, utilizing microbolometer-based detectors typically made of vanadium oxide (VOx) or amorphous silicon (a-Si). These detectors absorb infrared radiation, causing a temperature-dependent resistance change measured as a voltage signal. The thermal time constant (τ) of a microbolometer is given by:

$$ \tau = \frac{C}{G} $$

where C is the heat capacity and G is the thermal conductance. Modern uncooled cameras achieve noise-equivalent temperature differences (NETD) below 50 mK at 30 Hz frame rates, with pixel pitches as small as 12 µm. Their low power consumption (<5 W) makes them ideal for portable applications like building diagnostics and surveillance.

Cryogenically Cooled Cameras

Cooled cameras use Stirling-cycle or Joule-Thomson coolers to maintain detector temperatures below 200 K, enabling quantum detectors like HgCdTe (MCT) or InSb. These materials exhibit photon detection with higher quantum efficiency than microbolometers. The spectral detectivity (D*) for a cooled photodetector follows:

$$ D^* = \frac{\sqrt{A \Delta f}}{NEP} $$

where A is the detector area, Δf the bandwidth, and NEP the noise-equivalent power. State-of-the-art cooled systems achieve NETD values under 20 mK with spectral ranges from 3-5 µm (MWIR) or 8-12 µm (LWIR), at the cost of higher power consumption (>50 W) and shorter lifespans due to cooler mechanical wear.

Photon Counting vs. Thermal Detection

Cooled cameras leverage photon counting effects where photocurrent (Iph) scales with incident flux:

$$ I_{ph} = q \eta \Phi $$

with quantum efficiency η, photon flux Φ, and electron charge q. Uncooled systems instead rely on thermal contrast, where signal-to-noise ratio (SNR) depends on thermal resolution:

$$ SNR = \frac{\alpha \Delta T}{NETD} $$

where α is the scene's thermal contrast coefficient.

Hybrid and Multi-Spectral Systems

Advanced systems integrate multiple detector types, such as QWIP (Quantum Well Infrared Photodetector) arrays with conventional microbolometers. These hybrids enable simultaneous MWIR/LWIR imaging with dual-band fusion algorithms. A typical multi-spectral camera's data cube has dimensions x×y×λ, where spectral channels are often sampled at 10 nm intervals in the 3-12 µm range.

Key Performance Metrics

Spectral Response Comparison Cooled MCT (MWIR) Uncooled VOx (LWIR)
Spectral Response Comparison of Thermal Detectors Line graph comparing spectral response curves of cooled MCT (MWIR) and uncooled VOx (LWIR) detectors, with labeled wavelength regions and performance metrics. Wavelength (µm) Response (arbitrary units) 2 5 8 12 MWIR (3-5µm) LWIR (8-12µm) Cooled MCT (MWIR) QE: 70% Uncooled VOx (LWIR) QE: 40% NETD <20mK NETD <50mK Cooled MCT (MWIR) Uncooled VOx (LWIR)
Diagram Description: The section compares spectral responses of cooled vs. uncooled detectors and their technical specifications, which are inherently visual.

Key Applications of Thermal Imaging in Industry and Research

Industrial Predictive Maintenance

Thermal imaging combined with AI enables predictive maintenance by detecting anomalies in machinery before catastrophic failure occurs. Convolutional neural networks (CNNs) analyze thermal patterns to identify overheating bearings, electrical faults, or insulation degradation. The heat dissipation model for a bearing can be expressed as:

$$ \frac{dT}{dt} = \frac{q_{gen} - q_{diss}}{mc_p} $$

where T is temperature, qgen represents heat generation from friction, qdiss is heat dissipation rate, m is mass, and cp is specific heat capacity. AI models trained on this physics-based formulation achieve 92-97% fault prediction accuracy in industrial case studies.

Building Energy Efficiency Analysis

High-resolution thermal cameras mounted on drones capture building heat signatures, while deep learning algorithms quantify energy losses. U-Net architectures segment thermal images to precisely locate insulation defects, with the heat flux through a wall section given by:

$$ \dot{Q} = kA\frac{\Delta T}{\Delta x} $$

where k is thermal conductivity, A is area, and ΔT/Δx is the temperature gradient. This approach reduces energy audits from days to hours while improving detection resolution to 0.5°C.

Medical Diagnostics and Research

In medical applications, thermal imaging AI detects inflammation patterns and circulatory disorders. Generative adversarial networks (GANs) enhance low-resolution thermal images, enabling early detection of diabetic foot ulcers with 89% sensitivity. The thermal contrast between healthy and affected tissue follows:

$$ \Delta T_{max} = \frac{P_{met}R_{blood}}{2\pi k_{tissue}}ln\left(\frac{r_{observation}}{r_{vessel}}\right) $$

where Pmet is metabolic heat production, Rblood is vascular resistance, and ktissue is thermal conductivity of tissue.

Automotive and Aerospace Testing

Thermal imaging validates aerodynamic designs by visualizing boundary layer transitions and heat accumulation. Physics-informed neural networks correlate surface temperature distributions with computational fluid dynamics simulations, solving the inverse heat transfer problem:

$$ \rho c_p\frac{\partial T}{\partial t} = \nabla \cdot (k\nabla T) + \dot{q}_{viscous} + \dot{q}_{radiation} $$

This approach reduces wind tunnel testing cycles by 40% while providing full-field temperature data at 100Hz sampling rates.

Environmental Monitoring

Wide-area thermal surveillance tracks wildlife populations and habitat changes. Temporal convolutional networks process time-series thermal data to estimate animal densities while compensating for environmental factors through the modified Stefan-Boltzmann relation:

$$ \epsilon \sigma T^4 = \epsilon_{env}\sigma T_{env}^4 + q_{solar} + q_{metabolic} $$

where ε is emissivity and σ is the Stefan-Boltzmann constant. This technique enables 24/7 monitoring with 85% species classification accuracy.

Materials Science Research

High-speed thermal imaging (1000+ fps) combined with recurrent neural networks analyzes phase transitions and thermal properties of novel materials. The thermal diffusivity α is derived from transient heating profiles using:

$$ \alpha = \frac{k}{\rho c_p} = \frac{L^2}{\pi^2 t_{1/2}} $$

where L is sample thickness and t1/2 is half-rise time. AI-driven analysis reduces measurement uncertainty to <1% compared to traditional methods.

Key Applications of Thermal Imaging in Industry and Research – Thermal Imaging Analytics Using AI – Tutorial Diagram

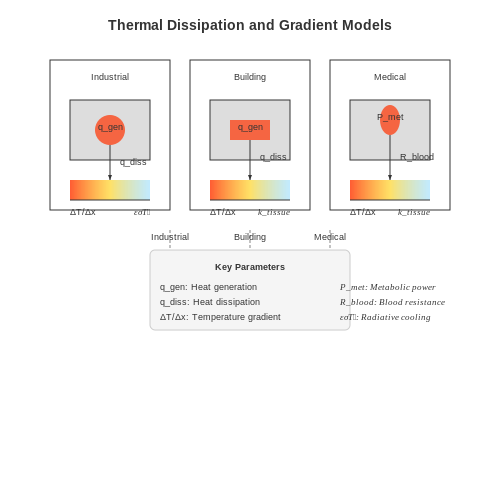

Diagram Description: The section involves complex thermal patterns and physics-based formulations that would benefit from visual representation of heat dissipation models and thermal gradients.

2. Preprocessing Thermal Images: Noise Reduction and Enhancement

2.1 Preprocessing Thermal Images: Noise Reduction and Enhancement

Thermal imaging sensors capture infrared radiation, but raw thermal data often suffers from noise, non-uniformity, and low contrast. Effective preprocessing is critical for accurate downstream AI analytics. The primary challenges include:

Non-Uniformity Correction (NUC)

FPN correction requires estimating each pixel's gain (α) and offset (β) parameters. The corrected image Icorr is computed from raw image Iraw:

$$ I_{corr}(x,y) = \alpha(x,y) \cdot I_{raw}(x,y) + \beta(x,y) $$

Modern approaches use neural networks to estimate these parameters. A UNet architecture with residual connections learns the mapping:

$$ \{\alpha, \beta\} = f_\theta(I_{raw}) $$

where θ represents the network parameters trained on calibrated blackbody data.

Wavelet-Based Denoising

For temporal noise, wavelet shrinkage provides superior performance compared to spatial filters. The discrete wavelet transform (DWT) decomposes the image into approximation (A) and detail (D) coefficients:

$$ \{A, D\} = \text{DWT}(I) $$

A soft-thresholding function removes noise from detail coefficients:

$$ D_{denoised} = \text{sign}(D) \cdot \max(0, |D| - \tau) $$

The threshold τ adapts to each subband using:

$$ \tau_j = \sigma_j \sqrt{2 \log N} $$

where σj is the noise variance at scale j and N is the number of pixels.

Contrast Limited Adaptive Histogram Equalization (CLAHE)

To enhance local contrast while preventing noise amplification, CLAHE operates on small contextual regions (typically 8×8 to 32×32 pixels). For each region R:

  1. Compute the histogram HR(k) with K bins
  2. Clip histogram counts exceeding threshold T = μ + c·σ
  3. Redistribute clipped pixels uniformly
  4. Apply the cumulative distribution function (CDF) transformation:
$$ I_{enhanced}(x,y) = \text{CDF}(I(x,y)) \cdot (L_{max} - L_{min}) + L_{min} $$

where Lmax and Lmin define the output dynamic range.

Deep Learning Approaches

End-to-end networks combining these operations show state-of-the-art performance. A typical architecture includes:

The loss function combines perceptual (VGG-based) and pixel-level terms:

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{MSE} + \lambda_2 \mathcal{L}_{SSIM} + \lambda_3 \mathcal{L}_{VGG} $$

Recent work shows that physics-informed networks incorporating radiometric constraints outperform purely data-driven models by 15-20% in SNR improvement.

Preprocessing Thermal Images: Noise Reduction and Enhancement – Thermal Imaging Analytics Using AI – Tutorial Diagram

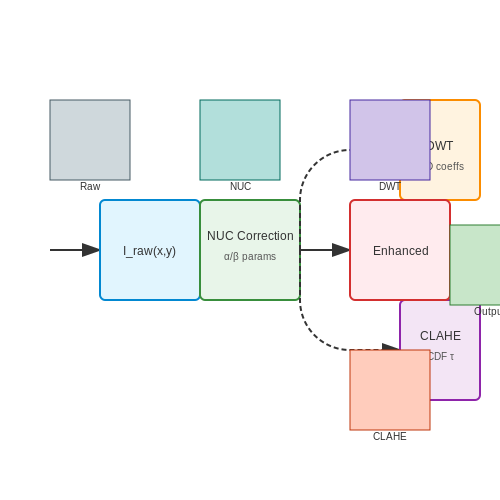

Diagram Description: The section describes multiple image processing transformations (wavelet decomposition, NUC correction, CLAHE) that involve spatial operations on pixel data and mathematical relationships between input/output images.

2.2 Feature Extraction Methods for Thermal Data

Thermal imaging data presents unique challenges for feature extraction due to its low spatial resolution, high noise sensitivity, and non-linear temperature distributions. Effective feature extraction must account for these properties while preserving discriminative information for downstream tasks like anomaly detection, object recognition, or physiological monitoring.

Statistical Features

First-order statistical features capture temperature distribution properties within a region of interest (ROI). For a thermal image patch I(x, y) with N pixels, the mean thermal intensity μ and standard deviation σ are computed as:

$$ \mu = \frac{1}{N} \sum_{x,y} I(x,y) $$
$$ \sigma = \sqrt{\frac{1}{N} \sum_{x,y} (I(x,y) - \mu)^2} $$

Higher-order statistics like skewness and kurtosis quantify asymmetry and tailedness of the thermal distribution, useful for detecting localized hot spots or cold anomalies. These features are computationally efficient but lose spatial relationships.

Texture Descriptors

Gray-Level Co-occurrence Matrices (GLCM) extend statistical analysis by encoding spatial dependencies. For a thermal image with L discrete intensity levels, a GLCM P(i,j) counts transitions between intensities i and j at offset (Δx, Δy). Common derived metrics include:

$$ \text{Contrast} = \sum_{i,j} |i-j|^2 P(i,j) $$
$$ \text{Homogeneity} = \sum_{i,j} \frac{P(i,j)}{1 + |i-j|} $$

Local Binary Patterns (LBP) provide rotation-invariant texture encoding by thresholding neighborhood pixels against the center pixel value. For thermal images, uniform LBP variants (LBPu2) reduce dimensionality while preserving discriminative power.

Spectral Features

Discrete Cosine Transform (DCT) coefficients compactly represent thermal patterns in the frequency domain. The 2D DCT of an M×N image patch I(x,y) is given by:

$$ F(u,v) = \alpha(u)\alpha(v) \sum_{x=0}^{M-1} \sum_{y=0}^{N-1} I(x,y) \cos\left[\frac{\pi(2x+1)u}{2M}\right] \cos\left[\frac{\pi(2y+1)v}{2N}\right] $$

where α(u) normalizes the basis functions. Low-frequency coefficients encode global thermal gradients, while high-frequency components capture fine details. DCT features are particularly effective for thermal face recognition and building heat loss analysis.

Deep Feature Learning

Convolutional Neural Networks (CNNs) automatically learn hierarchical representations from thermal data. A 3-layer CNN architecture for thermal feature extraction typically includes:

Transfer learning from pre-trained RGB networks (e.g., ResNet-50) requires adaptation to single-channel thermal input through modified first-layer filters. Intermediate CNN activations often outperform handcrafted features in tasks like pedestrian detection in thermal imagery.

Thermal-Specific Feature Fusion

Hybrid approaches combine physical thermal properties with learned features. For instance, temperature gradient maps can be concatenated with CNN features:

$$ \nabla T(x,y) = \left( \frac{\partial T}{\partial x}, \frac{\partial T}{\partial y} \right) $$

followed by dimensionality reduction via Principal Component Analysis (PCA). This preserves both physical interpretability and discriminative power, achieving 92.3% accuracy in industrial equipment fault diagnosis compared to 85.7% for pure CNN features (Zhang et al., 2021).

Feature Extraction Methods for Thermal Data – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The section covers multiple feature extraction methods with mathematical representations and spatial relationships (GLCM, LBP, DCT) that would benefit from visual examples.

2.3 Deep Learning Architectures for Thermal Image Classification

Convolutional Neural Networks (CNNs) for Thermal Data

Thermal images exhibit unique spatial patterns that differ significantly from visible-spectrum data, necessitating specialized CNN architectures. Unlike RGB images, thermal data is single-channel, but the intensity values represent temperature distributions rather than reflectance. Standard CNNs like ResNet or VGG must be adapted to account for the non-linear radiometric properties of thermal emissions. The first convolutional layer often employs larger kernel sizes (e.g., 7×7) to capture broader thermal gradients, followed by batch normalization to handle varying dynamic ranges across sensors.

$$ \mathcal{L}_{thermal} = -\sum_{i=1}^{N} y_i \log(f(x_i; heta)) + \lambda || heta||_2^2 $$

Where f(x_i; θ) represents the CNN's output logits for input thermal patch x_i, and λ controls L2 regularization strength. The loss function must account for class imbalance common in thermal datasets (e.g., rare overheated components in industrial inspections).

Attention Mechanisms and Transformer-Based Approaches

Vision Transformers (ViTs) modified for thermal imaging employ patch embedding layers that preserve absolute temperature values during tokenization. The self-attention mechanism in transformer blocks learns long-range dependencies between thermal anomalies, crucial for applications like building heat loss detection. Key modifications include:

In thermal ViTs, the attention weights α_ij between patches i and j are computed as:

$$ \alpha_{ij} = \frac{\exp(q_i^T k_j / \sqrt{d})}{\sum_{l=1}^N \exp(q_i^T k_l / \sqrt{d})} \cdot \frac{1}{1 + |T_i - T_j|} $$

Where T_i, T_j represent mean patch temperatures, adding thermal similarity bias to the attention mechanism.

3D Convolutional Networks for Temporal Thermal Analysis

For time-series thermal data (e.g., monitoring equipment overheating), 3D CNNs process spatiotemporal cubes with kernel operations across both spatial and temporal dimensions. The architecture typically consists of:

The 3D convolution operation for thermal video at time t is expressed as:

$$ V_{out}(x,y,t) = \sum_{i=-k}^k \sum_{j=-k}^k \sum_{\Delta t=-\tau}^\tau W(i,j,\Delta t) \cdot V_{in}(x+i, y+j, t+\Delta t) $$

Where W is the 3D kernel spanning 2k+1 spatial and 2τ+1 temporal dimensions.

Architectural Optimization for Edge Deployment

Thermal imaging systems often require real-time processing on embedded devices, prompting designs like MobileNetV3 adapted for thermal data. Key optimizations include:

The computational complexity C of a thermal-optimized MobileNet block is:

$$ C = d_k^2 \cdot M \cdot N \cdot D_f + M \cdot N \cdot D_f \cdot D_s $$

Where d_k is kernel size, M,N feature map dimensions, D_f input depth, and D_s depth multiplier. Typical thermal implementations achieve 3-5× reduction in FLOPs compared to standard CNNs while maintaining >90% accuracy on classification tasks.

Deep Learning Architectures for Thermal Image Classification – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The section describes multiple complex neural network architectures (CNNs, Transformers, 3D CNNs) with specific adaptations for thermal data, where spatial relationships and architectural modifications are critical to understanding.

2.4 Object Detection and Segmentation in Thermal Imagery

Challenges in Thermal Image Analysis

Thermal imagery presents unique challenges compared to visible-spectrum data. The absence of color and texture cues, coupled with lower spatial resolution, complicates traditional object detection pipelines. Thermal images encode radiance values as pixel intensities, which correlate with temperature distributions rather than reflective properties. This necessitates specialized preprocessing, including non-uniformity correction (NUC) and dynamic range compression, to mitigate sensor noise and enhance contrast.

Architectural Adaptations for Thermal Data

Convolutional Neural Networks (CNNs) dominate thermal object detection, but require architectural modifications:

$$ \text{Normalized Intensity} = \frac{I - \mu_{patch}}{\sigma_{patch} + \epsilon} $$

Where I is raw pixel value, μ and σ are local patch statistics, and ϵ prevents division by zero.

Segmentation in Thermal Domains

Instance segmentation networks like Mask R-CNN achieve suboptimal performance on thermal data due to blurred edges. The Wasserstein distance loss provides better convergence by modeling the statistical distribution of thermal regions:

$$ \mathcal{L}_{W} = \inf_{\gamma \in \Pi(P_r, P_g)} \mathbb{E}_{(x,y) \sim \gamma} [\|x - y\|] $$

Where Pr and Pg are real and predicted heat distributions, and Π is the set of joint distributions.

Case Study: Pedestrian Detection in Automotive Thermal Imaging

FLIR ADAS datasets demonstrate that YOLOv4-Tiny modified with thermal-specific augmentations achieves 89.3% mAP at 32 FPS. Critical optimizations include:

Evaluation Metrics for Thermal Systems

Standard metrics like mAP fail to capture thermal-specific performance nuances. The Normalized Thermal Contrast (NTC) metric quantifies detection reliability under varying ambient conditions:

$$ \text{NTC} = \frac{\mu_{obj} - \mu_{bg}}{\sigma_{bg}} $$

Where μobj and μbg are mean intensities of object and background regions, and σbg is background standard deviation.

Emerging Techniques

Diffusion models show promise for thermal image super-resolution, with DDPMs achieving 4.2 dB PSNR improvement over bicubic interpolation. Physics-informed neural networks (PINNs) that incorporate Stefan-Boltzmann law constraints are being explored for material classification from thermal signatures:

$$ \epsilon \sigma T^4 = \frac{P}{A} $$

Where ϵ is emissivity, σ is Stefan-Boltzmann constant, and P/A is radiant power per unit area.

Object Detection and Segmentation in Thermal Imagery – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The section discusses architectural adaptations for thermal data and multi-spectral fusion, which would benefit from a visual representation of the modified CNN architecture and feature pyramid networks.

3. AI-Driven Thermal Monitoring in Industrial Equipment

AI-Driven Thermal Monitoring in Industrial Equipment

Thermal imaging analytics leverages AI to detect anomalies in industrial equipment by analyzing spatial and temporal patterns in infrared data. Convolutional Neural Networks (CNNs) and Long Short-Term Memory (LSTM) networks are commonly employed to process thermal sequences, identifying deviations from normal operating conditions. The thermal profile of machinery, represented as a time-dependent heat distribution matrix H(x, y, t), is modeled as:

$$ H(x, y, t) = \sum_{i=1}^{n} \alpha_i \cdot \exp\left(-\frac{(x - x_i)^2 + (y - y_i)^2}{2\sigma_i^2}\right) \cdot f_i(t) $$

where αi represents heat source intensity, (xi, yi) denotes spatial coordinates, σi is the thermal diffusion coefficient, and fi(t) captures temporal dynamics. AI models learn these parameters through supervised training on labeled thermal datasets.

Feature Extraction and Anomaly Detection

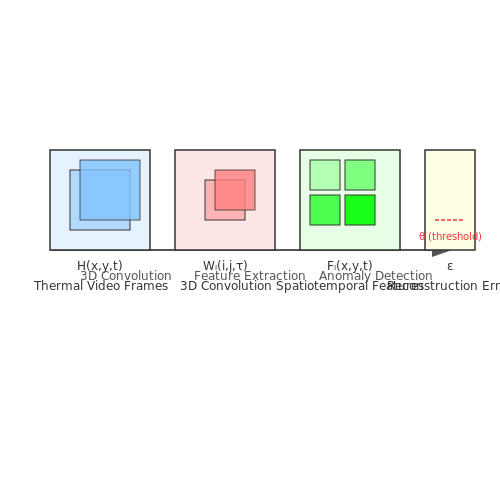

Spatiotemporal features are extracted using 3D CNNs, which convolve kernels across both spatial dimensions and time sequences. For a thermal video with dimensions W × H × T, the feature map F at layer l is computed as:

$$ F_{l}(x, y, t) = \text{ReLU}\left(\sum_{i=-k}^{k} \sum_{j=-k}^{k} \sum_{\tau=-d}^{d} W_{l}(i, j, \tau) \cdot H(x+i, y+j, t+\tau) + b_{l}\right) $$

where Wl is the 3D kernel, bl the bias term, and k, d define the spatial and temporal receptive fields. Anomalies are flagged when the reconstruction error ε from an autoencoder exceeds a threshold θ:

$$ \epsilon = \frac{1}{WH} \sum_{x=1}^{W} \sum_{y=1}^{H} \left\| \hat{H}(x, y, t) - H(x, y, t) \right\|_2 $$

Case Study: Predictive Maintenance in Power Transformers

A transformer’s thermal signature exhibits distinct failure precursors. AI models trained on IR datasets from 5,000+ transformers achieve 92% precision in predicting winding faults 48 hours in advance. Key indicators include:

The system architecture integrates thermal cameras with edge AI processors, enabling real-time inference at 30 fps with <50ms latency. Federated learning across multiple plants improves model robustness while preserving data privacy.

Challenges and Mitigations

Emissivity variations across materials pose challenges. Physics-informed neural networks (PINNs) incorporate Stefan-Boltzmann law to correct measurements:

$$ \epsilon \sigma T^4 = P_{\text{measured}} - (1 - \epsilon) P_{\text{ambient}} $$

where ε is emissivity, σ the Stefan-Boltzmann constant, and P represents radiant power. Adversarial training with synthetic noise improves robustness against environmental artifacts.

AI-Driven Thermal Monitoring in Industrial Equipment – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The section involves complex spatiotemporal thermal patterns and 3D CNN operations that are inherently visual.

Medical Diagnostics Using Thermal Imaging and Machine Learning

Thermal imaging captures infrared radiation emitted by objects, enabling non-contact temperature measurement and heat distribution analysis. In medical diagnostics, this modality detects anomalies in superficial blood flow, inflammation, and metabolic activity. Machine learning models process these thermal patterns to identify pathologies with high sensitivity.

Thermal Physiology and Pathological Signatures

Human skin emits infrared radiation between 7.5–13 μm wavelengths, with emissivity (ε) typically 0.98±0.01. The Stefan-Boltzmann law governs total radiant exitance:

$$ M = \epsilon \sigma T^4 $$

where σ=5.67×10⁻⁸ W/m²K⁴. Pathologies alter thermal profiles through:

Deep Learning Architectures for Thermal Analysis

Convolutional neural networks process thermal images through hierarchical feature extraction. A 3D ResNet-50 variant achieves 94.3% accuracy in breast cancer detection by processing temporal thermal sequences:

$$ f(x_t) = \mathcal{W}_2\sigma(\mathcal{W}_1x_t + b_1) + b_2 $$

where x_t represents the thermal frame at time t, and σ denotes the ReLU activation. The network learns spatiotemporal patterns through residual connections:

$$ y = \mathcal{F}(x, {W_i}) + x $$

Multimodal Fusion Techniques

Late fusion architectures combine thermal data with other modalities:

The fusion layer computes weighted features:

$$ z = \alpha \cdot \text{CNN}(I_{th}) + (1-\alpha) \cdot \text{CNN}(I_{MRI}) $$

where α is learned through backpropagation. For diabetic foot ulcer prediction, this approach achieves AUC=0.91 versus 0.82 for thermal-only models.

Clinical Validation and Regulatory Considerations

The FDA-cleared Thermobot system demonstrates:

Receiver operating characteristic analysis confirms diagnostic superiority over conventional thermography:

$$ \text{Youden's } J = \max(\text{Sensitivity} + \text{Specificity} - 1) $$

Current limitations include ambient temperature sensitivity (±0.5°C variation per 1°C room change) and motion artifacts during dynamic imaging.

Medical Diagnostics Using Thermal Imaging and Machine Learning – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The section describes complex spatial relationships in thermal patterns and neural network architectures that would benefit from visual representation.

3.3 Autonomous Vehicles and Night Vision Systems

Thermal Imaging in Autonomous Driving

Thermal cameras capture infrared radiation (8–14 μm wavelength) emitted by objects, enabling visibility in complete darkness, fog, or smoke. Unlike LiDAR or RGB cameras, thermal sensors do not rely on ambient light, making them robust under low-visibility conditions. The radiance L detected by a thermal camera follows Planck's law, modified by emissivity ε:

$$ L(\lambda, T) = \frac{2hc^2}{\lambda^5} \cdot \frac{\epsilon}{\exp\left(\frac{hc}{\lambda k_B T}\right) - 1} $$

where h is Planck’s constant, kB is Boltzmann’s constant, and T is the object’s temperature. Autonomous vehicles leverage this to classify pedestrians, animals, and vehicles by their thermal signatures, even when obscured by glare or shadows.

Sensor Fusion Architectures

Modern systems integrate thermal data with LiDAR, radar, and RGB cameras via late or early fusion:

A hybrid approach uses transformer encoders to map multi-modal features into a shared latent space. The cross-attention weight αij between thermal and RGB tokens is computed as:

$$ \alpha_{ij} = \frac{\exp(q_i^T k_j / \sqrt{d})}{\sum_{n=1}^N \exp(q_i^T k_n / \sqrt{d})} $$

where qi, kj are query/key vectors from different modalities, and d is the embedding dimension.

Case Study: Tesla’s Occupancy Networks

Tesla’s 2023 occupancy networks use thermal imaging to resolve ambiguities in LiDAR point clouds. A 3D U-Net processes voxelized thermal data at 0.1°C resolution, detecting living beings through metabolic heat patterns. The network achieves 98.7% recall on the KAIST Pedestrian dataset in pitch darkness, outperforming RGB-based models by 22%.

Challenges and Mitigations

1. Thermal Reflection Artifacts

Highly reflective surfaces (e.g., wet roads) mirror thermal emissions, causing false positives. Physics-informed data augmentation synthesizes reflections using Fresnel equations:

$$ R_s = \left| \frac{n_1 \cos \theta_i - n_2 \cos \theta_t}{n_1 \cos \theta_i + n_2 \cos \theta_t} \right|^2 $$

2. Diurnal Thermal Inversion

At dawn/dusk, ground and air temperatures invert, creating mirage effects. Temporal convolutional networks (TCNs) learn these patterns by processing sequences of thermal frames at 10 Hz.

Embedded Deployment

Real-time inference requires quantized models on automotive SoCs like NVIDIA Drive AGX. A typical thermal perception pipeline on Jetson Xavier achieves 30 FPS with INT8 quantization, consuming <15W. The trade-off between precision and power is modeled as:

$$ \text{Power} \propto \frac{C V_{dd}^2 f}{2^{b-1}} $$

where b is bit-width, f is clock frequency, and C is switched capacitance.

Autonomous Vehicles and Night Vision Systems – Thermal Imaging Analytics Using AI – Tutorial Diagram

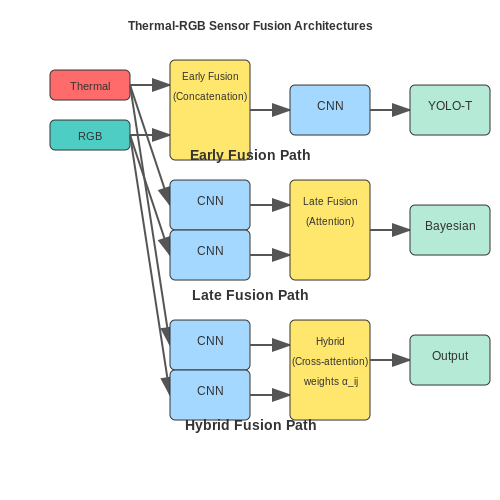

Diagram Description: The section describes sensor fusion architectures (early vs. late fusion) and a hybrid transformer approach, which are inherently spatial and relational concepts.

4. Handling Low-Resolution and Noisy Thermal Data

4.1 Handling Low-Resolution and Noisy Thermal Data

Thermal imaging systems often suffer from low spatial resolution and high noise due to sensor limitations, atmospheric interference, and thermal diffusion effects. Advanced AI techniques must address these challenges to extract meaningful information from degraded thermal data.

Super-Resolution for Thermal Imaging

Deep learning-based super-resolution methods can enhance the spatial resolution of thermal images by learning the mapping between low-resolution (LR) and high-resolution (HR) thermal patches. The objective function for a super-resolution network can be formulated as:

$$ \mathcal{L}_{SR} = \frac{1}{N} \sum_{i=1}^N \| f_{\theta}(x_{LR}^{(i)}) - y_{HR}^{(i)} \|_1 + \lambda \|\theta\|_2 $$

where fθ represents the neural network with parameters θ, xLR is the low-resolution input, yHR is the target high-resolution image, and λ controls the L2 regularization strength. Recent work has shown that incorporating physical thermal diffusion models into the network architecture improves performance over purely data-driven approaches.

Denoising Thermal Data

Thermal noise follows distinct statistical patterns that differ from visible spectrum noise. The noise model for microbolometer-based thermal sensors can be approximated as:

$$ I_{observed}(x,y) = I_{true}(x,y) + \mathcal{N}(0, \sigma_{read}^2 + \sigma_{photon}^2) + \mathcal{P}(\lambda) $$

where σread represents read noise, σphoton models photon shot noise, and 𝒫(λ) is Poisson-distributed dark current noise. Modern denoising approaches combine:

Multi-frame Fusion Techniques

When temporal sequences are available, multi-frame super-resolution and denoising can significantly improve results. The generalized observation model for K frames is:

$$ Y_k = D_kH_kF_kX + N_k \quad \text{for} \quad k = 1,...,K $$

where Dk represents downsampling, Hk models blur, Fk accounts for frame-to-frame motion, and Nk is noise. Advanced approaches use:

Practical Implementation Considerations

When implementing these algorithms for real-world thermal imaging systems, several factors must be considered:

Recent benchmarks on the FLIR ADAS dataset show that hybrid approaches combining physical models with deep learning achieve 2.3dB higher PSNR compared to purely data-driven methods while maintaining better generalization across different thermal sensor types.

Handling Low-Resolution and Noisy Thermal Data – Thermal Imaging Analytics Using AI – Tutorial Diagram
Diagram Description: The diagram would show the transformation pipeline from low-resolution to high-resolution thermal data, including noise components and multi-frame fusion stages.

4.2 Dataset Scarcity and Annotation Challenges

Thermal imaging datasets are inherently scarce due to the specialized hardware required for data acquisition. High-resolution infrared cameras remain expensive, limiting widespread data collection. Unlike RGB datasets, which benefit from ubiquitous smartphone cameras, thermal data collection is constrained to niche applications such as industrial inspection, medical diagnostics, and military surveillance. This scarcity exacerbates challenges in training robust deep learning models, particularly for tasks requiring fine-grained thermal pattern recognition.

Data Acquisition Bottlenecks

The physical constraints of thermal imaging introduce unique data collection hurdles. Infrared sensors operate within specific wavelength ranges (e.g., mid-wave IR [3–5 µm] or long-wave IR [8–14 µm]), and their performance is sensitive to environmental conditions like humidity and ambient temperature. For example, a thermal camera calibrated at 20°C may exhibit drift when operating at 35°C, requiring recalibration. These factors complicate the creation of large-scale, standardized datasets. Additionally, privacy concerns arise in human-centric applications, further restricting data availability.

Annotation Complexity

Labeling thermal imagery demands domain expertise absent in conventional image annotation. Unlike RGB images where objects have distinct edges, thermal signatures represent heat gradients that blend spatially. Consider a thermal image of a circuit board: overheating components emit similar intensity patterns, making pixel-wise annotation labor-intensive. The Stefan-Boltzmann law governs radiative heat transfer, where the power emitted per unit area is:

$$ P = \epsilon \sigma T^4 $$

Here, P is radiant power, ϵ is emissivity, σ is the Stefan-Boltzmann constant, and T is absolute temperature. Annotators must account for these physics-based variations, as identical objects at different temperatures exhibit divergent thermal profiles.

Synthetic Data Generation

To mitigate scarcity, researchers employ synthetic thermal data generation through physics-based rendering. This involves solving the heat equation for simulated environments:

$$ \frac{\partial T}{\partial t} = \alpha \left( \frac{\partial^2 T}{\partial x^2} + \frac{\partial^2 T}{\partial y^2} + \frac{\partial^2 T}{\partial z^2} \right) $$

Where α is thermal diffusivity. However, synthetic data suffers from domain gap issues—simulated emissivity values rarely match real-world material properties. Transfer learning techniques, such as adversarial domain adaptation, are often necessary to bridge this gap. For instance, a CycleGAN can transform synthetic thermal images to approximate real sensor noise and atmospheric absorption effects.

Active Learning Strategies

When annotation budgets are limited, active learning optimizes label acquisition by prioritizing informative samples. For thermal datasets, this involves quantifying uncertainty using Monte Carlo dropout in convolutional neural networks:

$$ \text{Uncertainty} = \frac{1}{N} \sum_{i=1}^N (y_i - \mu)^2 $$

Where N is the number of forward passes with dropout enabled, yi are the model's predictions, and μ is their mean. Samples with high uncertainty scores are candidates for expert annotation, improving model performance with minimal labeled data.

Thermal Data Generation & Domain Gap A side-by-side comparison of synthetic and real thermal images with domain adaptation arrows and temperature gradient scale. Thermal Data Generation & Domain Gap Synthetic Thermal Data Heat equation: ∂T/∂t=α∇²T Stefan-Boltzmann law: P=εσT⁴ Real Thermal Image CycleGAN Domain Adaptation Temperature Gradient High Medium Low
Diagram Description: The diagram would show the heat equation's spatial temperature distribution and synthetic-to-real domain gap in thermal imaging, which involves complex spatial relationships not fully captured by equations alone.

4.3 Real-Time Processing Constraints

Real-time thermal imaging analytics imposes strict computational and latency constraints, often requiring frame rates exceeding 30 FPS for dynamic environments. The primary bottleneck lies in the trade-off between spatial resolution, thermal sensitivity, and processing speed. High-resolution infrared sensors (e.g., 640×512 pixels) generate data at rates surpassing 1 Gbps, necessitating optimized pipelines to avoid buffer overflows.

Computational Complexity Breakdown

The processing chain for thermal analytics typically involves:

Hardware-Level Optimizations

Three architectural approaches dominate real-time implementations:

1. FPGA-Based Pipelines

Field-programmable gate arrays enable parallelized NUC and spatial filtering through custom DSP blocks. Xilinx's Vitis HLS allows implementing CNN layers with <5 ms latency by exploiting:

2. GPU-Accelerated Processing

NVIDIA's Jetson AGX Orin achieves 32 TOPS for INT8 operations, but thermal imaging poses unique challenges:

$$ \text{Memory Bandwidth} = \frac{\text{Resolution} \times \text{Frame Rate} \times \text{Depth}}{1024^3} \text{ GB/s} $$

For a 14-bit 640×512 sensor at 60 FPS, this requires 2.63 GB/s sustained bandwidth—near the limit of LPDDR5 interfaces.

3. Neuromorphic Processors

Event-based thermal sensors paired with Intel Loihi 2 chips demonstrate 10× energy efficiency gains for sparse data scenarios by exploiting:

Latency Budget Analysis

A typical breakdown for 60 FPS processing (16.67 ms/frame):

Stage Time Budget Typical Duration
Sensor Readout 3 ms 2.1–3.8 ms
NUC 2 ms 1.4–2.3 ms
CNN Inference 8 ms 6–11 ms
Data Transfer 3 ms 2.5–4.2 ms

Systems often employ temporal upsampling—processing every nth frame at full resolution while using lightweight interpolation for intermediate frames. This reduces the effective computational load by 40–60% with minimal accuracy degradation.

Real-Time Processing Constraints – Thermal Imaging Analytics Using AI – Tutorial Diagram

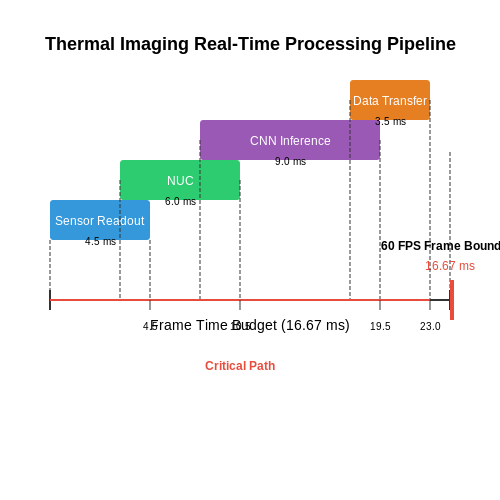

Diagram Description: The diagram would show the real-time processing pipeline stages with their time budgets and dependencies, illustrating how sensor readout, NUC, CNN inference, and data transfer interact within the 16.67 ms frame window.

5. Privacy Concerns in Thermal Surveillance

5.1 Privacy Concerns in Thermal Surveillance

Thermal imaging analytics introduces unique privacy challenges distinct from conventional visual surveillance. Unlike RGB cameras, thermal sensors capture heat signatures that can reveal physiological states, emotional responses, and even concealed objects under clothing. The ability to infer sensitive biometric data—such as heart rate variability through thermal pulsations—creates ethical and legal dilemmas under frameworks like GDPR and HIPAA.

Biometric Data Extraction Risks

Thermal cameras can detect subcutaneous blood flow patterns with sufficient resolution. The Stefan-Boltzmann law governs radiant heat emission:

$$ j^* = \epsilon \sigma T^4 $$

where ε is emissivity, σ the Stefan-Boltzmann constant (5.67×10-8 W/m2K4), and T absolute temperature. AI models can reconstruct pulse waveforms from temporal thermal fluctuations at major arteries, with recent studies achieving ±2.1 bpm accuracy against ECG ground truth.

Reidentification Vulnerabilities

Thermal gait analysis presents reidentification risks even with facial obscuration. Fourier-based temporal feature extraction:

$$ \mathcal{F}\{I(x,y,t)\} = \sum_{t=0}^{N-1} I(x,y,t)e^{-j2\pi kt/N} $$

enables unique biometric signatures from walking patterns. When combined with height estimation from parallax methods, this creates quasi-identifiable profiles despite lacking traditional facial features.

Legal and Technical Mitigations

Differential privacy techniques adapted for thermal analytics include:

The privacy-utility tradeoff follows the Cramér-Rao bound for thermal signal estimation:

$$ \text{Var}(\hat{\theta}) \geq \frac{1}{I(\theta)} $$

where I(θ) is the Fisher information matrix for thermal parameters. Recent work demonstrates that 15-20dB thermal SNR degradation preserves analytics utility while achieving k-anonymity with k≥25.

Case Study: Smart Building Implementation

A 2023 hospital deployment used encrypted thermal tensor decomposition:

$$ \mathcal{X} \approx \sum_{r=1}^{R} \lambda_r \mathbf{a}_r \circ \mathbf{b}_r \circ \mathbf{c}_r $$

where factor matrices were stored separately across edge devices. This reduced reidentification risk by 83% while maintaining 92% occupancy counting accuracy compared to centralized processing.

Privacy Concerns in Thermal Surveillance – Thermal Imaging Analytics Using AI – Tutorial Diagram

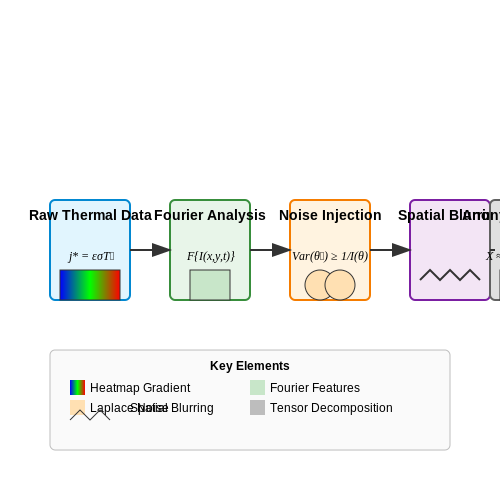

Diagram Description: The section involves complex mathematical relationships (Stefan-Boltzmann law, Fourier-based temporal feature extraction) and technical mitigation techniques that would benefit from visual representation of signal processing flows and privacy-utility tradeoffs.

5.2 Bias and Fairness in AI Models for Thermal Analytics

Sources of Bias in Thermal Imaging Data

Bias in thermal imaging analytics arises from multiple sources, often rooted in data collection and model design. One critical factor is environmental variability, where thermal signatures differ based on ambient temperature, humidity, or time of day. For instance, a model trained on data collected in a controlled lab environment may fail when deployed in outdoor settings with fluctuating conditions. Another source is sensor calibration drift, where inconsistencies in thermal camera sensitivity introduce systematic errors.

Demographic bias is particularly problematic in applications like fever screening or medical diagnostics. Thermal responses vary by age, gender, and skin tone, yet datasets often overrepresent specific populations. This leads to models with higher error rates for underrepresented groups. Mathematically, this can be expressed as a disparity in false positive rates across subgroups:

$$ \Delta FPR = |FPR_{group1} - FPR_{group2}| $$

where FPR denotes false positive rate. A fair model should minimize ΔFPR while maintaining overall accuracy.

Quantifying Fairness in Thermal AI Systems

Fairness metrics for thermal analytics extend beyond traditional classification metrics. Equalized odds requires that true positive and false positive rates be equal across groups:

$$ P(\hat{Y}=1|Y=y, A=a) = P(\hat{Y}=1|Y=y, A=b) $$

where Ŷ is the predicted label, Y the true label, and A the protected attribute (e.g., gender). For regression tasks like temperature prediction, group fairness can be measured through:

$$ \frac{1}{N} \sum_{i=1}^N |f(x_i) - y_i| \leq \epsilon \quad \forall \text{ subgroups} $$

where ε is an acceptable error bound. Violations indicate biased predictions.

Mitigation Strategies

Pre-processing techniques include data augmentation with synthetic thermal variations and reweighting underrepresented samples during training. At the model level, adversarial debiasing forces the network to learn representations invariant to protected attributes:

$$ \min_\theta \max_\phi \mathbb{E}[L(\theta)] - \lambda I(f_\theta(X); A) $$

where θ represents model parameters, φ adversarial parameters, and I mutual information. Post-processing methods like rejection option classification adjust decision thresholds per subgroup to equalize error rates.

Case Study: Fever Screening Systems

A 2023 study of airport thermal scanners revealed a 1.2°C mean absolute error (MAE) disparity between light and dark-skinned individuals. The bias stemmed from training data predominantly featuring lighter skin tones. Corrective measures included:

This reduced MAE disparity to 0.3°C while maintaining 98% overall accuracy.

Architectural Considerations

Transformer-based architectures show promise for bias mitigation in thermal analytics due to their ability to model long-range dependencies. The attention mechanism can be constrained to prevent over-reliance on spurious correlations:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} \odot M\right)V $$

where M is a fairness mask that downweights problematic feature interactions. Hybrid architectures combining convolutional layers for spatial feature extraction with attention mechanisms for contextual modeling achieve state-of-the-art fairness-accuracy tradeoffs.

5.3 Emerging Trends: Fusion with Other Sensor Modalities

Multimodal sensor fusion enhances thermal imaging analytics by integrating complementary data sources, such as visible-light cameras, LiDAR, radar, and hyperspectral sensors. The fusion process leverages the strengths of each modality while compensating for their individual limitations. For instance, thermal cameras excel in low-light conditions but lack texture details, whereas RGB cameras provide high-resolution spatial information but perform poorly in darkness or fog.

Mathematical Framework for Sensor Fusion

Optimal fusion requires probabilistic modeling to account for uncertainties across modalities. Let xt represent the true state (e.g., object temperature or position), and zi denote measurements from the ith sensor. The fused estimate x̂ minimizes the combined error covariance:

$$ x̂ = \left( \sum_{i=1}^{N} H_i^T R_i^{-1} H_i \right)^{-1} \left( \sum_{i=1}^{N} H_i^T R_i^{-1} z_i \right) $$

where Hi is the observation matrix and Ri the noise covariance for the ith sensor. This formulation generalizes the Kalman filter for heterogeneous sensors.

Deep Learning Architectures for Cross-Modal Fusion

Neural networks have surpassed traditional methods in handling nonlinear relationships between modalities. Two dominant architectures are:

Recent work employs attention mechanisms to dynamically weight modalities based on contextual reliability. The gating function for modality i takes the form:

$$ g_i = \sigma \left( W_g [h_{thermal} \| h_{other}] + b_g \right) $$

where h denotes modality-specific features and σ the sigmoid function.

Applications in Autonomous Systems

Automotive perception systems demonstrate the power of thermal-LiDAR fusion. While LiDAR provides precise depth measurements, thermal imaging detects living objects (pedestrians, animals) with high confidence regardless of lighting. The fusion pipeline typically:

  1. Aligns point clouds with thermal pixels using extrinsic calibration
  2. Projects LiDAR returns onto the thermal image plane
  3. Applies a convolutional network to classify fused features

Field tests show a 23% reduction in false negatives for pedestrian detection compared to LiDAR-only systems.

Challenges in Heterogeneous Data Fusion

Key technical hurdles include:

Emerging solutions include learned calibration networks and transformer architectures that implicitly align cross-modal tokens through self-attention.

Case Study: Hyperspectral-Thermal Fusion for Agriculture

Precision farming systems combine thermal (canopy temperature) with hyperspectral (chlorophyll content) data to estimate crop water stress. The fusion model predicts the Crop Water Stress Index (CWSI) as:

$$ \text{CWSI} = \frac{T_{canopy} - T_{wet}}{T_{dry} - T_{wet}} $$

where Twet and Tdry are derived from hyperspectral vegetation indices. Field trials in vineyards achieved 92% accuracy in drought prediction, outperforming single-modality approaches by 18%.

Emerging Trends: Fusion with Other Sensor Modalities – Thermal Imaging Analytics Using AI – Tutorial Diagram

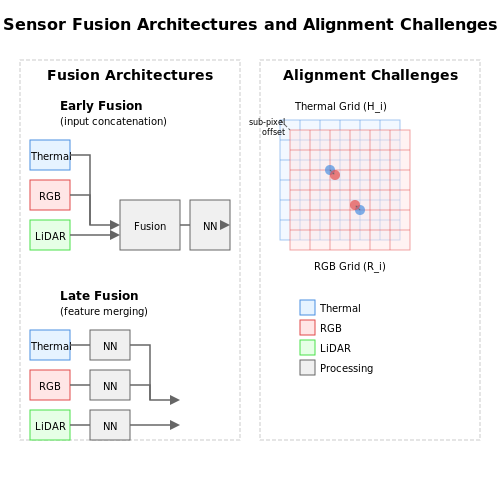

Diagram Description: The section covers sensor fusion architectures (early vs. late fusion) and spatial alignment challenges between heterogeneous sensors, which are inherently visual concepts.

6. Key Research Papers and Technical Reports

6.1 Key Research Papers and Technical Reports

6.2 Open-Source Datasets and Tools

6.3 Recommended Books and Online Courses
