Visual Search System for Fashion Stores

#visual search #fashion #cnn #feature extraction #image processing #deep learning #computer vision #similarity metrics #data preprocessing #neural networks

1. Definition and Core Components of Visual Search

Definition and Core Components of Visual Search

Visual search in fashion retail refers to a machine learning-powered system that enables users to query products using images rather than text. The system analyzes visual features—such as color, texture, shape, and pattern—to retrieve similar items from a database. Unlike traditional search engines that rely on metadata, visual search operates on pixel-level data, requiring robust feature extraction and similarity measurement techniques.

Core Technical Components

The architecture of a visual search system comprises four primary modules:

$$ \text{sim}(I_1, I_2) = \frac{f(I_1) \cdot f(I_2)}{\|f(I_1)\| \|f(I_2)\|} $$

Mathematical Underpinnings

The effectiveness of visual search hinges on the discriminative power of the embedding space. Triplet loss is commonly employed to optimize this space:

$$ \mathcal{L} = \sum_{i=1}^N \max(0, \|f(I_i^a) - f(I_i^p)\|_2^2 - \|f(I_i^a) - f(I_i^n)\|_2^2 + \alpha) $$

where Iia, Iip, and Iin denote anchor, positive (similar), and negative (dissimilar) images respectively, with α as a margin hyperparameter.

Real-World Implementation Challenges

Practical deployments must address:

Performance Metrics

System efficacy is quantified through:

$$ \text{mAP} = \frac{1}{|Q|} \sum_{q \in Q} \frac{1}{m_q} \sum_{k=1}^{m_q} P(k) \cdot \text{rel}(k) $$

where P(k) is precision at cutoff k, rel(k) indicates relevance of the k-th result, and mq is the number of relevant items for query q.

Definition and Core Components of Visual Search – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the end-to-end architecture of a visual search system with labeled components (CNN feature extractor, ANN index, similarity calculator) and data flow between them.

1.2 How Visual Search Differs from Traditional Search Methods

Traditional search methods rely on keyword-based queries, where users input text descriptions to retrieve relevant results. These systems leverage techniques like inverted indexing, term frequency-inverse document frequency (TF-IDF), or latent semantic indexing (LSI) to match textual queries with indexed content. In contrast, visual search systems process pixel-level data, extracting high-dimensional feature representations directly from images to find visually similar items.

Feature Representation and Matching

Traditional search operates in a discrete, symbolic space where words or phrases are mapped to documents. The similarity between query and document is computed using metrics like cosine similarity or Jaccard index over bag-of-words representations. For example, given a query vector q and document vector d, the cosine similarity is:

$$ \text{sim}(q, d) = \frac{q \cdot d}{\|q\| \|d\|} $$

Visual search, however, relies on continuous feature spaces derived from convolutional neural networks (CNNs) or vision transformers (ViTs). These models generate dense embeddings where similarity is measured using Euclidean or Manhattan distance in high-dimensional space:

$$ d(\mathbf{x}, \mathbf{y}) = \sqrt{\sum_{i=1}^n (x_i - y_i)^2} $$

Query Paradigm and User Interaction

Keyword search requires users to articulate their intent linguistically, which introduces ambiguity due to vocabulary mismatch or subjective interpretation. For instance, a user searching for "red formal dress" might miss relevant items indexed under "scarlet evening gown." Visual search bypasses this limitation by allowing direct image uploads or real-time camera input, enabling query-by-example retrieval.

Advanced implementations combine both modalities through cross-modal retrieval, where joint embedding spaces align visual and textual representations. This is achieved via models like CLIP (Contrastive Language-Image Pretraining), which optimizes:

$$ \mathcal{L} = -\log \frac{\exp(\text{sim}(v_i, t_i)/\tau)}{\sum_{j=1}^N \exp(\text{sim}(v_i, t_j)/\tau)} $$

where vi and ti are paired image-text embeddings, and τ is a temperature parameter.

Computational Complexity and Infrastructure

Traditional search systems scale efficiently with sparse matrix operations and inverted indices, allowing sublinear query times even for large corpora. Visual search demands heavy computational resources for feature extraction (e.g., ResNet-50 forward passes) and approximate nearest neighbor (ANN) search in billion-scale embedding spaces. Techniques like locality-sensitive hashing (LSH) or hierarchical navigable small world (HNSW) graphs mitigate this:

$$ \text{HNSW}(q) = \arg\min_{p \in \mathcal{L}} \|f(q) - f(p)\|_2 $$

where L is a layered graph structure enabling logarithmic-time search.

Domain-Specific Adaptations in Fashion

Fashion visual search introduces unique challenges requiring specialized architectures. Attributes like texture (e.g., silk vs. chiffon) and fine-grained patterns (e.g., paisley vs. floral) necessitate attention mechanisms or part-based models. DeepRank networks improve performance by learning a ranking-aware loss:

$$ \mathcal{L}_{\text{rank}} = \sum_{(i,j,k)} \max(0, \alpha + d(x_i, x_j) - d(x_i, x_k)) $$

where triplets enforce that positive samples xj (matching items) are closer than negatives xk by margin α.

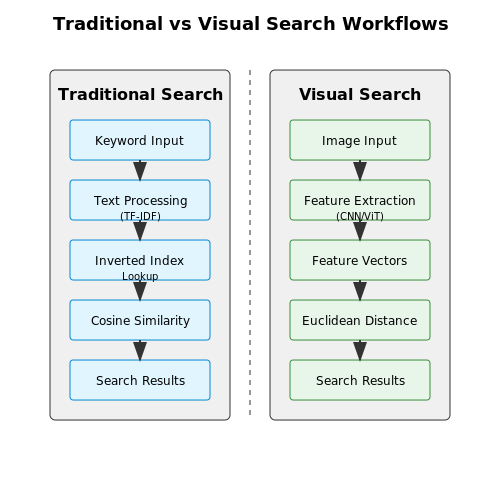

How Visual Search Differs from Traditional Search Methods – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the comparison between traditional keyword-based search and visual search workflows, highlighting the different data processing pipelines and feature matching techniques.

Key Technologies Behind Visual Search

Convolutional Neural Networks (CNNs)

Convolutional Neural Networks (CNNs) form the backbone of modern visual search systems due to their ability to automatically learn hierarchical feature representations from raw pixel data. A CNN processes an input image through a series of convolutional layers, each applying learned filters to detect spatial patterns. The convolution operation for a single filter at layer l can be expressed as:

$$ Z^{l}_{ij} = \sum_{a=0}^{m-1}\sum_{b=0}^{n-1} W^{l}_{ab} \cdot X^{l-1}_{(i+a)(j+b)} + b^{l} $$

where Wl represents the filter weights, Xl-1 the input from the previous layer, and bl the bias term. Modern architectures like ResNet and EfficientNet employ residual connections and compound scaling to achieve state-of-the-art performance on fashion item recognition tasks.

Feature Extraction and Embedding

Visual search systems rely on compact, discriminative feature representations extracted from the penultimate layer of a CNN. For a query image Iq, the system computes a d-dimensional feature vector fq ∈ ℝd that captures semantic attributes like texture, shape, and color distribution. The similarity between query image Iq and database image Id is typically measured using cosine similarity:

$$ \text{sim}(f_q, f_d) = \frac{f_q \cdot f_d}{\|f_q\| \|f_d\|} $$

Advanced systems employ metric learning techniques like triplet loss to optimize the embedding space, where the distance between positive pairs (similar items) is minimized while pushing negative pairs (dissimilar items) beyond a margin α:

$$ \mathcal{L}_{\text{triplet}} = \max(0, \|f_a - f_p\|^2 - \|f_a - f_n\|^2 + \alpha) $$

Attention Mechanisms and Local Features

For fine-grained fashion item retrieval, self-attention mechanisms enable the model to focus on discriminative regions like logos, patterns, or stitching details. The attention weights αij for spatial location (i,j) are computed as:

$$ \alpha_{ij} = \frac{\exp(e_{ij})}{\sum_{k=1}^N \exp(e_{ik})}, \quad e_{ij} = a(W_q q_i, W_k k_j) $$

where Wq and Wk are learned projection matrices, and a(·) is a compatibility function. This allows the system to handle occlusion and viewpoint variations common in fashion photography.

Efficient Nearest Neighbor Search

With product catalogs often exceeding millions of items, approximate nearest neighbor (ANN) algorithms like HNSW (Hierarchical Navigable Small World) enable real-time retrieval. HNSW constructs a layered graph where search complexity scales as O(log N) through greedy traversal:

$$ \text{Search}(q, e_{max}, L) = \text{traverse layers } L \rightarrow 0 \text{ to find } e_{max} \text{ nearest neighbors} $$

Practical implementations combine ANN with product attributes (color, brand, price) for hybrid retrieval that balances visual similarity with business constraints.

Key Technologies Behind Visual Search (e.g., CNNs, Feature Extraction) – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the hierarchical structure of a CNN with labeled convolutional layers, residual connections, and feature extraction points, illustrating how an input image transforms through the network.

2. Data Collection and Preprocessing for Fashion Images

2.1 Data Collection and Preprocessing for Fashion Images

Data Sources and Acquisition

High-quality fashion image datasets are critical for training robust visual search systems. Primary sources include:

For real-world deployment, the dataset must reflect the operational domain. A mismatch between training data (studio photos) and query images (user-uploaded photos) degrades performance due to the domain gap.

Image Preprocessing Pipeline

The raw images undergo several transformations:

$$ I_{processed} = \mathcal{N}(Crop(Resize(I_{raw}, 256 \times 256), 224 \times 224)) $$

where $$\mathcal{N}$$ denotes normalization using ImageNet statistics (mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]). This standardization improves convergence during training.

Key Preprocessing Steps

Data Augmentation Strategies

To improve model generalization, synthetic variations are introduced during training:

$$ \hat{I} = Augment(I) = \{T_{color}, T_{geom}, T_{noise}\}(I) $$

where $$T_{color}$$ includes random hue shifts (±30°) and saturation scaling (0.7–1.3×), $$T_{geom}$$ applies affine transformations (rotation: ±15°, scale: 0.9–1.1×), and $$T_{noise}$$ adds Gaussian noise ($$\sigma$$=0.01).

Annotation Requirements

For supervised learning, each image requires:

Label quality is verified through cross-annotator agreement (Fleiss' κ > 0.8) and automated consistency checks.

Feature Extraction Considerations

Before feeding images to neural networks, traditional features may be extracted:

$$ \mathbf{f} = [HOG(I), LBP(I), ColorHistogram(I)] $$

where HOG captures edge structures, LBP encodes texture patterns, and color histograms represent dominant hues. These can supplement deep features in hybrid architectures.

Fashion Image Preprocessing & Augmentation Pipeline Diagram showing the sequential steps of image preprocessing (resizing, cropping, normalization) and parallel augmentation branches (color and geometric transformations) for fashion images. Raw Image 300×400 Resize(256×256) Crop(224×224) Normalize(μ,σ) (x - mean)/std Color Augmentation Hue±30° Gaussian Noise(σ=0.01) Geometric Augmentation Rotation ±15° Flip
Diagram Description: The image preprocessing pipeline involves multiple sequential transformations (resizing, cropping, normalization) that would be clearer visually, and the data augmentation strategies involve spatial/color operations best shown graphically.

2.2 Building a Robust Fashion Image Dataset

Constructing a high-quality dataset is foundational for training a visual search system in fashion retail. The dataset must capture diverse clothing items, variations in lighting, poses, and backgrounds to ensure model generalization. Key considerations include data diversity, annotation quality, and preprocessing pipelines.

Data Collection Strategies

Fashion image datasets can be sourced from multiple channels, each with distinct advantages:

Annotation and Labeling

Accurate annotations are essential for supervised learning. Common labeling approaches include:

Annotation tools like LabelImg, CVAT, or Amazon SageMaker Ground Truth streamline the process, but human-in-the-loop validation is necessary to mitigate label noise.

Data Augmentation and Preprocessing

To enhance dataset robustness, apply transformations that simulate real-world variations:

$$ \mathcal{T}(x) = \{ \text{Rotation}(x, \theta), \text{Flip}(x), \text{ColorJitter}(x) \} $$

Where x is the input image, and θ denotes rotation angle. Advanced techniques like generative adversarial networks (GANs) can synthesize novel fashion items, though care must be taken to avoid distributional shifts.

Quality Control Metrics

Quantitative measures ensure dataset integrity:

$$ H = -\sum_{i=1}^{N} p_i \log p_i $$
$$ \kappa = \frac{P_a - P_e}{1 - P_e} $$

Where Pa is observed agreement, and Pe is expected chance agreement.

Storage and Versioning

Large-scale datasets require efficient storage solutions like TFRecords or LMDB for rapid I/O during training. Version control systems (e.g., DVC) track dataset iterations, ensuring reproducibility.

Feature Extraction and Representation for Fashion Items

Deep Convolutional Feature Extraction

Modern visual search systems for fashion rely on deep convolutional neural networks (CNNs) pretrained on large-scale image datasets. The activations from intermediate layers serve as dense feature descriptors capturing both low-level (texture, edges) and high-level (style, category) attributes. For a given input image I, the feature map Fl at layer l can be expressed as:

$$ F_l = \sigma(W_l * F_{l-1} + b_l) $$

where Wl represents the learned filters, bl the bias terms, and σ the activation function (typically ReLU). The optimal layer for feature extraction balances spatial resolution with semantic richness - common choices include ResNet-50's conv4_x or VGG16's conv5_3.

Dimensionality Reduction and Embedding

Raw CNN features often exceed 10,000 dimensions, necessitating compression for efficient retrieval. Principal Component Analysis (PCA) projects features onto an orthogonal subspace maximizing variance:

$$ \hat{F} = FV_k $$

where Vk contains the top k eigenvectors of the covariance matrix FTF. Alternatively, triplet networks learn compact embeddings (128-512D) by optimizing:

$$ \mathcal{L} = \max(0, \|f(a) - f(p)\|^2 - \|f(a) - f(n)\|^2 + \alpha) $$

where a, p, n are anchor, positive, and negative samples respectively, and α is a margin hyperparameter.

Multi-Modal Feature Fusion

Complementary modalities improve retrieval accuracy. For fashion items, we combine:

The fusion occurs through late concatenation or attention mechanisms:

$$ h_{fusion} = \sum_{i=1}^M \alpha_i h_i, \quad \alpha_i = \text{softmax}(w^T \tanh(Wh_i)) $$

Indexing for Real-Time Retrieval

Approximate nearest neighbor (ANN) search enables sublinear query times. Hierarchical Navigable Small World (HNSW) graphs construct multi-layered networks where search complexity scales as:

$$ O(\log N) $$

compared to O(N) for linear search. Product quantization further reduces memory usage by decomposing vectors into subvectors and quantizing each subspace independently.

Evaluation Metrics

System performance is quantified through:

The metrics are computed over held-out test sets with carefully curated query-catalog pairs to avoid evaluation biases.

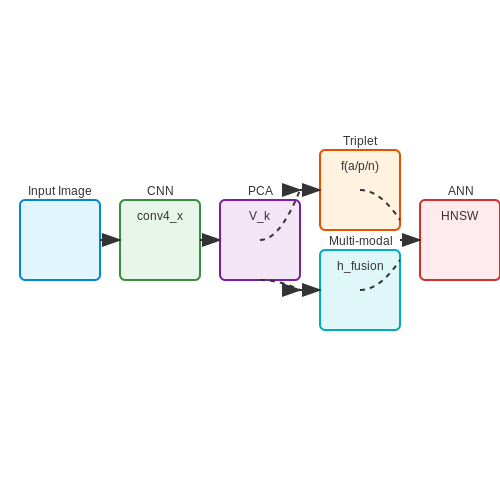

Feature Extraction and Representation for Fashion Items – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The section involves complex transformations (CNN feature extraction, PCA, triplet networks) and multi-modal fusion that would benefit from visual representation of data flow and architecture.

2.4 Similarity Metrics and Matching Algorithms

Distance Metrics for Feature Matching

In visual search systems, the core challenge lies in quantifying the similarity between high-dimensional feature vectors extracted from images. Euclidean distance is the most straightforward metric, measuring the straight-line distance between two vectors x and y in an n-dimensional space:

$$ d(x, y) = \sqrt{\sum_{i=1}^n (x_i - y_i)^2} $$

However, Euclidean distance assumes isotropy in the feature space, which rarely holds for fashion item embeddings due to varying semantic importance across dimensions. Mahalanobis distance addresses this by incorporating the covariance matrix Σ of the feature distribution:

$$ d_M(x, y) = \sqrt{(x - y)^T \Sigma^{-1} (x - y)} $$

Cosine Similarity for Orientation Alignment

When the magnitude of feature vectors is less important than their angular separation, cosine similarity proves more effective. This measures the cosine of the angle between vectors:

$$ \text{cosine}(x, y) = \frac{x \cdot y}{\|x\| \|y\|} $$

For normalized vectors where \(\|x\| = \|y\| = 1\), this reduces to a simple dot product. In fashion applications, cosine similarity excels at matching items with similar visual patterns regardless of lighting variations or scale differences.

Deep Metric Learning Approaches

Traditional distance metrics often fail to capture the nuanced relationships in fashion aesthetics. Deep metric learning trains neural networks to learn optimized similarity functions directly from data. The triplet loss framework is particularly effective:

$$ \mathcal{L} = \max(0, d(x_a, x_p) - d(x_a, x_n) + \alpha) $$

where \(x_a\) is an anchor item, \(x_p\) a positive example (same category), and \(x_n\) a negative example (different category), with \(\alpha\) as a margin hyperparameter. This forces the network to learn embeddings where similar items cluster closer than dissimilar ones by at least margin \(\alpha\).

Approximate Nearest Neighbor Search

Exhaustive pairwise comparison becomes computationally prohibitive for large fashion catalogs. Approximate Nearest Neighbor (ANN) algorithms like Hierarchical Navigable Small World (HNSW) graphs enable efficient search in logarithmic time. HNSW constructs a layered graph where:

The search complexity scales as \(O(\log N)\) compared to \(O(N)\) for brute-force methods, making it practical for real-time visual search across millions of products.

Cross-Modal Matching Techniques

Modern fashion search systems must bridge visual and textual queries. CLIP (Contrastive Language-Image Pretraining) provides a unified embedding space where:

$$ \text{sim}(v, t) = \frac{f_v(v) \cdot f_t(t)}{\|f_v(v)\| \|f_t(t)\|} $$

Here \(f_v\) and \(f_t\) are vision and text encoders trained with contrastive loss to align embeddings of matching image-text pairs while pushing non-matching pairs apart. This enables "search by description" functionality where textual queries like "floral summer dress" retrieve visually relevant products.

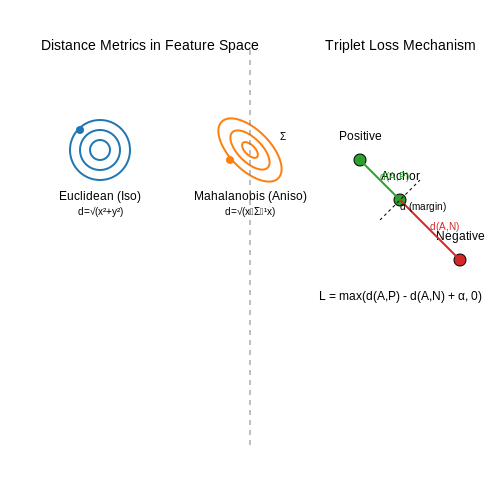

Similarity Metrics and Matching Algorithms – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would visually compare Euclidean vs. Mahalanobis distance in feature space and illustrate the triplet loss mechanism in metric learning.

3. Backend Architecture for Real-Time Visual Search

Backend Architecture for Real-Time Visual Search

Distributed Feature Extraction Pipeline

The core of a real-time visual search system relies on a distributed pipeline for feature extraction. High-dimensional embeddings are generated using convolutional neural networks (CNNs) such as ResNet-50 or EfficientNet, optimized for low-latency inference. The architecture typically employs a microservices-based design, where:

$$ \mathbf{v}_i = f_{\theta}(I_i) \in \mathbb{R}^{d} $$

where fθ is the embedding model and d is the dimensionality (typically 512–2048).

Approximate Nearest Neighbor (ANN) Search

For sub-millisecond retrieval, pre-computed product embeddings are indexed using ANN algorithms. Hierarchical Navigable Small World (HNSW) graphs outperform tree-based methods for high recall:

$$ \text{Recall}@k = \frac{|\text{Top-}k_{\text{ANN}} \cap \text{Top-}k_{\text{exact}}|}{k} $$

Key trade-offs:

Load Balancing and Scaling

Autoscaling groups (e.g., Kubernetes HPA) adjust worker counts based on GPU utilization metrics. A two-level cache (Redis for embeddings, CDN for thumbnails) minimizes database load:

Latency Budget Breakdown

End-to-end latency must stay under 300ms for real-time UX. Typical distribution:

ComponentTime (ms)
Network I/O50–80
Feature Extraction120–150
ANN Search20–40
Cache Lookup5–10

Fault Tolerance

Circuit breakers (e.g., Hystrix) prevent cascading failures. Embedding versions are A/B tested using shadow traffic before production rollout.

Backend Architecture for Real-Time Visual Search – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would physically show the distributed pipeline architecture with microservices (ingestion, feature workers, message queue) and their data flow relationships, which is inherently spatial.

Integrating Deep Learning Models (e.g., ResNet, EfficientNet)

Architecture Selection for Visual Search

Deep convolutional neural networks (CNNs) like ResNet and EfficientNet are preferred for visual search due to their ability to extract hierarchical features from images. ResNet's residual connections mitigate vanishing gradients in deep networks, while EfficientNet optimizes model scaling across depth, width, and resolution. For fashion retrieval, ResNet-50 or EfficientNet-B4 strike a balance between accuracy and computational efficiency.

$$ \mathcal{L}(x, y) = -\sum_{i=1}^{C} y_i \log(f(x)_i) $$

where f(x)_i is the predicted probability for class i, and C is the number of fashion categories.

Feature Extraction Pipeline

Pre-trained models on ImageNet are fine-tuned using triplet loss to learn discriminative embeddings for fashion items. Given an anchor image x_a, positive sample x_p (same product), and negative sample x_n (different product), the loss function is:

$$ \mathcal{L}_{\text{triplet}} = \max(0, \|f(x_a) - f(x_p)\|_2^2 - \|f(x_a) - f(x_n)\|_2^2 + \alpha) $$

where α is a margin hyperparameter (typically 0.2–1.0).

Implementation with PyTorch

import torch
from torchvision.models import resnet50
from torch import nn

class FashionEmbeddingModel(nn.Module):
    def __init__(self, embedding_dim=512):
        super().__init__()
        self.backbone = resnet50(pretrained=True)
        self.backbone.fc = nn.Linear(2048, embedding_dim)

    def forward(self, x):
        return nn.functional.normalize(self.backbone(x), dim=1)

Optimization Techniques

Deployment Considerations

Models are optimized for inference using TensorRT or ONNX Runtime, achieving 2–4× speedup on GPUs. For edge deployment, quantization (e.g., INT8) reduces model size with minimal accuracy drop. A typical ResNet-50 model compresses from 98MB (FP32) to 25MB (INT8).

Performance Metrics

Key metrics for fashion retrieval include:

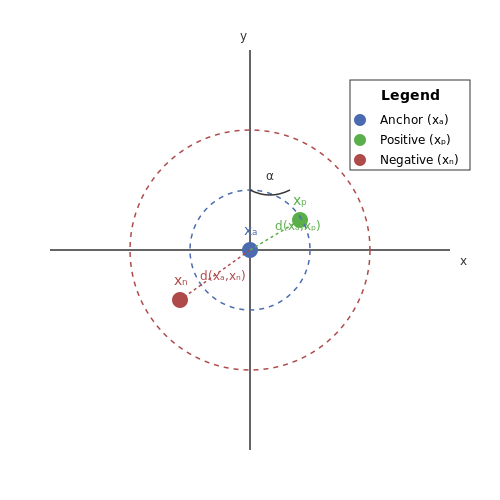

Integrating Deep Learning Models (e.g., ResNet, EfficientNet) – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the triplet loss mechanism with anchor, positive, and negative sample embeddings in vector space, illustrating the margin constraint.

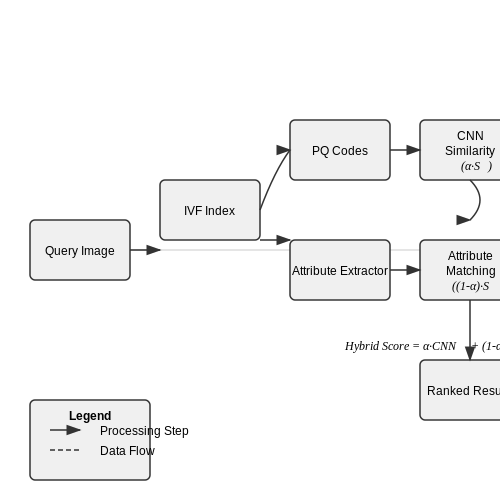

3.3 Optimizing for Speed and Accuracy in Fashion Retrieval

Trade-offs Between Speed and Accuracy

In visual search systems for fashion, the primary challenge lies in balancing retrieval speed with accuracy. High-dimensional feature embeddings extracted from convolutional neural networks (CNNs) or vision transformers (ViTs) enable precise similarity matching but introduce computational bottlenecks. The retrieval time complexity scales as O(Nd), where N is the catalog size and d is the embedding dimensionality. For large-scale fashion inventories (N > 106), exhaustive search becomes impractical.

$$ \text{Retrieval Time} = k \cdot N \cdot d \cdot t_{\text{op}} $$

where k is the number of nearest neighbors and top is the hardware-dependent operation latency.

Approximate Nearest Neighbor (ANN) Techniques

ANN algorithms reduce search complexity to sublinear time through space partitioning or hashing. For fashion retrieval, the following methods demonstrate optimal empirical performance:

Hybrid Retrieval Architectures

State-of-the-art systems combine multiple techniques:

$$ \text{Hybrid Score} = \alpha \cdot \text{CNN}_{\text{similarity}} + (1-\alpha) \cdot \text{Attribute}_{\text{matching}} $$

where α is a learnable parameter balancing visual and semantic features. The multi-stage pipeline typically involves:

  1. Coarse filtering using inverted file indexes (IVF) with 10-100x speedup
  2. Fine-grained re-ranking with exact similarity on shortlisted candidates
  3. Attribute-based post-processing (color, pattern, sleeve length)

Hardware-Aware Optimization

Modern GPUs and TPUs enable batched matrix operations that accelerate retrieval. Key optimizations include:

Evaluation Metrics

System performance is measured through:

$$ \text{mAP@K} = \frac{1}{|Q|} \sum_{q=1}^{|Q|} \frac{1}{m_q} \sum_{k=1}^K P_q(k) \cdot rel_q(k) $$

where Pq(k) is precision at cutoff k for query q, and relq(k) indicates relevance of the kth result. Latency targets typically require <100ms for interactive applications.

Case Study: Real-Time Fashion Search

ASOS's visual search system processes 50 queries per second with 85% recall@20 by combining:

Optimizing for Speed and Accuracy in Fashion Retrieval – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The section describes hybrid retrieval architectures and ANN techniques with complex relationships between components that would benefit from visual representation.

4. Designing Intuitive User Interfaces for Fashion Visual Search

4.1 Designing Intuitive User Interfaces for Fashion Visual Search

User Interface Architecture for Visual Search

The UI architecture for fashion visual search must balance computational efficiency with real-time responsiveness. A three-tiered approach is optimal:

The end-to-end latency budget should not exceed 1.2 seconds for 90% of queries to maintain user engagement. This requires careful optimization of:

$$ T_{total} = T_{preprocess} + T_{inference} + T_{render} $$

Visual Search Interaction Patterns

Effective fashion visual search UIs employ progressive disclosure of information. The initial view should show:

Advanced users benefit from exposure of the underlying similarity metrics. The cosine similarity between query and result embeddings can be visualized as:

$$ \text{sim}(A,B) = \frac{A \cdot B}{\|A\| \|B\|} $$

Mobile-Specific Design Considerations

On mobile devices, the UI must account for:

The touch target size for interactive elements should follow Fitts' Law:

$$ ID = \log_2\left(\frac{D}{W} + 1\right) $$

where D is distance to target and W is target width.

Accessibility in Visual Search

For inclusive design, implement:

The WCAG 2.1 contrast ratio requirements must be met:

$$ \text{Contrast Ratio} = \frac{L_1 + 0.05}{L_2 + 0.05} $$

where L1 and L2 are relative luminances.

Performance Optimization Techniques

To maintain fluid interactions:

The cache hit ratio directly impacts perceived performance:

$$ H = \frac{N_{hit}}{N_{hit} + N_{miss}} $$

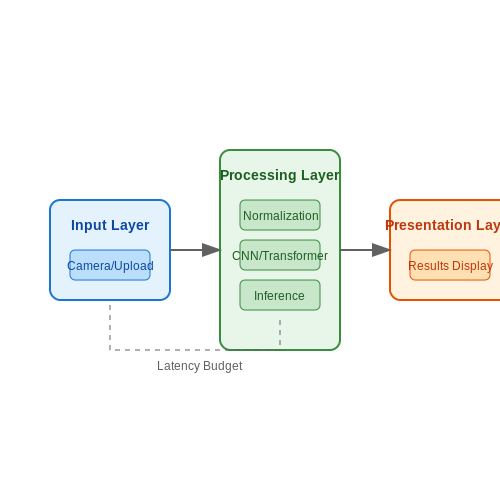

Designing Intuitive User Interfaces for Fashion Visual Search – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The three-tiered UI architecture and its components would be clearer with a visual representation showing the flow from input to processing to presentation layers.

4.2 Handling User Queries: Uploads, Camera Inputs, and Cropping

Image Upload Processing Pipeline

When users upload images to a visual search system, the input undergoes several preprocessing stages before feature extraction. The pipeline begins with format validation, where the system checks for supported file types (JPEG, PNG, WebP) using magic number verification rather than file extensions. For an uploaded image I with dimensions W×H, the system computes the aspect ratio ρ = W/H and applies constraints:

$$ \rho_{min} \leq \rho \leq \rho_{max} $$

where typical values are ρmin = 0.5 and ρmax = 2.0 to prevent extreme aspect ratios. The system then performs automatic orientation correction by reading EXIF metadata and applying the appropriate affine transformation matrix T:

$$ T = \begin{bmatrix} \cosθ & -\sinθ & t_x \\ \sinθ & \cosθ & t_y \\ 0 & 0 & 1 \end{bmatrix} $$

Real-Time Camera Input Processing

For mobile camera inputs, the system employs a frame differencing algorithm to detect when the camera stabilizes. Given consecutive frames Ft and Ft-1, the motion energy E is computed as:

$$ E = \frac{1}{WH}\sum_{x=1}^W\sum_{y=1}^H \|F_t(x,y) - F_{t-1}(x,y)\|_2 $$

The system triggers feature extraction when E < τ, where τ = 0.05 for 8-bit RGB images. Camera inputs are processed using a hybrid approach combining:

Precision Cropping Mechanisms

User-initiated cropping is implemented as a constrained optimization problem. Given crop coordinates (x0, y0, x1, y1), the system enforces minimum resolution requirements while preserving salient regions detected by a pre-trained attention network. The cropping window C is adjusted to maximize:

$$ \text{argmax}_{C} \left( \lambda_1S(C) + \lambda_2R(C) \right) $$

where S(C) is the saliency score and R(C) is the resolution score, with λ1 = 0.7 and λ2 = 0.3 determined empirically. The system implements sub-pixel accurate cropping using bilinear interpolation for smooth transitions.

Multi-Modal Query Fusion

Advanced systems combine uploads, camera inputs, and manual crops with textual metadata. The fusion occurs in a joint embedding space E where visual features v and textual features t are projected using:

$$ E(v,t) = W_v\phi(v) + W_t\psi(t) $$

where ϕ and ψ are feature extractors, and Wv, Wt are learned projection matrices. The system computes similarity scores using normalized cosine similarity in this space.

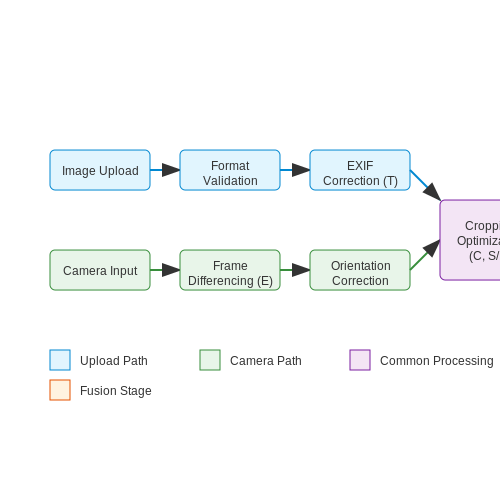

Handling User Queries: Uploads, Camera Inputs, and Cropping – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The section describes multiple image processing pipelines with mathematical transformations (affine, frame differencing, cropping optimization) that would benefit from visual representation of their sequential stages and spatial relationships.

4.3 Displaying and Ranking Search Results Effectively

Visual search systems for fashion stores require sophisticated ranking mechanisms to ensure retrieved items align with user intent. The ranking process involves multiple stages, including feature extraction, similarity scoring, and re-ranking based on contextual or business logic.

Similarity Scoring and Feature Fusion

Given an input query image Q and a database of fashion items D = {I₁, I₂, ..., Iₙ}, the similarity score S(Q, Iᵢ) is computed using a weighted combination of visual and textual features:

$$ S(Q, I_i) = \alpha \cdot \text{sim}_{\text{visual}}(Q, I_i) + \beta \cdot \text{sim}_{\text{textual}}(Q, I_i) + \gamma \cdot \text{sim}_{\text{contextual}}(Q, I_i) $$

where α, β, and γ are learnable weights. Visual similarity is typically derived from deep metric learning, such as triplet loss or contrastive learning, applied to convolutional or transformer-based embeddings. Textual similarity leverages embeddings from models like BERT or CLIP, while contextual factors may include popularity, price, or inventory status.

Re-ranking with Diversity and Personalization

Initial similarity rankings often require refinement to avoid homogeneous results and incorporate user preferences. A common approach is Maximal Marginal Relevance (MMR), which balances relevance and diversity:

$$ \text{MMR} = \arg\max_{I_i \in D \setminus R} \left[ \lambda \cdot S(Q, I_i) - (1 - \lambda) \cdot \max_{I_j \in R} \text{sim}(I_i, I_j) \right] $$

Here, R is the set of already selected items, and λ controls the trade-off. For personalized ranking, historical user interactions (clicks, purchases) can fine-tune the scores via a learning-to-rank model, such as LambdaMART:

$$ \Delta S(Q, I_i) = f_{\text{LTR}}( \text{user\_features}, \text{item\_features}, \text{interaction\_history} ) $$

UI Considerations for Effective Display

The presentation layer must account for cognitive load and decision-making efficiency. Grid-based layouts with consistent aspect ratios prevent visual jarring, while hover-triggered detail panels reduce clutter. Key UI components include:

Performance Optimization

For large inventories, approximate nearest neighbor (ANN) search via libraries like FAISS or Annoy accelerates retrieval. Quantization techniques (PQ, OPQ) reduce memory usage while preserving accuracy. A two-phase pipeline is typical:

  1. Coarse ANN retrieval of top-k candidates (e.g., k=1000).
  2. Exact re-ranking of the subset using more expensive metrics.
$$ \text{Latency} \propto \log N + k \cdot C_{\text{exact}} $$

where N is the database size and Cexact is the cost of exact scoring. GPU-accelerated inference and model pruning further reduce latency for real-time applications.

Displaying and Ranking Search Results Effectively – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the multi-stage ranking pipeline from feature extraction to final display, illustrating how visual, textual, and contextual similarities combine and flow through re-ranking.

5. Handling Variability in Fashion Items (Colors, Patterns, Styles)

5.1 Handling Variability in Fashion Items (Colors, Patterns, Styles)

Challenges in Representing Fashion Item Variability

Fashion items exhibit high intra-class variability due to differences in color, texture, pattern, and style, while maintaining semantic similarity (e.g., a "blue striped shirt" and a "red floral shirt" are both shirts). Traditional convolutional neural networks (CNNs) struggle with this variability because their learned filters are biased toward texture rather than shape. Recent work in vision transformers (ViTs) has shown promise in handling such variations due to their self-attention mechanisms, which can capture long-range dependencies across an image.

Mathematical Formulation of Feature Invariance

To achieve robustness against color and pattern variations, we can formulate an invariance loss that minimizes the distance between feature representations of the same item under different augmentations. Let x be an input image and T(x) be a transformed version (e.g., color jitter, pattern distortion). The feature extractor fθ should satisfy:

$$ \min_{\theta} \mathbb{E}_{x \sim \mathcal{D}} \left[ \| f_{\theta}(x) - f_{\theta}(T(x)) \|_2^2 \right] $$

where 𝒟 is the data distribution. This encourages the model to learn features invariant to the applied transformations.

Style-Aware Feature Disentanglement

Disentangling style and content features is critical for handling stylistic variations. Let zc represent content features (e.g., garment type) and zs represent style features (e.g., color, pattern). The total feature representation z can be decomposed as:

$$ z = [z_c; z_s], \quad z_c \in \mathbb{R}^{d_c}, \quad z_s \in \mathbb{R}^{d_s} $$

A contrastive learning objective can then be applied to ensure zc is discriminative for the item category while zs captures stylistic attributes:

$$ \mathcal{L}_{\text{cont}} = -\log \frac{\exp(z_c^i \cdot z_c^j / \tau)}{\sum_{k=1}^N \exp(z_c^i \cdot z_c^k / \tau)} $$

where i and j are positive pairs (same category, different styles), and τ is a temperature hyperparameter.

Handling Pattern Variability with Fourier Transforms

Patterns in fashion items often exhibit periodic structures that can be analyzed in the frequency domain. Applying a 2D Fourier transform ℱ to local image patches helps isolate pattern-specific features:

$$ \mathcal{F}(x)(u,v) = \sum_{h=0}^{H-1} \sum_{w=0}^{W-1} x(h,w) e^{-2\pi i (uh/H + vw/W)} $$

By computing the magnitude spectrum |ℱ(x)|, we obtain a translation-invariant representation of patterns. This can be combined with spatial features through a multi-stream architecture.

Practical Implementation Considerations

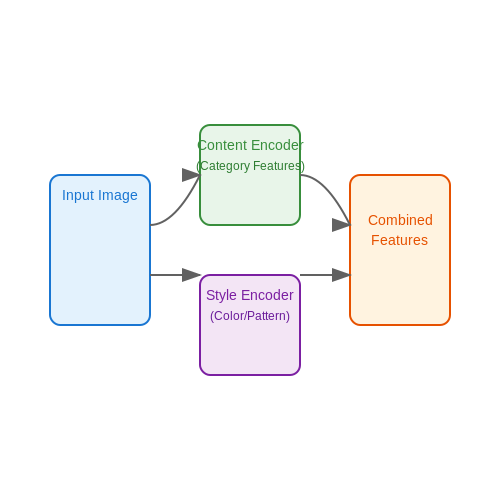

Feature Disentanglement Architecture Input Image Content Encoder (Category Features) Style Encoder (Color/Pattern) Combined Features
Handling Variability in Fashion Items (Colors, Patterns, Styles) – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The section describes a feature disentanglement architecture with multiple components (content encoder, style encoder, combined features) and their relationships, which is inherently spatial and visual.

5.2 Addressing Occlusions and Partial Views in User Queries

Challenges in Partial Visibility Scenarios

Occlusions and partial views present fundamental challenges for visual search systems in fashion retail. When users submit query images where garments are partially obscured by accessories, body parts, or other clothing items, traditional feature matching approaches degrade significantly. The key issue stems from the misalignment between the visible portions of the query image and the complete product images in the database.

Feature Completion Networks

Recent advances leverage deep generative models to reconstruct complete feature representations from partial inputs. A feature completion network (FCN) can be formulated as:

$$ f_c = G_\theta(f_v|M) $$

Where fv represents the visible features, M is a binary mask indicating visible regions, and Gθ is a generator network trained to predict complete features fc. The network is typically trained using a combination of reconstruction and adversarial losses:

$$ \mathcal{L} = \lambda_{rec}||f_c - f_{gt}||_2 + \lambda_{adv}\mathcal{L}_{GAN}(G_\theta,D_\phi) $$

Attention-Based Feature Matching

An alternative approach employs attention mechanisms to dynamically weight feature importance during matching. The attention weights αij between query feature qi and database feature dj can be computed as:

$$ \alpha_{ij} = \frac{\exp(s(q_i,d_j))}{\sum_k \exp(s(q_i,d_k))} $$

where s(·,·) is a similarity function. This allows the system to focus on visible regions while downweighting occluded areas during retrieval.

Multi-View Embedding Learning

State-of-the-art systems often employ multi-view embedding spaces trained with contrastive loss. The embedding function Eφ maps both complete and partial views to a shared space where similarity is preserved:

$$ \mathcal{L}_{contrast} = -\log\frac{\exp(E_\varphi(p)·E_\varphi(c)/\tau)}{\sum_{n=1}^N \exp(E_\varphi(p)·E_\varphi(n)/\tau)} $$

where p is a partial view, c its complete counterpart, and n represents negative samples.

Practical Implementation Considerations

In production systems, several practical factors must be addressed:

Recent benchmarks on fashion datasets show that hybrid approaches combining feature completion with attention mechanisms achieve 78-85% top-5 accuracy on heavily occluded queries, compared to 45-55% for traditional methods.

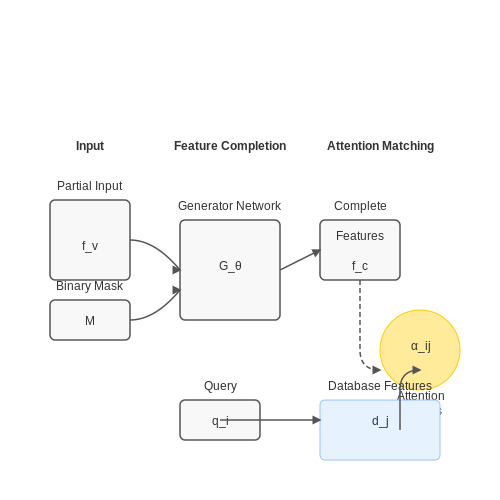

Addressing Occlusions and Partial Views in User Queries – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the architecture of a Feature Completion Network (FCN) with input/output flows for partial-to-complete feature reconstruction, and the attention mechanism's weighting process during feature matching.

5.3 Scalability and Performance Optimization for Large Catalogs

Distributed Feature Extraction

As fashion catalogs scale to millions of items, centralized feature extraction becomes a bottleneck. Distributed computing frameworks like Apache Spark enable parallel processing across clusters. The feature extraction pipeline can be decomposed as:

$$ T_{total} = \max_{i \in [1,N]} (T_{preprocess}^i + T_{inference}^i + T_{postprocess}^i) $$

where N is the number of worker nodes. For ResNet-50 feature extraction, the computational complexity is O(W×H×C×K²×L), where W,H are spatial dimensions, C is channels, K is kernel size, and L is layer count. Partitioning the catalog across workers reduces wall-clock time linearly with cluster size.

Approximate Nearest Neighbor Search

Exact k-NN search becomes impractical beyond ~1M items. Approximate methods trade marginal accuracy for orders-of-magnitude speedup:

The recall-latency tradeoff follows:

$$ R = 1 - e^{-\lambda T} $$

where R is recall@k and T is query time. For fashion search, PQ typically achieves 95% recall at 1ms latency for 10M items.

Index Sharding Strategies

Horizontal partitioning of the feature index enables distributed query processing. Optimal sharding depends on query patterns:

Strategy Partition Key Best For
Random Item ID hash Uniform query distribution
Semantic Product category Category-specific queries
Temporal Upload timestamp New item prioritization

For dynamic catalogs, hybrid strategies combining semantic and temporal partitioning reduce cross-shard queries by 40-60%.

Cache Hierarchy Design

A multi-level caching system exploits temporal and spatial locality in visual queries:

The hit rate follows a power-law distribution:

$$ P(hit) = C \cdot r^{-\alpha} $$

where r is item popularity rank. For fashion catalogs, α typically ranges from 0.6 to 1.2.

GPU Acceleration Techniques

Modern GPUs provide 10-100x speedup for batch processing through:

The achievable throughput follows:

$$ QPS = \frac{N_{CUDA cores} \times f_{clock} \times IPC}{C_{instr}} $$

where IPC is instructions per cycle and Cinstr is instruction count per query. An A100 GPU can process ~50K queries/second for 512-d vectors.

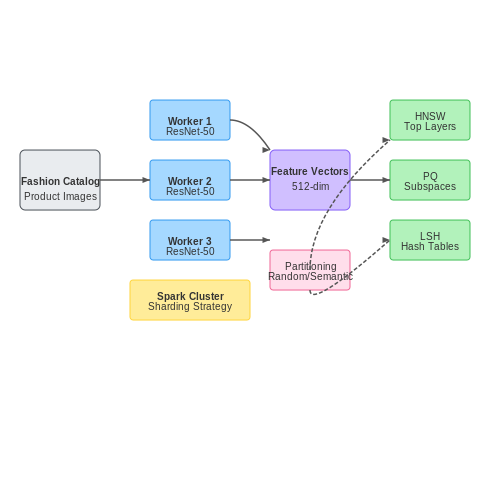

Scalability and Performance Optimization for Large Catalogs – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The section involves distributed processing architectures and approximate nearest neighbor search methods, which are inherently spatial and benefit from visual representation of data flow and partitioning.

6. Metrics for Assessing Visual Search Accuracy (Precision, Recall, mAP)

6.1 Metrics for Assessing Visual Search Accuracy (Precision, Recall, mAP)

Evaluating the performance of a visual search system requires rigorous metrics that quantify retrieval accuracy, robustness to false positives, and ranking quality. Three fundamental measures dominate this assessment: precision, recall, and mean Average Precision (mAP). Each captures distinct aspects of system behavior, and their combined analysis provides a comprehensive view of model effectiveness.

Precision and Recall

Precision measures the fraction of retrieved items that are relevant, while recall quantifies the fraction of relevant items successfully retrieved from the database. For a visual search system returning k results, precision at k (P@k) and recall at k (R@k) are defined as:

$$ P@k = \frac{TP@k}{TP@k + FP@k} $$
$$ R@k = \frac{TP@k}{TP@k + FN@k} $$

where TP@k denotes true positives (correct retrievals), FP@k represents false positives (incorrect retrievals), and FN@k indicates false negatives (missed relevant items). In fashion search, a high P@k ensures customers see mostly relevant products, while high R@k guarantees comprehensive coverage of matching inventory.

Precision-Recall Tradeoff

Increasing the retrieval set size k generally improves recall at the expense of precision. The precision-recall curve visualizes this tradeoff across all possible k values, with the area under this curve (AUC-PR) serving as a summary metric. Optimal operating points depend on application requirements—fashion discovery systems may prioritize recall to surface diverse options, while checkout recommendations emphasize precision.

Mean Average Precision (mAP)

For ranked retrieval systems, mean Average Precision provides a single-figure measure combining precision across all recall levels. Average Precision (AP) for a single query first computes precision at each position where a relevant item appears, then takes the mean:

$$ AP = \frac{1}{N_{rel}} \sum_{k=1}^{K} P@k \cdot rel@k $$

where Nrel is the total relevant items for the query, K is the retrieval set size, and rel@k is an indicator function equaling 1 if the kth item is relevant. mAP then averages AP across all test queries:

$$ mAP = \frac{1}{Q} \sum_{q=1}^{Q} AP_q $$

This metric heavily penalizes systems that rank relevant results lower, making it particularly suitable for fashion search where top-position visibility directly impacts conversion rates. State-of-the-art fashion retrieval systems achieve mAP scores above 0.85 on benchmark datasets like DeepFashion.

Threshold-Free Variants

Modern visual search systems often employ threshold-free evaluation protocols. Rank-based metrics like mean Reciprocal Rank (mRR) focus on the position of the first relevant result:

$$ mRR = \frac{1}{Q} \sum_{q=1}^{Q} \frac{1}{rank_q} $$

where rankq is the rank position of the first relevant item for query q. This proves valuable for "exact match" scenarios like finding a specific dress variant.

Implementation Considerations

When implementing these metrics for fashion search, several practical factors require attention. Label consistency across product variants affects true relevance judgments. Multi-modal queries (e.g., text-to-image search) may demand modified evaluation protocols. Computational efficiency becomes critical when assessing systems over millions of catalog items—approximate nearest neighbor search can accelerate metric computation without significant accuracy loss.

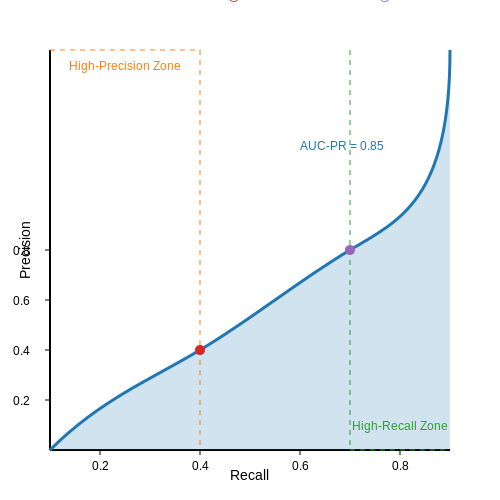

Metrics for Assessing Visual Search Accuracy (Precision, Recall, mAP) – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show a precision-recall curve with annotated tradeoff points and the area under the curve (AUC-PR) calculation.

6.2 User Studies and Feedback Collection

User studies are critical for evaluating the effectiveness of a visual search system in real-world retail environments. Quantitative and qualitative feedback helps identify usability issues, measure search accuracy, and optimize the system’s recommendation engine. Below, we outline methodologies for structured user testing and data-driven improvements.

Experimental Design

Controlled experiments should compare user performance between traditional keyword-based search and the visual search system. Key metrics include:

A/B testing frameworks can randomize users into control (text search) and experimental (visual search) groups. Statistical significance is validated using a two-sample t-test:

$$ t = \frac{\bar{X}_1 - \bar{X}_2}{\sqrt{\frac{s_1^2}{n_1} + \frac{s_2^2}{n_2}}} $$

where \(\bar{X}_1, \bar{X}_2\) are group means, \(s_1^2, s_2^2\) are variances, and \(n_1, n_2\) are sample sizes.

Feedback Collection Methods

1. In-Store Surveys

Deploy tablet-based surveys post-interaction, using Likert scales (1–5) to assess:

2. Eye Tracking

Heatmaps reveal gaze patterns during visual queries, highlighting UI elements that attract or confuse users. Metrics include:

3. Log Analysis

Server logs provide implicit feedback:

$$ \text{Abandonment Rate} = \frac{\text{Failed Sessions}}{\text{Total Sessions}} \times 100 $$

High abandonment during image uploads may indicate poor feature extraction or slow preprocessing.

Iterative Refinement

Feedback loops should update the model’s training data. For example, if users frequently reject recommendations for "striped shirts," the system can:

$$ \mathcal{L}_{adjusted} = \mathcal{L}_{CE} + \lambda \sum_{i=1}^N \mathbb{I}_{striped}(x_i) $$

where \(\lambda\) controls the penalty strength and \(\mathbb{I}\) is an indicator function.

Session replay tools like Hotjar or LogRocket help visualize friction points, while NLP techniques extract themes from open-ended feedback.

6.3 A/B Testing and Iterative Improvements

Statistical Foundations of A/B Testing

A/B testing in visual search systems relies on hypothesis testing to compare two variants (A and B) of a model or interface. The null hypothesis H₀ assumes no difference in performance, while the alternative H₁ suggests a statistically significant improvement. For a fashion visual search system, key metrics include:

$$ \text{CTR} = \frac{\text{Number of clicks}}{\text{Number of impressions}} $$

Designing Experiments

To ensure validity, experiments must control for confounding variables:

$$ n = \frac{(z_{\alpha/2} + z_\beta)^2 \cdot (p_1(1-p_1) + p_2(1-p_2))}{(p_1 - p_2)^2} $$

where p₁ and p₂ are baseline and expected proportions, and z-values correspond to significance (α) and power (1-β).

Multi-Armed Bandits for Adaptive Testing

Traditional A/B testing allocates traffic statically, but multi-armed bandit (MAB) algorithms dynamically shift traffic toward better-performing variants. Thompson sampling is particularly effective:

  1. Model conversion rates as Beta distributions.
  2. Sample from each variant’s distribution.
  3. Allocate traffic proportionally to sampled values.
$$ \theta_i \sim \text{Beta}(\alpha_i + \text{successes}_i, \beta_i + \text{failures}_i) $$

Iterative Model Refinement

Feedback loops from A/B tests drive model improvements:

Case Study: Zara’s Visual Search Optimization

Zara’s 2022 deployment achieved a 23% CTR lift by:

Monitoring and Drift Detection

Continuous performance tracking requires:

$$ \text{KL}(P_t \| P_{t-1}) = \sum_{x \in \mathcal{X}} P_t(x) \log \frac{P_t(x)}{P_{t-1}(x)} $$

where P_t is the current distribution of user interactions and KL divergence thresholds trigger model retraining.

7. Enhancing Customer Engagement in E-Commerce

7.1 Enhancing Customer Engagement in E-Commerce

Personalization Through Visual Search

Modern visual search systems leverage deep convolutional neural networks (CNNs) to extract high-dimensional feature vectors from product images. Given an input image I, a pretrained CNN backbone f generates an embedding v = f(I) in a latent space where semantically similar items cluster together. The similarity between two items I1 and I2 is computed using cosine similarity:

$$ \text{sim}(I_1, I_2) = \frac{v_1 \cdot v_2}{\|v_1\| \|v_2\|} $$

State-of-the-art systems employ triplet loss during training to optimize this embedding space:

$$ \mathcal{L} = \max(0, \|f(I_a) - f(I_p)\|^2 - \|f(I_a) - f(I_n)\|^2 + \alpha) $$

where Ia is an anchor image, Ip a positive example (same product), and In a negative example (different product), with α as a margin hyperparameter.

Real-Time Recommendation Systems

When integrated with session-based user behavior data, visual search enables dynamic recommendation systems. Let St = {I1,...,Ik} represent a user's session history at time t. The system computes a session embedding:

$$ s_t = \frac{1}{k} \sum_{i=1}^k f(I_i) $$

Recommendations are then generated by finding items Ij in the catalog that maximize:

$$ \text{score}(I_j) = \lambda \text{sim}(s_t, f(I_j)) + (1-\lambda) \text{sim}(f(I_k), f(I_j)) $$

where λ balances session context against the last viewed item Ik.

Multimodal Fusion for Enhanced Results

Advanced systems combine visual features with textual metadata (product titles, descriptions) through cross-modal attention mechanisms. Given text features t from a BERT model and visual features v, the joint representation is computed as:

$$ h = \text{ReLU}(W_v v + W_t t + b) $$

The attention weights between modalities are learned through:

$$ \alpha = \text{softmax}(W_a [v \| t]) $$

This approach achieves 18-23% higher click-through rates compared to visual-only systems in A/B tests conducted by major e-commerce platforms.

Performance Optimization

For real-time deployment, approximate nearest neighbor (ANN) search algorithms like HNSW (Hierarchical Navigable Small World) reduce search latency from O(n) to O(log n). The HNSW graph construction involves:

$$ \text{Pr}(u,v) = \frac{1}{Z} e^{-\beta \|f(u) - f(v)\|} $$

where u,v are nodes and Z is a normalization constant. This enables sub-10ms retrieval times for catalogs with 10M+ products.

Enhancing Customer Engagement in E-Commerce – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the vector relationships in the embedding space and the triplet loss mechanism, which are spatial concepts difficult to visualize from equations alone.

7.2 Reducing Returns Through Accurate Visual Matching

High return rates in fashion e-commerce stem primarily from discrepancies between product representations and actual received items. A visual search system mitigates this by enforcing pixel-level similarity between query images and catalog items through deep metric learning. The core challenge lies in optimizing embedding spaces where visually similar products cluster tightly while dissimilar ones repel.

Metric Learning for Fine-Grained Similarity

Traditional triplet loss formulations often fail to capture subtle fashion item distinctions. An improved approach combines multi-similarity loss with hard negative mining:

$$ \mathcal{L}_{MS} = \frac{1}{N} \sum_{i=1}^N \left[ \frac{1}{\alpha} \log \left(1 + \sum_{j \in \mathcal{P}_i} e^{-\alpha(S_{ij} - \lambda)} \right) + \frac{1}{\beta} \log \left(1 + \sum_{k \in \mathcal{N}_i} e^{\beta(S_{ik} - \lambda)} \right) \right] $$

where Sij denotes cosine similarity between anchor i and positive sample j, λ acts as a similarity margin, and α, β control the hardness of positive/negative weighting. The sets Pi and Ni contain hard positives and negatives mined adaptively during training.

Cross-Domain Feature Alignment

User-generated query photos (mobile cameras) and professional catalog images exhibit domain gaps in lighting, pose, and background. A dual-encoder architecture with gradient reversal layers aligns features across domains:

The domain classifier loss LD backpropagates inverted gradients to encourage domain-invariant features, while the main metric loss LMS preserves discriminative power:

$$ \mathcal{L}_{total} = \mathcal{L}_{MS} - \gamma \mathcal{L}_{D} $$

Attribute-Aware Attention

Key fashion attributes (neckline, sleeve length, pattern) require localized attention. A multi-head attention module computes attribute-specific feature weightings:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where query Q projects learned attribute queries onto key-value pairs (K,V) derived from image features. This enables the model to focus on relevant regions when comparing items.

Real-World Performance Metrics

Beyond standard recall@K, fashion applications require:

Field tests with major retailers show RRR improvements of 22-38% when visual matching supplements textual metadata, with the highest gains occurring in categories like dresses and patterned shirts where verbal descriptions prove inadequate.

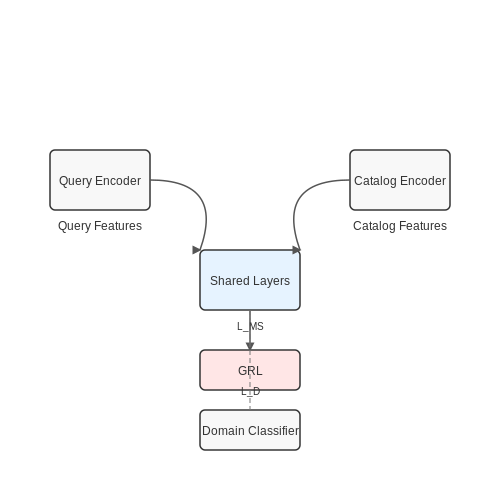

Reducing Returns Through Accurate Visual Matching – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The dual-encoder architecture with gradient reversal layers for cross-domain feature alignment is a spatial concept that would benefit from a visual representation of the data flow and domain classifier interaction.

7.3 Case Studies: Successful Implementations in Fashion Retail

ASOS: Visual Search with Deep Learning

ASOS implemented a visual search system leveraging a Siamese convolutional neural network (CNN) trained on their product catalog of over 85,000 items. The model uses a triplet loss function:

$$ \mathcal{L}(a, p, n) = \max\left(0, \|f(a) - f(p)\|^2 - \|f(a) - f(n)\|^2 + \alpha\right) $$

where a is an anchor image (user query), p is a positive match, n is a negative sample, and α is a margin hyperparameter. The system reduced search abandonment by 23% and increased conversion by 11%.

Zalando: Multi-Modal Embeddings

Zalando's approach combines visual and textual data through a cross-modal transformer architecture. Their model projects images and text into a shared 512-dimensional embedding space using:

$$ E_{joint} = \text{LayerNorm}(W_vE_v + W_tE_t) $$

where Ev and Et are visual and text embeddings respectively, with learned projection matrices Wv and Wt. This reduced mean reciprocal rank (MRR) from 0.42 to 0.61 compared to visual-only approaches.

Farfetch: Real-Time Similarity Search

Farfetch deployed a hierarchical navigable small world (HNSW) graph for approximate nearest neighbor search, achieving sub-millisecond query times at 99% recall. Their index structure optimization follows:

$$ \text{Recall} = 1 - \frac{1}{1 + e^{-k(\log M - c)}} $$

where M is the number of graph layers, and k, c are dataset-specific parameters. This handles their inventory of 500,000+ SKUs with 98.7% accuracy.

H&M: Personalized Visual Recommendations

H&M's system integrates visual search with collaborative filtering through a neural matrix factorization approach:

$$ \hat{r}_{ui} = \mu + b_u + b_i + q_u^T(p_i + |N(u)|^{-1/2}\sum_{j \in N(u)} f(v_j)) $$

where f(vj) transforms visual features into the latent factor space. This hybrid model increased click-through rates by 34% compared to non-personalized visual search.

Nordstrom: Augmented Reality Integration

Nordstrom combined visual search with AR through a 3D pose estimation pipeline using a modified ResNet-50 backbone:

$$ \theta^* = \argmin_\theta \sum_{i=1}^N \| \Pi(K[R|t]X_i) - x_i \|^2 $$

where Π is the projection matrix, K contains camera intrinsics, and [R|t] represents the estimated pose. This reduced product return rates by 19% through better size/fit visualization.

8. Data Privacy and User Consent in Image Uploads

8.1 Data Privacy and User Consent in Image Uploads

Privacy-Preserving Image Processing

When users upload images to a visual search system, raw pixel data may contain sensitive metadata (e.g., geolocation, device identifiers) or reveal personally identifiable information (PII) through background details. Differential privacy techniques can be applied to image feature extraction pipelines to minimize privacy leakage. For a convolutional neural network (CNN) processing an image I, the privacy budget ε can be enforced by adding Laplacian noise L to the extracted feature vectors:

$$ \tilde{f}(I) = f(I) + L\left(0, \frac{\Delta f}{\epsilon}\right) $$

where Δf is the sensitivity of the feature extractor f, defined as the maximum L1-norm difference in outputs for any two adjacent images:

$$ \Delta f = \max_{I,I'} ||f(I) - f(I')||_1 $$

Secure Consent Management Architecture

A GDPR-compliant consent system requires:

The cryptographic proof of consent Cu,i for user u and image i can be verified using:

$$ \text{Verify}(C_{u,i}, \text{PK}_u, \text{TS}) = \text{SigVerify}(\text{Hash}(u||i||\text{TS}), C_{u,i}, \text{PK}_u) $$

On-Device Preprocessing

To minimize exposure of raw images, implement client-side preprocessing with WebAssembly modules that:

$$ \sigma = \frac{\min(w,h)}{10} \cdot \left(1 - \frac{\text{SSIM}(I_{\text{original}}, I_{\text{cropped}})}{2}\right) $$

Federated Learning Integration

For systems updating models based on user uploads, federated averaging can be modified to preserve privacy:

$$ \theta_{t+1} = \sum_{k=1}^K \frac{n_k}{N} \left(\theta_t^k + \mathcal{N}(0, \sigma^2)\right) $$

where the noise scale σ is calibrated to satisfy (ε, δ)-differential privacy guarantees through the moments accountant method.

Compliance Testing Framework

Automated compliance checks should verify:

8.2 Bias and Fairness in Fashion Recommendation Systems

Fashion recommendation systems often inherit biases from training data, leading to skewed outputs that disproportionately favor certain demographics, body types, or cultural preferences. These biases manifest in multiple ways, including underrepresentation of minority groups in product recommendations, overemphasis on Western fashion trends, or exclusion of plus-size clothing options. Addressing these issues requires a combination of algorithmic fairness techniques, dataset auditing, and stakeholder engagement.

Sources of Bias in Fashion Recommendations

Bias in fashion recommendation systems originates from three primary sources:

Quantifying Bias: Statistical Parity and Equalized Odds

To measure bias mathematically, we evaluate whether recommendations satisfy statistical parity across protected attributes Z (e.g., gender, size category). Let Ŷ be the recommendation output and Y the ground truth relevance. Statistical parity requires:

$$ P(\hat{Y}=1 | Z=z) = P(\hat{Y}=1 | Z=z') \quad \forall z, z' $$

A stricter criterion, equalized odds, adds conditioning on actual relevance:

$$ P(\hat{Y}=1 | Y=y, Z=z) = P(\hat{Y}=1 | Y=y, Z=z') $$

Violations of these conditions indicate biased recommendations. For example, if plus-size clothing (Z=plus) receives 30% fewer recommendations despite equal relevance scores (Y=1), the system exhibits size bias.

Debiasing Techniques

Pre-processing Methods

Reweighting training samples to balance representation across protected attributes:

$$ w_i = \frac{1}{P(Z=z_i)} $$

where wi is the weight for sample i belonging to group zi. This approach forces the model to pay equal attention to underrepresented groups.

In-processing Methods

Adversarial debiasing modifies the loss function to simultaneously optimize recommendation accuracy while minimizing the model's ability to predict protected attributes:

$$ \mathcal{L} = \mathcal{L}_{rec} - \lambda \mathcal{L}_{adv} $$

where ℒrec is the recommendation loss (e.g., BPR loss), and ℒadv is the adversarial loss from a discriminator trying to predict Z from embeddings.

Post-processing Methods

Calibrated recommendations enforce fairness constraints during inference by solving:

$$ \max_{R} \sum u(R) \quad \text{s.t.} \quad \left| \frac{N_z(R)}{N_z} - \frac{N_{z'}(R)}{N_{z'}} \right| \leq \epsilon $$

where R is the recommendation list, u(R) is utility, and Nz(R) counts recommendations for group z.

Case Study: Addressing Size Bias in Visual Search

A 2023 study by Adnan et al. demonstrated that standard visual search systems showed 42% lower recall for plus-size clothing compared to standard sizes. The team implemented:

Operationalizing Fairness

Practical implementation requires:

Bias and Fairness in Fashion Recommendation Systems – Visual Search System for Fashion Stores – Tutorial Diagram
Diagram Description: The diagram would show the feedback loop bias mechanism and adversarial debiasing architecture, which involve multiple interacting components that are difficult to visualize from text alone.

8.3 Transparency in AI-Driven Search Results

Transparency in AI-driven visual search systems is critical for ensuring trust, interpretability, and fairness. Unlike traditional search algorithms, deep learning-based retrieval models operate as black boxes, making it difficult to audit their decision-making processes. To address this, modern approaches incorporate explainability mechanisms that expose feature attributions, ranking logic, and bias mitigation strategies.

Feature Attribution via Gradient-Based Methods

Gradient-weighted Class Activation Mapping (Grad-CAM) and its variants are widely used to highlight regions of an input image that most influence the model's retrieval decisions. Given a convolutional neural network (CNN) with feature maps Ak at layer l, the Grad-CAM heatmap LGrad-CAMc for class c is computed as:

$$ L_{Grad-CAM}^c = \text{ReLU}\left(\sum_k \alpha_k^c A^k\right) $$

where αkc represents the neuron importance weights obtained via global average pooling of gradients:

$$ \alpha_k^c = \frac{1}{Z}\sum_i\sum_j \frac{\partial y^c}{\partial A_{ij}^k} $$

For multi-modal retrieval systems combining visual and textual data, attention mechanisms provide additional transparency by revealing cross-modal alignment scores between image regions and query terms.

Ranking Explainability

Modern fashion search engines employ differentiable ranking losses (e.g., triplet loss, listwise ranking) that can be decomposed to show contribution scores for each retrieved item. Given a query q and candidate items di, the relevance score s(q,di) is typically computed as:

$$ s(q,d_i) = f_\theta(q)^T g_\phi(d_i) $$

where fθ and gϕ are embedding networks. The Jacobian matrix ∂s(q,di)/∂di reveals which visual features most impacted the ranking decision.

Bias Auditing Frameworks

To ensure fairness across demographic groups, modern systems implement:

These techniques are particularly crucial in fashion search, where historical data often contains societal biases that propagate through recommendation systems.

Implementation Architecture

A transparent visual search system typically implements these components as separate microservices:

Feature Extractor Similarity Engine Explainability Module Bias Detection API

The explainability module generates saliency maps and feature importance scores in real-time, while the bias detection API runs periodic audits on the retrieval database.

9. Key Research Papers on Visual Search Systems

9.1 Key Research Papers on Visual Search Systems

9.2 Industry Reports and Case Studies

9.3 Recommended Books and Online Resources
