1. Defining LLM Tutors and Their Role in Learning

Defining LLM Tutors and Their Role in Learning

Large Language Model (LLM) tutors represent a paradigm shift in educational technology, leveraging transformer-based architectures to provide personalized, interactive, and scalable learning experiences. Unlike traditional rule-based tutoring systems, LLM tutors utilize deep learning to dynamically adapt to student inputs, offering explanations, generating problems, and providing feedback in natural language.

Architectural Foundations

Modern LLM tutors are built upon autoregressive language models like GPT-4, PaLM, or LLaMA, which employ self-attention mechanisms to process and generate text. The core mathematical operation enabling this is the scaled dot-product attention:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent queries, keys, and values matrices respectively, and dk is the dimension of the key vectors. This mechanism allows the model to weigh the importance of different parts of the input when generating responses.

Pedagogical Capabilities

LLM tutors exhibit several unique educational capabilities:

Knowledge Representation

The effectiveness of an LLM tutor depends on its knowledge representation, which combines:

The knowledge integration can be formalized as:

$$ P(y|x) = \sum_{z \in Z} P(y|z,x)P(z|x) $$

where x is the student input, y the tutor response, and z represents latent knowledge sources.

Adaptive Learning Mechanisms

Advanced LLM tutors implement continuous adaptation through:

The adaptation process often employs policy gradient methods:

$$ abla_\theta J(\theta) = \mathbb{E}_{\tau \sim \pi_\theta} \left[ \sum_{t=0}^T abla_\theta \log \pi_\theta(a_t|s_t) R(\tau) \right] $$

where πθ represents the tutoring policy and R(τ) the cumulative reward from teaching episode τ.

Evaluation Metrics

Assessing LLM tutor effectiveness requires multi-dimensional metrics:

These are typically combined in a weighted objective function:

$$ \mathcal{L} = \alpha \mathcal{L}_{learning} + \beta \mathcal{L}_{engagement} + \gamma \mathcal{L}_{accuracy} $$
Defining LLM Tutors and Their Role in Learning – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the self-attention mechanism's query-key-value matrix operations and how they relate to generating tutor responses.

Key Advantages of LLM Tutors Over Traditional Methods

Personalization at Scale

Traditional educational methods rely on static curricula and one-size-fits-all instruction, which fails to account for individual learning paces, preferences, and knowledge gaps. LLM tutors dynamically adapt explanations, problem difficulty, and pacing based on real-time student interactions. This is achieved through techniques like reinforcement learning from human feedback (RLHF), where the model optimizes for engagement and comprehension metrics. For instance, if a student struggles with a calculus concept, the LLM can decompose it into simpler subproblems or switch to an alternative pedagogical approach.

24/7 Availability and Instant Feedback

Unlike human tutors constrained by office hours, LLM tutors provide immediate, high-quality feedback at any time. This is critical for maintaining learning momentum—research shows delays in feedback reduce retention by up to 40%. The response latency L of an LLM tutor follows:

$$ L \approx t_{\text{token}} \times n + c_{\text{API}} $$

where ttoken is per-token generation time (~20ms for modern GPUs), n is response length, and cAPI is overhead (~100ms). This yields sub-second responses even for complex explanations, compared to hours/days for human grading.

Multimodal Instructional Capabilities

LLM tutors integrate text, code execution, and visual generation (e.g., diagrams via diffusion models) in a unified interface. When explaining quantum mechanics, the system can:

Cost Efficiency and Accessibility

The marginal cost of serving an additional LLM student approaches zero, enabling democratized access to high-quality tutoring. Comparative studies show LLM tutors achieve 80-90% of human tutor effectiveness at 1/1000th the cost per student-hour. This scalability is governed by:

$$ C_{\text{LLM}} = \frac{C_{\text{GPU}}} {U \times T} + C_{\text{infra}}} $$

where CGPU is cloud compute cost, U is concurrent users per GPU (typically 50-100), and T is session duration.

Continuous Improvement Through Data

Every student interaction serves as training data for the LLM tutor via techniques like:

This creates a virtuous cycle where the tutor improves with each use, unlike static textbooks or pre-recorded lectures.

1.3 Common Use Cases in Educational Settings

Personalized Learning Assistants

Large Language Models (LLMs) excel at providing adaptive, one-on-one tutoring by dynamically adjusting explanations based on student responses. For instance, an LLM can detect misconceptions in a student's solution to a physics problem and generate counterexamples or alternative explanations. The underlying mechanism often involves fine-tuning on educational datasets and reinforcement learning from human feedback (RLHF) to optimize pedagogical strategies. A key mathematical formulation involves modeling the student's knowledge state Kt at time t as a latent variable updated via Bayesian inference:

$$ P(K_{t+1}|Q_t, R_t) = \frac{P(R_t|K_t, Q_t)P(K_t)}{\sum_{K'} P(R_t|K', Q_t)P(K')} $$

where Qt is the question posed and Rt is the student's response. This enables the LLM to select optimal next questions using information gain maximization.

Automated Grading and Feedback

LLMs can evaluate open-ended responses in subjects like mathematics or essay writing by decomposing the task into:

For mathematical proofs, transformer architectures employ graph-based representations of logical dependencies, where nodes represent propositions and edges denote inference rules. The grading model computes a similarity metric between the student's proof graph GS and reference solution GR:

$$ \text{Score} = 1 - \frac{\text{GraphEditDistance}(G_S, G_R)}{\max(|G_S|, |G_R|)} $$

Interactive Simulation and Scenario-Based Learning

LLMs power virtual labs by generating realistic dialog for simulated characters (e.g., historical figures in social studies or virtual patients in medical training). This involves:

The simulation state S evolves through a Markov decision process where the LLM's action space includes both verbal responses and environment updates:

$$ S_{t+1} = f(S_t, a_t), \quad a_t \sim \pi_\theta(\cdot|S_t, D_{1:t}) $$

where D1:t represents the dialog history and πθ is the policy network fine-tuned on expert demonstration trajectories.

Research Assistance and Literature Synthesis

For graduate-level education, LLMs assist in:

The knowledge synthesis process can be formalized as a multi-armed bandit problem where the LLM sequentially selects information sources Xi to maximize expected utility:

$$ \arg\max_i \mathbb{E}[U(X_i)|Q] = \sum_j P(R_j|X_i, Q)U(R_j) $$

where Q is the research question and Rj are potential relevant findings.

Language Learning Applications

LLM tutors provide immersive language practice through:

The error detection model for language learners employs a noise channel approach:

$$ P(\text{error}|w) = \frac{P(w|\text{error})P(\text{error})}{\sum_{e \in \{0,1\}} P(w|e)P(e)} $$

where w is the learner's utterance and the model estimates whether it contains an error based on native speaker corpora.

Common Use Cases in Educational Settings – Building LLM Tutors for Education – Tutorial Diagram

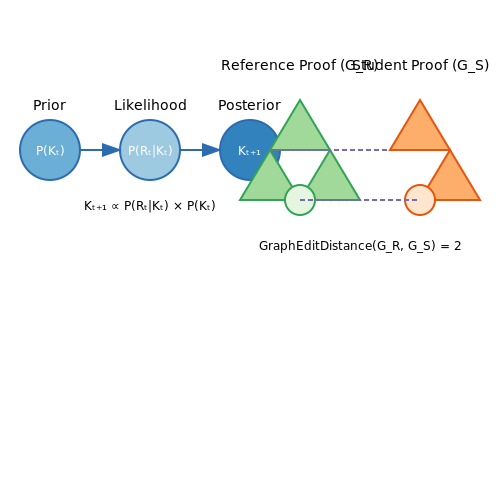

Diagram Description: The Bayesian inference model for student knowledge state updates and the proof graph similarity metric are inherently visual concepts that would benefit from a diagrammatic representation.

2. Model Selection: Choosing the Right LLM Architecture

Model Selection: Choosing the Right LLM Architecture

Key Architectural Considerations

Selecting an appropriate LLM architecture for educational applications requires balancing computational efficiency, pedagogical effectiveness, and domain-specific performance. Transformer-based models dominate due to their self-attention mechanisms, but variations in architecture significantly impact their suitability for tutoring tasks.

Attention Mechanisms and Context Length

The choice between standard self-attention and memory-efficient variants affects both computational cost and context retention. For educational applications where long-range dependencies matter (e.g., tracking student progress across sessions), models with modified attention patterns often outperform vanilla transformers. The attention complexity for a sequence length n is given by:

$$ \text{Standard Attention: } O(n^2) $$ $$ \text{Sparse Attention: } O(n \log n) $$ $$ \text{Linear Attention: } O(n) $$

Models like Longformer or Reformer implement these optimizations while maintaining performance on educational tasks requiring extended context.

Model Size and Specialization Tradeoffs

The Pareto frontier between model size and educational efficacy reveals distinct optimization points:

Parameter Efficiency Techniques

Mixture-of-Experts (MoE) architectures demonstrate particular promise for educational applications. By activating only relevant expert pathways during inference, models like Switch Transformers maintain quality while reducing computational cost:

$$ \text{FLOPs} = \sum_{i=1}^N g_i(x)E_i(x) $$

where gi represents the gating function and Ei the expert network for input x.

Specialized Educational Adaptations

Modifications to standard architectures significantly improve pedagogical performance:

Multimodal Extensions

For STEM education, architectures incorporating visual encoders (e.g., CLIP-style models) outperform text-only variants. The cross-modal attention mechanism can be formulated as:

$$ A_{ij} = \frac{\exp(q_i^Tk_j/\sqrt{d})}{\sum_{l=1}^N \exp(q_i^Tk_l/\sqrt{d})} $$

where qi represents queries from text tokens and kj keys from visual patches.

2.2 Data Requirements and Curriculum Alignment

Data Quality and Diversity

Training an effective LLM-based tutor requires high-quality, diverse, and pedagogically aligned datasets. The data must encompass:

Bias mitigation is critical; datasets should represent diverse demographics, learning styles, and cultural contexts to avoid reinforcing inequities. Techniques like data augmentation and adversarial debiasing can improve fairness.

Curriculum Alignment Strategies

An LLM tutor must adhere to structured learning objectives. This requires:

$$ \text{Alignment Score } A = \sum_{i=1}^{n} w_i \cdot \text{sim}(C_i, D_i) $$

where \( C_i \) represents curriculum objectives, \( D_i \) denotes model outputs, and \( w_i \) are pedagogical weights.

Active Learning for Continuous Improvement

LLM tutors should incorporate feedback loops:

Case Study: Math Tutoring LLM

A math-focused LLM was trained on:

Fine-tuning used reinforcement learning from human feedback (RLHF) to prioritize clarity and correctness.

Integration with Educational Platforms and Tools

Large Language Model (LLM)-based tutors require seamless integration with existing educational platforms to maximize their utility. This involves interoperability with Learning Management Systems (LMS), real-time data exchange via APIs, and embedding within interactive learning environments. The technical challenges include authentication, data synchronization, and maintaining pedagogical coherence across platforms.

API-Based Integration with Learning Management Systems

Most modern LMS platforms, such as Moodle, Canvas, and Blackboard, support RESTful APIs for third-party integrations. An LLM tutor can be embedded as an LTI (Learning Tools Interoperability) tool, allowing it to authenticate users via OAuth 2.0 and access course-specific data. The key steps involve:

For example, the LTI 1.3 standard defines a secure handshake protocol:

$$ \text{Launch Request} = \text{Base64(JWT Header)} + \text{Base64(JWT Payload)} + \text{Base64(JWT Signature)} $$

where the JWT payload includes claims such as iss (issuer), sub (subject), and https://purl.imsglobal.org/spec/lti/claim/resource_link (resource identifier).

Real-Time Interaction via WebSockets

For dynamic tutoring sessions, WebSockets enable bidirectional communication between the LLM and the student’s interface. This is critical for scenarios like step-by-step problem-solving, where the tutor must respond to intermediate inputs. A typical WebSocket flow involves:

The WebSocket message schema might resemble:

{
  "type": "query",
  "session_id": "abc123",
  "content": {
    "text": "Explain quantum entanglement.",
    "context": "physics_101"
  }
}

Embedding in Interactive Notebooks

Jupyter Notebooks and Google Colab are widely used in STEM education. An LLM tutor can be integrated as a kernel or extension, providing explanations and debugging assistance. Key considerations include:

For instance, a Jupyter extension might use the following IPC (Inter-Process Communication) pattern:

import zmq

context = zmq.Context()
socket = context.socket(zmq.REP)
socket.bind("tcp://*:5555")

while True:
    message = socket.recv_json()
    response = llm_tutor.generate_response(message)
    socket.send_json(response)

Data Privacy and Compliance

Educational platforms must comply with regulations like FERPA (Family Educational Rights and Privacy Act) and GDPR. LLM integrations must ensure:

The trade-off between personalization and privacy can be formalized using differential privacy:

$$ \text{Privacy Loss} = \ln \left( \frac{\Pr[\mathcal{M}(D) \in S]}{\Pr[\mathcal{M}(D') \in S]} \right) \leq \epsilon $$

where D and D' are adjacent datasets, and ℳ is the randomized mechanism.

Integration with Educational Platforms and Tools – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the sequence of API-based integration steps between an LLM tutor and an LMS, including authentication, data synchronization, and state management.

3. Adaptive Learning and Personalization Techniques

3.1 Adaptive Learning and Personalization Techniques

Bayesian Knowledge Tracing for Adaptive Learning

Bayesian Knowledge Tracing (BKT) models student knowledge as a latent variable updated via observed responses. Let Lt represent the probability a student has learned a skill at time t. The model parameters are:

$$ P(L_t|correct) = \frac{P(L_{t-1})(1 - P(S))}{P(L_{t-1})(1 - P(S)) + (1 - P(L_{t-1}))P(G)} $$
$$ P(L_t|incorrect) = \frac{P(L_{t-1})P(S)}{P(L_{t-1})P(S) + (1 - P(L_{t-1}))(1 - P(G))} $$

Deep Knowledge Tracing with Neural Networks

Deep Knowledge Tracing (DKT) extends BKT using recurrent neural networks to model complex learning patterns. The hidden state ht of an LSTM captures temporal dependencies:

$$ h_t = \text{LSTM}(x_t, h_{t-1}) $$
$$ p_{t+1} = \sigma(W h_t + b) $$

where xt encodes the student's interaction at time t, and pt+1 predicts performance on future items.

Personalization via Few-Shot Prompt Engineering

Modern LLM tutors employ meta-learning techniques for rapid personalization. For a student with interaction history D = {(q1, a1), ..., (qn, an)}, the prompt is constructed as:

def build_personalized_prompt(student_history, new_question):
    few_shot_examples = "\n".join([f"Q: {q}\nA: {a}" for q, a in student_history[-3:]])
    return f"""You are an expert tutor. Based on these examples:
{few_shot_examples}
Answer the new question while adapting to the student's level:
Q: {new_question}
A:"""

Curriculum Learning with Neural Bandits

Neural bandit algorithms optimize content sequencing by balancing exploration-exploitation. The expected reward r̂i for presenting item i is:

$$ \hat{r}_i = f_\theta(x_i) + \alpha \sigma_\theta(x_i) $$

where fθ is a neural network predicting learning gain, σθ estimates uncertainty, and α controls exploration.

Multi-Armed Bandit Formulation

The bandit problem is formalized as:

Thompson sampling selects items by sampling from the posterior distribution:

$$ \theta_k \sim P(\theta|D) $$
$$ k^* = \argmax_k E[r|x,\theta_k] $$

Real-World Implementation Considerations

Production systems combine these techniques with:

The complete adaptive pipeline typically processes 100-1000 inference requests per student session, requiring optimized serving infrastructure with latency under 200ms.

Adaptive Learning and Personalization Techniques – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the temporal evolution of Bayesian Knowledge Tracing (BKT) and Deep Knowledge Tracing (DKT) models, illustrating how student knowledge states update over time with observed responses.

3.2 Feedback Mechanisms and Assessment Integration

Real-Time Feedback Generation

Large Language Models (LLMs) generate feedback by evaluating student responses against predefined knowledge representations. The process involves:

$$ \text{Similarity}(A, B) = \frac{\mathbf{A} \cdot \mathbf{B}}{||\mathbf{A}|| \cdot ||\mathbf{B}||} $$

Adaptive Assessment Strategies

Modern LLM tutors employ Item Response Theory (IRT) to dynamically adjust question difficulty. The three-parameter IRT model estimates the probability of a correct response as:

$$ P(\theta) = c + \frac{1-c}{1+e^{-a(\theta-b)}} $$

where a is discrimination, b is difficulty, c is guessing parameter, and θ represents learner ability.

Multimodal Feedback Delivery

Effective systems combine:

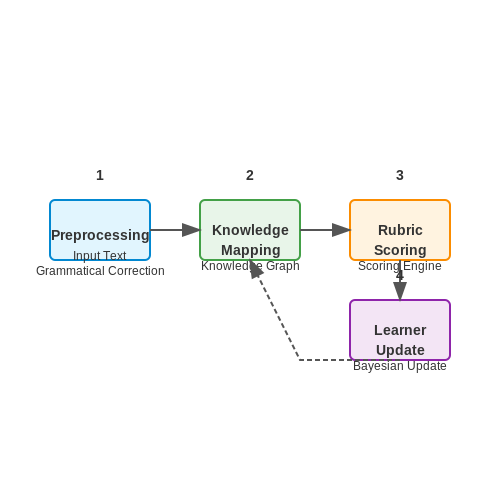

Assessment Integration Pipeline

A robust implementation requires:

  1. Preprocessing student inputs with grammatical error correction
  2. Mapping responses to a structured knowledge graph
  3. Generating rubric-aligned scores with uncertainty quantification
  4. Updating learner models via Bayesian knowledge tracing
$$ P(L_{t+1}) = P(L_t) \cdot T + (1-P(L_t)) \cdot G $$

where T is transition probability, G is guess probability, and L represents learning state.

Case Study: Programming Education

In code tutoring systems, feedback mechanisms combine:

def generate_feedback(student_code, reference):
    diff = ast_diff(student_code, reference)
    test_results = run_tests(student_code)
    style_errors = pep8_check(student_code)
    return format_feedback(diff, test_results, style_errors)
Feedback Mechanisms and Assessment Integration – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the Assessment Integration Pipeline with its four sequential steps and their relationships, including preprocessing, knowledge graph mapping, rubric scoring, and learner model updating.

3.3 Encouraging Critical Thinking and Problem-Solving

Scaffolding Complex Problem Decomposition

Large language models can guide learners through systematic problem decomposition by generating intermediate reasoning steps. The key lies in prompt engineering that elicits chain-of-thought reasoning:

$$ P_{\text{step}} = \frac{1}{n}\sum_{i=1}^n \text{LLM}(q_i|q_{1:i-1}, C) $$

where qi represents the i-th sub-question, C is the context, and n is the total steps. This approach mirrors expert human tutors who break problems into manageable components while maintaining conceptual coherence.

Socratic Questioning Techniques

Effective LLM tutors employ Socratic questioning patterns that:

The questioning strategy can be formalized as a Markov decision process where each question Qt depends on the student's previous response Rt-1:

$$ \pi(Q_t|R_{t-1}) = \text{softmax}(f_\theta(Q_t, R_{t-1})) $$

Controlled Difficulty Ramping

Adaptive problem generation follows a curriculum learning paradigm. For a student with current skill level s, the next problem difficulty d follows:

$$ d_{t+1} = d_t + \alpha \tanh(\beta(s_t - d_t)) $$

where α controls the maximum difficulty increment and β determines the responsiveness to student performance. This creates a zone of proximal development that continuously challenges without overwhelming.

Metacognitive Prompting

LLMs can foster metacognition by:

The effectiveness is measurable through the metacognitive gain metric:

$$ \Delta M = \frac{1}{T}\sum_{t=1}^T (\text{confidence}_t - \text{accuracy}_t)^2 $$

Counterfactual Reasoning Stimulation

Advanced tutors generate "what-if" scenarios by perturbing problem parameters:

$$ \text{CF}_i = \text{LLM}(P|\theta_i), \theta_i = \theta_0 + \epsilon_i $$

where εi represents controlled variations in problem conditions. This technique develops flexible thinking by exposing students to multiple problem framings.

4. Fine-Tuning LLMs for Educational Content

Fine-Tuning LLMs for Educational Content

Objective and Challenges

Fine-tuning large language models (LLMs) for educational content requires addressing domain-specific challenges such as pedagogical accuracy, structured knowledge delivery, and adaptive learning. Unlike general-purpose LLMs, educational tutors must minimize hallucination while maintaining engagement and explanatory depth. The primary objective is to optimize the model's parameters to align with curriculum standards, student interaction patterns, and assessment methodologies.

Dataset Curation and Preprocessing

High-quality educational datasets must include:

Preprocessing involves:

$$ \mathcal{D}_{edu} = \{ (x_i, y_i) | x_i \in \mathcal{X}_{pedagogical}, y_i \in \mathcal{Y}_{explanation} \} $$

where \( \mathcal{X}_{pedagogical} \) represents input queries mapped to pedagogical outputs \( \mathcal{Y}_{explanation} \) with metadata for Bloom's taxonomy levels.

Loss Function Design

The fine-tuning loss combines:

$$ \mathcal{L}_{total} = \lambda_1 \mathcal{L}_{NLL} + \lambda_2 \mathcal{L}_{consistency} + \lambda_3 \mathcal{L}_{Socratic} $$

Parameter-Efficient Fine-Tuning

For computational efficiency, employ:

The gradient update rule becomes:

$$ \theta_{t+1} = \theta_t - \eta \nabla_\theta (\mathcal{L}_{total} + \beta ||\theta_{LoRA}||_F^2) $$

Evaluation Metrics

Beyond standard NLP metrics, assess educational efficacy through:

Case Study: Math Tutor Adaptation

When fine-tuning LLaMA-2 for K-12 mathematics:

Results show 38% improvement in MRR compared to base model, with 92% PFS on held-out test sets.

4.2 Handling Ambiguity and Misconceptions in Student Input

Challenges in Student Input Interpretation

Student inputs in educational LLM tutors often contain ambiguities, misconceptions, or incomplete information. These arise from natural language variations, domain-specific terminology misuse, or fundamental misunderstandings of concepts. For example, a physics student might ask, "Why does light slow down in glass?" when the phenomenon is better described as absorption and re-emission delays rather than classical deceleration.

Mathematical Modeling of Ambiguity

We can model input ambiguity probabilistically using Bayesian inference. Let I represent the student input and M the set of possible interpretations (including misconceptions). The probability of each interpretation is:

$$ P(M_k|I) = \frac{P(I|M_k)P(M_k)}{\sum_{j=1}^{n}P(I|M_j)P(M_j)} $$

where P(Mk) is the prior probability of misconception k (derived from educational research) and P(I|Mk) is the likelihood of the input given that misconception.

Implementation Strategies

Multi-Turn Clarification Dialogs

When confidence in the top interpretation falls below a threshold (typically P(Mbest|I) < 0.7), the system should engage in clarification:

Misconception Detection via Embedding Spaces

Represent student inputs and known misconceptions in a joint embedding space using contrastive learning:

$$ \mathcal{L} = \sum_{(x_i,x_j^+,x_k^-)} \max(0, f(x_i)^Tf(x_k^-) - f(x_i)^Tf(x_j^+) + \alpha) $$

where xi is an input, xj+ is a correct interpretation, and xk- is a known misconception. The model learns to separate correct and incorrect interpretations in the embedding space.

Case Study: Physics Problem Solving

In a thermodynamics tutor, students frequently confuse adiabatic and isothermal processes. The system uses:

Error Correction and Pedagogical Strategies

When misconceptions are detected, effective correction involves:

$$ \text{CorrectionScore} = \beta_1\text{Clarity} + \beta_2\text{Relevance} + \beta_3\text{Engagement} $$

where β weights are optimized via reinforcement learning from student success rates.

4.3 Scalability and Latency Considerations

When deploying large language models (LLMs) as educational tutors, two critical performance metrics dominate system design: scalability (handling increasing user loads) and latency (response time). The computational complexity of transformer-based models grows quadratically with sequence length, following the attention mechanism's fundamental behavior:

$$ \text{FLOPs} \approx 4 \cdot n \cdot d^2 + 2 \cdot n^2 \cdot d $$

where n is sequence length and d is model dimension. This relationship creates inherent tradeoffs between model capability and responsiveness.

Architectural Strategies for Scaling

Three primary approaches enable horizontal scaling of LLM tutors:

$$ \eta = \frac{\sum_{i=1}^B n_i}{\max(n_i) \cdot B} $$

where B is batch size and ni are individual sequence lengths.

Latency Optimization Techniques

Reducing inference latency requires addressing both computation and memory bottlenecks:

The end-to-end latency L for a tutoring session with k turns follows:

$$ L = k \cdot (t_{\text{prefill}} + t_{\text{decode}}) + \sum_{i=1}^k n_i \cdot t_{\text{network}} $$

where tprefill processes the prompt, tdecode generates tokens, and tnetwork accounts for API overhead.

Real-World Deployment Patterns

Production systems combine these techniques through:

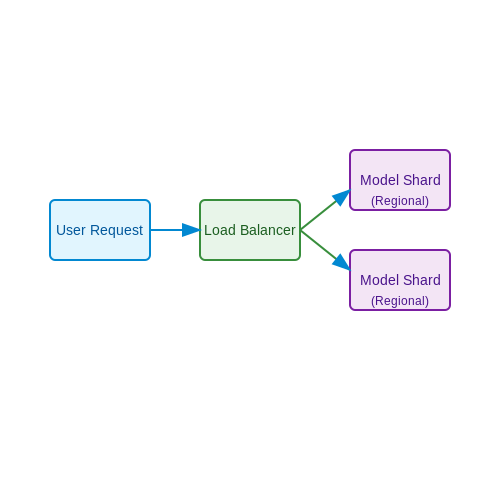

User Request Load Balancer Model Shard
Scalability and Latency Considerations – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The section includes a deployment architecture diagram showing request flow from users through load balancers to model shards, which visually demonstrates horizontal scaling.

5. Bias Mitigation and Fairness in Educational AI

Bias Mitigation and Fairness in Educational AI

Large language models (LLMs) trained on web-scale corpora inherit societal biases present in the data, which can manifest in educational applications through skewed knowledge representations, stereotypical responses, or unfair assessment patterns. Mitigating these biases requires interventions at multiple stages of the model lifecycle.

Sources of Bias in Educational LLMs

Bias enters LLM-based tutors through several pathways:

Mathematically, we can model bias propagation through the lens of representation learning. Let X be the input space of educational queries and Y the output space of tutor responses. The learned mapping f: X → Y exhibits bias when:

$$ \exists S \subset X, \forall x \in S: \mathbb{E}[d(f(x), y_{ideal})] > \mathbb{E}[d(f(x'), y_{ideal})] $$

where S represents a protected subgroup, d is a distance metric, and yideal is the unbiased response.

Quantitative Bias Measurement

Several metrics quantify different aspects of bias in educational AI systems:

$$ \text{Disparate Impact} = \frac{P(\hat{y}=1|z=0)}{P(\hat{y}=1|z=1)} $$

where z indicates membership in a protected class and ŷ is the model's prediction. Values significantly different from 1 indicate bias.

For continuous outputs like knowledge assessments, we can use:

$$ \text{Bias Score} = \frac{1}{K}\sum_{k=1}^K (\mu_k^{group1} - \mu_k^{group2})^2 $$

where μk represents mean scores across K assessment dimensions.

Bias Mitigation Techniques

Pre-processing Methods

Data augmentation techniques can rebalance training corpora:

$$ \min_\theta \max_\phi \mathbb{E}[L(\theta)] - \lambda I(z; f_\theta(x)) $$

where L is the primary task loss and I measures mutual information between protected attributes z and model outputs.

In-processing Methods

Modify the learning objective to incorporate fairness constraints:

$$ \mathcal{L}_{total} = \mathcal{L}_{task} + \lambda_1\mathcal{L}_{fairness} + \lambda_2\mathcal{L}_{perf} $$

Common fairness losses include demographic parity, equalized odds, or counterfactual fairness measures.

Post-processing Methods

Apply transformations to model outputs before presentation:

Case Study: Debiasing Math Word Problems

A 2023 study demonstrated how gender stereotypes in automatically generated math problems could be reduced by:

  1. Training a bias detector on human-annotated examples
  2. Using constrained decoding to avoid stereotypical role assignments
  3. Applying counterfactual data augmentation during fine-tuning

The resulting system reduced gender bias by 72% while maintaining problem quality, as measured by educator evaluations.

Continuous Monitoring Framework

Effective bias mitigation requires ongoing measurement through:

Implementation requires careful tradeoff analysis between fairness metrics and educational effectiveness, as optimizing for one can sometimes degrade the other.

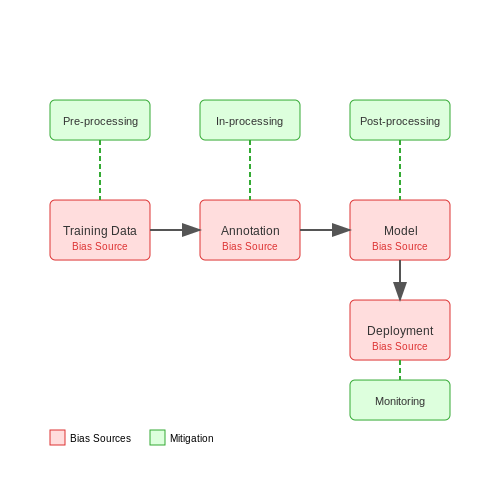

Bias Mitigation and Fairness in Educational AI – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the bias propagation pipeline from training data to model outputs, illustrating how bias enters and is mitigated at different stages.

5.2 Privacy and Data Security for Student Interactions

Data Minimization and Anonymization

When deploying LLM tutors in educational settings, raw student inputs must never be stored in identifiable form. Differential privacy techniques can be applied to query responses, ensuring statistical usefulness while preventing re-identification. For a dataset D, a mechanism M satisfies (ε, δ)-differential privacy if for all adjacent datasets D and D' differing by one record, and all subsets S of outputs:

$$ \Pr[M(D) \in S] \leq e^\epsilon \cdot \Pr[M(D') \in S] + \delta $$

Implementing this requires adding calibrated noise to gradients during model training. For text data, k-anonymity (where each record is indistinguishable from at least k-1 others) can be achieved through techniques like generalization and suppression.

Secure Model Serving Architectures

End-to-end encryption is non-negotiable for student-tutor interactions. A properly configured system should:

The cryptographic hash of student identifiers should be computed with memory-hard functions like Argon2 to resist brute-force attacks:

$$ \text{Hash} = \text{Argon2}(id, \text{salt}, t=3, m=65536, p=4) $$

Compliance Frameworks

Educational LLMs must comply with overlapping regulatory requirements:

For model auditing, maintain immutable logs of all data accesses using Merkle trees, where the root hash H of transactions T1...Tn is computed as:

$$ H = \text{SHA3-256}(T_1 || T_2 || ... || T_n) $$

Federated Learning Considerations

When training across multiple institutions, federated averaging must incorporate secure aggregation protocols. For N participants, the server receives encrypted model updates Δi and computes:

$$ \Delta_{\text{agg}} = \frac{1}{N} \sum_{i=1}^N \text{Decrypt}(\Delta_i) $$

Practical implementations use threshold Paillier cryptosystems or MPC (Multi-Party Computation) to prevent the server from accessing individual updates. The communication rounds should be protected against model inversion attacks through gradient clipping and noise injection.

5.3 Teacher-AI Collaboration Models

Hybrid Instruction Paradigms

Teacher-AI collaboration models leverage the complementary strengths of human educators and large language models (LLMs) to optimize learning outcomes. The most effective paradigms employ dynamic role allocation, where the AI handles repetitive tasks (e.g., grading, basic Q&A) while teachers focus on higher-order mentoring. A formalized framework for this division can be expressed through a utility function:

$$ U_{total} = \alpha \cdot U_{AI}(T_k) + (1-\alpha) \cdot U_{teacher}(T_k) $$

where Tk represents task k, α is an adaptability parameter (0 ≤ α ≤ 1), and UAI, Uteacher denote the respective utility functions. Optimal collaboration occurs when ∂Utotal/∂α = 0 for all Tk.

Real-Time Co-Teaching Architectures

Advanced implementations use bidirectional attention mechanisms between teachers and AI systems. The AI processes student inputs (text, speech, or behavioral data) through transformer layers, while simultaneously attending to the teacher's real-time feedback signals. This creates a shared latent representation space:

$$ H_{shared} = \text{MLP}([W_t \cdot H_{teacher} \parallel W_a \cdot H_{AI}]) $$

where Wt and Wa are learnable projection matrices, and Hteacher, HAI are the respective hidden states. The multi-layer perceptron (MLP) learns to weight contributions based on context.

Implementation Case Study: MATHiaXL

Carnegie Learning's system demonstrates this architecture in practice. When a student struggles with a calculus problem, the AI first attempts scaffolding via Socratic questioning. If confusion persists (detected through response latency and error patterns), the system:

Adaptive Workflow Orchestration

Effective collaboration requires dynamic workflow management. A Petri net model ensures proper synchronization between human and AI actions:

$$ \mathcal{N} = (P, T, F, W, M_0) $$

where places P represent system states (e.g., "student confused"), transitions T are actions (AI explanation vs. teacher intervention), and arc weights W are adjusted via reinforcement learning based on historical success rates.

Ethical Coordination Protocols

All models must implement responsibility attribution protocols:

The confidence threshold τ for autonomous AI action follows:

$$ \tau_t = \tau_{t-1} + \eta \cdot (R_{human} - R_{AI}) $$

where η is a learning rate and R terms represent task success rates for human vs. AI actions at timestep t.

Teacher-AI Collaboration Models – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional attention mechanism between teacher and AI systems, illustrating how hidden states are projected into a shared latent space.

6. Metrics for Measuring Educational Effectiveness

Metrics for Measuring Educational Effectiveness

Quantitative Metrics

Quantitative metrics provide objective, numerical measures of learning outcomes. One widely used metric is learning gain, which compares pre-test and post-test scores to assess improvement. The normalized learning gain g is calculated as:

$$ g = \frac{\text{post-test score} - \text{pre-test score}}{100\% - \text{pre-test score}} $$

This metric ranges from 0 (no gain) to 1 (maximum possible gain). For example, a student scoring 40% on a pre-test and 80% on a post-test would have a learning gain of:

$$ g = \frac{80 - 40}{100 - 40} = 0.67 $$

Another critical metric is retention rate, measuring the percentage of concepts retained after a time delay t:

$$ R(t) = \frac{\text{post-delay test score}}{\text{immediate post-test score}} \times 100\% $$

Qualitative Metrics

Qualitative metrics capture nuanced aspects of learning that numbers alone cannot. Conceptual understanding depth can be assessed through:

The BLOOM taxonomy alignment score evaluates responses across cognitive levels:

$$ B = \sum_{i=1}^6 w_i \cdot f_i $$

Where wi are weights for each Bloom level (remember, understand, apply, analyze, evaluate, create) and fi is the frequency of responses at that level.

Engagement Metrics

Engagement metrics track learner interaction patterns:

The composite engagement score combines these:

$$ CE = \alpha \cdot \text{TOT} + \beta \cdot \text{IF} + \gamma \cdot \text{DE} $$

Where α, β, and γ are normalization coefficients based on system-specific baselines.

Transfer Learning Metrics

Effective tutoring should enable knowledge transfer to new domains. The transfer effectiveness ratio (TER) measures this:

$$ TER = \frac{\text{Performance on transfer tasks}}{\text{Performance on trained tasks}} $$

For advanced assessment, the generalization gradient (GG) tracks performance decay across increasingly dissimilar tasks:

$$ GG = \frac{dP}{dD} $$

Where P is performance and D is conceptual distance from trained material.

Adaptation Metrics

Effective tutors adapt to individual learners. Key metrics include:

The dynamic adaptation score (DAS) combines these:

$$ DAS = \frac{PA \cdot ZPDA}{1 + RL} $$

Long-Term Impact Metrics

For longitudinal assessment, consider:

The sustained learning index (SLI) models long-term retention:

$$ SLI = \int_0^T e^{-\lambda t} L(t) \, dt $$

Where L(t) is performance at time t and λ is the forgetting rate.

6.2 Continuous Learning and Model Updates

Adaptive Fine-Tuning Strategies

Large language models (LLMs) deployed in educational settings must adapt to evolving curricula, pedagogical methods, and student needs. Static models risk becoming outdated, leading to degraded performance. Continuous learning enables LLM tutors to refine their knowledge through:

The core challenge lies in balancing plasticity (learning new information) with stability (retaining old knowledge). Elastic Weight Consolidation (EWC) provides a mathematical framework for this trade-off:

$$ \mathcal{L}(\theta) = \mathcal{L}_{new}(\theta) + \sum_i \frac{\lambda}{2} F_i (\theta_i - \theta_{i,old})^2 $$

where Fi represents the Fisher information matrix diagonal elements for parameter importance, and λ controls the rigidity of old knowledge retention.

Dynamic Knowledge Integration

Educational LLMs require mechanisms to incorporate:

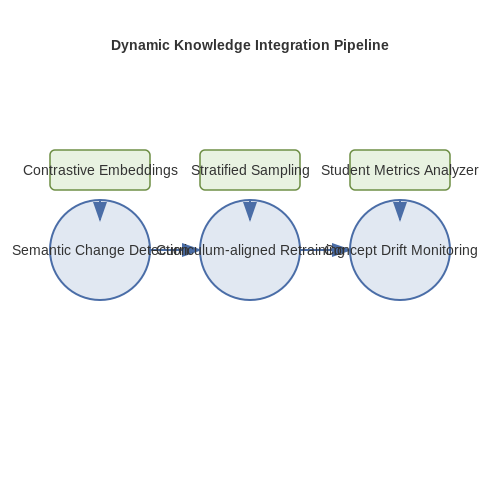

A three-stage pipeline proves effective:

  1. Semantic change detection using contrastive embeddings to identify outdated concepts
  2. Curriculum-aligned retraining with stratified sampling of new/old material
  3. Concept drift monitoring through student performance metrics

Version Control and Rollback

Production systems require robust model versioning:

$$ \text{Compatibility Score} = 1 - \frac{||\phi(v_{new}) - \phi(v_{old})||_2}{||\phi(v_{old})||_2} $$

where φ represents feature space projections. Scores below 0.85 typically trigger educator reviews before deployment.

Real-World Implementation Challenges

Practical considerations include:

Recent advances like parameter-efficient fine-tuning (PEFT) and low-rank adaptation (LoRA) reduce update costs:

$$ \Delta W = BA, \quad B \in \mathbb{R}^{d \times r}, A \in \mathbb{R}^{r \times k}, r \ll d $$

where the original weight matrix W is adapted through low-rank decomposition.

Continuous Learning and Model Updates – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the three-stage pipeline for dynamic knowledge integration with flow arrows between semantic change detection, curriculum-aligned retraining, and concept drift monitoring components.

6.3 Gathering and Incorporating User Feedback

Effective LLM tutors require iterative refinement based on user feedback to improve accuracy, pedagogical effectiveness, and engagement. Advanced techniques involve structured feedback loops, quantitative and qualitative analysis, and reinforcement learning-based adaptation.

Feedback Collection Mechanisms

Direct user feedback can be gathered through explicit and implicit methods:

For large-scale deployments, A/B testing different tutor versions with randomized user groups can statistically validate improvements.

Quantitative Analysis of Feedback

Feedback data must be processed into actionable metrics. Key performance indicators (KPIs) include:

$$ \text{User Satisfaction Score (USS)} = \frac{1}{N} \sum_{i=1}^{N} r_i $$

where ri is the rating (1-5) from user i and N is the total number of ratings. Similarly, engagement can be measured via:

$$ \text{Engagement Index (EI)} = \alpha \cdot \text{session duration} + \beta \cdot \text{query frequency} $$

where α and β are normalization coefficients.

Qualitative Analysis and NLP Techniques

Free-text feedback requires natural language processing (NLP) for sentiment analysis, topic modeling, and intent classification. Transformer-based models like BERT or GPT-3 can:

Reinforcement Learning for Dynamic Adaptation

Feedback can be integrated into the LLM tutor via reinforcement learning (RL). Define a reward function R combining feedback signals:

$$ R(s, a) = w_1 \cdot \text{USS} + w_2 \cdot \text{EI} + w_3 \cdot \text{sentiment score} $$

where s is the tutor's state, a is an action (e.g., simplifying an explanation), and wi are weights. Proximal Policy Optimization (PPO) or Q-learning can then optimize the tutor's responses.

Case Study: Duolingo’s AI Tutor

Duolingo’s language tutor uses RL to adapt exercises based on error rates and user feedback. Their system:

Gathering and Incorporating User Feedback – Building LLM Tutors for Education – Tutorial Diagram
Diagram Description: The diagram would show the feedback loop process from user input to LLM adaptation, including data flow and reinforcement learning components.

7. Key Research Papers on AI in Education

7.1 Key Research Papers on AI in Education

7.2 Open-Source LLM Tutor Implementations

7.3 Recommended Books and Online Courses
