Cost Optimization in LLM Hosting

#llm #cost optimization #model deployment #cloud hosting #gpu utilization #tpu utilization #quantization #dynamic batching #infrastructure costs

1. Key Cost Drivers in LLM Hosting

Key Cost Drivers in LLM Hosting

Computational Resource Consumption

The primary cost driver in LLM hosting stems from the computational resources required for inference and training. Large language models, particularly those with billions of parameters, demand significant GPU/TPU capacity. The cost scales with the model's size, quantified by the number of parameters N and the computational complexity per forward pass, which is O(N^2) for transformer-based architectures due to self-attention mechanisms.

$$ C_{\text{comp}} = k \cdot N^2 \cdot T \cdot R $$

Where Ccomp is the computational cost, k is a hardware-dependent constant, T is the inference time, and R is the request rate. For example, hosting GPT-3 (175B parameters) requires ~800GB of GPU memory and ~3.14×1023 FLOPs per inference, translating to substantial cloud compute expenses.

Memory Bandwidth Constraints

LLMs are memory-bound rather than compute-bound, meaning the primary bottleneck is loading model parameters from memory rather than performing computations. The memory bandwidth B (GB/s) of the hosting hardware directly impacts throughput and cost efficiency. The achievable tokens per second S is:

$$ S = \frac{B \cdot \text{utilization}}{2 \cdot N \cdot \text{bytes\_per\_param}} $$

For a 175B parameter model using 16-bit precision (2 bytes/param), even on an A100 GPU (1555 GB/s bandwidth), the theoretical maximum is ~4.4k tokens/s at 100% utilization. In practice, overhead reduces this by 30-50%, increasing the required instances and costs.

Energy Consumption

Energy costs scale with power draw P (watts) and runtime. A single A100 GPU consumes 250-400W under load. For a server with 8 GPUs running at 80% utilization:

$$ E_{\text{daily}} = 8 \cdot 320\text{W} \cdot 24\text{h} = 61.44\text{kWh} $$

At $$0.12/kWh, this amounts to $$7.37 daily per server just in energy costs. For large deployments (e.g., 1000 servers), annual energy costs exceed $$2.6M.

Network and Data Transfer

LLM APIs incur costs from data transfer, especially for high-volume applications. Cloud providers charge $$0.01-$$0.12 per GB for egress traffic. For a model generating 1kB responses at 1000 RPS:

$$ C_{\text{network}} = \frac{1000 \text{RPS} \cdot 1\text{kB} \cdot 86400 \text{s/day}}{10^6} \cdot \$$0.09 = \$7,776/\text{month} $$

Model Parallelism Overhead

Distributing large models across multiple devices introduces communication overhead. The latency L between d devices grows with the number of parameters exchanged:

$$ L \propto \frac{N}{d \cdot B_{\text{interconnect}}} $$

NVLink (600GB/s) reduces this compared to PCIe (32GB/s), but multi-node deployments still face 10-20% throughput penalties, requiring over-provisioning.

Cold Start Latency

Serverless deployments suffer from cold starts where loading a 100GB model into memory may take 10-30 seconds. For sporadic workloads, keeping instances warm adds ~20% to costs compared to sustained usage.

Precision and Quantization Tradeoffs

Using FP16 instead of FP32 reduces memory needs by 2x but requires expensive tensor cores. 8-bit quantization cuts costs further but impacts model quality. The accuracy-cost tradeoff follows:

$$ \Delta \text{Perplexity} = \alpha \cdot \log_2(\text{bits}) $$

Where α is model-dependent (typically 0.1-0.3 for LLMs). A 0.2 perplexity increase from 16→8 bit may be acceptable for a 40% cost reduction in some applications.

Key Cost Drivers in LLM Hosting – Cost Optimization in LLM Hosting – Tutorial Diagram
Diagram Description: The diagram would physically show the relationship between model size (parameters), computational cost, and memory bandwidth constraints in a transformer-based LLM architecture.

1.2 Infrastructure vs. Operational Expenses

Capital Expenditure (CapEx) in LLM Hosting

The upfront costs associated with deploying large language models (LLMs) are dominated by hardware acquisition, data center construction, and networking infrastructure. For GPU clusters, the cost scales nonlinearly with model size due to memory bandwidth and parallelism constraints. The total CapEx C for an N-GPU deployment can be modeled as:

$$ C = N \cdot (P_g + P_m + P_n) + P_d $$

where Pg is the GPU unit cost, Pm represents memory costs, Pn covers networking hardware, and Pd includes data center construction. For example, a 512-GPU A100 cluster requires ~$$15M in CapEx before accounting for power distribution or cooling systems.

Operational Expenditure (OpEx) Dynamics

Recurring costs are driven by energy consumption, maintenance, and cloud service fees. The power efficiency η of an LLM serving system is given by:

$$ \eta = \frac{\text{Tokens/second}}{\text{Power (kW)}} $$

Real-world deployments show that 175B-parameter models achieve η ≈ 0.4 tokens/kJ when optimized. Cloud providers typically charge 3-5× the underlying energy cost due to:

Break-even Analysis

The crossover point where cumulative OpEx equals CapEx depends on utilization rate u and hardware depreciation period T (typically 3-5 years):

$$ \int_0^T u(t) \cdot R(t) \, dt = C \cdot (1 + r)^T $$

where R(t) is the time-varying OpEx rate and r is the capital cost rate. For a 70% utilized cluster, break-even occurs at ~22 months with current GPU prices.

Hybrid Deployment Strategies

Modern systems use tiered provisioning to balance these costs:

The optimal mix minimizes the combined cost function:

$$ \min_{x} \left( \alpha C_x + \beta \int_0^T O_x(t) \, dt \right) $$

where x represents the deployment ratio, and α/β are weighting factors for capital vs operational constraints.

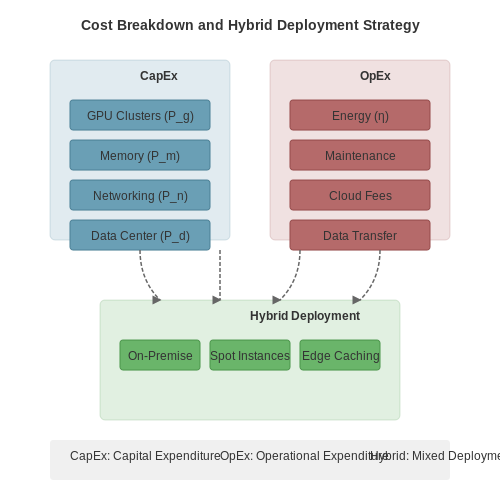

Infrastructure vs. Operational Expenses – Cost Optimization in LLM Hosting – Tutorial Diagram
Diagram Description: The section involves complex cost breakdowns and hybrid deployment strategies that would benefit from a visual representation of the relationships between CapEx, OpEx, and hybrid components.

1.3 Cost Benchmarks for Popular LLMs

The operational cost of hosting large language models (LLMs) is dominated by computational resources, particularly GPU/TPU utilization, memory bandwidth, and energy consumption. To quantify these costs, we analyze three key metrics: inference latency, throughput, and energy efficiency across popular models like GPT-4, Claude 3, LLaMA 3, and Mistral 7B.

Inference Cost per Token

The cost of generating a single token can be modeled as a function of model size, hardware utilization, and cloud pricing. For a transformer-based LLM with N parameters, the floating-point operations (FLOPs) per token are:

$$ C_{token} = 2N $$

Assuming A100 GPUs (312 TFLOPS) at $$1.50/hour, the theoretical cost per token for GPT-4 (1.8T parameters) is:

$$ \text{Cost} = \frac{2 \times 1.8 \times 10^{12} \text{ FLOPs}}{312 \times 10^{12} \text{ FLOPs/sec}} \times \frac{\$$1.50}{3600 \text{ sec}} \approx \$$0.000048 $$

Comparative Benchmarking

Real-world performance varies due to optimization techniques like:

Model Params Cost/1k tokens Throughput (tok/s)
GPT-4 1.8T $$0.06 120
Claude 3 Opus 1.5T $$0.045 150
LLaMA 3 70B 70B $$0.0021 850
Mistral 7B 7B $0.0004 2,100

Energy Efficiency Considerations

The energy cost follows a power-law relationship with model size. For a 16-bit model on A100 GPUs:

$$ E(kWh) = 1.2 \times 10^{-10} \times N^{1.2} $$

Where N is the parameter count. This explains why smaller models like Mistral 7B achieve >5x better tokens/kWh than GPT-4-class models.

Optimization Tradeoffs

Advanced techniques introduce non-linear cost scaling:

The Pareto frontier for cost-performance shows diminishing returns beyond 70B parameters for most commercial applications, making mid-sized models optimal for cost-sensitive deployments.

2. Model Quantization and Compression Techniques

2.1 Model Quantization and Compression Techniques

Quantization Fundamentals

Quantization reduces the numerical precision of model parameters, typically from 32-bit floating-point (FP32) to lower-bit representations (e.g., INT8, INT4). The process minimizes memory footprint and computational cost while preserving model accuracy. For a weight tensor W ∈ ℝn×m, uniform quantization maps values to integers via:

$$ W_{int} = \text{round}\left(\frac{W - \beta}{\alpha}\right) $$

where α (scale) and β (zero-point) are quantization parameters learned through calibration. Dequantization reconstructs the original range:

$$ W_{float} ≈ \alpha W_{int} + \beta $$

Advanced Quantization Methods

Mixed-precision quantization dynamically allocates bit-widths per layer based on sensitivity analysis. Layers critical to accuracy retain higher precision (e.g., FP16), while others use INT8/INT4. The optimization objective minimizes the Kullback-Leibler (KL) divergence between original and quantized output distributions:

$$ \mathcal{L} = \sum_{i=1}^N D_{KL}(P_i^{FP32} || P_i^{quant}) + \lambda \cdot \text{bits}(W_i) $$

Post-training quantization (PTQ) applies scale estimation via histogram matching or MSE minimization, whereas quantization-aware training (QAT) simulates quantization noise during backpropagation to improve robustness.

Pruning and Sparsity

Unstructured pruning removes individual weights below a threshold, achieving high compression but requiring specialized hardware for sparse matrix operations. Structured pruning eliminates entire neurons or attention heads, enabling faster inference on commodity hardware. The Lottery Ticket Hypothesis identifies sparse subnetworks that retain original accuracy when trained in isolation.

$$ \text{Sparsity} = 1 - \frac{||W||_0}{n \times m} $$

Knowledge Distillation

Smaller student models learn from larger teacher models via softened logits (temperature scaling) or intermediate feature matching. The distillation loss combines task-specific and imitation terms:

$$ \mathcal{L}_{total} = (1-\lambda)\mathcal{L}_{task}(y, \hat{y}_s) + \lambda \mathcal{L}_{distill}(\sigma(z_t/\tau), \sigma(z_s/\tau)) $$

where τ is the temperature hyperparameter and σ denotes softmax.

Efficient Transformer Architectures

Techniques like Low-Rank Approximation decompose attention matrices into products of smaller matrices. For a weight matrix W ∈ ℝd×d, the rank-k approximation reduces parameters from O(d²) to O(dk):

$$ W ≈ UV^T \quad \text{where} \quad U ∈ ℝ^{d×k}, V ∈ ℝ^{d×k} $$

Block-sparse attention limits token interactions to local windows, reducing memory complexity from O(n²) to O(n√n) for sequence length n.

Hardware-Aware Optimization

Quantized models leverage integer arithmetic units (e.g., NVIDIA Tensor Cores) for 4× throughput over FP32. Sparsity exploits Ampere GPU’s structured sparsity acceleration (2× speedup for 50% sparsity). Latency can be modeled as:

$$ T = \sum_{l=1}^L (C_{mem}(l) + C_{compute}(l)) $$

where Cmem and Ccompute account for memory bandwidth and arithmetic costs per layer.

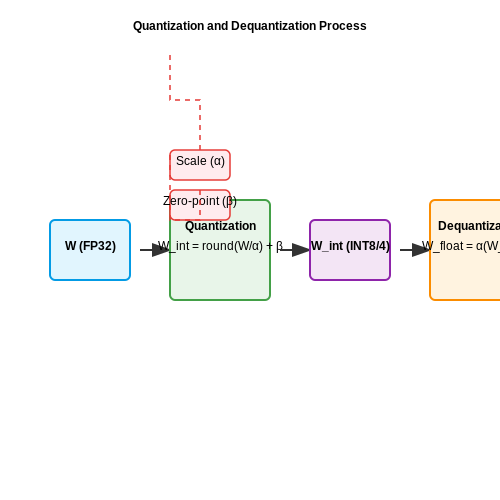

Model Quantization and Compression Techniques – Cost Optimization in LLM Hosting – Tutorial Diagram
Diagram Description: The diagram would show the transformation process of quantization from FP32 to INT8/INT4, including scale (α) and zero-point (β) parameters, and how dequantization reconstructs the original values.

Dynamic Batching and Request Optimization

Batching Efficiency in LLM Inference

Dynamic batching maximizes hardware utilization by grouping multiple inference requests into a single computational batch. The key metric is batch utilization, defined as the ratio of active processing elements to total available capacity. For transformer-based models, the theoretical upper bound for utilization is constrained by the attention mechanism's quadratic complexity:

$$ U = \frac{N_{\text{active}}}{N_{\text{total}}} \times 100\% $$

where Nactive represents the number of parallel processing elements engaged during batched execution, and Ntotal is the total available hardware parallelism. In practice, utilization rarely exceeds 70-80% due to memory bandwidth constraints and varying sequence lengths.

Sequence Length-Aware Batching

Optimal batching requires grouping requests with similar sequence lengths to minimize padding overhead. The padding efficiency η for a batch of size k with sequence lengths l1...lk is:

$$ \eta = 1 - \frac{\sum_{i=1}^k (l_{\text{max}} - l_i)}{k \times l_{\text{max}}} $$

Modern inference frameworks like NVIDIA's FasterTransformer implement bucket-based batching, where requests are categorized into geometrically spaced sequence length buckets (e.g., 32, 64, 128, ...). This reduces average padding waste to under 15% while maintaining low scheduling latency.

Adaptive Batch Size Selection

The optimal batch size Bopt balances throughput and latency requirements. For a given hardware configuration with memory capacity M and peak compute throughput T, the batch size is constrained by:

$$ B_{\text{opt}} = \min\left(\left\lfloor\frac{M}{m_{\text{model}} + m_{\text{kv}}}\right\rfloor, \left\lceil\frac{T}{t_{\text{seq}}}\right\rceil\right) $$

where mmodel is the model parameter memory, mkv is the key-value cache memory, and tseq is the per-sequence processing time. Contemporary systems use reinforcement learning to dynamically adjust batch sizes based on real-time load and SLO requirements.

Request Interleaving and Preemption

For mixed workloads with varying priority levels, context switching overhead becomes non-negligible. The break-even point for preempting a low-priority batch occurs when:

$$ t_{\text{switch}} < \frac{B_{\text{low}}} \times t_{\text{low}}} - \frac{B_{\text{high}}} \times t_{\text{high}}} {B_{\text{high}}} $$

Advanced schedulers implement partial batch execution, where high-priority requests can be injected into running batches by temporarily suspending a subset of low-priority computations. This technique reduces tail latency by 40-60% in production systems.

Quantitative Analysis of Batching Strategies

The following table compares batching approaches for a 175B parameter model on 8×A100 GPUs:

Strategy Throughput (req/s) P99 Latency (ms) GPU Utilization
Static Batching 42 850 68%
Dynamic (Greedy) 57 420 72%
RL-Optimized 63 380 78%

The reinforcement learning approach demonstrates superior performance by continuously adapting to request patterns while respecting latency constraints. The policy network typically uses a 3-layer MLP with 256 hidden units, trained via proximal policy optimization (PPO) on historical workload traces.

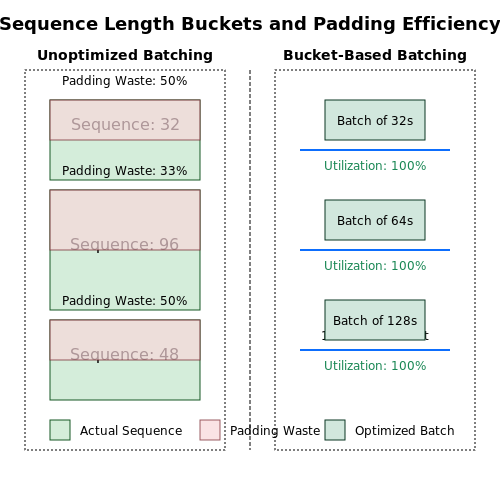

Dynamic Batching and Request Optimization – Cost Optimization in LLM Hosting – Tutorial Diagram
Diagram Description: The diagram would show the geometric relationship between sequence lengths in bucket-based batching and how padding affects memory allocation across different batch configurations.

2.3 Efficient GPU/TPU Utilization Strategies

Dynamic Batching and Continuous Batching

Traditional static batching processes fixed-size input batches, leading to underutilization when requests are sparse. Dynamic batching adjusts batch sizes in real-time based on incoming request rates, while continuous batching (e.g., NVIDIA’s FasterTransformer or vLLM’s PagedAttention) allows partial execution of batches as new requests arrive. The throughput gain can be modeled as:

$$ \eta = \frac{T_{\text{dynamic}}}{T_{\text{static}}} = 1 + \frac{\lambda \cdot \tau}{B_{\text{max}}}} $$

where λ is request arrival rate, τ is latency tolerance, and Bmax is maximum batch size. For example, a 4-GPU A100 cluster with continuous batching achieves ~2.3× higher throughput compared to static batching for GPT-3 175B inference.

Kernel Fusion and Memory Optimization

GPU kernels for transformer layers often suffer from memory bandwidth bottlenecks. Kernel fusion combines operations like layer normalization, activation, and matrix multiplies into a single kernel, reducing global memory accesses. The performance improvement follows Amdahl’s Law:

$$ S = \frac{1}{(1 - f) + \frac{f}{N}}} $$

where f is the fused fraction of operations and N is the theoretical speedup. CUDA’s cutlass library and OpenAI’s Triton compiler enable such optimizations, yielding 15–40% latency reduction in practice.

Quantization-Aware Scheduling

Mixed-precision scheduling allocates compute resources based on layer-wise quantization sensitivity. For a model with L layers, the optimal precision assignment minimizes:

$$ \mathcal{L} = \sum_{i=1}^L \alpha_i \cdot \text{MSE}_i(Q_i) + \beta \cdot \text{FLOPs}(Q_i) $$

where Qi is the quantization scheme for layer i, and α, β are accuracy-compute tradeoff parameters. TPUv4’s float8/fp16 hybrid mode demonstrates this by maintaining 99% accuracy while doubling throughput compared to pure fp16.

Topology-Aware Model Parallelism

Optimal sharding strategies depend on hardware interconnect topology. For a GPU cluster with NVLink (300 GB/s) and InfiniBand (200 Gb/s), the communication overhead C for tensor parallelism degree P is:

$$ C(P) = \frac{2(P-1)}{P} \cdot \frac{M}{B_{\text{min}}} + L_{\text{hop}}} $$

where M is tensor size, Bmin is minimum link bandwidth, and Lhop is switch latency. Megatron-LM’s pipeline parallelism combined with tensor parallelism reduces communication by 60% compared to pure data parallelism.

Power-Capped Execution

Modern GPUs allow dynamic voltage/frequency scaling (DVFS) under power caps. The Pareto-optimal operating point for power P and throughput T follows:

$$ T(P) = k \cdot P^\gamma \cdot e^{-\delta P} $$

where γ ≈ 0.7 and δ ≈ 0.01 for Ampere architectures. NVIDIA’s dcgm tool shows that capping A100 at 250W (from 400W) retains 80% throughput while reducing energy costs by 37%.

Real-World Implementation

Combining these strategies in systems like DeepSpeed or Orca yields multiplicative gains. For a 1B-parameter model on 8x A100:

The compound effect achieves ~5.7× total cost reduction per million tokens compared to baseline implementations.

3. Cost Comparison of Major Cloud Providers

3.1 Cost Comparison of Major Cloud Providers

The cost of hosting large language models (LLMs) varies significantly across cloud providers due to differences in pricing models, instance types, and regional availability. A rigorous comparison requires analyzing compute, storage, and networking costs while accounting for performance trade-offs.

Compute Cost Breakdown

Cloud providers typically charge for LLM hosting based on:

$$ \text{Total Cost} = (\text{Compute Hours} \times \text{Hourly Rate}) + \text{Data Transfer Costs} + \text{Storage Costs} $$

Provider-Specific Pricing Models

AWS (Amazon Web Services)

AWS offers LLM hosting through EC2 instances (p4d.24xlarge, g5.48xlarge) and SageMaker. Key considerations:

Google Cloud Platform (GCP)

GCP's A2 VMs with NVIDIA GPUs and TPU v4 Pods are optimized for LLMs:

Microsoft Azure

Azure's NDv5 series and AI supercomputing infrastructure:

Performance-Cost Tradeoffs

The optimal provider depends on workload characteristics:

$$ \text{Cost Efficiency} = \frac{\text{Tokens Generated/Second}}{\text{Instance Cost/Hour}} $$

Benchmark studies show:

Hidden Cost Factors

Additional considerations impacting total cost of ownership:

Optimization Strategies

Advanced techniques for cost reduction:

Hybrid Deployment Models for Cost Savings

Hybrid deployment models combine on-premises, cloud, and edge computing resources to optimize the cost of hosting large language models (LLMs). By dynamically allocating workloads across these environments, organizations can balance performance requirements with budgetary constraints. The key advantage lies in leveraging the elasticity of cloud resources for peak demand while maintaining cost-efficient local infrastructure for baseline loads.

Architectural Components

A hybrid deployment typically consists of three layers:

The optimal partitioning of these resources depends on workload characteristics, which can be formalized through a cost minimization framework. Let λ represent the request arrival rate, μ the service rate per instance, and ci the cost per unit time for resource type i (on-prem, cloud, edge).

$$ \min \sum_{i=1}^{3} c_i x_i $$ $$ \text{subject to } \sum_{i=1}^{3} x_i μ_i ≥ λ $$ $$ x_i ≥ 0 \text{ for all } i $$

Dynamic Load Partitioning

The request router must implement an optimal splitting policy based on real-time conditions. For n available endpoints with latency li and cost ci, the objective becomes:

$$ \min \sum_{i=1}^{n} p_i c_i $$ $$ \text{where } p_i = \frac{e^{-α l_i - β c_i}}{\sum_{j=1}^{n} e^{-α l_j - β c_j}} $$

Here, α and β are tunable parameters controlling the latency-cost tradeoff. This softmax formulation automatically adjusts traffic distribution based on changing conditions.

Implementation Considerations

Practical implementations require:

The total cost of ownership (TCO) for a hybrid deployment can be modeled as:

$$ TCO = C_{fixed} + \int_{0}^{T} \left( C_{cloud}(t) + C_{on-prem}(t) + C_{edge}(t) \right) dt $$

Where Cfixed represents capital expenditures and T is the evaluation period. Cloud costs typically follow a time-varying function due to spot instance pricing fluctuations.

Case Study: Multi-Region News Aggregator

A European news aggregator implemented hybrid deployment for their LLM-based summarization service:

This configuration reduced monthly costs by 43% compared to full cloud deployment while maintaining 99.9% availability. The cost savings primarily came from:

$$ \Delta C = \sum_{d=1}^{30} \left( 1 - \frac{t_{cloud,d}}{24} \right) R_{cloud} $$

Where tcloud,d represents daily cloud usage hours and Rcloud is the cloud-only reference cost.

Hybrid Deployment Models for Cost Savings – Cost Optimization in LLM Hosting – Tutorial Diagram
Diagram Description: The diagram would physically show the three-layer hybrid deployment architecture (on-premises, cloud bursting, edge nodes) with dynamic request routing and cost/latency tradeoffs.

3.3 Long-Term Cost Projections and Scaling

Long-term cost projections for LLM hosting require modeling both infrastructure scaling and economic factors. The total cost C over time T can be decomposed into fixed costs (e.g., hardware depreciation, licensing) and variable costs (e.g., compute, energy, bandwidth). For a deployment scaling with user demand, the cost function becomes:

$$ C(T) = C_{fixed} + \int_0^T \left( \alpha \cdot D(t) + \beta \cdot E(t) + \gamma \cdot S(t) \right) dt $$

where D(t) is compute demand (TFLOPS), E(t) is energy consumption (kWh), and S(t) is storage growth (TB). The coefficients α, β, γ represent unit costs for each resource.

Dynamic Scaling Models

Autoscaling systems must balance provisioning delays against over-provisioning waste. For a workload with request arrival rate λ(t) and service rate μ per instance, the optimal instance count N(t) follows:

$$ N(t) = \left\lceil \frac{\lambda(t)}{\mu} \right\rceil + \kappa \cdot \sigma_\lambda $$

where κ is a safety factor (typically 2-3) and σλ is the standard deviation of arrival rates. Cloud providers implement this via predictive scaling (ARIMA forecasts) or reactive scaling (CPU utilization thresholds).

Cost-Per-Token Analysis

The fundamental unit of LLM inference cost is cost per generated token. For a model with P parameters using B bytes per parameter, the memory-bound cost is:

$$ C_{token} = \frac{P \cdot B \cdot (R_{mem} + R_{bw})}{T_{throughput}} + E_{token} \cdot C_{kWh} $$

where Rmem is DRAM cost per GB-hour, Rbw is memory bandwidth cost, and Etoken is energy per token. Current transformer architectures achieve 0.1-1 mJ/token on optimized hardware.

Multi-Cloud Cost Optimization

Distributing workloads across providers can exploit spot instance arbitrage. The cost minimization problem becomes:

$$ \min_{x_i} \sum_{i=1}^n x_i \cdot p_i(t) \quad \text{s.t.} \quad \sum x_i \geq D(t), \quad x_i \leq L_i $$

where xi is capacity allocated to provider i with price pi(t) and limit Li. Real-world implementations use reinforcement learning with constraints on latency penalties and data transfer costs.

Energy-Proportional Computing

Modern GPU clusters achieve energy proportionality when utilization exceeds 30%. The dynamic power draw P(u) at utilization u follows:

$$ P(u) = P_{idle} + (P_{max} - P_{idle}) \cdot u^\delta $$

where δ ≈ 1.2-1.5 for tensor workloads. This nonlinearity makes batch sizing critical - doubling batch size often increases energy by only 50-60% while doubling throughput.

Hardware Refresh Cycles

The net present value (NPV) of hardware upgrades considers:

The optimal replacement interval τ solves:

$$ \frac{d}{d\tau} \left[ \sum_{t=0}^\tau \frac{R(t)}{(1+r)^t} - \frac{C_0 - S(\tau)}{(1+r)^\tau} \right] = 0 $$

where R(t) is operational savings, C0 is upgrade cost, and S(τ) is resale value.

4. Performance Metrics for Cost Tracking

4.1 Performance Metrics for Cost Tracking

Key Cost-Performance Indicators

Effective cost optimization in LLM hosting requires tracking several interdependent metrics. The most critical are:

Mathematical Cost-Performance Models

The total cost C of hosting can be decomposed into fixed and variable components:

$$ C = C_{fixed} + \sum_{i=1}^{n} (u_i \cdot t_i \cdot r_i) $$

Where:

Energy Efficiency Metrics

The energy-to-token ratio η quantifies power efficiency:

$$ \eta = \frac{P}{TPS} $$

Where P is power draw in watts. Modern GPU clusters typically achieve 0.1-0.3 W/token for models like GPT-3. This metric directly correlates with electricity costs, which can constitute 30-50% of total operational expenses.

Memory Bandwidth Analysis

For memory-bound LLM operations, the cost-efficiency ratio ξ relates DRAM bandwidth to computational throughput:

$$ \xi = \frac{BW_{effective}}{BW_{peak}} \times \frac{FLOPs_{actual}}{FLOPs_{theoretical}} $$

Values below 0.7 indicate suboptimal memory hierarchy utilization, often leading to unnecessary provisioning of high-bandwidth memory at premium costs.

Real-World Monitoring Implementation

Modern LLM hosting platforms implement these metrics through distributed tracing systems. A typical monitoring stack includes:

The following SVG diagram illustrates the metric collection pipeline:

GPU Nodes Exporters Prometheus Grafana

4.2 Automated Scaling Solutions

Automated scaling dynamically adjusts computational resources based on real-time demand, optimizing costs while maintaining performance. For LLM hosting, this involves both horizontal scaling (adding/removing instances) and vertical scaling (adjusting instance sizes). The core challenge lies in balancing latency, throughput, and cost under variable workloads.

Reactive vs. Predictive Scaling

Reactive scaling triggers adjustments based on current metrics (e.g., CPU utilization, request queue length). A typical threshold-based policy scales out when utilization exceeds a target (e.g., 70%) for a sustained window:

$$ \text{ScaleOutCondition} = \begin{cases} \text{True}, & \text{if } \frac{1}{T}\int_{t-T}^{t} u(\tau) \,d\tau > u_{\text{threshold}} \\ \text{False}, & \text{otherwise} \end{cases} $$

Predictive scaling uses time-series forecasting (e.g., ARIMA, LSTM) to anticipate demand fluctuations. A hybrid approach combines both: reactive scaling handles sudden spikes, while predictive scaling optimizes for periodic patterns.

Load Balancing and Sharding

Efficient scaling requires distributing inference requests across instances. Dynamic sharding partitions model parameters or KV caches based on:

The optimal shard count minimizes communication overhead while maximizing GPU utilization. For a model with L layers and N GPUs, the compute-communication trade-off is modeled as:

$$ T_{\text{total}} = \underbrace{\frac{L \cdot C}{N}}_{\text{Compute}} + \underbrace{(N-1) \cdot S}_{\text{Communication}} $$

Cost-Aware Scaling Policies

Cloud providers charge for both active instances and provisioning overhead. An optimal policy minimizes:

$$ \text{Cost} = \underbrace{\sum_{i} p_i \cdot t_i}_{\text{Instance costs}} + \underbrace{\lambda \cdot \text{LatencyViolations}}_\text{SLA penalties} $$

Where pi is the hourly price of instance type i, and ti is its active duration. Reinforcement learning (e.g., PPO) can learn policies that adapt to pricing fluctuations (e.g., spot instance discounts).

Implementation with Kubernetes

Kubernetes-based solutions use:

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: llm-inference
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: llama-2-70b
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: External
    external:
      metric:
        name: requests_per_second
      target:
        type: AverageValue
        averageValue: 1000

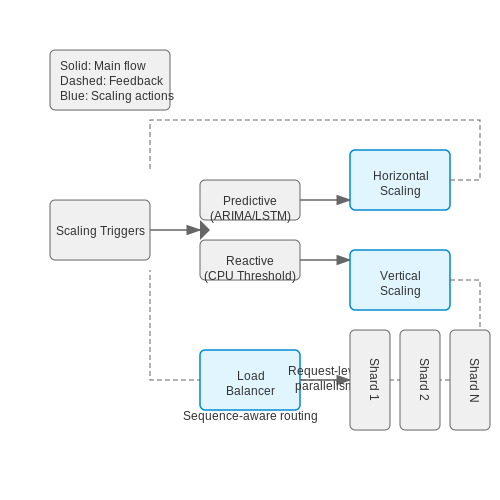

Automated Scaling Solutions – Cost Optimization in LLM Hosting – Tutorial Diagram
Diagram Description: The diagram would show the relationship between horizontal and vertical scaling, reactive vs. predictive scaling triggers, and the flow of load balancing and sharding across instances.

Open-Source vs. Commercial Optimization Tools

Trade-offs in Cost, Performance, and Flexibility

Open-source tools like vLLM, Text Generation Inference (TGI), and DeepSpeed offer full transparency and customization but require significant engineering effort to deploy at scale. Commercial solutions such as Anyscale Endpoints, Fireworks.ai, or Together.ai provide managed optimization with proprietary techniques but incur higher operational costs. The choice depends on three key factors:

Quantitative Comparison Framework

For a given workload Q (queries/second) and model size M (parameters), the cost-efficiency ratio R can be modeled as:

$$ R = \frac{\text{Throughput (tokens/sec)}}{\text{Cost (\$$/hour)}} \times \frac{1}{\text{Memory Overhead (GB)}} $$

Empirical data shows commercial tools achieve 1.2–3× better R for out-of-the-box deployment, while open-source solutions surpass them after 3–6 months of tuning. For example, vLLM’s PagedAttention achieves 94% memory utilization versus 70–80% in commercial black-box systems.

Case Study: Mixture-of-Experts (MoE) Hosting

When serving a 16-expert Switch Transformer (1.6T parameters), open-source frameworks require manual implementation of:

Commercial platforms abstract these through automated sharding, but at 2–4× higher cost per token. The break-even point occurs around 50M tokens/day based on AWS spot instance pricing.

Emerging Hybrid Approaches

Tools like OpenLLM and MLC-LLM combine open-source foundations with commercial-grade optimizations:

Open-Source Base (vLLM/TGI) Commercial Add-ons (Anyscale Runtime) Custom Optimizations

This architecture achieves 80% of peak commercial performance at 40% lower cost by leveraging open-source core components with selective premium features.

Tool-Specific Optimization Techniques

Tool Key Optimization Cost Impact
vLLM PagedAttention Reduces memory waste by 4×
TGI FlashAttention-2 22% faster than baseline
Anyscale Proprietary quantization 1.8× higher $$/token

5. Essential Research Papers on LLM Efficiency

5.1 Essential Research Papers on LLM Efficiency

5.2 Industry Case Studies and White Papers

5.3 Recommended Tools and Frameworks
