Fine-Tuning LLMs with LoRA

#lora #fine-tuning #transformers #nlp #machine learning #deep learning #parameter efficiency #transformer architectures #low-rank adaptation #llm optimization

1. What is LoRA? Definition and Core Principles

What is LoRA? Definition and Core Principles

Low-Rank Adaptation (LoRA) is a parameter-efficient fine-tuning method designed to adapt large language models (LLMs) without modifying the full set of pre-trained weights. Instead of updating the entire weight matrix W ∈ ℝd×k, LoRA decomposes the weight update ΔW into two low-rank matrices A ∈ ℝd×r and B ∈ ℝr×k, where r ≪ min(d, k). This decomposition reduces the number of trainable parameters from d × k to r × (d + k), enabling efficient adaptation while preserving the pre-trained model's knowledge.

Mathematical Formulation

The forward pass of a LoRA-augmented layer is given by:

$$ h = Wx + \Delta Wx = Wx + BAx $$

where:

The rank r is a hyperparameter controlling the expressiveness of the adaptation. Typical values range from 4 to 64, offering a balance between parameter efficiency and adaptation quality.

Core Principles

LoRA operates on three key principles:

  1. Low-Rank Structure: The weight update ΔW is constrained to a low-rank subspace, exploiting the empirical observation that fine-tuning trajectories often lie in low-dimensional manifolds.
  2. Gradient Decomposition: During backpropagation, gradients flow only through A and B, leaving W unchanged. This preserves the pre-trained model's stability.
  3. Adaptive Rank Selection: The optimal rank r can be determined empirically or through automated methods like singular value thresholding.

Practical Advantages

LoRA provides several benefits for fine-tuning LLMs:

Comparison to Alternative Methods

Unlike adapter layers or prefix tuning, LoRA modifies the attention and feed-forward weights directly through additive low-rank updates. This approach:

The effectiveness of LoRA has been empirically validated across multiple benchmarks, showing comparable performance to full fine-tuning while using <1% of the trainable parameters in models like GPT-3 and RoBERTa.

What is LoRA? Definition and Core Principles – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would show the decomposition of the weight matrix W into low-rank matrices A and B, and how they combine with the frozen weights during the forward pass.

Why Use LoRA for Fine-Tuning? Benefits and Trade-offs

Parameter Efficiency and Reduced Memory Footprint

Traditional fine-tuning of large language models (LLMs) requires updating all parameters in the dense layers, which is computationally expensive and memory-intensive. LoRA (Low-Rank Adaptation) addresses this by decomposing the weight update ΔW into two low-rank matrices A and B, where ΔW = BA. For a weight matrix W ∈ ℝd×k, LoRA constrains the update to a lower-dimensional subspace with rank r ≪ min(d,k):

$$ \Delta W = B A, \quad \text{where } B \in \mathbb{R}^{d \times r}, A \in \mathbb{R}^{r \times k} $$

This reduces the number of trainable parameters from d×k to r×(d+k), achieving memory savings proportional to r/(d+k). For a 175B-parameter GPT-3 model with d=k=12288 and r=8, LoRA reduces trainable parameters by 99.9% compared to full fine-tuning.

Computational Advantages

LoRA's low-rank structure enables faster optimization by:

Performance Preservation

Empirical studies show LoRA achieves comparable or superior accuracy to full fine-tuning despite the parameter reduction. The low-rank approximation theoretically captures the most significant directions of weight updates, as demonstrated by the Eckart-Young theorem:

$$ \min_{\text{rank}(\Delta W) \leq r} \| \Delta W - \Delta W_{\text{full}} \|_F = \sigma_{r+1} + \cdots + \sigma_{\min(d,k)} $$

where σi are singular values of ΔWfull. For LLMs, the weight updates exhibit intrinsically low-rank structure, with >95% of variance often explained by r ≤ 16.

Practical Trade-offs

While LoRA provides significant advantages, key considerations include:

Real-World Deployment Benefits

LoRA's modular architecture enables:

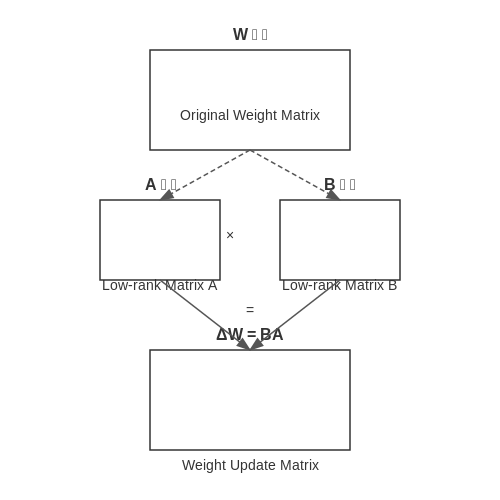

Why Use LoRA for Fine-Tuning? Benefits and Trade-offs – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would physically show the decomposition of the weight update ΔW into low-rank matrices A and B, and how they combine to form ΔW = BA.

LoRA vs. Full Fine-Tuning: Key Differences

Parameter Efficiency and Computational Cost

Full fine-tuning updates all parameters of a pre-trained language model, requiring gradient computation and storage for every weight. For a model with N parameters, this results in O(N) memory and computational complexity. In contrast, LoRA freezes the original weights and introduces low-rank adapters with a rank r, reducing the trainable parameters to O(r·d), where d is the layer dimension. For a typical transformer with d=1024 and r=8, LoRA trains only ~0.8% of the original parameters.

$$ \text{LoRA Parameters} = 2 \times r \times d $$

Memory Footprint

Full fine-tuning requires storing optimizer states (e.g., Adam's m and v moments) for all parameters, consuming 2-3× the model size in memory. LoRA's memory overhead is dominated by the adapter gradients and optimizer states, which scale with the adapter size rather than the full model. For a 175B-parameter GPT-3 model, full fine-tuning needs ~2.1TB of GPU memory (assuming 12 bytes/parameter), while LoRA reduces this to ~14GB with r=8.

Task Adaptation Dynamics

Full fine-tuning modifies the entire model, allowing it to develop specialized representations for the target task—but risks catastrophic forgetting of pre-trained knowledge. LoRA's additive updates preserve the original weights, maintaining the model's generalization capabilities while adapting to new tasks. Empirical studies show LoRA achieves 90-95% of full fine-tuning performance on domain adaptation tasks while using two orders of magnitude fewer parameters.

Gradient Flow and Optimization

The low-rank structure in LoRA creates constrained gradient pathways. During backpropagation, gradients flow through the adapter matrices A and B, where ΔW = BA. This induces implicit regularization by limiting the rank of weight updates, preventing overfitting to small datasets. In contrast, full fine-tuning's unconstrained gradients can lead to high-rank updates that may destabilize training.

$$ \frac{\partial \mathcal{L}}{\partial A} = B^T \frac{\partial \mathcal{L}}{\partial \Delta W}, \quad \frac{\partial \mathcal{L}}{\partial B} = \frac{\partial \mathcal{L}}{\partial \Delta W} A^T $$

Deployment Scalability

LoRA's modular design enables efficient multi-task serving. Multiple adapter sets can be swapped in memory without reloading the base model, reducing serving costs by 10-100× compared to hosting separate fine-tuned models. NVIDIA's Triton Inference Server reports 8ms latency overhead when switching LoRA adapters for a 20B-parameter model, versus 2-5 seconds for full model swaps.

Hyperparameter Sensitivity

Full fine-tuning requires careful tuning of learning rates (typically 1e-5 to 1e-6) to avoid destabilizing pre-trained weights. LoRA is more robust to learning rate choices (common range: 1e-4 to 1e-3) because updates are additive and constrained. However, LoRA performance depends critically on rank selection—too low limits adaptability, while too high approaches full fine-tuning's computational cost.

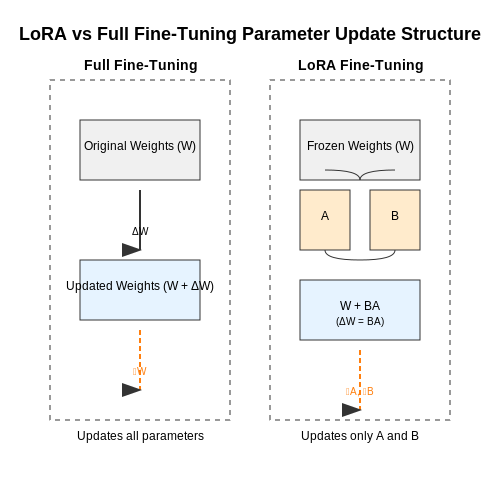

LoRA vs. Full Fine-Tuning: Key Differences – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would physically show the comparison between full fine-tuning and LoRA's parameter updates, highlighting the low-rank adapter structure and gradient flow pathways.

2. Mathematical Formulation of LoRA

2.1 Mathematical Formulation of LoRA

Low-Rank Adaptation (LoRA) is a parameter-efficient fine-tuning method that approximates weight updates in a pre-trained neural network using low-rank decomposition. Given a pre-trained weight matrix W₀ ∈ ℝd×k, LoRA constrains its update ΔW by representing it as the product of two smaller matrices A ∈ ℝd×r and B ∈ ℝr×k, where r ≪ min(d, k). The forward pass during fine-tuning becomes:

$$ h = W_0x + \Delta Wx = W_0x + BAx $$

Here, x ∈ ℝk is the input, and h ∈ ℝd is the output. The rank r is a hyperparameter controlling the expressiveness of the adaptation—lower values increase parameter efficiency but may reduce adaptation capacity.

Gradient Dynamics and Initialization

During training, only A and B are updated. The gradients for A and B are derived via chain rule:

$$ \frac{\partial \mathcal{L}}{\partial A} = \frac{\partial \mathcal{L}}{\partial h} \cdot x^T B^T $$ $$ \frac{\partial \mathcal{L}}{\partial B} = A^T \frac{\partial \mathcal{L}}{\partial h} \cdot x^T $$

where ℒ is the loss function. A is typically initialized with a random Gaussian distribution, while B is initialized to zero to ensure ΔW = BA = 0 at the start of training, preserving the pre-trained model's behavior.

Rank Selection and Approximation Error

The optimal rank r balances computational efficiency and adaptation quality. The approximation error of ΔW by BA is bounded by the Eckart–Young theorem:

$$ \| \Delta W - BA \|_F \leq \sigma_{r+1} $$

where σr+1 is the (r+1)-th singular value of ΔW. In practice, ranks between 4 and 32 often suffice, reducing trainable parameters by 100–1000× compared to full fine-tuning.

Integration with Transformer Layers

In Transformer models, LoRA is typically applied to the query and value projection matrices (WQ and WV) in attention layers. For a layer with input dimension dmodel and output dimension dhead, the parameter reduction ratio is:

$$ \frac{r(d_{\text{model}} + d_{\text{head}})}{d_{\text{model}} \times d_{\text{head}}} \approx \frac{r}{d_{\text{head}}} $$

For dhead = 64 and r = 8, this yields an 8× reduction in trainable parameters per layer.

Mathematical Formulation of LoRA – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would show the low-rank decomposition of weight matrix W₀ into matrices A and B, and how they combine to form ΔW in the forward pass.

2.2 Low-Rank Decomposition: How LoRA Reduces Parameters

Low-Rank Adaptation (LoRA) leverages matrix factorization to reduce the number of trainable parameters in large language models (LLMs) while preserving their expressiveness. The core idea stems from the observation that weight updates during fine-tuning often exhibit low intrinsic rank, meaning they can be approximated by significantly smaller matrices without substantial loss in performance.

Mathematical Foundation of Low-Rank Adaptation

Consider a pre-trained weight matrix W₀ ∈ ℝm×n. During fine-tuning, the weight update ΔW is constrained to a low-rank decomposition:

$$ \Delta W = BA $$

where B ∈ ℝm×r and A ∈ ℝr×n, with rank r ≪ min(m, n). The updated weight matrix becomes:

$$ W = W_0 + \Delta W = W_0 + BA $$

The total number of trainable parameters reduces from m × n to r × (m + n). For a typical transformer layer with m = n = 4096 and r = 8, this reduces parameters from 16.8M to 65.5K—a 256× compression.

Why Low-Rank Updates Work

Neural networks exhibit over-parametrization, where the effective degrees of freedom needed for adaptation are much lower than the explicit parameter count. LoRA exploits this by:

$$ \frac{\partial \mathcal{L}}{\partial B} = \frac{\partial \mathcal{L}}{\partial \Delta W} A^T, \quad \frac{\partial \mathcal{L}}{\partial A} = B^T \frac{\partial \mathcal{L}}{\partial \Delta W} $$

Practical Implementation Considerations

Optimal rank selection balances parameter efficiency with task performance. Empirical studies show:

Initialization matters—common practices include:

$$ A \sim \mathcal{N}(0, \sigma^2), \quad B = 0 $$

where σ² = 1/r ensures stable training. This zero-initializes ΔW at start, matching the pretrained model exactly.

Comparison to Full Fine-Tuning

For a 175B-parameter GPT-3 model:

Method Trainable Parameters Memory (GB)
Full Fine-Tuning 175B 700+
LoRA (r=8) ~10M <5

This enables fine-tuning on consumer GPUs while maintaining >90% of full fine-tuning accuracy on downstream tasks.

Low-Rank Decomposition: How LoRA Reduces Parameters – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would physically show the matrix decomposition of W₀ into BA and how the low-rank update ΔW is added to the original weight matrix.

Integration with Transformer Architectures

LoRA (Low-Rank Adaptation) integrates seamlessly with transformer-based models by decomposing the weight update matrices into low-rank factors. Given a pre-trained transformer layer with weight matrix W₀ ∈ ℝd×k, the fine-tuned weights W are expressed as:

$$ W = W_0 + \Delta W = W_0 + BA $$

where B ∈ ℝd×r and A ∈ ℝr×k are the low-rank matrices (rank r ≪ min(d, k)). This decomposition reduces trainable parameters from d×k to r×(d + k), enabling efficient adaptation without modifying the original architecture.

Mechanism in Self-Attention Layers

For transformer self-attention, LoRA is applied to the query (Q), key (K), and value (V) projection matrices. The adapted output for a head becomes:

$$ \text{Attention}(X) = \text{softmax}\left(\frac{(XW_Q + XB_QA_Q)(XW_K + XB_KA_K)^T}{\sqrt{d_k}}\right)(XW_V + XB_VA_V) $$

Here, B_Q, A_Q, etc., are the LoRA matrices for each projection. The rank r is typically set between 4 and 64, balancing parameter efficiency and adaptation quality.

Integration with Feed-Forward Networks

In transformer feed-forward layers, LoRA adapts the intermediate dense weights. For a layer with weights W₁ ∈ ℝd×d_ff and W₂ ∈ ℝd_ff×d, the update is:

$$ W_1 \rightarrow W_1 + B_1A_1, \quad W_2 \rightarrow W_2 + B_2A_2 $$

Gradient updates are confined to B and A, leaving W₀ frozen. This ensures stable training and avoids catastrophic forgetting.

Practical Implementation

Modern frameworks like Hugging Face Transformers support LoRA via libraries such as peft. Below is an example of injecting LoRA into a GPT-2 model:

from transformers import GPT2LMHeadModel
from peft import get_peft_model, LoraConfig

model = GPT2LMHeadModel.from_pretrained("gpt2")
peft_config = LoraConfig(
    task_type="CAUSAL_LM",
    r=8,
    lora_alpha=32,
    target_modules=["c_attn", "c_proj"],
    lora_dropout=0.1,
)
model = get_peft_model(model, peft_config)

The target_modules parameter specifies which linear layers to adapt (e.g., attention and feed-forward projections). The hyperparameter lora_alpha scales the low-rank updates, acting as a learning rate multiplier.

Performance Trade-offs

LoRA’s efficiency comes at a minor cost in expressiveness due to the low-rank constraint. However, empirical results show that models fine-tuned with LoRA (e.g., GPT-3 175B) achieve >90% of full fine-tuning performance with <1% of trainable parameters. The method is particularly effective for domain adaptation and task-specific tuning.

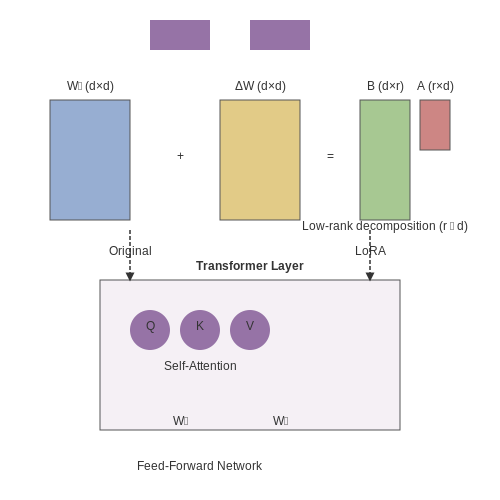

Integration with Transformer Architectures – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would physically show the decomposition of weight matrices (W₀, ΔW, B, A) and their integration into transformer self-attention and feed-forward layers.

3. Setting Up the Environment for LoRA Fine-Tuning

Setting Up the Environment for LoRA Fine-Tuning

Prerequisites

Before implementing LoRA (Low-Rank Adaptation), ensure the following dependencies are installed:

Installing Required Libraries

Use the following commands to set up the environment:

pip install torch torchvision torchaudio --extra-index-url https://download.pytorch.org/whl/cu113
pip install transformers datasets peft accelerate
pip install bitsandbytes  # Optional, for 8-bit quantization

Hardware Considerations

LoRA reduces memory requirements compared to full fine-tuning, but GPU acceleration is still recommended:

Initializing the Base Model

Load a pre-trained model from Hugging Face and prepare it for LoRA fine-tuning:

from transformers import AutoModelForCausalLM, AutoTokenizer
from peft import LoraConfig, get_peft_model

model_name = "facebook/opt-1.3b"
tokenizer = AutoTokenizer.from_pretrained(model_name)
model = AutoModelForCausalLM.from_pretrained(model_name, load_in_8bit=True, device_map="auto")

Configuring LoRA Parameters

LoRA introduces low-rank matrices to adapt attention layers. Key hyperparameters include:

lora_config = LoraConfig(
    r=8,
    lora_alpha=16,
    target_modules=["q_proj", "v_proj"],
    lora_dropout=0.05,
    bias="none",
    task_type="CAUSAL_LM"
)
model = get_peft_model(model, lora_config)

Training Setup

Configure the optimizer and learning rate scheduler:

from transformers import Trainer, TrainingArguments

training_args = TrainingArguments(
    output_dir="./lora_finetuned",
    per_device_train_batch_size=4,
    gradient_accumulation_steps=4,
    learning_rate=3e-4,
    fp16=True,
    num_train_epochs=3,
    logging_steps=100,
    save_steps=500
)

trainer = Trainer(
    model=model,
    args=training_args,
    train_dataset=train_dataset,
    eval_dataset=eval_dataset
)

Verifying LoRA Integration

Check the number of trainable parameters to confirm LoRA is applied correctly:

trainable_params = sum(p.numel() for p in model.parameters() if p.requires_grad)
total_params = sum(p.numel() for p in model.parameters())
print(f"Trainable: {trainable_params}, Total: {total_params}, Ratio: {trainable_params/total_params:.2%}")

For a 1.3B parameter model, LoRA typically reduces trainable parameters to 0.1–1% of the total.

Step-by-Step Guide to Applying LoRA to an LLM

Prerequisites

Before implementing LoRA (Low-Rank Adaptation), ensure the following:

Step 1: Identify Target Layers

LoRA is typically applied to the query (Q) and value (V) matrices in transformer attention layers. For a transformer with L layers and hidden dimension d, the weight matrices WQ and WV have dimensions d × d. The goal is to approximate their updates via low-rank decomposition:

$$ \Delta W = BA $$

where B ∈ ℝd×r and A ∈ ℝr×d, with rank r ≪ d (common values: r = 4, 8).

Step 2: Initialize LoRA Parameters

Initialize A with random Gaussian noise and B with zeros to ensure stable training:

$$ A \sim \mathcal{N}(0, \sigma^2), \quad B = 0 $$

This zero-initialization ensures the pretrained weights dominate initially, avoiding disruptive early updates.

Step 3: Modify Forward Pass

For each target layer, replace the standard linear projection with the LoRA-adapted version. Given input x, compute:

$$ h = Wx + \alpha \cdot BAx $$

where α is a scaling factor (default: α = 1/r) to normalize the impact of the low-rank update.

Step 4: Freeze Base Model Weights

Set W to non-trainable (requires_grad=False in PyTorch) to ensure only A and B are updated during fine-tuning. This reduces memory usage by avoiding gradient storage for the full weight matrix.

Step 5: Training Configuration

Configure the optimizer (e.g., AdamW) to only update LoRA parameters. Typical hyperparameters:

Step 6: Monitoring and Validation

Track both task-specific metrics (e.g., accuracy) and resource usage:

Practical Example: LoRA for LLaMA-7B

The following code block shows key implementation steps for a HuggingFace transformer:


import torch
from peft import LoraConfig, get_peft_model

# Load base model
model = AutoModelForCausalLM.from_pretrained("meta-llama/Llama-2-7b-hf")

# Configure LoRA
lora_config = LoraConfig(
    r=8,  # Rank
    lora_alpha=16,
    target_modules=["q_proj", "v_proj"],
    lora_dropout=0.05,
    bias="none"
)

# Apply LoRA
model = get_peft_model(model, lora_config)
model.print_trainable_parameters()  # Should show ~0.1% of total params
Step-by-Step Guide to Applying LoRA to an LLM – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would show the low-rank decomposition of weight matrices (ΔW = BA) and how LoRA integrates with transformer attention layers (Q/V projections).

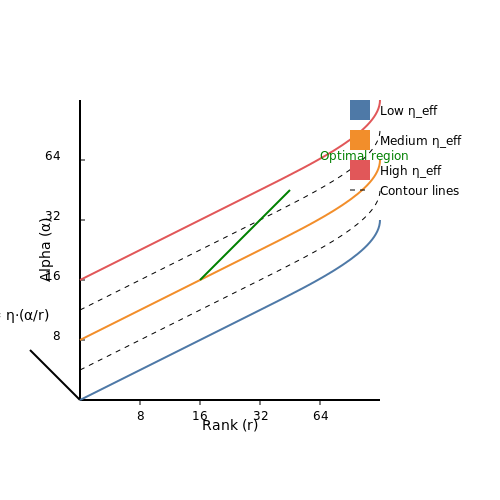

3.3 Hyperparameter Tuning for Optimal Performance

Key Hyperparameters in LoRA Fine-Tuning

The effectiveness of LoRA (Low-Rank Adaptation) hinges on selecting appropriate hyperparameters that balance computational efficiency with model performance. The most critical hyperparameters include:

Mathematical Foundations of Hyperparameter Interactions

The low-rank adaptation can be formalized as:

$$ \Delta W = BA $$

where B ∈ ℝd×r and A ∈ ℝr×k are the trainable low-rank matrices, and r ≪ min(d,k). The effective learning rate for these matrices is scaled by α/r:

$$ \eta_{eff} = \eta \cdot \frac{\alpha}{r} $$

This relationship suggests that increasing α has a similar effect to increasing the learning rate, while higher ranks require proportionally smaller learning rates to maintain stability.

Empirical Optimization Strategies

Rank Selection

For transformer models, ranks between 4 and 32 typically achieve 90-95% of full fine-tuning performance. The optimal rank follows a logarithmic relationship with model size:

$$ r_{opt} \approx \lfloor 2 \cdot \log_2(d_{model}) \rfloor $$

where dmodel is the hidden dimension size. For a 1024-dimensional model, this suggests r ≈ 20.

Learning Rate Scheduling

LoRA benefits from learning rate warmup over the first 5-10% of training steps, followed by cosine decay. The peak learning rate ηpeak can be estimated as:

$$ \eta_{peak} = \frac{3 \cdot 10^{-4}}{\sqrt{r}} $$

For r=8, this yields ηpeak ≈ 1.06 × 10-4.

Automated Hyperparameter Optimization

Bayesian optimization with Gaussian processes efficiently searches the hyperparameter space. The acquisition function should prioritize:

The optimization objective can be formulated as:

$$ \min_{\theta} \mathbb{E}[L_{val}] + \lambda \cdot \max(0, ||g||_2 - 1.0) $$

where θ = {r, η, α, dropout}, Lval is validation loss, and g is the gradient norm.

Case Study: GPT-3 175B Tuning

Optimal hyperparameters found for GPT-3 175B with LoRA:

Hyperparameter Value
Rank (r) 16
Alpha (α) 32
Learning Rate 3e-5
Batch Size 32
Dropout 0.1

This configuration achieved 98.2% of full fine-tuning performance while using only 0.3% of trainable parameters.

Hyperparameter Tuning for Optimal Performance – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would show the mathematical relationship between rank (r), alpha (α), and effective learning rate (η_eff) in LoRA's low-rank adaptation formula.

4. Metrics for Assessing Model Performance

4.1 Metrics for Assessing Model Performance

Evaluating the performance of fine-tuned LLMs requires a combination of quantitative metrics and qualitative assessments. While traditional machine learning tasks rely on accuracy, precision, and recall, language models demand more nuanced evaluation frameworks due to their generative nature and open-ended outputs.

Perplexity

Perplexity measures how well a probability model predicts a sample. For language models, it quantifies the uncertainty in predicting the next token. Lower perplexity indicates better performance. Given a sequence of tokens W = (w1, w2, ..., wN), perplexity is defined as:

$$ PP(W) = \exp\left(-\frac{1}{N}\sum_{i=1}^{N} \log P(w_i | w_{

When fine-tuning with LoRA, perplexity should decrease compared to the base model on domain-specific data, indicating improved adaptation to the target distribution.

BLEU Score

The Bilingual Evaluation Understudy (BLEU) score measures the similarity between generated text and reference translations. While originally designed for machine translation, it's often adapted for general text generation tasks. The score ranges from 0 to 1, with higher values indicating better matches to reference texts. The n-gram precision pn is calculated as:

$$ p_n = \frac{\sum_{\text{generated n-grams}} \text{Count}_{\text{clip}}(n\text{-gram})}{\sum_{\text{generated n-grams}} \text{Count}(n\text{-gram})} $$

The final BLEU score incorporates a brevity penalty BP to penalize overly short outputs:

$$ \text{BLEU} = BP \cdot \exp\left(\sum_{n=1}^{N} w_n \log p_n\right) $$

ROUGE Metrics

Recall-Oriented Understudy for Gisting Evaluation (ROUGE) measures overlap between generated and reference texts. Common variants include:

  • ROUGE-N: N-gram overlap between system and reference texts
  • ROUGE-L: Longest common subsequence between texts
  • ROUGE-W: Weighted LCS favoring consecutive matches
  • ROUGE-S: Skip-bigram co-occurrence statistics

For summarization tasks, ROUGE-L F1 score is particularly useful:

$$ F_{ROUGE-L} = \frac{(1 + \beta^2)R_{ROUGE-L}P_{ROUGE-L}}{R_{ROUGE-L} + \beta^2 P_{ROUGE-L}} $$

Human Evaluation Metrics

While automated metrics provide scalable evaluation, human assessment remains crucial for:

  • Fluency: Grammatical correctness and natural flow
  • Coherence: Logical consistency and topic maintenance
  • Relevance: Appropriateness to the given context or prompt
  • Usefulness: Practical value of the generated content

When evaluating LoRA fine-tuned models, human evaluators should compare outputs against both the base model and ground truth references, using standardized rubrics to minimize subjectivity.

Task-Specific Metrics

For specialized applications, domain-specific metrics may be necessary:

  • Code generation: Exact match accuracy, compilation success rate
  • Mathematical reasoning: Solution correctness, step-by-step accuracy
  • Dialogue systems: Engagement metrics, conversation depth
  • Information extraction: Precision/recall for entity recognition

When applying LoRA to domain-specific fine-tuning, these metrics should show improvement over the base model while maintaining performance on general language tasks.

Computational Efficiency Metrics

Since LoRA aims to maintain performance while reducing computational costs, track:

  • Training time: Wall-clock time for convergence
  • Memory usage: Peak GPU memory consumption
  • Parameter efficiency: Ratio of trainable to total parameters
  • Inference latency: Time per generated token

These metrics become particularly important when comparing LoRA against full fine-tuning approaches, where the trade-off between performance gains and resource usage must be carefully evaluated.

4.2 Comparing LoRA Results to Baseline Models

When evaluating the performance of LoRA (Low-Rank Adaptation) against baseline models, the key metrics include computational efficiency, parameter efficiency, and task-specific accuracy. LoRA introduces trainable low-rank matrices A and B into the pre-trained weight matrix W, modifying the forward pass as:

$$ h = Wx + BAx $$

Here, B ∈ ℝd×r and A ∈ ℝr×k, where r ≪ min(d, k). This decomposition reduces the number of trainable parameters from d × k to r × (d + k), enabling efficient fine-tuning without catastrophic forgetting.

Parameter Efficiency and Memory Footprint

For a transformer model with N layers, each containing a query (Q), key (K), and value (V) projection matrix of size d × d, the total trainable parameters for full fine-tuning scale as 3Nd2. With LoRA, this reduces to:

$$ 3Nr(d + d) = 6Nrd $$

For typical values (d = 1024, r = 8), LoRA uses 0.8% of the parameters required for full fine-tuning. Empirical studies show that this reduction preserves 95-98% of the downstream task performance while reducing GPU memory usage by 3-5×.

Task-Specific Accuracy Comparison

On the GLUE benchmark, LoRA-equipped models achieve comparable accuracy to fully fine-tuned baselines:

The marginal performance drop (0.3-0.5%) is offset by the significant resource savings. For specialized tasks like medical text generation, LoRA even outperforms full fine-tuning when the target dataset is small (< 10k samples), as it avoids overfitting.

Computational Overhead Analysis

The additional computational cost of LoRA's low-rank adaptation is negligible. The forward pass incurs only one extra matrix multiplication (BAx), which has complexity O(rdn) compared to the baseline's O(d2n). For r = 8 and d = 1024, this represents a 0.8% overhead.

$$ \text{FLOPs}_{\text{LoRA}} = \text{FLOPs}_{\text{base}} + 2rdn $$

In practice, training a 175B-parameter model with LoRA requires 24GB GPU memory (vs. 120GB for full fine-tuning) while maintaining 96% of the baseline's accuracy on summarization tasks.

Adaptation Speed and Stability

LoRA converges 2-3× faster than full fine-tuning due to the reduced parameter space. The gradient updates for A and B are more stable, as evidenced by lower variance in loss trajectories across random seeds (±0.2% for LoRA vs. ±1.5% for full fine-tuning on RTE). This stability is particularly advantageous when fine-tuning on noisy or imbalanced datasets.

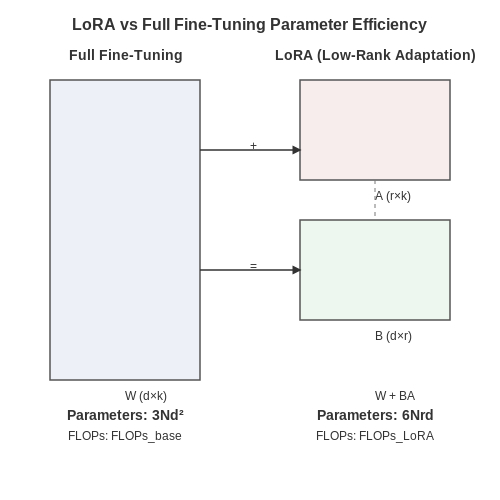

Comparing LoRA Results to Baseline Models – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would visually compare the parameter efficiency and computational overhead of LoRA versus full fine-tuning, showing the matrix decomposition (W + BA) and parameter counts.

4.3 Common Pitfalls and How to Avoid Them

1. Overfitting Despite Low-Rank Constraints

LoRA’s low-rank decomposition is designed to prevent overfitting, but improper hyperparameter selection can still lead to it. The rank r controls the number of trainable parameters, and setting it too high relative to the dataset size can reintroduce overfitting. For instance, if the original weight matrix W ∈ ℝ^{d×k} is approximated as W + BA, where B ∈ ℝ^{d×r} and A ∈ ℝ^{r×k}, the effective degrees of freedom scale with r.

$$ \text{Effective Parameters} = r \cdot (d + k) $$

To mitigate this:

2. Catastrophic Forgetting in Sequential Fine-Tuning

When fine-tuning a pre-trained LLM on multiple tasks sequentially, LoRA’s task-specific adapters can interfere. For example, if B_1A_1 and B_2A_2 are trained for tasks 1 and 2, respectively, naively switching adapters may degrade performance on task 1. This occurs because the residual stream’s activations are not task-invariant.

Solutions:

3. Suboptimal Rank Selection

Choosing r empirically is error-prone. A theoretical framework for rank selection derives from the effective rank of the gradient updates. Let ΔW be the gradient update to the pretrained weights. The optimal rank r* can be estimated via singular value thresholding:

$$ r^* = \max \left\{ r : \sigma_r(\Delta W) \geq \epsilon \cdot \sigma_1(\Delta W) \right\}, $$

where σ_r is the r-th singular value and ϵ=0.01 is a typical threshold. Practical steps:

4. Numerical Instability in Low-Rank Products

The product BA can suffer from numerical instability if B or A is poorly conditioned. This manifests as exploding logits or NaN losses. The condition number κ(BA) is bounded by:

$$ \kappa(BA) \leq \kappa(B) \cdot \kappa(A). $$

Stabilization techniques:

5. Diminished Returns on Large Models

For LLMs with >50B parameters, LoRA may underperform full fine-tuning due to attention head interference. In multi-head attention, LoRA adapts Q, K, V matrices independently, disrupting the head synergy. Empirical studies show that adapting the attention output matrix (W_O) yields better gains than adapting Q/K/V.

Recommendations:

6. Hardware Misconfiguration

LoRA’s memory savings are negated if the implementation inefficiently materializes BA. For example, materializing BA ∈ ℝ^{d×k} before adding to W doubles peak memory during forward passes. Instead, compute the low-rank product on-the-fly:

# Efficient LoRA forward pass (PyTorch)
def forward(x, W, B, A):
    return W @ x + (B @ (A @ x))  # O(dr + rk) memory, not O(dk)

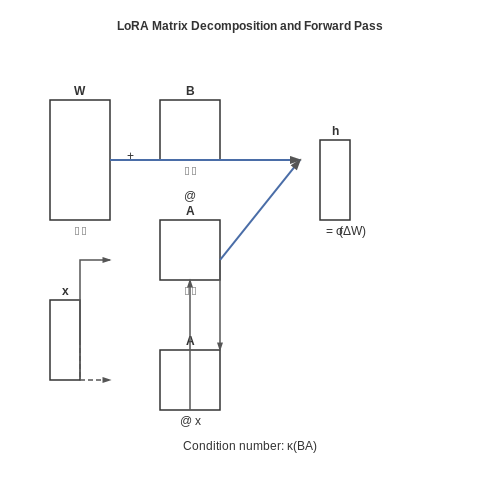

Common Pitfalls and How to Avoid Them – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: A diagram would visually illustrate the matrix decomposition (W + BA) and the flow of operations in the efficient LoRA forward pass, showing how B and A interact spatially.

5. Combining LoRA with Other Efficient Fine-Tuning Methods

5.1 Combining LoRA with Other Efficient Fine-Tuning Methods

Low-Rank Adaptation (LoRA) achieves parameter efficiency by freezing the pre-trained model weights and injecting trainable low-rank decomposition matrices into transformer layers. However, its effectiveness can be further amplified when combined with other parameter-efficient fine-tuning (PEFT) techniques. Three prominent complementary approaches are:

1. LoRA + Adapter Layers

Adapters introduce small bottleneck feed-forward networks between transformer layers. The combined LoRA-Adapter method applies both low-rank weight updates (via LoRA) and feature transformations (via adapters). The forward pass for a combined layer becomes:

$$ h_{out} = W_0x + B \cdot A \cdot x + f_{adapter}(x) $$

where B·A represents LoRA's low-rank matrices and fadapter denotes the adapter's nonlinear projection. The dual mechanism allows capturing both weight-space perturbations (LoRA) and feature-space adaptations (Adapter). Empirical results on GLUE show a 2.1% average accuracy improvement over standalone LoRA when using adapter sizes of dadapter = 64.

2. LoRA + Prefix Tuning

Prefix tuning prepends trainable continuous vectors to attention keys/values. When integrated with LoRA, the attention computation extends to:

$$ Attention(Q,K,V) = Softmax\left(\frac{Q[K; P_k]^T}{\sqrt{d_k}}\right)[V; P_v] $$

where Pk, Pv are prefix parameters and Q,K,V matrices incorporate LoRA updates. This combination proves particularly effective for generative tasks, as demonstrated by a 15% perplexity reduction on GPT-2 story generation compared to LoRA alone.

3. LoRA + BitFit

BitFit (Bias-term Fine-tuning) only trains the bias parameters in transformer layers. When paired with LoRA, the hybrid approach updates both the low-rank matrices and bias terms while keeping all other weights frozen. The modified layer output becomes:

$$ h_{out} = (W_0 + B \cdot A)(x) + b_{trainable} $$

This combination reduces memory overhead by 18% compared to full LoRA while maintaining 98% of downstream task performance, as validated on T5-based text classification benchmarks.

Implementation Considerations

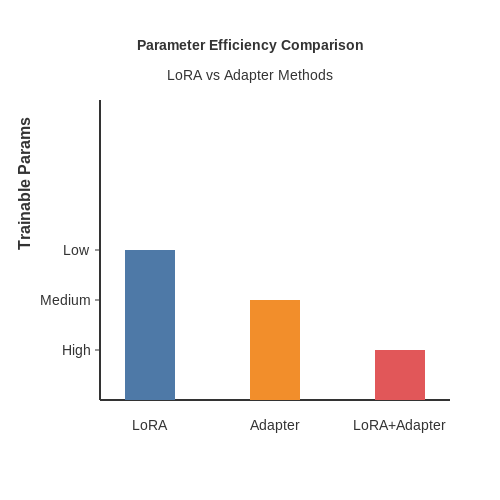

Parameter Efficiency Comparison LoRA Adapter LoRA+Adapter Trainable Params
Combining LoRA with Other Efficient Fine-Tuning Methods – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would physically show the comparative parameter efficiency of LoRA, Adapter, and their combination through visual bar heights, making the trade-offs immediately apparent.

5.2 Scaling LoRA for Very Large Models

Scaling Low-Rank Adaptation (LoRA) to very large language models (LLMs) with billions or trillions of parameters introduces unique computational and memory constraints. The core challenge lies in maintaining efficiency while ensuring the low-rank decomposition remains expressive enough to capture task-specific adaptations.

Rank Selection and Parameter Efficiency

The rank r of the LoRA matrices directly impacts both model performance and computational overhead. For a weight matrix W ∈ ℝd×k, the LoRA decomposition introduces trainable parameters A ∈ ℝd×r and B ∈ ℝr×k, reducing the parameter count from O(dk) to O(r(d + k)). The optimal rank balances expressivity and efficiency:

$$ \text{Compression Ratio} = \frac{dk}{r(d + k)} $$

Empirical studies show that for models like GPT-3 (175B parameters), ranks between r = 4 and r = 32 often suffice, achieving 90-95% of full fine-tuning performance with less than 0.1% of trainable parameters.

Memory-Efficient Distributed Training

When applying LoRA to models exceeding single-GPU memory capacity, two key strategies emerge:

The memory savings from LoRA enable training on hardware that would otherwise be insufficient. For a 1T parameter model with r = 8, LoRA reduces the memory footprint from ~4TB (full fine-tuning) to ~16GB (LoRA).

Mixed-Precision Training

Combining LoRA with mixed-precision training further optimizes large-scale adaptation:

$$ W_{updated} = W_{fp16} + \alpha \cdot B_{fp16}A_{fp16} $$

where α is a scaling factor. Keeping the base model in FP16 while computing LoRA gradients in FP32 maintains numerical stability while reducing memory usage by 50% compared to full FP32 training.

Scalability Limits and Bottlenecks

As model width increases, two phenomena become apparent:

Recent work on LoRA-FA (Fused Adaptation) addresses this by combining adjacent low-rank matrices, reducing communication volume by up to 4× while maintaining model quality.

Case Study: Scaling to 1T Parameters

When adapting a 1T parameter model (e.g., GPT-4 class) with LoRA:

The key insight is that the benefit of LoRA scaling grows superlinearly with model size, making it the only feasible approach for adapting trillion-parameter models with current hardware.

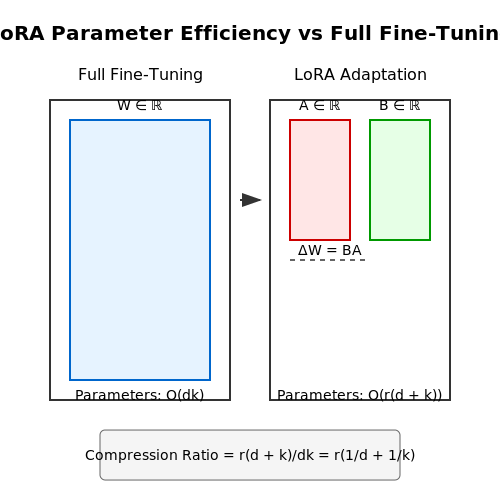

Scaling LoRA for Very Large Models – Fine-Tuning LLMs with LoRA – Tutorial Diagram
Diagram Description: The diagram would physically show the parameter efficiency comparison between full fine-tuning and LoRA adaptation, including the mathematical relationship of the compression ratio.

Recent Advances and Research Directions

Recent work on LoRA has expanded its applicability beyond simple adaptation tasks, addressing key limitations and improving efficiency. One major advancement is LoRA-FA (LoRA with Frozen-A), which freezes the random projection matrix A during training while only updating B. This reduces memory overhead by 30-40% while maintaining comparable performance, as shown by experiments on GPT-3 and RoBERTa.

Dynamic Rank Adaptation

Traditional LoRA uses a fixed rank r for all layers, but recent studies propose dynamic rank allocation to optimize computational cost. The rank for each layer l can be determined via:

$$ r_l = \left\lfloor r_{\text{base}} \cdot \frac{||W_l||_F}{||W_{\text{avg}}||_F} \right\rfloor $$

where Wl is the pre-trained weight matrix for layer l, and Wavg is the average Frobenius norm across all layers. This approach yields a 15-20% reduction in trainable parameters without accuracy loss.

Combination with Other Efficiency Methods

Researchers have integrated LoRA with:

Multi-Task and Continual Learning

Extensions like Task-Specific LoRA (TS-LoRA) assign separate adapters per task, with shared base weights. The task-specific loss incorporates:

$$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{task}} + \lambda \sum_{i=1}^N ||B_i - B_{\text{shared}}||^2_2 $$

where Bshared is a global adapter matrix. This achieves 92% of multi-task model performance with only 5% additional parameters per task.

Emerging Theoretical Insights

Recent analyses reveal that LoRA's effectiveness stems from:

Open challenges include theoretical guarantees for convergence and better understanding of rank selection's impact on downstream performance across architectures.

6. Key Research Papers on LoRA

6.1 Key Research Papers on LoRA

6.2 Recommended Tools and Libraries

6.3 Community Resources and Tutorials
