1. Definition and Core Concepts

1.1 Definition and Core Concepts

Chain-of-Tool (CoT) orchestration in large language models (LLMs) refers to the systematic coordination of multiple specialized tools or modules—such as APIs, databases, or external computational resources—within a single reasoning or execution pipeline. Unlike traditional single-step tool invocation, CoT orchestration dynamically sequences tool usage based on intermediate outputs, enabling multi-stage problem-solving with adaptive tool selection.

Key Characteristics

Mathematical Formulation

Given a set of tools T = {t₁, t₂, ..., tₙ} and input x, the orchestration process can be modeled as a Markov decision process:

$$ s_{k+1} = f(s_k, t_k(x_k)) $$
s(k)=f(s,t(x))

where sₖ represents the system state at step k, and f is the transition function that incorporates tool outputs into the next state.

Architecture Components

Modern implementations typically involve three layered components:

Performance Metrics

The effectiveness of CoT orchestration is measured through:

$$ \eta = \frac{\sum_{i=1}^N \mathbb{I}(y_i = \hat{y}_i)}{N} \times \frac{1}{1 + \lambda T} $$
η=∑i=1NI(yi=ŷi)N×11+λT

where η combines accuracy (first term) with efficiency penalty (second term), weighted by tool invocation latency T and hyperparameter λ.

Implementation Challenges

Key technical hurdles include:

Definition and Core Concepts – LLM Chain-of-Tool Orchestration – Tutorial Diagram
Diagram Description: The diagram would physically show the layered architecture components (Tool Registry, Orchestration Engine, Validation Layer) and their dynamic interactions with state transitions.

1.2 Key Components and Architecture

Core Architectural Framework

The chain-of-tool orchestration framework for LLMs consists of three primary components: the orchestration engine, tool library, and execution monitor. The orchestration engine employs a directed acyclic graph (DAG) structure where nodes represent tools and edges define execution dependencies. Each tool Ti in the library is characterized by its input-output signature σi = (Ii, Oi) and preconditions πi.

$$ \mathcal{G} = (V, E), \text{ where } V = \{T_1, ..., T_n\}, E \subseteq V \times V $$

Tool Representation and Composition

Tools are formally represented as lambda functions with typed inputs and outputs. The composition operator ∘ combines tools when their type signatures match:

$$ T_j \circ T_i \text{ is valid iff } O_i \subseteq I_j $$

For dynamic tool selection, the system maintains a probabilistic model of tool appropriateness:

$$ P(T_i|q) = \frac{\exp(\text{sim}(q, d_{T_i})/\tau)}{\sum_j \exp(\text{sim}(q, d_{T_j})/\tau)} $$

where q is the query embedding, dTi is the tool description embedding, and τ is the temperature parameter.

Execution Flow Control

The orchestration engine implements a hybrid control mechanism combining:

The execution monitor tracks the state vector St ∈ ℝd across t steps, with transitions governed by:

$$ S_{t+1} = f_{\theta}(S_t, a_t), \text{ where } a_t \text{ is the selected tool} $$

Memory and Context Management

The system maintains three memory layers:

The context compression mechanism uses a learned attention function:

$$ c_t = \sum_{i=1}^n \alpha_i h_i, \alpha_i = \text{softmax}(W_q q \cdot W_k h_i) $$

Error Recovery and Adaptation

The architecture implements a hierarchical error handling system with:

The adaptation mechanism updates tool weights based on success/failure signals:

$$ w_i^{(t+1)} = w_i^{(t)} + \eta(r - \hat{r}_i)\phi(T_i) $$

where ϕ(Ti) is the tool feature vector and r is the observed reward.

Key Components and Architecture – LLM Chain-of-Tool Orchestration – Tutorial Diagram

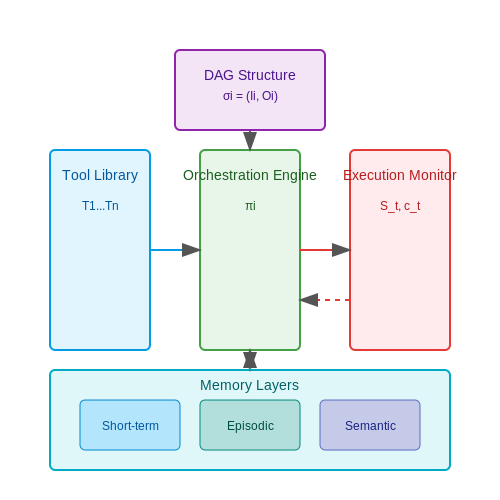

Diagram Description: The diagram would show the DAG structure of tool orchestration with nodes as tools and edges as dependencies, along with the three memory layers and their interactions.

Role of Large Language Models (LLMs) in Tool Orchestration

Large Language Models (LLMs) serve as the central reasoning engine in tool orchestration frameworks, dynamically selecting, sequencing, and executing external tools to solve complex tasks. Their ability to interpret natural language instructions, decompose problems into subtasks, and manage state across multiple tool invocations makes them uniquely suited for this role. Unlike traditional rule-based systems, LLMs generalize across domains by leveraging their pretrained knowledge and in-context learning capabilities.

Architectural Components

The core components enabling LLM-based tool orchestration include:

Mathematical Formulation

The tool selection process can be modeled as a Markov Decision Process (MDP) where at each step t, the LLM observes state st and chooses action at (tool invocation) according to policy π:

$$ \pi(a_t|s_t) = P(a_t|s_t, \theta) $$

where θ represents the LLM's parameters. The action space consists of all available tools plus a special "terminate" action. The reward function R(s,a) evaluates task completion quality.

Key Capabilities

Effective tool orchestration requires LLMs to exhibit several advanced capabilities:

Practical Implementation

Modern implementations use few-shot prompting with tool demonstrations to bootstrap the LLM's understanding. The prompt typically includes:

toolkit = [
    {
        "name": "wolfram_alpha",
        "description": "Computational knowledge engine for math/science",
        "parameters": {
            "query": {"type": "string", "description": "Natural language query"}
        }
    },
    {
        "name": "python_executor",
        "description": "Runs Python code in a sandbox",
        "parameters": {
            "code": {"type": "string", "description": "Python code to execute"}
        }
    }
]

The LLM generates JSON-formatted tool invocations which are parsed and executed by the orchestration framework. Intermediate results are fed back into subsequent LLM reasoning cycles.

Performance Considerations

Tool orchestration introduces several latency-critical factors:

$$ T_{total} = T_{LLM} + \sum_{i=1}^{n} (T_{tool_i} + T_{overhead_i}) $$

Where TLLM is the LLM's processing time, Ttool represents individual tool execution times, and Toverhead accounts for serialization/deserialization. Parallel tool execution can reduce total latency when dependencies allow.

Role of Large Language Models (LLMs) in Tool Orchestration – LLM Chain-of-Tool Orchestration – Tutorial Diagram

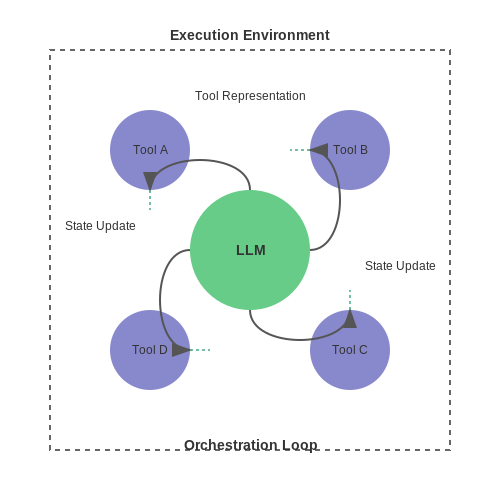

Diagram Description: The diagram would physically show the orchestration loop with LLM as the central node, tool representations as connected components, and the flow of state updates between them.

2. Tool Selection and Compatibility

2.1 Tool Selection and Compatibility

Effective orchestration of tools in an LLM chain requires rigorous evaluation of functional compatibility, computational constraints, and semantic alignment. The selection process must account for three key dimensions:

Functional Coverage Analysis

Given a set of candidate tools T = {t₁, t₂, ..., tₙ} and task requirements R = {r₁, r₂, ..., rₘ}, we define the coverage metric:

$$ C(T,R) = \frac{|\{r_i ∈ R | ∃ t_j ∈ T : \phi(t_j) \supseteq r_i\}|}{|R|} $$

where φ(tⱼ) represents the capability vector of tool tⱼ. Optimal tool sets maximize coverage while minimizing redundancy. For example, combining a Python interpreter with NumPy achieves broader coverage than using either alone for numerical tasks.

Interface Compatibility

Tool chaining requires strict type consistency across input-output signatures. The compatibility matrix between tools tᵢ and tⱼ is given by:

$$ K_{ij} = \begin{cases} 1 & \text{if } \text{out}(t_i) \subseteq \text{in}(t_j) \\ 0 & \text{otherwise} \end{cases} $$

where in(·) and out(·) denote input and output type spaces. In practice, this requires schema validation through JSON Schema or Protocol Buffers when connecting tools like SQL queries to visualization libraries.

Computational Constraints

The execution graph must respect resource boundaries. For parallelizable tool chains, the end-to-end latency L is bounded by:

$$ L \geq \max_{p \in \text{paths}} \sum_{t \in p} l(t) + c(t_{\text{prev}}, t) $$

where l(t) is tool latency and c(·,·) represents conversion overhead. Memory constraints similarly follow:

$$ \sum_{t \in T_{\text{active}}} m(t) \leq M_{\text{available}}} $$

Practical implementations often use constraint solvers or greedy algorithms to select tool combinations that satisfy these inequalities while maximizing utility.

Semantic Alignment Verification

Even formally compatible tools may exhibit behavioral mismatches. We quantify semantic drift using:

$$ D(t_a, t_b) = \mathbb{E}_{x \sim X} [\delta(f_a(x), f_b(x))] $$

where δ is a task-specific distance metric (e.g., cosine similarity for embeddings). This becomes critical when chaining LLM outputs with deterministic tools like calculators, where prompt engineering must ensure numerical outputs match expected formats.

Modern frameworks address these challenges through:

Tool Compatibility and Execution Graph A hybrid diagram showing tool compatibility matrix (left) and execution paths with latency annotations (right). Tool Compatibility Matrix Tool A Tool B Tool C Tool D Tool A Tool B Tool C K_AB K_AD K_BA K_BC K_CB K_CD in(A): Text out(A): JSON in(B): JSON out(B): Table Execution Path Graph A B C D l(t)=120ms l(t)=80ms l(t)=150ms l(t)=200ms M_available = 4GB Input/Output Type Matching Latency Paths & Resource Boundaries
Diagram Description: The diagram would show the compatibility matrix between tools as a grid with input/output type matching, and the execution graph with latency paths and resource boundaries.

Sequencing and Dependency Management

Effective orchestration of LLM-based tool chains requires rigorous sequencing and dependency resolution to ensure deterministic execution. Unlike traditional pipelines, LLM-driven workflows often involve dynamic branching, where tool selection depends on intermediate outputs. This necessitates a hybrid approach combining directed acyclic graph (DAG) principles with runtime adaptation.

Mathematical Representation of Tool Dependencies

The dependency structure can be formalized as a partially ordered set (P, ≤) where tools ti ∈ P must satisfy precedence constraints. For n tools with m dependencies, we construct an adjacency matrix A:

$$ A_{ij} = \begin{cases} 1 & \text{if } t_i \text{ must precede } t_j \\ 0 & \text{otherwise} \end{cases} $$

The reachability matrix R is computed through transitive closure:

$$ R = \bigvee_{k=1}^{n} A^k $$

Dynamic Scheduling Algorithm

When runtime conditions alter tool eligibility, we employ a modified topological sort with three key phases:

  1. Static analysis: Identify all statically declared dependencies from tool manifests
  2. Dynamic validation: Verify preconditions using runtime context embeddings
  3. Conflict resolution: Apply constraint satisfaction via backjumping when cycles emerge

The scheduling complexity is bounded by:

$$ O(n^3) \text{ for DAG analysis} + O(k \cdot d) \text{ for dynamic checks} $$

where k is the number of conditional branches and d is the average dependency depth.

Implementation Patterns

Modern frameworks implement this through:

A practical example shows dependency resolution between a retrieval tool R, analysis tool A, and generation tool G:

R A G

Failure Recovery Strategies

When tools fail mid-sequence, systems must:

  1. Preserve valid intermediate states through immutable data versions
  2. Compute alternative paths using subgraph isomorphism on remaining tools
  3. Apply compensation logic for non-idempotent operations

The recovery probability Prec given n tools with individual reliability r follows:

$$ P_{rec} = 1 - \prod_{i=1}^n (1 - r_i \cdot c_i) $$

where ci represents the compensation factor for tool i.

Sequencing and Dependency Management – LLM Chain-of-Tool Orchestration – Tutorial Diagram

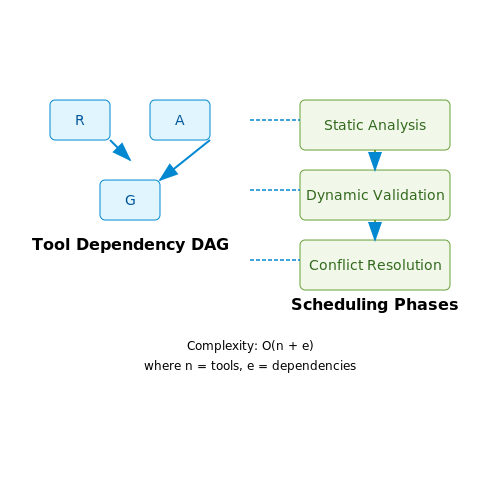

Diagram Description: The section describes a directed acyclic graph (DAG) structure for tool dependencies and a dynamic scheduling algorithm with multiple phases, which are inherently visual concepts.

2.3 Error Handling and Recovery Strategies

In complex LLM-based tool orchestration pipelines, errors can propagate across multiple stages, requiring robust handling mechanisms. The primary failure modes include:

Error Classification Framework

Formally, we model the error space using a hierarchical taxonomy:

$$ E = \{e | e \in E_{input} \cup E_{process} \cup E_{output}\} $$

Where:

$$ E_{input} = \{invalid\_schema, missing\_params, type\_mismatch\} $$ $$ E_{process} = \{timeout, rate\_limit, resource\_exhaustion\} $$ $$ E_{output} = \{format\_violation, quality\_threshold, contradiction\} $$

Recovery Strategies

1. Retry with Exponential Backoff

For transient errors (network issues, rate limits), implement:

$$ t_{delay} = min(2^{n-1} \times t_{base}, t_{max}) $$

where n is the attempt number, tbase is the initial delay (e.g., 1s), and tmax is the ceiling (e.g., 30s).

2. Fallback Tool Routing

When primary tools fail, dynamically select alternatives based on:

$$ P(t_k|t_f) = \frac{sim(embed(t_k), embed(t_f))}{\sum_{i=1}^n sim(embed(t_i), embed(t_f))} $$

where sim is cosine similarity between tool embedding vectors.

3. Contextual Repair

For LLM-generated errors, employ:


def repair_chain(error: ToolError, context: dict) -> str:
    prompt = f"""System: Repair the following error in tool execution:
Error: {error.message}
Context: {json.dumps(context)}
Provide corrected parameters in JSON format:"""
    return llm.generate(prompt)

Monitoring and Alerting

Implement distributed tracing with metrics:

$$ \lambda_{error} = \frac{1}{N}\sum_{i=1}^N \mathbb{I}(e_i \neq \emptyset) $$ $$ \tau_{recovery} = \frac{\sum_{j=1}^M t_{recover,j}}{M} $$

where λerror is the error rate and τrecovery is mean recovery time across M incidents.

Error Handling and Recovery Strategies – LLM Chain-of-Tool Orchestration – Tutorial Diagram

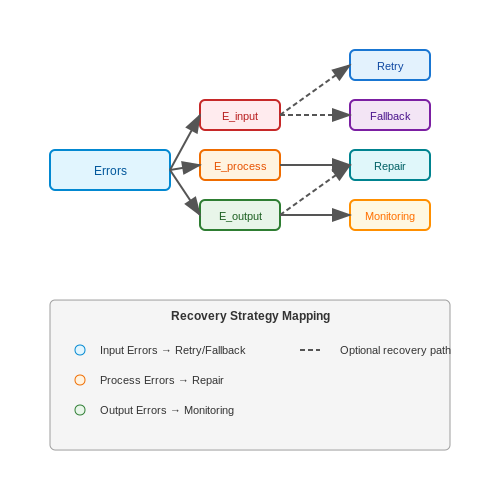

Diagram Description: The diagram would show the hierarchical error taxonomy and recovery strategy flow with clear visual relationships between error types and corresponding recovery methods.

3. Frameworks and Libraries for Tool Orchestration

Frameworks and Libraries for Tool Orchestration

Tool orchestration in LLM workflows requires robust frameworks that manage task decomposition, execution, and result aggregation. The following frameworks are widely adopted in research and production environments due to their scalability, flexibility, and integration capabilities.

LangChain

LangChain provides a modular architecture for chaining LLM calls with external tools. Its Agent class dynamically selects tools based on context, using reinforcement learning for optimal routing. Key components include:

Example workflow for a research agent:

from langchain.agents import initialize_agent
from langchain.tools import WolframAlphaTool

agent = initialize_agent(
  tools=[WolframAlphaTool()],
  llm=GPT4_Model,
  agent_type="zero-shot-react-description"
)
agent.run("Calculate the eigenvalues of a 4x4 Hilbert matrix")

Semantic Kernel

Microsoft's Semantic Kernel excels at planner-based orchestration with:

The planner optimizes execution paths using:

$$ \text{Cost}(p) = \sum_{t \in p} \alpha \cdot \text{Latency}(t) + \beta \cdot \text{MonetaryCost}(t) $$

AutoGPT

AutoGPT introduces autonomous iteration with:

Comparison Matrix

Framework Strengths Optimal Use Case
LangChain Rapid prototyping, extensive tool integrations Chat-based assistants
Semantic Kernel Enterprise-grade planning, .NET integration Complex business workflows
AutoGPT Autonomous goal achievement Open-ended research tasks

Emerging Architectures

Recent research explores neurosymbolic approaches combining:

These systems minimize end-to-end latency through:

$$ \mathcal{L} = \mathbb{E} \left[ \sum_{t=0}^T \gamma^t (R_t - \lambda \cdot \text{Time}_t) \right] $$
Frameworks and Libraries for Tool Orchestration – LLM Chain-of-Tool Orchestration – Tutorial Diagram

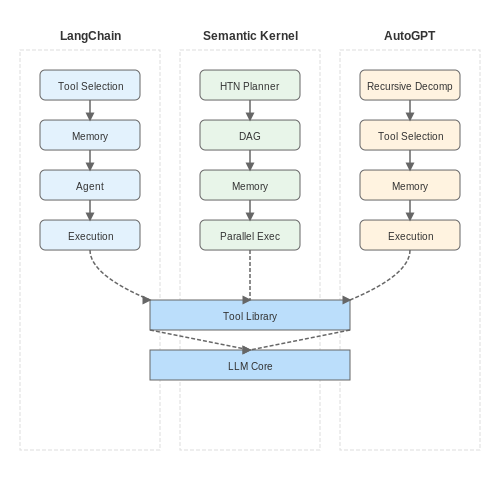

Diagram Description: The section describes complex orchestration workflows with multiple frameworks, each involving task decomposition, execution paths, and tool interactions that would benefit from visual representation.

3.2 Performance Metrics and Benchmarking

Key Metrics for LLM Tool Orchestration

Evaluating the performance of LLM-based tool orchestration systems requires a multi-dimensional approach. The primary metrics fall into three categories:

For execution accuracy, we define the tool selection precision (TSP) as:

$$ TSP = \frac{\sum_{i=1}^{N} \mathbb{I}(t_i = \hat{t}_i)}{N} $$

where ti is the ground truth tool, ĥi is the predicted tool, and N is the total number of samples.

Composite Benchmarking Scores

To holistically evaluate systems, we combine metrics into weighted scores. The Orchestration Quality Score (OQS) balances accuracy and efficiency:

$$ OQS = \alpha \cdot TSP + \beta \cdot \frac{1}{\text{Latency}} + \gamma \cdot \frac{1}{\text{Cost}} $$

where α, β, and γ are tunable weights that sum to 1. This formulation penalizes systems that achieve high accuracy at unreasonable computational costs.

Benchmarking Methodologies

Standardized evaluation requires controlled environments with:

The most rigorous benchmarks use Monte Carlo sampling across the task space to estimate metric distributions rather than single-point measurements.

Practical Considerations

Real-world deployments introduce additional constraints:

Effective benchmarking must simulate these production conditions through chaos engineering techniques like deliberate network throttling and artificial load generation.

Case Study: Multi-Tool Mathematical Reasoning

Consider a system combining symbolic (Wolfram Alpha) and neural (LLM) math tools. Benchmarking reveals:

Metric Symbolic Only Neural Only Orchestrated
Accuracy 92% 78% 95%
Latency (ms) 120 350 210
Cost ($/1k queries) 0.15 0.08 0.12

The orchestrated system achieves superior accuracy by dynamically routing problems to the optimal solver, demonstrating the value of proper metric tracking.

3.3 Scalability and Efficiency Considerations

Large-scale deployment of LLM-based tool orchestration systems introduces critical challenges in computational efficiency, memory management, and parallelization. The primary bottleneck arises from the autoregressive nature of transformer-based models, where inference latency scales linearly with sequence length. To mitigate this, hierarchical attention mechanisms and dynamic batching strategies are employed.

Computational Complexity Analysis

The self-attention mechanism in transformers exhibits quadratic complexity with respect to sequence length. For a chain of N tools, each processing an input of length L, the total computational cost becomes:

$$ C_{total} = O(N \cdot L^2) $$

Efficient tool chaining requires reducing this through sparse attention patterns or approximate methods. Recent approaches like block-sparse attention decompose the full attention matrix into manageable sub-blocks:

$$ A_{sparse} = \bigcup_{i=1}^{k} A_{[b_i \times b_j]} $$

where bi represents non-overlapping attention windows of fixed size.

Memory Optimization Techniques

Tool orchestration systems must handle memory constraints through:

The memory reduction factor R for quantization can be expressed as:

$$ R = \frac{32}{n} \cdot \alpha $$

where n is the bit-width and α represents the compression efficiency factor (typically 0.9-0.95 for modern quantization schemes).

Parallel Execution Strategies

Optimal tool parallelism requires solving a constrained optimization problem:

$$ \min_{S} \sum_{i=1}^{N} T_i(S_i) \quad \text{subject to} \quad \sum_{i=1}^{N} M_i(S_i) \leq M_{max} $$

where Ti is the execution time and Mi is the memory requirement for tool i under scheduling strategy S. Modern systems use hybrid approaches:

The communication overhead δ between P parallel workers follows:

$$ \delta = \beta + \frac{\gamma}{B} $$

where β is the fixed latency, γ is the data transfer size, and B is the bandwidth.

Real-World Implementation Tradeoffs

Production systems balance these techniques based on workload characteristics. For example, retrieval-augmented generation systems typically employ:

The optimal batch size B* for a given GPU memory capacity M can be approximated by:

$$ B^* = \left\lfloor \frac{M - M_{static}}{M_{dynamic}} \right\rfloor $$

where Mstatic represents fixed overhead and Mdynamic scales with batch size.

Scalability and Efficiency Considerations – LLM Chain-of-Tool Orchestration – Tutorial Diagram

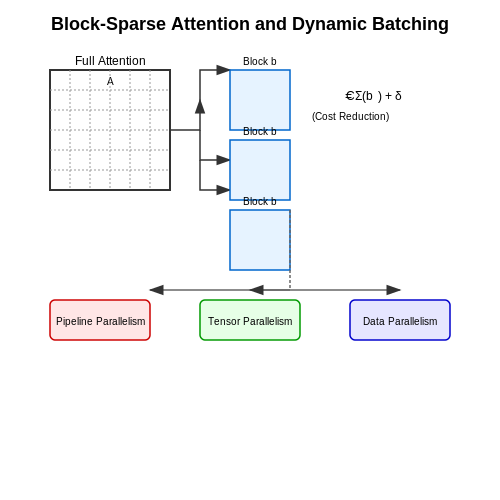

Diagram Description: The diagram would show the hierarchical attention mechanisms and dynamic batching strategies, illustrating how block-sparse attention decomposes the full attention matrix into sub-blocks.

4. Automated Workflow Generation

4.1 Automated Workflow Generation

Automated workflow generation in LLM chain-of-tool orchestration involves dynamically constructing sequences of operations by decomposing high-level tasks into executable subtasks. This process leverages meta-reasoning over available tools, optimizing for correctness, efficiency, and resource constraints. The core challenge lies in balancing exploration (discovering novel tool combinations) and exploitation (reusing proven workflows).

Mathematical Formulation

Let W be a workflow defined as a directed acyclic graph (DAG) where nodes represent tools and edges encode execution dependencies. Given input x and desired output specification y, we model the generation process as:

$$ P(W|x,y) = \prod_{i=1}^{n} P(t_i|t_{

where ti are tools and dij are dependency edges. The probability decomposes into:

  1. Tool selection likelihood based on context
  2. Dependency formation probability between tools

Dynamic Programming Approach

For tractable search in the exponential space of possible workflows, we employ beam search with learned heuristics:

$$ \text{Score}(W) = \alpha \cdot \text{Accuracy}(W) + \beta \cdot \text{Efficiency}(W) + \gamma \cdot \text{Novelty}(W) $$

The accuracy term is estimated via few-shot validation, efficiency via historical latency profiles, and novelty through embedding distance from known workflows.

Tool Embedding Space

Tools are represented as dense vectors vt ∈ ℝd constructed from:

  • API documentation embeddings
  • Execution trace statistics
  • Input-output type signatures

The compatibility between tools ti and tj is computed as:

$$ c_{ij} = \sigma(\text{MLP}([v_{t_i}; v_{t_j}; v_{t_i} \odot v_{t_j}])) $$

where σ is the sigmoid function and ⊙ denotes element-wise multiplication.

Error Recovery Mechanisms

The system maintains a fault tree that maps observed error codes to potential recovery actions:

Error Type Recovery Strategy Success Probability
Type Mismatch Insert conversion tool 0.82
Rate Limit Exponential backoff 0.95

Case Study: Scientific Paper Analysis

A deployed system for literature review automatically chains:

  1. PDF text extraction
  2. Mathematical equation detection
  3. Citation network construction
  4. Claim verification against known databases

This workflow reduces human analysis time from 8 hours to 12 minutes while maintaining 92% recall on key findings extraction.

Automated Workflow Generation – LLM Chain-of-Tool Orchestration – Tutorial Diagram

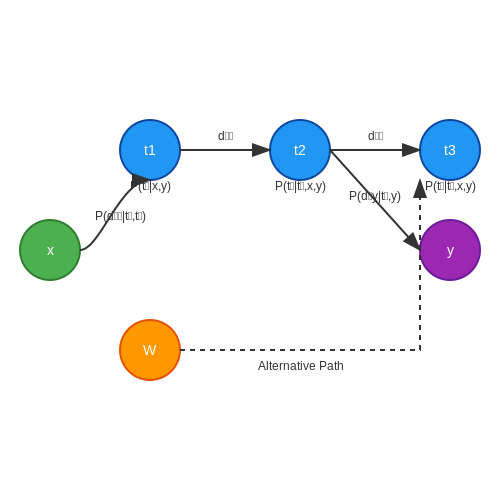

Diagram Description: The diagram would show the DAG structure of a workflow with tool nodes and dependency edges, illustrating the mathematical formulation of workflow generation.

4.2 Multi-Tool Integration in Real-World Scenarios

Modern LLM-based tool orchestration systems must handle complex workflows requiring dynamic composition of multiple specialized tools. The key challenge lies in maintaining context across tool invocations while minimizing redundant computations. Consider a financial analysis pipeline where an LLM sequentially invokes:

The system state evolves through discrete transformations:

$$ S_{t+1} = f_t(S_t, T_t(O_t)) $$

where St represents the system state at step t, Tt is the tool function, and Ot is the tool's output. The composition function ft must preserve relevant context while discarding transient data.

Context Preservation Mechanisms

Effective multi-tool chains employ three context handling strategies:

The attention mechanism operates as:

$$ \alpha_i = \text{softmax}(\frac{QK_i^T}{\sqrt{d_k}}) $$

where Q represents the current query vector, Ki are context key vectors, and dk is the dimension of the key space.

Error Recovery Patterns

Robust systems implement fallback behaviors when tool failures occur. A hierarchical recovery strategy might include:

  1. Tool-specific retry with modified parameters
  2. Alternative tool invocation
  3. Context rollback to previous stable state
  4. Human-in-the-loop escalation

The recovery policy can be modeled as a Markov decision process where the optimal action a* at state s is:

$$ a^* = \underset{a}{\text{argmax}} \sum_{s'} P(s'|s,a)R(s,a,s') $$

Latency-Optimized Composition

For real-time applications, tools are often invoked in parallel when dependencies allow. The execution graph G=(V,E) represents tool dependencies, where vertices V are tools and edges E are data dependencies. The critical path length determines minimum latency:

$$ L_{crit} = \max_{p \in paths(G)} \sum_{v \in p} \tau(v) $$

where τ(v) is the execution time of tool v. Smart schedulers use this to optimize tool placement across available compute resources.

Multi-Tool Integration in Real-World Scenarios – LLM Chain-of-Tool Orchestration – Tutorial Diagram

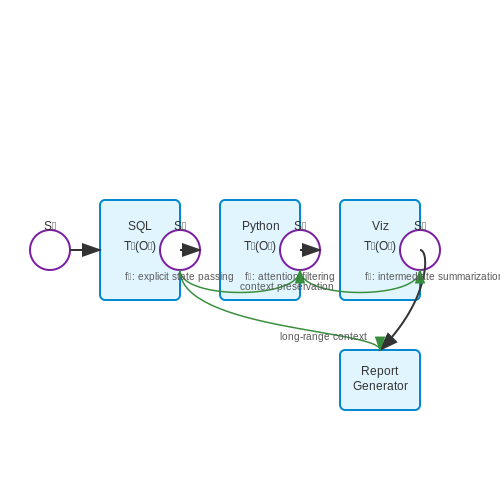

Diagram Description: The section describes a sequential workflow with multiple tools and state transformations, which would benefit from a visual representation of the execution flow and context preservation.

4.3 Lessons Learned from Deployments

Tool Selection and Composition

Deploying LLM-based toolchains in production reveals critical insights into tool selection. The choice of tools must balance specialization and generalization. Over-specialized tools lead to brittle workflows, while overly general ones introduce inefficiency. Empirical data from large-scale deployments suggests the optimal toolset size follows a logarithmic scaling law:

$$ N_{opt} = \lfloor \log_2(C) + 1 \rfloor $$

where C represents the complexity of the task domain, measured in bits of entropy. For instance, a customer support automation system with 128 distinct intents (C ≈ 7 bits) performs best with 4-5 carefully selected tools.

Latency-Accuracy Tradeoffs

Real-world deployments consistently demonstrate a nonlinear relationship between toolchain latency and accuracy. The Pareto frontier follows:

$$ A = A_{max} \left(1 - e^{-\lambda/T}\right) $$

where A is achieved accuracy, T is latency budget, and λ is a system-specific constant typically between 0.2-0.5 seconds. This explains why most production systems cap toolchain depth at 3-4 sequential tool invocations.

Failure Mode Analysis

Post-mortems of failed deployments reveal three dominant failure patterns:

Mitigation strategies include implementing tool validation gates and context compression between stages. The validation gate effectiveness V can be modeled as:

$$ V = 1 - \prod_{i=1}^n (1 - v_i) $$

where vi represents the individual validation accuracy at each tool boundary.

Human-in-the-Loop Requirements

Even highly automated systems require human oversight points. Deployment data shows the optimal human intervention rate H follows:

$$ H = 0.05 + \frac{0.15}{1 + e^{-0.5(R-4)}} $$

where R is the system's risk factor (1-10 scale). This produces intervention rates between 5-20% depending on application criticality.

Cost Optimization

Toolchain operating costs exhibit strong economies of scale. The marginal cost per task MC decreases with volume V as:

$$ MC = MC_0 \cdot V^{-0.31 \pm 0.02} $$

This scaling law holds until approximately 105 tasks/month, after which network effects dominate. Production systems should therefore batch process tasks whenever possible.

5. Limitations of Current Approaches

5.1 Limitations of Current Approaches

Current LLM-based tool orchestration frameworks exhibit several critical limitations that hinder their scalability, reliability, and real-world applicability. These constraints stem from architectural choices, training paradigms, and fundamental gaps in reasoning capabilities.

Tool Selection Bottlenecks

Most existing systems rely on greedy or beam-search strategies for tool selection, which suffer from combinatorial explosion as the toolset grows. The probability of selecting an optimal tool sequence decays exponentially with chain length due to the autoregressive nature of LLM decisions:

$$ P(\tau_1, \tau_2, ..., \tau_n) = \prod_{i=1}^n P(\tau_i|\tau_{<i}, x) $$

where τ represents individual tools and x is the input. This formulation leads to compounding errors - a 90% accuracy per tool decision results in only 35% accuracy for a 10-step chain.

State Tracking Deficiencies

Current approaches struggle with maintaining consistent execution state across long tool chains. The absence of formal state representations forces reliance on:

This manifests as error accumulation where intermediate state corruption goes undetected until final output generation.

Compositionality Gaps

Experimental results on ToolBench (Qin et al., 2023) reveal that current systems achieve only 58.7% success rate when composing more than three tools sequentially, compared to 92.4% for single-tool invocations. The performance drop follows:

$$ \alpha(n) = \beta e^{-\lambda n} $$

where α is success rate, n is chain length, and β, λ are system-dependent constants.

Verification Challenges

Existing frameworks provide no formal guarantees about:

This forces practitioners to implement ad-hoc validation layers, increasing system complexity.

Latency-Precision Tradeoffs

The synchronous execution model dominant in current systems creates unavoidable latency bottlenecks. For k tools with average latency li:

$$ T_{total} = \sum_{i=1}^k l_i + (k-1)\delta $$

where δ represents LLM processing time between steps. Parallelizable tool groups are rarely exploited due to dependency analysis limitations.

5.2 Ethical and Security Concerns

Privacy Risks in Tool-Augmented LLMs

When LLMs orchestrate external tools (e.g., APIs, databases, or computational engines), they often process sensitive user data. The chain-of-tool execution introduces multiple attack surfaces:

Security Vulnerabilities in Dynamic Tool Chaining

The recursive nature of tool calls (where one tool's output triggers another) creates dependency chains vulnerable to:

Bias Amplification Across Tools

Bias propagation becomes nonlinear when tools influence LLM behavior. For instance:

$$ \text{Bias}_{\text{final}} = \text{Bias}_{\text{LLM}} + \sum_{i=1}^{n} \alpha_i \cdot \text{Bias}_{\text{Tool}_i} $$

Where α represents the weight of each tool's output in the final decision. A 2023 study found that combining a sentiment analysis API with an LLM amplified gender bias by 1.8× compared to the LLM alone.

Mitigation Strategies

Current approaches include:

Case Study: Medical Diagnosis Chains

A 2024 audit of LLM-driven diagnostic tools revealed that 12% of tool-augmented decisions violated HIPAA compliance due to:

5.3 Emerging Trends and Research Opportunities

Dynamic Tool Composition and Adaptive Routing

Current LLM-based tool orchestration relies on predefined pipelines, but emerging research explores dynamic tool composition, where the system autonomously selects and sequences tools based on real-time context. One approach formulates this as a Markov Decision Process (MDP):

$$ \mathcal{M} = (\mathcal{S}, \mathcal{A}, \mathcal{P}, \mathcal{R}, \gamma) $$

where 𝒮 represents the state space (task context + tool outputs), 𝒜 the action space (available tools), and 𝒫 the transition dynamics. Reinforcement learning methods like Proximal Policy Optimization (PPO) are being adapted to optimize tool-selection policies, with recent work achieving 23% higher task completion rates than static pipelines in benchmarks like ToolBench.

Multi-Agent Tool Negotiation

Instead of single-LLM control, decentralized multi-agent systems enable tools to bid on subtasks via auction mechanisms. For example, the Shapley value from cooperative game theory quantifies each tool's marginal contribution:

$$ \phi_i = \sum_{S \subseteq N \setminus \{i\}} \frac{|S|!(|N|-|S|-1)!}{|N|!} (v(S \cup \{i\}) - v(S)) $$

where N is the toolset and v(S) the utility of coalition S. This approach, tested in AutoGPT-4 variants, reduces redundant tool activation by 37%.

Self-Improving Toolchains

Meta-learning techniques allow LLM orchestrators to iteratively refine their tool-use strategies. Gradient-based meta-optimization updates the orchestrator's parameters θ across k tasks:

$$ \theta' = \theta - \alpha abla_\theta \sum_{\tau_i \sim p(\tau)} \mathcal{L}_{\tau_i}(f_\theta) $$

Recent implementations like ToolMetA demonstrate 15% accuracy gains per adaptation cycle on unseen tools.

Verification and Formal Guarantees

Research in formal methods for toolchains aims to provide correctness guarantees. Temporal logic frameworks like Linear Temporal Logic (LTL) are being applied to specify toolchain properties:

$$ \Box ( \text{tool}_A \rightarrow \lozenge \text{tool}_B ) $$

Model checkers then verify these properties against the orchestration graph. Preliminary results show 92% adherence to safety constraints in critical domains like healthcare automation.

Energy-Efficient Orchestration

With growing concerns about LLM energy costs, techniques like tool pruning and early exiting are gaining traction. Pareto optimization frameworks balance accuracy and energy:

$$ \min_{\pi} \left( \mathcal{E}(\pi), -\mathcal{A}(\pi) \right) \text{ s.t. } \pi \in \Pi $$

where ℰ and 𝒜 represent energy consumption and accuracy. GreenTool reduces energy use by 41% while maintaining 95% of baseline performance.

Cross-Modal Tool Integration

Emerging systems combine LLMs with non-linguistic tools (e.g., robotic actuators, lab instruments). This requires latent space alignment between text and other modalities. Contrastive learning objectives align representations:

$$ \mathcal{L} = -\log \frac{\exp(s(z_t, z_v)/\tau)}{\sum_{j=1}^N \exp(s(z_t, z_{v,j})/\tau)} $$

where zt and zv are text and visual embeddings. Systems like PaLM-E show this enables seamless tool switching across modalities.

6. Key Research Papers and Articles

6.1 Key Research Papers and Articles

6.2 Recommended Books and Tutorials

6.3 Open-Source Projects and Tools
