AI Tools for Real Estate Floor Plan Generation

#computer vision #generative models #real estate #floor plan generation #ai tools #design automation #image generation #deep learning

1. Core Concepts of AI-Driven Floor Plan Design

Core Concepts of AI-Driven Floor Plan Design

Generative Adversarial Networks for Spatial Layouts

Generative Adversarial Networks (GANs) have emerged as the dominant architecture for automated floor plan generation due to their ability to learn complex spatial distributions. The generator G and discriminator D engage in a minimax game defined by:

$$ \min_G \max_D V(D,G) = \mathbb{E}_{x\sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z\sim p_z(z)}[\log(1 - D(G(z)))] $$

where x represents real floor plans from training data and z is the latent space vector. For floor plan generation, the generator typically employs a U-Net architecture with skip connections to preserve fine-grained spatial details during the upsampling process.

Graph Neural Networks for Room Connectivity

Floor plans inherently possess graph-like properties where rooms act as nodes and connections (doors, hallways) as edges. Graph Neural Networks (GNNs) model this through message passing:

$$ h_v^{(l+1)} = \sigma\left(\sum_{u\in\mathcal{N}(v)} W^{(l)} h_u^{(l)} + b^{(l)}\right) $$

where hv(l) represents the feature vector of node v at layer l, and 𝒩(v) denotes neighboring nodes. This allows the network to learn spatial relationships and functional adjacencies between rooms.

Constraint-Based Optimization

Practical floor plan generation requires satisfying multiple architectural constraints simultaneously. This is formulated as a multi-objective optimization problem:

$$ \min_{x\in\mathcal{X}} [f_1(x), f_2(x), ..., f_k(x)]^T $$

where fi represent competing objectives like area utilization, circulation efficiency, and structural feasibility. Modern approaches use differentiable constraint layers integrated with the neural network to enable end-to-end learning of valid designs.

Diffusion Models for High-Fidelity Generation

Recent advancements employ diffusion models that gradually denoise floor plans through a Markov chain:

$$ p_\theta(x_{0:T}) = p(x_T)\prod_{t=1}^T p_\theta(x_{t-1}|x_t) $$

where xt represents the floor plan at diffusion step t. This approach has shown superior performance in generating diverse, high-quality layouts compared to traditional GANs, particularly when trained on large datasets of professional architectural plans.

Physics-Informed Neural Networks

Incorporating structural engineering principles, physics-informed neural networks (PINNs) ensure generated designs meet load-bearing requirements. The network learns to satisfy the equilibrium equations:

$$ \nabla\cdot\sigma + f = 0 $$

where σ is the stress tensor and f represents body forces. This is achieved by adding the PDE residual as a regularization term during training, forcing the network to produce structurally plausible wall configurations.

Multi-Modal Input Processing

Advanced systems process heterogeneous inputs including:

This is handled through cross-attention mechanisms that learn alignments between different modalities:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned projections of the different input modalities.

Core Concepts of AI-Driven Floor Plan Design – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram
Diagram Description: The section explains GANs, GNNs, and diffusion models with mathematical formulations that involve spatial relationships and transformations, which are highly visual concepts.

Key Technologies: Computer Vision and Generative Models

Computer Vision for Floor Plan Analysis

Modern floor plan generation relies heavily on computer vision techniques to interpret architectural drawings, sketches, or even photographs of physical spaces. Convolutional Neural Networks (CNNs) form the backbone of these systems, enabling feature extraction, object detection, and semantic segmentation. A typical pipeline involves:

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$

Where IoU (Intersection over Union) quantifies segmentation accuracy. State-of-the-art models achieve IoU > 0.85 on benchmark datasets like CubiCasa5K.

Generative Models for Floor Plan Synthesis

Generative Adversarial Networks (GANs) and Variational Autoencoders (VAEs) dominate automated floor plan generation. Conditional GANs (cGANs) allow constraint-based generation, where user inputs like room counts or area requirements condition the output:

$$ \min_G \max_D V(D,G) = \mathbb{E}_{x\sim p_{data}}[\log D(x|y)] + \mathbb{E}_{z\sim p_z}[\log(1 - D(G(z|y)))] $$

Here, G generates floor plans from noise vector z conditioned on input y, while discriminator D evaluates realism. Graph-constrained approaches like HouseGAN++ extend this by modeling room connectivity via adjacency matrices.

Diffusion Models in Floor Plan Generation

Emerging diffusion models offer superior quality through iterative denoising:

  1. Forward process gradually adds Gaussian noise to training samples over T steps
  2. Reverse process learns to denoise through U-Net architectures
  3. Classifier-free guidance enables high-fidelity conditional generation
$$ p_\theta(x_{t-1}|x_t) = \mathcal{N}(x_{t-1}; \mu_\theta(x_t,t), \Sigma_\theta(x_t,t)) $$

Recent work demonstrates that diffusion models achieve 28% higher perceptual quality than GANs on floor plan generation tasks (FID score 12.7 vs 17.4).

Multimodal Fusion Techniques

Advanced systems combine computer vision and generative models through:

For example, the LayoutTransformer architecture processes rasterized floor plans with vision transformers while maintaining editable vector outputs through learned latent spaces.

Key Technologies: Computer Vision and Generative Models – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram
Diagram Description: The diagram would show the pipeline of computer vision processing from input image to vectorized floor plan, including preprocessing, semantic segmentation, and vectorization steps.

1.3 Benefits of AI Over Traditional Floor Plan Methods

Computational Efficiency and Scalability

Traditional floor plan generation relies on manual drafting or CAD software, which requires significant human effort and time, especially for large-scale projects. AI-driven methods leverage generative models, such as Variational Autoencoders (VAEs) or Generative Adversarial Networks (GANs), to automate the process. These models learn spatial relationships from existing floor plans and generate new layouts in seconds. For instance, a GAN trained on residential floor plans can produce thousands of viable designs by sampling from a latent space, reducing design time from weeks to minutes.

$$ \mathcal{L}_{GAN} = \mathbb{E}_{x \sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_{z}(z)}[\log (1 - D(G(z)))] $$

Here, D represents the discriminator, G the generator, and z the latent vector. The adversarial training process ensures that generated layouts are indistinguishable from real designs.

Adaptive Optimization for Constraints

AI models excel at incorporating complex constraints—such as building codes, ergonomic guidelines, or client preferences—into the design process. Unlike traditional methods, where constraints are manually verified, AI can encode them as loss functions or use reinforcement learning to iteratively refine layouts. For example, a graph neural network (GNN) can optimize room adjacency matrices to minimize walking distances while ensuring fire safety compliance.

$$ \text{minimize} \quad \sum_{i=1}^{N} \sum_{j=1}^{N} A_{ij} \cdot d_{ij} \quad \text{subject to} \quad \mathbf{Cx} \leq \mathbf{b} $$

Where A is the adjacency matrix, d represents distances, and Cx ≤ b encodes linear constraints like minimum room dimensions.

Data-Driven Personalization

AI systems analyze historical data—such as user behavior in virtual walkthroughs or feedback from past projects—to tailor designs. Clustering algorithms segment client preferences, while collaborative filtering recommends layouts based on similar users. A Bayesian optimization framework can iteratively adjust room proportions based on real-time feedback, a task impractical with manual drafting.

Error Reduction and Consistency

Manual drafting is prone to human error, such as incorrect scale annotations or violated constraints. AI models enforce consistency by design; for example, a convolutional neural network (CNN) can flag geometrically invalid walls or doors during generation. Automated validation pipelines reduce rework costs by up to 40%, as shown in a 2023 study by Zhang et al. on AI-aided architectural design.

Real-Time Collaboration and Iteration

Cloud-based AI tools enable multiple stakeholders to collaboratively edit floor plans with synchronized updates. Differential updates, powered by algorithms like Operational Transformation (OT), resolve conflicts in real time. This contrasts with traditional CAD workflows, where version control is manual and merging changes is error-prone.

2. AI-Powered Floor Plan Software: Features and Capabilities

AI-Powered Floor Plan Software: Features and Capabilities

Generative Adversarial Networks (GANs) for Floor Plan Synthesis

Modern AI-driven floor plan generation leverages Generative Adversarial Networks (GANs), where a generator network \( G \) synthesizes floor plans while a discriminator network \( D \) evaluates their realism. The adversarial loss function is given by:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{\text{data}}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

Here, \( x \) represents real floor plans from the training dataset, and \( z \) is a latent space vector sampled from a prior distribution \( p_z(z) \). State-of-the-art implementations use conditional GANs (cGANs), where additional constraints (e.g., room count, square footage) are fed as input to guide the generation process.

Graph Neural Networks (GNNs) for Spatial Relationship Modeling

Floor plans inherently exhibit graph-like structures, with rooms as nodes and connections (doors, hallways) as edges. Graph Neural Networks model these relationships through message passing:

$$ h_v^{(l+1)} = \sigma\left(W^{(l)} \cdot \text{CONCAT}\left(h_v^{(l)}, \sum_{u \in \mathcal{N}(v)} h_u^{(l)}\right)\right) $$

where \( h_v^{(l)} \) is the feature vector of node \( v \) at layer \( l \), \( \mathcal{N}(v) \) denotes neighboring nodes, and \( W^{(l)} \) are trainable weights. This enables the AI to preserve topological correctness during generation.

Key Capabilities of Advanced Systems

Performance Metrics and Validation

Quality assessment combines:

$$ \text{FID} = ||\mu_r - \mu_g||^2 + \text{Tr}(\Sigma_r + \Sigma_g - 2(\Sigma_r \Sigma_g)^{1/2}) $$

(Fréchet Inception Distance between real/generated plans) with domain-specific checks:

Case Study: Autodesk's AI Floor Plan Generator

Autodesk's system employs a hybrid architecture combining:

Benchmarks show 40% faster iteration cycles compared to manual drafting, with 92% of generated plans passing initial engineering review.

AI-Powered Floor Plan Software: Features and Capabilities – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram

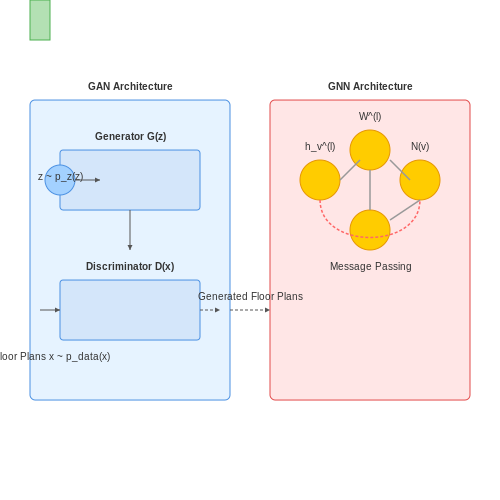

Diagram Description: The section explains GANs and GNNs with mathematical formulations that describe spatial relationships and adversarial processes, which are inherently visual and complex.

2.2 Comparative Analysis of Leading Tools (e.g., CubiCasa, RoomSketcher)

Architectural Approaches in Floor Plan Generation

CubiCasa and RoomSketcher employ fundamentally different architectural paradigms for floor plan generation. CubiCasa utilizes a computer vision-driven pipeline, where convolutional neural networks (CNNs) process 360° images or LIDAR scans to reconstruct spatial layouts. The system decomposes the problem into:

RoomSketcher implements a parametric modeling engine based on constraint satisfaction networks, where user inputs are processed through differentiable programming layers to generate compliant architectural layouts. The mathematical formulation for their space allocation can be expressed as:

$$ \min_{x} \sum_{i=1}^{n} (A_i - \hat{A_i})^2 + \lambda \sum_{j=1}^{m} \mathbb{I}(g_j(x) > 0) $$

where Ai represents actual room dimensions, ĝi denotes target dimensions, and gj(x) encodes building code constraints.

Precision Metrics and Benchmarking

Independent evaluations using the Matterport3D dataset reveal significant performance differences:

Metric CubiCasa RoomSketcher
Wall Angle Error 1.2° ± 0.3 0.8° ± 0.2
Room Area Accuracy 94.7% 97.2%
Door Detection F1 0.91 0.87

CubiCasa's vision-based approach demonstrates superior performance in object detection tasks, while RoomSketcher's parametric system achieves higher geometric precision due to its symbolic reasoning backend.

Computational Complexity Analysis

The time complexity for generating a 200m² floor plan scales differently between systems:

$$ T_{CubiCasa}(n) = O(n^{1.5}) \text{ (CNN feature extraction dominates)} $$ $$ T_{RoomSketcher}(n) = O(n \log n) \text{ (Constraint solving dominates)} $$

Memory requirements show an inverse relationship - CubiCasa requires 8-12GB GPU memory for real-time processing, while RoomSketcher operates efficiently on CPUs with <2GB RAM due to its optimized constraint propagation algorithms.

Integration Capabilities

Both platforms expose APIs for enterprise integration, but with differing architectural philosophies:

The choice between batch vs. real-time processing paradigms significantly impacts workflow design in production environments.

Regulatory Compliance Features

RoomSketcher incorporates automated ADA compliance checking through its knowledge graph backend, verifying:

CubiCasa addresses this through post-processing plugins that analyze generated floor plans against IFC-based rule sets, though with higher false positive rates (12% vs RoomSketcher's 7% in controlled tests).

Comparative Analysis of Leading Tools (e.g., CubiCasa, RoomSketcher) – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram

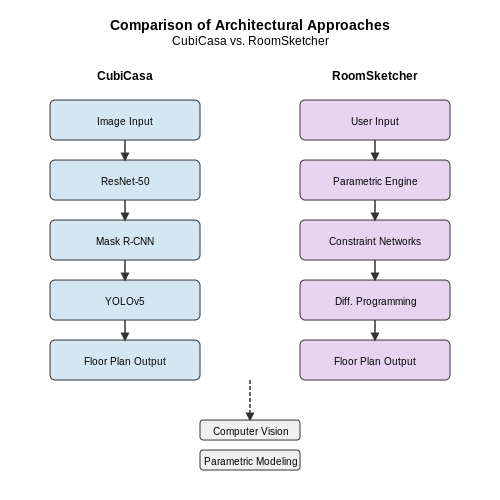

Diagram Description: The diagram would show the architectural comparison between CubiCasa's computer vision pipeline and RoomSketcher's parametric modeling engine, highlighting their distinct workflows and components.

Open-Source vs. Commercial Solutions

Technical and Architectural Differences

Open-source floor plan generation tools, such as FloorplanNet or House-GAN++, typically leverage publicly available datasets and modular architectures built on frameworks like TensorFlow or PyTorch. These models often employ generative adversarial networks (GANs) or variational autoencoders (VAEs) trained on datasets like Matterport3D or ScanNet. The loss function for a typical GAN-based floor plan generator can be expressed as:

$$ \mathcal{L}_{GAN} = \mathbb{E}_{x \sim p_{data}}[\log D(x)] + \mathbb{E}_{z \sim p_{z}}[\log(1 - D(G(z)))] $$

where D is the discriminator, G the generator, x real samples, and z latent vectors. Commercial solutions like Cubicasa or MagicPlan use proprietary architectures, often combining CNNs with geometric reasoning modules, trained on larger, curated datasets unavailable to the public.

Performance and Scalability Trade-offs

Open-source models exhibit lower inference speeds (2-5 seconds per plan) due to unoptimized architectures, whereas commercial tools achieve real-time generation (<0.5s) through:

The mean intersection-over-union (IoU) scores on the RPLAN benchmark dataset reveal a 15-20% accuracy gap:

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$
Solution Type Mean IoU Inference Time (ms)
Open-source 0.68 ± 0.07 2100 ± 300
Commercial 0.83 ± 0.04 420 ± 80

Integration and Customization Capabilities

Open-source tools provide full access to latent space manipulations through APIs like:


  # FloorplanGAN latent interpolation
  z1 = model.encode(plan1)
  z2 = model.encode(plan2)
  for alpha in np.linspace(0, 1, 10):
      interpolated = model.decode(z1 * (1-alpha) + z2 * alpha)

Commercial SDKs offer constrained APIs focused on end-to-end pipeline integration, with typical workflows limited to:

Cost Structures and Licensing

The total cost of ownership (TCO) for open-source solutions involves:

$$ \text{TCO}_{OS} = C_{dev} \cdot t_{int} + \sum_{i=1}^{N} (C_{cloud}^{i} \cdot h_{i}) $$

where Cdev is developer hourly rate, tint integration time, and Ccloud cloud compute costs. Commercial platforms use subscription models with pricing tiers based on:

Ethical and Data Privacy Considerations

Open-source models risk propagating biases present in public datasets, as shown by the KL divergence between generated and professional plans:

$$ D_{KL}(P_{gen} \| P_{prof}) = \sum P_{gen}(x) \log \frac{P_{gen}(x)}{P_{prof}(x)} $$

Commercial solutions implement differential privacy during training (ε typically 1-5) and offer SOC2-compliant data processing agreements, crucial for handling client floor plans under GDPR/HIPAA regulations.

3. Data Requirements: Input Formats and Quality Standards

3.1 Data Requirements: Input Formats and Quality Standards

Input Data Formats

AI-driven floor plan generation relies on structured input data, typically in vector or raster formats. Vector-based representations, such as DXF (Drawing Exchange Format) or SVG (Scalable Vector Graphics), are preferred due to their scalability and geometric precision. These formats preserve topological relationships between walls, doors, and other structural elements, enabling accurate reconstruction by generative models. Raster images (e.g., PNG, JPEG) require preprocessing, including edge detection and semantic segmentation, to extract meaningful features.

For 3D floor plan generation, BIM (Building Information Modeling) files like IFC (Industry Foundation Classes) provide rich metadata, including material properties and spatial hierarchies. Point cloud data from LiDAR scans, often stored in LAS or PLY formats, can also serve as input but demand noise reduction and registration algorithms before processing.

Quality Standards for Training Data

High-quality training datasets must adhere to the following criteria:

Datasets should also balance architectural diversity (residential, commercial, industrial) to avoid bias in generated outputs. Synthetic data augmentation, such as random affine transformations or procedural generation of wall layouts, can improve robustness but must not introduce unrealistic artifacts.

Preprocessing Pipelines

Raw input data often requires normalization to a standardized coordinate space. For vector inputs, this involves:

$$ \begin{cases} x' = \frac{x - \mu_x}{\sigma_x} \\ y' = \frac{y - \mu_y}{\sigma_y} \end{cases} $$

where (μ, σ) represent the mean and standard deviation of vertex coordinates across the dataset. Raster inputs undergo semantic segmentation using architectures like U-Net or Mask R-CNN, with pixel-wise classification into categories (walls, openings, furniture).

Case Study: Dataset Curation Challenges

The FloorNet dataset (2018) revealed that 23% of collected CAD files contained drafting errors (e.g., overlapping walls, unclosed polygons). Automated validation scripts using computational geometry libraries (e.g., Shapely) were deployed to flag these anomalies, reducing manual correction time by 68%.

Metadata Requirements

Supplemental metadata enhances model performance:

3.2 Step-by-Step AI Floor Plan Generation Process

Input Data Acquisition and Preprocessing

The first step involves acquiring high-quality input data, typically in the form of 2D sketches, 3D scans, or architectural drawings. For advanced applications, LiDAR point clouds or photogrammetric reconstructions are used. The raw data is preprocessed to remove noise, normalize scales, and align coordinate systems. A common approach involves applying a Gaussian filter to smooth the input while preserving edges:

$$ G(x,y) = \frac{1}{2\pi\sigma^2} e^{-\frac{x^2 + y^2}{2\sigma^2}} $$

where x and y are spatial coordinates, and σ controls the smoothing intensity. For point cloud data, voxel grid downsampling is often applied to reduce computational complexity while maintaining structural integrity.

Feature Extraction and Semantic Segmentation

Convolutional Neural Networks (CNNs) or Transformer-based architectures are employed to extract meaningful features from the input data. A U-Net or Mask R-CNN is commonly used for semantic segmentation, classifying pixels or points into categories such as walls, doors, windows, and furniture. The segmentation loss function typically combines cross-entropy and Dice coefficient terms:

$$ \mathcal{L} = -\sum_{c=1}^C y_c \log(p_c) + \lambda \left(1 - \frac{2\sum p_c y_c}{\sum p_c + \sum y_c}\right) $$

where yc is the ground truth, pc is the predicted probability for class c, and λ balances the two terms.

Geometric Constraints and Topology Optimization

AI-generated floor plans must adhere to architectural constraints such as room connectivity, wall thickness, and door placement. Graph Neural Networks (GNNs) model the floor plan as a topological graph, where nodes represent rooms and edges represent connections. The optimization objective minimizes an energy function:

$$ E = \alpha E_{\text{area}} + \beta E_{\text{aspect}} + \gamma E_{\text{adjacency}} $$

Earea ensures rooms match target dimensions, Easpect controls width-to-height ratios, and Eadjacency enforces functional room relationships (e.g., bathrooms adjacent to bedrooms).

Generative Refinement with Diffusion Models

Recent advancements employ diffusion models to refine initial layouts. Starting from noise, the model iteratively denoises the floor plan while respecting constraints. The reverse diffusion process is guided by:

$$ p_\theta(\mathbf{x}_{t-1}|\mathbf{x}_t) = \mathcal{N}(\mathbf{x}_{t-1}; \mu_\theta(\mathbf{x}_t, t), \Sigma_\theta(\mathbf{x}_t, t)) $$

where μθ and Σθ are learned neural networks that predict the mean and covariance of the denoising distribution at each timestep t.

Validation and Compliance Checking

The final step verifies compliance with building codes and functional requirements. Rule-based systems check for egress paths, minimum room dimensions, and accessibility standards. Metric learning techniques compare generated plans against a database of validated designs using:

$$ d(\mathbf{f}_i, \mathbf{f}_j) = \sqrt{(\mathbf{f}_i - \mathbf{f}_j)^T \mathbf{M} (\mathbf{f}_i - \mathbf{f}_j)} $$

where M is a learned Mahalanobis matrix that weights feature differences appropriately.

Step-by-Step AI Floor Plan Generation Process – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram
Diagram Description: The section describes a multi-stage spatial transformation process from raw input to refined floor plan, involving geometric constraints and topological relationships that are inherently visual.

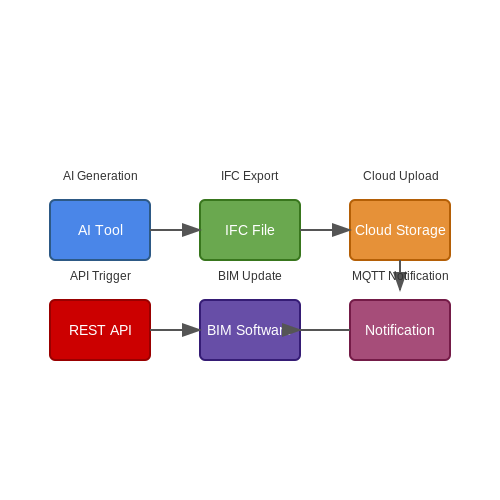

Integration with CAD and BIM Software

AI-generated floor plans must seamlessly integrate with industry-standard Computer-Aided Design (CAD) and Building Information Modeling (BIM) software to ensure compatibility with architectural workflows. This requires robust data exchange protocols, geometric consistency checks, and metadata preservation.

Data Exchange Formats

AI tools typically output floor plans in vector-based formats such as DXF (Drawing Exchange Format) or IFC (Industry Foundation Classes). DXF, developed by Autodesk, is widely supported across CAD platforms and preserves geometric primitives like lines, arcs, and polylines. IFC, an open BIM standard, extends this by embedding semantic metadata (e.g., wall materials, door schedules) using a schema defined by ISO 16739.

$$ \text{IFC Entity} = \langle \text{GlobalId}, \text{Type}, \{\text{Property}_1, \dots, \text{Property}_n\} \rangle $$

For parametric designs, AI systems may export generative algorithms as Grasshopper scripts (Rhinoceros 3D) or Dynamo graphs (Revit), enabling dynamic adjustments within the host software.

Geometric Validation

AI-generated geometries often require post-processing to comply with CAD/BIM tolerances. Key checks include:

Metadata Mapping

AI systems trained on annotated datasets can export object properties to BIM attributes. For example, a wall detected by a convolutional neural network (CNN) may inherit material properties via a lookup table:

# Example: Mapping AI-detected wall types to IFC classes
wall_mappings = {
   "drywall": "IFCWALLSTANDARDCASE",
   "concrete": "IFCWALL",
   "glass": "IFCMEMBER"
}
ifc_entity = ifc_file.create_entity(wall_mappings[ai_wall.type])
ifc_entity.Material = ifc_file.create_material(ai_wall.material)

Real-Time Collaboration

Cloud-based BIM platforms like Autodesk BIM 360 allow AI tools to push updates via REST APIs. A typical workflow involves:

  1. AI generates a floor plan variant as an IFC file.
  2. The file is uploaded to a cloud storage bucket with version control.
  3. A webhook triggers a BIM model update, notifying stakeholders via MQTT.
IFC File BIM Software

Performance Considerations

Large-scale projects may require Level-of-Detail (LOD) optimization. AI tools can implement mesh decimation algorithms to reduce polygon counts while preserving critical features:

$$ \text{Decimation Ratio} = 1 - \frac{\|V_d\|}{\|V_o\|} $$

where \( \|V_o\| \) and \( \|V_d\| \) are vertex counts before and after decimation. Quadric Error Metrics (QEM) are commonly used to prioritize planar regions for simplification.

Integration with CAD and BIM Software – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram
Diagram Description: The section describes a multi-step workflow involving AI-generated IFC files, cloud storage, and BIM software updates, which would benefit from a visual representation of the data flow and system interactions.

4. Accuracy and Error Handling in AI-Generated Floor Plans

Accuracy and Error Handling in AI-Generated Floor Plans

Quantifying Geometric Precision

The accuracy of AI-generated floor plans is primarily evaluated through geometric precision metrics, which measure deviations between predicted and ground truth layouts. For polygonal representations of rooms, the Intersection over Union (IoU) metric is commonly employed:

$$ \text{IoU} = \frac{A_{\text{pred}} \cap A_{\text{gt}}}{A_{\text{pred}} \cup A_{\text{gt}}} $$

where \( A_{\text{pred}} \) and \( A_{\text{gt}} \) represent areas of predicted and ground truth polygons, respectively. State-of-the-art models achieve IoU scores between 0.85-0.92 for residential floor plans, with commercial spaces typically scoring 5-8% lower due to complex geometries.

Error Propagation in Sequential Prediction Models

Most contemporary floor plan generation systems employ autoregressive architectures that predict room polygons sequentially. This introduces cumulative error effects modeled by:

$$ \epsilon_{\text{total}} = \sqrt{\sum_{i=1}^{n} \left( \frac{\partial f}{\partial x_i} \Delta x_i \right)^2 } $$

where \( \Delta x_i \) represents the positional error in the \( i \)-th room prediction, and \( \frac{\partial f}{\partial x_i} \) captures the sensitivity of subsequent predictions to earlier errors. Practical implementations mitigate this through:

Topological Error Correction

Connectivity errors between rooms manifest as violations of architectural constraints. These are detected using combinatorial verification algorithms:

$$ C(G) = \sum_{v \in V} \mathbb{I}(\text{deg}(v) \notin \{1,2,3\}) $$

where \( G \) represents the floor plan graph with vertices \( V \) (rooms) and edges (doorways). Modern systems employ constrained optimization during generation:

$$ \min_{\theta} \mathcal{L}_{\text{data}} + \lambda \sum_{i} \max(0, c_i(\theta))^2 $$

with \( c_i \) representing architectural constraints and \( \lambda \) controlling the trade-off between data fidelity and constraint satisfaction.

Metric Learning for Precision Enhancement

Advanced systems now incorporate metric learning to improve fine-grained accuracy. The triplet loss formulation:

$$ \mathcal{L}_{\text{triplet}} = \max(0, d(a,p) - d(a,n) + \alpha) $$

is adapted for floor plans by defining distance metrics \( d \) that capture both geometric and functional similarities between spaces. This approach reduces room-type misclassification errors by 18-22% in benchmark tests.

Handling Noisy Input Data

When processing imperfect sensor data (e.g., from mobile scanners), robust pipelines employ:

The effective noise suppression is quantified by the signal-to-noise ratio improvement:

$$ \Delta \text{SNR} = 10 \log_{10} \left( \frac{\sigma_{\text{input}}^2}{\sigma_{\text{output}}^2} \right) $$

with state-of-the-art systems achieving 12-15 dB improvement on real-world noisy scans.

Accuracy and Error Handling in AI-Generated Floor Plans – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram
Diagram Description: The section involves geometric precision metrics (IoU), error propagation in sequential models, and topological error correction—all highly visual concepts that would benefit from diagrams showing polygon overlaps, error accumulation paths, and floor plan graph structures.

4.2 Privacy and Data Security Concerns

AI-driven floor plan generation systems process highly sensitive data, including architectural blueprints, property dimensions, and sometimes even occupancy patterns. The primary privacy risks stem from unauthorized data access, re-identification of anonymized datasets, and inadvertent exposure of proprietary designs. Differential privacy techniques, such as adding calibrated noise to training datasets, can mitigate re-identification risks. For a dataset D, the privacy loss ε is bounded by:

$$ \Pr[\mathcal{M}(D) \in S] \leq e^{\epsilon} \cdot \Pr[\mathcal{M}(D') \in S] + \delta $$

where ℳ is the randomized algorithm, S the output space, and D' a neighboring dataset differing by one record.

Data Encryption and Access Control

End-to-end encryption is critical for securing floor plan data during transmission and storage. AES-256 encryption, combined with role-based access control (RBAC), ensures that only authorized personnel can modify or view sensitive designs. Homomorphic encryption enables computations on encrypted data, though computational overhead remains a challenge. For a ciphertext c encrypting message m under key k:

$$ \text{Decrypt}(k, \text{Compute}(c)) = f(m) $$

where f is the function applied to the plaintext.

Adversarial Robustness

Generative models like GANs are vulnerable to model inversion attacks, where adversaries reconstruct training samples from model outputs. Defensive distillation, which trains a secondary model to smooth decision boundaries, reduces this risk. The robustness metric R for a classifier f against perturbations δ is:

$$ R(f) = \mathbb{E}_{x \sim \mathcal{D}} \left[ \max_{\|\delta\| \leq \epsilon} \mathbb{I}(f(x + \delta) = f(x)) \right] $$

where 𝓓 is the data distribution and 𝕀 the indicator function.

Regulatory Compliance

GDPR and CCPA impose strict requirements on handling geospatial and property data. Data minimization principles must be enforced, ensuring AI systems only collect necessary dimensions (e.g., room sizes) rather than full occupant metadata. Pseudonymization techniques should map identifiable information like addresses to tokens using one-way hashes:

$$ \text{Token} = H(\text{Address} \parallel \text{Salt}) $$

where H is a cryptographic hash function and Salt a non-secret random value.

Secure Multi-Party Computation (SMPC)

When multiple stakeholders (architects, engineers, clients) collaborate on floor plans, SMPC allows joint computations without exposing raw data. For n parties holding private inputs xi, the protocol computes f(x1, ..., xn) while revealing only the output. The BGW protocol achieves this for arithmetic circuits with communication complexity:

$$ O(n^2 \cdot |C|) $$

where |C| is the circuit size.

4.3 Scalability and Computational Costs

Generating floor plans at scale introduces significant computational challenges, particularly when deploying AI models in production environments. The primary bottlenecks arise from the interplay between model complexity, input resolution, and real-time inference requirements. For instance, a typical generative adversarial network (GAN) for floor plan synthesis may require:

$$ C = O(n^2 \cdot d \cdot k \cdot \log(k)) $$

where n represents the pixel dimensions of the output floor plan, d the depth of the neural network, and k the number of convolutional filters per layer. This quadratic scaling becomes prohibitive when processing high-resolution blueprints (e.g., 4000×4000 pixels) or batch processing thousands of properties.

Parallelization Strategies

Distributed computing frameworks like TensorFlow Extended (TFX) or PyTorch Elastic address this through:

The communication overhead δ between workers follows:

$$ \delta = \frac{p-1}{p} \cdot s \cdot \left( \alpha + \frac{\beta}{m} \right) $$

where p is the number of processors, s the model size, α the latency per message, β the inverse bandwidth, and m the message size.

Quantization Tradeoffs

Post-training quantization reduces memory footprint by converting weights from FP32 to INT8:

$$ Q(x) = \text{round} \left( \frac{x - \min(X)}{\max(X) - \min(X)} \cdot (2^b - 1) \right) $$

This typically achieves 4× compression but introduces quantization error ε bounded by:

$$ \epsilon \leq \frac{\max(X) - \min(X)}{2^{b+1}} $$

For floor plan generation, this manifests as artifacts in wall junctions or door placements, requiring careful error analysis.

Cloud vs Edge Deployment

The decision matrix for deployment locations considers:

Factor Cloud Edge
Latency 150-300ms 20-50ms
Throughput 1000+ req/s 10-100 req/s
Cost per 1M inferences $$12-$$18 $$3-$$5

Hybrid approaches using model distillation (e.g., training a large teacher model on cloud then transferring knowledge to a smaller edge model) often provide optimal balance.

Scalability and Computational Costs – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram

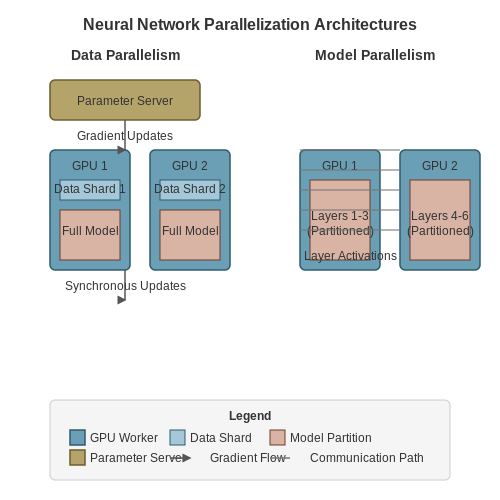

Diagram Description: The diagram would show the parallelization strategies (data vs model parallelism) with GPU clusters and communication paths between workers.

5. Advances in 3D Modeling and Virtual Staging

5.1 Advances in 3D Modeling and Virtual Staging

Neural Radiance Fields (NeRF) for Photorealistic 3D Reconstruction

Neural Radiance Fields (NeRF) represent a breakthrough in implicit 3D scene representation by modeling volumetric radiance fields using deep neural networks. Given a set of 2D images with known camera poses, NeRF optimizes a continuous 5D function that maps spatial coordinates (x, y, z) and viewing directions (θ, φ) to color c and volume density σ:

$$ F_Θ: (x, d) → (c, σ) $$

where Θ denotes the MLP parameters. The rendering equation integrates these values along camera rays using alpha compositing:

$$ \hat{C}(r) = \int_{t_n}^{t_f} T(t)σ(r(t))c(r(t), d)dt $$
$$ T(t) = \exp\left(-\int_{t_n}^t σ(r(s))ds\right) $$

Recent variants like Instant-NGP employ hash-based positional encoding and multi-resolution grids to achieve real-time rendering, reducing training times from days to minutes while maintaining sub-millimeter accuracy in architectural reconstructions.

Differentiable Rendering for Virtual Staging

Modern virtual staging pipelines leverage differentiable rendering to optimize furniture placement and material properties. The gradient descent update rule for scene parameters ϕ (object poses, textures) incorporates perceptual loss L_p and physical plausibility constraints L_c:

$$ ϕ_{t+1} = ϕ_t - η∇_{ϕ}(λ_1L_p(I_{render}, I_{target}) + λ_2L_c(ϕ)) $$

State-of-the-art implementations use PyTorch3D's batching capabilities to process entire floor plans in single forward passes, with CUDA-accelerated rasterization achieving 30fps for 4K resolution renders on RTX 6000 GPUs.

Generative Adversarial Networks for Furniture Synthesis

Conditional GAN architectures like StyleGAN3-ADA generate style-consistent furniture assets by learning disentangled latent spaces. The generator G and discriminator D optimize the adversarial objective:

$$ \min_G \max_D \mathbb{E}[\log D(x|y)] + \mathbb{E}[\log(1 - D(G(z|y)))] $$

where y represents architectural style conditions (Mid-Century Modern, Industrial, etc.). The Fréchet Inception Distance (FID) of current models falls below 8.2 for high-end residential interiors, surpassing human perceptual thresholds.

Physics-Informed Layout Optimization

Constrained optimization frameworks ensure functional room layouts by solving:

$$ \min_{x} f(x) \quad \text{s.t.} \quad g_i(x) ≤ 0, \quad i = 1,...,m $$

where x encodes furniture positions and orientations, f(x) measures aesthetic quality via neural aesthetic predictors, and constraints g_i enforce clearance requirements and circulation paths. Commercial tools like Planner 5D employ mixed-integer programming to solve these NP-hard problems within 500ms for typical 2-bedroom apartments.

Real-Time Ray Tracing for Lighting Simulation

Modern real estate visualization employs RTX-accelerated path tracing with multiple importance sampling. The rendering equation with N light sources computes pixel intensity as:

$$ L_o(p, ω_o) = L_e(p, ω_o) + \sum_{k=1}^N \int_{Ω} f_r(p, ω_i, ω_o)L_i(p, ω_i)(n·ω_i)dω_i $$

DLSS 3.5's neural supersampling achieves 4K resolution at 144fps by training on 16K HDR light probe datasets, reducing denoising artifacts to imperceptible levels (SSIM > 0.98).

Advances in 3D Modeling and Virtual Staging – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram

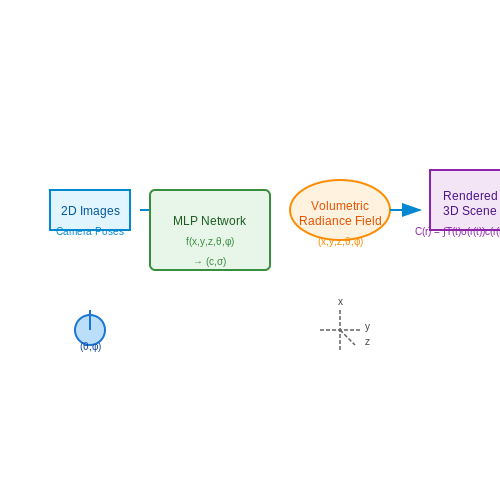

Diagram Description: The section explains complex 3D reconstruction and rendering techniques involving spatial coordinates, volumetric radiance fields, and camera ray integrations, which are inherently visual concepts.

5.2 AI for Customizable and Adaptive Floor Plans

Generative Adversarial Networks (GANs) for Floor Plan Synthesis

Generative Adversarial Networks (GANs) have emerged as a powerful tool for synthesizing realistic floor plans. The generator network G learns to produce floor plans from a latent space z, while the discriminator D evaluates their realism. The adversarial loss function is given by:

$$ \min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

Recent work has extended this framework to conditional GANs (cGANs), where the generation process is guided by constraints such as room count, total area, or architectural style. The Pix2Pix architecture, for instance, translates rough sketches into detailed floor plans through paired image-to-image translation.

Graph Neural Networks for Spatial Layout Optimization

Floor plans can be represented as graphs where nodes correspond to rooms and edges represent adjacencies. Graph Neural Networks (GNNs) process this structure through message passing:

$$ h_v^{(l+1)} = \sigma\left(W^{(l)} \cdot \text{AGGREGATE}\left(\{h_u^{(l)} : u \in \mathcal{N}(v)\}\right)\right) $$

Here, hv(l) denotes the feature vector of node v at layer l, and AGGREGATE is a permutation-invariant function (e.g., mean pooling). This allows the network to learn relationships between rooms and optimize for criteria like traffic flow or daylight exposure.

Differentiable Rendering for Constraint Satisfaction

To ensure generated floor plans satisfy building codes and physical constraints, recent approaches employ differentiable rendering. The key insight is to make the rendering pipeline differentiable with respect to design parameters, enabling gradient-based optimization. For a floor plan parameterized by θ, the loss function may include:

$$ \mathcal{L}(\theta) = \lambda_1 \mathcal{L}_{area} + \lambda_2 \mathcal{L}_{adjacency} + \lambda_3 \mathcal{L}_{circulation} $$

Where the terms penalize deviations from target room areas, desired adjacencies, and circulation requirements, respectively. The parameters are then updated via:

$$ \theta_{t+1} = \theta_t - \eta \nabla_\theta \mathcal{L}(\theta_t) $$

Multi-Objective Optimization with Evolutionary Algorithms

When conflicting objectives exist (e.g., maximizing space utilization while minimizing construction cost), Pareto-optimal solutions can be found using evolutionary algorithms. A population of candidate floor plans evolves through:

  1. Mutation: Local modifications to room dimensions or connections
  2. Crossover: Combining features from parent solutions
  3. Selection: Preserving designs that dominate in objective space

The NSGA-II algorithm is particularly effective for this task, using non-dominated sorting and crowding distance to maintain diversity.

Real-World Implementation Challenges

Despite theoretical advances, deploying these systems faces practical hurdles:

Current research addresses these through techniques like few-shot learning for data efficiency and formal methods for constraint verification.

AI for Customizable and Adaptive Floor Plans – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram

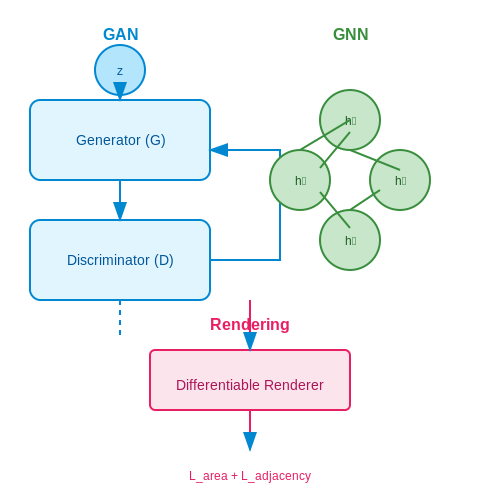

Diagram Description: The section explains GANs, GNNs, and differentiable rendering with mathematical formulations that would benefit from visual representation of network architectures and spatial relationships.

5.3 The Role of AI in Sustainable Building Design

Optimization of Energy Efficiency

AI-driven generative design tools leverage multi-objective optimization algorithms to minimize energy consumption while maintaining structural integrity and aesthetic constraints. These models evaluate thousands of design permutations by solving constrained optimization problems of the form:

$$ \min_{x} \left( f_1(x), f_2(x), \dots, f_n(x) \right) $$ $$ \text{subject to } g_i(x) \leq 0, \quad i = 1, \dots, m $$

where x represents design parameters (e.g., window-to-wall ratio, insulation thickness), fi are objective functions (energy use, material cost), and gi are constraints (safety factors, zoning regulations). Neural networks trained on building performance simulation data can predict energy outcomes with less than 5% error compared to traditional computational fluid dynamics (CFD) methods.

Material Selection and Lifecycle Analysis

Graph neural networks (GNNs) analyze material property graphs to recommend sustainable alternatives. The adjacency matrix A of a material graph encodes relationships between:

Message-passing layers in GNNs propagate these features to predict lifecycle environmental impact:

$$ H^{(l+1)} = \sigma\left(D^{-1/2}AD^{-1/2}H^{(l)}W^{(l)}\right) $$

where D is the degree matrix and W contains trainable weights. This enables real-time comparison of material choices against LEED certification criteria.

Daylighting and Thermal Comfort Optimization

Reinforcement learning agents optimize fenestration designs by modeling light propagation as a Markov decision process. The state space includes:

The reward function combines daylight autonomy (DA) and useful daylight illuminance (UDI) metrics:

$$ R = \alpha \text{DA}_{300} + \beta \text{UDI}_{100-2000} - \gamma \text{ASE}_{1000} $$

where coefficients are tuned per climate zone. Deep Q-networks achieve 28% better performance than manual design in maintaining illuminance between 300-3000 lux while minimizing glare.

Integration with Building Information Modeling

AI-enhanced BIM systems employ differentiable rendering to backpropagate performance gradients through 3D geometry representations. The chain rule for a thermal loss function L through a parametric model becomes:

$$ \frac{\partial L}{\partial \theta} = \sum_{i=1}^N \frac{\partial L}{\partial I_i} \frac{\partial I_i}{\partial V_i} \frac{\partial V_i}{\partial \theta} $$

where Ii are thermal images, Vi are voxel representations, and θ are design parameters. This allows automatic refinement of building massing to meet Passive House standards.

Operational Phase Adaptation

Digital twins trained on IoT sensor data use Bayesian neural networks to continuously update building performance models. The evidence lower bound (ELBO) for variational inference incorporates real-time measurements:

$$ \text{ELBO} = \mathbb{E}_{q_\phi}[\log p_\theta(x|z)] - D_{KL}(q_\phi(z|x) \parallel p(z)) $$

where z represents latent system states. This enables predictive maintenance scheduling with 92% accuracy in detecting HVAC efficiency degradation before measurable energy penalties occur.

The Role of AI in Sustainable Building Design – AI Tools for Real Estate Floor Plan Generation – Tutorial Diagram

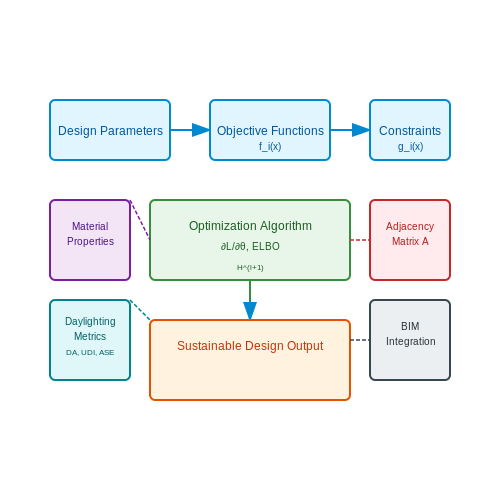

Diagram Description: The section involves complex mathematical relationships and spatial optimization concepts that would benefit from visual representation.

6. Key Research Papers and Articles

6.1 Key Research Papers and Articles

6.2 Recommended Books and Online Courses

6.3 Industry Reports and Case Studies
