Cross-Modal Generation (Text to Audio)

#cross-modal generation #text-to-audio #neural synthesis #sequence-to-sequence models #feature extraction #nlp #audio processing #deep learning #generative models

1. Definition and Scope of Cross-Modal Generation

Definition and Scope of Cross-Modal Generation

Cross-modal generation refers to the process of synthesizing data in one sensory modality (e.g., audio) from data in another modality (e.g., text). This involves learning a mapping between heterogeneous representations, often leveraging deep generative models such as Variational Autoencoders (VAEs), Generative Adversarial Networks (GANs), or diffusion models. The core challenge lies in preserving semantic consistency while bridging the structural gap between modalities.

Mathematical Formulation

Given two modalities X (text) and Y (audio), the goal is to learn a conditional generative model P(Y|X). For text-to-audio synthesis, this involves:

$$ P(Y|X) = \int P(Y|Z)P(Z|X) \, dZ $$

where Z is a latent space bridging the modalities. VAEs optimize the evidence lower bound (ELBO):

$$ \mathcal{L}_{\text{ELBO}} = \mathbb{E}_{q(Z|X,Y)}[\log P(Y|Z)] - D_{\text{KL}}(q(Z|X,Y) \parallel P(Z|X)) $$

Diffusion models, alternatively, iteratively denoise Y conditioned on X via:

$$ p_\theta(Y_{0}|X) = \int p_\theta(Y_{0:T}|X) \, dY_{1:T} $$

Key Challenges

Applications

Cross-modal text-to-audio generation enables:

Case Study: AudioLM vs. DiffSound

AudioLM (Google, 2022) uses a hierarchical transformer to map text embeddings to audio tokens, while DiffSound (Microsoft, 2023) employs latent diffusion. The former excels in coherence, while the latter captures finer acoustic details.

$$ \text{AudioLM: } Y = \text{Decoder}(\text{TextEncoder}(X)) $$ $$ \text{DiffSound: } Y = \mathcal{D}_\theta(X, \epsilon), \epsilon \sim \mathcal{N}(0,I) $$
Definition and Scope of Cross-Modal Generation – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the transformation pipeline from text (X) to latent space (Z) to audio (Y) with mathematical operators for VAEs and diffusion models.

1.2 Key Challenges in Text-to-Audio Synthesis

Semantic Alignment Between Text and Audio

One of the fundamental challenges in text-to-audio synthesis is ensuring precise semantic alignment between the input text and generated audio. Unlike text-to-image generation where spatial relationships can be explicitly modeled, audio requires temporal coherence and proper sequencing of acoustic events. For example, the phrase "a dog barking followed by a car honking" must generate audio where these events occur in the correct order with appropriate temporal spacing. Current approaches often struggle with:

Modeling Fine-Grained Acoustic Details

Human auditory perception is extremely sensitive to subtle acoustic features that are difficult to capture from text descriptions alone. Key challenges include:

Mathematically, this requires modeling the joint probability distribution over the audio waveform x given text t:

$$ p(x|t) = \prod_{i=1}^N p(x_i|x_{

where each sample xi depends on all previous samples and the text conditioning.

Computational Complexity

Audio generation at standard sampling rates (e.g., 44.1kHz) requires modeling extremely long sequences. For a 10-second clip:

$$ 44,100 \text{ samples/second} \times 10 \text{ seconds} = 441,000 \text{ samples} $$

This leads to:

  • Memory bottlenecks in autoregressive models
  • Training instability due to vanishing gradients over long sequences
  • Slow inference times for high-quality generation

Evaluation Metrics

Quantitatively assessing text-to-audio generation quality remains challenging due to:

  • Lack of objective metrics that correlate well with human perception
  • Difficulty in measuring semantic alignment between text and audio
  • Subjectivity in judging audio quality and naturalness

Common evaluation approaches include:

  • Mel-cepstral distortion (MCD) for speech synthesis
  • Frechet Audio Distance (FAD) for general audio quality
  • Human evaluation through mean opinion scores (MOS)

Data Scarcity and Annotation Challenges

High-quality paired text-audio datasets are scarce compared to other modalities. Key issues include:

  • High cost of professional audio recording and annotation
  • Subjectivity in textual descriptions of complex sounds
  • Domain gaps between available datasets and real-world applications

Current datasets like AudioCaps contain only ~50k samples, orders of magnitude smaller than image-text datasets.

Applications of Text-to-Audio Generation

Assistive Technologies for Accessibility

Text-to-audio generation plays a critical role in assistive technologies, enabling visually impaired users to access written content through synthesized speech. Modern systems leverage neural text-to-speech (TTS) models like WaveNet and Tacotron 2, which generate natural-sounding speech with prosody and intonation. These models are trained on large datasets of human speech, allowing them to produce high-quality audio outputs that closely mimic human vocal characteristics. Applications include screen readers, audiobook narration, and real-time transcription services.

Interactive Voice Response (IVR) Systems

In customer service automation, text-to-audio generation powers IVR systems that dynamically convert scripted or AI-generated responses into spoken dialogue. Advanced systems integrate natural language understanding (NLU) to parse user queries and generate context-aware audio responses. The underlying architecture often combines transformer-based language models (e.g., GPT-3) with neural vocoders (e.g., WaveGlow) for low-latency, high-fidelity output. This reduces reliance on pre-recorded voice clips, enabling more flexible and natural interactions.

Content Creation and Media Production

Text-to-audio tools are increasingly used in media production for generating voiceovers, podcast narration, and even synthetic radio broadcasts. For example, platforms like Descript and Resemble AI allow creators to edit synthesized speech as easily as text, enabling rapid iteration. The technical challenge lies in maintaining emotional expressiveness; recent approaches use style tokens or prosody embeddings to control vocal attributes such as pitch, speed, and emphasis:

$$ \mathbf{e}_{\text{style}} = \text{MLP}(\mathbf{h}_{\text{text}} \oplus \mathbf{z}_{\text{latent}}) $$

where htext is the text encoding, zlatent is a latent style vector, and MLP is a multilayer perceptron.

Gaming and Virtual Environments

Dynamic dialogue systems in games use text-to-audio to generate character voices in real time, reducing storage needs for pre-recorded lines. Procedural audio pipelines combine rule-based text generation (e.g., for NPC dialogue) with neural TTS, often conditioned on character traits (e.g., a "gruff" voice for an orc). Latent diffusion models have recently been applied to generate diverse vocal styles from minimal textual prompts, enabling richer interactive storytelling.

Multimodal AI Interfaces

Cross-modal systems like Jukebox (OpenAI) and AudioLM (Google) demonstrate how text-to-audio can integrate with other generative tasks. For instance, a model might first generate a musical composition from text, then render it as audio using symbolic-to-audio synthesis. The technical foundation involves hierarchical latent spaces:

$$ p(\mathbf{x}_{\text{audio}} \mid \mathbf{t}) = \int p(\mathbf{x}_{\text{audio}} \mid \mathbf{z}) p(\mathbf{z} \mid \mathbf{t}) \, d\mathbf{z} $$

where t is the input text and z represents latent musical features (e.g., melody, rhythm).

Research and Ethical Considerations

While text-to-audio generation enables transformative applications, it raises ethical concerns around deepfake audio and voice cloning. State-of-the-art models can replicate a speaker's voice from just a few seconds of audio, necessitating robust detection methods. Techniques like spectral watermarking and adversarial perturbations are being explored to distinguish synthetic speech. The field also grapples with biases in training data, which may underrepresent certain dialects or speaking styles.

2. Text Representation and Feature Extraction

2.1 Text Representation and Feature Extraction

Effective text-to-audio generation hinges on robust text representation, where raw input text is transformed into structured, machine-interpretable features. The process involves multiple stages of linguistic and semantic analysis to capture both syntactic and contextual information.

Tokenization and Embedding

Tokenization splits raw text into discrete units (tokens), which can be words, subwords, or characters. Subword tokenization methods like Byte Pair Encoding (BPE) or WordPiece balance vocabulary size and out-of-vocabulary robustness. Given a vocabulary V, a text sequence S is decomposed into tokens {t1, t2, ..., tn}, where each ti ∈ V.

$$ S \rightarrow \{t_1, t_2, ..., t_n\} $$

Tokens are then mapped to dense vector embeddings via lookup tables or learned transformations. Pretrained embeddings (e.g., Word2Vec, GloVe) initialize these representations, while transformer-based models like BERT dynamically contextualize them:

$$ \mathbf{E}(t_i) = \mathbf{W}_e[t_i] \quad \text{(static embeddings)} $$ $$ \mathbf{h}_i = \text{TransformerLayer}(\mathbf{E}(t_i), \mathbf{E}(t_{

Contextual Encoding with Transformers

Transformer architectures (e.g., BERT, GPT) process token embeddings through self-attention mechanisms to capture long-range dependencies. For a sequence of embeddings H(0) = [h1, h2, ..., hn], each layer l computes:

$$ \mathbf{Q} = \mathbf{H}^{(l-1)}\mathbf{W}_Q, \quad \mathbf{K} = \mathbf{H}^{(l-1)}\mathbf{W}_K, \quad \mathbf{V} = \mathbf{H}^{(l-1)}\mathbf{W}_V $$ $$ \text{Attention}(\mathbf{Q}, \mathbf{K}, \mathbf{V}) = \text{softmax}\left(\frac{\mathbf{Q}\mathbf{K}^T}{\sqrt{d_k}}\right)\mathbf{V} $$

where dk is the dimension of the key vectors. Multi-head attention concatenates outputs from h parallel attention heads, followed by layer normalization and feed-forward networks.

Feature Aggregation and Alignment

For audio generation, text features must align with temporal acoustic properties. Mean pooling or attention-based aggregation condenses variable-length text representations into fixed-dimensional vectors. Cross-modal attention mechanisms further refine alignment:

$$ \mathbf{c} = \sum_{i=1}^n \alpha_i \mathbf{h}_i, \quad \alpha_i = \text{softmax}(\mathbf{v}^T \tanh(\mathbf{W}_a \mathbf{h}_i)) $$

where c is the aggregated context vector, and αi are learned attention weights. Techniques like positional encoding or duration prediction explicitly model temporal relationships between text and audio frames.

Practical Considerations

  • Multilingual Support: Models like XLM-R leverage shared subword vocabularies across languages, enabling cross-lingual transfer.
  • Prosody Encoding: Supplementary features (e.g., punctuation, part-of-speech tags) improve intonation and rhythm prediction.
  • Memory Efficiency: Quantization or knowledge distillation reduces embedding sizes for real-time applications.

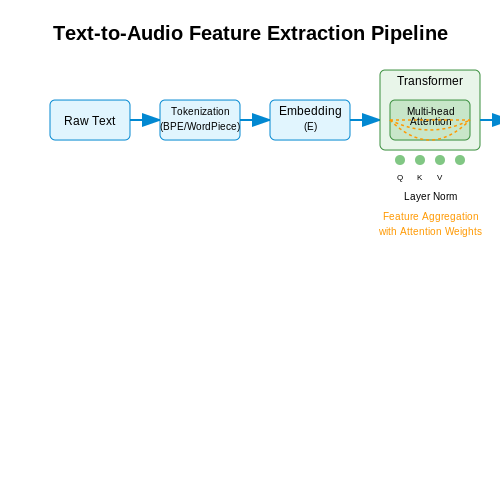

Text Representation and Feature Extraction – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the transformation pipeline from raw text to token embeddings, through transformer layers with attention mechanisms, to aggregated audio-aligned features.

2.2 Neural Audio Synthesis Methods

Autoregressive Waveform Generation

Autoregressive models like WaveNet and SampleRNN generate audio samples sequentially, where each sample xt is conditioned on previous samples x<t. The probability distribution is factorized as:

$$ P(x) = \prod_{t=1}^{T} P(x_t | x_{<t}) $$

WaveNet uses dilated causal convolutions to capture long-range dependencies, with the output distribution modeled as a mixture of logistics or categorical distribution. The dilated convolution operation for layer l at time t is:

$$ z_t^l = \sigma(W_f^l *_{d} z_t^l) \odot \tanh(W_g^l *_{d} z_t^l) $$

where *d denotes dilated convolution with dilation factor 2l, and Wf, Wg are learned filter and gate weights.

Diffusion-Based Audio Synthesis

Diffusion models gradually denoise audio signals through a Markov chain. The forward process adds Gaussian noise over T steps:

$$ q(x_t|x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t}x_{t-1}, \beta_t\mathbf{I}) $$

The reverse process learns to denoise with a neural network εθ predicting the noise component. The training objective minimizes:

$$ \mathcal{L} = \mathbb{E}_{t,x_0,\epsilon}[\|\epsilon - \epsilon_\theta(x_t,t)\|^2] $$

Recent variants like DiffWave use non-causal WaveNet architectures as the denoiser, achieving high-fidelity synthesis with fewer steps through learned reverse process variances.

Neural Parametric Synthesis

Parametric approaches model audio through intermediate representations like spectrograms or sinusoidal parameters. The differentiable STFT loss between generated and target spectrograms is:

$$ \mathcal{L}_{spec} = \|\log|S(x)| - \log|S(y)|\|_1 + \|\phi(S(x)) - \phi(S(y))\|_1 $$

where S(·) computes the STFT and ϕ(·) extracts spectral phase. Systems like DDSP incorporate traditional signal processing elements with neural control:

$$ y = \sum_{k=1}^{K} a_k(t)\sin(2\pi \int_0^t f_k(\tau)d\tau + \phi_k) $$

where neural networks predict time-varying amplitudes ak(t) and frequencies fk(t).

Latent Diffusion Models

Audio LDMs operate in a learned latent space z = E(x) using variational autoencoders. The diffusion process becomes:

$$ p_\theta(z_{0:T}) = p(z_T)\prod_{t=1}^{T} p_\theta(z_{t-1}|z_t) $$

with the decoder D(z) reconstructing waveforms. This approach reduces computational costs while maintaining quality through perceptual compression in the latent space.

Adversarial Audio Synthesis

GAN-based methods like GAN-TTS and HiFi-GAN employ multi-scale discriminators operating at different resolutions. The feature matching loss is:

$$ \mathcal{L}_{FM} = \mathbb{E}_{x}\sum_{i=1}^{L} \frac{1}{N_i}\|D_i(x) - D_i(G(z))\|_1 $$

where Di are intermediate discriminator features at layer i with Ni elements. Mel-spectrogram conditioning is commonly used to guide generation.

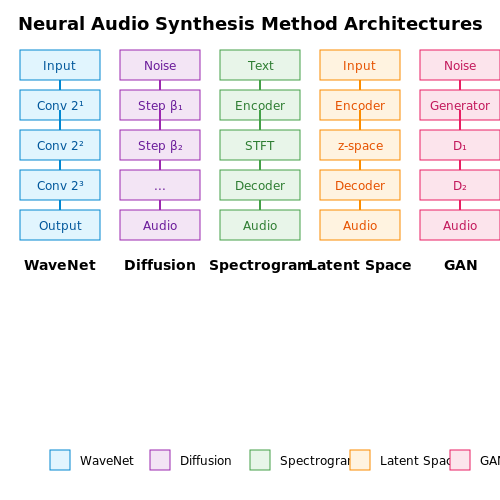

Neural Audio Synthesis Methods – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The section covers multiple complex audio synthesis methods with sequential processes (autoregressive generation, diffusion steps) and transformations (spectrograms, latent spaces) that benefit from visual representation of their architectures and signal flows.

Alignment and Temporal Modeling

Cross-modal generation between text and audio requires precise alignment of linguistic features with temporal acoustic structures. Unlike static image-text tasks, audio generation must account for sequential dependencies, where phonemes, syllables, and prosodic features unfold over time. This necessitates models that jointly optimize for semantic fidelity and temporal coherence.

Dynamic Time Warping for Cross-Modal Alignment

Dynamic Time Warping (DTW) is a foundational technique for aligning sequences of differing lengths. Given a text embedding sequence T = [t1, ..., tN] and an audio spectrogram A = [a1, ..., aM], DTW computes an optimal alignment path ϕ: [1, N] → [1, M] by minimizing the cumulative distance:

$$ \min_\phi \sum_{i=1}^{N} D(t_i, a_{\phi(i)}) $$

where D is a distance metric (e.g., cosine similarity or L2 norm). Modern implementations use differentiable DTW variants to enable end-to-end training:

$$ \text{soft-DTW}(T, A) = -\gamma \log \sum_{\phi} e^{-\sum_i D(t_i, a_{\phi(i)})/\gamma} $$

where γ controls the trade-off between sharpness and gradient stability.

Attention Mechanisms for Temporal Modeling

Transformer-based architectures employ cross-attention to model text-audio alignment dynamically. For a query Q (text tokens), key K, and value V (audio features), the attention weights αij indicate the relevance of the j-th audio frame to the i-th text token:

$$ \alpha_{ij} = \frac{\exp(Q_i K_j^T / \sqrt{d})}{\sum_{k=1}^{M} \exp(Q_i K_k^T / \sqrt{d})} $$

Multi-scale attention hierarchies (e.g., Phoneme-Level → Word-Level → Sentence-Level) improve alignment granularity, as demonstrated in models like AudioLM and VALL-E.

Diffusion Models for Temporal Coherence

Diffusion-based audio generators (e.g., DiffWave) refine alignment by progressively denoising spectrograms conditioned on text embeddings. The forward process adds Gaussian noise over T steps:

$$ q(x_t | x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t} x_{t-1}, \beta_t \mathbf{I}) $$

while the reverse process learns to predict noise ϵθ with text guidance:

$$ p_\theta(x_{t-1} | x_t, c) = \mathcal{N}(x_{t-1}; \mu_\theta(x_t, t, c), \Sigma_\theta(x_t, t)) $$

where c is the text embedding. Classifier-free guidance sharpens alignment by interpolating conditioned and unconditioned score estimates.

Case Study: Text-to-Speech Alignment in VITS

The VITS model combines variational inference with adversarial training to optimize:

$$ \mathcal{L} = \mathbb{E}_{z \sim q_\phi(z|x)}[\log p_\theta(x|z)] - D_{KL}(q_\phi(z|x) \| p(z)) + \mathcal{L}_{adv} $$

where z is a latent alignment path. The model’s Monotonic Alignment Search ensures strict left-to-right text-audio alignment without explicit DTW overhead.

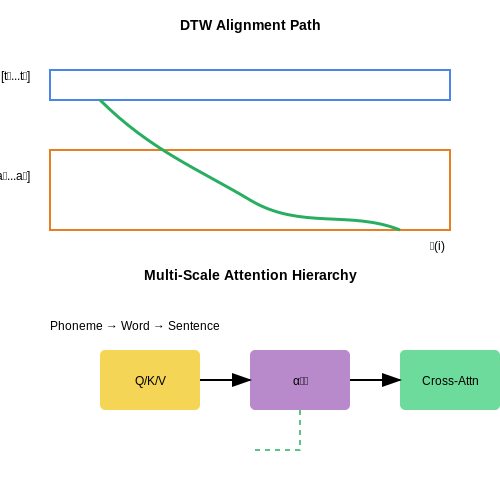

Alignment and Temporal Modeling – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the alignment path between text embeddings and audio spectrograms using Dynamic Time Warping (DTW), and the multi-scale attention hierarchy in transformer architectures.

3. Sequence-to-Sequence Models for Audio Generation

Sequence-to-Sequence Models for Audio Generation

Architecture Overview

Sequence-to-sequence (Seq2Seq) models for audio generation employ an encoder-decoder structure with attention mechanisms to map variable-length text inputs to raw waveform or spectrogram outputs. The encoder processes input text tokens x1:T into hidden states h1:T, while the decoder autoregressively generates audio frames y1:S:

$$ h_t = \text{EncoderLSTM}(x_t, h_{t-1}) $$ $$ s_i = \text{DecoderLSTM}(y_{i-1}, s_{i-1}, c_i) $$ $$ c_i = \sum_{j=1}^T \alpha_{ij}h_j $$

where αij are attention weights computed via a learned alignment model between decoder step i and encoder position j.

Key Technical Challenges

Advanced Variants

Hierarchical Decoders

Two-level decoders first generate coarse acoustic features (e.g., mel-spectrograms) at lower frame rates (50-100 Hz), followed by neural vocoders like WaveNet:

$$ p(y_{1:S}|x_{1:T}) = \prod_{i=1}^S p(y_i|y_{1:i-1}, z_{1:\lfloor i/k \rfloor}) $$

where z1:M are intermediate spectrogram frames and k is the upsampling factor.

Transformer-Based Approaches

Models like AudioLM replace RNNs with self-attention blocks, using relative position embeddings to handle long sequences:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} + R\right)V $$

where R contains learnable relative position biases.

Training Objectives

Joint optimization typically combines:

$$ \mathcal{L} = \lambda_1||\hat{Y}-Y||_2 + \lambda_2\mathbb{E}[\log D(Y)] + \lambda_3||\phi(\hat{Y})-\phi(Y)||_1 $$

Practical Considerations

Real-world deployments require:

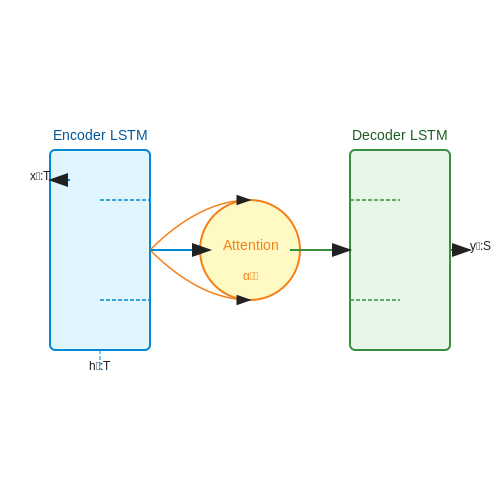

Sequence-to-Sequence Models for Audio Generation – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the encoder-decoder architecture with attention mechanisms, illustrating how text tokens are processed into hidden states and then transformed into audio frames with attention weights.

3.2 Generative Adversarial Networks (GANs) in Audio Synthesis

GAN Architecture for Audio Generation

Generative Adversarial Networks (GANs) consist of two neural networks—a generator G and a discriminator D—trained adversarially. For audio synthesis, G maps a latent vector z to a raw waveform or spectrogram x̃ = G(z), while D classifies whether its input is real (x) or generated (x̃). The minimax objective is:

$$ \min_G \max_D \mathbb{E}_{x \sim p_{\text{data}}}[\log D(x)] + \mathbb{E}_{z \sim p_z}[\log(1 - D(G(z)))] $$

In practice, G typically uses transposed convolutions or dilated convolutions to upsample latent codes into time-domain signals, while D employs strided convolutions for downsampling. WaveGAN and SpecGAN are foundational architectures demonstrating this approach.

Challenges in Audio GANs

Audio signals exhibit unique properties complicating GAN training:

Solutions include:

Conditional GANs for Text-to-Audio

For text-conditioned generation, the generator takes both latent code z and text embedding c as input (G(z,c)). The discriminator receives either (x,c) or (G(z,c),c), enforcing semantic alignment through:

$$ \mathcal{L}_{cGAN} = \mathbb{E}_{x,c}[\log D(x,c)] + \mathbb{E}_{z,c}[\log(1 - D(G(z,c),c))] $$

State-of-the-art implementations like CLIPSynth leverage contrastive language-audio pretraining to improve text-audio correspondence. The key innovation is joint embedding space learning where:

$$ \text{sim}(E_a(a), E_t(t)) > \text{sim}(E_a(a), E_t(t_{\text{neg}})) $$

for positive audio-text pairs (a,t) and negative samples tneg, with Ea and Et as audio and text encoders respectively.

Evaluation Metrics

Quantitative assessment of audio GANs involves:

The Frechet Distance between real (μr, Σr) and generated (μg, Σg) feature distributions is:

$$ \text{FAD} = ||μ_r - μ_g||^2 + \text{Tr}(Σ_r + Σ_g - 2(Σ_r Σ_g)^{1/2}) $$
Generative Adversarial Networks (GANs) in Audio Synthesis – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the adversarial training process between generator (G) and discriminator (D) with text conditioning, including latent vector (z) and text embedding (c) inputs.

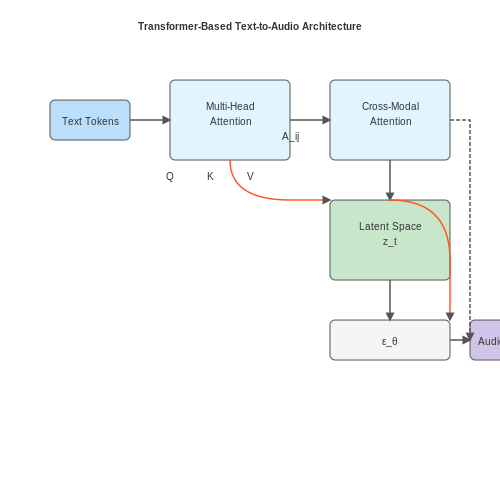

3.3 Transformer-Based Approaches

Transformer architectures have revolutionized cross-modal generation tasks, including text-to-audio synthesis, by leveraging self-attention mechanisms to model long-range dependencies across sequential data. Unlike traditional recurrent or convolutional approaches, transformers process input tokens in parallel, enabling efficient training on large-scale datasets while maintaining high fidelity in generated outputs.

Self-Attention for Cross-Modal Alignment

The core mechanism enabling transformers to bridge text and audio modalities is multi-head self-attention. Given an input sequence X of token embeddings, the attention weights A between positions i and j are computed as:

$$ A_{ij} = \text{softmax}\left(\frac{Q_i K_j^T}{\sqrt{d_k}}\right) $$

where Q, K are learned query and key matrices, and dk is the dimension of key vectors. For cross-modal tasks, separate attention heads often specialize in intra-modal (text-to-text or audio-to-audio) and inter-modal (text-to-audio) relationships.

Architectural Variants

Several transformer variants have demonstrated success in text-to-audio generation:

Training Objectives

Modern transformer-based audio generators typically employ a combination of:

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{recon} + \lambda_2 \mathcal{L}_{adv} + \lambda_3 \mathcal{L}_{contrastive} $$

where λ terms balance reconstruction loss (often spectrogram MSE), adversarial loss from a discriminator network, and contrastive loss for modality alignment. The contrastive term frequently uses cosine similarity between text and audio embeddings:

$$ \mathcal{L}_{contrastive} = -\log\frac{\exp(s(t,a^+)/\tau)}{\sum_{a^-}\exp(s(t,a^-)/\tau)} $$

with s(·,·) measuring similarity between text embedding t and positive/negative audio examples a+, a-, and τ as temperature.

Latent Diffusion Extensions

Recent work combines transformers with diffusion processes in latent space. The forward process gradually adds Gaussian noise to latent audio representations:

$$ q(z_t|z_{t-1}) = \mathcal{N}(z_t; \sqrt{1-\beta_t}z_{t-1}, \beta_t\mathbf{I}) $$

while a transformer-based denoising network εθ learns to reverse this process conditioned on text embeddings. This hybrid approach achieves state-of-the-art results by leveraging the transformer's strength in conditional modeling while benefiting from the diffusion process's stable training dynamics.

Transformer-Based Approaches – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the architecture of a transformer-based text-to-audio model, including multi-head attention mechanisms and cross-modal alignment between text and audio tokens.

4. Datasets for Text-to-Audio Generation

Datasets for Text-to-Audio Generation

Key Characteristics of High-Quality Text-Audio Datasets

Effective text-to-audio generation requires datasets with precise text-audio alignment, high acoustic fidelity, and sufficient diversity. The most critical characteristics include:

Standard Benchmark Datasets

AudioSet

The AudioSet corpus contains 2.1 million 10-second YouTube clips annotated with 632 sound event classes. While not originally designed for text-to-audio generation, its hierarchical ontology enables structured text descriptions. The dataset's main limitations are its fixed-duration clips and variable audio quality.

$$ \mathcal{D}_{AudioSet} = \{(x_i, y_i)\}_{i=1}^{2.1M} $$ $$ x_i \in \mathbb{R}^{T×F}, y_i \in \{0,1\}^{632} $$

LibriTTS

A multi-speaker English corpus derived from public domain audiobooks, containing 585 hours of speech at 24kHz sampling rate. The dataset provides:

Emerging Multimodal Datasets

SoundDescs

A recently introduced dataset pairing 50k sound events with free-form textual descriptions. Each entry includes:

AudioCaps

Contains 46k audio clips from AudioSet manually annotated with rich captions. The dataset structure enables evaluation of both sound event detection and descriptive generation tasks.

Dataset Curation Challenges

Creating high-quality text-audio pairs presents unique difficulties:

Preprocessing Considerations

Effective utilization of these datasets requires:

$$ \hat{x} = \text{STFT}(x) $$ $$ \hat{x}_{aug} = \text{TimeStretch}(\text{PitchShift}(\hat{x}, Δp), Δt) $$

4.2 Loss Functions and Optimization Strategies

Adversarial Loss in Cross-Modal Generation

Generative adversarial networks (GANs) are widely used in cross-modal generation tasks due to their ability to model high-dimensional data distributions. The adversarial loss for text-to-audio synthesis can be formulated as a min-max game between the generator G and discriminator D:

$$ \min_G \max_D \mathbb{E}_{x \sim p_{data}}[\log D(x)] + \mathbb{E}_{z \sim p_z}[\log(1 - D(G(z)))] $$

Here, x represents real audio samples, z denotes the input text embeddings, and pdata and pz are the data and latent distributions respectively. The discriminator learns to distinguish between real and generated audio, while the generator aims to produce samples that fool the discriminator.

Reconstruction Losses

To ensure the generated audio maintains semantic consistency with the input text, reconstruction losses are employed. The most common variants include:

The combined reconstruction loss Lrec for a generated spectrogram ŷ and target y can be expressed as:

$$ L_{rec} = \lambda_1||ŷ - y||_1 + \lambda_2||ŷ - y||_2^2 + \lambda_3||M(ŷ) - M(y)||_1 $$

where M(·) computes the mel-spectrogram and λi are weighting hyperparameters.

Feature Matching Loss

To stabilize GAN training, feature matching loss compares intermediate representations in the discriminator:

$$ L_{FM} = \mathbb{E}_{x,z} \sum_{i=1}^T \frac{1}{N_i} ||D^{(i)}(x) - D^{(i)}(G(z))||_1 $$

where D(i) denotes the i-th layer feature map with Ni elements, and T is the total number of layers used for matching.

Optimization Strategies

Two-Timescale Update Rule (TTUR)

GAN training often employs separate learning rates for generator (ηG) and discriminator (ηD), typically with ηD > ηG. This helps maintain equilibrium during training:

$$ θ_D^{t+1} = θ_D^t + η_D ∇_{θ_D}L_D $$ $$ θ_G^{t+1} = θ_G^t - η_G ∇_{θ_G}L_G $$

Adaptive Gradient Methods

Modern text-to-audio systems frequently use Adam or AdamW optimizers with careful hyperparameter tuning. The update rule for Adam combines momentum and adaptive learning rates:

$$ m_t = β_1m_{t-1} + (1-β_1)g_t $$ $$ v_t = β_2v_{t-1} + (1-β_2)g_t^2 $$ $$ \hat{m}_t = m_t/(1-β_1^t) $$ $$ \hat{v}_t = v_t/(1-β_2^t) $$ $$ θ_{t+1} = θ_t - η\frac{\hat{m}_t}{\sqrt{\hat{v}_t} + \epsilon} $$

where gt is the gradient at step t, and β1, β2 are exponential decay rates.

Curriculum Learning

Progressive training strategies often yield better results in cross-modal generation. A common approach involves:

This curriculum helps the model learn robust text-audio alignments before tackling more complex generation tasks.

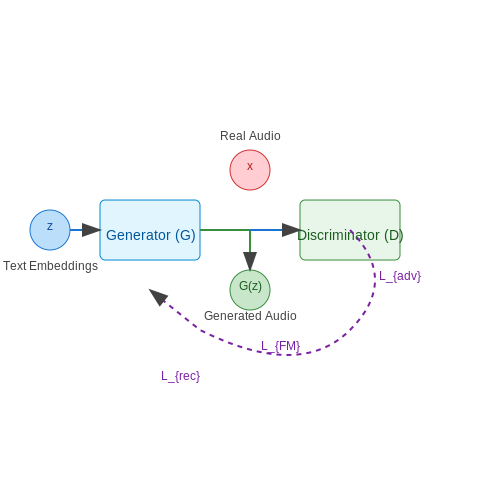

Loss Functions and Optimization Strategies – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the adversarial training process between generator and discriminator, including the flow of text embeddings to audio outputs and the feedback loop of losses.

4.3 Metrics for Evaluating Generated Audio Quality

Objective vs. Subjective Evaluation

Audio quality assessment in cross-modal generation falls into two categories: objective metrics, which rely on mathematical computations, and subjective metrics, which involve human perception. Objective metrics are reproducible and scalable, while subjective metrics capture perceptual nuances that algorithms may miss.

Signal-Based Objective Metrics

These metrics compare generated audio against a reference signal (ground truth) using time-domain or frequency-domain analysis.

$$ \text{SNR (Signal-to-Noise Ratio)} = 10 \log_{10} \left( \frac{\sum_{n=0}^{N-1} x(n)^2}{\sum_{n=0}^{N-1} (x(n) - \hat{x}(n))^2} \right) $$

where x(n) is the reference signal and ĉ(n) is the generated signal. Higher SNR indicates better fidelity.

$$ \text{STOI (Short-Time Objective Intelligibility)} = \frac{1}{M} \sum_{m=1}^{M} \text{corr}(X_m, \hat{X}_m) $$

STOI measures speech intelligibility by computing correlations between time-frequency bins of reference (X_m) and generated (ĉX_m) spectrograms.

Perceptual Objective Metrics

These approximate human auditory perception by incorporating psychoacoustic models:

Subjective Evaluation Protocols

When ground truth is unavailable or perceptual quality is paramount:

Emerging Neural Metrics

Learned metrics leverage deep networks to capture high-level features:

$$ \text{LPIPS (Learned Perceptual Image Patch Similarity)} = \| \phi(x) - \phi(\hat{x}) \|_2^2 $$

Adapted for audio using spectrogram embeddings (φ) from pre-trained models like CLAP or Wav2Vec.

Trade-offs and Practical Considerations

No single metric dominates; choice depends on:

5. Tools and Libraries for Text-to-Audio Generation

5.1 Tools and Libraries for Text-to-Audio Generation

Neural Text-to-Speech (TTS) Frameworks

Modern TTS systems leverage deep learning architectures such as WaveNet, Tacotron, and FastSpeech. These models decompose the problem into two stages: mel-spectrogram prediction followed by waveform synthesis. For example, Tacotron 2 uses a sequence-to-sequence model with attention to generate mel-spectrograms, which are then converted to audio using WaveNet or Griffin-Lim.

$$ s_t = \text{Encoder}(x_{1:T}), \quad a_{t,i} = \text{Attention}(s_t, h_i), \quad \hat{y}_t = \text{Decoder}(a_{t,i}, h_i) $$

where st is the encoder state, at,i is the attention weight, and ĥt is the predicted mel-spectrogram frame.

Key Libraries and Implementations

Vocoders for Waveform Generation

Vocoders such as WaveGAN, HiFi-GAN, and LPCNet convert mel-spectrograms to waveforms. HiFi-GAN, for instance, uses a generative adversarial network (GAN) with multi-period discriminators to achieve real-time synthesis:

$$ \mathcal{L}_{adv} = \mathbb{E}[\log D(x)] + \mathbb{E}[\log(1 - D(G(z)))] $$

where G is the generator, D the discriminator, and z the latent input.

Specialized Tools

Optimization and Deployment

For edge deployment, models can be quantized using TensorRT or ONNX Runtime. Latency-critical applications benefit from knowledge distillation techniques, such as training a smaller student model to mimic a teacher TTS system:

$$ \mathcal{L}_{distill} = \alpha \mathcal{L}_{task} + (1 - \alpha) \text{KL}(p_{teacher} \| p_{student}) $$

Case Study: Real-Time Game Dialogue

Unreal Engine’s MetaHuman integrates TTS with lip-sync algorithms, using runtime waveform generation to reduce storage overhead. The pipeline combines FastSpeech 2 for prosody control and HiFi-GAN for low-latency rendering.

Tools and Libraries for Text-to-Audio Generation – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The section describes multi-stage TTS architectures (mel-spectrogram prediction → waveform synthesis) and GAN-based vocoders, which involve sequential transformations and signal flow.

5.2 Step-by-Step Implementation Guide

Architecture Selection

For text-to-audio generation, transformer-based architectures like VALL-E or diffusion-based models such as AudioLDM are commonly used. The choice depends on the trade-off between computational efficiency and output quality. VALL-E leverages discrete audio tokenization via SoundStream or EnCodec, while diffusion models operate directly on mel-spectrograms.

$$ \mathcal{L}_{\text{diffusion}} = \mathbb{E}_{t,\mathbf{x}_0,\epsilon}\left[\|\epsilon - \epsilon_\theta(\mathbf{x}_t, t, \mathbf{c})\|_2^2\right] $$

Here, ϵθ is the denoising network, t is the timestep, and c represents the text conditioning.

Data Preprocessing

Raw audio waveforms are transformed into mel-spectrograms using Short-Time Fourier Transform (STFT):

$$ \text{Mel}(\mathbf{x}) = \text{DCT}\left(\log(\text{STFT}(\mathbf{x}) \cdot \mathbf{W}_{\text{mel}})\right) $$

Text inputs are tokenized using CLAP or BERT embeddings, followed by projection into a latent space aligned with the audio modality.

Model Training

The training pipeline involves:

import torch
from transformers import T5Tokenizer, T5ForConditionalGeneration

tokenizer = T5Tokenizer.from_pretrained("t5-base")
model = T5ForConditionalGeneration.from_pretrained("t5-base")
inputs = tokenizer("Generate jazz music", return_tensors="pt")
outputs = model.generate(inputs.input_ids, max_length=50)

Inference Pipeline

During inference, the text prompt is encoded into latent vectors, which condition the audio generation process. For diffusion models, iterative denoising is applied:

$$ \mathbf{x}_{t-1} = \frac{1}{\sqrt{\alpha_t}}\left(\mathbf{x}_t - \frac{1-\alpha_t}{\sqrt{1-\bar{\alpha}_t}}\epsilon_\theta(\mathbf{x}_t, t, \mathbf{c})\right) + \sigma_t\mathbf{z} $$

where αt and σt are noise scheduling parameters.

Post-Processing

Generated mel-spectrograms are inverted to waveforms using a vocoder like HiFi-GAN or WaveNet. Dynamic range compression (DRC) may be applied to enhance perceptual quality.

Optimization Techniques

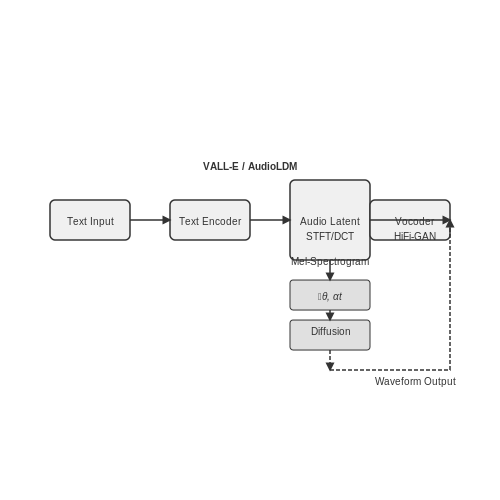

Step-by-Step Implementation Guide – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The section involves complex transformations between text and audio modalities, including mel-spectrogram generation and diffusion model denoising steps.

5.3 Debugging and Performance Tuning

Latency and Throughput Optimization

Cross-modal text-to-audio systems often suffer from high inference latency due to autoregressive generation and complex attention mechanisms. The primary bottlenecks occur in:

For transformer-based architectures, the latency scales with sequence length N as:

$$ T_{latency} = O(N^2) $$

Optimization strategies include:

Audio Quality Metrics

Quantitative evaluation requires multi-dimensional metrics:

$$ \text{MOS} = \frac{1}{K}\sum_{k=1}^K \text{rating}_k $$
$$ \text{STOI} = \frac{\langle \mathbf{x}, \mathbf{y} \rangle}{\|\mathbf{x}\|\|\mathbf{y}\|} $$

Where MOS is Mean Opinion Score (subjective) and STOI is Short-Time Objective Intelligibility. Common failure modes include:

Gradient Analysis

Debugging training instability requires monitoring gradient flow through the text encoder, decoder, and vocoder:

$$ \text{Vanishing: } \|\nabla_\theta L\|_2 < 10^{-6} $$
$$ \text{Exploding: } \|\nabla_\theta L\|_2 > 10^3 $$

Practical mitigation techniques:

Memory Optimization

Large-scale models require careful memory management:

$$ M_{total} = M_{model} + M_{activations} + M_{cache} $$

Where model parameters consume:

$$ M_{model} = 4 \times \sum_{l=1}^L (d_{model}^2 + d_{ffn} \times d_{model}) $$

Effective strategies include:

Adversarial Testing

Robustness evaluation involves stress-testing with:

The adversarial success rate ASR measures failure frequency:

$$ ASR = \frac{N_{fail}}{N_{total}} \times 100\% $$

6. Ethical Implications of Synthetic Audio

Ethical Implications of Synthetic Audio

Deepfake Audio and Misinformation

The ability to generate synthetic audio from text introduces significant ethical concerns, particularly in the context of deepfake technology. Advanced neural vocoders and transformer-based models, such as VALL-E or Tacotron 2, can replicate a speaker's voice with high fidelity using only a few seconds of reference audio. This capability raises the risk of malicious applications, including impersonation, fraud, and the spread of disinformation. For instance, synthetic audio could be weaponized to create fake statements from public figures, undermining trust in media and institutions.

Consent and Privacy Violations

Synthetic audio generation systems often rely on large datasets of human speech, which may be scraped without explicit consent. The use of proprietary or copyrighted voice recordings for training models—such as those employed by WaveNet or HiFi-GAN—can violate privacy rights and intellectual property laws. Furthermore, once a voice model is trained, it can be used to generate speech in the original speaker's voice indefinitely, even if they later withdraw consent. This poses unresolved legal and ethical questions about voice ownership and the right to be forgotten.

$$ \mathcal{L}_{adv}(G, D) = \mathbb{E}_{x \sim p_{data}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))] $$

Here, the adversarial loss function in generative adversarial networks (GANs) illustrates how synthetic audio models optimize for realism, making it increasingly difficult to distinguish generated speech from genuine recordings.

Bias and Representational Harm

Text-to-audio models inherit biases present in their training data, which may underrepresent certain dialects, accents, or languages. For example, a model trained predominantly on English speech from North America will perform poorly for speakers of African American Vernacular English (AAVE) or non-native accents, reinforcing linguistic marginalization. Bias can also manifest in prosody and emotional tone, with synthetic voices defaulting to culturally dominant expressions that may not align with the intended context or speaker identity.

Detection and Mitigation Strategies

Current countermeasures against synthetic audio misuse include:

Case Study: Voice Cloning in Fraud

In 2023, a CEO's voice was cloned to authorize a fraudulent $35 million bank transfer, demonstrating the tangible risks of synthetic audio. The attack utilized a transformer-based model fine-tuned on publicly available interviews. This incident underscores the need for multi-factor authentication and real-time voice liveness detection, which analyzes physiological speech patterns (e.g., glottal waveforms) to verify human origin.

6.2 Bias and Fairness in Cross-Modal Generation

Sources of Bias in Text-to-Audio Models

Cross-modal generation systems inherit biases from their training data, architecture, and optimization objectives. Text-to-audio models, for instance, may exhibit biases in:

$$ \mathcal{B}(y|x) = \mathbb{E}_{(x,y)\sim \mathcal{D}} \left[ \frac{p_\theta(y|x)}{p_{ref}(y|x)} \right] $$

where B(y|x) quantifies bias as the expected ratio between model likelihood pθ(y|x) and reference distribution pref(y|x) over dataset D.

Measurement Frameworks

Recent work formalizes audio bias measurement through:

Mitigation Strategies

Data-Centric Approaches

Re-weighting training samples using inverse propensity scoring:

$$ w_i = \frac{1}{\mathbb{P}(g_i|x_i)} $$

where gi denotes the demographic group of sample i.

Architectural Interventions

Adversarial debiasing modifies the loss function:

$$ \mathcal{L} = \mathcal{L}_{recon} - \lambda \mathcal{L}_{adv} $$

where the adversarial loss Ladv prevents the discriminator from predicting protected attributes.

Case Study: Voice Synthesis

The 2022 FairVox benchmark revealed that commercial TTS systems:

Emerging Challenges

Multimodal bias amplification occurs when:

$$ \Delta_{bias} = \frac{B_{audio}(y|x)}{B_{text}(x)} $$

exceeds 1.0, indicating that the audio generation process exacerbates textual biases. Current mitigation techniques often reduce this to ~0.7 at a 12% WER cost.

6.3 Emerging Trends and Research Frontiers

Diffusion Models for High-Fidelity Audio Synthesis

Recent advances in diffusion models have significantly improved the quality of text-to-audio generation. Unlike traditional autoregressive models, diffusion models operate by gradually denoising a signal over multiple timesteps. The forward process adds Gaussian noise to the data according to a variance schedule, while the reverse process learns to iteratively denoise it. The probability density can be expressed as:

$$ q(x_t|x_{t-1}) = \mathcal{N}(x_t; \sqrt{1-\beta_t}x_{t-1}, \beta_t\mathbf{I}) $$

where βt is the noise schedule. The reverse process is parameterized by a neural network that predicts the noise component at each step. This approach has demonstrated superior performance in generating high-fidelity, diverse audio samples compared to GANs or VAEs.

Latent Diffusion Models for Efficiency

To address the computational intensity of operating directly in waveform space, latent diffusion models first encode audio into a compressed latent representation using a VAE or similar encoder. The diffusion process then occurs in this lower-dimensional space, dramatically reducing memory and compute requirements. The latent representation z is obtained via:

$$ z = E(x), \quad x \approx D(z) $$

where E and D are the encoder and decoder networks. Recent work has shown that this approach maintains perceptual quality while being up to 10x more efficient than waveform-level diffusion.

Controllable Generation Through Prompt Engineering

Advanced text-to-audio systems now incorporate fine-grained control mechanisms beyond simple text prompts. Techniques include:

The guidance scale s in classifier-free guidance is particularly impactful:

$$ \hat{\epsilon}_\theta(x_t,c) = \epsilon_\theta(x_t) + s \cdot (\epsilon_\theta(x_t,c) - \epsilon_\theta(x_t)) $$

Few-Shot and Zero-Shot Audio Generation

Recent architectures demonstrate remarkable few-shot capabilities by leveraging large pretrained language models as backbones. For instance, models can generate audio matching a textual description after hearing just one or two examples of the target sound class. This is achieved through:

Multilingual and Cross-Cultural Audio Generation

State-of-the-art systems now incorporate multilingual text encoders and culturally diverse audio datasets. Key innovations include:

Ethical Considerations and Detection

As generation quality improves, several critical challenges emerge:

Current detection methods often rely on spectral analysis of artifacts:

$$ D(x) = \mathbb{E}_t[\|\mathcal{F}(x_t) - \mathcal{F}(G(x_{t-1}))\|_1] $$

where D is the detector, F represents spectral features, and G is the generator.

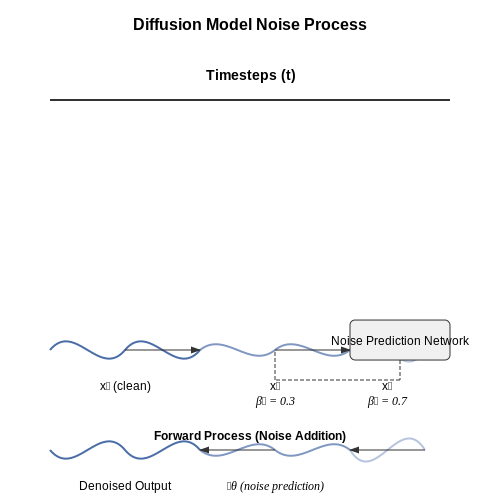

Emerging Trends and Research Frontiers – Cross-Modal Generation (Text to Audio) – Tutorial Diagram
Diagram Description: The diagram would show the forward and reverse diffusion processes with noise schedules, illustrating how Gaussian noise is added and removed across timesteps.

7. Key Research Papers

7.1 Key Research Papers

7.2 Recommended Books and Articles

7.3 Online Resources and Tutorials
