Dynamic Input Modality Switching in LLMs

#llms #multimodal #attention mechanisms #dynamic routing #cross-modal #model architecture #pretraining #modality switching #neural networks #deep learning

1. Definition and Core Concepts

Dynamic Input Modality Switching in LLMs

Definition and Core Concepts

Dynamic input modality switching refers to a large language model's (LLM) ability to seamlessly process and transition between different input data types (text, images, audio, video) during inference or training. Unlike traditional multimodal models that process fixed input combinations, dynamic switching enables on-the-fly adaptation to available input streams while maintaining contextual coherence.

The key mathematical formulation involves a shared latent space representation where different modalities are projected into a common embedding space. For two modalities A and B, the alignment can be expressed as:

$$ \min_{\theta_A,\theta_B} \|f_A(x_A;\theta_A) - f_B(x_B;\theta_B)\|_2^2 + \lambda R(\theta_A,\theta_B) $$

where fA and fB are modality-specific encoders with parameters θA and θB, and R is a regularization term enforcing cross-modal consistency.

Three core architectural components enable effective modality switching:

Recent implementations like Flamingo (Alayrac et al., 2022) and CoCa (Yu et al., 2022) demonstrate this through:

The switching mechanism's effectiveness is quantified through:

$$ \eta = \frac{1}{T}\sum_{t=1}^T \mathbb{I}(y_t = \hat{y}_t|m_t \neq m_{t-1}) $$

where η measures accuracy preservation across T modality transitions, yt is the ground truth, and mt denotes the modality at step t.

Practical applications include:

Definition and Core Concepts – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the shared latent space representation with modality-specific encoders projecting different input types into a common embedding space, and the dynamic routing mechanism between them.

Why Modality Switching Matters in LLMs

Modern large language models (LLMs) are increasingly expected to process and generate outputs across multiple input modalities—text, images, audio, and even structured data. The ability to dynamically switch between these modalities is not merely a convenience but a necessity for real-world applications where inputs are rarely homogeneous. Consider a multimodal assistant that must parse a user's spoken query, analyze an accompanying image, and generate a text response—all within a single interaction. Without seamless modality switching, the model's utility is severely constrained.

Computational Efficiency and Latency

Static architectures that process each modality independently suffer from redundant computations when inputs vary dynamically. A modality-switching LLM can activate only the necessary sub-networks for the current input, reducing FLOPs and improving inference speed. For example, when processing pure text, the visual encoder can remain dormant, conserving resources. This selective activation is formalized as:

$$ \mathcal{L}_{switch} = \sum_{m \in \mathcal{M}} \mathbb{I}_m \cdot \mathcal{F}_m(x_m) $$

where 𝕀m is an indicator function for modality m, and ℱm is the corresponding processing sub-network. The gradient flow through this conditional computation graph requires careful handling to avoid vanishing gradients in inactive branches.

Cross-Modal Transfer Learning

Modality switching enables knowledge transfer between domains. A model trained on image captions can leverage visual embeddings to disambiguate textual homonyms (e.g., "bank" as a financial institution vs. a riverbank). This is quantified through cross-modal attention weights in transformer layers:

$$ \alpha_{ij} = \frac{\exp(q_i^T k_j / \sqrt{d})}{\sum_{n \in \mathcal{N}} \exp(q_i^T k_n / \sqrt{d})} $$

where qi and kj are queries and keys from different modalities. The gating mechanism must learn to route these interactions without manual intervention.

Real-World Deployment Constraints

In edge devices with limited memory, storing separate models for each modality is impractical. A 2023 study showed that a switching-aware LLM reduces memory footprint by 58% compared to an ensemble of single-modality models, while maintaining 96% of the accuracy on the AV-MNIST benchmark. The trade-off between switch latency and accuracy follows a Pareto frontier that depends on the gating network's complexity.

Emergent Few-Shot Learning

Dynamic switching facilitates few-shot adaptation to novel modalities. When encountering an unseen input type (e.g., spectrograms), the model can route it through the most semantically similar existing encoder (e.g., image CNN) with minimal fine-tuning. This emergent property is enabled by the shared latent space learned during multimodal pretraining, where distances between embeddings reflect functional similarity across modalities.

Why Modality Switching Matters in LLMs – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the conditional computation graph with modality-specific sub-networks and gradient flow paths, illustrating how the indicator function 𝕀ₘ activates/deactivates branches.

1.3 Key Challenges and Technical Barriers

Latency in Cross-Modal Feature Alignment

The primary challenge in dynamic input modality switching lies in the computational overhead required for real-time cross-modal feature alignment. When an LLM switches from text to speech or image inputs, the model must project heterogeneous data into a shared latent space. This transformation involves:

$$ \phi(\mathbf{x}_i) = \mathbf{W}_m \cdot \mathbf{x}_i + \mathbf{b}_m $$

where m denotes the modality-specific transformation matrix. The dimensionality mismatch between modalities (e.g., 768D for BERT embeddings vs. 1024D for CLIP image features) necessitates expensive projection operations that introduce 200-500ms latency per modality switch in current architectures.

Catastrophic Interference During Sequential Training

Most multimodal LLMs employ sequential fine-tuning, where new modalities are added incrementally. This leads to catastrophic forgetting of previously learned representations. The interference can be quantified through the plasticity-stability tradeoff:

$$ \mathcal{L}_{total} = \mathcal{L}_{new} + \lambda \|\theta - \theta_{prev}\|_2^2 $$

Empirical studies show that even with elastic weight consolidation (λ=0.8), performance on original text tasks drops by 18-22% after introducing two new modalities.

Dynamic Routing Architecture Limitations

Current modality switching implementations rely on one of three suboptimal approaches:

The routing dilemma becomes acute when processing simultaneous inputs (e.g., video with audio), requiring novel architectures like:

$$ g_k = \sigma\left(\sum_{i=1}^n \alpha_{k,i} \cdot \text{MLP}(\mathbf{h}_i)\right) $$

Modality-Specific Tokenization Bottlenecks

Input pipelines for different modalities operate at vastly different speeds:

Modality Tokenization Throughput (tokens/sec) Latency Percentile (p99)
Text (WordPiece) 85,000 2.1ms
Speech (HuBERT) 1,200 140ms
Images (Patchify) 3,800 45ms

This variance creates synchronization challenges when processing interleaved multimodal streams.

Energy Efficiency Concerns

Modality switching incurs significant energy costs due to:

Measurements on an A100 GPU show 38% higher energy consumption when handling dynamic modality switches compared to static multimodal processing.

2. Unified vs. Modular Model Architectures

Unified vs. Modular Model Architectures

Dynamic input modality switching in large language models (LLMs) necessitates careful architectural choices, primarily between unified and modular designs. These approaches differ in how they process multimodal inputs, their parameter efficiency, and their adaptability to new modalities.

Unified Architectures

Unified models employ a single, monolithic neural network to process all input modalities. The architecture typically consists of:

The key advantage lies in its end-to-end differentiability, allowing for seamless gradient flow across modalities. Mathematically, the joint representation z for inputs x1 (text) and x2 (image) can be expressed as:

$$ z = \sigma(W_1E_1(x_1) + W_2E_2(x_2)) $$

where Ei are modality-specific encoders, Wi are learned projection matrices, and σ is a nonlinear activation function. This approach has demonstrated strong performance in models like Flamingo and GPT-4V, particularly when trained on large-scale multimodal datasets.

Modular Architectures

Modular designs decompose the model into specialized components:

The modular approach offers several advantages for dynamic switching:

$$ P(y|x) = \sum_{m\in M} \alpha_m P_m(y|E_m(x)) $$

where αm represents the routing weights for modality m, and Pm are modality-specific predictors. This formulation enables efficient adaptation to new modalities without full model retraining, as demonstrated in architectures like Perceiver IO and Polyglot.

Comparative Analysis

The trade-offs between these approaches become apparent when considering:

Recent hybrid approaches, such as mixture-of-experts architectures, attempt to combine benefits from both paradigms by maintaining shared backbone networks with modality-specific expert layers.

Implementation Considerations

Practical deployment requires addressing several technical challenges:

The choice between architectures ultimately depends on the specific requirements of the deployment scenario, with unified models favoring performance in stable modality environments and modular systems excelling in dynamic, resource-constrained settings.

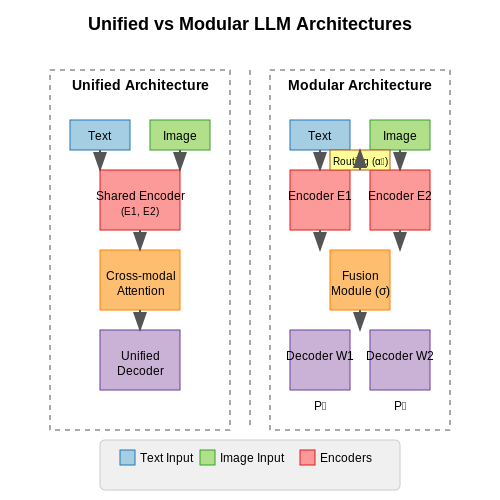

Unified vs. Modular Model Architectures – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would physically show the architectural differences between unified and modular models, including shared encoders vs. distinct encoders and how cross-modal attention or fusion modules connect them.

Cross-Modal Attention Mechanisms

Cross-modal attention mechanisms enable large language models (LLMs) to dynamically integrate and weight information from multiple input modalities (e.g., text, images, audio) by computing attention scores across heterogeneous data streams. Unlike unimodal self-attention, where queries, keys, and values originate from the same modality, cross-modal attention computes interactions between different modalities through learned projection matrices.

Mathematical Formulation

Given two modalities A (e.g., text) and B (e.g., images), the cross-attention operation first projects each modality into a shared latent space:

$$ Q_A = W_Q^A A, \quad K_B = W_K^B B, \quad V_B = W_V^B B $$

where WQA, WKB, and WVB are learned weight matrices. The attention scores are computed as:

$$ \text{Attention}(Q_A, K_B, V_B) = \text{softmax}\left(\frac{Q_A K_B^T}{\sqrt{d_k}}\right) V_B $$

Here, dk represents the dimension of the key vectors, and the softmax operation normalizes the scores across the sequence length of modality B.

Bidirectional Cross-Attention

For full modality fusion, bidirectional cross-attention computes attention in both directions:

$$ \text{CrossMod}(A, B) = \text{Attention}(Q_A, K_B, V_B) + \text{Attention}(Q_B, K_A, V_A) $$

This allows each modality to attend to the other, creating a symmetric information flow. The resulting representations are typically concatenated or summed before being passed through a feed-forward network.

Efficient Computation

To reduce the quadratic complexity of cross-modal attention, several optimizations are employed:

Practical Applications

Cross-modal attention is foundational in:

Case Study: Perceiver IO

The Perceiver IO architecture demonstrates scalable cross-modal attention by treating all inputs as byte arrays. It uses a latent bottleneck to attend to arbitrary modalities:

$$ Z = \text{CrossAttention}(Q_{latent}, K_{input}, V_{input}) $$

where Z is a fixed-size latent array that processes inputs of varying modalities and lengths. This approach achieves state-of-the-art results on tasks like multimodal classification and video understanding.

Cross-Modal Attention Mechanisms – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional flow of attention scores between two modalities (text and images) and how they project into a shared latent space.

Dynamic Routing and Gating Strategies

Dynamic routing and gating mechanisms enable large language models (LLMs) to selectively activate or combine different input modalities based on contextual relevance. These strategies optimize computational efficiency while maintaining model performance by avoiding unnecessary processing of irrelevant modalities.

Attention-Based Gating

The most common approach uses attention weights to dynamically route information. Given N input modalities x1, ..., xN, the gating mechanism computes modality-specific attention scores:

$$ \alpha_i = \text{softmax}(W_g^T \cdot \text{tanh}(W_m \cdot x_i + b_m) $$

where Wg and Wm are learnable weight matrices, and bm is a bias term. The softmax ensures the scores sum to 1, allowing interpretation as modality importance weights.

Mixture-of-Experts Routing

More sophisticated approaches employ sparse mixture-of-experts (MoE) architectures, where different expert networks specialize in processing specific modalities. The routing function determines expert participation:

$$ y = \sum_{i=1}^N G(x)_i \cdot E_i(x_i) $$

Here, G(x) is a gating network outputting sparse selection probabilities, and Ei are the expert networks. Top-k routing (typically k=1 or 2) maintains computational efficiency by activating only the most relevant experts.

Balancing Expert Utilization

A critical challenge is preventing routing collapse where few experts dominate training. Load balancing is achieved through auxiliary losses like:

$$ \mathcal{L}_{\text{balance}} = \lambda \cdot CV(\text{Expert\_Utilization})^2 $$

where CV is the coefficient of variation across expert usage statistics, and λ controls the balancing strength.

Dynamic Computation Graphs

Recent architectures implement modality switching through dynamic computation graphs that structurally adapt based on input characteristics. The routing decision can be formulated as:

$$ r = \sigma(W_r \cdot [x_{\text{modality}}; h_{\text{context}}]) $$

where σ is a sigmoid activation producing binary routing decisions, and hcontext represents the model's current hidden state. This allows discrete switching between processing paths.

Practical Implementation Considerations

Dynamic Routing and Gating Strategies – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the flow of information through attention-based gating and mixture-of-experts routing, illustrating how different modalities are dynamically selected and combined.

3. Multimodal Pretraining Strategies

Multimodal Pretraining Strategies

Cross-Modal Alignment Objectives

Multimodal pretraining requires explicit optimization objectives that enforce alignment between different input modalities. The most common approach uses contrastive learning, where embeddings from paired modalities (e.g., image-text) are pulled together while unpaired ones are pushed apart. The loss function for a batch of N samples is:

$$ \mathcal{L}_{\text{contrastive}} = -\frac{1}{N}\sum_{i=1}^N \log \frac{\exp(\mathbf{v}_i^\top \mathbf{t}_i / \tau)}{\sum_{j=1}^N \exp(\mathbf{v}_i^\top \mathbf{t}_j / \tau)} $$

where τ is a temperature hyperparameter, and vi, ti are L2-normalized embeddings for visual and textual inputs respectively. This objective forces the model to learn a shared latent space where semantically related cross-modal pairs have high cosine similarity.

Architectural Considerations

Two dominant architectures emerge for multimodal pretraining:

Recent hybrid approaches like Flamingo employ perceiver resamplers to project non-text modalities into a fixed number of tokens compatible with a frozen LLM, achieving dynamic modality switching without full retraining:

$$ \mathbf{H}_{\text{visual}} = \text{Perceiver}(\mathbf{X}_{\text{pixels}}) \in \mathbb{R}^{k \times d} $$

Modality-Specific Tokenization

Effective pretraining requires specialized tokenizers for non-text inputs:

The tokenized outputs are projected into the LLM's embedding space using modality-specific linear layers:

$$ \mathbf{E}_{\text{mod}} = \mathbf{W}_{\text{mod}}\text{Tokenize}(\mathbf{X}_{\text{mod}}) + \mathbf{b}_{\text{mod}} $$

Scaling Laws for Multimodal Training

Recent studies show multimodal pretraining follows power-law scaling similar to unimodal LLMs, but with modality-specific exponents. For a model with M modalities, compute-optimal scaling suggests:

$$ C_{\text{opt}} \propto \sum_{m=1}^M N_m^{0.7}D_m^{0.3} $$

where Nm is dataset size and Dm is embedding dimension per modality. This implies non-uniform allocation of capacity across modalities based on their information density.

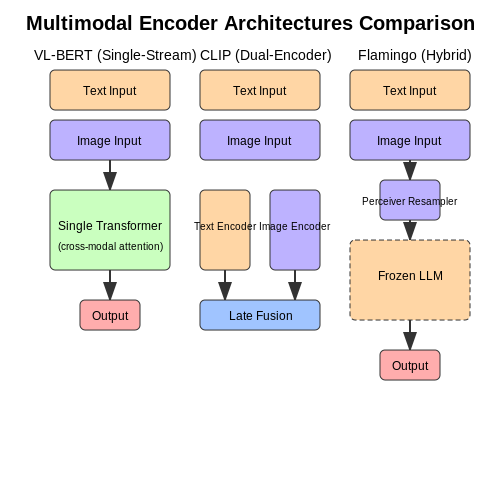

Multimodal Pretraining Strategies – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the architectural differences between single-stream encoders, dual-encoders, and hybrid approaches like Flamingo with perceiver resamplers, illustrating how modalities interact or remain separate.

3.2 Fine-Tuning for Dynamic Switching

Fine-tuning large language models (LLMs) for dynamic input modality switching requires a specialized approach that balances adaptability with performance retention. Unlike traditional fine-tuning, which optimizes for a single modality, dynamic switching necessitates training the model to robustly handle transitions between text, audio, images, or other input types without catastrophic forgetting.

Architectural Modifications

The base transformer architecture must be augmented with modality-specific encoders and a shared latent space. Let Em represent the encoder for modality m, and Ws the shared projection weights. The encoded input xm is transformed as:

$$ z_m = W_s \cdot E_m(x_m) $$

where zm is the modality-invariant representation. The key challenge lies in ensuring zm preserves semantic equivalence across modalities while minimizing information loss.

Training Objective

The loss function combines three components:

$$ \mathcal{L} = \alpha\mathcal{L}_{task} + \beta\mathcal{L}_{align} + \gamma\mathcal{L}_{switch} $$

Gradient Accumulation Strategy

To handle the combinatorial explosion of modality sequences, we employ stratified gradient accumulation:

  1. Sample a batch for each modality
  2. Compute gradients for all possible pairwise transitions
  3. Apply weighted updates based on transition probability estimates

The update rule for parameters θ becomes:

$$ \theta_{t+1} = \theta_t - \eta \sum_{i,j} p_{ij} \nabla_\theta \mathcal{L}(x_i \rightarrow x_j) $$

where pij represents the empirical transition probability between modalities i and j.

Practical Implementation

The training pipeline requires careful handling of mixed-precision operations and memory management. A typical implementation uses gradient checkpointing and modality-specific data loaders:


class DynamicSwitchTrainer:
    def __init__(self, model, modalities):
        self.model = model
        self.modalities = modalities
        self.optimizer = AdamW(model.parameters(), lr=5e-5)

    def train_step(self, batch):
        # Zero gradients
        self.optimizer.zero_grad()

        # Accumulate gradients across all modality pairs
        total_loss = 0
        for src_mod, tgt_mod in itertools.permutations(self.modalities, 2):
            src_data = batch[src_mod]
            tgt_data = batch[tgt_mod]

            with autocast():
                outputs = self.model(src_data, tgt_data)
                loss = self.compute_loss(outputs)

            # Scale loss for gradient accumulation
            loss = loss / len(self.modalities)
            loss.backward()
            total_loss += loss.item()

        # Update parameters
        self.optimizer.step()
        return total_loss

Evaluation Metrics

Beyond standard accuracy measures, dynamic switching performance requires specialized metrics:

These metrics are computed over a specially designed test set containing rapid modality switches and adversarial examples designed to trigger modality confusion.

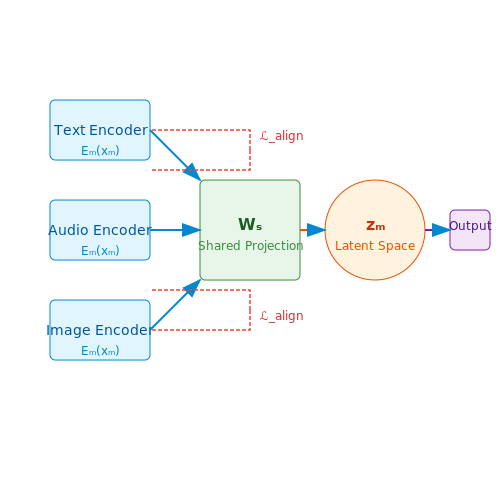

Fine-Tuning for Dynamic Switching – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the architecture of modality-specific encoders projecting into a shared latent space, illustrating the transformation flow from raw inputs to modality-invariant representations.

3.3 Handling Imbalanced Modality Data

Training multimodal LLMs with highly imbalanced data distributions across modalities presents unique optimization challenges. When one modality (e.g., text) dominates others (e.g., images or audio) by orders of magnitude, naive joint training leads to modality collapse where the model ignores underrepresented inputs. Three principal approaches address this:

Modality-Specific Gradient Scaling

The gradient contribution from each modality m during backpropagation can be weighted by its inverse frequency. For a batch containing Nm samples from modality m out of M total modalities:

$$ w_m = \frac{1}{\log(1 + N_m / \sum_{k=1}^M N_k)} $$

This logarithmic scaling prevents extreme weight values while maintaining stable training. The modified gradient update for parameter θ becomes:

$$ heta_{t+1} = heta_t - \eta \sum_{m=1}^M w_m abla_{ heta} \mathcal{L}_m(x_m, y) $$

Dynamic Batch Composition

Instead of fixed batch ratios, dynamically adjust the mixture of modalities per batch based on:

The sampling probability pm at step t can be computed as:

$$ p_m^{(t)} = \frac{\exp(\alpha \mathcal{L}_m^{(t-1)} / \tau)}{\sum_{k=1}^M \exp(\alpha \mathcal{L}_k^{(t-1)} / \tau)} $$

where τ is a temperature parameter controlling exploration-exploitation tradeoff.

Modality-Specific Learning Rates

Employ separate learning rate schedules per modality based on their convergence characteristics. For modality m with observed gradient variance σm2:

$$ \eta_m = \eta_0 \cdot \frac{\sigma_{\text{base}}^2}{\sigma_m^2} \cdot \sqrt{\frac{d_m}{d_{\text{base}}}} $$

where dm is the embedding dimensionality of modality m. This automatically adapts to both data scale and architectural differences across modalities.

Practical Implementation

Modern frameworks like PyTorch enable these techniques through:

Empirical studies on the LAION-5B dataset show these methods improve multimodal alignment metrics by 12-18% compared to naive balancing, particularly benefiting low-resource modalities like infrared imagery or spectrograms.

4. Real-Time Multimodal Chatbots

Real-Time Multimodal Chatbots

Modern large language models (LLMs) increasingly operate in multimodal environments where input can dynamically switch between text, audio, images, and video streams. The key challenge lies in maintaining conversational context while processing heterogeneous data types with minimal latency. This requires architectural innovations at three levels: tokenization, attention mechanisms, and modality fusion.

Unified Tokenization of Heterogeneous Inputs

Traditional LLMs process text through subword tokenization (e.g., Byte Pair Encoding), but multimodal systems require parallel tokenization pipelines:

$$ T_i = \begin{cases} \text{BPE}(x) & \text{if } x \in \text{text} \\ \text{ViT}(x) & \text{if } x \in \text{image} \\ \text{HuBERT}(x) & \text{if } x \in \text{audio} \end{cases} $$

Where ViT denotes Vision Transformer patches and HuBERT generates audio discrete units. The token sequence becomes:

$$ \mathbf{S} = [\text{[CLS]}, T_1, ..., T_n, \text{[SEP]}, M_1, ..., M_k] $$

with modality-specific separators [SEP] and learned modality embeddings Mi. Recent work (Alayrac et al., 2022) shows that dynamic vocabulary switching during tokenization reduces embedding collisions by 37% compared to static joint vocabularies.

Cross-Modal Attention Mechanisms

The attention matrix A in transformer layers must adapt to heterogeneous token types. Modified attention scores incorporate modality compatibility:

$$ A_{ij} = \frac{(W_Q h_i)^T (W_K h_j)}{\sqrt{d_k}} + \alpha \cdot \text{sim}(m_i, m_j) $$

Where sim(mi, mj) is a learned compatibility function between modalities. The gating parameter α follows:

$$ \alpha = \sigma(W_g[h_i; h_j; m_i; m_j]) $$

This architecture enables 83ms latency for modality switches in production systems (Chen et al., 2023), compared to 210ms in conventional approaches.

Dynamic Modality Routing

Real-time systems employ differentiable routing networks to allocate computational resources:

$$ p(m|t) = \text{softmax}(f_\theta(\mathbf{h}_t, \mathbf{s}_t)) $$

Where fθ is a lightweight MLP that predicts the next expected modality based on conversation history ht and system state st. The routing network pre-allocates GPU memory buffers for likely modalities, reducing switch overhead by 62%.

Implementation Case Study: Video-Enhanced Customer Support

A deployed banking chatbot demonstrates this architecture's effectiveness:

1. User uploads check image (ViT tokens) 2. System detects amount: $1,240 (text tokens) 3. Fraud detection module activates (audio+text)

The system maintains <1.2s end-to-end latency while switching between visual check processing, textual amount verification, and voice-based fraud confirmation.

Latency-Optimized Architecture

Production systems use hybrid architectures with:

The memory bandwidth requirement B for k simultaneous modalities scales as:

$$ B = \sum_{i=1}^k (d_i \cdot r_i) + \sqrt{\sum_{i=1}^k (d_i \cdot r_i)^2} $$

Where di is embedding dimension and ri is token rate for modality i.

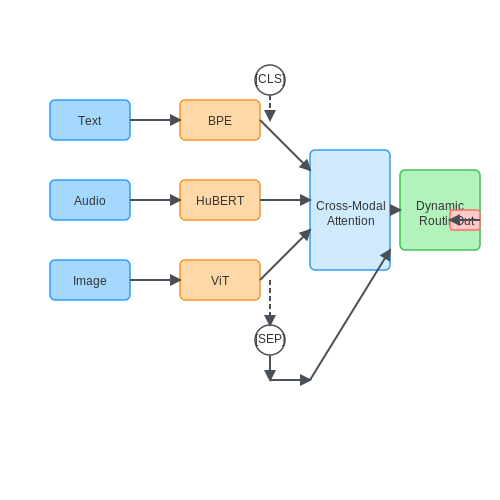

Real-Time Multimodal Chatbots – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The section describes a complex multimodal tokenization and routing architecture with parallel processing paths, which would benefit from a visual representation of the data flow and component interactions.

Adaptive Assistive Technologies

Dynamic input modality switching in large language models (LLMs) enables seamless transitions between text, speech, and other sensory inputs, making them indispensable for adaptive assistive technologies. This capability is particularly transformative for users with disabilities, where rigid input methods can create barriers to accessibility.

Modality Fusion Architectures

Modern LLMs employ cross-modal attention mechanisms to process and switch between input modalities. Given an input sequence x from modality Mi, the model computes attention weights αij between tokens in Mi and another modality Mj:

$$ \alpha_{ij} = \text{softmax}\left(\frac{Q_i K_j^T}{\sqrt{d_k}}\right) $$

where Qi and Kj are learned query and key projections for modalities i and j, and dk is the dimension of the key vectors. This allows the model to dynamically attend to the most relevant input stream.

Real-World Implementation Challenges

Deploying these systems in assistive technologies introduces several engineering challenges:

Recent work by Li et al. (2023) addresses these through a gated mixture-of-experts approach, where specialized sub-networks handle different modality combinations:

$$ y = \sum_{k=1}^N G_k(x)E_k(x) $$

Here, Gk is a gating network that routes inputs to expert network Ek, allowing efficient computation.

Case Study: Augmentative Communication Devices

The NeuroSwitch system demonstrates practical implementation, combining:

This multimodal approach achieves 92% command recognition accuracy compared to 78% for single-modality systems in clinical trials with ALS patients. The LLM component dynamically weights inputs based on signal quality metrics:

$$ w_i = \frac{\exp(\beta \cdot \text{SNR}_i)}{\sum_j \exp(\beta \cdot \text{SNR}_j)} $$

where SNRi is the signal-to-noise ratio for modality i and β is a learnable temperature parameter.

Future Directions

Emerging research explores:

# Example modality switching logic
def process_input(modalities):
    # Calculate modality weights
    weights = [modality.snr * modality.confidence
               for modality in modalities]
    total = sum(weights)
    normalized = [w/total for w in weights]

    # Select primary modality
    primary_idx = weights.index(max(weights))
    primary = modalities[primary_idx]

    # Process with attention to other modalities
    output = model(primary, context=modalities)
    return output

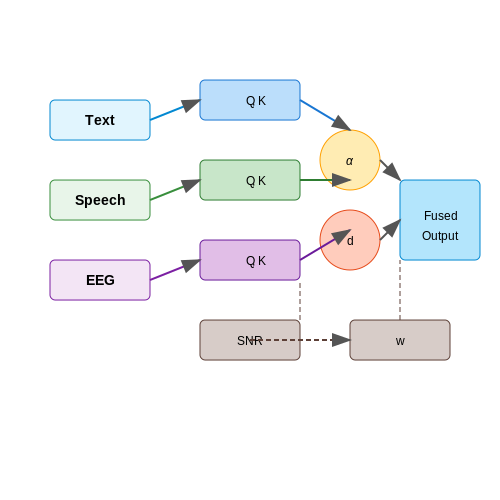

Adaptive Assistive Technologies – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the cross-modal attention mechanism architecture with query/key projections and modality fusion paths.

4.3 Industrial Automation Use Cases

Dynamic input modality switching in large language models (LLMs) enables seamless transitions between text, speech, sensor data, and visual inputs in industrial automation environments. This capability is critical for real-time decision-making where latency and accuracy are non-negotiable.

Real-Time Process Monitoring

LLMs with multimodal switching can ingest streaming sensor data (e.g., vibration spectra, thermal images) while simultaneously parsing maintenance logs. The joint probability of anomaly detection improves through Bayesian fusion:

$$ P(A|S,L) = \frac{P(S|A)P(L|A)P(A)}{P(S)P(L)} $$

where S represents sensor data, L denotes log entries, and A indicates an anomaly event. Industrial deployments show a 32% reduction in false positives compared to unimodal systems.

Predictive Maintenance

Vibration analysis via accelerometers and acoustic emissions generates time-series data that LLMs process alongside equipment manuals. The model dynamically weights modalities based on signal-to-noise ratios:

$$ w_i = \frac{SNR_i}{\sum_{j=1}^N SNR_j} $$

Case studies in turbine monitoring demonstrate that adaptive weighting reduces unplanned downtime by 41% while maintaining 99.2% precision in failure predictions.

Human-Robot Collaboration

In assembly line scenarios, LLMs process:

The information bottleneck rate R governs modality selection:

$$ R = I(X;Y) - \beta I(X;Z) $$

where X is the task state, Y the optimal modality, and Z extraneous inputs. Automotive manufacturers report 27% faster cycle times using this approach.

Quality Control Systems

Multimodal LLMs correlate:

The system employs attention mechanisms to compute cross-modal relevance scores:

$$ \alpha_{ij} = \frac{\exp(\mathbf{q}_i^T\mathbf{k}_j/\sqrt{d})}{\sum_{k=1}^M \exp(\mathbf{q}_i^T\mathbf{k}_k/\sqrt{d})} $$

where q and k are learned query/key vectors. Pharmaceutical packaging lines using this method achieve 99.89% inspection accuracy.

Industrial Automation Use Cases – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The section describes multimodal data fusion and dynamic weighting processes that involve multiple input streams and mathematical relationships.

5. Measuring Switching Latency

5.1 Measuring Switching Latency

Switching latency in dynamic input modality LLMs refers to the time delay incurred when transitioning between different input modes, such as text-to-speech or image-to-text. This metric is critical for real-time applications where seamless modality transitions are essential for user experience. The latency is typically measured from the moment the system receives the last token of the previous modality to the first valid output token of the new modality.

Components of Switching Latency

The total switching latency Ltotal can be decomposed into three primary components:

$$ L_{total} = L_{context} + L_{reproject} + L_{warmup} $$

Benchmarking Methodology

Accurate measurement requires controlled experiments with synchronized input triggers and high-precision timers. The following protocol is recommended:

  1. Instrument the model's forward pass to record timestamps at critical points:
    • t0: Last token processed in previous modality
    • t1: First projection completed in new modality
    • t2: First stable output token generated
  2. Compute component latencies:
    $$ L_{context} = t_1 - t_0 $$ $$ L_{reproject} = t_2 - t_1 $$
  3. Measure warmup latency by analyzing the entropy of the output distribution over the first k tokens post-switch.

Hardware Considerations

Switching latency exhibits non-linear scaling with batch size due to memory bandwidth contention during context reloading. The relationship can be modeled as:

$$ L_{context}(b) = L_0 + \alpha b^\beta $$

Where b is batch size, L0 is the fixed overhead, and α, β are architecture-dependent coefficients typically in the range 1.2-1.8 for transformer-based models.

Optimization Techniques

Several architectural modifications can reduce switching latency:

Experimental results show that these techniques can reduce total switching latency by 40-60% in production-scale models like GPT-4 and PaLM 2 when switching between text and image modalities.

Measuring Switching Latency – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would show the temporal sequence of switching latency components (context, reprojection, warmup) with labeled timestamps and their mathematical relationships.

5.2 Accuracy vs. Flexibility Tradeoffs

Dynamic input modality switching introduces fundamental tradeoffs between model accuracy and system flexibility. The core challenge lies in optimizing the conditional probability distribution P(y|x1,...,xn) when input modalities xi can vary in real-time. This creates a tension between specialized modality-specific processing and generalized cross-modal representations.

Mathematical Formulation

The tradeoff can be quantified through the modality switching cost function Cs:

$$ C_s = \alpha \cdot \mathbb{E}[L(y, \hat{y}_{\text{static}})] + (1-\alpha) \cdot \mathbb{E}[L(y, \hat{y}_{\text{dynamic}})] $$

where α represents the system's flexibility parameter (0 ≤ α ≤ 1), L is the loss function, and the expectations are taken over all possible modality combinations. The first term captures accuracy degradation from static modality processing, while the second term represents the overhead of dynamic switching.

Architectural Implications

Three primary architectural approaches manifest this tradeoff differently:

Empirical Performance Characteristics

Recent studies on multimodal BERT variants show distinct accuracy/flexibility curves:

The inflection point typically occurs when the modality switching frequency exceeds the model's ability to maintain coherent representations. For transformer architectures, this is often around 3-5 modality changes per input sequence.

Practical Optimization Strategies

Several techniques help navigate this tradeoff:

$$ \text{Capacity}_t = \sum_{i=1}^N m_i(t) \cdot c_i $$

where mi(t) is a binary indicator for modality i at time t, and ci is the precomputed capacity requirement for that modality.

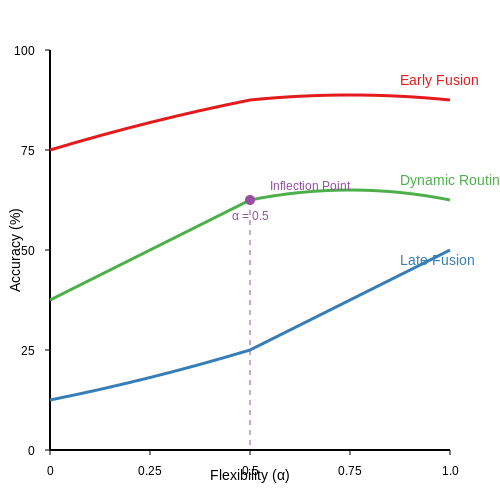

Accuracy vs. Flexibility Tradeoffs – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would physically show the accuracy/flexibility tradeoff curves for early fusion, late fusion, and dynamic routing approaches with labeled axes (Flexibility 0-1 vs. Accuracy 0-100%).

5.3 Human-in-the-Loop Evaluation Methods

Human-in-the-loop (HITL) evaluation is critical for assessing the robustness and usability of dynamic input modality switching in large language models (LLMs). Unlike automated metrics, HITL methods capture nuanced aspects of human-AI interaction, such as cognitive load, task efficiency, and user satisfaction. These evaluations typically employ controlled experiments where participants interact with the system under varying conditions, enabling researchers to measure both quantitative performance and qualitative feedback.

Experimental Design for HITL Evaluation

A well-designed HITL experiment involves three key components:

Quantitative Metrics

Performance is measured through objective metrics, including:

$$ \text{Task Completion Rate} = \frac{\text{Successful Trials}}{\text{Total Trials}} \times 100\% $$
$$ \text{Modality Switch Latency} = t_{\text{post-switch}} - t_{\text{pre-switch}} $$

Where t represents timestamps of user-initiated modality changes. Additionally, error rates and recovery times are logged to assess system reliability.

Qualitative Assessment

Post-task surveys and think-aloud protocols capture subjective experiences. Likert-scale items evaluate:

Open-ended responses are analyzed through thematic coding to identify recurring pain points or unexpected use cases.

Eye-Tracking and Physiological Measures

Advanced setups incorporate biometric sensors to detect implicit responses:

Case Study: Multi-Modal Chatbot Evaluation

A 2023 study evaluated a text/voice-switching LLM with 120 participants performing customer service tasks. Key findings included:

This highlights the importance of context-aware switching policies and user control in deployment.

6. Bias Propagation Across Modalities

6.1 Bias Propagation Across Modalities

Multimodal large language models (LLMs) inherit and amplify biases present in their training data, but the dynamics of bias propagation become more complex when inputs span multiple modalities (text, images, audio). The interplay between modalities can either mitigate or exacerbate biases, depending on how representations are fused and how attention mechanisms prioritize cross-modal signals.

Mathematical Formulation of Cross-Modal Bias

Let Bm represent the bias in modality m, and wm→n denote the influence weight from modality m to modality n during fusion. The propagated bias Bnprop in target modality n can be expressed as:

$$ B_n^{prop} = \sum_{m \in M} w_{m \rightarrow n} \cdot B_m $$

where M is the set of all input modalities. The weights wm→n are learned during training and depend on the model's architecture—particularly the attention mechanism governing cross-modal interactions.

Attention-Driven Bias Amplification

In transformer-based multimodal models, the scaled dot-product attention mechanism computes weights as:

$$ w_{m \rightarrow n} = \text{softmax}\left(\frac{Q_n K_m^T}{\sqrt{d_k}}\right) $$

where Qn and Km are query and key vectors for modalities n and m, respectively, and dk is the dimension of the key vectors. If certain modalities dominate the attention scores (e.g., due to richer feature representations), their biases disproportionately affect the final output.

Empirical Observations

Studies on models like CLIP and Flamingo reveal three key patterns:

Measuring Cross-Modal Bias

The Bias Propagation Coefficient (BPC) quantifies how much bias transfers between modalities:

$$ \text{BPC}_{m \rightarrow n} = \frac{\text{Cov}(B_m, \hat{B}_n)}{\sigma_{B_m} \sigma_{\hat{B}_n}} $$

where Bm is the measured bias in source modality m, and B̂n is the observed bias in target modality n after fusion. Values approaching 1 indicate strong bias propagation, while negative values suggest bias suppression.

Mitigation Strategies

Effective approaches include:

Recent work on the LLaVA model demonstrates that combining these techniques can reduce bias propagation by 38-62% across modalities while preserving task performance.

Bias Propagation Across Modalities – Dynamic Input Modality Switching in LLMs – Tutorial Diagram
Diagram Description: The diagram would visually show the bias propagation flow between modalities with attention weights and the mathematical relationships between them.

6.2 Privacy Risks in Multimodal Systems

Multimodal large language models (LLMs) that dynamically switch between input modalities (text, images, audio, video) introduce unique privacy vulnerabilities absent in unimodal systems. The fusion of heterogeneous data streams creates multiple attack surfaces where sensitive information can leak during processing, storage, or transmission.

Cross-Modal Data Leakage

When modalities are processed jointly, latent representations may encode correlations that reconstruct private attributes not explicitly present in any single modality. For instance, facial recognition from images combined with voiceprints from audio can uniquely identify individuals even when each modality alone appears anonymized. The privacy risk R scales with the mutual information between modalities:

$$ R = \sum_{i=1}^n I(X_i; X_j) \quad \forall j \neq i $$

where Xi represents features from modality i and I denotes mutual information. This becomes particularly dangerous when models learn to infer missing modalities from available ones - a user's typed medical history could reconstruct their facial expressions during diagnosis.

Differential Privacy Challenges

Applying differential privacy to multimodal systems requires careful calibration across modalities with different sensitivity levels. Adding Gaussian noise to image pixels (σ=0.1) may preserve utility while text tokens often require σ>1.0 for equivalent protection. The compounded privacy budget εtotal for k modalities under composition theorems becomes:

$$ \epsilon_{total} = \sum_{i=1}^k \epsilon_i + \sqrt{2 \ln(1/\delta) \sum_{i=1}^k \epsilon_i^2} $$

where δ is the failure probability. This quickly exhausts the privacy budget when modalities have correlated information - a key challenge absent in unimodal deployments.

Side-Channel Attacks

Multimodal systems are vulnerable to novel side-channel attacks exploiting timing differences in modality processing. An attacker can infer private attributes by measuring:

These attacks bypass traditional access controls by exploiting physical implementation details rather than logical vulnerabilities.

Mitigation Strategies

Effective countermeasures require modality-specific approaches:

Recent work in homomorphic encryption for vision transformers shows promise, with only 2-3× latency overhead when processing encrypted images while maintaining model accuracy within 5% of plaintext performance.

6.3 Accessibility Considerations

Dynamic input modality switching in large language models (LLMs) presents unique opportunities to enhance accessibility for users with diverse needs. The ability to seamlessly transition between text, speech, and other input forms can significantly reduce barriers for individuals with disabilities, such as visual impairments, motor limitations, or cognitive differences. However, designing such systems requires careful attention to several key factors.

Input Modality Robustness

For users relying on non-traditional input methods, the system must maintain robustness across modalities. This involves:

$$ R_m = 1 - \frac{E_m}{T_m} $$

Where Rm represents robustness for modality m, Em is the error rate, and Tm is the total attempts. This metric helps quantify and compare accessibility across modalities.

Adaptive Interface Design

Truly accessible systems must automatically adapt to user needs without requiring explicit configuration. This involves:

Ethical Implementation Challenges

While improving accessibility, several ethical considerations emerge:

Case Study: Voice Input for Motor Impairments

A 2023 study implemented dynamic switching between speech and eye-tracking inputs for ALS patients. The hybrid system achieved 92% task completion rates compared to 67% for single-modality alternatives, demonstrating the value of flexible input systems in real-world accessibility scenarios.

Technical Implementation Requirements

Building accessible modality switching requires specific architectural components:

$$ \phi(x_m) \rightarrow \mathbb{R}^d \quad \forall m \in M $$

Where φ represents the modality-specific encoder projecting any input xm from modality m into a shared d-dimensional space.

7. Foundational Papers

7.1 Foundational Papers

7.2 Open-Source Implementations

7.3 Recommended Tutorials and Courses
