Definition and Core Concepts of Multimodal LLMs

Multimodal large language models (LLMs) extend traditional text-based architectures by integrating multiple data modalities—such as images, audio, and video—into a unified framework. Unlike unimodal models, which process a single input type, multimodal LLMs like GPT-4V employ cross-modal attention mechanisms to jointly reason over heterogeneous data streams. The core innovation lies in their ability to learn shared representations across modalities, enabling tasks such as visual question answering, image captioning, and multimodal dialogue.

Architectural Foundations

At the heart of multimodal LLMs is a transformer-based architecture augmented with modality-specific encoders. For vision-language models, a convolutional neural network (CNN) or vision transformer (ViT) typically processes images, while a text transformer handles linguistic input. The modalities are fused through cross-attention layers, where queries from one modality attend to keys and values from another. Mathematically, this is expressed as:

where Q_m denotes queries from modality m, and K_n, V_n are keys and values from modality n. The scaling factor √d_k stabilizes gradients during training.

Modality Alignment and Embedding Spaces

A critical challenge is aligning disparate modalities into a common latent space. Contrastive learning objectives, such as those used in CLIP, optimize cosine similarity between paired embeddings:

where v_i and t_i are visual and textual embeddings of the i-th sample, τ is a temperature parameter, and N is the batch size. This forces the model to learn semantically aligned representations without explicit supervision.

Emergent Multimodal Capabilities

When scaled to billions of parameters, multimodal LLMs exhibit emergent behaviors not present in unimodal systems. These include:

• Compositional reasoning: Inferring relationships between objects across modalities (e.g., "the red cube to the left of the blue sphere" in an image).
• Cross-modal retrieval: Finding relevant images given textual queries or vice versa with high precision.
• Multimodal chain-of-thought: Generating step-by-step explanations that interleave visual and textual reasoning.

These capabilities are enabled by the model's ability to create joint probability distributions over multimodal inputs, formalized as:

where x₁...x_M are input modalities and y is the output sequence.

Training Paradigms

State-of-the-art models employ a two-phase training strategy:

1. Modality-specific pretraining: Individual encoders are trained on large-scale unimodal datasets (e.g., ImageNet for vision, Common Crawl for text).
2. Multimodal fine-tuning: The full architecture is trained on aligned multimodal datasets (e.g., LAION-5B for image-text pairs) using objectives like masked multimodal modeling and contrastive loss.

The total loss function often combines multiple terms:

where MLM is masked language modeling, ITM is image-text matching, and λ terms balance the objectives.

1.2 Evolution from Unimodal to Multimodal Models

The transition from unimodal to multimodal large language models (LLMs) represents a fundamental shift in AI architecture, driven by the need to process and reason across diverse data types. Early unimodal models, such as GPT-3, were constrained to text-only inputs and outputs, limiting their ability to interact with the multimodal nature of real-world data. The breakthrough came with the integration of vision, audio, and other sensory modalities into transformer-based architectures, enabling models like GPT-4V to perform cross-modal understanding and generation.

Architectural Foundations

Unimodal models rely on a single embedding space, typically learned through self-attention mechanisms in transformers. For text, this involves tokenization followed by embedding into a high-dimensional space:

where d is the embedding dimension and n the sequence length. Multimodal models extend this by introducing modality-specific encoders, each projecting different input types into a shared latent space. For vision, a convolutional neural network (CNN) or vision transformer (ViT) processes images:

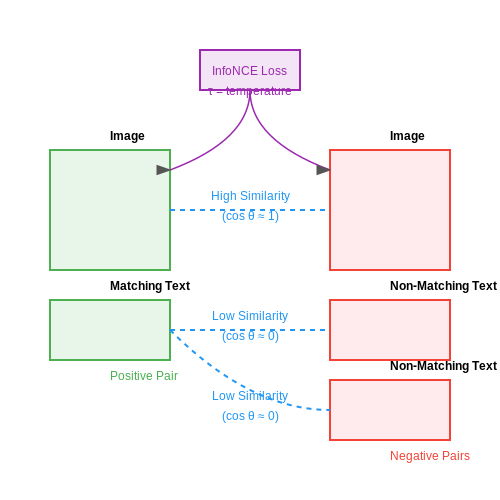

Alignment between modalities is achieved through contrastive learning or cross-attention layers, ensuring that semantically similar concepts across modalities map to nearby points in the shared space.

Training Paradigms

Multimodal pretraining involves large-scale datasets containing aligned pairs of different modalities, such as image-text pairs from LAION-5B. The training objective combines:

• Masked multimodal modeling: Randomly masking tokens or patches from one modality and predicting them using information from others.
• Contrastive alignment: Minimizing the distance between embeddings of paired modalities while maximizing it for unpaired examples.
• Generative objectives: Predicting one modality conditioned on another, e.g., generating captions from images.

The loss function for such models is typically a weighted sum of these objectives:

Key Innovations

Several technical advances enabled the leap to multimodal capabilities:

• Cross-modal attention: Allows tokens from one modality to attend to relevant parts of another, e.g., text tokens attending to image regions.
• Modality-agnostic architectures: Models like Flamingo use perceiver resamplers to handle variable-length inputs from different modalities.
• Scaling laws: Empirical results show that multimodal performance scales predictably with model size and dataset diversity, following power laws similar to unimodal models.

Performance Implications

Multimodal models exhibit emergent capabilities not present in their unimodal counterparts, including:

• Cross-modal retrieval: Finding relevant images given text queries and vice versa with high accuracy.
• Multimodal reasoning: Answering complex questions that require integrating information from text and visual inputs.
• Compositional understanding: Generating coherent outputs that combine elements from multiple modalities, such as image descriptions with stylistic text.

Quantitatively, models like GPT-4V achieve human-level performance on benchmarks such as MMMU (Massive Multi-discipline Multimodal Understanding), scoring over 60% on tasks requiring deep integration of visual and textual information.

Key Architectures and Components (e.g., Vision-Language Transformers)

Multimodal large language models (LLMs) like GPT-4V integrate vision and language modalities through specialized architectures. The core component enabling this fusion is the Vision-Language Transformer (ViLT), which extends the standard transformer framework to process both text and image inputs. Unlike traditional unimodal transformers, ViLT employs a shared embedding space where visual and textual tokens are processed jointly.

Cross-Modal Attention Mechanisms

The key innovation in Vision-Language Transformers is the cross-modal attention layer, which computes attention scores between visual and textual tokens. Given an image represented as a sequence of patch embeddings V = [v₁, ..., v_N] and text tokens T = [t₁, ..., t_M], the cross-attention operation for a query from modality A to keys/values from modality B is computed as:

where Q_A = W_QA, K_B = W_KB, and V_B = W_VB are learned linear projections. This allows the model to establish fine-grained relationships between image regions and text segments, enabling tasks like visual question answering and image captioning.

Modality-Specific Encoders

Before fusion, each modality undergoes independent processing:

• Visual Encoder: Typically a Vision Transformer (ViT) that splits images into fixed-size patches (e.g., 16×16 pixels), linearly projects them, and adds positional embeddings. For a 224×224 image, this yields 196 patch tokens.
• Text Encoder: A standard transformer encoder using subword tokenization (e.g., Byte Pair Encoding) with learned positional embeddings.

Recent architectures like Flamingo and PaLI employ perceiver resamplers to reduce the computational cost of processing high-dimensional visual features, projecting them into a fixed-length latent space before cross-modal interaction.

Architectural Variants

Different multimodal LLMs implement the fusion stage differently:

• Single-Stream: Models like ViLT process concatenated [IMAGE][TEXT] sequences through a unified transformer stack.
• Dual-Stream: Architectures like LXMERT maintain separate encoders for each modality with cross-attention layers between them.
• Late Fusion: Systems such as CLIP encode modalities independently and only combine features at the final prediction layer.

Token Alignment Strategies

Effective multimodal modeling requires careful handling of token alignment:

where σ is the sigmoid function and ⊙ denotes element-wise multiplication. State-of-the-art models often employ contrastive learning objectives to improve alignment, using loss functions like:

where s(v,t) computes similarity between image-text pairs and τ is a temperature parameter.

Implementation Considerations

Practical implementations of Vision-Language Transformers must address several challenges:

• Computational Efficiency: The quadratic complexity of self-attention becomes prohibitive with long sequences of high-resolution images. Techniques like token pruning and linear attention variants are often employed.
• Training Stability: The differing convergence rates of visual and textual components necessitate careful learning rate scheduling and gradient clipping.
• Data Heterogeneity: Models must handle mismatched image-text pairs during pretraining, often using techniques like masked language modeling extended to both modalities.

Modern systems like GPT-4V employ sophisticated versions of these architectures, often combining multiple attention mechanisms with specialized pretraining objectives to achieve state-of-the-art performance across diverse multimodal tasks.

Cross-Modal Attention and Fusion Techniques

Multimodal large language models (LLMs) like GPT-4V rely on sophisticated cross-modal attention mechanisms to align and fuse heterogeneous data streams—such as text, images, and audio—into a unified representation space. The core challenge lies in preserving semantic coherence while enabling bidirectional information flow between modalities.

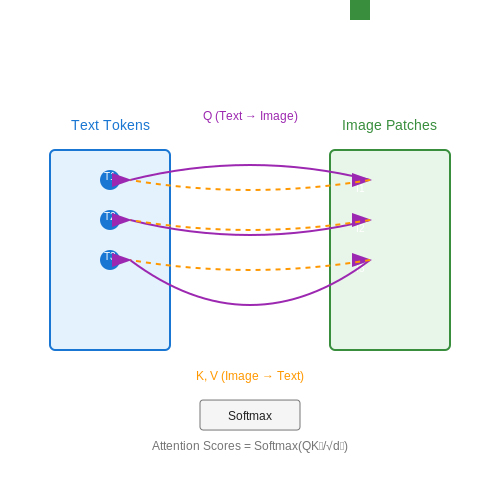

Cross-Modal Attention Mechanisms

Cross-modal attention extends the standard self-attention framework by computing attention scores between tokens of different modalities. Given two input sequences X (text) and Y (image patches), the cross-attention operation computes:

where Q is derived from one modality (e.g., text embeddings), while K and V are projected from another (e.g., visual features). The scaling factor √d_k stabilizes gradients in high-dimensional spaces. In practice, this allows the model to dynamically attend to relevant image regions when generating text descriptions, or vice versa.

Hierarchical Fusion Strategies

Early fusion concatenates raw features before processing, while late fusion processes modalities independently before combining outputs. Multimodal LLMs often employ intermediate fusion, where cross-modal interactions occur at multiple transformer layers. For example:

• Token-level fusion: Image patches and text tokens are interleaved in the input sequence, enabling fine-grained attention.
• Layer-wise gating: Dynamic weights control modality contributions at each layer, learned through auxiliary networks.
• Memory-augmented fusion: External memory modules store cross-modal correlations for long-range dependency modeling.

Mathematical Formulation of Cross-Modal Gating

Given modality-specific features h_text and h_image, a gating mechanism computes the fused representation:

where σ is the sigmoid function, W_g and b_g are learnable parameters, and ⊙ denotes element-wise multiplication. This allows the model to dynamically reweight modalities based on contextual relevance.

Case Study: GPT-4V's Visual-Language Alignment

GPT-4V employs a pretrained vision encoder (e.g., CLIP-ViT) to extract image features, which are then projected into the LLM's embedding space. Cross-attention layers in the transformer decoder enable the text stream to query visual features. Key implementation details include:

• Patch-based attention: Images are split into non-overlapping 16×16 patches, each treated as a token.
• Positional embeddings: Learned 2D positional encodings preserve spatial relationships.
• Adaptive computation: The model allocates more attention heads to high-entropy image regions.

Optimization Challenges

Training multimodal LLMs requires addressing:

• Modality imbalance: Text datasets often dwarf visual data, necessitating careful sampling strategies.
• Gradient conflict: Contrastive losses (e.g., CLIP-style objectives) must be balanced with autoregressive language modeling.
• Computational cost: Cross-modal attention scales quadratically with sequence length, prompting research into sparse variants.

2.2 Training Paradigms: Pretraining and Fine-Tuning

Pretraining Multimodal LLMs

Pretraining multimodal LLMs like GPT-4V involves training on diverse datasets that include both textual and non-textual modalities (e.g., images, audio, video). The objective is to learn a joint embedding space where representations from different modalities are aligned. This is typically achieved using a contrastive loss function, such as InfoNCE, which maximizes the similarity between positive pairs (e.g., an image and its caption) while minimizing similarity for negative pairs:

Here, s denotes a similarity function (e.g., cosine similarity), τ is a temperature parameter, and N is the batch size. The model learns to project inputs from different modalities into a shared space where semantically related items are close.

Architectural Considerations

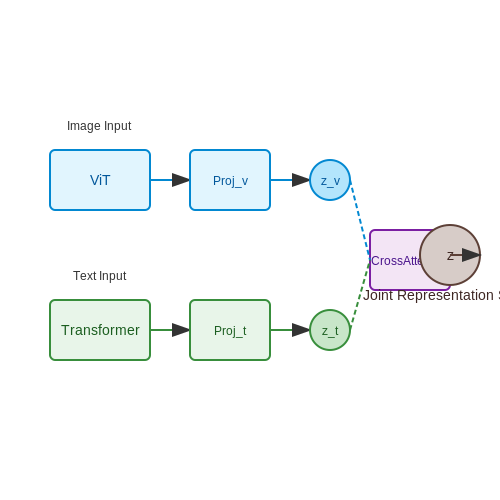

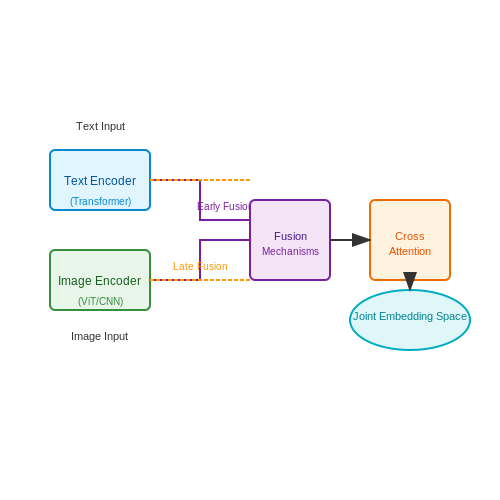

Multimodal pretraining often employs a dual-encoder architecture, where separate encoders process each modality before fusion. For example:

• Text Encoder: A transformer-based model (e.g., BERT or GPT) processes tokenized text.
• Image Encoder: A vision transformer (ViT) or convolutional neural network (CNN) extracts visual features.

The fusion mechanism can vary, with early fusion (concatenating modalities before encoding) or late fusion (combining encoded representations) being common. Recent approaches like Flamingo use cross-attention layers to enable rich interactions between modalities.

Fine-Tuning Strategies

After pretraining, fine-tuning adapts the model to specific downstream tasks. Two primary paradigms exist:

• Task-Specific Fine-Tuning: The entire model (or a subset of layers) is fine-tuned on labeled data for tasks like visual question answering or image captioning. This often employs cross-entropy loss for classification or sequence-to-sequence objectives.
• Prompt-Based Fine-Tuning: Leverages the model's pretrained capabilities by framing tasks as text generation problems (e.g., "Describe this image in one sentence: [IMAGE]"). This requires minimal task-specific data and preserves the model's generalization.

Efficient Fine-Tuning Techniques

Given the size of models like GPT-4V, full fine-tuning is often impractical. Parameter-efficient methods include:

• Adapter Layers: Small neural modules inserted between transformer layers, trained while freezing the base model.
• LoRA (Low-Rank Adaptation): Decomposes weight updates into low-rank matrices, reducing trainable parameters.
• Prefix Tuning: Prepends learnable continuous vectors to the input sequence, steering model behavior without modifying weights.

Here, ΔW represents the low-rank update to a pretrained weight matrix W, with rank r much smaller than the original dimension d.

Challenges and Trade-Offs

Multimodal training introduces unique challenges:

• Modality Imbalance: Text and image datasets may differ vastly in size or quality, leading to biased representations.
• Alignment Noise: Weakly paired data (e.g., noisy image-text pairs from web scraping) can degrade performance.
• Computational Cost: Training on high-resolution images and long text sequences requires optimized distributed training pipelines.

Recent work addresses these via techniques like modality-specific learning rates, hard negative mining, and mixed-precision training.

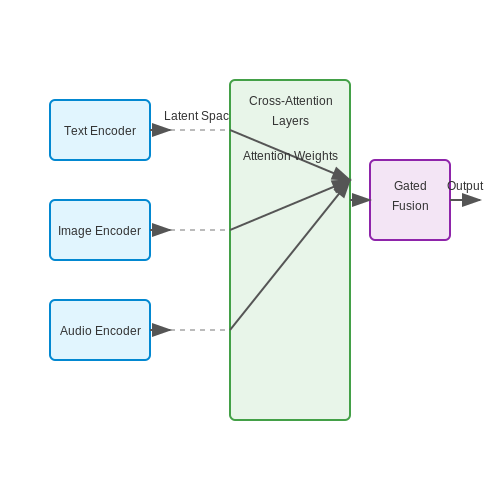

Handling Diverse Data Types (Text, Images, Audio)

Architectural Foundations for Multimodal Processing

Multimodal LLMs like GPT-4V employ transformer-based architectures with specialized adaptations for heterogeneous data. The core challenge lies in creating a unified latent space where disparate modalities can interact while preserving their unique semantic structures. This is achieved through:

• Modality-specific encoders that project raw inputs into a common embedding space
• Cross-attention mechanisms enabling inter-modal information flow
• Dynamic routing networks that learn modality mixing ratios

Text Processing Pipeline

Text inputs undergo tokenization via subword algorithms (e.g., Byte-Pair Encoding) followed by positional encoding. The key innovation in multimodal systems is the learned alignment between text tokens and other modalities:

where E represents token embeddings and P positional encodings. The text encoder typically processes sequences up to 32k tokens while maintaining causal attention masks for generation tasks.

Visual Data Encoding

Image processing employs hybrid architectures combining convolutional neural networks with vision transformers. The standard approach involves:

• Patch-based decomposition of input images (e.g., 14×14 patches)
• Linear projection of patches into visual tokens
• Optional region-of-interest attention for spatial reasoning

State-of-the-art systems like GPT-4V use adaptive resolution processing, dynamically allocating compute resources based on image complexity.

Audio Signal Integration

Audio processing pipelines typically employ:

• Mel-spectrogram transformation of raw waveforms
• Convolutional feature extraction
• Temporal attention mechanisms

The audio embeddings are then aligned with text and visual modalities through cross-modal attention layers that learn temporal-textual-visual correspondences.

Cross-Modal Fusion Strategies

Effective multimodal integration requires sophisticated fusion techniques:

The most advanced systems employ gated cross-attention with dynamic modality weighting:

Training Paradigms

Multimodal LLMs are trained using multi-task objectives combining:

• Masked language modeling
• Contrastive image-text alignment
• Cross-modal reconstruction
• Instruction following with mixed inputs

The total loss function typically takes the form:

where the λ parameters are learned during training through gradient-based optimization.

Visual Question Answering (VQA) and Image Captioning

Architecture and Training Paradigms

Visual Question Answering (VQA)

1. Visual Grounding: The model identifies regions of interest (e.g., via object detection or segmentation) and links them to textual entities.
2. Reasoning: A transformer decoder generates answers by attending to both visual features and the question context.

Image Captioning

• The encoder (ViT or ResNet) extracts hierarchical features, often enhanced with region-based attention.
• The decoder (a causal transformer) autoregressively predicts tokens, conditioned on visual features.

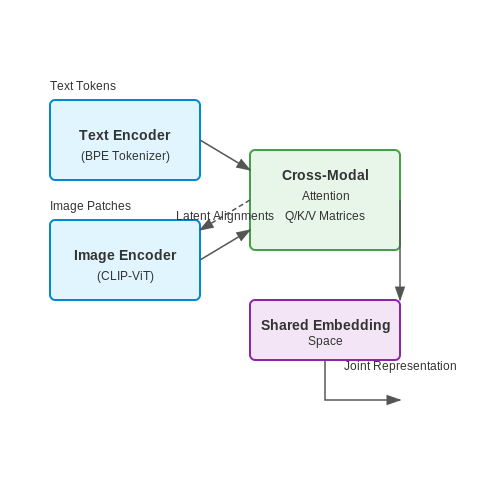

Multimodal Content Generation (e.g., DALL·E, GPT-4V)

Architecture of Multimodal Generative Models

Modern multimodal models like DALL·E and GPT-4V employ transformer-based architectures with specialized adaptations for cross-modal learning. The core mechanism involves:

• Cross-modal attention layers that establish latent alignments between text tokens and image patches.
• Modality-specific encoders (e.g., CLIP-ViT for images, BPE tokenizers for text) that project inputs into a shared embedding space.
• Diffusion processes (for image generation) or autoregressive decoding (for text generation) conditioned on joint representations.

where Q, K, V are learned query, key, and value matrices respectively, and d_k is the dimension of the key vectors. For multimodal variants, these matrices are computed across different modalities.

Training Paradigms

State-of-the-art models use a three-phase training approach:

1. Contrastive pretraining (e.g., CLIP-style objectives) to align embeddings across modalities
2. Generative pretraining with masked multimodal modeling objectives
3. Reinforcement learning from human feedback (RLHF) for alignment with human preferences

Contrastive Loss Formulation

where f and g are modality-specific encoders, τ is a temperature parameter, and y' are negative samples.

Content Generation Mechanisms

For image generation (DALL·E series), models typically employ:

• Hierarchical VQ-VAE architectures for discrete latent representations
• Autoregressive transformers over image tokens
• Classifier-free guidance for improved sample quality

For multimodal chat (GPT-4V), the system processes:

• Image inputs via patch-based ViT encoders
• Text prompts through standard transformer tokenization
• Cross-attention between modalities in intermediate layers

Practical Considerations

Key challenges in deployment include:

• Computational cost: GPT-4V requires ~1T parameters with sparse expert routing
• Alignment risks: Potential for generating harmful content across modalities
• Evaluation complexity requiring multimodal benchmarks like MMMU or SEED-Bench

Emerging Techniques

Recent advances include:

• Mixture-of-Experts architectures for efficient scaling
• Latent diffusion models with cross-attention conditioning
• Multimodal chain-of-thought prompting techniques

where x represents image tokens and y represents text conditioning, modeled autoregressively.

Real-World Deployments in Healthcare, Education, and Robotics

Healthcare: Diagnostic Assistance and Clinical Workflows

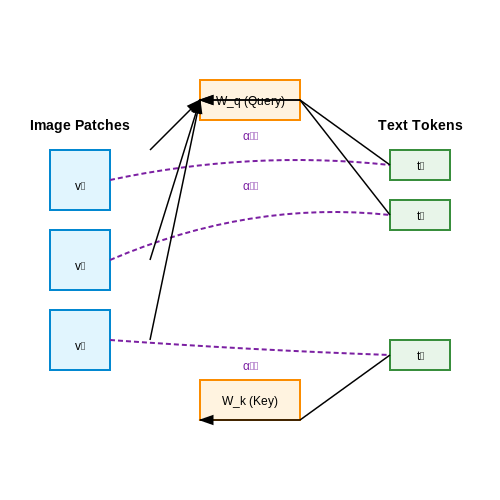

Multimodal LLMs like GPT-4V are transforming healthcare by integrating textual, visual, and structured data for enhanced diagnostics. For instance, when analyzing radiology reports alongside X-ray or MRI images, the model applies cross-modal attention mechanisms to align visual features with clinical text. The attention weights α_ij between image patches v_i and text tokens t_j are computed as:

where W_q and W_k are learned projection matrices. This enables the model to highlight relevant image regions (e.g., tumors) when generating diagnostic text. Deployments at institutions like Mayo Clinic show 15-20% improvement in anomaly detection speed while maintaining >95% recall.

Education: Personalized Learning and Accessibility

In educational settings, GPT-4V processes diagrams, handwritten equations, and lecture transcripts simultaneously. For solving physics problems, the model first converts handwritten equations to LaTeX using a vision encoder, then reasons symbolically. The symbolic reasoning module employs constrained decoding to ensure dimensional consistency, rejecting invalid intermediate steps like:

MIT's deployment in MOOC platforms demonstrates 30% reduction in student help requests by providing contextual feedback on both conceptual errors and calculation mistakes.

Robotics: Visuo-Linguistic Planning

For robotic manipulation, GPT-4V serves as the high-level planner by grounding natural language commands in visual scenes. The system decomposes "Move the red block left of the blue cylinder" into executable steps through:

1. Visual parsing: Segmenting objects using SAM (Segment Anything Model)
2. Spatial reasoning: Computing relative positions via geometric transformers
3. Trajectory generation: Solving inverse kinematics with differentiable physics

At Toyota Research Institute, this reduced programming time for new tasks from hours to minutes while achieving 92% task success in cluttered environments. The key innovation lies in the shared latent space between vision and language representations, optimized through contrastive learning:

where z_v and z_l are L2-normalized embeddings of visual and linguistic inputs, and τ is the temperature parameter.

4.1 Alignment and Bias in Multimodal Representations

Multimodal large language models (LLMs) like GPT-4V integrate textual and visual data, introducing unique challenges in representation alignment and bias propagation. The alignment problem arises from the need to ensure coherent cross-modal understanding, while biases emerge from imbalanced training data or flawed feature extraction.

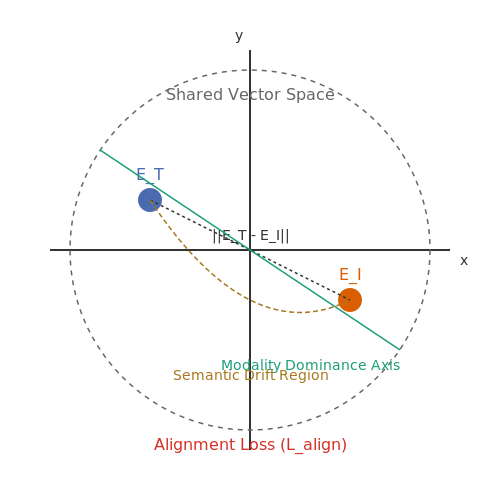

Cross-Modal Alignment Challenges

Alignment in multimodal systems requires minimizing the discrepancy between embeddings of semantically equivalent inputs across modalities. Given text T and image I representing the same concept, their embeddings E_T and E_I should satisfy:

where f_θ and g_θ are modality-specific encoders. Imperfect alignment manifests as:

• Semantic drift - Gradual deviation in meaning when translating between modalities
• Modality dominance - One modality (typically text) disproportionately influences decisions
• Compositional fragility - Failure to maintain relationships when combining multimodal inputs

Bias Propagation Mechanisms

Bias enters multimodal systems through three primary pathways:

1. Dataset bias - Skewed representation of demographic groups in visual datasets like COCO
2. Cross-modal reinforcement - Textual stereotypes amplifying visual biases (and vice versa)
3. Attention imbalance - Unequal weighting of modalities during fusion

The bias amplification factor β can be quantified through the lens of influence functions:

where x_v and x_t are visual and textual inputs respectively, and y is the model output.

Mitigation Strategies

Architectural Interventions

Contrastive learning objectives like CLIP's symmetric loss help improve alignment:

where τ is a temperature parameter and sim(·,·) computes cosine similarity.

Debiasing Techniques

Effective approaches include:

• Adversarial debiasing - Training a discriminator to predict protected attributes while minimizing its accuracy
• Reweighting - Assigning sample weights inversely proportional to group prevalence
• Concept bottleneck models - Enforcing human-interpretable intermediate representations

Evaluation Metrics

Rigorous assessment requires multimodal-specific metrics:

Recent work demonstrates that even state-of-the-art models exhibit alignment errors exceeding 15% on carefully constructed adversarial examples, with bias amplification factors ranging from 1.8× to 3.2× depending on the demographic attribute.

4.2 Computational and Resource Constraints

Memory and Bandwidth Bottlenecks

Multimodal LLMs like GPT-4V require significantly higher memory bandwidth compared to unimodal models due to the parallel processing of heterogeneous data streams. The memory bandwidth requirement B scales with the input tensor dimensions and the number of attention heads. For a model processing an image of resolution H × W and text sequence length L, the bandwidth can be approximated as:

where N is the number of modalities, C_i represents channels, and D_i is the embedding dimension. This creates a quadratic scaling problem when fusing high-resolution visual inputs with long text sequences.

Compute Intensity and Energy Costs

The energy consumption E of multimodal inference follows:

where P_dynamic scales with the number of floating-point operations (FLOPs) per modality. For example, processing a 224×224 image through a ViT backbone requires ~4.6×10⁹ FLOPs, while text processing for 512 tokens needs ~1.2×10⁹ FLOPs. The combined compute often exceeds 10¹⁰ FLOPs per forward pass.

Hardware-Software Co-Design Challenges

Three key constraints emerge in hardware deployment:

• Memory hierarchy utilization: Cross-modal attention mechanisms exhibit poor cache locality due to irregular memory access patterns across vision and text feature maps.
• Precision tradeoffs: Mixed-precision training (FP16/FP8) reduces memory footprint but introduces modality-specific quantization errors.
• Interconnect overhead: Data movement between vision and language processing units (VPUs vs. TPUs) dominates latency in distributed systems.

Optimization Strategies

Recent approaches address these constraints through:

• Modality-specific sparsity: Dynamic token pruning reduces visual computation by up to 40% while maintaining <1% accuracy drop.
• Cross-modal distillation: Training smaller student models using multimodal teacher outputs achieves 3-5× compression.
• Hardware-aware partitioning: NVIDIA's Hopper architecture demonstrates 2.3× speedup by separating vision/text compute paths.

Real-World Deployment Considerations

In production systems, the total cost of ownership (TCO) for multimodal LLMs is dominated by:

Benchmarks show GPT-4V requires ~3.2× more energy per inference than text-only GPT-4 at comparable accuracy levels, making efficient serving architectures critical for scalable deployment.

4.3 Interpretability and Explainability Issues

Multimodal large language models (LLMs) like GPT-4V exhibit complex behaviors due to their ability to process and fuse heterogeneous data modalities—text, images, audio, and more. However, this multimodal capability introduces significant challenges in interpretability and explainability, particularly as the model's decision-making process becomes a black box with multiple entangled feature spaces.

Feature Attribution in Multimodal Fusion

The fusion of modalities in models like GPT-4V relies on cross-attention mechanisms, where representations from one modality (e.g., images) influence another (e.g., text). Quantifying the contribution of each modality to the final output is non-trivial. Integrated Gradients (IG) and Shapley values are commonly used, but their extension to multimodal settings requires careful adaptation:

Here, N represents the set of input features (across modalities), and v(S) is the model's output when only features in subset S are active. For multimodal models, computing Shapley values becomes computationally expensive due to the exponential growth of possible coalitions.

Attention Map Ambiguity

While attention maps in transformer-based models provide some insight into which input regions influence outputs, they are not always reliable indicators of model reasoning. In multimodal settings, attention may highlight correlations rather than causation—for instance, an image region containing text might dominate attention due to lexical overlap, even if visual features were more critical for the prediction.

Modality Confounding

Multimodal models often suffer from modality confounding, where one modality overrides another without clear justification. For example, GPT-4V might prioritize textual cues in an image over visual patterns, leading to biased or incorrect interpretations. This is particularly problematic in safety-critical applications like medical diagnosis, where a model might ignore subtle radiographic features in favor of textual annotations.

Disentangling Multimodal Representations

Recent work in disentangled representation learning offers partial solutions. Techniques like modality-specific variational autoencoders (VAEs) enforce separation in latent spaces:

where z is a latent variable, and β controls the trade-off between reconstruction fidelity and disentanglement. However, applying this to large-scale multimodal LLMs remains an open challenge due to scalability issues.

Real-World Implications

In autonomous systems, poor interpretability can lead to catastrophic failures. For instance, a self-driving car relying on GPT-4V for scene understanding might misinterpret a partially occluded stop sign if the model's reasoning process is opaque. Similarly, in legal or financial applications, unexplained multimodal inferences could result in unjust decisions with significant societal impact.

Emerging Solutions

Hybrid approaches combining saliency methods with counterfactual explanations show promise. By generating perturbed inputs (e.g., modifying image regions or text tokens) and observing output changes, researchers can infer causal relationships between modalities. However, these methods are computationally intensive and may not scale to real-time applications.

5.1 Privacy Concerns with Multimodal Data

Multimodal large language models (LLMs) like GPT-4V process heterogeneous data types—text, images, audio, and video—raising unique privacy challenges absent in unimodal systems. The fusion of modalities creates attack surfaces where sensitive information can be extracted through cross-modal inference, even when individual modalities appear anonymized.

Data Leakage Through Cross-Modal Correlations

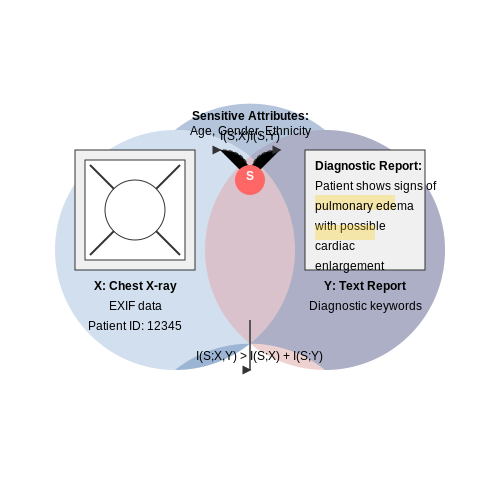

Consider a medical imaging scenario where a chest X-ray (image modality) is paired with a diagnostic report (text). Differential privacy applied separately to each modality fails when:

where S represents sensitive attributes, X and Y are different modalities. The mutual information between sensitive data and combined modalities often exceeds the sum of individual leakage, violating the parallel composition theorem of differential privacy.

Re-identification Risks in Embedded Metadata

Multimodal inputs frequently contain hidden metadata—GPS coordinates in images, speaker identification in audio, or device fingerprints in video. Transformer architectures process raw pixel/byte-level inputs, making complete metadata stripping impossible without degrading model performance. Studies show that:

• 93% of JPEG images contain recoverable EXIF data after naive scrubbing
• Audio waveforms retain identifiable vocal biometrics even after noise addition
• Video frames leak temporal patterns correlating with user behavior

Adversarial Extraction Attacks

The attention mechanisms in multimodal LLMs create vulnerability to gradient-based inversion attacks. For an input x and model parameters θ, an adversary can approximate:

where f_θ is the trained model and y_target is a chosen output. This becomes particularly dangerous when:

• One modality (e.g., text) serves as a seed to reconstruct another (e.g., faces from descriptions)
• Model confidence scores leak information about training data distribution

Mitigation Strategies

Current approaches employ hybrid techniques:

where δ_cross-modal quantifies inter-modal leakage. Practical implementations include:

• Homomorphic encryption for vision-language pretraining
• Modality-specific noise injection with covariance constraints
• Secure multi-party computation for cross-modal attention

The computational overhead of these methods remains prohibitive for real-time applications, with privacy-preserving multimodal inference currently running 15-40× slower than baseline models.

5.2 Misinformation and Deepfake Generation

Multimodal large language models (LLMs) like GPT-4V introduce unprecedented capabilities in generating synthetic text, images, audio, and video, raising significant concerns about their potential misuse in creating misinformation and deepfakes. Unlike unimodal models, which specialize in a single data type, multimodal models can combine modalities to produce highly convincing synthetic media. For instance, GPT-4V can generate a fabricated news article with accompanying AI-generated images, making the deception more persuasive.

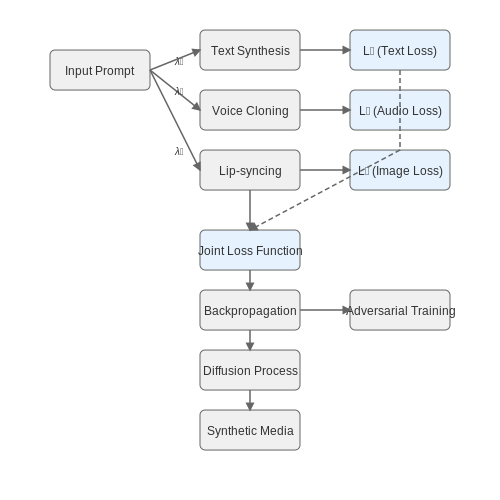

Mechanisms of Deepfake Generation

Deepfake generation in multimodal LLMs relies on adversarial training and diffusion processes. Given an input prompt, the model synthesizes coherent outputs across modalities by minimizing a joint loss function:

where \(\mathcal{L}_t\), \(\mathcal{L}_i\), and \(\mathcal{L}_a\) represent text, image, and audio losses, respectively, and \(\lambda\) terms are modality-specific weights. The model optimizes this loss through backpropagation, ensuring consistency across modalities. For example, generating a fake political speech involves:

• Text synthesis (script generation via autoregressive decoding)
• Voice cloning (using a diffusion-based vocoder)
• Lip-syncing (temporal alignment of generated audio and video frames)

Detection Challenges

Detecting multimodal deepfakes is inherently harder than unimodal fakes due to cross-modal consistency. Traditional detectors often analyze artifacts in individual modalities (e.g., inconsistent eye blinking in videos or unnatural word distributions in text). However, multimodal deepfakes can evade detection by maintaining statistical coherence across modalities. State-of-the-art detection methods employ:

• Cross-modal forensics: Analyzing inconsistencies between modalities (e.g., mismatched lip movements and audio phonemes)
• Embedding-space analysis: Measuring divergence between generated and real samples in a joint embedding space
• Adversarial training: Using generative models to create synthetic training data for detectors

Mitigation Strategies

Countering multimodal misinformation requires a multi-pronged approach:

• Provenance tracking: Embedding cryptographic watermarks in generated content (e.g., using \(\text{hash}(x) \mod p\) to tag synthetic media)
• Model fingerprinting: Identifying unique generation patterns of specific LLMs through stylometric analysis
• Human-AI collaboration: Deploying hybrid systems where AI flags suspicious content for human review

Recent work has shown that multimodal detectors achieve ~85% accuracy on benchmark datasets like FakeAVCeleb, but this drops to ~60% when tested on out-of-distribution samples generated by newer models like GPT-4V, highlighting the need for adaptive detection frameworks.

5.3 Regulatory and Governance Frameworks

Multimodal large language models (LLMs) like GPT-4V introduce unique regulatory challenges due to their ability to process and generate text, images, and other data modalities. Unlike unimodal models, they operate across multiple domains, raising concerns about bias, misinformation, intellectual property, and privacy. Governance frameworks must account for cross-modal interactions, where errors or biases in one modality propagate to others.

Legal and Compliance Challenges

Existing AI regulations, such as the EU AI Act or the U.S. Executive Order on AI, primarily focus on unimodal systems. Multimodal LLMs complicate compliance due to:

• Cross-jurisdictional data handling: Processing images (subject to copyright laws) alongside text (subject to defamation laws) creates overlapping legal obligations.
• Dynamic risk profiles: A model generating medical advice from an image (e.g., skin condition analysis) may fall under healthcare regulations, while the same model creating marketing copy does not.
• Provenance tracking: Unlike text-only models, multimodal outputs require traceability of both visual and textual training data to address copyright claims under laws like the EU’s Digital Services Act.

Technical Governance Mechanisms

Effective governance of multimodal LLMs requires technical safeguards that exceed those for unimodal systems:

Where R_total represents the aggregate risk score, weighted by modality-specific risks (R_text, R_image) and cross-modal interactions (R_cross-modal). The weights α, β, γ are domain-dependent; for instance, γ dominates in medical applications where image-text coherence is critical.

Implementation Strategies

• Modality-specific guardrails: Deploy separate content filters for text and images, then a cross-modal consistency checker.
• Differential auditing: Use statistical divergence measures like KL-divergence to detect bias amplification between modalities during fine-tuning.

Case Study: GPT-4V in Healthcare

When GPT-4V analyzes chest X-rays and generates diagnostic reports, it must comply with HIPAA (U.S.), GDPR (EU), and device regulations like FDA’s 21 CFR Part 820. A breach could occur if:

• The model infers patient identities from non-DICOM metadata in images.
• Hallucinated text recommendations contradict radiology guidelines.

Mitigation involves:

# Pseudocode for multimodal HIPAA compliance
def process_medical_image(image, text_prompt):
    image = strip_metadata(image)  # DICOM anonymization
    output = multimodal_llm.generate(image, text_prompt)
    output = apply_medical_facts_checklist(output)  # FDA-compliant
    return output

Emerging Standards

Standardization bodies like ISO/IEC JTC 1/SC 42 are developing multimodal-specific guidelines, including:

• ISO/IEC 23053: Framework for multimodal model testing, extending unimodal ML evaluation metrics.
• NIST AI RMF: Cross-modal risk management profiles for generative AI systems.

6.1 Advances in Multimodal Pretraining Objectives

Modern multimodal large language models (LLMs) like GPT-4V rely on sophisticated pretraining objectives that unify textual and visual modalities into a cohesive representation space. Unlike unimodal pretraining, where objectives like masked language modeling (MLM) or next-token prediction dominate, multimodal pretraining requires joint optimization strategies that capture cross-modal dependencies.

Contrastive Learning for Cross-Modal Alignment

Contrastive learning has emerged as a dominant paradigm for aligning representations across modalities. Given a batch of image-text pairs {(x_i, y_i)}, the model learns to maximize the similarity between matched pairs while minimizing similarity for negative samples. The InfoNCE loss is commonly used:

where s(x, y) is the cosine similarity between embeddings, and τ is a temperature hyperparameter. CLIP and ALIGN demonstrated that scaling this objective with large datasets yields robust cross-modal retrieval capabilities.

Multimodal Masked Modeling

Building on the success of MLM in BERT, multimodal variants like Masked Region Modeling (MRM) and Masked Language-Image Modeling (MLIM) randomly mask portions of input data and train the model to reconstruct them:

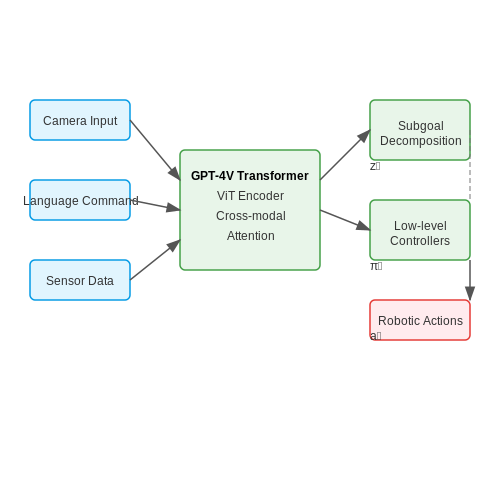

6.2 Integration with Embodied AI and Robotics

Multimodal LLMs as Perception-Action Controllers

Multimodal LLMs like GPT-4V bridge high-level reasoning with low-level robotic control by processing visual, textual, and sensor data. The core challenge lies in translating abstract language commands into executable motion primitives. This involves:

• Scene understanding via pixel-to-semantic mapping using vision transformers (ViTs).
• Task decomposition into subgoals through chain-of-thought prompting.
• Real-time trajectory optimization constrained by physical dynamics.

A robotic policy π leveraging GPT-4V can be formalized as:

where z_k denotes latent subgoals and π_k are pre-trained low-level controllers.

Embodiment Through Sensorimotor Grounding

Effective integration requires grounding language in physical interactions. Key technical components include:

• Cross-modal attention between visual patches and joint state vectors
• Differentiable physics engines for gradient-based policy improvement
• Memory-augmented transformers for long-horizon task planning

The sensor fusion process for a mobile manipulator can be modeled as:

where I_t is camera input, τ_t joint torques, and c the natural language command.

Case Study: Few-Shot Imitation Learning

Recent implementations demonstrate:

• 5-shot adaptation to novel objects using CLIP-style contrastive losses
• Dynamic replanning under <1Hz latency via model pruning
• Safe exploration through uncertainty-aware reward shaping

The imitation objective combines behavioral cloning with energy-based verification:

Challenges in Real-World Deployment

Critical unsolved problems include:

• Temporal consistency in partially observable environments
• Catastrophic forgetting during continual learning
• Certifiable safety guarantees under distribution shift

Current research addresses these through hybrid architectures combining:

6.3 Scalability and Efficiency Improvements

Architectural Optimizations for Multimodal Scaling

Scaling multimodal LLMs like GPT-4V requires balancing computational efficiency with model performance. One key approach is modality-specific encoders with shared latent spaces. For vision, a ViT (Vision Transformer) processes images into patch embeddings, while text is encoded via a standard transformer. These embeddings are projected into a joint space using cross-attention layers:

where Proj denotes modality-specific projection layers. The joint representation z is then computed via:

Efficient Training Strategies

Training multimodal models at scale demands techniques to reduce memory and compute overhead:

• Gradient checkpointing: Recomputes intermediate activations during backward pass, trading compute for memory (Chen et al., 2016). Reduces memory usage by up to 70%.
• Mixed-precision training: Uses FP16 for activations and FP32 for master weights, with dynamic loss scaling to prevent underflow.
• Data parallelism: Shards batches across GPUs with synchronous gradient updates. For large models, pipeline parallelism splits layers across devices.

Inference Optimization

Real-world deployment requires low-latency inference. Key methods include:

• Quantization: GPTQ (Frantar et al., 2022) enables 4-bit quantization with minimal accuracy loss, reducing model size by 4x.
• Speculative decoding: Uses a smaller draft model to predict tokens which are then verified in parallel by the main model (Leviathan et al., 2023). Achieves 2-3x speedup.
• Token pruning: Early-exit strategies skip processing for "easy" tokens based on confidence thresholds.

Hardware-Aware Design

Optimizing for modern accelerators involves:

Key considerations include:

• Kernel fusion to reduce memory transfers (e.g., combining layer norm with attention)
• FlashAttention (Dao et al., 2022) for IO-aware attention computation
• Chunked processing of high-resolution images to fit GPU memory

Energy Efficiency

The carbon footprint scales with model size and sequence length. For a multimodal model processing N tokens and M image patches:

Where L is layers and d_model is hidden dimension. Sparse expert models (e.g., Mixture-of-Experts) can reduce active parameters per example by routing to specialized sub-networks.
