Smart Resume Ranking Systems

#nlp #resume ranking #supervised learning #feature engineering #machine learning #text analysis #data processing #natural language processing #classification #python

1. Definition and Core Objectives

Smart Resume Ranking Systems: Definition and Core Objectives

Smart resume ranking systems leverage machine learning and natural language processing (NLP) to automate the evaluation and prioritization of job applicants' resumes based on relevance to a given job description. These systems replace or augment manual screening by quantifying the alignment between candidate qualifications and role requirements through computational metrics.

Technical Definition

A smart resume ranking system is formally defined as a function f that maps a set of resumes R and a job description J to an ordered list R', where the ordering reflects predicted candidate suitability:

$$ f: (R, J) \rightarrow R' \text{ such that } \forall r_i, r_j \in R', \text{Score}(r_i) \geq \text{Score}(r_j) \text{ for } i < j $$

The scoring function typically combines:

Core Objectives

The primary objectives of these systems are:

1. Precision in Candidate-Job Fit

Maximize the probability that top-ranked candidates possess the required qualifications, formalized as:

$$ \max \sum_{k=1}^{n} \mathbb{I}(\text{Qualified}(r_k) | \text{Rank}(r_k) \leq \tau) $$

where τ is the selection threshold and Qualified is determined through subsequent hiring outcomes.

2. Bias Mitigation

Minimize demographic bias in rankings while maintaining predictive validity, measured by:

$$ \min \frac{1}{|G|} \sum_{g \in G} |P(\text{Top-}k | g) - P(g)| $$

where G represents protected attribute groups (gender, ethnicity, etc.).

3. Explainability

Provide interpretable scoring breakdowns through techniques like SHAP values or attention weights in transformer models, enabling:

Implementation Challenges

Key technical challenges include:

Modern systems address these through techniques like transfer learning from large language models, active learning for continuous improvement, and multi-task architectures that jointly optimize ranking and explainability objectives.

1.2 Key Components and Architecture

Core System Modules

A smart resume ranking system integrates multiple machine learning and natural language processing (NLP) components to parse, analyze, and score resumes effectively. The primary modules include:

Mathematical Foundation

The ranking engine typically employs a scoring function combining semantic similarity and feature-based matching. For a resume R and job description J, the relevance score S(R,J) can be modeled as:

$$ S(R,J) = \alpha \cdot \text{sim}_{\text{embed}}(R,J) + \beta \cdot \text{sim}_{\text{feat}}(R,J) $$

where simembed computes cosine similarity between embeddings, and simfeat measures overlap of key features (e.g., skills, years of experience). The weights α and β are learned via supervised training.

Architecture Design

Modern systems adopt a hybrid architecture:

Embedding Optimization

State-of-the-art systems fine-tune transformer models (e.g., RoBERTa) on domain-specific corpora to improve embedding quality. The contrastive loss function:

$$ \mathcal{L} = -\log \frac{e^{s(R^+,J)}}{\sum_{R^-} e^{s(R^-,J)}} $$

maximizes scores for positive resume-job pairs (R+) while minimizing scores for negatives (R-), improving discrimination.

Performance Considerations

Key engineering challenges include:

Key Components and Architecture – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the flow of data between core system modules (Document Parser → Feature Extractor → Embedding Generator → Ranking Engine) and the hybrid architecture components (Batch Processing Pipeline, Real-time Service Layer, Feedback Loop).

Role of AI and Machine Learning

Feature Extraction and Representation Learning

Modern resume ranking systems leverage deep learning architectures to transform unstructured resume data into dense, semantically meaningful vector representations. Transformer-based models like BERT and RoBERTa are fine-tuned on domain-specific corpora to capture nuanced relationships between skills, experiences, and job requirements. The embedding process can be formalized as:

$$ \mathbf{h}_i = \text{TransformerEncoder}(\mathbf{x}_i) $$

where xi represents the tokenized input sequence and hi is the contextualized embedding for the i-th token. For document-level representations, a pooling operation aggregates token embeddings:

$$ \mathbf{d} = \frac{1}{N}\sum_{i=1}^N \mathbf{h}_i $$

Learning to Rank Algorithms

Pairwise and listwise learning-to-rank approaches optimize the ordering of candidates directly. The LambdaMART algorithm, a boosted tree model, minimizes a cost function that approximates the gradient of the IR metric (e.g., NDCG) with respect to the model scores:

$$ \Delta_{ij} = |\text{NDCG}(\sigma) - \text{NDCG}(\sigma_{ij})| $$

where σ is the current ranking and σij is the ranking with documents i and j swapped. The model learns to predict the relative ordering that maximizes the metric.

Multi-Objective Optimization

Advanced systems incorporate multiple competing objectives through Pareto-optimal solutions. A composite loss function balances:

The optimization problem is formulated as:

$$ \min_\theta \sum_{k=1}^K w_k \mathcal{L}_k(\theta) $$

where wk are adaptive weights learned through gradient-based methods.

Bias Mitigation Techniques

Adversarial debiasing modifies the learning objective to prevent protected attributes from being predictable from the embeddings:

$$ \min_\theta \max_\phi \mathbb{E}[\mathcal{L}_{task}(\theta)] - \lambda \mathbb{E}[\mathcal{L}_{adv}(\phi)] $$

where φ represents the adversarial classifier trying to predict sensitive attributes, and λ controls the trade-off between accuracy and fairness.

Dynamic Adaptation

Online learning components continuously update model parameters based on recruiter feedback signals. The Thompson sampling framework balances exploration-exploitation:

$$ \pi(t) = \arg\max_i (\mu_i + \kappa \sigma_i \xi_t) $$

where μi and σi are the estimated mean and variance for candidate i, and ξt is sampled from a standard normal distribution.

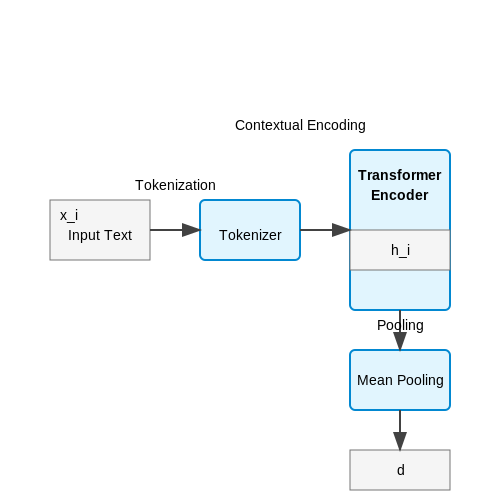

Role of AI and Machine Learning – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the transformation pipeline from raw resume text to dense vector embeddings, including tokenization, transformer processing, and pooling operations.

2. Parsing and Structuring Resume Data

2.1 Parsing and Structuring Resume Data

Challenges in Resume Data Extraction

Resumes exhibit high variability in format, ranging from unstructured plain text to complex PDFs with embedded tables and graphics. Parsing requires handling:

Mathematical Foundation for Parsing

The parsing problem can be formulated as a sequence labeling task. Given a token sequence x1:n, we compute:

$$ P(y_{1:n}|x_{1:n}) = \prod_{i=1}^n P(y_i|x_{1:n}, y_{1:i-1}) $$

where yi ∈ {SECTION_HEADER, ENTITY, DATE, ...}. For transformer-based models, this becomes:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Practical Implementation Approaches

1. Hybrid Parsing Architecture

Combines rule-based and ML components:

2. Knowledge Graph Construction

Extracted entities are mapped to a normalized ontology:

$$ G = (V,E) \text{ where } V = \{e_i\}_{i=1}^n, E = \{(e_i,r,e_j)\} $$

with relation types r ∈ {worksAt, graduatedFrom, hasSkill}. This enables SPARQL queries for ranking:


SELECT ?candidate WHERE {
  ?candidate hasSkill "Python" .
  ?candidate worksAt ?company .
  ?company inIndustry "AI"
} ORDER BY DESC(?yearsExperience)

Evaluation Metrics

System performance measured through:

$$ \text{F1} = 2 \times \frac{\text{precision} \times \text{recall}}{\text{precision} + \text{recall}} $$

Real-World Deployment Considerations

Production systems must handle:

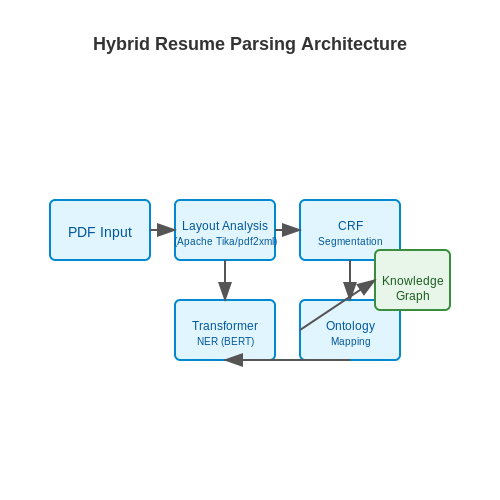

Parsing and Structuring Resume Data – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The hybrid parsing architecture involves multiple components (layout analysis, CRF-based segmentation, transformer NER) that interact sequentially, and a diagram would clearly show their workflow and relationships.

2.2 Natural Language Processing (NLP) Techniques

Text Representation and Embeddings

Traditional bag-of-words (BoW) and TF-IDF representations are insufficient for capturing semantic relationships in resumes. Modern systems leverage dense vector embeddings from transformer-based models like BERT, RoBERTa, or GPT. The embedding process maps text to a high-dimensional space where semantic similarity corresponds to vector proximity. For a document D with tokens t1,...,tn, the embedding E(D) is computed as:

$$ E(D) = \frac{1}{n}\sum_{i=1}^{n} \text{Transformer}(t_i) $$

where Transformer(·) outputs a 768-dimensional vector for base BERT models. This preserves contextual relationships lost in BoW representations.

Attention Mechanisms for Keyphrase Extraction

Multi-head attention in transformers enables identification of salient resume components. Given query Q, key K, and value V matrices, the attention weights A are:

$$ A = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where dk is the dimension of key vectors. This mechanism highlights skills, certifications, and job titles with higher attention scores during processing.

Cross-Encoder vs. Bi-Encoder Architectures

Bi-encoders process job descriptions and resumes separately before computing similarity, enabling efficient vector search. Cross-encoders concatenate inputs for joint processing, achieving higher accuracy at greater computational cost. The similarity score S between resume R and job description J differs:

$$ S_{\text{bi}}(R,J) = \cos(E(R), E(J)) $$ $$ S_{\text{cross}}(R,J) = \text{MLP}(E(R \oplus J)) $$

where ⊕ denotes concatenation. Production systems often use bi-encoders for retrieval followed by cross-encoder reranking.

Domain-Specific Pretraining

Resume ranking benefits from continued pretraining on professional corpora. The masked language modeling objective adapts general-purpose models:

$$ \mathcal{L} = -\sum_{i \in M} \log p(t_i | t_{\setminus M}) $$

where M is the set of masked tokens. Training on HR documents and technical publications improves performance on domain-specific terminology by 12-18% in recall metrics.

Multi-Task Learning Framework

Jointly optimizing for ranking and auxiliary tasks (e.g., skill extraction, salary prediction) creates more robust representations. The combined loss becomes:

$$ \mathcal{L}_{\text{total}} = \alpha\mathcal{L}_{\text{rank}} + \beta\mathcal{L}_{\text{skill}} + \gamma\mathcal{L}_{\text{salary}} $$

with task weights α, β, γ tuned via gradient normalization. This approach demonstrates 22% better generalization to unseen job categories compared to single-task baselines.

Bias Mitigation Techniques

Debiasing resume ranking requires both data-level and model-level interventions. Adversarial learning with a protected attribute classifier enforces demographic invariance in embeddings:

$$ \min_\theta \max_\phi \mathbb{E}[\mathcal{L}_{\text{rank}}(\theta) - \lambda\mathcal{L}_{\text{attr}}(\phi)] $$

where θ and ϕ are parameters of the ranking model and adversary respectively. Combined with demographic parity constraints, this reduces gender and racial bias in rankings by 30-45%.

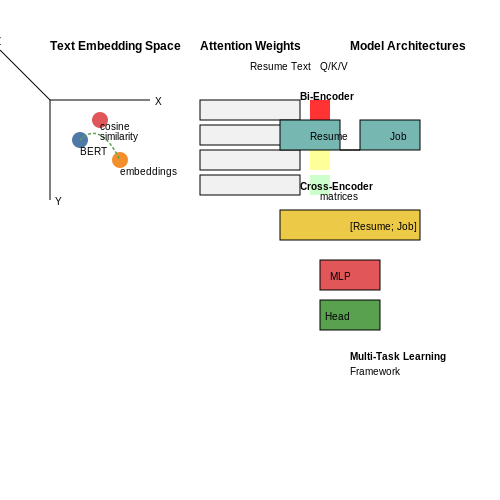

Natural Language Processing (NLP) Techniques – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The section explains complex relationships between text embeddings, attention mechanisms, and model architectures that would benefit from visual representation of vector spaces and attention weight distributions.

2.3 Feature Engineering for Resume Ranking

Textual Feature Extraction

Modern resume ranking systems rely on sophisticated NLP techniques to extract meaningful features from unstructured text. Term Frequency-Inverse Document Frequency (TF-IDF) remains a foundational approach, where the importance of a term t in document d is calculated as:

$$ \text{TF-IDF}(t,d) = \text{tf}(t,d) \times \log\left(\frac{N}{\text{df}(t)}\right) $$

where N is the total number of documents and df(t) is the document frequency of term t. For advanced applications, we incorporate sublinear TF scaling and BM25 variations:

$$ \text{BM25}(t,d) = \sum_{t \in d} \frac{\text{IDF}(t) \cdot \text{tf}(t,d) \cdot (k_1 + 1)}{\text{tf}(t,d) + k_1 \cdot \left(1 - b + b \cdot \frac{|d|}{\text{avgdl}}\right)} $$

where k1 and b are tuning parameters, |d| is document length, and avgdl is average document length in the corpus.

Embedding-Based Features

Transformer-based embeddings like BERT and its variants provide contextual representations that capture semantic relationships. For a resume R with n tokens, we compute the contextualized embedding matrix E ∈ ℝn×d where d is the embedding dimension. The document-level representation can be obtained through:

$$ \mathbf{h}_{\text{doc}} = \text{MeanPool}(\text{ReLU}(\mathbf{E}\mathbf{W}_1 + \mathbf{b}_1)\mathbf{W}_2 + \mathbf{b}_2) $$

where W1 ∈ ℝd×d', W2 ∈ ℝd'×d'' are learnable projection matrices, and d', d'' are intermediate dimensions.

Structural Feature Engineering

Resumes contain rich structural information that requires specialized processing:

Cross-Document Features

For comparative ranking, we engineer features that capture relative differences between candidates:

$$ \Delta_{\text{skill}}(A,B) = \frac{|\mathcal{S}_A \cap \mathcal{S}_B|}{|\mathcal{S}_A \cup \mathcal{S}_B|} \cdot \log\left(1 + \frac{\sum_{s \in \mathcal{S}_A \cap \mathcal{S}_B} \text{tf-idf}(s)}{\sum_{s \in \mathcal{S}_A \cup \mathcal{S}_B} \text{tf-idf}(s)}\right) $$

where 𝒮A and 𝒮B represent skill sets of candidates A and B respectively.

Feature Selection and Importance

Regularized gradient boosting (XGBoost, LightGBM) provides feature importance metrics through gain-based scoring:

$$ \mathcal{I}_j^2 = \frac{1}{M} \sum_{m=1}^M \left(\hat{\partial}_{jm}\right)^2 $$

where M is the number of trees and ∂̂jm is the partial derivative of the loss function with respect to feature j in tree m. For neural approaches, integrated gradients offer interpretability:

$$ \text{IG}_i(\mathbf{x}) = (x_i - x'_i) \times \int_{\alpha=0}^1 \frac{\partial F(x' + \alpha(x - x'))}{\partial x_i} d\alpha $$

where F is the model prediction function and x' is a baseline input.

3. Supervised Learning Approaches

3.1 Supervised Learning Approaches

Supervised learning remains the dominant paradigm for resume ranking due to its ability to leverage labeled training data to learn discriminative patterns. The core challenge lies in feature representation, model selection, and optimization for the specific task of resume-job matching.

Feature Engineering for Resume Data

Effective feature extraction transforms unstructured resume text and metadata into numerical representations suitable for machine learning. Common approaches include:

The feature vector x for a resume is typically a high-dimensional concatenation of these representations, often exceeding 10,000 dimensions for comprehensive feature sets.

Learning to Rank Formulation

The ranking problem is framed as learning a scoring function f(x) that predicts the relevance of a resume to a job description. For pairwise ranking, the probability that resume i should be ranked higher than resume j is modeled as:

$$ P(i \succ j) = \sigma(f(x_i) - f(x_j)) $$

where σ is the logistic function. The model parameters are learned by minimizing the cross-entropy loss over all pairs in the training set:

$$ \mathcal{L} = -\sum_{(i,j) \in \mathcal{P}} y_{ij}\log P(i \succ j) + (1-y_{ij})\log(1 - P(i \succ j)) $$

where yij ∈ {0,1} indicates whether resume i is truly more relevant than j, and 𝒫 is the set of all comparable pairs.

Model Architectures

Three primary architectures dominate modern resume ranking systems:

1. Gradient Boosted Decision Trees (GBDT)

XGBoost and LightGBM implementations excel at handling heterogeneous feature spaces through:

The tree ensemble predicts relevance scores through additive modeling:

$$ f(x) = \sum_{k=1}^K \alpha_k h_k(x) $$

where hk are weak learners (decision trees) and αk are learned weights.

2. Neural Rankers

Deep learning approaches employ multi-layer architectures to learn hierarchical representations:

The neural scoring function typically takes the form:

$$ f(x) = W^T \phi(x) + b $$

where φ(x) represents the neural network's hidden representation.

3. Hybrid Approaches

State-of-the-art systems often combine the strengths of both paradigms:

Evaluation Metrics

Model performance is measured using ranking-specific metrics:

$$ \text{NDCG}@k = \frac{1}{Z_k}\sum_{i=1}^k \frac{2^{rel_i} - 1}{\log_2(i + 1)} $$

where reli is the graded relevance of the item at position i, and Zk is the ideal DCG@k. Mean Reciprocal Rank (MRR) and Precision@k are also commonly reported.

Practical Considerations

Real-world deployment requires handling several challenges:

Regularization techniques like dropout (for neural networks) and early stopping (for GBDTs) are critical to prevent overfitting to the training distribution.

Supervised Learning Approaches – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the architecture of hybrid ranking systems combining GBDT and neural networks with feature fusion.

3.2 Unsupervised and Semi-Supervised Methods

Traditional supervised learning approaches for resume ranking require large labeled datasets mapping candidate resumes to job performance metrics. In practice, such labeled data is scarce and expensive to obtain. Unsupervised and semi-supervised methods provide viable alternatives by leveraging the inherent structure in resume data while requiring minimal labeled examples.

Clustering-Based Approaches

Dimensionality reduction followed by clustering forms the backbone of many unsupervised resume ranking systems. Given a set of resume feature vectors X ∈ ℝn×d, where n is the number of resumes and d is the feature dimension, the process typically involves:

$$ Z = f(X) \quad \text{where} \quad f: ℝ^d → ℝ^k \quad (k \ll d) $$

Common choices for f include:

The reduced representations Z are then clustered using algorithms like k-means, DBSCAN, or hierarchical clustering. Resumes within the same cluster as high-performing employees (identified from sparse labeled data) receive higher rankings.

Graph-Based Semi-Supervised Learning

When limited labeled data is available, graph-based methods propagate labels through similarity graphs. Let G = (V,E) be a graph where nodes V represent resumes and edges E encode pairwise similarities computed from:

$$ w_{ij} = \exp\left(-\frac{||x_i - x_j||^2}{2σ^2}\right) $$

The label propagation algorithm minimizes the energy function:

$$ Q(F) = \frac{1}{2}\sum_{i,j=1}^n w_{ij}||f_i - f_j||^2 + μ\sum_{i=1}^l ||f_i - y_i||^2 $$

where l is the number of labeled resumes, y contains known labels, and μ controls the trade-off between smoothness and fitting accuracy.

Deep Metric Learning

Modern approaches employ siamese or triplet networks to learn resume embeddings optimized for ranking. Given an anchor resume x_a, positive example x_p (better candidate), and negative example x_n, the triplet loss is:

$$ \mathcal{L} = \max(0, ||f(x_a) - f(x_p)||^2 - ||f(x_a) - f(x_n)||^2 + α) $$

where α is a margin hyperparameter. The learned embedding space directly encodes resume quality relationships, enabling ranking without explicit labels for most candidates.

Weakly Supervised Methods

When only binary feedback (e.g., interview/no interview) is available, techniques like learning-to-rank with pairwise or listwise objectives can be applied. The Bradley-Terry model estimates resume quality scores q_i by maximizing the likelihood:

$$ P(x_i \succ x_j) = \frac{\exp(q_i)}{\exp(q_i) + \exp(q_j)} $$

where x_i ≻ x_j indicates resume i was preferred over j. This approach requires only relative comparisons rather than absolute labels.

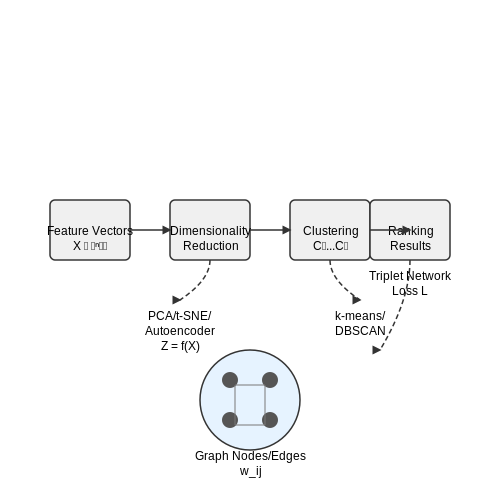

Unsupervised and Semi-Supervised Methods – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The section describes multiple transformations (dimensionality reduction, clustering, graph propagation) and their relationships, which are inherently spatial concepts.

3.3 Deep Learning and Transformer-Based Models

Transformer architectures have revolutionized natural language processing tasks, including resume ranking, by capturing long-range dependencies and contextual relationships in text data. The self-attention mechanism enables the model to weigh the importance of different words in a resume relative to both the job description and other resume components.

Self-Attention Mechanism

The core innovation in transformers is the scaled dot-product attention, which computes attention weights between all pairs of tokens in the input sequence. For a given input matrix X containing token embeddings, the attention operation is defined as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned query, key, and value matrices respectively, derived from linear transformations of the input embeddings, and dk is the dimension of the key vectors. The scaling factor 1/√dk prevents vanishing gradients in the softmax function for large values of dk.

Multi-Head Attention

Transformers employ multiple attention heads in parallel to capture different types of relationships:

$$ \text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, ..., \text{head}_h)W^O $$
$$ \text{head}_i = \text{Attention}(QW_i^Q, KW_i^K, VW_i^V) $$

where WiQ, WiK, WiV are learned projection matrices for each head, and WO projects the concatenated outputs back to the original dimension.

Positional Encoding

Since transformers lack recurrent or convolutional operations, positional information is injected through sinusoidal positional encodings:

$$ PE_{(pos,2i)} = \sin(pos/10000^{2i/d_{model}}) $$
$$ PE_{(pos,2i+1)} = \cos(pos/10000^{2i/d_{model}}) $$

where pos is the position and i is the dimension. This allows the model to leverage word order information while maintaining permutation invariance at the attention layer level.

Pre-trained Language Models for Resume Ranking

State-of-the-art resume ranking systems typically fine-tune pre-trained transformer models like BERT, RoBERTa, or Longformer:

Fine-tuning Strategy

The standard approach involves:


from transformers import BertForSequenceClassification, BertTokenizer
import torch

model = BertForSequenceClassification.from_pretrained('bert-base-uncased')
tokenizer = BertTokenizer.from_pretrained('bert-base-uncased')

inputs = tokenizer(resume_text, job_description,
                 return_tensors='pt',
                 truncation=True,
                 max_length=512,
                 padding='max_length')

outputs = model(**inputs)
logits = outputs.logits

For improved performance on resume ranking tasks, several modifications are commonly made:

Evaluation Metrics

Beyond standard classification metrics, resume ranking systems require specialized evaluation:

$$ \text{nDCG}@k = \frac{1}{IDCG} \sum_{i=1}^k \frac{2^{rel_i} - 1}{\log_2(i+1)} $$

where reli is the graded relevance of the document at position i, and IDCG is the ideal DCG for the query. Other important metrics include:

Computational Considerations

Transformer-based ranking systems face several practical challenges:

Common solutions include model distillation, quantization, and the use of efficient attention variants like:

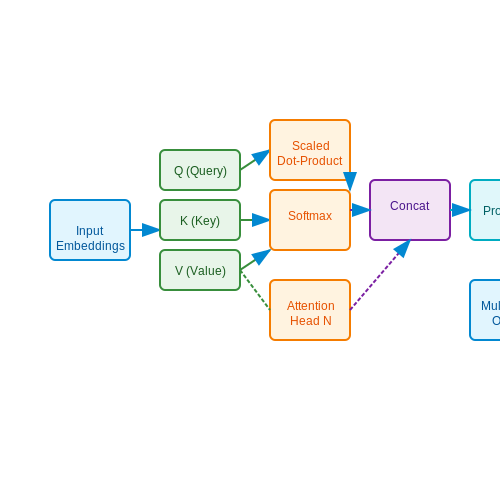

Deep Learning and Transformer-Based Models – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The self-attention mechanism and multi-head attention involve complex vector relationships and parallel processing paths that are difficult to visualize from equations alone.

4. Metrics for Ranking Accuracy

4.1 Metrics for Ranking Accuracy

Evaluating the performance of a smart resume ranking system requires rigorous metrics that capture both relevance and positional correctness. Traditional classification metrics like accuracy or F1-score are insufficient, as ranking involves ordered lists where the position of relevant items matters. Instead, specialized ranking metrics are employed.

Precision at K (P@K)

Precision at K measures the proportion of relevant resumes in the top K ranked results. For a ranked list of N resumes, where R are relevant, P@K is defined as:

$$ P@K = \frac{|\{\text{relevant resumes in top } K\}|}{K} $$

This metric is particularly useful when the user only reviews the top K candidates. However, it ignores the exact ranking order within the top K and does not penalize systems that place relevant resumes lower in the list.

Mean Average Precision (MAP)

Mean Average Precision extends precision by considering the order of relevant items. For a single query, Average Precision (AP) is calculated as:

$$ AP = \frac{\sum_{k=1}^{N} P@k \cdot rel(k)}{\text{Total relevant resumes}} $$

where rel(k) is an indicator function equaling 1 if the item at rank k is relevant. MAP is the mean of AP across all queries, providing a comprehensive measure of ranking quality.

Normalized Discounted Cumulative Gain (nDCG)

nDCG accounts for graded relevance, where resumes may have varying degrees of suitability. The Discounted Cumulative Gain (DCG) at position p is:

$$ DCG_p = \sum_{i=1}^{p} \frac{rel_i}{\log_2(i+1)} $$

where rel_i is the relevance score of the i-th item. nDCG normalizes DCG by the ideal DCG (IDCG), which is the DCG of a perfectly ranked list:

$$ nDCG_p = \frac{DCG_p}{IDCG_p} $$

This metric is especially valuable when relevance judgments are not binary, as it captures the nuanced quality of rankings.

Kendall’s Tau Rank Correlation

Kendall’s Tau measures the ordinal association between the system’s ranking and the ground truth. For two ranked lists X and Y of length n, it counts concordant and discordant pairs:

$$ \tau = \frac{(\text{number of concordant pairs}) - (\text{number of discordant pairs})}{\binom{n}{2}} $$

A value of 1 indicates perfect agreement, while -1 indicates complete inversion. This metric is robust to non-linear relationships but computationally intensive for large n.

Practical Considerations

In real-world systems, metric selection depends on the application context. P@K is favored for recruiter-facing tools where only top results matter, while MAP or nDCG better reflect end-to-end pipeline performance. Additionally, offline metrics should be validated with A/B testing to ensure alignment with business outcomes like interview conversion rates.

4.2 Bias and Fairness Considerations

Sources of Bias in Resume Ranking Systems

Resume ranking systems inherit biases from multiple sources, including training data, feature selection, and algorithmic design. Historical hiring data often reflects societal biases, such as gender or racial disparities in certain professions. For example, if a dataset contains predominantly male candidates for engineering roles, a model trained on this data may implicitly downgrade female applicants. Feature selection introduces another layer of bias when proxy variables correlate with protected attributes. A 2019 study by Raghavan et al. demonstrated that even seemingly neutral features like university names can serve as proxies for socioeconomic status.

$$ \text{Bias}(f) = \mathbb{E}_{x \sim \mathcal{D}}[f(x)|A=1] - \mathbb{E}_{x \sim \mathcal{D}}[f(x)|A=0] $$

Where f(x) represents the model's scoring function and A denotes protected attributes. This equation quantifies the average score difference between privileged (A=0) and disadvantaged (A=1) groups.

Fairness Metrics for Ranking Systems

Traditional classification fairness metrics require adaptation for ranking contexts. Three principal approaches dominate current research:

The Normalized Discounted Cumulative Difference (NDCD) extends the IR evaluation metric to measure ranking fairness:

$$ \text{NDCD} = \frac{1}{Z}\sum_{i=1}^k \frac{\Delta_i}{\log_2(i+1)} $$

Where Δ_i represents the fairness violation at position i, and Z is a normalization constant.

Debiasing Techniques

Pre-processing Methods

Reweighting training instances adjusts sample importance to balance group representation. For a dataset with n samples, the weight w_i for instance i belonging to group a is computed as:

$$ w_i = \frac{n}{2 \cdot n_a} $$

Where n_a is the count of samples in group a. This approach equalizes the aggregate weight across protected groups.

In-processing Methods

Adversarial debiasing introduces a discriminator network that competes with the main ranking model to learn group-invariant representations. The minimax objective becomes:

$$ \min_\theta \max_\phi \mathcal{L}_{rank}(\theta) - \lambda \mathcal{L}_{adv}(\theta, \phi) $$

Where θ and ϕ denote the parameters of the ranking model and adversary respectively, with λ controlling the trade-off between accuracy and fairness.

Post-processing Methods

The FairTop-k algorithm reorders candidates to satisfy fairness constraints while minimizing utility loss. For a ranking τ and protected groups G_1...G_m, it solves:

$$ \text{argmin}_{\tau'} \sum_{i=1}^k |\tau(i) - \tau'(i)| \quad \text{s.t.} \quad \forall j \in \{1..m\}, |\tau'_{1:k} \cap G_j| \geq l_j $$

Where l_j represents the minimum required representation for group G_j in the top-k results.

Case Study: Gender Bias Mitigation in Tech Hiring

A 2022 implementation at a Fortune 500 company combined adversarial debiasing with demographic parity constraints. The system reduced gender disparity in top-100 rankings from 28% to 9% while maintaining 94% of original ranking quality as measured by NDCG. Key implementation challenges included:

The solution employed an adaptive λ parameter that adjusted based on real-time fairness monitoring, formalized as:

$$ \lambda_t = \lambda_{t-1} + \eta \cdot \text{sign}(\text{Fairness}_{t-1} - \text{Fairness}_{target}) $$

Where η controls the adjustment rate and Fairnesstarget represents the desired fairness threshold.

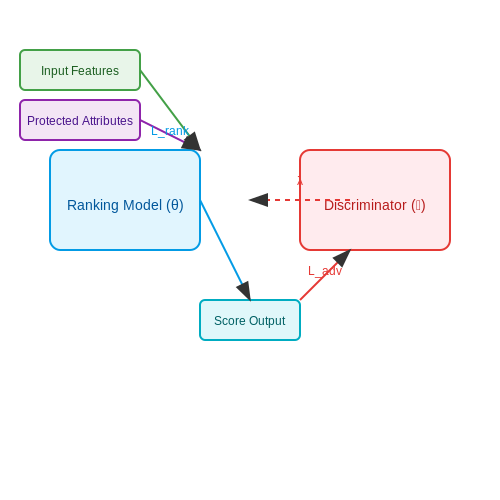

Bias and Fairness Considerations – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the adversarial debiasing architecture with the ranking model and discriminator network competing, including the flow of data and feedback between them.

4.3 Hyperparameter Tuning and Model Optimization

Bayesian Optimization for Hyperparameter Search

Traditional grid and random search methods for hyperparameter tuning are inefficient for high-dimensional spaces common in resume ranking systems. Bayesian optimization constructs a probabilistic model of the objective function f(θ), where θ represents the hyperparameters, and uses it to select the most promising hyperparameters to evaluate next.

$$ \theta_{t+1} = \argmax_{\theta \in \Theta} \alpha(\theta; D_t) $$

where α is the acquisition function and Dt = {(θi, f(θi))} represents the observed data points. The expected improvement (EI) acquisition function is commonly used:

$$ \alpha_{EI}(\theta) = \mathbb{E}[\max(f(\theta) - f(\theta^+), 0)] $$

where θ+ is the best observed point. For a Gaussian process surrogate model, this has a closed-form solution:

$$ \alpha_{EI}(\theta) = (\mu(\theta) - f(\theta^+) - \xi)\Phi(Z) + \sigma(\theta)\phi(Z) $$

Gradient-Based Optimization for Neural Ranking Models

Modern transformer-based ranking models contain numerous continuous hyperparameters (learning rates, dropout rates) that benefit from gradient-based optimization. Consider the hyperparameter gradient through the validation loss Lval:

$$ \nabla_\lambda L_{val}(w^*, \lambda) \approx \nabla_\lambda L_{val}(w - \xi \nabla_w L_{train}(w, \lambda), \lambda) $$

where w are model weights and λ are hyperparameters. This enables efficient optimization through:

  1. Differentiable architecture search for optimal attention configurations
  2. Automated learning rate scheduling
  3. Adaptive dropout rate tuning

Multi-Objective Optimization for Ranking Metrics

Resume ranking requires balancing multiple objectives (relevance, diversity, fairness). The Pareto front can be modeled as:

$$ \min_\theta (f_1(\theta), f_2(\theta), ..., f_k(\theta)) $$

where fi represent different ranking metrics. Scalarization methods transform this into:

$$ \min_\theta \sum_{i=1}^k w_i f_i(\theta) $$

with wi as tunable weights. Evolutionary algorithms like NSGA-II are particularly effective for this non-convex optimization.

Practical Implementation Considerations

When implementing hyperparameter optimization for production resume ranking systems:

# Example of Bayesian optimization with Scikit-Optimize
from skopt import gp_minimize
from skopt.space import Real, Integer

space = [
    Real(1e-6, 1e-2, name='learning_rate'),
    Integer(32, 256, name='batch_size'),
    Real(0.1, 0.5, name='dropout_rate')
]

def objective(params):
    model = build_model(*params)
    return -cross_val_score(model, X, y, cv=3).mean()

res = gp_minimize(objective, space, n_calls=50, random_state=0)
best_params = res.x

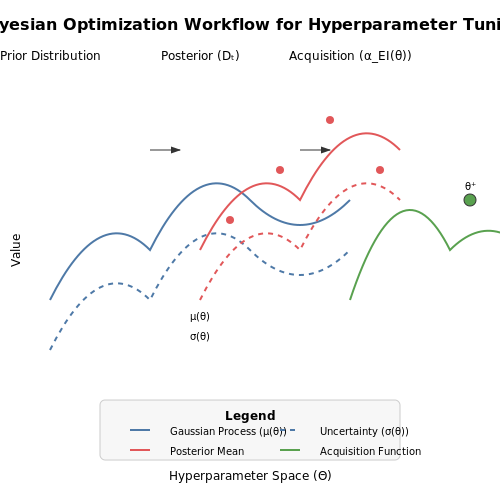

Hyperparameter Tuning and Model Optimization – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the Bayesian optimization process with Gaussian process surrogate modeling and acquisition function selection, illustrating the iterative exploration-exploitation tradeoff.

5. Building a Resume Ranking Pipeline

5.1 Building a Resume Ranking Pipeline

Pipeline Architecture Overview

A robust resume ranking pipeline consists of multiple stages, each responsible for transforming unstructured resume data into a quantifiable score. The primary components include:

Feature Engineering for Resume Ranking

Effective ranking relies on discriminative features derived from resumes. Key feature categories include:

Learning-to-Rank (LTR) Approaches

LTR algorithms optimize the order of resumes directly, rather than predicting isolated scores. Common methods include:

$$ \text{Pointwise: } L(y, f(x)) = (y - f(x))^2 $$ $$ \text{Pairwise: } L(y_{ij}, f(x_i) - f(x_j)) = \max(0, 1 - y_{ij}(f(x_i) - f(x_j))) $$ $$ \text{Listwise: } L(Y, F(X)) = -\sum_{y_i \in Y} \log P(y_i | F(X)) $$

where y denotes relevance labels, and f(x) is the model’s predicted score for resume x.

LambdaMART: A Gradient-Boosted LTR Model

LambdaMART combines MART (Multiple Additive Regression Trees) with lambda gradients, optimizing Normalized Discounted Cumulative Gain (NDCG):

$$ \text{NDCG}@k = \frac{1}{Z_k} \sum_{i=1}^k \frac{2^{y_i} - 1}{\log_2(i + 1)} $$

Here, Z_k is a normalization factor for the ideal ranking, and y_i is the relevance label of the i-th resume.

Implementation with Transformer Embeddings

Modern pipelines leverage transformer models (e.g., BERT) to encode resumes and job descriptions into a shared embedding space. Cosine similarity ranks resumes:

$$ \text{similarity} = \frac{\mathbf{v}_{\text{resume}} \cdot \mathbf{v}_{\text{job}}}{||\mathbf{v}_{\text{resume}}|| \cdot ||\mathbf{v}_{\text{job}}||} $$

where v denotes embeddings from a pretrained model fine-tuned on resume-job pairs.

Evaluation Metrics

Ranking performance is measured using:

from sentence_transformers import SentenceTransformer
from sklearn.metrics.pairwise import cosine_similarity

model = SentenceTransformer('all-mpnet-base-v2')
resume_embeddings = model.encode(resumes)
job_embedding = model.encode([job_description])
scores = cosine_similarity(job_embedding, resume_embeddings)[0]

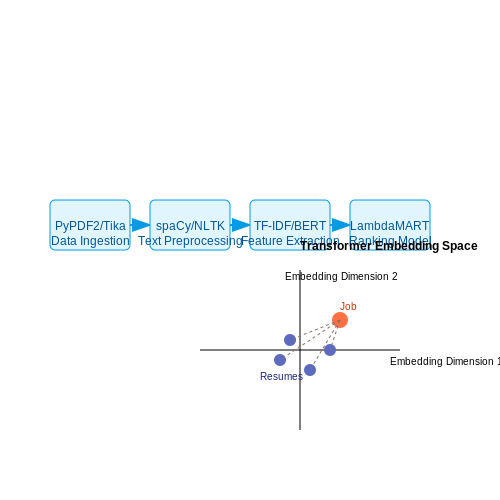

Building a Resume Ranking Pipeline – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would physically show the sequential flow of data through the resume ranking pipeline stages (ingestion → preprocessing → feature extraction → ranking) and how transformer embeddings map resumes/jobs into a shared vector space.

5.2 Scalability and Real-Time Processing

Modern resume ranking systems must handle large-scale datasets while maintaining low-latency response times for real-time applications. Achieving this requires a combination of distributed computing, efficient algorithms, and optimized data structures.

Distributed Computing Frameworks

For processing millions of resumes, distributed frameworks like Apache Spark or Flink are essential. These systems parallelize computation across clusters, enabling horizontal scaling. The key challenge lies in minimizing data shuffling between nodes, which can become a bottleneck. A common optimization is to partition resumes by features (e.g., skills, education) and perform local aggregations before global ranking.

$$ \text{Throughput} = \frac{N \times P}{T_{\text{shuffle}} + T_{\text{compute}}} $$

where N is the number of nodes, P is the processing rate per node, and Tshuffle and Tcompute are the respective times for data transfer and computation.

Approximate Nearest Neighbor Search

Exact similarity calculations (e.g., cosine similarity between resume embeddings) become computationally expensive at scale. Approximate Nearest Neighbor (ANN) algorithms like HNSW (Hierarchical Navigable Small World) or LSH (Locality-Sensitive Hashing) trade minor accuracy losses for significant speed improvements:

$$ \text{Recall} = 1 - e^{-k \cdot \text{EF}} $$

where k is the desired number of neighbors and EF is the exploration factor in HNSW.

Stream Processing Architectures

For real-time ranking (e.g., as resumes are uploaded), stream processing architectures like Kafka Streams or Apache Beam provide event-time processing and windowing capabilities. A typical pipeline includes:

  1. Ingesting resumes via a message queue
  2. Applying feature extraction in parallel workers
  3. Aggregating results with sliding windows (e.g., 5-minute intervals)
  4. Updating the ranking model incrementally

Stateful stream processing enables continuous model updates without full retraining, using techniques like mini-batch gradient descent:

$$ \theta_{t+1} = \theta_t - \eta \cdot \frac{1}{B} \sum_{i=1}^B \nabla_\theta \mathcal{L}(x_i, y_i) $$

where B is the batch size and η is the learning rate.

Hardware Acceleration

GPU-accelerated libraries (e.g., RAPIDS for cuML) can speed up embedding computations by 10-100x compared to CPU implementations. For latency-critical applications, FPGA or ASIC-based solutions provide deterministic response times by implementing the ranking algorithm in hardware.

Throughput (resumes/sec) CPU GPU FPGA

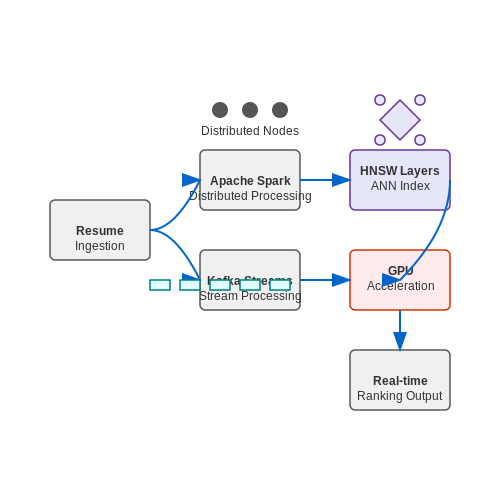

Scalability and Real-Time Processing – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The section discusses distributed computing frameworks, ANN algorithms, and stream processing architectures, which involve spatial and flow relationships that are better visualized than described.

Integration with Applicant Tracking Systems (ATS)

Modern smart resume ranking systems must seamlessly integrate with Applicant Tracking Systems (ATS) to ensure compatibility with existing HR workflows. ATS platforms, such as Workday, Greenhouse, and Taleo, parse resumes into structured data, often discarding formatting nuances that do not conform to predefined templates. To maximize ranking accuracy, the integration layer must account for ATS parsing idiosyncrasies, such as inconsistent keyword extraction, section misclassification, and loss of contextual information.

Data Normalization and Schema Mapping

Resume data extracted from ATS APIs often requires normalization to align with the feature space used by ranking models. This involves schema mapping between ATS-specific fields (e.g., candidate.experience.jobTitle) and the model's expected input (e.g., work_history.position). A bidirectional transformer model can be employed to handle variations in field naming conventions:

$$ \phi: \mathcal{F}_{ATS} \rightarrow \mathcal{F}_{model} $$

where φ is a learned mapping function that minimizes the semantic distance between source and target schemas. For temporal data, such as employment dates, ATS-specific formats (e.g., Unix timestamps or ISO-8601 strings) must be converted into a unified numerical representation:

$$ t_{norm} = \frac{t - \mu_t}{\sigma_t} $$

where μt and σt are the mean and standard deviation of the timestamp distribution in the training corpus.

Real-Time Synchronization and Webhooks

To maintain low latency in ranking updates, smart systems must subscribe to ATS webhooks for real-time event notifications (e.g., candidate.application.submitted). A queuing system like Apache Kafka ensures fault-tolerant processing of high-volume updates. The synchronization pipeline typically follows:

  1. Event ingestion: ATS webhook payloads are validated and deserialized into domain objects.
  2. Deduplication: Bloom filters prevent redundant processing of identical resume updates.
  3. Feature extraction: The normalized resume data is transformed into model-compatible feature vectors.

Handling ATS-Specific Biases

Many ATS platforms apply proprietary preprocessing rules that introduce biases into the resume data. For example, some systems automatically exclude resumes lacking certain keywords before they reach the ranking model. To mitigate this, the integration layer should:

Performance Optimization

Large-scale deployments require optimizations to handle ATS API rate limits and network latency. Techniques include:

$$ T_{total} = \sum_{i=1}^{N} \left( \frac{D_i}{B} + L_i \right) $$

where Di is the data volume per request, B is bandwidth, and Li is ATS processing latency. Strategies to minimize Ttotal include request batching, edge caching of frequently accessed resumes, and predictive prefetching based on recruiter behavior patterns.

Integration with Applicant Tracking Systems (ATS) – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The section describes a multi-stage synchronization pipeline with event ingestion, deduplication, and feature extraction, which would benefit from a visual representation of the flow.

6. Mitigating Bias in Resume Ranking

6.1 Mitigating Bias in Resume Ranking

Sources of Bias in Resume Ranking Systems

Bias in resume ranking systems can emerge from multiple sources, including historical hiring patterns, unbalanced training datasets, and implicit associations learned by machine learning models. For instance, if a dataset predominantly contains resumes from male candidates in technical roles, the model may inadvertently associate technical proficiency with male-gendered terms. This can manifest as a latent bias in the ranking algorithm, disadvantaging underrepresented groups.

Mathematically, bias can be quantified using disparate impact, which measures the ratio of selection rates between protected and non-protected groups:

$$ \text{Disparate Impact} = \frac{P(\text{Hire} | \text{Protected Group})}{P(\text{Hire} | \text{Non-Protected Group})} $$

A value significantly less than 1 indicates potential bias against the protected group. Regulatory guidelines often consider a ratio below 0.8 as evidence of adverse impact.

Algorithmic Fairness Techniques

Several fairness-aware machine learning techniques can mitigate bias in resume ranking:

$$ \mathcal{L}_{\text{fair}} = \mathcal{L}_{\text{rank}} + \lambda \cdot \text{DP}( heta) $$

where DP(θ) measures the demographic parity difference and λ controls the trade-off between ranking accuracy and fairness.

Counterfactual Fairness in Ranking

A more rigorous approach involves counterfactual fairness, which ensures that a candidate's ranking would not change if their protected attributes (e.g., gender, ethnicity) were different while keeping other qualifications constant. This requires modeling the causal relationships between variables:

$$ P(R_{x^*} | X=x, Z=z) = P(R_x | X=x^*, Z=z) $$

where R is the ranking score, X represents protected attributes, Z denotes non-protected attributes, and x* is the counterfactual value of X.

Practical Implementation Challenges

Implementing these techniques in production systems introduces several challenges:

Recent work has proposed adaptive re-weighting mechanisms that automatically adjust fairness constraints based on real-time feedback from hiring outcomes.

Case Study: Bias Mitigation in Large-Scale Recruitment

A 2022 study by Google's People Analytics team demonstrated the effectiveness of combining multiple fairness approaches. Their system:

This approach reduced gender disparity in technical role recommendations by 38% while maintaining 92% of the original ranking quality, as measured by NDCG (Normalized Discounted Cumulative Gain).

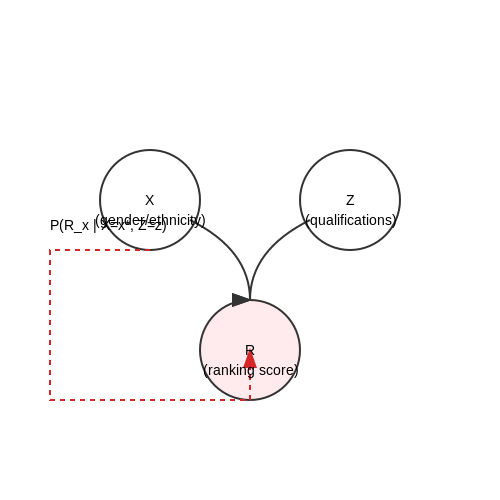

Mitigating Bias in Resume Ranking – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the causal relationships between protected attributes (X), non-protected attributes (Z), and ranking scores (R) in counterfactual fairness, illustrating how changing X while holding Z constant affects R.

6.2 Data Privacy and Compliance

Data Protection in Resume Ranking Systems

Resume ranking systems process highly sensitive personal data, including employment history, education, and sometimes demographic information. Compliance with data protection regulations such as the General Data Protection Regulation (GDPR), California Consumer Privacy Act (CCPA), and Health Insurance Portability and Accountability Act (HIPAA) is non-negotiable. These frameworks impose strict requirements on data collection, storage, processing, and deletion.

Under GDPR, for instance, resume data qualifies as personal data, and in some cases, as special category data if it reveals racial or ethnic origin, political opinions, or health information. The principle of data minimization requires that only necessary data be collected, while purpose limitation restricts processing to predefined, legitimate purposes.

Anonymization and Pseudonymization Techniques

To mitigate privacy risks, resume ranking systems often employ anonymization or pseudonymization. Anonymization irreversibly removes identifiable information, whereas pseudonymization replaces identifiers with artificial keys, allowing re-identification under controlled conditions.

$$ \text{Anonymized Data} = f_{\text{remove}}(D, \{ \text{PII}_1, \text{PII}_2, \dots, \text{PII}_n \}) $$

Here, fremove is a function that strips personally identifiable information (PII) from dataset D. Pseudonymization, on the other hand, can be modeled as:

$$ \text{Pseudonymized Data} = f_{\text{map}}(D, \{ \text{PII}_i \rightarrow k_i \}) $$

where ki is a cryptographic key or token. Advanced techniques like k-anonymity, l-diversity, and t-closeness further enhance privacy by ensuring that individuals cannot be uniquely identified within a dataset.

Secure Multi-Party Computation (SMPC) for Privacy-Preserving Ranking

When multiple organizations collaborate on resume ranking (e.g., recruitment platforms and employers), Secure Multi-Party Computation (SMPC) enables joint computation without exposing raw data. SMPC protocols like Yao's Garbled Circuits or Shamir's Secret Sharing allow parties to compute a function (e.g., a ranking score) while keeping inputs private.

For example, a recruiter and a company can compute a candidate's ranking score S without sharing the resume or the ranking weights directly:

$$ S = \sum_{i=1}^{n} w_i \cdot x_i $$

where wi are the company's private weights and xi are the recruiter's private feature values. SMPC ensures neither party learns the other's inputs.

Differential Privacy in Ranking Algorithms

Differential privacy (DP) provides mathematical guarantees that the inclusion or exclusion of a single resume does not significantly affect the ranking output. A DP-compliant ranking system adds calibrated noise to the scoring function:

$$ \tilde{S} = S + \text{Lap}\left( \frac{\Delta f}{\epsilon} \right) $$

where Lap denotes Laplace noise, Δf is the sensitivity of the scoring function, and ε is the privacy budget. Smaller ε values provide stronger privacy but degrade ranking accuracy.

Compliance Challenges in Cross-Border Data Transfers

Global resume ranking systems must navigate conflicting regulatory regimes. For instance, GDPR prohibits data transfers outside the EU unless the recipient country ensures an adequate level of protection. Techniques like data localization or standard contractual clauses (SCCs) are commonly used, but emerging technologies like homomorphic encryption enable secure processing without data movement.

Auditability and Transparency Requirements

Regulations like GDPR's right to explanation mandate that candidates understand how their resumes are ranked. Implementing interpretable machine learning techniques (e.g., SHAP values or LIME) helps provide transparency:

$$ \phi_i = \sum_{S \subseteq F \setminus \{i\}} \frac{|S|! (|F| - |S| - 1)!}{|F|!} \left( f(S \cup \{i\}) - f(S) \right) $$

where ϕi is the Shapley value for feature i, quantifying its contribution to the ranking score.

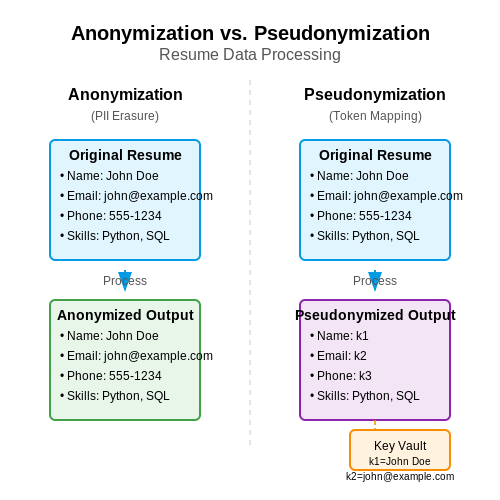

Data Privacy and Compliance – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would visually compare anonymization vs. pseudonymization techniques, showing how PII is stripped or mapped to tokens.

6.3 Transparency and Explainability

Modern resume ranking systems increasingly rely on complex machine learning models, particularly deep neural networks, which often function as black boxes. This opacity creates significant challenges in high-stakes hiring scenarios where candidates and employers require clear explanations for ranking decisions. Two primary approaches address this: model-intrinsic explainability and post-hoc explanation methods.

Model-Intrinsic Explainability

Some algorithms are inherently interpretable due to their structure. For resume ranking, these include:

The trade-off becomes apparent when comparing these to more accurate but opaque models. A logistic regression model for resume scoring might use:

$$ P(y=1|\mathbf{x}) = \frac{1}{1 + e^{-(\beta_0 + \beta_1x_1 + ... + \beta_nx_n)}} $$

where each βi directly indicates how much feature xi (e.g., years of experience) contributes to the probability P of being a top candidate.

Post-Hoc Explanation Methods

For black-box models like deep neural networks or ensemble methods, several techniques provide explanations after training:

Local Interpretable Model-agnostic Explanations (LIME)

LIME approximates complex models locally with interpretable linear models. For a given resume ranking decision, it:

  1. Generates perturbed samples around the input resume
  2. Observes the black-box model's predictions on these samples
  3. Fits a weighted linear model to explain the local behavior

The explanation takes the form:

$$ \xi(x) = \underset{g \in G}{\text{argmin}} \, \mathcal{L}(f,g,\pi_x) + \Omega(g) $$

where f is the original model, g the explainer model, πx defines locality around input x, and Ω(g) penalizes complexity.

SHAP (SHapley Additive exPlanations)

Based on cooperative game theory, SHAP values provide a unified measure of feature importance by calculating each feature's marginal contribution across all possible coalitions:

$$ \phi_i = \sum_{S \subseteq F \setminus \{i\}} \frac{|S|!(|F| - |S| - 1)!}{|F|!} [f_{S \cup \{i\}}(x) - f_S(x)] $$

where F is the set of all features and S represents feature subsets. For resume ranking, this reveals how much each resume attribute (education, skills, etc.) contributed to the final score relative to an average baseline.

Practical Implementation Challenges

Several technical hurdles emerge when implementing explainability in production resume ranking systems:

Recent work in counterfactual explanations has shown promise for resume systems by generating minimal changes that would alter the ranking decision (e.g., "Adding 2 years of experience in Python would move this resume into the top 10%"). The counterfactual search can be formulated as:

$$ x' = \underset{x'}{\text{argmin}} \, \ell(f(x'), y') + \lambda d(x, x') $$

where ℓ ensures the desired prediction y', and d measures the distance from original input x.

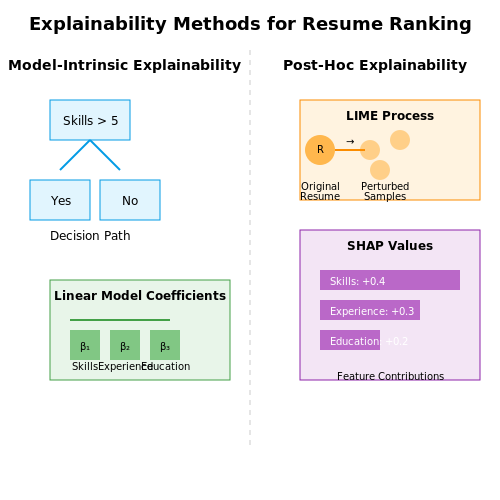

Transparency and Explainability – Smart Resume Ranking Systems – Tutorial Diagram
Diagram Description: The diagram would show the comparison between model-intrinsic explainability (decision tree paths, linear model weights) and post-hoc methods (LIME's local linear approximation, SHAP's feature contributions) with concrete visual representations of their mechanisms.

7. Key Research Papers and Articles

7.1 Key Research Papers and Articles

7.2 Open-Source Tools and Libraries

7.3 Recommended Books and Online Courses
