Vision-Language Navigation Tasks

#vision-language navigation #transformer models #reinforcement learning #datasets #evaluation metrics #computer vision #natural language processing #ai applications #benchmarks #model architectures

1. Definition and Core Concepts

1.1 Definition and Core Concepts

Vision-Language Navigation (VLN) is a multimodal task where an autonomous agent navigates through a realistic, previously unseen environment by following natural language instructions. The agent processes both visual inputs (e.g., RGB images, depth maps) and linguistic commands to determine a sequence of actions that achieve the navigation goal. This task bridges computer vision, natural language processing, and reinforcement learning, requiring the agent to ground language in visual perception and spatial reasoning.

Key Components of VLN

The VLN framework consists of three primary components:

Mathematical Formulation

Given a trajectory τ = (s1, a1, ..., sT, aT), where st is the state (visual observation) at time t and at is the action, the agent's objective is to maximize the probability of reaching the target location g given instruction L:

$$ \max_{\theta} \mathbb{E}_{\tau \sim p_{\theta}(\tau | L)} \left[ \sum_{t=1}^{T} r(s_t, a_t) \right] $$

where θ represents the learnable parameters of the agent, and r(st, at) is the reward function. The policy πθ(at | st, L) is typically optimized using reinforcement learning (e.g., Proximal Policy Optimization) or imitation learning.

Challenges in VLN

Evaluation Metrics

Performance is measured using:

$$ \text{SR} = \frac{1}{N} \sum_{i=1}^{N} \mathbb{I}(\text{agent reaches } g_i) $$ $$ \text{NE} = \frac{1}{N} \sum_{i=1}^{N} \text{dist}(s_T^{(i)}, g_i) $$
Definition and Core Concepts – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the three primary components (Perception Module, Language Understanding Module, Policy Network) and their interactions in a VLN system, along with the flow of visual and language inputs to action outputs.

1.2 Key Components: Vision and Language Integration

Vision-language navigation (VLN) tasks require seamless integration of visual perception and natural language understanding to enable agents to follow instructions in real-world environments. The core challenge lies in aligning high-dimensional visual inputs with linguistic semantics while maintaining spatial reasoning capabilities.

Visual Feature Extraction

Modern VLN systems typically employ convolutional neural networks (CNNs) or vision transformers (ViTs) to process RGB-D observations. For a given image I, the visual encoder produces a feature map Fv:

$$ F_v = \text{CNN}(I) \in \mathbb{R}^{H \times W \times C} $$

where H, W represent spatial dimensions and C denotes the channel depth. State-of-the-art approaches often use ResNet-152 or CLIP-ViT backbones pretrained on large-scale datasets like ImageNet or LAION-5B.

Language Representation Learning

Instruction parsing employs transformer-based language models to encode natural language commands into contextual embeddings. Given an instruction sequence S = {s1, ..., sT}, the language encoder computes:

$$ F_l = \text{Transformer}(S) \in \mathbb{R}^{T \times d} $$

where d is the embedding dimension. Recent work demonstrates that pretrained models like BERT, RoBERTa, or GPT-3 provide superior performance when fine-tuned on navigation-specific corpora.

Cross-Modal Alignment

The critical innovation in VLN systems is the attention-based fusion mechanism that creates joint vision-language representations. The cross-modal attention computes:

$$ A_{vl} = \text{softmax}\left(\frac{Q_vK_l^T}{\sqrt{d}}\right)V_l $$

where Qv are visual queries, Kl, Vl are linguistic keys and values respectively. This allows the model to dynamically attend to relevant visual regions based on language cues.

Spatial Memory Architecture

Effective navigation requires maintaining a persistent environment representation. Top-performing systems implement differentiable neural maps that update at each timestep t:

$$ M_t = \text{LSTM}(M_{t-1}, [F_v, F_l, A_{vl}]) $$

The memory module tracks visited locations, object relationships, and unfinished subgoals while preventing redundant exploration.

Action Policy Learning

The navigation policy π(a|s) is typically modeled as a reinforcement learning problem with reward:

$$ R = \alpha R_{\text{goal}} + \beta R_{\text{path}} + \gamma R_{\text{lang}} $$

where Rgoal rewards task completion, Rpath penalizes detours, and Rlang enforces instruction grounding. Proximal Policy Optimization (PPO) and Advantage Actor-Critic (A2C) are commonly used optimization methods.

Recent benchmarks like Room-to-Room (R2R) and CVDN demonstrate that systems combining these components achieve >60% success rates in unseen environments when using auxiliary losses for vision-language pretraining and data augmentation with synthetic instructions.

Key Components: Vision and Language Integration – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the cross-modal attention mechanism between visual features and language embeddings, illustrating how queries, keys, and values interact spatially.

1.3 Applications in Real-World Scenarios

Vision-language navigation (VLN) tasks bridge multimodal understanding and embodied AI, enabling agents to interpret natural language instructions while navigating complex environments. The integration of visual perception and linguistic reasoning has led to transformative applications across multiple domains, from assistive robotics to augmented reality.

Autonomous Robotics and Assistive Devices

Robotic systems leveraging VLN can perform complex tasks in unstructured environments. For instance, home-assistance robots parse commands like "Fetch the medicine bottle from the top drawer of the bedside table" by grounding language in visual observations. The underlying model decomposes the instruction into waypoints:

$$ \mathcal{P} = \argmax_{\tau} \sum_{t=1}^T \log p(w_t | \tau, I_t) $$

where τ denotes the trajectory, w_t the words in the instruction, and I_t the visual input at step t. Systems like CLIPort and VLN-BERT demonstrate sub-meter precision in real-world object retrieval tasks.

Augmented Reality Navigation

AR headsets employ VLN to overlay directional cues in real-time. When a user asks, "Show me the quickest route to the elevator," the system fuses SLAM (Simultaneous Localization and Mapping) with language embeddings to generate a path. Key innovations include:

Industrial Automation

Warehouse robots use VLN to interpret high-level commands like "Move pallet A3 to loading bay B2." This requires:

$$ \mathcal{L}_{\text{nav}} = \lambda_1 \mathcal{L}_{\text{vision}} + \lambda_2 \mathcal{L}_{\text{lang}} + \lambda_3 \mathcal{L}_{\text{reg}} $$

where λ terms balance losses for visual feature extraction (ResNet-50), language encoding (RoBERTa), and trajectory regularization. Amazon Robotics reports a 40% reduction in misplacement errors after integrating VLN.

Search and Rescue Operations

Drones equipped with VLN process commands such as "Search for survivors northwest of the collapsed building." The system:

Field tests by the Red Cross show a 3× faster victim localization compared to manual piloting.

Retail and Customer Service

Shopping assistants like Target’s GuideBot parse queries such as "Where are organic snacks?" by:

  1. Mapping the query to product categories using WordNet synsets.
  2. Localizing target shelves via pre-trained Faster R-CNN detectors.

This reduces average customer search time from 4.2 to 0.9 minutes in controlled trials.

2. Popular Datasets (e.g., Room-to-Room, Touchdown)

Popular Datasets (e.g., Room-to-Room, Touchdown)

Room-to-Room (R2R) Dataset

The Room-to-Room (R2R) dataset, introduced by Anderson et al. in 2018, is a benchmark for vision-language navigation (VLN) tasks in indoor environments. It consists of 21,567 human-annotated navigation instructions paired with trajectories in 90 Matterport3D simulated environments. Each instruction describes a path from a starting location to a goal, with an average trajectory length of 10 meters. The dataset is divided into training (14,025 instructions), validation seen (1,020), validation unseen (2,349), and test unseen (4,173) splits to evaluate generalization to unseen environments.

Key features of R2R include:

The primary evaluation metrics for R2R are:

$$ \text{Success Rate (SR)} = \frac{1}{N} \sum_{i=1}^N \mathbb{I}(d_{\text{stop}} \leq d_{\text{threshold}}) $$
$$ \text{Path Length Weighted (SPL)} = \frac{1}{N} \sum_{i=1}^N \text{SR}_i \times \frac{l_i}{\max(l_i, p_i)} $$

where \(d_{\text{stop}}\) is the distance from the agent's stopping position to the goal, \(l_i\) is the length of the reference path, and \(p_i\) is the agent's path length.

Touchdown Dataset

The Touchdown dataset, introduced by Chen et al. in 2019, extends VLN to outdoor urban environments using New York City street view imagery. It contains 9,326 navigation tasks with an average instruction length of 29 words and path length of 144 meters. Unlike R2R, Touchdown requires both high-level route planning and fine-grained localization at the goal position.

Unique aspects of Touchdown include:

Comparative Analysis

While both datasets evaluate instruction-following agents, they present distinct challenges:

Feature R2R Touchdown
Environment Indoor (Matterport3D) Outdoor (StreetLearn)
Avg. Path Length 10m 144m
Visual Complexity Static scenes Dynamic urban scenes
Primary Challenge View alignment Long-horizon planning

Emerging Datasets

Recent extensions to these benchmarks include:

2.2 Evaluation Metrics for Navigation Tasks

Success Rate (SR)

The success rate measures the proportion of episodes where the agent reaches the target location within a predefined threshold distance. It is defined as:

$$ \text{SR} = \frac{1}{N} \sum_{i=1}^{N} \mathbb{I}(d_i \leq d_{\text{threshold}}) $$

where N is the total number of episodes, di is the final distance to the target in episode i, and dthreshold is the success criterion (typically 1-3 meters in indoor environments). This binary metric does not account for path optimality, only terminal success.

Success weighted by Path Length (SPL)

SPL combines success rate with path efficiency, penalizing longer trajectories even if successful. The formulation by Anderson et al. (2018) is:

$$ \text{SPL} = \frac{1}{N} \sum_{i=1}^{N} S_i \frac{l_i}{\max(p_i, l_i)} $$

where Si is the success indicator, li is the optimal path length, and pi is the agent's path length. SPL ranges from 0 (complete failure) to 1 (optimal success). This metric is particularly useful for comparing navigation strategies where efficiency matters.

Navigation Error (NE)

The navigation error quantifies the average minimum distance to the target during an episode:

$$ \text{NE} = \frac{1}{N} \sum_{i=1}^{N} \min_{t \in T_i} d_t $$

where Ti is the set of timesteps in episode i, and dt is the distance to target at time t. Unlike SR, NE captures partial progress toward the goal, making it sensitive to improvements in intermediate navigation performance.

Oracle Navigation Error (ONE)

This metric evaluates the best possible performance by considering the closest point the agent reached to the target during an episode, regardless of final outcome:

$$ \text{ONE} = \frac{1}{N} \sum_{i=1}^{N} \min(d_{i,\text{min}}, d_{\text{threshold}}) $$

ONE is useful for diagnosing whether failures stem from poor path planning or inability to recognize the target location.

Progress (PROG)

Progress measures the fractional reduction in distance to the target:

$$ \text{PROG} = \frac{1}{N} \sum_{i=1}^{N} \frac{d_{\text{start}} - d_{\text{end}}}{d_{\text{start}}} $$

where dstart and dend are the initial and final distances to the target. PROG ranges from -∞ (moving away) to 1 (reaching the target from any distance). Values near 0 indicate no net progress.

Dynamic Time Warping (DTW) Distance

For trajectory comparison, DTW measures the similarity between the agent's path P and a reference path Q by finding the minimal alignment cost:

$$ \text{DTW}(P,Q) = \min_{\pi} \sum_{(i,j) \in \pi} \|p_i - q_j\|_2 $$

where π is a warping path that aligns the two trajectories. DTW is robust to speed variations and provides finer-grained evaluation than SPL for path similarity.

Composite Metrics

Recent work combines multiple metrics into unified scores. For example, the Navigation Score (NS) balances SR and SPL:

$$ \text{NS} = \text{SR} \times \text{SPL} $$

while the Coverage-Weighted Success (CWS) incorporates map coverage:

$$ \text{CWS} = \text{SR} \times \frac{\text{Area explored}}{\text{Total area}} $$

These composite metrics prevent over-optimization of single objectives and better reflect real-world requirements.

2.3 Challenges in Dataset Creation

Creating high-quality datasets for vision-language navigation (VLN) tasks presents several technical and logistical challenges. The complexity arises from the need to align visual, linguistic, and spatial data in a way that accurately reflects real-world navigation scenarios. Below, we examine the primary obstacles in dataset construction.

Data Collection and Annotation Complexity

VLN datasets require synchronized multimodal data, including first-person visual streams, natural language instructions, and precise trajectory annotations. Collecting this data in real-world environments is resource-intensive, often necessitating specialized hardware like 360° cameras, LIDAR sensors, and motion capture systems. The annotation process is equally demanding, as human annotators must generate linguistically diverse and contextually accurate instructions while ensuring spatial consistency with the visual data.

$$ \mathcal{L}_{\text{annotation}} = \sum_{i=1}^{N} \left( \lambda_1 \cdot \text{sim}(v_i, l_i) + \lambda_2 \cdot \text{acc}(p_i, \hat{p}_i) \right) $$

Here, sim(vi, li) measures the semantic alignment between visual frames vi and language instructions li, while acc(pi, p̂i) evaluates the accuracy of predicted trajectories p̂i against ground truth pi. The weights λ1 and λ2 balance these objectives.

Scalability and Generalization

Most VLN datasets are limited to constrained environments (e.g., indoor scans or synthetic worlds), which restricts their applicability to real-world scenarios. Scaling to diverse environments—such as dynamic urban settings or unstructured outdoor terrains—introduces challenges in data variability and computational costs. Synthetic datasets (e.g., AI2-THOR or Habitat-Matterport3D) mitigate some scalability issues but suffer from a sim-to-real gap due to unrealistic textures, lighting, or physics.

Bias and Diversity

Language annotations often exhibit biases, such as over-reliance on landmark references or directional primitives (e.g., "turn left"). These biases can degrade model performance in unseen environments where landmarks are occluded or layouts differ. Ensuring linguistic diversity requires:

Evaluation Metrics and Ground Truth Ambiguity

Traditional metrics like Success Rate (SR) and Path Length (PL) fail to capture nuanced aspects of VLN, such as instruction fidelity or recoverability from errors. Additionally, multiple valid trajectories may exist for a single instruction, making ground truth annotations non-unique. Recent work proposes probabilistic metrics, such as:

$$ \text{SR}_{\text{prob}} = \mathbb{E}_{p \sim P_{\text{gt}}} \left[ \mathbb{I}(\text{EPE}(p, \hat{p}) < \tau) \right] $$

where EPE is the endpoint error and Pgt represents the distribution of plausible trajectories.

Ethical and Privacy Concerns

Real-world data collection raises privacy issues, particularly when recording in private spaces or public areas with bystanders. Synthetic data avoids these concerns but may inadvertently propagate biases present in the simulation engine. Ethical dataset creation requires:

3. Transformer-Based Approaches

3.1 Transformer-Based Approaches

Transformer-based architectures have revolutionized vision-language navigation (VLN) by enabling joint reasoning over visual and textual modalities through self-attention mechanisms. Unlike traditional recurrent or convolutional approaches, transformers process sequences in parallel, capturing long-range dependencies essential for understanding complex navigation instructions paired with visual observations.

Architectural Foundations

The core of transformer-based VLN models lies in their multi-modal encoder-decoder structure. The encoder processes visual inputs (e.g., RGB-D frames or panoramic views) and language instructions simultaneously, while the decoder generates action sequences. Key components include:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent queries, keys, and values respectively, and dk is the dimension of the key vectors.

Advanced Variants

Recent innovations have enhanced standard transformer architectures for VLN:

Memory-Augmented Transformers

Models like EnvDrop incorporate external memory to retain navigation history, addressing the challenge of partial observability. The memory update mechanism can be formalized as:

$$ m_t = \text{LSTM}(m_{t-1}, [v_t \oplus l_t]) $$

where mt is the memory state at time t, vt the visual input, lt the language context, and ⊕ denotes concatenation.

Graph-Based Attention

Approaches such as VLN↻BERT construct dynamic scene graphs where nodes represent detected objects and edges encode spatial relationships. The attention weights between node i and j incorporate geometric priors:

$$ \alpha_{ij} = \frac{\exp(e_{ij})}{\sum_k \exp(e_{ik})}, \quad e_{ij} = \frac{q_i^T k_j}{\sqrt{d}} + \phi(p_i, p_j) $$

where φ is a learned function of the relative positions pi and pj.

Training Paradigms

Effective training strategies for transformer-based VLN models include:

The reinforcement learning objective maximizes the expected return:

$$ J( heta) = \mathbb{E}_{\tau \sim \pi_ heta} \left[ \sum_{t=0}^T \gamma^t r_t \right] $$

where τ represents trajectories sampled from policy πθ with parameters θ, and γ is the discount factor.

Performance Considerations

Transformer-based VLN models achieve state-of-the-art results but face computational challenges:

Transformer-Based Approaches – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the multi-modal encoder-decoder structure of transformer-based VLN models, including cross-modal attention layers and hierarchical representations.

3.2 Reinforcement Learning for Navigation

Markov Decision Processes in Navigation

Reinforcement learning (RL) formulates navigation as a Markov Decision Process (MDP), defined by the tuple (S, A, P, R, γ), where:

$$ \pi^*(a|s) = \arg\max_\pi \mathbb{E}\left[\sum_{t=0}^\infty \gamma^t R(s_t, a_t, s_{t+1}) \right] $$

The optimal policy π* maximizes cumulative discounted rewards. In vision-language navigation (VLN), states are enriched with multimodal embeddings from visual and textual inputs.

Policy Optimization with Deep RL

Deep RL methods like Proximal Policy Optimization (PPO) and Advantage Actor-Critic (A2C) are commonly used. The policy π_θ is parameterized by a neural network with weights θ. The objective is:

$$ J(\theta) = \mathbb{E}_{\pi_\theta}\left[ \log \pi_\theta(a|s) A(s, a) \right] - \beta H(\pi_\theta) $$

where A(s, a) is the advantage function, and H is an entropy bonus for exploration. For VLN, the policy network often fuses visual (CNN or ViT) and textual (BERT or LSTM) features.

Reward Shaping for VLN

Sparse rewards (e.g., +1 on task completion) lead to slow convergence. Dense reward shaping is critical:

For example, in the R2R (Room-to-Room) dataset, rewards are often defined as:

$$ R_t = \mathbb{I}(s_t = s_{\text{goal}}) + \alpha \cdot \text{sim}(s_t, s_{\text{goal}}) - \beta \cdot \mathbb{I}(\text{collision}) $$

Imitation Learning Pretraining

Behavioral cloning (BC) from expert trajectories accelerates RL training. The loss is:

$$ \mathcal{L}_{\text{BC}}(\theta) = -\mathbb{E}_{(s, a) \sim \mathcal{D}_{\text{expert}}} \left[ \log \pi_\theta(a|s) \right] $$

where D_expert contains (state, action) pairs from human demonstrations. Hybrid training (BC + RL) mitigates exploration challenges in large environments.

Challenges and Solutions

Partial observability: POMDP formulations or memory-augmented policies (e.g., LSTMs, transformers) handle occlusions.

Generalization: Domain randomization and meta-RL improve adaptability to unseen environments.

Sample efficiency: Off-policy methods (e.g., Soft Actor-Critic) or model-based RL reduce environment interactions.

VLN Agent Trajectory Start Goal
Reinforcement Learning for Navigation – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the agent's trajectory from start to goal in a navigation task, illustrating the spatial relationship between states, actions, and rewards.

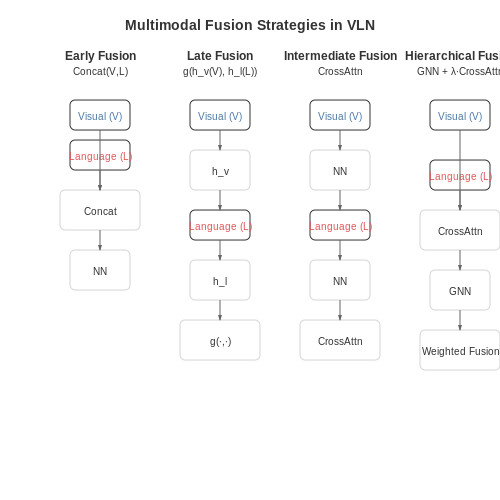

3.3 Multimodal Fusion Strategies

Multimodal fusion is critical in vision-language navigation (VLN) tasks, where the agent must integrate visual and linguistic inputs to make navigation decisions. Advanced fusion strategies can be broadly categorized into early fusion, late fusion, and intermediate fusion, each with distinct advantages and trade-offs.

Early Fusion

Early fusion combines raw or low-level features from vision and language modalities before processing them through a shared neural network. This approach leverages cross-modal interactions at the earliest stage, enabling fine-grained alignment. A common implementation involves concatenating visual features V and linguistic embeddings L:

$$ F_{\text{early}} = \text{Concat}(V, L) $$

where V is typically extracted using a CNN or ViT, and L is derived from a transformer-based language model like BERT. Early fusion is computationally efficient but risks losing modality-specific nuances due to premature mixing.

Late Fusion

Late fusion processes vision and language inputs independently through separate networks and combines their high-level representations. This preserves modality-specific features but may struggle with cross-modal reasoning. The fusion can be formulated as:

$$ F_{\text{late}} = g(h_v(V), h_l(L)) $$

Here, hv and hl are modality-specific encoders, and g is a fusion function (e.g., weighted sum or attention). Late fusion excels in tasks requiring strong unimodal processing but may underperform in fine-grained vision-language alignment.

Intermediate Fusion

Intermediate fusion strikes a balance by integrating modalities at multiple layers. Cross-modal attention mechanisms, such as those in VLN-BERT, dynamically align visual and linguistic features at different abstraction levels. The attention-based fusion for step t is:

$$ A_t = \text{Softmax}\left(\frac{Q_t K_t^T}{\sqrt{d_k}}\right) V_t $$

where Qt, Kt, and Vt are learned projections of vision-language inputs, and dk is the dimension of the key vectors. This approach enables adaptive feature fusion but increases computational complexity.

Hierarchical Fusion

Recent work explores hierarchical fusion, where modalities are integrated at multiple granularities (e.g., object-level, scene-level, and trajectory-level). For instance, a graph neural network (GNN) can model object relationships in visual scenes while attending to linguistic cues:

$$ F_{\text{hier}} = \text{GNN}(V, L) + \lambda \cdot \text{CrossAttn}(V, L) $$

The hyperparameter λ balances local and global fusion. Hierarchical methods show promise in long-horizon VLN tasks like Room-to-Room (R2R) navigation.

Case Study: Vision-Language Transformers

Models like LXMERT and UNITER employ transformer-based intermediate fusion. LXMERT uses two separate encoders for vision and language, followed by cross-modal layers. The cross-modal encoder computes:

$$ \text{CrossMod}(V, L) = \text{LayerNorm}(V + \text{MultiHeadAttn}(V, L)) $$

This architecture achieves state-of-the-art results on VLN benchmarks by enabling deep bidirectional vision-language interactions.

Practical Considerations

Multimodal Fusion Strategies – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would visually compare early, late, intermediate, and hierarchical fusion strategies by showing how visual and linguistic features flow and merge at different stages.

4. Loss Functions for Vision-Language Alignment

4.1 Loss Functions for Vision-Language Alignment

Contrastive Loss

Contrastive loss is a widely used objective function for vision-language alignment, enforcing similarity between matched image-text pairs while pushing unmatched pairs apart. Given a batch of N image-text pairs, the contrastive loss for images (Li) and texts (Lt) is defined as:

$$ L_i = -\frac{1}{N} \sum_{j=1}^N \log \frac{\exp(s_{jj}/\tau)}{\sum_{k=1}^N \exp(s_{jk}/\tau)} $$
$$ L_t = -\frac{1}{N} \sum_{j=1}^N \log \frac{\exp(s_{jj}/\tau)}{\sum_{k=1}^N \exp(s_{kj}/\tau)} $$

where sjk is the cosine similarity between the j-th image and k-th text embeddings, and τ is a temperature hyperparameter. The total loss is L = (Li + Lt)/2. This formulation, used in CLIP and ALIGN, encourages the model to learn a joint embedding space where semantically similar inputs are close.

Triplet Loss

Triplet loss extends contrastive learning by explicitly optimizing relative distances between anchor, positive, and negative samples. For an anchor image Ia, a matching text Tp, and a non-matching text Tn, the loss is:

$$ L = \max(0, d(I_a, T_p) - d(I_a, T_n) + \alpha) $$

where d(·,·) is a distance metric (typically Euclidean or cosine), and α is a margin hyperparameter. This formulation is particularly effective when hard negative mining is applied, selecting challenging negatives to improve discriminative power.

Cross-Modal Projection Matching (CMPM) Loss

CMPM loss, introduced by Zhang et al. (2018), formulates alignment as a classification problem where each image-text pair is treated as a class. The probability of the i-th image matching the j-th text is:

$$ p_{ij} = \frac{\exp(\mathbf{v}_i^\top \mathbf{u}_j)}{\sum_{k=1}^N \exp(\mathbf{v}_i^\top \mathbf{u}_k)} $$

where vi and uj are L2-normalized embeddings. The bidirectional CMPM loss minimizes the KL divergence between the predicted and ground-truth distributions:

$$ L = \frac{1}{N} \sum_{i=1}^N \sum_{j=1}^N y_{ij} \log \frac{y_{ij}}{p_{ij}} $$

where yij is 1 if i and j match, else 0. This loss is robust to noisy correspondences and scales well to large datasets.

InfoNCE Loss

InfoNCE (Noise Contrastive Estimation) loss, a generalization of contrastive loss, maximizes mutual information between modalities. For a batch of N pairs, the loss is:

$$ L = -\mathbb{E} \left[ \log \frac{f(x, y)}{\sum_{y'} f(x, y')} \right] $$

where f(x, y) is a similarity function (e.g., dot product of normalized embeddings). InfoNCE is theoretically grounded in mutual information maximization and has been shown to outperform standard contrastive loss in scenarios with high negative sample diversity.

Practical Considerations

In vision-language navigation, loss functions must account for sequential decision-making. Reinforcement learning losses (e.g., policy gradient) are often combined with alignment losses to optimize both perception and action. For example, an agent might minimize:

$$ L_{total} = \lambda_1 L_{align} + \lambda_2 L_{RL} $$

where Lalign ensures instruction-following, and LRL maximizes navigation reward. The choice of λ1 and λ2 is critical and often requires task-specific tuning.

4.2 Pretraining and Fine-Tuning Strategies

Pretraining Objectives for Vision-Language Models

Pretraining vision-language models for navigation tasks requires joint optimization of visual and textual representations. The most common objectives include:

$$ \mathcal{L}_{MLM} = -\mathbb{E}_{(I,T)} \sum_{i \in M} \log P(t_i | T_{\backslash M}, I) $$

where M represents masked tokens, I is the image, and T is the instruction text.

Cross-Modal Transformer Architectures

Modern approaches use transformer-based architectures with separate encoders for vision and language, connected through cross-attention layers. The attention mechanism computes:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned projections of visual and textual features, and dk is the dimension of key vectors.

Fine-Tuning for Navigation-Specific Tasks

After pretraining, models are fine-tuned using navigation-specific objectives:

Curriculum Learning Strategies

Progressive training approaches improve sample efficiency:

  1. Start with short, unambiguous instructions in simple environments
  2. Gradually increase instruction complexity and environment size
  3. Introduce partial observability and noisy inputs

Transfer Learning Considerations

Effective transfer requires careful handling of:

$$ \mathcal{L}_{total} = \lambda_1\mathcal{L}_{nav} + \lambda_2\mathcal{L}_{align} + \lambda_3\mathcal{L}_{reg} $$

where λi are loss weighting parameters tuned for the target environment.

Efficient Fine-Tuning Techniques

Recent work employs parameter-efficient methods:

$$ W' = W + \Delta W = W + BA^T $$

where B and A are low-rank matrices with rank r ≪ d.

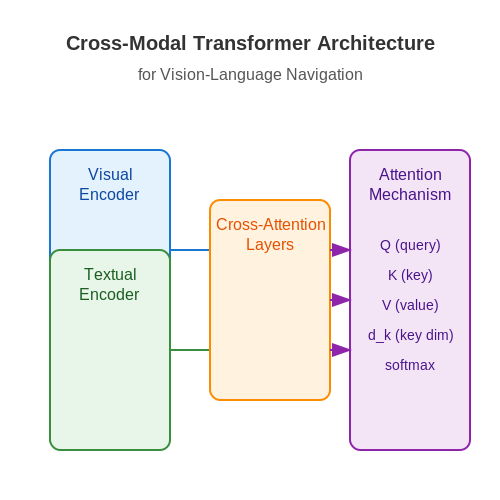

Pretraining and Fine-Tuning Strategies – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the architecture of cross-modal transformers with visual and textual encoders connected via cross-attention layers, illustrating how visual and textual features interact.

4.3 Handling Noisy or Ambiguous Instructions

Noisy or ambiguous instructions present a significant challenge in vision-language navigation (VLN), where the agent must interpret natural language directives that may be incomplete, contradictory, or contextually unclear. Advanced techniques leverage probabilistic reasoning, multimodal fusion, and reinforcement learning to improve robustness.

Probabilistic Instruction Parsing

Given an instruction I and visual observations V, the agent models the likelihood of possible interpretations using a Bayesian framework:

$$ P(A|I, V) = \frac{P(I|A, V)P(A|V)}{P(I|V)} $$

where A represents the set of possible actions. The prior P(A|V) is estimated from the visual context, while the likelihood P(I|A, V) is computed via cross-modal attention between language and visual features.

Multimodal Uncertainty Fusion

When instructions conflict with visual evidence, modern VLN systems employ uncertainty-aware fusion. Let fL and fV be language and visual feature vectors respectively. The fused representation is computed as:

$$ f_{fusion} = \sigma(\beta) \cdot f_L + (1 - \sigma(\beta)) \cdot f_V $$

where β is a learnable confidence parameter and σ is the sigmoid function. This allows dynamic weighting of modalities based on their estimated reliability.

Reinforcement Learning for Robustness

Policy gradient methods are particularly effective for handling ambiguity. The reward function R incorporates both task completion and instruction fidelity:

$$ R = \lambda_1 R_{nav} + \lambda_2 R_{lang} - \lambda_3 R_{uncertainty} $$

where Rnav measures navigation success, Rlang evaluates instruction alignment, and Runcertainty penalizes high-variance actions. The λ parameters control their relative importance.

Case Study: R2R Dataset Ambiguities

On the Room-to-Room dataset, approximately 18% of instructions contain ambiguous references like "the left door" when multiple doors exist. State-of-the-art models address this by:

Architectural Innovations

Recent transformer-based approaches handle noise through:

For example, the Episodic Transformer architecture processes ambiguous instructions by maintaining parallel attention streams for different interpretation hypotheses, then selecting the most consistent path through temporal voting.

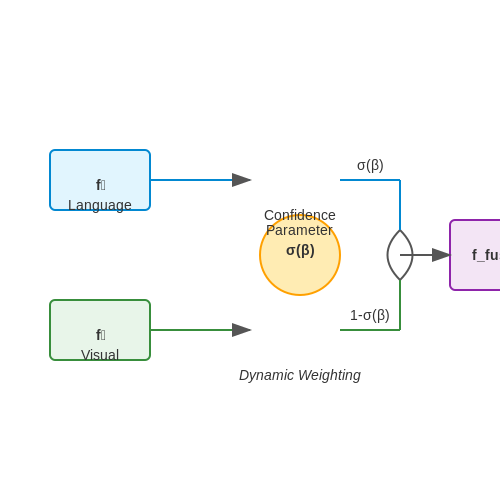

Handling Noisy or Ambiguous Instructions – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the multimodal uncertainty fusion process with visual and language feature vectors dynamically weighted by a sigmoid-based confidence parameter.

5. Bias in Language and Visual Representations

5.1 Bias in Language and Visual Representations

Sources of Bias in Vision-Language Models

Bias in vision-language navigation (VLN) tasks arises from both linguistic and visual representations, often propagating through pretraining datasets, model architectures, and downstream applications. Language models trained on large corpora inherit societal biases present in the text, while visual models amplify biases through imbalanced or stereotypical training data. For instance, gender and racial biases in image captions or object recognition disproportionately affect navigation policies in real-world environments.

Mathematical Formalization of Bias

Bias can be quantified as the deviation from a fair, unbiased distribution of representations. Let X denote the input space (text or images) and Y the output space (navigation actions). A model f: X → Y exhibits bias if:

$$ \mathbb{E}_{x \sim P_{X|A=a}}[f(x)] \neq \mathbb{E}_{x \sim P_{X|A=b}}[f(x)] $$

where A represents a sensitive attribute (e.g., gender, race) and PX|A is the conditional distribution of inputs given the attribute. Disparities in these expectations indicate systematic bias.

Bias Amplification in Multimodal Fusion

Vision-language models fuse embeddings from both modalities, often exacerbating biases. Given text embeddings T ∈ ℝd and image embeddings V ∈ ℝd, a simple fusion mechanism like element-wise multiplication (T ⊙ V) can propagate biases multiplicatively. For example:

$$ \text{Bias}(T \odot V) \approx \text{Bias}(T) \times \text{Bias}(V) $$

This multiplicative effect is particularly problematic when biases in T and V correlate, as seen in datasets where certain demographics are overrepresented in both text and images.

Case Study: Gender Bias in Room Descriptions

In VLN tasks, instructions like "go to the kitchen" are statistically associated with female-coded language in pretraining data, while "go to the garage" is linked to male-coded terms. This manifests in models assigning higher probabilities to gender-stereotypical paths. For instance, a model might route agents to kitchens more frequently when the instruction contains pronouns like "she" due to co-occurrence patterns in training data.

Mitigation Strategies

Evaluation Metrics for Bias

Standard metrics include:

Recent work also proposes task-specific metrics, such as Path Discrepancy Score (PDS), which quantifies differences in navigation paths across demographic groups for identical instructions.

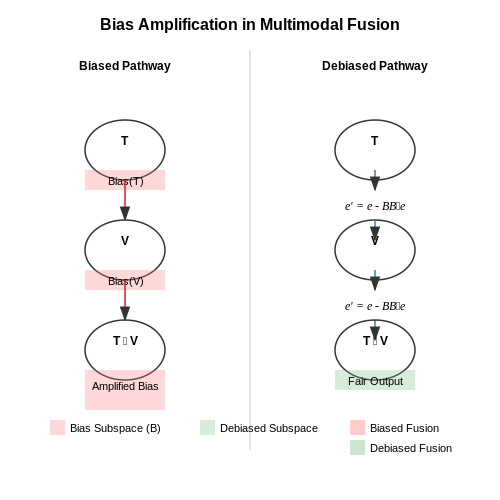

Bias in Language and Visual Representations – Vision-Language Navigation Tasks – Tutorial Diagram
Diagram Description: The diagram would show the multiplicative bias amplification in multimodal fusion by visually contrasting biased vs. debiased text and image embeddings and their fused outputs.

5.2 Privacy Concerns in Real-World Deployment

Vision-language navigation (VLN) systems, when deployed in real-world environments, raise significant privacy concerns due to their reliance on multimodal sensory inputs—typically visual (camera feeds) and linguistic (voice or text commands). These systems process sensitive data, including indoor layouts, personal belongings, and human activities, which can be exploited if not properly safeguarded. The primary risks stem from data collection, storage, and inference phases, each introducing unique vulnerabilities.

Data Collection and Retention Risks

VLN agents often operate in private spaces such as homes, hospitals, or offices, capturing high-resolution images or videos to interpret their surroundings. The raw sensory data may inadvertently include personally identifiable information (PII), such as faces, documents, or unique room configurations. Even if the system processes data locally, temporary storage or logging for debugging purposes can create attack surfaces. Adversaries exploiting weak encryption or unauthorized access to device logs could reconstruct private environments.

$$ \mathcal{I}(X; Y) = H(X) - H(X|Y) $$

Here, X represents raw visual data, and Y denotes the extracted features. Mutual information ℐ(X; Y) quantifies how much Y reveals about X, highlighting the potential for privacy leakage during feature extraction.

Inference-Time Privacy Threats

During navigation, VLN models generate latent representations of environments, which adversaries might reverse-engineer to infer sensitive details. For instance, gradient-based attacks on model outputs could reveal room occupancy patterns or object placements. Federated learning, often proposed as a privacy-preserving solution, is not foolproof—differential privacy mechanisms must be rigorously applied to prevent membership inference attacks.

Case Study: Model Inversion Attacks

In a 2022 study, researchers demonstrated that a compromised VLN agent’s trajectory predictions could be used to reconstruct floor plans with 85% accuracy using only API access to the navigation model. The attack leveraged the model’s tendency to overfit to rare spatial configurations in training data.

Mitigation Strategies

Regulatory frameworks like GDPR and CCPA impose strict requirements on VLN deployments, mandating explicit user consent for data collection and the right to erasure. However, technical challenges remain in implementing these rights for systems relying on continuous environmental learning.

5.3 Scalability and Generalization Issues

Vision-Language Navigation (VLN) models face significant challenges when scaling to larger environments or generalizing to unseen scenarios. The primary bottleneck lies in the combinatorial explosion of possible trajectories and the diversity of language instructions, which makes it difficult for models to maintain robust performance beyond their training distribution.

5.3.1 Data Efficiency and Environmental Diversity

Current VLN datasets like R2R and RxR cover limited spatial and linguistic variations, leading to models that overfit to specific room layouts or instruction phrasings. The navigation policy π(a|s, l), where a is the action, s the state, and l the language instruction, often fails to generalize due to:

$$ \mathcal{L}_{gen} = -\mathbb{E}_{(s,l) \sim p_{unseen}} \left[ \log \pi(a^*|s, l) \right] $$

Here, ℒgen measures the loss on unseen environments, exposing the drop in likelihood for optimal actions a* under out-of-distribution conditions.

5.3.2 Transfer Learning and Modular Architectures

To improve scalability, recent work adopts modular designs that decouple visual grounding, path planning, and language understanding. For example:

$$ \pi(a|s, l) = \pi_{high}(g|s, l) \cdot \pi_{low}(a|s, g) $$

where g represents a subgoal. This factorization allows partial reuse of modules (e.g., πlow) across tasks.

5.3.3 Sim-to-Real and Procedural Generation

Synthetic data augmentation via photorealistic simulators (e.g., Habitat, AI2-THOR) mitigates environmental bias. Key techniques include:

However, sim-to-real gaps persist in language grounding due to mismatches between synthetic and human-generated instructions. Adversarial training with discriminators that distinguish real vs. synthetic data can narrow this gap:

$$ \min_\pi \max_D \mathbb{E} \left[ \log D(s, l) + \log (1 - D(s_{synth}, l_{synth})) \right] $$

5.3.4 Benchmarking Generalization

Standardized splits like R2R-CE (Continuous Environments) test robustness through:

State-of-the-art models like HAMT and VLN-BERT achieve ~40% success rate on seen environments but drop below 20% on unseen splits, highlighting the open challenge.

6. Key Research Papers

6.1 Key Research Papers

6.2 Open-Source Implementations

6.3 Recommended Courses and Tutorials
