Visual Grounding in Language Models

#visual grounding #multimodal learning #transformer models #language models #attention mechanisms #CLIP #Flamingo #pretraining #fine-tuning #benchmark datasets

1. Definition and Core Concepts

Visual Grounding in Language Models: Definition and Core Concepts

Visual grounding refers to the ability of a language model to associate linguistic expressions with corresponding visual entities or regions in an image. This capability bridges the gap between vision and language, enabling models to perform tasks such as image captioning, visual question answering (VQA), and referring expression comprehension. At its core, visual grounding involves cross-modal alignment, where textual tokens are mapped to spatially localized visual features.

Key Components of Visual Grounding

Visual grounding relies on three fundamental components:

Mathematical Formulation

The alignment between visual and textual features is often formulated as an attention operation. Given visual features F and textual embeddings T, the cross-modal attention weights A are computed as:

$$ A = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right) $$

where Q = FW_Q and K = TW_K are learned linear projections of the visual and textual features, respectively, and d_k is the dimension of the key vectors. The attended visual features F' are then:

$$ F' = AV $$

with V = TW_V being the value projection of the text embeddings.

Practical Applications

Visual grounding enables models to perform tasks requiring fine-grained vision-language understanding, such as:

Challenges and Research Directions

Despite progress, visual grounding faces challenges such as:

Definition and Core Concepts – Visual Grounding in Language Models – Tutorial Diagram
Diagram Description: The diagram would show the cross-modal attention mechanism between visual features (CNN/ViT output) and textual embeddings (transformer output), including the alignment score computation and attended feature generation.

Role of Multimodal Learning

Multimodal learning enables language models to process and correlate information across different data modalities—such as text, images, and audio—simultaneously. This capability is fundamental for visual grounding, where linguistic representations must align with visual inputs to achieve meaningful comprehension. The underlying architecture typically employs joint embedding spaces, where representations from different modalities are projected into a shared latent space.

Joint Embedding Spaces

In multimodal models, the alignment between text and visual data is achieved through a joint embedding space. Given an image I and a textual description T, the model learns mappings f(I) and g(T) such that their embeddings are semantically close if they describe the same concept. The similarity is often measured using cosine similarity:

$$ \text{sim}(f(I), g(T)) = \frac{f(I) \cdot g(T)}{\|f(I)\| \|g(T)\|} $$

Training involves contrastive learning, where positive pairs (matching image-text pairs) are pulled closer, while negative pairs (non-matching pairs) are pushed apart in the embedding space.

Attention Mechanisms in Multimodal Fusion

Cross-modal attention mechanisms allow the model to dynamically weigh the importance of visual and textual features during inference. For a transformer-based architecture, the attention scores between visual tokens V and textual tokens L are computed as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q is derived from one modality (e.g., text), and K, V from another (e.g., image). This enables the model to attend to relevant regions in an image when processing a textual query.

Practical Applications

Multimodal learning enhances applications such as:

Recent advancements, such as CLIP (Contrastive Language-Image Pretraining) and Flamingo, demonstrate the scalability of multimodal learning by training on large-scale datasets containing paired image-text samples.

Challenges and Limitations

Despite its promise, multimodal learning faces challenges:

Role of Multimodal Learning – Visual Grounding in Language Models – Tutorial Diagram

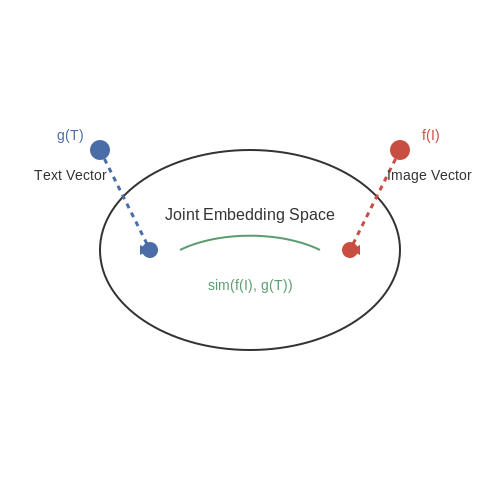

Diagram Description: The diagram would show the joint embedding space with text and image vectors being projected into a shared latent space, highlighting their alignment via cosine similarity.

Key Challenges in Visual-Language Alignment

Semantic Ambiguity in Cross-Modal Representations

Visual-language models must bridge the gap between discrete linguistic tokens and continuous visual features, which often leads to semantic ambiguity. For instance, the word "bank" can refer to a financial institution or a riverbank, but visual grounding requires disambiguating based on pixel-level context. This challenge is formalized through the alignment loss function:

$$ \mathcal{L}_{align} = -\sum_{i=1}^N \log \frac{\exp(s(v_i, t_i)/\tau)}{\sum_{j=1}^N \exp(s(v_i, t_j)/\tau)} $$

where s(vi, tj) measures cosine similarity between visual feature vi and text feature tj, with temperature parameter τ. The model must minimize this loss while handling polysemous words and visually similar objects (e.g., "cup" vs. "mug").

Compositional Reasoning Across Modalities

Human-like understanding requires composing visual concepts with linguistic structure, such as interpreting "the dog chasing the cat left of the tree". Current models struggle with:

The information bottleneck arises when compressing high-dimensional visual data (e.g., 2048-D ResNet features) into compact latent text-aligned representations, often losing compositional details.

Scale Discrepancy in Training Data

State-of-the-art models like CLIP and Flamingo require:

However, real-world data exhibits power-law distribution with long-tail categories. The probability P(y|x) of observing class y given features x becomes unreliable for rare concepts:

$$ P(y|x) = \frac{\exp(w_y^T f_\theta(x))}{\sum_{c=1}^C \exp(w_c^T f_\theta(x))} $$

where fθ is the visual encoder and wc are class embeddings. The denominator dominates for underrepresented classes during softmax computation.

Evaluation Metrics Mismatch

Current benchmarks like COCO Captions or VQA v2.0 suffer from:

Emerging metrics like CLIPScore attempt to address this by measuring vision-language embedding consistency:

$$ \text{CLIPScore}(I, C) = 100 \times \max\left(0, \frac{s(I, C)}{\mu_\text{CLIP}}\right)^\gamma $$

where μCLIP is the dataset mean similarity and γ=2.5 is a scaling factor.

Computational-Statistical Tradeoffs

Jointly training vision and language components creates optimization challenges:

The gradient conflict manifests in the multi-task loss:

$$ \nabla_\theta \mathcal{L}_{total} = \lambda_{vis}\nabla_\theta \mathcal{L}_{vis} + \lambda_{txt}\nabla_\theta \mathcal{L}_{txt} $$

where λ coefficients require careful tuning to prevent one modality from dominating.

2. Transformer-Based Models (e.g., CLIP, Flamingo)

Transformer-Based Models (e.g., CLIP, Flamingo)

Architectural Foundations

Transformer-based models for visual grounding leverage the self-attention mechanism to establish cross-modal relationships between vision and language. The core innovation lies in their ability to process image patches and text tokens in a unified latent space. CLIP (Contrastive Language-Image Pretraining) implements a dual-encoder architecture where:

$$ f_I: \mathbb{R}^{H×W×C} \rightarrow \mathbb{R}^d $$ $$ f_T: \mathbb{R}^{L} \rightarrow \mathbb{R}^d $$

with d-dimensional embeddings aligned through contrastive learning. The image encoder typically uses a Vision Transformer (ViT) that splits input images into N non-overlapping patches:

$$ \mathbf{x}_p^i = \text{Flatten}(\mathbf{P}_i\mathbf{I}) \quad \forall i \in \{1...N\} $$

Contrastive Learning Mechanism

The training objective maximizes the mutual information between paired image-text samples while minimizing similarity for negative pairs. For a batch of B pairs, the symmetric contrastive loss is:

$$ \mathcal{L}_{\text{CLIP}} = -\frac{1}{2B}\sum_{i=1}^B \left[\log \frac{e^{\langle \mathbf{v}_i, \mathbf{t}_i \rangle/\tau}}{\sum_{j=1}^B e^{\langle \mathbf{v}_i, \mathbf{t}_j \rangle/\tau}} + \log \frac{e^{\langle \mathbf{t}_i, \mathbf{v}_i \rangle/\tau}}{\sum_{j=1}^B e^{\langle \mathbf{t}_i, \mathbf{v}_j \rangle/\tau}}\right] $$

where τ is a learnable temperature parameter. This objective forces the model to develop fine-grained alignment capabilities without explicit region-level supervision.

Flamingo's Cross-Attention Paradigm

Flamingo extends this framework through gated cross-attention layers that dynamically fuse visual features into a pretrained language model. The key operation is:

$$ \text{CrossAttn}(\mathbf{Q}, \mathbf{K}_V, \mathbf{V}_V) = \text{softmax}\left(\frac{\mathbf{Q}\mathbf{K}_V^T}{\sqrt{d_k}}\right)\mathbf{V}_V $$

where visual features serve as keys/values (KV, VV) to condition text generation. The model employs perceiver resamplers to handle variable-length visual inputs, projecting them into fixed-dimensional latent arrays.

Training Strategies

Both models utilize large-scale web datasets (WebImageText for CLIP, Multimodal C4 for Flamingo) with distinct optimization approaches:

The computational requirements are substantial—CLIP's largest variant trains on 256 V100 GPUs for 2 weeks, while Flamingo uses mixture-of-experts scaling to handle 80B parameter models.

Downstream Applications

These architectures enable zero-shot transfer through:

Recent variants like CoCa (Contrastive Captioners) demonstrate that hybrid objectives combining contrastive and generative losses yield state-of-the-art performance on cross-modal tasks.

Transformer-Based Models (e.g., CLIP, Flamingo) – Visual Grounding in Language Models – Tutorial Diagram
Diagram Description: The diagram would show the dual-encoder architecture of CLIP with image patches and text tokens flowing into their respective encoders, then aligning in a shared latent space through contrastive learning.

Attention Mechanisms for Cross-Modal Fusion

Cross-modal fusion in visual grounding relies on attention mechanisms to dynamically align and weight features from vision and language modalities. The core idea is to compute a similarity matrix between visual and textual features, then use it to generate context-aware representations. Given visual features V ∈ ℝN×d and textual features L ∈ ℝM×d, where N and M are the number of spatial regions and tokens respectively, the cross-attention mechanism computes:

$$ A = \text{softmax}\left(\frac{VW_q (LW_k)^T}{\sqrt{d}}\right) $$

Here, Wq and Wk are learnable projection matrices, and d is the feature dimension. The attention weights A ∈ ℝN×M determine how much each visual region should attend to each language token. The attended visual features are then computed as:

$$ V_{\text{attended}} = A(LW_v) $$

where Wv projects the language features into a space compatible with visual features. This process enables the model to focus on relevant image regions conditioned on the input text, a critical capability for tasks like referring expression comprehension.

Multi-Head Attention for Cross-Modal Fusion

Single-head attention can be extended to multi-head attention to capture diverse interaction patterns. For h heads, the queries, keys, and values are split into h subspaces:

$$ \text{head}_i = \text{Attention}(VW_q^i, LW_k^i, LW_v^i) $$

The outputs of all heads are concatenated and linearly projected:

$$ \text{MultiHead}(V, L) = \text{Concat}(\text{head}_1, ..., \text{head}_h)W_o $$

This allows the model to jointly attend to information from different representation subspaces at different positions, significantly improving its ability to model complex cross-modal relationships.

Cross-Modal Transformer Layers

Modern visual grounding architectures often stack multiple cross-modal transformer layers. Each layer consists of:

The transformer's iterative processing enables progressive refinement of cross-modal alignments. For example, early layers might establish coarse region-word correspondences, while later layers resolve finer-grained relationships.

Practical Considerations

Several implementation details critically affect performance:

Recent work has shown that combining bottom-up (region proposal) and top-down (attention-based) approaches yields the strongest results, with models like MDETR demonstrating state-of-the-art performance by treating visual grounding as a detection problem conditioned on text.

Cross-Modal Attention Mechanism Diagram showing the alignment between visual regions and language tokens via attention weights, with multi-head attention processing flow. Visual Features (V) Token 1 Token 2 Token 3 Language Features (L) Attention Matrix (A) W_q W_k W_v head_1 head_2 head_n softmax (Q·Kᵀ)/√d W_o Out
Diagram Description: The diagram would show the alignment between visual regions and language tokens via attention weights, and how multi-head attention splits and combines features.

2.3 Pretraining and Fine-Tuning Strategies

Pretraining Objectives for Visual-Language Alignment

Modern visual grounding models leverage large-scale pretraining on multimodal datasets to align visual and textual representations. The dominant paradigm involves masked language modeling (MLM) and image-text matching (ITM) objectives. Given an image I and paired text T, the model learns to reconstruct masked tokens in T while minimizing the contrastive loss between matched and unmatched pairs:

$$ \mathcal{L}_{MLM} = -\mathbb{E}_{(I,T)} \sum_{t \in M} \log P(t|T_{\backslash M}, I) $$
$$ \mathcal{L}_{ITM} = -\mathbb{E}_{(I,T)} \log \frac{\exp(s(I,T)/\tau)}{\sum_{T' \in \mathcal{N}(T)} \exp(s(I,T')/\tau)} $$

where M denotes masked tokens, s(I,T) computes the similarity score, and τ is a temperature parameter. Recent work has shown that incorporating region-level features through object detection (e.g., Faster R-CNN) significantly improves grounding performance.

Two-Phase Fine-Tuning Approach

After pretraining, models undergo task-specific fine-tuning through two critical phases:

$$ \mathcal{L}_{total} = \lambda_1\mathcal{L}_{task} + \lambda_2\mathcal{L}_{MLM} + \lambda_3\mathcal{L}_{ITM} $$

The coefficients λi are typically tuned via grid search, with empirical studies showing optimal performance when λ1 > λ2 ≈ λ3 for grounding tasks.

Adapter-Based Parameter Efficiency

For resource-constrained scenarios, adapter layers inserted between transformer blocks enable efficient fine-tuning. Each adapter consists of:

$$ \text{Adapter}(x) = x + W_{down} \cdot \text{GELU}(W_{up} \cdot x) $$

where Wdown ∈ ℝd×r and Wup ∈ ℝr×d form a bottleneck architecture (typically r = 64). This approach achieves >90% of full fine-tuning performance while updating <1% of parameters, as demonstrated in VL-Adapter and Compacter architectures.

Cross-Modal Attention Mechanisms

The core architectural innovation enabling visual grounding is cross-modal attention. Given visual features V ∈ ℝn×d and textual features L ∈ ℝm×d, the attention weights are computed as:

$$ A_{ij} = \frac{\exp(Q_i^L K_j^V / \sqrt{d})}{\sum_k \exp(Q_i^L K_k^V / \sqrt{d})} $$

where QL and KV are learned projections. Recent variants like factorized attention decompose this operation into spatial and channel components to reduce computational complexity from O(nm) to O(n + m).

Data Augmentation Strategies

Effective fine-tuning requires careful augmentation of both modalities:

Contrastive learning with hard negative mining (e.g., sampling negatives from the same batch but with mismatched regions) has shown particular effectiveness in recent benchmarks like RefCOCOg.

Pretraining and Fine-Tuning Strategies – Visual Grounding in Language Models – Tutorial Diagram
Diagram Description: The cross-modal attention mechanism involves spatial relationships between visual and textual features that are best shown visually.

3. Common Benchmark Datasets (e.g., COCO, Flickr30k)

Common Benchmark Datasets

Evaluating visual grounding in language models requires standardized datasets that pair images with textual descriptions and annotations. Three widely adopted benchmarks are COCO, Flickr30k, and RefCOCO, each offering unique challenges and use cases.

COCO (Common Objects in Context)

The COCO dataset contains over 330,000 images with 2.5 million labeled instances across 80 object categories. Each image includes five human-annotated captions, making it valuable for both object detection and image captioning tasks. COCO's annotations include pixel-level segmentation masks, bounding boxes, and keypoints, enabling fine-grained visual grounding evaluation.

$$ \text{Precision} = \frac{TP}{TP + FP} $$

For visual grounding tasks, models are typically evaluated on their ability to localize objects mentioned in the captions. The standard metric is Intersection over Union (IoU), calculated as:

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$

Flickr30k Entities

Flickr30k extends the original Flickr30k dataset by annotating 276k bounding boxes that correspond to 244k noun phrases in 31k captions. This dataset is particularly useful for phrase localization tasks, where models must associate textual phrases with specific image regions. The annotations include coreference resolution, allowing evaluation of models' ability to handle pronouns and other referring expressions.

Annotation Structure

RefCOCO Series

The RefCOCO datasets (RefCOCO, RefCOCO+, and RefCOCOg) focus specifically on referring expression comprehension. These datasets contain images with objects annotated by referring expressions collected through interactive games. Key differences between variants:

Dataset Images Expressions Unique Objects
RefCOCO 19,994 142,209 50,000
RefCOCO+ 19,992 141,564 49,856
RefCOCOg 26,711 104,560 54,822

RefCOCO+ prohibits location words in referring expressions, making it more challenging. RefCOCOg contains longer, more descriptive expressions collected in non-interactive settings.

Evaluation Protocols

Standard evaluation metrics for these datasets include:

$$ \text{Accuracy} = \frac{\text{Correct Predictions}}{\text{Total Predictions}} $$

For detection tasks, models are typically evaluated using mean Average Precision (mAP) at different IoU thresholds. Phrase grounding tasks often use Recall@K, measuring whether the correct region is among the top K predicted regions.

$$ \text{Recall@K} = \frac{1}{N}\sum_{i=1}^N \mathbb{I}(\text{Correct in top K}) $$

3.2 Metrics for Visual-Language Tasks (e.g., Recall@K, CIDEr)

Recall@K

Recall@K measures the proportion of relevant items retrieved in the top-K ranked results. For visual-language tasks, it evaluates whether a model correctly identifies the ground-truth image or caption within the first K predictions. Given a set of queries Q and a retrieval set D, Recall@K is computed as:

$$ \text{Recall@}K = \frac{1}{|Q|} \sum_{q \in Q} \mathbb{I}(\text{rank}(d_q^*) \leq K) $$

where dq* is the ground-truth item for query q, rank(dq*) is its predicted rank, and 𝕀 is the indicator function. Higher values (closer to 1) indicate better retrieval performance. In practice, Recall@1, Recall@5, and Recall@10 are commonly reported for tasks like image-text matching.

CIDEr (Consensus-Based Image Description Evaluation)

CIDEr quantifies the quality of generated captions by comparing them to a set of human references using term frequency-inverse document frequency (TF-IDF) weighting. It emphasizes n-gram consensus between candidate and reference captions. The metric involves four steps:

The final CIDEr score for a candidate caption c and reference set S is:

$$ \text{CIDEr}(c, S) = \frac{1}{m} \sum_{j=1}^{m} \frac{g^j(c) \cdot g^j(S)}{||g^j(c)|| \cdot ||g^j(S)||} $$

where gj denotes the TF-IDF vector for n-grams of length j, and m=4. Scores range from 0 (no overlap) to 1 (perfect match).

SPICE (Semantic Propositional Image Caption Evaluation)

SPICE evaluates caption quality by parsing both candidate and reference captions into scene graphs (objects, attributes, relations) and computing F-score-based similarity. It decomposes semantics into:

The F-score between candidate (P) and reference (Q) scene graphs is:

$$ \text{SPICE} = F_1 = 2 \cdot \frac{P \cap Q}{|P| + |Q|} $$

SPICE penalizes hallucinations (objects/relations not in references) and excels at fine-grained semantic alignment.

Practical Trade-offs

While Recall@K is efficient for retrieval tasks, CIDEr and SPICE require computationally expensive NLP pipelines. CIDEr correlates well with human judgment for fluency but may overlook logical coherence, whereas SPICE captures semantics but ignores fluency. Hybrid metrics like CIDEr-D (with diversity weighting) and SPICE-R (with robustness adjustments) address these limitations.

3.3 Bias and Fairness Considerations

Visual grounding in language models inherits and amplifies biases present in both visual and textual training data. These biases manifest in three primary forms: representational bias (unequal representation of demographic groups), evaluative bias (systematic errors in model outputs for specific groups), and historical bias (perpetuation of societal stereotypes encoded in training data).

Mathematical Formalization of Bias

The bias in visual grounding can be quantified through disparity measures between protected groups G1 and G2. For a model f with outputs ŷ and ground truth y, the performance gap is:

$$ \Delta_{G_1,G_2} = \left| \mathbb{E}_{x \in G_1}[L(f(x), y)] - \mathbb{E}_{x \in G_2}[L(f(x), y)] \right| $$

where L is the task-specific loss function. A model is considered biased if Δ exceeds a fairness threshold τ, typically set through statistical parity criteria.

Sources of Visual-Linguistic Bias

Mitigation Strategies

Recent approaches employ:

$$ \min_\theta \mathbb{E}_{(v,t,y)}[L(f_\theta(v,t), y)] + \lambda \sum_{i=1}^k \Delta_{G_i,G_j} $$

where λ controls the fairness-accuracy tradeoff. State-of-the-art methods include:

Evaluation Metrics

Beyond traditional accuracy, fairness-aware evaluation requires:

Metric Formula Threshold
Disparate Impact
$$ \frac{P(\hat{y}=1|G_1)}{P(\hat{y}=1|G_2)} $$
0.8-1.25
Equalized Odds
$$ |TPR_{G_1} - TPR_{G_2}| + |FPR_{G_1} - FPR_{G_2}| $$
<0.05

Case Study: Gender Bias in Image Captioning

Analysis of LXMERT reveals:

Counterfactual testing shows that simply swapping gender markers in input text changes model predictions in 29% of cases, indicating strong reliance on stereotypical associations.

4. Image Captioning and Visual Question Answering

Image Captioning and Visual Question Answering

Architectural Foundations

Image captioning and visual question answering (VQA) rely on multimodal architectures that fuse visual and linguistic representations. The dominant approach employs an encoder-decoder framework, where a convolutional neural network (CNN) processes the input image into a feature space, and a recurrent neural network (RNN) or transformer generates the output sequence. For VQA, an additional question-encoding module conditions the decoder on linguistic context.

$$ \mathbf{h}_t = \text{RNN}(\mathbf{x}_t, \mathbf{h}_{t-1}, \mathbf{v}) $$

Here, ht is the hidden state at time step t, xt is the input token, and v is the visual feature vector from the CNN. Modern variants replace RNNs with transformer-based architectures, leveraging self-attention to capture long-range dependencies:

$$ \text{Attention}(\mathbf{Q}, \mathbf{K}, \mathbf{V}) = \text{softmax}\left(\frac{\mathbf{Q}\mathbf{K}^T}{\sqrt{d_k}}\right)\mathbf{V} $$

Training Objectives

Image captioning models optimize for maximum likelihood estimation (MLE) of the target caption y given image I:

$$ \mathcal{L}_{\text{MLE}} = -\sum_{t=1}^T \log p(y_t | y_{

Advanced techniques incorporate reinforcement learning (e.g., CIDEr optimization) or adversarial training to improve fluency and diversity. For VQA, the objective extends to predicting an answer a from a candidate set, often framed as a classification task over a predefined vocabulary.

Attention Mechanisms

Spatial attention dynamically weights image regions based on linguistic context. Given visual features V ∈ ℝH×W×D and a language vector l, the attention weights α are computed as:

$$ \alpha_{ij} = \text{softmax}(\mathbf{W}_v \mathbf{V}_{ij} + \mathbf{W}_l \mathbf{l}) $$

This allows the model to focus on salient regions (e.g., objects mentioned in the question for VQA). Transformer-based models extend this with multi-head attention, enabling parallel processing of multiple attention patterns.

Evaluation Metrics

  • Captioning: BLEU, METEOR, CIDEr, and SPICE measure n-gram overlap and semantic alignment.
  • VQA: Accuracy (open-ended) or binary accuracy (multiple-choice). The VQA-v2 benchmark introduces balanced pairs to reduce language priors.

Challenges and Frontiers

Current limitations include:

  • Compositional reasoning: Models struggle with complex queries like "What is to the left of the red object behind the table?"
  • Bias mitigation: Datasets often encode societal biases, requiring debiasing techniques in both visual and textual domains.
  • Few-shot adaptation: Efficient fine-tuning for novel domains remains an open problem.

Case Study: CLIP and BLIP

Contrastive Language-Image Pretraining (CLIP) aligns image and text embeddings via contrastive loss, enabling zero-shot transfer to downstream tasks. BLIP (Bootstrapped Language-Image Pretraining) further integrates caption generation and VQA through a unified encoder-decoder architecture with noise-aware training.

Image Captioning and Visual Question Answering – Visual Grounding in Language Models – Tutorial Diagram
Diagram Description: The diagram would show the encoder-decoder framework with visual feature extraction (CNN) and sequence generation (RNN/transformer), including attention weight computation between image regions and language vectors.

4.2 Robotics and Embodied AI

Visual grounding in robotics extends beyond passive scene understanding to active perception and interaction. Embodied AI agents leverage multimodal language models to interpret natural language commands, map them to visual observations, and execute physical actions in dynamic environments. The core challenge lies in aligning linguistic abstractions with sensorimotor representations.

Perception-Action Loop with Visual Grounding

Robotic systems integrate visual grounding through a closed-loop pipeline:

$$ \alpha_{ij} = \frac{\exp(\mathbf{v}_i^T \mathbf{W} \mathbf{l}_j)}{\sum_k \exp(\mathbf{v}_i^T \mathbf{W} \mathbf{l}_k)} $$

where vi denotes visual features from region i, lj represents language embeddings for token j, and W is a learnable projection matrix.

Task-Oriented Grounding Architectures

Modern robotic systems employ hierarchical grounding architectures:

Language Parser Visual Backbone Policy Network Multimodal Fusion Transformer

The fusion transformer outputs action primitives (grasp, push, navigate) parameterized as:

$$ \mathbf{a}_t = \pi(\mathbf{s}_t | \mathbf{v}_{1:t}, \mathbf{l}_{1:t}) $$

Real-World Deployment Challenges

Physical embodiment introduces critical constraints:

Case Study: Interactive Object Search

State-of-the-art systems like CLIPort demonstrate how visual grounding enables robots to:

$$ \mathcal{L}_{ground} = \mathbb{E}_{(v,l)} \left[ -\log \frac{e^{s(v,l)}}{\sum_{l'} e^{s(v,l')}} \right] + \lambda \|\theta\|_2 $$

where the contrastive loss Lground enforces alignment between correct visual-language pairs while regularizing model parameters θ.

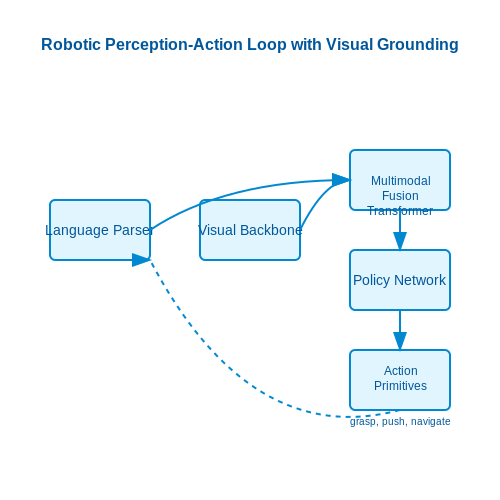

Robotics and Embodied AI – Visual Grounding in Language Models – Tutorial Diagram
Diagram Description: The section describes a complex perception-action loop with multiple components (Language Parser, Visual Backbone, Policy Network) and their interactions, which would be clearer with a visual representation.

Assistive Technologies for Accessibility

Visual grounding in language models enables assistive technologies to interpret and describe visual content for users with visual impairments. By integrating multimodal architectures, these systems can generate real-time, context-aware descriptions of images, videos, and dynamic environments. The core challenge lies in aligning linguistic representations with visual features while maintaining low-latency inference for real-world applications.

Architecture for Real-Time Visual Descriptions

Modern assistive systems leverage transformer-based models with cross-modal attention mechanisms. Given an input image I, the model extracts visual features V = CNN(I) and processes them alongside textual queries Q through a multimodal transformer:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where dk is the dimension of the key vectors. The model then generates descriptive captions by maximizing the likelihood:

$$ P(y_t | y_{<t}, V) = \text{softmax}(W_o h_t) $$

with ht being the hidden state at time step t and Wo the output projection matrix.

Scene Understanding for Navigation

Advanced systems incorporate spatial reasoning to assist with physical navigation. By combining object detection with geometric relationships, the model constructs a semantic map:

$$ \mathcal{M} = \{(o_i, p_i, s_i)\}_{i=1}^N $$

where oi denotes detected objects, pi their positions, and si their sizes. This representation enables dynamic path descriptions like "The doorway is 2 meters ahead, slightly to your right."

Haptic Feedback Integration

Cutting-edge implementations couple visual grounding with haptic interfaces, translating visual data into tactile signals. The mapping function:

$$ \tau: \mathbb{R}^{H×W×3} \rightarrow \mathbb{R}^{n×m} $$

converts image gradients to vibration patterns, where n×m corresponds to the haptic display resolution. This allows users to "feel" edges and shapes through wearable devices.

Case Study: Real-World Deployment

Microsoft's Seeing AI demonstrates this technology in practice, using a pipeline that:

The system's hierarchical attention mechanism prioritizes salient regions while suppressing background clutter, crucial for real-time operation.

Ethical Considerations

Deploying these systems requires addressing:

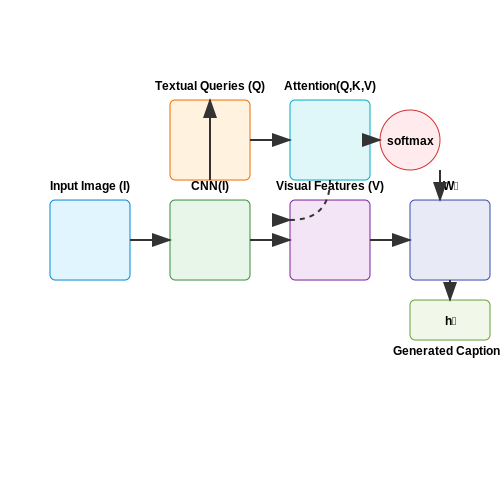

Assistive Technologies for Accessibility – Visual Grounding in Language Models – Tutorial Diagram
Diagram Description: The diagram would show the transformer-based architecture with cross-modal attention mechanisms, illustrating how visual features and textual queries interact through attention layers to generate captions.

5. Key Research Papers

5.1 Key Research Papers

5.2 Open-Source Implementations

5.3 Recommended Courses and Tutorials
