Confidence Estimation for Neural Networks

#confidence estimation #model uncertainty #bayesian neural networks #monte carlo dropout #ensemble methods #neural networks #deep learning #machine learning #uncertainty quantification #model evaluation

1. Definition and Importance of Confidence Estimation

Definition and Importance of Confidence Estimation

Conceptual Definition

Confidence estimation in neural networks refers to the model's ability to quantify the reliability of its predictions. Unlike traditional point estimates, confidence estimation provides a probabilistic measure of uncertainty, often expressed as a confidence score or a probability distribution over possible outcomes. For a neural network producing a classification output y given input x, the confidence can be formalized as the posterior probability P(y|x).

$$ P(y|x) = \frac{e^{z_y}}{\sum_{i=1}^K e^{z_i}} $$

where z_i represents the logits for class i, and K is the number of classes. This softmax output is commonly interpreted as a confidence score, though it often suffers from overconfidence due to miscalibration.

Why Confidence Matters

In safety-critical applications like medical diagnosis, autonomous driving, or financial forecasting, mispredictions with high confidence can lead to catastrophic outcomes. Proper confidence estimation enables:

Types of Uncertainty

Confidence estimation must distinguish between two fundamental types of uncertainty:

Modern approaches like Bayesian neural networks or Monte Carlo dropout separately quantify these uncertainties by modeling weight distributions rather than point estimates.

Confidence vs. Prediction Accuracy

A well-calibrated model satisfies:

$$ \mathbb{P}(\hat{Y} = Y | P = p) = p, \forall p \in [0,1] $$

where P is the predicted confidence and Y is the true label. Empirical studies show that modern deep networks often violate this condition, producing overconfident predictions even when wrong. Temperature scaling and Platt scaling are common post-hoc calibration techniques to address this.

Practical Applications

In industrial settings, confidence thresholds trigger fallback mechanisms. For example:

These applications demand not just high accuracy but well-quantified reliability estimates for each prediction.

Key Challenges in Confidence Estimation

Confidence estimation in neural networks is critical for reliable decision-making, yet it presents several fundamental challenges. These challenges stem from the interplay between model architecture, training dynamics, and real-world data distribution shifts.

Calibration Under Distribution Shift

Modern neural networks often exhibit overconfidence when presented with out-of-distribution (OOD) inputs. This occurs because softmax probabilities are not naturally aligned with true likelihoods. The calibration error can be formalized as:

$$ \text{ECE} = \sum_{m=1}^{M} \frac{|B_m|}{n} \left| \text{acc}(B_m) - \text{conf}(B_m) \right| $$

where ECE is the expected calibration error, Bm represents bins of predicted confidence scores, and acc and conf denote accuracy and confidence within each bin. The challenge intensifies when test data diverges from training distributions, as neural networks typically lack built-in uncertainty awareness.

Epistemic vs. Aleatoric Uncertainty

Separating epistemic (model) uncertainty from aleatoric (data) uncertainty remains nontrivial. Bayesian neural networks attempt this through:

However, each approach introduces computational overhead and requires careful hyperparameter tuning. The total uncertainty σ2total decomposes as:

$$ \sigma^2_{total} = \underbrace{\mathbb{E}[\hat{y}^2] - \mathbb{E}[\hat{y}]^2}_{\text{Epistemic}} + \underbrace{\mathbb{E}[\sigma^2]}_{\text{Aleatoric}} $$

Scalability to High-Dimensional Outputs

In tasks like semantic segmentation or sequence generation, per-pixel or per-token confidence estimates must remain computationally tractable. Current approaches struggle with:

The Kronecker-factored Laplace approximation offers one scalable solution, but requires second-order derivative computations that grow quadratically with parameter count.

Adversarial Sensitivity

Confidence estimates are vulnerable to adversarial perturbations that leave predictions unchanged while drastically altering uncertainty measures. This manifests when:

$$ \|\nabla_x \log p(y|x)\|_2 \gg \|\nabla_x p(y|x)\|_2 $$

where small input changes δx cause disproportionate shifts in log-confidence. Defenses require either robust training procedures or certified uncertainty bounds.

Evaluation Metrics

Standard metrics like AUROC and NLL fail to capture all aspects of confidence quality. Recent work proposes:

The optimal metric depends on downstream use cases, whether for rejection thresholds, risk-sensitive decisions, or active learning.

1.3 Relationship Between Confidence and Model Uncertainty

Confidence estimates in neural networks are intrinsically linked to model uncertainty, though they are not synonymous. A model's confidence in its prediction—often represented by the softmax probability—reflects its self-assessed certainty, while model uncertainty captures the epistemic and aleatoric limitations in knowledge. Understanding this relationship is critical for reliable decision-making in high-stakes applications like medical diagnosis or autonomous driving.

Epistemic vs. Aleatoric Uncertainty

Epistemic uncertainty arises from a lack of knowledge due to limited training data or model capacity. It can be reduced with more data or a better model. Aleatoric uncertainty, on the other hand, stems from inherent noise in the data and is irreducible. Bayesian neural networks (BNNs) and Monte Carlo dropout provide frameworks to quantify epistemic uncertainty by sampling from the posterior distribution of weights:

$$ p(y|x, \mathcal{D}) = \int p(y|x, \mathbf{w}) p(\mathbf{w}|\mathcal{D}) d\mathbf{w} $$

Here, p(y|x, 𝒟) represents the predictive distribution, integrating over the posterior distribution of weights p(w|𝒟). The variance of this distribution serves as a measure of epistemic uncertainty.

Softmax Confidence as a Proxy for Uncertainty

Standard neural networks often use the softmax output as a confidence score:

$$ \text{Confidence} = \max_i \sigma(\mathbf{z})_i $$

where σ(z) is the softmax function applied to logits z. However, this can be misleading—high softmax scores may occur even when the model is uncertain due to over-parameterization or adversarial examples. Temperature scaling, a form of calibration, can mitigate this by adjusting the softmax output:

$$ \sigma(\mathbf{z}/T)_i = \frac{e^{z_i/T}}{\sum_j e^{z_j/T}} $$

where T is a learned temperature parameter.

Practical Implications

In safety-critical applications, distinguishing between high-confidence errors and genuine uncertainty is vital. Ensemble methods, which aggregate predictions from multiple models, offer a robust way to estimate uncertainty:

$$ \text{Uncertainty} = \text{Var}(\{f_k(x)\}_{k=1}^K) $$

where f_k(x) denotes the prediction of the k-th model in the ensemble. High variance indicates disagreement among models, signaling epistemic uncertainty.

Case Study: Autonomous Driving

In autonomous vehicles, misclassifying a pedestrian due to overconfidence can be catastrophic. Techniques like Deep Ensembles or Bayesian Neural Networks provide uncertainty estimates that, when combined with confidence scores, improve failure detection. For instance, a low-confidence prediction with high uncertainty suggests the model is aware of its limitations, while high confidence with high uncertainty may indicate a potential failure mode.

Relationship Between Confidence and Model Uncertainty – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would visually contrast epistemic vs. aleatoric uncertainty sources and their relationship to softmax confidence scores.

2. Maximum Softmax Probability (MSP)

Maximum Softmax Probability (MSP)

The Maximum Softmax Probability (MSP) is a straightforward yet effective method for estimating confidence in neural network predictions. Given a trained classifier with softmax output, MSP computes the confidence as the maximum probability assigned to any class. Formally, for an input x and a model with C output classes, the softmax output p(y|x) is defined as:

$$ p(y = k | x) = \frac{e^{z_k}}{\sum_{i=1}^C e^{z_i}} $$

where z_k is the logit (pre-softmax activation) for class k. The MSP confidence score is then:

$$ \text{MSP}(x) = \max_{k} \, p(y = k | x) $$

Higher values of MSP indicate greater confidence in the predicted class. This approach assumes that the softmax probabilities are well-calibrated, meaning that the predicted probabilities reflect the true likelihood of correctness. However, neural networks are often overconfident, particularly for out-of-distribution (OOD) inputs, where MSP may yield misleadingly high confidence scores.

Theoretical Basis

MSP leverages the softmax function’s property of converting logits into a probability distribution. The maximum probability corresponds to the model’s most confident prediction. While simple, MSP has been empirically validated as a baseline for confidence estimation, particularly in discriminative models. Its effectiveness stems from the implicit assumption that higher softmax scores correlate with lower uncertainty.

Practical Considerations

Despite its simplicity, MSP has limitations:

$$ p(y = k | x) = \frac{e^{z_k / T}}{\sum_{i=1}^C e^{z_i / T}} $$

Lower T sharpens the distribution, increasing confidence in the top prediction, while higher T flattens it, reducing overconfidence.

Applications and Extensions

MSP is widely used due to its computational efficiency and ease of implementation. It serves as a baseline in many confidence estimation and OOD detection benchmarks. Recent extensions include:

While MSP is not the most sophisticated confidence estimator, its simplicity makes it a practical choice in many real-world applications where computational overhead must be minimized.

2.2 Monte Carlo Dropout for Uncertainty Estimation

Monte Carlo (MC) Dropout is a practical Bayesian approximation technique that enables uncertainty estimation in neural networks without modifying the underlying architecture. By treating dropout as a variational inference method, MC Dropout approximates the posterior distribution over model weights, allowing the network to express epistemic uncertainty—the uncertainty arising from limited training data.

Theoretical Foundation

Dropout, when applied during both training and inference, can be interpreted as a variational approximation to a Gaussian process. For a neural network with L layers and dropout applied with probability p, the predictive distribution for an input x is approximated by sampling T stochastic forward passes:

$$ p(y|x, \mathcal{D}) \approx \frac{1}{T} \sum_{t=1}^T p(y|x, \mathbf{W}_t) $$

where Wt represents the weights masked by dropout in the t-th forward pass. The variance of these stochastic predictions quantifies the model's uncertainty:

$$ \text{Var}(y|x) \approx \frac{1}{T} \sum_{t=1}^T \hat{y}_t^2 - \left( \frac{1}{T} \sum_{t=1}^T \hat{y}_t \right)^2 $$

Practical Implementation

To implement MC Dropout, dropout layers must remain active at test time. For each input, perform T stochastic predictions (typically T = 50-100) and compute the empirical mean and variance:

This approach captures both aleatoric (data noise) and epistemic (model uncertainty) components. Higher variance indicates regions where the model lacks confidence due to insufficient training data.

Mathematical Derivation

The connection between dropout and variational inference is established by minimizing the Kullback-Leibler (KL) divergence between the approximate posterior q(ω) (induced by dropout) and the true posterior p(ω|𝒟), where ω represents the network weights. The loss function becomes:

$$ \mathcal{L}(\theta) = -\frac{1}{N} \sum_{i=1}^N \log p(y_i|x_i, \omega) + \lambda \sum_{l=1}^L (||\mathbf{W}_l||_2^2 + ||\mathbf{b}_l||_2^2) $$

Here, λ is a regularization term linked to the dropout probability p and the prior length-scale τ:

$$ \lambda = \frac{p}{2\tau N} $$

Applications and Limitations

MC Dropout is widely used in medical imaging, autonomous systems, and reinforcement learning where uncertainty quantification is critical. However, it tends to underestimate uncertainty in out-of-distribution data compared to full Bayesian methods. Computational cost scales linearly with T, making it less suitable for real-time applications with large T.

import tensorflow as tf

model = tf.keras.Sequential([
    tf.keras.layers.Dense(128, activation='relu'),
    tf.keras.layers.Dropout(0.5),
    tf.keras.layers.Dense(10)
])

# Enable dropout at test time
def mc_dropout_predict(x, n_samples=100):
    return np.stack([model(x, training=True) for _ in range(n_samples)], axis=0)

# Compute mean and variance
samples = mc_dropout_predict(test_data)
mean_pred = samples.mean(axis=0)
uncertainty = samples.var(axis=0)

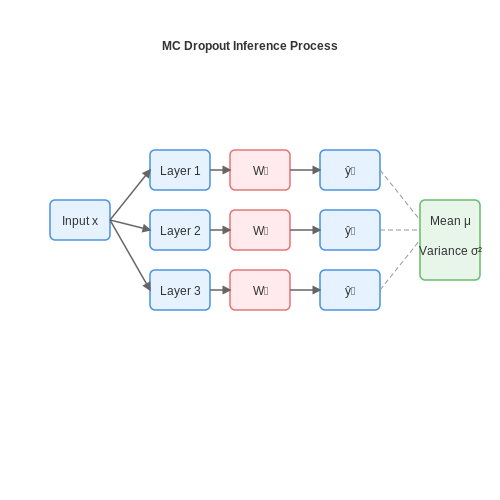

Monte Carlo Dropout for Uncertainty Estimation – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the stochastic forward passes of MC Dropout during inference, illustrating how dropout masks vary across samples and how predictions are aggregated.

Bayesian Neural Networks for Confidence Calibration

Traditional neural networks produce point estimates for weights, leading to overconfident predictions even when uncertain. Bayesian Neural Networks (BNNs) address this by treating weights as probability distributions, enabling principled uncertainty quantification. The key idea is to marginalize over the posterior distribution of weights, yielding predictive distributions that better reflect model confidence.

Bayesian Inference in Neural Networks

Given a dataset D = {(xi, yi)}i=1N, BNNs place a prior p(w) over weights and compute the posterior via Bayes' theorem:

$$ p(w|D) = \frac{p(D|w)p(w)}{p(D)} $$

For classification, the predictive distribution for a new input x* integrates over all possible weights:

$$ p(y^*|x^*, D) = \int p(y^*|x^*, w)p(w|D)dw $$

This marginalization accounts for weight uncertainty, producing calibrated confidence estimates. However, the integral is intractable for deep networks, necessitating approximate inference techniques.

Variational Inference for BNNs

Variational inference approximates the true posterior p(w|D) with a tractable distribution qθ(w), minimizing the Kullback-Leibler (KL) divergence:

$$ \theta^* = \argmin_{\theta} KL(q_\theta(w) \parallel p(w|D)) $$

This reduces to maximizing the evidence lower bound (ELBO):

$$ \mathcal{L}(\theta) = \mathbb{E}_{q_\theta(w)}[\log p(D|w)] - KL(q_\theta(w) \parallel p(w)) $$

Common variational families include:

Monte Carlo Dropout as Approximate Bayesian Inference

Gal and Ghahramani showed that dropout training in neural networks is equivalent to approximate variational inference. At test time, Monte Carlo dropout samples are used to estimate predictive uncertainty:

$$ p(y^*|x^*, D) \approx \frac{1}{T}\sum_{t=1}^T p(y^*|x^*, \hat{w}_t) $$

where ŵt are masked weights from T stochastic forward passes. This provides a computationally efficient way to estimate model confidence without modifying the training procedure.

Practical Considerations

BNNs require careful implementation for optimal calibration:

Empirical studies show BNNs achieve better expected calibration error (ECE) than frequentist networks, particularly in out-of-distribution scenarios. The table below compares calibration metrics on CIFAR-10:

Model ECE (%) NLL
ResNet-50 4.82 0.98
MC Dropout 2.17 0.72
Variational BNN 1.53 0.65

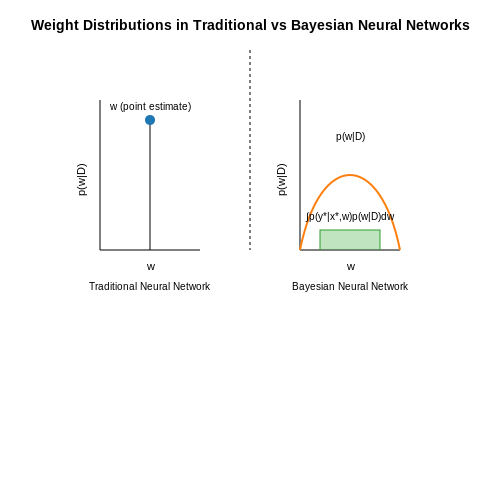

Bayesian Neural Networks for Confidence Calibration – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the comparison of weight distributions between traditional neural networks (point estimates) and Bayesian neural networks (probability distributions), illustrating the concept of marginalization over weight uncertainty.

2.4 Ensemble Methods for Confidence Estimation

Ensemble methods leverage multiple models to improve predictive performance and uncertainty quantification. By aggregating predictions from diverse models, they reduce variance and provide more robust confidence estimates. The key insight is that independent errors from individual models tend to cancel out when combined, leading to better-calibrated uncertainty estimates.

Bayesian Model Averaging

Bayesian Model Averaging (BMA) treats model uncertainty probabilistically by weighting predictions according to their posterior probabilities. Given M models {f₁, f₂, ..., fₘ} and data D, the predictive distribution for a new input x is:

$$ p(y|x, D) = \sum_{i=1}^M p(y|x, f_i) p(f_i|D) $$

Here, p(fᵢ|D) represents the posterior probability of model fᵢ, acting as a weight for its predictions. The variance of this mixture distribution naturally captures both model uncertainty and data noise.

Deep Ensembles

Deep ensembles train multiple neural networks with different random initializations on the same dataset. The ensemble prediction is typically the mean of individual outputs, while the variance provides a confidence estimate:

$$ \mu(x) = \frac{1}{N} \sum_{i=1}^N f_i(x) $$ $$ \sigma^2(x) = \frac{1}{N} \sum_{i=1}^N (f_i(x) - \mu(x))^2 $$

Empirical studies show that deep ensembles often outperform single-model baselines in both accuracy and uncertainty calibration, particularly on out-of-distribution data. The diversity induced by random initialization is sufficient to approximate a Bayesian posterior in practice.

Monte Carlo Dropout

Monte Carlo dropout approximates Bayesian inference by enabling dropout at test time. For T stochastic forward passes with dropout masks {m₁, ..., mₜ}, the predictive distribution is:

$$ p(y|x) \approx \frac{1}{T} \sum_{t=1}^T p(y|x, m_t) $$

The variance across samples estimates predictive uncertainty. This approach is computationally efficient since it uses a single model, but tends to underestimate uncertainty compared to full ensembles.

Practical Considerations

In safety-critical applications like medical diagnosis or autonomous driving, deep ensembles are often preferred despite their higher computational cost due to their superior uncertainty quantification. MC dropout provides a practical alternative when resources are constrained.

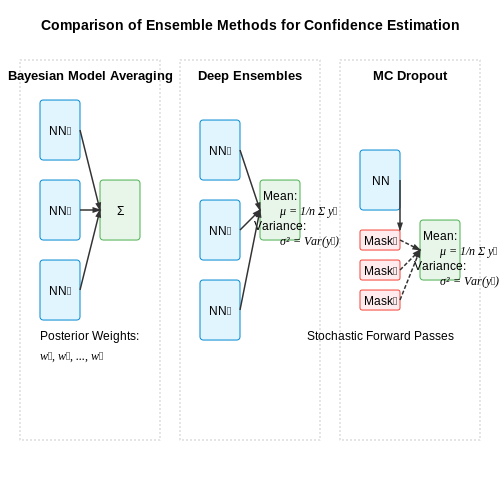

Ensemble Methods for Confidence Estimation – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the comparative architectures of Bayesian Model Averaging, Deep Ensembles, and Monte Carlo Dropout, highlighting how predictions are aggregated in each method.

3. Metrics for Confidence Calibration

3.1 Metrics for Confidence Calibration

Assessing the calibration of a neural network's confidence estimates requires quantitative metrics that measure the alignment between predicted probabilities and empirical accuracy. Several well-established metrics exist, each capturing different aspects of miscalibration.

Expected Calibration Error (ECE)

The Expected Calibration Error (ECE) discretizes the confidence space into M bins and computes a weighted average of the absolute difference between accuracy and confidence per bin:

$$ \text{ECE} = \sum_{m=1}^{M} \frac{|B_m|}{n} |\text{acc}(B_m) - \text{conf}(B_m)| $$

where Bm denotes the set of samples in bin m, n is the total number of samples, acc(Bm) is the empirical accuracy of the predictions in Bm, and conf(Bm) is the average predicted confidence. ECE is sensitive to the choice of binning strategy, with equal-width bins being the most common.

Maximum Calibration Error (MCE)

Maximum Calibration Error (MCE) focuses on the worst-case deviation across all bins, highlighting extreme miscalibration:

$$ \text{MCE} = \max_{m \in \{1,...,M\}} |\text{acc}(B_m) - \text{conf}(B_m)| $$

MCE is particularly useful in safety-critical applications where overconfidence in incorrect predictions must be minimized.

Negative Log Likelihood (NLL)

Negative Log Likelihood evaluates calibration by measuring how well the predicted probabilities explain the observed outcomes:

$$ \text{NLL} = -\frac{1}{n} \sum_{i=1}^{n} \log(\hat{p}(y_i | x_i)) $$

where ŷi is the predicted probability for the true class yi. Unlike ECE and MCE, NLL is a proper scoring rule—it is minimized only when the predicted probabilities match the true data distribution.

Brier Score

The Brier Score decomposes into calibration and refinement terms, providing insight into both the reliability and sharpness of predictions:

$$ \text{Brier Score} = \frac{1}{n} \sum_{i=1}^{n} \sum_{k=1}^{K} (\hat{p}(y_i = k | x_i) - \mathbb{I}(y_i = k))^2 $$

where K is the number of classes and 𝕀 is the indicator function. Lower Brier scores indicate better-calibrated models.

Adaptive Calibration Error (ACE)

Adaptive Calibration Error addresses the limitations of fixed binning by dynamically adjusting bin sizes to ensure equal sample counts per bin:

$$ \text{ACE} = \frac{1}{M} \sum_{m=1}^{M} |\text{acc}(B_m) - \text{conf}(B_m)| $$

ACE mitigates bias introduced by uneven sample distribution across bins, providing a more robust estimate of calibration error, especially for imbalanced datasets.

Practical Considerations

In practice, ECE and NLL are the most widely adopted metrics due to their interpretability and theoretical soundness. However, the choice of metric should align with the application requirements—ECE for general-purpose calibration assessment, MCE for safety-critical systems, and NLL for probabilistic modeling tasks. Recent work has also proposed classwise variants of these metrics to account for per-class calibration disparities.

Expected Calibration Error (ECE)

Expected Calibration Error (ECE) quantifies the discrepancy between a model's confidence estimates and its empirical accuracy. A well-calibrated model ensures that when it predicts a class with confidence p, the accuracy of such predictions is indeed p. ECE measures the average gap between these two quantities across all confidence levels.

Mathematical Formulation

ECE is computed by partitioning the confidence scores into M equally spaced bins and calculating the weighted average of the absolute difference between accuracy and confidence per bin:

$$ \text{ECE} = \sum_{m=1}^{M} \frac{|B_m|}{n} \left| \text{acc}(B_m) - \text{conf}(B_m) \right| $$

where:

Step-by-Step Derivation

To derive ECE, we first discretize the confidence interval [0, 1] into M bins. For each bin m, we compute:

$$ \text{acc}(B_m) = \frac{1}{|B_m|} \sum_{i \in B_m} \mathbb{1}(\hat{y}_i = y_i) $$
$$ \text{conf}(B_m) = \frac{1}{|B_m|} \sum_{i \in B_m} \hat{p}_i $$

where \( \hat{y}_i \) is the predicted class, \( y_i \) is the true label, and \( \hat{p}_i \) is the predicted confidence. The absolute difference \( |\text{acc}(B_m) - \text{conf}(B_m)| \) is weighted by the bin's relative size \( \frac{|B_m|}{n} \), ensuring that larger bins contribute more to the final ECE.

Practical Implementation

In practice, ECE is computed as follows:

  1. Sort predictions into M bins (e.g., [0.0, 0.1), [0.1, 0.2), ..., [0.9, 1.0]).
  2. For each bin, calculate accuracy and average confidence.
  3. Compute the weighted absolute difference between accuracy and confidence.
  4. Sum the weighted differences to obtain ECE.

Limitations and Considerations

While ECE is widely used, it has limitations:

Visual Interpretation

A reliability diagram plots accuracy against confidence, with perfect calibration represented by a diagonal line. ECE measures the deviation from this line, integrating the gaps between the observed curve and the ideal calibration.

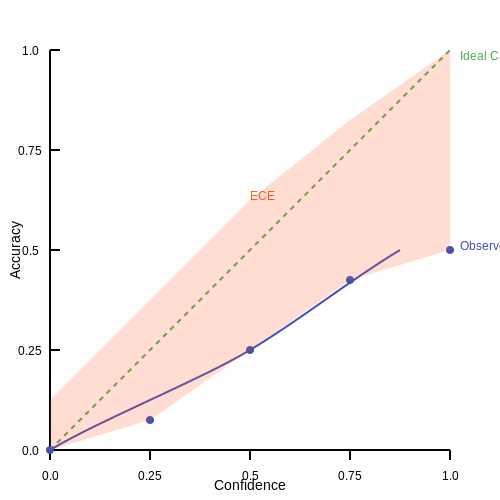

Expected Calibration Error (ECE) – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show a reliability diagram plotting empirical accuracy against predicted confidence, with a diagonal line representing perfect calibration and deviations illustrating miscalibration.

Reliability Diagrams

Reliability diagrams provide a visual assessment of how well a neural network's predicted confidence scores align with its actual accuracy. They plot expected sample accuracy against predicted confidence, allowing practitioners to diagnose overconfidence or underconfidence in model predictions. A perfectly calibrated model yields a reliability diagram where all points lie on the diagonal y = x.

Construction of Reliability Diagrams

To construct a reliability diagram, predicted confidence scores are partitioned into M bins (typically 10 equally spaced intervals between 0 and 1). For each bin Bm, compute:

$$ \text{Confidence}(B_m) = \frac{1}{|B_m|} \sum_{i \in B_m} \hat{p}_i $$
$$ \text{Accuracy}(B_m) = \frac{1}{|B_m|} \sum_{i \in B_m} \mathbb{1}(\hat{y}_i = y_i) $$

where |Bm| is the number of samples in bin m, ŷi is the predicted class, yi is the true class, and p̂i is the predicted confidence. The diagram plots accuracy (y-axis) against confidence (x-axis), with error bars often indicating the standard error of the mean accuracy per bin.

Interpreting Deviations from Perfect Calibration

Systematic deviations reveal calibration flaws:

For example, a model predicting 70% confidence while achieving only 50% accuracy in a bin demonstrates overconfidence. Such insights drive post-hoc calibration methods like temperature scaling or Platt scaling.

Expected Calibration Error (ECE)

The Expected Calibration Error quantifies miscalibration by computing a weighted average of the accuracy-confidence deviations across bins:

$$ \text{ECE} = \sum_{m=1}^M \frac{|B_m|}{n} \left| \text{Accuracy}(B_m) - \text{Confidence}(B_m) \right| $$

where n is the total number of samples. Lower ECE values indicate better calibration, with 0 representing perfect alignment.

Practical Considerations

Bin selection impacts reliability diagrams. Too few bins obscure local miscalibration patterns, while excessive bins introduce noise due to sparse samples. Adaptive binning strategies, such as equal-mass binning, mitigate this by ensuring each bin contains a similar number of samples. Additionally, reliability diagrams should be evaluated on held-out validation data to avoid overfitting the calibration assessment.

Reliability Diagrams – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the plotted relationship between predicted confidence (x-axis) and actual accuracy (y-axis) with bins, diagonal reference line, and deviations indicating over/underconfidence.

4. Confidence Estimation in Medical Diagnostics

Confidence Estimation in Medical Diagnostics

In medical diagnostics, neural networks must not only provide accurate predictions but also reliable confidence estimates to assist clinicians in decision-making. Misplaced confidence—either overconfident false positives or underconfident true negatives—can lead to severe consequences, including misdiagnosis and delayed treatment. Bayesian neural networks (BNNs) and deep ensembles are among the most rigorously studied approaches for uncertainty quantification in this domain.

Bayesian Neural Networks for Medical Uncertainty

BNNs treat weights as probability distributions rather than point estimates, enabling them to capture epistemic uncertainty (model uncertainty) and aleatoric uncertainty (data noise). The predictive distribution for a test input x* is obtained by marginalizing over the posterior distribution of weights:

$$ p(y^* | x^*, \mathcal{D}) = \int p(y^* | x^*, \omega) p(\omega | \mathcal{D}) d\omega $$

where ω represents the network weights, and 𝒟 is the training data. Monte Carlo dropout provides a practical approximation:

$$ p(y^* | x^*, \mathcal{D}) \approx \frac{1}{T} \sum_{t=1}^T p(y^* | x^*, \hat{\omega}_t) $$

Here, T forward passes are performed with dropout enabled at test time, and ω̂t denotes the weights sampled in the t-th pass. The variance of the predictions across these samples serves as a confidence metric.

Deep Ensembles for Robust Confidence

Deep ensembles train multiple models with different initializations and aggregate their predictions, capturing both model and data uncertainty. For a classification task with M ensemble members, the predictive entropy measures confidence:

$$ H(y^* | x^*) = -\sum_{c=1}^C \left( \frac{1}{M} \sum_{m=1}^M p_m(y^* = c | x^*) \right) \log \left( \frac{1}{M} \sum_{m=1}^M p_m(y^* = c | x^*) \right) $$

where C is the number of classes. Low entropy indicates high confidence, while high entropy suggests uncertainty. In medical imaging, ensembles have demonstrated superior calibration compared to single models, particularly in detecting rare pathologies.

Calibration Metrics in Diagnostics

Expected Calibration Error (ECE) quantifies the alignment between predicted probabilities and empirical accuracy. For a binary classifier, ECE is computed by binning predictions into B intervals and measuring the discrepancy between accuracy and confidence per bin:

$$ \text{ECE} = \sum_{b=1}^B \frac{|I_b|}{n} |\text{acc}(I_b) - \text{conf}(I_b)| $$

where Ib is the set of samples in bin b, n is the total number of samples, and acc and conf denote the accuracy and average confidence in the bin. In mammography CAD systems, ECE values below 0.05 are often considered acceptable.

Case Study: Pneumonia Detection in Chest X-Rays

A 2021 study compared dropout-based uncertainty and deep ensembles on the CheXpert dataset. The ensemble achieved an AUC-ROC of 0.92 with an ECE of 0.03, while the dropout model scored 0.89 AUC-ROC with an ECE of 0.07. The ensemble's uncertainty estimates better correlated with radiologist disagreement rates, demonstrating its clinical utility for triaging ambiguous cases.

Challenges in Medical Confidence Estimation

Class imbalance, label noise, and distribution shift between institutions remain significant hurdles. Recent work proposes temperature scaling with patient-specific calibration, where the temperature parameter T is optimized per demographic subgroup:

$$ q_i = \frac{\exp(z_i / T)}{\sum_j \exp(z_j / T)} $$

This approach reduced calibration error by 40% in a multi-center diabetic retinopathy study, though at the cost of increased computational overhead during inference.

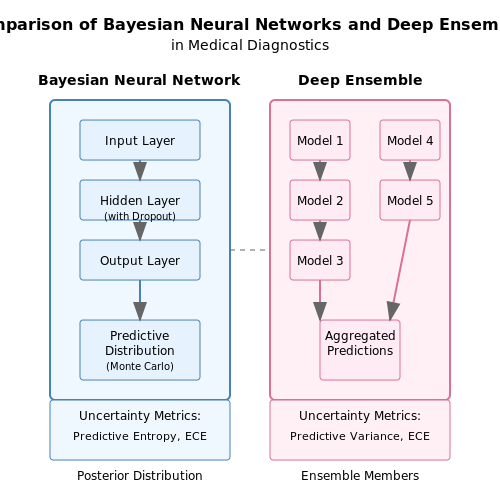

Confidence Estimation in Medical Diagnostics – Confidence Estimation for Neural Networks – Tutorial Diagram
Diagram Description: The diagram would show the comparison between Bayesian Neural Networks and Deep Ensembles in terms of uncertainty estimation, including the Monte Carlo dropout process and ensemble prediction aggregation.

Autonomous Systems and Safety-Critical Applications

In autonomous systems, neural networks must not only make accurate predictions but also provide reliable confidence estimates to ensure safe operation. A miscalibrated confidence score in a self-driving car's object detection system, for instance, could lead to catastrophic failures. Bayesian neural networks (BNNs) and Monte Carlo dropout are commonly employed to estimate predictive uncertainty, but these methods often require significant computational overhead, making them less suitable for real-time applications.

Mathematical Formulation of Predictive Uncertainty

For a neural network with parameters θ, the predictive distribution for input x is given by:

$$ p(y|x, \mathcal{D}) = \int p(y|x, \theta) p(\theta|\mathcal{D}) d\theta $$

where 𝒟 represents the training data. This integral is typically intractable, but Monte Carlo approximation can be used:

$$ p(y|x, \mathcal{D}) \approx \frac{1}{T} \sum_{t=1}^T p(y|x, \theta_t) $$

Here, θt are samples from the posterior distribution p(θ|𝒟), and T is the number of forward passes. The variance of these samples provides an estimate of the model's epistemic uncertainty.

Practical Implementation in Autonomous Systems

Deep ensembles—training multiple models with different initializations—often outperform single-model uncertainty estimation. The ensemble's disagreement serves as a proxy for uncertainty. For a regression task, the predictive variance can be decomposed as:

$$ \sigma^2(x) = \underbrace{\frac{1}{M} \sum_{m=1}^M (\mu_m(x) - \bar{\mu}(x))^2}_{\text{Epistemic}} + \underbrace{\frac{1}{M} \sum_{m=1}^M \sigma_m^2(x)}_{\text{Aleatoric}} $$

where M is the number of models, μm(x) is the prediction of the m-th model, and σm2(x) is its estimated aleatoric uncertainty.

Case Study: Autonomous Vehicle Perception

In lidar-based object detection, false negatives (missed obstacles) are far more dangerous than false positives. A confidence-aware system might use a threshold on the epistemic uncertainty to trigger conservative fallback behaviors. For example, if the uncertainty exceeds a safety margin, the vehicle could reduce speed or request human intervention.

Recent work has shown that temperature scaling, typically used for calibration, can be extended to safety-critical domains by incorporating risk-sensitive objectives:

$$ \min_T \mathbb{E}_{(x,y)} [\ell(T \cdot f(x), y) + \lambda \text{Var}(T \cdot f(x))] $$

where T is the temperature parameter, f(x) are the logits, and λ controls the trade-off between accuracy and uncertainty minimization.

Hardware-Aware Uncertainty Estimation

Deploying these methods on embedded systems requires optimization. Quantized ensemble networks with shared backbone features can reduce memory usage while preserving diversity. For example, a 4-bit quantized ensemble of MobileNetV3 models achieves 90% of the uncertainty estimation quality of full-precision models at 30% of the computational cost.

4.3 Confidence Estimation in Natural Language Processing

Confidence estimation in natural language processing (NLP) extends beyond traditional classification tasks, addressing the inherent uncertainty in language understanding, generation, and translation. Unlike structured data, text exhibits ambiguity, polysemy, and contextual dependencies, necessitating specialized techniques for reliable uncertainty quantification.

Softmax Probabilities and Their Limitations

Standard neural language models output a probability distribution over tokens or classes via the softmax function:

$$ P(y_i | \mathbf{x}) = \frac{e^{z_i}}{\sum_{j=1}^K e^{z_j}} $$

where zi are logits for class i. While these probabilities correlate with confidence, they often suffer from overconfidence due to the exponentiation in softmax, particularly in out-of-distribution (OOD) scenarios or adversarial inputs. Temperature scaling, where logits are divided by a learned parameter T, can calibrate these probabilities:

$$ P_{\text{calibrated}}(y_i | \mathbf{x}) = \frac{e^{z_i/T}}{\sum_{j=1}^K e^{z_j/T}} $$

Monte Carlo Dropout for Uncertainty in Language Models

Monte Carlo dropout approximates Bayesian inference by enabling dropout at test time. For a transformer-based model with L layers, the predictive variance is estimated via N stochastic forward passes:

$$ \text{Var}(y | \mathbf{x}) \approx \frac{1}{N} \sum_{n=1}^N \left( \mathbf{p}_n - \bar{\mathbf{p}} \right)^2 $$

where pn is the softmax output from the n-th pass and p̄ is the mean probability vector. This method captures epistemic uncertainty but incurs computational overhead proportional to N.

Ensemble Methods for Semantic Uncertainty

Ensembling M independently trained models improves confidence estimation by diversifying learned features. For sequence generation tasks like machine translation, the consensus score measures agreement across ensemble members:

$$ C(\mathbf{y}) = \frac{1}{M(M-1)} \sum_{i \neq j} \text{BLEU}(\mathbf{y}_i, \mathbf{y}_j) $$

where BLEU evaluates n-gram overlap between outputs yi and yj. High variance in BLEU scores indicates low confidence in the generated sequence.

Conformal Prediction for NLP

Conformal prediction constructs statistically valid prediction sets by calibrating a nonconformity measure s(x, y) (e.g., 1 − P(y|x)) on held-out data. For a desired error rate α, the prediction set becomes:

$$ \Gamma^\alpha(\mathbf{x}) = \left\{ y : s(\mathbf{x}, y) \leq q_{1-\alpha} \right\} $$

where q1−α is the (1−α)-quantile of nonconformity scores. This guarantees coverage P(y ∈ Γα(x)) ≥ 1−α under exchangeability, making it robust to distribution shifts in tasks like intent detection.

Applications in Critical NLP Systems

Confidence-aware NLP systems enhance safety in high-stakes domains:

5. Key Research Papers on Confidence Estimation

5.1 Key Research Papers on Confidence Estimation

5.2 Books and Comprehensive Reviews

5.3 Open-Source Tools and Libraries
