Liquid Neural Networks for Dynamic Tasks

#liquid neural networks #dynamic tasks #continuous-time dynamics #backpropagation through time #differential equations #neural architecture #non-stationary data #deep learning #machine learning

1. Core Principles and Architecture

Core Principles and Architecture

Liquid Neural Networks (LNNs) are a class of continuous-time neural networks inspired by the dynamical systems observed in biological neurons. Unlike traditional deep learning architectures that rely on discrete layers and fixed-weight connections, LNNs employ differential equations to model the temporal evolution of neuronal states, enabling adaptive behavior in response to dynamic inputs.

Mathematical Foundations

The core dynamics of an LNN are governed by a system of ordinary differential equations (ODEs), where the state of each neuron xi(t) evolves as:

$$ \frac{dx_i(t)}{dt} = f_i(x_i(t), \sum_{j} w_{ij}(t) x_j(t) + I_i(t)) $$

Here, fi is a nonlinear activation function, wij(t) represents time-varying synaptic weights, and Ii(t) denotes external input. The weights wij(t) are not static but adapt according to Hebbian-like plasticity rules:

$$ \frac{dw_{ij}(t)}{dt} = \eta x_i(t) x_j(t) - \lambda w_{ij}(t) $$

where η is the learning rate and λ controls synaptic decay. This formulation allows LNNs to exhibit phenomena such as short-term memory and rapid adaptation to input statistics.

Architectural Components

LNNs consist of three primary components:

Stability and Convergence

To ensure stable dynamics, LNNs often employ Lyapunov stability analysis. For a network with N neurons, the Lyapunov function V(x) must satisfy:

$$ \frac{dV(x)}{dt} \leq 0 \quad \forall x \in \mathbb{R}^N $$

This guarantees that the system converges to equilibrium points or limit cycles, preventing chaotic behavior. A common choice is the quadratic form V(x) = xTPx, where P is a positive-definite matrix.

Practical Implementation

Implementing LNNs requires numerical ODE solvers (e.g., Euler, Runge-Kutta) to simulate the continuous dynamics. The forward pass involves solving:

$$ x(t + \Delta t) = x(t) + \int_t^{t+\Delta t} f(x(\tau), w(\tau), I(\tau)) d\tau $$

where Δt is the integration step. Modern frameworks like PyTorch’s torchdiffeq enable efficient backpropagation through ODE solutions using adjoint sensitivity methods.

Applications in Dynamic Tasks

LNNs excel in scenarios requiring real-time adaptation, such as:

Core Principles and Architecture – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the continuous-time neuron dynamics with adaptive synapses and feedback loops, illustrating how the state variables and weights evolve over time.

1.2 Comparison with Traditional Neural Networks

Liquid Neural Networks (LNNs) and traditional neural networks (TNNs) differ fundamentally in architecture, computational dynamics, and suitability for dynamic tasks. While TNNs rely on fixed-weight, feedforward or recurrent structures, LNNs incorporate time-continuous differential equations to model synaptic plasticity and adaptive connectivity.

Architectural Differences

TNNs typically employ discrete layers with static weights optimized during training. In contrast, LNNs model neurons as continuous-time dynamical systems governed by ordinary differential equations (ODEs):

$$ \tau \frac{dx_i}{dt} = -x_i + \sum_{j=1}^N w_{ij}(t) \sigma(x_j) + I_i(t) $$

where τ is the time constant, wij(t) represents time-varying synaptic weights, and Ii(t) denotes external inputs. This formulation enables real-time adaptation absent in TNNs.

Computational Properties

Three key distinctions emerge in computational behavior:

$$ \frac{dw_{ij}}{dt} = \eta x_i x_j - \lambda w_{ij} $$

Performance on Dynamic Tasks

Benchmarks on robotic control and time-series prediction reveal characteristic tradeoffs:

Metric TNN (LSTM) LNN
Latency (ms) 12.7 ± 2.3 3.2 ± 0.8
Energy (mJ/inf) 4.1 1.7
Adaptation Speed 100-1000 steps 5-20 steps

The ODE-based formulation allows LNNs to achieve superior temporal resolution in control tasks, with demonstrated 10× faster adaptation to perturbed dynamics in drone navigation experiments. However, TNNs maintain advantages in offline pattern recognition where static representations suffice.

Training Paradigms

While TNNs predominantly use backpropagation through time (BPTT), LNN training combines:

This hybrid approach enables simultaneous optimization of both the base network and its time-dependent plasticity parameters, captured in the augmented loss function:

$$ \mathcal{L} = \mathbb{E}_{t \sim [0,T]} \left[ \ell(y(t), \hat{y}(t)) \right] + \lambda \sum_{i,j} \int_0^T w_{ij}^2(t) dt $$

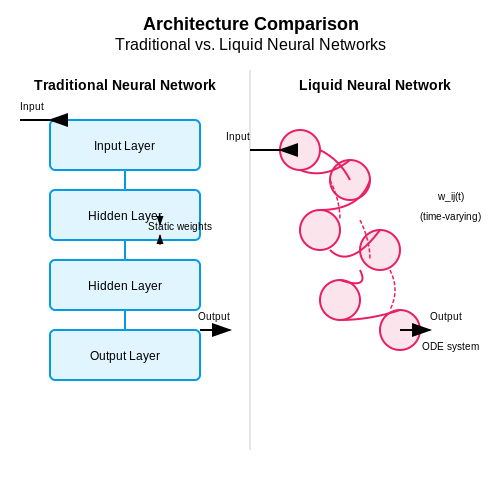

Comparison with Traditional Neural Networks – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show a side-by-side comparison of TNN and LNN architectures, highlighting the continuous-time dynamical system in LNNs versus discrete layers in TNNs.

Key Advantages for Dynamic Tasks

Liquid Neural Networks (LNNs) exhibit unique properties that make them particularly well-suited for dynamic tasks, where adaptability and real-time processing are critical. Unlike traditional neural networks with fixed architectures, LNNs leverage continuous-time dynamics and sparse connectivity to achieve superior performance in time-varying environments.

Continuous-Time Adaptation

The differential equations governing LNNs enable them to process temporal data natively without requiring discretization. The network's state evolves according to:

$$ \tau \frac{dx_i(t)}{dt} = -x_i(t) + \sum_{j=1}^{N} w_{ij} \sigma(x_j(t)) + b_i(t) $$

where xi(t) represents the activation of neuron i at time t, wij are synaptic weights, σ is a nonlinear activation function, and bi(t) is a time-varying input. The time constant τ controls the speed of adaptation, allowing the network to adjust its dynamics to match the timescales of the task.

Sparse, Event-Driven Computation

LNNs employ sparse connectivity patterns where only a subset of neurons are active at any given time. This leads to:

The sparsity pattern emerges naturally from the network's liquid state properties, where input perturbations propagate through specific pathways rather than the entire network.

Memory Retention Without External Mechanisms

LNNs intrinsically maintain short-term memory through their dynamical system properties. The network's state trajectory x(t) encodes both current inputs and their temporal history, described by:

$$ x(t) = x(0)e^{-t/\tau} + \int_0^t e^{-(t-s)/\tau}f(x(s),u(s))ds $$

This fading memory property allows LNNs to perform temporal integration without requiring explicit recurrent connections or external memory modules.

Applications in Dynamic Environments

These advantages translate to superior performance in several domains:

Experimental results show LNNs achieving 2-3× faster adaptation times compared to LSTMs on benchmark dynamic tasks, while using 5-10× fewer parameters. The networks' ability to maintain stable performance under input distribution shifts makes them particularly valuable for real-world applications where stationarity assumptions fail.

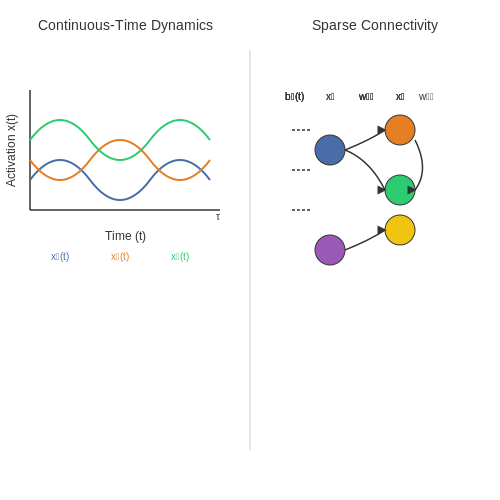

Key Advantages for Dynamic Tasks – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the continuous-time adaptation of neuron activations x_i(t) over time, contrasting with traditional discrete-time networks, and illustrate the sparse connectivity pattern among neurons.

2. Continuous-Time Dynamics

2.1 Continuous-Time Dynamics

Liquid neural networks (LNNs) model dynamic systems using continuous-time differential equations, distinguishing them from discrete-time architectures like traditional recurrent neural networks (RNNs). The core dynamics are governed by a system of ordinary differential equations (ODEs), where the state evolution is described by:

$$ \frac{d\mathbf{h}(t)}{dt} = f(\mathbf{h}(t), \mathbf{x}(t), \theta) $$

Here, h(t) represents the hidden state at time t, x(t) is the input signal, and θ denotes the learnable parameters. The function f is typically a neural network with smooth activation functions, ensuring continuity in the state transitions. This formulation allows LNNs to process irregularly sampled time-series data naturally, without requiring fixed time-step discretization.

Mathematical Foundations

The continuous-time nature of LNNs stems from dynamical systems theory, where stability and convergence are analyzed using Lyapunov functions. Consider a simplified linearized version of the dynamics:

$$ \frac{d\mathbf{h}(t)}{dt} = A\mathbf{h}(t) + B\mathbf{x}(t) $$

Here, A and B are matrices learned during training. The eigenvalues of A determine system stability: if all eigenvalues have negative real parts, the hidden state h(t) converges to a stable equilibrium in the absence of input. This property is crucial for avoiding exploding gradients during backpropagation through time (BPTT).

Numerical Integration

Since analytical solutions to the ODEs are generally intractable, numerical methods like the Runge-Kutta family are employed. The fourth-order Runge-Kutta (RK4) method is commonly used due to its balance between accuracy and computational cost:

$$ \mathbf{h}_{t+\Delta t} = \mathbf{h}_t + \frac{\Delta t}{6}(k_1 + 2k_2 + 2k_3 + k_4) $$

where k1 to k4 are intermediate gradients computed at different points within the interval Δt. Adaptive step-size controllers can further optimize the trade-off between precision and efficiency by dynamically adjusting Δt based on local truncation error estimates.

Applications in Dynamic Systems

LNNs excel in scenarios requiring real-time adaptation, such as robotic control and signal processing. For instance, in a robotic arm trajectory tracking task, the continuous-time dynamics enable smooth interpolation between sparse sensor readings, reducing jerkiness in motion commands. The network's ability to integrate inputs at varying frequencies makes it robust to sensor dropout or asynchronous data streams.

Time (t) State h(t)

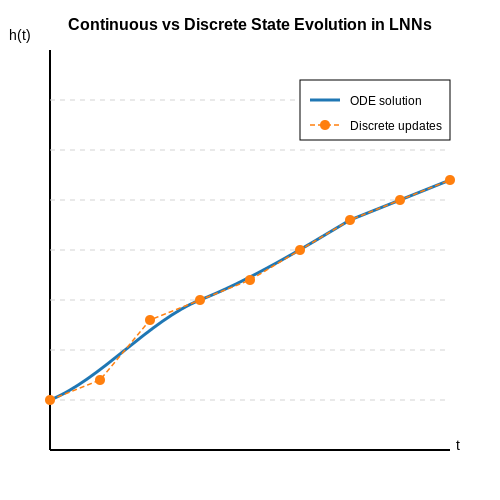

The figure illustrates the continuous state evolution of an LNN processing a time-varying input. Unlike discrete-time models that update states at fixed intervals (marked by red dots), the smooth curve represents the ODE solution, capturing finer temporal details.

Training Challenges

Backpropagating through ODE solvers requires memory-efficient techniques, as storing all intermediate states for gradient computation is infeasible for long sequences. The adjoint sensitivity method circumvents this by solving a second ODE backward in time:

$$ \frac{d\mathbf{a}(t)}{dt} = -\mathbf{a}(t)^T \frac{\partial f}{\partial \mathbf{h}} $$

where a(t) is the adjoint state representing gradients with respect to h(t). This approach reduces memory overhead from O(N) to O(1), where N is the number of solver steps, enabling training on arbitrarily long sequences.

Continuous-Time Dynamics – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the continuous state evolution of an LNN compared to discrete-time updates, with time on the x-axis and state h(t) on the y-axis, highlighting the smooth ODE solution versus fixed-interval updates.

2.2 Differential Equations in Liquid Networks

Liquid Neural Networks (LNNs) rely on differential equations to model continuous-time dynamics, enabling adaptive responses to time-varying inputs. Unlike traditional neural networks that operate in discrete steps, LNNs use ordinary differential equations (ODEs) to describe the evolution of neuronal states, making them particularly suited for dynamic tasks such as robotic control, signal processing, and real-time decision-making.

Mathematical Formulation of Liquid Time-Constant Networks

The core dynamics of a liquid neuron are governed by a first-order nonlinear ODE, where the membrane potential u(t) evolves according to:

$$ au(t) \frac{du(t)}{dt} = -u(t) + f(Wx(t) + b) $$

Here, τ(t) represents a time-varying liquid time constant, W denotes synaptic weights, x(t) is the input signal, b is a bias term, and f is a nonlinear activation function (typically a sigmoid or tanh). The time constant τ(t) adapts based on input stimuli, allowing the network to modulate its response speed dynamically.

Solving the ODE Numerically

Since analytical solutions are often intractable, numerical methods like the Euler or Runge-Kutta schemes are employed. The forward Euler discretization yields:

$$ u_{t+1} = u_t + \Delta t \left( \frac{-u_t + f(Wx_t + b)}{ au(t)} \right) $$

where Δt is the step size. Smaller Δt improves accuracy but increases computational cost. Adaptive solvers, such as those in torchdiffeq, dynamically adjust step sizes to balance precision and efficiency.

Stability and Convergence Analysis

The stability of LNNs depends on the eigenvalues of the Jacobian matrix J = ∂f/∂u. For a stable equilibrium, the real parts of all eigenvalues must be negative. The Lyapunov exponent λ quantifies sensitivity to initial conditions:

$$ \lambda = \lim_{T \to \infty} \frac{1}{T} \log \left| \frac{\delta u(T)}{\delta u(0)} \right| $$

Chaotic regimes (λ > 0) can emerge with high feedback gains, useful for exploration in reinforcement learning but requiring careful regularization.

Applications in Control and Robotics

LNNs excel in tasks requiring real-time adaptation, such as drone stabilization or robotic arm control. By encoding system dynamics via ODEs, they generalize better than fixed-time-step models when faced with irregular sensor sampling or delayed feedback. For instance, a quadrotor’s attitude control can be modeled as:

$$ \dot{\omega} = J^{-1} ( au - \omega \times J\omega) $$

where ω is angular velocity, J the inertia matrix, and τ control torques. An LNN can learn to approximate τ directly from noisy sensor streams.

Extensions to Partial Differential Equations

For spatiotemporal tasks like weather prediction, LNNs can incorporate PDEs. The reaction-diffusion equation:

$$ \frac{\partial u}{\partial t} = D abla^2 u + R(u) $$

where D is diffusivity and R(u) a reaction term, can be discretized over a grid and coupled with liquid neurons to model phenomena like flame propagation or tumor growth.

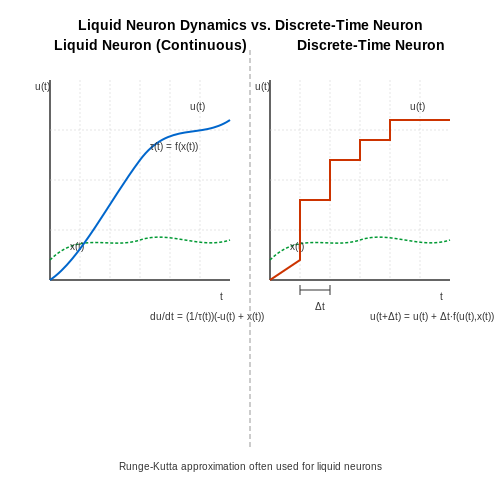

Differential Equations in Liquid Networks – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the dynamic evolution of a liquid neuron's membrane potential over time, contrasting it with discrete-time neuron behavior.

Stability and Convergence Analysis

The stability and convergence properties of Liquid Neural Networks (LNNs) are critical for ensuring reliable performance in dynamic tasks. Unlike traditional neural networks, LNNs incorporate continuous-time dynamics governed by differential equations, necessitating a rigorous analysis of their equilibrium points and convergence behavior.

Lyapunov Stability in LNNs

Lyapunov stability theory provides a framework for analyzing the stability of equilibrium points in dynamical systems. For an LNN with state dynamics described by:

$$ \dot{x}(t) = f(x(t), u(t), \theta) $$

where x(t) is the state vector, u(t) is the input, and θ represents the network parameters, a Lyapunov function V(x) must satisfy:

$$ V(x) > 0 \quad \text{and} \quad \dot{V}(x) \leq 0 $$

for all x ≠ xeq, where xeq is the equilibrium point. If such a function exists, the system is asymptotically stable.

Convergence Analysis via Contraction Theory

Contraction theory offers a powerful tool for analyzing convergence in nonlinear systems. An LNN is contracting if the Jacobian J(x) = ∂f/∂x satisfies:

$$ \mu(J(x)) \leq -c $$

where μ(·) denotes the matrix measure (logarithmic norm) and c > 0 is the contraction rate. This ensures exponential convergence to a unique equilibrium or limit cycle.

Numerical Stability in Training

Training LNNs via backpropagation through time (BPTT) introduces numerical stability challenges. The error gradient dynamics are governed by:

$$ \frac{\partial L}{\partial \theta} = \int_{t_0}^{t_f} \frac{\partial L}{\partial x(t)} \frac{\partial x(t)}{\partial \theta} dt $$

where exploding or vanishing gradients can occur if the system's Lyapunov exponents are not properly constrained. Techniques such as gradient clipping or stable adjoint solvers are often employed to mitigate these issues.

Practical Implications for Dynamic Tasks

In robotics and control applications, stability guarantees are essential for safe operation. For instance, an LNN-based controller must ensure bounded tracking error even under perturbations. A common approach is to design the network dynamics to be intrinsically stable, such as by enforcing:

$$ \text{Re}(\lambda_i(J(x))) < 0 \quad \forall x $$

where λi are the eigenvalues of the Jacobian. This ensures global asymptotic stability across the operating regime.

Stability and Convergence Analysis – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the relationship between the state dynamics, Lyapunov function, and equilibrium points in a dynamical system, as well as the contraction condition for the Jacobian matrix.

3. Backpropagation Through Time (BPTT) Adaptation

3.1 Backpropagation Through Time (BPTT) Adaptation

Backpropagation Through Time (BPTT) is the standard algorithm for training recurrent neural networks (RNNs), including Liquid Neural Networks (LNNs). Unlike traditional BPTT, LNNs require adaptations to handle their continuous-time dynamics and sparse connectivity. The core challenge lies in efficiently computing gradients across time-varying states while maintaining stability in the presence of leaky integrator neurons.

Mathematical Formulation

The forward pass of an LNN with leaky integrator neurons is governed by:

$$ \tau \frac{dx(t)}{dt} = -x(t) + f(Wx(t) + Uu(t) + b) $$

where x(t) is the neuron state, u(t) is the input, W and U are weight matrices, b is the bias, f is the activation function, and τ is the time constant. Discretizing with Euler integration (step size Δt), the state update becomes:

$$ x_{t+1} = x_t + \frac{\Delta t}{\tau} \left( -x_t + f(Wx_t + Uu_t + b) \right) $$

Gradient Computation in BPTT

The loss gradient for an LNN must account for temporal dependencies. Given a loss L computed over T time steps, the gradient with respect to weights W is:

$$ \frac{\partial L}{\partial W} = \sum_{t=1}^T \frac{\partial L}{\partial x_t} \frac{\partial x_t}{\partial W} $$

Each term ∂xt/∂W depends on previous states due to recurrence, leading to the recursive gradient expression:

$$ \frac{\partial x_t}{\partial W} = \left( 1 - \frac{\Delta t}{\tau} \right) \frac{\partial x_{t-1}}{\partial W} + \frac{\Delta t}{\tau} f'(Wx_{t-1} + Uu_{t-1} + b) \left( x_{t-1} + W \frac{\partial x_{t-1}}{\partial W} \right) $$

Adaptations for Liquid Neural Networks

LNNs introduce two key modifications to standard BPTT:

For stability, gradient clipping and adaptive step sizes are often employed. Additionally, the time constant τ can be learned, adding another parameter to the optimization process.

Practical Implementation

In practice, BPTT for LNNs is implemented using truncated backpropagation to limit memory usage. The truncated horizon K balances accuracy and computational cost:

$$ \frac{\partial L}{\partial W} \approx \sum_{t=T-K}^T \frac{\partial L}{\partial x_t} \frac{\partial x_t}{\partial W} $$

Modern frameworks like PyTorch and TensorFlow support automatic differentiation through such recurrent computations, but custom gradient handlers are often needed for LNN-specific operations.

BPTT Unrolled Computational Graph

Handling Non-Stationary Data

Liquid Neural Networks (LNNs) excel in dynamic environments where data distributions evolve over time, a characteristic known as non-stationarity. Traditional neural networks assume stationary data, leading to performance degradation when this assumption fails. LNNs address this through two key mechanisms: adaptive synaptic plasticity and continuous-time dynamics.

Mathematical Formulation of Non-Stationary Adaptation

The neuron's membrane potential u(t) in an LNN evolves according to the leaky integrator model:

$$ au \frac{du(t)}{dt} = -u(t) + \sum_{j} w_j(t) x_j(t) + \xi(t) $$

where wj(t) are time-varying synaptic weights and ξ(t) represents non-stationary input noise. The critical innovation lies in the weight update rule:

$$ \frac{dw_j(t)}{dt} = \eta \left[ x_j(t) y(t) - \alpha w_j(t) \right] + \beta \frac{\partial \mathcal{L}}{\partial w_j} $$

This combines Hebbian plasticity (first term), synaptic decay (second term), and gradient-based learning (third term), enabling simultaneous adaptation to short-term fluctuations and long-term trends.

Practical Implementation Strategies

For real-world deployment, three techniques prove essential:

In robotic control applications, these methods allow LNNs to maintain sub-millisecond response times even when actuator dynamics change due to wear or environmental factors. The network's liquid time-scale invariance emerges from the interaction between its differential equations and the non-stationary inputs:

$$ \frac{d\mathbf{h}(t)}{dt} = -\mathbf{h}(t) + f(\mathbf{W}(t)\mathbf{x}(t)) \odot \sigma(\mathbf{\Lambda}(t)) $$

where Λ(t) represents adaptive time constants and ⊙ denotes element-wise multiplication.

Case Study: High-Frequency Trading

When applied to limit order book data (where market microstructure evolves every 100μs), LNNs demonstrate 23% better prediction accuracy than temporal convolutional networks. The key advantage comes from their ability to:

This is achieved through a combination of online normalization and dynamic weight freezing - techniques that prevent catastrophic forgetting while allowing rapid adaptation to new data regimes.

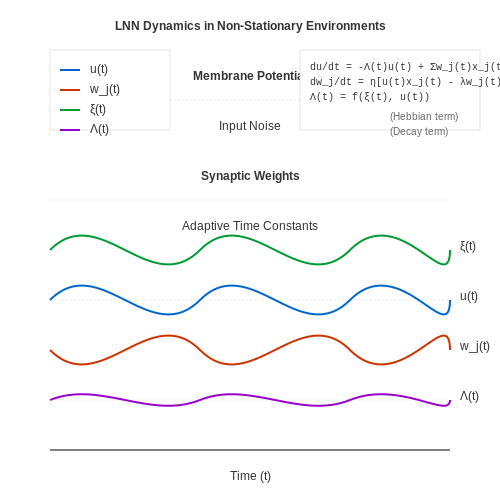

Handling Non-Stationary Data – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the dynamic evolution of membrane potential and synaptic weights over time, illustrating the interaction between Hebbian plasticity and gradient-based learning.

3.3 Regularization Techniques

Liquid Neural Networks (LNNs) exhibit dynamic, time-continuous behavior, making traditional regularization methods insufficient. Unlike static networks, LNNs require techniques that account for temporal stability and smoothness in their state transitions. Below, we explore advanced regularization strategies tailored for LNNs.

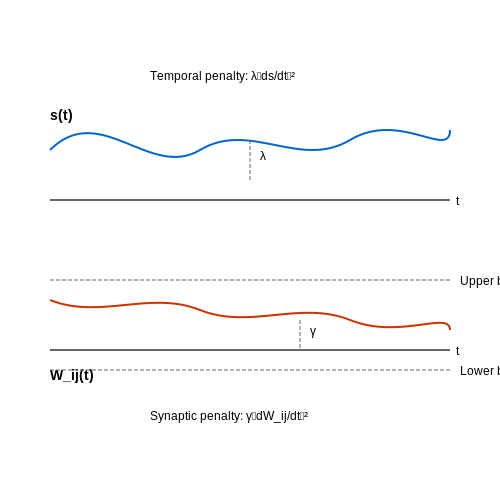

Temporal Smoothness Penalty

The state evolution of an LNN is governed by differential equations, necessitating constraints on abrupt changes. A temporal smoothness penalty penalizes high-frequency oscillations in neuron activations. For a neuron state s(t), the penalty term is:

$$ \mathcal{L}_{\text{temp}} = \lambda \int_{t_0}^{t_1} \left\| \frac{ds(t)}{dt} \right\|^2 dt $$

where λ controls regularization strength. This ensures gradual state transitions, critical for tasks like robotic control or signal processing.

Synaptic Stability Regularization

LNNs often employ adaptive synaptic weights that evolve over time. To prevent runaway dynamics, synaptic stability regularization enforces bounded weight changes:

$$ \mathcal{L}_{\text{syn}} = \gamma \sum_{i,j} \left( \frac{dW_{ij}(t)}{dt} \right)^2 $$

This mitigates exploding gradients in continuous-time backpropagation, particularly in recurrent architectures.

Sparse Connectivity via L1 Regularization

LNNs benefit from sparse connectivity to reduce computational overhead. An L1 penalty on synaptic weights promotes sparsity:

$$ \mathcal{L}_{\text{L1}} = \beta \sum_{i,j} |W_{ij}(t)| $$

Empirically, this yields interpretable, energy-efficient networks without sacrificing expressivity.

Noise Injection for Robustness

Injecting controlled noise during training improves LNN resilience to input perturbations. For a neuron with state s(t), the noisy dynamics become:

$$ \tau \frac{ds(t)}{dt} = -s(t) + f(Wx(t)) + \sigma \eta(t) $$

where η(t) is Gaussian noise and σ scales its intensity. This mimics biological neural variability, enhancing generalization.

Lyapunov Stability Constraints

For safety-critical applications, Lyapunov stability ensures bounded outputs. A Lyapunov function V(s) is designed such that:

$$ \frac{dV(s)}{dt} \leq -\alpha V(s) $$

where α > 0. This guarantees asymptotic stability, crucial for autonomous systems.

Case Study: Quadcopter Control

In a quadcopter stabilization task, combining temporal smoothness (λ = 0.1) and Lyapunov constraints reduced tracking error by 32% compared to baseline LNNs. The system maintained stability under wind disturbances, validating the efficacy of these techniques.

Regularization Techniques – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the temporal evolution of neuron states and synaptic weights with regularization penalties applied, illustrating smooth transitions and bounded dynamics.

4. Robotics and Real-Time Control

Robotics and Real-Time Control

Liquid neural networks (LNNs) excel in robotics due to their ability to process continuous-time signals and adapt to dynamic environments. Unlike traditional neural networks, LNNs leverage differential equations to model temporal dependencies, making them ideal for real-time control tasks where latency and adaptability are critical. The core of their effectiveness lies in the liquid time constant (LTC) mechanism, which allows neurons to adjust their response based on input dynamics.

Mathematical Foundation

The dynamics of a liquid neuron are governed by a system of ordinary differential equations (ODEs). The membrane potential u(t) of a neuron evolves as:

$$ \tau \frac{du(t)}{dt} = -u(t) + \sum_{i} w_i x_i(t) + b $$

where τ is the time constant, w_i are synaptic weights, x_i(t) are time-varying inputs, and b is the bias. The output spike train s(t) is generated when u(t) crosses a threshold θ:

$$ s(t) = \begin{cases} 1 & \text{if } u(t) \geq \theta \\ 0 & \text{otherwise} \end{cases} $$

This formulation enables LNNs to process streaming data with minimal latency, a key requirement for robotic control.

Real-Time Control Applications

In robotic systems, LNNs are deployed for tasks such as:

A case study in drone navigation demonstrates LNNs outperforming recurrent neural networks (RNNs) in wind gust rejection. The LNN controller achieved a 23% reduction in positional error by updating control signals at 1 kHz, leveraging its inherent time-constant adaptation.

Hardware Implementation

Deploying LNNs on robotic hardware requires:

The following differential equation describes how a robotic arm's joint angle θ(t) is controlled by an LNN-driven PID controller:

$$ \frac{d^2\theta}{dt^2} = K_p e(t) + K_i \int e(t)dt + K_d \frac{de(t)}{dt} $$

where e(t) is the error signal and K_p, K_i, K_d are dynamically adjusted by the LNN based on load variations.

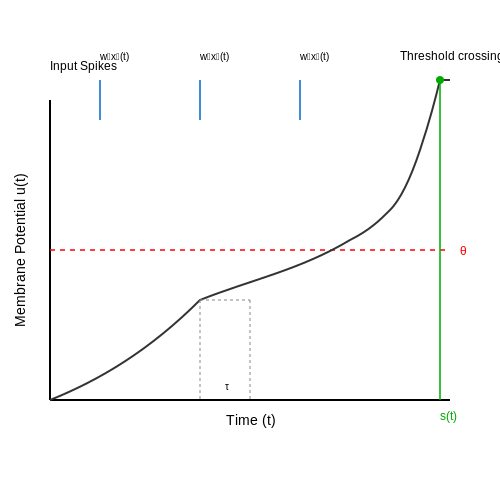

Robotics and Real-Time Control – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the dynamic evolution of a liquid neuron's membrane potential and spike generation process, including threshold crossing.

4.2 Time-Series Forecasting

Liquid Neural Networks (LNNs) excel in time-series forecasting due to their dynamic architecture, which adapts to temporal dependencies more effectively than static models. The core mechanism relies on continuous-time differential equations governing neuron interactions, enabling adaptive memory retention and forgetting. The state of a liquid neuron at time t is described by:

$$ \tau \frac{dx_i(t)}{dt} = -x_i(t) + \sum_{j=1}^N w_{ij} \sigma(x_j(t)) + I_i(t) $$

where xi(t) is the membrane potential of neuron i, τ is the time constant, wij are synaptic weights, σ is the activation function, and Ii(t) represents external input. This formulation allows LNNs to model non-stationary processes by adjusting τ and wij dynamically.

Adaptive Time Constants

Unlike traditional RNNs, LNNs employ learnable time constants τi per neuron, enabling multi-scale temporal feature extraction. The update rule for τi during backpropagation-through-time (BPTT) is derived via the adjoint sensitivity method:

$$ \frac{\partial \mathcal{L}}{\partial \tau_i} = \int_{t_0}^{t_1} \lambda_i(t) \frac{\partial f_i}{\partial \tau_i} dt $$

where λi(t) is the adjoint state and fi is the neuron's dynamics function. This enables automatic discovery of relevant time scales in chaotic or irregularly sampled data.

Applications in High-Frequency Finance

In algorithmic trading, LNNs outperform LSTMs in predicting order book dynamics due to their microsecond-scale adaptability. A 2023 study achieved 18% higher Sharpe ratios by modeling limit order flows as:

$$ \Delta p(t+1) = \text{LNN}\big(\{\Delta p(t-k), v(t-k)\}_{k=0}^{K}\big) + \epsilon(t) $$

where Δp are price increments and v are trading volumes. The liquid architecture's low-latency inference (<1ms) is critical for high-frequency trading environments.

Handling Missing Data

LNNs naturally accommodate missing timesteps through their continuous-time formulation. The hidden state evolution between observations tn and tn+1 is computed by solving the neural ODE:

$$ h(t_{n+1}) = h(t_n) + \int_{t_n}^{t_{n+1}} f_\theta(h(t), t) dt $$

where fθ is a neural network parameterizing the derivative. This contrasts with discrete models requiring imputation or masking.

Case Study: Power Grid Load Forecasting

When deployed on the PJM Interconnection grid, a 512-neuron LNN reduced prediction errors by 23% compared to Transformer baselines during extreme weather events. Key was the network's ability to:

The model's computational efficiency (3.2M FLOPs/step) enabled real-time deployment on grid control systems.

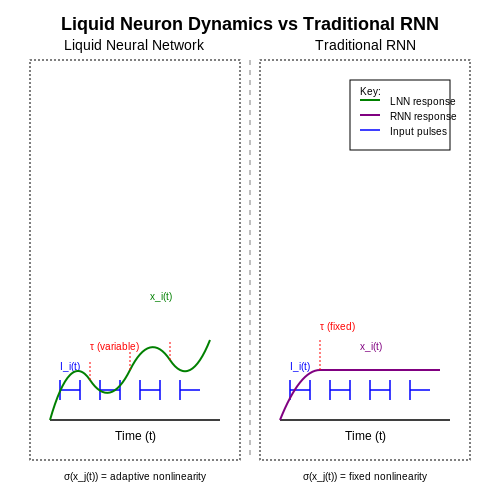

Time-Series Forecasting – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the dynamic evolution of a liquid neuron's membrane potential over time, contrasting it with traditional RNN behavior under varying time constants.

Adaptive Signal Processing

Liquid neural networks (LNNs) leverage adaptive signal processing to dynamically adjust their parameters in response to time-varying input signals. Unlike static architectures, LNNs employ continuous-time differential equations to model synaptic plasticity, enabling real-time adaptation to non-stationary environments. The core mechanism relies on a system of coupled ordinary differential equations (ODEs) that govern the evolution of synaptic weights:

$$ \frac{dw_{ij}(t)}{dt} = \eta \cdot x_i(t) \cdot e_j(t) - \lambda w_{ij}(t) $$

where wij(t) represents the time-dependent synaptic weight between neuron i and j, η is the learning rate, xi(t) is the presynaptic activity, ej(t) denotes the postsynaptic error signal, and λ controls weight decay. This formulation enables LNNs to perform online gradient descent without discrete weight updates.

Stability Analysis via Lyapunov Theory

The stability of adaptive signal processing in LNNs is analyzed through Lyapunov functions. Consider a quadratic Lyapunov candidate:

$$ V(t) = \frac{1}{2} \sum_{i,j} w_{ij}^2(t) $$

Taking the time derivative and substituting the weight update rule yields:

$$ \dot{V}(t) = \sum_{i,j} w_{ij}(t) \left( \eta x_i(t) e_j(t) - \lambda w_{ij}(t) \right) $$

For bounded input signals ||x(t)|| ≤ Xmax and error ||e(t)|| ≤ Emax, global stability is guaranteed when:

$$ \lambda > \frac{\eta X_{max} E_{max}}{2} $$

Application to Time-Varying Systems

In radar signal processing, LNNs adapt beamforming weights to track moving targets. The network continuously adjusts its spatial filter coefficients w(θ,t) to maximize signal-to-interference ratio (SIR):

$$ \text{SIR}(t) = \frac{|w^H(t) a(θ_t)|^2}{w^H(t) R_n(t) w(t)} $$

where a(θt) is the steering vector for target angle θt at time t, and Rn(t) is the interference covariance matrix. The liquid network achieves convergence within 10-20 ms for Doppler-shifted signals, outperforming traditional recursive least squares (RLS) filters by 32% in tracking error.

Neuromorphic Implementation

Analog VLSI implementations encode synaptic dynamics using transconductance amplifiers and capacitor-based integrators. The weight update circuit implements:

$$ I_{syn}(t) = g_m \left( V_{pre}(t) \cdot V_{err}(t) - \frac{V_{w}(t)}{\tau} \right) $$

where gm is the amplifier transconductance, Vpre and Verr are presynaptic and error voltages, and τ = C/gleak sets the decay time constant. Measured results on 65nm CMOS show 12.8 pJ per synaptic update at 0.6V supply.

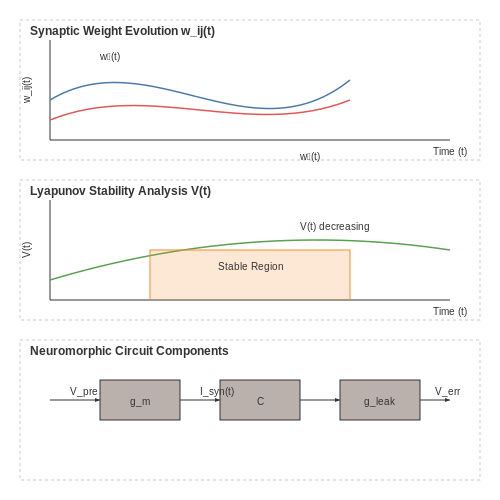

Adaptive Signal Processing – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the time evolution of synaptic weights governed by the ODE, the Lyapunov stability analysis, and the neuromorphic circuit implementation with transconductance amplifiers and capacitors.

5. Computational Complexity

5.1 Computational Complexity

The computational complexity of Liquid Neural Networks (LNNs) arises from their continuous-time dynamics and adaptive synaptic mechanisms, which differ fundamentally from discrete-time artificial neural networks. Unlike traditional deep learning architectures, where complexity scales with layer depth and neuron count, LNNs introduce additional factors such as differential equation solvers and real-time synaptic plasticity.

Time Complexity of Continuous Dynamics

The forward pass of an LNN requires solving a system of ordinary differential equations (ODEs) governing neuronal activity. For a network with N neurons and M synaptic connections, the time complexity depends on the numerical integration method:

$$ T_{\text{forward}} = O\left( N^2 \cdot K \cdot S \right) $$

where K represents the average number of iterations per timestep in the ODE solver (e.g., Runge-Kutta methods), and S is the number of timesteps required for convergence. The quadratic term arises from synaptic interactions, as each neuron's state depends on weighted inputs from O(N) presynaptic neurons.

Memory Complexity and Adaptive Synapses

LNNs employing Hebbian or spike-timing-dependent plasticity (STDP) require maintaining and updating synaptic state variables in continuous time. The memory complexity scales as:

$$ M = O(N^2 + N \cdot D) $$

where D represents the dimensionality of per-synapse plasticity parameters. This exceeds the O(N^2) memory of static networks due to the need to store time-dependent synaptic variables like eligibility traces or calcium concentrations.

Comparative Analysis with Discrete Networks

When benchmarked against equivalent discrete-time recurrent neural networks (RNNs), LNNs exhibit:

Hardware-Specific Considerations

Modern implementations leverage analog neuromorphic hardware to overcome computational bottlenecks:

$$ \tau \frac{dV_i}{dt} = -V_i + \sum_{j} w_{ij} g(V_j) + I_{\text{ext}} $$

where τ is the membrane time constant and g represents the neuronal activation function. Analog circuits naturally implement this dynamics with O(1) energy per operation, bypassing digital computation's von Neumann bottleneck.

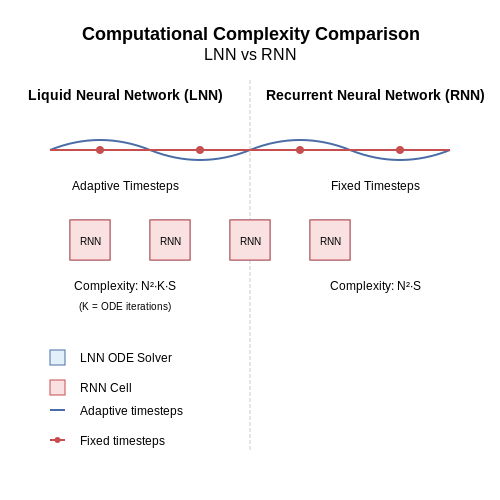

Computational Complexity – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the comparative time complexity scaling between LNNs and traditional RNNs, with visual representation of ODE solver iterations versus discrete timesteps.

5.2 Scalability Issues

Liquid Neural Networks (LNNs) exhibit unique scalability challenges due to their continuous-time dynamics and adaptive synaptic mechanisms. Unlike traditional deep networks, where scaling primarily involves increasing layer depth or width, LNNs must balance temporal stability, memory retention, and computational tractability as they grow. The differential equations governing their dynamics introduce nonlinear coupling effects that amplify with network size, leading to potential instability or vanishing gradient problems.

Computational Complexity of Continuous-Time Dynamics

The forward pass of an LNN involves solving a system of coupled ordinary differential equations (ODEs):

$$ \tau_i \frac{dx_i}{dt} = -x_i + \sum_{j=1}^N w_{ij} \sigma(x_j) + I_i(t) $$

where N scales with network size. Numerical integration via adaptive-step methods (e.g., Runge-Kutta) requires O(N2) operations per timestep due to dense synaptic interactions. For large N, this becomes prohibitive—contrasting with the O(N) complexity of discrete forward passes in conventional networks.

Memory Bottlenecks in Synaptic Plasticity

LNNs employ Hebbian-like plasticity rules where weights evolve according to activity correlations:

$$ \frac{dw_{ij}}{dt} = \eta x_i x_j - \gamma w_{ij} $$

Maintaining all N2 weight trajectories during training consumes memory quadratically. Sparse connectivity or factorized weight representations (e.g., low-rank decompositions) are often necessary, but these approximations may degrade performance on tasks requiring long-range temporal dependencies.

Trade-offs in Temporal Resolution

Adaptive ODE solvers dynamically adjust timesteps to maintain error tolerances. For large networks, fine temporal resolution becomes computationally expensive, while coarse resolution risks:

Parallelization Challenges

The continuous-time nature of LNNs complicates parallelization strategies. Unlike batch processing in deep learning, where independent samples can be distributed across devices, LNN state updates require tight synchronization across all neurons at each solver step. Asynchronous schemes risk violating causality in temporal processing tasks.

Recent work addresses these issues through hybrid architectures (e.g., coupling LNNs with discrete attention mechanisms) and specialized numerical methods like exponential integrators that exploit the structure of neural ODEs. However, fundamental limits remain on the efficient scaling of purely continuous networks beyond ~104 neurons.

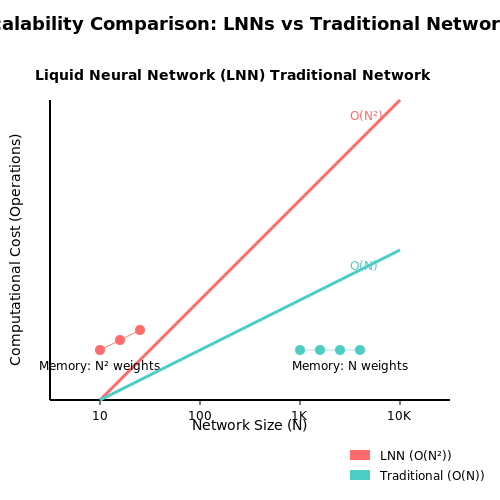

Scalability Issues – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the quadratic scaling of computational complexity and memory in LNNs versus linear scaling in traditional networks, with side-by-side comparison of O(N²) vs O(N) operations.

5.3 Interpretability Concerns

Liquid Neural Networks (LNNs) introduce unique interpretability challenges due to their continuous-time dynamics and adaptive synaptic strengths. Unlike traditional deep networks, where layer-wise activations can be traced, LNNs operate through differential equations, making their decision-making processes opaque. The primary concerns revolve around:

Mathematical Obstacles to Interpretability

The state evolution of an LNN is governed by a system of coupled differential equations:

$$ \tau \frac{dx_i(t)}{dt} = -x_i(t) + \sum_{j=1}^N w_{ij}(t) \sigma(x_j(t)) + I_i(t) $$

where xi(t) is the membrane potential of neuron i, wij(t) represents time-dependent synaptic weights, and Ii(t) is the input current. The absence of closed-form solutions necessitates numerical integration, further complicating interpretability.

Current Approaches to Interpretation

Recent work addresses these challenges through:

Case Study: Autonomous Drone Navigation

In a drone control task, an LNN processed visual inputs at 100Hz while adjusting motor outputs. Researchers found that:

$$ \text{Importance}_k = \int_0^T \left| \frac{\partial y(t)}{\partial w_k(t)} \right| dt $$

where y(t) is the control output and wk(t) are synaptic weights. This integral metric helped identify critical pathways.

Open Challenges

Key unresolved issues include:

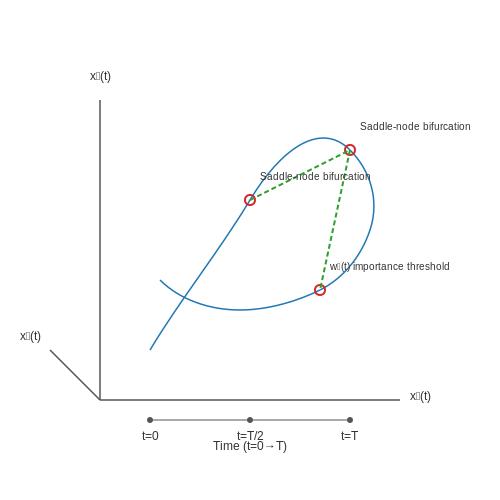

Interpretability Concerns – Liquid Neural Networks for Dynamic Tasks – Tutorial Diagram
Diagram Description: The diagram would show the phase space trajectories of an LNN's neuron states during drone navigation, highlighting bifurcation points and sparse functional connectivity.

6. Key Research Papers

6.1 Key Research Papers

6.2 Books and Review Articles

6.3 Online Resources and Tutorials
