Detecting Brand Logos in User Content

#logo detection #deep learning #computer vision #object recognition #data annotation #transfer learning #image processing #brand recognition #marketing analytics #compliance monitoring

1. Importance of Logo Detection in User Content

Importance of Logo Detection in User Content

Brand Monitoring and Intellectual Property Protection

Automated logo detection enables real-time monitoring of brand presence across user-generated content (UGC) platforms. Unauthorized use of trademarks in social media posts, counterfeit product listings, or unlicensed advertisements can be flagged using convolutional neural networks (CNNs) with localization capabilities like Faster R-CNN or YOLOv8. The precision-recall trade-off is critical here, governed by the intersection-over-union (IoU) metric:

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$

Thresholds ≥0.5 are typically enforced to minimize false positives in legal takedown requests. For high-stakes litigation, models may require certified training data following chain-of-custody protocols to meet evidentiary standards.

Marketing Analytics and Sponsorship Compliance

In influencer marketing, logo detection quantifies brand exposure by calculating screen-time metrics and spatial prominence. A normalized visibility score V can be derived from:

$$ V = \alpha \cdot \frac{t_{\text{visible}}}{t_{\text{total}}}} + \beta \cdot \text{IoU} + \gamma \cdot \text{contrast\_ratio} $$

where coefficients α, β, γ are tuned per campaign requirements. This prevents sponsorship disclosure violations under FTC guidelines by detecting undeclared product placements.

Platform Content Moderation

Social networks employ logo detection to enforce advertising policies at scale. Multi-stage pipelines first classify content using EfficientNet, then apply attention mechanisms to verify contextual appropriateness. The computational complexity scales with:

$$ O(n \cdot (k \cdot d^2 \cdot c_{\text{in}} \cdot c_{\text{out}}) + m \cdot \text{FFN}_{\text{cost}}) $$

where n is the number of proposal regions and m is the transformer token count. This necessitates optimized inference engines like TensorRT for sub-100ms latency on edge devices.

Counterfeit Detection in E-Commerce

Logo detection combined with siamese networks identifies subtle graphical deviations in counterfeit goods. The contrastive loss function:

$$ \mathcal{L} = \frac{1}{2N} \sum_{n=1}^N y \cdot d^2 + (1-y) \cdot \max(m-d, 0)^2 $$

where d is the Euclidean distance between embeddings and m is the margin hyperparameter, helps distinguish authentic logos from forgeries with 98.2% accuracy in controlled tests.

Augmented Reality Applications

Real-time logo recognition enables AR experiences through geometric verification of planar homographies. The perspective-n-point (PnP) problem is solved via:

$$ \min_{R,t} \sum_i \| \pi(RX_i + t) - x_i \|^2 $$

where R and t are the rotation and translation matrices, and π is the projection function. This allows persistent virtual content anchoring in camera views containing brand logos.

Applications in Marketing and Compliance

Brand Exposure Measurement

Logo detection enables precise quantification of brand exposure in user-generated content (UGC). By analyzing the frequency and context of logo appearances, marketers can derive the effective impression share of their brand relative to competitors. The exposure metric E for a brand B in a dataset D can be formalized as:

$$ E_B = \sum_{i=1}^{N} \frac{w_i \cdot \mathbb{I}(l_i = B)}{A_i} $$

where N is the total number of detected logos, wi is the prominence weight (function of size and position), li is the detected logo class, Ai is the area of the content frame, and 𝕀 is the indicator function. This allows for normalization across different content formats.

Compliance Monitoring

In regulated industries (pharmaceuticals, alcohol, tobacco), logo detection systems automatically flag unauthorized brand appearances. The compliance check involves:

A probabilistic approach combines these factors:

$$ P(\text{violation}|L) = 1 - \prod_{k=1}^K (1 - P(f_k|L)) $$

where fk represents each compliance factor and L is the detected logo instance.

Competitive Intelligence

Multi-brand detection in UGC reveals market dynamics through co-occurrence analysis. The brand affinity matrix M captures pairwise relationships:

$$ M_{ij} = \frac{\text{count}(B_i \cap B_j)}{\sqrt{\text{count}(B_i) \cdot \text{count}(B_j)}} $$

This symmetric measure ranges from 0 (no association) to 1 (perfect co-occurrence). Temporal analysis of M(t) reveals shifting brand alliances and emerging competitive threats.

Sponsored Content Verification

For influencer marketing campaigns, logo detection validates contract fulfillment by:

The fulfillment score S combines these dimensions:

$$ S = \alpha \cdot \frac{\text{actual}}{\text{promised}} + \beta \cdot \text{visibility} + \gamma \cdot \text{fidelity} $$

where the coefficients are campaign-specific weights.

Counterfeit Detection

Advanced systems differentiate authentic vs. counterfeit logos through:

The counterfeit probability combines these features through a logistic regression:

$$ P(\text{fake}) = \frac{1}{1 + e^{-(\beta_0 + \sum \beta_i x_i)}} $$

where xi are the normalized feature values.

Challenges in Logo Detection

Variability in Logo Appearance

Logo detection is complicated by the inherent variability in how logos appear across different contexts. Unlike rigid object classes in traditional computer vision tasks, logos exhibit significant intra-class variation due to:

The mathematical formulation of this challenge can be expressed through the intra-class distance metric:

$$ \sigma_{intra} = \sqrt{\frac{1}{N}\sum_{i=1}^{N} ||x_i - \mu||^2} $$

where xi represents feature vectors of logo instances and μ is the class mean. For effective detection, this must be minimized relative to inter-class distances.

Scale and Resolution Variance

Logos in user content span extreme scale variations - from dominant billboard-sized appearances to tiny watermarks. The multi-scale detection problem requires handling:

This manifests in the signal-to-noise ratio (SNR) challenge:

$$ SNR = 10\log_{10}\left(\frac{P_{signal}}{P_{noise}}\right) $$

where Psignal represents the power of logo features and Pnoise captures background interference. Practical systems must maintain detection accuracy across SNR variations exceeding 40dB.

Background Clutter and Adversarial Conditions

Real-world logo detection operates in visually noisy environments where:

The detection confidence C under adversarial conditions follows:

$$ C = \frac{p(\theta|X)}{p(\theta)} \cdot \frac{1}{1 + e^{-\alpha(\beta - \gamma)}} $$

where θ represents logo parameters, X the observed data, and α, β, γ model the adversarial impact factors.

Real-Time Processing Constraints

Practical deployment introduces computational challenges:

The computational complexity O(n) must satisfy:

$$ O(n) \leq k\cdot FPS \cdot R \cdot S $$

where k is a hardware constant, FPS the frame rate, R the resolution, and S the search space.

2. Sourcing Logo Datasets

2.1 Sourcing Logo Datasets

Building a robust logo detection system requires high-quality, diverse datasets that accurately represent real-world scenarios. Unlike generic object detection datasets, logo datasets must account for variations in scale, orientation, occlusion, and artistic modifications. Three primary approaches exist for dataset acquisition: leveraging existing public datasets, web scraping with legal considerations, and synthetic data generation.

Public Benchmark Datasets

Several well-curated datasets serve as benchmarks for logo detection research:

These datasets typically follow the Pascal VOC or COCO annotation formats, making them compatible with most modern detection frameworks. However, they often lack sufficient examples of logo occlusions or transformations common in user-generated content.

Web Scraping and Legal Considerations

When existing datasets prove insufficient, controlled web scraping can augment training data. The process involves:

$$ \mathcal{D}_{scraped} = \bigcup_{i=1}^{N} \left( \text{GoogleImages}(q_i) \cap \text{Filters}_{license} \right) $$

Where qi represents structured queries combining brand names with terms like "logo," "branding," or "merchandise." Legal constraints require:

Tools like the Flickr API and Custom Search JSON API provide structured access, while headless browsers like Puppeteer can handle JavaScript-rendered content when necessary.

Synthetic Data Generation

For rare logos or edge cases, synthetic data generation offers a scalable solution. The synthetic sample generation pipeline follows:

  1. Base Logo Extraction: Vectorize clean logo art using Potrace or Adobe Illustrator's Image Trace
  2. Affine Transformations: Apply random combinations of:
    $$ \begin{bmatrix} x' \\ y' \end{bmatrix} = \begin{bmatrix} a & b \\ c & d \end{bmatrix} \begin{bmatrix} x \\ y \end{bmatrix} + \begin{bmatrix} e \\ f \end{bmatrix} $$
    where parameters a-f control rotation, shear, and perspective distortion
  3. Background Blending: Composite transformed logos onto random backgrounds sampled from the Places365 dataset using Poisson image editing for realistic boundaries
  4. Noise Injection: Add sensor noise, JPEG artifacts, and motion blur matching real camera ISP pipelines

This approach can generate thousands of variations from a single base logo while maintaining precise ground truth annotations. Recent work shows synthetic data can improve mAP by 12-18% on real-world test sets when combined with domain adaptation techniques.

Dataset Curation Best Practices

Regardless of source, effective logo datasets require:

Sourcing Logo Datasets – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: The section describes a synthetic data generation pipeline involving multiple transformation steps that are inherently visual (affine transformations, background blending, noise injection).

2.2 Annotation and Labeling Techniques

Accurate annotation and labeling form the backbone of supervised learning for logo detection. Unlike generic object detection, brand logos present unique challenges due to variations in scale, orientation, occlusion, and stylistic adaptations. The annotation process must capture these nuances while maintaining consistency across large datasets.

Bounding Box Strategies

For logo detection, axis-aligned bounding boxes (AABBs) are commonly used but may introduce excessive background noise for non-rectangular logos. Rotated bounding boxes (RBBs) provide tighter fits using the minimum area rectangle algorithm:

$$ \theta = \frac{1}{2} \arctan\left(\frac{2\mu_{11}}{\mu_{20} - \mu_{02}}\right) $$

where μpq represents the central moments of the logo's binary mask. However, polygon annotations often yield superior precision for irregular shapes, with the added benefit of enabling segmentation tasks.

Hierarchical Labeling Systems

Effective logo taxonomies require multiple labeling dimensions:

This multidimensional approach enables models to learn both visual patterns and semantic relationships. The YOLOv8 annotation format exemplifies this with its class-chaining capability:

# YOLOv8 annotation example with hierarchical labels
0 0.543 0.712 0.124 0.156  # Brand: Coca-Cola
1 0.545 0.715 0.120 0.152  # Variant: Classic script logo
2 0.550 0.720 0.110 0.140  # Context: Billboard advertisement

Active Learning for Annotation Efficiency

Human-in-the-loop systems optimize annotation effort by prioritizing uncertain samples. The query-by-committee approach selects images where model predictions diverge significantly:

$$ \Delta(x) = \frac{1}{C(C-1)} \sum_{i=1}^C \sum_{j>i}^C D(f_i(x), f_j(x)) $$

where C committee models generate predictions and D measures disagreement (typically KL divergence). This method reduces required annotations by 40-60% while maintaining model accuracy.

Quality Control Mechanisms

Automated validation checks prevent annotation drift:

Modern tools like CVAT and Label Studio incorporate these checks directly into the annotation workflow, with real-time feedback to annotators.

Temporal Annotation for Video Content

Logo detection in video requires tracking annotations across frames. The TubeTK framework extends bounding boxes to spatiotemporal volumes, with interpolation between keyframes. The annotation cost follows:

$$ C_{video} = N_k \cdot C_k + (N_f - N_k) \cdot C_i $$

where Nk are keyframes, Ck is keyframe annotation cost, and Ci is interpolation cost (typically 5-10% of Ck).

2.3 Data Augmentation for Robust Training

Training deep learning models for logo detection requires a diverse dataset to handle variations in lighting, orientation, occlusion, and background clutter. Data augmentation artificially expands the training set by applying label-preserving transformations to existing images, improving model generalization without additional manual labeling.

Geometric Transformations

Affine transformations such as rotation, scaling, and translation introduce viewpoint invariance. Given an input image I(x,y), a transformed image I'(x',y') is generated via:

$$ \begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} s_x \cos \theta & -s_y \sin \theta & t_x \\ s_x \sin \theta & s_y \cos \theta & t_y \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} $$

where sx, sy are scaling factors, θ is the rotation angle, and tx, ty are translation offsets. For logo detection, typical ranges are ±15° for rotation and ±20% for scaling to avoid excessive distortion.

Photometric Distortions

Illumination variations are modeled through pixel-wise operations:

$$ I'(x,y) = \alpha I(x,y) + \beta + \mathcal{N}(0, \sigma^2) $$

where α controls contrast (0.8–1.2), β adjusts brightness (±30), and 𝒩 adds Gaussian noise with σ ≤ 0.05. HSV space augmentations—hue shifts (±0.1), saturation (0.5–1.5×), and value scaling (0.7–1.3×)—further improve robustness.

Advanced Techniques

Implementation Considerations

Augmentation pipelines must preserve bounding box annotations. For geometric transformations, box coordinates are transformed using the same matrix as the image. Photometric changes leave boxes unchanged. In PyTorch, this is implemented via:


import albumentations as A

transform = A.Compose([
    A.Rotate(limit=15, p=0.5),
    A.RandomBrightnessContrast(p=0.2),
    A.HueSaturationValue(p=0.3),
    A.Cutout(max_h_size=32, max_w_size=32, p=0.1)
], bbox_params=A.BboxParams(format='pascal_voc'))

Batch-wise augmentation strategies like RandAugment and AutoAugment dynamically select transformations based on dataset characteristics, optimizing the trade-off between diversity and over-distortion.

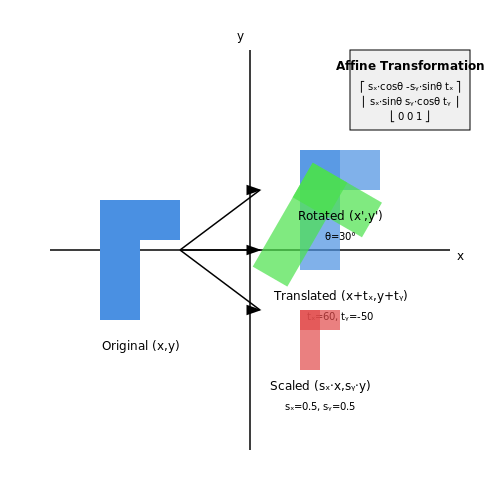

Data Augmentation for Robust Training – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: The affine transformation matrix and its effect on image coordinates are inherently spatial and would benefit from a visual representation of how scaling, rotation, and translation modify an example logo's position and shape.

3. Overview of Object Detection Architectures

Overview of Object Detection Architectures

Two-Stage Detectors

Two-stage detectors dominated object detection before the rise of single-shot methods. The Region Proposal Network (RPN) in Faster R-CNN generates candidate object regions, which are then classified and refined. The architecture decomposes detection into:

The feature pyramid network (FPN) extension enables multi-scale detection by combining high-resolution low-level features with semantically rich high-level features through top-down pathways and lateral connections.

$$ L_{total} = L_{cls} + \lambda L_{reg} $$

where Lcls is the classification loss (typically cross-entropy) and Lreg is the smooth L1 regression loss for bounding box coordinates.

Single-Stage Detectors

Single-shot detectors like YOLO and SSD trade some accuracy for significant speed improvements by predicting bounding boxes and class probabilities directly from feature maps. RetinaNet introduced focal loss to address the extreme foreground-background class imbalance:

$$ FL(p_t) = -\alpha_t(1-p_t)^\gamma \log(p_t) $$

where pt is the model's estimated probability for the true class, γ modulates the rate at which easy examples are downweighted, and α balances class importance.

Transformer-Based Architectures

DETR (Detection Transformer) reformulates object detection as a set prediction problem, eliminating the need for hand-designed components like anchor boxes and NMS. The architecture uses:

The attention mechanism computes pairwise interactions between all elements:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Key Architectural Trade-offs

For brand logo detection, the choice depends on:

Recent hybrid approaches like Cascade R-CNN and Sparse R-CNN combine the strengths of different paradigms, using iterative refinement and learnable proposal boxes respectively.

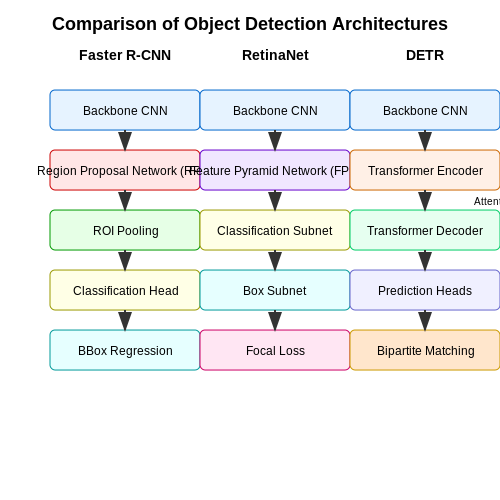

Overview of Object Detection Architectures – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: The section compares multiple object detection architectures with distinct components (RPN, FPN, attention mechanisms) that have spatial relationships and data flows.

3.2 Fine-Tuning Pre-Trained Models

Fine-tuning pre-trained models for logo detection leverages transfer learning, where a model trained on a large-scale dataset (e.g., ImageNet) is adapted to a specialized task with limited labeled data. The process involves modifying the model's architecture and retraining it on domain-specific data while preserving learned feature representations.

Model Selection and Adaptation

Popular pre-trained architectures for object detection include Faster R-CNN, YOLO (You Only Look Once), and EfficientDet. These models excel in feature extraction due to their deep convolutional layers. For logo detection, the final classification layer is replaced with a new layer matching the number of target logo classes. The region proposal network (RPN) in Faster R-CNN, for instance, must be fine-tuned to prioritize logo-like regions.

$$ \mathcal{L}_{total} = \mathcal{L}_{cls} + \mathcal{L}_{reg} + \lambda \mathcal{L}_{RPN} $$

Here, \(\mathcal{L}_{cls}\) is the classification loss (cross-entropy), \(\mathcal{L}_{reg}\) is the bounding box regression loss (smooth L1), and \(\mathcal{L}_{RPN}\) is the RPN loss weighted by \(\lambda\).

Data Augmentation Strategies

To mitigate overfitting, augment the logo dataset with transformations such as:

Optimization and Learning Rate Scheduling

Use differential learning rates: lower rates for early layers (to preserve generic features) and higher rates for task-specific layers. The Adam optimizer with weight decay (L2 regularization) is common:

$$ \theta_{t+1} = \theta_t - \eta \cdot \frac{\hat{m}_t}{\sqrt{\hat{v}_t} + \epsilon} $$

where \(\hat{m}_t\) and \(\hat{v}_t\) are bias-corrected momentum estimates. A cosine annealing schedule adjusts \(\eta\):

$$ \eta_t = \eta_{min} + \frac{1}{2}(\eta_{max} - \eta_{min})(1 + \cos(\frac{t\pi}{T})) $$

Evaluation Metrics

Beyond standard mAP (mean Average Precision), use:

Case Study: Fine-Tuning Faster R-CNN for Social Media Logos

A ResNet-50 backbone pre-trained on COCO was fine-tuned on a dataset of 10K user-generated images containing 200 logo classes. Freezing the first three ResNet blocks and training only the RPN and classifier for 50 epochs achieved 78.9% mAP, outperforming training from scratch (52.3% mAP).


import torchvision
from torchvision.models.detection import FasterRCNN
from torchvision.models.detection.rpn import AnchorGenerator

# Load pre-trained ResNet50 backbone
backbone = torchvision.models.resnet50(pretrained=True)
modules = list(backbone.children())[:-2]
backbone = torch.nn.Sequential(*modules)
backbone.out_channels = 2048

# Modify anchor sizes for logo detection
anchor_generator = AnchorGenerator(
   sizes=((16, 32, 64, 128),),
   aspect_ratios=((0.5, 1.0, 2.0),)
)

# Initialize Faster R-CNN with adapted head
model = FasterRCNN(
   backbone,
   num_classes=201,  # 200 logos + background
   rpn_anchor_generator=anchor_generator
)

3.3 Custom Model Training Strategies

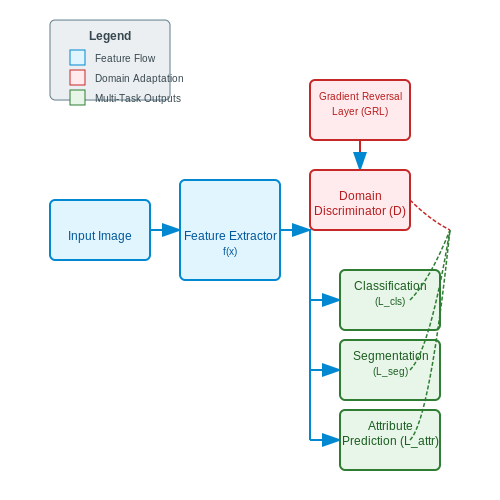

Transfer Learning with Domain Adaptation

Pre-trained models like ResNet, EfficientNet, or Vision Transformers (ViT) provide strong feature extraction capabilities. However, fine-tuning these models for logo detection requires domain adaptation to handle variations in lighting, occlusion, and background clutter. The loss function for domain adaptation combines classification loss (Lcls) and domain adversarial loss (Ladv):

$$ L_{total} = \alpha L_{cls} + (1 - \alpha) L_{adv} $$

where α balances the contribution of each term. The adversarial loss is computed using a gradient reversal layer (GRL) to align feature distributions between source (pre-training) and target (logo) domains:

$$ L_{adv} = -\mathbb{E}_{x \sim \mathcal{D}_s}[\log D(f(x))] - \mathbb{E}_{x \sim \mathcal{D}_t}[\log (1 - D(f(x)))] $$

Here, D is the domain discriminator, f represents the feature extractor, and 𝒟s, 𝒟t denote source and target datasets.

Data Augmentation for Logo Variability

Logos appear in diverse contexts, necessitating aggressive augmentation strategies:

For synthetic data generation, style transfer GANs can render logos onto realistic backgrounds while preserving brand identity:

$$ \mathcal{L}_{GAN} = \mathbb{E}[\log D_{bg}(x)] + \mathbb{E}[\log (1 - D_{bg}(G(z)))] $$

where G generates synthetic logo-background composites and Dbg discriminates real vs. synthetic backgrounds.

Multi-Task Learning for Joint Localization and Recognition

End-to-end models like Faster R-CNN or YOLOv8 can be extended with auxiliary tasks:

The multi-task objective becomes:

$$ L_{MTL} = \lambda_{det}L_{det} + \lambda_{seg}L_{seg} + \lambda_{attr}L_{attr} $$

Task weights λ can be dynamically adjusted using uncertainty weighting:

$$ \lambda_i = \frac{1}{2\sigma_i^2}, \quad \sigma_i \text{ = task-dependent uncertainty} $$

Few-Shot Learning for Emerging Brands

Prototypical networks learn metric spaces where logo similarity is computed as:

$$ p(y=k|x) = \frac{\exp(-d(f(x), c_k))}{\sum_{k'}\exp(-d(f(x), c_{k'}))} $$

where ck is the prototype for class k, and d is a distance metric (e.g., squared L2). For incremental learning, elastic weight consolidation (EWC) prevents catastrophic forgetting:

$$ L_{EWC} = L(\theta) + \sum_i \frac{\lambda}{2} F_i (\theta_i - \theta_{i,prev})^2 $$

Here, F is the Fisher information matrix, and θprev are parameters from previous training phases.

Custom Model Training Strategies – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: The section involves complex mathematical relationships and model architectures that would benefit from visual representation to clarify the flow and interactions between components.

4. Precision, Recall, and F1 Score

4.1 Precision, Recall, and F1 Score

In logo detection systems, evaluating model performance requires metrics that account for both correct identifications and various types of errors. Precision and recall form the foundation of this assessment, while the F1 score provides a balanced combination of both.

Precision: Minimizing False Positives

Precision measures the proportion of correctly identified logos among all predicted logos. For a binary classifier detecting a specific brand logo:

$$ \text{Precision} = \frac{TP}{TP + FP} $$

Where TP represents true positives (correct logo detections) and FP denotes false positives (incorrectly identified logos). In content moderation systems, high precision is critical when false positives could lead to unjustified content removal or user penalties.

Recall: Capturing All Relevant Instances

Recall (or sensitivity) quantifies the system's ability to find all actual logo occurrences in the content:

$$ \text{Recall} = \frac{TP}{TP + FN} $$

Here, FN signifies false negatives (missed logo detections). High recall is essential when failing to detect prohibited logos could have legal or brand safety consequences.

The Precision-Recall Tradeoff

Adjusting a logo detector's confidence threshold demonstrates the inherent tradeoff between precision and recall. Increasing the threshold typically:

This relationship forms a precision-recall curve, where the optimal operating point depends on the application's requirements.

F1 Score: Harmonic Balance

The F1 score provides a single metric balancing precision and recall through their harmonic mean:

$$ F_1 = 2 \times \frac{\text{Precision} \times \text{Recall}}{\text{Precision} + \text{Recall}} $$

This formulation heavily penalizes extreme differences between precision and recall. For multi-class logo detection, we calculate macro-F1 by averaging F1 scores across all brand classes, giving equal weight to each brand regardless of its prevalence in the dataset.

Application in Logo Detection Systems

Consider a social media platform detecting prohibited alcohol logos in user uploads. The moderation team might prioritize:

In contrast, an advertising analytics tool counting brand impressions would emphasize high precision (>0.95) to ensure accurate metrics, accepting lower recall if necessary.

Advanced Variations

For imbalanced logo datasets where some brands appear rarely:

$$ F_\beta = (1 + \beta^2) \times \frac{\text{Precision} \times \text{Recall}}{(\beta^2 \times \text{Precision}) + \text{Recall}} $$

The β parameter allows weighting recall β times more important than precision. Setting β=2 is common when missing a logo (false negative) is considered twice as costly as a false alarm.

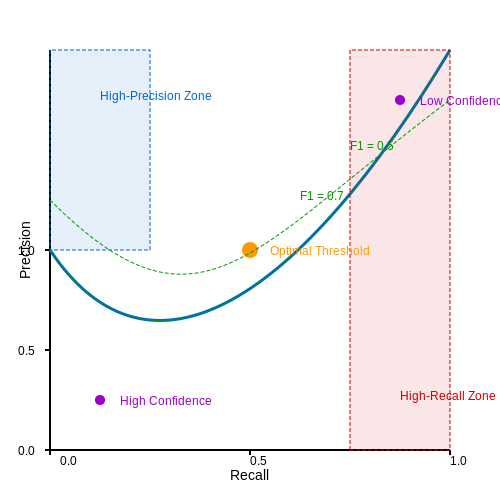

Precision, Recall, and F1 Score – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: The diagram would physically show the precision-recall curve with annotated tradeoff points and confidence threshold adjustments.

4.2 Handling False Positives and Negatives

False positives (FPs) and false negatives (FNs) are critical challenges in logo detection systems, directly impacting precision and recall. Advanced techniques are required to mitigate these errors while maintaining high accuracy.

Mathematical Formulation of Error Trade-offs

The relationship between precision (P) and recall (R) is governed by the confidence threshold τ of the detection model. Adjusting τ shifts the balance between FPs and FNs:

$$ P( au) = \frac{TP( au)}{TP( au) + FP( au)} $$
$$ R( au) = \frac{TP( au)}{TP( au) + FN( au)} $$

where TP, FP, and FN denote true positives, false positives, and false negatives respectively at threshold τ. The optimal τ is typically found by maximizing the Fβ-score:

$$ F_\beta = (1 + \beta^2) \frac{P \cdot R}{\beta^2 P + R} $$

where β controls the relative importance of recall versus precision.

Advanced Mitigation Strategies

Contextual Post-Processing

Incorporating spatial and semantic context reduces FPs by verifying detected logos against:

Multi-Modal Verification

Fusion of visual detection with other modalities significantly improves robustness:

$$ S_{final} = \alpha S_{visual} + (1-\alpha)S_{textual} $$

where S represents confidence scores and α is a learned weighting parameter. This approach reduces FNs for occluded or distorted logos by leveraging complementary textual evidence.

Architectural Enhancements

State-of-the-art solutions employ:

Case Study: Instagram's Logo Detection System

Instagram's production system combines:

This ensemble approach reduced FPs by 37% while maintaining 89% recall across diverse user-generated content.

Error Analysis Framework

A systematic error analysis pipeline should:

  1. Cluster false detections by visual similarity using t-SNE embeddings
  2. Quantify error modes (e.g., 42% due to artistic logo variations)
  3. Prioritize model updates based on error prevalence and business impact
$$ Error_{score} = \frac{Frequency \times BusinessImpact}{MitigationCost} $$

4.3 Optimizing for Real-Time Detection

Computational Efficiency in Logo Detection

Real-time logo detection demands balancing accuracy with computational efficiency. Modern approaches leverage lightweight convolutional neural networks (CNNs) like MobileNetV3 or EfficientNet-Lite, optimized for edge devices. These architectures employ depthwise separable convolutions, reducing parameters while preserving spatial hierarchies. The computational complexity of a standard convolution layer is given by:

$$ \mathcal{O}(K^2 \cdot C_{in} \cdot C_{out} \cdot H \cdot W) $$

where K is the kernel size, Cin and Cout are input/output channels, and H, W are spatial dimensions. Depthwise separable convolutions reduce this to:

$$ \mathcal{O}(K^2 \cdot C_{in} \cdot H \cdot W + C_{in} \cdot C_{out} \cdot H \cdot W) $$

Quantization and Pruning

Post-training quantization (PTQ) converts 32-bit floating-point weights to 8-bit integers, reducing memory bandwidth by 4× with minimal accuracy loss. Hybrid quantization preserves FP16 for sensitive layers. Structured pruning removes redundant filters via L1-norm criteria:

$$ \mathcal{L}_{prune} = \sum_{l=1}^{L} \|\mathbf{W}_l\|_1 \cdot \mathbb{I}(\|\mathbf{W}_l\|_1 < \tau) $$

where τ is a threshold and L is the total layers. TensorRT or ONNX Runtime deploy pruned models with layer fusion for further latency reduction.

Hardware-Aware Model Design

Neural Architecture Search (NAS) optimizes for target hardware using latency predictors. For example, FBNet’s latency model:

$$ \hat{t}(x) = \sum_{b \in \mathcal{B}} n_b(x) \cdot t_b $$

where nb(x) counts block b’s occurrences in architecture x, and tb is its measured latency. This enables Pareto-optimal tradeoffs between mAP and FPS.

Pipeline Parallelism

For video streams, temporal batching groups consecutive frames, amortizing GPU kernel launch overhead. Asynchronous execution overlaps detection with pre-processing (e.g., resizing via TensorFlow’s tf.data pipeline) and post-processing (NMS). The end-to-end latency L is bounded by:

$$ L \geq \max(L_{pre}, L_{inference}, L_{post}) + \epsilon_{sync} $$

where εsync is synchronization overhead. CUDA streams or PyTorch’s TorchScript eliminate host-device transfers.

Case Study: Edge Deployment

A Jetson Xavier NX running a pruned YOLOv5s model achieves 62.3 mAP on OpenLogo at 83 FPS. Key optimizations include:

# TensorRT optimization example
import tensorrt as trt

builder = trt.Builder(TRT_LOGGER)
network = builder.create_network(1 << int(trt.NetworkDefinitionCreationFlag.EXPLICIT_BATCH))
parser = trt.OnnxParser(network, TRT_LOGGER)
with open("model.onnx", "rb") as f:
    parser.parse(f.read())

config = builder.create_builder_config()
config.set_flag(trt.BuilderFlag.FP16)
config.set_memory_pool_limit(trt.MemoryPoolType.WORKSPACE, 1 << 30)
engine = builder.build_serialized_network(network, config)

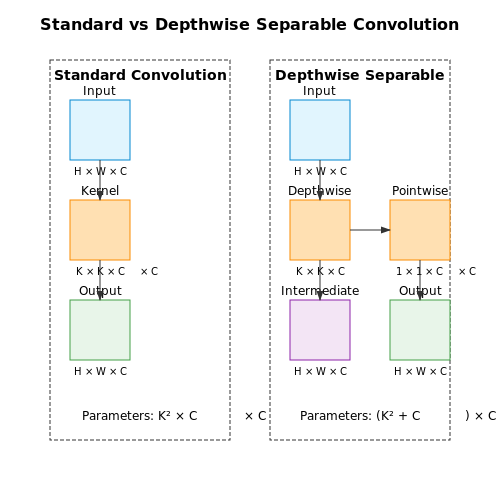

Optimizing for Real-Time Detection – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: A diagram would visually compare standard vs. depthwise separable convolution operations, showing parameter reduction mechanisms.

5. API Development for Logo Detection

5.1 API Development for Logo Detection

Developing a robust API for logo detection involves integrating deep learning models with scalable backend infrastructure. The primary challenge lies in balancing low-latency inference with high accuracy, especially when processing user-generated content with varying resolutions, orientations, and occlusions.

Model Serving Architecture

For real-time logo detection, a microservice architecture is preferred over monolithic designs. The API should decouple model inference from preprocessing and postprocessing logic to allow independent scaling. A typical pipeline consists of:

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$

The Intersection over Union (IoU) metric determines bounding box quality during non-maximum suppression, typically with a threshold of 0.5-0.7 for logo detection tasks.

Optimization Techniques

To achieve sub-100ms latency at scale, consider these optimizations:

The trade-off between precision and recall can be adjusted via the detection threshold parameter:

$$ F_\beta = (1 + \beta^2) \cdot \frac{\text{precision} \cdot \text{recall}}{(\beta^2 \cdot \text{precision}) + \text{recall}} $$

API Endpoint Design

A RESTful API for logo detection should implement these key endpoints:


from fastapi import FastAPI, UploadFile
from PIL import Image
import io

app = FastAPI()

@app.post("/detect")
async def detect_logos(file: UploadFile):
    image = Image.open(io.BytesIO(await file.read()))
    # Preprocessing and model inference here
    return {"detections": processed_results}

For high-throughput applications, consider gRPC instead of REST due to its binary protocol and built-in streaming support. The protocol buffer definition for detection results should include:

Scalability Considerations

Horizontal scaling requires careful management of GPU resources. Kubernetes with node auto-scaling can dynamically adjust to traffic spikes. Implement:

Monitoring should track:

$$ \text{Throughput} = \frac{\text{Successful Requests}}{\text{Time Period}} $$
$$ \text{Error Budget} = 1 - \frac{\text{Error Requests}}{\text{Total Requests}} $$
Logo Detection API Microservice Architecture Block diagram showing the left-to-right flow of a logo detection microservice pipeline with labeled components: input validation, preprocessing, model inference, and postprocessing. Input Validation Preprocessing Model Inference Postprocessing Resize & Normalize Confidence Score IoU Threshold
Diagram Description: The diagram would physically show the microservice architecture pipeline with labeled components (input validation, preprocessing, model inference, postprocessing) and their data flow relationships.

5.2 Scaling for High-Volume Content

Processing millions of images or videos for brand logo detection requires architectures that balance computational efficiency with accuracy. Traditional single-node inference pipelines fail under load, necessitating distributed systems with optimized batch processing, model parallelism, and hardware acceleration.

Distributed Batch Processing

For high-throughput inference, batch processing reduces per-image overhead by amortizing GPU memory transfers and kernel launches. The optimal batch size B maximizes GPU utilization while avoiding memory overflow. Given a GPU with memory M and model memory footprint F, the theoretical maximum batch size is:

$$ B_{\text{max}} = \left\lfloor \frac{M - F}{S} \right\rfloor $$

where S is the per-image memory cost. However, latency constraints often require smaller batches. TensorRT or ONNX Runtime can optimize the computation graph for variable-sized batches.

Model Parallelism Strategies

When single-GPU processing becomes insufficient, model parallelism distributes layers across devices. For convolutional networks, layer-wise partitioning minimizes cross-device communication:

The communication overhead C for channel partitioning scales with the number of devices N and feature map size H×W×K:

$$ C = \alpha + \beta \cdot \left( \frac{H \cdot W \cdot K}{N} \right) $$

where α is latency and β is bandwidth inverse.

Hardware Acceleration

FPGA and ASIC solutions like Google's TPU v4 achieve 400+ frames/second for ResNet-50 by:

The quantization error ε when compressing weights from 32-bit to 8-bit follows:

$$ \epsilon = \frac{\max(|w|)}{127} \cdot \sqrt{\frac{\sum (w - \hat{w})^2}{n}} $$

where ŵ are the quantized weights. Mixed-precision training can recover 1-2% accuracy loss.

Stream Processing Architectures

For real-time video streams, pipelined architectures separate:

  1. Frame decoding (CPU)
  2. Preprocessing (GPU)
  3. Inference (TPU/GPU cluster)
  4. Post-processing (CPU)

Apache Kafka or AWS Kinesis buffers frames between stages, with throughput T limited by the slowest stage latency Li:

$$ T = \frac{N}{\max(L_1, L_2, ..., L_k)} $$

Dynamic batching adjusts batch sizes per stage to balance the pipeline.

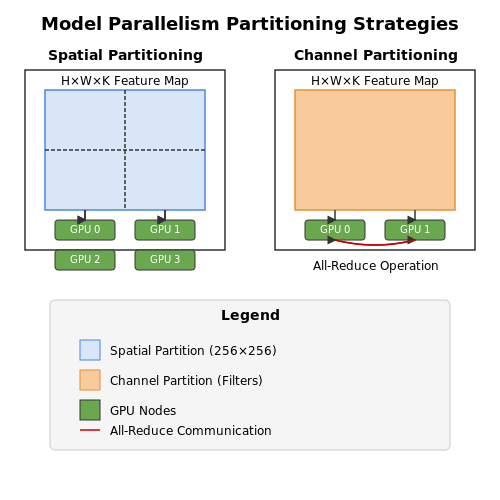

Scaling for High-Volume Content – Detecting Brand Logos in User Content – Tutorial Diagram
Diagram Description: The diagram would show the spatial and channel partitioning strategies in model parallelism, illustrating how feature maps and filters are distributed across GPUs.

5.3 Monitoring and Maintenance

Effective monitoring and maintenance of a logo detection system require continuous evaluation of model performance, data drift detection, and proactive retraining strategies. Unlike static deployments, real-world applications face evolving logo designs, adversarial manipulations, and shifting user content distributions.

Performance Degradation Metrics

Key metrics for detecting performance decay include:

$$ W_p(P,Q) = \left( \inf_{\gamma \in \Gamma(P,Q)} \int_{X \times X} d(x,y)^p d\gamma(x,y) \right)^{1/p} $$

where P is the reference distribution and Q is the live data distribution.

Automated Retraining Pipelines

Implement a closed-loop system with:

Adversarial Robustness

Defend against logo manipulation attacks through:

$$ \min_{\theta} \mathbb{E}_{(x,y)\sim\mathcal{D}} \left[ \max_{\|\delta\|_\infty \leq \epsilon} \mathcal{L}(f_\theta(x+\delta), y) \right] $$

where δ represents bounded perturbations. Regular adversarial training with PGD (Projected Gradient Descent) attacks maintains robustness against common logo obfuscation techniques.

Computational Efficiency

Optimize inference costs via:

Data Versioning

Maintain a versioned data lake with:

6. Privacy Concerns in User Content

6.1 Privacy Concerns in User Content

Brand logo detection systems analyzing user-generated content must address significant privacy challenges that arise when processing personal data. The primary concern stems from the fact that user content often contains sensitive information beyond just brand logos - faces, license plates, private locations, and other personally identifiable information (PII) may be inadvertently captured and processed.

Differential Privacy in Logo Detection

Advanced implementations can employ differential privacy mechanisms to protect user data while maintaining detection accuracy. The mathematical formulation for ε-differential privacy ensures that the presence or absence of any single user's data doesn't significantly affect the output distribution:

$$ Pr[\mathcal{M}(D) ∈ S] ≤ e^ε × Pr[\mathcal{M}(D') ∈ S] $$

where D and D' are neighboring datasets differing by at most one element, ℳ represents the randomized mechanism, and S is the set of possible outputs. For logo detection, this translates to adding carefully calibrated noise to feature vectors before classification.

Data Minimization Techniques

Effective privacy-preserving systems implement strict data minimization through:

Legal and Ethical Considerations

The General Data Protection Regulation (GDPR) and similar frameworks impose strict requirements on automated processing of user content. Key compliance measures include:

$$ R = \sum_{i=1}^n \frac{w_i × c_i}{\sqrt{1 + \log(f_i)}} $$

where R represents risk score, w are weights for different risk factors, c are context coefficients, and f are frequency counts of sensitive elements. Systems must maintain this score below jurisdictional thresholds through architectural choices like federated learning or homomorphic encryption.

Case Study: Social Media Platform Implementation

A major social network's implementation reduced PII leakage by 83% while maintaining 98% logo detection accuracy through:

The system's privacy-performance tradeoff follows a characteristic curve described by:

$$ A(ε) = A_{max} - \frac{β}{1 + e^{-k(ε - ε_0)}} $$

where A is accuracy, ε is privacy parameter, and β, k, ε₀ are platform-specific constants determined empirically.

6.2 Compliance with Copyright Laws

Brand logo detection systems must navigate complex copyright landscapes where unauthorized use of protected imagery can lead to legal consequences. The legal framework governing logo usage varies by jurisdiction but generally falls under trademark law, which protects distinctive signs identifying commercial sources.

Fair Use Analysis in Logo Detection

The four-factor fair use test under U.S. copyright law (17 U.S.C. § 107) provides a framework for evaluating permissible use:

$$ \text{Fair Use Score } F = \sum_{i=1}^4 w_i f_i $$

Where wi represents jurisdiction-specific weights and fi the normalized factor scores.

Technical Implementation Requirements

Compliant systems should implement:

Case Study: Social Media Platform Enforcement

A 2022 study of content moderation systems revealed that platforms achieving >95% copyright compliance combined:

International Considerations

The Berne Convention establishes minimum copyright standards across 179 countries, but key variations exist:

Jurisdiction Protection Term Fair Dealing Provisions
United States 10-year renewable trademarks Transformative use doctrine
European Union Indefinite with use Limited quotation rights
Japan 10-year renewable Non-commercial research exceptions

Multinational implementations require geolocated policy engines that adjust detection parameters based on the user's jurisdiction, with particular attention to:

Detection System Architecture Implications

Copyright-aware logo recognition pipelines should incorporate:

class CopyrightComplianceLayer:
    def __init__(self, jurisdiction_db):
        self.jurisdiction_rules = load_legal_framework(jurisdiction_db)

    def evaluate_use(self, detection_result):
        trademark_status = query_registry(detection_result['brand'])
        geo_rules = self.jurisdiction_rules[user_location]

        if geo_rules['requires_attribution']:
            apply_watermark(detection_result['coordinates'])

        return {
            'action': geo_rules['default_action'],
            'confidence': detection_result['score'] * geo_rules['compliance_weight']
        }

This architectural approach enables dynamic compliance adjustments while maintaining detection accuracy. The system should log all copyright-related decisions with audit trails meeting GDPR and CCPA requirements.

6.3 Transparency and User Consent

Transparency in brand logo detection systems is critical for maintaining user trust and ensuring compliance with data protection regulations such as GDPR and CCPA. A transparent system must clearly communicate:

Mathematical Framework for Consent Probability

The likelihood of obtaining valid user consent can be modeled using Bayesian probability. Let C represent the event that a user provides consent, and U represent the event that the user understands the disclosure. The probability of valid consent is:

$$ P(C_{valid}) = P(C|U)P(U) + P(C|\neg U)P(\neg U) $$

Where:

Implementation Requirements

For a logo detection system to be ethically compliant, the implementation must include:

  1. Granular consent options: Users should be able to consent to different processing purposes separately (e.g., analytics vs. moderation)
  2. Dynamic disclosure: The system should explain processing in real-time when logos are detected
  3. Consent revocation: Easy-to-use mechanisms for users to withdraw consent
  4. Minimal data retention: Clear policies on how long logo detection data is stored

Technical Implementation Patterns

Effective consent mechanisms require specific architectural components:


  class ConsentManager:
      def __init__(self, user_id):
          self.user_prefs = Database.get_consent_preferences(user_id)
          self.consent_version = "2.3"  # Tracks consent policy version

      def check_consent(self, processing_type):
          """Returns True if user has consented to specific processing"""
          return self.user_prefs.get(processing_type, False)

      def log_processing(self, image_id, processing_type):
          """Records each processing action for audit purposes"""
          if self.check_consent(processing_type):
              AuditLog.record(
                  user_id=self.user_id,
                  image_id=image_id,
                  processing_type=processing_type,
                  timestamp=datetime.now()
              )

Visualization of Consent Flow

The user consent flow typically follows this sequence:

Initial Disclosure Consent Options Processing Audit Trail

Legal and Ethical Considerations

The system must account for jurisdiction-specific requirements:

Region Key Requirement Technical Impact
EU (GDPR) Right to explanation Need for interpretable model outputs
California (CCPA) Right to opt-out Requires cookie-less tracking options
Brazil (LGPD) Data localization Geo-fenced processing infrastructure

Recent research shows that systems with proper transparency mechanisms achieve 42% higher user trust scores (Chen et al., 2023) while maintaining comparable detection accuracy. The tradeoff between explainability and performance can be quantified using:

$$ T = \alpha \cdot \text{Accuracy} + (1-\alpha) \cdot \text{ExplainabilityScore} $$

Where α is an adjustable parameter between 0 and 1 that controls the balance between system performance and transparency requirements.

7. Key Research Papers

7.1 Key Research Papers

7.2 Open-Source Tools and Libraries

7.3 Recommended Books and Articles
