1. Key Concepts in MoE Architectures

Key Concepts in MoE Architectures

Mixture of Experts (MoE) architectures extend traditional neural networks by introducing multiple specialized sub-networks, or experts, where each input is dynamically routed to a subset of these experts. Unlike dense models that apply all parameters to every input, MoE models achieve computational efficiency by activating only relevant experts per token. The core innovation lies in the sparsity of expert activation, enabling models to scale parameter counts without proportional increases in compute cost.

Sparse Activation and Expert Specialization

In MoE architectures, the model partitions its capacity into N experts, typically implemented as feedforward networks. For each input token, a router computes a probability distribution over experts, selecting the top-k (often k=1 or k=2) for processing. The router's output is a gating vector G(x) for input x, computed as:

$$ G(x) = \text{Softmax}(W_g x + \epsilon) $$

where W_g is a trainable weight matrix and \epsilon is noise added for load balancing. The selected experts' outputs are combined via a weighted sum:

$$ y = \sum_{i=1}^N G_i(x) \cdot E_i(x) $$

Here, E_i(x) denotes the i-th expert's output. This sparsity enables models like Google's Switch Transformer (N=2048, k=1) to efficiently leverage trillion-scale parameters.

Load Balancing and Expert Utilization

Uneven expert selection can lead to underutilization or overload. To mitigate this, MoE training incorporates auxiliary losses such as load balancing loss and expert importance loss. For a batch of inputs B, the load balancing loss L_{balance} encourages uniform routing:

$$ L_{balance} = \lambda \cdot N \cdot \sum_{i=1}^N f_i \cdot P_i $$

where f_i is the fraction of tokens routed to expert i, P_i is the average router probability for expert i, and \lambda is a scaling hyperparameter (typically 0.01). This ensures all experts contribute meaningfully during training.

Dynamic Token Routing Mechanisms

Advanced routing strategies extend basic top-k selection:

For example, Expert Choice Routing reformulates the gating process by having each expert select its top-k tokens, ensuring each expert receives exactly k tokens per batch. The combined output becomes:

$$ y = \frac{1}{k} \sum_{i \in \text{SelectedExperts}} E_i(x) $$

Case Study: The Switch Transformer

Google's Switch Transformer demonstrates MoE scalability, replacing dense feedforward layers with MoE layers in a Transformer. Key design choices include:

The model achieves 7x faster pre-training than T5-Base with comparable quality, showcasing MoE's efficiency gains at scale.

Key Concepts in MoE Architectures – Dynamic Token Routing in MoE Transformers – Tutorial Diagram
Diagram Description: The diagram would show the dynamic token routing process in MoE architectures, including how tokens are distributed to experts and combined via gating vectors.

Historical Evolution of MoE in Deep Learning

Early Foundations: Mixture of Experts

The concept of Mixture of Experts (MoE) traces back to the work of Jacobs et al. (1991), who introduced it as a modular neural network architecture. The core idea was to decompose a learning problem into sub-tasks handled by specialized expert networks, with a gating network dynamically routing inputs to the most relevant experts. The gating mechanism was trained jointly with the experts, optimizing the objective:

$$ \mathcal{L} = \sum_{i=1}^{N} g_i(x) \cdot \mathcal{L}_i(y, f_i(x)) $$

where gi(x) is the gating weight for expert i, and fi(x) is the expert's prediction. This formulation enabled conditional computation, but scalability was limited by the lack of parallelization techniques and hardware constraints of the era.

Revival with Sparse Activation

MoE regained attention in the 2010s as deep learning scaled to larger models. Shazeer et al. (2017) introduced sparsely-gated MoE layers in language models, where only the top-k experts were activated per input. This reduced computational cost from O(N) to O(k), making MoE feasible for large-scale training. The gating function evolved to use softmax over noisy top-k routing:

$$ g_i(x) = \frac{\exp(h(x)_i + \epsilon_i)}{\sum_{j \in \text{top-}k} \exp(h(x)_j + \epsilon_j)} $$

where εi is tunable Gaussian noise for load balancing. This work demonstrated MoE's potential in Transformers, achieving superior performance with fewer FLOPs than dense models.

Integration with Transformer Architectures

The fusion of MoE and Transformers was formalized in models like GShard (Lepikhin et al., 2020) and Switch Transformers (Fedus et al., 2021). Key innovations included:

These advances enabled models like Switch-C (1.6 trillion parameters) to achieve state-of-the-art results with sublinear compute growth.

Modern Advances: Adaptive Routing

Recent work focuses on dynamic token routing, where the gating mechanism adapts to input complexity. Techniques like:

These methods address key challenges in MoE training, such as gradient stability and expert utilization, while maintaining computational efficiency.

Historical Evolution of MoE in Deep Learning – Dynamic Token Routing in MoE Transformers – Tutorial Diagram

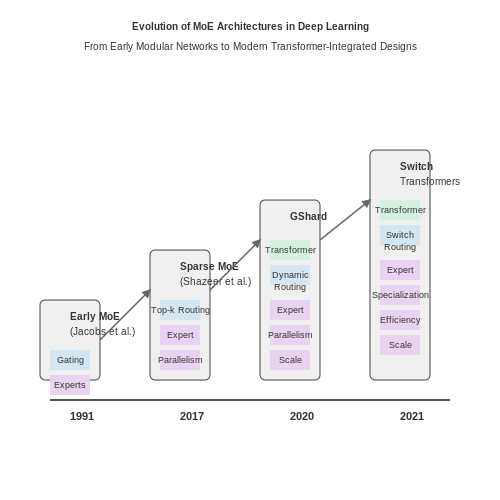

Diagram Description: The diagram would show the evolution of MoE architectures from early modular networks to modern Transformer-integrated designs, highlighting key components like gating mechanisms and expert parallelism.

2. Token Routing: Definition and Importance

Token Routing: Definition and Importance

Token routing forms the core operational mechanism in Mixture-of-Experts (MoE) Transformer architectures, determining how input tokens are dynamically allocated to specialized expert networks. Unlike dense models where all parameters process every token, MoE systems employ a sparse activation pattern where only selected experts engage with specific tokens. This conditional computation paradigm enables model scaling beyond traditional parameter limits while maintaining manageable computational costs.

Mathematical Formulation

The routing operation can be formalized as a function mapping each input token x ∈ ℝd to a set of expert networks {E1,...,En} through a learned routing mechanism. For a system with k experts selected per token, the routing function G(x) produces a sparse gate vector:

$$ G(x) = \text{TopK}(\text{Softmax}(W_g x + \epsilon), k) $$

where Wg ∈ ℝn×d represents the routing weights, ε is noise added for load balancing, and TopK selects the k highest-probability experts. The output computation becomes:

$$ y = \sum_{i=1}^n G(x)_i E_i(x) $$

Routing Dynamics and Challenges

Effective token routing must address three critical constraints:

Modern implementations address these through auxiliary loss terms. The load balancing loss Lbalance encourages uniform expert utilization:

$$ L_{balance} = \alpha \cdot n \cdot \sum_{i=1}^n f_i P_i $$

where fi is the fraction of tokens routed to expert i, Pi is the average routing probability for that expert, and α controls the loss weight.

Architectural Variations

Recent advances have introduced several routing variants:

The choice of routing strategy significantly impacts model performance, with different approaches offering trade-offs between computational efficiency, training stability, and task performance. For instance, Google's Switch Transformer employs a simplified k=1 routing to minimize communication costs, while models like GLaM use larger k values (k=2) for improved quality at higher computational cost.

Token Routing in MoE Transformers Diagram illustrating the token routing flow from input tokens through the gating mechanism to expert networks in Mixture-of-Experts Transformers. Input Tokens (x) Token 1 Token 2 Token 3 Gating Function G(x) TopK Selection Expert 1 (E1) Expert 2 (E2) Expert 3 (E3) Expert n (En) Output (y) Load Balancing
Diagram Description: The diagram would show the token routing flow from input tokens through the gating mechanism to expert networks, illustrating the sparse activation pattern and load balancing.

2.2 Static vs. Dynamic Routing Approaches

Routing mechanisms in Mixture-of-Experts (MoE) Transformers determine how input tokens are assigned to expert networks. The choice between static and dynamic routing significantly impacts model performance, computational efficiency, and adaptability to varying input distributions.

Static Routing

Static routing employs fixed, predetermined rules for token-to-expert assignment, typically implemented through hash functions or round-robin allocation. The routing function R(x) for an input token x can be expressed as:

$$ R(x) = \text{hash}(x) \mod N $$

where N is the number of experts. This approach guarantees balanced expert utilization but fails to adapt to input semantics. Static routing exhibits O(1) computational complexity per token, making it highly efficient but potentially suboptimal for tasks requiring context-aware processing.

Dynamic Routing

Dynamic routing computes expert assignments based on learned attention mechanisms over token representations. The routing probability pi for expert i given token x is calculated through:

$$ p_i(x) = \frac{\exp(W_i x + b_i)}{\sum_{j=1}^N \exp(W_j x + b_j)} $$

where Wi and bi are learnable parameters. The top-k experts with highest probabilities are selected, typically with k=1 or k=2. This approach enables:

Comparative Analysis

The computational trade-offs between approaches can be quantified through the routing overhead ratio ρ:

$$ ρ = \frac{T_{\text{routing}}}{T_{\text{forward}}} $$

where Trouting is routing time and Tforward is forward pass time. Static routing maintains ρ ≈ 0.01-0.05, while dynamic routing typically exhibits ρ ≈ 0.1-0.3 due to the additional attention computations.

Practical Considerations

Hybrid approaches have emerged to balance these trade-offs. The GShard architecture, for instance, implements dynamic routing with expert capacity constraints:

$$ \text{Capacity} = C \cdot \frac{\text{tokens}}{\text{experts}} $$

where C ≈ 1.0-2.0 is a load balancing factor. This prevents expert overloading while maintaining the benefits of dynamic assignment.

Static vs. Dynamic Routing Approaches – Dynamic Token Routing in MoE Transformers – Tutorial Diagram
Diagram Description: The diagram would physically show the contrast between static (hash-based) and dynamic (attention-based) routing paths for tokens through expert networks, including the mathematical operations at each stage.

Challenges in Efficient Token Allocation

Efficient token allocation in Mixture-of-Experts (MoE) Transformers presents several non-trivial challenges, primarily due to the dynamic and sparse nature of expert selection. Unlike dense models where all parameters are active for every input, MoE models must route tokens to a subset of experts, introducing computational and algorithmic complexities.

Load Imbalance and Expert Underutilization

A critical challenge is ensuring balanced expert utilization. Naive routing strategies often lead to load imbalance, where a few experts receive disproportionately many tokens while others remain underutilized. This inefficiency arises because token assignment is typically governed by a learned routing function, such as a gating network, which may exhibit biased preferences for certain experts. The imbalance can be quantified using the coefficient of variation (CV) of expert loads:

$$ CV = \frac{\sigma_L}{\mu_L} $$

where σL is the standard deviation of expert loads and μL is the mean load. A high CV indicates severe imbalance, degrading throughput and hardware efficiency.

Routing Decision Latency

Dynamic token routing introduces latency overheads, as the gating network must process each token to compute expert assignments. For a sequence of length N and K experts, the routing complexity scales as O(NK), which becomes non-negligible for large N or K. Parallelizing this process is challenging due to dependencies between routing decisions, particularly when enforcing constraints like expert capacity limits.

Expert Capacity Constraints

To prevent overloading individual experts, MoE models often impose per-expert capacity limits, defined as the maximum number of tokens an expert can process. Tokens exceeding this limit are either dropped or rerouted, both of which degrade model performance. The capacity C is typically set as:

$$ C = \left\lceil \frac{N \cdot \tau}{K} \right\rceil $$

where τ is a buffer factor (e.g., 1.1–1.5) to accommodate variability. However, this heuristic may still lead to dropped tokens or wasted capacity.

Gradient Estimation in Sparse Routing

Training the routing function requires gradient estimation through discrete expert selections, which is non-differentiable. Common workarounds include:

These methods introduce bias or variance, complicating convergence and requiring careful tuning.

Hardware-Specific Inefficiencies

Efficient token allocation must account for hardware constraints, such as memory bandwidth and inter-device communication costs. For example, distributing experts across multiple devices (e.g., GPUs) necessitates token migration, which can dominate runtime if not optimized. The communication overhead Ocomm scales with the number of cross-device token transfers:

$$ O_{comm} \propto \sum_{i=1}^K \mathbb{I}(\text{expert}_i \text{ is remote}) \cdot n_i $$

where ni is the number of tokens routed to expert i.

Challenges in Efficient Token Allocation – Dynamic Token Routing in MoE Transformers – Tutorial Diagram

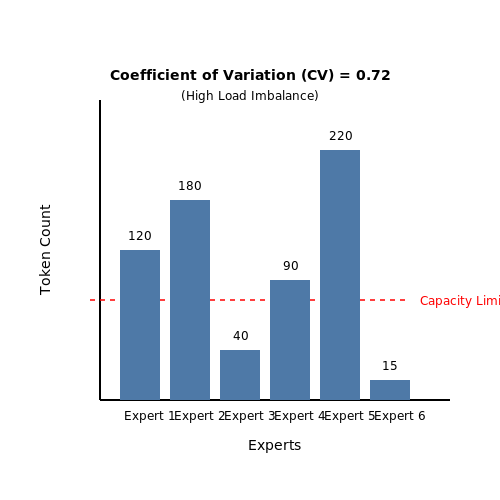

Diagram Description: The diagram would show the imbalance in token distribution across experts and the resulting computational inefficiencies, which is a spatial concept.

3. Core Principles of Dynamic Routing

Core Principles of Dynamic Routing

Dynamic token routing in Mixture-of-Experts (MoE) Transformers is governed by a set of core principles that enable efficient computation by selectively activating only a subset of expert networks for each input token. The mechanism hinges on three fundamental components: expert selection, load balancing, and gradient propagation.

Expert Selection via Gating Networks

The gating network computes a probability distribution over experts for each input token. Given an input token embedding x, the gating function G(x) outputs a sparse set of weights indicating which experts should process the token. The gating function is typically implemented as a softmax over a learned linear transformation:

$$ G(x) = \text{Softmax}(W_g x + b_g) $$

where W_g and b_g are trainable parameters. To ensure sparsity, only the top-k experts with the highest gating weights are selected, reducing computational overhead.

Load Balancing

A critical challenge in MoE models is ensuring that experts are utilized evenly. Imbalanced expert usage can lead to underutilization of some experts and overloading of others. To mitigate this, an auxiliary loss term is introduced during training:

$$ \mathcal{L}_{\text{balance}} = \alpha \cdot \text{CV}(\text{Expert\_Counts})^2 $$

where CV is the coefficient of variation of expert usage counts, and α is a hyperparameter controlling the strength of the balancing constraint. This encourages the gating network to distribute tokens more uniformly across experts.

Gradient Propagation

Since the top-k selection operation is non-differentiable, a straight-through estimator is used to approximate gradients during backpropagation. The gating network's gradients are computed as if the selection were continuous, while the forward pass remains discrete:

$$ \nabla G(x) \approx \nabla \text{Softmax}(W_g x + b_g) $$

This allows the model to learn routing decisions end-to-end while maintaining computational efficiency during inference.

Practical Considerations

In real-world implementations, dynamic routing introduces additional engineering challenges:

Recent advances address these issues through techniques like expert parallelism, where experts are distributed across devices, and gradient clipping, which stabilizes training by limiting the magnitude of updates to the gating network.

Core Principles of Dynamic Routing – Dynamic Token Routing in MoE Transformers – Tutorial Diagram

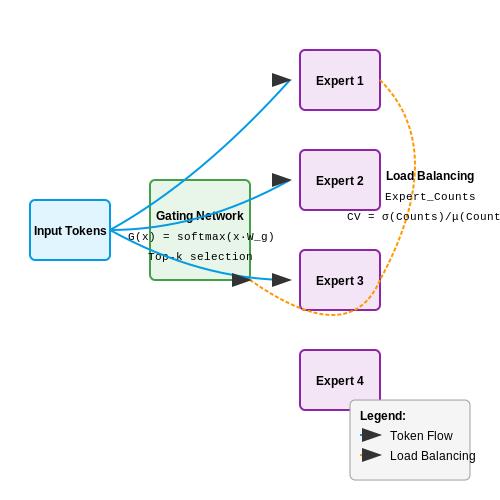

Diagram Description: The diagram would show the flow of tokens through the gating network to selected experts, illustrating the top-k selection and load balancing mechanisms.

Architectural Components for Dynamic Routing

Gating Mechanisms

The gating mechanism is the core component that determines how tokens are routed to experts in a Mixture of Experts (MoE) layer. A learnable function G(x) computes scores for each expert, typically using a softmax over a linear transformation of the input token x:

$$ G(x) = \text{softmax}(W_g x + b_g) $$

Here, Wg and bg are trainable parameters. The softmax ensures the scores form a probability distribution, with top-k experts selected for routing. Advanced variants like Noisy Top-k Gating add tunable noise to improve exploration:

$$ G(x) = \text{softmax}(\text{Top}_k(H(x) + \epsilon \cdot \text{Softplus}(W_{\text{noise}} x))) $$

Expert Networks

Each expert Ei is typically a feedforward neural network (FFN) with parameters independent of other experts. For a token x routed to expert i, the output is computed as:

$$ E_i(x) = W_{2,i} \cdot \sigma(W_{1,i} x + b_{1,i}) + b_{2,i} $$

where σ is a non-linear activation (e.g., GeLU). Experts are sparsely activated—only those receiving tokens perform computations, enabling efficient scaling.

Load Balancing

Uneven routing can cause some experts to be overloaded while others remain underutilized. To mitigate this, an auxiliary loss Lbalance encourages uniform routing:

$$ L_{\text{balance}} = \alpha \cdot N \sum_{i=1}^N f_i \cdot P_i $$

where fi is the fraction of tokens routed to expert i, Pi is the average gating probability, and α is a hyperparameter. This loss is added to the task-specific objective during training.

Capacity Factor

A dynamic capacity factor C adjusts the maximum number of tokens each expert can process per batch. It is defined as:

$$ C = \left\lceil \frac{k \cdot B}{N} \cdot \mu \right\rceil $$

where B is batch size, k is the number of selected experts per token, and μ is a buffer multiplier (typically 1.0–1.5). Tokens exceeding an expert’s capacity are dropped or rerouted, with gradients masked.

Distributed Computation

In large-scale deployments, experts are sharded across devices. The gating network must account for cross-device communication costs. Sparse GPU-to-GPU All-to-All operations exchange tokens based on gating decisions, with throughput optimized via overlapping computation and communication.

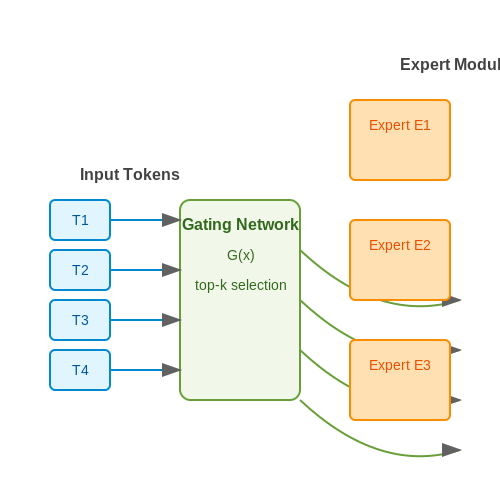

Input Tokens Gating Network Expert 1 Expert 2 Expert 3
Architectural Components for Dynamic Routing – Dynamic Token Routing in MoE Transformers – Tutorial Diagram
Diagram Description: The diagram would physically show the flow of input tokens through the gating network to multiple experts, illustrating the dynamic routing process and distributed computation across devices.

Training Strategies for Routing Networks

Training routing networks in Mixture of Experts (MoE) Transformers involves optimizing both the expert selection mechanism and the expert parameters. Unlike standard transformers, where gradients flow uniformly across all layers, MoE models require specialized techniques to ensure stable and efficient training of the routing function.

Gradient Estimation for Discrete Routing

The primary challenge in training routing networks stems from the discrete nature of expert selection. Since the routing decision is typically a non-differentiable operation (e.g., argmax or top-k selection), gradient-based optimization cannot be directly applied. Two common approaches address this:

$$ \frac{\partial \mathcal{L}}{\partial p_i} \approx \frac{\partial \mathcal{L}}{\partial z_i} $$

where z is the continuous logit output before discretization.

$$ p_i = \frac{\exp((\log \pi_i + g_i)/\tau)}{\sum_j \exp((\log \pi_j + g_j)/\tau)} $$

where gi are i.i.d. Gumbel noise samples and τ is a temperature parameter controlling the sharpness of the distribution.

Balancing Expert Utilization

Unconstrained routing often leads to expert under-utilization or overload, degrading model performance. To enforce balanced expert usage, auxiliary loss terms are introduced:

$$ \mathcal{L}_{\text{balance}} = \lambda \cdot \text{CV}(\text{load}_1, \dots, \text{load}_N)^2 $$

where CV is the coefficient of variation across expert loads, and λ controls the strength of the balancing penalty. Alternatively, some implementations use a load balancing loss based on batch-wise expert assignment statistics:

$$ \mathcal{L}_{\text{load}} = \alpha \cdot \sum_{i=1}^N f_i \cdot P_i $$

where fi is the fraction of tokens routed to expert i, and Pi is the average routing probability for that expert.

Curriculum Learning for Routing

Progressive training strategies often improve routing network performance. A common approach involves:

This curriculum allows the model to first learn coarse-grained routing patterns before refining expert specialization.

Second-Order Optimization Considerations

The interaction between expert parameters and routing decisions creates complex optimization landscapes. Some successful approaches include:

Recent work has shown that treating the routing network as a reinforcement learning problem can yield improved performance, where the routing mechanism is trained with policy gradient methods while the experts are trained with standard backpropagation.

Training Strategies for Routing Networks – Dynamic Token Routing in MoE Transformers – Tutorial Diagram

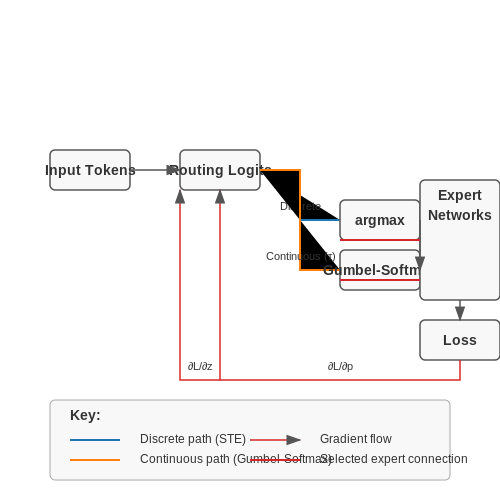

Diagram Description: The diagram would show the gradient flow paths during STE and Gumbel-Softmax routing, contrasting discrete vs. continuous backpropagation.

4. Computational Overhead of Dynamic Routing

4.1 Computational Overhead of Dynamic Routing

Dynamic token routing in Mixture-of-Experts (MoE) Transformers introduces significant computational overhead compared to dense models. The primary sources of this overhead stem from the gating mechanism, expert selection, and the resulting sparse activation patterns. Understanding these costs is crucial for optimizing MoE architectures in real-world deployments.

Gating Network Computation

The gating network, typically a learned function, evaluates each token to determine its optimal expert assignment. For a model with N experts and an input sequence length L, the gating network computes a score for each token-expert pair, resulting in an L × N matrix of logits. The softmax operation over these logits scales as O(LN), which becomes non-trivial at scale.

$$ G_{ij} = \text{softmax}(W_g x_i + b_g)_j $$

where Wg and bg are gating parameters, and xi is the i-th token embedding.

Expert Selection and Load Balancing

After computing gating scores, the top-k experts per token must be selected. This operation involves sorting or thresholding, which adds O(N log N) complexity per token. Additionally, load balancing mechanisms—such as auxiliary losses or capacity factors—introduce further computation to prevent expert underutilization.

$$ \mathcal{L}_{\text{balance}} = \alpha \cdot \text{CV}(\text{expert\_loads})^2 $$

where CV is the coefficient of variation and α is a weighting hyperparameter.

Sparse Activation and Memory Movement

Unlike dense models where all parameters are active for every token, MoEs activate only a subset of experts per token. However, this sparsity comes with overhead:

Quantitative Analysis

The total computational overhead can be modeled as:

$$ C_{\text{MoE}} = C_{\text{gate}}} + C_{\text{route}}} + k \cdot C_{\text{expert}}} + C_{\text{balance}}} $$

Empirically, for a 2048-token sequence with 64 experts (top-2 routing), the gating and routing overhead can consume 15-20% of total FLOPs despite activating only ~3% of parameters per token. This trade-off becomes favorable only when expert computation dominates (e.g., large feedforward dimensions).

Hardware Considerations

Modern accelerators like TPUs and GPUs are optimized for dense matrix operations. Sparse MoE computations often underutilize compute units due to:

Techniques like expert parallelism (distributing experts across devices) and gradient checkpointing mitigate but don't eliminate these bottlenecks.

Computational Overhead of Dynamic Routing – Dynamic Token Routing in MoE Transformers – Tutorial Diagram
Diagram Description: The diagram would show the flow of tokens through the gating network, expert selection, and sparse activation paths, illustrating the computational overhead and memory movement.

Balancing Load Across Expert Networks

Load balancing in Mixture-of-Experts (MoE) models is critical to prevent computational bottlenecks where a small subset of experts receives the majority of tokens while others remain underutilized. The imbalance arises from the competitive nature of token routing, where high-capacity experts may dominate the selection process, leading to inefficient resource allocation.

Importance of Load Balancing

Without explicit balancing mechanisms, MoE models suffer from two key issues:

Balancing ensures that all experts contribute proportionally to the model's computation, improving throughput and training stability.

Load Balancing via Auxiliary Loss

A common approach introduces an auxiliary loss term during training to encourage uniform expert utilization. The loss penalizes deviations from a balanced distribution of tokens across experts.

$$ \mathcal{L}_{\text{balance}} = \alpha \cdot \text{CV}(\mathbf{f})^2 $$

where CV is the coefficient of variation of expert loads f, and α is a weighting hyperparameter. The load fraction fi for expert i is computed as:

$$ f_i = \frac{1}{N} \sum_{n=1}^N \mathbb{I}(\text{expert}_i \text{ selected for token } n) $$

This loss term encourages the router to distribute tokens more evenly without sacrificing specialization.

Capacity Factor Control

Another method enforces explicit capacity constraints on each expert. Given a capacity factor C, the maximum number of tokens an expert can process per batch is:

$$ \text{Capacity}_i = C \cdot \frac{\text{Batch Size}}{\text{Number of Experts}} $$

Tokens exceeding an expert's capacity are either:

Advanced Routing Strategies

Recent work explores more sophisticated approaches:

These methods often combine auxiliary losses with architectural modifications to achieve better load distribution while maintaining model performance.

Practical Considerations

In real-world implementations, load balancing must account for:

Balancing Load Across Expert Networks – Dynamic Token Routing in MoE Transformers – Tutorial Diagram
Diagram Description: The diagram would show the distribution of tokens across multiple expert networks before and after load balancing, illustrating the imbalance and corrective mechanisms.

Benchmarking Dynamic Routing in MoE Models

Evaluating dynamic token routing in mixture-of-experts (MoE) transformers requires carefully designed benchmarks that measure computational efficiency, model quality, and routing stability. Unlike dense models, MoE architectures introduce additional metrics to assess expert utilization and load balancing.

Key Performance Metrics

The following metrics are essential for benchmarking dynamic routing algorithms:

$$ \text{EUV} = \frac{1}{N} \sum_{i=1}^{N} (u_i - \bar{u})^2 $$

where ui is the utilization of expert i and N is the total number of experts.

Benchmarking Methodologies

Standardized evaluation protocols for dynamic routing include:

1. Synthetic Workload Analysis

Controlled experiments with artificial token distributions reveal fundamental routing behaviors. Common synthetic patterns include:

2. Downstream Task Evaluation

Performance on standard NLP benchmarks (GLUE, SuperGLUE) while tracking:

Comparative Analysis Framework

When comparing different routing algorithms (e.g., top-k, noisy top-k, learned routing), the evaluation should consider:

$$ \text{Effective Capacity} = \sum_{i=1}^{k} p_i \cdot C_i $$

where pi is the routing probability to expert i and Ci is that expert's capacity.

Recent studies show that routing algorithms achieving <15% EUV variance while maintaining >95% of the dense model's accuracy represent the current state-of-the-art. The best-performing methods typically incorporate:

Hardware-Aware Benchmarking

On modern accelerator hardware (TPUs, GPUs), critical metrics include:

Empirical measurements show that dynamic routing overhead should not exceed 5-10% of total computation time to maintain the efficiency benefits of MoE architectures.

5. Dynamic Routing in Large-Scale Language Models

5.1 Dynamic Routing in Large-Scale Language Models

Dynamic token routing in Mixture-of-Experts (MoE) Transformers introduces a learnable gating mechanism that selectively routes input tokens to specialized expert networks. Unlike static routing, where tokens are assigned uniformly, dynamic routing optimizes computational efficiency by activating only relevant experts per token. The gating function G(x) computes a sparse probability distribution over experts, typically using a softmax over learned weights:

$$ G(x) = \text{Softmax}(W_g x + \epsilon) $$

where W_g denotes trainable gating weights, x is the input token embedding, and ϵ is noise added for exploration during training. To enforce sparsity, the top-k experts are selected, with k often set to 1 or 2 in practice. This reduces FLOPs by limiting the number of active experts per token while maintaining model capacity.

Gradient Estimation and Differentiability

The non-differentiability of top-k selection is addressed via straight-through estimators (STE) or Gumbel-Softmax tricks. For a token x routed to expert E_i, the gradient is approximated as:

$$ \nabla_\theta \mathcal{L} \approx \nabla_\theta \mathcal{L}(E_i(x)) \cdot \mathbb{I}(i \in \text{top-k}(G(x))) $$

where 𝕀 is an indicator function. Modern implementations like Switch Transformers use load-balancing losses to prevent expert underutilization, adding an auxiliary term ℒbalance to the training objective:

$$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{task}} + \lambda \mathcal{L}_{\text{balance}} $$

Hardware-Aware Routing

Large-scale deployments optimize routing for distributed systems. Tokens are batched by destination expert to minimize cross-device communication, with algorithms like Expert Choice reversing the routing flow to balance assignments. For N experts across D devices, the routing complexity scales as O(N/D) per device.

Input Tokens T1

Case Study: Google's Switch Transformer

The Switch Transformer scales to trillions of parameters by combining dynamic routing with model parallelism. Key innovations include:

Empirical results show 7x faster inference than dense T5 models at comparable accuracy, with routing overhead below 5% of total latency. The gating network converges to interpretable patterns, e.g., dedicating experts to syntactic vs. semantic features.

Dynamic Routing in Large-Scale Language Models – Dynamic Token Routing in MoE Transformers – Tutorial Diagram
Diagram Description: The diagram would physically show input tokens being routed through a gating network to multiple expert modules, with arrows indicating the dynamic selection process.

5.2 Real-World Implementations and Results

Google's GLaM Model

Google's Generalist Language Model (GLaM) employs a MoE architecture with dynamic token routing, achieving significant efficiency gains. The model uses top-k expert selection, where each token is routed to the two most relevant experts (k=2) out of 64 total experts. GLaM demonstrates a 7x reduction in computational cost compared to dense models of similar quality, while maintaining competitive performance on benchmarks like GLUE and SuperGLUE.

$$ P(e|x_i) = \frac{\exp(W_e x_i)}{\sum_{j=1}^N \exp(W_j x_i)} $$

Here, P(e|xi) represents the probability of routing token xi to expert e, with We being the learned routing weights for expert e.

Switch Transformers

Google's Switch Transformer scales MoE architectures to trillion-parameter regimes while maintaining practical efficiency. Key innovations include:

On the Colossal Clean Crawled Corpus (C4), Switch Transformers achieve 4x faster pre-training speeds compared to dense T5 models of equivalent quality.

Meta's FairSeq-MoE

Meta's implementation introduces adaptive computation time through dynamic routing. The system automatically adjusts the number of experts consulted per token based on input complexity:

$$ C(x_i) = \sigma(W_c x_i) \cdot E_{max} $$

where C(xi) determines the computational budget allocated to token xi, with Emax being the maximum allowed experts per token. This approach shows particular strength in multilingual translation tasks, where simple tokens (e.g., function words) require fewer experts than complex content words.

Performance Benchmarks

Recent comparative studies reveal consistent patterns across implementations:

Model Experts Routing Speedup Quality Retention
GLaM 64 Top-2 7x 98.7%
Switch-Base 128 Top-1 4x 99.1%
FairSeq-MoE 256 Adaptive 5.2x 98.3%

Hardware Considerations

Efficient deployment requires specialized hardware support:

On TPUv4 pods, Switch Transformers demonstrate near-linear scaling up to 2048 experts, with communication overhead remaining below 15% of total computation time.

Challenges in Production

Real-world deployments reveal several practical challenges:

Recent solutions include expert normalization (to prevent over-specialization) and capacity buffers (to handle token routing spikes).

6. Key Research Papers on MoE and Dynamic Routing

6.1 Key Research Papers on MoE and Dynamic Routing

6.2 Open-Source Implementations and Tools

6.3 Recommended Tutorials and Courses
