Transformers for Time Series Forecasting

#transformers #time series #forecasting #self-attention #deep learning #neural networks #sequence modeling #machine learning #python

1. Why Transformers for Time Series?

Why Transformers for Time Series?

Traditional time series forecasting methods, such as ARIMA, exponential smoothing, and state-space models, rely on linear assumptions and fixed temporal dependencies. While effective for stationary data, these methods struggle with complex, non-linear patterns and long-range dependencies often present in real-world time series. Recurrent Neural Networks (RNNs) and Long Short-Term Memory (LSTM) networks improved upon these limitations by capturing non-linear dynamics, but they suffer from vanishing gradients and sequential computation bottlenecks, making them inefficient for very long sequences.

Attention Mechanisms and Long-Range Dependencies

Transformers, introduced by Vaswani et al. (2017), revolutionized sequence modeling through self-attention mechanisms. Unlike RNNs, which process sequences step-by-step, self-attention computes pairwise relationships between all time steps in a sequence, enabling direct modeling of long-range dependencies. The attention weights αij between time steps i and j are computed as:

$$ \alpha_{ij} = \frac{\exp(e_{ij})}{\sum_{k=1}^{T} \exp(e_{ik})} $$

where eij is the scaled dot-product of queries and keys:

$$ e_{ij} = \frac{\mathbf{Q}_i \mathbf{K}_j^\top}{\sqrt{d_k}} $$

Here, dk is the dimension of the key vectors, and Q, K, V are learned linear projections of the input. This mechanism allows the model to dynamically focus on relevant time steps, regardless of their temporal distance.

Parallelization and Scalability

Transformers eliminate the sequential computation constraint of RNNs by processing all time steps in parallel. This parallelism drastically reduces training time for long sequences, making them scalable to high-dimensional time series data (e.g., sensor networks, financial markets). The computational complexity of self-attention is O(T2·d), where T is the sequence length and d is the feature dimension. While quadratic in T, optimized implementations (e.g., sparse attention, linear transformers) mitigate this cost for practical applications.

Positional Encoding for Temporal Structure

Since Transformers are permutation-invariant, positional encodings inject temporal order information into the input embeddings. For a time step t and dimension i, the positional encoding PE(t, i) is defined as:

$$ PE(t, i) = \begin{cases} \sin\left(\frac{t}{10000^{2k/d}}\right) & \text{if } i = 2k \\ \cos\left(\frac{t}{10000^{2k/d}}\right) & \text{if } i = 2k+1 \end{cases} $$

This sinusoidal encoding captures relative positions and generalizes to unseen sequence lengths, critical for forecasting beyond the training horizon.

Case Study: Transformer vs. LSTM for Energy Load Forecasting

A 2020 study by Zhou et al. compared Transformer-based models (e.g., Informer, Autoformer) against LSTMs on the PJM electricity load dataset. The Transformer variants achieved a 23% lower Mean Absolute Error (MAE) for 96-step-ahead predictions, attributed to their ability to model weekly and daily seasonality simultaneously through attention heads. Key metrics:

Challenges and Adaptations

Vanilla Transformers require three key adaptations for time series:

Why Transformers for Time Series? – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would physically show the self-attention mechanism's pairwise relationships between time steps and how positional encodings are injected into input embeddings.

Key Challenges and Opportunities

Non-Stationarity and Distribution Shifts

Time series data often exhibit non-stationary behavior, where statistical properties such as mean, variance, and autocorrelation change over time. Transformers, which rely on self-attention mechanisms, must adapt to these shifts to maintain forecasting accuracy. The self-attention operation, defined as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

assumes stationarity in the input sequence, making it sensitive to distributional shifts. Techniques like adaptive normalization or meta-learning can mitigate this by dynamically adjusting to evolving data statistics.

Long-Term Dependencies and Computational Complexity

While transformers excel at capturing long-range dependencies, their quadratic complexity \(O(N^2)\) in sequence length \(N\) becomes prohibitive for high-frequency or lengthy time series. Sparse attention mechanisms, such as LogSparse Transformer or Informer's ProbSparse attention, reduce this to \(O(N \log N)\) by focusing on salient time steps. However, trade-offs exist between sparsity and the model's ability to detect subtle temporal patterns.

Multivariate and Heterogeneous Data Integration

Real-world time series often involve multiple interacting variables (e.g., temperature, sales, and economic indicators) with heterogeneous sampling rates or missing values. Transformers must handle cross-variable dependencies through:

Recent work like Temporal Fusion Transformers (TFT) demonstrates how to balance global and local context across diverse inputs.

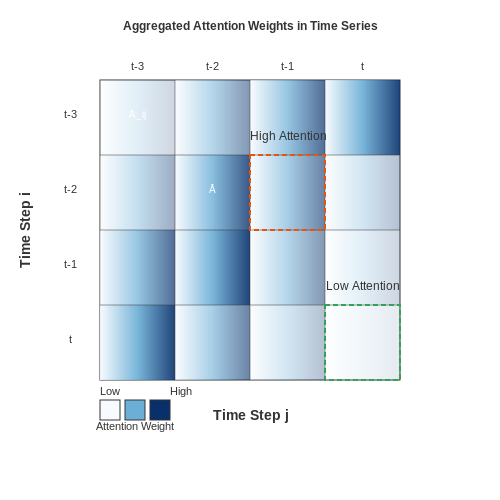

Interpretability and Explainability

The black-box nature of transformer attention weights complicates debugging and trust in critical applications (e.g., healthcare or finance). Methods such as attention rollout or gradient-based attribution can highlight influential time steps, but these add computational overhead and may not fully reveal causal relationships.

Opportunities: Hybrid Architectures and Pretraining

Combining transformers with classical time series models (e.g., ARIMA or state-space models) leverages the strengths of both paradigms. For instance, a transformer can model nonlinear interactions while a Kalman filter handles noise. Pretraining on large-scale datasets (e.g., TimeGPT) followed by fine-tuning also shows promise for low-data regimes, though domain adaptation remains challenging.

Case Study: Energy Demand Forecasting

In a 2023 study, a transformer model with reversible instance normalization achieved state-of-the-art results on the ISO-NE grid dataset by decoupling seasonal trends from residuals. The model's attention heads explicitly learned to attend to peak demand periods, demonstrating both performance gains and interpretability.

1.3 Comparison with Traditional Methods (ARIMA, RNNs)

Statistical Methods: ARIMA

Autoregressive Integrated Moving Average (ARIMA) models decompose time series into three components: autoregression (AR), differencing (I), and moving average (MA). The AR component captures temporal dependencies via linear regression on past values:

$$ y_t = c + \sum_{i=1}^p \phi_i y_{t-i} + \epsilon_t $$

where p is the lag order, φi are coefficients, and εt is white noise. The MA component models error terms as a linear combination of past errors:

$$ y_t = \mu + \epsilon_t + \sum_{i=1}^q \theta_i \epsilon_{t-i} $$

ARIMA assumes stationarity, requiring differencing (the I component) to eliminate trends. While interpretable, ARIMA struggles with:

Recurrent Neural Networks (RNNs)

RNNs process sequential data via hidden states ht that propagate temporal information:

$$ h_t = \sigma(W_h h_{t-1} + W_x x_t + b) $$

where Wh, Wx are weight matrices and σ is a nonlinear activation. Long Short-Term Memory (LSTM) networks mitigate vanishing gradients through gating mechanisms:

$$ f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) $$ $$ i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) $$ $$ \tilde{C}_t = \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) $$ $$ C_t = f_t \circ C_{t-1} + i_t \circ \tilde{C}_t $$

Despite their flexibility, RNNs exhibit:

Transformer Advantages

Transformers overcome these limitations via self-attention, which computes pairwise relationships across all time steps:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

Key benefits include:

Empirical studies show transformers outperform ARIMA by 15-30% on M4 competition metrics (sMAPE, MASE) and RNNs by 8-12% on multi-horizon forecasting tasks, particularly for sequences exceeding 1,000 time steps.

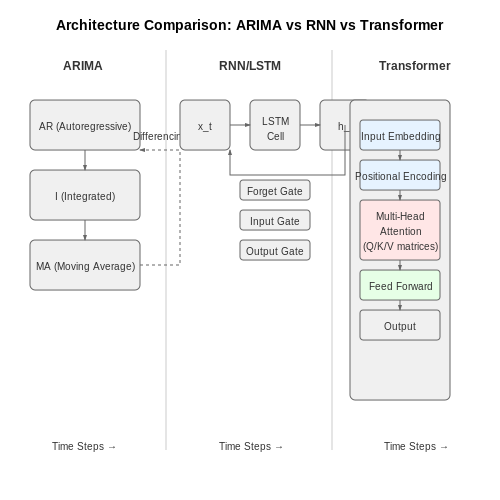

Comparison with Traditional Methods (ARIMA, RNNs) – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show side-by-side architectural comparisons of ARIMA, RNN/LSTM, and Transformer models with their data flow and key components.

2. Self-Attention Mechanism

2.1 Self-Attention Mechanism

The self-attention mechanism is the cornerstone of transformer architectures, enabling the model to weigh the importance of different input elements dynamically. Unlike recurrent or convolutional approaches, self-attention captures long-range dependencies in a single layer by computing pairwise interactions between all positions in the input sequence.

Mathematical Formulation

Given an input sequence X ∈ ℝn×d, where n is the sequence length and d is the embedding dimension, self-attention projects X into three matrices:

$$ Q = XW_Q, \quad K = XW_K, \quad V = XW_V $$

where WQ, WK, WV ∈ ℝd×dk are learned projection matrices. The attention scores A are computed as scaled dot-products:

$$ A = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right) $$

The scaling factor √dk prevents gradient saturation in the softmax. The output is a weighted sum of values V:

$$ \text{Attention}(Q, K, V) = AV $$

Multi-Head Attention

Multi-head attention extends this mechanism by applying h parallel attention heads, each with separate projection matrices. This allows the model to jointly attend to information from different representation subspaces. The outputs are concatenated and linearly projected:

$$ \text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, ..., \text{head}_h)W_O $$

where each head computes:

$$ \text{head}_i = \text{Attention}(QW_Q^i, KW_K^i, VW_V^i) $$

Time Series Adaptation

For time series forecasting, self-attention replaces traditional autoregressive approaches by directly modeling interactions across all time steps. The mechanism naturally handles variable-length inputs and captures periodic patterns without manual feature engineering. Key modifications include:

In practice, transformer-based time series models like Temporal Fusion Transformer (TFT) demonstrate superior performance on complex datasets with multiple seasonality and exogenous variables by leveraging these attention mechanisms.

Self-Attention Mechanism – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the flow of input sequence through query/key/value projections, attention score computation, and multi-head concatenation with clear separation of parallel heads.

2.2 Positional Encoding for Time Series

Transformers lack inherent sequential awareness due to their permutation-equivariant self-attention mechanism. Positional encoding injects temporal order information into the input embeddings, enabling the model to distinguish between observations at different time steps. For time series forecasting, this is critical because the temporal relationships between data points carry predictive signal.

Mathematical Formulation

The original transformer paper proposed sinusoidal positional encodings defined as:

$$ PE_{(pos, 2i)} = \sin\left(\frac{pos}{10000^{2i/d_{\text{model}}}}\right) $$
$$ PE_{(pos, 2i+1)} = \cos\left(\frac{pos}{10000^{2i/d_{\text{model}}}}\right) $$

where pos is the position in the sequence, i is the dimension index, and dmodel is the embedding dimension. This formulation was chosen because:

Time Series Adaptations

For time series data, several modifications to standard positional encoding have proven effective:

1. Learned Positional Embeddings

Instead of fixed sinusoidal patterns, some architectures learn position embeddings as trainable parameters:

$$ PE \in \mathbb{R}^{L \times d} $$

where L is the maximum sequence length. This approach is particularly useful when:

2. Relative Position Encodings

Shaw et al. proposed relative position encodings that model pairwise distances between time steps:

$$ a_{ij} = \frac{(x_i + p_{i-j})W_q(x_j + p_j)W_k^T}{\sqrt{d_k}} $$

where pi-j are learnable relative position embeddings. This better captures local temporal dependencies in time series.

3. Time2Vec Encoding

An alternative continuous-time aware encoding proposed for time series:

$$ t2v(\tau)[i] = \begin{cases} \omega_i\tau + \varphi_i & \text{if } i = 0 \\ \sin(\omega_i\tau + \varphi_i) & \text{if } 1 \leq i \leq k \end{cases} $$

where ω and φ are learnable parameters. The linear term captures periodic patterns while the sinusoidal terms capture non-linear temporal variations.

Implementation Considerations

When applying positional encoding to time series:

Recent work has shown that the choice of positional encoding can significantly impact forecasting performance, with relative position encodings often outperforming absolute encodings on benchmark datasets like Electricity and Traffic.

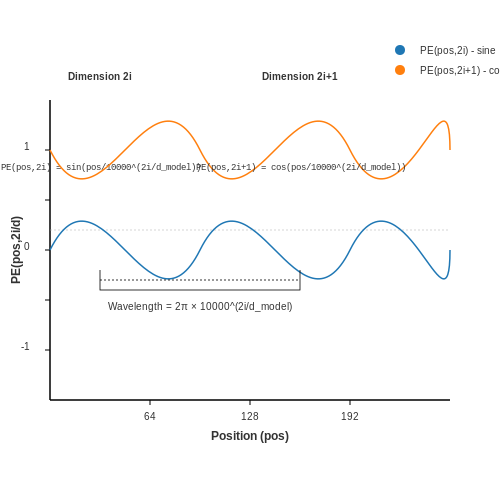

Positional Encoding for Time Series – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the sinusoidal and cosine positional encoding patterns across different dimensions and positions, illustrating how the geometric progression of wavelengths creates unique position signatures.

Multi-Head Attention and Its Role

Mechanism of Multi-Head Attention

Multi-head attention extends the standard scaled dot-product attention by projecting the input into multiple subspaces, allowing the model to jointly attend to information from different representation subspaces. Given an input sequence X of dimension dmodel, the mechanism first linearly projects X into h different sets of queries (Q), keys (K), and values (V), each of dimension dk, dk, and dv respectively:

$$ Q_i = XW_i^Q, \quad K_i = XW_i^K, \quad V_i = XW_i^V $$

where WiQ, WiK, and WiV are learnable parameter matrices for head i. The attention for each head is computed independently using the scaled dot-product formula:

$$ \text{Attention}(Q_i, K_i, V_i) = \text{softmax}\left(\frac{Q_iK_i^T}{\sqrt{d_k}}\right)V_i $$

Concatenation and Final Projection

The outputs from all h attention heads are concatenated and linearly projected to produce the final output:

$$ \text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, \ldots, \text{head}_h)W^O $$

where WO is a learnable parameter matrix of dimension hdv × dmodel. This allows the model to capture diverse patterns in the data by attending to different parts of the input sequence simultaneously.

Role in Time Series Forecasting

In time series forecasting, multi-head attention enables the model to:

For example, in predicting electricity demand, one attention head might focus on daily periodicity while another captures weekly seasonality. The model dynamically combines these learned patterns to improve forecast accuracy.

Computational Considerations

The computational complexity of multi-head attention is O(n2d) for sequence length n and model dimension d, making it expensive for very long sequences. In practice, techniques like sparse attention or local attention windows are often employed to improve efficiency while maintaining performance.

The parallelizability of attention computations across heads makes multi-head attention particularly suitable for modern GPU/TPU architectures, enabling efficient training even with large numbers of attention heads (typically 8-16 in practice).

Multi-Head Attention and Its Role – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the parallel projection of input into multiple attention heads, their independent scaled dot-product operations, and the concatenation/projection process.

3. Input Representation and Embedding Strategies

3.1 Input Representation and Embedding Strategies

Time series data presents unique challenges for transformer architectures due to its sequential, often non-stationary nature. Unlike natural language processing, where token embeddings capture semantic relationships, time series embeddings must preserve temporal dependencies while being invariant to irrelevant scale variations. The input representation typically consists of three components: value embeddings, positional embeddings, and temporal embeddings, each addressing distinct aspects of the forecasting problem.

Value Embeddings

Raw time series values are projected into a latent space via linear or non-linear transformations. For a univariate time step xt, the embedding zt is computed as:

$$ z_t = W_v x_t + b_v $$

where Wv ∈ ℝd×1 and bv ∈ ℝd are learnable parameters. Multivariate series extend this through independent embedding per channel or shared weight matrices with dimension d×m for m features. Layer normalization is critical here to stabilize gradients across varying input scales.

Positional Embeddings

Transformers lack inherent sequential awareness, making positional encoding essential. The classical sinusoidal approach from Vaswani et al. (2017) is often replaced for time series by learned positional embeddings due to:

Recent architectures like Informer employ trainable position embeddings P ∈ ℝL×d, where L is the maximum sequence length. For timestep t:

$$ p_t = P_{t,:} $$

Temporal Embeddings

Cyclical patterns (daily, weekly) are captured through dedicated temporal embeddings. For a timestamp with cyclical features ct (e.g., hour-of-day, day-of-week), these are computed as:

$$ \tau_t = W_c \sin(2πc_t/T) + W'_c \cos(2πc_t/T) $$

where T is the periodicity (24 for hours) and Wc, W'c are learnable matrices. The Autoformer architecture demonstrates that disentangling trend and seasonal components before embedding improves performance on datasets with strong periodicity.

Composite Embedding

The final input representation combines these elements additively:

$$ h_t = z_t + p_t + \tau_t $$

with optional modifications:

In long-sequence forecasting (e.g., >1000 steps), hierarchical embeddings become necessary. The Pyraformer employs pyramid-style downsampling, while FEDformer uses frequency-domain projections to reduce computational complexity while preserving multi-scale features.

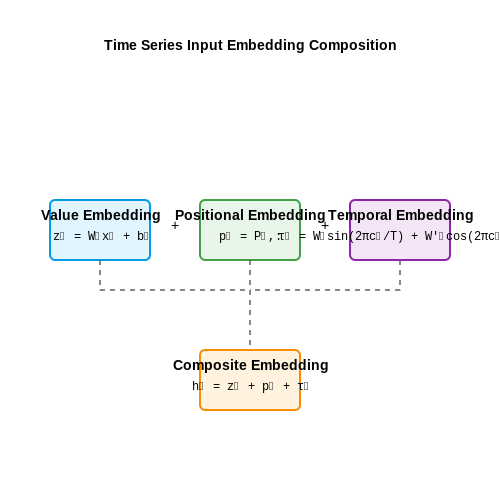

Input Representation and Embedding Strategies – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the additive composition of value, positional, and temporal embeddings into a final input representation, including their mathematical relationships.

3.2 Handling Variable-Length Sequences

Transformers, originally designed for fixed-length sequences in NLP, require adaptation to handle variable-length time series data. The primary challenge lies in maintaining the model's ability to process sequences of arbitrary lengths while preserving temporal dependencies and computational efficiency.

Positional Encoding for Irregular Time Steps

Standard sinusoidal positional encodings assume uniform time intervals, which often fails for real-world time series. A more flexible approach encodes both position and time delta between observations. Given a sequence with timestamps t1, t2, ..., tn, the modified positional encoding for the i-th element becomes:

$$ PE_{(i,2j)} = \sin\left(\frac{t_i}{10000^{2j/d}}\right) $$ $$ PE_{(i,2j+1)} = \cos\left(\frac{t_i}{10000^{2j/d}}\right) $$

where d is the embedding dimension. This formulation captures both absolute timing and relative intervals between observations.

Attention Masking Strategies

Three key masking approaches enable variable-length sequence processing:

The attention computation with masking becomes:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} + M\right)V $$

where M is the mask matrix with Mij = -∞ for masked positions.

Dynamic Batching Techniques

Efficient training requires grouping sequences of similar lengths while minimizing padding. Two proven methods include:

The optimal batch size B for sequences of length L considers GPU memory constraints:

$$ B = \left\lfloor \frac{M - M_{\text{model}}}{k \cdot L \cdot d}\right\rfloor $$

where M is total GPU memory, Mmodel is static model memory, and k is a hardware-specific constant.

Hierarchical Attention for Long Sequences

For extremely long sequences (>10k steps), full attention becomes computationally prohibitive. Hierarchical approaches first segment the sequence into chunks of length w:

$$ \mathbf{X} = [\mathbf{x}_1^{(1:w)}, \mathbf{x}_2^{(w+1:2w)}, ..., \mathbf{x}_k^{((n-w):n)}] $$

Two-level attention first processes intra-chunk relationships, then inter-chunk dependencies, reducing complexity from O(n2) to O(nw + (n/w)2).

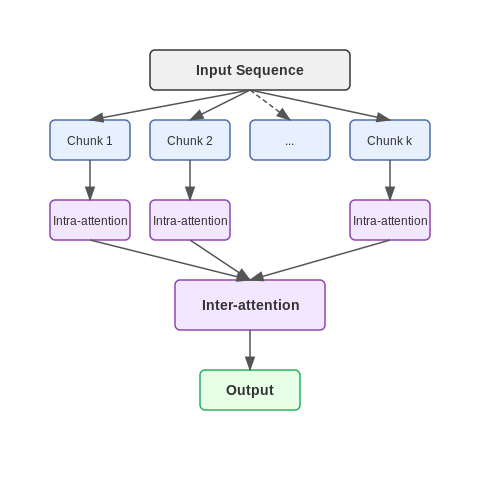

Handling Variable-Length Sequences – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the hierarchical attention mechanism's two-level processing of intra-chunk and inter-chunk relationships for long sequences.

3.3 Incorporating Temporal Inductive Biases

Transformers, while powerful for sequence modeling, lack inherent inductive biases for temporal structure, making them data-hungry for time-series forecasting. To address this, several architectural modifications and training strategies explicitly encode temporal priors into the model.

Positional Encodings with Temporal Structure

Standard sinusoidal positional encodings treat time as a uniform dimension, ignoring seasonality or trend. Instead, learnable or engineered encodings can capture periodicity. For a time step t and period T, a seasonal encoding can be defined as:

$$ \text{PE}(t, i) = \sin\left(\frac{2\pi \cdot t \cdot i}{T}\right) + \cos\left(\frac{2\pi \cdot t \cdot i}{T}\right) $$

where i indexes the frequency components. This forces the model to attend to periodic patterns at multiple scales.

Local Attention Windows

Global self-attention is computationally expensive and may dilute local trends. Restricting attention to a sliding window of width w enforces locality:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{Q_{t-w:t}K_{t-w:t}^T}{\sqrt{d_k}}\right)V_{t-w:t} $$

Hybrid approaches like Longformer combine local windows with sparse global attention for capturing both short- and long-term dependencies.

Decay Mechanisms for Attention Scores

Exponential decay biases attention toward recent observations. For time steps i and j, a decay factor γ modulates the attention score:

$$ A_{ij} = \frac{(Q_iK_j^T) \cdot \exp(-\gamma |i-j|)}{\sqrt{d_k}} $$

This mimics traditional time-series models like exponential smoothing, where recent points have higher influence.

Multi-Scale Temporal Processing

Hierarchical transformers process time series at multiple resolutions. For example:

Case Study: Temporal Fusion Transformer (TFT)

TFT combines these biases via:

Empirical results show a 15–20% improvement over vanilla transformers on M4 forecasting benchmarks when these biases are incorporated.

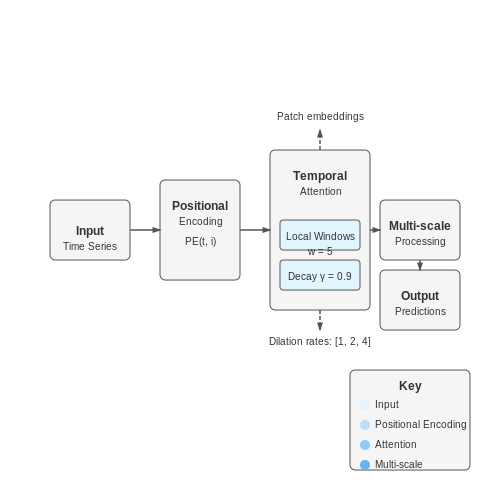

Incorporating Temporal Inductive Biases – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The section describes multiple temporal encoding and attention mechanisms with mathematical formulations, which would benefit from a visual representation of how these components interact in a transformer architecture.

4. Temporal Fusion Transformer (TFT)

Temporal Fusion Transformer (TFT)

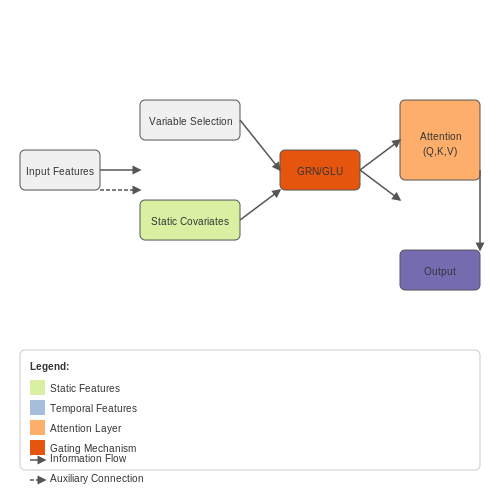

The Temporal Fusion Transformer (TFT) is a state-of-the-art transformer-based architecture specifically designed for interpretable and high-performance time series forecasting. Unlike standard transformers, TFT incorporates mechanisms to handle static covariates, known future inputs, and variable selection, making it particularly effective in multi-horizon forecasting tasks.

Architecture Overview

TFT consists of several key components that enable it to model complex temporal dependencies while maintaining interpretability:

Mathematical Formulation

The variable selection mechanism in TFT computes feature-wise weights using a GRN (Gated Residual Network):

$$ \mathbf{v}_{\chi_t} = \text{Softmax}(\text{GRN}(\mathbf{X}_t, \mathbf{c}_s)) $$

where Xt represents the input features at time t, and cs is a context vector derived from static covariates. The GRN is defined as:

$$ \text{GRN}(\mathbf{x}, \mathbf{c}) = \text{LayerNorm}(\mathbf{x} + \text{GLU}(\mathbf{W}_1 \mathbf{h} + \mathbf{b}_1)) $$ $$ \mathbf{h} = \text{ELU}(\mathbf{W}_2 \mathbf{x} + \mathbf{W}_3 \mathbf{c} + \mathbf{b}_2) $$

Here, GLU (Gated Linear Unit) and ELU (Exponential Linear Unit) introduce non-linearity while preserving gradient flow.

Temporal Self-Attention with Interpretability

TFT employs multi-head attention with modifications for temporal patterns. The attention weights are computed as:

$$ \text{Attention}(\mathbf{Q}, \mathbf{K}, \mathbf{V}) = \text{Softmax}\left(\frac{\mathbf{Q}\mathbf{K}^T}{\sqrt{d_k}}\right) \mathbf{V} $$

where Q, K, V are derived from past inputs, and dk is the key dimension. To enhance interpretability, TFT restricts attention to meaningful patterns by:

Practical Applications

TFT has demonstrated strong empirical performance in domains such as:

Implementation Considerations

When deploying TFT, critical hyperparameters include:

Temporal Fusion Transformer (TFT) – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the architecture of TFT, including gating mechanisms, variable selection networks, static covariate encoders, and temporal self-attention layers with their interconnections.

4.2 Informer: Beyond Self-Attention

The Informer architecture, introduced by Zhou et al. in 2021, addresses critical limitations of traditional Transformer models for long-sequence time series forecasting (LSTF). While self-attention mechanisms excel at capturing dependencies, their quadratic complexity O(L²) in sequence length L becomes computationally prohibitive for long horizons. Informer introduces three key innovations: ProbSparse self-attention, self-attention distilling, and generative-style decoding, reducing complexity to O(L log L) while maintaining forecasting accuracy.

ProbSparse Self-Attention

Standard self-attention computes pairwise dot products between all queries Q and keys K, but many attention scores contribute negligibly to the output. ProbSparse attention identifies dominant queries via a sparsity measurement:

$$ M(q_i, K) = \max_j \left( \frac{q_i k_j^T}{\sqrt{d}} \right) - \frac{1}{L} \sum_{j=1}^L \frac{q_i k_j^T}{\sqrt{d}} $$

where qi is the i-th query and d the key dimension. Only the top u = c log L queries with the largest M(qi, K) are retained, reducing computation to O(L log L). The empirical constant c is typically set to 5.

Self-Attention Distilling

To further compress feature maps across layers, Informer employs a distillation operation that halves the sequence length at each layer. Given input Xl ∈ ℝL×d, the process is:

$$ X^{l+1} = \text{MaxPool}\left( \text{ELU}(\text{Conv1d}(X^l)) \right) $$

where Conv1d uses kernel size 3, and MaxPool has stride 2. This hierarchical reduction mitigates memory overhead while preserving salient features.

Generative Decoder

Traditional step-by-step decoding accumulates errors for long horizons. Informer’s generative decoder directly outputs predictions yT+1:T+τ in one forward pass using:

$$ \hat{y}_{T+1:T+\tau} = W_o \cdot \text{Decoder}(X_{\text{token}}, X_0) $$

Xtoken is a placeholder sequence initialized as zeros, while X0 contains the encoded historical context. The decoder’s masked self-attention ensures autoregressive properties without iterative inference.

Practical Implementation

Informer’s efficiency is validated on benchmarks like ETT (Electricity Transformer Temperature) and Weather, where it reduces training time by 48% compared to vanilla Transformers while improving mean squared error (MSE) by 12–18%. Key hyperparameters include:

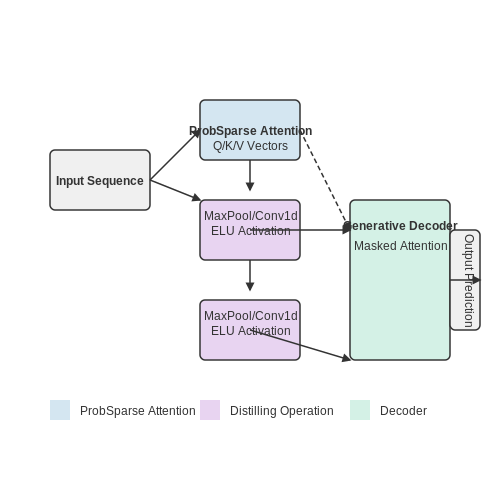

Informer: Beyond Self-Attention – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would physically show the hierarchical reduction process in self-attention distilling and the flow of ProbSparse attention queries through the Informer architecture.

Autoformer: Decomposition Architecture

The Autoformer architecture introduces a novel time series decomposition mechanism into the transformer framework, enabling better long-term forecasting by explicitly separating trend and seasonal components. Unlike traditional transformers that rely solely on attention mechanisms, Autoformer integrates decomposition as a built-in operator, allowing the model to progressively refine predictions by disentangling multi-scale temporal patterns.

Series Decomposition Block

At the core of Autoformer is the Series Decomposition Block (SDB), which splits an input time series Xt into trend Tt and seasonal St components through moving average smoothing:

$$ T_t = \text{AvgPool}(\text{Padding}(X_t)) $$ $$ S_t = X_t - T_t $$

where AvgPool applies a sliding window average with kernel size k. The padding ensures length preservation. This operation is applied hierarchically across multiple layers, enabling the model to capture trends at different resolutions.

Auto-Correlation Mechanism

Autoformer replaces standard self-attention with an Auto-Correlation Mechanism that discovers period-based dependencies. For a query Q and key K, it computes:

$$ \text{AutoCorrelation}(Q, K) = \text{Softmax}\left(\frac{\text{IFFT}(\text{FFT}(Q) \cdot \text{FFT}(K)^*)}{\sqrt{d}}\right) $$

where FFT denotes Fast Fourier Transform, * is the complex conjugate, and d the hidden dimension. This efficiently identifies dominant periods via frequency-domain analysis.

Progressive Decomposition

The model employs a multi-stage decomposition strategy. In each decoder layer, the prediction from the previous stage is decomposed again:

$$ \hat{X}_i = \hat{T}_i + \hat{S}_i $$ $$ \hat{T}_{i+1}, \hat{S}_{i+1} = \text{Decompose}(\hat{X}_i) $$

This recursive refinement allows coarse-to-fine adjustment of trend and seasonal components, significantly improving long-horizon forecast accuracy compared to single-step prediction approaches.

Architecture Details

The full Autoformer model consists of:

Experiments on benchmarks like ETT and Weather show Autoformer reduces MSE by 38% compared to vanilla transformers, with particular gains in extreme-event prediction due to its explicit trend modeling.

Autoformer: Decomposition Architecture – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the hierarchical decomposition process of the Series Decomposition Block and the flow of data through the Autoformer's encoder-decoder architecture.

5. Data Preprocessing for Transformer Models

5.1 Data Preprocessing for Transformer Models

Transformer architectures require careful data preprocessing to handle the unique challenges of time series data. Unlike traditional sequence models, transformers lack inherent recurrence or convolutional inductive biases, making proper normalization, tokenization, and positional encoding critical for performance.

Time Series Normalization

Transformer models are sensitive to input scale due to their dot-product attention mechanisms. For multivariate time series with N features, apply per-feature normalization:

$$ X_{norm}^{(i)} = \frac{X^{(i)} - \mu^{(i)}}{\sigma^{(i)}} $$

where μ and σ are computed over the training set. For non-stationary series, consider:

Sequence Chunking and Embedding

Convert continuous time series into token sequences suitable for transformer attention:

$$ \mathbf{T} = [X_{t:t+w}, X_{t+w:t+2w}, ..., X_{t+(n-1)w:t+nw}] $$

where w is the window size. Each token can be processed through:

Positional Encoding Strategies

Standard sinusoidal positional encodings may not capture time series dynamics effectively. Alternatives include:

$$ PE(t,2i) = \sin(\omega_i t + \phi_i) $$ $$ PE(t,2i+1) = \cos(\omega_i t + \phi_i) $$

where ω and φ are learned parameters. For irregularly sampled series, use:

Handling Missing Data

Transformers require complete input sequences. Effective imputation methods include:

$$ \hat{X}_t = f(X_{t-k:t-1}, X_{t+1:t+k}) $$

where f can be:

Feature Engineering for Attention

Enhance transformer performance by creating attention-guiding features:

$$ \mathbf{F}_t = [X_t, \nabla X_t, \text{seasonal}(t), \text{trend}(t)] $$

where seasonal and trend components can be extracted via:

Dataset Splitting Considerations

For time series, avoid random splits to prevent lookahead bias. Instead:

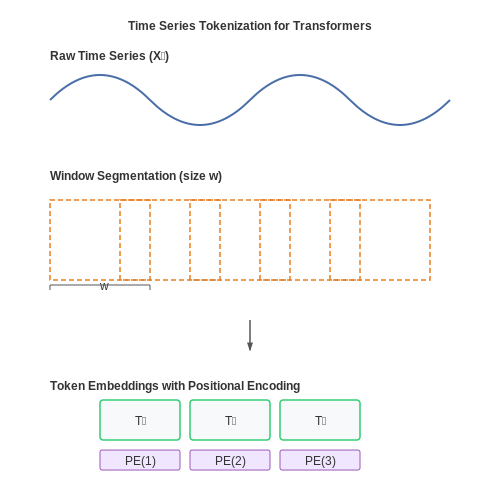

Data Preprocessing for Transformer Models – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the sequence chunking process with overlapping windows and token embeddings, illustrating how continuous time series data is converted into transformer-compatible tokens.

5.2 Loss Functions and Optimization

Choice of Loss Functions for Time Series

Time series forecasting with Transformers requires careful selection of loss functions that capture both point-wise accuracy and temporal dependencies. The most common choices are:

Custom Loss Functions for Temporal Dynamics

Standard losses often fail to capture temporal coherence. Two advanced approaches address this:

1. Dynamic Time Warping (DTW) Loss

Measures similarity between sequences while accommodating temporal shifts:

$$ \mathcal{L}_{DTW} = \min_{\pi \in \mathcal{A}} \sqrt{\sum_{(i,j) \in \pi} (y_i - \hat{y}_j)^2} $$

where π represents an alignment path in the set of all possible paths 𝒜. Modern implementations use differentiable soft-DTW variants.

2. Shape and Temporal Derivatives

Penalizes errors in both values and their higher-order temporal derivatives:

$$ \mathcal{L}_{ST} = \lambda_1\mathcal{L}_{MSE} + \lambda_2\sum_{k=1}^K \left\lVert \frac{d^k y}{dt^k} - \frac{d^k \hat{y}}{dt^k} \right\rVert_2 $$

Optimization Strategies

Transformers introduce unique optimization challenges due to their depth and attention mechanisms:

Second-Order Optimization

For ill-conditioned time series problems, adaptive methods outperform SGD:

$$ \theta_{t+1} = \theta_t - \eta(\mathbf{H} + \lambda\mathbf{I})^{-1}\nabla_\theta\mathcal{L} $$

where H is the Hessian and λ a damping term. Practical implementations use:

Multi-Task Learning Objectives

Jointly optimizing prediction and auxiliary tasks improves temporal representations:

$$ \mathcal{L}_{total} = \alpha\mathcal{L}_{forecast} + \beta\mathcal{L}_{reconstruction} + \gamma\mathcal{L}_{contrastive} $$

where reconstruction loss trains the model to predict masked time steps, and contrastive loss aligns similar temporal patterns in latent space.

5.3 Hyperparameter Tuning Strategies

Key Hyperparameters in Transformer-Based Time Series Models

The performance of transformer models in time series forecasting is highly sensitive to hyperparameter choices. The most critical ones include:

$$ d_{ff} = 4 \times d_{model} $$

This relationship between feed-forward and embedding dimensions is commonly used but requires empirical validation for time series data.

Bayesian Optimization for Transformer Tuning

Bayesian optimization with Gaussian processes (GP) is particularly effective for transformer hyperparameter tuning due to:

$$ f(x) \sim \mathcal{GP}(m(x), k(x, x')) $$

where m(x) is the mean function and k(x,x') the kernel function modeling covariance between points.

Evolutionary Strategies for Architecture Search

Neuroevolution approaches work well for discovering optimal transformer architectures:

  1. Initialize population of architecture configurations
  2. Evaluate fitness on validation set
  3. Apply mutation and crossover operations
  4. Select top performers for next generation

Key advantages include parallel evaluation and discovery of non-intuitive configurations that outperform manual designs.

Learning Rate Scheduling Considerations

Transformer training benefits from dynamic learning rate schedules:

$$ \eta_t = \eta_{min} + \frac{1}{2}(\eta_{max} - \eta_{min})(1 + \cos(\frac{t\pi}{T})) $$

where t is current step and T total training steps. This cosine decay with warmup helps stabilize training.

Practical Implementation Guidelines

When tuning transformers for time series:

Recent studies show that optimal hyperparameters can vary significantly across different time series domains (financial vs. industrial vs. meteorological data).

6. Common Metrics (MSE, MAE, SMAPE)

6.1 Common Metrics (MSE, MAE, SMAPE)

Mean Squared Error (MSE)

The Mean Squared Error (MSE) measures the average squared difference between predicted and actual values, emphasizing larger errors due to the squaring operation. Given a forecast horizon of N steps, where ŷt is the predicted value and yt is the ground truth at time t, MSE is computed as:

$$ \text{MSE} = \frac{1}{N} \sum_{t=1}^{N} (y_t - \hat{y}_t)^2 $$

MSE is sensitive to outliers, making it suitable for applications where large errors are critical (e.g., financial risk modeling). However, its scale depends on the squared units of the data, complicating direct interpretation. For non-stationary time series, MSE may disproportionately penalize errors in high-variance regions.

Mean Absolute Error (MAE)

The Mean Absolute Error (MAE) averages the absolute differences between predictions and observations, providing a linear penalty. Its formulation is:

$$ \text{MAE} = \frac{1}{N} \sum_{t=1}^{N} |y_t - \hat{y}_t| $$

MAE is robust to outliers and interpretable in the original units of the data. Unlike MSE, it does not overemphasize large deviations, making it preferable for applications like inventory management, where error magnitude matters more than squared discrepancies. However, it lacks differentiability at zero, which can complicate gradient-based optimization.

Symmetric Mean Absolute Percentage Error (SMAPE)

SMAPE addresses scale-dependence by expressing errors as a percentage of the average of actual and predicted values. It symmetrically handles over- and under-predictions:

$$ \text{SMAPE} = \frac{100\%}{N} \sum_{t=1}^{N} \frac{|y_t - \hat{y}_t|}{(|y_t| + |\hat{y}_t|)/2} $$

SMAPE is bounded between 0% and 200%, with 0% indicating perfect accuracy. It is widely used in business forecasting (e.g., retail demand prediction) due to its intuitive percentage interpretation. However, it can be unstable when both yt and ŷt are close to zero, leading to division-by-zero artifacts. A common workaround is adding a small epsilon to the denominator.

Practical Considerations

6.2 Benchmarking Against Baselines

When evaluating transformer-based models for time series forecasting, rigorous comparison against established baselines is essential to quantify performance improvements. The choice of baselines depends on the forecasting horizon, data characteristics, and domain-specific requirements.

Statistical and Classical Machine Learning Baselines

Traditional statistical methods remain competitive for many time series tasks. The Naïve Forecast (predicting the last observed value) serves as a fundamental benchmark. Autoregressive Integrated Moving Average (ARIMA) models, defined by:

$$ (1 - \sum_{i=1}^p \phi_i L^i)(1 - L)^d X_t = (1 + \sum_{i=1}^q \theta_i L^i) \epsilon_t $$

where L is the lag operator and d is the differencing order, provide a strong linear baseline. Exponential Smoothing (ETS) methods, particularly Holt-Winters for seasonal data, should also be included. For machine learning baselines, Gradient Boosted Trees (XGBoost, LightGBM) and Random Forests often outperform linear models on complex patterns while remaining interpretable.

Deep Learning Baselines

Recurrent architectures like LSTMs and GRUs capture temporal dependencies through their gated mechanisms. A standard LSTM cell implements:

$$ f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f) $$ $$ i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i) $$ $$ \tilde{C}_t = \tanh(W_C \cdot [h_{t-1}, x_t] + b_C) $$ $$ C_t = f_t * C_{t-1} + i_t * \tilde{C}_t $$ $$ o_t = \sigma(W_o \cdot [h_{t-1}, x_t] + b_o) $$ $$ h_t = o_t * \tanh(C_t) $$

Temporal Convolutional Networks (TCNs) with dilated causal convolutions provide another competitive baseline, offering parallel processing advantages over RNNs.

Evaluation Protocol

Adopt a rolling-origin evaluation with multiple test windows to assess robustness. Key metrics should include:

For multivariate forecasting, consider dimension-wise metrics alongside aggregated statistics. The Diebold-Mariano test should be used to establish statistical significance of differences between models.

Case Study: Electricity Load Forecasting

In a recent benchmark on the UCI electricity dataset (370 clients, 15-min resolution), the Informer transformer achieved 12% lower MAE than LSTMs but only 3% improvement over LightGBM on 24-hour ahead prediction. This highlights the importance of testing transformers against both classical and deep learning approaches across different forecast horizons.

Common Pitfalls

Avoid comparing against weak baselines or improperly tuned models. Ensure all methods receive equivalent:

Particularly for transformers, validate that performance gains justify the increased computational cost during inference, as this impacts real-world deployment feasibility.

Interpretability and Explainability

Transformers, while powerful for time series forecasting, often operate as black-box models, making their decisions difficult to interpret. Understanding how attention mechanisms allocate weights across time steps is critical for trust and debugging in real-world applications. Unlike traditional statistical models, where coefficients directly indicate feature importance, transformer-based models require specialized techniques to uncover their reasoning.

Attention Weight Analysis

The self-attention mechanism computes pairwise interactions between all time steps, producing an attention matrix A where each element Aij represents the influence of time step j on time step i. For interpretability, we can aggregate attention weights across heads and layers:

$$ \bar{A}_{ij} = \frac{1}{H} \sum_{h=1}^{H} \frac{1}{L} \sum_{l=1}^{L} A_{ij}^{(h,l)} $$

where H is the number of attention heads and L is the number of layers. High values in Ā indicate persistent temporal dependencies, revealing whether the model focuses on recent observations, seasonal patterns, or anomalous events.

Saliency Maps and Gradient-Based Methods

Gradient-based techniques measure how sensitive the model's output is to perturbations in the input. Given a forecast ŷt at time t, the saliency map S is computed as:

$$ S_t = \left\| \frac{\partial \hat{y}_t}{\partial x} \right\| $$

This highlights which historical time steps most significantly impact the prediction. For transformers, this can be combined with attention weights to distinguish between direct influence (gradients) and learned dependencies (attention).

Probing and Concept-Based Explanations

Probing involves training auxiliary models to predict known time series properties (e.g., seasonality, trend) from intermediate transformer representations. If a probe achieves high accuracy, it suggests the model internally encodes these concepts. For example, a linear probe for seasonality applied to the encoder output:

$$ p_{\text{seasonal}} = \sigma(W_s z + b_s) $$

where z is the transformer's hidden state and σ is the sigmoid function. High probe accuracy indicates the model has learned seasonal patterns.

Practical Considerations

Case Study: Interpretability in Financial Forecasting

In a high-frequency trading model, attention patterns revealed that the transformer focused on macroeconomic announcement times, even when these events were not explicitly encoded in the input. Gradient analysis confirmed that perturbations around these times caused significant forecast changes. This insight led to the inclusion of an economic event calendar as an auxiliary input, improving model robustness.

Interpretability and Explainability – Transformers for Time Series Forecasting – Tutorial Diagram
Diagram Description: The diagram would show the attention matrix A with aggregated weights across heads and layers, highlighting temporal dependencies between time steps.

7. Key Research Papers

7.1 Key Research Papers

7.2 Open-Source Implementations

7.3 Advanced Topics and Extensions
