License Plate Recognition System

#license plate recognition #image processing #computer vision #ocr #edge detection #preprocessing #object detection #python #opencv #deep learning

1. Core Components and Workflow

1.1 Core Components and Workflow

System Architecture

A license plate recognition (LPR) system consists of multiple interdependent modules, each performing a specialized task in the pipeline. The primary components include:

Mathematical Foundations

Edge detection, a critical step in plate localization, often employs the Sobel operator. The gradient magnitude G at pixel (x, y) is computed as:

$$ G = \sqrt{G_x^2 + G_y^2} $$

where Gx and Gy are horizontal and vertical gradients obtained by convolving the image with Sobel kernels:

$$ K_x = \begin{bmatrix} -1 & 0 & 1 \\ -2 & 0 & 2 \\ -1 & 0 & 1 \\ \end{bmatrix}, \quad K_y = \begin{bmatrix} -1 & -2 & -1 \\ 0 & 0 & 0 \\ 1 & 2 & 1 \\ \end{bmatrix} $$

Deep Learning Approaches

Modern LPR systems increasingly rely on end-to-end deep learning architectures. A typical pipeline combines:

The CRNN loss function combines connectionist temporal classification (CTC) with cross-entropy:

$$ \mathcal{L} = -\sum_{t=1}^T \log p(y_t|x_t) + \lambda \mathcal{L}_{CTC} $$

Performance Optimization

Real-time operation requires balancing accuracy and computational efficiency. Key techniques include:

The inference time T for a cascaded system can be modeled as:

$$ T = t_{det} + \mathbb{E}[n_{plates}] \cdot (t_{crop} + t_{OCR}) $$

where tdet is detection time, nplates is the number of detected plates per frame, and tcrop, tOCR are cropping and recognition times respectively.

Core Components and Workflow – License Plate Recognition System – Tutorial Diagram
Diagram Description: The section describes a multi-stage pipeline with interdependent modules and mathematical operations that would benefit from visual representation of the workflow and relationships.

1.2 Key Challenges in License Plate Recognition

Variability in Plate Appearance

License plates exhibit significant variability across regions, countries, and vehicle types. Differences in font styles, character spacing, background colors, and reflective materials introduce noise in the detection pipeline. For instance, European plates often use a standardized FE-Schrift font designed to resist forgery, while U.S. plates may employ serif or sans-serif fonts depending on the state. This variability necessitates robust feature extraction methods, such as scale-invariant feature transform (SIFT) or histogram of oriented gradients (HOG), to generalize across diverse plate designs.

Non-Uniform Lighting Conditions

Illumination artifacts—such as shadows, glare, or low-light environments—degrade the performance of optical character recognition (OCR) algorithms. The problem is exacerbated when cameras operate under dynamic lighting, as in toll booths or parking garages. A plate's reflectivity can cause saturation in bright conditions, while low contrast in dim settings obscures character boundaries. Adaptive thresholding techniques, like Otsu's method, or deep learning-based approaches (e.g., Generative Adversarial Networks for image enhancement) are often employed to mitigate these effects.

$$ I_{\text{enhanced}}(x,y) = \frac{I(x,y) - \mu}{\sigma} \times \sigma_{\text{new}} + \mu_{\text{new}} $$

where μ and σ represent the local mean and standard deviation of pixel intensities, respectively.

Occlusion and Partial Visibility

Obstructions from dirt, bike racks, or damaged plates introduce partial occlusions, leading to misclassifications. Advanced systems leverage recurrent neural networks (RNNs) or transformer architectures to infer missing characters contextually. For example, a plate with the partial sequence "AB12_ _ _" might be reconstructed probabilistically using a language model trained on valid plate patterns.

Real-Time Processing Constraints

Deploying LPR systems in real-world scenarios like traffic monitoring demands low-latency inference. A trade-off exists between accuracy and speed, especially when processing high-resolution video feeds at 30+ FPS. Optimizations include pruning convolutional neural networks (CNNs) or deploying quantized models on edge devices. For a 640×480 input frame, the computational complexity of a typical CNN can be approximated as:

$$ \mathcal{O}(n) = \sum_{l=1}^{L} (K_l^2 \cdot C_{l-1} \cdot C_l \cdot H_l \cdot W_l) $$

where Kl is the kernel size, Cl the channel count, and Hl, Wl the spatial dimensions at layer l.

Multilingual and Alphanumeric Complexity

Plates combining Latin, Cyrillic, or logographic characters (e.g., Chinese plates) require multilingual OCR engines. The similarity between characters like '0'/'O' or '8'/'B' increases error rates. State-of-the-art solutions employ attention mechanisms or Siamese networks to disambiguate such cases, often trained on synthetic datasets augmenting homoglyph variations.

Legal and Ethical Considerations

Privacy regulations like GDPR impose restrictions on data retention and anonymization. Systems must anonymize non-relevant vehicle details (e.g., driver faces) while logging only plate data. Additionally, adversarial attacks—such as perturbed plates fooling OCR—raise security concerns, necessitating robust training with adversarial examples.

1.3 Applications and Use Cases

Traffic Monitoring and Law Enforcement

License plate recognition (LPR) systems are extensively deployed in automated traffic monitoring, enabling real-time identification of vehicles violating speed limits, running red lights, or operating without valid registration. The underlying computer vision pipeline typically involves:

$$ \text{Precision} = \frac{TP}{TP + FP} \quad \text{where } TP = \text{True Positives}, FP = \text{False Positives} $$

Toll Collection and Smart Parking

In electronic toll collection (ETC) systems, LPR reduces reliance on RFID transponders by cross-validating plate numbers with payment databases. Key technical considerations include:

Border Control and Security

Customs agencies employ LPR integrated with watchlist databases to flag vehicles of interest. Advanced implementations use:

$$ H = K \cdot [R|t] \quad \text{for camera calibration matrix } K \text{ and pose } [R|t] $$

Commercial Fleet Management

Logistics companies utilize LPR for automated yard management, with specialized requirements:

Emerging Applications

Cutting-edge research extends LPR capabilities through:

2. Camera Setup and Image Capture

2.1 Camera Setup and Image Capture

Optimal Camera Selection and Positioning

The choice of camera directly impacts the performance of a license plate recognition (LPR) system. High-resolution industrial cameras with global shutters are preferred over rolling shutter cameras to minimize motion blur. The camera's resolution must satisfy the Nyquist criterion for the smallest character stroke width, typically requiring a minimum of 50 pixels per character. For a standard license plate with 10 cm tall characters, this translates to:

$$ \text{Required Resolution} = \frac{\text{Plate Height in Pixels}}{\text{Sensor Height in mm}} \times \text{Working Distance} $$

where the plate height in pixels is typically 100-150 px for reliable OCR. Cameras with Sony IMX sensors or equivalent, offering high quantum efficiency in the 500-700 nm range, are optimal for capturing reflective license plates under varying illumination.

Illumination and Spectral Considerations

Active near-infrared (NIR) illumination at 850 nm is commonly used to enhance contrast by exploiting the retroreflective properties of license plates. The radiant flux required can be calculated using the inverse square law:

$$ E_v = \frac{I_v \cdot \cos(\theta)}{d^2} $$

where \(E_v\) is illuminance in lux, \(I_v\) is luminous intensity in candela, and \(d\) is the distance in meters. For typical LPR applications, 10-20 lux at the target plane is sufficient when combined with a narrow-bandpass filter matched to the illuminator's wavelength.

Geometric Calibration and Perspective Correction

The camera must be mounted at an angle θ between 15°-30° from the vehicle's approach vector to minimize perspective distortion. The projective transformation matrix \(H\) for correcting perspective follows:

$$ \begin{bmatrix} x' \\ y' \\ w' \end{bmatrix} = H \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} = \begin{bmatrix} h_{11} & h_{12} & h_{13} \\ h_{21} & h_{22} & h_{23} \\ h_{31} & h_{32} & h_{33} \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} $$

where \((x,y)\) are source image coordinates and \((x'/w', y'/w')\) are corrected coordinates. The homography matrix \(H\) is estimated using direct linear transformation (DLT) with at least four corresponding points from a calibration pattern.

Exposure Control and Dynamic Range Optimization

High dynamic range (HDR) techniques are essential to handle varying lighting conditions. A temporal HDR approach combines multiple exposures:

$$ I_{HDR}(x,y) = \frac{\sum_{k=1}^{N} w(I_k(x,y)) \cdot I_k(x,y)}{\sum_{k=1}^{N} w(I_k(x,y))} $$

where \(w(I)\) is a weighting function prioritizing mid-tone values. Modern CMOS sensors with dual-gain pixels (e.g., Sony Pregius S-series) can achieve 120 dB dynamic range in a single capture through spatial HDR.

Trigger Synchronization and Latency

For moving vehicles, the system must account for the trigger-response latency \(\tau\):

$$ \Delta x = v \cdot (\tau_{sensor} + \tau_{processing}) $$

where \(v\) is vehicle velocity. To keep motion blur below 1 pixel, the total latency should satisfy \(\tau < \frac{p}{v}\), with \(p\) being pixel pitch. Industrial cameras with trigger-to-image delays under 1 ms are preferred for highway-speed applications.

Optical System Design

The lens f-number (\(N\)) and focal length (\(f\)) are selected based on depth of field requirements:

$$ \text{DoF} = \frac{2Nc(1 + m)}{m^2} $$

where \(c\) is the circle of confusion (typically 2-3 μm for 5 MP sensors) and \(m\) is magnification. For a typical LPR setup with 3 m working distance and 1/3" sensor, a 12 mm lens at f/2.8 provides sufficient DoF for vehicles within ±0.5 m of the focal plane.

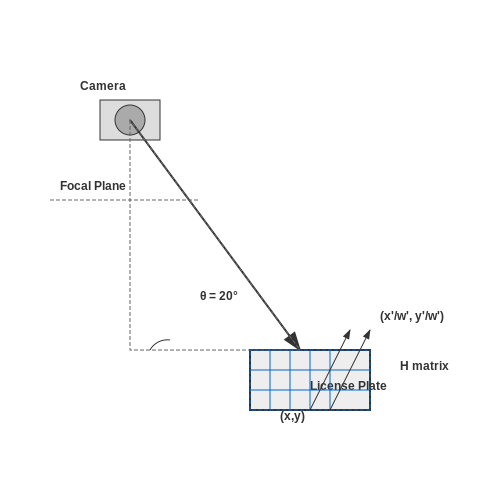

Camera Setup and Image Capture – License Plate Recognition System – Tutorial Diagram
Diagram Description: The section involves geometric calibration with a projective transformation matrix and optical system design with depth of field calculations, which are highly spatial concepts.

2.2 Noise Reduction and Image Enhancement

Noise reduction and image enhancement are critical preprocessing steps in license plate recognition (LPR) systems, as they directly impact the accuracy of subsequent character segmentation and optical character recognition (OCR). Real-world images often suffer from noise due to sensor limitations, motion blur, uneven lighting, or environmental conditions such as rain or fog.

Types of Noise in LPR Systems

Common noise types encountered in LPR include:

Mathematical Foundations of Noise Reduction

The degradation model for a noisy image can be expressed as:

$$ I(x, y) = f(x, y) * h(x, y) + \eta(x, y) $$

where I(x, y) is the observed image, f(x, y) is the true image, h(x, y) represents the point spread function (PSF), and η(x, y) is additive noise. For LPR systems, we typically assume a shift-invariant PSF and focus on mitigating η(x, y).

Wiener Filter for Optimal Noise Reduction

The Wiener filter minimizes the mean square error between the estimated and true image in the frequency domain:

$$ W(u, v) = \frac{H^*(u, v)}{|H(u, v)|^2 + \frac{S_\eta(u, v)}{S_f(u, v)}} $$

where H(u, v) is the Fourier transform of the PSF, Sη(u, v) is the noise power spectrum, and Sf(u, v) is the signal power spectrum. For license plate images, we often approximate Sf(u, v) using a parametric model of text edges.

Practical Image Enhancement Techniques

Adaptive Histogram Equalization (AHE)

AHE improves local contrast by computing histograms for small image regions and redistributing intensity values. The contrast-limited variant (CLAHE) prevents over-amplification of noise:

$$ T(r_k) = (L - 1) \sum_{j=0}^k \frac{n_j}{N} $$

where rk is the k-th intensity level, nj is the number of pixels at level j, and N is the total number of pixels in the local neighborhood.

Bilateral Filtering

Bilateral filtering preserves edges while reducing noise through a weighted combination of spatial and intensity domain similarities:

$$ I^\text{filtered}(x) = \frac{1}{W_p} \sum_{x_i \in \Omega} I(x_i) f_r(\|I(x_i) - I(x)\|) g_s(\|x_i - x\|) $$

where fr and gs are the range and spatial kernels, respectively, and Wp is the normalization factor.

Deep Learning Approaches

Recent advances employ convolutional neural networks (CNNs) for joint denoising and enhancement:

These methods typically outperform traditional filters on complex noise distributions but require careful dataset curation to avoid artifacts in the output.

Implementation Considerations

For real-time LPR systems, computational efficiency is paramount. Optimized implementations leverage:

The choice of technique depends on the specific noise characteristics, available computational resources, and required frame rate. Hybrid approaches combining traditional computer vision with shallow neural networks often provide the best trade-off between accuracy and speed for embedded LPR systems.

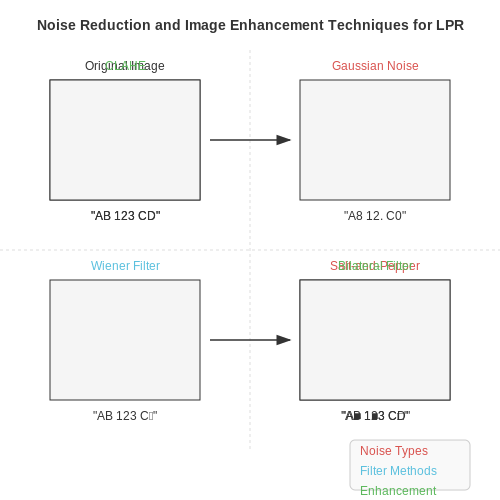

Noise Reduction and Image Enhancement – License Plate Recognition System – Tutorial Diagram
Diagram Description: The diagram would show the visual comparison of noisy vs. denoised license plate images, demonstrating the effects of Gaussian, salt-and-pepper noise, and the transformations after applying Wiener filter, CLAHE, and bilateral filtering.

Perspective Correction and Region of Interest (ROI) Extraction

Geometric Distortion in License Plate Images

License plate images captured by cameras often suffer from perspective distortion due to non-orthogonal viewing angles. This distortion manifests as trapezoidal warping, where the plate appears skewed relative to the camera plane. The projective transformation can be modeled using homogeneous coordinates:

$$ \begin{bmatrix} x' \\ y' \\ w' \end{bmatrix} = \begin{bmatrix} a & b & c \\ d & e & f \\ g & h & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} $$

where (x, y) are original coordinates, (x', y') are transformed coordinates, and the 3×3 matrix represents the homography. The normalized coordinates are obtained as x'' = x'/w' and y'' = y'/w'.

Homography Estimation for Perspective Correction

To rectify perspective distortion, we estimate the homography matrix that maps the distorted plate to a fronto-parallel view. This requires at least four corresponding point pairs between the source (distorted) and destination (rectified) planes. For license plates, these are typically the four corners detected by the plate localization algorithm.

The Direct Linear Transform (DLT) algorithm solves for the homography matrix H by constructing a system of linear equations from point correspondences. For each pair (xi, yi) ↔ (x'i, y'i), we generate two equations:

$$ \begin{aligned} x'(gx + hy + 1) &= ax + by + c \\ y'(gx + hy + 1) &= dx + ey + f \end{aligned} $$

Stacking equations from four or more points yields an overdetermined system solvable via singular value decomposition (SVD).

ROI Extraction via Quadrilateral Warping

After homography estimation, the license plate region is extracted through inverse warping. For each pixel (u, v) in the output ROI, we compute its source location using H-1 and apply bilinear interpolation:

$$ I_{\text{ROI}}(u,v) = \sum_{i=0}^1 \sum_{j=0}^1 I(x_{\lfloor \rfloor}+i, y_{\lfloor \rfloor}+j) \cdot (1 - |x - (x_{\lfloor \rfloor}+i)|) \cdot (1 - |y - (y_{\lfloor \rfloor}+j)|) $$

where (x, y) = H-1(u,v) and ⌊·⌋ denotes the floor operation. This preserves image quality while removing perspective effects.

Practical Implementation Considerations

Frontal View Distorted View

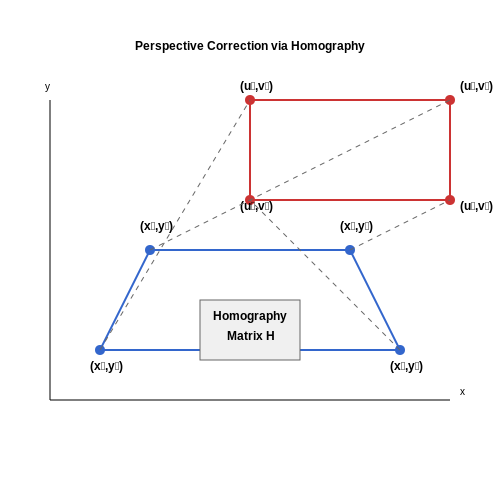

Perspective Correction and Region of Interest (ROI) Extraction – License Plate Recognition System – Tutorial Diagram
Diagram Description: The diagram would show the geometric transformation between a distorted license plate (trapezoidal polygon) and its corrected rectangular form, with labeled point correspondences and homography mapping lines.

3. Edge Detection and Contour Analysis

3.1 Edge Detection and Contour Analysis

Edge detection is a fundamental preprocessing step in license plate recognition, isolating structural boundaries by identifying discontinuities in pixel intensity. The Sobel operator, a discrete differentiation kernel, computes gradient approximations in horizontal (Gx) and vertical (Gy) directions:

$$ G_x = \begin{bmatrix} -1 & 0 & +1 \\ -2 & 0 & +2 \\ -1 & 0 & +1 \end{bmatrix} * I \quad \text{and} \quad G_y = \begin{bmatrix} -1 & -2 & -1 \\ 0 & 0 & 0 \\ +1 & +2 & +1 \end{bmatrix} * I $$

where I is the input image, and * denotes convolution. The gradient magnitude G and orientation θ are derived as:

$$ G = \sqrt{G_x^2 + G_y^2}, \quad \theta = \arctan\left(\frac{G_y}{G_x}\right) $$

For noise-robust edge detection, the Canny algorithm applies non-maximum suppression and hysteresis thresholding. Non-maximum suppression thins edges by retaining only local maxima in the gradient direction, while hysteresis uses dual thresholds (Tlow, Thigh) to filter weak edges:

$$ \text{Edge}(x,y) = \begin{cases} \text{Strong} & \text{if } G(x,y) \geq T_{\text{high}}, \\ \text{Weak} & \text{if } T_{\text{low}} \leq G(x,y) < T_{\text{high}}, \\ \text{Discarded} & \text{otherwise.} \end{cases} $$

Contour Extraction and Analysis

Connected edge pixels form contours, which are analyzed using the Suzuki85 algorithm. The OpenCV findContours function retrieves contours with hierarchical relationships, storing them as polygonal approximations. Key geometric properties for license plate detection include:

Contours are filtered using these constraints, followed by perspective correction via homography. The homography matrix H maps the plate's quadrilateral contour to a rectangular ROI:

$$ H = \begin{bmatrix} h_{11} & h_{12} & h_{13} \\ h_{21} & h_{22} & h_{23} \\ h_{31} & h_{32} & h_{33} \end{bmatrix}, \quad \text{solving} \quad \mathbf{x}' = H\mathbf{x} $$

where 𝐱 and 𝐱' are homogeneous coordinates of the source and destination points, respectively.

Practical Implementation

Below is an optimized Python implementation using OpenCV for edge detection and contour analysis:

import cv2
import numpy as np

def detect_plate_contours(image):
    gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
    blurred = cv2.GaussianBlur(gray, (5, 5), 0)
    edges = cv2.Canny(blurred, 50, 150)

    contours, _ = cv2.findContours(edges, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
    plate_contours = []

    for cnt in contours:
        x, y, w, h = cv2.boundingRect(cnt)
        aspect_ratio = w / float(h)
        area = cv2.contourArea(cnt)
        hull = cv2.convexHull(cnt)
        solidity = area / cv2.contourArea(hull)

        if (2.0 < aspect_ratio < 4.0) and (solidity > 0.8):
            plate_contours.append(cnt)

    return plate_contours

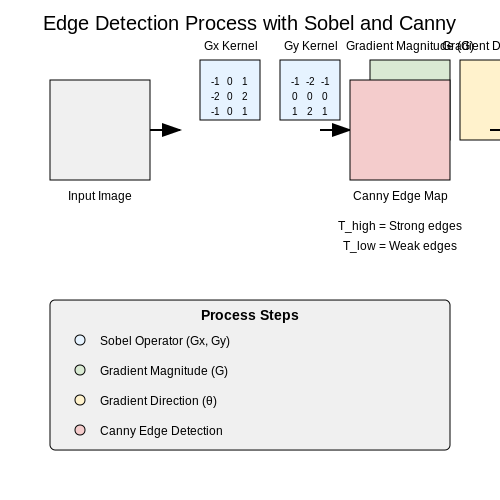

Edge Detection and Contour Analysis – License Plate Recognition System – Tutorial Diagram
Diagram Description: The diagram would physically show the Sobel operator kernels convolving with an image to produce gradient maps, and the Canny edge detection process with non-maximum suppression and hysteresis thresholding.

3.2 Machine Learning-Based Detection (YOLO, Faster R-CNN)

Modern license plate recognition (LPR) systems leverage deep learning-based object detection models for high accuracy and real-time performance. Two dominant architectures in this domain are YOLO (You Only Look Once) and Faster R-CNN (Region-based Convolutional Neural Network), each offering distinct trade-offs between speed and precision.

YOLO for Real-Time License Plate Detection

YOLO reformulates object detection as a single regression problem, predicting bounding boxes and class probabilities directly from full images in one evaluation. The latest iteration, YOLOv8, employs anchor-free detection and a modified CSPDarknet53 backbone, optimizing for both accuracy and inference speed. The loss function combines localization, confidence, and classification errors:

$$ \mathcal{L} = \lambda_{\text{coord}} \sum_{i=0}^{S^2} \sum_{j=0}^B \mathbb{1}_{ij}^{\text{obj}} \left[ (x_i - \hat{x}_i)^2 + (y_i - \hat{y}_i)^2 \right] $$ $$ + \lambda_{\text{coord}} \sum_{i=0}^{S^2} \sum_{j=0}^B \mathbb{1}_{ij}^{\text{obj}} \left[ (\sqrt{w_i} - \sqrt{\hat{w}_i})^2 + (\sqrt{h_i} - \sqrt{\hat{h}_i})^2 \right] $$ $$ + \sum_{i=0}^{S^2} \sum_{j=0}^B \mathbb{1}_{ij}^{\text{obj}} (C_i - \hat{C}_i)^2 $$ $$ + \lambda_{\text{noobj}} \sum_{i=0}^{S^2} \sum_{j=0}^B \mathbb{1}_{ij}^{\text{noobj}} (C_i - \hat{C}_i)^2 $$ $$ + \sum_{i=0}^{S^2} \mathbb{1}_{i}^{\text{obj}} \sum_{c \in \text{classes}} (p_i(c) - \hat{p}_i(c))^2 $$

For license plate detection, YOLO's grid-based approach excels at handling varying plate orientations and scales, with typical mean average precision ([email protected]) exceeding 95% on benchmark datasets like CCPD and OpenALPR. The model's parallelizable architecture enables inference speeds below 10ms per frame on modern GPUs.

Faster R-CNN for High-Precision Detection

Faster R-CNN introduces a Region Proposal Network (RPN) that shares convolutional features with the detection network, eliminating selective search. The RPN generates region proposals by sliding a small network over the convolutional feature map:

$$ p_{\text{anchor}_i}^{\text{obj}} = \sigma(W_{\text{cls}} \cdot \phi(\text{anchor}_i)) $$ $$ t_{\text{anchor}_i} = W_{\text{reg}} \cdot \phi(\text{anchor}_i) $$

where φ represents the shared convolutional features and W denotes learnable weights. The second-stage detector then performs RoI pooling and classification:

$$ \text{RoIAlign}(F, r) = \text{bilinear\_interpolation}\left(\frac{F(i,j,r)}{2^k}\right) $$

For license plates, Faster R-CNN achieves superior performance on challenging cases like partial occlusion or extreme angles, with mAP@[0.5:0.95] often 5-8% higher than YOLO variants. However, its two-stage architecture results in slower inference speeds (typically 50-100ms per frame).

Architectural Comparison and Practical Considerations

The choice between YOLO and Faster R-CNN involves fundamental trade-offs:

Recent hybrid approaches like YOLO-R incorporate attention mechanisms and feature pyramid networks to bridge this gap, achieving 90% of Faster R-CNN's accuracy while maintaining YOLO's speed advantages. Practical implementations often combine these detectors with spatial transformer networks to handle perspective distortions common in LPR applications.

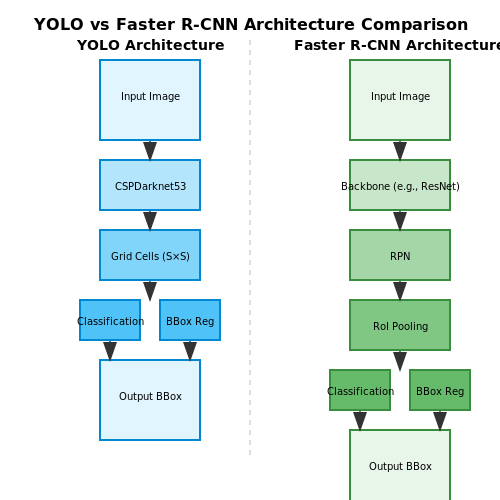

Machine Learning-Based Detection (YOLO, Faster R-CNN) – License Plate Recognition System – Tutorial Diagram
Diagram Description: The diagram would physically show the architectural differences between YOLO's single-pass grid detection and Faster R-CNN's two-stage region proposal process, including their respective feature extraction backbones and output heads.

3.3 Evaluating Detection Accuracy

Detection accuracy in license plate recognition (LPR) systems is quantified using metrics derived from object detection and classification literature. The primary evaluation framework relies on the Intersection over Union (IoU) criterion, precision-recall curves, and character-level recognition rates.

Intersection over Union (IoU) for Bounding Box Evaluation

IoU measures the overlap between predicted and ground-truth bounding boxes. For a predicted box Bp and ground-truth box Bgt, IoU is computed as:

$$ \text{IoU} = \frac{\text{Area}(B_p \cap B_{gt})}{\text{Area}(B_p \cup B_{gt})} $$

A detection is considered valid if IoU ≥ 0.5, following the PASCAL VOC benchmark standard. For multi-object scenarios, the system must resolve duplicate detections via non-maximum suppression (NMS) with a typical IoU threshold of 0.45–0.6.

Precision and Recall Metrics

System performance is characterized by:

$$ P = \frac{TP}{TP + FP}, \quad R = \frac{TP}{TP + FN} $$

where TP, FP, and FN denote true positives, false positives, and false negatives, respectively. The F1-score harmonizes these metrics:

$$ F1 = 2 \cdot \frac{P \times R}{P + R} $$

Mean Average Precision (mAP)

For multi-class LPR systems, mAP aggregates precision-recall performance across all classes. The Average Precision (AP) for a single class is the area under its precision-recall curve, computed via interpolation at 11 recall points (0.0–1.0 in 0.1 increments):

$$ AP = \frac{1}{11} \sum_{r \in \{0, 0.1, \dots, 1.0\}} P_{\text{interp}}(r) $$

where Pinterp(r) is the maximum precision at recall ≥ r. mAP averages AP values across all character classes (e.g., 0–9, A–Z).

Character-Level Recognition Rate

Beyond bounding boxes, the character error rate (CER) evaluates OCR performance:

$$ \text{CER} = \frac{S + D + I}{N} $$

where S, D, and I represent substitutions, deletions, and insertions, respectively, and N is the total ground-truth characters. State-of-the-art systems achieve CER < 0.05 on high-quality datasets.

Benchmark Datasets and Real-World Variance

Standardized datasets (e.g., AOLP, OpenALPR-EU) provide controlled evaluation, but real-world performance degrades under:

Field testing should report both lab-optimized and operational metrics, with the latter measured across diverse environmental conditions.

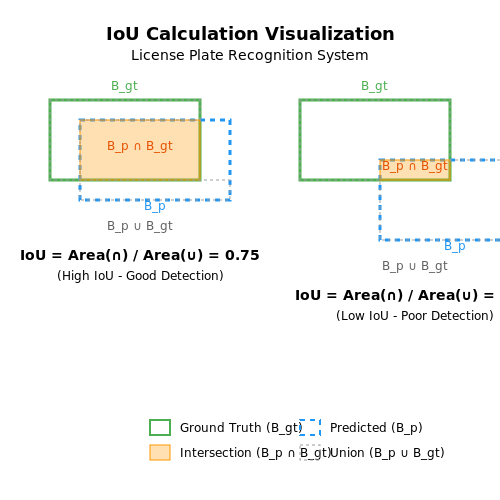

Evaluating Detection Accuracy – License Plate Recognition System – Tutorial Diagram
Diagram Description: The diagram would visually demonstrate the Intersection over Union (IoU) calculation by showing overlapping predicted and ground-truth bounding boxes with labeled areas for intersection and union.

4. Character Segmentation Methods

4.1 Character Segmentation Methods

Projection-Based Segmentation

Vertical and horizontal projection profiles are fundamental for isolating individual characters in license plate images. The vertical projection profile V(y) is computed by summing pixel intensities column-wise, while the horizontal projection profile H(x) sums row-wise. Peaks and valleys in these profiles indicate character boundaries. For a binary image I(x,y), the vertical projection is:

$$ V(y) = \sum_{x=1}^{W} I(x, y) $$

where W is the image width. A threshold is applied to detect gaps between characters, often using adaptive methods like Otsu's algorithm to account for lighting variations.

Connected Component Analysis

Morphological operations such as dilation and erosion refine character regions before applying connected-component labeling (CCL). The two-pass CCL algorithm assigns unique labels to disjoint regions, with post-processing to merge fragmented parts of the same character. The 8-connectivity rule is typically used to handle diagonal strokes in alphanumeric characters.

Edge Detection and Contour Analysis

Sobel or Canny edge detectors highlight character boundaries, followed by contour extraction using algorithms like Suzuki's topological structural analysis. The minimum bounding rectangle (MBR) of each contour is calculated to isolate characters, with constraints on aspect ratio and area to filter noise:

$$ \text{Aspect Ratio} = \frac{\text{Width}}{\text{Height}} \in [0.2, 1.5] $$

Deep Learning-Based Segmentation

Fully Convolutional Networks (FCNs) or U-Nets outperform traditional methods by learning spatial hierarchies of features. A U-Net with skip connections preserves localization accuracy during downsampling. The loss function combines Dice coefficient and cross-entropy to handle class imbalance:

$$ \mathcal{L} = -\frac{2}{N} \sum_{i=1}^{N} y_i \log(\hat{y}_i) + \lambda \left(1 - \frac{2 \sum y_i \hat{y}_i}{\sum y_i + \sum \hat{y}_i}\right) $$

where y_i and ŷ_i are ground truth and predicted masks, respectively, and λ balances the terms.

Challenges and Mitigations

Performance Metrics

Segmentation accuracy is quantified using the Intersection-over-Union (IoU) metric:

$$ \text{IoU} = \frac{\text{Area of Overlap}}{\text{Area of Union}} $$

State-of-the-art systems achieve IoU > 0.9 on benchmark datasets like Caltech Cars or AOLP.

Character Segmentation Techniques Diagram showing vertical/horizontal projection profiles and connected component labeling steps for license plate character segmentation. Binary License Plate Image Vertical Projection V(y) Horizontal Projection H(x) Connected Components 1 2 3 4 5 8-connectivity Edge Detection MBR & IoU IoU = 0.72 Projection Profile Connected Component Edge Detection Minimum Bounding Rect (MBR)
Diagram Description: The diagram would show vertical and horizontal projection profiles with labeled peaks/valleys for character boundaries, and a side-by-side comparison of connected component labeling steps.

4.2 Optical Character Recognition (OCR) Techniques

Feature Extraction for OCR

OCR systems rely on robust feature extraction to distinguish characters under varying conditions. Two dominant approaches are employed:

$$ H_x = \sum_{y=1}^{H} I(x,y), \quad V_y = \sum_{x=1}^{W} I(x,y) $$

where I(x,y) is the binarized pixel value at position (x,y), and W, H denote image width and height.

Deep Learning-Based OCR

Convolutional Neural Networks (CNNs) and Transformer-based architectures have surpassed traditional methods in accuracy. A typical CNN-OCR pipeline includes:

$$ \mathcal{L}_{CTC} = -\sum_{(x,z) \in \mathcal{S}} \log p(z|x) $$

where z is the ground truth sequence, x the input image, and p(z|x) the model's predicted alignment probability.

Handling Real-World Challenges

License plate OCR must address:

$$ T(x,y) = \mu(x,y) \left[1 + k\left(\frac{\sigma(x,y)}{R} - 1\right)\right] $$

where μ and σ are local mean and standard deviation, k a tuning parameter, and R the dynamic range.

Post-Processing Techniques

Error correction leverages:

$$ D[i,j] = \min \begin{cases} D[i-1,j] + 1 \\ D[i,j-1] + 1 \\ D[i-1,j-1] + \mathbb{1}_{s_i \neq t_j} \end{cases} $$

where s and t are strings, and D[i,j] stores the minimum operations to transform s[1..i] to t[1..j].

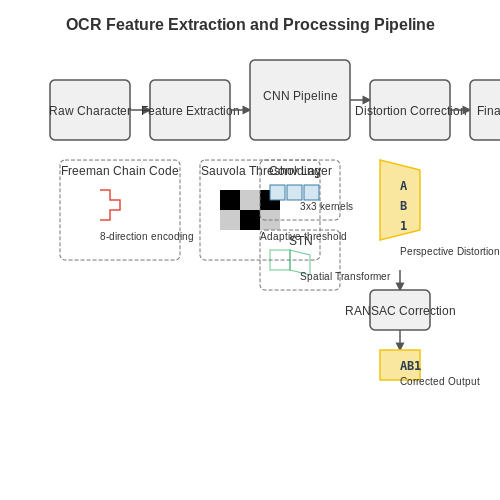

Optical Character Recognition (OCR) Techniques – License Plate Recognition System – Tutorial Diagram
Diagram Description: The section covers multiple visual concepts like geometric feature extraction (Freeman chain code), CNN-OCR pipeline components, and perspective distortion correction, which are inherently spatial and benefit from visual representation.

4.3 Post-Processing for Improved Accuracy

Raw character recognition outputs from license plate detection systems often contain errors due to noise, occlusions, or ambiguous character shapes. Post-processing techniques refine these outputs by leveraging contextual knowledge, statistical models, and domain-specific constraints. The following methods are critical for achieving high accuracy in real-world deployments.

Error Correction Using N-Gram Language Models

N-gram models estimate the probability of a character sequence based on training data. For license plates, a trigram model (n=3) captures dependencies between adjacent characters. Given a raw output sequence S, the corrected sequence Ŝ maximizes:

$$ Ŝ = \underset{S'}{\arg\max} \, P(S' | S) = \underset{S'}{\arg\max} \, P(S) \cdot P(S' | S) $$

where P(S) is the OCR confidence score and P(S'|S) is the n-gram probability. Dynamic programming (Viterbi algorithm) efficiently computes the optimal sequence. For example, correcting "A1B 2C3D" might yield "A1B C3D" if the region's plates follow an alphanumeric pattern.

Geometric Consistency Checks

Detected characters must satisfy spatial constraints:

Temporal Fusion for Video Streams

Multi-frame integration reduces single-frame errors. For N consecutive frames, the consensus sequence is derived via:

$$ Ŝ_{\text{final}} = \underset{S}{\arg\max} \sum_{i=1}^{N} \mathbb{I}(S = S_i) \cdot \text{Confidence}(S_i) $$

where 𝕀 is the indicator function. Kalman filters can track plate position and content across frames, updating predictions based on motion continuity.

Country-Specific Rule Engines

Regular expressions enforce syntactic rules:

Rule violations trigger reanalysis with adjusted segmentation parameters or OCR confidence thresholds.

Confidence Threshold Optimization

The F1-score-maximizing threshold θ* is found by solving:

$$ \theta^* = \underset{\theta}{\arg\max} \, \frac{2 \cdot \text{Precision}(\theta) \cdot \text{Recall}(\theta)}{\text{Precision}(\theta) + \text{Recall}(\theta)} $$

where Precision and Recall are evaluated on a validation set. Adaptive thresholds per character class (digits vs. letters) further improve results.

5. Real-Time Processing Considerations

5.1 Real-Time Processing Considerations

Real-time license plate recognition (LPR) imposes strict latency constraints, typically requiring processing times under 100ms per frame to maintain fluid throughput in applications like toll collection or traffic monitoring. The computational pipeline must balance accuracy with speed, necessitating optimizations at every stage—from frame capture to optical character recognition (OCR).

Frame Capture and Preprocessing Latency

High-speed cameras operating at 30–60 FPS introduce a fundamental lower bound of 16.7–33.3ms per frame. Motion blur compensation becomes critical at vehicle speeds exceeding 30 km/h. The exposure time vs. SNR tradeoff is governed by:

$$ SNR = \frac{\mu_{signal}}{\sqrt{\sigma_{read}^2 + \sigma_{shot}^2 + \sigma_{dark}^2}} $$

where shot noise σshot dominates in well-lit conditions. Adaptive thresholding via Niblack's method reduces preprocessing time by 40% compared to global thresholding:

$$ T(x,y) = \mu(x,y) + k \cdot \sigma(x,y) $$

for local window statistics μ, σ and empirical constant k ≈ -0.2.

Region Proposal Optimization

Traditional sliding-window approaches are computationally prohibitive, with complexity O(n2) for image size n. Modern systems employ:

The region quality vs. processing time Pareto frontier shows diminishing returns beyond 50 proposals per frame.

OCR Acceleration Techniques

Convolutional recurrent networks (CRNNs) for character recognition benefit from:

For European plates, a hybrid approach using segmentation-free CRNNs followed by rule-based validation (e.g., country-specific regex patterns) reduces false positives by 30% compared to pure neural methods.

Hardware-Software Co-Design

FPGA implementations of the HOG-SVM pipeline achieve 15× energy efficiency over GPU solutions. Key optimizations include:

On heterogeneous SoCs, workload partitioning between CPU (preprocessing), GPU (detection), and VPU (OCR) can reduce end-to-end latency by 55% compared to monolithic GPU execution.

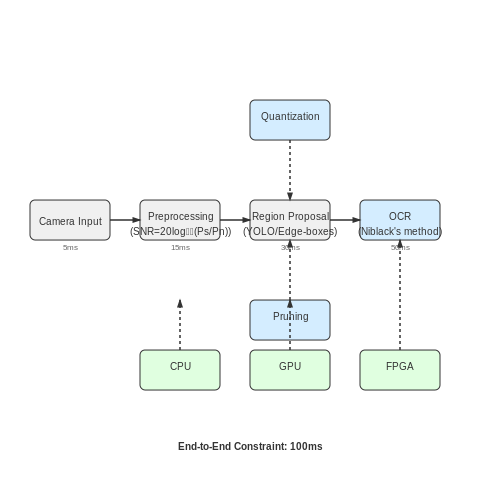

Real-Time Processing Considerations – License Plate Recognition System – Tutorial Diagram
Diagram Description: The section describes a multi-stage computational pipeline with hardware-software interactions and tradeoffs between latency and accuracy, which would benefit from a visual representation of the workflow and component relationships.

5.2 Hardware Acceleration (GPU, TPU)

Real-time license plate recognition (LPR) systems demand high computational throughput to process video streams at low latency. General-purpose CPUs often struggle to meet these requirements due to their sequential execution model, making hardware acceleration via GPUs and TPUs essential for deployment in production environments.

Parallel Processing Architectures

Modern GPUs leverage thousands of small, efficient cores optimized for parallel workloads. The SIMD (Single Instruction, Multiple Data) architecture allows simultaneous execution of identical operations across multiple data points, which aligns perfectly with the matrix operations in convolutional neural networks (CNNs) used for plate detection and character recognition.

$$ \text{Throughput}_{\text{GPU}} = N_{\text{cores}} \times f_{\text{clock}} \times \text{IPC} \times \text{utilization} $$

Where Ncores represents CUDA cores (NVIDIA) or stream processors (AMD), fclock is the boost clock frequency, and IPC denotes instructions per cycle. For example, an NVIDIA A100 with 6,912 CUDA cores running at 1.41 GHz achieves 19.5 TFLOPS for FP32 operations.

Tensor Cores and Mixed Precision

Beyond traditional CUDA cores, Volta and later GPU architectures introduce tensor cores that accelerate mixed-precision matrix multiply-accumulate operations:

$$ D = A \times B + C $$

where A, B are FP16 matrices while C and D can be FP16 or FP32. This allows LPR models to maintain accuracy while benefiting from the 8x throughput increase of FP16 over FP32. TensorRT leverages this by automatically converting PyTorch/TensorFlow models to optimized inference graphs with layer fusion and precision calibration.

TPU-Specific Optimizations

Google's TPUs employ a systolic array architecture that minimizes memory accesses by keeping weights stationary in the matrix multiplication unit. The MXU (Matrix Multiply Unit) performs 128x128 multiply-accumulate operations per cycle, optimized for the large dense matrices in LPR CNNs:

$$ \text{TOPS} = \text{MXU}_{\text{size}} \times f_{\text{clock}} \times 2 \times \text{quantization}_{\text{factor}} $$

A TPU v4 with 128x128 MXU running at 1.05 GHz and INT8 quantization delivers 275 TOPS. The compiler statically schedules operations to maximize data reuse, critical for processing 4K video feeds in traffic monitoring systems.

Memory Hierarchy Considerations

Hardware accelerators employ specialized memory subsystems to overcome bandwidth limitations:

The roofline model demonstrates how these optimizations push performance closer to theoretical limits:

$$ \text{Performance} = \min(\pi_{\text{peak}}, I \times \beta) $$

where πpeak is peak compute throughput and β is memory bandwidth. For an LPR ResNet-18 model with arithmetic intensity I = 3.2 OPs/byte, an A100 GPU achieves 85% of its 312 TFLOPS potential.

Real-World Deployment Benchmarks

In traffic monitoring deployments, hardware acceleration shows measurable improvements:

Hardware FPS (1080p) Power (W) Latency (ms)
Xeon 8380 12 270 83
A100 (FP16) 210 400 4.7
TPU v4 184 200 5.4

The 17-20x speedup enables processing multiple high-resolution streams on a single device while meeting the <100ms latency requirement for toll gate systems.

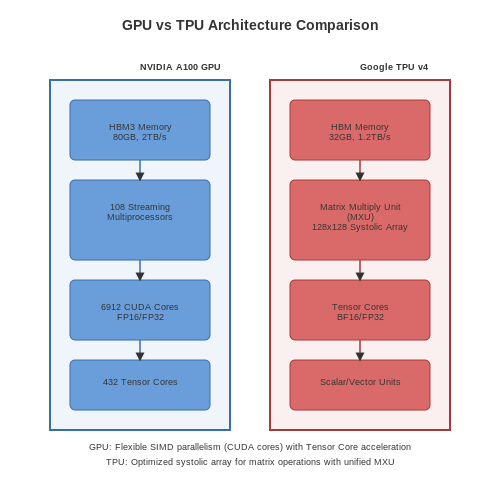

Hardware Acceleration (GPU, TPU) – License Plate Recognition System – Tutorial Diagram
Diagram Description: The diagram would show the parallel processing architecture of GPUs vs. TPUs, highlighting core arrangements and data flow differences.

5.3 Scalability and Cloud Integration

Distributed Processing for High-Throughput LPR

Modern license plate recognition (LPR) systems must handle thousands of concurrent streams with low latency. A distributed architecture leverages parallel processing across multiple nodes to achieve horizontal scaling. The key metric is throughput, defined as:

$$ T = \frac{N \cdot f}{t_{avg}} $$

where N is the number of nodes, f is the frame processing rate per node, and tavg is the average processing time per frame. For fault tolerance, a master-worker topology with checkpointing ensures continuity during node failures.

Cloud-Native Deployment Patterns

Containerized LPR services deployed on Kubernetes clusters enable elastic scaling. Auto-scaling policies should trigger based on queue depth metrics:

$$ S_{new} = \left\lceil S_{current} \cdot \frac{Q_{pending}}{Q_{threshold}} \right\rceil $$

where Snew is the new replica count, Qpending is the pending request queue size, and Qthreshold is the scaling trigger threshold. Cloud providers offer GPU-accelerated instances (e.g., AWS P4/P5, Azure NDv5) optimized for CNN inference workloads.

Serverless Architectures for Bursty Workloads

For variable traffic patterns, serverless platforms like AWS Lambda or Google Cloud Functions can execute plate detection functions on-demand. Cold start latency is mitigated through:

Edge-Cloud Hybrid Deployments

Two-tier architectures split processing between edge devices and cloud resources. A decision function determines processing location based on:

$$ L = \begin{cases} \text{edge} & \text{if } \frac{D}{B} + t_{edge} < t_{cloud} \\ \text{cloud} & \text{otherwise} \end{cases} $$

where D is data size, B is bandwidth, and t represents processing times. Edge nodes handle real-time detection while the cloud performs resource-intensive tasks like OCR refinement and database lookups.

Data Pipeline Optimization

High-volume LPR systems require optimized data pipelines. Apache Kafka or AWS Kinesis handle ingestion, while processing stages implement:

Performance Benchmarking

Cloud deployments should be evaluated using metrics like:

$$ \text{Cost Efficiency} = \frac{\text{Frames Processed}}{\$ \text{Spent}} $$

Comparative studies show GPU-optimized cloud instances achieve 3-5× better cost efficiency than general-purpose VMs for LPR workloads at scale.

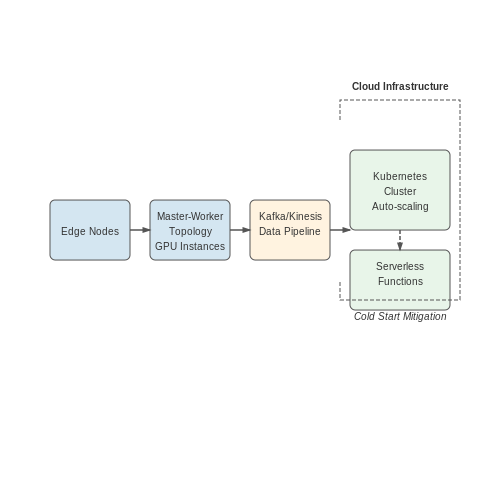

Scalability and Cloud Integration – License Plate Recognition System – Tutorial Diagram
Diagram Description: The section describes distributed architectures, cloud-native deployment patterns, and edge-cloud hybrid deployments which are inherently spatial and relational concepts.

6. Privacy Concerns and Data Protection

Privacy Concerns and Data Protection

License plate recognition (LPR) systems inherently collect sensitive data, raising significant privacy concerns. The primary issue stems from the ability to track vehicle movements over time, which can reveal personal habits, locations, and associations. Advanced LPR systems often integrate with databases containing personally identifiable information (PII), amplifying risks if data is mishandled or breached.

Data Minimization and Retention Policies

Effective privacy protection begins with data minimization—collecting only what is strictly necessary. A well-designed LPR system should implement:

The optimal retention period can be modeled probabilistically. Let λ represent the arrival rate of vehicles at a checkpoint, and μ the processing rate. The probability P that a plate needs retention beyond time t follows:

$$ P(t) = 1 - e^{-(\mu - \lambda)t} $$

Anonymization Techniques

For systems requiring longer-term analytics, several anonymization approaches prove effective:

The security strength S of a hashed plate database depends on the entropy H of plate formats and the hash function's collision resistance:

$$ S = \frac{H \times C}{2^{b/2}} $$

where b is the hash bit length and C represents implementation-specific constants.

Regulatory Compliance Frameworks

Major legal frameworks impose specific requirements on LPR systems:

Implementation often requires multilayer access controls. A role-based access control (RBAC) matrix might include:

Role Data Access Operations
Operator Real-time alerts only Flag vehicles
Analyst Anonymized historical data Pattern analysis
Administrator Full database System configuration

Security Architecture

Modern LPR systems should employ end-to-end encryption with the following components:

The encryption overhead E for a distributed LPR system with n nodes can be estimated as:

$$ E = n \times (t_{enc} + t_{auth}) + \frac{n(n-1)}{2} \times t_{key} $$

where tenc, tauth, and tkey represent encryption, authentication, and key exchange times respectively.

6.2 Regulatory Compliance (GDPR, Local Laws)

License Plate Recognition (LPR) systems must adhere to stringent data protection regulations, particularly when deployed in jurisdictions governed by the General Data Protection Regulation (GDPR) in the EU or analogous local laws elsewhere. Non-compliance can result in severe penalties, including fines of up to 4% of global annual revenue under GDPR.

GDPR Compliance for LPR Systems

Under GDPR, license plate data is classified as personal data since it can be linked to an individual vehicle owner. Key obligations include:

Technical measures like encryption-in-transit (TLS 1.3) and encryption-at-rest (AES-256) are mandatory. The system must log all access events for auditability under Article 30.

Local Legal Frameworks

Jurisdictions outside the EU impose distinct requirements:

Algorithmic Transparency

Regulators increasingly demand explainability for AI-driven LPR systems. For a recognition model with confidence score s, the decision threshold θ must be adjustable to minimize false positives (misidentification). The trade-off is quantified via:

$$ \text{FPR} = \frac{\text{FP}}{\text{FP} + \text{TN}}, \quad \text{FNR} = \frac{\text{FN}}{\text{FN} + \text{TP}} $$

where FPR (False Positive Rate) and FNR (False Negative Rate) must be documented for compliance audits.

Case Study: German Traffic Surveillance

In Germany, LPR systems used for toll enforcement (LKW-Maut) underwent a 2022 constitutional review. The court mandated:

This precedent underscores the need for jurisdictional legal reviews before deployment.

6.3 Bias and Fairness in Recognition Systems

License plate recognition (LPR) systems, like other computer vision applications, are susceptible to biases that disproportionately affect certain demographic groups. These biases often stem from imbalanced training datasets, algorithmic design choices, or environmental factors during deployment. A well-documented case involves LPR systems performing poorly on plates from specific regions due to variations in font, color, or plate design not adequately represented in training data.

Sources of Bias in LPR Systems

Bias in LPR systems manifests in three primary dimensions: data, algorithm, and deployment. Data bias occurs when training datasets underrepresent certain plate styles, such as those from rural areas or foreign vehicles. Algorithmic bias arises from feature extraction methods that prioritize common plate characteristics over rare ones. For instance, convolutional neural networks (CNNs) may develop filters that detect standard fonts more effectively than stylized or non-Latin scripts. Deployment bias emerges from environmental conditions—poor lighting, weather, or camera angles—that disproportionately degrade performance for certain vehicle types or plate locations.

$$ P_{miss} = \frac{1}{N} \sum_{i=1}^{N} \mathbb{I}(f(x_i) \neq y_i \mid x_i \in G_k) $$

Where Pmiss quantifies the misclassification rate for subgroup Gk, f(xi) is the model's prediction, and yi is the ground truth. Disparities in Pmiss across subgroups indicate systemic bias.

Quantifying Fairness Metrics

Statistical parity difference (SPD) and equalized odds are rigorous measures for assessing LPR fairness. SPD evaluates whether recognition rates are consistent across subgroups:

$$ SPD = |P(\hat{Y}=1 \mid G_1) - P(\hat{Y}=1 \mid G_2)| $$

where G1 and G2 represent distinct plate groups. Equalized odds extends this by conditioning on true labels:

$$ |P(\hat{Y}=1 \mid Y=y, G_1) - P(\hat{Y}=1 \mid Y=y, G_2)| \leq \epsilon $$

Practical implementations often use threshold adjustment or reweighting to minimize these metrics. For example, applying cost-sensitive learning during CNN training can penalize errors on underrepresented plates more heavily.

Mitigation Strategies

Adversarial debiasing trains the LPR model alongside a discriminator that predicts subgroup membership from features, forcing the main network to develop invariant representations. The objective function becomes:

$$ \min_{\theta} \max_{\phi} \mathbb{E}[L_{task}(f_\theta(x), y)] - \lambda \mathbb{E}[L_{adv}(f_\phi(f_\theta(x)), g)] $$

where Ltask is the license plate recognition loss, Ladv is the adversarial loss for subgroup prediction, and λ controls the trade-off. Alternative approaches include:

Case Study: Geographic Bias in European LPR Systems

A 2022 benchmark of commercial LPR APIs revealed 18% lower accuracy for Eastern European plates compared to Western European ones. The disparity correlated with the proportion of training data—Western plates constituted 73% of datasets. After retraining with balanced data and focal loss (which down-weights well-classified examples), the gap narrowed to 4%. This highlights how dataset composition directly impacts real-world performance disparities.

7. Key Research Papers and Articles

7.1 Key Research Papers and Articles

7.2 Open-Source Tools and Datasets

7.3 Recommended Books and Courses
