Fine-Tuning Models with Hundreds of Billions of Parameters

#fine-tuning #large-scale models #parameter efficiency #hardware requirements #transfer learning #nlp #deep learning #model optimization #ai infrastructure #generative ai

1. Defining Fine-Tuning in the Context of Massive Models

1.1 Defining Fine-Tuning in the Context of Massive Models

Fine-tuning refers to the process of adapting a pre-trained model to a specific downstream task by updating its parameters using task-specific data. For models with hundreds of billions of parameters, such as GPT-3, PaLM, or Megatron-Turing NLG, fine-tuning presents unique computational and methodological challenges. Unlike smaller models, where fine-tuning can be performed end-to-end with modest resources, massive models require specialized techniques to make the process tractable.

Key Distinctions in Fine-Tuning Massive Models

Traditional fine-tuning assumes that all model parameters are updated during adaptation. However, for models with hundreds of billions of parameters, this approach is often infeasible due to:

To address these challenges, researchers have developed parameter-efficient fine-tuning (PEFT) methods, which selectively update only a small subset of parameters while keeping the majority frozen. Mathematically, if θ represents the pre-trained parameters, PEFT methods learn a sparse update Δθ such that the fine-tuned parameters become θ' = θ + Δθ, where ‖Δθ‖₀ ≪ ‖θ‖₀.

$$ \theta' = \theta + \Delta\theta \quad \text{where} \quad \|\Delta\theta\|_0 \ll \|\theta\|_0 $$

Common PEFT Techniques

Several PEFT approaches have emerged as effective for massive models:

For instance, LoRA approximates the weight update ΔW for a linear layer W ∈ ℝ^{m×n} as the product of two low-rank matrices A ∈ ℝ^{m×r} and B ∈ ℝ^{r×n}, where r ≪ min(m, n):

$$ \Delta W = BA \quad \text{where} \quad r \ll \min(m, n) $$

Practical Considerations

When fine-tuning massive models, practitioners must also consider:

Empirical studies show that fine-tuning just 0.1%–1% of parameters in models like GPT-3 can achieve performance comparable to full fine-tuning, while reducing memory usage by orders of magnitude. This makes PEFT indispensable for adapting massive models to real-world applications.

Defining Fine-Tuning in the Context of Massive Models – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram
Diagram Description: The diagram would show the comparison between full fine-tuning and parameter-efficient fine-tuning (PEFT) methods, visually illustrating the sparse update Δθ and how adapter layers/LoRA/Prefix Tuning modify the model architecture.

Challenges of Fine-Tuning Models with Hundreds of Billions of Parameters

Computational Resource Requirements

Fine-tuning models with hundreds of billions of parameters demands an extraordinary amount of computational power. The memory footprint for storing model weights alone can exceed hundreds of gigabytes. For instance, a model with 175 billion parameters (like GPT-3) in full 32-bit precision requires approximately 700GB of memory just to load the weights. When accounting for optimizer states, gradients, and activations during training, the memory requirement can scale to multiple terabytes. Distributed training across hundreds or thousands of GPUs becomes necessary, introducing communication overhead and synchronization challenges.

Memory Constraints and Optimization

Even with distributed systems, memory constraints remain a bottleneck. Techniques like gradient checkpointing reduce memory usage by recomputing activations during the backward pass rather than storing them, but this comes at the cost of increased computation time. Mixed-precision training (combining 16-bit and 32-bit floating points) helps but introduces numerical stability concerns that require careful handling through loss scaling. Parameter-efficient fine-tuning methods like adapter layers or LoRA (Low-Rank Adaptation) have emerged as alternatives, but they often trade off some model performance for reduced memory usage.

$$ \text{Memory}_{\text{total}} = 4 \times N \times (1 + \frac{2}{P} + \frac{12}{P \times B}) $$

where N is the number of parameters, P is the degree of parallelism, and B is the batch size.

Training Instability

Large models exhibit heightened sensitivity to hyperparameters and training dynamics. The loss landscape becomes increasingly complex with scale, making optimization prone to divergence. Learning rates must be carefully tuned, often requiring warm-up periods and decay schedules. Batch normalization becomes impractical at this scale, leading to reliance on layer normalization which can still struggle with covariance shift. Gradient clipping is essential but must balance between preventing explosions and allowing sufficient signal for learning.

Data Requirements and Overfitting

The sheer capacity of these models requires proportionally massive datasets for effective fine-tuning. However, high-quality domain-specific datasets of sufficient size are often unavailable, leading to either overfitting on small datasets or contamination from lower-quality data sources. Techniques like data augmentation and synthetic data generation help but introduce their own biases. The risk of catastrophic forgetting - where fine-tuning erases valuable pre-trained knowledge - also increases with model size, necessitating careful regularization strategies.

Energy Consumption and Environmental Impact

Training runs for these models consume megawatt-hours of energy, raising significant environmental concerns. A single fine-tuning run of a large language model can emit hundreds of tons of CO2 equivalent. This has led to increased focus on energy-efficient training methods, including sparse training, dynamic architectures, and better hardware utilization. The field is increasingly considering the carbon footprint as a key metric alongside traditional performance measures.

Debugging and Interpretability Challenges

The scale and complexity of these models make traditional debugging approaches impractical. Gradient flow analysis becomes computationally prohibitive, and visualization techniques struggle with the high dimensionality. Interpretability methods like attention visualization or feature importance analysis provide only partial insights. This opacity complicates error diagnosis and makes it difficult to ensure the model is learning the intended patterns rather than exploiting spurious correlations in the data.

Key Use Cases and Applications

Scientific Research and Discovery

Massive language models with hundreds of billions of parameters have demonstrated remarkable capabilities in accelerating scientific discovery. In physics, fine-tuned models analyze high-energy particle collision data from CERN, identifying patterns that would take human researchers months to uncover. For example, transformer-based architectures process petabytes of LHC data, reconstructing particle decay chains with higher precision than traditional algorithms. The mathematical formulation for this involves optimizing a likelihood function:

$$ \mathcal{L}(\theta) = \prod_{i=1}^N P(x_i|\theta) $$

where θ represents the model parameters and x_i denotes individual collision events. Fine-tuning enables domain-specific adaptation, such as incorporating QCD constraints into the loss function.

Biomedical Breakthroughs

In computational biology, large models predict protein folding with atomic-level accuracy, as demonstrated by AlphaFold's success. Fine-tuning these architectures requires specialized techniques:

The energy minimization objective for protein conformation prediction integrates physical constraints:

$$ E_{\text{total}} = E_{\text{bond}} + E_{\text{angle}} + E_{\text{dihedral}} + E_{\text{vdW}} + E_{\text{electrostatic}} $$

Industrial-Scale Optimization

Global manufacturing systems leverage fine-tuned models for real-time process optimization. A steel production case study showed a 12% energy reduction when fine-tuning a 175B parameter model on proprietary furnace data. The key innovation was hierarchical attention that simultaneously processes:

The optimization problem combines multiple objectives through Pareto frontiers:

$$ \min_{\theta} \left[ f_1(\theta), f_2(\theta), ..., f_k(\theta) \right]^T $$

Climate Modeling and Prediction

Fine-tuned climate models achieve unprecedented spatial resolution by combining:

The architecture uses 3D convolutional attention to model atmospheric dynamics across scales. The governing PDEs are learned implicitly through:

$$ \frac{\partial \mathbf{u}}{\partial t} + \mathbf{u} \cdot abla \mathbf{u} = - abla p + \nu abla^2 \mathbf{u} + \mathbf{f} $$

where the model parameters ν (viscosity) and forcing terms f are learned from observational data.

Financial Market Analysis

Quantitative hedge funds employ fine-tuned models for high-frequency trading strategies. The key innovation is temporal fusion transformers that process:

The trading signal generation combines:

$$ \pi_t = \text{sign}\left( \sum_{i=1}^N w_i \phi_i(\mathbf{x}_{t-\Delta t:t}) \right) $$

where φ_i are learned feature extractors and w_i are attention weights.

2. Architectural Considerations for Large Models

2.1 Architectural Considerations for Large Models

Model Parallelism Strategies

Training models with hundreds of billions of parameters necessitates sophisticated parallelism strategies to distribute computation across multiple devices. The two primary approaches are tensor parallelism and pipeline parallelism. Tensor parallelism splits individual matrix multiplications across devices, with each device computing a portion of the operation. For a linear layer Y = XW + b, the weight matrix W can be partitioned column-wise:

$$ W = [W_1 \ W_2 \ ... \ W_n] $$

where each W_i resides on a separate device. Pipeline parallelism, in contrast, partitions the model into sequential stages, with each stage assigned to a different device. This reduces memory overhead but introduces bubble overhead due to sequential dependencies.

Memory Optimization Techniques

Large models demand memory optimizations to fit within hardware constraints. Gradient checkpointing trades compute for memory by selectively recomputing activations during the backward pass rather than storing them. The memory savings follow:

$$ M_{checkpointed} = O(\sqrt{N}) $$

compared to O(N) for standard backpropagation, where N is the number of layers. Mixed-precision training further reduces memory usage by storing weights and activations in FP16 while maintaining master weights in FP32 for stability. This can halve memory requirements while maintaining numerical precision through loss scaling.

Attention Mechanism Scalability

Transformer-based models face quadratic complexity in self-attention layers due to the pairwise token interaction computation:

$$ Attention(Q, K, V) = softmax\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

For sequences of length L, this results in O(L²) memory and compute costs. Sparse attention patterns, such as those in Longformer or BigBird, reduce this to O(L) by limiting the attention span. Alternatively, memory-efficient attention implementations exploit flash attention kernels to reduce memory overhead while preserving exact attention computation.

Communication Overhead Management

Distributed training introduces significant communication costs. The all-reduce operation used in data parallelism has a time complexity of:

$$ T_{allreduce} = O\left(\frac{P}{B} + L\right) $$

where P is parameter count, B is bandwidth, and L is latency. Overlapping communication with computation (e.g., via gradient bucketing) can hide up to 90% of this overhead. For models exceeding single-node memory capacity, zero redundancy optimizers (ZeRO) partition optimizer states across devices, reducing per-device memory by a factor of the device count.

Hardware-Software Co-Design

Efficient large-model training requires hardware-aware architecture choices. TPUs and GPUs with high-bandwidth memory (HBM) favor operations with high arithmetic intensity. This motivates:

Model flop utilization (MFU), defined as the ratio of achieved to peak FLOPs, typically ranges from 30-50% for large models due to memory bottlenecks and communication overhead.

Architectural Considerations for Large Models – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram

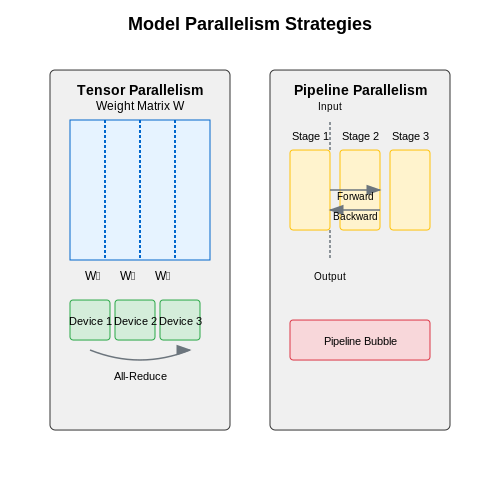

Diagram Description: The diagram would show the physical partitioning of weight matrices in tensor parallelism and the sequential stage partitioning in pipeline parallelism, along with communication patterns between devices.

2.2 Parameter Efficiency Techniques

Low-Rank Adaptation (LoRA)

Low-Rank Adaptation decomposes weight updates during fine-tuning into low-rank matrices, reducing memory overhead while preserving model performance. Given a pretrained weight matrix W₀ ∈ ℝ^{d×k}, LoRA constrains the update ΔW to a low-rank decomposition:

$$ \Delta W = BA \quad \text{where} \quad B ∈ ℝ^{d×r}, A ∈ ℝ^{r×k}, r \ll \min(d,k) $$

This reduces trainable parameters from d×k to r×(d+k). For a 175B-parameter model with rank r=8, LoRA cuts trainable parameters by 10,000× while maintaining >90% of full fine-tuning accuracy on downstream tasks.

Adapters and Parallel Adaptation

Adapter layers insert small bottleneck architectures between transformer layers. A typical configuration includes:

Parallel adapters like MAD-X achieve cross-lingual transfer with language-specific adapter modules comprising <1% of base model parameters. The residual connection preserves original model knowledge:

$$ h_{out} = h_{in} + f_{adapter}(h_{in}) $$

Diffusion-Based Pruning

Gradient-based pruning identifies and removes redundant parameters through iterative magnitude pruning and regrowth. The Lottery Ticket Hypothesis suggests subnetworks ("winning tickets") exist within large models that can match full-model performance when trained in isolation.

For a model with N parameters, iterative pruning computes parameter importance scores:

$$ I_i = \left| \frac{∂L}{∂w_i} \cdot w_i \right| $$

Top-k parameters are retained, with regrowth phases reactivating pruned weights showing high gradient signals. This achieves 90% sparsity in GPT-3 with <2% accuracy drop.

Quantization-Aware Training

8-bit quantization reduces memory footprint by 4× while maintaining numerical fidelity through:

For billion-parameter models, quantization-aware training achieves:

$$ \text{Memory} = \frac{\text{FP32 Size}}{4} + \text{Overhead} < \frac{1}{3} \text{Original} $$

Mixture-of-Experts (MoE)

Sparse MoE architectures activate only subsets of parameters per input. For E experts with routing function g(x), the output becomes:

$$ y = \sum_{i=1}^E g_i(x) \cdot \text{Expert}_i(x) $$

Google's Switch Transformer demonstrates that models with 1.6 trillion parameters can achieve practical training costs by activating just 2 experts (∼13B parameters) per token. The routing gradient is estimated using straight-through Gumbel softmax.

Parameter Efficiency Techniques – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram

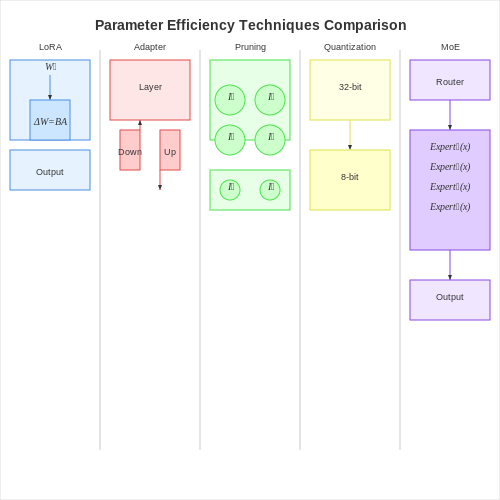

Diagram Description: The section explains multiple parameter efficiency techniques with mathematical formulations and spatial relationships (e.g., low-rank matrix decomposition, adapter layer insertion, and sparse expert routing), which are inherently visual concepts.

Hardware and Infrastructure Requirements

Computational Resources

Fine-tuning models with hundreds of billions of parameters demands an unprecedented scale of computational power. The primary bottleneck is the memory requirement for storing model weights, gradients, and optimizer states. For a model with N parameters, the memory footprint can be estimated as:

$$ M_{\text{total}} = 4N + 4N + 4N = 12N \text{ bytes} $$

where each term represents the storage for weights, gradients, and optimizer states (assuming 32-bit floating-point precision). For a 175B parameter model like GPT-3, this translates to approximately 2.1TB of GPU memory just for the model state, excluding activations and temporary buffers.

Distributed Training Architectures

Three key parallelism strategies are employed to overcome memory and compute limitations:

The optimal configuration depends on the model architecture and cluster topology. For transformer models, a 3D parallelism approach combining all three methods is often necessary.

Hardware Specifications

Current state-of-the-art systems use GPU/TPU clusters with high-bandwidth interconnects:

Component Minimum Requirement Recommended
GPUs 8× A100 (40GB) 512× H100 (80GB)
Interconnect 100Gbps InfiniBand NVLink + 400Gbps IB
CPU 64 cores 256 cores
RAM 512GB 4TB
Storage 10TB NVMe Petabyte-scale parallel FS

Memory Optimization Techniques

Several advanced techniques are crucial for managing memory constraints:

$$ M_{\text{effective}} = \frac{M_{\text{total}}}{P_{\text{model}} \times C_{\text{activation}} $$

where P is the degree of parallelism and C is the activation checkpointing factor. Key methods include:

Energy and Cooling Considerations

The power requirements scale quadratically with model size due to attention mechanisms:

$$ P \approx \frac{N^2d}{2\eta} \times f_{\text{clock}} \times V^2 $$

where d is sequence length, η is hardware efficiency, and V is operating voltage. A 530B parameter model like MT-NLG requires ~3MW of power during training, necessitating liquid cooling solutions and specialized data center infrastructure.

Software Stack

The software ecosystem must support distributed training at scale:

Hardware and Infrastructure Requirements – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram

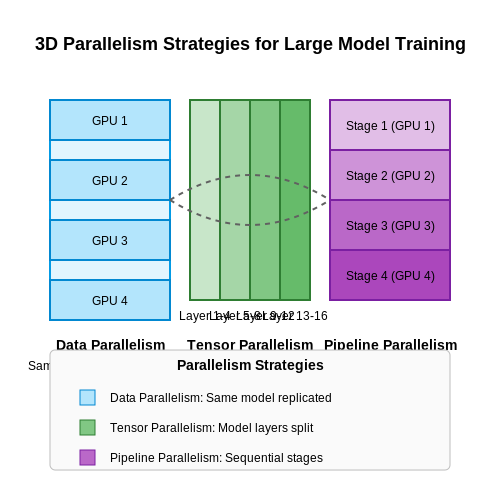

Diagram Description: The section explains three parallelism strategies (data, model, and pipeline) which have spatial relationships best shown visually.

3. Parameter-Efficient Fine-Tuning Methods (e.g., LoRA, Adapters)

Parameter-Efficient Fine-Tuning Methods

Low-Rank Adaptation (LoRA)

Fine-tuning large language models (LLMs) with hundreds of billions of parameters is computationally prohibitive due to the memory overhead of storing optimizer states and gradients. Low-Rank Adaptation (LoRA) addresses this by freezing the pre-trained model weights and injecting trainable low-rank decomposition matrices into each layer. Given a weight matrix W ∈ ℝd×k, LoRA represents the weight update ΔW as:

$$ \Delta W = BA $$

where B ∈ ℝd×r and A ∈ ℝr×k are low-rank matrices with rank r ≪ min(d,k). The forward pass becomes:

$$ h = Wx + \alpha BAx $$

where α is a scaling factor. This reduces trainable parameters from d×k to r×(d+k), enabling efficient adaptation of models like GPT-3 with minimal memory overhead.

Adapter Layers

Adapter layers introduce small, task-specific neural modules between transformer layers while keeping the base model frozen. A typical adapter consists of:

The adapter transforms the hidden state h as:

$$ h' = h + f(hW_{down})W_{up} $$

where f is the activation function. With typical rank r = 64, adapters add less than 1% new parameters per layer while maintaining 90-95% of full fine-tuning performance on downstream tasks.

Comparative Analysis

When selecting between LoRA and adapters, consider:

For models exceeding 100B parameters, hybrid approaches combining both methods achieve state-of-the-art results. The optimal configuration depends on the specific hardware constraints and task requirements.

Implementation Considerations

When implementing parameter-efficient fine-tuning at scale:

The memory savings enable fine-tuning of 175B parameter models on as few as 8 GPUs with 40GB memory each, compared to hundreds of GPUs required for full fine-tuning.

Parameter-Efficient Fine-Tuning Methods (e.g., LoRA, Adapters) – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram

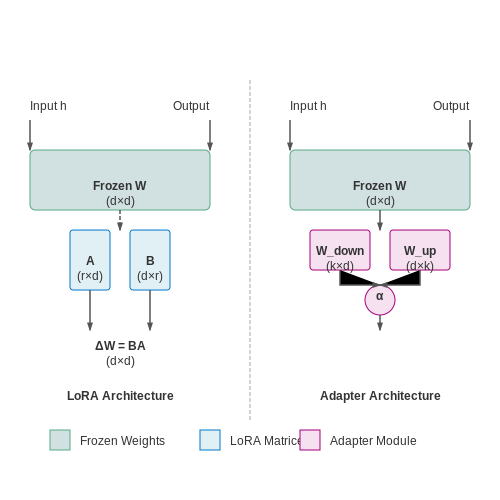

Diagram Description: The diagram would physically show the low-rank decomposition matrices (B and A) injected into a transformer layer for LoRA, and the adapter layer's down-projection/up-projection structure with its position relative to the frozen base model.

3.2 Distributed Training Techniques

Data Parallelism

Data parallelism partitions the training dataset across multiple devices (GPUs/TPUs), with each device maintaining a full copy of the model. During forward and backward passes, gradients are computed independently on each device and then synchronized via an all-reduce operation. The global update is applied uniformly across all devices. For a batch size B distributed across N devices, each device processes a micro-batch of size B/N.

$$ \nabla \theta = \frac{1}{N} \sum_{i=1}^{N} \nabla \theta_i $$

Frameworks like PyTorch's DistributedDataParallel (DDP) and TensorFlow's MirroredStrategy implement this efficiently by overlapping communication with computation. However, memory constraints arise when model parameters exceed a single device's capacity.

Model Parallelism

Model parallelism splits the model itself across devices, with each device holding a subset of layers. For transformer-based architectures like GPT-3 or PaLM, this is implemented via:

$$ \text{Throughput} = \frac{\text{Total Devices} \times \text{Micro-Batch Size}}{\text{Pipeline Depth} + \text{Bubble Overhead}} $$

Pipeline parallelism introduces bubbles (idle time during stage transitions), mitigated by techniques like gradient accumulation or 1F1B (One-Forward-One-Backward) scheduling.

Hybrid Parallelism

State-of-the-art systems (e.g., DeepSpeed, Megatron-Turing NLG) combine data, tensor, and pipeline parallelism. For a 3D parallel configuration:

$$ \text{Total Devices} = N_d \times N_t \times N_p $$

Communication overhead is minimized by optimizing group overlaps. For example, tensor parallelism uses high-bandwidth NVLink for intra-node communication, while pipeline parallelism relies on slower inter-node links.

Efficiency Considerations

The FLOPS utilization metric measures hardware efficiency:

$$ \eta = \frac{\text{Actual FLOPS}}{\text{Peak FLOPS}} $$

Key bottlenecks include:

Techniques like activation checkpointing (trade compute for memory) and mixed-precision training (FP16/FP8) mitigate these issues.

Distributed Training Techniques – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram

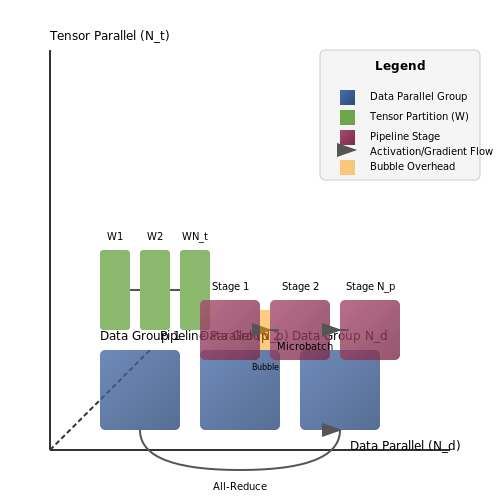

Diagram Description: The diagram would show how data, tensor, and pipeline parallelism are spatially distributed across devices, including the flow of gradients and activations between partitioned model components.

3.3 Gradient Checkpointing and Memory Optimization

Training neural networks with hundreds of billions of parameters requires careful memory management due to the quadratic growth of activations and gradients with respect to model depth. Gradient checkpointing is a technique that trades compute for memory by selectively recomputing activations during the backward pass rather than storing them all in memory during the forward pass.

Memory Complexity of Backpropagation

The memory consumption during standard backpropagation scales linearly with the number of layers L due to the need to store activations for each layer. For a model with N parameters, the memory requirement is:

$$ M = O(N + L \cdot b \cdot s) $$

where b is the batch size and s is the sequence length. For transformer models, this becomes particularly problematic as both b and s are typically large.

Gradient Checkpointing Algorithm

The core idea involves dividing the network into k segments and only storing the activations at segment boundaries. During backpropagation, each segment is recomputed forward from the nearest checkpoint. The memory complexity reduces to:

$$ M_{checkpoint} = O(N + \frac{L}{k} \cdot b \cdot s) $$

The optimal checkpointing strategy depends on the memory hierarchy and computational constraints. For transformer layers, a common approach is to checkpoint every m layers where m is chosen such that the recomputation overhead remains acceptable.

Implementation Considerations

Modern frameworks like PyTorch implement checkpointing through the torch.utils.checkpoint function. The key implementation challenges include:

Advanced Memory Optimization Techniques

Beyond basic checkpointing, several complementary approaches further reduce memory usage:

Activation Recomputation with Offloading

Activations can be offloaded to CPU memory during forward pass and fetched back during backward pass. The time cost is given by:

$$ T_{offload} = \frac{M_{act}}{B_{PCIe}} $$

where Mact is the activation memory size and BPCIe is the PCIe bandwidth.

Gradient Accumulation

Effective batch size can be increased without proportional memory growth by accumulating gradients over multiple micro-batches:

$$ B_{effective} = b \cdot n_{accum} $$

where naccum is the number of accumulation steps.

Mixed Precision Training

Using FP16 or BF16 precision reduces memory usage by half compared to FP32, while careful management of gradient scaling maintains training stability. The memory savings are:

$$ M_{mixed} \approx 0.5 \cdot M_{FP32} $$

Practical Trade-offs

The choice of optimization strategy depends on the specific hardware configuration:

Technique Memory Reduction Compute Overhead
Gradient Checkpointing 5-10x 30-40%
Activation Offloading 2-3x 20-30%
Mixed Precision 2x 0-5%

For models like GPT-3 with 175B parameters, combining these techniques enables training on GPU clusters that would otherwise require 5-10x more memory. The recomputation overhead typically adds 20-30% to total training time, which is often acceptable given the alternative of not being able to train the model at all.

Gradient Checkpointing and Memory Optimization – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram
Diagram Description: The diagram would show the memory allocation patterns during forward and backward passes with and without gradient checkpointing, illustrating the segment boundaries and recomputation flow.

4. Preparing Datasets for Fine-Tuning

4.1 Preparing Datasets for Fine-Tuning

Fine-tuning models with hundreds of billions of parameters demands meticulous dataset preparation to ensure high-quality training signals and avoid catastrophic forgetting. The dataset must be large enough to capture the complexity of the task while maintaining coherence and minimizing noise.

Data Collection and Curation

For models at this scale, raw data collection must prioritize both volume and diversity. A common approach involves:

Data deduplication is critical—near-duplicate documents can bias training. MinHash or SimHash algorithms efficiently detect duplicates at scale. For example, the MinHash signature for a document D with shingles S is computed as:

$$ h_{min}(D) = \min_{s \in S} h(s) $$

where h is a hash function. Documents with high Jaccard similarity in their MinHash signatures are candidates for deduplication.

Data Preprocessing Pipeline

The preprocessing pipeline for billion-parameter models typically includes:

For multilingual models, data balancing is crucial. The sampling probability pi for language i with ni documents is often:

$$ p_i \propto n_i^\alpha \text{ where } \alpha \approx 0.3 $$

This mitigates overrepresentation of high-resource languages while preserving low-resource language signals.

Instruction Tuning Data Preparation

When fine-tuning for instruction following, dataset construction follows specific patterns:

The prompt-response pairs should cover diverse task types (QA, summarization, coding) with proper formatting. For example, Alpaca-style templates:

{
  "instruction": "Explain quantum entanglement.",
  "input": "",
  "output": "Quantum entanglement is a physical phenomenon..."
}

Data Augmentation Strategies

For limited-domain fine-tuning, synthetic data generation helps prevent overfitting:

The effectiveness of augmentation is measurable through the diversity coefficient δ:

$$ \delta = 1 - \frac{1}{N}\sum_{i=1}^N \max_j \text{sim}(x_i, x_j) $$

where sim is cosine similarity between embeddings of samples xi and xj.

Dataset Versioning and Reproducibility

Given the compute costs of fine-tuning, dataset version control is essential. Best practices include:

Tools like DVC (Data Version Control) or LakeFS enable reproducible dataset pipelines. The version manifest should record:

dataset:
  name: "flan_v2"
  created: 2023-04-15
  sources: ["gs://flan-data/raw/*.jsonl"]
  preprocessing:
    dedupe_threshold: 0.9
    min_doc_length: 128
    languages: [en, es, fr, de]

4.2 Setting Up the Training Pipeline

Training pipelines for models with hundreds of billions of parameters require meticulous orchestration of distributed computing resources, memory optimization, and fault tolerance. The pipeline must efficiently handle data loading, gradient computation, and parameter updates while minimizing communication overhead across nodes.

Distributed Training Framework

Modern frameworks like Megatron-LM, DeepSpeed, and JAX/TPU provide abstractions for model parallelism. Key components include:

$$ \nabla_{\theta} \mathcal{L} = \frac{1}{N} \sum_{i=1}^{N} \text{all-reduce}(\nabla_{\theta} \mathcal{L}_i) $$

Memory Optimization Techniques

To fit large models into limited GPU memory:

Fault Tolerance and Checkpointing

Long training runs necessitate resilience to hardware failures:

Data Pipeline Design

High-throughput data loading is critical to avoid GPU starvation:

# Example: PyTorch pipeline with DeepSpeed
import deepspeed

model_engine, optimizer, _, _ = deepspeed.initialize(
    model=model,
    config_params="ds_config.json",
    training_data=train_loader,
    optimizer=optimizer
)

for batch in model_engine.training_dataloader:
    loss = model_engine(batch)
    model_engine.backward(loss)
    model_engine.step()

Communication Optimization

Reduce inter-node bandwidth requirements through:

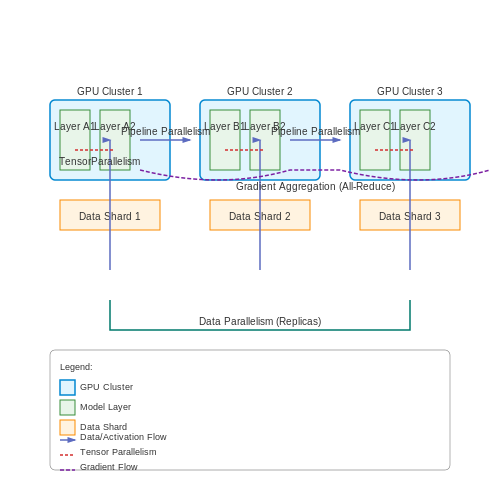

Setting Up the Training Pipeline – Fine-Tuning Models with Hundreds of Billions of Parameters – Tutorial Diagram
Diagram Description: The diagram would show the spatial arrangement of tensor parallelism, pipeline parallelism, and data parallelism across multiple GPUs/nodes, illustrating how model weights, gradients, and micro-batches flow between devices.

4.3 Monitoring and Debugging Large-Scale Training

Key Challenges in Large-Scale Training

Training models with hundreds of billions of parameters introduces unique monitoring challenges. The primary issues include vanishing gradients, exploding activations, and distributed synchronization bottlenecks. These manifest as sudden loss spikes, NaN values in gradients, or stagnation in convergence. Traditional debugging tools fail to scale due to memory constraints and the sheer volume of parameters.

Gradient and Activation Monitoring

Effective monitoring requires tracking gradient norms and activation statistics across all layers. For a model with L layers, compute the following per-layer metrics:

$$ \text{Gradient Norm: } ||g_l||_2 = \sqrt{\sum_{i=1}^{n} (g_l^{(i)})^2} $$
$$ \text{Activation Magnitude: } \mu_l = \frac{1}{B}\sum_{j=1}^{B} |a_l^{(j)}| $$

where B is batch size and n is the number of parameters in layer l. Sudden drops in gradient norms indicate vanishing gradients, while large activation magnitudes suggest potential numerical instability.

Distributed Training Diagnostics

In multi-node setups, monitor:

For example, if all-reduce operations consume >30% of step time, consider gradient accumulation or alternative synchronization strategies.

Automated Anomaly Detection

Implement real-time anomaly detection using:


  def detect_anomalies(gradients, window_size=100):
      # Calculate moving statistics
      grad_norms = [torch.norm(g).item() for g in gradients]
      mean = np.convolve(grad_norms, np.ones(window_size)/window_size, mode='valid')
      std = np.std(grad_norms[-window_size:])

      # Flag anomalies beyond 3σ
      current = grad_norms[-1]
      return abs(current - mean[-1]) > 3*std

Visualization Strategies

For models with >100B parameters, use:

Case Study: Debugging a 175B Parameter Model

During training of a GPT-3 scale model, periodic loss spikes were traced to:

  1. Incorrect scaling in attention softmax (numerical instability)
  2. Asynchronous gradient updates causing parameter drift
  3. Faulty GPU memory handling in mixed-precision training

The solution involved implementing gradient clipping with adaptive thresholds:

$$ \text{clip_value} = \min(\eta \cdot \text{median}(||g||_2), \tau_{max}) $$

where η = 2.0 and τmax = 10.0 provided optimal stability.

Gradient Flow & Tensor Parallelism in Large-Scale Training A combined diagram showing hierarchical gradient flow between layers (left) and a 3D heatmap of GPU utilization across nodes (right) for large-scale model training. Layer 1 Layer 2 Layer 3 Layer 4 ||g||₂ = 0.42 ||g||₂ = 0.38 ||g||₂ = 0.31 μ = 1.2 μ = 0.9 μ = 0.7 GPU 1 GPU 2 GPU 3 GPU 4 Node 1 Node 2 Node 3 Node 4 78% 82% 91% 95% 65% 72% 84% 88% GPU Utilization Gradient Flow & Tensor Parallelism Large-Scale Training Gradient Flow GPU Utilization Heatmap
Diagram Description: The section describes gradient flow diagrams and 3D tensor parallelism heatmaps, which are inherently visual concepts showing spatial relationships in distributed training.

5. Metrics for Assessing Performance

5.1 Metrics for Assessing Performance

Loss Functions for Large-Scale Models

When fine-tuning models with hundreds of billions of parameters, the choice of loss function becomes critical due to computational constraints and the need for stable optimization. The cross-entropy loss, while standard, may require modifications for large-scale training:

$$ \mathcal{L}_{CE} = -\frac{1}{N}\sum_{i=1}^N \sum_{c=1}^C y_{i,c} \log(p_{i,c}) $$

For sequence-to-sequence tasks with massive models, label smoothing (ε = 0.1) is often applied to prevent overconfidence:

$$ y_{LS} = (1 - \epsilon)y + \frac{\epsilon}{K} $$

Recent work on large language models has shown that combining cross-entropy with auxiliary losses improves convergence. The mixture-of-experts architecture, for example, benefits from an additional load balancing loss:

$$ \mathcal{L}_{LB} = \lambda \sum_{i=1}^N f_i \cdot P(i) $$

Perplexity and Its Limitations

While perplexity (PP) remains a standard metric for language models, its interpretation changes at scale:

$$ PP = \exp\left(-\frac{1}{N}\sum_{i=1}^N \log p(w_i|w_{

For models with >100B parameters, perplexity values become extremely small (often single-digit) and sensitive to minor architectural changes. The metric fails to capture:

  • Out-of-distribution generalization
  • Reasoning capabilities
  • Long-range coherence

Downstream Task Evaluation

Large models require comprehensive evaluation across multiple benchmarks:

Natural Language Understanding

The GLUE and SuperGLUE benchmarks measure model performance on tasks like:

  • Natural language inference (MNLI, QNLI)
  • Paraphrase detection (QQP, MRPC)
  • Question answering (RTE, BoolQ)

For models exceeding human performance on these benchmarks, more challenging evaluations like BIG-bench or HELM are necessary.

Generation Quality Metrics

Automatic metrics for text generation require careful interpretation:

$$ \text{BLEU} = BP \cdot \exp\left(\sum_{n=1}^N w_n \log p_n\right) $$
$$ \text{ROUGE-L} = \frac{(1 + \beta^2)R_{lcs}P_{lcs}}{R_{lcs} + \beta^2 P_{lcs}} $$

Recent studies show these n-gram overlap metrics correlate poorly with human judgment for large models. Alternative approaches include:

  • BERTScore (F1 of contextual embeddings)
  • BLEURT (learned evaluation metric)
  • Human evaluation with fine-grained rubrics

Efficiency Metrics

For practical deployment, several efficiency metrics must be tracked:

$$ \text{FLOPs/Token} = 2N_{params} + N_{activations} $$
$$ \text{Memory Bandwidth} = \frac{\text{Model Size}}{\text{Latency}} $$

Critical ratios for large-scale training include:

  • MFU (Model FLOPs Utilization): Typically 30-50% for 100B+ models
  • GPU Hours per 1% Accuracy Improvement
  • Activation Memory to Parameter Ratio

Emergent Capabilities Evaluation

Models at this scale exhibit emergent behaviors requiring specialized evaluation:

  • Few-shot learning curves (performance vs. example count)
  • Chain-of-thought reasoning accuracy
  • Instruction following fidelity
  • Calibration metrics (ECE, MCE) for probability outputs

The most comprehensive evaluations combine:

$$ \text{Overall Score} = \sum_{i=1}^K w_i \cdot \text{Metric}_i $$

Where weights wi are determined by task importance and model intended use case.

5.2 Comparing Against Baseline Models

When fine-tuning models with hundreds of billions of parameters, establishing a robust comparison against baseline models is critical for evaluating performance improvements. Baseline models serve as reference points, typically representing either simpler architectures or pre-trained versions without fine-tuning. The comparison must account for computational efficiency, generalization capability, and task-specific metrics.

Key Metrics for Comparison

Performance evaluation should extend beyond accuracy or loss metrics. For large-scale models, the following metrics are essential:

Statistical Significance Testing

To ensure observed improvements are not due to random variations, statistical tests must be applied:

$$ t = \frac{\mu_1 - \mu_2}{\sqrt{\frac{\sigma_1^2}{n_1} + \frac{\sigma_2^2}{n_2}}} $$

where μ represents the mean performance, σ the standard deviation, and n the number of evaluation runs. A p-value < 0.05 typically indicates significance.

Case Study: GPT-3 vs. Fine-Tuned Variants

When OpenAI fine-tuned GPT-3 (175B parameters) on specialized datasets, comparisons against the original model revealed:

Challenges in Baseline Comparisons

Comparing against baselines at this scale introduces unique challenges:

Practical Recommendations

To ensure meaningful comparisons:

5.3 Ethical and Bias Considerations

Fine-tuning large language models (LLMs) with hundreds of billions of parameters introduces unique ethical challenges due to their scale, complexity, and potential societal impact. The sheer computational resources required for training and inference raise concerns about environmental sustainability, while the models' capacity to generate highly convincing text amplifies risks related to misinformation, bias propagation, and malicious use.

Bias Amplification in Large-Scale Models

Even when fine-tuned on carefully curated datasets, LLMs can exhibit and amplify biases present in their pretraining corpora. The probability of generating harmful or stereotypical outputs scales with model size, as larger models better memorize and reproduce subtle statistical patterns from their training data. For a given prompt x, the conditional probability distribution over outputs y can be decomposed as:

$$ P(y|x) = \prod_{t=1}^{T} P(y_t | y_{

where each token prediction yt depends on the context window. Biases emerge when the model assigns higher probabilities to outputs containing harmful stereotypes, which can be quantified using metrics like:

$$ \text{Bias Score} = \mathbb{E}_{x \sim \mathcal{D}} \left[ \frac{P(\text{harmful } y|x)}{P(\text{neutral } y|x)} \right] $$

Environmental Impact of Fine-Tuning

The carbon footprint of fine-tuning scales superlinearly with parameter count. For a model with N parameters trained for K steps on M GPUs, the energy consumption E can be estimated as:

$$ E \approx 3 \times 10^{-9} \cdot N \cdot K \cdot M \quad \text{(in kWh)} $$

This implies that fine-tuning a 175B parameter model for 100,000 steps on 1024 GPUs would consume approximately 54,000 kWh - equivalent to the annual energy usage of 5 average U.S. households.

Mitigation Strategies

Several approaches can reduce ethical risks during fine-tuning:

  • Differential Privacy: Adding carefully calibrated noise to gradients during training to prevent memorization of sensitive data:
    • $$ \tilde{g} = g + \mathcal{N}(0, \sigma^2C^2I) $$
  • Bias Penalization: Modifying the loss function to downweight biased predictions:
    • $$ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{LM}} + \lambda \cdot \text{Bias}(y, y_{\text{ref}}) $$
  • Red-Teaming: Systematic adversarial testing to identify harmful outputs before deployment

Representation Disparities

Large models often underrepresent minority groups in their outputs. For a given demographic attribute a (e.g., gender, ethnicity), we can measure representation disparity as:

$$ \Delta_r = \left| \frac{P(a|y)}{P(a)} - 1 \right| $$

where P(a|y) is the conditional probability of the attribute given model outputs and P(a) is its base rate in the population. Values above 0.2 typically indicate problematic under/over-representation.

6. Key Research Papers and Articles

6.1 Key Research Papers and Articles

6.2 Open-Source Implementations and Tools

6.3 Recommended Courses and Tutorials
