Analog Signal Processing

1. Definition and Key Concepts

1.1 Definition and Key Concepts

Analog signal processing is a foundational aspect of electrical engineering and applied physics that involves the manipulation of continuous signals. These signals, which vary in amplitude and frequency, represent physical phenomena such as sound, light, temperature, and more. In essence, analog signal processing encompasses techniques that modify these continuous signals without altering their essential characteristics or introducing quantization errors typical of digital systems.

The use of analog signals is deeply rooted in history, tracing back to early telecommunications, where the transmission of voice over distances was achieved through varying electrical currents representing sound waves. Despite the rapid advancement of digital technologies, analog signal processing remains crucial in many applications where real-time performance, smooth signal characteristics, and rich information content are paramount.

Key Concepts

To understand analog signal processing, several key concepts must be clearly defined:

Signal: A signal is a physical representation of information, which can take forms such as voltage over time or light intensity. In the context of analog processing, we deal primarily with continuous signals.
Noise: Random fluctuations that obscure the signal, usually characterized by unwanted disturbances. Techniques to filter out noise are vital in ensuring signal fidelity.
Filters: These components selectively allow certain frequencies to pass while attenuating others. Filters can be passive (made from resistors, capacitors, and inductors) or active (incorporating active components such as operational amplifiers).
Modulation: The process of varying one or more properties of a carrier signal based on the message signal. This method enhances signal transmission efficiency and reduces bandwidth in communications.
Amplification: The process of increasing the amplitude of a signal. Amplifiers are critical in boosting weak signals to levels suitable for processing or transmission.

Understanding these concepts lays the groundwork for exploring more complex signal processing techniques. For example, the application of filters can dramatically improve the quality of transmitted audio signals, removing unwanted noise while preserving desired features. This fundamental process is observable in various contexts, from mobile audio devices to telecommunications infrastructure.

Mathematical Foundation

Another critical aspect of analog signal processing is its mathematical modeling, which involves the representation of signals in terms of mathematical functions. For instance, if we consider a continuous-time signal represented as $ g(t) $, the output of a linear time-invariant (LTI) system in response to this signal can be described by convolution as follows:

$$ y(t) = (g * h)(t) = \int_{-\infty}^{\infty} g(\tau) h(t - \tau) \, d\tau $$

In this equation, $ h(t) $ represents the system's impulse response, echoing the concept of both filtering and system behavior characterization. This mathematical formulation serves as a basis for further analysis, such as frequency response and stability of analog systems.

As we delve deeper into this tutorial, we will expand on each of these concepts with practical examples, enabling a comprehensive understanding of how analog signal processing techniques are effectively applied in various industries today.

Diagram Description: The diagram would illustrate the relationship between input and output signals in an LTI system using convolution, depicting the input signal $ g(t) $, impulse response $ h(t) $, and resulting output $ y(t) $. This visual representation will clarify how these components interact in the time domain.

1.2 Types of Analog Signals

In the domain of analog signal processing, understanding the types of analog signals is crucial for both theoretical exploration and practical application. Analog signals can be broadly categorized based on their characteristics and their relevance in real-world systems. These classifications are fundamental in various fields, including telecommunications, audio engineering, and sensor technologies.

Continuous Signals

Continuous signals are those that have a value at every instance in time. An important aspect of continuous signals is that they can take on an infinite number of values within a given range. They are typically represented mathematically as functions of time, such as $ x(t) $. For example, the output of a sine wave generator can be represented as:

$$ x(t) = A \sin(2 \pi f t + \phi) $$

where: - $ A $ represents the amplitude, - $ f $ is the frequency, - $ \phi $ is the phase shift. Continuous signals find applications in audio electronics, for instance, in analog synthesizers and in the modulation of radio frequencies.

Discrete Signals

In contrast, discrete signals are defined only at specific intervals in time, which means they can only take on values at these discrete points. Mathematically, a discrete signal can be represented as $ x[n] $, where $ n $ is an integer representing the sample index. This type of signal plays a crucial role in digital signal processing, where continuous signals are sampled to produce discrete representations. The Nyquist theorem is fundamental in this context, stating that a signal must be sampled at least twice its highest frequency to reconstruct it accurately.

$$ f_s \geq 2f_{\text{max}} $$

This relationship is key in preventing aliasing during the conversion of analog to digital signals, which can severely distort the signal if not properly managed. Applications of discrete signals are prevalent in digital audio, image processing, and telecommunications.

Periodic and Aperiodic Signals

Another significant classification is based on whether a signal is periodic or aperiodic. A periodic signal repeats its values at regular intervals, whereas an aperiodic signal does not exhibit this repetitive pattern. A simple example of a periodic signal is a square wave defined as:

$$ x(t) = A \text{sgn}(\sin(2 \pi f t)) $$

In contrast, aperiodic signals such as noise can occur randomly over time and are crucial in understanding the behavior of systems in real environments. Noise is particularly relevant in communications, where distinguishing signal from noise is essential for successful transmission.

Deterministic and Random Signals

Deterministic signals are those whose future values can be precisely determined from past values, exemplified by sine waves or any signal governed by mathematical functions. On the other hand, random signals are characterized by inherent unpredictability, often represented statistically. Random signals arise in various contexts, such as in thermal noise in electronics, and understanding their statistical properties is essential for system design in communications and signal processing.

Conclusion

The understanding of the various types of analog signals provides a solid foundation for engineers and scientists working in fields such as telecommunications, audio technology, and sensor systems. By categorizing analog signals as continuous or discrete, periodic or aperiodic, and deterministic or random, technicians can better design and implement systems that handle these signals effectively in real-world applications. This insight also allows for improved signal processing techniques, enhancing overall system efficiency and performance in transmitting, receiving, and utilizing analog information.

Diagram Description: The diagram would illustrate the differences between continuous and discrete signals, showing their representations as waveforms over time. It would also visually differentiate periodic and aperiodic signals, highlighting their repetitive and non-repetitive nature.

1.3 Characteristics of Analog Signals

In the realm of analog signal processing, understanding the intrinsic characteristics of analog signals is crucial for engineers, physicists, and researchers who engage with real-world signal contexts. Analog signals are continuous in nature, representing physical quantities in an unbroken flow that aligns closely with their underlying phenomena. This section will delve into the primary characteristics of analog signals, highlighting their implications in practical applications.

Continuity and Amplitude

At the heart of any analog signal is its continuity. Unlike discrete signals, which exist only at distinct time intervals, an analog signal operates over a continuous time frame. This means the signal can take any value within a specified range. This characteristic is particularly significant when modeling real-world phenomena, from auditory sound waves to electrical voltages. The amplitude of an analog signal, which represents the maximum deviation from its mean value, is vital because it typically corresponds to the energy level of the signal. To illustrate, consider an audio signal; its amplitude can determine loudness, where larger amplitudes indicate louder sounds and smaller amplitudes signify softer sounds.

Frequency and Phase

Another fundamental characteristic of analog signals is frequency, defined as the number of cycles a signal undergoes per second, measured in Hertz (Hz). Frequency is crucial for the classification of signals into categories. For example, low-frequency signals (below 20 Hz) pertain to infra-sound, while high-frequency signals (above 20 kHz) are categorized as ultra-sound. The phase of an analog signal refers to its position within a given cycle at a specified point in time, typically measured in degrees or radians. The phase relationship between different signals has significant implications, especially in systems involving multiple inputs, such as communication systems where phase modulation plays a role in transmitting information.

Mathematical Representation

For a comprehensive understanding, let’s express an ideal analog signal mathematically. An analog signal $ s(t) $ can be represented as:

$$ s(t) = A \sin(2\pi f t + \phi) $$

where: - $ A $ is the amplitude, - $ f $ is the frequency, - $ t $ is the time, - $ \phi $ is the phase angle. This equation captures the essence of many analog signals, including audio, radio waves, and even power signals in electrical circuits.

Noise and Distortion

In practical applications, understanding noise and distortion is critical. Noise refers to unwanted modifications in the signal, which may arise from environmental factors or electronic components. Distortion refers to any change in the waveform shape from its original form, which can lead to deterioration of signal quality. Addressing these factors often involves filtering techniques and signal conditioning methods to ensure the integrity of the data being transmitted or processed.

Real-world Applications

The characteristics of analog signals find extensive applications across various fields. In telecommunications, understanding frequency and phase characteristics is critical to optimizing signal transmission and reception. Audio engineering relies on amplitude modulation to shape sound profiles in music production. Furthermore, medical devices like electrocardiograms (ECGs) utilize analog signals to monitor heart health by tracking voltage changes over time. Thus, a thorough grasp of analog signal characteristics not only enhances technical capability but also paves the way for innovation in various technologies. In conclusion, the characteristics of analog signals—continuity, amplitude, frequency, phase, noise, and distortion—form the backbone of successful analog signal processing and have broad implications in both theoretical studies and engineering practices. Understanding and applying these principles is essential for solving real-world challenges in electronics and communication.

Diagram Description: The diagram would illustrate the mathematical representation of an analog signal as a waveform, visually demonstrating the relationships between amplitude, frequency, and phase over time. This would provide clarity on how these characteristics interact and manifest in real-world signals.

2. Resistors, Capacitors, and Inductors

2.1 Resistors, Capacitors, and Inductors

In the realm of analog signal processing, resistors, capacitors, and inductors are indispensable components that form the backbone of electronic circuits. Understanding their behavior and interactions under different conditions is crucial for designing effective signal processing systems. This section delves into the fundamental properties and applications of these passive components, highlighting their significance in shaping waveforms, filtering signals, and storing energy.

Understanding Resistors

Resistors are designed to limit the flow of current in a circuit and are characterized by their electrical resistance, measured in ohms (Ω). The relationship between voltage (V), current (I), and resistance (R) is governed by Ohm's law, expressed as:

$$ V = IR $$

This equation illustrates how the voltage across a resistor is directly proportional to the current flowing through it, with the resistance acting as the constant of proportionality. In practical applications, resistors are utilized not only for current limiting but also for voltage division and biasing in active devices.

The power dissipated in a resistor is an important consideration, particularly in analog signal processing, where high power levels may lead to significant heat generation. The power (P) can be calculated using:

$$ P = I^2R $$

or alternatively:

$$ P = \frac{V^2}{R} $$

Given the diverse uses of resistors, they are categorized into variable resistors (such as potentiometers) and fixed resistors, each serving specialized roles in circuit applications.

Capacitors: Storing and Releasing Energy

Capacitors are passive components that store electrical energy in an electric field, enabling them to influence the timing and frequency response of circuits. The capacitance (C), measured in farads (F), is the ability of a capacitor to store charge (Q) per unit voltage (V), described by the equation:

$$ C = \frac{Q}{V} $$

Capacitors play a pivotal role in defining circuit behavior in AC applications through their impedance, given by:

$$ Z_C = \frac{1}{j\omega C} $$

where $ j $ is the imaginary unit and $ \omega $ is the angular frequency. The frequency response shows that capacitors act as low-pass filters, allowing low-frequency signals to pass while attenuating higher frequencies.

Practically, capacitors are used in timing circuits, coupling and decoupling applications, and smoothing voltage fluctuations in power supplies. For instance, in audio applications, capacitors can couple signals between stages while blocking DC voltages, ensuring signal integrity.

Inductors: The Role of Magnetic Fields

Inductors, unlike resistors and capacitors, store energy in a magnetic field when electrical current passes through them. The inductance (L), measured in henrys (H), represents an inductor’s ability to resist changes in current. The relationship is encapsulated in the equation:

$$ V = L \frac{di}{dt} $$

where $ di/dt $ denotes the rate of change of current over time. This property allows inductors to filter signals, operating as high-pass filters, allowing high-frequency signals to pass while impeding lower frequencies.

Inductors are applied in various real-world contexts, including power supplies where they smooth out ripples, in tuning circuits for radio frequencies, and in transformers for voltage adaptation. Understanding their behavior is crucial for designing circuits that require precise control over signal characteristics.

Integration of Resistors, Capacitors, and Inductors

The interplay between resistors, capacitors, and inductors forms the foundation of analog signal processing. Together, they can create filters, oscillators, and amplifiers, establishing themselves as critical components in systems ranging from communication devices to power management systems. For example, an RC low-pass filter combines these elements to allow signals below a specific frequency to pass through while attenuating higher frequencies, illustrating their practical synergy.

In advanced circuit design, engineers apply the principles governing these components to optimize performance, ensuring that the resulting waveforms meet the desired specifications. Simulations and real-world testing guide these designs, ensuring that theoretical concepts translate into practical applications.

By mastering the properties and applications of resistors, capacitors, and inductors, engineers and researchers can innovate and enhance analog systems, pushing the boundaries of technology in various fields.

2.2 Operational Amplifiers

Operational amplifiers, or op-amps, are versatile and fundamental components in the field of analog signal processing. They serve as building blocks for a wide range of electronic circuits, owing to their ability to amplify voltage signals with high precision and gain. In this section, we will delve into the characteristics, configurations, and applications of operational amplifiers, highlighting their significance in both theoretical and practical frameworks.

Fundamental Characteristics of Operational Amplifiers

Operational amplifiers possess several key characteristics that make them indispensable in electronic design:

High Input Impedance: This feature allows op-amps to draw minimal current from the input source, ensuring minimal loading effects.
Low Output Impedance: This makes op-amps capable of driving various loads without significant voltage drop.
High Open-Loop Gain: Typically ranging from 20,000 to 200,000, the high gain allows for significant amplification of weak signals.
Wide Frequency Range: Many modern op-amps can operate effectively over a broad range of frequencies, thereby ensuring versatility.

These characteristics enable operational amplifiers to be utilized in diverse applications such as amplification, filtering, and signal conditioning.

Basic Op-Amp Configuration: Inverting and Non-Inverting Amplifiers

The two fundamental configurations of operational amplifiers are inverting and non-inverting amplifiers. Understanding the operational behavior of these configurations is essential for leveraging the full potential of these devices.

Inverting Amplifier

The inverting amplifier configuration is characterized by its ability to produce an output signal that is 180 degrees out of phase with the input. The relationship between the input voltage ($V_{in}$) and the output voltage ($V_{out}$) can be expressed as:

$$ V_{out} = -\left( \frac{R_f}{R_{in}} \right) V_{in} $$

Where $R_f$ is the feedback resistor and $R_{in}$ is the input resistor. The negative sign indicates the phase inversion. To derive this equation, consider the following steps:

Assume ideal op-amp conditions where the differential input voltage approaches zero.
Either apply Kirchhoff's laws around the feedback loop or apply the virtual short concept to relate the input and output voltages through the resistor values.

Non-Inverting Amplifier

In contrast, the non-inverting amplifier configuration maintains the same phase between the input and output signals. The relationship can be defined as:

$$ V_{out} = \left( 1 + \frac{R_f}{R_{in}} \right) V_{in} $$

Here, the amplification factor is determined by the resistive divider formed by $R_f$ and $R_{in}$. The derivation process is similar to that of the inverting amplifier but takes into account the non-inverting nature of the input signal.

Applications of Operational Amplifiers

Operational amplifiers are central in many signal processing applications. Their utility spans:

Signal Amplification: Used to enhance weak signals in audio systems and sensor applications.
Filters: Implementing active filtering (low-pass, high-pass) to extract desired frequency components from a signal.
Analog Computation: Performing mathematical operations such as addition, subtraction, integration, and differentiation on analog signals.
Voltage Followers: Buffering applications that require isolation between high-impedance and low-impedance circuits.

In summary, operational amplifiers are a fundamental element in modern electronics, with their broad range of applications in signal conditioning and processing. Their adaptability, coupled with vital characteristics, positions them as essential tools for engineers and researchers alike.

Diagram Description: The diagram would illustrate the configurations of inverting and non-inverting amplifiers, showing their input and output voltages along with resistor placements. This would clarify the phase relationships and the mathematical relationships between the components in a visual manner.

2.3 Diodes and Transistors

In the realm of analog signal processing, diodes and transistors serve as the foundational building blocks for numerous electronic circuits. Their unique properties enable various functionalities, from rectification in diodes to amplification and switching in transistors. This section delves into the operational principles of these semiconductor devices, their characteristics, and their pivotal roles in electronic applications.

Diodes: The Rectifying Elements

A diode is a two-terminal semiconductor device that allows current to flow predominantly in one direction, functioning as a rectifier. The fundamental operation of a diode is rooted in its p-n junction, where p-type and n-type semiconductor materials meet. When the diode is forward-biased, the built-in potential barrier drops, permitting current flow; conversely, when reverse-biased, it blocks current flow, which is crucial for signal processing.

One of the most common types, the silicon diode, exhibits a forward voltage drop of approximately 0.7 V. This characteristic can be described mathematically using the Shockley diode equation:

$$ I = I_s \left( e^{\frac{qV}{kT}} - 1 \right) $$

Here, I represents the diode current, I_s is the reverse saturation current, q is the charge of an electron, V is the voltage across the diode, k is the Boltzmann constant, and T is the absolute temperature in Kelvin. This equation characterizes the exponential relationship between current and voltage across the diode.

Transistors: Amplification and Switching

Transistors, specifically bipolar junction transistors (BJTs) and field-effect transistors (FETs), are essential components in analog signal processing. They are used primarily for amplification, where a small input current or voltage controls a larger output current or voltage. BJTs can be characterized by three terminals: the emitter, base, and collector, whereas FETs have gate, drain, and source terminals.

To illustrate the operation of a BJT, consider the current amplification factor, represented by β (beta), defined as:

$$ \beta = \frac{I_C}{I_B} $$

Where I_C is the collector current and I_B is the base current. A typical BJT can achieve values of β ranging from 20 to 1000, depending on the specific type and configuration used. This ability to amplify signals makes BJTs suitable for numerous audio and radio frequency applications, where signal fidelity is paramount.

Applications in Signal Processing

Both diodes and transistors are indispensable in various applications involving analog signal processing:

Rectifiers: Diodes are widely used in power supply circuits to convert alternating current (AC) to direct current (DC), supplying voltage to electronic devices.
Amplifiers: Transistors play a critical role in audio amplifiers, enabling small sound signals to drive larger speakers, hence enhancing audio output.
Switches: Transistors can function as electronic switches, crucial in digital and analog circuitry for controlling high-power loads efficiently.
Clippers and Clampers: Diodes are used in signal conditioning circuits to limit voltage levels, protecting circuitry from over-voltage scenarios.

The interaction between diodes and transistors not only facilitates the integration of multiple electronic functionalities into compact devices but also enhances the overall efficiency and effectiveness of signal processing applications.

As we transition to more complex electronic systems, the understanding of diodes and transistors becomes increasingly valuable. Mastery of these components allows engineers and researchers to design sophisticated circuits optimized for performance and reliability, paving the way for innovations in fields from telecommunications to medical devices.

3. Filtering Techniques

3.1 Filtering Techniques

Filtering techniques are essential in analog signal processing, enabling engineers and researchers to manipulate signal properties for various applications. By understanding and implementing these techniques, one can effectively attenuate unwanted frequencies while allowing desired information to pass through, thus optimizing signal quality and integrity. The fundamental aspect of filtering involves the separation of frequencies within a signal. This is typically achieved by utilizing linear time-invariant (LTI) systems, characterized by their impulse responses. Filters can be broadly classified into different categories based on their frequency response, such as low-pass, high-pass, band-pass, and notch filters.

Types of Filters

Low-Pass Filters (LPF) Low-pass filters allow signals with frequencies lower than a certain cutoff frequency to pass, while attenuating frequencies higher than this threshold. This is particularly useful in applications like audio processing, where it's necessary to remove high-frequency noise. High-Pass Filters (HPF) Conversely, high-pass filters permit signals with frequencies above a certain cutoff frequency to pass through, effectively blocking lower frequency components. HPFs are used in applications such as removing DC offset from audio signals or in certain sensor systems where high-frequency phenomena are of interest. Band-Pass Filters (BPF) Band-pass filters permit a specific range (or band) of frequencies while rejecting frequencies outside this range. They are commonly used in communication systems and biomedical applications, where isolating specific frequencies from a broader spectrum is essential. Notch Filters Notch filters, also known as band-stop filters, eliminate a narrow band of frequencies while allowing others to pass. They are particularly effective in eliminating unwanted frequencies such as electrical noise from power lines (often at 50 or 60 Hz) in audio systems.

Passive and Active Filters

The implementation of filters can occur through passive or active designs. Passive Filters These filters are comprised of passive components such as resistors, capacitors, and inductors. They do not require an external power source, making them simple and reliable. However, passive filters can introduce signal loss due to inherent resistive elements and cannot amplify signals. Active Filters Active filters utilize amplifying components like operational amplifiers, which allows them to provide gain. This enables more precise control over filter characteristics and allows for more flexible designs. Active filters can achieve steeper roll-offs and better performance than passive designs in many applications.

Mathematical Representation of Filters

The behavior of filters can often be represented mathematically through transfer functions. The transfer function $ H(s) $ for an LTI system is defined as the ratio of the Laplace transform of the output $ Y(s) $ to that of the input $ X(s) $:

$$ H(s) = \frac{Y(s)}{X(s)} $$

For instance, the transfer function of a first-order RC low-pass filter can be derived considering the circuit's impedance: 1. The impedance of a resistor $ R $ is $ Z_R = R $. 2. The impedance of a capacitor $ C $ is $ Z_C = \frac{1}{sC} $. 3. Using voltage divider rule, the output voltage across the capacitor is given by: $$ V_{out}(s) = \frac{Z_C}{Z_R + Z_C} \cdot V_{in}(s) $$ 4. Therefore, the transfer function becomes: $$ H(s) = \frac{\frac{1}{sC}}{R + \frac{1}{sC}} = \frac{1}{1 + sRC} $$ This transfer function describes the low-pass characteristic of the circuit, where $ RC $ represents the time constant.

Practical Applications

The choice of filtering technique is often dictated by the specific application requirements. For instance, in audio signal processing, engineers frequently deploy low-pass filters to smooth out sharp transitions and reduce high-frequency noise. In telecommunications, band-pass filters are pivotal in isolating specific channels from a multitude of signals transmitted simultaneously. Overall, understanding filtering techniques enriches an engineer's ability to design robust systems capable of handling real-world signal variances. The continuous evolution of filtering methodologies, influenced by materials science and digital signal processing advancements, opens new avenues for greater precision and efficiency in signal transmission and analysis.

Diagram Description: The diagram would illustrate the frequency response characteristics of different filter types (LPF, HPF, BPF, Notch), clearly showing their cutoff frequencies and how they alter the input signal's spectrum. This visual representation would help clarify the distinctions between filter types that text alone may not convey effectively.

3.2 Modulation and Demodulation

In the realm of analog signal processing, modulation and demodulation serve as critical techniques for enabling effective communication over various transmission mediums. These processes facilitate the encoding and decoding of information, allowing for efficient signal transmission while minimizing distortion and maximizing fidelity. Thus, understanding modulation and demodulation is pivotal for engineers and researchers involved in electronics, telecommunications, and signal processing.

Understanding Modulation

Modulation is the process of varying one or more properties of a carrier signal in accordance with the information signal. This modulation process usually involves altering parameters such as amplitude, frequency, or phase. The function of modulation can be summarized as follows:

Bandwidth conservation: By modulating a low-frequency information signal onto a high-frequency carrier wave, we can utilize a limited bandwidth for efficient transmission over various media (e.g., air, wire, fiber).
Increasing range: Higher frequency signals generally propagate over longer distances, making modulation essential for long-range communications.
Minimizing interference: Different modulated signals can coexist in the same bandwidth, reducing interference and allowing multiple users to share the same communication channels.

There are several types of modulation techniques, categorized into analog and digital methods. Here, we will focus primarily on analog modulation techniques, which include:

Amplitude Modulation (AM): This technique varies the amplitude of the carrier signal in proportion to the instantaneous value of the message signal. Mathematically, it can be expressed as:

$$ s(t) = [A + m(t)] \cos(2\pi f_c t) $$

Where:

A: the amplitude of the carrier signal
m(t): the message signal
f_c: the frequency of the carrier signal

Frequency Modulation (FM): In this technique, the frequency of the carrier wave is varied in accordance with the information signal.

$$ s(t) = A \cos(2\pi f_c t + k_f m(t)) $$

Where:

k_f: the frequency sensitivity constant

Phase Modulation (PM): Here, the phase of the carrier signal is modulated based on the message signal.

$$ s(t) = A \cos(2\pi f_c t + \phi(t)) $$

Where:

$\phi(t)$: the instantaneous phase deviation due to the message signal

Demodulation: Recovering the Message

Demodulation is the reverse process of modulation; it involves extracting the original information signal from the modulated carrier wave. This process is crucial for the receiver to accurately perceive the transmitted information. Each modulation technique has a corresponding demodulation strategy. For example:

AM Demodulation: The simplest demodulation technique involves an envelope detector, which extracts the amplitude variations of the carrier signal to recover the message signal. The principle can be illustrated by representing the output signal as:

$$ m(t) = s(t) - A \cos(2\pi f_c t) $$

FM Demodulation: This typically employs a phase-locked loop (PLL) or a frequency discriminator to determine the instantaneous frequency of the received signal, thus recovering the original message.

PM Demodulation: Similar to FM demodulation, PM signals can also be recovered using phase-locked loops, detecting changes in phase to infer the original message.

Practical Applications

The concepts of modulation and demodulation find extensive applications in a variety of fields, including:

Radio broadcasting: Modulation helps in transmitting audio signals over radio frequencies, enabling widespread communication.
Television broadcasting: Both AM and FM techniques are utilized to transmit audiovisual signals effectively.
Wireless communication: Modern wireless technologies, like Wi-Fi and mobile communications, rely on advanced modulation schemes for high data rate transmission.
Satellite communications: Modulation allows signals to be transmitted over vast distances and through various atmospheric conditions.

As we delve deeper into signal processing, understanding the nuances of modulation and demodulation will help enhance capabilities in designing robust communication systems that satisfy modern data transmission requirements.

Diagram Description: The diagram would show the relationships among different modulation techniques (AM, FM, PM) and their demodulation counterparts, illustrating signal transformations and the respective waveforms. It would visually represent how the amplitude, frequency, and phase of a carrier signal are altered in relation to the message signal.

3.3 Amplification Methods

The amplification of signals is a critical operation in the realm of analog signal processing, ensuring that signals retain their integrity while being enriched in magnitude for further processing or transmission. Amplifiers serve as fundamental building blocks in countless applications spanning telecommunications, audio systems, instrumentation, and control systems.

To explore amplification methods, we'll delve into three primary configurations: voltage amplifiers, current amplifiers, and power amplifiers. Understanding their operational principles, advantages, and applications will allow us to appreciate how they contribute to effective signal processing.

Voltage Amplifiers

Voltage amplifiers are designed to increase the voltage level of a signal while minimizing the distortion and noise introduced during the process. The basic operational amplifier (op-amp) configuration exemplifies this category. In a simple non-inverting amplifier setup, the input voltage signal is applied to a non-inverting input that produces an amplified output voltage. The gain, defined by the resistor network, can be expressed as:

$$ A_v = 1 + \frac{R_f}{R_i} $$

where $ R_f $ is the feedback resistor and $ R_i $ is the input resistor. This linear relationship indicates that a small change in the input voltage can yield a significant change in the output voltage, making it ideally suited for applications where voltage amplification is essential, such as audio processing and sensor signal conditioning.

Current Amplifiers

In contrast to voltage amplifiers, current amplifiers focus primarily on enhancing the output current. They are crucial in applications where high load currents are involved while maintaining a minimal drop in signal voltage. One common application of current amplifiers can be found in sensor systems, where the signal currents need to be boosted to a usable level without distortion.

Current amplification can be realized using a transistor in a common-emitter configuration. The relationship governing the current gain in this scenario is:

$$ A_i = \frac{I_{out}}{I_{in}} $$

where $ I_{out} $ is the output current and $ I_{in} $ is the input current. This amplification method is particularly beneficial for driving loads in actuators or transmission lines where maintaining signal integrity is critical.

Power Amplifiers

Power amplifiers, as the name implies, are designed to increase the power of a signal, combining both voltage and current amplification elements. They are typically used in applications that require transmitting signals over long distances, such as radio frequency (RF) transmission, audio amplification, and broadcasting. Power amplifiers are often categorized based on their operational classes (Class A, B, AB, and D), each exhibiting distinct methodologies regarding efficiency and linearity.

The efficiency of a power amplifier can significantly reflect its performance in real-world applications. For instance, Class D amplifiers, which utilize pulse-width modulation (PWM), are known for their high efficiency and compact size, thereby being widely utilized in portable devices.

The power delivered to a load can be described mathematically as:

$$ P_{out} = V_{out} \times I_{out} $$

Understanding these various amplification methods provides a valuable framework for engineers and researchers engaging in the design and implementation of complex analog systems. From simplifying signal processing in audio gear to amplifying wireless transmission signals, the integration of appropriate amplification techniques is integral to achieving functional and efficient analog systems.

Diagram Description: The diagram would illustrate the configuration of voltage, current, and power amplifiers, highlighting their input and output relationships with corresponding voltage and current levels. It would visually represent how signals are processed in each type of amplifier, aiding in understanding their operational principles.

4. Audio Signal Processing

4.1 Audio Signal Processing

The realm of audio signal processing lies at the intersection of physics and engineering, incorporating various principles to manipulate signals that represent sound. Through careful analysis and modification, we can enhance audio quality, remove noise, and develop algorithms for tasks ranging from voice recognition to music synthesis. This subsection delves into the fundamental concepts, techniques, and practical applications of processing audio signals.

Understanding Audio Signals

At its core, an audio signal is a representation of sound that typically varies in amplitude and frequency over time. The analog audio signal can be depicted as a continuous waveform characterized by its amplitude (loudness) and frequency (pitch). This signal can be represented mathematically as:

$$ s(t) = A \sin(2\pi f t + \phi) $$

where:

s(t) is the instantaneous sound signal at time t,
A is the amplitude (maximum level),
f is the frequency (in Hz), and
\phi is the phase.

This formula lays the groundwork for understanding how audio signals can be manipulated. Different types of audio signals exist, including speech signals, musical signals, and environmental sounds, each requiring specific handling techniques during processing.

Techniques in Audio Signal Processing

Several techniques are integral to audio signal processing, enabling the extraction, alteration, or synthesis of audio content. Key techniques include:

Fourier Transform: A mathematical approach to decompose signals into their constituent frequencies. The Discrete Fourier Transform (DFT) and its efficient algorithm, the Fast Fourier Transform (FFT), are often employed.
Filtering: This technique allows for the enhancement or attenuation of certain frequencies within an audio signal. Filters can be categorized into low-pass, high-pass, band-pass, and notch filters.
Dynamic Range Compression: Reduces the volume of the loudest parts of a signal, allowing for a longer dynamic range and improving perceived audio quality.
Digital Signal Processing (DSP): The manipulation of audio signals after conversion from analog to digital format (sampling). DSP algorithms are pivotal in modern audio applications.

Each of these techniques plays a crucial role in a variety of audio applications, from the production of music to telecommunication systems.

Practical Applications

The implications of audio signal processing extend into numerous fields:

Music Production: Engineers utilize these techniques extensively to produce polished recordings, ensuring clarity and dynamic range appropriate for consumer listening.
Noisy Environments: Audio processing methods, including noise reduction algorithms, are crucial in enhancing audio quality in environments with background noise, such as airports or crowded events.
Speech Recognition: Techniques like feature extraction enhance voice data to improve the performance of voice recognition systems, prevalent in virtual assistants.
Hearing Aids: Signal processing enables amplification and customization of audio signals to assist individuals with hearing loss.

Each application harnesses audio signal processing to improve human interaction with sound, be it in entertainment, communication, or accessibility.

Conclusion

As audio signals represent a significant portion of our daily interactions, mastering audio signal processing techniques is indispensable for engineers and researchers. Advancements in this field continue to pave the way for innovative applications, merging art with technology in fascinating new ways.

Diagram Description: The diagram would show the continuous waveform of an analog audio signal, illustrating the relationship between amplitude, frequency, and time visually. This representation would help clarify the mathematical formula provided and the concept of how audio signals behave over time.

4.2 Video Signal Processing

Video signal processing encompasses the techniques and systems utilized to handle video signals, which can be analog or digital in nature. These signals represent visual information, a key aspect of modern electronics given the prominence of visual media in communication and entertainment. The core responsibilities of video signal processing include capturing, modifying, transmitting, and displaying video data. This subsection delves into the critical components, methodologies, and real-world applications of video signal processing.

Understanding Video Signals

Video signals can be categorized into two main types: composite video and component video. Composite video combines various elements of a video signal, such as brightness and color information, into a single channel. In contrast, component video separates these elements into individual components—typically the Y (luminance), Pb (blue difference), and Pr (red difference) signals. This separation facilitates improved color fidelity and signal integrity, particularly in high-definition applications.

Encoding and Decoding Techniques

Encoding techniques are crucial in video signal processing, translating visual information into a format suitable for transmission or storage. One prominent technique is Motion JPEG, which encodes individual frames as JPEG images, while H.264 (or AVC) represents a more sophisticated compression standard that reduces the size of video files while maintaining quality. The choice of encoding can greatly affect the efficiency of data transmission and the quality of the resulting visuals.

Mathematical Representation of Video Signals

To derive important metrics in video signal processing, we often rely on mathematical models. A basic representation of a video frame can be depicted as a function:

$$ I(x, y, t) = R(x, y, t) + G(x, y, t) + B(x, y, t) $$

Here, $ I(x, y, t) $ signifies the intensity of the video signal at a specific spatial location $ (x, y) $ and time $ t $, where $ R $, $ G $, and $ B $ represent the intensity of red, green, and blue color channels, respectively. Such a representation provides the basis for various signal processing techniques, including color correction and enhancement.

Filter Design in Video Processing

Filters play a pivotal role in enhancing video signals. Noise reduction filters are commonly used to improve image quality by minimizing random variations in brightness or color that can detract from the overall visual experience. One standard approach is the Gaussian filter, defined mathematically as:

$$ G(x, y) = \frac{1}{2\pi \sigma^2} e^{-\frac{x^2 + y^2}{2\sigma^2}} $$

Here, $ \sigma $ determines the degree of blurring; a larger value results in a greater degree of smoothing. In practice, such filters are convolved with video frames to yield a clearer picture. The implementation of these filters must consider potential trade-offs, since excessive filtering may lead to loss of critical image details.

Applications of Video Signal Processing

The implications of video signal processing extend into various fields, from consumer electronics to medical imaging and remote sensing. In consumer electronics, video processing algorithms enhance playback quality in televisions and streaming devices. Meanwhile, in medical imaging, techniques like image segmentation and image registration are crucial for analyzing complex biological structures.

Additionally, recent advancements in artificial intelligence have enabled smarter video processing techniques. Machine learning algorithms can analyze video data for tasks such as facial recognition, object tracking, and even behavior analysis, significantly enhancing surveillance and security systems.

In summary, understanding the intricacies of video signal processing lays a foundational framework for professionals engaged in electronics, media technologies, and interdisciplinary research. Future trends will likely emphasize greater integration of artificial intelligence to refine processing capabilities and improve efficiency in various applications.

Diagram Description: The diagram would illustrate the relationship between composite and component video signals, showing how they differ in terms of channel separation and color fidelity. This visual representation would clarify the distinctions between the types of video signals more effectively than text alone.

4.3 Measurement and Control Systems

In the realm of analog signal processing, measurement and control systems represent a fusion of physical phenomena and electronic methodologies. These systems are indispensable in various applications, including automated manufacturing, robotics, and environmental monitoring, where accurate data acquisition and interpretation are vital for operational efficacy.

At the core of any measurement and control system lies the concept of feedback. Feedback mechanisms are fundamental in achieving desired performance and stability within control systems. A classic example would be the temperature control in an HVAC system, where a sensor continuously monitors the air temperature and relays this information to a controller, which adjusts the heating or cooling outputs accordingly.

Measurement Techniques

Accurate measurements are paramount in any control system. These measurements often involve sensor technologies that convert physical quantities (like temperature, pressure, or position) into electrical signals. There are several types of sensors, each suited to specific applications:

Thermocouples: Often used for temperature measurements, they rely on the Seebeck effect to generate a voltage that corresponds to temperature differences.
Strain gauges: Utilized for measuring deformation in materials, they convert mechanical strain into an electrical resistance change.
Photodetectors: Commonly used in light measurement applications, these devices convert light into an electrical signal.

Each type of sensor has unique characteristics that can affect the measurement accuracy, such as temperature sensitivity and linearity. Therefore, understanding these characteristics is crucial when selecting sensors for a particular application.

Control Strategies

Once measurements have been obtained, the next step involves using this data to influence system behavior. Several control strategies have been developed, each with its unique advantages:

Proportional Control (P): This method produces an output that is proportional to the error signal (the difference between the target and actual values). It's simple, but may lead to steady-state errors.
Integral Control (I): This adds an accumulative factor over time to eliminate steady-state errors. However, it can introduce instability if not carefully tuned.
Derivative Control (D): This anticipates future errors based on the rate of change, thus providing a damping effect. It's often combined with P and I in PID control systems, which are widely used algorithms in control engineering.

When implemented effectively, PID controllers can maintain a stable and efficient operation across numerous applications, from industrial processes to everyday household appliances.

Real-World Applications

Measurement and control systems are not mere theoretical constructs; they find practical applications in various domains. For instance:

Industrial Automation: Control systems regulate processes such as assembly lines or chemical processing, ensuring optimal performance and safety.
Environmental Monitoring: Systems equipped with sensors measure pollutants or climatic conditions, feeding data back for analysis and regulatory compliance.
Healthcare Devices: Devices like ventilators or infusion pumps utilize control systems to provide precise and responsive care to patients based on real-time data.

In summary, measurement and control systems form the backbone of numerous technologies, applying physics and electronic principles to solve real-world challenges. The interplay of sensors, feedback mechanisms, and control algorithms delivers remarkable enhancements in efficiency and accuracy, showcasing the profound impact of analog signal processing in contemporary engineering.

Diagram Description: The diagram would illustrate the feedback loop in a control system, showing how sensor outputs influence the controller and subsequently the system's action. This visualization would help clarify the relationship between measurement, control strategies, and their real-world applications.

5. Noise and Distortion

5.1 Noise and Distortion

In the realm of analog signal processing, understanding the challenges posed by noise and distortion is crucial for the design and implementation of effective systems. These two phenomena significantly impact the integrity of signals as they traverse through various media, ultimately affecting the performance of electronic devices and systems.

Noise: Nature and Sources

Noise refers to any unwanted interference that impacts the quality of a signal. It can originate from a variety of sources, both external and internal. Key types of noise include:

Thermal Noise: Also known as Johnson-Nyquist noise, it arises from the random motion of electrons in a conductor and is present in all electrical devices. Its power spectral density is characterized by the formula:

$$ S_V(f) = \frac{4kT}{R} $$

where k is the Boltzmann constant, T is the absolute temperature in Kelvin, and R is the resistance in ohms.

Shot Noise: This noise occurs due to the discrete nature of charge carriers, particularly in semiconductor devices such as diodes and transistors. It follows a Poisson distribution.
Flicker Noise: Also known as 1/f noise, it becomes significant at low frequencies and is often seen in active devices.
Environmental Noise: External sources like electrical equipment, radio frequency interference (RFI), and electromagnetic interference (EMI) also contribute to noise levels.

Distortion: Types and Impacts

While noise reduces the clarity of a signal, distortion alters its shape, potentially leading to significant errors in interpretation. Different types of distortion include:

Amplitude Distortion: Occurs when different frequencies in a signal are amplified by different amounts. This can lead to an altered output even if the input signal is clean.
Phase Distortion: Involves shifts in phase relationships between signal components. This is particularly critical in audio applications, where phase alterations can lead to perceptually noticeable changes in sound quality.
Harmonic Distortion: Introduces additional frequencies that are integer multiples of the original signal frequency, commonly observed in nonlinear components. The total harmonic distortion (THD) can be calculated using:

$$ THD = \frac{\sqrt{V_2^2 + V_3^2 + V_4^2 + \ldots}}{V_1} $$

where V_n represents the RMS voltage of the nth harmonic component and V_1 refers to the fundamental frequency voltage.

Mitigation Strategies

To enhance signal fidelity in the presence of noise and distortion, several practical strategies can be employed:

Filtering: Implementing low-pass, high-pass, or band-pass filters can effectively reduce noise. For example, the usage of a low-pass filter can smooth out high-frequency noise, retaining the desirable signal characteristics.
Shielding: Physically protecting circuits from electromagnetic interference can significantly reduce the impact of environmental noise sources.
Feedback and Control Systems: Employing negative feedback in amplifiers can help mitigate both noise and distortion by stabilizing gain and improving linearity.
Signal Compression: In audio applications, dynamic range compression can help in maintaining audio quality while decreasing distortion.

As engineers and researchers continue to innovate in the field of analog signal processing, a comprehensive understanding of noise and distortion is essential for optimizing system designs and ensuring high fidelity in communication and audio applications.

Diagram Description: The diagram would illustrate the different types of noise and distortion in analog signals, showing their sources and effects on signal waveforms, which are complex and benefit from visual representation.

5.2 Signal Integrity Issues

As engineers and researchers delve deeper into the domain of analog signal processing, they encounter a multitude of challenges related to signal integrity. Signal integrity, in essence, refers to the quality and fidelity of an electrical signal as it travels through a circuit. Understanding signal integrity is crucial because even the slightest perturbation in a signal can lead to significant errors in communication and processing systems.

When we transmit signals, several factors can degrade their integrity. This subsection will cover the key issues influencing signal integrity, such as noise, distortion, and interference. Moreover, the practical implications of these issues will be discussed, showcasing their relevance in various applications ranging from telecommunication systems to sensors and measurement devices.

Noise

Noise constitutes one of the primary challenges in maintaining signal integrity. It can be internal or external to the intended signal pathway. Internal noise sources may include thermal noise from resistors, shot noise from semiconductor devices, and flicker noise, primarily in low-frequency circuits. External noise often stems from environmental sources, such as electromagnetic interference (EMI) from nearby power lines or radio frequency sources.

The impact of noise can be quantitatively represented using the signal-to-noise ratio (SNR), defined as:

$$ SNR = \frac{P_{signal}}{P_{noise}} $$

Here, $ P_{signal} $ is the power of the desired signal, while $ P_{noise} $ is the power of the noise affecting the signal. A higher SNR indicates better signal integrity, as it implies that the signal clearly stands out from the noise.

Distortion

Distortion represents another critical factor influencing signal integrity. It occurs when the signal waveform changes shape during transmission, leading to a misrepresentation of the original signal. Distortion can arise from non-linearities in amplifiers, circuit components, and even transmission lines. In many systems, distortion can lead to intersymbol interference (ISI), which adversely affects the system’s ability to differentiate between sequential signals.

Quantitative assessment of distortion often involves calculating the Total Harmonic Distortion (THD), given by:

$$ THD = \frac{\sqrt{\sum_{n=2}^{N} |V_n|^2}}{|V_1|} $$

In this equation, $ V_n $ represent the harmonic components of the signal. A lower THD indicates better signal fidelity, as it means the fundamental waveform is preserved more effectively throughout transmission.

Interference

Lastly, interference is an issue prevalent in multi-signal environments. Cross-talk, where one signal interferes with another, can severely compromise signal integrity. This situation is especially critical in high-speed digital circuits, where signal rise and fall times are short, leading to significant potential for interference.

To mitigate interference, techniques such as shielding and twisted pair cables are often employed. Shielding protects cables from external electromagnetic fields, while twisted pair configurations reduce inductive coupling between wires. Understanding these concepts is crucial for designing circuits that maintain high signal integrity even in noisy environments.

Practical Relevance

The practical implications of signal integrity issues cannot be overstated. In industries such as telecommunications, aerospace, and medical instrumentation, the reliability of signal transmission and processing directly impacts performance and safety. For example, in aerospace applications, a failure in signal integrity due to interference might lead to catastrophic failures in automated control systems. Similarly, poor signal integrity in medical devices can result in incorrect diagnoses.

In conclusion, addressing signal integrity issues is vital in the design and implementation of analog signal processing systems. By understanding the sources and impacts of noise, distortion, and interference, engineers can develop robust solutions that ensure signals are transmitted and processed effectively, preserving system performance and reliability.

Diagram Description: A diagram showing the concepts of noise, distortion, and interference alongside their impacts on analog signals would clarify the relationships between these factors. It could visually demonstrate how noise and distortion affect a signal waveform, and include examples of shielding and twisted pair configurations in interference mitigation.

5.3 Bandwidth Limitations

The concept of bandwidth is critical in analog signal processing, as it defines the range of frequencies over which a signal can be transmitted without significant attenuation or distortion. Understanding the limitations imposed by bandwidth is vital for designing effective communication systems and signal processing applications.

Understanding Bandwidth

In the context of signal processing, bandwidth refers to the difference between the upper and lower frequencies in a continuous set of frequencies. For example, a signal that spans frequencies from f₁ to f₂ has a bandwidth B given by:

$$ B = f_2 - f_1 $$

Analog signals often encompass a range of frequencies that correspond to their information content. A narrow bandwidth might result in a loss of detail and produce less accurate reconstructions of the original signal, whereas a wider bandwidth may cause increased interference and noise.

Causes of Bandwidth Limitations

Several factors contribute to bandwidth limitations in analog signals:

Circuit Components: The characteristics of passive and active components in a circuit, such as resistors, capacitors, and transistors, directly influence the bandwidth. For example, capacitors possess a frequency-dependent impedance that can restrict the signal bandwidth, leading to filtering effects.
Transmission Medium: Physical media used for signal transmission, such as cables or optical fibers, have inherent bandwidth limitations. For instance, coaxial cables can handle greater bandwidth compared to twisted pair cables due to lower loss and attenuation.
Environmental Factors: External noise and interference can impact the effective bandwidth and degrade signal quality. Factors such as electromagnetic interference (EMI) can affect signal fidelity and limit bandwidth.
Sampling Rates: In digitized formats of analog signals, the Nyquist theorem states that the sampling rate must be at least double the highest frequency present in the signal to prevent aliasing. This theorem enforces bandwidth constraints in practical systems.

Mathematical Representation of Bandwidth Limitations

To quantify how these limitations affect a signal, consider a simple first-order low-pass filter, which often serves as an analogy in bandwidth discussions. The transfer function H(s) of a low-pass filter can be described as:

$$ H(s) = \frac{1}{1 + sRC} $$

where s is the complex frequency, R is the resistance, and C is the capacitance. The bandwidth of this filter, defined as the frequency at which the output power drops to half, is given mathematically by:

$$ B = \frac{1}{2\pi RC} $$

From this equation, it is evident that increasing the resistance or capacitance will decrease the filter's bandwidth. This relationship is crucial when designing circuits for the specific application, as it must balance the need for a sufficient bandwidth against the physical limitations of the components used.

Real-World Applications and Consequences

The constraints imposed by bandwidth limitations find application across various fields:

Telecommunications: In voice and data communication, bandwidth determines data transfer rates. For example, telephone lines have strict bandwidth limitations which affect the quality of voice transmission, leading to a push for higher bandwidth solutions like fiber optics.
Broadcasting: In radio and television broadcasting, channels must be allocated specific frequency ranges to prevent interference. Understanding bandwidth limitations ensures efficient use of the spectrum.
Medical Imaging: In techniques such as MRI and ultrasound, bandwidth plays a pivotal role in determining image resolution and the speed of obtaining results.

In conclusion, grasping the implications of bandwidth limitations is essential when designing and analyzing analog signal processing systems. The interplay between circuit components, environmental factors, and the physical medium shapes the performative capabilities of any communication channel or system.

Diagram Description: A diagram could visually represent bandwidth limitations by showing voltage waveforms across different circuit components and their frequency responses. This would clarify how circuit components affect bandwidth and illustrate the relationship between bandwidth and the transfer function of a low-pass filter.

6. Emerging Technologies

6.1 Emerging Technologies

As we advance deeper into the 21st century, the landscape of analog signal processing is evolving rapidly, influenced heavily by technological breakthroughs and novel applications across various fields. The integration of machine learning, nanotechnology, and quantum computing into analog signal processing methodologies signifies a shift towards more sophisticated and efficient systems.

The Role of Machine Learning

Machine learning (ML) methodologies are becoming increasingly relevant in the realm of analog signal processing. Traditionally, signal processing relied heavily on well-defined algorithms based on mathematical models. However, the complexities of modern signals necessitate the use of adaptive systems that can learn and optimize in real time. By employing ML algorithms, we can enhance tasks such as noise reduction, predictive maintenance, and feature extraction in complex data sets.

A notable application is in the field of communication systems, where ML models can dynamically adapt to varying signal conditions. For instance, deep learning techniques can be applied to classify signal types or detect anomalies in real-time, providing a significant edge in performance and reliability.

Practical Application: Neural Networks in Audio Processing

One practical application of ML in analog signal processing can be seen in audio enhancement technology. Neural networks trained on numerous audio signals can learn to filter out noise and enhance clarity. The training involves presenting the network with degraded audio samples alongside clean versions, effectively teaching it how to reconstruct high-quality output.

$$ \text{Input}_{clean} = f(\text{Input}_{noisy}, \theta) $$

Where $ f $ represents the neural network function dependent on parameters $ \theta $. This adaptability allows systems to improve over time, enhancing user experience significantly.

Nanoelectronics and Signal Processing

As we continue to miniaturize components, nanoelectronics has emerged as a pivotal technology for analog signal processing. At the nanoscale, devices can exhibit unique electrical characteristics, influencing signal behavior and processing capabilities.

For example, carbon nanotubes and graphene have shown exceptional properties such as high conductivity and flexibility, making them ideal for use in transistors and sensors. Such advancements can lead to far greater integration densities and lower power consumption for analog processing systems, creating new opportunities in wireless communications and portable electronic devices.

Case Study: Graphene in RF Devices

Graphene has been specifically noted for its potential in radio frequency (RF) applications. RF devices incorporating graphene can operate at higher frequencies than traditional silicon-based devices, which can improve bandwidth and data transmission rates. This is particularly critical in applications involving the Internet of Things (IoT), where efficient signal processing is paramount.

Quantum Computing: The Future of Signal Processing

Quantum computing stands at the frontier of signal processing, promising unprecedented capabilities through the principles of quantum mechanics. The inherent parallelism of quantum computing allows for simultaneous processing of vast amounts of data, which is particularly advantageous when dealing with complex signals.

By utilizing quantum bits (qubits) that can exist in multiple states at once, signal processing tasks can be exponentially sped up. This capability opens the door to advanced applications in quantum communication, quantum sensing, and even in the development of quantum algorithms for analog signal processing tasks.

$$ \text{Quantum State} = \alpha |0\rangle + \beta |1\rangle $$

Here, $ \alpha $ and $ \beta $ are complex numbers that describe the probability amplitudes of the qubit being in each state. This offers a uniquely advanced framework for managing and processing information, thus enhancing signal fidelity and reducing errors in transmission.

In conclusion, the integration of these emerging technologies within analog signal processing not only enhances theoretical frameworks but also transitions them into powerful, practical applications that redefine the boundaries of what is technically possible. The future promises even more groundbreaking advancements, blending the lines between analog and digital domains.

Diagram Description: The diagram would visually represent the relationships between machine learning algorithms, signal processing tasks, and examples of signal transformations, such as noise reduction and feature extraction, emphasizing the dynamic adaptations of the system. Additionally, it could illustrate the function of graphene in RF devices, highlighting how its properties enhance bandwidth and data transmission rates.

6.2 Integration with Digital Signal Processing

Integrating analog signal processing (ASP) with digital signal processing (DSP) is crucial for modern systems, blending the continuous nature of analog signals with the mathematical efficiency of digital systems. This integration reflects a broader trend in engineering towards a mixed-signal approach, which enhances the performance and versatility of a variety of applications, from telecommunications to medical imaging.

Understanding the Transition from Analog to Digital

The transition from analog to digital involves several important processes that ensure the integrity of the signal is maintained. Typically, this starts with sampling, where the continuous analog signal is captured at discrete intervals. The Nyquist-Shannon sampling theorem plays a central role here, dictating that to reconstruct the original signal without aliasing, it should be sampled at least twice the maximum frequency present in the signal. Once sampled, the next step is quantization, where the continuous amplitude values are converted to discrete values, followed by encoding, which represents these quantized values in binary form. Each of these steps is vital in preserving the signal's fidelity and ensuring that meaningful data can be extracted during subsequent processing.

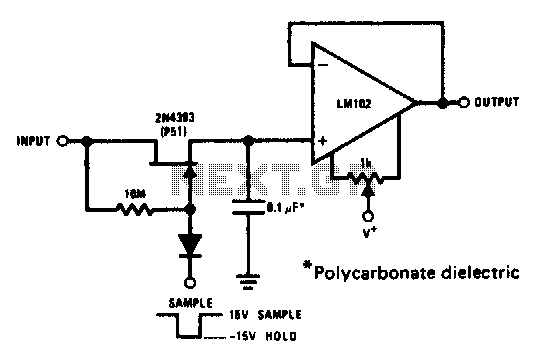

Sampling and Quantization

Let’s delve deeper into these crucial concepts: 1. Sampling: This is mathematically represented as follows:

$$ x[n] = x(ct) \text{ where } t = nT $$

Here, $ x[n] $ represents the sampled signal, $ c $ is the continuous time signal, and $ T $ is the sampling period. The choice of $ T $ is critical; too large, and essential components of the signal may be lost, while too small increases the load on the processing system. 2. Quantization: The quantization process introduces a rounded approximation to each sampled value, defined by a quantization level $ Q $. The quantized signal $ x_q[n] $ can be expressed mathematically as:

$$ x_q[n] = Q[x[n]] $$

Quantization errors can lead to significant distortion if not properly managed, and it’s a critical aspect to consider when designing a system that integrates both ASP and DSP.

Real-World Applications of ASP and DSP Integration

Numerous applications benefit from integrating ASP with DSP: - Telecommunications: In systems such as cellular networks, analog signals are first converted to digital for effective noise reduction and error correction before being transmitted. Modern codecs play an essential role in this transformation, encoding voice signals for digital transmission. - Audio Processing: Audio effects and transformations, whether found in music production or hearing aids, often start with analog signals (from microphones) that undergo digital manipulation. Here, algorithms perform tasks such as equalization and compression, enhancing the sound quality or isolating specific audio frequencies. - Medical Imaging: Techniques like MRI and CT scans utilize analog signals generated by the imaging systems, which are digitized for better analysis and reconstruction of the images. The precision provided by DSP improves diagnostic accuracy significantly.

Challenges in Integration

Despite its benefits, the integration of ASP and DSP is fraught with challenges. Issues such as latency and signal distortion can arise during the conversion processes. Careful consideration of filter design, timing synchronization, and the choice of analog components is necessary to minimize these effects. Moreover, advanced techniques such as oversampling and delta-sigma modulation are often employed to enhance performance in the face of these challenges. In conclusion, the integration of analog signal processing with digital signal processing represents a foundational aspect of modern electronic systems, characterized by a need for precision and efficiency. As technology evolves, ongoing research will continue to deepen our understanding, yielding innovative solutions across a multitude of applications.

6.3 Future Trends

As we examine the evolving landscape of analog signal processing (ASP), it is imperative to recognize emerging technologies and trends that promise to define the next generation of systems. The integration of advanced techniques in signal processing, hardware design, and microelectronics is paving the way for unprecedented levels of performance and efficiency. This section explores several key trends and their potential impact on various applications.

Enhanced Signal Processing Techniques

With the rapid growth in computational capabilities, new algorithms are being developed that leverage machine learning and artificial intelligence for signal processing tasks. Traditional methods of filtering and transformation are being re-evaluated against these innovative algorithms that can learn from data patterns. For instance, deep learning models are beginning to outperform classical methods in tasks like noise reduction and pattern recognition.

An area receiving significant attention is the application of non-linear signal processing. Non-linear methods enable enhanced performance in environments with complex signal characteristics and can reduce errors introduced by linear approximations. This trend is evidence of a shift toward embracing the complexities within real-world signals.

Miniaturization and Integration

The ongoing trend toward miniaturization and integration in electronics is prominently influencing analog signal processing. With the rise of System-on-Chip (SoC) designs, analog processing circuits can now be integrated with digital processing units on the same semiconductor. This integration leads to significant reductions in power consumption and physical size, while enhancing the speed and bandwidth of signal processing applications.

For example, radio frequency (RF) applications are benefiting enormously, as integrated RF circuits improve both signal clarity and processing efficiency in wireless communications. The trend towards full integration can also be seen in consumer electronics, where analog components, such as audio and image processors, increasingly utilize shared platforms to achieve smarter devices.

Photonics and Quantum Technologies

In parallel with advancements in electronic processing, technologies rooted in photonics are emerging to revolutionize analog signal processing. Optical devices can offer higher bandwidth and lower latency, making them prime candidates for future communication systems. Quantum technologies, particularly quantum sensing and quantum computing, are also expected to provide new methods for analog signal processing that exploit quantum principles for enhanced information retrieval and processing capabilities.

The development of analog-to-optical converters and various optical sensors signifies an ongoing trend that combines the advantages of both analog and photonic signal processing, expanding application domains in telecommunications and beyond.

Environmental and Energy Applications

As global awareness of environmental concerns rises, the demand for sustainable technologies in signal processing is growing. This includes the development of energy-efficient analog circuits and systems that employ low-power components tailored for green technologies. Specific applications are evident in monitoring environmental parameters where analog sensors provide vital information about air and water quality with minimal energy overhead.

The integration of energy-harvesting techniques into these analog systems ensures that they operate sustainably, as they can draw power from their environments without relying on traditional energy sources.

Real-World Applications

These trends will inevitably influence various fields including telecommunications, health monitoring, automotive systems, and industrial automation. For instance, enhanced signal processing algorithms are likely to provide new solutions in medical imaging, enabling better diagnostics through clearer and more accurate images. Similarly, integrated circuits in vehicles will lead to improved navigation and safety systems

In summary, as we look toward the future, analog signal processing is set to advance through innovative technologies that enhance efficiency, performance, and sustainability. The intersection of emerging computational techniques, miniaturized systems, and awareness of ecological impact heralds a transformative phase for ASP, promising exciting advancements in a multitude of applications.

Diagram Description: The diagram would visually represent the integration of analog signal processing techniques, illustrating the connections between traditional methods and emerging technologies like machine learning and photonics. This would clarify the relationships and flow of information within these modern systems.

7. Recommended Textbooks

7.1 Recommended Textbooks

Microelectronic Circuits by Adel S. Sedra and Kenneth C. Smith — This textbook is a fundamental reference for analog and digital circuit design, offering deep insights into the core concepts of electronics, including analog signal processing techniques.
Analog Integrated Circuit Design by Tony Chan Carusone, David Johns, and Kenneth Martin — A comprehensive exploration of analog circuit design, focusing on integrated circuits. The book emphasizes real-world applications and hands-on design experience.
Linear Circuit Design Handbook by Hank Zumbahlen — This book offers extensive coverage on the design of linear circuits with practical examples and a focus on analog signal processing.
Analog CMOS Integrated Circuit Design by Behzad Razavi — A vital resource for understanding the principles of CMOS amplifiers, this text covers analog signal processing with a focus on practical circuit design and performance analysis.
Analog Circuit Design: Very Low Power RF Circuits by Jim Mooney — Covering cutting-edge topics in analog circuit design, this book is ideal for advanced study, focusing on RF design and low power applications in analog signal processing.
Design of Analog CMOS Integrated Circuits by Behzad Razavi — This best-selling textbook offers thorough coverage of the latest techniques in analog CMOS design, essential for contemporary analog signal processing challenges.
Design of Analog Filters by Rolf Schaumann and Mac E. Van Valkenburg — This authoritative book provides an update on analog filters, combining theoretical aspects with practical designs applicable to modern signal processing systems.

7.2 Research Papers and Journals

IEEE Xplore: Analog Signal Processing — This paper delves into the advancements in analog signal processing techniques, exploring novel methods to enhance signal fidelity and reduce noise.
SAGE Journals: Signal Processing — An exploration of cutting-edge research in analog and digital signal processing, with a focus on new algorithmic approaches for real-time processing.
ScienceDirect: Robust Theory in Instrumental Design — A comprehensive study on how robust control theory can improve the design and application of analog signal processing devices in complex systems.
International Journal of Circuit Theory and Applications — Discusses the theoretical underpinnings and practical implementations of analog signal circulation in communication systems.
Journal of Intelligent Material Systems and Structures — This paper provides insights into how adaptive materials interact with analog signal processors, emphasizing applications in smart structures.
MDPI Electronics: Trends in Analog Signal Processing — Offers an analysis of current trends and future prospects in analog signal processing, highlighting the integration with digital systems.
Analog Integrated Circuits and Signal Processing — Focuses on the development and optimization of analog integrated circuits for signal processing and control in modern electronics.
SpringerLink: Emerging Analog Technologies — An insightful review of emerging analog signal processing technologies, exploring their potential in enhancing futuristic electronic applications.

7.3 Online Resources

Analog Devices — Offers a comprehensive range of resources including data sheets, application notes, and design inspirations for those interested in analog signal processing components and technologies.
Texas Instruments Analog — Access TI's extensive collection of analog signal processing tools, tutorials, and products designed to help engineers quickly find solutions tailored to their needs.
EDN Network - Analog Articles — Features a rich library of articles and whitepapers on analog design, providing insights and updates on the latest trends and technologies in analog signal processing.
Maxim Integrated - Analog Resources — A treasure trove of technical documents, tutorials, and design notes on analog signal processing and application-specific analog integration.
National Instruments - Analog Electronics — Provides access to a broad range of tools, techniques, and learning resources for mastering analog electronics and signal processing.
Analog Integrated Circuits and Signal Processing Journal — Publishes articles on the design and applications of integrated circuits focused on analog signal processing, catering to researchers and professionals for in-depth knowledge.
DSP Related - Analog Signal Processing — A collection of educational articles and discussions on analog techniques used in digital signal processing applications, ideal for advanced learners.
