Darlington Transistors

1. Definition and Purpose

Darlington Transistors

1.1 Definition and Purpose

Darlington transistors represent a unique class of electronic components that serve a critical role in amplification and switching applications. They consist of two bipolar junction transistors (BJTs) arranged in a configuration that allows them to work together to provide a much higher current gain than a single transistor could achieve. As a consequence, these devices are particularly valuable in various fields, including audio amplification, robotics, and power management systems.

The essential operation of a Darlington transistor hinges on the principle of current amplification. In this configuration, the emitter of the first transistor is connected to the base of the second. When a small current flows into the base of the first transistor, a larger current is produced in its collector, which in turn drives an even larger current through the second transistor. This results in an overall current gain that is the product of the gains of the individual transistors, typically denoted as β1 and β2. The total current gain, β, can thus be expressed mathematically as:

$$ \beta = \beta_1 \times \beta_2 $$

Because of this configuration, the Darlington transistor achieves a current gain that can exceed 1000, making it ideal for applications requiring significant amplification with minimal input current. To visualize this better, imagine an input signal that, while small, can control the operation of a substantially larger load with ease. An illustration of the basic Darlington pair diagram is shown below:

Furthermore, the utility of Darlington pairs goes beyond mere amplification; they can be employed in numerous practical scenarios. For instance, in the realm of audio engineering, they are commonly used within amplifiers to boost sound signals significantly without distortion. Additionally, in robotics, they often drive actuators or other components, ensuring that higher voltage or current from a power source can be efficiently controlled by low-power control signals. Also, they find extensive application in relay driving circuits to control high-power devices or motors, where the small trigger signal from a microcontroller can manage larger electrical loads safely.

However, the application of Darlington transistors is not without its disadvantages. For example, they tend to have higher voltage drops compared to single BJTs, leading to reduced efficiency in certain applications. Additionally, the saturation voltage can sometimes hinder their performance in high-speed switching applications. Understanding these characteristics and nuances is essential in designing circuits that effectively integrate Darlington transistors.

In conclusion, the Darlington transistor stands out as a pivotal component in modern electronic systems, bridging the gap between low-power control signals and high-power demands. Their capacity for high gain, compounded by practicality in various applications, cements their relevance and importance in the field of electronics.

Darlington Transistor Schematic Schematic diagram of a Darlington transistor configuration showing two bipolar junction transistors (Q1 and Q2) with labeled currents (Ib, Ic1, Ic2) and gains (β1, β2, β). Q1 Q2 Ib Ic1 Ic2 Ib2 β1 β2 β = β1 × β2
Diagram Description: The diagram would visually demonstrate the arrangement of the two transistors in a Darlington pair, highlighting how the emitter of the first transistor connects to the base of the second. This representation would clarify the relationship between the transistors, which is crucial for understanding the concept of current gain in this configuration.

1.2 Historical Background

The development of the Darlington transistor represents a significant milestone in the evolution of semiconductor technology. This unique device serves to amplify electrical signals, effectively enhancing the sensitivity and performance of circuits across various applications. The foundational principles underlying the Darlington configuration can be traced back to early advancements in transistor technology in the 1940s, with the invention of the point-contact transistor by John Bardeen and Walter Brattain, and the subsequent development of the junction transistor by William Shockley. These pioneering devices set the stage for intricate transistor configurations to emerge, particularly in the quest for higher gain. In 1953, the term "Darlington pair" was coined in honor of engineer Sidney Darlington, who contributed to this innovative configuration by combining two transistors to function as a single unit with a significantly enhanced current gain. The primary operating principle of the Darlington transistor involves one transistor driving the base of another, resulting in a voltage gain that is the product of the individual gains of each transistor. This configuration typically boasts an impressive current gain (β) reaching values around 100,000 or more, allowing for efficient amplification of weak signals. Understanding the historical context of the Darlington pair is essential as it sheds light on its modern applications and relevance in contemporary electronics. The Darlington transistor's ability to maintain high gain while controlling large currents has rendered it an indispensable component in various fields, from audio amplifiers to power electronics, and even into control systems and robotics. More than mere historical curiosity, the Darlington transistor continues to adapt and find applications in diverse areas. For example, its ubiquity in amplifier circuits relates to its performance characteristics, which include low base current requirements and high output capabilities. The Darlington configuration also excels in providing a high input impedance, making it ideal for buffering stages. As technology advances, the robustness of the Darlington configuration remains apparent. While integrated circuits have begun to encompass similar functionalities, discrete Darlington transistor pairs are still prevalent in both consumer electronics and industrial applications due to their simplicity, inexpensive nature, and reliability. Devices like operational amplifiers often leverage the Darlington pair concept to achieve desired performance benchmarks. By connecting the historical significance of the Darlington transistor to its real-world applications, we can appreciate the device's enduring impact on electronics and signal processing. Its invention illustrates not just an advancement in technology but also a broader understanding of how multiple devices can be wired together to achieve performance levels that single devices may not attain. The historical backdrop of the Darlington transistor serves as an essential foundation for continued study and innovation in semiconductor technology.
Darlington Transistor Configuration Schematic diagram of a Darlington transistor configuration, showing two transistors (T1 and T2) connected such that T1 drives the base of T2, with labeled input and output currents. T1 T2 I_in I_base I_out
Diagram Description: The diagram would visually represent the Darlington pair configuration, showing how two transistors are connected and how the input and output currents relate, illustrating the concept of current gain in a clear manner.

2. Basic Configuration

2.1 Basic Configuration

The Darlington transistor configuration comprises a pair of bipolar junction transistors (BJTs) connected in a manner that amplifies current to a significantly greater magnitude than a single transistor. This arrangement exploits the properties of cascading amplifications, effectively combining the benefits of both transistors into a single unit. It is vital in applications where high input impedance and substantial current gain are critical.

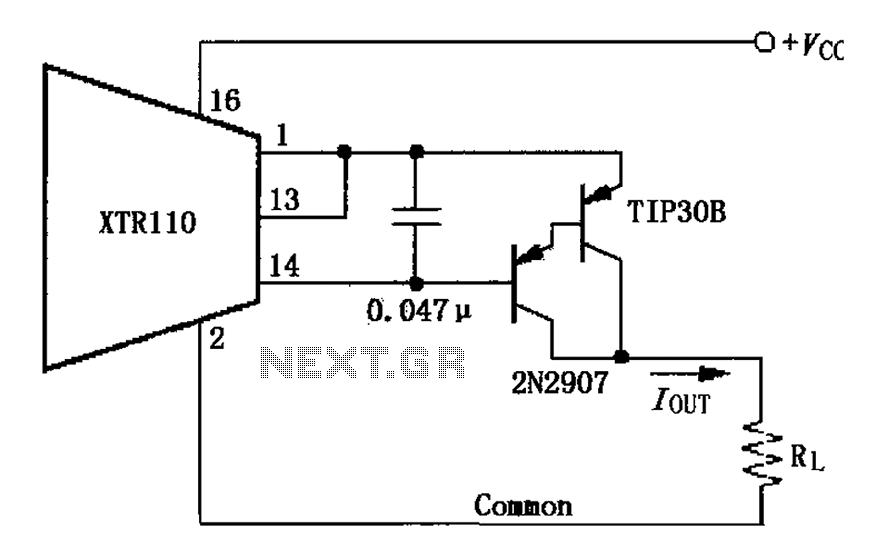

A typical Darlington pair consists of two n-p-n transistors (or p-n-p, depending on the design requirements) where the emitter of the first transistor is connected directly to the base of the second. This connection allows the output current from the first transistor to act as the input current of the second, compounding their gains.

Configuration Diagram

In the configuration diagram of a Darlington pair, the following notable features can be seen:

Q1 Q2 Base Collector

Current Gain in a Darlington Configuration

The current gain of a Darlington pair can be significantly higher than that of individual transistors due to the cumulative beta (current gain factor) from both devices. The overall current gain (β_total) is given by:

$$ \beta_{total} = \beta_1 \times \beta_2 $$

Here, \( \beta_1 \) and \( \beta_2 \) are the current gains of the first and second transistors respectively. For example, if each transistor has a current gain of 100, the total current gain would be:

$$ \beta_{total} = 100 \times 100 = 10000 $$

This remarkable current amplification enables Darlington pairs to control larger currents and voltages, making them highly desirable in applications such as relay drivers, audio amplifiers, and signal processing. However, it is also crucial to account for their increased saturation voltage, which can impact the overall circuit efficiency.

Applications and Relevance

Due to their high gain characteristics, Darlington transistors find extensive use in electronic switching applications, motor control, and amplification circuits within robotics and industrial automation. Moreover, their robustness lends them well to both low-frequency and high-frequency applications, although they may exhibit slower response times in high-speed scenarios.

In conclusion, the fundamental configuration of a Darlington transistor pair merges the advantages of two BJTs, offering high input impedance and extraordinary current gain. Understanding its operation and properties is essential for the development of efficient electronic circuits in advanced engineering applications.

2.2 Current Amplification

Darlington transistors are renowned for their capability to achieve significant current amplification through their unique configuration. This section delves into the mechanism of current amplification in Darlington pairs, elucidating the principles that govern their operation and highlighting their practical applications.

A Darlington transistor consists of two bipolar junction transistors (BJTs) connected in a way that the current output of the first transistor (let's call it Q1) serves as the input for the second transistor (Q2). In this arrangement, the amplified current from Q1 is defined by the equation:

$$ I_E \approx I_B (1 + \beta_1)(1 + \beta_2) $$

Here, \( I_E \) represents the emitter current, \( I_B \) is the base current of Q1, and \( \beta_1 \) and \( \beta_2 \) denote the current gain (h_FE) of transistors Q1 and Q2, respectively. Hence, the overall current gain of the Darlington pair approximates to the product \( \beta_1 \times \beta_2 \). This leads to a vastly increased current gain, often exceeding 1000, which makes them quite advantageous in multiple applications.

Understanding Current Gain through Practical Examples

In practical terms, if we have a Darlington pair wherein \( \beta_1 = 100 \) and \( \beta_2 = 50 \), then the combined current gain \( \beta \) can be calculated as:

$$ \beta \approx \beta_1 \times \beta_2 = 100 \times 50 = 5000 $$

This impressive gain allows for a very small base current to control much larger currents, making Darlington pairs ideal for high-current output applications. Consequently, they find roles in relay drivers, motor controllers, and audio amplifiers, where such enhanced current handling is paramount.

Thermal Considerations and Limitations

Despite their advantages, it is essential to address the thermal issues linked to using Darlington transistors. The heat generated due to the high current amplification can result in thermal runaway, particularly when they are employed in environments where temperature management is marginal. Each transistor in the pair has a base-emitter voltage drop of approximately 0.7V, leading to a cumulative drop of about 1.4V across the configuration. As such, the heat produced warrants careful consideration in the design of circuits utilizing Darlington pairs, including proper heat sinking methods.

Summary

In conclusion, the current amplification capabilities of Darlington transistors are consequential for their applicability in various electronic designs. Their defining feature of high gain underscores their utility in controlling substantial loads with minimal input, though engineers must remain vigilant about thermal management to ensure reliability and longevity in real-world implementations.

Darlington Transistor Configuration Schematic diagram of a Darlington transistor configuration with two BJTs (Q1 and Q2) connected in series, showing input current (IB) and output current (IE). Darlington Transistor Configuration IB IE Q1 Q2 VBE
Diagram Description: The diagram would illustrate the configuration of the Darlington pair, showcasing the arrangement of the two BJTs and the direction of current flow, as well as the input and output relationships between them. This visual representation will enhance understanding of how current amplification occurs in this particular transistor setup.

2.3 Input and Output Characteristics

Understanding the input and output characteristics of Darlington transistors is essential for engineers and researchers aiming to harness their high gain and input impedance. A Darlington pair comprises two bipolar junction transistors (BJTs), configured to work together such that the current amplified by the first transistor is further amplified by the second. This cascading effect yields a very high current gain, making them particularly valuable in applications requiring significant amplification with minimal signal loss.

Input Characteristics

The input characteristics of a Darlington transistor primarily concern its base-emitter junction behavior. When examining these characteristics, it’s crucial to recognize that the input impedance is significantly higher than that of a single transistor due to the compounded current gain. This high input impedance makes Darlington transistors ideal for circuits where loading the preceding stage would be disadvantageous.

Mathematically, the input current, IB, can be expressed in terms of the base-emitter voltage, VBE, and the thermal voltage, VT (approximately 26 mV at room temperature) by the shockley equation:

$$ I_B = I_s \left( e^{\frac{V_{BE}}{V_T}} - 1 \right) $$

In this equation, Is represents the reverse saturation current. For a Darlington transistor, the effective reverse saturation current is the product of the two transistors' Is, leading to:

$$ I_B = I_{s1} \cdot I_{s2} \left( e^{\frac{V_{BE}}{V_T}} - 1 \right) $$

The input characteristics curve, which depicts the relationship between VBE and IB, tends to be exponential, similar to that of individual BJTs but with a steeper slope. This sharp increase indicates the efficient amplification capability that the Darlington configuration offers.

Output Characteristics

In contrast, the output characteristics of a Darlington transistor reveal how the collector current, IC, varies with changes in collector-emitter voltage, VCE, for different input base currents. The fundamental advantage of a Darlington configuration here is the high output current gained from a low input current. Practically, this means that even low levels of control voltage can switch large currents, functioning effectively as power amplifying devices.

The output characteristics can be explored with the aid of a standard BJT collector current equation, taking into account the aspect of current multiplication:

$$ I_C = \beta I_B $$

Where β is the current gain of the Darlington pair, typically ranging between 1000 and 3000. Notably, the output characteristics graph displays a similar shape to individual BJTs; however, the curves shift upwards due to the cumulative gain. The output characteristic curve is generally divided into three regions: cutoff (where IC = 0), saturation (where the transistor is fully on, and IC approaches its maximum), and active (where the transistor operates normally).

To maximize the operational efficiency of circuits employing Darlington pairs, engineers often examine these characteristics using simulation tools. This allows for an enhanced understanding of the thermal and dynamic behaviors that may not be evident in theoretical analyses alone.

Real-World Applications

Darlington transistors find their niche in a multitude of applications due to their efficacy in amplifying weak signals. They are employed in:

  • Audio amplification circuits, where they provide gain and drive speakers effectively.
  • Switching applications, such as relay drivers and motor controllers, owing to their high current output.
  • Signal processing units where high input impedance is crucial to prevent signal loss.

This unique combination of high input impedance and high current gain makes Darlington transistors a staple in both analog and digital electronics, effectively bridging the gap between weak input signals and robust output demands.

Input and Output Characteristics of Darlington Transistors Graph showing input characteristics (I_B vs. V_BE) on the left and output characteristics (I_C vs. V_CE) on the right, with labeled axes and regions. V_BE (V) I_B (µA) 0.5 1.0 1.5 2.0 0 50 100 150 200 Input Characteristics (I_B vs. V_BE) V_CE (V) I_C (mA) 5 10 15 20 0 2 4 6 8 Cutoff Active Saturation Output Characteristics (I_C vs. V_CE)
Diagram Description: The diagram would illustrate the input and output characteristics curves of a Darlington transistor, showcasing the relationship between input base-emitter voltage and base current, as well as collector current versus collector-emitter voltage. This visual representation would clarify how the curves shift and differ from single BJTs.

3. Benefits of Using Darlington Transistors

3.1 Benefits of Using Darlington Transistors

Darlington transistors, comprising a pair of bipolar junction transistors (BJTs) connected in a configuration that amplifies current, offer numerous benefits that make them particularly valuable in various electronic applications. Understanding these advantages requires a grasp of their unique operation and inherent characteristics compared to standard transistor configurations.

One of the primary benefits of using Darlington transistors is their high current gain. The configuration allows for an effective multiplication of the current gains of the two transistors, leading to a combined gain that is the product of the individual gains. For example, if the first transistor has a current gain of β1 and the second β2, the overall current gain βD can be expressed as:

$$ \beta_D = \beta_1 \times \beta_2 $$

This significant increase in gain is ideal for applications that require driving larger loads with minimal input current, making Darlington transistors exceptionally suited for interfacing low-power control circuits with high-power outputs.

Another key advantage is their input impedance. Darlington pairs typically present a very high input impedance due to the nature of their configuration. This characteristic enables them to operate with very low input currents. In practical terms, this means they can interface seamlessly with digital logic circuits or weak sensor outputs, minimizing the potential for loading effects. Furthermore, their heightened input impedance aids in reducing power consumption, which is a critical factor in battery-operated systems.

Thermal stability is another aspect where Darlington transistors excel. The design minimizes heat generation compared to other amplifier configurations, hence allowing them to operate effectively at higher temperatures. When appropriately managed, this stability results in improved reliability and longevity of the devices. This characteristic is particularly important in applications such as motor drivers, where substantial currents can cause significantly increased heat dissipation.

In terms of application breadth, Darlington transistors find utility across many domains, from consumer electronics to industrial automation. They are often utilized in power amplifiers for audio applications, as well as in relay drivers and switching circuits. The robustness and efficiency of the Darlington pair make it a popular choice for both high-frequency and low-frequency applications, continuously bridging various needs in engineering and electronics.

Moreover, the ease of integration within compact systems contributes to their practical desirability. Given their extensive current amplification capability in a relatively small package, they are often embedded into microcontroller and DSP boards, enhancing circuit performance without compromising on space.

In conclusion, Darlington transistors represent a critical innovation in transistor technology, combining remarkable gain, high input impedance, thermal resilience, and versatile applications. Understanding these benefits aids engineers and researchers in selecting the most suitable components for specific tasks, optimizing circuit design, and improving overall system performance.

3.2 Limitations and Drawbacks

In the realm of modern electronics, Darlington transistors have established their utility, particularly in applications requiring high current gain. However, like all components, they come with their own set of limitations and drawbacks that merit thorough consideration before implementation.

Increased Voltage Drop

One of the primary issues associated with Darlington pairs is the combined voltage drop across the two transistors. Each transistor within the Darlington configuration contributes a base-emitter voltage drop, generally around 0.7V. Consequently, the total voltage drop can be approximately 1.4V. This increased barrier potential can significantly affect power supply designs, particularly in low-voltage applications where every millivolt counts. For example, in cases where the supply voltage is already limited, this drop can lead to insufficient output voltage for the load, requiring careful selection of operational conditions or a modified power supply.

Frequency Response Limitations

Darlingtons are not optimally suited for high-frequency applications. The intrinsic capacitances present in the device, including base-collector capacitance, lead to a reduction in the frequency response of the circuit. Typically, the cutoff frequency of a Darlington transistor can be several times lower than that of a single transistor with similar specifications. The slow switching speeds may introduce delay and inadequate response times in fast-switching applications such as RF amplifiers or high-speed digital circuits. Moreover, when considering the transition frequency, denoted as \( f_T \), a Darlington's \( f_T \) is degraded because of both the capacitance and the necessary base drive, consequently compromising its utility in certain demanding environments.

Thermal Stability Concerns

Thermal stability is another critical consideration with Darlington transistors. As with any semiconductor device, the current flowing through the Darlington pair generates heat. If a significant rise in temperature occurs, it can lead to thermal runaway—a phenomenon where increased temperature leads to increased current, which further raises the temperature until device failure occurs. For this reason, adequate thermal management is crucial, often necessitating heatsinks or fan-assisted cooling in high-current applications. The designer must also ensure that the transistors are operated within their specified limits to avoid thermal damage.

Current Gain Limitations

While Darlington pairs provide a high current gain (\( \beta \)), their current gain is not infinite. In fact, at high current levels, the gain can deteriorate due to transistor saturation effects and other non-ideal behaviors. This characteristic becomes critical when predicting performance under varying load conditions. It is essential to turn to the static current gain equations: $$ \beta_{Darlington} = \beta_1 \times \beta_2 $$ where \( \beta_1 \) is the gain of the first transistor and \( \beta_2 \) is that of the second. However, at higher output currents, this gain will not hold constant and may significantly drop below anticipated levels.

Noise and Distortion

In applications such as audio amplification, the noise performance of a Darlington configuration typically falls short compared to that of a single transistor amplifier. The cascading nature of the two devices leads to a higher overall noise figure. Additionally, the nonlinear transfer characteristics can introduce distortion, affecting signal fidelity.

Thus, when designing circuits involving signal amplification, considering the noise implications of using Darlington pairs is paramount. In certain scenarios, alternative configurations such as operational amplifiers may prove more beneficial.

In summary, while Darlington transistors certainly have their place in high-gain applications, their limitations regarding voltage drop, frequency response, thermal stability, current gain reliability, and noise performance require careful evaluation and consideration in the design process. Understanding these drawbacks is fundamental to making informed decisions and ensuring optimal functionality in practical applications.
Darlington Transistor Limitations Overview A diagram illustrating the limitations of Darlington transistors, including voltage drops, frequency response, and thermal management. Transistor 1 Transistor 2 V_be1 V_be2 Total V_drop Gain Frequency f_T Thermal Runaway
Diagram Description: The diagram would visually depict the combined voltage drop across the two transistors in a Darlington configuration, as well as highlight their frequency response limitations and thermal stability concerns.

4. Common Circuit Configurations

4.1 Common Circuit Configurations

In the realm of electronics, Darlington transistors stand out for their unique ability to amplify current. A Darlington pair consists of two bipolar junction transistors (BJTs) connected in a way that the current amplified by the first transistor serves as the base current for the second, thereby achieving a substantial overall gain. Understanding their common circuit configurations is essential for professionals designing applications requiring high current gain and low input current.

Understanding Basic Configurations

Darlington transistors can be configured in various ways to suit different application requirements; two of the most prevalent are the common emitter and common collector configurations.

1. Common Emitter Configuration

In the common emitter configuration, the output is taken from the collector terminal while the emitter terminal remains common to both input and output. This setup is distinguished by its ability to provide a significant gain, particularly important for applications in amplification stages. The input characteristics reveal that a small voltage at the base (VB) controls a much larger collector current (IC). The relationship between these currents is defined as follows:
$$ I_C \approx \beta_1 \cdot I_B \quad \text{and} \quad I_B \approx \beta_2 \cdot I_E $$
Where β1 and β2 are the current gains of the two transistors in the pair, and IE is the emitter current. Thus, the overall current gain (Av) of the Darlington pair can be expressed as:
$$ A_v = \beta_1 \cdot \beta_2 $$
This high gain makes the common emitter configuration ideal for amplifying low-level signals from sensors or microphones, where it can drive heavier loads effectively.

2. Common Collector Configuration

Also known as an emitter follower, the common collector configuration offers a different advantage: it provides high current gain while maintaining unity voltage gain. In this configuration, the output is taken from the emitter, with the collector tied directly to the supply voltage. One critical characteristic of this arrangement is its exceptional input and output impedance. The input impedance (Zin) is significantly high due to the low input current, while the output impedance (Zout) is low, facilitating efficient current supply to the load. The voltage relationship can be summarized as:
$$ V_{out} \approx V_{in} - V_{BE} $$
Where VBE is the base-emitter voltage drop. Users often employ this configuration in impedance matching applications, ensuring that the signal integrity is preserved while efficiently transferring power.

Real-World Applications

When integrated into practical systems, both Darlington configurations enable sophisticated functionalities across various domains: - Audio amplifiers utilize the common emitter configuration for boosting low-level audio signals, allowing higher power speakers to be driven effectively. - Power management systems often apply common collector configurations to isolate sensitive components from high current loads while facilitating control signals. These configurations not only amplify signals but also demonstrate stability against noise and interference, essential for high-fidelity applications. In conclusion, understanding these common configurations allows engineers and researchers to exploit the strengths of Darlington transistors effectively, leading to innovative designs across an array of applications.
Darlington Transistor Circuit Configurations Schematic diagram showing common emitter and common collector configurations of Darlington transistors, including input signal source, output load, voltage supply, and labeled connection points. V_in V_CC V_out I_C Common Emitter V_in V_CC V_out I_E Common Collector V_BE V_BE
Diagram Description: The diagram would show the circuit configurations of both the common emitter and common collector arrangements, illustrating the connections between the transistors and their input/output points. This visual representation will clarify how the output is obtained in each configuration.

4.2 Industrial Applications

The Darlington transistor configuration, characterized by its high current gain and ability to amplify subtle signals, finds extensive use in various industrial applications. This is primarily due to its unique advantage of combining two transistors to achieve a much higher current gain than standard configurations. One prominent area where Darlington transistors have made significant strides is in motor control. In automation systems or robotics, they are frequently deployed within circuits that drive motors. As they can handle larger currents and provide higher voltage gain, they are ideal for controlling a variety of motors, whether they be DC, stepper, or servo motors. By enabling efficient modulation of the motor currents, applications such as conveyor systems, fans, and pumps benefit significantly from the precision that Darlington transistors offer. Moreover, signal amplification in sensitive applications, such as medical devices and instrumentation, is another critical use. When amplifying weak sensor signals, any additions in noise can heavily impact measurement accuracy. The high input impedance and low output impedance of Darlington pairs help minimize noise while providing reliable signal amplification in devices like ECG and EEG machines. This ensures that even the faintest physiological signals can be accurately interpreted. In the realm of power switching applications, Darlington transistors are often utilized in solid-state relays. These devices leverage the high gain characteristics of the Darlington pair to control high voltage and current loads using lower voltage inputs, making them advantageous in switching applications. This is particularly important in industrial automation and power distribution systems where isolation between the control signal and high-power load is essential. Another significant sector leveraging Darlington transistors is LED lighting systems. In applications where high-efficiency light output is crucial, these transistors contribute to the effective switching and dimming of LED circuits. By efficiently managing the current to a large number of LEDs, they not only enhance energy efficiency but also prolong the operational lifespan of the lighting systems. It's essential to consider the limitations of Darlington transistors in certain applications as well. The base-emitter voltage drop of about 1.2V to 2V can reduce their efficiency when used in low voltage circuits, and the slow switching speed relative to other modern transistor technologies, such as MOSFETs, could become a bottleneck in high-frequency applications. Despite these drawbacks, there remain numerous instances where Darlington transistors provide essential functions that other devices cannot efficiently fulfill. Overall, the robustness, reliability, and versatility of Darlington transistors make them indispensable in various industrial applications, ranging from automation systems and medical instrumentation to power switching and lighting solutions. As technology continues to advance, the synergy between new materials and designs with traditional configurations like the Darlington pair will likely open up further opportunities for innovation in this field.

As we move to the next section, we will delve deeper into the inherent physical principles governing the operation of Darlington transistors and how they compare to other transistor configurations.

Darlington Transistor Configuration Schematic diagram of a Darlington transistor configuration, showing two NPN transistors connected in series with input and output signals and a DC power supply. DC Power Supply Transistor 1 Transistor 2 Input Signal Output Signal
Diagram Description: A diagram would visually illustrate the Darlington transistor configuration, showcasing how two transistors are connected to amplify current gain. This representation would clarify the relationship between the components and their function in various applications.

4.3 Consumer Electronics

Darlington transistors, due to their unique configuration and high current gain, play a critical role in various consumer electronics applications. Their ability to amplify weak signals while maintaining compact sizes makes them ideal for numerous devices that we utilize daily.

The Amplification Advantage

The primary advantage of using Darlington transistors in consumer electronics lies in their amplification capabilities. The Darlington pair consists of two bipolar junction transistors (BJTs) that are connected in such a way that the current amplified by the first transistor is fed into the second transistor, resulting in an overall significant increase in gain. This characteristic makes Darlington transistors particularly suitable for applications such as:

  • Audio Amplifiers: In audio systems, Darlington transistors improve sound quality by boosting weak input signals without distorting them.
  • Switching Applications: They are often employed in power management circuits, acting as efficient switches for controlling motors and relays.
  • Signal Conditioning: Used in instrumentation and sensor circuits, Darlington pairs can amplify sensor outputs for processing or display.

Practical Applications

Several consumer products have integrated Darlington transistors to enhance functionality:

  • Television Sets: Darlington pairs are utilized in TV receivers for signal amplification, ensuring better reception and clearer images.
  • Home Appliance Controllers: Devices such as washing machines and air conditioners use Darlington transistors for controlling motors efficiently.
  • LED Drivers: With the rise in LED technology, Darlington transistors are used to drive high-current LEDs, enabling brighter outputs with smaller control signals.

Thermal Considerations

While Darlington transistors have significant advantages, they also have higher voltage drops (typically around 1.2V to 2V) and can generate considerable heat, especially in high-power applications. Consequently, effective thermal management is essential, often requiring heatsinks and appropriate circuit designs to ensure reliability and longevity.

Moreover, the input impedance of a Darlington pair is relatively high, but its output impedance remains low. This characteristic is beneficial in creating high-performance buffer stages that can isolate various parts of a circuit while maintaining signal integrity. Engineers often take advantage of this property when designing amplifier stages or switching circuits in consumer electronic devices.

In summary, the implementation of Darlington transistors in consumer electronics enhances system performance through effective signal amplification and control, making them indispensable components across various applications. As technology advances, their usage will likely expand further, accommodating more sophisticated electronic systems and modules.

Darlington Transistor Configuration Schematic diagram of a Darlington transistor configuration, showing two BJTs in series with input and output signals, voltage drops, and a heatsink. BJT1 BJT2 Input Signal Output Signal V1 V2 Heatsink
Diagram Description: The diagram would illustrate the configuration of a Darlington pair, showing how the current flows through the two BJTs and highlighting the voltage drops across them. This would clarify the relationship between input and output signals as well as the thermal considerations mentioned.

5. BJT vs. Darlington

5.1 BJT vs. Darlington

In the realm of semiconductor devices, bipolar junction transistors (BJTs) and Darlington transistors occupy critical roles, each serving distinct operational needs and offering unique advantages. Understanding the nuances of these two types of transistors is essential for engineers and researchers aiming to design efficient electronic circuits.

A BJT consists of three regions: the emitter, the base, and the collector, with each region doped to form either P-type or N-type semiconductor material. The central principle of operation in a BJT is current control; a small input current at the base allows a much larger current to flow between the collector and emitter. This principle exploits the transistor's current gain, commonly denoted as β (beta), which typically ranges from 20 to 1000 for standard BJTs.

However, the Darlington transistor redefines the concept of current amplification. Essentially, a Darlington pair combines two BJTs in a manner that the current amplified by the first transistor serves as the input for the second. This configuration results in an overall current gain that is the product of the individual gains of the two transistors. Consequently, this results in significantly higher effective current gain, typically exceeding 100,000, making Darlington transistors ideal for high-gain applications.

Operational Differences

There are key operational differences between BJTs and Darlington transistors that can impact performance in various applications:

  • Gain: As previously mentioned, Darlington transistors provide a higher cumulative gain than a single BJT. This high gain means that a Darlington transistor can drive heavy loads with minimal input current, which is particularly useful in control circuits and power amplifiers.
  • Input impedance: Due to their configuration, Darlington transistors exhibit a higher input impedance compared to standard BJTs. This characteristic reduces the loading effect on the previous circuit stage, allowing for better integration into complex circuitry.
  • Voltage drop: A significant operational drawback of Darlington configurations is the increased voltage drop across the output. The VCE (collector-emitter voltage) inherently sees a loss due to the forward voltage drops of both transistors, typically summing up to around 1.2V or more. In contrast, single BJTs will generally have a lower VCE, making them more suitable for low-voltage applications.
  • Switching speed: BJTs can switch faster than Darlington pairs. The added capacitance from two transistors in series results in longer rise and fall times for a Darlington. Therefore, in high-frequency applications, BJTs are often preferred.

Real-World Applications

The choice between using a BJT or a Darlington transistor largely depends on specific application requirements. For instance, Darlington transistors are frequently employed in:

  • Relay Drivers: Utilizing the higher current gain allows efficient switching of large loads.
  • Audio Amplifiers: The high gain can be advantageous for amplifying low-level audio signals.
  • Motor Control Circuits: They can effectively control motor functions due to their ability to deliver large currents.

In contrast, BJTs find their application in:

  • High-Frequency Amplifiers: Their rapid switching capabilities make them suitable for RF applications.
  • Low-Power Transistor Circuits: In scenarios where minimal losses are critical, a BJT’s low voltage drop becomes beneficial.

In summary, while both BJTs and Darlington transistors share the fundamental principle of current amplification, their characteristics, advantages, and applications differ significantly. Understanding these differences equips engineers and researchers with the knowledge needed to select the appropriate device for their specific electronic needs.

Darlington Configuration vs BJT A schematic comparison of a single BJT and a Darlington pair, showing input current, output current, and collector-emitter voltages. Base (B) Collector (C) Emitter (E) I_B I_C V_CE Base (B) Collector (C) Emitter (E) I_B I_C V_CE Darlington Configuration vs BJT Single BJT Darlington Pair
Diagram Description: The diagram would illustrate the configuration of a Darlington pair compared to a single BJT, showing how the input current from one transistor feeds into the next to achieve higher current gain. This visual representation will clarify the relationship between the two devices and their respective connections.

5.2 MOSFET vs. Darlington

In the realm of electronic devices, comparisons between different types of transistors provide deep insights into their operational methodologies and application effectiveness. As we explore the differences between MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and Darlington pairs, we must appreciate the fundamental characteristics that make each suitable for specific applications. The Darlington transistor configuration combines two bipolar junction transistors (BJTs) to achieve high current gain. This property arises because the output of the first transistor feeds into the base of the second, yielding a combined current amplification effect. The resulting high current gain makes Darlingtons particularly useful in driving loads such as motors or lamps, where an increase in current is required with minimal input current. Conversely, MOSFETs, with their voltage-controlled operation, can be more efficient in certain situations. Unlike BJTs, which require current at the base terminal to control the collector-emitter current, MOSFETs rely on the electric field generated by applied voltage. This difference in operation yields a high input impedance and, therefore, significantly less power consumption, particularly advantageous in low-power applications and integration into microcontrollers. To dissect their practical differences, we can summarize their contrasting properties:
  • Input mechanism: Darlington pairs are current-controlled devices, while MOSFETs are voltage-controlled.
  • Current gain: Darlingtons provide high current gain (typically around 1000 or more), whereas MOSFETs typically have lower current gain characteristics but have significant input impedance.
  • Switching speeds: MOSFETs generally offer faster switching speeds than Darlington pairs, making them ideal for high-frequency applications.
  • Thermal stability: While both types face thermal considerations, MOSFETs usually exhibit better thermal stability due to their voltage-based operation.
The choice between a MOSFET and a Darlington configuration ultimately hinges on the application requirements. For instance, in applications where linear amplification is desired, a Darlington pair may be favored due to its high gain. However, in cases where switching speed and efficiency are paramount, particularly in digital circuits and power management systems, MOSFETs often take precedence. When designing circuits that employ these components, engineers must also consider practical aspects such as gate drive circuitry for MOSFETs and biasing conditions for Darlingtons. For instance, ensuring proper saturation in a Darlington configuration is crucial to enhancing its performance, while MOSFETs often require appropriate gate resistor values to mitigate oscillation effects during switching. In conclusion, the decision between using a Darlington transistor and a MOSFET should not only rest on technical specifications but also on an understanding of the specific demands of the application. As semiconductor technology continues to evolve, new materials and structures are being developed that might change the dynamics between these two types of transistors, echoing the need for continuous learning in this field. For further exploration, examining case studies of applications utilizing either technology can provide deeper insights into the practicality of these devices in real-world scenarios.
Comparison of MOSFET and Darlington Pair Configurations A block diagram comparing MOSFET and Darlington pair configurations, highlighting input/output currents, control mechanisms, and key characteristics. Comparison of MOSFET and Darlington Pair Configurations Input Current Output Current MOSFET Voltage Control Input Current Output Current Darlington Pair Current Control Input Mechanism: Voltage Input Mechanism: Current Current Gain: Medium Current Gain: High Switching Speed: Fast Switching Speed: Slow Thermal Stability: Good Thermal Stability: Poor
Diagram Description: The diagram would visually represent the configurations and operational differences between MOSFETs and Darlington pairs, illustrating current and voltage controls in a clear manner. This would include the input-output relationships and gain factors for each type.

5.3 Performance Metrics Comparison

In evaluating the efficacy and application of Darlington transistors, a thorough examination of their performance metrics as compared to traditional bipolar junction transistors (BJTs) is essential. The Darlington configuration combines two BJTs to enhance the current gain significantly. This section will delve into the comparative analysis of key parameters such as current gain, input impedance, switching speed, and thermal stability, thereby underpinning their practical relevance in circuit design.

Current Gain

One of the standout features of Darlington transistors is their exceptionally high current gain, often denoted as β. In a typical Darlington pair, the current gain can be calculated as the product of the gains of the individual transistors:
$$ \beta_{\text{Darlington}} = \beta_1 \cdot \beta_2 $$
Where: - \( \beta_1 \) and \( \beta_2 \) are the current gains of the first and second transistors, respectively. This high gain makes the Darlington pair an attractive option for applications requiring extensive signal amplification with minimal input current.

Input Impedance

Darlington transistors also exhibit high input impedance. This characteristic is notably advantageous in facilitating high-sensitivity applications. The input impedance can be approximated as:
$$ Z_{in} \approx ( \beta_1 \cdot r_e ) + r_{be} $$
Where: - \( r_e \) is the internal emitter resistance, - \( r_{be} \) is the base-emitter resistance of the first transistor. The result is that the input impedance of a Darlington pair can easily reach several megaohms, thereby allowing it to interface seamlessly with high-resistance circuits without loading them down.

Switching Speed

While the advantages of current gain and input impedance are substantial, a careful consideration of switching speed is imperative. The Darlington transistor has a slower switching time compared to standard BJTs due to the additional base transit time and the cumulative charge storage. The total switching time can generally be approximated by evaluating:
$$ t_{on} = t_{on1} + t_{on2} $$
Where: - \( t_{on1} \) and \( t_{on2} \) represent the turn-on times of the first and second transistor, respectively. This time delay might limit the use of Darlington transistors in high-speed applications, particularly in digital circuits or fast-switching power supplies.

Thermal Stability

Thermal stability is another crucial performance metric. In contrast to conventional BJTs, which can possess linear thermal coefficients, the Darlington pair's thermal characteristics tend to be less favorable. When subjected to increasing temperatures, a Darlington transistor may experience thermal runaway due to the combined thermal feedback of both devices. Manufacturers often address this issue by designing Darlington transistors with built-in thermal protection mechanisms or by employing them in applications with appropriate heat dissipation measures. Consequently, engineers must carefully assess the thermal environment when integrating Darlington pairs into their designs.

Practical Relevance and Applications

The distinctive performance metrics of Darlington transistors become evident in various applications: - Signal amplification: With their exceptional current gain, they are widely utilized in audio amplifiers and signal processing circuits. - Switching applications: While they are not as swift as standard BJTs, they can still serve effectively in low-frequency switching tasks where high current handling is essential. - Relay drivers: Darlington pairs are often employed as drivers for relays and other inductive loads, benefitting from the high input impedance and current gain. By understanding these performance metrics, engineers can make informed choices when selecting transistors for specific applications, ensuring optimal performance and reliability in their designs.
Darlington Transistor Configuration Schematic diagram of a Darlington transistor configuration, showing two BJTs (Transistor 1 and Transistor 2) with labeled terminals, current flow arrows, and gain values (β1, β2, β_Darlington). Transistor 1 Transistor 2 Base (B) Collector (C1) Collector (C2) Emitter (E) Input Output β1 β2 β_Darlington = β1 × β2
Diagram Description: A diagram could illustrate the Darlington transistor configuration with labeled components, highlighting the two BJTs and their connections. This visualization would help to clarify the relationship between the individual transistors and how they collectively enhance current gain.

6. Choosing the Right Darlington Configuration

6.1 Choosing the Right Darlington Configuration

The Darlington transistor configuration is renowned for its amplification capabilities, combining two bipolar junction transistors (BJTs) to achieve high current gain. However, when it comes to practical applications, selecting the appropriate configuration can significantly influence performance, reliability, and application outcomes.

Darlington pairs traditionally consist of two transistors connected in a way that the collector current of the first transistor drives the base current of the second. This setup results in a transconductance that can be greater than that of a typical single transistor configuration. Yet, it also introduces certain characteristics that must be considered when making a choice.

Understanding the Parameters

Before delving into the specifics of selecting a Darlington configuration, it is essential to examine some critical electrical parameters:

  • Current Gain (β): Darlington transistors can provide very high current gain, often exceeding 1000. This is a product of the gains of the individual transistors in the pair.
  • Input Impedance: Due to the high input impedance characteristic of BJTs, a Darlington pair will also present high input impedance, making it suitable for applications that require minimal loading on preceding circuits.
  • Voltage Drop: A significant consideration is the higher voltage drop across a Darlington pair (approximately 1.2V to 2.4V depending on the transistors used). This could impact applications where low voltage drop is desired.
  • Switching Speed: The increase in the number of junctions introduces delays, leading to slower switching speeds compared to single transistor configurations. This can limit the performance in high-frequency applications.

Configuration Types

There are two primary configurations to consider for Darlington transistors:

  • Standard Darlington Pair: This is the traditional approach where two transistors are connected in series. It is widely used for general applications due to its simplicity and effectiveness.
  • Composite Darlington Transistors: In some applications, specially designed composite Darlington transistors are available. These devices can offer reduced saturation voltages and improved thermal management, which can be critical in high-precision environments.

Application-Specific Considerations

When choosing the right configuration, it is important to match the Darlington transistor characteristics to specific applications. For example:

  • Low-Frequency Amplification: For audio applications where linear amplification is crucial, a standard Darlington pair might be sufficient.
  • High-Current Applications: In situations requiring high current handling, composite Darwinson devices that manage thermal dissipation more effectively may be preferred.
  • Switching Applications: For fast-switching applications such as motor control, single- or double-stage transistor configurations might outperform Darlington pairs, particularly if speed is a critical factor.

Moreover, it is prudent to evaluate the thermal performance and reliability of the transistor configuration in critical applications. The higher thermal resistance associated with Darlington pairs can lead to increased junction temperatures, affecting longevity and performance. In high-temperature environments, the use of transistors with better thermal characteristics may yield more sustainable results.

By understanding these details, engineers can better navigate the trade-offs inherent in choosing the correct Darlington configuration, ensuring that they meet the demands of their applications.

6.1 Choosing the Right Darlington Configuration

The Darlington transistor configuration is renowned for its amplification capabilities, combining two bipolar junction transistors (BJTs) to achieve high current gain. However, when it comes to practical applications, selecting the appropriate configuration can significantly influence performance, reliability, and application outcomes.

Darlington pairs traditionally consist of two transistors connected in a way that the collector current of the first transistor drives the base current of the second. This setup results in a transconductance that can be greater than that of a typical single transistor configuration. Yet, it also introduces certain characteristics that must be considered when making a choice.

Understanding the Parameters

Before delving into the specifics of selecting a Darlington configuration, it is essential to examine some critical electrical parameters:

  • Current Gain (β): Darlington transistors can provide very high current gain, often exceeding 1000. This is a product of the gains of the individual transistors in the pair.
  • Input Impedance: Due to the high input impedance characteristic of BJTs, a Darlington pair will also present high input impedance, making it suitable for applications that require minimal loading on preceding circuits.
  • Voltage Drop: A significant consideration is the higher voltage drop across a Darlington pair (approximately 1.2V to 2.4V depending on the transistors used). This could impact applications where low voltage drop is desired.
  • Switching Speed: The increase in the number of junctions introduces delays, leading to slower switching speeds compared to single transistor configurations. This can limit the performance in high-frequency applications.

Configuration Types

There are two primary configurations to consider for Darlington transistors:

  • Standard Darlington Pair: This is the traditional approach where two transistors are connected in series. It is widely used for general applications due to its simplicity and effectiveness.
  • Composite Darlington Transistors: In some applications, specially designed composite Darlington transistors are available. These devices can offer reduced saturation voltages and improved thermal management, which can be critical in high-precision environments.

Application-Specific Considerations

When choosing the right configuration, it is important to match the Darlington transistor characteristics to specific applications. For example:

  • Low-Frequency Amplification: For audio applications where linear amplification is crucial, a standard Darlington pair might be sufficient.
  • High-Current Applications: In situations requiring high current handling, composite Darwinson devices that manage thermal dissipation more effectively may be preferred.
  • Switching Applications: For fast-switching applications such as motor control, single- or double-stage transistor configurations might outperform Darlington pairs, particularly if speed is a critical factor.

Moreover, it is prudent to evaluate the thermal performance and reliability of the transistor configuration in critical applications. The higher thermal resistance associated with Darlington pairs can lead to increased junction temperatures, affecting longevity and performance. In high-temperature environments, the use of transistors with better thermal characteristics may yield more sustainable results.

By understanding these details, engineers can better navigate the trade-offs inherent in choosing the correct Darlington configuration, ensuring that they meet the demands of their applications.

6.2 Calculating Load and Biasing

In applications where Darlington transistors are employed, understanding the concepts of load calculation and biasing is paramount. The Darlington pair, characterized by its ability to amplify current efficiently, serves as a foundation for a myriad of electronic circuits, from power amplifiers to switching applications. This section delves into the methodologies for calculating load and appropriate biasing conditions, ensuring the effective operation of Darlington configurations.

Understanding Load Calculation

To accurately calculate the load that a Darlington transistor can handle, it is essential to first grasp the parameters of the circuit in which it operates. The load is typically represented as an equivalent resistor that determines the current flowing through the collector-emitter path of the transistors. When considering a Darlington pair, comprised of two bipolar junction transistors (BJTs), the total current gain, also known as the current transfer ratio (β), is the product of the individual gains of the transistors. For two transistors Q1 and Q2 in a Darlington configuration: $$ \beta_{total} = \beta_1 \times \beta_2 $$ Where: - \( \beta_1 \) is the current gain of the first transistor (Q1), - \( \beta_2 \) is the current gain of the second transistor (Q2). To set up the circuit: 1. If \( V_{CC} \) is the supply voltage and \( R_L \) is the load resistance, the current through the load \( I_L \) can be calculated using Ohm's Law as: $$ I_L = \frac{V_{CC} - V_{CE}}{R_L} $$ 2. The output current from the Darlington pair can then be expressed as: $$ I_{C} = \beta_{total} \times I_{B} $$ Where \( I_B \) is the base current supplied to the Darlington configuration. It's crucial to ensure that the load does not exceed the maximum ratings set by the transistors to prevent thermal runaway or failure. Calculating the load might also involve understanding the thermal characteristics of the transistors and utilizing heat sinks when necessary, particularly in high-power applications.

Biasing the Darlington Transistor

Biasing determines the operating point of the transistor and ensures that it functions in the desired region of the transistor characteristic curves. For a Darlington transistor to operate effectively, proper biasing techniques must be employed. One common method is using a resistive bias circuit. 1. Base Biasing Resistors: Let \( R_1 \) and \( R_2 \) represent the biasing resistors connected to the base of the Darlington pair. The base voltage \( V_B \) can be determined using voltage divider principles: $$ V_B = V_{CC} \cdot \frac{R_2}{R_1 + R_2} $$ 2. Setting the Quiescent Current: In a Darlington setup, the desired base current \( I_B \) can be calculated from \( V_B \): $$ I_B = \frac{V_B - V_{BE}}{R_B} $$ Where \( V_{BE} \) is the base-emitter voltage (approximately 1.2 - 1.4 V for a Darlington pair) and \( R_B \) is the base resistor. 3. Determining Collector Current: The quiescent collector current \( I_C \) can then be calculated using: $$ I_C = \beta_{total} \cdot I_B $$ With these calculations, one can design a circuit that ensures that the Darlington transistor operates in its active region, providing desired amplification without distortion. In practical applications, biasing must be precise to allow for consistent performance over temperature variations and aging, thereby enhancing the reliability of the circuit. In summary, understanding the interplay between load calculations and biasing in Darlington transistors allows engineers and physicists to design robust and effective electronic circuits, ensuring optimal performance and longevity.
Darlington Transistor Configuration with Biasing Schematic diagram of a Darlington transistor pair with biasing resistors, load resistor, and power supply connections. VCC RL Q1 Q2 R1 R2 IB IC VBE VCE
Diagram Description: The diagram would illustrate the circuit configuration of a Darlington transistor pair, including the biasing resistors and load resistor connections. It would clearly show the relationships between the base voltage, collector current, and load to aid in understanding these complex interconnections.

6.2 Calculating Load and Biasing

In applications where Darlington transistors are employed, understanding the concepts of load calculation and biasing is paramount. The Darlington pair, characterized by its ability to amplify current efficiently, serves as a foundation for a myriad of electronic circuits, from power amplifiers to switching applications. This section delves into the methodologies for calculating load and appropriate biasing conditions, ensuring the effective operation of Darlington configurations.

Understanding Load Calculation

To accurately calculate the load that a Darlington transistor can handle, it is essential to first grasp the parameters of the circuit in which it operates. The load is typically represented as an equivalent resistor that determines the current flowing through the collector-emitter path of the transistors. When considering a Darlington pair, comprised of two bipolar junction transistors (BJTs), the total current gain, also known as the current transfer ratio (β), is the product of the individual gains of the transistors. For two transistors Q1 and Q2 in a Darlington configuration: $$ \beta_{total} = \beta_1 \times \beta_2 $$ Where: - \( \beta_1 \) is the current gain of the first transistor (Q1), - \( \beta_2 \) is the current gain of the second transistor (Q2). To set up the circuit: 1. If \( V_{CC} \) is the supply voltage and \( R_L \) is the load resistance, the current through the load \( I_L \) can be calculated using Ohm's Law as: $$ I_L = \frac{V_{CC} - V_{CE}}{R_L} $$ 2. The output current from the Darlington pair can then be expressed as: $$ I_{C} = \beta_{total} \times I_{B} $$ Where \( I_B \) is the base current supplied to the Darlington configuration. It's crucial to ensure that the load does not exceed the maximum ratings set by the transistors to prevent thermal runaway or failure. Calculating the load might also involve understanding the thermal characteristics of the transistors and utilizing heat sinks when necessary, particularly in high-power applications.

Biasing the Darlington Transistor

Biasing determines the operating point of the transistor and ensures that it functions in the desired region of the transistor characteristic curves. For a Darlington transistor to operate effectively, proper biasing techniques must be employed. One common method is using a resistive bias circuit. 1. Base Biasing Resistors: Let \( R_1 \) and \( R_2 \) represent the biasing resistors connected to the base of the Darlington pair. The base voltage \( V_B \) can be determined using voltage divider principles: $$ V_B = V_{CC} \cdot \frac{R_2}{R_1 + R_2} $$ 2. Setting the Quiescent Current: In a Darlington setup, the desired base current \( I_B \) can be calculated from \( V_B \): $$ I_B = \frac{V_B - V_{BE}}{R_B} $$ Where \( V_{BE} \) is the base-emitter voltage (approximately 1.2 - 1.4 V for a Darlington pair) and \( R_B \) is the base resistor. 3. Determining Collector Current: The quiescent collector current \( I_C \) can then be calculated using: $$ I_C = \beta_{total} \cdot I_B $$ With these calculations, one can design a circuit that ensures that the Darlington transistor operates in its active region, providing desired amplification without distortion. In practical applications, biasing must be precise to allow for consistent performance over temperature variations and aging, thereby enhancing the reliability of the circuit. In summary, understanding the interplay between load calculations and biasing in Darlington transistors allows engineers and physicists to design robust and effective electronic circuits, ensuring optimal performance and longevity.
Darlington Transistor Configuration with Biasing Schematic diagram of a Darlington transistor pair with biasing resistors, load resistor, and power supply connections. VCC RL Q1 Q2 R1 R2 IB IC VBE VCE
Diagram Description: The diagram would illustrate the circuit configuration of a Darlington transistor pair, including the biasing resistors and load resistor connections. It would clearly show the relationships between the base voltage, collector current, and load to aid in understanding these complex interconnections.

6.3 Thermal Management

As Darlington transistors are widely utilized in modern amplifier and switching applications due to their high current gain, their thermal management becomes crucial for ensuring reliable operation and longevity. Thermal management refers to controlling the temperature of the transistor to prevent overheating, which can lead to decreased performance, malfunction, or even catastrophic failure.

When a Darlington pair operates, significant power dissipation occurs within the components due to current flow through the transistors, primarily arising from the voltage drop across their junctions and their inherent resistances. This can yield a substantial amount of heat, especially under conditions of continuous or high-power operation. Therefore, understanding thermal dynamics is essential for successful integration in any circuit design.

Understanding Thermal Resistance

The concept of thermal resistance is pivotal when discussing thermal management. Thermal resistance, denoted as Rθ, quantifies the temperature difference between the junction of the transistor and the ambient environment per unit power dissipated. It can be expressed as:

$$ R_\theta = \frac{\Delta T}{P} $$

where ΔT is the temperature rise and P is the power dissipation. This relationship indicates that an increase in dissipated power results in a proportional increase in temperature rise. Consequently, it becomes essential to minimize Rθ in the thermal management strategy.

Components of Thermal Resistance

The total thermal resistance of a Darlington transistor can be decomposed into several components:

  • Junction-to-case resistance (RθJC): The thermal resistance between the semiconductor junction and the case of the transistor.
  • Case-to-heat sink resistance (RθCS): The resistance of the heat flow from the transistor case to the attached heat sink.
  • Heat sink-to-ambient resistance (RθSA): The thermal resistance between the heat sink and the surrounding environment.

The total thermal resistance can be thus represented as:

$$ R_\theta = R_{\theta JC} + R_{\theta CS} + R_{\theta SA} $$

By understanding these components, engineers can improve the thermal management of Darlington transistors. Each part plays a significant role in overall thermal performance.

Cooling Techniques

In practice, several cooling strategies can be employed to enhance the thermal management of Darlington transistors:

  • Heat Sinks: By adding a suitable heat sink to the case, heat dissipation is significantly improved. A heat sink's size and material affect its thermal resistance.
  • Active Cooling: Fans or liquid cooling may be employed in high-power applications where passive solutions are inadequate.
  • Thermal Interface Materials (TIMs): Enhancing the thermal contact with materials such as thermal paste or pads can reduce RθCS, improving heat transfer from the transistor to the heat sink.

The selection of a cooling strategy must be aligned with the application requirements, including expected power levels, efficiency, and the physical constraints of the system. Proper thermal management directly influences the reliability and effectiveness of the Darlington transistor in its role in power electronics.

In summary, acknowledging and effectively managing thermal characteristics is a fundamental aspect of robust electronic circuit design involving Darlington transistors. By utilizing thermal resistance analysis and appropriate cooling solutions, engineers can ensure that these transistors not only perform optimally but also maintain reliability across diverse operational conditions.

Thermal Resistance Components of Darlington Transistors Block diagram illustrating the thermal resistance components of a Darlington transistor, including junction, case, heat sink, and ambient environment with labeled heat flow paths. Darlington Transistor Junction Case Heat Sink Ambient Environment RθJC RθCS RθSA
Diagram Description: The diagram would illustrate the concept of thermal resistance in a Darlington transistor, showing the junction-to-case, case-to-heat sink, and heat sink-to-ambient resistances and their relationships to overall thermal performance.

6.3 Thermal Management

As Darlington transistors are widely utilized in modern amplifier and switching applications due to their high current gain, their thermal management becomes crucial for ensuring reliable operation and longevity. Thermal management refers to controlling the temperature of the transistor to prevent overheating, which can lead to decreased performance, malfunction, or even catastrophic failure.

When a Darlington pair operates, significant power dissipation occurs within the components due to current flow through the transistors, primarily arising from the voltage drop across their junctions and their inherent resistances. This can yield a substantial amount of heat, especially under conditions of continuous or high-power operation. Therefore, understanding thermal dynamics is essential for successful integration in any circuit design.

Understanding Thermal Resistance

The concept of thermal resistance is pivotal when discussing thermal management. Thermal resistance, denoted as Rθ, quantifies the temperature difference between the junction of the transistor and the ambient environment per unit power dissipated. It can be expressed as:

$$ R_\theta = \frac{\Delta T}{P} $$

where ΔT is the temperature rise and P is the power dissipation. This relationship indicates that an increase in dissipated power results in a proportional increase in temperature rise. Consequently, it becomes essential to minimize Rθ in the thermal management strategy.

Components of Thermal Resistance

The total thermal resistance of a Darlington transistor can be decomposed into several components:

  • Junction-to-case resistance (RθJC): The thermal resistance between the semiconductor junction and the case of the transistor.
  • Case-to-heat sink resistance (RθCS): The resistance of the heat flow from the transistor case to the attached heat sink.
  • Heat sink-to-ambient resistance (RθSA): The thermal resistance between the heat sink and the surrounding environment.

The total thermal resistance can be thus represented as:

$$ R_\theta = R_{\theta JC} + R_{\theta CS} + R_{\theta SA} $$

By understanding these components, engineers can improve the thermal management of Darlington transistors. Each part plays a significant role in overall thermal performance.

Cooling Techniques

In practice, several cooling strategies can be employed to enhance the thermal management of Darlington transistors:

  • Heat Sinks: By adding a suitable heat sink to the case, heat dissipation is significantly improved. A heat sink's size and material affect its thermal resistance.
  • Active Cooling: Fans or liquid cooling may be employed in high-power applications where passive solutions are inadequate.
  • Thermal Interface Materials (TIMs): Enhancing the thermal contact with materials such as thermal paste or pads can reduce RθCS, improving heat transfer from the transistor to the heat sink.

The selection of a cooling strategy must be aligned with the application requirements, including expected power levels, efficiency, and the physical constraints of the system. Proper thermal management directly influences the reliability and effectiveness of the Darlington transistor in its role in power electronics.

In summary, acknowledging and effectively managing thermal characteristics is a fundamental aspect of robust electronic circuit design involving Darlington transistors. By utilizing thermal resistance analysis and appropriate cooling solutions, engineers can ensure that these transistors not only perform optimally but also maintain reliability across diverse operational conditions.

Thermal Resistance Components of Darlington Transistors Block diagram illustrating the thermal resistance components of a Darlington transistor, including junction, case, heat sink, and ambient environment with labeled heat flow paths. Darlington Transistor Junction Case Heat Sink Ambient Environment RθJC RθCS RθSA
Diagram Description: The diagram would illustrate the concept of thermal resistance in a Darlington transistor, showing the junction-to-case, case-to-heat sink, and heat sink-to-ambient resistances and their relationships to overall thermal performance.

7. Common Issues

7.1 Common Issues

When deploying Darlington transistors in various applications, engineers often encounter a set of common challenges that can significantly influence the performance and reliability of circuits. Understanding these issues is essential for optimizing designs and effectively mitigating potential pitfalls.

Thermal Runaway

One of the most critical concerns when working with Darlington pairs is thermal runaway, a phenomenon where an increase in temperature leads to further increases in collector current, thus exacerbating the temperature rise. This occurs due to the very high current gain characteristic of Darlington configurations, resulting in substantial base current magnifications.
$$ I_C = \beta I_B $$
Here, \( I_C \) represents the collector current, \( \beta \) is the current gain of the transistor, and \( I_B \) is the base current. With two transistors in series, the overall gain can be significantly higher than that of a single transistor. Thus, even a small increase in temperature can lead to a large increase in \( I_C \), pushing the device closer to its limits. To counteract thermal runaway, it is essential to implement adequate thermal management strategies. Heat sinks and temperature compensation techniques can help maintain component temperatures within safe operating bounds.

Input and Output Impedance Considerations

The Darlington transistor configuration has unique implications for circuit input and output impedances. The input impedance can be extremely high due to the transistor's inherent characteristics, but this can lead to stability issues in certain configurations. At the output, however, the impedance can be relatively low. It is important to note that while the high input impedance allows for minimal loading on the preceding stage, the output impedance may affect the interaction with subsequent stages. Careful attention to biasing and load connection is essential for ensuring stable operation and avoiding distortion in analog applications.

Switching Speed Limitations

When employed as switching devices, Darlington transistors exhibit notable limitations in terms of switching speed. The combination of two transistor base-emitter junctions introduces additional capacitance, which can slow down the turn-on and turn-off times compared to standard bipolar junction transistors (BJTs). This reduced switching speed can be characterized using:
$$ T_{on} = 2.2 \cdot R_{C} \cdot C_{C} $$
where \( T_{on} \) is the turn-on time, \( R_C \) is the load resistance, and \( C_C \) is the total capacitance seen at the collector. Engineers should account for these delays when designing timing-critical applications, such as pulse-width modulation (PWM) circuits.

Voltage Drop and Saturation Levels

A Darlington pair inherently has a higher saturation voltage compared to individual transistors. This results in power loss and a lower voltage output when in the "on" state. Typically, the saturation voltage can range around 1.2V to 2.4V depending on the specific transistor types used. To calculate the losses associated with the saturation voltage, one can use the formula:
$$ P_{loss} = V_{CE(sat)} \cdot I_C $$
where \( P_{loss} \) represents the power loss, \( V_{CE(sat)} \) is the saturation voltage, and \( I_C \) is the collector current. Engineers should design their circuits accordingly to minimize unnecessary losses, especially in high-current applications.

Common Mode Noise and Interference

In applications where Darlington transistors are used as amplifiers, common mode noise can significantly impact output signals. This is particularly evident in differential signal amplification where the transistors must exhibit high Common Mode Rejection Ratio (CMRR). To mitigate common mode noise, it is advisable to implement filtering techniques at both the input and output stages, often employing capacitive bypassing and careful grounding practices. Good layout design principles, such as minimizing loop areas for signal paths, can further enhance noise immunity.

Conclusion

By being aware of these common issues associated with Darlington transistors, engineers can craft better designs that not only mitigate these concerns effectively but also enhance the reliability and efficiency of their circuits. Continuous advancements in material science and transistor technology promise to address many of these limitations, paving the way for more efficient and robust electronic systems. To fortify your understanding and enhance your design skills, consider reviewing technical resources that delve deeper into the underlying principles and advanced applications of Darlington transistors.
Thermal Runaway in Darlington Transistors Two graphs illustrating temperature increase versus collector current and base current in a Darlington transistor pair, showing the thermal runaway threshold. Temperature (°C) Collector Current (I_C) Thermal Runaway Threshold Temperature (°C) Base Current (I_B) Thermal Runaway Threshold Thermal Runaway in Darlington Transistors Base (B) Emitter (E) Collector (C)
Diagram Description: A diagram would visually represent the thermal runaway concept and the relationship between temperature, collector current, and base current, illustrating how small temperature changes can greatly affect current in a Darlington configuration.

7.1 Common Issues

When deploying Darlington transistors in various applications, engineers often encounter a set of common challenges that can significantly influence the performance and reliability of circuits. Understanding these issues is essential for optimizing designs and effectively mitigating potential pitfalls.

Thermal Runaway

One of the most critical concerns when working with Darlington pairs is thermal runaway, a phenomenon where an increase in temperature leads to further increases in collector current, thus exacerbating the temperature rise. This occurs due to the very high current gain characteristic of Darlington configurations, resulting in substantial base current magnifications.
$$ I_C = \beta I_B $$
Here, \( I_C \) represents the collector current, \( \beta \) is the current gain of the transistor, and \( I_B \) is the base current. With two transistors in series, the overall gain can be significantly higher than that of a single transistor. Thus, even a small increase in temperature can lead to a large increase in \( I_C \), pushing the device closer to its limits. To counteract thermal runaway, it is essential to implement adequate thermal management strategies. Heat sinks and temperature compensation techniques can help maintain component temperatures within safe operating bounds.

Input and Output Impedance Considerations

The Darlington transistor configuration has unique implications for circuit input and output impedances. The input impedance can be extremely high due to the transistor's inherent characteristics, but this can lead to stability issues in certain configurations. At the output, however, the impedance can be relatively low. It is important to note that while the high input impedance allows for minimal loading on the preceding stage, the output impedance may affect the interaction with subsequent stages. Careful attention to biasing and load connection is essential for ensuring stable operation and avoiding distortion in analog applications.

Switching Speed Limitations

When employed as switching devices, Darlington transistors exhibit notable limitations in terms of switching speed. The combination of two transistor base-emitter junctions introduces additional capacitance, which can slow down the turn-on and turn-off times compared to standard bipolar junction transistors (BJTs). This reduced switching speed can be characterized using:
$$ T_{on} = 2.2 \cdot R_{C} \cdot C_{C} $$
where \( T_{on} \) is the turn-on time, \( R_C \) is the load resistance, and \( C_C \) is the total capacitance seen at the collector. Engineers should account for these delays when designing timing-critical applications, such as pulse-width modulation (PWM) circuits.

Voltage Drop and Saturation Levels

A Darlington pair inherently has a higher saturation voltage compared to individual transistors. This results in power loss and a lower voltage output when in the "on" state. Typically, the saturation voltage can range around 1.2V to 2.4V depending on the specific transistor types used. To calculate the losses associated with the saturation voltage, one can use the formula:
$$ P_{loss} = V_{CE(sat)} \cdot I_C $$
where \( P_{loss} \) represents the power loss, \( V_{CE(sat)} \) is the saturation voltage, and \( I_C \) is the collector current. Engineers should design their circuits accordingly to minimize unnecessary losses, especially in high-current applications.

Common Mode Noise and Interference

In applications where Darlington transistors are used as amplifiers, common mode noise can significantly impact output signals. This is particularly evident in differential signal amplification where the transistors must exhibit high Common Mode Rejection Ratio (CMRR). To mitigate common mode noise, it is advisable to implement filtering techniques at both the input and output stages, often employing capacitive bypassing and careful grounding practices. Good layout design principles, such as minimizing loop areas for signal paths, can further enhance noise immunity.

Conclusion

By being aware of these common issues associated with Darlington transistors, engineers can craft better designs that not only mitigate these concerns effectively but also enhance the reliability and efficiency of their circuits. Continuous advancements in material science and transistor technology promise to address many of these limitations, paving the way for more efficient and robust electronic systems. To fortify your understanding and enhance your design skills, consider reviewing technical resources that delve deeper into the underlying principles and advanced applications of Darlington transistors.
Thermal Runaway in Darlington Transistors Two graphs illustrating temperature increase versus collector current and base current in a Darlington transistor pair, showing the thermal runaway threshold. Temperature (°C) Collector Current (I_C) Thermal Runaway Threshold Temperature (°C) Base Current (I_B) Thermal Runaway Threshold Thermal Runaway in Darlington Transistors Base (B) Emitter (E) Collector (C)
Diagram Description: A diagram would visually represent the thermal runaway concept and the relationship between temperature, collector current, and base current, illustrating how small temperature changes can greatly affect current in a Darlington configuration.

Diagnosis Techniques

Diagnosing issues within a Darlington transistor circuit requires a systematic approach due to the complex interactions between its two transistors. As these components are often used in amplification and switching applications, correct diagnosis is essential for ensuring reliability and performance.

Understanding Common Issues

Before diving into diagnosis techniques, it's crucial to understand common issues associated with Darlington transistors:

  • Thermal Runaway: Given that Darlington pairs have higher gain, they can be susceptible to thermal runaway. Monitoring temperature and incorporating adequate heat sinks is vital.
  • Biasing Problems: Proper biasing is essential for linear operation in amplification circuits. Incorrect biasing can lead to distortion or cutoff.
  • Gain Variability: Variations in the gain of individual transistors can affect circuit performance. Characterization is important in design.

Diagnostic Techniques

To systematically diagnose Darlington transistors, consider the following techniques:

Visual Inspection

Begin with a visual inspection of the circuit. Look for obvious signs of damage such as burnt components, melted solder, or cracked plastic cases. This initial step can often reveal physical issues that may not require deeper electrical testing.

Multimeter Testing

Next, employ a multimeter to test the junctions of the transistors:

  • Set the multimeter to diode mode.
  • Measure the base-emitter and base-collector junctions. For a good Darlington pair, forward bias readings should show approximately 1.2V due to the combined VBE drops of the two transistors.
  • Check the collector-emitter path to ensure that it’s not shorted or open.

It’s also prudent to check the surrounding passive components—resistors and capacitors—especially those connected to the base, collector, and emitter, to ensure they are functioning correctly and not contributing to the problem.

Functional Testing

Another effective diagnostic method is functional testing under realistic load conditions:

  • Use a function generator to provide an input signal to the transistor circuit.
  • Monitor the output with an oscilloscope, observing for expected amplification or switching behavior.

If the expected output does not match the actual output, this can indicate a fault in the Darlington configuration or the surrounding circuitry.

Thermal Imaging

Advanced diagnostic methods may also include thermal imaging to detect hotspots that might indicate thermal runaway problems. Thermal cameras allow you to see differences in temperature across the transistor surface, offering insights into malfunctioning components that may not be otherwise visible.

Real-World Application of Diagnostic Techniques

In practical applications, such as motor drivers or audio amplifiers, diagnosing a defective Darlington transistor can minimize downtime and enhance the reliability of electronic systems. Engineers often implement real-time monitoring systems that integrate temperature sensors and circuit diagnostics, allowing for preemptive maintenance before faults can compromise system integrity.

In conclusion, mastering these diagnostic techniques will enhance your ability to troubleshoot issues related to Darlington transistors effectively, ensuring that these crucial components perform optimally in their applications.

Darlington Transistor Circuit Diagram A schematic diagram of a Darlington transistor circuit, showing two transistors (Q1 and Q2) in series, input and output signals, multimeter measurement points, and a heat sink. Q1 Q2 Input Signal Output Signal V_BE V_CE Heat Sink
Diagram Description: A diagram illustrating the configuration of a Darlington transistor setup, along with the measurements taken at the junctions and the expected voltage levels, would visually clarify the relationships between the components and their functioning during the diagnostic process.

Diagnosis Techniques

Diagnosing issues within a Darlington transistor circuit requires a systematic approach due to the complex interactions between its two transistors. As these components are often used in amplification and switching applications, correct diagnosis is essential for ensuring reliability and performance.

Understanding Common Issues

Before diving into diagnosis techniques, it's crucial to understand common issues associated with Darlington transistors:

  • Thermal Runaway: Given that Darlington pairs have higher gain, they can be susceptible to thermal runaway. Monitoring temperature and incorporating adequate heat sinks is vital.
  • Biasing Problems: Proper biasing is essential for linear operation in amplification circuits. Incorrect biasing can lead to distortion or cutoff.
  • Gain Variability: Variations in the gain of individual transistors can affect circuit performance. Characterization is important in design.

Diagnostic Techniques

To systematically diagnose Darlington transistors, consider the following techniques:

Visual Inspection

Begin with a visual inspection of the circuit. Look for obvious signs of damage such as burnt components, melted solder, or cracked plastic cases. This initial step can often reveal physical issues that may not require deeper electrical testing.

Multimeter Testing

Next, employ a multimeter to test the junctions of the transistors:

  • Set the multimeter to diode mode.
  • Measure the base-emitter and base-collector junctions. For a good Darlington pair, forward bias readings should show approximately 1.2V due to the combined VBE drops of the two transistors.
  • Check the collector-emitter path to ensure that it’s not shorted or open.

It’s also prudent to check the surrounding passive components—resistors and capacitors—especially those connected to the base, collector, and emitter, to ensure they are functioning correctly and not contributing to the problem.

Functional Testing

Another effective diagnostic method is functional testing under realistic load conditions:

  • Use a function generator to provide an input signal to the transistor circuit.
  • Monitor the output with an oscilloscope, observing for expected amplification or switching behavior.

If the expected output does not match the actual output, this can indicate a fault in the Darlington configuration or the surrounding circuitry.

Thermal Imaging

Advanced diagnostic methods may also include thermal imaging to detect hotspots that might indicate thermal runaway problems. Thermal cameras allow you to see differences in temperature across the transistor surface, offering insights into malfunctioning components that may not be otherwise visible.

Real-World Application of Diagnostic Techniques

In practical applications, such as motor drivers or audio amplifiers, diagnosing a defective Darlington transistor can minimize downtime and enhance the reliability of electronic systems. Engineers often implement real-time monitoring systems that integrate temperature sensors and circuit diagnostics, allowing for preemptive maintenance before faults can compromise system integrity.

In conclusion, mastering these diagnostic techniques will enhance your ability to troubleshoot issues related to Darlington transistors effectively, ensuring that these crucial components perform optimally in their applications.

Darlington Transistor Circuit Diagram A schematic diagram of a Darlington transistor circuit, showing two transistors (Q1 and Q2) in series, input and output signals, multimeter measurement points, and a heat sink. Q1 Q2 Input Signal Output Signal V_BE V_CE Heat Sink
Diagram Description: A diagram illustrating the configuration of a Darlington transistor setup, along with the measurements taken at the junctions and the expected voltage levels, would visually clarify the relationships between the components and their functioning during the diagnostic process.

7.3 Preventative Maintenance

Understanding the intricacies of Darlington transistors not only enhances your circuit design proficiency but also underscores the importance of proper maintenance practices. Like any electronic component, these transistors can succumb to wear and environmental factors over time, jeopardizing their performance. Hence, a proactive approach to maintenance is imperative to ensure reliability and longevity in practical applications.

Regular Inspection

Regular visual inspections are a fundamental aspect of preventative maintenance. Look for signs of overheating, such as discoloration or burnt residues on the transistor leads and surrounding circuitry. These can indicate excessive current flow or inadequate heat dissipation. Identifying such issues early allows for timely intervention, which could involve adjusting circuit configurations or replacing faulty components.

Thermal Management

Given that Darlington transistors are known for their high current gain, they often produce more heat than standard transistors. Adequate thermal management is essential. This includes ensuring that:

  • The transistor's heat sink is properly mounted and has good thermal contact.
  • The ambient temperature around the circuit remains within specified limits.
  • Proper airflow is maintained, with dust-free pathways to improve heat dissipation.

Utilizing thermal paste between the transistor and its heat sink can significantly enhance heat transfer efficiency, thereby prolonging the life of the transistor.

Electrical Safety Checks

Conducting regular electrical checks is crucial in monitoring the electrical performance of Darlington transistors. This includes checking for:

  • Voltage Levels: Ensure that the supply voltage remains within specified limits. Deviations can lead to over-voltage conditions that may damage the transistor.
  • Current Ratings: Verify that the circuit draws current within tolerance levels. Persistently high currents may indicate component failure or short circuits.
  • Signal Integrity: Use an oscilloscope to observe the output waveform for any distortions or irregularities, indicating potential transistor malfunctions.

Component Testing

Incorporate a testing regime for the Darlington transistors themselves. This may involve using a multimeter to verify the parameters such as base-emitter and base-collector junctions. For example, measure the forward bias voltage across the junctions to ensure they lie within expected ranges. Deviations may indicate impending failure, necessitating recalibration or replacement.

Documentation and Diagnosis

Keep detailed records of each inspection and testing session. Documentation facilitates trend analysis over time, allowing you to identify patterns that might indicate underlying issues before they escalate. In addition, consider implementing a systematic diagnostic procedure. Utilizing tools such as SPICE simulations can provide insights into circuit behavior under varying conditions, assisting in pinpointing issues related to your Darlington transistor setups.

In conclusion, ensuring the longevity and reliability of Darlington transistors requires a multi-faceted maintenance approach. By integrating regular inspections, thermal management, electrical safety checks, component testing, and thorough documentation into your maintenance routines, you contribute significantly to the efficient and effective operation of your electronic systems.

7.3 Preventative Maintenance

Understanding the intricacies of Darlington transistors not only enhances your circuit design proficiency but also underscores the importance of proper maintenance practices. Like any electronic component, these transistors can succumb to wear and environmental factors over time, jeopardizing their performance. Hence, a proactive approach to maintenance is imperative to ensure reliability and longevity in practical applications.

Regular Inspection

Regular visual inspections are a fundamental aspect of preventative maintenance. Look for signs of overheating, such as discoloration or burnt residues on the transistor leads and surrounding circuitry. These can indicate excessive current flow or inadequate heat dissipation. Identifying such issues early allows for timely intervention, which could involve adjusting circuit configurations or replacing faulty components.

Thermal Management

Given that Darlington transistors are known for their high current gain, they often produce more heat than standard transistors. Adequate thermal management is essential. This includes ensuring that:

  • The transistor's heat sink is properly mounted and has good thermal contact.
  • The ambient temperature around the circuit remains within specified limits.
  • Proper airflow is maintained, with dust-free pathways to improve heat dissipation.

Utilizing thermal paste between the transistor and its heat sink can significantly enhance heat transfer efficiency, thereby prolonging the life of the transistor.

Electrical Safety Checks

Conducting regular electrical checks is crucial in monitoring the electrical performance of Darlington transistors. This includes checking for:

  • Voltage Levels: Ensure that the supply voltage remains within specified limits. Deviations can lead to over-voltage conditions that may damage the transistor.
  • Current Ratings: Verify that the circuit draws current within tolerance levels. Persistently high currents may indicate component failure or short circuits.
  • Signal Integrity: Use an oscilloscope to observe the output waveform for any distortions or irregularities, indicating potential transistor malfunctions.

Component Testing

Incorporate a testing regime for the Darlington transistors themselves. This may involve using a multimeter to verify the parameters such as base-emitter and base-collector junctions. For example, measure the forward bias voltage across the junctions to ensure they lie within expected ranges. Deviations may indicate impending failure, necessitating recalibration or replacement.

Documentation and Diagnosis

Keep detailed records of each inspection and testing session. Documentation facilitates trend analysis over time, allowing you to identify patterns that might indicate underlying issues before they escalate. In addition, consider implementing a systematic diagnostic procedure. Utilizing tools such as SPICE simulations can provide insights into circuit behavior under varying conditions, assisting in pinpointing issues related to your Darlington transistor setups.

In conclusion, ensuring the longevity and reliability of Darlington transistors requires a multi-faceted maintenance approach. By integrating regular inspections, thermal management, electrical safety checks, component testing, and thorough documentation into your maintenance routines, you contribute significantly to the efficient and effective operation of your electronic systems.

8. Textbooks and Journals

8.1 Textbooks and Journals

  • The Art of Electronics - Third Edition — Authored by Paul Horowitz and Winfield Hill, this definitive reference is well-regarded among engineers and offers comprehensive insights into various electronic components, including Darlington transistors. An excellent resource for design and theory.
  • IEEE Xplore Digital Library — Offers access to a vast collection of IEEE journals, conference proceedings, and technical standards that cover detailed research articles about transistor technologies, including state-of-the-art advancements in Darlington transistor applications.
  • ScienceDirect — A peer-reviewed portal with articles and books on physics and engineering. You can access publications and research papers detailing the properties and uses of Darlington transistors.
  • Fundamentals of Power Electronics — This book by Robert W. Erickson and Dragan Maksimovic provides a detailed exploration of power electronic systems, covering the functionality of Darlington transistors within larger circuit design frameworks.
  • ACM Digital Library — An excellent repository of computer and electronic engineering publications, this site contains numerous articles and papers offering detailed analyses and case studies on the use of Darlington transistors in modern electronics.
  • Microelectronics: Circuit Analysis and Design — Published by Oxford University Press and penned by Donald A. Neamen, this book is an essential resource for graduate students studying electronic design principles, including practical applications of Darlington transistor configurations.
  • Taylor & Francis Online — Provides access to a wide range of journals and articles covering developments in engineering and technology, including detailed research on advanced topics like Darlington transistor applications in electronic circuits.

8.1 Textbooks and Journals

  • The Art of Electronics - Third Edition — Authored by Paul Horowitz and Winfield Hill, this definitive reference is well-regarded among engineers and offers comprehensive insights into various electronic components, including Darlington transistors. An excellent resource for design and theory.
  • IEEE Xplore Digital Library — Offers access to a vast collection of IEEE journals, conference proceedings, and technical standards that cover detailed research articles about transistor technologies, including state-of-the-art advancements in Darlington transistor applications.
  • ScienceDirect — A peer-reviewed portal with articles and books on physics and engineering. You can access publications and research papers detailing the properties and uses of Darlington transistors.
  • Fundamentals of Power Electronics — This book by Robert W. Erickson and Dragan Maksimovic provides a detailed exploration of power electronic systems, covering the functionality of Darlington transistors within larger circuit design frameworks.
  • ACM Digital Library — An excellent repository of computer and electronic engineering publications, this site contains numerous articles and papers offering detailed analyses and case studies on the use of Darlington transistors in modern electronics.
  • Microelectronics: Circuit Analysis and Design — Published by Oxford University Press and penned by Donald A. Neamen, this book is an essential resource for graduate students studying electronic design principles, including practical applications of Darlington transistor configurations.
  • Taylor & Francis Online — Provides access to a wide range of journals and articles covering developments in engineering and technology, including detailed research on advanced topics like Darlington transistor applications in electronic circuits.

8.2 Online Resources

8.2 Online Resources

8.3 Industry Standards and Guidelines

Darlington transistors, known for their high current gain, are integral components in various electronic applications. To ensure compatibility, reliability, and safety, several industry standards and guidelines govern their design, manufacturing, and application. This section explores these standards, providing critical insights relevant to advanced engineering practices.

Semiconductor Industry Standards

The semiconductor industry is governed by a plethora of standards to ensure product quality and reliability. Entities such as the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE) play a pivotal role in setting these standards:

  • IEC 60747-14: This standard, part of the IEC 60747 series, specifically deals with semiconductor devices, including discrete transistors like the Darlington configuration. It covers the parameters these devices must meet concerning electrical characteristics, such as leakage current, gain, and breakdown voltages.
  • JEDEC JESD78: The Joint Electron Device Engineering Council (JEDEC) standard on latch-up testing provides guidelines for evaluating the susceptibility of semiconductor devices to latch-up, which is particularly critical for devices like Darlington transistors used in high-gain applications.

Thermal Management Guidelines

Due to the higher power handling capabilities of Darlington transistors, effective thermal management is crucial. The following guidelines are essential for maintaining thermal performance:

  • Thermal Resistance and Junction Temperature: The thermal resistance (denoted as $$\Theta_{JA}$$) between the junction and ambient should be minimized to enhance heat dissipation. The maximum allowable junction temperature, specified by manufacturers, must not be exceeded to avoid device failure.
  • Heat Sink Specifications: Standards on heat sinks, including materials and mounting techniques, are covered under specific IEEE and JEDEC recommendations, ensuring proper thermal management in high-power Darlington arrays.

Compliance with RoHS and REACH

Environmental compliance is a critical aspect of manufacturing and distributing electronic components like Darlington transistors. RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) are key regulatory frameworks:

  • Products must be free from hazardous substances beyond specified limits. Compliance reduces environmental impact and aligns with global environmental directives.
  • Documentation proving compliance must be maintained, which includes maintaining material declarations for all contained substances.

Applications and Case Studies

Understanding industry standards is not only theoretical but also greatly beneficial in practical applications. Companies often publish case studies demonstrating how adherence to standards has enhanced product reliability and performance:

  • Case Study: Automotive Applications: Darlington transistors are used in automotive sensors and actuators. A failure case linked to thermal management was rectified by adhering to enhanced IEC and thermal management guidelines, showcasing a 30% improvement in device longevity.
  • Case Study: Power Supply Design: In power supply units, compliance with IEC standards ensured reduced electromagnetic interference (EMI), leading to more stable power output crucial for sensitive electronics.

By adhering to these industry standards and guidelines, professionals not only enhance the functionality and reliability of Darlington transistors but also ensure overall device safety and environmental responsibility.

8.3 Industry Standards and Guidelines

Darlington transistors, known for their high current gain, are integral components in various electronic applications. To ensure compatibility, reliability, and safety, several industry standards and guidelines govern their design, manufacturing, and application. This section explores these standards, providing critical insights relevant to advanced engineering practices.

Semiconductor Industry Standards

The semiconductor industry is governed by a plethora of standards to ensure product quality and reliability. Entities such as the International Electrotechnical Commission (IEC) and the Institute of Electrical and Electronics Engineers (IEEE) play a pivotal role in setting these standards:

  • IEC 60747-14: This standard, part of the IEC 60747 series, specifically deals with semiconductor devices, including discrete transistors like the Darlington configuration. It covers the parameters these devices must meet concerning electrical characteristics, such as leakage current, gain, and breakdown voltages.
  • JEDEC JESD78: The Joint Electron Device Engineering Council (JEDEC) standard on latch-up testing provides guidelines for evaluating the susceptibility of semiconductor devices to latch-up, which is particularly critical for devices like Darlington transistors used in high-gain applications.

Thermal Management Guidelines

Due to the higher power handling capabilities of Darlington transistors, effective thermal management is crucial. The following guidelines are essential for maintaining thermal performance:

  • Thermal Resistance and Junction Temperature: The thermal resistance (denoted as $$\Theta_{JA}$$) between the junction and ambient should be minimized to enhance heat dissipation. The maximum allowable junction temperature, specified by manufacturers, must not be exceeded to avoid device failure.
  • Heat Sink Specifications: Standards on heat sinks, including materials and mounting techniques, are covered under specific IEEE and JEDEC recommendations, ensuring proper thermal management in high-power Darlington arrays.

Compliance with RoHS and REACH

Environmental compliance is a critical aspect of manufacturing and distributing electronic components like Darlington transistors. RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) are key regulatory frameworks:

  • Products must be free from hazardous substances beyond specified limits. Compliance reduces environmental impact and aligns with global environmental directives.
  • Documentation proving compliance must be maintained, which includes maintaining material declarations for all contained substances.

Applications and Case Studies

Understanding industry standards is not only theoretical but also greatly beneficial in practical applications. Companies often publish case studies demonstrating how adherence to standards has enhanced product reliability and performance:

  • Case Study: Automotive Applications: Darlington transistors are used in automotive sensors and actuators. A failure case linked to thermal management was rectified by adhering to enhanced IEC and thermal management guidelines, showcasing a 30% improvement in device longevity.
  • Case Study: Power Supply Design: In power supply units, compliance with IEC standards ensured reduced electromagnetic interference (EMI), leading to more stable power output crucial for sensitive electronics.

By adhering to these industry standards and guidelines, professionals not only enhance the functionality and reliability of Darlington transistors but also ensure overall device safety and environmental responsibility.
