Monostable Multivibrator

1. Definition and Basic Operation

Monostable Multivibrator: Definition and Basic Operation

A monostable multivibrator, also known as a one-shot multivibrator, is a pulse-generating circuit with one stable state and one quasi-stable state. Unlike bistable or astable multivibrators, it remains in its stable state indefinitely until triggered, after which it transitions to the quasi-stable state for a predetermined duration before automatically returning to the stable state.

Core Operating Principle

The monostable multivibrator's operation relies on RC timing and regenerative feedback. When triggered, an external pulse forces the circuit into the quasi-stable state, where a capacitor begins charging or discharging through a resistor. The time constant (τ = RC) dictates the duration of the quasi-stable state. Once the capacitor voltage crosses a threshold, positive feedback rapidly restores the stable state.

$$ T = RC \ln\left(\frac{V_{CC}}{V_{CC} - V_{th}}\right) $$

Where T is the pulse width, VCC is the supply voltage, and Vth is the threshold voltage of the active device (e.g., transistor base-emitter turn-on voltage or op-amp comparator threshold).

Key Characteristics

Practical Implementation

Common implementations include:

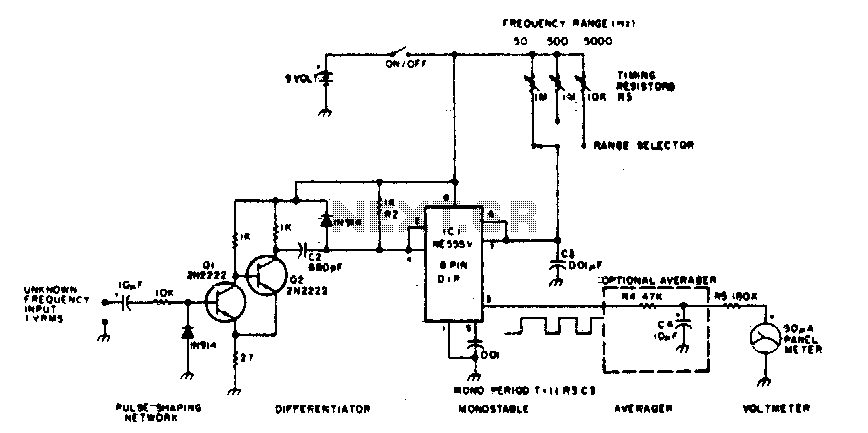

Example: 555 Timer Monostable Configuration

The 555 timer's monostable mode exemplifies the principle. Triggering the input (pin 2) discharges the capacitor connected to pin 6, initiating a timing cycle where the output (pin 3) remains HIGH until the capacitor charges to 2⁄3 VCC:

$$ T = 1.1 RC $$

Applications

Monostable Multivibrator Voltage Waveforms Waveform diagram showing trigger pulse, capacitor voltage, and output voltage of a monostable multivibrator, with labeled states and thresholds. Time 0 T₁ T₂ VCC Vth 0V Voltage Trigger Pulse Capacitor Voltage Output Voltage Stable State Quasi-stable State Stable State T = RC ln(...) Vth VCC
Diagram Description: The section describes RC timing behavior and state transitions that are inherently visual, and a waveform diagram would show the voltage changes during stable/quasi-stable states.

1.2 Key Characteristics and Parameters

Pulse Width and Timing

The output pulse width (Tw) of a monostable multivibrator is its most critical parameter, defining the duration for which the output remains in the quasi-stable state before returning to its stable state. For an RC-based monostable circuit, the pulse width is determined by the time constant of the timing components (resistor R and capacitor C). The relationship is derived from the exponential charging/discharging behavior of the capacitor:

$$ T_w = \tau \ln\left(\frac{V_{CC}}{V_{CC} - V_{th}}\right) $$

where τ = RC is the time constant, VCC is the supply voltage, and Vth is the threshold voltage of the active device (e.g., transistor or comparator). For a standard 555 timer-based monostable circuit, this simplifies to:

$$ T_w = 1.1RC $$

Trigger Sensitivity and Noise Immunity

Monostable circuits require precise triggering to initiate the timing cycle. The minimum trigger pulse width must be shorter than Tw to avoid retriggering artifacts. However, too narrow a pulse may fail to activate the circuit. Practical implementations often include:

Recovery Time and Maximum Frequency

After completing a pulse, the circuit requires a recovery time (Tr) to fully reset the timing capacitor before accepting another trigger. The total period between consecutive triggers must satisfy:

$$ T_{total} \geq T_w + T_r $$

For typical designs, Tr ranges from 10% to 20% of Tw. The maximum operating frequency is thus:

$$ f_{max} = \frac{1}{T_w + T_r} $$

Temperature and Voltage Dependence

The stability of Tw is affected by:

Output Drive Capability

The output stage must source/sink sufficient current for the load. Key parameters include:

Monostable Multivibrator Timing Diagram Timing diagram showing trigger pulse, output pulse, capacitor voltage, and threshold voltage with labeled pulse width (Tw) and recovery time (Tr). Time (t) Voltage (V) 0V Vth VCC Trigger Pulse Output Pulse Tw Capacitor Voltage Tr Threshold (Vth) VCC RC Charging Curve
Diagram Description: The section discusses pulse width timing and recovery time, which are best visualized with voltage waveforms over time.

1.3 Applications in Digital Circuits

The monostable multivibrator, due to its ability to generate a single, well-defined output pulse in response to an external trigger, finds extensive use in digital circuits. Its primary function is to introduce controlled time delays, debounce signals, and shape pulse waveforms.

Pulse Stretching and Waveform Shaping

In digital systems, signals often require pulse-width modification to meet timing constraints. A monostable multivibrator can extend narrow pulses to a duration determined by its RC time constant. The output pulse width T is given by:

$$ T = \tau \ln(2) \approx 0.693RC $$

where R is the timing resistor and C the timing capacitor. This property is crucial in interfacing fast digital signals with slower peripherals.

Switch Debouncing

Mechanical switches exhibit contact bounce, generating multiple transitions during state changes. A monostable multivibrator suppresses these artifacts by producing a single clean output pulse regardless of input oscillations. The circuit's inherent hysteresis ensures immunity to noise during the unstable period.

Monostable Output Bouncy Input

Clock Synchronization

In synchronous digital systems, monostable circuits align asynchronous events with the system clock. When an event triggers the multivibrator, its output pulse duration bridges the gap until the next clock edge, preventing metastability in flip-flops. The timing constraint is:

$$ T_{pulse} > T_{clk} - T_{setup} $$

where Tclk is the clock period and Tsetup the flip-flop setup time.

Missing Pulse Detection

Monostable multivibrators configured in watchdog timers detect system failures by monitoring periodic signals. If the retriggering pulse doesn't arrive before the timeout period:

$$ T_{timeout} = 1.1RC $$

the circuit generates an interrupt or reset signal. This application is critical in safety-critical systems like automotive electronics and industrial controllers.

Frequency Division

When cascaded with counters, monostable stages create non-integer frequency dividers. The output frequency fout relates to input frequency fin as:

$$ f_{out} = \frac{f_{in}}{n + \frac{T}{T_{in}}} $$

where n is the integer division ratio and T the monostable period. This technique enables precise frequency synthesis in clock generators.

Power-On Reset Circuits

Monostable multivibrators generate controlled reset pulses during power-up, ensuring proper initialization of digital ICs. The RC network compensates for supply voltage rise time variations, typically providing 100-500ms reset pulses in microcontroller systems.

Switch Debouncing with Monostable Multivibrator Time-domain waveform comparison showing noisy mechanical switch input and clean monostable output pulse with labeled trigger point and pulse width. Time Time Input Input Bounce Output Trigger Point T = 0.693RC T = 0.693 × R × C Pulse Width Formula Switch Debouncing with Monostable Multivibrator
Diagram Description: The section includes voltage waveform transformations (bouncy input vs. clean output) and timing relationships that are inherently visual.

2. Transistor-Based Monostable Multivibrators

2.1 Transistor-Based Monostable Multivibrators

A transistor-based monostable multivibrator is a regenerative switching circuit with one stable state and one quasi-stable state. Triggering the circuit forces a transition to the quasi-stable state, where it remains for a predetermined duration before returning to the stable state. The timing is governed by an RC network, making it useful for pulse stretching, delay generation, and debouncing applications.

Circuit Configuration

The core design consists of two cross-coupled transistors (Q1 and Q2), with one transistor biased to remain in saturation (stable state) and the other cut off until triggered. A capacitor (C) and resistor (R) network connected to the base of Q2 determines the quasi-stable duration. The circuit typically includes:

Q₁ Q₂ Rₜ, Cₜ timing network

Mathematical Derivation of Pulse Width

The quasi-stable state duration (T) is derived from the RC network's exponential discharge. When triggered, Q2 turns on, and CT discharges through RT. The voltage across CT (VC) follows:

$$ V_C(t) = V_{CC} \left(1 - e^{-t/R_TC_T}\right) $$

The pulse width ends when VC reaches the cutoff voltage of Q1 (~0.7V for silicon transistors). Solving for T:

$$ T = R_TC_T \ln\left(\frac{V_{CC}}{V_{CC} - 0.7}\right) \approx 0.693R_TC_T $$

Practical Considerations

Applications

Common uses include:

2.2 Op-Amp Implementations

A monostable multivibrator implemented with an operational amplifier (op-amp) leverages the high gain and fast switching characteristics of op-amps to produce a precise, single-pulse output in response to a trigger. The circuit typically employs positive feedback to ensure rapid transition between states, with timing determined by an RC network.

Circuit Configuration

The core of an op-amp-based monostable multivibrator consists of:

The op-amp operates in open-loop or with positive feedback during the transition, ensuring minimal delay between the trigger and the output response. The stable state is maintained by the op-amp's saturation, while the timing components dictate the duration of the quasi-stable state.

Mathematical Analysis

The pulse width (T) of the monostable multivibrator is derived from the exponential charging/discharging of the RC network. When a trigger is applied, the output switches to the opposite saturation voltage (Vsat), and the capacitor begins charging through resistor R. The voltage across the capacitor (VC) follows:

$$ V_C(t) = V_{sat} \left(1 - e^{-\frac{t}{RC}}\right) $$

The circuit returns to the stable state when VC crosses the threshold voltage set by the feedback network. Solving for T when VC(T) = V_{th} yields:

$$ T = RC \ln\left(\frac{V_{sat}}{V_{sat} - V_{th}}\right) $$

For a symmetrical feedback network where Vth = V_{sat}/2, this simplifies to:

$$ T = RC \ln(2) \approx 0.693RC $$

Practical Design Considerations

Key parameters influencing performance include:

For high-speed applications, fast-settling op-amps like the LM318 or AD8065 are preferred. The reset mechanism (often a diode-clamped transistor) must rapidly discharge the capacitor to ensure consistent retriggering.

Real-World Applications

Op-amp monostable circuits are used in:

Trigger Output
Op-Amp Monostable Multivibrator Circuit Schematic diagram of an op-amp monostable multivibrator circuit with RC timing network, feedback resistors, trigger input, and output path. + - Feedback R C Trigger Output Reset V_sat V_th
Diagram Description: The diagram would physically show the op-amp monostable circuit configuration with RC timing network, feedback paths, and trigger/input-output relationships.

2.3 Timing Components (Resistors and Capacitors)

Role of Timing Components in Monostable Operation

The pulse width of a monostable multivibrator is primarily determined by the RC time constant of its timing network. The resistor-capacitor (RC) combination controls the charging and discharging behavior of the capacitor, which in turn dictates the duration of the quasi-stable state. The time constant τ is given by:

$$ \tau = R \cdot C $$

where R is the timing resistor and C is the timing capacitor. The pulse width T of the output signal is derived from the exponential charging curve of the capacitor:

$$ V_C(t) = V_{CC} \left(1 - e^{-\frac{t}{RC}}\right) $$

When the capacitor voltage VC reaches the threshold voltage of the triggering circuit (typically 2/3 VCC for 555 timer-based designs), the monostable resets. Solving for t = T:

$$ T = RC \ln(3) \approx 1.1RC $$

Selection Criteria for Resistors and Capacitors

The choice of R and C depends on:

Non-Ideal Effects and Compensation

Real-world components introduce deviations from ideal behavior:

Practical Design Example

For a 555 timer monostable with T = 10 ms:

$$ R = \frac{T}{1.1C} $$

Selecting C = 1 µF yields R ≈ 9.1 kΩ. A 9.1kΩ 1% metal-film resistor and a 1 µF polyester capacitor provide stable operation.

C R Monostable RC Timing Network

Advanced Considerations

For temperature-sensitive applications, the tempco of components must be matched. For instance, pairing a resistor with a +100 ppm/°C tempco with a capacitor exhibiting −100 ppm/°C stabilizes τ over temperature ranges. SPICE simulations (e.g., Monte Carlo analysis) can quantify tolerance stacking effects.

Monostable RC Timing Network and Capacitor Charging Curve A schematic of an RC timing network (left) and a graph of capacitor voltage vs. time (right) showing exponential rise to 2/3 Vcc threshold. Vcc R C τ = RC Time (t) Vc(t) 2/3 Vcc T = 1.1RC Monostable RC Timing Network and Capacitor Charging Curve
Diagram Description: The section describes the RC timing network's behavior and its impact on pulse width, which is best visualized with a labeled schematic and voltage-time graph.

3. Triggering Mechanisms

3.1 Triggering Mechanisms

The stability and precision of a monostable multivibrator's output pulse depend critically on its triggering mechanism. Triggering methods are broadly classified into edge-triggered and level-triggered systems, each with distinct advantages in noise immunity, timing accuracy, and circuit complexity.

Edge Triggering

Edge triggering relies on a rapid transition (either rising or falling edge) of the input signal to initiate the monostable's quasi-stable state. The Schmitt trigger is a common implementation, exploiting hysteresis to reject noise. The triggering condition is mathematically defined by the threshold voltage differential:

$$ V_{th+} - V_{th-} = \Delta V_{hys} $$

where Vth+ and Vth− are the positive and negative threshold voltages, respectively. For a 555 timer-based monostable, the trigger pin (Pin 2) must see a voltage drop below VCC/3 to activate the output pulse.

Level Triggering

Level-triggered systems respond to sustained input voltages beyond a threshold. While simpler to implement, they are susceptible to noise-induced false triggers. The minimum trigger pulse width (tw) must satisfy:

$$ t_w > R_TC_T \ln\left(\frac{V_{CC}}{V_{CC} - V_{th}}\right) $$

where RT and CT are the timing components. In CMOS-based designs like the 74HC123, retriggerable variants allow pulse-width extension by repeated triggering during the active state.

Practical Considerations

Advanced Techniques

For sub-nanosecond timing precision, ECL (Emitter-Coupled Logic) monostables employ differential triggering to minimize jitter. The trigger sensitivity (S) is given by:

$$ S = \frac{\partial t_{out}}{\partial V_{in}} \approx \frac{R_TC_T}{V_{swing}} $$

where Vswing is the logic swing voltage. Optical triggering via optocouplers is another method for galvanic isolation in high-voltage systems.

3.2 Pulse Width Calculation

The output pulse width (T) of a monostable multivibrator is determined by the timing components—typically a resistor (R) and capacitor (C)—that define the RC network in the circuit. The pulse width represents the duration for which the output remains in its quasi-stable state before returning to the stable state.

Derivation of Pulse Width

For a standard monostable multivibrator using an RC network, the charging process of the capacitor follows an exponential curve. The voltage across the capacitor (V_C) as a function of time is given by:

$$ V_C(t) = V_{CC} \left(1 - e^{-\frac{t}{RC}}\right) $$

When the capacitor voltage reaches the threshold level (V_{TH}) of the triggering circuit (e.g., 2/3 V_{CC} for a 555 timer), the output switches back to its stable state. Setting V_C(T) = V_{TH} and solving for T:

$$ V_{TH} = V_{CC} \left(1 - e^{-\frac{T}{RC}}\right) $$

Rearranging to isolate the exponential term:

$$ e^{-\frac{T}{RC}} = 1 - \frac{V_{TH}}{V_{CC}} $$

Taking the natural logarithm of both sides:

$$ -\frac{T}{RC} = \ln\left(1 - \frac{V_{TH}}{V_{CC}}\right) $$

Solving for T yields the pulse width:

$$ T = -RC \ln\left(1 - \frac{V_{TH}}{V_{CC}}\right) $$

Practical Example: 555 Timer Monostable Configuration

In a 555 timer-based monostable circuit, the threshold voltage is V_{TH} = \frac{2}{3} V_{CC}. Substituting this into the equation:

$$ T = -RC \ln\left(1 - \frac{2}{3}\right) = -RC \ln\left(\frac{1}{3}\right) $$

Simplifying the natural logarithm term:

$$ T = RC \ln(3) \approx 1.0986RC $$

For practical purposes, this is often approximated as:

$$ T \approx 1.1RC $$

Key Considerations

Applications

Precise pulse width control is essential in:

Monostable Multivibrator Timing Diagram A timing diagram showing the capacitor voltage (V_C) exponential rise, threshold voltage (V_TH), and pulse width (T) in a monostable multivibrator circuit. Voltage (V) Time (t) 0 t V_CC 0 V_TH V_C(t) T RC time constant V_CC
Diagram Description: The section involves exponential charging curves and timing relationships that are inherently visual.

3.3 Recovery Time and Stability Considerations

Recovery Time: Definition and Significance

The recovery time (trec) of a monostable multivibrator is the interval required for the circuit to return to its stable state after the output pulse has terminated. During this period, internal capacitances discharge, and bias conditions stabilize, ensuring the circuit is ready for the next trigger. If a new trigger arrives before trec elapses, the output pulse width may deviate from the designed value, leading to timing inaccuracies.

$$ t_{rec} = R_{ext}C_{ext} \ln\left(\frac{V_{CC}}{V_{CC} - V_{BE(sat)}}\right) $$

Here, Rext and Cext are the timing components, VCC is the supply voltage, and VBE(sat) is the base-emitter saturation voltage of the transistor. The logarithmic term accounts for the discharge trajectory of the timing capacitor.

Stability Factors and Design Trade-offs

Stability in monostable multivibrators is influenced by:

Minimizing Recovery Time

To reduce trec:

$$ t_{rec(min)} = \frac{C_{ext} \Delta V}{I_{discharge}} $$

where ΔV is the voltage swing on Cext, and Idischarge is the active pull-down current.

Practical Case Study: High-Frequency Monostable Design

In a 10 MHz clock synchronization circuit, a monostable with trec = 50 ns was achieved using:

Noise Immunity and False Triggering

Stray capacitance or inductive coupling can inject spurious triggers. Solutions include:

Monostable Multivibrator Recovery Time Waveforms Waveform diagram showing trigger pulse, output pulse, capacitor voltage discharge curve, and recovery time interval for a monostable multivibrator. Time Voltage Voltage Trigger V_out V_Cext t_rec Stable State
Diagram Description: The section involves time-domain behavior (recovery time) and discharge trajectories of capacitors, which are highly visual concepts.

4. Noise Immunity and Trigger Sensitivity

4.1 Noise Immunity and Trigger Sensitivity

Noise Immunity in Monostable Multivibrators

Monostable multivibrators are susceptible to false triggering due to electrical noise, particularly in high-frequency environments. Noise immunity is quantified by the noise margin, defined as the minimum voltage difference between the trigger threshold and the noise floor. For a Schmitt-trigger-based monostable circuit, the noise margin (NM) is derived from the hysteresis window (VH):

$$ NM = V_{H} = V_{T+} - V_{T-} $$

where VT+ and VT- are the upper and lower trigger thresholds, respectively. A wider hysteresis window improves noise immunity but may reduce trigger sensitivity.

Trigger Sensitivity and Threshold Design

Trigger sensitivity depends on the slew rate of the input signal and the circuit’s time constant (τ = RC). For reliable triggering, the input pulse width (tw) must satisfy:

$$ t_w \geq \tau \ln\left(\frac{V_{DD}}{V_{DD} - V_{T+}}\right) $$

If tw is too short, the circuit may not respond. Conversely, excessive pulse widths can cause retriggering. In ICs like the 555 timer, this is mitigated by internal comparators with fixed thresholds (VT+ = 2VDD/3, VT- = VDD/3).

Practical Trade-offs

Case Study: 555 Timer Noise Rejection

The 555 timer’s monostable mode exhibits a typical noise margin of 200–300mV due to its internal comparator design. In a 5V system, this translates to a 6–10% tolerance for noise on the trigger pin. For critical applications, an external Schmitt trigger or low-pass filter (RfilterCfilter) is added to attenuate noise above the cutoff frequency:

$$ f_c = \frac{1}{2\pi R_{filter}C_{filter}} $$

Advanced Techniques

For ultra-high noise immunity, differential triggering or optical isolation (e.g., optocouplers) can decouple the trigger signal from ground loops. In FPGA implementations, digital debouncing circuits sample the trigger signal at multiples of the expected noise period to reject spurious edges.

--- Note: Equations assume ideal components; parasitic effects (e.g., stray capacitance) must be accounted for in high-precision designs.
Schmitt Trigger Hysteresis and Noise Margin A waveform diagram showing Schmitt Trigger hysteresis thresholds (V_T+ and V_T-), hysteresis width (V_H), and noise margin regions. The input voltage waveform illustrates stable and unstable regions with respect to noise. Voltage (V) Time V_T+ V_T- V_H Noise floor Unstable region Stable (HIGH) Unstable region Stable (LOW) Schmitt Trigger Hysteresis and Noise Margin
Diagram Description: The section discusses hysteresis windows, trigger thresholds, and noise margins, which are best visualized with voltage waveforms showing V_T+, V_T-, and noise floor relationships.

4.2 Common Design Pitfalls

Incorrect Timing Component Selection

A frequent error in monostable multivibrator design is the improper selection of the timing resistor (R) and capacitor (C). The pulse width (T) is governed by:

$$ T = \tau \ln(2) \approx 0.693RC $$

If R is too small, the capacitor charges too quickly, leading to an unstable output pulse. Conversely, excessively large R values cause slow discharge, increasing susceptibility to noise. For reliable operation, R should typically lie between 1 kΩ and 10 MΩ, while C should avoid electrolytic types due to leakage currents.

Power Supply Decoupling Neglect

Monostable circuits are sensitive to power supply fluctuations. Inadequate decoupling near the IC (e.g., 555 timer) introduces jitter in the output pulse. A 0.1 μF ceramic capacitor should be placed as close as possible to the power pins, with a bulk capacitor (e.g., 10 μF) for higher-current designs.

Grounding and Layout Issues

Poor PCB layout manifests as erratic triggering or pulse-width deviations. Key considerations:

Trigger Signal Oversights

The trigger input must meet two criteria:

$$ V_{\text{trigger}} < \frac{1}{3}V_{CC} \quad \text{(for 555-based designs)} $$

And the pulse width must be shorter than the desired output pulse. Failing to meet these conditions causes:

A Schmitt trigger at the input or an RC differentiator (for edge detection) often resolves these issues.

Thermal Drift in Precision Applications

For pulse-width stability better than 1%, temperature coefficients of R and C must be matched. Metal-film resistors (±50 ppm/°C) and NP0/C0G capacitors (±30 ppm/°C) are ideal. The drift in output pulse width (ΔT) can be approximated by:

$$ \frac{\Delta T}{T} = \alpha_R \Delta \theta + \alpha_C \Delta \theta $$

where αR and αC are the temperature coefficients of the resistor and capacitor, respectively, and Δθ is the temperature change.

Load-Induced Timing Errors

Loading the output with a low-impedance circuit (< 10 kΩ) can distort the pulse shape and alter the effective timing. Buffer the output with an op-amp or CMOS gate when driving heavy loads. The additional delay (td) introduced by the buffer must satisfy:

$$ t_d \ll T $$

For nanosecond-scale precision, use buffers with propagation delays under 5 ns (e.g., 74LVC series).

4.3 Debugging Techniques

Common Failure Modes in Monostable Multivibrators

Monostable multivibrators, despite their simplicity, are prone to several failure modes. The most frequent issues include:

Systematic Debugging Methodology

A structured approach to debugging involves:

  1. Signal Tracing: Use an oscilloscope to verify waveforms at critical nodes (input, output, timing capacitor voltage).
  2. Power Supply Analysis: Check for ripple and noise on power rails that may affect timing accuracy.
  3. Component Verification: Measure actual resistor and capacitor values, as tolerances directly impact the time constant.
  4. Load Effects: Verify that the output load isn't affecting circuit operation (sinking/sourcing current beyond specifications).

Quantitative Analysis of Timing Errors

The expected pulse width T of an RC-based monostable multivibrator is given by:

$$ T = RC \ln\left(\frac{V_{CC}}{V_{CC} - V_{th}}\right) $$

Where Vth is the threshold voltage of the triggering logic. Deviations occur due to:

Advanced Debugging Tools

For precision applications, employ:

Case Study: Resolving False Triggering

A common issue in high-speed monostable circuits is false triggering due to:

Solutions include:

Thermal Considerations

Temperature affects monostable operation through:

$$ \frac{\Delta T}{T_0} = \alpha_R \Delta \theta + \alpha_C \Delta \theta $$

Where αR and αC are the temperature coefficients of resistance and capacitance respectively. For stability:

Noise Immunity Techniques

Improve noise rejection by:

Monostable Multivibrator Debugging Signals Oscilloscope traces showing input trigger pulse, output waveform, timing capacitor voltage, and power supply ripple with labeled timing parameters and artifacts. Input Output Cap Voltage Ripple Time 0 T 2T Vth Pulse Width (T) Ringing False Trigger
Diagram Description: The section discusses voltage waveforms, timing errors, and noise effects which are highly visual concepts best shown with oscilloscope traces and component interactions.

5. Recommended Textbooks

5.1 Recommended Textbooks

5.2 Online Resources and Tutorials

5.3 Research Papers and Advanced Topics
