Phototransistors

1. Basic Structure and Working Principle

1.1 Basic Structure and Working Principle

Structural Composition

A phototransistor is a bipolar junction transistor (BJT) or field-effect transistor (FET) designed to convert incident light into an amplified electrical signal. Unlike conventional transistors, its base or gate region is either exposed to light or coupled to a photodiode. The most common configuration is an NPN BJT with a transparent window allowing photons to reach the base-collector junction.

The key structural components include:

Working Principle

Phototransistors operate in two distinct modes: photovoltaic (zero bias) and photoconductive (reverse-biased). In the photoconductive mode—the most common—incident photons with energy exceeding the semiconductor bandgap generate electron-hole pairs in the base-collector depletion region. The electric field separates these carriers, with electrons drifting toward the collector and holes toward the base.

$$ I_C = \beta I_{ph} $$

Here, \(I_C\) is the collector current, \(\beta\) is the current gain, and \(I_{ph}\) is the photocurrent generated by light absorption. The photocurrent itself is proportional to the incident optical power \(P_{opt}\):

$$ I_{ph} = \frac{\eta q \lambda}{hc} P_{opt} $$

where \(\eta\) is quantum efficiency, \(q\) is electron charge, \(\lambda\) is wavelength, \(h\) is Planck's constant, and \(c\) is the speed of light.

Gain Mechanism

The transistor's inherent current amplification distinguishes phototransistors from photodiodes. Photogenerated holes in the base lower the base-emitter potential, effectively forward-biasing the junction and injecting electrons from the emitter. These electrons diffuse across the base and are swept into the collector, multiplying the initial photocurrent by \(\beta\) (typically 100–1000).

Spectral Response

The responsivity \(R\) (A/W) peaks at wavelengths near the semiconductor's bandgap energy. For silicon:

$$ \lambda_{peak} \approx \frac{1240}{E_g} \text{ nm} \quad (E_g = 1.12 \text{ eV for Si}) $$

resulting in peak sensitivity at ~1100 nm. Infrared (IR) phototransistors often use germanium or InGaAs for extended wavelength detection.

Practical Considerations

Key performance metrics include:

Applications span optical encoders, IR receivers, and light barriers, where amplified output eliminates the need for external preamplifiers.

Phototransistor Structure and Carrier Flow Cross-sectional diagram of an NPN phototransistor showing the emitter (N+), base (P), and collector (N) regions, with incident light creating electron-hole pairs and current flow. Optical Window Photon (hν) e− h+ Collector Current Emitter Current Collector (N) Base (P) Emitter (N+)
Diagram Description: The diagram would show the cross-sectional structure of a phototransistor with labeled regions (emitter, base, collector, optical window) and the path of light/charge carriers.

1.2 Key Characteristics and Parameters

Responsivity and Spectral Response

The responsivity (R) of a phototransistor quantifies its current output per unit optical power input, typically expressed in A/W. For a phototransistor with collector current IC and incident optical power Popt:

$$ R = \frac{I_C}{P_{opt}} $$

This parameter depends heavily on the base-collector junction's quantum efficiency and the transistor's current gain (β). Silicon phototransistors typically exhibit peak responsivity in the 800-900 nm range, closely matching the absorption spectrum of silicon. The spectral response curve follows:

$$ R(\lambda) = \frac{q\lambda}{hc} \eta(\lambda) \beta $$

where η(λ) is the wavelength-dependent quantum efficiency, q is electron charge, h is Planck's constant, and c is light speed.

Dark Current and Noise Characteristics

Dark current (ID) represents the leakage current flowing through the phototransistor in complete darkness, primarily caused by thermally generated carriers. It follows the Shockley diode equation:

$$ I_D = I_S \left( e^{\frac{qV_{BE}}{nkT}} - 1 \right) $$

where IS is reverse saturation current, n is ideality factor (typically 1-2), and VBE is base-emitter voltage. Dark current doubles approximately every 10°C temperature increase, making it critical for low-light applications.

The total noise current includes shot noise from photon arrival statistics and thermal noise from base resistance:

$$ i_n^2 = 2q(I_C + I_D)\Delta f + \frac{4kT\Delta f}{R_B} $$

Current Gain and Frequency Response

The current gain (β) in phototransistors operates differently than conventional bipolar transistors. The optical base current generates an equivalent electrical base current:

$$ I_B^{eq} = \frac{\eta P_{opt}}{E_{photon}} $$

resulting in total collector current:

$$ I_C = \beta I_B^{eq} $$

The frequency response is limited by two primary factors:

The 3dB cutoff frequency is approximately:

$$ f_{3dB} = \frac{1}{2\pi(\tau_B + \tau_{RC})} $$

Linearity and Saturation Effects

Phototransistors exhibit excellent linearity in the mid-range of their operating characteristics, governed by:

$$ I_C = I_{C0} + K P_{opt} $$

where IC0 is dark current component and K is a constant combining responsivity and gain. At high optical power levels (>1 mW typically), the device enters saturation due to:

Temperature Dependence

The temperature coefficient of phototransistors involves competing effects:

$$ \frac{dI_C}{dT} = \left( \frac{\partial I_C}{\partial \beta} \frac{d\beta}{dT} + \frac{\partial I_C}{\partial I_{D}} \frac{dI_D}{dT} \right) $$

Typical values range from +0.5%/°C to +2%/°C, requiring compensation in precision applications. The VBE temperature coefficient remains approximately -2 mV/°C, similar to standard BJTs.

Phototransistor Spectral Response & Temperature Effects A dual-axis diagram showing the spectral response curve (responsivity vs wavelength) on the left and dark current vs temperature on the right, with annotations for key characteristics. Wavelength (nm) Responsivity R(λ) 400 600 800 1000 1200 Peak @850nm 800-900nm range Temperature (°C) Dark Current Iₚ(T) -40 0 40 80 120 -2mV/°C coefficient Thermal generation Recombination Phototransistor Spectral Response & Temperature Effects
Diagram Description: The spectral response curve and competing temperature effects would benefit from visual representation to show wavelength-dependent responsivity and thermal behavior.

1.3 Comparison with Photodiodes and Other Light Sensors

Performance Characteristics

Phototransistors and photodiodes both convert light into electrical signals, but their operational principles and performance metrics differ significantly. The photodiode operates in either photovoltaic (zero-bias) or photoconductive (reverse-biased) mode, with its current output linearly proportional to incident light intensity. The responsivity R of a photodiode is given by:

$$ R = \frac{I_{ph}}{P_{opt}} = \frac{\eta q \lambda}{hc} $$

where Iph is the photocurrent, Popt is the optical power, η is quantum efficiency, q is electron charge, λ is wavelength, and h is Planck's constant. In contrast, a phototransistor amplifies the photocurrent through its inherent gain mechanism, leading to higher responsivity but often at the cost of bandwidth and linearity.

Bandwidth and Response Time

Photodiodes, particularly PIN and avalanche photodiodes (APDs), exhibit superior bandwidth, often exceeding 1 GHz in high-speed designs. The junction capacitance Cj and load resistance RL primarily limit the bandwidth:

$$ f_{3dB} = \frac{1}{2\pi R_L C_j} $$

Phototransistors, due to their base-collector charge storage and recombination effects, typically have bandwidths below 1 MHz. This makes them unsuitable for high-frequency applications like optical communications but ideal for slower, high-gain detection tasks.

Noise and Sensitivity

Photodiodes exhibit lower noise equivalent power (NEP) compared to phototransistors. The dominant noise sources in photodiodes are shot noise and Johnson-Nyquist noise:

$$ i_{n,shot} = \sqrt{2qI_{dark}\Delta f} $$ $$ i_{n,Thermal} = \sqrt{\frac{4kT\Delta f}{R_L}} $$

Phototransistors introduce additional noise from base current fluctuations and gain variations, reducing their signal-to-noise ratio in low-light conditions. However, their internal gain (β ≈ 50-500) makes them preferable for applications where signal amplification is critical.

Comparison with Other Light Sensors

Application-Specific Tradeoffs

In industrial automation, phototransistors dominate proximity sensing due to their high gain and robustness. Photodiodes are preferred in spectroscopy and LiDAR where linearity and bandwidth are critical. For consumer electronics, CMOS sensors provide the best balance of cost, resolution, and integration capability.

Responsivity Comparison Wavelength (nm) Responsivity (A/W) Si Photodiode Phototransistor
Responsivity vs. Wavelength Comparison A line graph comparing the responsivity (A/W) versus wavelength (nm) for Si Photodiodes and Phototransistors. 400 500 600 700 800 Wavelength (nm) 0.2 0.4 0.6 0.8 1.0 Responsivity (A/W) Si Photodiode Phototransistor Responsivity vs. Wavelength Comparison
Diagram Description: The section compares responsivity vs. wavelength for photodiodes and phototransistors, which is inherently graphical data.

2. Bipolar Phototransistors

2.1 Bipolar Phototransistors

Structure and Operating Principle

A bipolar phototransistor is a three-layer semiconductor device (NPN or PNP) that converts incident light into an amplified electrical current. Unlike a standard photodiode, it leverages transistor action to provide internal gain, making it highly sensitive to low light levels. The base region, typically left floating or weakly biased, acts as the photosensitive area where electron-hole pairs are generated upon photon absorption. These carriers modulate the base-emitter junction potential, triggering collector current flow proportional to the incident light intensity.

Current-Voltage Characteristics

The output characteristics of a bipolar phototransistor resemble those of a conventional transistor but with light intensity as the controlling parameter. The collector current \(I_C\) is given by:

$$ I_C = \beta I_{ph} + I_{CEO} $$

where \(\beta\) is the current gain, \(I_{ph}\) is the photogenerated base current, and \(I_{CEO}\) is the leakage current. The photocurrent \(I_{ph}\) depends on the incident optical power \(P_{opt}\) and the device's responsivity \(R\):

$$ I_{ph} = R \cdot P_{opt} $$

Frequency Response and Bandwidth Limitations

The bandwidth of a bipolar phototransistor is primarily limited by the base transit time \(\tau_b\) and the RC time constant of the junction capacitance. The cutoff frequency \(f_c\) can be approximated as:

$$ f_c \approx \frac{1}{2\pi \tau_b} $$

For high-speed applications, devices with thin base regions and reduced parasitic capacitances are preferred. However, this often comes at the cost of reduced responsivity due to lower quantum efficiency.

Practical Considerations

Dark current: Even in the absence of light, a small leakage current flows due to thermal generation of carriers. This becomes significant in high-temperature environments.

Linearity: Bipolar phototransistors exhibit good linearity over a limited range of incident power. At high light levels, gain compression occurs due to high-level injection effects in the base.

Packaging: Many commercial devices incorporate a daylight filter or lens to optimize sensitivity for specific spectral ranges (e.g., near-infrared for optocouplers).

Applications in Optoelectronics

Bipolar phototransistors find extensive use in:

In optocoupler applications, the phototransistor is typically paired with an LED, forming an isolated signal path with typical current transfer ratios (CTR) ranging from 10% to 200%. The CTR degrades over time due to LED aging, a critical factor in long-term reliability.

Comparison with Other Photodetectors

While avalanche photodiodes (APDs) offer superior sensitivity and bandwidth, bipolar phototransistors provide a cost-effective solution for moderate-speed applications requiring inherent signal amplification. Their current gain (\(\beta\)) typically ranges from 100 to 1000, eliminating the need for additional amplifier stages in many circuits.

Bipolar Phototransistor Cross-Section Cross-sectional view of an NPN bipolar phototransistor showing emitter, base, and collector regions, with incident light creating electron-hole pairs. Collector (C) Base (B) Emissor (E) Fótons h⁺ e⁻ I_{ph} I_C
Diagram Description: The diagram would show the NPN/PNP structure of a bipolar phototransistor with labeled regions (emitter, base, collector) and photon absorption path.

2.2 Field-Effect Phototransistors (PhotoFETs)

Operating Principle

Field-effect phototransistors (PhotoFETs) combine the photoconductive response of a photodiode with the voltage-controlled current modulation of a field-effect transistor (FET). Unlike conventional bipolar phototransistors, which rely on minority carrier injection, PhotoFETs operate by modulating the channel conductivity via a photogenerated gate potential. Incident photons generate electron-hole pairs in the gate depletion region, altering the electric field and thus the drain-source current (IDS).

Mathematical Model

The drain current in a PhotoFET under illumination follows the standard FET square-law model, modified by the photovoltage (Vph):

$$ I_{DS} = \mu_n C_{ox} \frac{W}{L} \left[ (V_{GS} + V_{ph} - V_{th})V_{DS} - \frac{1}{2}V_{DS}^2 \right] $$

where:

The photovoltage is derived from the integrated photocurrent over the gate capacitance:

$$ V_{ph} = \frac{q \eta \Phi \lambda}{h c C_{ox}} t_{int} $$

where η is quantum efficiency, Φ is photon flux, and tint is integration time.

Structural Variations

Depletion-Mode PhotoFETs

Utilize a pre-existing conductive channel that is partially depleted by the built-in potential. Photons further deplete the channel, reducing IDS. This configuration provides logarithmic response to light intensity, suitable for high-dynamic-range applications.

Enhancement-Mode PhotoFETs

Require a positive gate bias to form an inversion layer. Photogenerated carriers lower the effective threshold voltage, enabling subthreshold operation with femtoampere-level dark currents. Used in ultra-low-power optical sensors.

Performance Metrics

Parameter Typical Range
Responsivity (A/W) 102–105 (vs. 101 for photodiodes)
NEP (W/√Hz) 10-15–10-17
Bandwidth 10 kHz–10 MHz (tradeoff with gain)

Fabrication Technologies

Modern PhotoFETs employ:

Applications

PhotoFETs are critical in:

PhotoFET Structure and Operation Cross-sectional schematic of a PhotoFET showing gate, source, drain, channel, depletion region, photon absorption, electron-hole pairs, and drain current flow. V_GS Source Drain Channel Depletion Region Photon (V_ph) h⁺ e⁻ Photogenerated Carriers I_DS V_DS
Diagram Description: The section describes the operating principle of PhotoFETs, which involves spatial relationships between gate, channel, and photogenerated carriers, and includes mathematical models that would benefit from visual representation.

2.3 Darlington Phototransistors

Darlington phototransistors amplify photocurrent significantly by cascading two bipolar junction transistors (BJTs) in a Darlington pair configuration. The first transistor acts as a photodetector, while the second provides additional current gain. This arrangement achieves a total current gain βD approximately equal to the product of the individual gains (β1 × β2), often exceeding 10,000.

Structure and Operation

The Darlington phototransistor consists of an NPN or PNP phototransistor coupled with a conventional BJT. Incident photons generate electron-hole pairs in the base-collector junction of the first transistor, inducing a base current. This current is amplified by the second transistor, producing a much larger collector current. The combined structure is typically housed in a single package with a transparent window for light exposure.

Mathematical Analysis

The total photocurrent IC in a Darlington configuration is derived as follows:

$$ I_C = \beta_1 \beta_2 I_{ph} $$

where:

The response time tr is slower than a single phototransistor due to the increased capacitance and charge storage in the Darlington pair:

$$ t_r \approx \tau_1 + \tau_2 $$

where τ1 and τ2 are the carrier lifetimes in each transistor.

Advantages and Limitations

Advantages:

Limitations:

Practical Applications

Darlington phototransistors are used in:

Modern optoelectronic Darlington pairs often integrate a base-emitter resistor to reduce leakage current and improve stability.

Darlington Phototransistor Configuration A schematic diagram of a Darlington phototransistor configuration, showing two NPN transistors in a cascaded arrangement with light input, base-collector junction, and current flow arrows. Light Q1 Q2 β1 β2 Iph IC E C B
Diagram Description: The diagram would show the Darlington pair configuration with two transistors and their interconnections, illustrating how the photocurrent flows and gets amplified.

3. Optical Switching and Detection

3.1 Optical Switching and Detection

Fundamentals of Phototransistor Operation

A phototransistor operates as a light-sensitive bipolar junction transistor (BJT) or field-effect transistor (FET), where incident photons generate electron-hole pairs in the base region. Unlike a photodiode, the phototransistor provides internal gain due to its transistor action. The base current \(I_B\) is generated photoelectrically, leading to a collector current \(I_C\) amplified by the current gain \(\beta\):

$$ I_C = \beta I_B + I_{CEO} $$

Here, \(I_{CEO}\) is the leakage current in the absence of light. The responsivity \(R\) of a phototransistor is defined as the ratio of output current to incident optical power \(P_{opt}\):

$$ R = \frac{I_C}{P_{opt}} $$

Switching Characteristics

Phototransistors exhibit finite rise (\(t_r\)) and fall times (\(t_f\)), governed by carrier recombination and junction capacitance. For a silicon NPN phototransistor, the switching time is approximated by:

$$ t_r \approx \tau_n \ln \left( \frac{I_C}{I_C - 0.1 I_{C(sat)}} \right) $$ $$ t_f \approx \tau_p \ln \left( \frac{I_{C(sat)}}{0.1 I_{C(sat)}} \right) $$

where \(\tau_n\) and \(\tau_p\) are minority carrier lifetimes for electrons and holes, respectively. Faster switching is achieved by reducing the base-collector capacitance \(C_{BC}\) and operating at higher bias voltages.

Detection Modes

Phototransistors operate in two primary detection modes:

Noise Considerations

Key noise sources include shot noise (\(i_{shot}\)) and thermal noise (\(i_{thermal}\)):

$$ i_{shot} = \sqrt{2q I_C \Delta f} $$ $$ i_{thermal} = \sqrt{\frac{4kT \Delta f}{R_{load}}} $$

where \(q\) is the electron charge, \(\Delta f\) the bandwidth, and \(R_{load}\) the load resistance. The signal-to-noise ratio (SNR) is critical for low-light detection.

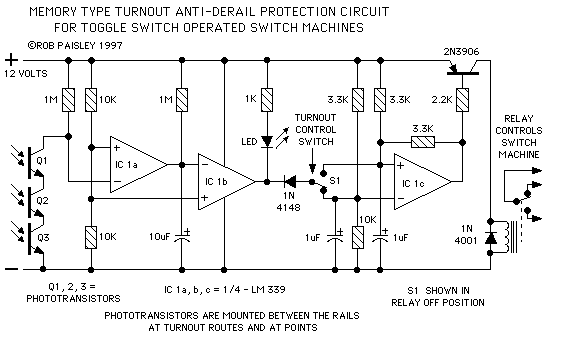

Applications

Phototransistors are widely used in:

Practical Design Example

For a phototransistor with \(\beta = 100\) and \(R = 0.5 \, \text{A/W}\), the collector current under \(1 \, \text{mW}\) illumination is:

$$ I_C = R \cdot P_{opt} = 0.5 \times 10^{-3} = 0.5 \, \text{mA} $$

The base current is then \(I_B = I_C / \beta = 5 \, \mu\text{A}\). A load resistor \(R_L = 1 \, \text{k}\Omega\) yields an output voltage swing of \(0.5 \, \text{V}\).

Phototransistor Operation and Current Flow A cross-sectional schematic of a phototransistor showing incident light, base region, collector current, emitter, and load resistor, with labeled current flow and gain mechanism. Collector (C) Emitter (E) Base (B) P_opt I_B I_C β × I_B Load Resistor
Diagram Description: The diagram would show the relationship between incident light, base current, and amplified collector current in a phototransistor, illustrating the internal gain mechanism.

3.2 Light-Based Communication Systems

Fundamentals of Phototransistor-Based Communication

Phototransistors serve as critical components in light-based communication systems due to their high sensitivity and fast response times. Unlike photodiodes, phototransistors provide internal gain, making them suitable for low-light applications. The collector current \(I_C\) in a phototransistor is given by:

$$ I_C = \beta I_{ph} $$

where \(\beta\) is the current gain and \(I_{ph}\) is the photocurrent generated by incident light. The relationship between incident optical power \(P_{opt}\) and \(I_{ph}\) is linear for small signals:

$$ I_{ph} = \mathfrak{R} P_{opt} $$

Here, \(\mathfrak{R}\) is the responsivity (A/W), typically ranging from 0.1 to 1.0 A/W for silicon phototransistors.

Modulation Techniques

Light-based communication systems often employ intensity modulation (IM) due to its simplicity. The modulated optical signal can be expressed as:

$$ P_{opt}(t) = P_{DC} \left[1 + m x(t)\right] $$

where \(P_{DC}\) is the bias power, \(m\) is the modulation index (0 < m ≤ 1), and \(x(t)\) is the normalized message signal. Common modulation schemes include:

System Architecture

A complete light-based communication system consists of:

  1. Transmitter: LED or laser diode with driver circuitry
  2. Channel: Free space or optical fiber
  3. Receiver: Phototransistor with amplification and signal processing

The signal-to-noise ratio (SNR) at the receiver is crucial for system performance. For a phototransistor receiver, the SNR can be approximated by:

$$ \text{SNR} = \frac{(\mathfrak{R} P_{opt})^2}{2q(I_D + I_{ph})B + \frac{4kTB}{R_L}} $$

where \(q\) is the electron charge, \(I_D\) is the dark current, \(B\) is the bandwidth, \(k\) is Boltzmann's constant, \(T\) is temperature, and \(R_L\) is the load resistance.

Practical Considerations

Several factors impact phototransistor performance in communication systems:

Advanced Applications

Recent developments have enabled phototransistors in novel communication scenarios:

The frequency response of a phototransistor-based system is typically characterized by a -3dB cutoff frequency \(f_c\):

$$ f_c = \frac{1}{2\pi\tau_{eff}} $$

where \(\tau_{eff}\) is the effective carrier lifetime, combining the base transit time and the RC time constant of the device.

3.3 Industrial and Automotive Sensors

Phototransistor Characteristics in Harsh Environments

Phototransistors deployed in industrial and automotive applications must operate reliably under extreme conditions, including high temperatures, mechanical vibrations, and electromagnetic interference. The responsivity R of a phototransistor is given by:

$$ R = \frac{I_{ph}}{P_{opt}} $$

where Iph is the photocurrent and Popt is the incident optical power. In industrial settings, temperature fluctuations can significantly alter the bandgap energy Eg of the semiconductor material, affecting responsivity. The temperature-dependent shift is approximated by:

$$ E_g(T) = E_g(0) - \frac{\alpha T^2}{T + \beta} $$

where α and β are material-specific Varshni coefficients.

Noise and Signal-to-Noise Optimization

Industrial environments introduce additional noise sources such as 1/f noise and shot noise. The total noise current In in a phototransistor is:

$$ I_n = \sqrt{2qI_dB + \frac{K_f I_d^a B}{f} + 4kTB/R_{shunt}} $$

where q is the electron charge, Id is the dark current, B is the bandwidth, Kf is the flicker noise coefficient, and Rshunt is the shunt resistance. Automotive LiDAR systems, for instance, employ pulsed operation to mitigate low-frequency noise.

Packaging and Durability Considerations

Industrial-grade phototransistors use hermetic packaging with borosilicate glass windows to prevent moisture ingress. The mechanical resonance frequency fr of the package must exceed vibrational spectra common in automotive environments (typically 5-2000 Hz):

$$ f_r = \frac{1}{2\pi} \sqrt{\frac{k}{m}} $$

where k is the stiffness coefficient and m is the effective mass. Manufacturers often conduct MIL-STD-883 shock and vibration testing to validate robustness.

Case Study: Automotive Rain Sensors

Modern rain-sensing wipers use an array of phototransistors operating at 850 nm (invisible to human eyes) to detect water droplets on windshields. The system compares reflected intensities from dry (Idry) and wet (Iwet) surfaces:

$$ \Delta I = I_{dry} - I_{wet} = P_0 e^{-\alpha_{dry}d} - P_0 e^{-\alpha_{wet}d} $$

where αdry and αwet are absorption coefficients, and d is the optical path length. This differential measurement eliminates ambient light interference.

Industrial Position Sensing

In conveyor belt alignment systems, paired phototransistors detect edge positions with micron-level precision using the triangulation method. The displacement Δx is calculated from the photocurrent ratio:

$$ \Delta x = \frac{D}{2} \left( \frac{I_1 - I_2}{I_1 + I_2} \right) $$

where D is the detector separation. Temperature compensation is achieved through on-chip thermistors that adjust bias voltages.

D Phototransistor Pair
Phototransistor Pair Triangulation for Position Sensing Side view of two phototransistors spaced apart with converging optical paths detecting the edge of a conveyor belt. Includes labels for phototransistor currents (I1, I2), displacement (Δx), and distance between sensors (D). Conveyor Belt Edge Phototransistor (I1) Phototransistor (I2) Phototransistor Pair D Δx
Diagram Description: The section involves spatial relationships (phototransistor pair triangulation) and a mathematical model of displacement that would benefit from visual representation.

4. Biasing Techniques

4.1 Biasing Techniques

Fixed-Bias Configuration

The simplest biasing method for a phototransistor is the fixed-bias configuration, where a constant voltage is applied between the collector and emitter. The base terminal is left floating or connected to ground, depending on the desired operating mode. The collector current \(I_C\) is primarily determined by the incident light intensity and the transistor's current gain \(\beta\). The relationship is given by:

$$ I_C = \beta I_{ph} $$

where \(I_{ph}\) is the photocurrent generated in the base-collector junction. The fixed-bias approach is straightforward but suffers from temperature sensitivity and variations in \(\beta\).

Voltage-Divider Bias

For improved stability, a voltage-divider bias network can be employed. This technique uses two resistors \(R_1\) and \(R_2\) to set the base voltage \(V_B\). The emitter resistor \(R_E\) introduces negative feedback, stabilizing the operating point against temperature fluctuations. The base voltage is calculated as:

$$ V_B = V_{CC} \frac{R_2}{R_1 + R_2} $$

The emitter voltage \(V_E\) follows as \(V_E = V_B - V_{BE}\), where \(V_{BE}\) is the base-emitter voltage drop (typically 0.7V for silicon). The emitter current \(I_E\) is then:

$$ I_E = \frac{V_E}{R_E} $$

This configuration reduces dependence on \(\beta\) by making \(I_C \approx I_E\) when \(I_{ph}\) is sufficiently large.

Active Bias with Operational Amplifiers

For precision applications, active biasing using operational amplifiers provides superior performance. The op-amp maintains a constant voltage across the phototransistor's collector-emitter terminals while converting the photocurrent to a voltage output. A transimpedance amplifier configuration is commonly used:

$$ V_{out} = -I_{ph} R_f $$

where \(R_f\) is the feedback resistor. This approach offers linear response, wide dynamic range, and excellent rejection of power supply variations. The virtual ground at the inverting input ensures minimal voltage swing across the phototransistor, preventing saturation effects.

Switched Biasing for Noise Reduction

In low-light applications, switched biasing techniques can significantly improve signal-to-noise ratio. By periodically reverse-biasing the base-collector junction, trapped charge carriers are swept out, reducing dark current and 1/f noise. The optimal switching frequency balances between noise reduction and signal bandwidth requirements. A typical implementation uses a MOSFET to alternate between bias states:

$$ f_{switch} > \frac{1}{2\pi \tau_{carrier}} $$

where \(\tau_{carrier}\) is the minority carrier lifetime in the base region.

Practical Considerations

In high-speed applications, the Miller effect can significantly reduce bandwidth. Stray capacitance \(C_{cb}\) appears multiplied by the voltage gain when referred to the input:

$$ C_{in} = C_{cb}(1 + g_m R_L) $$

where \(g_m\) is the transconductance and \(R_L\) is the load resistance. Careful PCB layout and minimized trace lengths are essential for preserving high-frequency performance.

Phototransistor Biasing Techniques Comparison Side-by-side comparison of four phototransistor biasing circuits: fixed-bias, voltage-divider, op-amp, and switched bias configurations. Fixed Bias I_ph R1 VCC GND V_out Voltage Divider I_ph R1 R2 VCC GND V_out Op-Amp Bias + - I_ph Rf V_out GND Switched Bias I_ph f_switch VCC GND V_out I_C V_B V_E I_C Light Light Light Light
Diagram Description: The section describes multiple circuit configurations (fixed-bias, voltage-divider, op-amp biasing) that require visual representation of component connections and signal flow.

4.2 Amplification and Signal Conditioning

Phototransistor Gain Mechanism

The phototransistor's current gain arises from the photoelectric effect coupled with bipolar transistor action. Incident photons generate electron-hole pairs in the base-collector junction, producing a base current \(I_B\). This current is amplified by the transistor's current gain \(\beta\), yielding a collector current:

$$ I_C = \beta I_B + I_{CEO} $$

where \(I_{CEO}\) is the leakage current. The responsivity \(R\) (A/W) relates optical power \(P_{opt}\) to photocurrent:

$$ I_{ph} = R P_{opt} $$

Combining these, the total collector current becomes:

$$ I_C = \beta R P_{opt} + I_{CEO} $$

Transimpedance Amplifier Design

To convert the phototransistor's current output to a voltage signal, a transimpedance amplifier (TIA) is employed. The feedback resistor \(R_f\) sets the gain:

$$ V_{out} = -I_C R_f $$

The TIA's bandwidth is limited by the phototransistor's junction capacitance \(C_j\) and the op-amp's gain-bandwidth product (GBW). The -3 dB bandwidth is approximated by:

$$ f_{-3dB} = \frac{1}{2\pi R_f C_j} $$

For stability, ensure the amplifier's phase margin exceeds 45° by selecting \(R_f\) such that:

$$ R_f \leq \frac{1}{2\pi \cdot \text{GBW} \cdot C_j} $$

Noise Considerations

Key noise sources in phototransistor circuits include:

The total output noise voltage is:

$$ V_{n,out} = R_f \sqrt{i_{n,shot}^2 + i_{n,thermal}^2 + \left(\frac{v_{n,amp}}{R_f}\right)^2} $$

Dynamic Range Optimization

To maximize signal-to-noise ratio (SNR):

Practical Implementation Example

A high-speed phototransistor circuit for optical communications might use:

Vout Phototransistor Op-Amp

This configuration achieves 12-bit resolution at 10 MS/s for lidar applications, with a power consumption under 50 mW.

Phototransistor Amplification Circuit Schematic of a phototransistor connected to an op-amp with feedback resistor, showing signal flow and key parameters. + - Optical Input V_out R_f I_C GBW C_j
Diagram Description: The section involves complex relationships between phototransistor gain, transimpedance amplifier design, and noise sources that are better visualized with a labeled schematic.

4.3 Noise Reduction Strategies

Thermal Noise Mitigation

Thermal noise, or Johnson-Nyquist noise, arises from random charge carrier motion due to finite temperature. For a phototransistor, the mean-square thermal noise voltage Vn is given by:

$$ V_n^2 = 4kTR\Delta f $$

where k is Boltzmann’s constant, T is absolute temperature, R is the equivalent resistance, and Δf is the bandwidth. To minimize this:

Shot Noise Suppression

Shot noise originates from discrete electron flow across junctions. The noise current spectral density In is:

$$ I_n^2 = 2qI_{\text{ph}}\Delta f $$

where q is electron charge and Iph is photocurrent. Countermeasures include:

1/f (Flicker) Noise Reduction

Flicker noise dominates at low frequencies and scales inversely with frequency. Empirical models describe its power spectral density as:

$$ S_I(f) = \frac{K_f I^\alpha}{f^\beta} $$

where Kf, α, and β are device-specific. Mitigation strategies:

Electromagnetic Interference (EMI) Shielding

Phototransistors are susceptible to EMI from nearby circuits or RF sources. Effective shielding involves:

Active Noise Cancellation

Advanced systems employ feedback loops to subtract noise in real-time. A typical implementation:

  1. Measure noise via a reference phototransistor shielded from light.
  2. Invert the noise signal and inject it into the main signal path.
  3. Adjust phase/amplitude matching using adaptive filters (e.g., LMS algorithm).

Component Selection and Circuit Design

Low-noise performance hinges on:

Active Noise Cancellation Feedback Loop Block diagram illustrating the feedback loop in active noise cancellation using phototransistors, an inverter, adaptive filter, and signal combiner. Reference Phototransistor Inverter Adaptive Filter (LMS) + Main Phototransistor Clean Output Noise Reference Inverted Noise Adaptive Filter Feedback Path
Diagram Description: The active noise cancellation process involves a feedback loop with signal inversion and adaptive filtering, which is best visualized as a block diagram.

5. Sensitivity and Response Time Optimization

5.1 Sensitivity and Response Time Optimization

Fundamental Trade-offs in Phototransistor Design

The sensitivity and response time of a phototransistor are inherently linked through its physical and electrical properties. The responsivity R (A/W) of a phototransistor is given by:

$$ R = \frac{I_{ph}}{P_{opt}} = \eta \cdot \frac{q \lambda}{h c} \cdot \beta $$

where η is the quantum efficiency, q is the electron charge, λ is the wavelength, h is Planck's constant, c is the speed of light, and β is the current gain. Higher gain improves sensitivity but degrades response time due to increased charge storage in the base region.

Optimizing Sensitivity

To maximize sensitivity:

The noise-equivalent power (NEP) defines the minimum detectable power and is critical for sensitivity:

$$ \text{NEP} = \frac{\sqrt{2 q I_d \Delta f}}{R} $$

where Id is the dark current and Δf is the bandwidth.

Minimizing Response Time

The response time τ is dominated by the RC time constant and minority carrier lifetime:

$$ \tau = \sqrt{\tau_{RC}^2 + \tau_{diff}^2 + \tau_{tr}^2} $$

Key strategies include:

Case Study: High-Speed InGaAs Phototransistors

InGaAs phototransistors with a 50 μm diameter active area achieve R = 10 A/W at 1550 nm, with a 3 dB bandwidth of 1.2 GHz. The optimized structure uses:

Thermal Effects and Stability

Temperature impacts both sensitivity and speed:

$$ I_d(T) = I_0 \cdot e^{\frac{-E_g}{k T}} $$

where Eg is the bandgap energy. Active cooling or temperature-compensated biasing may be required for precision applications.

Practical Design Guidelines

5.2 Environmental Considerations (Temperature, Light Conditions)

Temperature Effects on Phototransistor Performance

Phototransistors exhibit significant temperature-dependent behavior due to the thermal generation of charge carriers and variations in semiconductor bandgap energy. The collector current \(I_C\) in a phototransistor is governed by:

$$ I_C = I_{ph} + I_{CEO} $$

where \(I_{ph}\) is the photogenerated current and \(I_{CEO}\) is the leakage current (collector-emitter current with base open). The leakage current follows an exponential relationship with temperature:

$$ I_{CEO}(T) = I_{CEO}(T_0) \cdot e^{\frac{E_g}{2k} \left( \frac{1}{T_0} - \frac{1}{T} \right)} $$

Here, \(E_g\) is the bandgap energy, \(k\) is Boltzmann’s constant, and \(T_0\) is the reference temperature. For silicon phototransistors, \(I_{CEO}\) approximately doubles for every 10°C rise in temperature, increasing noise and reducing signal-to-noise ratio (SNR) in low-light applications.

Temperature Compensation Techniques

To mitigate thermal drift, engineers employ:

Light Condition Variability

Phototransistor responsivity \(R\) (A/W) varies with wavelength \(\lambda\) due to the absorption coefficient \(\alpha(\lambda)\) of the semiconductor material. The spectral response is modeled as:

$$ R(\lambda) = \frac{q \lambda}{hc} \eta(\lambda) $$

where \(q\) is the electron charge, \(h\) is Planck’s constant, \(c\) is the speed of light, and \(\eta(\lambda)\) is the quantum efficiency. Silicon phototransistors peak near 850 nm, with sensitivity dropping sharply beyond 1100 nm.

Ambient Light Interference

In environments with fluctuating ambient light (e.g., sunlight, artificial lighting), phototransistors require optical filtering or modulation techniques:

Case Study: Automotive LiDAR Systems

In LiDAR, phototransistors must operate across -40°C to 125°C. Manufacturers often integrate:

$$ SNR = \frac{I_{ph}^2}{2q(I_{ph} + I_{dark} + I_{ambient})\Delta f + \frac{4kT\Delta f}{R_L}} $$

where \(I_{dark}\) is the dark current, \(I_{ambient}\) is ambient light current, \(\Delta f\) is bandwidth, and \(R_L\) is load resistance.

Phototransistor Performance vs. Temperature and Wavelength A scientific diagram showing the relationship between phototransistor performance, temperature, and wavelength. Includes leakage current vs. temperature, spectral response, and SNR components. Leakage Current vs. Temperature I_CEO(T) = I_0 e^(T/T_0) Temperature (K) I_CEO (A) Spectral Response R(λ) (A/W) Wavelength (nm) Response 850nm Signal-to-Noise Ratio Components SNR = I_ph / √(I_ph + I_dark + I_ambient) I_ph: Photocurrent (signal) I_dark: Dark current (thermal noise) I_ambient: Ambient light noise SNR improves with higher photocurrent and lower noise components
Diagram Description: The section involves complex relationships between temperature, leakage current, and spectral response that would benefit from visual representation.

5.3 Common Issues and Solutions

Dark Current and Noise

Phototransistors exhibit a small leakage current, known as dark current (ID), even in the absence of light. This arises from thermally generated electron-hole pairs in the base-collector junction. In low-light applications, dark current introduces noise, reducing the signal-to-noise ratio (SNR). The dark current can be modeled as:

$$ I_D = I_{S} \left( e^{\frac{qV_{BE}}{kT}} - 1 \right) $$

where IS is the reverse saturation current, VBE is the base-emitter voltage, and kT/q is the thermal voltage. To mitigate this:

Saturation at High Irradiance

When exposed to intense light, phototransistors enter saturation, where the collector current (IC) no longer scales linearly with incident flux. This occurs due to base region charge crowding, limiting the transistor's gain. The saturation condition is given by:

$$ I_C = \beta I_{ph} \geq I_{C,\text{max}} $$

where β is the current gain and Iph is the photogenerated current. Solutions include:

Slow Response Time

Phototransistors suffer from slower response times compared to photodiodes due to the inherent base charge storage effect. The rise (tr) and fall (tf) times are governed by the RC time constant of the base-emitter junction:

$$ t_r \approx 2.2 \tau = 2.2 (R_B C_{BE}) $$

where RB is the base resistance and CBE is the junction capacitance. To improve speed:

Spectral Mismatch

Phototransistors have non-uniform spectral responsivity, often peaking in the near-infrared (NIR) range (~850–950 nm). This causes sensitivity drift when used with broadband or off-peak sources (e.g., visible LEDs). The responsivity R(λ) is:

$$ R(\lambda) = \frac{\eta q \lambda}{hc} $$

where η is quantum efficiency and λ is wavelength. Countermeasures:

Ambient Light Interference

Stray ambient light (e.g., sunlight or room lighting) introduces DC offsets and noise. The interference current Iamb adds to the signal current:

$$ I_{\text{total}} = I_{\text{signal}} + I_{\text{amb}} $$

Mitigation strategies:

6. Recommended Books and Publications

6.1 Recommended Books and Publications

6.2 Online Resources and Datasheets

6.3 Advanced Research Papers
