Reactive Power

1. Definition and Basic Concept

Reactive Power: Definition and Basic Concept

Reactive power (Q) is a fundamental component in AC power systems that arises due to the phase difference between voltage and current waveforms. Unlike active power (P), which performs real work, reactive power oscillates between the source and reactive elements (inductors and capacitors) without being dissipated. It is measured in volt-amperes reactive (VAR).

Mathematical Representation

In a sinusoidal AC system, instantaneous power p(t) is given by:

$$ p(t) = v(t) \cdot i(t) = V_m \sin(\omega t) \cdot I_m \sin(\omega t - \theta) $$

Expanding using trigonometric identities yields:

$$ p(t) = \frac{V_m I_m}{2} \cos(\theta) \left[1 - \cos(2\omega t)\right] - \frac{V_m I_m}{2} \sin(\theta) \sin(2\omega t) $$

The first term represents active power, while the second term corresponds to reactive power. The RMS expressions are:

$$ P = VI \cos(\theta) $$ $$ Q = VI \sin(\theta) $$

Physical Interpretation

Reactive power manifests in systems with:

Power Triangle and Complex Power

The relationship between active, reactive, and apparent power (S) is geometrically represented by the power triangle:

$$ S = P + jQ $$ $$ |S| = \sqrt{P^2 + Q^2} $$
P (W) Q (VAR) S (VA)

Practical Significance

Reactive power management is critical for:

Industrial facilities often use capacitor banks or synchronous condensers to offset inductive reactive power, achieving near-unity power factor.

Power Triangle Visualization A right triangle representing the geometric relationship between active power (P), reactive power (Q), and apparent power (S), with phase angle θ labeled between P and S. P (W) Q (VAR) S (VA) θ
Diagram Description: The diagram would show the geometric relationship between active power (P), reactive power (Q), and apparent power (S) in the power triangle, including their phase angle θ.

Difference Between Active and Reactive Power

In AC power systems, the distinction between active and reactive power arises from the phase difference between voltage and current waveforms. Active power (P), measured in watts (W), represents the real energy transferred and consumed by resistive loads. Reactive power (Q), measured in volt-amperes reactive (VAR), accounts for energy temporarily stored and returned by inductive or capacitive elements without net consumption.

Mathematical Representation

The instantaneous power in an AC circuit is given by:

$$ p(t) = v(t) \cdot i(t) = V_m \cos(\omega t) \cdot I_m \cos(\omega t - \theta) $$

where θ is the phase angle between voltage and current. Expanding using trigonometric identities yields:

$$ p(t) = \frac{V_m I_m}{2} [\cos(\theta) + \cos(2\omega t - \theta)] $$

The time-averaged power (active power) is:

$$ P = \frac{V_m I_m}{2} \cos(\theta) = V_{rms} I_{rms} \cos(\theta) $$

Reactive power emerges from the quadrature component:

$$ Q = V_{rms} I_{rms} \sin(\theta) $$

Physical Interpretation

Active power performs useful work (e.g., heating, mechanical motion), while reactive power sustains electromagnetic fields in inductive loads (motors, transformers) or electric fields in capacitive loads (capacitor banks, transmission lines). The power triangle relates apparent power (S), active power, and reactive power:

$$ S = \sqrt{P^2 + Q^2} $$

Practical Implications

Measurement and Instrumentation

Active power is measured directly using wattmeters, while reactive power requires phase-sensitive detection or calculations from apparent and active power. Modern digital power analyzers compute both quantities simultaneously using:

$$ Q = \sqrt{S^2 - P^2} $$
AC Power Waveforms and Power Triangle A diagram showing the phase relationship between voltage and current waveforms, and the power triangle illustrating the vector sum of active and reactive power. v(t) i(t) θ Time Amplitude P (W) Q (VAR) S (VA) cos(θ) = PF θ AC Power Waveforms Power Triangle
Diagram Description: The diagram would show the phase relationship between voltage and current waveforms, and the power triangle illustrating the vector sum of active and reactive power.

1.3 Role in AC Circuits

Reactive power (Q) arises in AC circuits due to energy storage and release by inductive and capacitive elements. Unlike real power (P), which performs useful work, reactive power oscillates between the source and load, contributing to current flow without net energy dissipation. Its presence is quantified by the phase difference (θ) between voltage and current waveforms.

Mathematical Representation

The instantaneous power in an AC circuit is given by:

$$ p(t) = v(t) \cdot i(t) = V_m I_m \cos(\omega t) \cos(\omega t - \theta) $$

Expanding using trigonometric identities:

$$ p(t) = \frac{V_m I_m}{2} \left[ \cos(\theta) + \cos(2\omega t - \theta) \right] $$

The time-averaged power (real power) is:

$$ P = \frac{V_m I_m}{2} \cos(\theta) = V_{rms} I_{rms} \cos(\theta) $$

Reactive power is defined as:

$$ Q = V_{rms} I_{rms} \sin(\theta) $$

Physical Interpretation

In purely inductive circuits, current lags voltage by 90°, resulting in θ = 90° and Q = VrmsIrms. For capacitive circuits, current leads voltage by 90°, yielding Q = -VrmsIrms. The sign convention distinguishes between inductive (positive Q) and capacitive (negative Q) reactive power.

Impact on Power Systems

Reactive power flow affects:

Compensation Techniques

Power factor correction methods include:

$$ Q_{comp} = Q_{load} - Q_{cap} = V^2 \left( \frac{1}{X_L} - \omega C \right) $$

Phasor Diagram Analysis

A phasor representation clarifies the relationship between P, Q, and apparent power (S):

$$ S = \sqrt{P^2 + Q^2} $$

The power triangle illustrates how reactive power consumption increases the apparent power for a given real power delivery, reducing the power factor (cos θ).

AC Power Triangle and Phase Relationship A combined diagram showing time-domain voltage/current waveforms (left) and a phasor diagram with power triangle overlay (right). Time Amplitude V I θ V I θ P = VIcosθ Q = VIsinθ S = VI cosθ = P/S Time Domain Waveforms Phasor Diagram
Diagram Description: The section involves voltage-current phase relationships and power triangle visualization, which are inherently spatial concepts.

2. Complex Power and Phasor Diagrams

2.1 Complex Power and Phasor Diagrams

In AC circuits, power analysis requires a comprehensive treatment of both real and reactive components. The concept of complex power provides a mathematical framework to represent the total power in a system, incorporating both active (real) and reactive (imaginary) power. The phasor diagram serves as a visual tool to analyze phase relationships between voltage, current, and power.

Complex Power Representation

Complex power (S) is defined as the product of the voltage phasor (V) and the complex conjugate of the current phasor (I*):

$$ S = V I^* $$

Expressed in rectangular form, complex power decomposes into:

$$ S = P + jQ $$

where:

Phasor Diagram Construction

Phasor diagrams graphically represent AC quantities as rotating vectors in the complex plane. For power analysis:

P Q S Re Im

Power Triangle and Power Factor

The relationship between P, Q, and S forms a right triangle:

$$ |S| = \sqrt{P^2 + Q^2} $$

The power factor (PF) quantifies the efficiency of power transfer:

$$ \text{PF} = \cos(θ) = \frac{P}{|S|} $$

An inductive load (lagging PF) results in positive Q, while a capacitive load (leading PF) yields negative Q.

Practical Implications

Phasor diagrams are indispensable in:

Complex Power Phasor Diagram A phasor diagram illustrating the relationship between voltage (V), current (I), real power (P), reactive power (Q), and complex power (S) in the complex plane. Re Im V I (lagging) θ P Q S
Diagram Description: The diagram would physically show the phasor relationships between voltage, current, and complex power (P, Q, S) in the complex plane.

2.2 Equations for Reactive Power (Q)

Reactive power (Q) quantifies the oscillating energy exchange between inductive or capacitive elements and the power source in AC circuits. Unlike active power (P), it performs no net work but is essential for maintaining voltage stability and electromagnetic field generation.

Fundamental Definition

The instantaneous reactive power in a single-phase AC system is derived from the product of voltage (v(t)) and the quadrature component of current (i(t)). For sinusoidal waveforms:

$$ v(t) = V_{\text{max}} \sin(\omega t) $$ $$ i(t) = I_{\text{max}} \sin(\omega t - \theta) $$

where θ is the phase angle between voltage and current. The reactive component of current is Imax sin(θ), leading to:

$$ Q = V_{\text{rms}} I_{\text{rms}} \sin(\theta) $$

Relationship with Complex Power

In phasor notation, complex power (S) combines active and reactive power:

$$ S = P + jQ = V_{\text{rms}} I_{\text{rms}}^* $$

where Irms* is the complex conjugate of the current phasor. The magnitude of reactive power is:

$$ |Q| = \sqrt{|S|^2 - P^2} $$

Per-Phase and Three-Phase Systems

For balanced three-phase systems, reactive power scales by √3 due to line-to-line voltage relationships:

$$ Q_{\text{3φ}} = 3 V_{\text{phase}} I_{\text{phase}} \sin(\theta) = \sqrt{3} V_{\text{LL}} I_{\text{line}} \sin(\theta) $$

Frequency Domain Interpretation

Reactive power arises from the imaginary part of the admittance (Y = G + jB):

$$ Q = |V|^2 \cdot \text{Im}(Y) = |V|^2 B $$

For inductive loads (B < 0), Q is positive; for capacitive loads (B > 0), it is negative.

Practical Measurement Considerations

In non-sinusoidal systems, the IEEE 1459 standard defines Q using Budeanu’s decomposition:

$$ Q_{\text{Budeanu}} = \sum_{h=1}^{\infty} V_h I_h \sin(\theta_h) $$

where h denotes harmonic components. Modern power analyzers use this formulation for distortion power quantification.

Phase Relationship and Complex Power Triangle A diagram showing the phase relationship between voltage and current waveforms in an AC circuit, and the vector representation of complex power (S) with its active (P) and reactive (Q) components. θ v(t) i(t) Time Amplitude Real (P) j (Q) P Q S θ Phase Relationship and Complex Power Triangle
Diagram Description: The diagram would show the phase relationship between voltage and current waveforms in an AC circuit, and the vector representation of complex power (S) with its active (P) and reactive (Q) components.

2.3 Power Factor and Its Significance

Definition and Mathematical Representation

The power factor (PF) is a dimensionless quantity ranging between 0 and 1 that measures the efficiency of power utilization in an AC circuit. It is defined as the ratio of real power (P) to apparent power (S):

$$ \text{PF} = \frac{P}{S} = \cos(\phi) $$

where Ï• is the phase angle between voltage and current waveforms. A purely resistive load has PF = 1, while reactive loads (inductive or capacitive) reduce the power factor due to phase displacement.

Interpretation of Power Factor

Power factor can be decomposed into two components:

The total power factor in non-sinusoidal systems is given by:

$$ \text{PF}_{\text{total}} = \text{DPF} \times \text{Distortion PF} $$

Practical Implications

Low power factor has several operational and economic consequences:

Power Factor Correction (PFC)

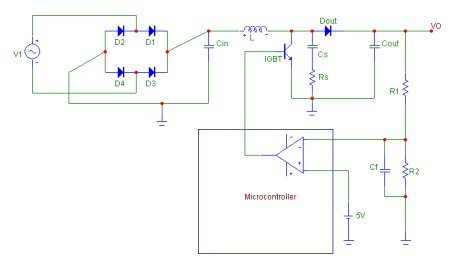

To mitigate these issues, power factor correction techniques are employed:

The required capacitance for correcting an inductive load is derived as:

$$ C = \frac{Q_c}{2 \pi f V^2} $$

where Qc is the reactive power to be compensated, f is the system frequency, and V is the voltage.

Case Study: Industrial Motor Load

A 50 kW induction motor operating at PF = 0.7 lagging draws:

$$ S = \frac{P}{\text{PF}} = \frac{50 \text{kW}}{0.7} = 71.43 \text{kVA} $$

After installing a 30 kVAR capacitor bank, the corrected PF improves to 0.95, reducing apparent power to 52.63 kVA—a 26% decrease in line current.

Power Factor and Phase Angle Relationship A diagram showing the relationship between voltage and current waveforms with phase angle (φ), and the corresponding power triangle with real power (P), reactive power (Q), and apparent power (S). Includes a capacitor symbol representing power factor correction. V(t) I(t) φ Voltage and Current Waveforms S P Q φ cos(φ) = PF Power Triangle Capacitor for PF Correction
Diagram Description: The section discusses phase angles between voltage and current waveforms and power factor correction with capacitors, which are inherently visual concepts.

3. Inductive and Capacitive Loads

3.1 Inductive and Capacitive Loads

Reactive power arises due to phase differences between voltage and current in AC circuits, primarily caused by inductive and capacitive loads. These loads store energy in magnetic or electric fields, leading to non-zero reactive power (Q), which oscillates between the source and load without performing real work.

Inductive Loads

Inductive loads, such as motors, transformers, and solenoids, introduce a phase lag where current lags voltage by 90°. The reactive power in an inductive load is given by:

$$ Q_L = V I \sin(\phi) = I^2 X_L $$

where XL = ωL is the inductive reactance, L is inductance, and ω is angular frequency. The energy stored in the magnetic field during each cycle is:

$$ W_L = \frac{1}{2} L I^2 $$

Capacitive Loads

Capacitive loads, such as capacitor banks or transmission line capacitance, cause current to lead voltage by 90°. The reactive power for a capacitive load is:

$$ Q_C = V I \sin(\phi) = I^2 X_C $$

where XC = 1/(ωC) is the capacitive reactance. The energy stored in the electric field is:

$$ W_C = \frac{1}{2} C V^2 $$

Net Reactive Power

In circuits with both inductive and capacitive elements, the net reactive power is the difference between QL and QC:

$$ Q = Q_L - Q_C $$

When QL = QC, the circuit is in resonance, and the net reactive power is zero. This principle is exploited in power factor correction to minimize reactive power flow.

Practical Implications

Excessive reactive power increases transmission losses and reduces grid efficiency. Utilities often impose penalties for low power factor (cos(ϕ)) to incentivize compensation using capacitor banks or synchronous condensers. For example, industrial plants use automatic power factor correction systems to maintain cos(ϕ) ≈ 1.

Phasor diagram showing voltage (V) and current (I) for inductive (lagging) and capacitive (leading) loads. V (Reference) I (Inductive) I (Capacitive)
Voltage-Current Phase Relationships in Reactive Loads Phasor diagram showing the phase differences between voltage (V), inductive current (I_L), and capacitive current (I_C) in reactive loads. +x +y -y V (0°) I_L (-90°) I_C (+90°) 90° 90°
Diagram Description: The section explains phase differences between voltage and current in inductive/capacitive loads, which is inherently spatial and best shown with vectors.

3.2 Impact on Transmission Lines

Voltage Drop and Reactive Power Flow

Reactive power (Q) directly influences voltage regulation in transmission lines. Unlike active power (P), which determines real energy transfer, reactive power governs the oscillating energy stored in electric and magnetic fields. The voltage drop (ΔV) across a transmission line with resistance R and reactance X is approximated by:

$$ \Delta V \approx \frac{RP + XQ}{V} $$

Since X ≫ R in high-voltage lines, the term XQ dominates, causing significant voltage fluctuations even for moderate reactive power flows. This necessitates reactive compensation (e.g., capacitor banks or STATCOMs) to stabilize grid voltage.

Line Losses and Thermal Limits

Reactive current contributes to I²R losses without delivering usable energy. For a line current I with active (I_P) and reactive (I_Q) components:

$$ I = \sqrt{I_P^2 + I_Q^2} $$

Total power loss (P_{loss}) scales quadratically with I_Q:

$$ P_{loss} = I^2R = (I_P^2 + I_Q^2)R $$

Excessive reactive power thus reduces transmission capacity by increasing losses and conductor heating, pushing lines closer to their thermal limits.

Transmission Capacity and Stability

The power transfer capability of a line is constrained by its surge impedance loading (SIL). For a line with characteristic impedance Z_c and voltage V:

$$ \text{SIL} = \frac{V^2}{Z_c} $$

Reactive power imbalances alter the voltage profile along the line, leading to:

Both conditions degrade voltage stability and may trigger protective relay actions.

Practical Mitigation Strategies

Grid operators employ several techniques to manage reactive power impacts:

Uncompensated Compensated

Economic Implications

Reactive power management incurs substantial costs:

The optimal reactive power dispatch minimizes these costs while maintaining voltage within ANSI C84.1 limits (±5% of nominal).

Transmission Line Voltage Profile Comparison A line graph comparing voltage profiles along a transmission line with and without reactive compensation, illustrating the Ferranti effect and undervoltage conditions. Transmission Line Length (km) Voltage Magnitude (p.u.) Nominal Voltage Uncompensated Ferranti Effect Compensated Shunt Compensation Undervoltage Region 100 200 300 0.9 1.0 1.1
Diagram Description: The diagram would show voltage profiles along a transmission line with and without reactive compensation, illustrating the Ferranti effect and undervoltage conditions.

3.3 Voltage Regulation Issues

Voltage regulation in power systems is critically influenced by reactive power flow. When reactive power demand fluctuates, the voltage profile across transmission lines deviates from nominal values, leading to operational inefficiencies and potential instability. The relationship between reactive power (Q) and voltage magnitude (V) is derived from the power flow equations:

$$ \Delta V \approx \frac{X \cdot Q}{V} $$

where X represents the line reactance. This approximation highlights that voltage drop is directly proportional to reactive power flow and line impedance. In long transmission lines, the effect is exacerbated due to higher X/R ratios, making voltage regulation particularly challenging.

Sources of Voltage Instability

Major contributors to voltage regulation issues include:

Mitigation Strategies

To counteract voltage regulation problems, grid operators employ:

$$ Q_{\text{comp}} = V^2 \left( \frac{1}{X_C} - \frac{1}{X_L} \right) $$

where XC and XL are the capacitive and inductive reactances of compensation devices. Proper sizing and placement of these devices are essential to avoid overcompensation, which can cause voltage swells.

Case Study: Voltage Collapse in the 2003 Northeast Blackout

The 2003 U.S.-Canada blackout demonstrated the catastrophic consequences of poor reactive power management. A combination of line tripping and inadequate VAR support led to cascading voltage collapse, affecting 50 million people. Post-event analysis revealed that localized reactive power deficits triggered a domino effect, emphasizing the need for decentralized compensation.

Reactive Power and Voltage Drop in Transmission Lines A schematic diagram showing the relationship between reactive power flow, line reactance, and voltage drop in a transmission line system. ΔV Q Inductive Load V Voltage Profile Sending End Receiving End Transmission Line (X) Voltage (V)
Diagram Description: The diagram would show the relationship between reactive power flow, line reactance, and voltage drop in a transmission line system.

4. Reactive Power Compensation Techniques

4.1 Reactive Power Compensation Techniques

Fundamentals of Compensation

Reactive power compensation is essential for maintaining voltage stability, reducing transmission losses, and improving power factor in AC systems. The reactive power Q in a system with voltage V, current I, and phase angle θ is given by:

$$ Q = VI \sin(θ) $$

Compensation techniques aim to minimize Q by introducing reactive elements that counteract the inductive or capacitive effects of the load. The compensation device's reactive power QC must satisfy:

$$ Q_{\text{compensated}} = Q_{\text{load}} + Q_C \approx 0 $$

Static Var Compensators (SVCs)

SVCs use thyristor-controlled reactors (TCRs) and fixed or switched capacitors to provide dynamic reactive power support. The effective susceptance BSVC is adjusted continuously to regulate voltage:

$$ B_{\text{SVC}} = B_C - B_L(\alpha) $$

where BC is the capacitive susceptance, BL is the inductive susceptance, and α is the thyristor firing angle. SVCs respond within 1–2 cycles, making them ideal for flicker mitigation in industrial plants.

Synchronous Condensers

Rotating synchronous machines operated without mechanical load provide inertia-based reactive power control. The machine's reactive output Qsync depends on field excitation:

$$ Q_{\text{sync}} = \frac{V^2}{X_d} - \frac{VE_f}{X_d} \cos(\delta) $$

where Xd is the synchronous reactance, Ef is the excitation voltage, and δ is the torque angle. Modern designs achieve response times under 100 ms.

Static Synchronous Compensators (STATCOMs)

Voltage-source converter (VSC)-based STATCOMs generate reactive power electronically. The output current Iq is controlled via PWM modulation:

$$ I_q = \frac{V_{\text{ref}} - V_{\text{PCC}}}}{X_{\text{filter}}} $$

STATCOMs offer faster response (<10 ms) and better low-voltage performance than SVCs. Cascaded H-bridge topologies enable medium-voltage direct connection without transformers.

Hybrid Compensation Systems

Combining passive filters with active compensators optimizes cost and performance. A typical hybrid system might use:

The optimal allocation follows the principle:

$$ \min \left( \sum_{h=2}^{50} |Z_h|^2 + k \cdot P_{\text{loss}} \right) $$

where Zh is the impedance at harmonic order h, and k weights efficiency versus power quality.

Real-World Implementation Considerations

Practical compensation system design must account for:

Modern systems often implement model predictive control (MPC) to optimize multi-objective performance:

$$ J = \int (w_1 \Delta V^2 + w_2 Q_{\text{dev}}^2 + w_3 \Delta f^2) dt $$

where weights w1–3 prioritize voltage regulation, device stress, and frequency stability.

Reactive Power Compensation Techniques Comparison Comparison of reactive power compensation techniques (SVC, STATCOM, Synchronous Condenser, Hybrid System) showing operational principles, waveforms, and vector diagrams. SVC STATCOM Sync Condenser Hybrid V I θ V I B_SVC V I θ PWM I_q V I θ Q_sync V I θ Q Voltage (V) Current (I) Phase Angle (θ)
Diagram Description: The section covers multiple reactive power compensation techniques with complex relationships between voltage, current, and phase angles, which are inherently visual concepts.

4.2 Use of Capacitors and Inductors

Fundamental Behavior in AC Circuits

Capacitors and inductors exhibit frequency-dependent opposition to current flow, characterized by reactance (X). For a capacitor with capacitance C:

$$ X_C = \frac{1}{2\pi fC} $$

Conversely, an inductor with inductance L presents reactance:

$$ X_L = 2\pi fL $$

These components store energy in electric (E = ½CV²) and magnetic (E = ½LI²) fields respectively, producing a 90° phase shift between voltage and current.

Reactive Power Compensation

In power systems, inductive loads (motors, transformers) dominate, creating lagging reactive power (QL). Capacitors provide leading reactive power (QC) to cancel this effect:

$$ Q_{net} = Q_L - Q_C $$

The required capacitance for full compensation at line voltage V and angular frequency ω is:

$$ C = \frac{Q_L}{\omega V^2} $$

Practical Implementation Considerations

Industrial Case Study: Steel Mill Compensation

A 50MW arc furnace installation exhibited 0.65 power factor due to variable inductive loading. A 30MVAR thyristor-switched capacitor bank with 7% detuning reactors improved PF to 0.95, reducing I²R losses by 18%.

Advanced Topologies

Modern systems employ:

$$ Q_{comp} = 3V_{LL}I_q\sqrt{1 - \left(\frac{I_h}{I_1}\right)^2} $$

where Iq is quadrature current and Ih/I1 is harmonic distortion ratio.

Capacitor-Inductor Phase Relationships and Compensation A diagram showing voltage and current waveforms for capacitor and inductor, power triangle, and LC resonant circuit for reactive power compensation. Capacitor and Inductor Waveforms V(t) I(t) Capacitor: I leads V by 90° V(t) I(t) Inductor: V leads I by 90° Power Triangle (P, Q, S) P (W) Q (VAR) S (VA) θ LC Resonant Circuit L XL C XC Resonance Frequency: fr = 1/(2π√(LC))
Diagram Description: The section discusses phase shifts between voltage and current, reactive power compensation, and harmonic resonance—all concepts that benefit from visual representation of waveforms and vector relationships.

4.3 Static VAR Compensators (SVCs)

Static VAR Compensators (SVCs) are power electronics-based devices designed to regulate reactive power dynamically in high-voltage transmission systems. Unlike traditional mechanically switched capacitors or reactors, SVCs provide near-instantaneous response to voltage fluctuations, enabling precise control of grid stability. The core principle relies on thyristor-controlled reactors (TCRs) and thyristor-switched capacitors (TSCs), which adjust the effective reactance in response to system demands.

Operating Principle

The reactive power output of an SVC is governed by the firing angle (α) of thyristors in the TCR branch. By delaying the conduction angle, the effective inductive reactance is modulated, allowing continuous VAR absorption or injection. The fundamental relationship between firing angle and reactive power is derived from Fourier analysis of the thyristor-controlled current waveform:

$$ Q_L = \frac{V^2}{\omega L} \left(1 - \frac{2\alpha}{\pi} - \frac{\sin(2\alpha)}{\pi}\right) $$

where V is the system voltage, L is the reactor inductance, and α ranges from 90° (full conduction) to 180° (blocking). For capacitive operation, TSCs are switched in discrete steps, with the total reactive power given by:

$$ Q_C = n \cdot \omega C V^2 $$

where n is the number of capacitor banks in service.

Control System Architecture

Modern SVCs employ closed-loop control systems with proportional-integral (PI) regulators. The control loop measures bus voltage deviation (ΔV) and computes the required susceptance (Bref) to maintain the voltage setpoint. The transfer function of the voltage regulator is:

$$ G_c(s) = K_p + \frac{K_i}{s} $$

Thyristor firing pulses are synchronized to the AC voltage zero-crossings via phase-locked loops (PLLs), ensuring precise timing even under harmonic distortion.

Harmonic Mitigation

TCR operation generates characteristic harmonics (e.g., 3rd, 5th, 7th) due to non-sinusoidal current waveforms. Passive filters or active hybrid topologies are integrated to comply with IEEE 519-2022 standards. The harmonic current magnitude for the n-th order is:

$$ I_n = \frac{4I_{max}}{n\pi} \left[\frac{\sin(n\alpha)}{n} - \cos(n\alpha) \tan(\alpha)\right] $$

Applications in Grid Stability

Field measurements from the Hydro-Québec network demonstrate SVCs maintaining voltage within ±0.5% during 1.5 pu load rejection transients.

Static VAR Compensator TCR TSC
SVC Topology and Control System Single-line schematic of Static VAR Compensator (SVC) showing TCR and TSC branches with grid connection, harmonic filters, and control system with PLL and PI controller. Grid V TCR α QL TSC QC 5th Filters Control System PLL PI Bref Harmonic Spectrum
Diagram Description: The diagram would physically show the interconnection of TCR and TSC branches with the grid, including thyristor firing synchronization and harmonic filter placement.

5. Industrial Power Systems

5.1 Industrial Power Systems

Reactive Power in Industrial Loads

Industrial power systems are dominated by inductive loads such as motors, transformers, and arc furnaces, which draw significant reactive power (Q). Unlike resistive loads, these devices store energy in magnetic fields during each AC cycle, leading to a phase shift between voltage and current. The reactive power demand is quantified as:

$$ Q = VI \sin(\phi) $$

where V and I are RMS voltage and current, and φ is the phase angle. In industrial settings, Q can constitute 30–50% of the apparent power (S), necessitating compensation to avoid penalties from utilities and reduce transmission losses.

Power Factor Correction

Industrial facilities mitigate reactive power through power factor correction (PFC), typically using capacitor banks. The required capacitance (C) to compensate for an inductive reactive power QL at frequency f is derived from:

$$ C = \frac{Q_L}{2\pi f V^2} $$

For example, compensating a 500 kVAR inductive load at 480 V, 60 Hz requires:

$$ C = \frac{500 \times 10^3}{2\pi \times 60 \times 480^2} \approx 5.75 \text{ mF} $$

Modern systems employ automated PFC controllers that switch capacitor stages based on real-time measurements to maintain a power factor near unity.

Harmonics and Nonlinear Loads

Nonlinear loads like variable-frequency drives (VFDs) introduce harmonic distortion, complicating reactive power management. Harmonic currents increase the total reactive power demand and can resonate with PFC capacitors. The distortion power factor (DF) is given by:

$$ DF = \frac{1}{\sqrt{1 + \text{THD}_I^2}} $$

where THDI is the total harmonic distortion of current. Passive filters or active PFC circuits are often deployed to suppress harmonics while compensating reactive power.

Case Study: Steel Plant Compensation

A steel mill with 10 MW average load and 0.7 lagging power factor installed a 6 MVAR capacitor bank, reducing reactive power draw from the grid by 80%. The annual savings exceeded $200,000 due to reduced demand charges and improved transformer efficiency. Dynamic compensation was critical due to rapidly varying arc furnace loads.

Voltage Regulation Impact

Reactive power flow directly affects voltage levels in industrial networks. The voltage drop (ΔV) across an impedance Z = R + jX is approximated by:

$$ \Delta V \approx \frac{RP + XQ}{V} $$

where XQ dominates in high-X/R ratio systems. Strategic reactive power injection can stabilize voltage within ±5% of nominal, preventing motor stalling and equipment malfunctions.

Voltage-Current Phase Relationship in Industrial Loads A diagram showing the phase relationship between voltage and current waveforms in an industrial load, with an inset power triangle illustrating active (P), reactive (Q), and apparent (S) power. φ Time Amplitude V(t) I(t) P (kW) Q (kVAR) S (kVA) φ Voltage-Current Phase Relationship in Industrial Loads
Diagram Description: The section involves voltage-current phase relationships and reactive power flow dynamics, which are inherently visual concepts.

5.2 Renewable Energy Integration

Challenges of Reactive Power in Renewable Systems

Unlike conventional synchronous generators, renewable energy sources such as wind and solar photovoltaic (PV) systems rely on power electronic converters for grid interfacing. These converters inherently lack the rotating mass and field excitation mechanisms that provide natural reactive power support in synchronous machines. The absence of inertia and reactive power capability introduces stability challenges, particularly in weak grids with high renewable penetration.

The reactive power Q injected or absorbed by an inverter-based resource (IBR) is governed by:

$$ Q = \frac{V^2}{X} - \frac{V \cdot E}{X} \cos(\delta) $$

where V is the terminal voltage, E is the internal voltage, X is the equivalent reactance, and δ is the power angle. Unlike synchronous machines, IBRs have no inherent E or δ relationship, requiring explicit control algorithms.

Reactive Power Control Strategies

Modern grid codes mandate renewable plants to provide dynamic reactive power support. Three primary control modes are implemented:

The dynamic response is modeled through transfer functions. For a typical PV inverter:

$$ G_{Q}(s) = \frac{K_p s + K_i}{s^2 + 2\zeta\omega_n s + \omega_n^2} $$

Grid-Forming vs Grid-Following Converters

Advanced renewable systems employ either:

The reactive power envelope for a 2 MVA wind turbine converter illustrates the operational limits:

Reactive Power Q (MVAr) Active Power P (MW)

Case Study: German Transmission Code

The 2019 VDE-AR-N 4110 regulation requires wind farms to maintain voltage within 0.95-1.05 pu during normal operation and provide 1.5 pu reactive current during faults. This is achieved through:

$$ I_q^{ref} = K \cdot (1 - V_{pcc}) $$

where K ≥ 2.0 defines the slope of the voltage support characteristic, and Vpcc is the point of common coupling voltage.

Reactive Power Control Modes and Converter Types A diagram illustrating reactive power control modes (left) and converter capability curves (right), including Q-V droop, power factor control, and operational limits for grid-following and grid-forming converters. Control Modes Q-V Droop V₀ Slope K PF Control Q Setpoint Converter Capability Capability Curve Qₘₐₓ Qₘᵢₙ Grid-Following Converter Grid-Forming Converter Voltage (pu) Q (MVAr) P (MW) Q (MVAr) 1.5 1.0 1.5 1.0
Diagram Description: The section discusses reactive power control strategies and grid-forming vs grid-following converters, which involve complex relationships between active power, reactive power, and voltage that are best visualized.

5.3 Smart Grid Technologies

Modern power grids increasingly rely on smart grid technologies to dynamically manage reactive power flow, enhance grid stability, and improve energy efficiency. Unlike traditional grids, which operate with limited real-time monitoring, smart grids integrate advanced sensing, communication, and control mechanisms to optimize reactive power compensation.

Reactive Power Compensation in Smart Grids

Reactive power (Q) must be dynamically balanced to minimize transmission losses and voltage fluctuations. Smart grids employ several key technologies:

Mathematical Framework for Reactive Power Control

The reactive power flow between two nodes in a transmission line is governed by:

$$ Q = \frac{V_1 V_2}{X} \sin(\delta) - \frac{V_1^2}{X} $$

where V1 and V2 are node voltages, X is line reactance, and δ is the phase angle difference. Smart grid controllers minimize Q deviations by dynamically adjusting these parameters.

Case Study: Dynamic VAR Optimization

A 2021 pilot in the European grid demonstrated a 12% reduction in transmission losses using real-time VAR optimization. The system used:

Communication Protocols for Reactive Power Management

Smart grids rely on standardized protocols for coordinated control:

Protocol Latency Use Case
IEC 61850 < 4 ms Substation automation
DNP3 100-500 ms Wide-area monitoring

These protocols enable hierarchical control architectures where local devices (e.g., SVCs) respond to grid-wide optimization targets.

Smart Grid Reactive Power Control Architecture Block diagram illustrating hierarchical reactive power control in a smart grid, including transmission lines, SVC/STATCOM devices, PMUs, DERs, and a control center. Includes a phasor inset showing voltage-current relationships. Control Center PMUs SVC/STATCOM DERs V1 V2 Q flow V I V1 V2 δ Legend Control Signals Transmission Line V1 Phasor V2 Phasor
Diagram Description: The section involves dynamic reactive power flow control and voltage/phasor relationships, which are inherently spatial and time-dependent.

6. Key Textbooks and Papers

6.1 Key Textbooks and Papers

6.2 Online Resources and Tutorials

6.3 Advanced Topics for Further Study
