1. Basic Components and Definitions

1.1 Basic Components and Definitions

The transient response of an RL circuit describes the time-dependent behavior of current and voltage when the circuit transitions between steady states. This occurs when a sudden change is introduced, such as switching a voltage source on or off. The key components governing this behavior are the resistor (R) and inductor (L), each contributing distinct electrical properties.

Circuit Elements and Their Roles

Resistor (R): A passive element that opposes current flow according to Ohm's Law:

$$ V_R(t) = I(t)R $$

where VR(t) is the instantaneous voltage drop across the resistor and I(t) is the time-varying current.

Inductor (L): A passive energy storage element that opposes changes in current through electromagnetic induction. Its voltage-current relationship is governed by Faraday's Law:

$$ V_L(t) = L\frac{dI(t)}{dt} $$

The inductor's ability to store energy in its magnetic field introduces time-dependent behavior to the circuit.

Fundamental Time Constant

The interaction between resistance and inductance determines the circuit's characteristic time constant (τ):

$$ \tau = \frac{L}{R} $$

This parameter, measured in seconds, quantifies how quickly the circuit reaches steady state after a disturbance. A larger inductance or smaller resistance results in a slower transient response.

Governing Differential Equation

Applying Kirchhoff's Voltage Law to a series RL circuit with a DC voltage source Vs yields:

$$ V_s = V_R + V_L = IR + L\frac{dI}{dt} $$

Rearranging gives the first-order linear differential equation:

$$ \frac{dI}{dt} + \frac{R}{L}I = \frac{V_s}{L} $$

This equation forms the mathematical foundation for analyzing the circuit's transient behavior.

Initial Conditions

The complete solution requires specification of initial conditions. For an RL circuit, the most common scenarios are:

These conditions determine the particular solution to the differential equation.

Energy Considerations

During transients, energy transfers between circuit elements:

$$ E_L = \frac{1}{2}LI^2 $$

represents the magnetic energy stored in the inductor, while the resistor dissipates power as heat according to:

$$ P_R = I^2R $$

The time evolution of these energy terms characterizes the transient process.

Basic Components and Definitions in Transient Response of RL Circuits

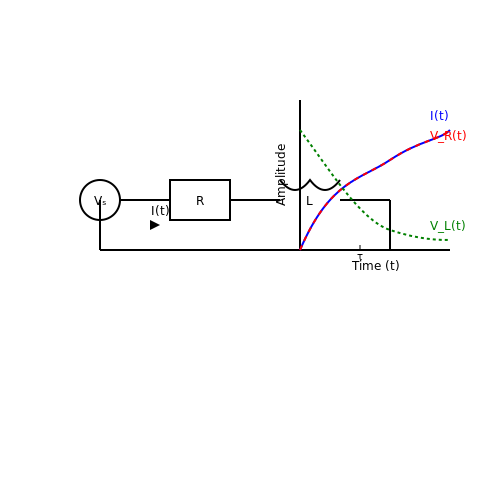

Diagram Description: The diagram would physically show the series RL circuit configuration with labeled resistor and inductor, and the time-domain current/voltage waveforms during transient response.

Time Constant (τ) in RL Circuits

The time constant τ of an RL circuit quantifies the rate at which the current or voltage decays or rises in response to a transient input. It is defined as the time required for the current to reach approximately 63.2% of its final steady-state value during charging or to decay to 36.8% of its initial value during discharging.

Mathematical Derivation

Consider a simple RL circuit consisting of a resistor R and an inductor L connected in series to a voltage source V. The differential equation governing the current i(t) is derived from Kirchhoff's voltage law (KVL):

$$ V = L \frac{di(t)}{dt} + Ri(t) $$

Rearranging and solving this first-order linear differential equation yields the transient current response:

$$ i(t) = \frac{V}{R} \left(1 - e^{-t/\tau}\right) $$

where the time constant τ is defined as:

$$ \tau = \frac{L}{R} $$

Physical Interpretation

The time constant represents the inductor's inherent resistance to changes in current flow. A larger inductance L stores more energy in its magnetic field, resulting in slower current changes, while a larger resistance R dissipates energy faster, leading to quicker settling times.

After one time constant (t = τ), the current reaches about 63.2% of its final value. Practically, the circuit is considered to have reached steady-state after approximately 5τ, when the current is within 0.7% of its final value.

Practical Implications

Experimental Measurement

To measure τ experimentally, apply a step voltage and observe the current rise or decay on an oscilloscope. The time taken to reach 63.2% of the final value gives τ directly. Alternatively, measure the slope of the logarithmic plot of current versus time, where the inverse slope equals τ.

$$ \ln\left(1 - \frac{i(t)}{I_{\text{max}}}\right) = -\frac{t}{\tau} $$
Time Constant (τ) in RL Circuits in Transient Response of RL Circuits

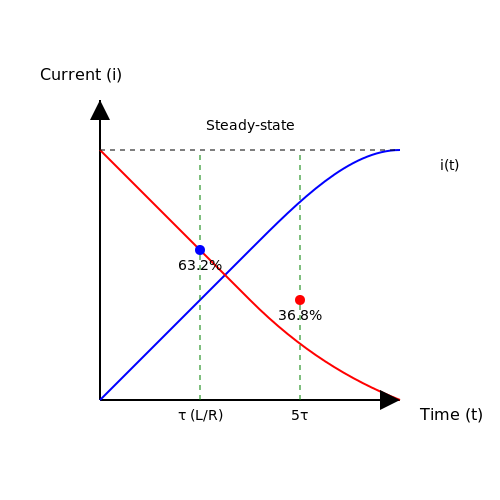

Diagram Description: The diagram would show the transient current waveform over time, illustrating the 63.2% and 36.8% points, and the exponential rise/decay behavior.

Initial and Steady-State Conditions

The behavior of an RL circuit during transient conditions is governed by two distinct operational states: the initial condition (t = 0⁺) and the steady-state condition (t → ∞). Understanding these boundary conditions is essential for analyzing the complete transient response.

Initial Conditions (t = 0⁺)

At the exact moment when a switch is closed or opened in an RL circuit, the inductor opposes any sudden change in current due to Faraday's law of induction. This results in:

For a series RL circuit suddenly connected to a DC voltage source V, the initial inductor current is zero (if previously uncharged), while the resistor voltage immediately jumps to V since $$ v_R(0^+) = V - v_L(0^+) = V $$.

Steady-State Conditions (t → ∞)

As time approaches infinity, the circuit reaches equilibrium where all transient effects have decayed:

The time constant $$ τ = \frac{L}{R} $$ governs how quickly the circuit transitions between initial and steady-state conditions. Practical applications include:

Mathematical Derivation

The complete transient response of an RL circuit can be derived by solving the first-order differential equation:

$$ V = Ri(t) + L\frac{di(t)}{dt} $$

Using separation of variables and applying the initial condition i(0) = 0, we obtain:

$$ i(t) = \frac{V}{R}(1 - e^{-t/τ}) $$

where the solution clearly shows the transition from initial (exponential rise) to steady-state (constant current) conditions. The voltage across the inductor follows from differentiation:

$$ v_L(t) = L\frac{di}{dt} = Ve^{-t/τ} $$
Time (t) i(t) τ = L/R
Initial and Steady-State Conditions in Transient Response of RL Circuits
Diagram Description: The section describes time-domain behavior of current and voltage in an RL circuit, which is inherently visual and best shown with exponential curves.

2. Derivation of the Transient Response Equation

2.1 Derivation of the Transient Response Equation

Consider a series RL circuit connected to a DC voltage source V at time t = 0. Kirchhoff's Voltage Law (KVL) applied to the circuit yields:

$$ V = i(t)R + L\frac{di(t)}{dt} $$

This first-order linear differential equation describes the circuit's behavior during the transient period. Rearranging terms:

$$ \frac{di(t)}{dt} + \frac{R}{L}i(t) = \frac{V}{L} $$

The solution consists of two components: the steady-state response (iss) and the transient response (itr). The steady-state solution occurs when di/dt = 0:

$$ i_{ss} = \frac{V}{R} $$

The transient solution is found by solving the homogeneous equation:

$$ \frac{di_{tr}(t)}{dt} + \frac{R}{L}i_{tr}(t) = 0 $$

This has the general solution:

$$ i_{tr}(t) = Ae^{-\frac{R}{L}t} $$

where A is a constant determined by initial conditions. The complete solution is the sum of steady-state and transient components:

$$ i(t) = \frac{V}{R} + Ae^{-\frac{R}{L}t} $$

Applying the initial condition i(0) = 0 (assuming no initial current):

$$ 0 = \frac{V}{R} + A \Rightarrow A = -\frac{V}{R} $$

The final expression for the current as a function of time becomes:

$$ i(t) = \frac{V}{R}\left(1 - e^{-\frac{R}{L}t}\right) $$

The term L/R has units of time and is defined as the time constant (τ) of the circuit. This parameter determines how quickly the transient decays:

$$ \tau = \frac{L}{R} $$

In power systems, this transient behavior affects relay timing and circuit breaker operation. For high-inductance circuits (large τ), the slow current rise can cause delayed response in protection systems.

The voltage across the inductor follows from differentiation:

$$ v_L(t) = L\frac{di(t)}{dt} = Ve^{-\frac{t}{\tau}} $$

This exponential decay characteristic is fundamental to energy storage in inductive elements and finds application in switch-mode power converters and magnetic pulse compression systems.

Derivation of the Transient Response Equation in Transient Response of RL Circuits

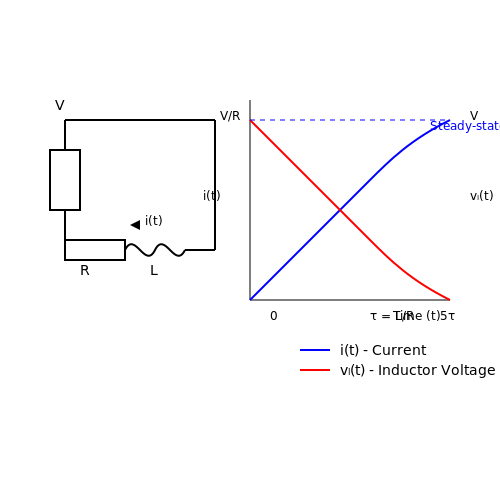

Diagram Description: The diagram would show the RL circuit schematic with voltage source, resistor, and inductor, alongside time-domain current and voltage waveforms.

Current and Voltage Behavior During Transient Phase

When an RL circuit is subjected to a sudden change in voltage (e.g., step input), the current and voltage exhibit transient behavior before reaching steady-state. The governing differential equation for an RL circuit is derived from Kirchhoff’s Voltage Law (KVL):

$$ V(t) = L \frac{di(t)}{dt} + Ri(t) $$

Where V(t) is the applied voltage, L is the inductance, R is the resistance, and i(t) is the time-dependent current. Solving this first-order differential equation yields the transient current response:

$$ i(t) = \frac{V}{R} \left(1 - e^{-t/ au}\right) $$

Here, the time constant τ = L/R dictates the rate of exponential decay or growth. The voltage across the inductor VL(t) is derived from Faraday’s Law:

$$ V_L(t) = L \frac{di(t)}{dt} = V e^{-t/ au} $$

Key Observations

Practical Implications

In power electronics, the transient response affects:

Visualizing the Response

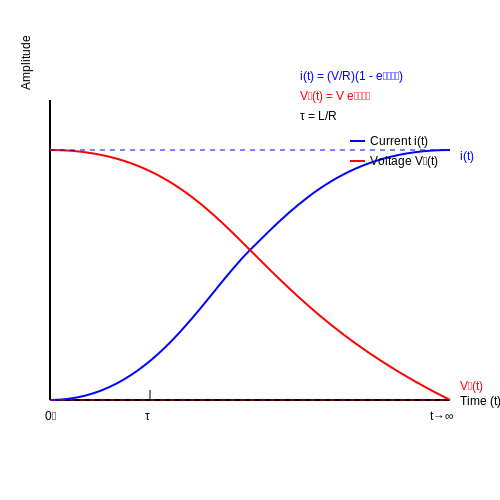

The current and voltage waveforms follow exponential curves. Below is a qualitative representation:

t i(t) i(t) = (V/R)(1 - e^(-t/τ)) V_L(t) V_L(t) = V e^(-t/τ)

Mathematical Derivation of Time Constant

The time constant τ is derived from the homogeneous solution of the differential equation:

$$ L \frac{di}{dt} + Ri = 0 \implies \frac{di}{i} = -\frac{R}{L} dt $$

Integrating both sides yields:

$$ \ln i = -\frac{R}{L}t + C \implies i(t) = Ke^{-t/ au} $$

Where K is determined by initial conditions, and τ = L/R.

Current and Voltage Behavior During Transient Phase in Transient Response of RL Circuits
Diagram Description: The section describes exponential current rise and voltage decay waveforms, which are inherently visual time-domain behaviors.

2.3 Graphical Interpretation of Transient Response

The transient response of an RL circuit can be effectively visualized through current and voltage waveforms, providing intuitive insight into the circuit's behavior during the transition between steady states. The exponential nature of the response becomes immediately apparent when plotted against time.

Current and Voltage Waveforms

For a series RL circuit with a step voltage input, the current i(t) follows:

$$ i(t) = \frac{V}{R}(1 - e^{-t/\tau}) $$

where τ = L/R is the time constant. This produces a characteristic rising exponential curve where:

The voltage across the inductor vL(t) shows complementary behavior:

$$ v_L(t) = Ve^{-t/\tau} $$
Time (t) Current (i) τ 5τ Time (t) Voltage (v)

Time Constant Visualization

The time constant τ determines the response speed:

$$ \tau = \frac{L}{R} $$

Graphically, τ represents the time required for the response to reach 1 - 1/e (≈63.2%) of its final value. This is visible as:

Logarithmic Interpretation

Taking the natural logarithm of the decaying voltage reveals a linear relationship:

$$ \ln(v_L) = \ln(V) - \frac{t}{\tau} $$

This linearization allows experimental determination of τ from measured data. The slope of ln(v) vs t gives -1/τ, while the y-intercept equals ln(V).

Energy Considerations

The energy stored in the inductor during transient:

$$ W_L = \frac{1}{2}Li^2 $$

follows a squared exponential curve. The time required to reach 50% of maximum stored energy is τln(2) ≈ 0.693τ.

RL Circuit Transient Response Waveforms Two vertically stacked plots showing the transient response of an RL circuit: rising current (i) and decaying inductor voltage (v_L) with time constant markers (τ, 5τ) and percentage markers (63.2%, 99.3%). Time (t) i(t) i(t) = I₀(1 - e^(-t/τ)) v_L(t) v_L(t) = V₀e^(-t/τ) τ 5τ 63.2% 99.3% Time (t) Current (i) Voltage (v_L)
Diagram Description: The section describes exponential current/voltage waveforms and their time-domain behavior, which are inherently visual concepts.

3. Step Response of RL Circuits

Step Response of RL Circuits

Definition and Initial Conditions

The step response of an RL circuit describes the behavior of the current i(t) and voltage v(t) when a DC voltage source is suddenly applied. Consider a series RL circuit with resistance R, inductance L, and a step input voltage V0u(t), where u(t) is the unit step function. Before t = 0, the circuit is in a steady state with zero initial current (i(0-) = 0).

Differential Equation Formulation

Applying Kirchhoff's Voltage Law (KVL) to the circuit after t = 0 yields:

$$ V_0 = Ri(t) + L \frac{di(t)}{dt} $$

This is a first-order linear differential equation. Rearranging:

$$ \frac{di(t)}{dt} + \frac{R}{L} i(t) = \frac{V_0}{L} $$

Solution of the Differential Equation

The general solution consists of the homogeneous and particular solutions. The homogeneous solution (ih(t)) is obtained by solving:

$$ \frac{di_h(t)}{dt} + \frac{R}{L} i_h(t) = 0 $$

The solution is an exponential decay:

$$ i_h(t) = A e^{-\frac{R}{L} t} $$

The particular solution (ip(t)) is the steady-state response, which is simply:

$$ i_p(t) = \frac{V_0}{R} $$

Combining these, the total current is:

$$ i(t) = \frac{V_0}{R} \left(1 - e^{-\frac{R}{L} t}\right) $$

Time Constant and Transient Behavior

The time constant τ of an RL circuit is defined as:

$$ \tau = \frac{L}{R} $$

This parameter governs how quickly the circuit reaches steady state. At t = τ, the current reaches approximately 63.2% of its final value. The voltage across the inductor is derived as:

$$ v_L(t) = L \frac{di(t)}{dt} = V_0 e^{-\frac{t}{\tau}} $$

Practical Implications

The step response is critical in applications such as power supply design, motor control, and signal filtering. For instance, in switching regulators, the inductor's transient response determines how quickly the output stabilizes after a load change. Understanding the time constant helps engineers minimize unwanted oscillations and delays.

Visualization of Step Response

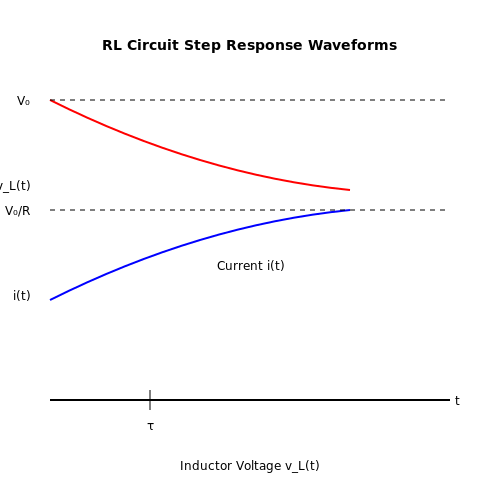

The current and voltage waveforms exhibit exponential characteristics. The current rises asymptotically toward V0/R, while the inductor voltage starts at V0 and decays to zero.

i(t) Time (t) i(t) = (V₀/R)(1 - e^(-t/τ))

Effect of Circuit Parameters

A higher inductance L increases the time constant, slowing the response. Conversely, a larger resistance R reduces τ, leading to faster settling. This trade-off is essential in designing circuits where response time and energy dissipation must be balanced.

Step Response of RL Circuits in Transient Response of RL Circuits
Diagram Description: The diagram would physically show the exponential rise of current and decay of inductor voltage over time, illustrating the transient response.

3.2 Pulse Response and Switching Behavior

The transient response of an RL circuit to pulse inputs is critical in applications such as power electronics, digital signal transmission, and electromagnetic interference filtering. When a voltage pulse is applied to an RL circuit, the inductor opposes sudden changes in current, leading to exponential rise and decay phases.

Mathematical Analysis of Pulse Response

Consider an RL circuit with resistance R and inductance L subjected to a rectangular pulse of amplitude V0 and duration T. The current response consists of two distinct phases:

$$ \text{1. Rising phase (0 ≤ t ≤ T): } i(t) = \frac{V_0}{R} \left(1 - e^{-t/\tau}\right) $$
$$ \text{2. Falling phase (t > T): } i(t) = \frac{V_0}{R} e^{-(t-T)/\tau} $$

where τ = L/R is the time constant. The inductor current never reaches steady-state if T is smaller than approximately 5τ, resulting in incomplete energy storage.

Switching Behavior and Practical Considerations

In power electronics, RL circuits exhibit important switching characteristics:

The switching speed is fundamentally limited by the time constant τ. For fast switching applications (e.g., switch-mode power supplies), designers must either minimize L or accept the resulting current ripple.

Frequency Domain Perspective

The RL circuit's response to repetitive pulses can be analyzed using Fourier decomposition. The transfer function magnitude is:

$$ |H(j\omega)| = \frac{1}{\sqrt{1 + (\omega\tau)^2}} $$

This low-pass characteristic causes pulse distortion, with higher harmonics being attenuated more strongly. For square wave inputs, this results in rounded edges and reduced peak currents at higher frequencies.

Experimental Observations

When measuring pulse response in real circuits, several non-ideal effects become apparent:

These factors must be accounted for in high-precision timing applications or when designing pulse transformers.

Pulse Response and Switching Behavior in Transient Response of RL Circuits

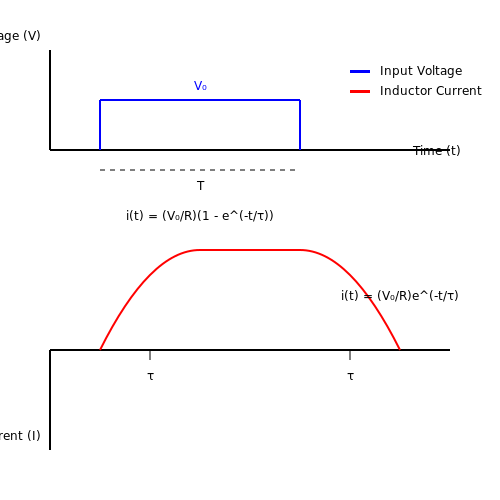

Diagram Description: The section describes time-domain current responses to pulse inputs and switching behaviors, which are inherently visual concepts.

3.3 Real-World Circuit Design Considerations

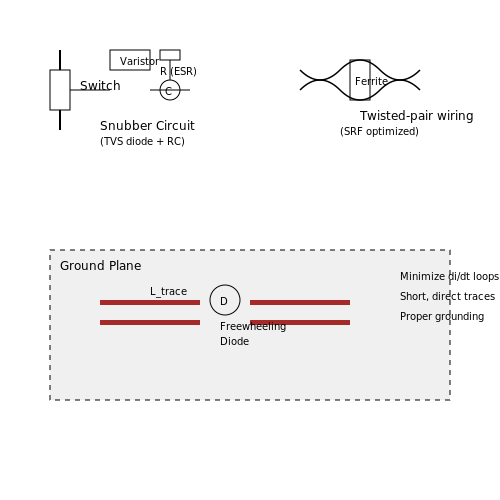

Parasitic Elements and Non-Ideal Components

In practical RL circuits, parasitic elements such as stray capacitance and winding resistance in inductors significantly influence transient behavior. The idealized first-order RL model assumes a pure inductor, but real inductors exhibit a finite equivalent series resistance (ESR) and inter-winding capacitance. The modified time constant becomes:

$$ au_{ ext{effective}} = \frac{L}{R + R_{ ext{ESR}}} $$

where RESR is the parasitic resistance of the inductor. For high-frequency applications, the self-resonant frequency (SRF) of the inductor must also be considered to avoid unintended oscillations.

Thermal Effects and Component Derating

Power dissipation in resistive elements during transient events leads to Joule heating, altering component parameters. The temperature coefficient of resistance (α) for copper windings is approximately +0.00393/°C, modifying resistance as:

$$ R(T) = R_0 \left[1 + \alpha (T - T_0)\right] $$

Derating curves provided by manufacturers must be consulted to ensure reliable operation under sustained current surges. For example, a 10 A-rated inductor may only handle 7 A continuously at 85°C ambient temperature.

Switching Noise and EMI Mitigation

Fast switching in RL circuits generates electromagnetic interference (EMI) due to di/dt-induced voltage spikes. A practical solution involves:

The voltage spike magnitude during switch opening can be derived from:

$$ V_{ ext{spike}} = L \frac{di}{dt} + I_0 R_{ ext{arc}} $$

where Rarc accounts for contact resistance during switching.

PCB Layout Considerations

High-current RL circuits require careful printed circuit board (PCB) design to minimize parasitic inductance in traces. Key guidelines include:

The parasitic inductance of a PCB trace can be approximated by:

$$ L_{ ext{trace}} \approx 0.002 l \left(\ln \frac{2l}{w+t} + 0.5 + 0.2235 \frac{w+t}{l}\right) \mu ext{H} $$

where l is length, w is width, and t is thickness (all in millimeters).

Transient Protection Devices

Protection against voltage transients requires:

The energy absorption capability E of a protection device must satisfy:

$$ E \geq \frac{1}{2} LI^2_{ ext{max}} $$

where Imax is the worst-case current before protection activates.

Real-World Circuit Design Considerations in Transient Response of RL Circuits
Diagram Description: The section discusses practical mitigation techniques like snubber circuits and PCB layout considerations, which are highly spatial and benefit from visual representation.

4. Recommended Textbooks

4.1 Recommended Textbooks

4.2 Online Resources and Tutorials

4.3 Advanced Topics for Further Study
