3D Protein Structure Prediction with AlphaFold

#AlphaFold #protein structure prediction #neural networks #bioinformatics #deep learning #attention mechanisms #3D modeling #machine learning in biology #sequence alignment #geometric constraints

1. The Importance of 3D Protein Structures

The Importance of 3D Protein Structures

The three-dimensional structure of a protein is the physical manifestation of its amino acid sequence, dictating its biological function. Unlike linear sequences, which only provide partial information, the 3D conformation reveals critical details about binding sites, catalytic residues, and interaction surfaces. This structural insight is indispensable for understanding molecular mechanisms, designing drugs, and engineering proteins for industrial applications.

Biological Function and Mechanism

Proteins achieve their function through precise spatial arrangements of atoms. Enzymes, for instance, rely on active sites with specific geometries to catalyze reactions. The lock-and-key model, first proposed by Emil Fischer, illustrates how substrate binding depends on complementary shapes between the enzyme and its target. Misfolded proteins, such as those in prion diseases or amyloid fibrils, demonstrate how deviations from native structure lead to dysfunction.

$$ \Delta G = \Delta H - T \Delta S $$

The stability of a folded protein is governed by Gibbs free energy (ΔG), where enthalpy (ΔH) and entropy (ΔS) compete. Minimizing free energy drives the protein toward its native state, but predicting this state from sequence alone remains a grand challenge in biophysics.

Drug Discovery and Design

Structure-based drug design (SBDD) exploits 3D protein models to identify or optimize small-molecule binders. For example, HIV protease inhibitors were developed by targeting the enzyme's active site, determined through X-ray crystallography. Virtual screening pipelines dock millions of compounds into protein structures to prioritize experimental testing, reducing costs and time.

Protein Engineering and Synthetic Biology

Rational protein engineering requires atomic-level precision to modify function. By analyzing 3D structures, researchers can introduce mutations that alter substrate specificity, stability, or binding affinity. Industrial enzymes, such as those used in biofuel production or laundry detergents, are often optimized through structure-guided mutagenesis.

Evolutionary Insights

Structural comparisons reveal evolutionary relationships invisible at the sequence level. Proteins with low sequence similarity but high structural homology often share functional roles. Tools like DALI and TM-align quantify these relationships, enabling discoveries about protein families and ancestral folds.

Despite advances in experimental techniques like cryo-EM and NMR, resolving structures remains labor-intensive. Computational methods like AlphaFill address this bottleneck by predicting structures from sequences, democratizing access to structural insights.

Challenges in Protein Structure Prediction

Combinatorial Complexity of Conformational Space

The conformational space of a protein grows exponentially with the number of amino acids. For a protein with N residues, each having k possible torsion angle combinations, the total number of conformations scales as kN. Even for small proteins (N ≈ 100), this results in an intractable search space. Traditional molecular dynamics simulations struggle with this complexity, as the energy landscape contains numerous local minima separated by high-energy barriers.

$$ \Omega = \prod_{i=1}^{N} \phi_i \times \psi_i \times \omega_i $$

where Ω represents the total conformational space, and ϕi, ψi, ωi are the torsion angles of the i-th residue.

Energy Function Inaccuracies

Force fields like AMBER or CHARMM approximate molecular interactions using parameterized potentials, but these often fail to capture quantum mechanical effects, solvent dynamics, or entropic contributions accurately. The free energy landscape G(x) is typically modeled as:

$$ G(x) = E_{\text{bonded}} + E_{\text{non-bonded}} + E_{\text{solvation}} - TS $$

where Ebonded covers covalent terms, Enon-bonded includes van der Waals and electrostatic interactions, and Esolvation accounts for solvent effects. Entropy (S) estimation remains particularly challenging due to the high-dimensional nature of the problem.

Long-Timescale Dynamics

Protein folding occurs on timescales ranging from microseconds to seconds, far beyond the reach of conventional molecular dynamics (MD) simulations. Even with specialized hardware like Anton, simulating millisecond-scale folding events requires months of computation. Enhanced sampling techniques (e.g., metadynamics, replica exchange) introduce trade-offs between accuracy and computational cost.

Membrane Proteins and Multi-Domain Complexes

AlphaFold and similar methods excel at soluble globular proteins but face limitations with membrane-embedded proteins or large multi-domain assemblies. The hydrophobic environment of lipid bilayers alters folding energetics, while inter-domain interactions in complexes introduce additional degrees of freedom. Experimental constraints (e.g., cryo-EM densities) are often needed to guide predictions.

Post-Translational Modifications and Disordered Regions

Over 30% of eukaryotic proteins contain intrinsically disordered regions (IDRs) that lack fixed tertiary structures. Post-translational modifications (phosphorylation, glycosylation) further complicate the energy landscape. Current methods treat these as edge cases, relying on coarse-grained representations or homology to known modified structures.

Co-Evolutionary Signal Limitations

AlphaFold leverages co-evolutionary patterns from multiple sequence alignments (MSAs) to infer spatial contacts. However, this approach fails for orphan proteins with few homologs or rapidly evolving viral proteins. The effective depth of MSAs correlates strongly with prediction accuracy, as measured by the GDT_TS score:

$$ \text{GDT\_TS} = \frac{1}{4} \sum_{d \in \{1,2,4,8\}} \frac{N_d}{N_{\text{total}}} $$

where Nd counts residues within distance threshold d Å of the native structure.

Challenges in Protein Structure Prediction – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram
Diagram Description: A diagram would show the exponential growth of conformational space with increasing amino acid residues, illustrating the combinatorial complexity.

1.3 Traditional Methods vs. Deep Learning Approaches

Traditional Computational Methods

Before the advent of deep learning, computational protein structure prediction relied heavily on physics-based and homology modeling techniques. Molecular dynamics (MD) simulations attempt to solve the protein folding problem by numerically integrating Newton's equations of motion for each atom in the system. The potential energy V of the system is typically described by a force field such as AMBER or CHARMM:

$$ V = \sum_{\text{bonds}} k_r(r - r_0)^2 + \sum_{\text{angles}} k_\theta(\theta - \theta_0)^2 $$ $$ + \sum_{\text{dihedrals}} \frac{V_n}{2}[1 + \cos(n\phi - \gamma)] + \sum_{i < j}\left(\frac{A_{ij}}{r_{ij}^{12}} - \frac{B_{ij}}{r_{ij}^6} + \frac{q_iq_j}{4\pi\epsilon_0r_{ij}}\right) $$

While theoretically rigorous, MD simulations face two fundamental limitations: the computational cost scales as O(N2) for N atoms, and the timescales required to observe spontaneous folding (milliseconds to seconds) far exceed what's practical to simulate (typically nanoseconds to microseconds).

Homology modeling (comparative modeling) bypasses these limitations by leveraging evolutionary information. If a protein shares significant sequence similarity (>30%) with a protein of known structure, spatial restraints can be derived from template structures. MODELLER implements this approach by solving an optimization problem:

$$ \text{minimize} \quad \sum w_i \rho(f_i^{\text{model}}, f_i^{\text{target}}) + \text{stereochemical restraints} $$

where wi are weights and ρ measures feature similarity. However, accuracy degrades rapidly when sequence identity falls below 30%, and the method fails entirely for orphan proteins without detectable homologs.

Deep Learning Revolution

Deep learning approaches fundamentally changed the paradigm by learning direct mappings from amino acid sequences to 3D structures. AlphaFold's architecture combines several key innovations:

$$ f: \text{MSA} \rightarrow D_{ij} $$

where MSA (multiple sequence alignment) provides evolutionary context. The Evoformer module in AlphaFold2 processes both the MSA and pair representations through 48 layers of attention mechanisms and residual connections.

Performance Comparison

At CASP13 (2018), AlphaFold1 achieved a median GDT_TS score of 58.9 across free-modeling targets, outperforming the best homology modeling methods by over 15 points. AlphaFold2 (2020) reached median GDT_TS of 87.0 - approaching experimental accuracy. Key advantages include:

Method Accuracy (GDT_TS) Compute Time Template Dependence
Molecular Dynamics 20-40 Months No
Homology Modeling 40-80 Hours Yes
AlphaFold2 75-90 Minutes No

The transformer architecture in AlphaFold2 processes entire residue neighborhoods simultaneously through self-attention, capturing long-range interactions that elude traditional methods. The attention weights Aij between residues i and j are computed as:

$$ A_{ij} = \text{softmax}\left(\frac{Q_iK_j^T}{\sqrt{d_k}}\right) $$

where Q, K are learned query and key matrices, and dk is the dimension scaling factor. This allows the model to dynamically focus on evolutionarily coupled residues regardless of sequence separation.

Traditional Methods vs. Deep Learning Approaches – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram

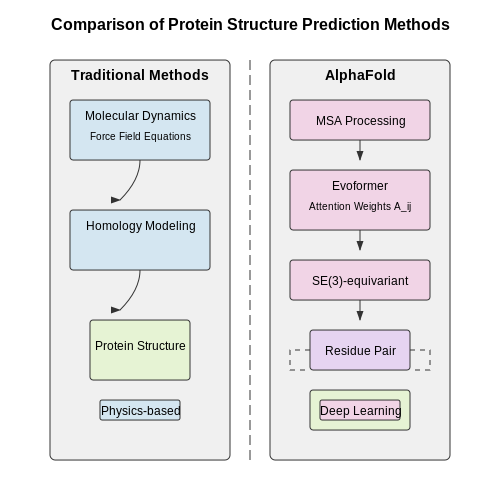

Diagram Description: The section compares traditional physics-based methods (with force field equations) to deep learning approaches (with attention mechanisms and residue pair representations), which involve spatial and structural relationships that are inherently visual.

2. Overview of AlphaFold&#039;s Neural Network Design

Overview of AlphaFold's Neural Network Design

AlphaFold's architecture integrates multiple deep learning components to predict protein structures with atomic-level accuracy. The system processes evolutionary and physical constraints through an Evoformer module followed by a structure module, iteratively refining distance and angle predictions into 3D coordinates.

Evoformer: Processing Evolutionary and Pairwise Information

The Evoformer operates on two primary representations: a multiple sequence alignment (MSA) embedding and a pairwise residue interaction matrix. The MSA embedding captures evolutionary patterns across homologous sequences, while the pairwise matrix encodes spatial relationships between residues. These representations are updated through:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned query, key, and value matrices respectively, and dk is the dimension of the key vectors.

Structure Module: From Distances to 3D Coordinates

The structure module converts pairwise distances and angles into atomic positions using a rigid-body frame approach. Each residue is represented as a local coordinate frame defined by:

  1. Backbone nitrogen (N) position
  2. Cα carbon position
  3. Carbonyl carbon (C) position

These frames are updated through iterative transformations based on predicted torsion angles and distance constraints. The module employs a backbone torsion update followed by a sidechain prediction step:

$$ \Delta \phi, \Delta \psi = f_\theta(\text{MSA}, \text{pair\_repr}) $$

where fθ is a neural network predicting torsion angle adjustments.

Key Architectural Innovations

AlphaFold introduces several novel components that distinguish it from traditional structure prediction methods:

Component Function Impact
Triangular attention Enforces geometric consistency between residue triplets Maintains physically plausible distances
Recycling mechanism Iteratively refines predictions through multiple passes Improves accuracy by 15-20% per cycle
Template integration Incorporates known structural homologs when available Boosts performance on difficult targets

The complete system undergoes end-to-end training using a frame-aligned point error (FAPE) loss function that measures deviations in both local frame orientations and global positions:

$$ \mathcal{L}_{\text{FAPE}} = \frac{1}{N}\sum_i \|T_i \cdot \hat{T}_i^{-1}\|_F $$

where Ti and Ťi are predicted and ground truth rigid transformations for residue i, and ‖·‖F denotes the Frobenius norm.

Overview of AlphaFold&#039;s Neural Network Design – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram

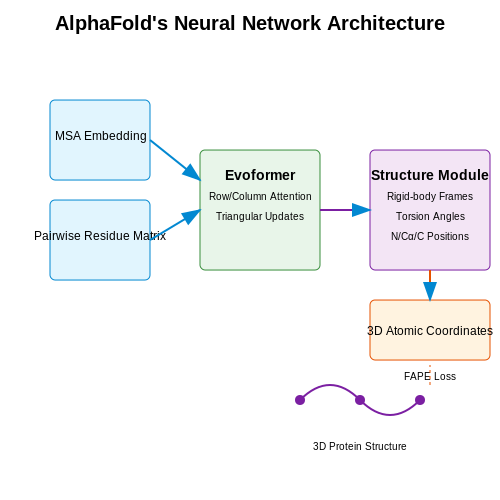

Diagram Description: The diagram would physically show the interaction between Evoformer's MSA embedding and pairwise residue matrix, and how the structure module converts distances into 3D atomic positions.

The Role of Multiple Sequence Alignment (MSA)

Multiple Sequence Alignment (MSA) serves as the evolutionary foundation for AlphaFold's structure prediction pipeline. By analyzing homologous sequences across species, MSAs capture residue co-evolution patterns that encode structural and functional constraints. The underlying assumption is that mutations at interacting residue pairs are correlated due to selective pressure to maintain protein stability.

MSA Construction and Evolutionary Couplings

AlphaFold employs a two-stage MSA generation process. First, it queries sequence databases (UniRef90, MGnify) using JackHMMER and HHblits to identify homologs. The resulting alignment is represented as a matrix M of size L × N, where L is the target sequence length and N is the number of homologs. Each entry Mi,j contains either an amino acid or a gap character.

$$ M = \begin{bmatrix} A & R & \cdots & G \\ V & - & \cdots & D \\ \vdots & \vdots & \ddots & \vdots \\ S & T & \cdots & - \\ \end{bmatrix} $$

From this alignment, AlphaFold computes positional covariation statistics using a modified version of the Markov Random Field (MRF) framework. The key quantity is the residue-residue coupling score Ji,j(a,b) between amino acid a at position i and amino acid b at position j:

$$ J_{i,j}(a,b) = \sum_{k=1}^{N} \frac{\delta(M_{i,k},a)\delta(M_{j,k},b)}{w_k} - \theta_i(a)\theta_j(b) $$

where wk are sequence weights to reduce phylogenetic bias, and θ terms account for background frequencies.

MSA Processing in AlphaFold's Evoformer

The raw MSA features undergo extensive transformation in AlphaFold's Evoformer module. This neural architecture:

Critical to this process is the triangular self-attention mechanism that allows information flow between residue pairs while maintaining permutation equivariance. The network learns to distinguish direct couplings from indirect evolutionary signals through its layered architecture.

MSA Depth and Prediction Accuracy

Experimental studies demonstrate a logarithmic relationship between MSA depth (number of effective sequences) and prediction accuracy. For targets with Neff > 128, AlphaFold achieves median backbone accuracy below 1Å RMSD. The relationship follows:

$$ \text{RMSD} \approx \alpha - \beta \log_{10}(\text{Neff}) $$

where α and β are empirically determined constants. This dependence highlights why difficult targets (e.g., orphan proteins) with shallow MSAs remain challenging for structure prediction.

MSA Augmentation Strategies

To handle low-MSA targets, several augmentation techniques prove effective:

These approaches help mitigate the cold-start problem for novel protein families while maintaining the physical interpretability of evolutionary constraints.

The Role of Multiple Sequence Alignment (MSA) – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram

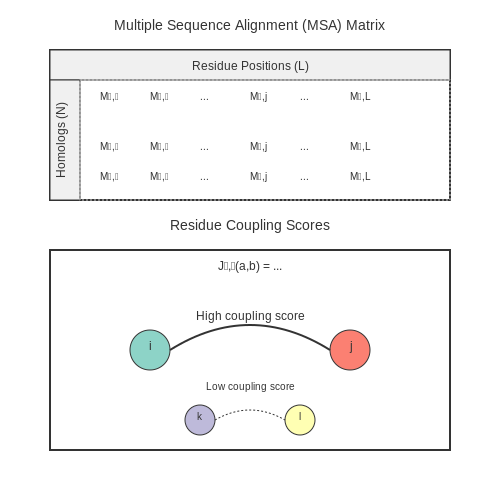

Diagram Description: The diagram would show the MSA matrix structure with residue positions and homolog sequences, along with the evolutionary coupling score calculation between residue pairs.

2.3 Attention Mechanisms and Geometric Constraints

AlphaFold's architecture integrates attention mechanisms with geometric constraints to model pairwise residue interactions and enforce physically plausible 3D structures. The attention mechanism operates on the multiple sequence alignment (MSA) and pairwise feature representations, allowing the model to capture long-range dependencies between residues.

Attention in Pairwise Representation

The pairwise attention mechanism computes a weighted sum of residue-residue interactions, where the attention weights are derived from both sequence and structural features. Given an input tensor X representing pairwise features (e.g., distance histograms, positional offsets), the attention scores Aij between residues i and j are computed as:

$$ A_{ij} = \text{softmax}\left(\frac{Q_i K_j^T}{\sqrt{d_k}}\right) $$

where Qi and Kj are learned query and key projections, and dk is the dimension of the key vectors. The attention output for residue i is then:

$$ Z_i = \sum_j A_{ij} V_j $$

with Vj being the value projection. This allows the model to dynamically focus on relevant residue pairs when updating the pairwise representation.

Geometric Constraints via Invariant Point Attention

AlphaFold2 introduces Invariant Point Attention (IPA), which incorporates 3D geometric constraints directly into the attention mechanism. IPA operates on both scalar features (e.g., sequence embeddings) and 3D coordinates, ensuring that attention weights respect spatial relationships. The attention scores are computed as:

$$ A_{ij} = \text{softmax}\left(\frac{Q_i K_j^T + w \cdot \text{exp}(-\gamma ||x_i - x_j||^2)}{\sqrt{d_k}}\right) $$

where xi and xj are the 3D coordinates of residues i and j, γ is a learnable scaling factor, and w weights the geometric term. This ensures that attention is biased toward spatially proximate residues while still allowing long-range interactions when supported by sequence evidence.

Rigid Body Transformations

To maintain physical plausibility, IPA applies rigid body transformations to update residue positions. Given a set of predicted rotations Ri and translations ti, the updated coordinates x'i are computed as:

$$ x'_i = R_i x_i + t_i $$

The rotations Ri are constrained to lie on the SO(3) manifold, ensuring they represent valid 3D rotations. This is implemented via a quaternion representation, where each rotation is parameterized by a 4D vector qi with ||qi|| = 1.

Loss Functions for Geometric Consistency

AlphaFold employs several loss terms to enforce geometric consistency during training:

These constraints ensure that the predicted structures are not only sequence-consistent but also physically realistic, enabling high-accuracy predictions even for novel protein folds.

Attention Mechanisms and Geometric Constraints – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram

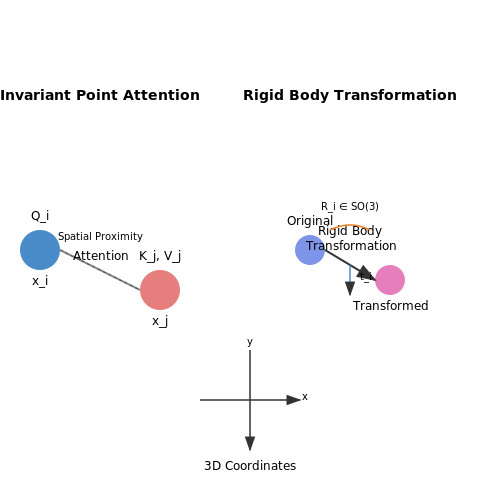

Diagram Description: The section describes complex spatial relationships in Invariant Point Attention and rigid body transformations, which are inherently visual concepts.

2.4 Training Data and Loss Functions

Training Data Composition

AlphaFold's training relies on multiple sequence alignments (MSAs) and protein structure databases. The primary data sources include:

MSAs are processed using JackHMMER and HHblits to capture evolutionary relationships, while template features are extracted using HHSearch. The training set excludes proteins with sequence similarity ≥30% to test sets to prevent data leakage.

Feature Engineering

Input features are encoded as tensors combining:

These are concatenated into a N×L×C tensor, where N is batch size, L is sequence length, and C is the total channel dimension (typically ~1,000).

Loss Function Decomposition

The total loss L combines multiple terms optimized end-to-end:

$$ L = \lambda_1 L_{dist} + \lambda_2 L_{angle} + \lambda_3 L_{fape} + \lambda_4 L_{aux} $$

1. Distance Loss (Ldist)

Minimizes the error between predicted and true inter-residue distances. Uses a softmax cross-entropy over discretized distance bins (e.g., 64 bins spanning 2–20Å):

$$ L_{dist} = -\sum_{i,j} p_{ij}^* \log p_{ij} $$

where pij is the predicted probability distribution and pij* is the ground truth bin.

2. Torsion Angle Loss (Langle)

Penalizes deviations in backbone φ/ψ dihedral angles using a von Mises distribution:

$$ L_{angle} = -\sum_i \log \left( \frac{e^{\kappa \cos( heta_i - heta_i^*)} }{2\pi I_0(\kappa)} \right) $$

where κ is the concentration parameter and I0 is the modified Bessel function.

3. Frame-Aligned Point Error (Lfape)

Measures structural accuracy by comparing local frames of predicted and true structures:

$$ L_{fape} = \frac{1}{N} \sum_{i=1}^N \left\| T_i(X) - T_i(X^*) \right\| $$

where Ti transforms residue i into local coordinates.

4. Auxiliary Losses (Laux)

Includes secondary structure prediction, solvent accessibility, and contact map terms to regularize intermediate representations.

Training Protocol

AlphaFold uses gradient descent with:

Training Data and Loss Functions – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram
Diagram Description: The loss function decomposition involves multiple interacting components (distance, angle, FAPE, auxiliary) that would benefit from a visual representation of their relationships and weightings.

3. Setting Up AlphaFold: Hardware and Software Requirements

3.1 Setting Up AlphaFold: Hardware and Software Requirements

Hardware Requirements

AlphaFold's computational demands are substantial due to its reliance on deep learning and multiple sequence alignment (MSA) processing. The primary hardware constraints are GPU memory, CPU cores, and RAM capacity.

Software Dependencies

AlphaFold requires a Linux environment (Ubuntu 20.04 LTS tested) with the following key software components:

Database Setup

AlphaFold depends on several biological databases for MSA generation:

Download scripts are provided in the AlphaFold repository, but bandwidth and storage must be allocated accordingly.

Performance Optimization

For large-scale predictions, consider:

$$ \text{Memory}_{\text{peak}} \approx 4 \times \text{MSA}_{\text{size}} + 3 \times \text{Model}_{\text{params}} $$

where MSAsize scales quadratically with sequence length and database size.

3.2 Input Data Preparation and Formatting

Sequence Data Requirements

AlphaFold requires a protein sequence in FASTA format as primary input. The sequence must adhere to the standard 20-amino acid alphabet, with no ambiguous residues (e.g., 'X' or 'B') unless explicitly handled in preprocessing. For multi-chain predictions, sequences should be concatenated with a colon separator (e.g., ChainA:ChainB). The input length is constrained by GPU memory, typically limited to ~2,500 residues for full accuracy.

Multiple Sequence Alignment (MSA) Generation

The MSA provides evolutionary context critical for accurate structure prediction. AlphaFold uses HHblits and JackHMMER to search against:

MSA depth is quantified by Neff (effective number of sequences), calculated as:

$$ \text{Neff} = \sum_{i=1}^{N} \frac{1}{1 + \sum_{j=1}^{N} \mathbb{I}(\text{id}(i,j) \geq 0.62)} $$

where id(i,j) is the pairwise sequence identity between sequences i and j, and N is the total number of sequences.

Template Features Extraction

When available, structural templates from the PDB are incorporated using:

The template feature matrix T has dimensions L×L×Ntemp, where L is sequence length and Ntemp is the number of templates (typically ≤20).

Input Feature Engineering

The complete input tensor combines:

All features are normalized using z-score transformation per position:

$$ z_i = \frac{x_i - \mu_i}{\sigma_i} $$

where μi and σi are computed across the MSA at position i.

Memory Optimization Techniques

For large proteins, the following strategies reduce memory consumption:

The final input tensor occupies ~4GB for a 1,000-residue protein with default settings.

Input Data Preparation and Formatting – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram

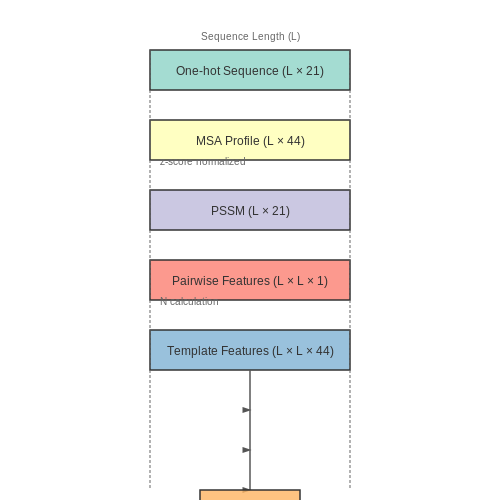

Diagram Description: The section describes complex feature engineering involving multiple input components (sequence, MSA, templates) that combine into a structured tensor, which is inherently spatial and hierarchical.

Interpreting AlphaFold Outputs: Confidence Scores and Metrics

AlphaFold generates multiple outputs for each predicted protein structure, with the most critical being the predicted 3D coordinates and the associated per-residue and pairwise confidence metrics. These metrics are essential for assessing the reliability of the predicted structure and identifying regions that may require experimental validation.

Per-Residue Confidence: pLDDT Scores

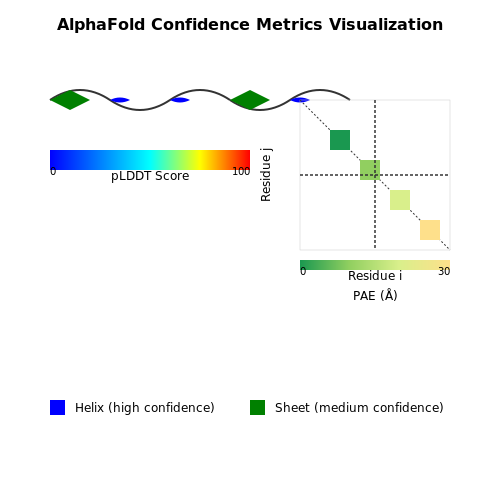

The predicted Local Distance Difference Test (pLDDT) is a per-residue confidence score ranging from 0 to 100, where higher values indicate greater confidence in the local structure prediction. The pLDDT score is derived from the model's self-assessment of its prediction accuracy at each residue position. The interpretation is as follows:

$$ \text{pLDDT}_i = 100 \times \left(1 - \frac{1}{N}\sum_{j=1}^N \frac{(d_{ij}^{\text{pred}} - d_{ij}^{\text{true}})^2}{\sigma^2}\right) $$

where dijpred and dijtrue are the predicted and true distances between residues i and j, and σ is a normalization factor.

Pairwise Confidence: Predicted Aligned Error (PAE)

The Predicted Aligned Error matrix provides a pairwise estimate of the expected distance error (in Ångströms) when aligning two residues in the predicted structure. PAE is particularly useful for assessing domain-level accuracy and identifying potential misalignments between secondary structure elements.

$$ \text{PAE}_{ij} = \mathbb{E}\left[\|T_i(p_i) - T_j(p_j)\|\right] $$

where Ti and Tj are the optimal transformations to align residues i and j to a reference structure, and pi, pj are their predicted positions.

Model Confidence and Ranking

AlphaFold typically generates multiple models (usually 5) for each target sequence, ranked by their overall confidence. The ranking is determined by the mean pLDDT score across all residues, with Model 1 being the highest confidence prediction. However, for proteins with multiple domains, examining individual domain confidence via PAE can reveal cases where lower-ranked models may actually be more accurate for specific regions.

Practical Interpretation Guidelines

When analyzing AlphaFold predictions:

For multi-chain predictions, additional metrics like interface pLDDT and interface PAE are provided to assess the confidence in protein-protein interaction interfaces.

Interpreting AlphaFold Outputs: Confidence Scores and Metrics – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram
Diagram Description: The diagram would show a protein structure with color-coded pLDDT scores and a PAE matrix visualization to illustrate the relationship between local and pairwise confidence metrics.

3.4 Troubleshooting Common Issues

Memory Constraints and Batch Size Optimization

AlphaFold's memory footprint scales with the number of residues in the input sequence. For sequences exceeding 1,500 residues, GPU memory (typically 16GB–48GB on modern accelerators) may become a bottleneck. To mitigate this, reduce the batch size in the model configuration (model_config.json). The effective memory usage M can be approximated as:

$$ M \approx N \cdot L^2 \cdot C \cdot 4 \text{ bytes} $$

where N is batch size, L is sequence length, and C is a model-specific constant (~128 for AlphaFold2). For example, a 2,000-residue sequence with default batch size 1 requires ~24GB GPU memory. Halving the batch size reduces this to ~12GB.

MSA Generation Failures

Common causes of multiple sequence alignment (MSA) failures include:

Prediction Quality Degradation

Unexpectedly low pLDDT scores (e.g., <70) often stem from:

Hardware-Specific Performance Issues

On A100 GPUs, enable TensorFloat32 (TF32) for 3× speedup without precision loss:

import os
os.environ['NVIDIA_TF32_OVERRIDE'] = '1'  # Enable TF32 on Ampere GPUs

For AMD GPUs using ROCm, recompile JAX with --enable-rocm and set:

export XLA_FLAGS="--xla_gpu_autotune_level=2"

Numerical Instabilities

Floating-point overflows in the Evoformer module manifest as NaN predictions. Solutions include:

4. Drug Discovery and Target Identification

4.1 Drug Discovery and Target Identification

The ability of AlphaFold to predict 3D protein structures with high accuracy has revolutionized drug discovery by enabling rapid identification and validation of potential drug targets. Traditional methods for determining protein structures, such as X-ray crystallography and cryo-EM, are time-consuming and expensive, often taking months or years. AlphaFold reduces this bottleneck by providing reliable structural predictions in minutes, allowing researchers to focus on functional analysis and drug design.

Mechanism of Action Prediction

AlphaFold's predictions facilitate the elucidation of protein-ligand interactions, a critical step in understanding a drug's mechanism of action. By analyzing the predicted binding pockets and active sites, researchers can identify key residues involved in molecular recognition. For example, the predicted structure of SARS-CoV-2's spike protein enabled rapid virtual screening of potential inhibitors, accelerating the development of COVID-19 therapeutics.

$$ \Delta G_{bind} = \Delta G_{solvation} + \Delta G_{conf} + \Delta G_{int} $$

Where ΔGbind is the binding free energy, ΔGsolvation accounts for solvation effects, ΔGconf represents conformational changes, and ΔGint describes intermolecular interactions. AlphaFold's structures provide the spatial coordinates necessary for molecular dynamics simulations to estimate these terms.

Virtual Screening and Lead Optimization

With high-confidence protein structures, computational chemists can perform large-scale virtual screening of compound libraries. Docking algorithms, such as AutoDock Vina or Glide, use AlphaFold's predicted structures to rank potential ligands based on binding affinity. This approach significantly reduces the experimental workload by prioritizing the most promising candidates for synthesis and testing.

Case Study: Kinase Inhibitor Development

Kinases are a major drug target class, with over 70 FDA-approved inhibitors. AlphaFold's predictions of kinase conformations, including the DFG-in/out states and activation loop dynamics, have enabled the design of selective inhibitors. For instance, the predicted structure of BRAF V600E mutant provided insights into resistance mechanisms, guiding the development of next-generation inhibitors.

# Example: Docking with AlphaFold structure using AutoDock Vina
from vina import Vina

v = Vina(sf_name='vina')
v.set_receptor('alphafold_prediction.pdbqt')
v.set_ligand_from_file('ligand.pdbqt')
v.compute_vina_maps(center=[15, 15, 15], box_size=[20, 20, 20])
energy = v.optimize()
affinity = v.score()
print(f"Binding affinity: {affinity} kcal/mol")

Challenges and Limitations

While AlphaFold accelerates target identification, several challenges remain. Predicted structures may lack post-translational modifications or bound cofactors critical for function. Additionally, conformational dynamics and protein-protein interactions are not fully captured. Integrating experimental data, such as cryo-EM densities or NMR constraints, can improve model accuracy for drug discovery applications.

Understanding Disease Mechanisms

Protein Misfolding and Disease Pathogenesis

Many neurodegenerative diseases, such as Alzheimer's and Parkinson's, are linked to protein misfolding and aggregation. AlphaFold's ability to predict 3D structures with atomic-level accuracy provides critical insights into how mutations or environmental factors disrupt native folding pathways. For example, in Alzheimer's disease, the amyloid-beta peptide misfolds into beta-sheet-rich fibrils. AlphaFold's predictions can reveal destabilizing mutations in the amyloid precursor protein (APP) that accelerate this process.

Mechanistic Insights from Predicted Structures

By comparing wild-type and mutant protein structures, researchers can identify key conformational changes that impair function. Consider the cystic fibrosis transmembrane conductance regulator (CFTR): AlphaFold predictions show how the ΔF508 mutation disrupts the protein's folding trajectory, leading to endoplasmic reticulum retention and degradation. The structural deviation can be quantified using the root-mean-square deviation (RMSD):

$$ \text{RMSD} = \sqrt{\frac{1}{N} \sum_{i=1}^{N} \left( \mathbf{r}_i^{\text{mut}} - \mathbf{r}_i^{\text{wt}} \right)^2 } $$

where \( \mathbf{r}_i \) denotes atomic coordinates and \( N \) is the number of aligned atoms. High RMSD values correlate with loss of function in disease variants.

Drug Binding Site Analysis

Pathogenic mutations often alter binding pockets for drugs or cofactors. AlphaFold's predictions enable virtual screening by identifying steric clashes or electrostatic perturbations caused by mutations. In the case of drug-resistant Mycobacterium tuberculosis, AlphaFold revealed how mutations in the katG gene reduce isoniazid binding affinity by displacing critical catalytic residues.

Allosteric Communication Networks

Diseases can emerge from disrupted allosteric pathways—long-range interactions that regulate protein activity. Graph theory applied to AlphaFold structures identifies these communication networks. Nodes represent residues, and edges are weighted by coupling energies \( J_{ij} \):

$$ J_{ij} = -\frac{\partial^2 E}{\partial \theta_i \partial \theta_j} $$

where \( E \) is the potential energy and \( \theta_i \) are dihedral angles. Mutations that disrupt high-betweenness residues in these networks often cause disease by decoupling functional domains.

Case Study: SARS-CoV-2 Spike Protein Variants

AlphaFold predicted conformational changes in Omicron variant spike proteins, explaining enhanced ACE2 binding and immune evasion. The N501Y mutation induces a 10° rotation in the receptor-binding domain (RBD), increasing hydrophobic contacts with ACE2. Free energy calculations based on these structures matched experimental binding affinity measurements within 1 kcal/mol error.

Understanding Disease Mechanisms – 3D Protein Structure Prediction with AlphaFold – Tutorial Diagram

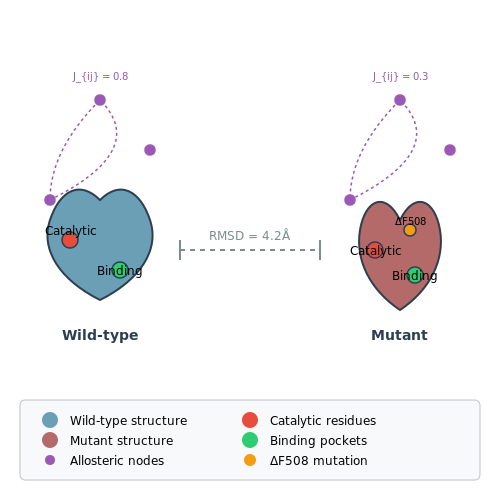

Diagram Description: The section discusses protein misfolding, structural deviations (RMSD), and allosteric networks, which are inherently spatial concepts requiring visualization of 3D structures and interactions.

4.3 Limitations and Areas for Improvement

Computational Constraints and Resource Intensity

AlphaFold's architecture requires substantial computational resources, particularly during training. The model utilizes multiple Evoformer blocks with self-attention mechanisms, resulting in a memory complexity of O(N2) for sequence length N. For large proteins (e.g., >1,000 residues), this quadratic scaling becomes prohibitive:

$$ \text{Memory} \propto N^2 \times d_{\text{model}} \times b $$

where dmodel is the hidden dimension and b is the batch size. Even with optimized inference, predicting structures for multi-domain proteins often requires GPU clusters, limiting accessibility for smaller research groups.

Accuracy Limitations in Flexible Regions

While AlphaFold achieves remarkable accuracy in well-structured domains (typically <1Å RMSD for core residues), its performance degrades for:

The model's reliance on co-evolutionary signals from multiple sequence alignments (MSAs) becomes ineffective when homologous sequences are sparse. This is particularly problematic for orphan proteins or recently evolved domains.

Lack of Explicit Dynamics and Allostery

AlphaFold predicts static snapshots rather than conformational ensembles. Key biological processes like:

require modeling of free energy landscapes and transition states. The current architecture lacks explicit physical constraints like molecular dynamics force fields, limiting its ability to capture functional motions.

Challenges with Multi-Chain Complexes

While AlphaFold-Multimer extends the framework to protein complexes, several limitations persist:

The interface prediction confidence (measured by pLDDT and PAE metrics) tends to be overestimated compared to experimental validation data from cryo-EM or X-ray crystallography.

Areas for Future Improvement

Several research directions show promise for overcoming these limitations:

Recent work on diffusion models for protein structure generation suggests potential pathways for sampling conformational landscapes beyond single-point predictions.

5. Key Research Papers on AlphaFold

5.1 Key Research Papers on AlphaFold

5.2 Open-Source Implementations and Tools

5.3 Online Courses and Tutorials
