Protein Folding with AI

#protein folding #deep learning #bioinformatics #AlphaFold #machine learning #neural networks #computational biology #AI in science #molecular dynamics #structural biology

1. The Protein Folding Problem

The Protein Folding Problem

The protein folding problem revolves around predicting the three-dimensional structure of a protein solely from its amino acid sequence. This is a fundamental challenge in computational biology, as a protein's function is dictated by its folded conformation. The problem is computationally intractable due to the astronomical number of possible conformations—Levinthal's paradox highlights that a random search through all possible configurations would take longer than the age of the universe for even a small protein.

Energy Landscapes and the Free Energy Minimum

Proteins fold into their native state by minimizing their Gibbs free energy, governed by the thermodynamic hypothesis formulated by Anfinsen. The energy landscape of a protein is a high-dimensional surface where the native state corresponds to the global minimum. The folding process can be modeled using molecular dynamics (MD) simulations, but these are computationally prohibitive for large proteins due to the timescales involved.

$$ G = H - TS $$

Here, G is the Gibbs free energy, H is enthalpy, T is temperature, and S is entropy. The native state minimizes G, balancing energetic favorability (enthalpy) and conformational flexibility (entropy).

Challenges in Computational Prediction

Traditional methods like homology modeling and ab initio folding face limitations:

Coarse-grained models reduce complexity by grouping atoms into pseudo-beads, but sacrifice atomic-level accuracy. The introduction of AI, particularly deep learning, has revolutionized the field by learning patterns from known protein structures.

Role of AI in Protein Folding

AI-driven approaches, such as AlphaFold, leverage neural networks to predict inter-residue distances and torsion angles. These models are trained on the Protein Data Bank (PDB), learning spatial constraints without explicit physical simulations. The key innovation is the integration of attention mechanisms and transformer architectures, enabling long-range interaction modeling critical for tertiary structure formation.

$$ \text{Loss} = \sum_{i

Here, dij is the predicted distance between residues i and j, and d̂ij is the ground-truth distance. The loss function optimizes the network to minimize deviations from experimental data.

Practical Implications

Accurate protein structure prediction has transformative applications:

  • Drug discovery: Identifying binding sites for targeted therapeutics.
  • Disease mechanisms: Understanding misfolding in neurodegenerative disorders like Alzheimer’s.
  • Protein design: Engineering enzymes for industrial catalysis.
The Protein Folding Problem – Protein Folding with AI – Tutorial Diagram
Diagram Description: The diagram would show a protein's energy landscape with a 3D surface plot, highlighting the global minimum (native state) and local minima (misfolded states).

1.2 Thermodynamics and Kinetics of Folding

Free Energy Landscape of Protein Folding

The folding process can be described using a free energy landscape, where the native state corresponds to the global minimum. The energy landscape theory posits that proteins navigate a funnel-shaped landscape toward the native state, with kinetic traps representing metastable intermediates. The folding reaction coordinate Q, ranging from 0 (unfolded) to 1 (native), parameterizes progress along this landscape.

$$ \Delta G = -RT \ln K_{eq} $$

where Keq is the equilibrium constant between folded and unfolded states, R the gas constant, and T temperature. The stability curve follows a parabolic profile:

$$ \Delta G(Q) = \Delta G_{NU} + \frac{1}{2}kQ^2 $$

Thermodynamic Driving Forces

Key contributions to the free energy change include:

Folding Kinetics and Transition States

The rate constant kf follows Arrhenius behavior with an activation barrier ΔG‡:

$$ k_f = A e^{-\Delta G^\ddagger / RT} $$

where prefactor A ≈ 106-108 s-1. Two-state folders exhibit single-exponential kinetics, while complex proteins show multiphasic behavior described by:

$$ P(t) = 1 - \sum_i \alpha_i e^{-k_i t} $$

Chevron Plots and Φ-Value Analysis

Folding rates under denaturing conditions produce chevron plots that reveal transition state structure. The Φ-value quantifies residue participation in the transition state:

$$ \Phi = \frac{\Delta \Delta G^\ddagger}{\Delta \Delta G_{NU}} $$

Φ=1 indicates native-like structure, Φ=0 suggests random coil, and intermediate values imply partial organization.

Computational Approaches

Molecular dynamics simulations sample the energy landscape using force fields like AMBER or CHARMM:

$$ V(r) = \sum_{bonds} k_b(r-r_0)^2 + \sum_{angles} k_\theta(\theta-\theta_0)^2 + \sum_{dihedrals} \frac{V_n}{2}[1+\cos(n\phi-\gamma)] $$

Markov state models discretize trajectories into metastable states connected by transition rates kij, enabling kinetic analysis of folding pathways.

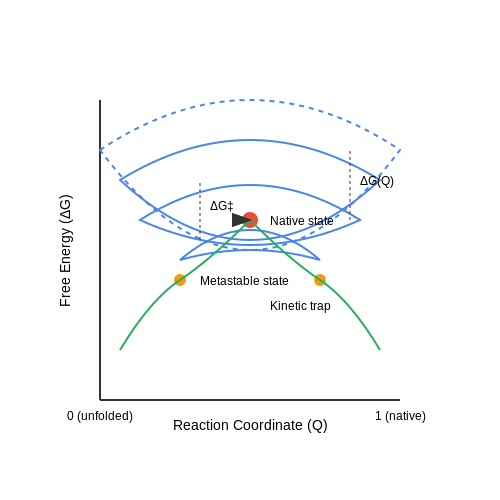

Thermodynamics and Kinetics of Folding – Protein Folding with AI – Tutorial Diagram
Diagram Description: The free energy landscape and funnel-shaped navigation toward the native state are highly spatial concepts that require visual representation.

Role of Amino Acid Sequences in Folding

The primary structure of a protein—its linear sequence of amino acids—dictates the folding pathway and final three-dimensional conformation. Each amino acid contributes distinct physicochemical properties, including hydrophobicity, charge, hydrogen bonding capacity, and steric constraints, which collectively drive the folding process. The Anfinsen dogma posits that the native structure is thermodynamically favored under physiological conditions, implying that the sequence alone contains sufficient information to determine the fold.

Energy Landscapes and Sequence-Dependent Folding

The folding process can be modeled as a traversal through a high-dimensional energy landscape, where the native state corresponds to the global minimum. The sequence influences this landscape by defining the relative energies of intermediate states. For a protein with N residues, the conformational space scales exponentially as 3N, yet biologically relevant folds converge to a narrow subset due to sequence constraints.

$$ \Delta G_{\text{fold}} = \Delta H - T \Delta S $$

Here, ΔGfold represents the Gibbs free energy change, ΔH the enthalpy (dominated by van der Waals interactions and hydrogen bonds), and ΔS the entropy loss upon folding. Hydrophobic residues (e.g., leucine, isoleucine) drive collapse via the hydrophobic effect, while polar residues (e.g., arginine, glutamate) stabilize the fold through electrostatic interactions.

Sequence-Structure Relationships

Cooperative interactions between residues lead to secondary structure formation (α-helices, β-sheets) and tertiary contacts. For example, helix propensity is quantified by the Zimm-Bragg parameters:

$$ s = e^{-\Delta \epsilon / k_B T} $$

where s is the nucleation parameter, Δε the energy difference between coiled and helical states, and kBT the thermal energy. Proline’s cyclic structure introduces kinks, while glycine’s flexibility permits tight turns. Beta-branched residues (valine, threonine) favor β-sheet formation due to steric constraints.

Evolutionary Constraints and Misfolding

Natural selection optimizes sequences for foldability and stability. Misfolding diseases (e.g., Alzheimer’s, prion disorders) arise from mutations that destabilize the native state or promote toxic aggregates. Computational tools like Rosetta and AlphaFold2 leverage coevolutionary data to predict how sequence variations alter folding pathways.

N-term C-term Hypothetical Energy Landscape

2. Experimental Methods: X-ray Crystallography and NMR

Experimental Methods: X-ray Crystallography and NMR

X-ray Crystallography

X-ray crystallography remains the gold standard for high-resolution protein structure determination, providing atomic-level detail by analyzing diffraction patterns from crystallized proteins. When a protein crystal is exposed to X-rays, the electrons in the protein scatter the X-rays, producing a diffraction pattern. The intensity of each spot in the pattern is recorded, but the phase information is lost—a challenge known as the phase problem.

$$ I(\mathbf{h}) = |F(\mathbf{h})|^2 $$

Here, I(h) represents the measured intensity of the diffracted beam at reciprocal lattice point h, and F(h) is the structure factor, a complex quantity encoding amplitude and phase. Solving the phase problem typically involves molecular replacement, isomorphous replacement, or anomalous dispersion methods. Once phases are estimated, an electron density map is computed via Fourier transform:

$$ \rho(\mathbf{x}) = \frac{1}{V} \sum_{\mathbf{h}} F(\mathbf{h}) e^{-2\pi i \mathbf{h} \cdot \mathbf{x}} $$

where ρ(x) is the electron density at position x, and V is the unit cell volume. Model building and refinement iteratively improve the fit between the atomic model and the observed data, minimizing the residual:

$$ R_{\text{free}} = \frac{\sum |F_{\text{obs}} - F_{\text{calc}}|}{\sum F_{\text{obs}}} $$

Nuclear Magnetic Resonance (NMR) Spectroscopy

NMR spectroscopy is indispensable for studying protein dynamics and structures in solution, particularly for intrinsically disordered proteins or membrane proteins resistant to crystallization. NMR exploits the magnetic properties of atomic nuclei (e.g., 1H, 13C, 15N) in a strong magnetic field. The nuclear spin states are perturbed by radiofrequency pulses, and the resulting signals are detected as free induction decays (FIDs).

The key measurable in NMR is the chemical shift (δ), which reflects the local electronic environment of a nucleus:

$$ \delta = \frac{\nu_{\text{sample}} - \nu_{\text{reference}}}{\nu_{\text{reference}}} \times 10^6 $$

Through multidimensional experiments (e.g., NOESY, TOCSY), distance restraints between nuclei are derived from nuclear Overhauser effects (NOEs), and torsion angle restraints are obtained from J-couplings. The structure is then calculated using restrained molecular dynamics, minimizing the target function:

$$ E_{\text{total}} = E_{\text{phys}} + w_{\text{NOE}} E_{\text{NOE}} + w_{\text{angle}} E_{\text{angle}} $$

Comparative Advantages and Limitations

Recent advances in cryo-electron microscopy (cryo-EM) and AI-enhanced structure prediction (e.g., AlphaFold2) have complemented these methods, but X-ray and NMR remain foundational for experimental validation.

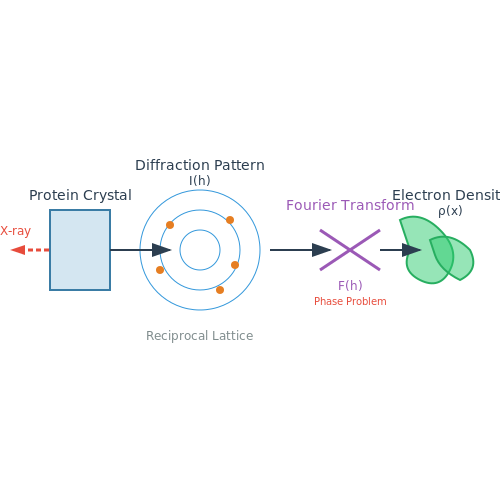

Experimental Methods: X-ray Crystallography and NMR – Protein Folding with AI – Tutorial Diagram
Diagram Description: The diagram would show the X-ray diffraction pattern from a protein crystal and how it translates into an electron density map, including the phase problem and Fourier transform process.

2.2 Computational Methods: Molecular Dynamics and Homology Modeling

Molecular Dynamics (MD) Simulations

Molecular dynamics simulations numerically solve Newton's equations of motion for a system of atoms, enabling the study of protein folding at atomic resolution. The force field governing interatomic interactions is typically described by:

$$ V(r) = \sum_{\text{bonds}} \frac{1}{2}k_b(r - r_0)^2 + \sum_{\text{angles}} \frac{1}{2}k_\theta(\theta - \theta_0)^2 $$ $$ + \sum_{\text{dihedrals}} k_\phi[1 + \cos(n\phi - \delta)] + \sum_{i < j} \left[ \frac{A_{ij}}{r_{ij}^{12}} - \frac{B_{ij}}{r_{ij}^6} + \frac{q_i q_j}{4\pi\epsilon_0 r_{ij}} \right] $$

Where the terms represent bond stretching, angle bending, torsional rotation, and non-bonded (van der Waals and electrostatic) interactions, respectively. Modern force fields like AMBER, CHARMM, and OPLS parameterize these equations using quantum mechanical calculations and experimental data.

The equations of motion are integrated using algorithms like Verlet or leapfrog, with time steps on the order of femtoseconds (10−15 s). Despite advances in computing, simulating folding events (milliseconds to seconds) remains challenging due to the timescale gap. Enhanced sampling techniques like replica exchange MD (REMD) or metadynamics address this by accelerating conformational exploration.

Homology Modeling

Homology modeling predicts a protein's 3D structure by leveraging evolutionary relationships to proteins with known structures. The process follows these steps:

  1. Template identification: Search databases (e.g., PDB) for structures with sequence similarity using tools like BLAST or HHsearch. Sequence identity >30% typically yields reliable models.
  2. Alignment: Align target and template sequences, accounting for insertions/deletions (indels).
  3. Model building: Transfer coordinates from conserved regions, then model loops (e.g., with fragment insertion) and side chains (e.g., using rotamer libraries).
  4. Refinement: Optimize the model with energy minimization or short MD simulations.
  5. Validation: Assess stereochemistry (Ramachandran plots) and physical plausibility (energy Z-scores).

Modern tools like MODELLER or SWISS-MODEL automate these steps, but manual intervention is often needed for difficult regions. Accuracy depends heavily on template quality—root-mean-square deviation (RMSD) typically ranges from 1–5 Å for core regions when sequence identity exceeds 50%.

Integration with AI Approaches

Machine learning augments these methods in several ways:

Hybrid methods combining physics-based simulations with learned potentials are increasingly dominant, as seen in AlphaFold2's integration of attention mechanisms and residue-residue geometry.

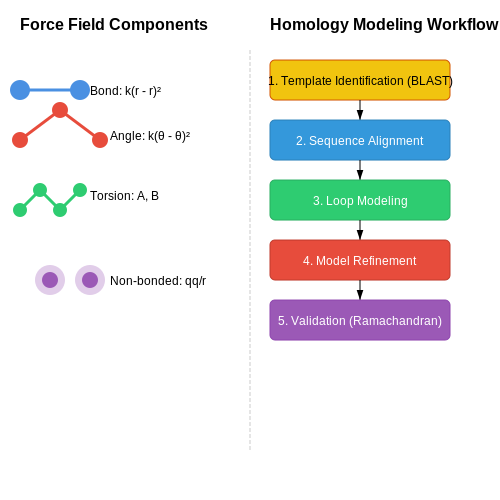

Computational Methods: Molecular Dynamics and Homology Modeling – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section describes complex spatial relationships in molecular dynamics (force field components) and a multi-step homology modeling process, which would benefit from visual representation of atomic interactions and modeling workflow.

3. Deep Learning Architectures for Protein Structure Prediction

3.1 Deep Learning Architectures for Protein Structure Prediction

Deep learning has revolutionized protein structure prediction by enabling end-to-end learning from sequence to structure. The most successful architectures leverage geometric inductive biases, attention mechanisms, and evolutionary information to predict atomic coordinates with high accuracy.

Residual Neural Networks for Feature Extraction

Residual networks (ResNets) form the backbone of many protein structure prediction models. Their skip connections enable training of very deep networks by mitigating vanishing gradients. For a given input feature map x, a residual block computes:

$$ y = \mathcal{F}(x, \{W_i\}) + x $$

where F represents stacked convolutional layers with weights Wi. In AlphaFold2, ResNet variants process multiple sequence alignments (MSAs) and pairwise features through hundreds of residual blocks.

Geometric Attention Mechanisms

Transformers with geometric attention explicitly model spatial relationships between residues. The attention weights Aij between residues i and j incorporate both sequence and structural information:

$$ A_{ij} = \text{softmax}\left(\frac{Q_iK_j^T}{\sqrt{d_k}} + b(r_{ij})\right) $$

where Q, K are learned queries and keys, dk is the dimension, and b(rij) is a spatial bias term based on the distance rij between residues.

Invariant Point Attention (IPA)

AlphaFold2 introduced IPA to maintain roto-translational equivariance. Each residue is represented as a local reference frame (orientation R, position t). The attention mechanism computes:

$$ \text{IPA}(x_i, x_j) = W\left[\text{concat}(x_i, x_j, t_j - t_i, R_j^{-1}R_i)\right] $$

This ensures predictions are invariant to global rotations and translations while capturing relative geometric relationships.

Structure Module with SE(3)-Equivariance

The structure module refines atomic coordinates using SE(3)-equivariant transformations. For each residue, it predicts:

$$ \Delta x_i = \sum_j f(d_{ij}) \cdot (x_j - x_i) $$

where f is a learned function of interatomic distances dij. This update rule preserves equivariance under 3D rotations and translations.

Template-Based Modeling Integration

Advanced architectures incorporate homologous templates through cross-attention between target sequence and template features. The template features T modulate the main network via:

$$ h_i' = h_i + \text{Linear}(\text{Attention}(h_i, T)) $$

where hi are the target residue embeddings. This allows information transfer from known structures while maintaining end-to-end differentiability.

Multi-Task Learning Objectives

State-of-the-art models optimize multiple losses simultaneously:

The composite loss function enables the model to learn complementary aspects of protein structure.

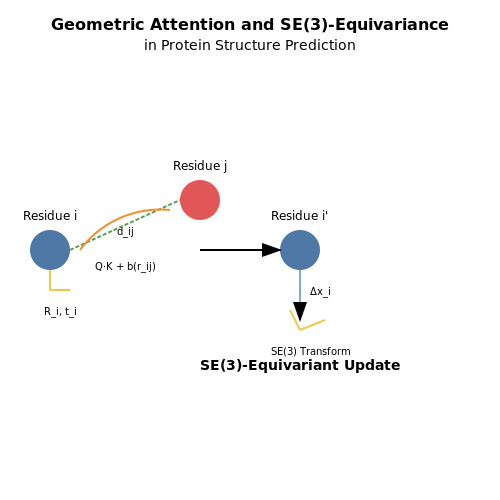

Deep Learning Architectures for Protein Structure Prediction – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section describes complex geometric relationships and attention mechanisms that involve spatial transformations and residue interactions, which are inherently visual concepts.

AlphaFold and Its Breakthrough

Architecture and Key Innovations

AlphaFold, developed by DeepMind, represents a paradigm shift in protein structure prediction by combining deep learning with evolutionary and physical constraints. At its core, AlphaFold employs an Evoformer module—a transformer-based neural network that processes multiple sequence alignments (MSAs) and pairwise residue features. The Evoformer iteratively refines these representations through self-attention mechanisms, capturing long-range dependencies critical for accurate folding.

The system then passes these refined features to a structure module, which predicts 3D coordinates using a rotation-equivariant architecture. This module outputs both backbone torsion angles and pairwise distances, constrained by physical laws like bond lengths and van der Waals forces. The final structure is optimized via gradient descent to minimize a composite loss function:

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{FAPE} + \lambda_2 \mathcal{L}_{dist} + \lambda_3 \mathcal{L}_{angle} $$

where FAPE (Frame-Aligned Point Error) ensures local structural consistency, while distance and angle terms enforce global geometry.

Training Protocol and Data

AlphaFold was trained on the Protein Data Bank (PDB) using a novel self-distillation approach. The model first predicts structures for proteins with known sequences but unknown structures, then incorporates high-confidence predictions into subsequent training cycles. This bootstrapping method effectively expands the training set beyond experimentally solved structures.

Key training innovations include:

Performance and Validation

At CASP14 (2020), AlphaFold achieved a median Global Distance Test (GDT) score of 92.4 on free-modeling targets—surpassing experimental methods in accuracy for many cases. The system's uncertainty estimates via predicted aligned error (PAE) matrices reliably indicate domain-level confidence:

$$ PAE_{ij} = \mathbb{E}[\|T_i(x_i) - x_j\|^2]^{1/2} $$

where Ti optimally aligns residue i's neighborhood to the predicted structure. This allows biologists to identify reliable substructures within predictions.

Impact and Limitations

AlphaFold's release has enabled rapid structural annotation of entire proteomes, with DeepMind predicting structures for all human proteins (AlphaFold DB). However, challenges remain in modeling:

Recent extensions like AlphaFold-Multimer address some limitations by explicitly modeling oligomeric interfaces, though accuracy drops significantly for complexes without homologous templates.

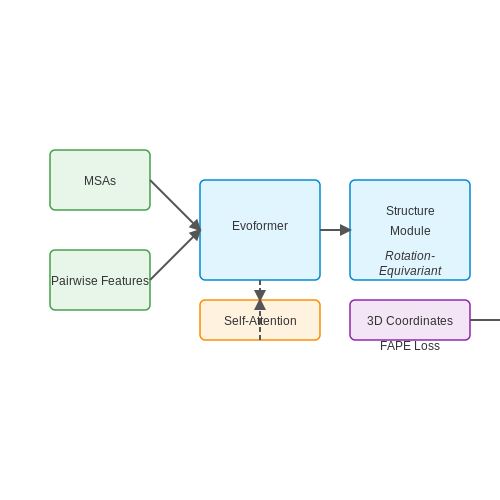

AlphaFold and Its Breakthrough – Protein Folding with AI – Tutorial Diagram
Diagram Description: The diagram would show the architecture of AlphaFold, including the Evoformer module, structure module, and how they interact with MSAs and pairwise features.

3.3 Training Data and Feature Representation

Protein Structure Datasets

The foundation of any machine learning model for protein folding lies in the quality and diversity of training data. The Protein Data Bank (PDB) remains the primary source of experimentally determined protein structures, providing atomic coordinates obtained through X-ray crystallography, NMR spectroscopy, and cryo-EM. However, raw PDB files require extensive preprocessing:

$$ \text{Sequence Identity} = \frac{\text{Matching Residues}}{\text{Alignment Length}} \times 100\% $$

Feature Engineering for Protein Graphs

Modern geometric deep learning approaches represent proteins as graphs \( G = (V, E) \), where nodes \( v_i \in V \) correspond to amino acids and edges \( e_{ij} \in E \) capture spatial or sequential relationships. Key node features include:

Edge features typically incorporate:

$$ d_{ij} = \|r_i - r_j\|_2 \quad \text{(Euclidean distance between } C_\alpha \text{ atoms)} $$
$$ \theta_{ijk} = \cos^{-1}\left(\frac{(r_j - r_i) \cdot (r_k - r_i)}{\|r_j - r_i\| \|r_k - r_i\|}\right) \quad \text{(Bond angles)} $$

Evolutionary Coupling Features

Multiple sequence alignments (MSAs) provide evolutionary constraints through residue co-variation. The covariance matrix \( C \in \mathbb{R}^{L \times L} \) is computed from MSAs with \( N \) sequences:

$$ C_{ij} = \frac{1}{N} \sum_{n=1}^N (A_i^n - \langle A_i \rangle)(A_j^n - \langle A_j \rangle) $$

where \( A_i^n \) is the amino acid at position \( i \) in sequence \( n \). Direct coupling analysis (DCA) then infers contact probabilities by inverting the covariance matrix with L2 regularization:

$$ P_{ij}(a,b) \propto \exp\left(e_i(a) + e_j(b) + w_{ij}(a,b)\right) $$

Data Augmentation Strategies

To combat limited experimental structures, several augmentation techniques are employed:

Recent work has shown that combining physical simulations (e.g., molecular dynamics trajectories) with experimental data improves model generalization, particularly for rare fold classes.

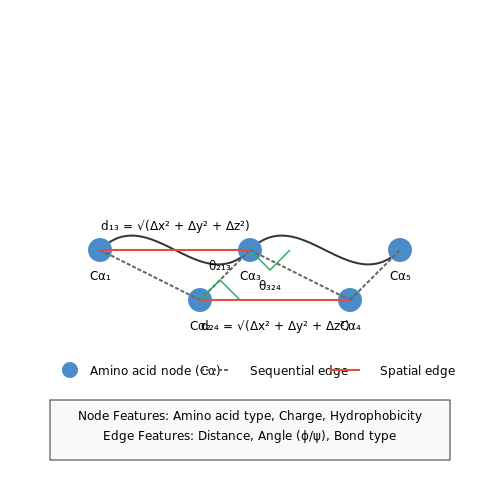

Training Data and Feature Representation – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section describes protein graphs and spatial relationships between amino acids, which are inherently visual concepts.

4. Data Scarcity and Quality Issues

4.1 Data Scarcity and Quality Issues

Protein folding presents unique challenges in data availability and quality that directly impact the performance of AI models. Unlike domains like computer vision or natural language processing, where large-scale datasets (e.g., ImageNet, Wikipedia) are readily available, experimentally determined protein structures remain scarce due to the resource-intensive nature of techniques like X-ray crystallography and cryo-EM.

Experimental Data Limitations

The Protein Data Bank (PDB) contains approximately 200,000 experimentally resolved structures as of 2023, but this represents only a fraction of known protein sequences. The disparity arises because:

$$ \text{Coverage Ratio} = \frac{N_{\text{PDB}}}{N_{\text{UniProt}}} \approx \frac{2 \times 10^5}{2 \times 10^8} = 0.1\% $$

Noise and Artifacts in Experimental Data

Even available structural data contains noise that propagates into AI training:

Computational Data Augmentation Strategies

To mitigate scarcity, researchers employ:

$$ \mathcal{L}_{\text{augment}} = \lambda_1 \mathcal{L}_{\text{experimental}}} + \lambda_2 \mathcal{L}_{\text{simulated}}} $$

Quality Control Metrics

Standardized evaluation protocols address data quality:

Protein Data Quality Spectrum Low-res Cryo-EM X-ray (2.5Å) NMR Ensemble 1.0Å X-ray

4.2 Computational Resource Requirements

Hardware Accelerators for Protein Folding

Protein folding simulations, particularly those leveraging deep learning models like AlphaFold2 or RoseTTAFold, demand substantial computational resources due to the combinatorial complexity of conformational space. The primary hardware accelerators include:

Memory and Storage Constraints

The memory footprint scales with the number of residues N due to O(N2) pairwise attention computations. For a protein with 1,000 residues:
$$ M_{\text{total}} \approx 4N^2 \times d_{\text{head}} \times h \times P $$
where dhead is attention head dimension, h the number of heads, and P precision bytes (2 for FP16). A typical AlphaFold2 instance requires 16-32GB GPU memory for inference and >64GB for training.

Energy Efficiency Trade-offs

The energy cost E of folding a single protein follows:
$$ E = P_{\text{avg}} \times t_{\text{runtime}} \approx 3.2 \text{kWh} \text{ (per 1,000-residue prediction)} $$
where Pavg is average power draw (e.g., 400W for an A100) and truntime the 8-hour prediction time. Distributed training across 128 TPUv3 pods consumes ~2.3 MW-days per full training cycle.

Cloud vs. On-Premise Deployment

Cloud platforms (AWS, GCP, Azure) dominate due to: On-premise HPC remains viable when:

Algorithmic Optimizations

Recent advances reduce computational overhead:

Benchmarking Metrics

Standardized metrics assess resource efficiency:
$$ \text{TFLOPS/W} = \frac{\text{Theoretical FLOPs}}{\text{Wall Time} \times \text{Power Draw}} $$
$$ \text{Residues/sec} = \frac{N_{\text{residues}}}{\text{Prediction Time}} $$
Current state-of-the-art achieves 1.2M residues/sec on 8×A100 configurations with 0.85 TFLOPS/W efficiency.
Protein Folding Computational Resource Breakdown A block diagram comparing hardware accelerators (GPU, TPU, FPGA), memory scaling with protein size, and energy efficiency metrics for protein folding with AI. Protein Folding Computational Resource Breakdown Hardware Accelerators GPU NVIDIA A100 9.7 TFLOPS TPU TPUv3 23 TFLOPS FPGA Custom 4.1 TFLOPS Memory Scaling Memory Usage Protein Size (N) O(N²) scaling Energy & Deployment 3.2 kWh per prediction Cloud On-Premise
Diagram Description: The section involves complex relationships between hardware components, memory scaling, and energy efficiency metrics that would benefit from a visual representation.

4.3 Generalization to Novel Protein Structures

Generalizing AI models to predict the folding of novel protein structures—those not present in training datasets—remains a fundamental challenge in computational biology. Traditional approaches, such as homology modeling, rely on evolutionary relationships between proteins, but these methods fail when no close homologs exist. Modern deep learning architectures, particularly those employing geometric deep learning and equivariant neural networks, have demonstrated promising capabilities in extrapolating to unseen folds by learning underlying physical and geometric constraints.

Key Challenges in Generalization

The primary obstacles to generalization stem from the vast conformational space of proteins and the sparse coverage of experimentally solved structures in databases like the Protein Data Bank (PDB). Two critical issues arise:

Geometric Deep Learning for Generalization

Recent advances leverage equivariant neural networks, which respect the symmetries of 3D space (e.g., rotation and translation invariance). These models parameterize protein structures as graphs, where nodes represent amino acids and edges encode spatial relationships. The message-passing framework allows the model to propagate geometric information across the graph, enabling predictions for novel folds by compositionally building up structural motifs.

$$ \mathbf{h}_i^{(l+1)} = \phi\left(\mathbf{h}_i^{(l)}, \bigoplus_{j \in \mathcal{N}(i)} \psi(\mathbf{h}_i^{(l)}, \mathbf{h}_j^{(l)}, \mathbf{e}_{ij})\right) $$

Here, hi(l) denotes the embedding of residue i at layer l, ϕ and ψ are learnable functions, and ⊕ is a permutation-invariant aggregation operator (e.g., sum or max). The edge features eij encode pairwise distances and angles.

Self-Supervised Pretraining Strategies

To improve generalization, state-of-the-art models like AlphaFold2 and RoseTTAFold employ self-supervised pretraining on multiple sequence alignments (MSAs) and predicted contact maps. This forces the model to learn biophysical principles rather than memorize training examples. A key innovation is the use of attention mechanisms over residue pairs, allowing the model to reason about long-range interactions critical for novel fold prediction:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V are learned linear transformations of the input embeddings, and dk is the dimension of the key vectors.

Evaluation Metrics for Generalization

Standardized benchmarks like CAMEO (Continuous Automated Model Evaluation) and CASP (Critical Assessment of Structure Prediction) assess generalization through blind tests on newly solved structures. Key metrics include:

Recent results show that top-performing models achieve median GDT_TS scores above 80 on CAMEO targets, demonstrating unprecedented generalization capability. However, performance drops significantly for proteins with fewer than 50 homologs in MSAs, highlighting remaining challenges in low-data regimes.

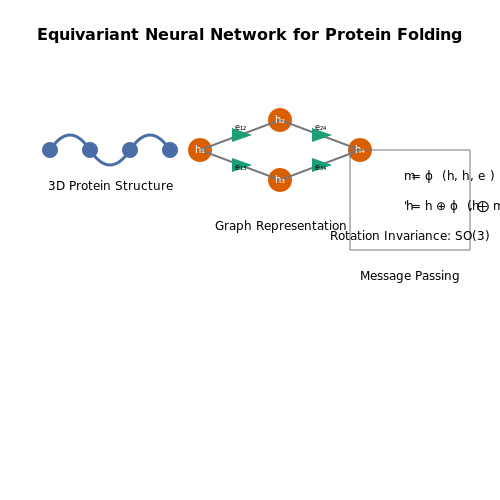

Generalization to Novel Protein Structures – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section describes geometric deep learning and equivariant neural networks, which involve spatial relationships and message-passing between nodes in a 3D protein structure graph.

5. Drug Discovery and Design

Drug Discovery and Design

AI-Driven Molecular Docking

Molecular docking simulations predict how small molecules (ligands) bind to protein targets. Traditional methods rely on force field calculations and sampling algorithms, but AI approaches learn binding patterns directly from structural data. AlphaFold's predicted protein structures enable virtual screening of billions of compounds by:

$$ \Delta G_{bind} = -RT \ln K_d \approx \sum_{i=1}^N w_i \phi_i(\mathbf{r}) + \epsilon $$

where φi are learned interaction potentials and wi are attention weights over atomic positions r.

Generative Chemistry with Diffusion Models

Conditional diffusion models generate drug-like molecules by gradually denoising atomic coordinates while constrained to protein binding pockets. The forward process adds Gaussian noise:

$$ q(\mathbf{x}_t|\mathbf{x}_{t-1}) = \mathcal{N}(\mathbf{x}_t; \sqrt{1-\beta_t}\mathbf{x}_{t-1}, \beta_t\mathbf{I}) $$

while the reverse process learns to predict:

$$ p_\theta(\mathbf{x}_{t-1}|\mathbf{x}_t, \mathbf{p}) = \mathcal{N}(\mathbf{x}_{t-1}; \mu_\theta(\mathbf{x}_t,t,\mathbf{p}), \Sigma_\theta(\mathbf{x}_t,t)) $$

where p represents the protein context. State-of-the-art implementations achieve 3D-conditional generation with RMSD < 1.5Å from crystallographic poses.

Binding Affinity Prediction

Equivariant neural networks process protein-ligand complexes as point clouds with SE(3)-invariant features. The network architecture typically includes:

The final affinity prediction combines learned physical terms:

$$ \hat{y} = \text{MLP}\left(\sum_{i,j} \mathbf{h}_i^T \mathbf{W} \mathbf{h}_j \cdot f(||\mathbf{r}_i - \mathbf{r}_j||)\right) $$

where hi are atom-wise embeddings and f is a distance-based filter.

Case Study: SARS-CoV-2 Main Protease Inhibitors

AI-driven approaches identified novel non-covalent inhibitors of 3CLpro by:

  1. Generating 2.3 million candidate molecules using protein-conditioned VAEs
  2. Filtering with physics-informed neural networks (ΔG < -8 kcal/mol)
  3. Experimental validation showing IC50 values < 100 nM

The entire pipeline from target structure to lead compound required 46 days, compared to 12-18 months for conventional methods.

Free Energy Perturbation with ML Potentials

Machine learning potentials accelerate free energy calculations by 3-4 orders of magnitude. The workflow involves:

$$ \Delta \Delta G = -k_B T \ln \left\langle e^{-(V_1 - V_0)/k_B T} \right\rangle_0 $$

where V1 and V0 are neural network potentials trained on QM/MM data. Recent implementations achieve chemical accuracy (< 1 kcal/mol error) with 106-fold speedup over ab initio methods.

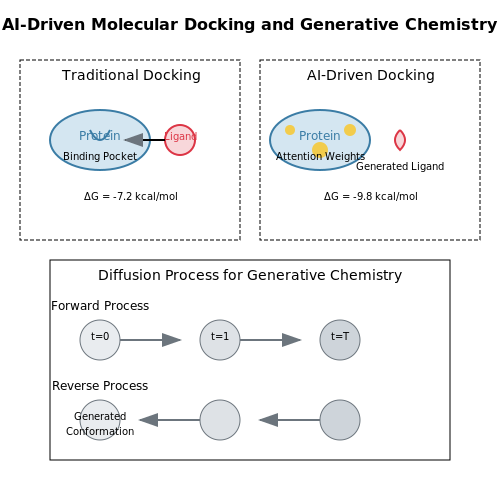

Drug Discovery and Design – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section involves complex spatial relationships in molecular docking and 3D-conditional generation of molecules, which are highly visual concepts.

5.2 Understanding Disease Mechanisms

Protein misfolding and aggregation are central to numerous neurodegenerative diseases, including Alzheimer's, Parkinson's, and Huntington's. AI-driven structural predictions reveal how pathogenic mutations disrupt folding pathways, leading to toxic oligomers or amyloid fibrils. AlphaFold and RoseTTAFold have identified destabilizing mutations in APP and SNCA that promote β-sheet-rich aggregates, while molecular dynamics simulations quantify kinetic barriers to misfolding.

Energy Landscapes and Pathogenic Mutations

Free energy landscapes describe protein folding as a stochastic process governed by:

$$ \Delta G = -RT \ln \left( \frac{P_{\text{folded}}}{P_{\text{unfolded}}} \right) $$

Pathogenic mutations alter this landscape by introducing destabilizing interactions. For example, the A53T mutation in α-synuclein (SNCA) reduces the energy barrier between native and β-sheet-rich states by 2.3 kcal/mol, as computed via Markov state models trained on MD trajectories.

AI-Powered Mechanistic Insights

Graph neural networks (GNNs) analyze residue-residue interaction networks to predict mutation effects:

  1. Contact map perturbations: GNNs detect altered hydrophobic cores or hydrogen bonds (e.g., E46K in MAPT disrupting microtubule binding).
  2. Allosteric propagation: Attention mechanisms in Transformer models trace mutation-induced strain propagation (e.g., LRRK2 G2019S kinase activation).

Case Study: Transthyretin Amyloidosis

Diffusion-based generative models have mapped the structural transition from tetrameric transthyretin to amyloid fibrils. Key findings include:

$$ \tau_{\text{aggregation}} = \tau_0 \exp \left( \frac{\Delta G^{\ddagger}}{k_B T} \right) $$

where τ₀ is the attempt frequency and ΔG‡ is the activation energy for nucleation.

Drug Target Identification

Equivariant neural networks screen for stabilizers of native states by:

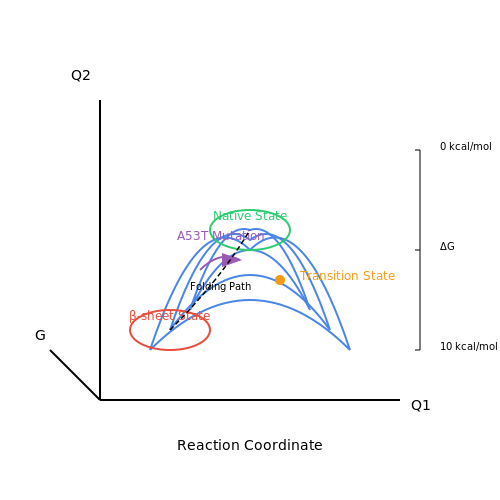

Understanding Disease Mechanisms – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section discusses free energy landscapes and mutation effects on protein folding pathways, which are inherently spatial and quantitative relationships.

5.3 Synthetic Biology and Protein Engineering

AI-Driven Protein Design

The integration of AI into synthetic biology has revolutionized protein engineering by enabling the de novo design of proteins with tailored functions. Traditional methods rely on iterative experimental screening, but AI models like AlphaFold and Rosetta leverage deep learning to predict stable protein structures from amino acid sequences. These models optimize energy landscapes using gradient descent over a learned potential function:

$$ E(\mathbf{x}) = \sum_{i < j} \left[ V_{bond}(r_{ij}) + V_{angle}( heta_{ij}) + V_{dihedral}(\phi_{ij}) \right] + \lambda \cdot \mathcal{L}_{clash}(\mathbf{x}) $$

where \( \mathbf{x} \) represents atomic coordinates, \( V \) terms are force-field potentials, and \( \mathcal{L}_{clash} \) penalizes steric clashes. The weight \( \lambda \) is learned via backpropagation through neural networks trained on PDB structures.

Generative Models for Protein Sequences

Variational autoencoders (VAEs) and generative adversarial networks (GANs) are used to sample novel protein sequences that fold into target structures. A VAE encodes sequences into a latent space \( \mathbf{z} \), then decodes to plausible sequences:

$$ p(\mathbf{s}|\mathbf{z}) = \prod_{i=1}^{N} \text{Categorical}(s_i | f_\theta(\mathbf{z})_i) $$

where \( \mathbf{s} \) is a sequence of length \( N \), and \( f_\theta \) is a transformer-based decoder. Reinforcement learning fine-tunes sequences for stability or binding affinity using reward functions like:

$$ R(\mathbf{s}) = \text{Tm}(\mathbf{s}) + \beta \cdot \text{ddG}(\mathbf{s}, \text{target}) $$

Case Study: Enzyme Optimization

In 2022, an AI-designed enzyme for PET plastic degradation (FAST-PETase) was validated experimentally. The model combined:

The final design showed a 20-fold activity increase over natural counterparts at 40°C, demonstrating AI's potential for sustainable chemistry.

Challenges and Future Directions

Current limitations include:

Emerging solutions involve hybrid quantum-classical neural networks for modeling electronic effects in catalysis, and lab automation for high-throughput characterization.

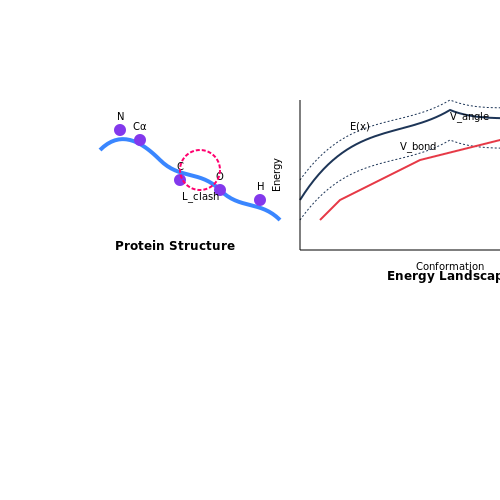

Synthetic Biology and Protein Engineering – Protein Folding with AI – Tutorial Diagram
Diagram Description: The section involves complex spatial relationships in protein structures and energy landscapes that are difficult to visualize from equations alone.

6. Key Research Papers

6.1 Key Research Papers

6.2 Online Resources and Tools

6.3 Recommended Books and Review Articles
