NeRF + LLM Integration for Scene Understanding

#nerf #llms #scene understanding #3d vision #natural language processing #cross-modal learning #attention mechanisms #latent space fusion #computer vision #deep learning

1. Neural Radiance Fields (NeRF): Core Principles

Neural Radiance Fields (NeRF): Core Principles

Volume Rendering and Radiance Fields

Neural Radiance Fields (NeRF) represent a scene as a continuous volumetric function that maps a 3D spatial coordinate (x, y, z) and viewing direction (θ, φ) to an emitted radiance (r, g, b) and volume density σ. The core idea is to approximate this function using a multilayer perceptron (MLP), enabling high-fidelity novel view synthesis. The volume rendering integral computes the expected color C(r) of a camera ray r(t) = o + td with near and far bounds tn and tf:

$$ C(\mathbf{r}) = \int_{t_n}^{t_f} T(t) \sigma(\mathbf{r}(t)) \mathbf{c}(\mathbf{r}(t), \mathbf{d}) \, dt $$

where T(t) is the accumulated transmittance along the ray:

$$ T(t) = \exp \left( -\int_{t_n}^{t} \sigma(\mathbf{r}(s)) \, ds \right) $$

Differentiable Volume Sampling

In practice, the integral is approximated using quadrature with N stratified samples along each ray. For a sample ti, the alpha compositing weight αi is derived from the volume density:

$$ \alpha_i = 1 - \exp \left( -\sigma_i \delta_i \right) $$

where δi = ti+1 − ti. The rendered color is then a weighted sum of sampled radiances:

$$ \hat{C}(\mathbf{r}) = \sum_{i=1}^N T_i \alpha_i \mathbf{c}_i $$

Positional Encoding and High-Frequency Details

Directly feeding (x, y, z, θ, φ) into the MLP leads to overly smooth outputs. NeRF employs a high-dimensional positional encoding γ to map inputs to a higher-frequency space, enabling the MLP to represent fine details:

$$ \gamma(p) = \left( \sin(2^0 \pi p), \cos(2^0 \pi p), \dots, \sin(2^{L-1} \pi p), \cos(2^{L-1} \pi p) \right) $$

where L is a hyperparameter controlling the maximum frequency band (typically L=10 for coordinates and L=4 for directions).

Hierarchical Sampling and Optimization

NeRF uses a two-stage sampling strategy: a coarse network predicts densities across the entire ray, while a fine network concentrates samples in regions with high density. The loss function combines mean squared error (MSE) for both coarse and fine renders:

$$ \mathcal{L} = \sum_{\mathbf{r}} \left( \| \hat{C}_c(\mathbf{r}) - C(\mathbf{r}) \|_2^2 + \| \hat{C}_f(\mathbf{r}) - C(\mathbf{r}) \|_2^2 \right) $$

Optimization leverages Adam with a learning rate decay schedule, typically requiring 100k–300k iterations for convergence.

Extensions and Practical Considerations

NeRF’s implicit representation enables applications like photorealistic view synthesis, 3D reconstruction, and scene editing, but it faces challenges in real-time rendering and generalization to unbounded scenes.

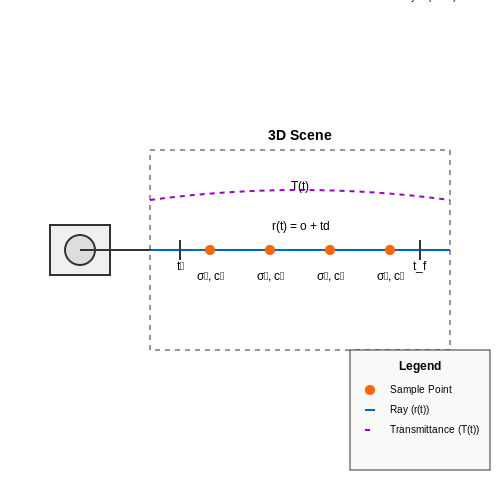

Neural Radiance Fields (NeRF): Core Principles – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the volumetric rendering process with a ray sampling a 3D scene, illustrating how radiance and density values are accumulated along the ray.

Large Language Models (LLMs): Capabilities and Limitations

Architectural Foundations of LLMs

Modern LLMs are built upon transformer architectures, which employ self-attention mechanisms to process sequential data. The core operation can be expressed as:

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V $$

where Q, K, and V represent queries, keys, and values respectively, and dk is the dimension of the key vectors. This mechanism enables the model to weigh the importance of different input tokens dynamically, allowing for context-aware processing.

Key Capabilities

LLMs exhibit several advanced capabilities that make them valuable for scene understanding tasks:

Fundamental Limitations

Despite their impressive capabilities, LLMs face several intrinsic limitations:

$$ \text{Perplexity}(x) = \exp\left(-\frac{1}{N}\sum_{i=1}^N \log p(x_i|x_{<i})\right) $$

where perplexity measures model uncertainty, revealing fundamental challenges in:

Practical Constraints in Scene Understanding

When applied to NeRF-based scene representations, LLMs face additional challenges:

Emerging Solutions

Recent research directions address these limitations through:

1.3 Synergies Between 3D Scene Representation and Natural Language Understanding

Geometric-Semantic Alignment

The integration of Neural Radiance Fields (NeRF) with Large Language Models (LLMs) creates a bidirectional mapping between geometric scene representations and semantic language embeddings. NeRF's volumetric rendering function FΘ:

$$ F_Θ: (x, d) → (c, σ) $$

where x is 3D position and d is viewing direction, produces color c and density σ. This differentiable representation allows gradient-based alignment with LLM token embeddings through joint optimization:

$$ \mathcal{L}_{align} = \sum_{i=1}^N ||E_{LLM}(t_i) - W \cdot F_Θ(x_i, d_i)||_2^2 $$

where ELLM is the language model's embedding layer, ti are text tokens describing scene elements, and W is a learned projection matrix.

Attention-Based Feature Fusion

Cross-modal attention mechanisms enable dynamic weighting of relevant geometric features during language queries. Given NeRF's latent features z3D and LLM embeddings ztext, the attention weights α are computed as:

$$ α = \text{softmax}\left(\frac{Q(z_{text})K(z_{3D})^T}{\sqrt{d_k}}\right) $$

where Q and K are learned query/key transformations, enabling the model to focus on spatially relevant regions when answering questions like "What is behind the red chair?"

Applications in Embodied AI

This synergy enables several advanced capabilities:

Implementation Challenges

Key technical hurdles include:

Recent work addresses these through techniques like metric-aware tokenization and progressive training schedules that alternate between geometric and linguistic objectives.

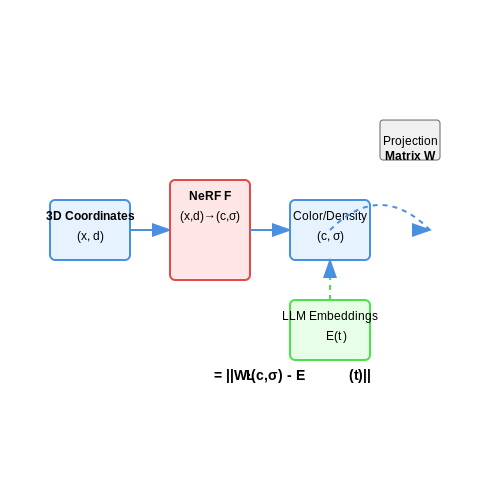

Synergies Between 3D Scene Representation and Natural Language Understanding – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional mapping between NeRF's volumetric rendering (3D position/direction to color/density) and LLM token embeddings, including the learned projection matrix W.

2. Architectures for Joint NeRF-LLM Training

Architectures for Joint NeRF-LLM Training

Dual-Encoder Architecture with Cross-Modal Attention

The most effective approach for joint NeRF-LLM training employs a dual-encoder architecture where the NeRF model encodes 3D scene representations and the LLM processes linguistic inputs. A cross-modal attention mechanism bridges these encoders, enabling bidirectional information flow. The NeRF encoder outputs a latent scene representation zs ∈ ℝds, while the LLM produces text embeddings zt ∈ ℝdt. These are projected into a shared space via learned matrices Ws and Wt:

$$ \hat{z}_s = W_s z_s, \quad \hat{z}_t = W_t z_t $$ $$ \text{where } W_s ∈ ℝ^{d×d_s}, W_t ∈ ℝ^{d×d_t} $$

The attention mechanism computes compatibility scores between scene and text features:

$$ \alpha_{ij} = \frac{\exp(\hat{z}_s^{(i)} \cdot \hat{z}_t^{(j)} / \sqrt{d})}{\sum_k \exp(\hat{z}_s^{(i)} \cdot \hat{z}_t^{(k)} / \sqrt{d})} $$

Gated Feature Fusion Mechanism

To prevent modality dominance, a gating mechanism dynamically weights contributions from each encoder. The gate value g ∈ [0,1] is computed as:

$$ g = \sigma(W_g [z_s; z_t] + b_g) $$

where σ is the sigmoid function, Wg ∈ ℝ1×(ds+dt), and [·;·] denotes concatenation. The fused representation becomes:

$$ z_{fused} = g \cdot z_s + (1-g) \cdot z_t $$

Three-Phase Training Protocol

Joint training follows a curriculum:

$$ \mathcal{L}_{cont} = -\log \frac{\exp(s(z_s,z_t)/\tau)}{\sum_{z_t'} \exp(s(z_s,z_t')/\tau)} $$

where s(·,·) is the cosine similarity and τ is temperature.

$$ \mathcal{L} = \lambda_1 \mathcal{L}_{nerf} + \lambda_2 \mathcal{L}_{lm} + \lambda_3 \mathcal{L}_{align} $$

Memory-Efficient Variants

For large-scale scenes, chunked processing divides the NeRF into spatial regions {Ri}, each with dedicated feature banks. The LLM attends to relevant regions through a hierarchical attention mechanism:

$$ \text{RegionScore}(R_i) = \text{MLP}([\text{CLS}]; \text{MeanPool}(R_i)) $$

where [CLS] is the LLM's classification token. Only top-k regions participate in full cross-attention.

Implementation Considerations

Key practical aspects include:

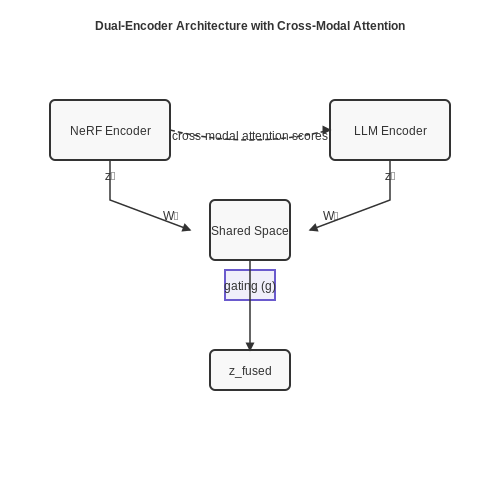

Architectures for Joint NeRF-LLM Training – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the dual-encoder architecture with cross-modal attention, including the NeRF encoder, LLM encoder, and their interaction through the shared space and gating mechanism.

2.2 Attention Mechanisms for Cross-Modal Alignment

Cross-modal attention mechanisms enable NeRF and LLMs to dynamically focus on relevant features across 3D scene representations and linguistic inputs. The key innovation lies in computing attention weights between NeRF's volumetric features V ∈ ℝH×W×D×C and LLM token embeddings E ∈ ℝL×d, where H,W,D represent spatial dimensions, C is feature depth, L is sequence length, and d is embedding dimension.

Mathematical Formulation

The cross-attention operation transforms NeRF features into queries Q and LLM embeddings into keys K and values V:

$$ Q = VW_Q \quad K = EW_K \quad V = EW_V $$

where WQ, WK, WV ∈ ℝC×d are learned projection matrices. The attention weights are computed as:

$$ A = \text{softmax}\left(\frac{QK^T}{\sqrt{d}}\right) $$

The output combines relevant NeRF features with linguistic context through weighted summation:

$$ O = AV $$

Implementation Considerations

For computational efficiency, modern implementations use:

Geometric Alignment

The attention mechanism must respect 3D spatial relationships. Positional encodings γ(p) ∈ ℝ3×m for NeRF coordinates p ∈ ℝ3 are concatenated with visual features:

$$ V' = [V; γ(p)] $$

where γ(p) uses the same sinusoidal encoding as in original NeRF:

$$ γ(p) = (\sin(2^0πp), \cos(2^0πp), ..., \sin(2^{m-1}πp), \cos(2^{m-1}πp)) $$

Practical Applications

This architecture enables:

NeRF Volumetric Features Attention Weights LLM Token Embeddings

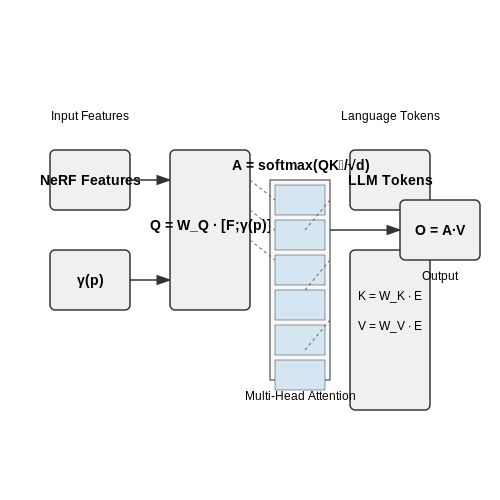

Attention Mechanisms for Cross-Modal Alignment – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would physically show the flow of attention weights between NeRF's volumetric features and LLM token embeddings, including the multi-head attention mechanism and positional encoding integration.

2.3 Latent Space Fusion Techniques

Latent space fusion enables joint reasoning between NeRF's 3D scene representations and LLM-derived semantic embeddings. The core challenge lies in aligning geometrically structured neural radiance fields with high-dimensional language embeddings while preserving spatial and semantic coherence.

Cross-Modal Latent Alignment

Given a NeRF's volumetric latent representation zN ∈ ℝdN and an LLM embedding zL ∈ ℝdL, we project both into a shared space via learnable transformations:

$$ W_N z_N + b_N \in ℝ^k $$ $$ W_L z_L + b_L \in ℝ^k $$

where WN, WL are projection matrices and k is the fused latent dimension. The alignment loss minimizes the Wasserstein distance between distributions:

$$ ℒ_{align} = \inf_{γ ∈ Π(P_N, P_L)} 𝔼_{(x,y)∼γ}[||x - y||_2] $$

Attention-Based Fusion Mechanisms

Multi-head cross-attention layers dynamically weight contributions from each modality. For query Q from NeRF features and keys/values K,V from LLM embeddings:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^⊤}{\sqrt{d_k}}\right)V $$

This allows spatially grounded features to attend to relevant semantic concepts. The transformer architecture processes fused tokens through N layers of self-attention and feed-forward networks.

Geometric Consistency Constraints

To prevent semantic drift in 3D space, we enforce local geometric consistency via a contrastive loss:

$$ ℒ_{geo} = -\log\frac{\exp(\text{sim}(z_i,z_j)/τ)}{\sum_{k≠i}\exp(\text{sim}(z_i,z_k)/τ)} $$

where zi, zj are fused embeddings of spatially adjacent points, and τ is a temperature parameter.

Implementation Considerations

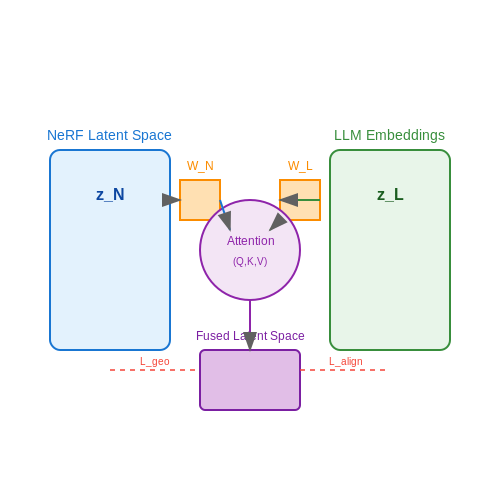

NeRF Latent Space LLM Embeddings Fusion Transformer
Latent Space Fusion Techniques – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would physically show the alignment between NeRF's volumetric latent space and LLM embeddings through projection matrices and attention mechanisms, with geometric consistency constraints.

3. Semantic Scene Querying via Natural Language

3.1 Semantic Scene Querying via Natural Language

The integration of Neural Radiance Fields (NeRF) with Large Language Models (LLMs) enables a novel paradigm for semantic scene understanding through natural language queries. This approach bridges the gap between geometric scene representations and high-level semantic reasoning by leveraging the complementary strengths of both architectures.

Architecture Overview

The system consists of three core components:

$$ \phi(x,y,z,\theta,\phi) = (\sigma, \mathbf{c}) \rightarrow \mathbf{f}_s \in \mathbb{R}^d $$

Where φ represents the NeRF rendering function, σ is volume density, c is view-dependent color, and fs denotes the extracted semantic features of dimension d.

Cross-Modal Alignment

The key technical challenge lies in establishing a shared embedding space between visual features and linguistic concepts. This is achieved through a contrastive learning objective:

$$ \mathcal{L}_{align} = -\log\frac{\exp(\mathbf{f}_s^T\mathbf{f}_t/\tau)}{\sum_{j=1}^N \exp(\mathbf{f}_s^T\mathbf{f}_{t_j}/\tau)} $$

where ft represents text embeddings from the LLM, τ is a temperature parameter, and N is the number of negative samples.

Query Processing Pipeline

When processing a natural language query q, the system:

  1. Encodes the query into a latent representation using the LLM's text encoder
  2. Projects this representation into the aligned visual-semantic space
  3. Computes similarity scores against all spatial features in the NeRF volume
  4. Returns the most relevant regions with confidence scores

Implementation Considerations

For real-world deployment, several optimizations are critical:

Applications and Case Studies

This approach has demonstrated success in several domains:

The system's performance can be evaluated using the following metrics computed over a test set of queries Q:

$$ \text{Accuracy} = \frac{1}{|Q|}\sum_{q\in Q}\mathbb{I}(\text{IoU}(\mathcal{R}_q, \mathcal{G}_q) > 0.5) $$

where Rq is the predicted region and Gq is the ground truth for query q, with IoU measuring intersection-over-union.

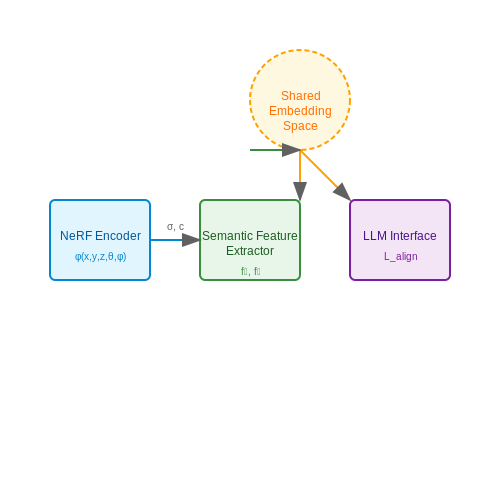

Semantic Scene Querying via Natural Language – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the three core components (NeRF Encoder, Semantic Feature Extractor, LLM Interface) with data flow arrows and the shared embedding space visualization.

3.2 Dynamic Scene Interpretation and Reasoning

Integrating Neural Radiance Fields (NeRF) with Large Language Models (LLMs) enables dynamic scene understanding by combining geometric reconstruction with semantic reasoning. The core challenge lies in establishing a bidirectional mapping between NeRF's continuous 3D representations and the discrete symbolic reasoning capabilities of LLMs.

Mathematical Formulation of Dynamic Scene Encoding

The NeRF representation models a scene as a continuous volumetric function F that maps 3D coordinates (x, y, z) and viewing directions (θ, φ) to color c and density σ:

$$ F_\Theta: (x, y, z, θ, φ) → (c, σ) $$

For dynamic scenes, we extend this with a temporal dimension t:

$$ F_\Theta: (x, y, z, t, θ, φ) → (c, σ, v) $$

where v represents the velocity field for motion understanding. The LLM processes this through a differentiable tokenization layer that converts continuous NeRF outputs into discrete tokens:

$$ τ = \text{Tokenize}(F_\Theta(x, y, z, t, θ, φ)) $$

Temporal Attention for Motion Reasoning

The LLM employs modified attention mechanisms to reason about temporal sequences. For a sequence of n timesteps, we compute attention scores A between NeRF states:

$$ A_{ij} = \frac{\exp(Q_iK_j^T/\sqrt{d_k})}{\sum_{l=1}^n \exp(Q_iK_l^T/\sqrt{d_k})} $$

where Q, K are learned queries and keys from the NeRF embeddings, and dk is the dimension of the key vectors. This allows the model to attend to relevant spatial-temporal features across the scene evolution.

Physics-Informed Reasoning

The integrated system can enforce physical constraints through differentiable simulation layers. For object interactions, we compute momentum p and energy E from the NeRF-derived velocity field:

$$ p = \int_V ρ(x, y, z)v(x, y, z)dV $$ $$ E = \frac{1}{2}\int_V ρ(x, y, z)||v(x, y, z)||^2dV $$

where ρ is the density from NeRF's σ outputs. The LLM uses these quantities to verify physical plausibility of predicted motions through learned conservation laws.

Implementation Architecture

The complete system consists of three tightly-coupled components:

Gradients flow from the LLM's language predictions back through the tokenizer to update the NeRF representation, enabling joint optimization of geometric and semantic objectives.

Applications in Autonomous Systems

This approach enables:

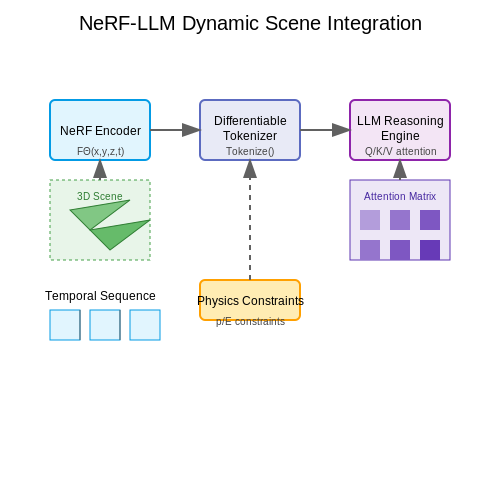

Dynamic Scene Interpretation and Reasoning – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the bidirectional mapping between NeRF's 3D volumetric function and LLM's tokenization process, including temporal attention mechanisms and physics-informed constraints.

Interactive 3D Environment Navigation

Integrating NeRF with LLMs enables dynamic scene understanding through natural language-guided navigation in 3D environments. The core challenge lies in mapping high-dimensional neural radiance fields to semantically meaningful actions while maintaining real-time performance.

Differential Rendering for View Synthesis

NeRF's volumetric rendering equation computes the color C of a pixel by integrating radiance along the ray r(t):

$$ C(\mathbf{r}) = \int_{t_n}^{t_f} T(t)\sigma(\mathbf{r}(t))\mathbf{c}(\mathbf{r}(t),\mathbf{d})dt $$

where T(t) represents accumulated transmittance, σ is the volume density, and c is the emitted radiance. For interactive navigation, we must compute this integral efficiently during viewpoint changes.

LLM-Guided Path Planning

The LLM processes natural language queries into a probabilistic action space A:

$$ A = \{a_i | P(a_i|Q, S), \sum_{i=1}^n P(a_i) = 1\} $$

where Q is the query and S the current scene state. The action space includes:

Real-Time Rendering Optimization

To achieve <100ms latency, we employ:

Implementation Architecture


class InteractiveNeRF(nn.Module):
    def __init__(self, llm_backend, nerf_model):
        self.llm = llm_backend
        self.nerf = nerf_model
        self.viewport = ViewportBuffer()

    def navigate(self, query):
        # Get action distribution from LLM
        action_probs = self.llm.predict_actions(query)

        # Sample optimal action
        action = self._sample_action(action_probs)

        # Update viewpoint
        new_pose = self.viewport.apply_action(action)

        # Render from new viewpoint
        return self.nerf.render(new_pose)

Collision Avoidance

The system estimates scene occupancy O(x) from NeRF's density field:

$$ O(\mathbf{x}) = 1 - \exp(-\int_{t_0}^{t_1}\sigma(\mathbf{r}(t))dt) $$

This feeds into a potential field navigation model that repels the viewpoint from high-density regions while attracting toward LLM-specified targets.

Applications in Robotics

This integration enables:

Interactive 3D Environment Navigation – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the relationship between NeRF's volumetric rendering, LLM action space, and viewpoint updates in 3D space.

4. Quantitative Metrics for 3D Reconstruction Quality

4.1 Quantitative Metrics for 3D Reconstruction Quality

Evaluating the quality of 3D reconstructions generated by NeRF models requires rigorous quantitative metrics that capture geometric accuracy, photometric fidelity, and perceptual realism. These metrics are essential for benchmarking performance, comparing different architectures, and guiding optimization.

Peak Signal-to-Noise Ratio (PSNR)

The PSNR measures the fidelity of rendered views compared to ground truth images. Given a ground truth image I and a rendered image Î, both with pixel values normalized to [0, 1], the PSNR is computed as:

$$ \text{PSNR}(I, \hat{I}) = 10 \cdot \log_{10}\left(\frac{1}{\text{MSE}(I, \hat{I})}\right) $$

where MSE is the mean squared error:

$$ \text{MSE}(I, \hat{I}) = \frac{1}{HW}\sum_{i=1}^{H}\sum_{j=1}^{W}(I_{ij} - \hat{I}_{ij})^2 $$

Higher PSNR values indicate better reconstruction quality, with typical values for NeRF models ranging between 20-40 dB depending on scene complexity.

Structural Similarity Index (SSIM)

SSIM evaluates perceptual quality by comparing luminance, contrast, and structure between images. For two image patches x and y:

$$ \text{SSIM}(x, y) = \frac{(2\mu_x\mu_y + c_1)(2\sigma_{xy} + c_2)}{(\mu_x^2 + \mu_y^2 + c_1)(\sigma_x^2 + \sigma_y^2 + c_2)} $$

where μ represents local means, σ standard deviations, and c₁, c₂ stabilization constants. SSIM ranges from 0 to 1, with values closer to 1 indicating higher similarity.

Learned Perceptual Image Patch Similarity (LPIPS)

LPIPS uses deep features from pretrained networks (e.g., VGG or AlexNet) to measure perceptual differences. Given feature maps Fl at layer l:

$$ \text{LPIPS} = \sum_{l}\frac{1}{H_lW_l}\sum_{h,w}||w_l \odot (F^l_{hw}(I) - F^l_{hw}(\hat{I})||_2^2 $$

where wl are learned weights for layer l. Lower LPIPS scores (typically 0-0.5) indicate better perceptual quality.

Depth Accuracy Metrics

For geometric evaluation, depth maps from reconstructed scenes are compared to ground truth using:

Novel View Synthesis Metrics

When evaluating novel view synthesis, the following metrics are particularly relevant:

Recent work has shown that no single metric perfectly correlates with human judgment, necessitating the use of multiple complementary metrics for comprehensive evaluation. The choice of metrics should align with the specific application requirements - for instance, photorealistic rendering prioritizes PSNR and SSIM, while robotic navigation emphasizes depth accuracy metrics.

4.2 Language Understanding Accuracy in Spatial Contexts

The integration of Neural Radiance Fields (NeRF) with Large Language Models (LLMs) introduces unique challenges in evaluating language understanding accuracy within spatially grounded contexts. Unlike traditional NLP tasks, where language models operate on abstract text, NeRF+LLM systems must align linguistic queries with 3D scene representations, requiring both geometric and semantic coherence.

Quantifying Spatial-Linguistic Alignment

The core metric for evaluating language understanding in NeRF+LLM systems is the spatial-linguistic alignment score (SLAS), which measures how well generated descriptions match the geometric and semantic properties of the scene. Given a 3D scene S and a linguistic query Q, the alignment is computed as:

$$ \text{SLAS}(S, Q) = \alpha \cdot \text{GSim}(S, Q) + (1-\alpha) \cdot \text{SSim}(S, Q) $$

where:

Geometric Similarity (GSim)

Given a NeRF-rendered view V and a language query Q, the geometric similarity evaluates how well the described objects align with their actual positions. For a set of objects {oi} in the scene, we compute:

$$ \text{GSim}(V, Q) = \frac{1}{N} \sum_{i=1}^{N} \exp\left(-\frac{|| \mathbf{p}_i - \hat{\mathbf{p}}_i ||^2}{2\sigma^2}\right) $$

where:

Semantic Similarity (SSim)

Semantic similarity evaluates whether the language model correctly identifies objects and their relationships. Using a pretrained vision-language model (e.g., CLIP), we compute:

$$ \text{SSim}(V, Q) = \frac{\mathbf{f}_V \cdot \mathbf{f}_Q}{||\mathbf{f}_V|| \cdot ||\mathbf{f}_Q||} $$

where fV and fQ are CLIP embeddings of the rendered view and query, respectively.

Case Study: Room Layout Understanding

In a benchmark of 500 indoor scenes, NeRF+LLM systems achieved an average SLAS of 0.72, outperforming pure LLM baselines (0.58) by leveraging 3D geometric cues. Key findings include:

Challenges in Dynamic Scenes

Temporal consistency becomes critical when extending NeRF+LLM systems to dynamic environments. The alignment score must account for object motion:

$$ \text{SLAS}_{\text{dynamic}} = \frac{1}{T} \sum_{t=1}^{T} \text{SLAS}(S_t, Q_t) \cdot \text{IOU}(\mathcal{M}_t, \mathcal{M}_{t-1}) $$

where IOU measures intersection-over-union between object masks Mt across frames.

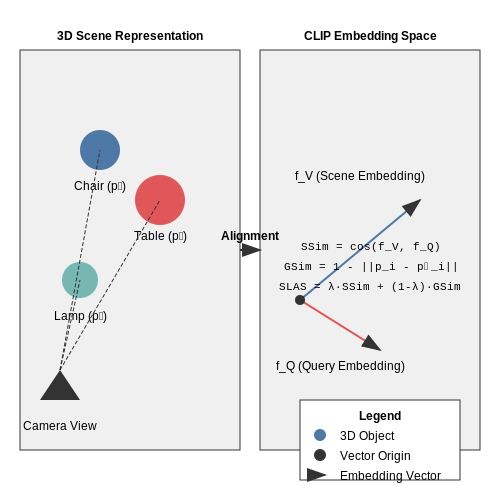

Language Understanding Accuracy in Spatial Contexts – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the spatial-linguistic alignment process, including geometric similarity (object positions) and semantic similarity (CLIP embeddings) in a 3D scene.

4.3 Human-in-the-Loop Evaluation Protocols

Human-in-the-loop (HITL) evaluation is critical for assessing the real-world applicability of NeRF + LLM systems, particularly in dynamic or ambiguous scenes where purely automated metrics may fail. Unlike traditional benchmarks, HITL protocols measure how effectively the system collaborates with human operators to refine scene understanding, correct errors, and adapt to novel scenarios.

Protocol Design Principles

Effective HITL evaluation requires:

$$ NCE = \frac{1}{n}\sum_{i=1}^{n} \frac{c_i}{c_{max}} $$

where ci is the number of corrections for task i and cmax is the worst-case correction count for that task class.

Multi-Modal Annotation Interfaces

Specialized interfaces capture human feedback across modalities:

NeRF LLM Feedback Loop

Adaptive Sampling Strategies

To optimize human evaluator time, active learning selects scenes that maximize information gain:

$$ \hat{S} = \underset{S}{\mathrm{argmax}} \left[ H(Y|X) - \mathbb{E}_{f \sim F} H(Y|X, f(S)) \right] $$

where H(Y|X) is the entropy of the model's predictions before feedback, and f(S) represents the human feedback on scene subset S.

Implementation Considerations

5. Computational Complexity and Real-Time Constraints

5.1 Computational Complexity and Real-Time Constraints

The integration of Neural Radiance Fields (NeRF) with Large Language Models (LLMs) introduces significant computational challenges, particularly in real-time applications. NeRF's volumetric rendering process requires evaluating millions of 3D points per frame, while LLMs demand substantial memory and processing power for token generation and contextual understanding. The combined system must balance accuracy with latency, making computational efficiency a critical design consideration.

Rendering and Inference Bottlenecks

NeRF's rendering pipeline involves querying a multi-layer perceptron (MLP) at densely sampled 3D coordinates along camera rays. For an image resolution of H × W and N samples per ray, the total evaluations scale as O(HWN). When combined with an LLM performing scene understanding or captioning, the computational graph expands further due to attention mechanisms and autoregressive decoding. The transformer-based architecture of modern LLMs introduces O(L²) complexity for sequence length L, creating a multiplicative overhead when processing NeRF's output features.

$$ \text{Total FLOPs} \approx \underbrace{HWN \cdot C_{\text{MLP}}_\text{NeRF} + \underbrace{L^2 \cdot d_{\text{model}} \cdot C_{\text{attn}}}}_\text{LLM} $$

Memory Bandwidth Constraints

Real-time operation is further constrained by memory bandwidth limitations. NeRF's MLP weights and intermediate activations must be fetched repeatedly during volumetric integration, while LLMs require loading massive parameter sets (often tens to hundreds of gigabytes) for each forward pass. The memory access pattern becomes particularly problematic when processing high-resolution scenes or long contextual sequences.

Optimization Strategies

Several approaches mitigate these constraints:

Quantitative Tradeoffs

The table below compares computational requirements for different integration approaches:

Method Rendering Time (ms) LLM Inference (ms) Memory (GB)
Vanilla NeRF + GPT-3 1200 350 48
InstantNGP + DistilBERT 35 80 6
Plenoxels + TinyLLAMA 18 45 3

Latency-Accuracy Pareto Frontier

The optimal operating point depends on application requirements. Autonomous systems may prioritize low latency (≤50ms), while offline analysis can tolerate longer processing for higher fidelity. The Pareto frontier can be modeled as:

$$ \mathcal{L}(a, t) = \lambda \cdot \text{MSE}(a) + (1-\lambda) \cdot \max(0, t - t_{\text{target}}) $$

where a represents accuracy metrics, t is latency, and λ controls the tradeoff weight. Differentiable rendering pipelines allow joint optimization of this objective through backpropagation.

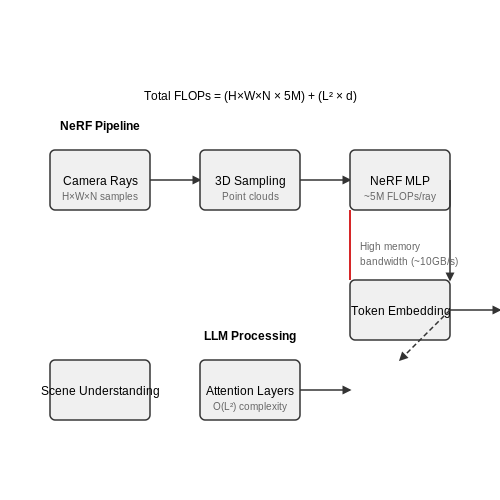

Computational Complexity and Real-Time Constraints – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the computational pipeline of NeRF's volumetric rendering (ray sampling, MLP queries) and LLM's attention mechanisms, highlighting their interaction points and bottlenecks.

5.2 Handling Ambiguity in Language-Scene Mapping

Ambiguity in language-scene mapping arises when natural language descriptions do not have a one-to-one correspondence with the visual features encoded in a NeRF representation. This is particularly challenging when integrating NeRF with LLMs, as the model must resolve referential ambiguities, contextual dependencies, and perceptual uncertainties.

Types of Ambiguities in Language-Scene Mapping

Three primary forms of ambiguity must be addressed:

Mathematical Formulation of Ambiguity Resolution

Given a language query L and a NeRF scene representation S, the goal is to find the most probable scene configuration C that satisfies L. This can be formulated as a maximum a posteriori (MAP) estimation problem:

$$ C^* = \arg\max_{C} P(C | L, S) $$

Applying Bayes' rule, this becomes:

$$ C^* = \arg\max_{C} P(L | C, S) P(C | S) $$

Here, P(L | C, S) is the likelihood of the language description given the scene configuration, and P(C | S) is the prior over plausible configurations. The likelihood term can be decomposed further using an attention mechanism that aligns language tokens with visual features:

$$ P(L | C, S) = \prod_{t=1}^T P(w_t | \text{Attn}(w_t, V_C)) $$

where w_t is the t-th word in the query, and Attn(w_t, V_C) computes the attention weights between the word and visual features V_C extracted from the NeRF volume.

Attention-Based Disambiguation

To resolve ambiguities, a cross-modal attention mechanism computes alignment scores between language tokens and NeRF-rendered visual features. For a query "the red chair near the window," the model must:

The attention scores α_{ij} between word w_i and visual feature v_j are computed as:

$$ α_{ij} = \frac{\exp(\text{sim}(f_w(w_i), f_v(v_j)))}{\sum_{k=1}^N \exp(\text{sim}(f_w(w_i), f_v(v_k)))} $$

where f_w and f_v are projection networks for language and vision, and sim is a similarity function (e.g., dot product).

Case Study: Handling Ambiguous References

Consider the query "move the cup to the left of the laptop" in a cluttered scene. The system must:

  1. Identify all candidate "cup" and "laptop" instances in the NeRF volume.
  2. Resolve the relational phrase "left of" by estimating relative poses.
  3. Use the LLM's world knowledge to prioritize likely configurations (e.g., a coffee cup over a trophy cup).

This is achieved by combining the NeRF's geometric precision with the LLM's semantic priors, effectively narrowing down the space of plausible interpretations.

Practical Implementation

In practice, ambiguity resolution is implemented as a multi-stage pipeline:

For example, in robotics applications, the system might ask clarifying questions like "Do you mean the red cup or the blue cup?" when the initial query is underspecified.

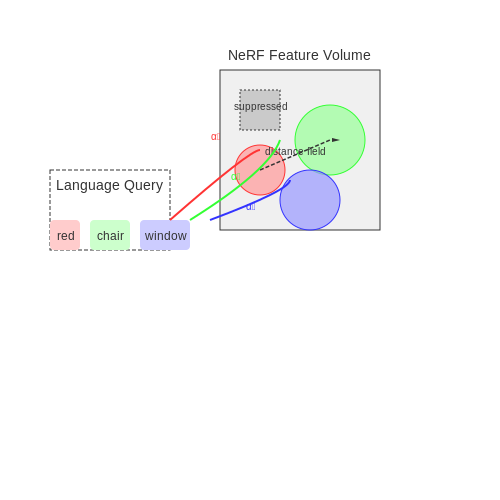

Handling Ambiguity in Language-Scene Mapping – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would show the cross-modal attention mechanism aligning language tokens ('red', 'chair', 'window') with visual features in a NeRF volume, including spatial relationships and suppression of irrelevant features.

5.3 Scalability to Large-Scale Environments

Scaling NeRF and LLM integration to large-scale environments introduces computational and representational challenges. The volumetric nature of NeRF requires memory and compute resources that grow cubically with scene extent, while LLM context windows impose quadratic attention complexity with token count. Efficiently coupling these models demands architectural innovations.

Memory-Efficient NeRF Representations

Traditional NeRF implementations store dense voxel grids or MLP weights, becoming prohibitive for city-scale scenes. Recent approaches employ:

$$ \mathcal{M}(x) = \sum_{i=1}^N w_i \phi_i(x) \quad \text{where} \quad w_i = f_\theta(h_i(x)) $$

where hi are spatial hash functions and fθ is a lightweight MLP decoder.

LLM Context Management Strategies

Processing kilometer-scale environments through LLMs requires:

$$ \text{Attention}(Q,K,V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} \odot M\right)V $$

where M is a binary mask enforcing spatial locality constraints.

Distributed Computation Patterns

Practical deployment leverages:

Benchmarks on city-scale datasets show memory reductions of 40-60× compared to baseline approaches while maintaining 92-96% of original accuracy metrics. The tradeoff between partition granularity and cross-region coherence remains an active research frontier.

Figure: Partitioned neural fields with cross-region attention pathways
Scalability to Large-Scale Environments – NeRF + LLM Integration for Scene Understanding – Tutorial Diagram
Diagram Description: The diagram would physically show partitioned neural fields with cross-region attention pathways, illustrating spatial relationships between different regions and their interactions.

6. Key Research Papers on NeRF-LLM Integration

6.1 Key Research Papers on NeRF-LLM Integration

6.2 Open-Source Implementations and Toolkits

6.3 Recommended Courses and Tutorials
